User Manual
User’s Guide
5" Video Baby Monitor With Wi-Fi® Internet Viewing
Models: MBP855CONNECT, MBP855CONNECT-2,
MBP855CONNECT-3, MBP855CONNECT-4
The features described in this User’s Guide are subject to modifications without prior notice.
Welcome...
to your new Motorola Digital Video Baby Monitor!
Thank you for purchasing the Digital Video Baby Monitor. Now you can see
and hear your baby sleeping in another room or you can monitor your older
children in their play room.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide a copy
of your dated sales receipt to confirm warranty status. Registration is not
required for warranty coverage.
For product-related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you use the Digital Video Baby Monitor, we recommend that you
fully charge the battery that is pre-installed in the Parent Unit, so that it
continues to work if you disconnect it from the power supply. Please read
the Safety Instructions on pages 8 - 10 before you install the Units.
Got everything?
• 1 x Parent Unit
• 1 x Baby Unit (Camera)
• 1 x Power adapter for Parent Unit
• 1 x Power adapter for Baby Unit
• 1 x Stargrip
In multi-camera packs, you will find one or more additional Camera Units
with power adapters.
US and Canada 1-888-331-3383
Email: support@motorolahome.com
On the Web: www.motorolahome.com/support
Overview of the Parent Unit
1. Display (LCD screen)
2. VIDEO ON/OFF button V
Press to turn the LCD screen ON/
OFF. (Note: The audio remains on
when the screen is OFF.)
3. TALK button T
Press and hold to speak to your
baby.
4. RESET button (recessed - use small
pin)
5. UP button +
Normal Mode: Tilt camera Up
Menu Mode: Move Up menu
options
6. DOWN button -
Normal Mode: Tilt camera Down
Menu Mode: Move Down menu
options
7. MENU button M
Press to open / close the Menu
options
8. OK button O
Press to confirm a selection
9. Micro USB power adapter socket
10. LEFT button <
Normal Mode: Pan camera Left
Menu Mode: Move Left along menu
options
11. RIGHT button >
Normal Mode: Pan camera Right
Menu Mode: Move Right along
menu options
12. Charging LED:
Blue when connected to charging
adapter.
13. Parent Unit ON/OFF LED (Green
when Parent Unit is on)
14. Audio Level LEDs (Green when
sound level at Baby end is low and
turns to Red, when the level is high.)
15. Volume buttons
Press - / + to decrease/increase
Volume level on Parent Unit
16. Power button 0
Press and Hold to turn the Parent
Unit ON/OFF
17. Microphone
18. Stand
19. Speaker
7
10
8
9
11
12 13 14 15 16 171
2
5
3
6
4
18
19
Parent Unit menu icons
Signal Level Indication (5 Levels)
Night Vision Mode (Video also changes to Black/White)
TTalk Mod e On
Volume Level Indication (4 Levels)
Panning Camera Left
Panning Camera Right
Tilting Camera Up
Tilting Camera Down
Zoom Level Control (1X, 2X)
Brightness Level Control (8 Levels)
Lullaby Control (5 Sound Selections)
Alarm Setting (6h, 4h, 2h, OFF)
On status bar, indicates alarm set, and when flashing, that alarm time has
been reached or missed.
Temperature scale select (oC / oF)
Readings display in BLUE, but turn RED if > 29ºC / 84ºF, or < 14ºC / 57ºF
Displays HH oC / oF if >36oC / 97oF.
Displays LL oC / oF if < 1oC / 34oF.
Camera Control (scan , view , add , delete )
Set Screen Off Timer (Off , 5 min, 30 min, 60 min)
Indicates the screen off timer is set
Volume Level Control (8 Levels + Off)
Indicates volume is off
No Baby Unit detected
View multiple cameras on screen. Available when you have more than 1
Baby Unit (Camera).
+
V
Overview of Your Baby Unit (Camera)
1. Photo Sensor (Night Vision Mode)
2. Camera Lens
3. Infrared LEDs (x 8, for night vision)
4. Power LED (Blue when on)
On when linked to Parent Unit
Flashes when searching for Parent
Unit
5.
Microphone
6. Camera Battery LED
On when AC power is connected to
camera.
Flashes when the battery level of the
camera is low.
7. POWER ON/OFF switch
8. Temperature Sensor
9. Micro-USB Power Socket
10. PAIR Button
11. Speaker
12. Star Grip or Tripod Mount
13. Antenna
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Units together, you must be able to
establish a radio link between them, and the range will be affected by environmental
conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or
reinforced concrete between the Baby and Parent Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by
radio or electrical equipment, such as TVs, computers, cordless or mobile phones,
fluorescent lights or dimmer switches.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi
®
routers),
Bluetooth™ systems, or microwave ovens, may cause interference with this product,
so keep the Baby Monitor at least 5 feet away from these types of products, or turn
them off if they appear to be causing interference
• If the signal is weak, try moving the Parent and/or the Baby Unit to different positions
in the room(s).
6Table of contents
Table of contents
1. Safety Instructions.................................................................................... 8
2. Getting Started....................................................................................... 11
2.1 Baby Unit Power Supply ........................................................................... 11
2.2 Parent Unit Power Supply ........................................................................ 12
2.3 Registration (Pairing) ................................................................................ 14
3. Using the Baby Monitor.......................................................................... 15
3.1 Setting Up ................................................................................................. 15
3.2 Pan and Tilt ............................................................................................... 15
3.3 Night Vision Mode .................................................................................... 15
3.4 Talk Mode................................................................................................. 15
3.5 Video ON/OFF ........................................................................................ 15
3.6 Temperature Display (HH °C / °F or LL °C / °F) ..................................... 16
4. Parent Unit Menu Options ......................................................................17
4.1 Volume ..................................................................................................... 17
4.2 Brightness ................................................................................................. 17
4.3 Lullaby ...................................................................................................... 17
4.4 Zoom ........................................................................................................ 17
4.5 Alarm ......................................................................................................... 17
4.6 Camera Control ....................................................................................... 18
4.6.1 Add (pair) a camera .................................................................. 18
4.6.2 View a camera ........................................................................... 18
4.6.3 Delete a camera ........................................................................ 19
4.6.4 Scan camera ............................................................................. 19
4.7 Temperature ............................................................................................ 19
4.8 Power Saving Mode ................................................................................. 20
4.9 View multiple cameras on screen ........................................................... 20
5. Wi-Fi® Internet Viewing .........................................................................21
5.1 Minimum System Requirements ............................................................. 21
5.2 Getting Started - Connecting Devices .................................................... 22
5.2.1 Setup ......................................................................................... 22
5.3 User Account and Camera Setup on Android™ Devices...................... 23
5.3.1 Power ON and Connect the Camera...................................... 23
5.3.2 Download Hubble for Motorola Monitors App........................ 23
5.3.3 Run Hubble for Motorola Monitors App on Android™
device ........................................................................................ 23
5.3.4 Add the Camera to your account ............................................. 24
5.4 User Account and Camera Setup on iPhone®/iPad® ............................ 27
5.4.1 Power ON and Connect the Camera ...................................... 27
Table of contents 7
ENGLISH
5.4.2 Download Hubble for Motorola Monitors App ........................27
5.4.3 Run Hubble for Motorola Monitors App on iPhone®/iPad® ...27
5.4.4 Add the Camera to your account............................................. 28
5.5 Camera Functions: ...................................................................................33
5.5.1 Connecting the Camera Unit to power ...................................33
5.5.2 Overview of the Features on Hubble App............................... 33
5.6 Working with PC/Notebook ....................................................................36
5.7 Procedure for Resetting the Camera ...................................................... 36
6. Disposal of the Device (Environment) ...................................................37
7. Cleaning ..................................................................................................38
8. Help .........................................................................................................39
9. General Information ............................................................................... 47
10. Technical Specifications .........................................................................52
8Safety Instructions
1. Safety Instructions
WARNING
:
Strangulation Hazard: Children
have STRANGLED in cords.
Keep this cord out of the reach
of children (more than 3ft away).
Never use extension cords with
AC Adapters. Only use the AC
Adapters provided.
Safety Instructions 9
ENGLISH
WARNING
This digital video Baby Monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This Baby Monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Do not place the Baby Unit or cords in the crib or within reach of the baby
(the unit and cords should be more than 3 feet away)
• Keep the cords out of reach of children.
• Do not cover the Baby Monitor with a towel or blanket.
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the Baby Monitor near water.
• Do not place the Baby Monitor near a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
pack.
CAMERA SET UP & USE:
• Choose a location for the Baby Unit that will provide the best view of
your baby in their crib.
• Place the Baby Unit on a flat surface, such as a dresser, desk, or shelf
or mount the Unit on a suitable Tripod or Stargrip using the screw
mount on the underside of the stand.
• NEVER place the Baby Unit or cords in the crib or within reach of the
baby (the unit and cords should be more than 3 feet away).
10 Safety Instructions
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
The Parent Unit includes a built-in, lithium-ion rechargeable battery pack, which
is not a user-accessible item. If you think the battery needs replacing, please
contact the helpline. Do not try to replace it yourself.
Risk of explosion if battery is replaced by an unapproved battery type.
Dispose of used batteries according to their instructions.
Getting Started 11
ENGLISH
2. Getting Started
2.1 Baby Unit Power Supply
1. Connect the micro USB plug of the power adapter to the Baby Unit
(camera) and the other end to a suitable electrical outlet.
NOTE
Only use the enclosed Power Adapter (5V DC / 1500mA).
2. Slide the POWER ON/OFF switch to the ON position to turn the Baby Unit
on.
3. Slide the POWER ON/OFF switch to the OFF position to turn the Baby
Unit off.
IMPORTANT
The Baby Unit is able to operate without AC power for up to 3 hours with the
support of the built-in rechargeable battery (Ni-MH battery 2.4V, 900mAh).
Please charge the unit for at least 16 hours before first time use. The battery is
not a user-accessible item. Please contact the helpline if you think it needs
replacing.
12 Getting Started
2.2 Parent Unit Power Supply
IMPORTANT
The Parent Unit is assembled with a built-in rechargeable battery pack (Lithium
ion battery 1880mAh, to give up to 5 hours monitor operation), please charge it
for 16 hours before initial use. The battery is not a user-accessible item. Please
contact the helpline if you think it needs replacing.
1. Connect the micro USB plug of the power adapter to the Parent Unit and
the other end to a suitable electrical outlet. Only use the enclosed power
adapter (5V DC / 1500mA) with the micro USB plug.
2. Press and hold the 0 POWER ON/OFF button for 3 seconds to switch ON
the Parent Unit, if it has not turned on automatically.
3. Once the Baby and Parent Units are switched on, the display on the Parent
Unit will show the color video captured by the Baby Unit. If the baby's room
is dark, the video will display in black and white, with a icon showing,
due to the infra-red illumination by the Baby Unit.
4. If there is no connection or you are out of range, the video display will go
off, a symbol will appear on the screen, and the Parent Unit will beep
repeatedly. Move the Parent Unit closer to the Baby Unit until the link is re-
established.
5. Press and hold the 0 POWER ON/OFF button, until the progress bar
finishes scrolling, to turn OFF the Parent Unit.
NOTE
The battery icon turns RED to indicate the battery is low and the parent
unit will beep every 15 seconds. This alert user that the battery needs to be
charged. The parent unit will take 16 hours to charge fully.
Getting Started 13
ENGLISH
When charging
1. If the Parent Unit is turned OFF with the adapter plugged in, a 2-pin plug
logo will appear on-screen for about 5 seconds, and then a flashing battery
logo will display for 15 seconds. The Blue LED at the top left will light up;
indicating that the adapter is plugged in and charging is continuing.
2. While the power is ON and the adapter is plugged in, the battery icon at
the top right corner of the screen will show that the battery is charging. The
Charging LED at the top left of the Parent Unit will light up blue to indicate
that the adapter is plugged in.
14 Getting Started
2.3 Registration (Pairing)
The Baby Monitor is pre-registered to your Parent Unit. You do not need to
register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the procedures
below:
1. Press the M button of the Parent Unit and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted, and
the
del/
add/
view/ scan
menu will pop up.
3. Press the + UP button or - DOWN button to select
add
, and press the
O button to confirm.
4. Camera will pop up, press the + UP button or - DOWN
button to select the desired Camera, and press the O button to start
searching for a camera unit, with "press PAIR on cam" shown.
Note: If a camera is currently paired with the Parent Unit, its camera
location (with a * against it) cannot be selected for a new registration.
5. Press and hold the PAIR button on the underside of the Baby Unit until the
Parent Unit finds the camera, beeps and PAIR OK appears on the screen.
The video from the camera will then appear.
NOTE
If a particular Baby Unit was registered previously, registering this current Baby
Unit again will cancel its old registration.
+
+
___
Using the Baby Monitor 15
ENGLISH
3. Using the Baby Monitor
3.1 Setting Up
• Place the Baby Unit in a convenient location (e.g. on a table) and point the
camera lens towards the area you want to monitor.
• Adjust the angle of the Baby Unit's camera by using the pan and tilt function
(the arrows on the right and left side of the Parent Unit) to move up, down,
left, and right until you are satisfied with the image shown on the Parent Unit
NOTE
Do not place the Baby Unit within the baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and ensure they
are not close to other electrical equipment.
3.2 Pan and Tilt
The camera can be remotely controlled from the Parent Unit when in a camera
viewing mode.
1. Press the + UP button or - DOWN button on the left side of the Parent
Unit to tilt the camera up or down.
2. Press the < LEFT button or > RIGHT button on the right side of the Parent
Unit to pan the camera left or right.
3.3 Night Vision Mode
The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images in
the dark. When the built-in photo sensor on the top of the Unit detects a low level
of ambient light, the LEDs will automatically activate and the screen on the
Parent Unit will display in black and white. The icon will be displayed at the
top of the Parent Unit screen.
3.4 Talk Mode
Press and hold the TALK button T on the Parent Unit to talk to your baby through
the Baby Unit’s loudspeaker. The T will be displayed at the top center of the
Parent Unit screen.
16 Using the Baby Monitor
3.5 Video ON/OFF
Press VIDEO On/Off button to turn the LCD screen on or off, while still
leaving the audio monitor on.
3.6 Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby
Unit will be displayed at the top left of the LCD screen in °C or °F (see 4.7
“Temperature scale” for how to change). The readings will turn RED if the
temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will
change to HH °C / °F if the temperature goes above 36°C / 97°F. The reading
will change to LL °C / °F if the temperature goes below 1°C / 34°F.
The temperature reading updates about every minute.
V
Parent Unit Menu Options 17
ENGLISH
4. Parent Unit Menu Options
4.1 Volume
1. Press the Volume button - or + to adjust the volume level. The icon will
pop up and you can select the desired volume from level 0 - 8. (The default
volume level setting is level 5, and level 0 is OFF .)
4.2 Brightness
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select the desired brightness
from level 1 - 8. (The default brightness is level 4.)
4. Press the M button to close the menu bar.
4.3 Lullaby
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select from the 5 sounds
available. If a sound is selected, it will repeat continuously until it is
deselected or the TALK button is pressed. (The default setting is lullaby
OFF.)
4. Press the M button to close the menu bar.
4.4 Zoom
1. Press the M button and the menu bar will pop up with highlighted.
2. Press the + UP button or - DOWN button to select
1X
or
2X
zoom. (The
default setting is
1X
.)
4.5 Alarm
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select the alarm time (
6h
,
4h
,
2h
). The icon will appear on the upper right of the Parent Unit screen
when alarm is on. (The default setting is Alarm
OFF
.)
18 Parent Unit Menu Options
4. If an alarm time is selected, the Parent Unit will beep for about 1 minute
after every 6, 4 or 2 hour period, and the will flash. Press any button to
stop the alarm.
4.6 Camera Control
4.6.1 Add (pair) a camera
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted, and
the
delete/
add/
view/ scan
menu will pop up.
3. Press the + UP button or - DOWN button to select
add
, and press the
O button to confirm.
4. Camera will pop up, press the + UP button or - DOWN
button to select the desired Camera, and press the O button to start
searching for a camera unit.
Note: Models with more than one camera will have * next to each paired
camera. If a camera is currently paired with the Parent Unit, its camera
location (with a * against it) cannot be selected for a new registration.
5. Press and hold the PAIR button on the underside of the Baby Unit until the
Parent Unit finds the camera, beeps and PAIR OK appears on the screen.
The video from the camera will then appear.
NOTE
A camera can only be registered to one Parent Unit at any one time.
4.6.2 View a camera
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted, and
the
delete/
add/
view/ scan
menu will pop up.
3. Press the + UP button or - DOWN button to select
view
, and press
the O button to confirm.
4. Camera will pop up. Press the + UP button or - DOWN
button to select the desired camera, and press the O button to view the
picture from that camera.
Note: Only camera locations with a * can be selected.
+
+
___
+
___
Parent Unit Menu Options 19
ENGLISH
TIP
Quick method to view cameras instead of entering into the menu bar. Directly
press the O button to toggle between the available Camera options from
. The selected option will appear in the upper right of the
Parent Unit screen.
4.6.3 Delete a camera
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted, and
the
delete/
add/
view/ scan
menu will pop up.
3. Press the + UP button or - DOWN button to select
delete
, and press
the O button to confirm.
4. Camera will pop up, press the + UP button or - DOWN
button to select the desired Camera, and press the O button.
5. Press the + UP button or - DOWN button to select , then press the
O button to delete that registration.
NOTE
You are not allowed to delete the camera if there is only one registered camera
in the system.
4.6.4 Scan cameras
This function is only available when you have more than 1 Baby Unit (Camera).
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted, and
the
delete/
add/
view/ scan
menu will pop up.
3. Press the + UP button or - DOWN button to select
scan
, and press the
O button to confirm.
4. The screen will then display images from different registered cameras in a
loop of Camera , changing about every 12 seconds.
TIP
Quick method to view cameras instead of entering into the menu bar. Directly
press the O button to toggle between the available Camera options from
. The selected option will appear in the upper right of the
Parent Unit screen.
, , , , .
+
___
+
___
, , , , .
20 Parent Unit Menu Options
4.7 Temperature scale
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select
°C
or
°F
.
4. Press the M button to close the menu screen after selection has been
made.
4.8 Power Saving Mode
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select auto video off after
5 mins, 30 mins or 60 mins if operating on batteries only.
4. Press O to select option and close menu screen.
NOTE
The audio will remain and you can press any key to switch the video back on.
4.9 View multiple cameras on screen
This function is only available when you have more than 1 Baby Unit (Camera).
When the Split Screen function is on, you can view multiple cameras on the
screen, although only hear audio from one screen at a time.
1. Press the M button and the menu bar will pop up.
2. Press the < LEFT button or > RIGHT button until is highlighted.
3. Press the + UP button or - DOWN button to select Split Screen On /
Split Screen Off .
4. When the Split Screen function is On, you can press the < LEFT button or
> RIGHT button/ + UP button or - DOWN button to switch between
cameras to hear the audio from the selected camera, indicated by the red
frame.
Note:
When in multi-screen mode the TALK button operates with the selected camera.
If you want to play a lullaby sound through a camera, you must set this before
selecting the multi-screen mode.
Zoom does not work in multi-screen mode.
V
Wi-Fi® Internet Viewing 21
ENGLISH
5. Wi-Fi® Internet Viewing
5.1 Minimum System Requirements
Web Portal
• Windows® 7
• Mac OS® 10.7
• Chrome™ 24
• Internet Explorer® 9
• Safari® 6
• Java™ 7
• Firefox® 18.0
• Adobe® Flash® Player 15.0
Android™ System
• Version 4.2 or above
iPhone®/iPad® iOS
• Version 7.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can test your internet
speed on this site: http://www.speedtest.net)
22 Wi-Fi® Internet Viewing
5.2 Getting Started - Connecting Devices
How does it work?
When a user tries to access the Camera, the Hubble server will authenticate the
user’s identity before it grants access to the Camera.
5.2.1 Setup
• Connect the power adapter to a suitable electrical outlet and insert the plug
into the micro USB socket on the back of the Camera Unit.
• Slide the ON/OFF switch to the ON position.
• The Camera Unit must be within range of the Wi-Fi® router with which you
want to connect. Make sure that you have the password of the router for the
setup process.
Behavior of the status Indicator LED:
Note
You can only setup via a compatible smartphone or tablet, and not via a PC.
Pairing and setting up Flashes slowly in red and blue
Connected Flashes slowly in blue
Paired but not connected Lights up in blue
Ready for connection Flashes slowly in blue
MBP855CONNECT
Camera
Wi-Fi Router
Hubble
Service
Access your
Camera locally. View your Camera from any
compatible device remotely.
Wi-Fi® Internet Viewing 23
ENGLISH
5.3 User Account and Camera Setup on Android™ Devices
What you need
• Wi-Fi® Camera Unit
• Power adapter for the Camera
• Device with AndroidTM system version 4.2 and above
5.3.1 Power ON and Connect the Camera
• Connect the power adapter to a suitable electrical outlet and insert the plug
into the micro USB socket on the back of the Camera Unit.
• Make sure that the ON/OFF switch is in the ON position.
• The Camera’s Red LED flashes after the Camera has finished booting. When
you hear one beep, this means that the Camera is ready for setup.
5.3.2 Download Hubble for Motorola Monitors App
• Go to Google Play™ Store to search for "Hubble for Motorola Monitors".
• Download "Hubble for Motorola Monitors" App from Google Play™ Store
and install it on your Android™ device
5.3.3 Run Hubble for Motorola Monitors App on Android™ device
• Ensure that your Android™ device is connected to your Wi-Fi® router.
• Run the "Hubble for Motorola Monitors" App, select create an account and
enter account information. Read through the Terms of Service, then select
"I agree to the Terms of Use" before you tap
Create
. (Picture A1)
Note
If you already have a Hubble App account, please select Already have an
Account? to go to the next step.
A1
24 Wi-Fi® Internet Viewing
5.3.4 Add the Camera to your account
• Tap on the top right corner of the screen to add camera. (Picture A2)
• The following setup instructions will appear on the screen. (Picture A3)
• Plug in and switch on the camera, and wait for a couple of minutes for it to
warm up.
• Tap
Continue
when the Camera LED starts to blink.
A2
A3
Wi-Fi® Internet Viewing 25
ENGLISH
• The following setup instructions will appear on the screen. (Picture A4)
• Press and hold the
PAIR
button on the underside of the Camera Unit for 3
seconds. You will then hear a beep tone, followed by a voice prompt
indicating that the Camera is ready for pairing.
• Tap
Continue
.
• The App will automatically search for and connect to your Camera as shown
in the pictures below. (Pictures A5, A6)
• The blue/red color LED on the Camera Unit will flash.
A4
A5 A6
26 Wi-Fi® Internet Viewing
• Select your Wi-Fi® Network, enter your password and then tap
Connect
.
(Pictures A7, A8)
• It will take a few minutes for the Camera to connect to the Wi-Fi® network
before showing the connection status. (Pictures A9, A10)
• If connection fails, please tap
Retry
and repeat the steps starting from 5.3.4.
• Tap
View Camera
to view the video captured by the Camera Unit. The LED
indicator on the Camera Unit will flash in blue.
A7 A8
A9 A10
Wi-Fi® Internet Viewing 27
ENGLISH
5.4 User Account and Camera Setup on iPhone
®
/iPad
®
What you need
• Wi-Fi® Camera Unit
• Power adapter for the Camera
• iPhone® / iPad® with iOS version 7.0 and above
5.4.1 Power ON and Connect the Camera
• Connect the power adapter to a suitable electrical outlet and insert the plug
into the micro USB socket at the back of the Camera.
• Make sure that the ON/OFF switch is in the ON position.
• The Camera's red LED flashes after the Camera has finished booting. When
you hear one beep, this means that the Camera is ready for setup.
5.4.2 Download Hubble for Motorola Monitors App
• Go to App Store to search for "Hubble for Motorola Monitors".
• Download "Hubble for Motorola Monitors" App and install it on your iPhone
®
/iPad
®
.
5.4.3 Run Hubble for Motorola Monitors App on iPhone®/iPad®
• Ensure that your iPhone®/iPad® is connected to your Wi-Fi® Router.
• Run the "Hubble for Motorola Monitors" App, select create an account and
enter account information. Read through the Terms of Service, and then
select "I agree to the Terms of Service" before you tap
Create
. (Picture i1)
NOTE
If you already have a Hubble App account, please select Already have an
Account? to go to the next step (Picture i1).
i1
28 Wi-Fi® Internet Viewing
5.4.4 Add the Camera to your account
• Tap
on the top right corner of the screen to add camera. (Picture i2)
• The following Bluetooth setup instructions will appear on the screen if your
Bluetooth is not on. (Picture i3)
i2
i3
Wi-Fi® Internet Viewing 29
ENGLISH
• Tap
Settings
and activate Bluetooth on your iPhone®/iPad®. (Pictures i4,i5)
• Press the HOME key to return to the home screen, then tap on "Hubble for
Motorola Monitors" App to resume setup.
• The following setup instructions will appear on the screen. (Picture i6)
Note that if Bluetooth is on, you will be brought to this step directly.
• Wait for a couple of minutes for the Camera Unit to initialise and when the
Camera LED indicator starts to blink, press and hold the PAIR button on the
underside of the camera, then tap Continue.
i4 i5
i6
30 Wi-Fi® Internet Viewing
• The following will appear on the screen. Select the Camera ID detected on
your iOS® device and tap
Connect
. (Pictures i7, i8)
• Name the location of your Camera Unit and tap
Continue
.
(Pictures i9, i10)
i7 i8
i9 i10
Wi-Fi® Internet Viewing 31
ENGLISH
• The Camera Unit will search for the Wi-Fi® network (Picture i11) and display
a list of available networks. (Picture i12)
• Select your Wi-Fi® network and tap
Continue
. (Picture i13)
• Enter your Wi-Fi® password and tap
Next
. (Picture i14)

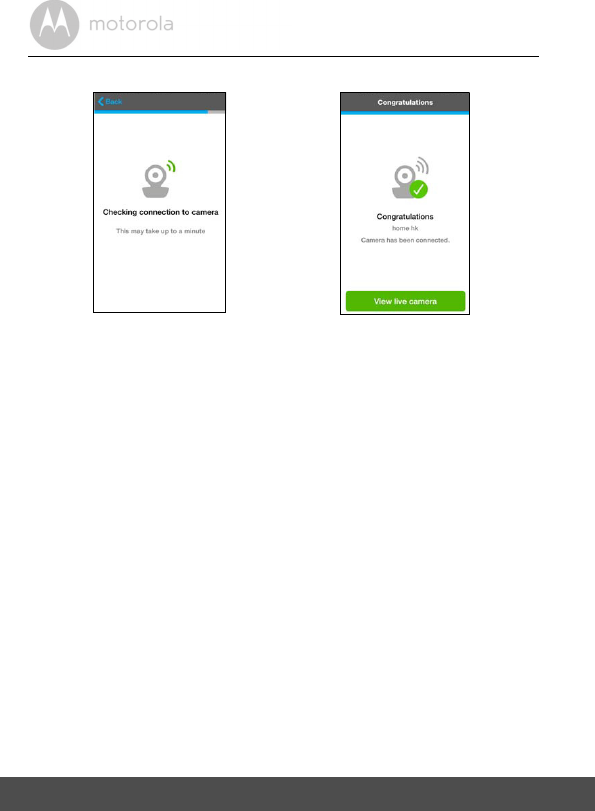

• It will take a few minutes for the Camera Unit to connect to the Wi-Fi®
network before showing the connection status. (Pictures i15, i16)
i11 i12
i13 i14
Wi-Fi® Internet Viewing 33
ENGLISH
5.5 Camera Functions:
5.5.1 Connecting the Camera Unit to power
• Connect the power adapter to a suitable electrical outlet and insert the plug
into the micro USB socket on the back of the Camera Unit.
• Slide the ON/OFF switch to the ON position. The power indicator LED will
light up in green. (Note: To switch off the device, slide the ON/OFF switch to
OFF.)
• Run the Hubble App on your smart device.
5.5.2 Overview of the Features on Hubble App
Menu • Tap
Cameras
to access the camera list.
• Tap
Event Log
to access the video record
list that is triggered by Motion or Sound
detection.
• Tap
Account
to access user
Profile
,
subscription
Plan
,
Notifications
setting,
Remote
Connection Setting
and
About Hubble
Photo/Video • Take a photo or record a video from your
Camera.
• Tap the Video icon to activate Video
function. Tap and hold the red button to
start recording and release to stop.
• Tap the Camera icon to switch to Camera
mode. You can capture photos from Camera
view.
NOTE
Photos and videos will be stored in the internal
flash memory of your smart device, and can be
accessed via the Gallery or Media Player
(AndroidTM Device). To play videos, please use
the Hubble App.
34 Wi-Fi® Internet Viewing
Lullaby Tap to access the
Melody
menu and select one of
the 5 pre-set melodies you wish to play on your
Camera Unit.
Temperature
Measure
The temperature reading from the temperature
sensor at the back of the Camera Unit will display
on the screen of your Android™ device. The
readings will turn RED if the temperature goes
beyond the High/Low temperature that was set in
your Account.
Tw o-way
communication
Tap to activate the function. Press the round
button once to speak through the Camera
Unit. Toggle the button again to listen to the audio
feedback from the Camera Unit.
Speaker Tap to toggle speaker on or off.
Zoom Slide the scroll bar on the right hand side of the
screen to zoom in or zoom out.
You can also use the pinch-in and pinch-out
gestures to zoom out or zoom in a picture.
To use pinch-to-zoom gesture, your device must
support multi-touch technology.
Wi-Fi® Internet Viewing 35
ENGLISH
Camera Setting You can change the Camera settings by tapping
on the
Settings
icon.
• Tap
Details
to review Camera Name, Cloud
Subscription, Change Image, Timezone,
Camera Model, Firmware Version and Delete
All Events.
• Tap
Notifications
to set the sensitivity of Sound
Detection, Motion Detection and to set Alerts
for High temperature (Up to 33 oC or 91 oF) /
Low temperature (down to 10o C or 50 oF).
• Tap
Settings
to set Ceiling mount, Brightness
and Volume.
Add Camera Enter Add Camera procedures.
Delete All Events Tap to delete all events.
Select Events Check the box to select recorded event(s).
Edit Events Tap to select and delete event(s).
Delete Events Tap to delete selected event(s).
36 Wi-Fi® Internet Viewing
5.6 Working with PC/Notebook
• Go to https://app.hubbleconnected.com/#login
Enter your
User Name
and
Password
, and then click
Login
if you have already
created an account. If you have not created an account, click the "Create an
Account" link at the bottom of the webpage.
• Click on the Camera list paired in your account via Android™ device or
iPhone®/iPad®, and the Camera view will appear on screen. You can easily
stay connected with your favorite people, places and pets with live video
streaming.
• On the website, you can change the
Settings
by following the menu
instructions.
5.7 Procedure for Resetting the Camera
Note: If your Camera is moved from one router (e.g. home) to another (e.g.
office) or you have Camera setup issues, then the Camera must be reset. Please
reset the Camera with the following procedures:
1. Slide the ON/OFF switch to OFF.
2. Press and hold the PAIR button. While continuing to hold the PAIR button,
slide the ON/OFF switch to ON.
3. Release the PAIR button when you hear a confirmation beep and wait for
the Camera Unit to complete an internal reset procedure. The LED
indicator will turn red and flash slowly when the Camera Unit is reset
successfully.
4. You can add your Camera again by following the steps in section 5.3.4 for
AndroidTM devices or in section 5.4.4 for iOS® devices.
Disposal of the Device (Environment) 37
ENGLISH
6. Disposal of the Device (Environment)
At the end of the product life cycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.
38 Cleaning
7. Cleaning
Clean your Digital Video Baby Monitor with a slightly damp cloth or with an anti-
static cloth. Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the Digital Video Baby Monitor with thinners or other
solvents and chemicals. This may cause permanent damage to the product
which is not covered by the warranty.
• Keep your Digital Video Baby Monitor away from hot, humid areas or strong
sunlight. Do not let the Digital Baby Monitor get wet.
• Every effort has been made to ensure high standards of reliability of your
Digital Video Baby Monitor. However, if something does go wrong, please
do not try to repair it yourself - contact Customer Service for assistance.
IMPORTANT
Always switch off and disconnect the power adapter before cleaning your
Digital Video Baby Monitor.
Help 39
ENGLISH
8. Help
Display
No display
• Try recharging or replacing the battery pack.
• Reset the Units. Unplug both the Units' electrical power, then plug them back
in.
• Is the Unit switched on?
Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to
switch it ON.
• Is the correct camera selected? Change the camera number, if necessary.
• Is the video display turned on? Press the VIDEO ON/OFF button V to turn it
ON.
• When operating using batteries only, the display will go blank after 5 minutes
or 30 minutes or 60 minutes to save power (depending on video settings).
The Unit is still active and will give you audio alerts. You can reactivate the
screen by pressing any button.
Registration
If the Baby Unit has lost its link with the Parent Unit
• Try recharging or replacing the battery pack on both the Parent Unit and
Baby Unit.
• If the Baby Unit is too far away it may be going out of range, so move the
Baby Unit closer to the Parent Unit.
• Reset both the Parent Unit and Baby Unit by disconnecting them from the
electrical power. Wait about 15 seconds before reconnecting. Allow up to
one minute for the Baby Unit and the Parent Unit to synchronize.
• See 2.3 Registration (Pairing), if there is a need to re-register the Units.
Interference
Noise interference on your Parent Unit
• Your Baby and Parent Units may be too close. Move them further apart.
• Make sure there is at least 1 to 2m between the 2 Units to avoid audio
feedback.
40 Help
• lf the Baby Unit is too far away, it may be out of range. Move the Baby Unit
closer to the Parent Unit.
• Make sure that the Baby and Parent Units are not near other electrical
equipment, such as a television, computer or cordless/mobile telephone.
Move the Baby Unit or Parent Unit 5 feet away from other electrical
equipment.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi® routers),
Bluetooth
™
systems, or microwave ovens, may cause interference with this
product. Keep the Baby Unit or Parent Unit at least 5 feet away from these
types of products, or switch them off if they appear to be causing
interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to different
positions in the rooms.
Noise interference on your device
• To avoid background noise or echoes, ensure that there is enough distance
between your device and the Wi-Fi® Camera Unit.
• Use of other 2.4 GHz products, such as Bluetooth
™
systems or microwave
ovens, may cause interference with this product. Keep the Wi-Fi® Camera
Unit at least 5 feet away from these types of products, or switch them off if
they appear to be causing interference.
Lost connection
• Check your Wi-Fi® settings. If necessary, reconnect your Wi-Fi®. Ensure that
the Wi-Fi® Camera Unit is switched ON. Wait a few minutes to make the
connection with the Wi-Fi® system.
If you forgot your password
• If you do not remember your password, tap
Forgot Password
and submit your
e-mail address. A new password will be sent to your e-mail address
immediately.
Help 41
ENGLISH
Trou b le sh o ot ing for Wi- Fi ® Internet Viewing
Category Problem
Description / Error
Solution
Account I am unable to login
even after registration.
Please check your user name and
password.
Account I receive an error
message saying: "Email
ID is not registered".
Please ensure that you have
registered with us. Tap Create
Account to create an account.
Account What do I do if I forget
my password?
Click on the "Forgot Password" link on
https://app.hubbleconnected.com/
#lostpassword OR on your Android™
or iOS application. An email will be sent
to your registered email address.
Account I am unable to receive a
new password although
I have used the "Forgot
password" option.
1. The e-mail might have been sent
to your Junk Mail Folder. Please
check your Junk Mail Folder.
2. There might be a delay in getting
your e-mail. Please wait a few
minutes and refresh your email
account.
Connectivity
Issues
I get a message: We
are having problems
accessing your
Camera. This could be
due to the lack of an
internet connection.
Please wait and try
again later.
1. Please try again in a few minutes.
This could be because of any
issue with your internet
connection.
2. If the problem remains, please
restart your Camera to check if
this fixes the problem.
3. Please restart your Wireless
Router.
42 Help
Viewing
Camera
When I am in "remote
mode", the video stops
after 5 minutes. How
do I view for longer?
When you are accessing your Camera
via a network different from your
home network (over the internet) your
video times out after 5 minutes.
You can click on the Camera again
from the Android™/iOS application
to start streaming again.
If you are accessing from your web-
browser, then you can press on the
Reload button to start viewing your
Camera video stream again.
Features The sound alert setting
threshold is not right.
You can Adjust Sound Sensitivity to
trigger notifications under Camera
Setting menu.
Setting Up While I am adding a
new Camera to my
account, I am not able
to find any Cameras to
add.
If you are trying to add a Camera
which has previously been added into
your account or another account, you
will first have to reset the Camera. This
can be done by pressing and holding
the PAIR button at the bottom of the
Camera for 5 seconds.
General What are the
supported browsers for
accessing from my PC/
Mac?
We recommend using Google
Chrome 24 or above. However the
following browsers are also supported:
Internet Explorer 9.0 or above (for PC),
Safari 6.0 or above (for Mac) or Firefox
18.0 or above (both PC or Mac).
Help 43
ENGLISH
General What is the
significance of LED
flashing?
A flashing LED indicates the following
status:
Slow flashing: 1. Your Camera is in
setup mode. You can add the Camera
to your account in this mode. Out of the
box, the Camera is in Setup mode. To
reset to Setup mode, press and hold the
PAIR button on the bottom of the
Camera untill you hear a beep.
Slow flashing: 2. The Camera is either
linked to the Parent Unit monitor or a
Wi-Fi® connected device.
LED is stable: The Camera is paired
with the Parent Unit monitor or a Wi-
Fi® connected device, but is not
currently linked with any of them.
Connectivity
Issues
I am not able to access
my Camera.
Please check if the Camera is within
Wi-Fi
®
range. If the LED on your Camera
is flashing slowly, please try to move the
Camera closer to the router for better
Wi-Fi
®
connectivity and try again.
Setting Up During setup on
devices for Android™
and iOS, I am not able
to find my Camera
during the last step and
the setup fails.
Please reset the Camera to setup
mode and try again. Press and hold
the PAIR button on the bottom of the
Camera untill you hear a beep. Wait
for a minute for the Camera to restart.
When the Camera LED is flashing, this
indicates that it is in setup mode. Now
restart the setup from your smartphone
again.
44 Help
Connectivity
Issues
Even though I am
accessing my Camera
from the same Wi-Fi®
network, I still find my
Camera is shown as
remote. I can only
access it for 5 minutes
at a time.
Please check your wireless router
settings. For example, for Buffalo
brand routers there is an option called
Wireless Isolation. Please disable this
option.
Camera When I try to view the
Camera, I get a prompt
for Camera firmware
upgrade. What should I
do?
Please upgrade your firmware. This
takes around 5 minutes. We push
upgrades from time to time to
improve Camera features.
General Which platforms are
supported for
accessing my Camera?
Minimum requirement:
Windows® 7*
*Java browser plug-in needed
Mac OS® version 10.7
Chrome™ version 24
Internet Explorer® version 9
Safari® version 6
Java™ version 7
Firefox® version 18.0
Adobe® Flash® Player 15.0
Android™ 4.2
iPhone® /iPad® iOS version 7.0
General I do not hear any sound
when I am accessing a
remote Camera.
You can tap on the speaker icon in the
video stream screen to hear audio. By
default the audio is not ON when you
are accessing a remote Camera.
General There is a long delay in
the video on my
Smartphone
compared to the
Parent Unit monitor.
The delay will depend on your Wi-Fi
network and its link to the Hubble
server, compared to the direct radio
link between the Parent Unit and the
camera.
Help 45
ENGLISH
General What is the meaning of
"Local Camera" and
"Remote Camera"?
When you are accessing your Camera
from the same wireless network (Home)
in which it is configured,
it is a Local Camera. When you are
accessing your Camera away from your
home it is a Remote Camera. You may
be using 3G, 4G or 4G LTE or a Wi-Fi®
connection outside of your home.
General How do I download the
App for Android™ and
iOS devices?
Android™:
- Open the Google Play Store on
your Android™ device.
- Select Search
- Type in "Hubble for Motorola
Monitors"
- The results will show the Hubble
App
- Select to install it
iOS Device:
- Open the App StoreSM
- Select Search
- Type in "Hubble for Motorola
Monitors"
- The results will show the Hubble
App
- Select to install it
Setting up When the video is cut
off, the application
attempts to reconnect
and this results in lost
sound and choppy
video.
You will need to turn off the Auto Lock
function of your device to ensure
continuous video/audio streaming.
46 Help
Features How many users can
access the Camera at
one time?
If you are accessing in Local Mode,
two users are supported, after two
users all streaming will go through the
remote server. This allows for
unlimited user access to a single
Camera at one time.
Connectivity
issues
I found interference
caused by my other
webcam devices.
Video streaming performance is
related to internet bandwidth,
especially if you have 2 or more video
streaming devices that are working
through the same router.
General Information 47
ENGLISH
9. General Information
If your product is not working properly...
1. Read this User's Guide or the Quick Start Guide.
2. Visit our website: www.motorolahome.com
3. Contact Customer Service at
To order a replacement battery pack for parent Unit, contact customer service.
Consumer Products and Accessories Limited Warranty
("Warranty")
Thank you for purchasing this Motorola branded product manufactured under
license by Binatone Electronics International LTD ("BINATONE")
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory ("Accessory") sold
for use with this product that it manufactured to be free from defects in materials
and workmanship under normal consumer usage for the period outlined below.
This Warranty is your exclusive warranty and is not transferable.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR COUNTRY.
FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION
LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF
DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS
CONFERRED BY THIS LIMITED WARRANTY ARE IN ADDITION TO ALL
RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION
LAWS AND REGULATIONS. FOR A FULL UNDERSTANDING OF YOUR
RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY,
PROVINCE OR STATE.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not
US and Canada 1-888-331-3383
Email: support@motorolahome.com
48 General Information
transferable.
What will BINATONE do?
BINATONE or its authorized distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or Accessories
that do not conform to this Warranty. We may use functionally equivalent
reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR
BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This Warranty gives
you specific legal rights, and you may also have other rights that vary from one
jurisdiction to another.
General Information 49
ENGLISH
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their
rated capacity and/or batteries that leak are covered by this Warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not the fault of MOTOROLA or
BINATONE, are excluded from coverage.
Use of Non-Motorola branded Products and Accessories. Defects or damage
that result from the use of Non-Motorola branded or certified Products or
Accessories or other peripheral equipment are excluded from coverage.
Products Covered Length of Coverage
Consumer Products One (1) year from the date of the
products original purchase by the first
consumer purchaser of the product.
Consumer Accessories Ninety (90) days from the date of the
accessories original purchase by the first
consumer purchaser of the product.
Consumer Products and Accessories
that are Repaired or Replaced
The balance of the original warranty or
for ninety (90) days from the date
returned to the consumer, whichever is
longer.
50 General Information
Unauthorized Service or Modification. Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than MOTOROLA, BINATONE or its
authorized service centers, are excluded from coverage.
Altered Products. Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or parts, are excluded from
coverage.
Communication Services. Defects, damages, or the failure of Products or
Accessories due to any communication service or signal you may subscribe to
or use with the Products or Accessories is excluded from coverage.
How to Obtain Warranty Service or Other Information?
To obtain service or information, please call:
You will receive instructions on how to ship the Products or Accessories at your
expense and risk, to a BINATONE Authorized Repair Center.
To obtain service, you must include: (a) the Product or Accessory; (b) the
original proof of purchase (receipt) which includes the date, place and seller of
the Product; (c) if a Warranty card was included in your box, a completed
Warranty card showing the serial number of the Product; (d) a written
description of the problem; and, most importantly; (e) your address and
telephone number.
These terms and conditions constitute the complete warranty agreement
between you and BINATONE regarding the Products or Accessories purchased
by you, and supersede any prior agreement or representations, including
representations made in any literature publications or promotional materials
issued by BINATONE or representations made by any agent, employee or staff
of BINATONE, that may have been made in connection with the said purchase.
US and Canada 1-888-331-3383
Email: support@motorolahome.com
General Information 51
ENGLISH
FCC and IC regulations
FCC Part l5
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the Federal Communications
Commission (FCC) rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. Privacy of communications
may not be ensured when using this device.
To ensure safety of users, the FCC has established criteria for the amount of radio
frequency energy that can be safely absorbed by a user or bystander according to
the intended usage of the product. This product has been tested and found to
comply with the FCC criteria.
This Class B digital apparatus complies with Canadian ICES-003.
CAN ICES-3(B)/NMB-3(B)
52 General Information
WARNING
Changes or modifications, to this equipment not expressively approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s):
Operation is subject to the following Two conditions:(1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
The term "IC: " before the certification/registration number only signifies that
the Industry Canada technical specifications were met. This product meets
the applicable Industry Canada technical specifications.
FCC RF Radiation Exposure Statement Caution: This Transmitter must be
installed to provide a separation distance of at least 20 cm from all persons.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
IC Radiation Déclaration d'exposition Attention: Cet émetteur doit être installé
pour fournir une distance de séparation d'au moins 20 cm de toute personne.
Technical Specifications 53
ENGLISH
10. Technical Specifications
BABY UNIT
Frequency 2.4GHz to 2.48 GHz
Image sensor color CMOS 1M Pixels
Operating Temperature 0oC - 45oC
IR LED 8 pcs
Power Adapter Ten Pao International Ltd.
S012BEU0500150
Input: 100-240V AC, 50/60Hz, 500mA;
Output: 5.0V DC, 1500mA
WARNING
Use only with supplied power supply.
Battery (built-in) GPI INTERNATIONAL LTD.
2.4V, 900mAh Ni-MH, rechargeable battery pack
(gives up to 3 hours operation)
WARNING
Do not attempt to replace the battery, but
contact Customer Service if it needs replacing.
54 Technical Specifications
PARENT UNIT
Frequency 2.4 GHz to 2.48 GHz
Display 5" diagonal TFT LCD
Display Colors 16.7M color LCD
Operating Temperature 0oC - 45oC
Brightness Control 8 steps
Volume Control 8 steps + Off
Power Adapter Ten Pao International Ltd.
S012BEU0500150
Input: 100-240V AC, 50/60Hz, 500mA;
Output: 5.0V DC, 1500mA
WARNING
Use only with provided power supply.
Battery (built-in) LG Chemical Limited (Motorola BF6X)
3.7V, 1880mAh Lithium-Ion Polymer, rechargeable
battery pack (gives up to 5 hours operation)
WARNING
Do not attempt to replace the battery, but contact
Customer Service if it needs replacing.
Manufactured, distributed or sold by Binatone Electronics International LTD.,
official licensee for this product. MOTOROLA and the Stylized M logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC.
and are used under license. Apple logo and Safari are trademarks of Apple Inc.,
registered in the U.S. and other countries. App Store is a service mark of Apple
Inc. Google Play, Android, and Chrome are trademarks of Google Inc. Wi-Fi is
a trademark of the Wi-Fi Alliance. Internet Explorer and Windows are
trademarks of the Microsoft group of companies. Firefox is a registered
trademark of the Mozilla Foundation. Adobe and Flash are either registered
trademarks or trademarks of Adobe Systems Incorporated. Java is a registered
trademark of Oracle and/or its affiliates. All other trademarks are the property of
their respective owners. © 2017 Motorola Mobility LLC. All rights reserved.
US_EN Version 2.0
Printed in China
