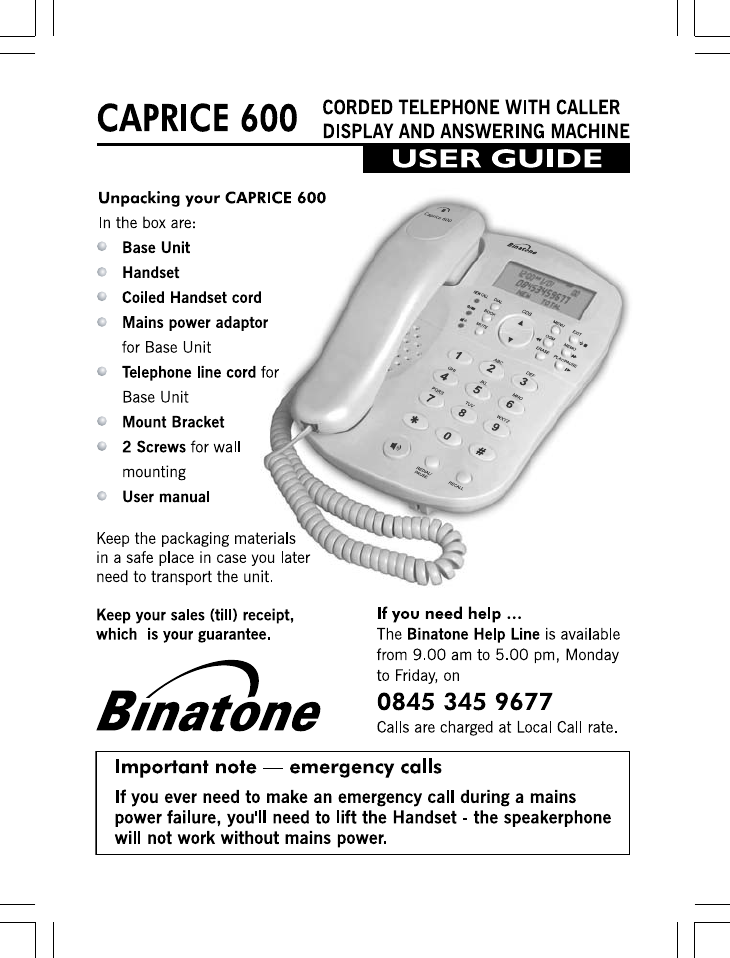

2. Installation

1. Locating the Base unit

The Base unit should be placed on a level surface, in a position where:

the mains adapter plug will reach an easily accessible 230-V AC

switch mains supply socket - never try to lengthen the mains power cable.

the telephone line cable will reach your telephone line socket or

extension socket.

it is not close to a sink, bath or shower, or anywhere else where it

might get wet.

it is not close to other electrical equipment - fridges, washing

machines, microwave ovens, TVs, fluorescent lights, etc.

2. Plug the coiled handset cord into the Handset. Plug the other end into

the jack on the left side of

the Base unit.

3. Place the Handset in the Base unit.

4. Plug the telephone line cord into the PHONE

LINE jack at the back of the Base unit.

Plug the other end into a

modular wall

jack.

5. Plug the power supply

cord into the POWER

jack at the back of the

Base unit. Plug the

other end to a 230 V

AC, 50 Hz mains

socket, with the switch

on the socket set to

OFF.

6. Switch ON the mains

power at the socket.

7. Lift the Handset and

check for Dial tone

in the earpiece.

Always use the telephone line

cord supplied with your Caprice

600. Other telephone line cords

may not work.

The Caprice 600 Base unit must

be used only with the supplied

mains adapter. Using any other

adapter may damage the unit.

Note: The Base unit

does not require a

battery.

3. Desk/Wall mount installation

To place the Caprice 600 on a desk, connect

the stand to the bottom of the phone in the

slots near the ringer cover as shown below.

Desk Mount

Insert the rigid clips of the stand into the slots

on the bottom of the phone (near the ringer

cover). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward (3) as shown below.

To place the Caprice 600 on a wall, connect

the stand to the bottom of the phone in the

slots near the battery cover as shown below.

Wall Mount

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Desk/Wall mount installation continue...

Insert the rigid clips of the stand into the slots

on the bottom of the phone (near the battery

cover). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward as shown below.

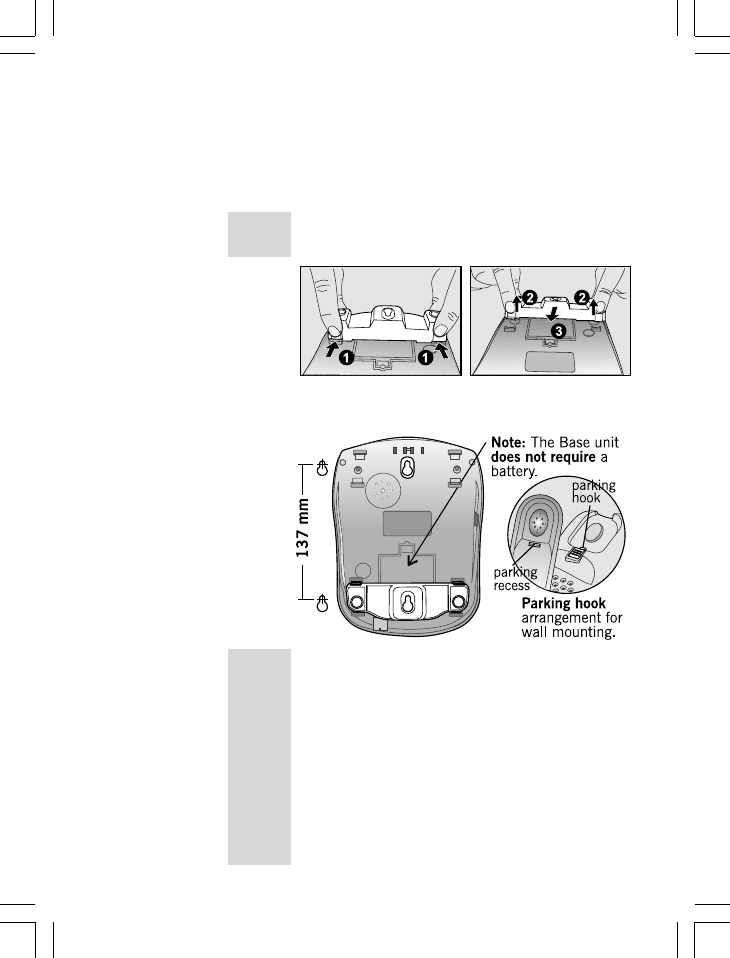

Mark two points on the wall that are 137mm

apart to lay the fixing centers as shown below.

BE CAREFUL to check that there are no

electrical wires hidden in the wall.

Fix two screws (supplied with the unit) at the

marked locations, leaving approximately 7mm

between the wall and the the screw head.

Hang the cradle unit on the screws using the

wall mount slots. You may need to remove the

telephone from the wall and tighten the

screws so that the cradle is securely fixed and

does not wobble. Place the Handset on the

cradle with the parking hook on the cradle

arranged to fit in the parking recess under the

earpiece on the Handset.

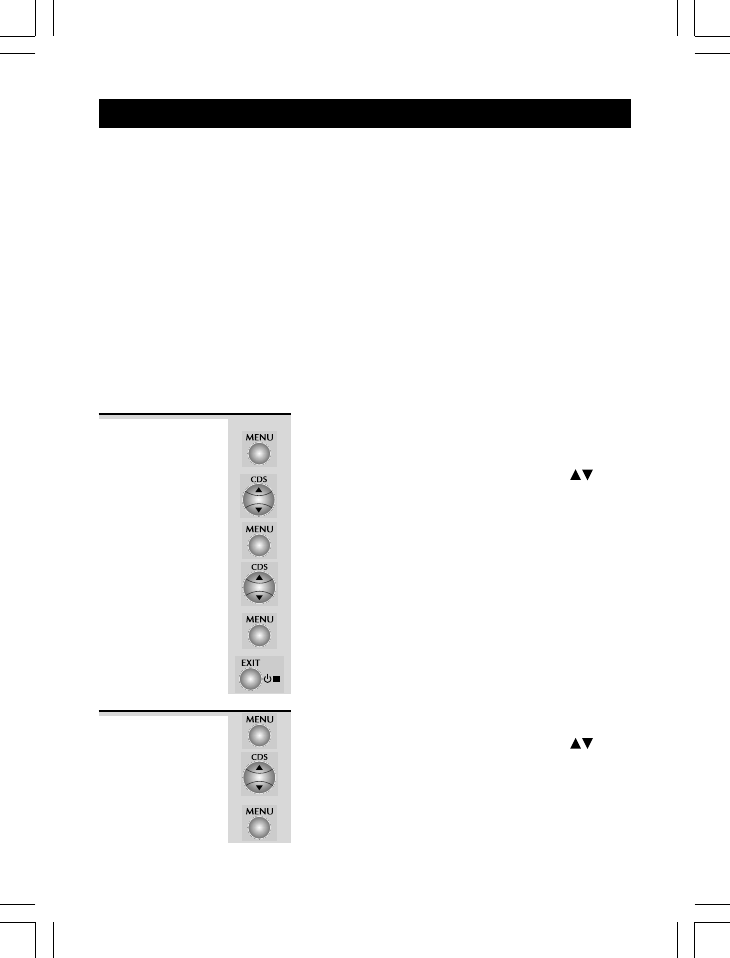

4. Setting up the Caprice 600

The following section details how to set up your

telephone. Press the MENU button to enter the

Options menu and then use the UP or DOWN

buttons to cycle through the following options:

SET LANGUAGE

SET TIME/DATE

SET FLASH TIME

LCD CONTRAST

MESSAGE LENGTH

RINGS TO ANSWER

REMOTE ACCESS

EXIT OPTION

Note: The system will time out if you leave

more than 15 seconds between key presses.

With the phone in standby mode;

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP button to go to the language setting.

ÖThe display shows

SET LANGUAGESET LANGUAGE

SET LANGUAGE

3 Press MENU button to confirm.

4 Press UP or DOWN button to select ENGLISH

(default), FRANCAIS, or ESPANOL.

5 Press MENU button to confirm.

6 Continue with programming, or press EXIT

button to return to standby mode.

SET

LANGUAGE

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

SET TIME/DATESET TIME/DATE

SET TIME/DATE

3 Press MENU button to confirm.

ÖThe ‘year’ icon will be blinking.

SET TIME/

DATE

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Setting up continue...

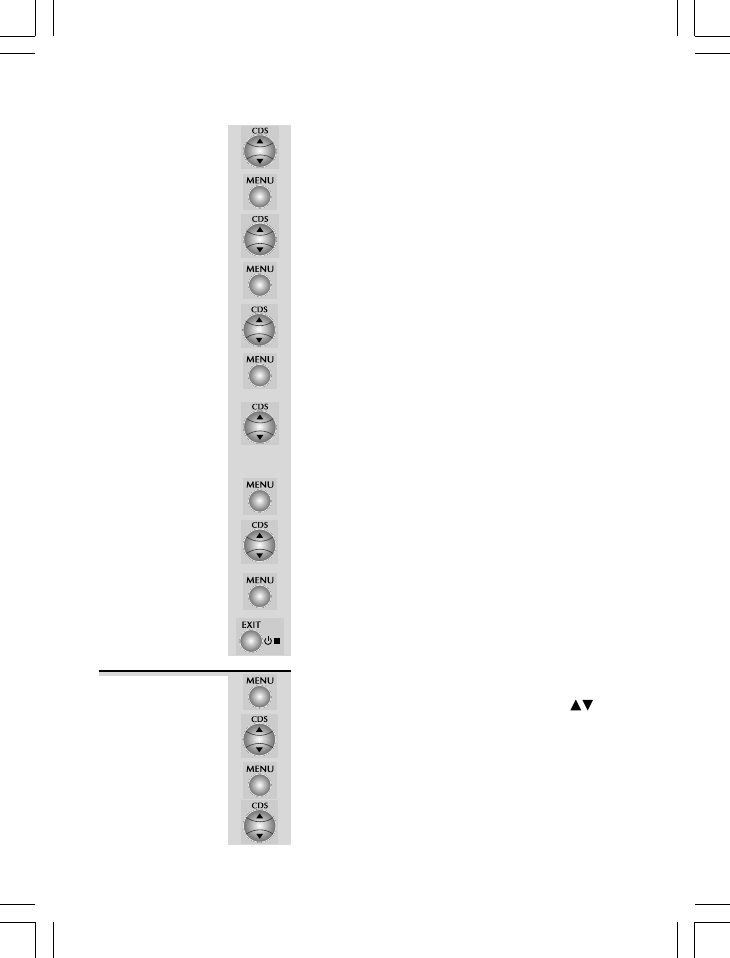

4 Press UP or DOWN button to set the year.

5 Press MENU button to confirm.

ÖThe ‘month’ icon will be blinking.

6 Press UP or DOWN button to set the month.

7 Press MENU button to confirm.

ÖThe ‘date’ icon will be blinking.

8 Press UP or DOWN button to set the date.

9 Press MENU button to confirm.

ÖThe ‘hour’ icon will be blinking.

10 Press UP or DOWN button to set the hour.

ÖWhen setting the ‘hour’, the ‘AM’ or ‘PM’

icon will automatically turn ON to correspond

the hour time.

11 Press MENU button to confirm.

ÖThe ‘minute’ icon will be blinking.

12 Press UP or DOWN button to set the minute.

13 Press MENU button to confirm the TIME and

DATE setting.

14 Continue with programming, or press EXIT

button to return to standby mode.

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

SET FLASH TIMESET FLASH TIME

SET FLASH TIME

3 Press MENU button to confirm.

4 Press UP or DOWN button to select 100MS

(default), 300MS, or 600MS.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

SET FLASH

TIME

Setting up continue...

5 Press MENU button to confirm.

6 Continue with programming, or press EXIT

button to return to standby mode.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

LCD CONTRASTLCD CONTRAST

LCD CONTRAST

3 Press MENU button to confirm.

4 Press UP or DOWN button to select your

comfortable display viewing level (1~5). The

default setting is 3.

5 Press MENU button to confirm.

6 Continue with programming, or press EXIT

button to return to standby mode.

LCD

CONTRAST

To set the recording time for ICM and memo

messages of the Answering machine.

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

MESSAGE LENGTHMESSAGE LENGTH

MESSAGE LENGTH

3 Press MENU button to confirm.

4 Press UP or DOWN button to select 1, 2, 3,

or 4 minutes. The default setting is 2 minutes.

5 Press MENU button to confirm the MESSAGE

LENGTH setting.

6 Continue with programming, or press EXIT

button to return to standby mode.

MESSAGE

LENGTH

Setting up continue...

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

To set the number of rings before the machine

answers a call;

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

RINGS TO ANSWERRINGS TO ANSWER

RINGS TO ANSWER

3 Press MENU button to confirm.

4 Press UP or DOWN button to select TOLL

SAVER, 2, 3, 4, 5, 6, 7, 8, or 9 rings. The

default setting is 6.

ÖUse ‘TOLL SAVER’ when checking your

Caprice 600 for messages from a remote

location using long distance service or from a

pay phone. The Answering machine responds

after the 2nd ring only if you have a new

message waiting. If there are no new messages,

the phone will answer after the 4th ring. You

can then hang up after the 3rd ring to avoid

paying for the call.

5 Press MENU button to confirm.

6 Continue with programming, or press EXIT

button to return to standby mode.

RINGS TO

ANSWER

The REMOTE ACCESS is a three-digit code

you need if you call away from home to check

your messages. The default is 321. You can

change it to any three digits you want.

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

REMOTE ACCESSREMOTE ACCESS

REMOTE ACCESS

3 Press MENU button to confirm.

ÖThe first digit of the code will be blinking.

4 Press UP or DOWN button to set the first digit

of the REMOTE ACCESS code.

REMOTE

ACCESS

Setting up continue...

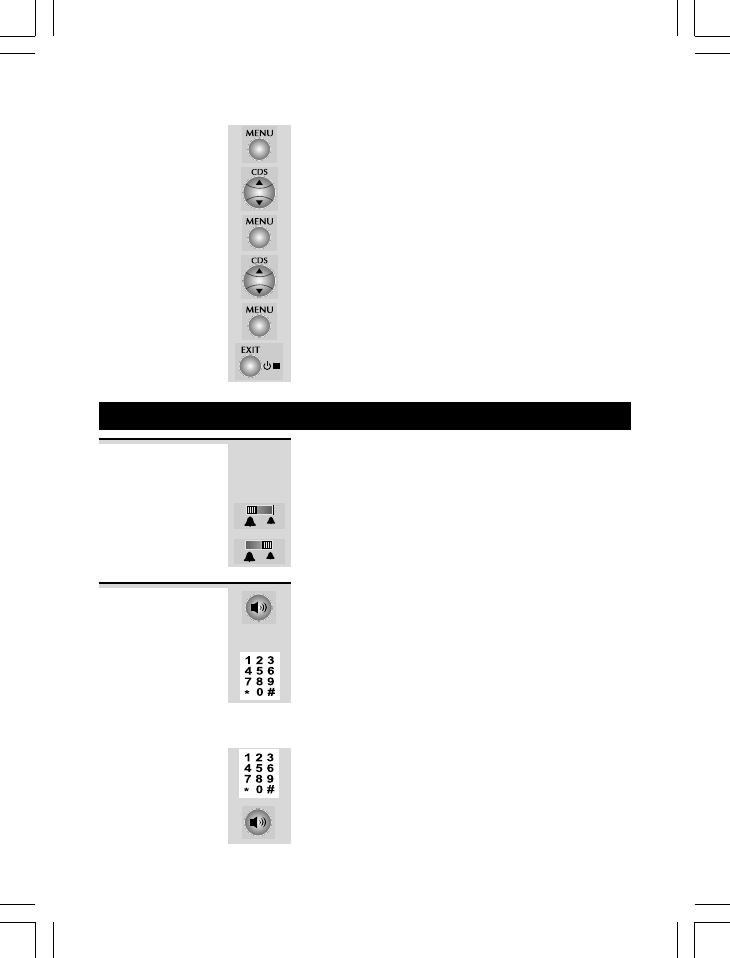

5 Press MENU button to confirm.

ÖThe second digit of the code will be blinking.

6 Press UP or DOWN button to set the second

digit of the REMOTE ACCESS code.

7 Press MENU button to confirm.

ÖThe third digit of the code will be blinking.

8 Press UP or DOWN button to set the third

digit of the REMOTE ACCESS code.

9 Press MENU button to confirm the REMOTE

ACCESS setting.

10 Press EXIT button to return to standby mode.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

5. Telephone Operation

Ringer volume The Ringer High-Low switch located at the

back of the Base unit allows you to adjust the

volume of the ringer.

- High volume

- Low volume

1 Lift the handset or press SPEAKERPHONE

button on the Base unit.

ÖCheck for dial tone.

2 Dial the telephone number.

ÖThe display shows the duration of the call in

minutes and seconds.

Using the Pre-dial mode

1 Dial the telephone number.

2 Lift the Handset or press SPEAKERPHONE

button on the Base unit to dial out the

number.

To make a

call

When the phone rings;

Lift the handset or press SPEAKERPHONE

button on the Base unit.

ÖThe display shows the duration of the call in

minutes and seconds .

To answer a

call

During a call;

Adjust the volume of the speakerphone to your

comfortable volume level using the

SPEAKERPHONE volume switch located at

the right side of the Base unit.

To adjust the

speakerphone

volume

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Telephone operation continue...

To switch

between the

Handset and the

Speakerphone

Replace the Handset on the Base unit cradle

or press SPEAKERPHONE button on the Base

unit.

ÖThe SPEAKERPHONE light indicator will

turn OFF.

To end a call

During a phone conversation through the

Handset, press the SPEAKERPHONE button

to speak hands-free. Replace the Handset on

the Base unit cradle.

While in speakerphone mode, lift the Handset

to enable a private conversation.

During a call, the phone mutes the microphone

or the mouthpiece so that the person on the

other end cannot hear you.

1 Press MUTE button once.

ÖWhile the microphone is muted,

MUTEMUTE

MUTE

will

be shown on the lower right corner of the display.

2 Press MUTE button again to get back to the

call.

To mute the

mouthpiece or

microphone

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

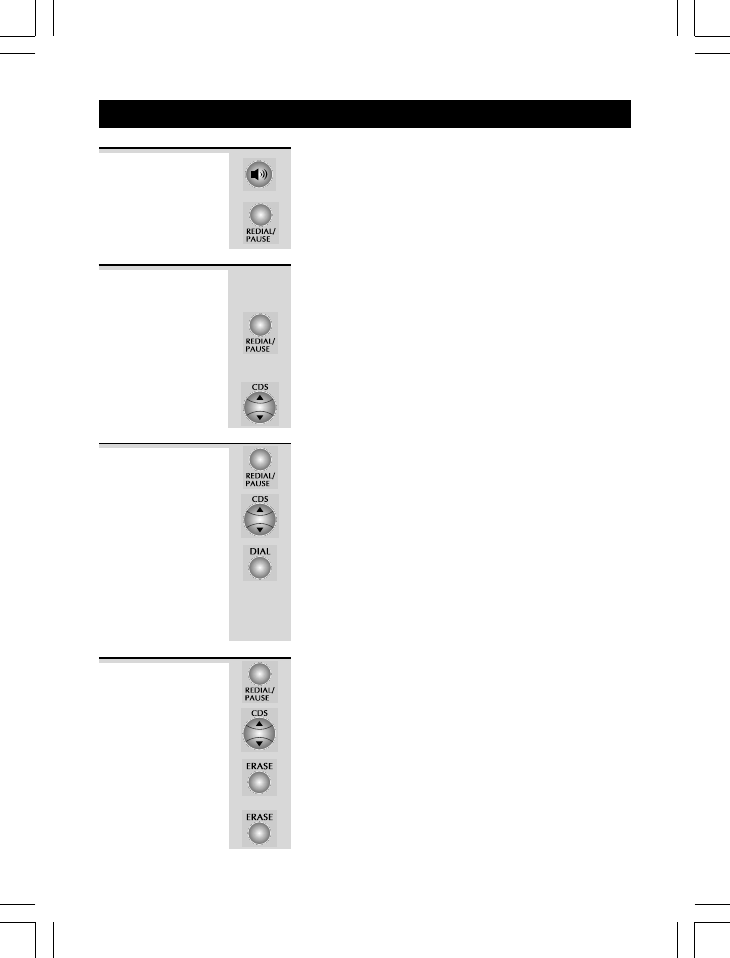

6. Outgoing call record

The telephone remembers the last 10 outgoing

calls.

1 In standby mode, press REDIAL/PAUSE

button.

ÖThe most recent outgoing call record will be

displayed.

2 Press UP or DOWN button to view the other

records.

1 In standby mode, press REDIAL/PAUSE

button.

2 Press UP or DOWN button to find the record

you wish to call.

3 When the number is displayed, press DIAL

button.

ÖThe phone automatically redials the number

using the speakerphone mode. Lift the Handset

anytime to talk privately and to turn the

speakerphone mode off.

1 In standby mode, press REDIAL/PAUSE

button.

2 Press UP or DOWN button to find the record

you wish to delete.

3 When the record is displayed, press ERASE

button.

ÖThe display prompts

DELETE?DELETE?

DELETE?

4 Press ERASE button again to confirm.

ÖThe display shows next record.

Viewing the

Outgoing call

records

Deleting an

Outgoing

call record

Making a

call from the

Outgoing

call record

1 Lift the handset or press SPEAKERPHONE

button.

2 Press REDIAL/PAUSE button.

ÖThe phone automatically redials the last

number you called.

Last

Number

redial

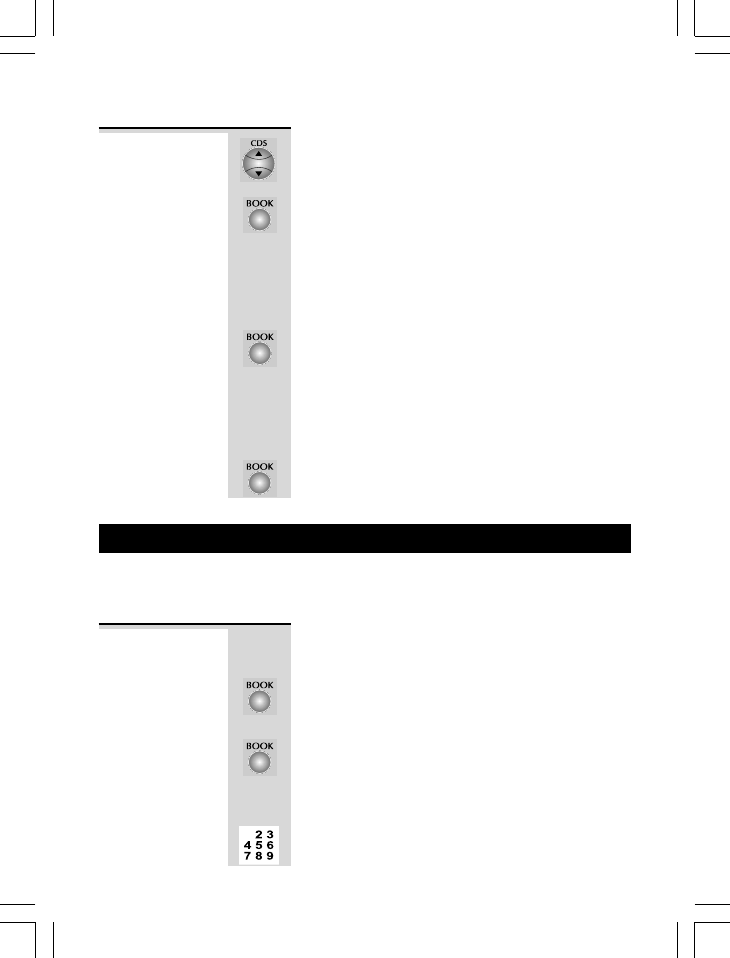

1 When viewing the Outgoing call records, press

UP or DOWN button to find the record you

wish to store.

2 When the record is displayed, press BOOK

button.

ÖThe display shows the cursor blinking on the

first digit of the number.

ÖTo modify the number, press UP or DOWN

button to move the cursor to the number you

want to change then input the new one or press

ERASE button to delete.

3 Press BOOK button to confirm.

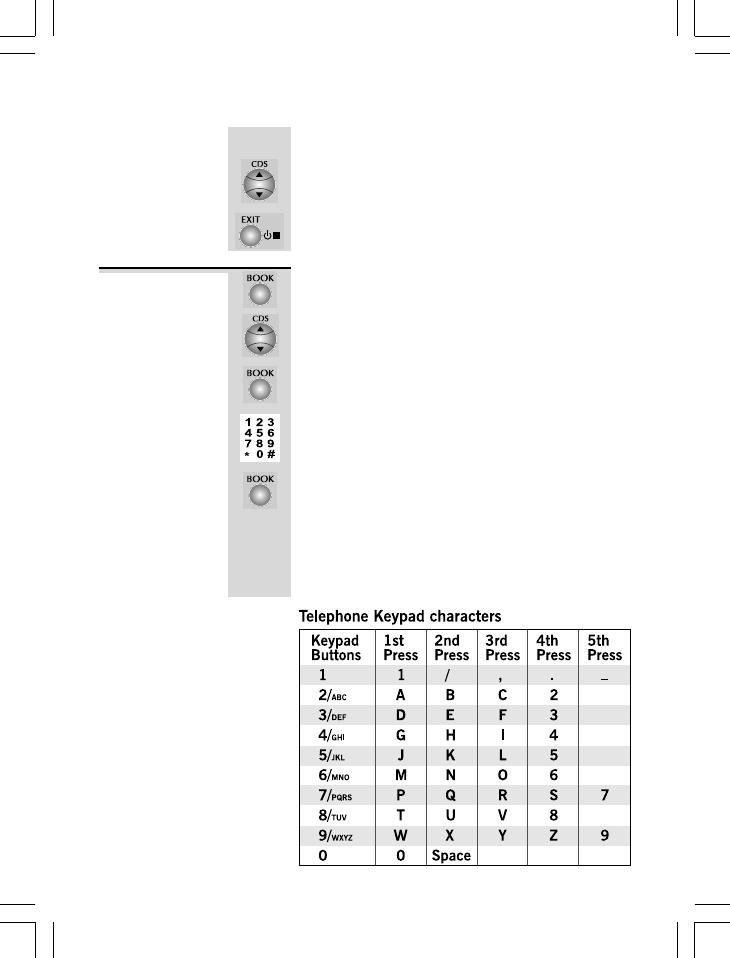

4 Input the name. See page 16 for entering letters.

ÖTo modify an existing name, press UP or

DOWN button to move the cursor to the

character you want to change then input the

new one or press ERASE button to delete.

5 Press BOOK button again to save the record

into the Phonebook memory.

Storing an

Outgoing

call record

into the

Phonebook

memory

Outgoing call record continue...

7. Phonebook

The Phonebook can store up to 120 names

(max. of 15 characters) and telephone

numbers (max. of 24 digits) in the Memory.

1 Make sure the Handset is idle (not connected

to a call).

2 Press BOOK button.

ÖThe display shows

SEARCH ADDSEARCH ADD

SEARCH ADD

, with the

‘SEARCH’ option blinking.

3 Press BOOK button again.

ÖIf the Phonebook memory is empty, the

phone will automatically return to the standby

display. Otherwise, the first alphanumeric

Phonebook entry will be shown.

4 Press NUMERIC key (2/ABC ~ 9/WXYZ) button

that corresponds to the first letter of a Caller’s

To view the

Phonebook

records

name and the search will jump to the first entry

in the Phonebook beginning with that letter.

5 Press UP or DOWN button to scroll through

the other records.

6 Press EXIT button repeatedly to return to standby

mode or wait until the program times out.

1 Press BOOK button.

ÖThe display shows

SEARCH ADDSEARCH ADD

SEARCH ADD

, with the

‘SEARCH’ option blinking.

2 Press UP or DOWN button to select

‘ADDADD

ADDADD

ADD

.’

3 Press BOOK button to confirm.

ÖThe display shows the cursor blinking on the

number field.

4 Input the telephone number, maximum of 24

digits.

5 Press BOOK button to confirm the number.

ÖThe display shows the cursor blinking on the

name field.

6 Input the name, maximum of 15 characters

using keypad buttons 2/ABC to 9/WXYZ.

ÖRefer to the table below to get the following

characters.

To add a

new record

into the

Phonebook

Phonebook continue...

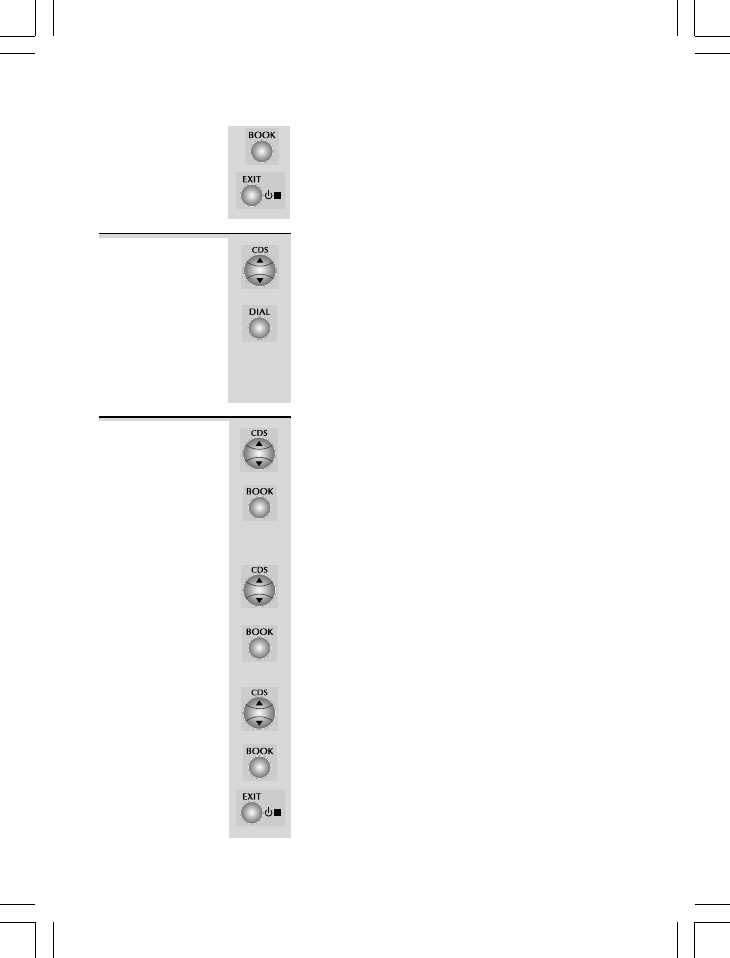

7 Press BOOK button to confirm.

8 Press EXIT button repeatedly to return to

standby mode or wait until the program times

out.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

1 When viewing the Phonebook records, press

UP or DOWN button to find the record you

wish to call.

2 Press DIAL button. The phone automatically

dials the displayed record.

ÖThe Caprice 600 dials the number using

the speakerphone mode. Lift the Handset

anytime to talk privately and to turn the

speakerphone mode off.

To make a

call from the

Phonebook

1 When viewing the Phonebook records, press

UP or DOWN button to find the record you

wish to edit.

2 When the record is displayed, press BOOK

button.

ÖThe display shows the cursor blinking on the

first digit of the telephone number.

3 Press UP or DOWN button to move the cursor

to the digit you wish to change then input

the new one or press ERASE button to delete.

4 Press BOOK button to confirm.

ÖThe display shows the cursor blinking on the

first character of the name.

5 Press UP or DOWN button to move the cursor

to the character you wish to change then input

the new one or press ERASE button to delete.

6 Press BOOK button to save the edited record.

7 Press EXIT button repeatedly to return to

standby mode or wait until the program times

out.

To edit a

stored

number

and/or name

Phonebook continue...

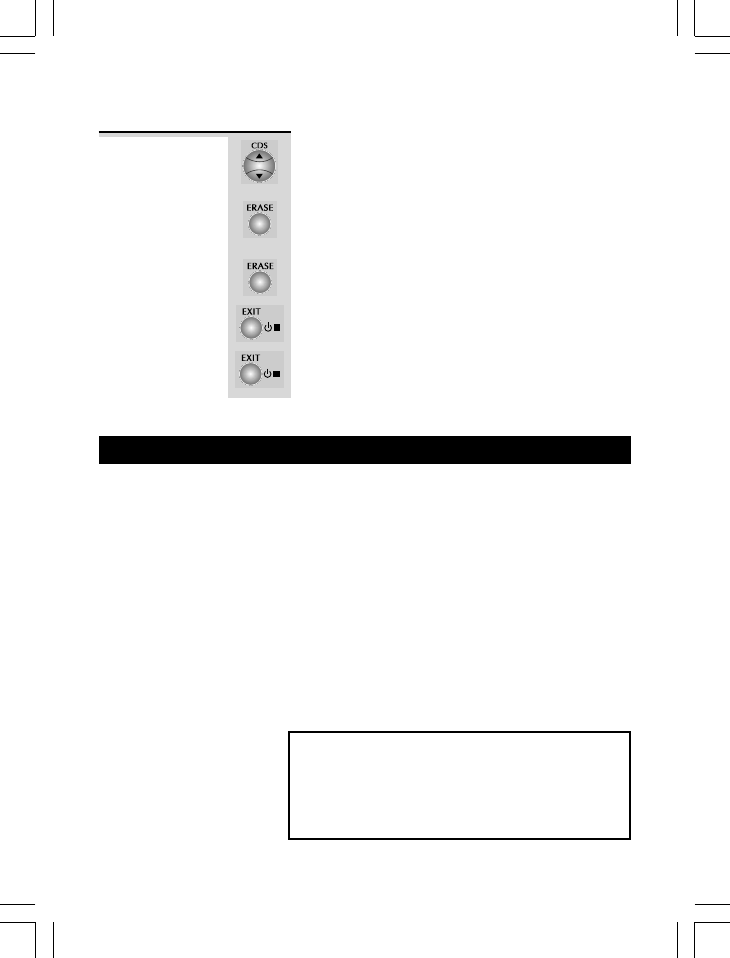

1 When viewing the Phonebook records, press

UP or DOWN button to find the record you

wish to edit.

2 When the record is displayed, press ERASE

button.

ÖThe display prompts

DELETE?DELETE?

DELETE?

3 Press ERASE button again to confirm.

ÖThe display shows next Phonebook record.

OR press EXIT button to cancel and return to

the previous menu.

4 Press EXIT button repeatedly to return to the

standby mode or wait until the program times

out.

To delete a

record from

memory

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

8. Caller Display operation

VERY IMPORTANT: The Caller Display feature

of this product requires a subscription to

Caller Display service from your telephone

company.

If you subscribe to this feature from your local

telephone company, you can see the phone

number of the person calling you before you

answer. The caller display information includes:

The caller’s number (max. 23 digits).

The date and time of the call.

The caller’s name (max. of 15 characters) if

the network sends it.

Note:

1. The Caller Display information will also

include a name from the phonebook if the

incoming number fully matches an entry in

the Phonebook.

The place origin of the Caller Display record

will display a special network message as:

Message Significant

WITHHELDWITHHELD

WITHHELD

The caller hides his

number.

UNAVAILABLEUNAVAILABLE

UNAVAILABLE

The caller’s number is

out of the network area.

Withheld and Unavailable calls are not saved

in the calls list and do not show as missed calls.

Caller Display list

This phone automatically stores the last 99

calls received. It stores the data even if a

power failure occurs. When the caller display

list is full, the new caller display entry will

replace the oldest record.

The NEW CALL light indicator will turn on to

show that you have a new Caller Display call

stored in memory. The light indicator will turn

off only after viewing ALL new caller display

records.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Caller Display operation continue...

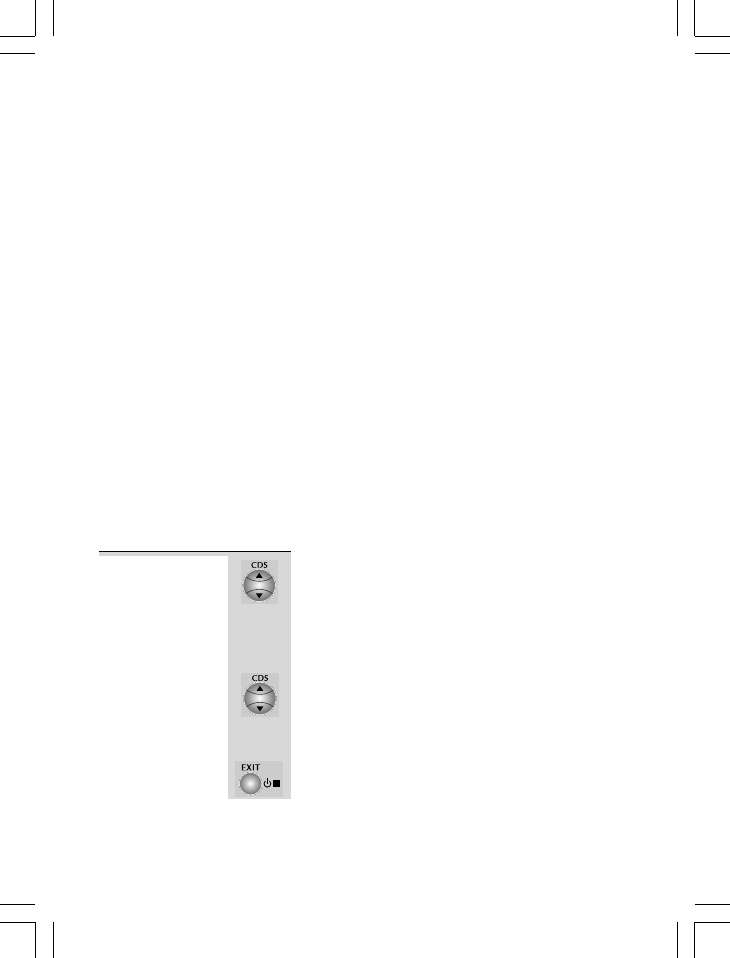

1 With the phone on standby mode, press UP or

DOWN button.

ÖThe display shows the most recent record. If

there are no Caller Display records, the display

will show

NO CALLSNO CALLS

NO CALLS

he ‘MSG’ icon will show to indicate that the

caller has recorded a message.

2 Press UP or DOWN button again to scroll to

the next Caller Display record.

ÖThe display shows

END OF LISTEND OF LIST

END OF LIST

upon

reaching the end of the first and last record.

3 Press EXIT button to return to standby mode

or wait until the program times out.

Viewing the

Caller

Display list

Caller Display operation continue...

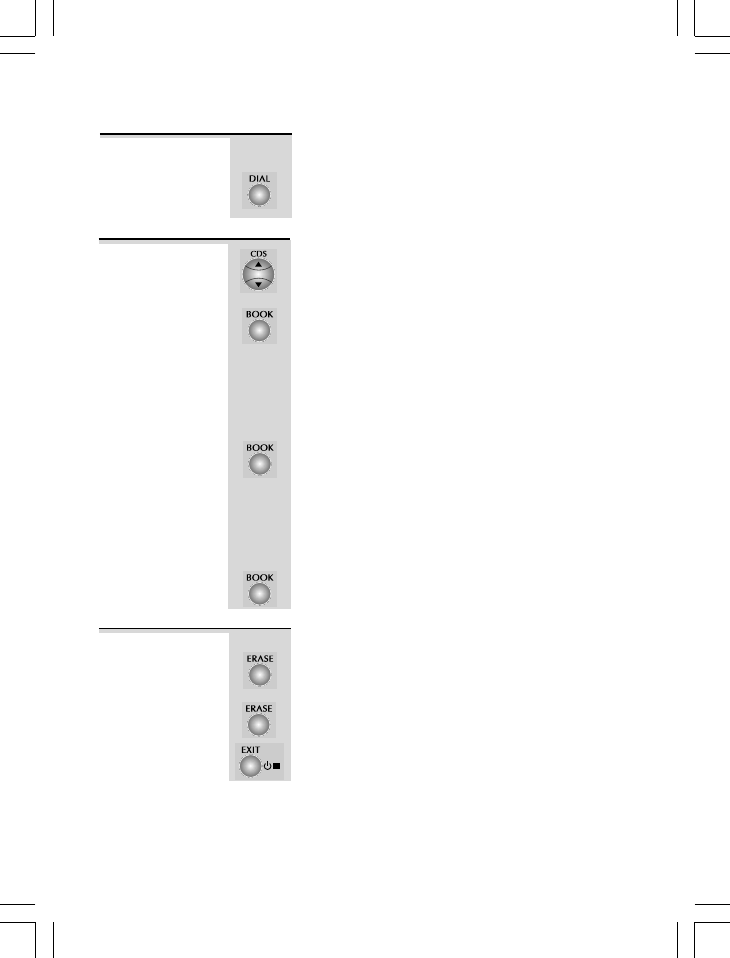

When the Caller Display record is displayed;

Press DIAL button.

The phone automatically dials the

displayed record.

To return a

call from the

Caller’s list

When the Caller Display record is displayed;

1 Press ERASE button.

ÖThe display prompts

DELETE CALL?DELETE CALL?

DELETE CALL?

Press ERASE button again to confirm.

Press EXIT button to return to the standby

mode.

To delete a

Caller Display

record

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

1 When viewing the Caller Display records, press

UP or DOWN button to find the record you

wish to store.

2 When the record is displayed, press BOOK

button.

ÖThe display shows the cursor blinking on the

first digit of the number.

ÖTo modify the number, press UP or DOWN

button to move the cursor to the number you

want to change then input the new one or press

ERASE button to delete.

3 Press BOOK button to confirm.

4 Input the name. See page 15 for entering letters.

ÖTo modify an existing name, press UP or

DOWN button to move the cursor to the

character you want to change then input the

new one or press ERASE button to delete.

5 Press BOOK button again to save the Caller

Display record into the Phonebook memory.

Storing an

Outgoing

call record

into the

Phonebook

memory

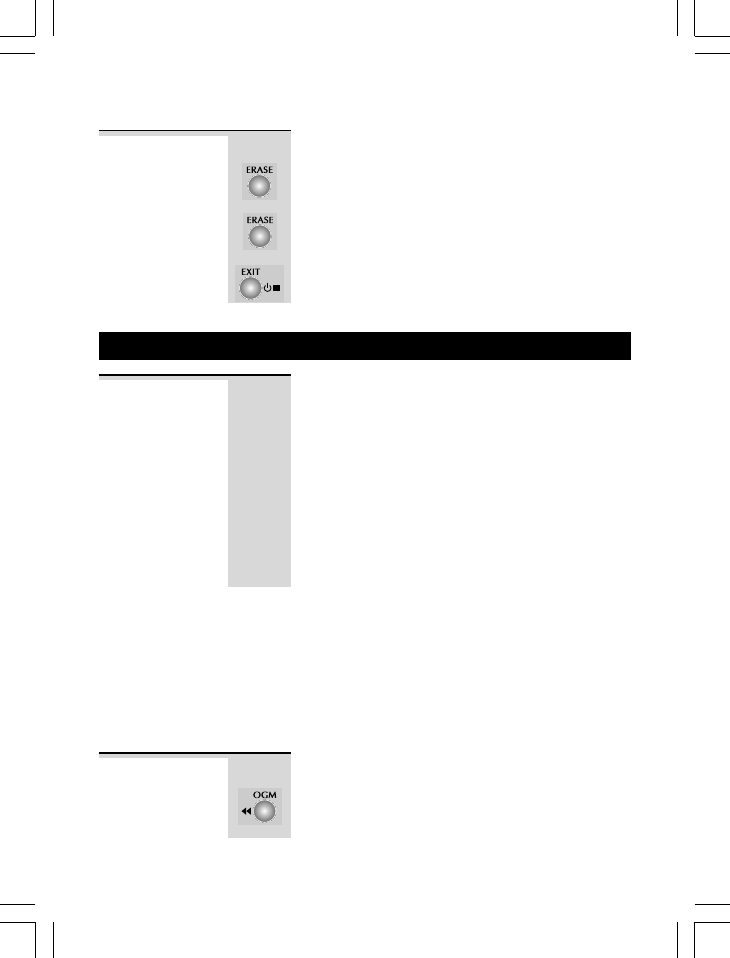

9. Answering Machine system

An OGM is the announcement callers will hear

when the machine answers a call. The Caprice

600 has two pre-recorded announcements

available if you choose not to record your own

OGMs.

OGM1 - this invites callers to leave a

message after the tone. The default is “Please

leave your message after the beep”.

OGM2 - this informs callers to call later and

does not give them the opportunity to leave a

message. The default is, “Please call later.”

Outgoing

Messages

(OGM)

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

When the Caller Display record is displayed.

1 Press and hold ERASE button.

ÖThe display prompts

DEL ALL CALLS?DEL ALL CALLS?

DEL ALL CALLS?

Press ERASE button to confirm.

ÖThe display automatically returns to standby

mode.

OR press EXIT button to cancel and return to

the previous menu.

To delete

all Caller

Display

records

Caller Display operation continue...

The machine has enough memory to record

about 20 minutes of messages (OGM/Caller’s

message/Memo). When there is no further

memory available to record, it will answer after

15 rings and the machine will announce,

“Memory full, please call later.” The display

shows

MEMORY FULLMEMORY FULL

MEMORY FULL and it will be shown

alternately with and

To play the

current

OGM

Make sure the machine is switched on;

Press OGM button.

ÖThe display shows

PLAY OGMPLAY OGM

PLAY OGM

, and plays

the current announcement.

XXXX

MESSAGESMESSAGES

MESSAGES

XXXX

NEWNEW

NEW

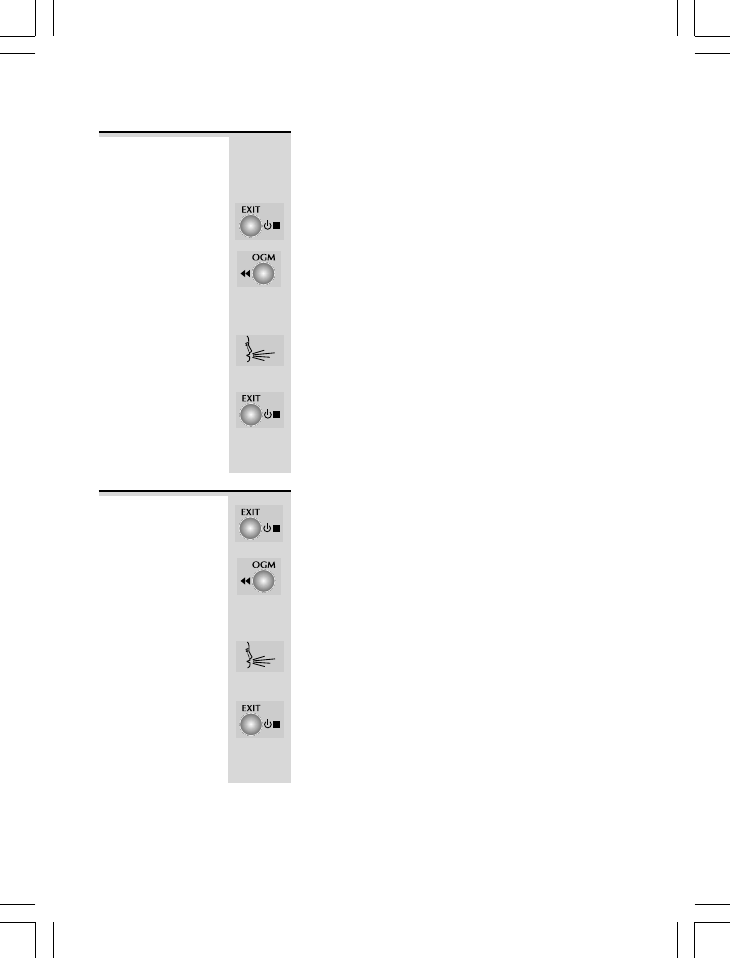

1 After setting the OGM1, briefly press EXIT/

ON-OFF button again. You will hear,

“Announcement 2.”

2 Press and hold OGM button until you hear a

‘beep.’

ÖThe display shows

OGM RECORDINGOGM RECORDING

OGM RECORDING and

the message counter starts to count.

3 Start recording your OGM2. Speak directly

into the Base unit’s Microphone from a

distance of about 15 cms. (6 inches).

4 As soon as you have finished speaking, press

EXIT/ON-OFF button to stop recording.

ÖThe display shows

PLAY OGMPLAY OGM

PLAY OGM, and your

recorded message will be played back for

your approval.

Answering Machine System continue...

To record

OGM 2

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

2 Press and hold OGM button until you hear a

‘beep.’

ÖThe display shows

OGM RECORDINGOGM RECORDING

OGM RECORDING and

the message counter starts to count.

3 Start recording your OGM1. Speak directly

into the Base unit’s Microphone from a

distance of about 15 cms. (6 inches).

4 As soon as you have finished speaking, press

EXIT/ON-OFF button to stop recording.

ÖThe display shows

PLAY OGMPLAY OGM

PLAY OGM, and your

recorded message will be played back for

your approval.

To record

OGM 1

Make sure the answering machine is turned on.

Note: Each OGM must be at least 3 seconds

and no more than 1 minute in length.

1 Press EXIT/ON-OFF button briefly until you

hear, “Announcement 1.”

Answering Machine System continue...

You can record a memo directly into the

machine. The length of the memo message

recording depends on the MESSAGE LENGTH

setting, see page 9.

The memo message will be played back

together with any messages from callers.

1 With the Handset on hook, press and hold

MEMO button until you hear a ‘beep’.

ÖThe display shows

MEMO RECORDINGMEMO RECORDING

MEMO RECORDING

and

the message counter starts to count.

2 Start recording your memo. Speak directly

into the Base unit’s Microphone from a

distance of about 15 cms. (6 inches).

3 As soon as you have finished speaking, press

EXIT/ON-OFF button to stop recording.

ÖDay and time are automatically stamped at

the end of the message.

To record a

memo

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Press and release EXIT/ON-OFF button to

switch between OGM1 and OGM2.

ÖThe machine does not record messages with

OGM2 (Announcement 2) selected; make sure

OGM1 is selected if you want callers to leave

messages.

To switch

between

OGMs

1 Press and hold EXIT/ON-OFF button to turn

ON the answering system.

ÖYou will hear, “Answering machine ON.” The

display shows

ANSWER ONANSWER ON

ANSWER ON

and the MESSAGE

light will light up.

2 Press and hold EXIT/ON-OFF button again to

turn OFF the answering system.

ÖYou will hear, “Answering machine OFF.” The

display shows

ANSWER OFFANSWER OFF

ANSWER OFF

and the

MESSAGE light will turn off.

Note: Once turned OFF, you can still call the

machine and it will answer after 15 rings.

To turn the

Answering

machine ON

or OFF

Answering Machine System continue...

3 Press PLAY/PAUSE button again to restart

message playback, otherwise it will restart

automatically after a 30-second pause.

4 After playing all new messages, press PLAY/

PAUSE button again. The system will play all

of its messages/memos.

To repeat the current message from the

beginning, press OGM/REWIND button.

To replay the previous message, press OGM/

REWIND button twice.

Repeat/Rewind

To skip to the next message, press MEMO/SKIP

button.

Skip/Fast Forward

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

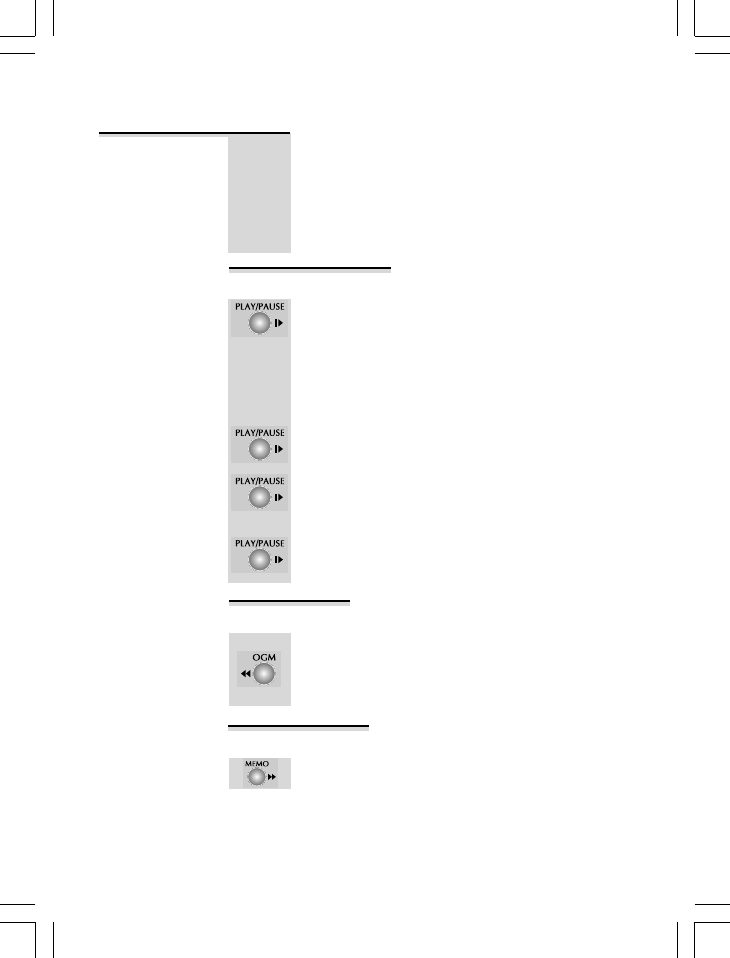

Playback and Pause

1 Press PLAY/PAUSE button. The machine will

play all new messages/memos.

ÖWhile a message is being played, the display

shows

PLAY MESSAGEPLAY MESSAGE

PLAY MESSAGE for received messages

;

PLAY MEMOPLAY MEMO

PLAY MEMO

for recorded memos.

ÖIf there are no messages/memos present, you

will hear, “You have no messages.”

2 To pause a message playback, press PLAY/

PAUSE button again

If you have messages or memos, the display

shows the total number of messages

and the MESSAGE light flashes.

If you have new messages or memos, the

display shows and it will be shown

alternately with the total messages.

To playback

your

message/s

XXXX

MESSAGESMESSAGES

MESSAGES

XXXX

NEWNEW

NEW

Answering Machine System continue...

To delete the current incoming message;

1 During message playback, press ERASE

button.

ÖThe display prompts

DELETE?DELETE?

DELETE?

2 Press ERASE button again to confirm.

ÖAfter the erasure is complete, the numeric

order of the remaining messages will be

rearranged.

To delete

incoming

messages

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

If you hear the answering machine recording

a message, you can intercept the call and

speak to the caller, EITHER by:

Lifting the Handset,

or Pressing the SPEAKERPHONE button on

the Base unit,

or lifting the Handset of any other phone

connected to the same line.

When you have intercepted the call, the

machine will stop recording the caller’s

message.

If you intercept a call within 3 seconds of its

start, you may sometimes need to press EXIT/

ON-OFF button to stop recording.

To intercept

a call

To stop the message playback, press the

EXIT/ON-OFF button.

Stop playback

Use the SPEAKERPHONE volume switch located

on the right side of the Base unit to adjust the

volume of the loudspeaker during playback.

Volume Control

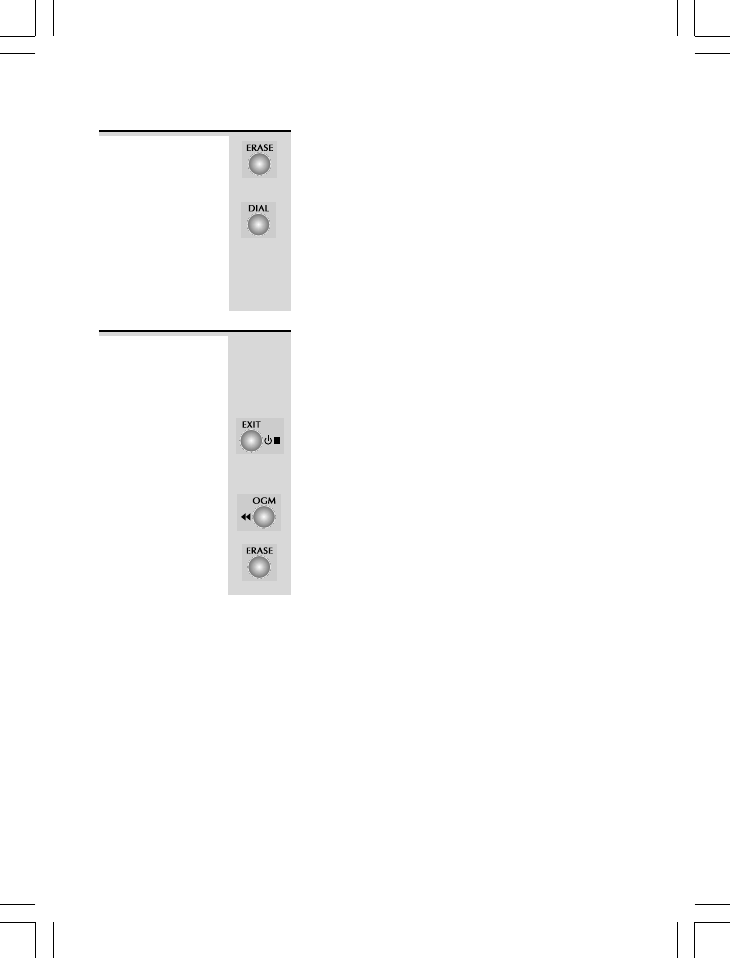

To go back to

the default

OGM

Answering Machine System continue...

If you no longer want callers to hear the OGMs

that you have recorded, you can delete

them and revert to the pre-recorded defaults

as follows:

1 Make sure the machine is switched on.

ÖIf necessary, press and release the EXIT/

ON-OFF button to switch to the OGM you want

to delete.

2 Press the OGM/REWIND button to play the

current announcement.

3 While the announcement is playing, press

ERASE button.

ÖThe machine plays the pre-recorded OGM.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

1 After playing back all of your messages, press

and hold ERASE button.

ÖThe display prompts

DELETE ALL?DELETE ALL?

DELETE ALL?.

2 Press ERASE button again to confirm, you will

hear, “All messages erased.”

ÖThe machine will not delete any messages

that you haven’t yet listened to.

3 The display automatically returns to standby

mode.

To delete all

messages

1 Using a tone dialing phone, dial your home

phone number.

2 Listen to or bypass the OGM.

3 Enter your REMOTE ACCESS Code.

4 Press keypad “2” to playback your messages.

ÖFor other instructions, see the Remote

Intruction code menu shown on the next page.

Notes:

During remote operation, you must press a

key within 10 seconds, otherwise the machine

will cut off your call.

If the machine pauses during playback, press

keypad “2” within 10 seconds to continue.

Otherwise, the machine will cut off your call.

During remote playback, when the machine

stops automatically after 168 seconds (about

2¾ minutes) a key must be pressed within

10 seconds, or the machine will cut you off.

To check

your

messages

from a

remote

location

10. Remote operation

You can use the Answering System features of

Caprice 600 when you are away from home.

To protect your privacy, most of the features

can be used only after you enter the three-digit

REMOTE ACCESS Code.

1 In standby mode, press MENU button.

2 Press UP or DOWN button until the display

shows REMOTE ACCESS.

3 Press MENU button to display your code

setting.

ÖThe default code is ‘321.’

4 Press EXIT button to return to standby mode.

To check

your

REMOTE

ACCESS code

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

The following is the Remote Instruction Code

Help Menu:

To bypass the Outgoing Message, press “*”

To play new messages, press “2”

ÖAfter playing back new messages, press “2”

again to play all recorded messages.

ÖTo pause and restart during message

playback, press “2”

To repeat message, press “1”

ÖTo skip back to the previous message,

press “1” twice

To skip message, press “3”

To play announcement, press “4”

To record greeting, press “5”

To stop function, press “6”

To delete message, press “7”

To set Answer OFF, press “8”

To set Answer ON, press “9”

ÖAfter setting to Answer ON, press “9” to

switch between OGM1 and OGM2,

To delete all messages, press “0” twice

Using the

remote

instruction

code

Remote operation continue...

If the answering machine is switched off, it will

answer your call after 15 rings allowing you

to switch the machine ON from a remote

location;

1 Using a tone dialing phone, dial your home

phone number.

2 When you hear your outgoing message,

press “*”

3 When you hear a ‘beep’, key in your REMOTE

ACCESS code.

4 Press keypad “9” to switch ON.

Switching

ON from a

remote

location

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

11. Operational notes

Electrical safety

DON’T let the Base unit get wet. Electrical equipment can cause serious

injury if used while you are wet or standing in water.

If the Base unit ever falls into water, DON’T retrieve it until you have

unplugged the power lead from the mains and the telephone line plug

from the telephone socket; then pull it out by the unplugged cables.

NEVER use your Caprice 600 outdoors during a thunderstorm -

unplug the Base unit from the telephone line and the mains socket when

there are storms in your area. Damage caused by lightning is not

covered by the guarantee.

Locating the Base unit

The Base unit should be placed on a level surface, in a position where:

the mains adapter plug will reach an easily accessible 230-V AC switch

mains supply socket - never try to lengthen the mains power cable.

the telephone line cable will reach your telephone line socket or extension

socket.

it is not close to a sink, bath or shower, or anywhere else where it might

get wet.

it is not close to other electrical equipment - fridges, washing machines,

microwave ovens, TVs, fluorescent lights, etc.

Cleaning and care

Don’t clean any part of your Caprice 600 with benzene, thinner or

other solvent chemicals - this may cause permanent damage which is

not covered by the Guarantee. When necessary, clean it with a damp

cloth.

Keep your Caprice 600 away from hot, humid conditions or strong

sunlight, and don’t let it get wet.

Every effort has been made to ensure high standards of reliability for

your Caprice 600. However, if something does go wrong, please do not

try to repair it yourself - consult your supplier or the Binatone Help

Line.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

12. Troubleshooting

The Caprice 600 must be serviced by trained engineers. NEVER

attempt any repairs or adjustments yourself - you could make the

problem worse and invalidate the Guarantee.

ALWAYS check you have followed the steps listed in Section 2 to

first that: install and set up your Caprice 600.

all connectors are firmly inserted in their sockets.

mains power is switched on at the socket.

Everyday use

“I cannot make or Make sure you’re using the telephone line cable

answer calls.” that was supplied with your Caprice 600. Other

telephone line cables might not work.

Switch off power at the mains socket, wait for a few

seconds and then switch back on. This may solve

the problem.

“The phone does Make sure you’re using the telephone line cable

not ring” that was supplied with your Caprice 600. Other

telephone line cables might not work.

Set the ringer volume to High, using the switch at

the back of the unit.

Check that the total REN value of all equipment

connected to your telephone line is not more than

4. Disconnect one or more telephones.

“The phone does Make sure you’re using the telephone line cable

not dial” that was supplied with your Caprice 600. Other

telephone line cables might not work.

“The Caller You need to subscribe to Caller Display service

Display feature from your local telephone company. Contact the

isn’t working.” local telephone company for details on how to

subscribe.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Troubleshooting continue...

The caller may have withheld their number by

dialing 141. Or they may be calling from a network

that does not transmit the Caller Display (for

example, it may be an international call).

Be sure to wait until the second ring before

answering.

Answering Machine

“The machine won’t The machine’s memory may be full. You need to

record any delete enough recorded messages to free at least

messages” one minute recording time. Or you can delete all

recorded messages to make room for new ones

Make sure the machine is switched on - the

MESSAGE light should be on.

Make sure you have not selected OGM2 - with

OGM2 selected, callers cannot leave messages

(see page 20).

“Remote operation Make sure you are using the correct remote

doesn’t work.” security code.

Check that you are using a suitable tone-dialling

phone. Some cordless or mobile phones do not

generate continuous tones and so are not ideal for

remote operation.

Don’t leave more than 10 seconds between key

presses; otherwise, your call will be cut off.

Using your Caprice 600 on a PBX

“Last Number Redial When you first make a call, try pressing the REDIAL/

and/or memory PAUSE button for a pause between the outside line

dialing don’t work access digit (e.g. 9) and the telephone number.

on a PBX. You should later be able to redial the number.

When storing numbers in memory, you can include

the outside line access digit (e.g. 9) with each

number.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Troubleshooting continue...

If your PBX requires you to wait for a second Dial

tone before dialing the telephone number, press the

REDIAL/PAUSE button for a pause between the

access digit and the number.

If the fault persists …

Disconnect all other instruments connected to the

same line as the Caprice 600 and see whether you

can make a call.

Disconnect the Base unit from the telephone line

and plug a different phone into the master telephone

socket. Try making a call. If this works, the line is

OK.

If the call does not work, and you are using a two-

way socket adapter, remove it and plug a telephone

directly into the socket. If the call now works, the

adapter may be faulty.

If you cannot make a call, the fault may be on the

exchange line. Contact the service provider (the BT

engineers on 151, or your cable company).

If you still cannot identify the cause of the problem,

contact the Binatone Help Line on 0845 345 9677

Calls are charged at Local Call rate.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

13. Guarantee and service

The Binatone Caprice 600 is guaranteed for 12 months from the date of

purchase shown on your sales receipt. The Guarantee does not cover

damage by misuse or negligence, or by excessive voltages - for example,

faults on the

telephone line, or lightning. This does not affect your statutory rights.

Please keep your sales (till) receipt - this is your guarantee. You should also

keep the original packaging material.

In the unlikely event that you need to return your Caprice 600 to our Repair

Centre while it is under guarantee, there will be a £5 handling charge.

While the unit is under Guarantee

1. Disconnect the Base unit from the telephone line and the mains electricity

supply.

2. Pack up all parts of your Caprice 600, using the original packaging.

Remember to include the mains adapter

3. Return the unit to the shop where you bought it, making sure you take

your sales receipt.

After the Guarantee has expired

If the unit is no longer under Guarantee, first follow steps 1 and 2 as for repair

under Guarantee. Then …

3. Call our Service Department on 0845 345 9677 and ask for a quotation

of the repair charge and details of where to send your Caprice 600 for

repair.

4. Make sure you include with your Caprice 600:

your name and address.

a cheque or postal order for the value of the repair charge.

5. Return your Caprice 600 to the address given by the Service

Department.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

14. Technical details

Standard Corded Telephone with Caller Display and Answering

Machine

Temperature range Operating 0 ºC to 40 ºC

Storage -20 ºC to 60 ºC

Electrical power Base unit - input 230 V AC, 50 Hz;

output DC 6 V, 350 mA; 2.1 VA; polarity

Declaration of conformity

The Binatone Caprice 600 complies with the essential protective

requirements and objectives of:

EC Low Voltage Directive 73/23/EEC

EC EMC Directive 89/336/EEC

and conforms to the following relevant harmonized standards:

Safety: EN 60950

Other: I-CTR37, CTR38,

EN55-022, EN55024

Binatone operates a policy of continuous product improvement, and so

reserves the right to make changes to the product and functions without

notice.

Waste electrical products must not

be disposed of with household waste.

This equipment should be taken to

your local recycling centre for safe

treatment.

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Connection and conditions for use

You can connect your Caprice 600 to a direct exchange line (DEL) - a line

connected to a local exchange, with its own phone number; to an extension

socket connected to a DEL; or to an extension on an approved compatible

PBX. Do not connect the Caprice 600 as an extension to a payphone.

The ringer equivalence numbers (RENs) of all instruments (phones, fax

machines, etc.) connected to an exchange line must not add up to more

than 4 - otherwise, one or more of them may not ring and/or answer calls

correctly. The Caprice 600 has a REN of 1, and most other telephones have

a REN of 1 unless marked otherwise.

Contents of this User Guide

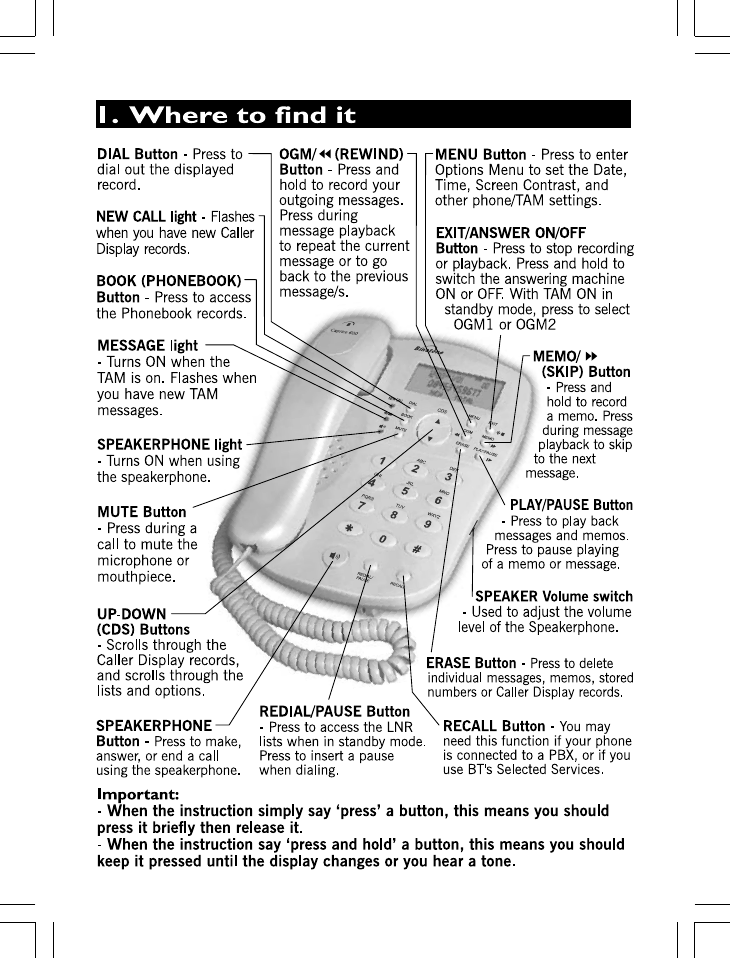

1. Where to find it

2. Installation

3. Desk/Wall mount installation

4. Setting up the Caprice 600

5. Telephone operation

6. Outgoing call record

7. Phonebook

8. Caller Display operation

9. Answering Machine system

10. Remote operation

11. Operational notes

12. Troubleshooting

13. Guarantee and service

14. Technical details

Pressing buttons on your phone

When the instructions in this user guide tell you simply to ‘press’ a

button, this means that you should press the button briefly, then

release it.

When the instructions tell you to ‘press and hold’ a button, this means

you should keep the button pressed until the display changes and/or

you hear a tone.

If you need help …

The Binatone Help Line is

available from 9.00 am to

5.00 pm, Monday to Friday, on

0845 345 9677

Calls are charged at Local Call

rate.

UK (BTP) Ver 2 June 06

Binatone Caprice 600 Users Manual Man_cap_600_a.p65

caprice600 04d96976-4d0d-4425-9424-d9dd107d4897 Binatone Telephone CAPRICE 600 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
