User Manual
ActivePERS
Active Personal Emergency Response System
Model Number: AP001V2
Introduction
ActivePERS is a personal emergency response pendant with patented and clinically
validated automatic fall detection algorithms developed by BioSensics LLC. The key
features and benefits of the ActivePERS technology include detecting falls with clinically
validated and patented algorithms that virtually eliminate false alarms, monitoring the
number of steps taken, and notifying providers when the pendant is not worn by the
subscriber.
This manual describes basic features of ActivePERS AP001V2.
Detecting a Fall
In the case of a fall detected automatically, the LED will turn on, and a fall alert
message will be transmitted.
Sending Heartbeat Messages
AP001V2 sends heartbeat messages every hour. These messages contain the
accumulated activity information, with values determined by the number of steps.
Sending Panic Signal
To send a panic signal, press and release the button. The LED should turn on upon
release, and a message will be transmitted to indicate the panic.
Clearing Alarm
To clear an alarm and turn off the LED, press and hold the button until the LED turns off,
which will take approximately 10 seconds. This will transmit a clear alarm message.
The LED will turn on and remain on after sending a fall or a panic signal. Sending a
clear alarm signal will turn the LED off.
Specifications
Dimension: 2.165” x 1.468” x 0.603”
RF Transmission Frequency: 345 MHz
Operating Temperature: -10ºC to 60ºC
Battery Type: CR2450 Lithium
Battery Life: 1 year
Battery Voltage: 3.0V

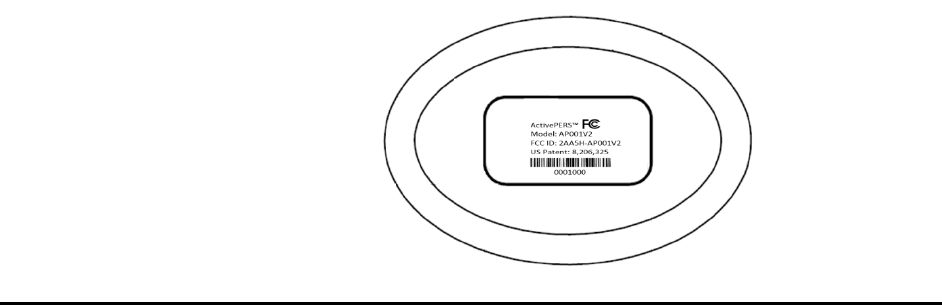

FCC ID: 2AA5H-AP001V2
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
NOTE: Changes or modifications not expressly approved by BioSensics LLC could void
the user’s authority to operate this equipment.
Battery Warning
This product contains a lithium battery. Lithium batteries can explode, leak, catch fire or
cause burns if not handled appropriately. Do not disassemble, puncture or crush battery.
Avoid exposure to water, fire or high temperatures. Properly dispose of battery.
