100 User's Guide
Bases
Replace the L300 electrode bases if they appear worn or damaged.
To replace the L300 electrode bases:

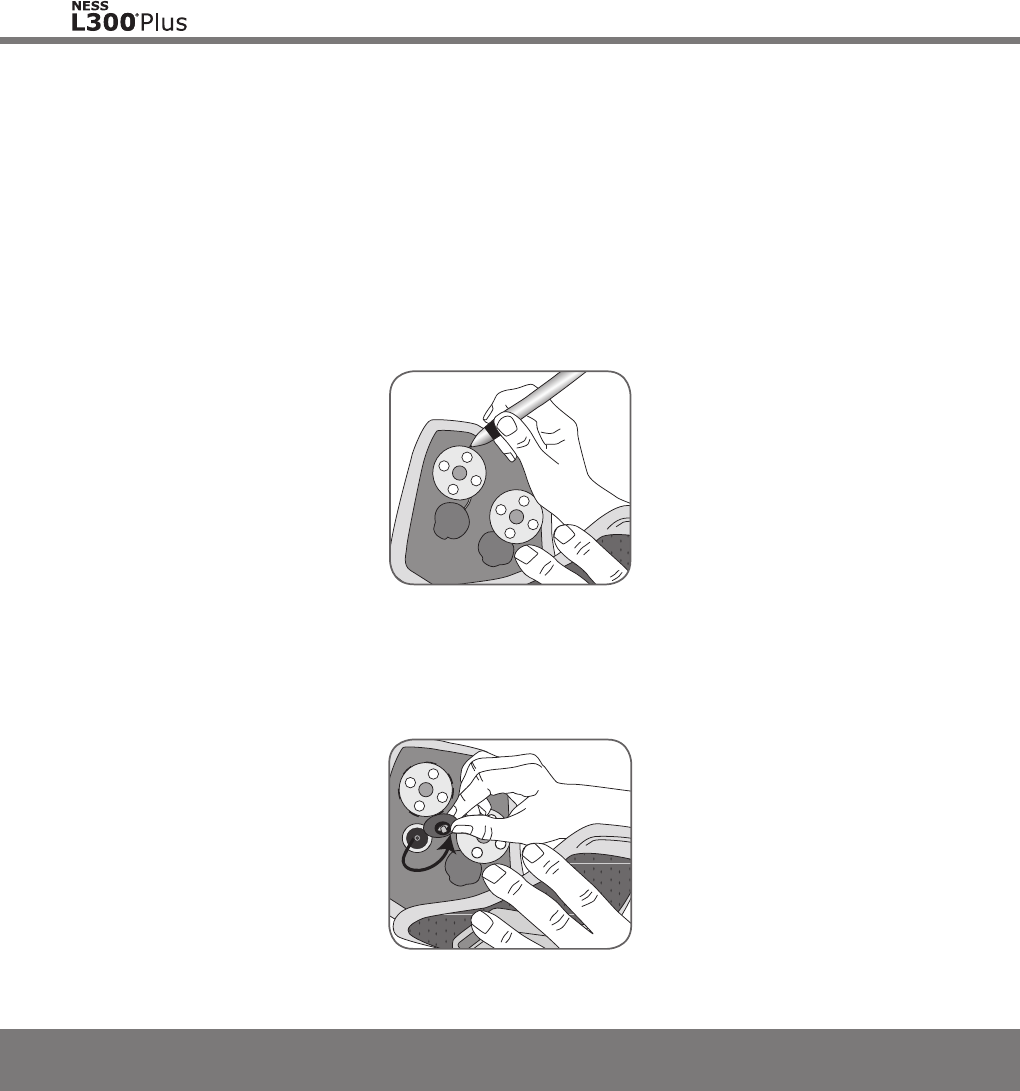

1. Mark the position of the used L300 electrode bases on the L300 FS Cuff
liner. See Figure 9-6.
Figure 9-6: Marking the position of the used L300 electrode bases.
Figure 9-7: Unsnapping the L300 electrode bases.
2. Unsnap the L300 electrode bases from the plug holes. See Figure 9-7.
101
Chapter 9 - Maintenance and Cleaning

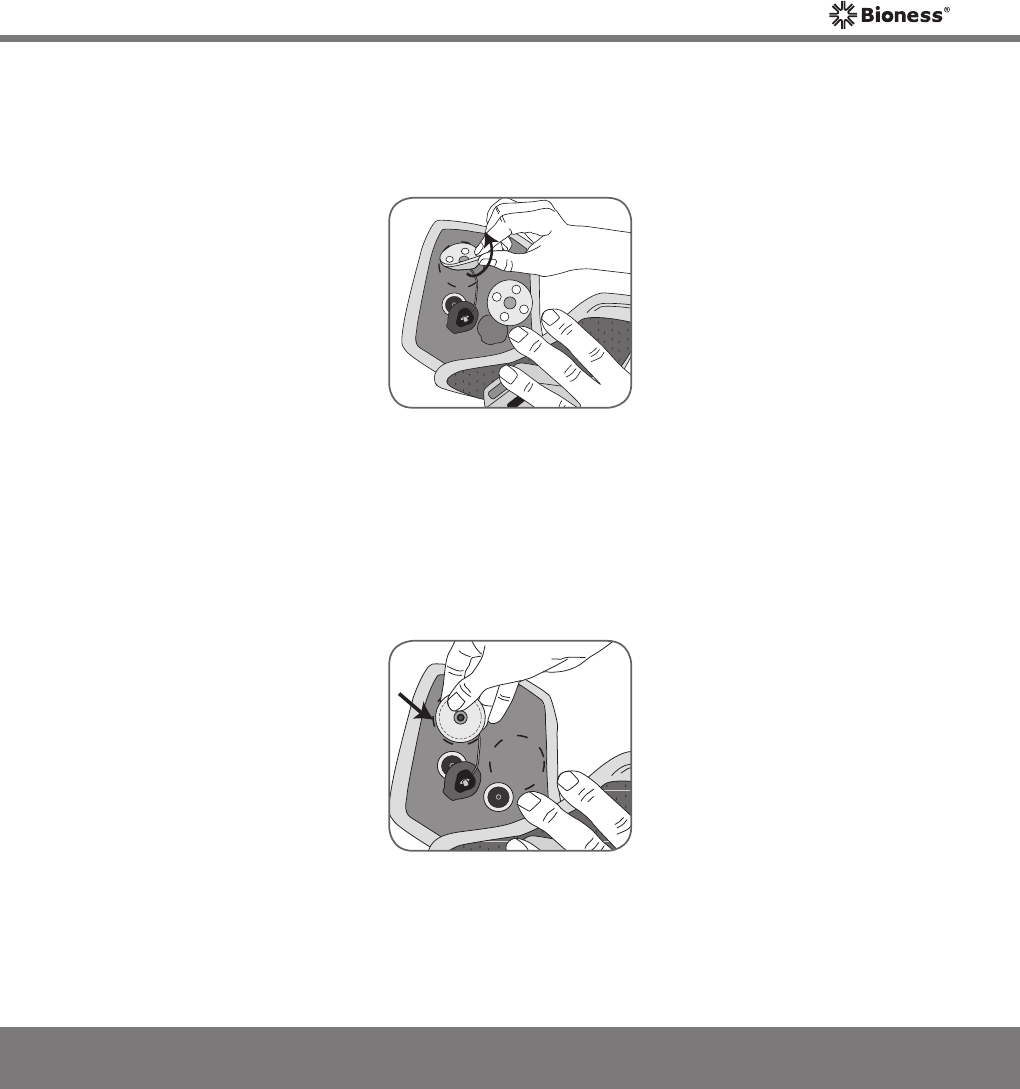

Figure 9-8: Removing the used L300 electrode bases.
Figure 9-9. Attaching the new L300 electrode bases.
3. Remove the used L300 electrode bases from the L300 FS Cuff. See
Figure 9-8.
4. Attach the new L300 electrode bases where the previous bases were
attached. See Figure 9-9.
102 User's Guide
Figure 9-10: Snapping the L300 electrode bases to the L300 FS Cuff plug holes.
Figure 9-11: Wire concealers covering the L300 electrode base wires.
CAUTION: When replacing the L300 FS Cuff, have your clinician
re-fit the L300 electrode bases.
5. Snap the new L300 electrode bases to the L300 FS Cuff plug holes. See
Figure 9-10.
6.
Cover the wires and snaps with wire concealers (not included), if desired.
See Figure 9-11. Press on the wire concealers to attach them to the L300
FS Cuff liner.
Wire Concealer
103
Chapter 9 - Maintenance and Cleaning
L300 FS Cuff Strap
To replace the L300 FS Cuff strap:
1. Remove the used L300 FS Cuff strap from the L300 FS Cuff buckles and
strap leads. See Figure 9-12.
Strap
Buckles
Strap Leads
Hook and Loop
Fasteners
Figure 9-12: L300 FS Cuff strap attached to the L300 FS Cuff.
2. Slide the new L300 FS Cuff strap through the strap leads and buckles.
Make sure the hook and loop fasteners face away from the L300 FS Cuff.
3. Press on the hook and loop fasteners to secure the strap.
104 User's Guide
Thigh Silicone Panels
To replace the Thigh silicone panels:
1. Unsnap and remove the Thigh cloth electrodes.
2.

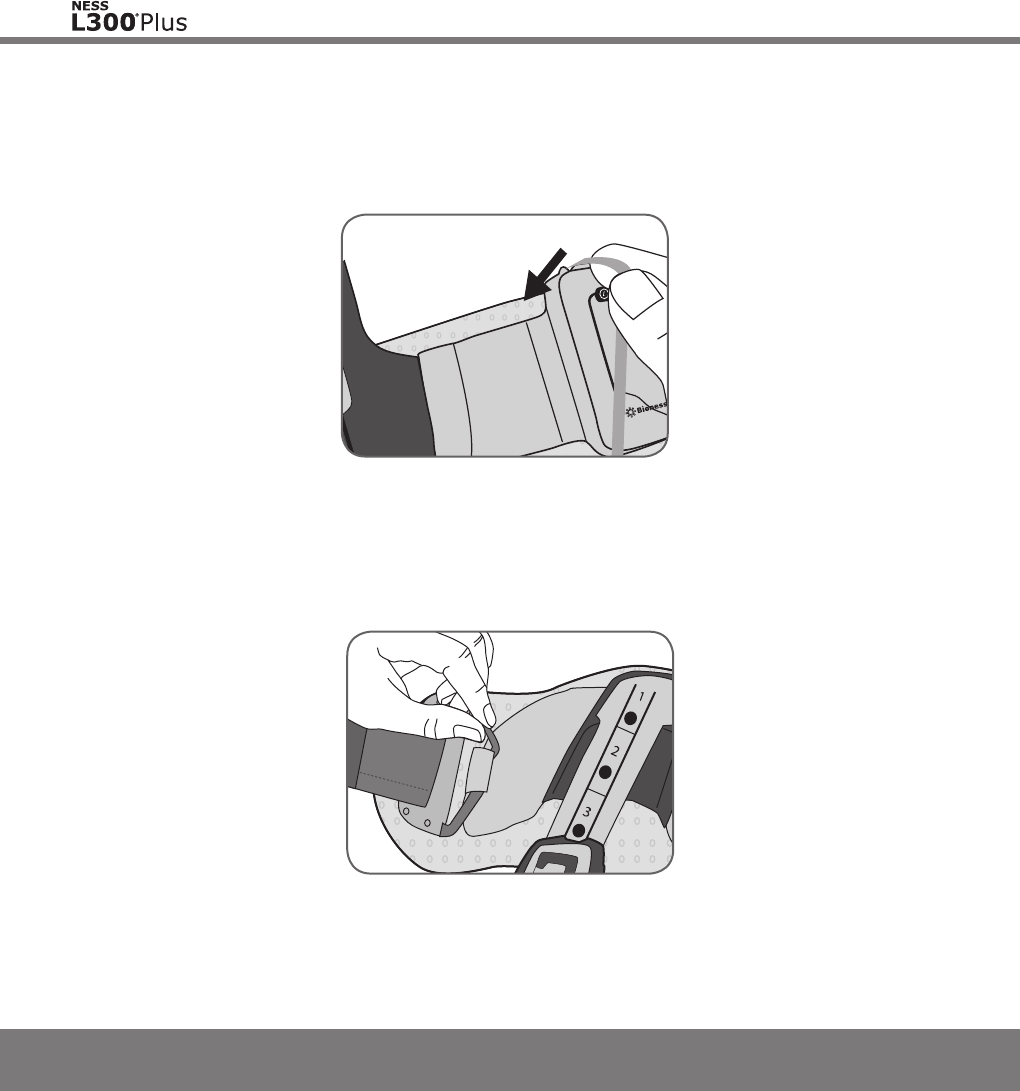

Gently detach the loops of the silicone panels from the hooks on the Thigh
FS Cuff top and bottom panels. See Figure 9-13.
Figure 9-13: Unhooking the top silicone panel.
105
Chapter 9 - Maintenance and Cleaning

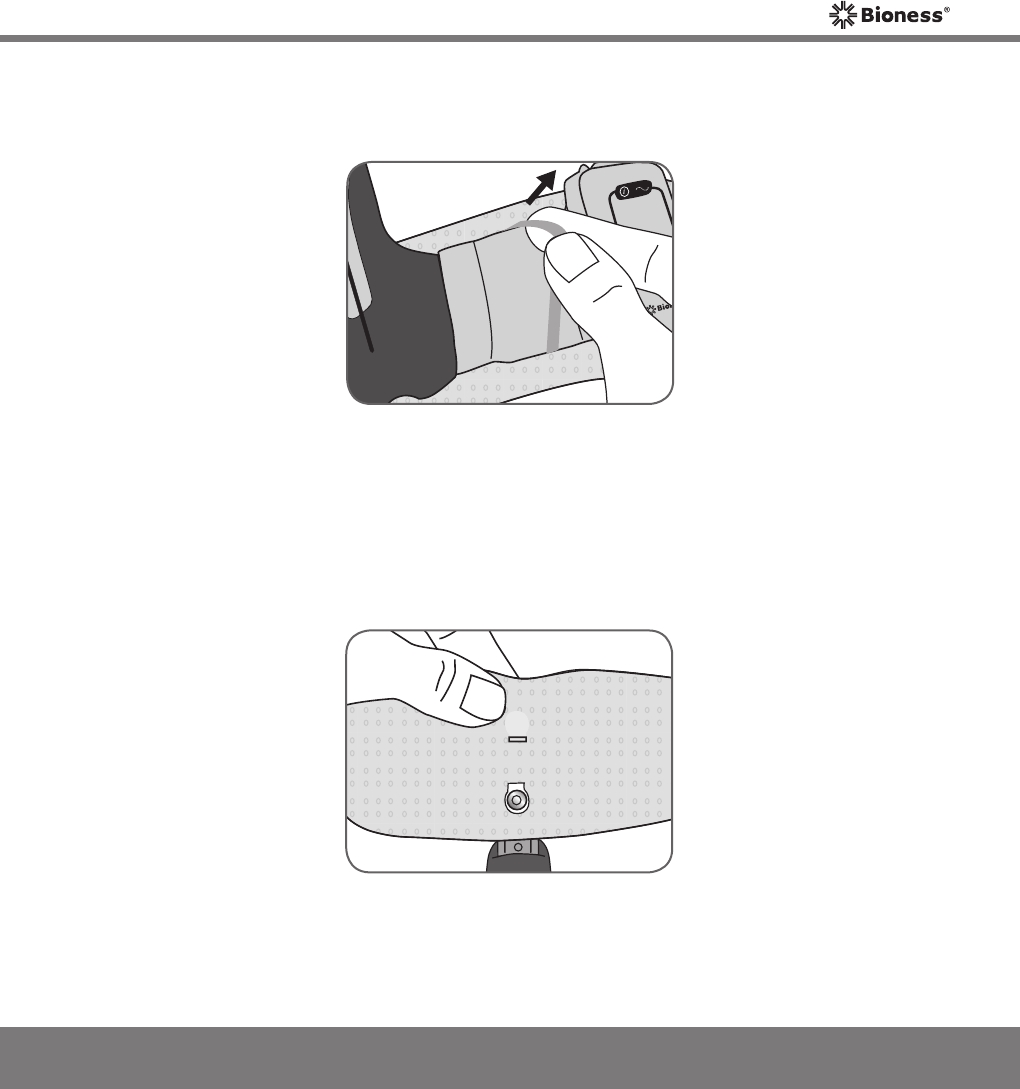

3. Slide the band on the bottom silicone panel over the Thigh RF Stim Unit.
See Figure 9-14.
Figure 9-14: Sliding the band on the bottom silicone panel.
Figure 9-15: Pulling the silicone panels away from the electrode snaps.
4. Gently pull the silicone panels away from the cloth electrode snaps. See
Figure 9-15.
106 User's Guide

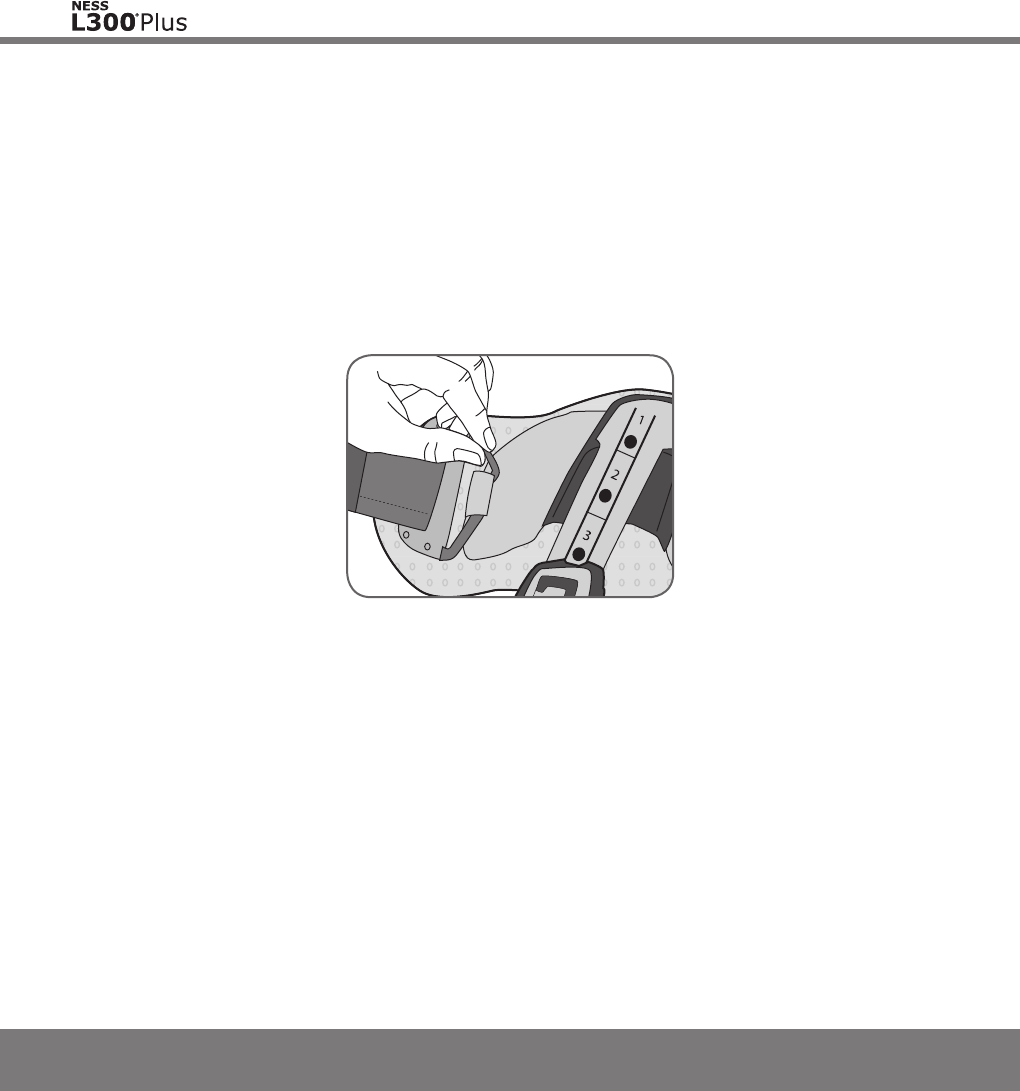

5. Gently slide the new silicone panels around the electrode snaps.
6. Slide the band on the bottom silicone panel over the Thigh RF Stim Unit.
See Figure 9-16.
Figure 9-16: Sliding the band on the bottom silicone panel over the RF Stim Unit.
7.
Gently hook the new silicone panels to the Thigh FS Cuff. See Figure 9-17.
Figure 9-17: Hooking the new silicone panel to the Thigh FS Cuff.
107
Chapter 9 - Maintenance and Cleaning
Removing the L300 and Thigh RF Stim Units
The L300 and Thigh RF Stim Units should only be removed for maintenance
and to clean the FS Cuffs.
To remove the RF Stim Units:
1. Turn off the L300 Plus System.

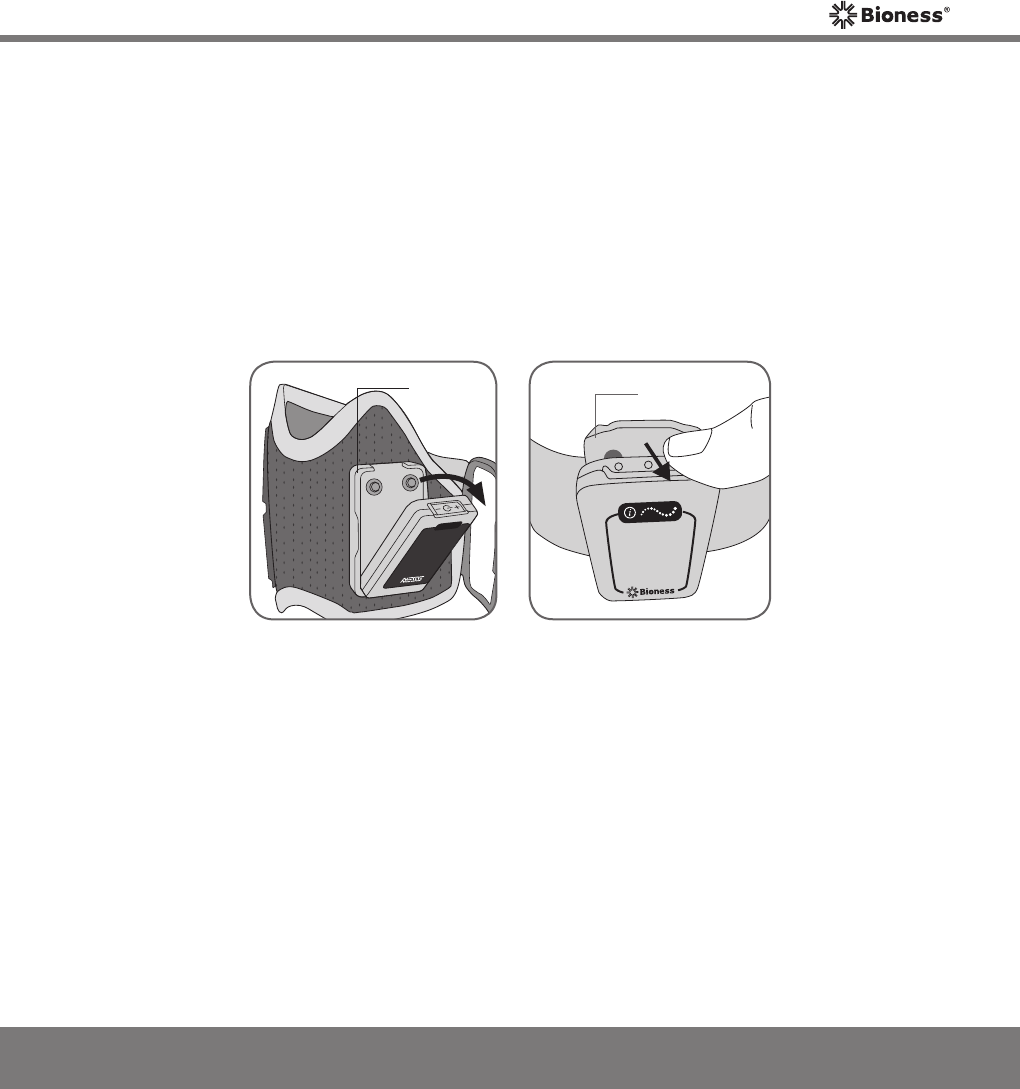

2. Pull the top of the RF Stim Unit away from the cradle. See Figure 9-18.
Figure 9-18: Removing the RF Stim Units.
Note: If the fit is too tight, open the flexible cover over the RF Stim Unit
charging port for a better grasp.
3. Remove the bottom of the RF Stim Unit from the cradle.
To re-insert the RF Stim Unit:
1. Insert the bottom of the RF Stim Unit into the cradle. Then, gently push
the top of the RF Stim Unit until it snaps into the cradle.
Cradle Cradle
108 User's Guide
Cleaning the L300 Plus Components
All L300 Plus components may be cleaned by carefully wiping them with a
damp cloth. The electrical components are not waterproof. Do not immerse
them in water.
The L300 FS Cuff is the only component that can be immersed in water to
clean.
To clean the L300 FS Cuff:
1.
Remove the L300 RF Stim Unit and, if appropriate, the large cloth electrode.
2.
If using the L300 hydrogel or cloth electrodes, gently remove the electrodes
from the electrode bases. Do not remove the electrode bases. For hydrogel
electrodes, replace the electrode covers.
3. Immerse the L300 FS Cuff for 30 minutes in lukewarm water and mild
detergent. Do not use a washing machine.
4. Rinse the L300 FS Cuff thoroughly under running water.
5.
Immerse the L300 FS Cuff for an additional 15 minutes in clean, lukewarm
water.
6. Rinse the L300 FS Cuff again under running water.
7. Gently blot excess moisture from the L300 FS Cuff with a towel. Do not
wring the L300 FS Cuff. Lay the L300 FS Cuff flat in the shade to dry.
(Do not hang dry.) Drying time will vary from 4 to 12 hours depending on
temperature and humidity. For faster drying, place the L300 FS Cuff in
front of a circulating cold-air fan. Do not use a hot-air dryer or other heat
source to dry.
8. When the L300 FS Cuff is completely dry, insert the L300 RF Stim Unit
and attach the electrode(s).
109
Chapter 9 - Maintenance and Cleaning
Disinfecting the L300 Plus Components
All NESS L300 Plus System Kit components excluding the L300 FS Cuff and
the Thigh FS Cuff straps may be disinfected using CaviWipes™ (Metrex,
Orange, CA) per the manufacturer’s instructions. Metrex products are sold
through authorized dealers worldwide. If you have difficulty locating Metrex
CaviWipes, please call the Bioness Client Relations Department at (800)
211-9136, Option 3.
To disinfect the L300 Plus System components:
1. Clean the surface that faces the skin with a wet CaviWipes disinfection
wipe.
Note: Read the manufacturer's instructions for use, and follow standard
precautions for personal protection as appropriate.
2. Using one or more new CaviWipes, wipe the surface again, thoroughly,
for 3 minutes. The surface should be visibly wet.
110 User's Guide
