A780L3C Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee that
interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the contents
here and specially disclaims any implied warranties of merchantability or fitness
for any purpose. Further the vendor reserves the right to revise this publication
and to make changes to the contents here without obligation to notify any party
beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the brand
and product names are trademarks of their respective companies.
Dichiarazione di conformità
sintetica
Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied
Table of Contents
Chapter 1: Introduction.......................................... 3
1.1 Before You Start ................................................................................3
1.2 Package Checklist ............................................................................3
1.3 Motherboard Specifications .............................................................4
1.4 Rear Panel Connectors....................................................................5
1.5 Motherboard Layout..........................................................................6
Chapter 2: Hardware Installation ........................... 7
2.1 Install Central Processing Unit (CPU)............................................7
2.2 Install a Heatsink ...............................................................................8
2.3 Connect Cooling Fans......................................................................9
2.4 Installing System Memory..............................................................10
2.5 Expansion Slots...............................................................................12
2.6 Jumper Setting ................................................................................13

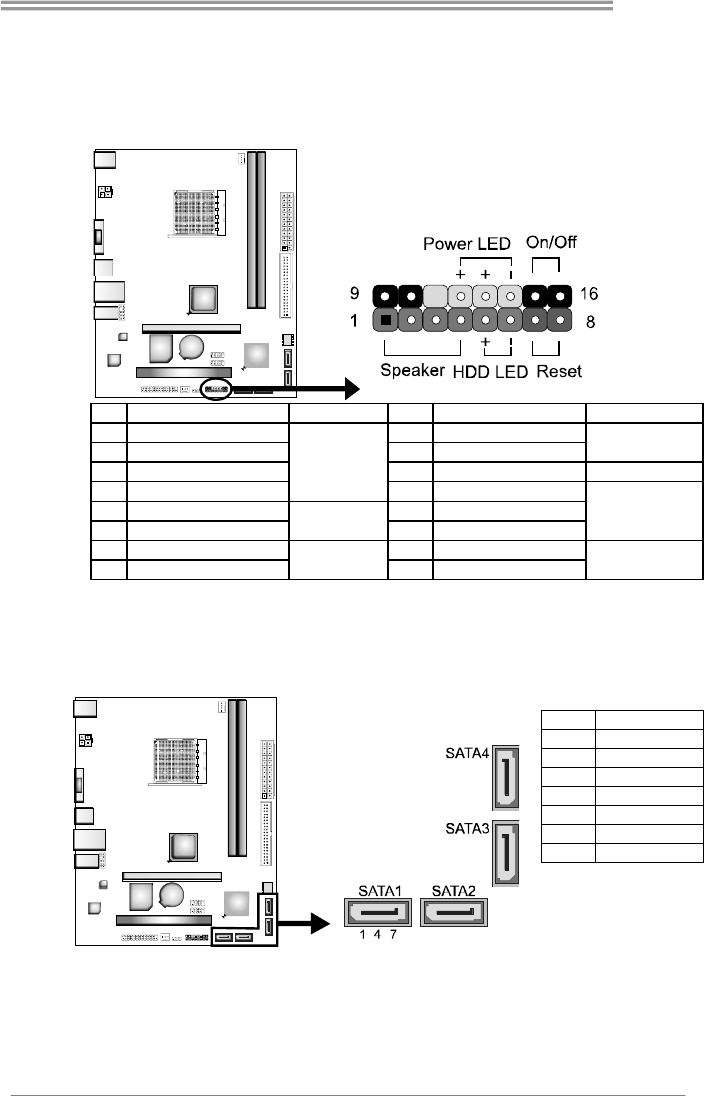

2.7 Headers & Connectors...................................................................14
Chapter 3: BIOS & Software ................................. 18
3.1 BIOS Setup ......................................................................................18

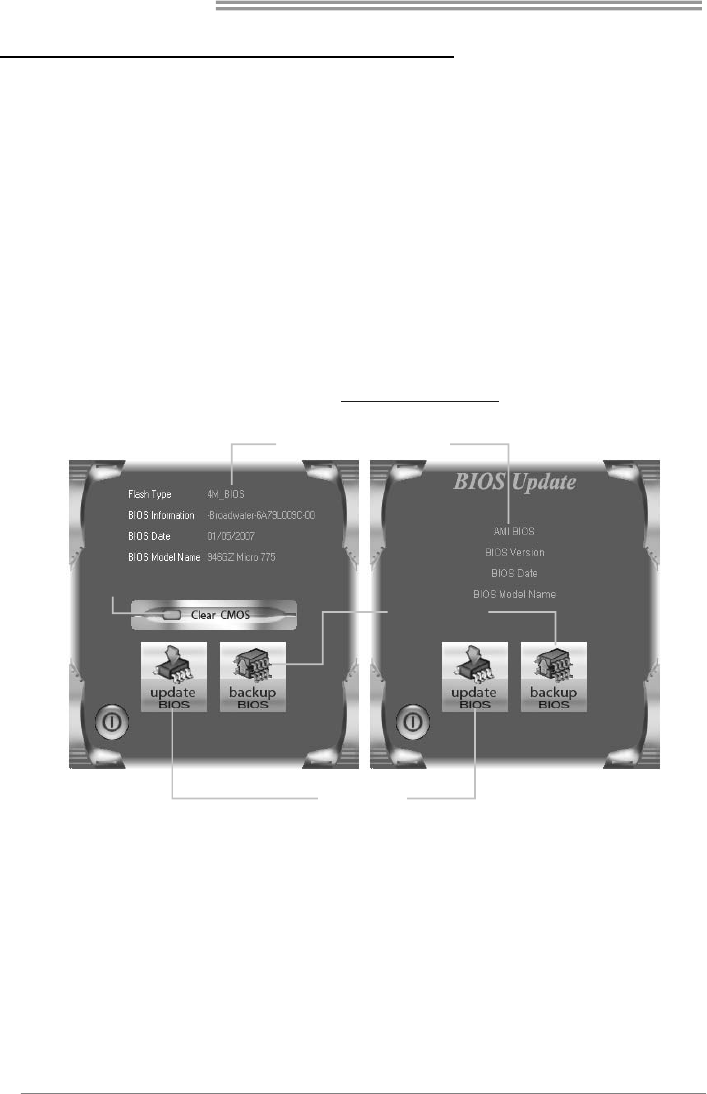

3.2 BIOS Update....................................................................................18
3.3 Software............................................................................................23
Chapter 4: Useful Help ......................................... 26
4.1 Driver Installation.............................................................................26
4.2 Troubleshooting...............................................................................27

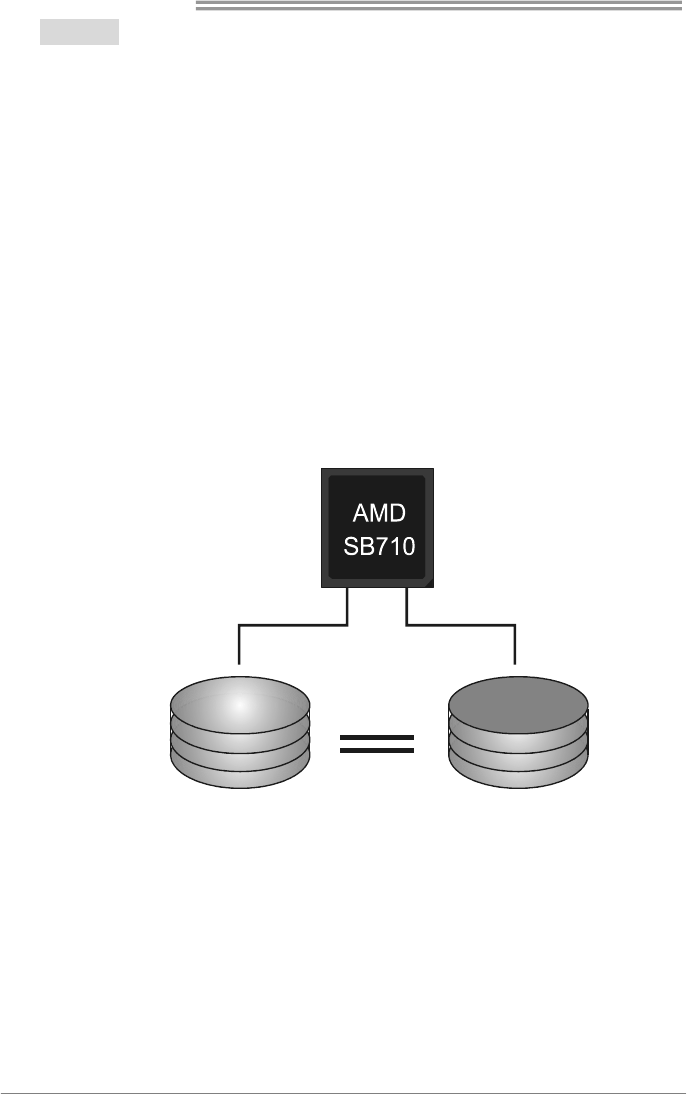

4.3 RAID Functions ...............................................................................29
Appendix: Specifications In Other Languages ...... 32
German .................................................................................................................32
French ...................................................................................................................34
Italian .....................................................................................................................36
Spanish..................................................................................................................38
Portuguese ...........................................................................................................40
Polish.....................................................................................................................42
Russian .................................................................................................................44
Arabic.....................................................................................................................46
Japanese...............................................................................................................48
A780L3C
3
CHAPTER 1: INTRODUCTION
1.1 Before You Start
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with sufficient
lighting.
Always disconnect the computer from power outlet before
operation.
Before you take the motherboard out from anti-static bag,
ground yourself properly by touching any safely grounded
appliance, or use grounded wrist strap to remove the static
charge.
Avoid touching the components on motherboard or the rear
side of the board unless necessary. Hold the board on the
edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the case after
installation. Loose parts will cause short circuits which may
damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be 0 to
45 degrees Celsius.
To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit
1.2 Package Checklist
; Serial ATA Cable x2
; Rear I/O Panel for ATX Case x1
; Installation Guide x1
; Fully Setup Driver DVD x1
Note: The package contents may be different due to the sales region or models in which it was sold.
For more information about the standard package in your region, please contact your dealer or sales
representative.
Motherboard Manual
4
1.3 Motherboard Specifications
SPEC
CPU
Socket AM3
AMD Sempron / Phenom II / Athlon II processors
(Maximum Watt: 95W)
AMD 64 Architecture enables 32 and 64 bit computing
Supports Hyper Transport 2.0
FSB
Support Hyper Transport 3.0
Supports up to 3.2 GT/s Bandwidth
Chipset
AMD 760G
AMD SB710
Super I/O
ITE 8728F-BX
Provides the most commonly used legacy Super
I/O functionality
Low Pin Count Interface
Environment Control initiatives
H/W Monitor
ITE's "Smart Guardian" function
Main
Memory
DDR3 DIMM Slots x 2
Max Memory Capacity 16GB
Each DIMM supports 512MB/1GB/
2GB/4GB/8GB DDR3
Dual Channel Mode DDR3 memory module
Supports DDR3 800/1066/1333/1600(OC)
Registered DIMM and ECC DIMM is not supported
Graphics Integrated in AMD 760G Chipset Max Shared Video Memory is 1024MB
SATA II Integrated Serial ATA Controller
Data transfer rates up to 3 Gb/s
SATA Version 2.0 specification compliant
LAN Realtek RTL 8105T 10 / 100 Mb/s auto negotiation
Sound VT1708B / ALC662
5.1 channels audio out
High Definition Audio
PCI Express X16 slot x1 Supports PCI-E X16 expansion card
Slots
PCI slot x1 Supports PCI expansion cards
SATA Connector x4 Each connector supports 1 SATA device
IDE Connector x1 Each connector supports 2 IDE device
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
On Board
Connectors
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
A780L3C
5
SPEC
System Fan Header x1 System Fan Power supply
CMOS Clear Jumper x1 Restore CMOS data to factory default setting
USB Connector x2 Each connector supports 2 front panel USB ports

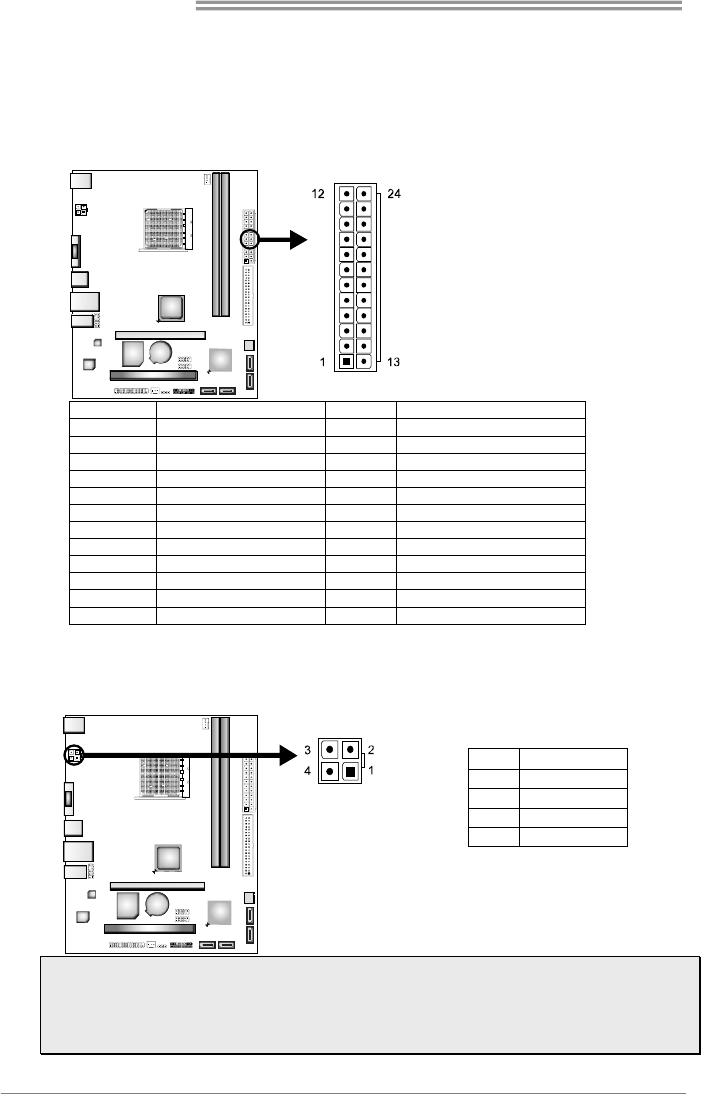

Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 Ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 182 mm(W) x 225 mm(L)
Special
Features RAID 0 / 1 / 10 support
OS Support Windows XP / Vista / 7 / 8
Biostar reserves the right to add or remove support for any
OS With or without notice.

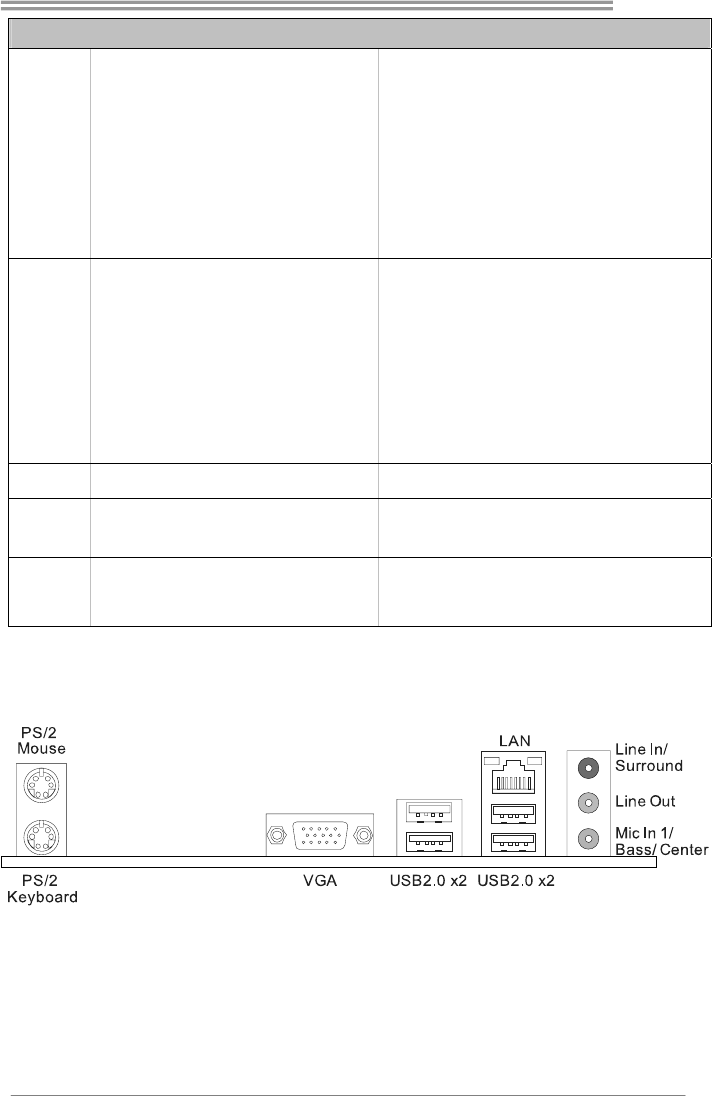

1.4 Rear Panel Connectors
Motherboard Manual
6

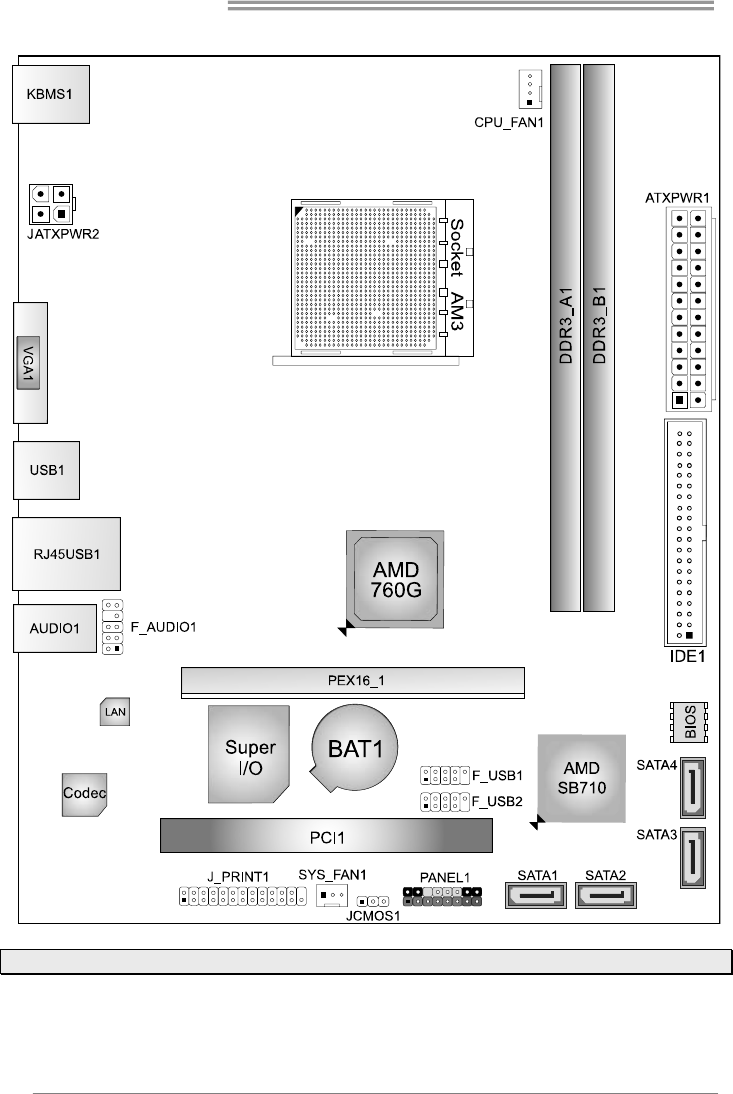

1.5 Motherboard Layout
Note: represents the 1st pin.
A780L3C
7
CHAPTER 2: HARDWARE INSTALLATION

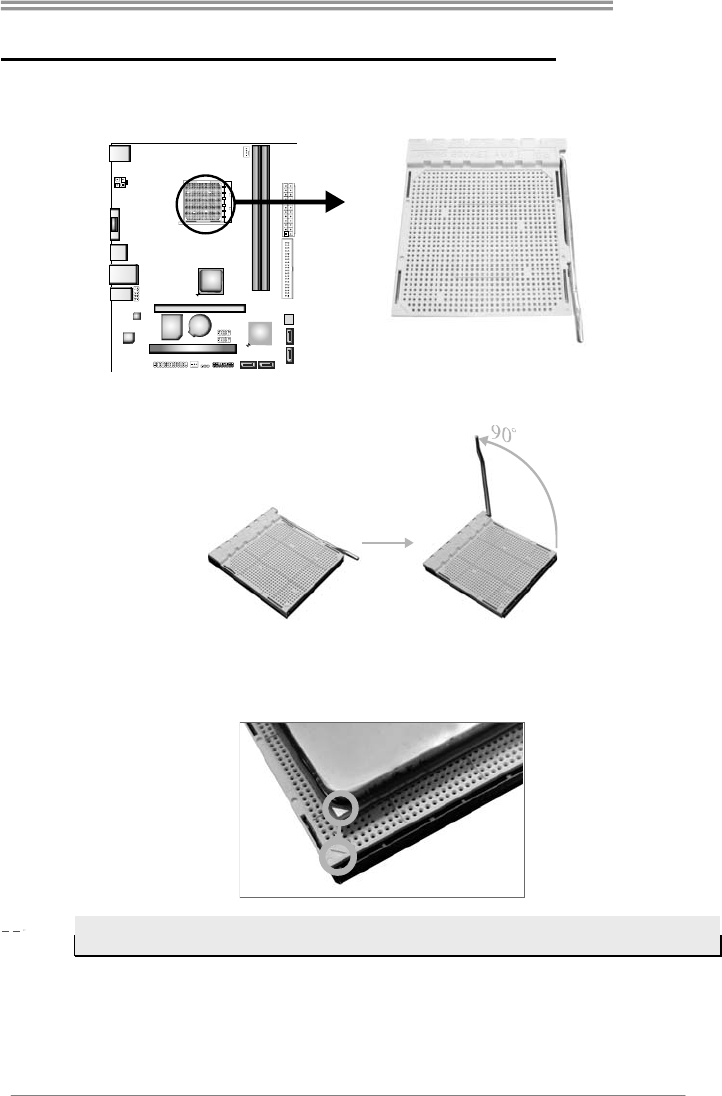

2.1 Install Central Processing Unit (CPU)
Step 1: Locate the CPU socket on the motherboard
Step 2: Pull the socket locking out from the socket and then raise the lever up to a
90-degree angel.
Step 3: Look for the white triangle on socket, and the gold triangle on CPU should
point towards this white triangle. The CPU will fit only in the correct
orientation.
182 mm () X 225 mm () to prevent damaging the CPU.
Motherboard Manual
8

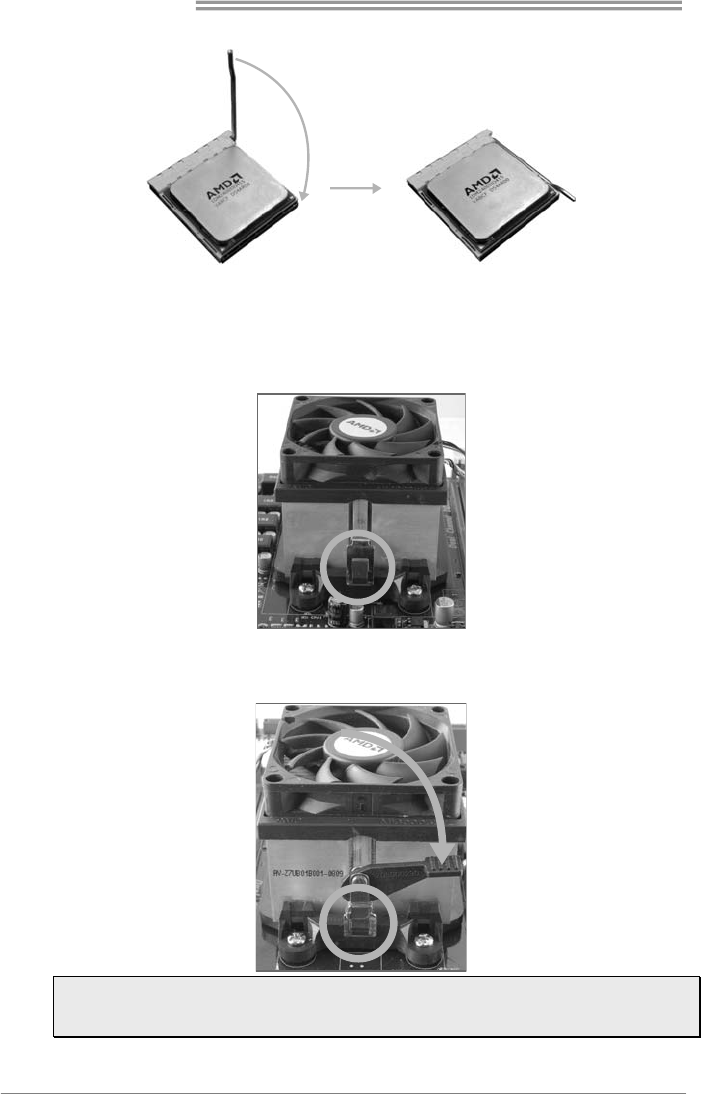

Step 4: Hold the CPU down firmly, and then close the lever to locked the position
2.2 Install a Heatsink
Step 1: Place the heatsink and fan assembly onto the retention frame. Match the
heatsink clip with the socket mounting-lug. Hook the spring clip to the
mounting-lug.
Step 2: On the other side, push the retention clip straight down to lock into the
plastic lug on the retention frame, and then press down the locker until it
stops.
Note1: Do not forget to connect the CPU fan connector.
Note2: For proper installation, please kindly refer to the installation manual of your CPU
heatsink.
A780L3C
9

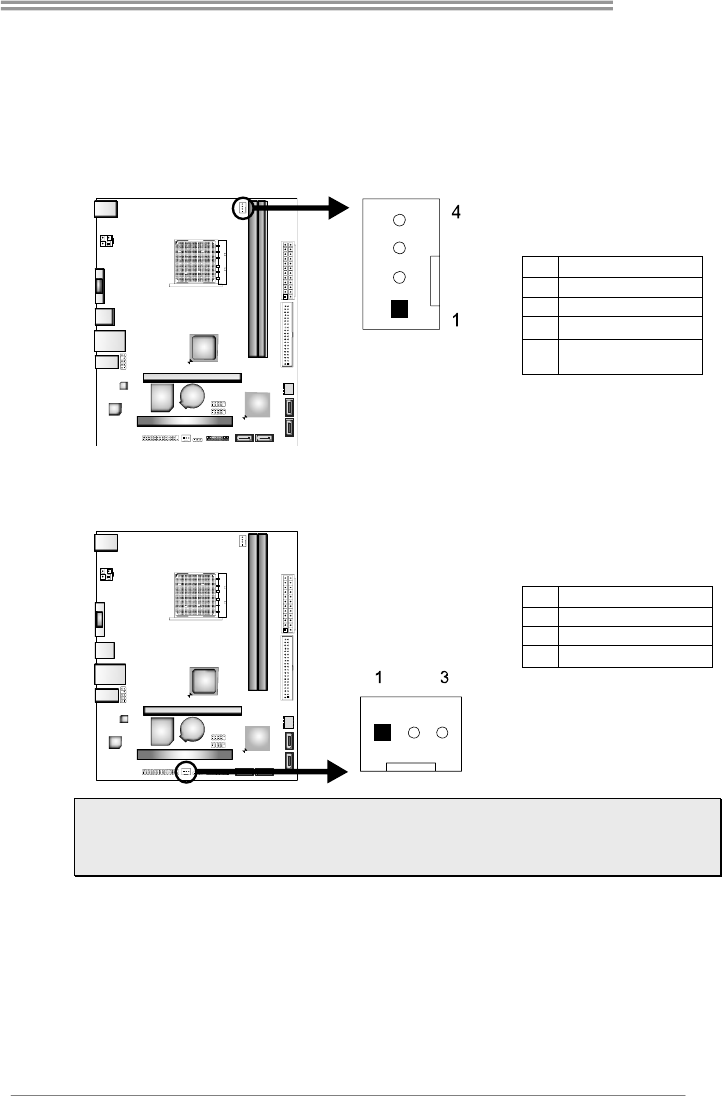

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and
connector may be different according to the fan manufacturer. Connect the fan
cable to the connector while matching the black wire to pin#1.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3FAN RPM rate sense
4 Smart Fan Control
(By Fan)
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
Note: CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
Motherboard Manual
10

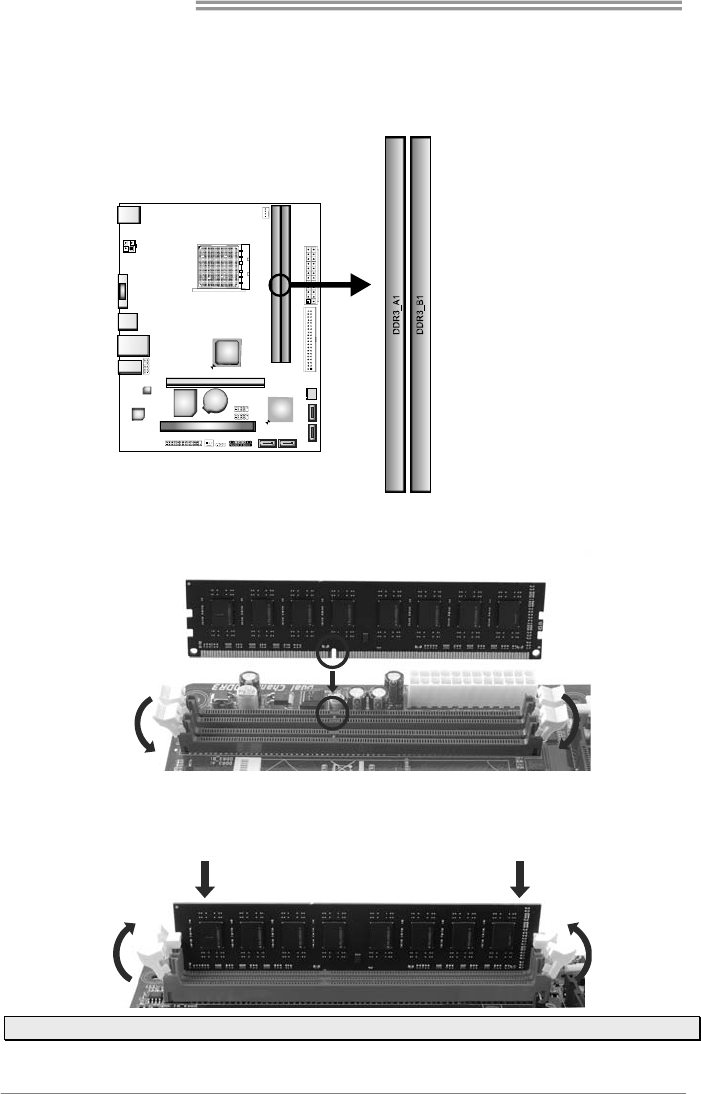

2.4 Installing System Memory
A. DDR3 Memory Modules
Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM
on the slot such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap
back in place and the DIMM is properly seated.
Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
A780L3C
11
B. Memory Capacity
DIMM Socket
Location DDR3 Module Total Memory
Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
DDR3_B1 512MB/1GB/2GB/4GB/8GB Max is 16GB.
C. Dual Channel Memory installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR3_A1 DDR3_B1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or x16)
Motherboard Manual
12

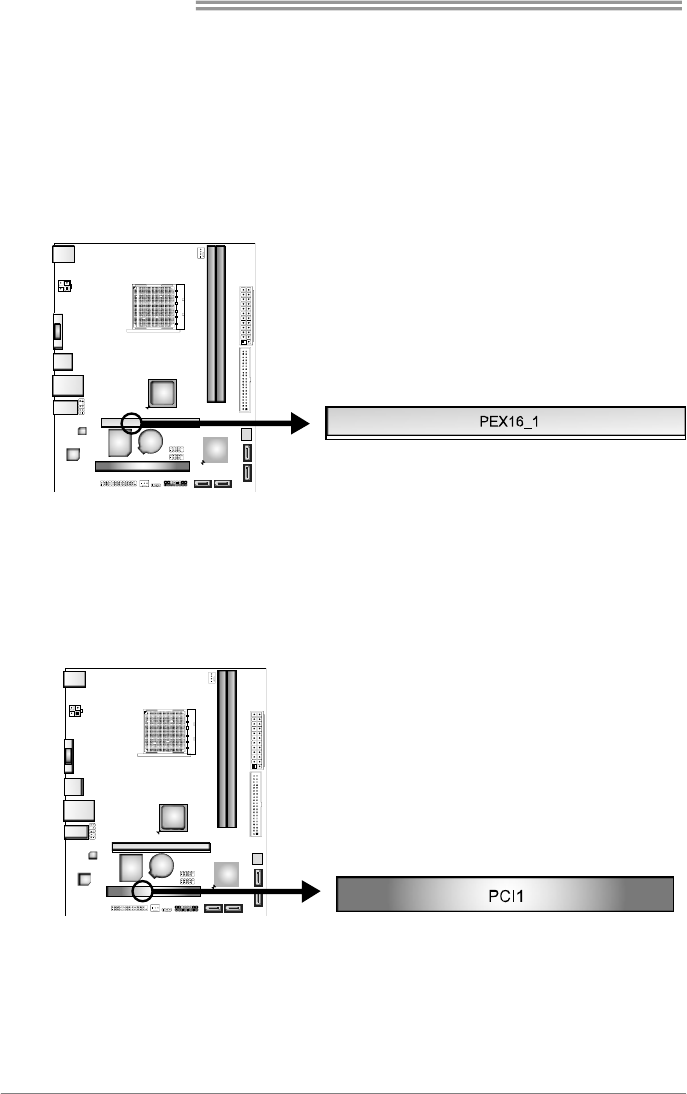

2.5 Expansion Slots
PEX16_1: PCI-Express X16 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
PCI1: Peripheral Component Interconnect Slot
This motherboard is equipped with 1 standard PCI slot. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
A780L3C
13
2.6 Jumper Setting
The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
JCMOS1: Clear CMOS Jumper
Placing the jumper on pin2-3 allows user to restore BIOS safe setting and
CMOS data. Pease carefully follow the procedures to avoid damaging the
motherboard.
13
Pin 1-2 Close:
Normal Operation
(default).
13
Pin 2-3 Close:
Clear CMOS data.
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.
Motherboard Manual
14
2.7 Headers & Connectors
ATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
ATXPWR2: ATX Power Source Connector
This connector provides +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
4 Ground
Note1: Before you power on the system, please make sure that both ATXPWR1 and
ATXPWR2 connectors have been plugged-in.
Note2: Insufficient power supplied to the system may result in instability or the peripherals
not functioning properly. Use of a PSU with a higher power output is recommended when
configuring a system with more power-consuming devices.
A780L3C
15
PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2N/A 10N/A
N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED 14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control Reset button 16 Ground Power-on button
SATA1~SATA4: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables. It satisfies
the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
Motherboard Manual
16

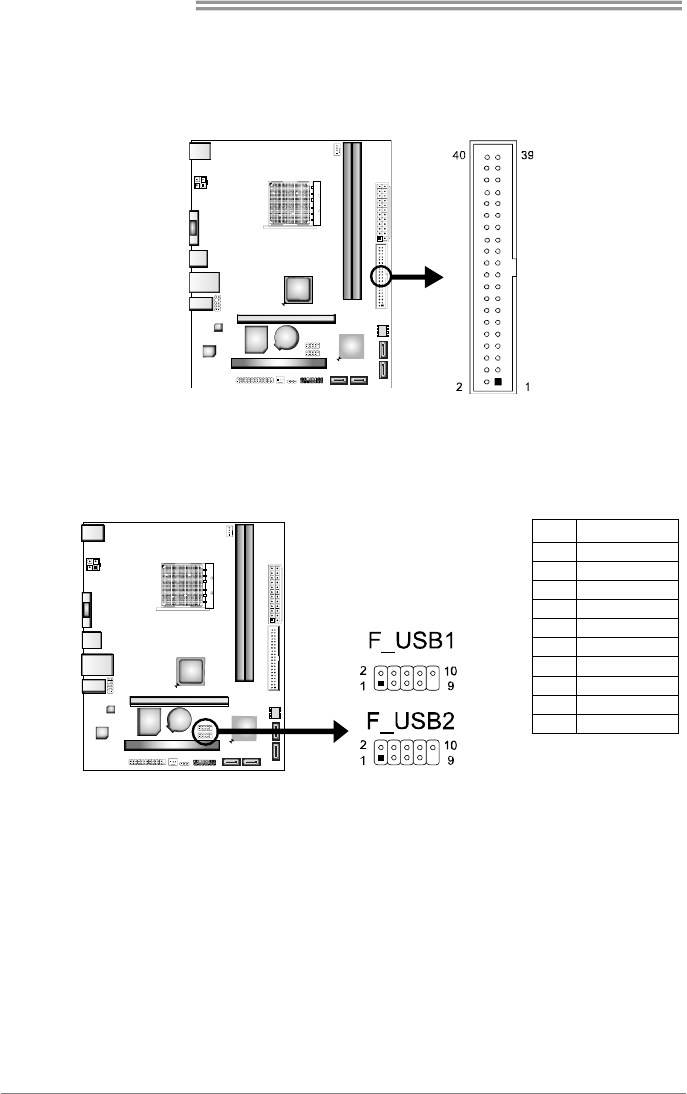

IDE1: Hard Disk Connector
The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode
0~4, Bus Master, Multi-word DMA, and Ultra DMA 33/66/100/133 functionality.
F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 NC
10 Key
A780L3C
17
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
Motherboard Manual
18
CHAPTER 3: BIOS & SOFTWARE
3.1 BIOS Setup
For better system performance, the BIOS firmware is being continuously
updated. The BIOS information described below in this manual is for your
reference only and the actual BIOS information and settings on board may
be different from this manual
For further information of setting up the BIOS, please refer to the BIOS
Manual in the Setup DVD.
3.2 BIOS Update
There are three ways to update the BIOS:
BIOS Update Utility, BIOS Online Update Utility and BIOS Flasher.
1. BIOS Update Utility
1. Installing BIOS Update Utility from the DVD Driver.
2. Download the proper BIOS from www.biostar.com.tw .
Update BIOS
with a BIOS file
Clear CMOS function
(Only for AWARD BIOS)
Show current BIOS information
Save current BIOS
to a .bin file
AWARD BIOS AMI BIOS
A780L3C
19
<Backup BIOS>
Once click on this button, the saving
dialog will show. Choose the position to
save file and enter file name. (We
recommend that the file name should be
English/number and no longer than 7
characters.) Then click Save.
After the saving process, finish dialog
will show. Click on OK to complete the
BIOS Backup procedure.
<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS
procedure should be run with Clear
CMOS function, so please check on
Clear CMOS first.
Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.
After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.
Motherboard Manual
20
The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.
After the BIOS Update process, click on
OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.
2. Online Update Utility
1. Installing BIOS Update Utility from the DVD Driver.
2. Please make sure the system is connected to the internet before using this
function.
3. Open BIOS Update Utility and
click the Online Update button
on the main screen.
4. An open dialog will show up to
request your agreement to
start the BIOS update. Click
Yes to start the online update
procedure.
A780L3C
21

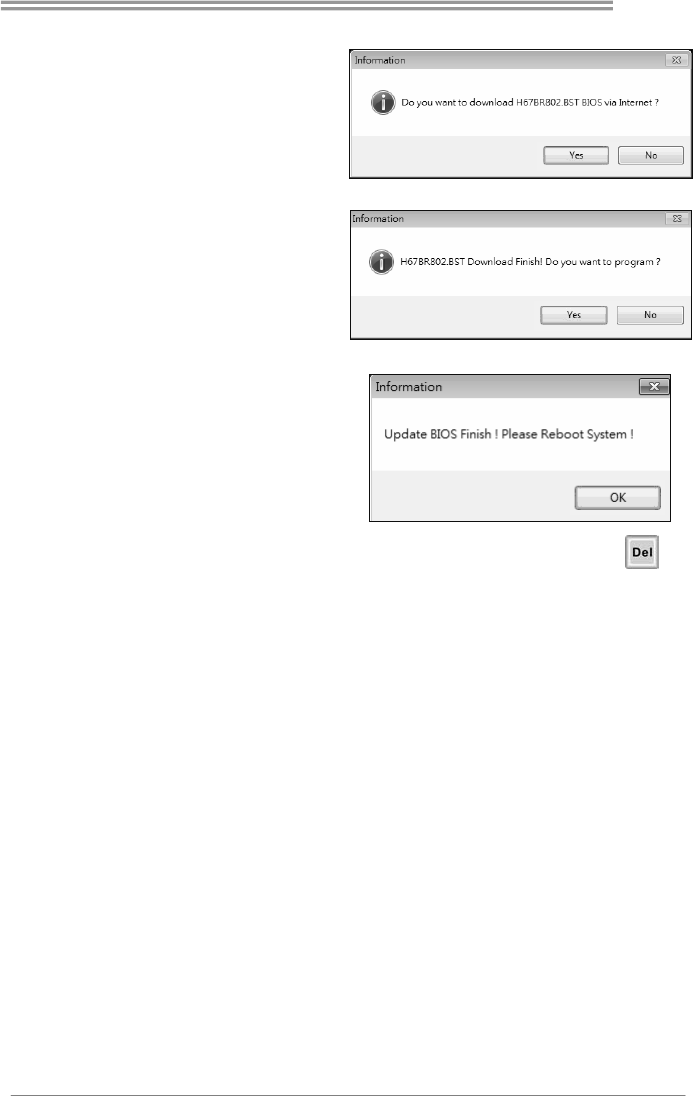

5. If there is a new BIOS version,
the utility will ask you to
download it. Click Yes to
proceed.
6. After the download is
completed, you will be asked
to program (update) the BIOS
or not. Click Yes to proceed.
7. After the updating process is
finished, you will be asked you
to reboot the system. Click
OK to reboot.
8. While the system boots up and the full screen logo shows up, press
<Delete> key to enter BIOS setup.
After entering the BIOS setup, please go to the Save & Exit, using the Restore
Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.
Motherboard Manual
22
3. BIOSTAR BIOS Flasher
BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and
simple way to update your BIOS via USB pen drive.
Note1: This utility only allows storage device with FAT32/16 format and single partition.
Note2: Shutting down or resetting the system while updating the BIOS will lead to system
boot failure.
The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility, press
<F12> during the Power-On Self Tests (POST) procedure while booting up.
Updating BIOS with BIOSTAR BIOS Flasher
1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, save the BIOS file into a USB pen
drive or a floppy disk.
3. Insert the USB pen drive or the floppy disk
that contains the BIOS file to the USB port
or the floppy disk drive.

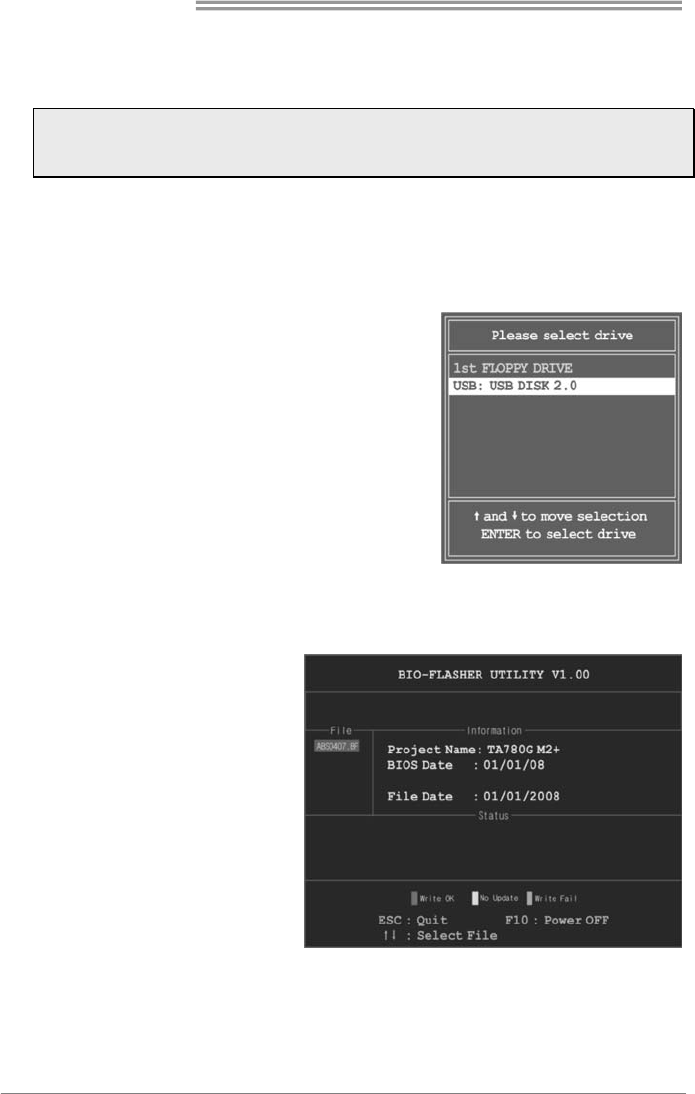

4. Power on or reset the computer and then
press <F12> during the POST process. A
select dialog as the picture on the right
appears. Select the device contains the
BIOS file and press <Enter> to enter the
utility.
5. The utility will show the BIOS files and their respective information. Select
the proper BIOS file and press <Enter> then <Y> to perform the BIOS
update process.
6. After the update process,
the utility will ask you to
reboot the system.
Press <Y> to proceed.
BIOS update completes.
A780L3C
23
3.3 Software
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program would
appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.
Note1: All the information and content about following software are subject to be changed without
notice. For better performance, the software is being continuously updated.
Note2: The information and pictures described below are for your reference only. The actual
information and settings on board may be slightly different from this manual.
Launching Software
After the installation process, you will see the software icon “eHOT Line” / “BIOS
Update” appears on the desktop. Double-click the icon to launch the utility.
eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our Tech-Support system.
This utility will collect the system information which is useful for analyzing the problem
you may have encountered, and then send these information to our tech-support
department to help you fix the problem.
Note: Before you use this utility, please set Outlook Express as your default e-mail client application program.
This block will show
the information which
would be collected in
the mail.
Provide the e-mail
address that you would
like to send the copy to.
Provide the name of
the power supply
manufacturer and the
model no.
Send the mail out.
Save these information to a .txt file
Exit this dialog.
Select your area or
the area close to you.
*
Provide the name of
the memory module
manufacturer.
*
Describe condition
of your system.
*
*
represents important
information that you
must provide. Without
this information, you may
not be able to send out
the mail.
Motherboard Manual
24

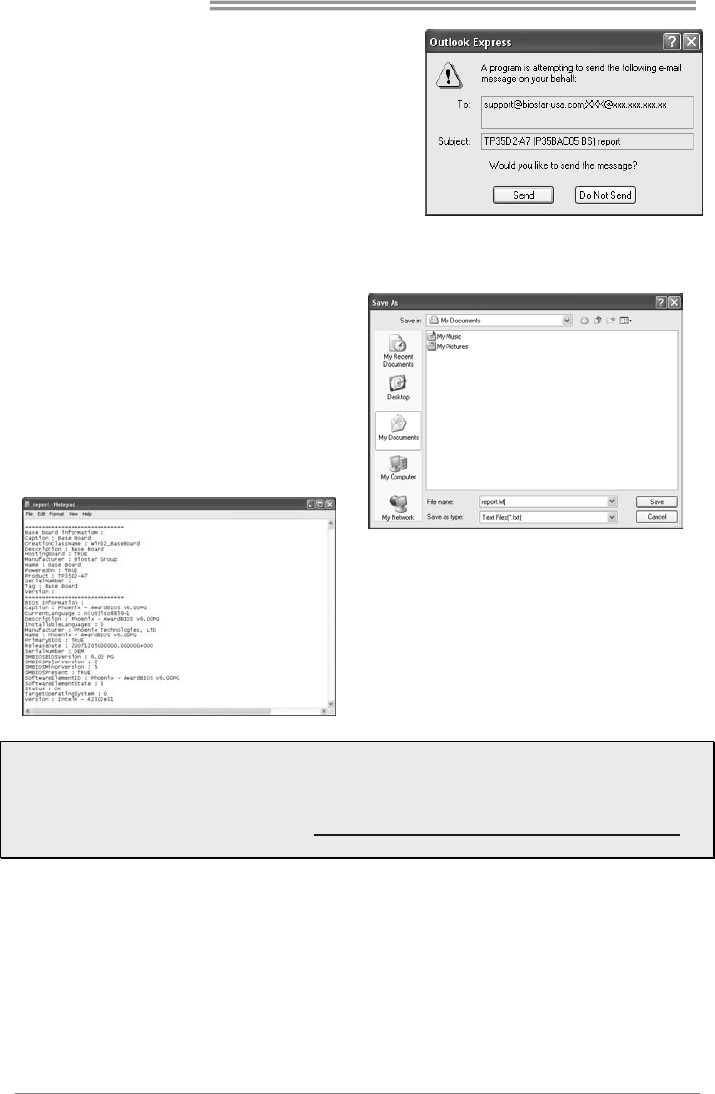

After filling up this information, click “Send
to send the mail out. A warning dialog would
appear asking for your confirmation; click
Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you will see
a saving dialog appears asking you to enter file name.
Enter the file name and then click “Save”.
Your system information will be saved to
a .txt file.
Open the saved .txt file, you will see your
system information including
motherboard/BIOS/CPU/video/
device/OS information. This information
is also concluded in the sent mail.
Note1: We will not share customer’s data with any other third parties, so please feel free to
provide your system information while using eHot-Line service.
Note2: If you are not using Outlook Express as your default e-mail client application, you may
need to save the system information to a .txt file and send the file to our tech support with other
e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php for
getting our contact information.
A780L3C
25

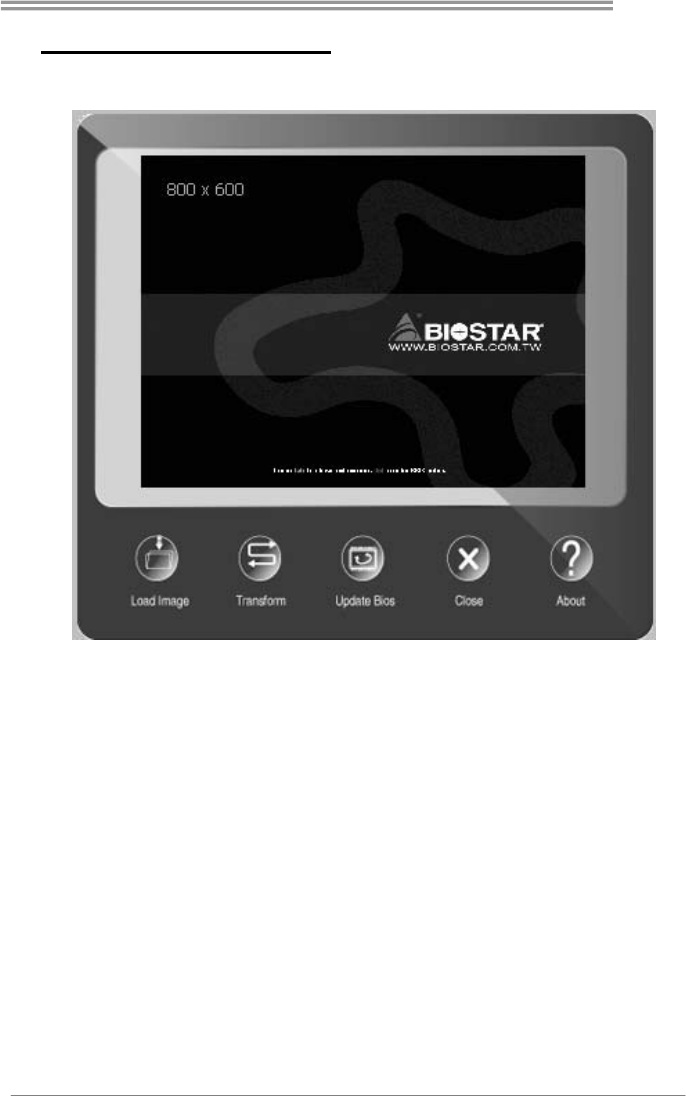

BIOScreen Utility (Optional)
This utility allows you to personalize your boot logo easily. You can choose
BMP as your boot logo so as to customize your computer.
Please follow the following instructions to update boot logo:
1. Load ImageChoose the picture as the boot logo.
2. TransformTransform the picture for BIOS and preview the result.
3. Update BiosWrite the picture to BIOS Memory to complete the update.
Motherboard Manual
26
CHAPTER 4: USEFUL HELP
4.1 Driver Installation
After you installed your operating system, please insert the Fully Setup Driver
DVD into your optical drive and install the driver for better system performance.
You will see the following window after you insert the DVD
The setup guide will auto detect your motherboard and operating system.
Note: If this window didn’t show up after you insert the Driver DVD, please use file browser
to locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will list the
compatible driver for your motherboard and operating system. Click on each
device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide will list
the software available for your system, click on each software title to launch the
installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver DVD.
Click on the Manual icon to browse for available manual.
Note: You will need Acrobat Reader to open the manual file. Please download the latest
version of Acrobat Reader software from http://get.adobe.com/reader/
A780L3C
27
4.2 Troubleshooting
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
Motherboard Manual
28
CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
A780L3C
29
4.3 RAID Functions
Operating System
z Supports Windows XP, Windows Vista, and Windows 7.
Raid Arrays
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write
times for many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.
How RAID Works
RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It
breaks up a large file into smaller blocks and performs disk reads and writes
across multiple drives in parallel. The size of each block is determined by the
stripe size parameter, which you set during the creation of the RAID set based
on the system environment. This technique reduces overall disk access time
and offers high bandwidth.
Features and Benefits
- Drives: Minimum 1, and maximum is up to 6 or 8. Depending on the
platform.
- Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
- Benefits: provides increased data throughput, especially for large files.
No capcity loss penalty for parity.
- Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
- Fault Tolerance: No.
- Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
30

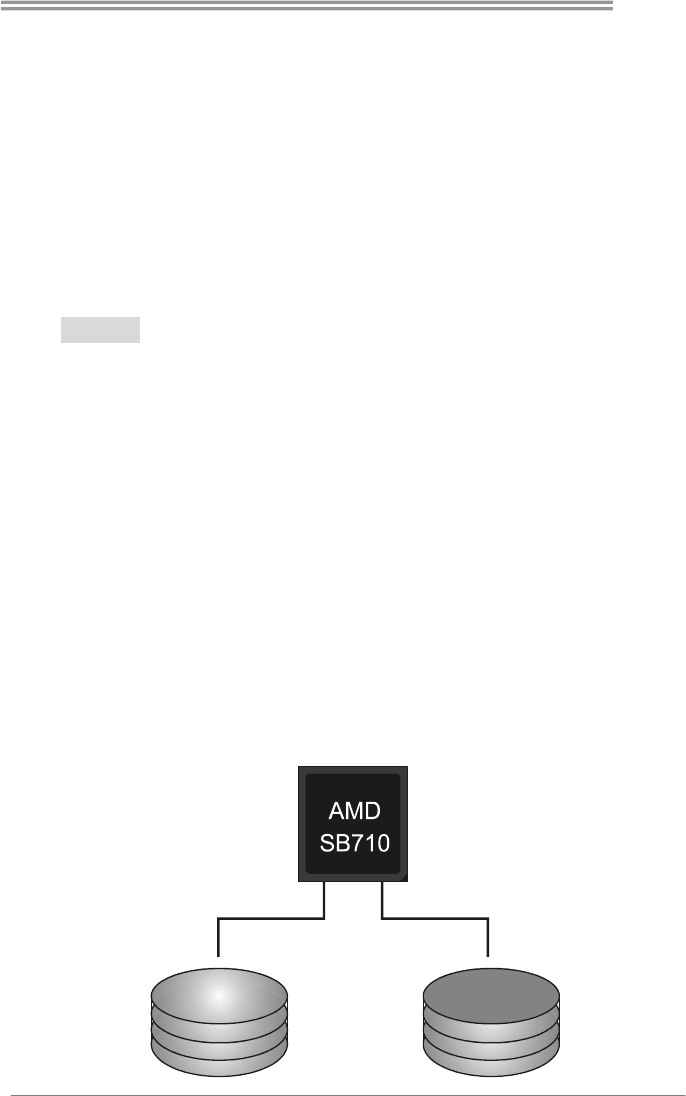

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a
RAID 1 array system. The mirrored (backup) copy of the data can reside on the
same disk or on a second redundant drive in the array. RAID 1 provides a
hot-standby copy of data if the active volume or drive is corrupted or becomes
unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of
automatic backup that eliminates tedious manual backups to more expensive
and less reliable media.
Features and Benefits
- Drives: Minimum 2, and maximum is 2.
- Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
- Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
- Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
- Fault Tolerance: Yes.
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
A780L3C
31
RAID 10:
RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10
solution for improved resiliency, performance and rebuild performance.
Features and Benefits
- Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
- Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID
levels in an array, and allows for spare disks.
- Drawbacks: Requires twice the available disk space for data redundancy,
the same as RAID level 1.
- Fault Tolerance: Yes.
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Motherboard Manual
32
APPENDIX: Specifications In Other Languages
German
Spezifikationen
CPU
Sockel AM3
AMD Sempron / Phenom II / Athlon II
Prozessoren (Maximales Watt: 95W)
Die AMD 64-Architektur unterstützt eine 32-Bit- und
64-Bit-Datenverarbeitung
Unterstützt Hyper Transport 2.0
FSB
Unterstützt Hyper Transport 3.0 mit einer
Bandbreite von bis zu 3.2 GT/s
Chipsatz
AMD 760G
AMD SB710
Super E/A
ITE8728F-BX
Bietet die häufig verwendeten alten Super
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
"Smart Guardian"-Funktion von ITE
Arbeitsspeiche
r
DDR3 DIMM-Steckplätze x 2
Max. 16GB Arbeitsspeicher
Jeder DIMM unterstützt 512MB/1GB/
2GB/4GB/8GB DDR3.
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 800/1066/1333/1600(OC)
registrierte DIMMs. ECC DIMMs werden nicht unterstützt.
Grafik Integrierter AMD 760G-Chipsatz Max. 1024MB gemeinsam benutzter Videospeicher
SATA Integrierter Serial ATA-Controller
Datentransferrate bis zu 3 Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
LAN Realtek RTL 8105T 10 / 100 Mb/s Auto-Negotiation
HD
Audio-Unterstü
tzung
VT1708B / ALC662
5.1-Kanal-Audioausgabe
Unterstützt High-Definition Audio
PCI Express X16 Steckplatz x1
Steckplätze
PCI-Steckplatz x1
SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk
IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke
Onboard-Ansc
hluss
Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen
A780L3C
33
Spezifikationen
Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion
CPU-Lüfter-Sockel x1
CPU-Lüfterstromversorgungsanschluss (mit Smart
Fan-Funktion)
System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss
"CMOS löschen"-Sockel x1
USB-Anschluss x2 Jeder Anschluss unterstützt 2 Fronttafel-USB-Anschlüsse
Stromanschluss (24-polig) x1
Stromanschluss (4-polig) x1
Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss
Rückseiten-E/
A
PS/2-Tastatur x1
PS/2-Maus x1
VGA-Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
Platinengröße 182 mm (B) X 225 mm (L)
Sonderfunktion
en Unterstützt RAID 0 / 1 / 10
OS-Unterstütz
ung Windows XP / Vista / 7 / 8
Biostar behält sich das Recht vor, ohne Ankündigung die
Unterstützung für ein Betriebssystem hinzuzufügen oder zu
entfernen.
Motherboard Manual
34
French
SPEC
UC
Socket AM3
Processeurs AMD Sempron / Phenom II /
Athlon II (Watt maximum : 95W)
L'architecture AMD 64 permet le calcul 32 et 64 bits
Prend en charge Hyper Transport 2.0
Bus frontal Prend en charge Hyper Transport 3.0 jusqu'à
une bande passante de 3.2 GT/s
Chipset AMD 760G
AMD SB710
Super E/S
ITE 8728F-BX
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à faible compte de broches
Initiatives de contrôle environnementales,
Moniteur de matériel
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR3 DIMM x 2
Capacité mémoire maximale de 16Go
Chaque DIMM prend en charge des DDR3 de
512Mo/1Go/2Go/4Go/8Go
Module de mémoire DDR3 à mode à double voie
Prend en charge la DDR3 800/1066/1333/1600(OC)
Les DIMM à registres et DIMM avec code correcteurs
d'erreurs ne sont pas prises en charge
Graphiques Integré dans la chipset AMD 760G Mémoire vidéo partagée maximale de 1024 Mo
SATA
Contrôleur Serial ATA
intégré
Taux de transfert jusqu'à 3 Go/s.
Conforme à la spécification SATA Version 2.0
LAN Realtek RTL 8105T 10 / 100 Mb/s négociation automatique
Prise en
charge audio
HD
VT1708B / ALC662
Sortie audio à 5.1 voies
Prise en charge de l'audio haute définition
Fente PCI Express X16 x1
Fentes
Fente PCI x1
Connecteur SATA x4 Chaque connecteur prend en charge 1 périphérique SATA
Connecteur IDE x1 Chaque connecteur prend en charge 2 périphériques IDE
Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant
Connecteur
embarqué
Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant
A780L3C
35
SPEC
Embase de ventilateur UC x1
Alimentation électrique du ventilateur UC (avec fonction de
ventilateur intelligent)
Embase de ventilateur système x1 Alimentation électrique du ventilateur système
Embase d'effacement CMOS x1
Connecteur USB x2
Chaque connecteur prend en charge 2 ports USB de panneau
avant
Connecteur d'alimentation x1
(24 broches)
Connecteur d'alimentation x1
(4 broches)
Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante
E/S du
panneau
arrière
Clavier PS/2 x1
Souris PS/2 x1
Port VGA x1
Port LAN x1
Port USB x4
Fiche audio x3
Dimensions
de la carte 182 mm (l) X 225 mm (H)
Fonctionnalit
és spéciales Prise en charge RAID 0 / 1 / 10
Support SE Windows XP / Vista / 7 / 8
Biostar se réserve le droit d'ajouter ou de supprimer le support
de SE avec ou sans préavis.
Motherboard Manual
36
Italian
SPECIFICA
CPU
Socket AM3
Processori AMD Sempron / Phenom II /
Athlon II (Watt massimo: 95W)
L’architettura AMD 64 abilita la computazione 32 e 64
bit
Supporto di Hyper Transport 2.0
FSB
Supporto di HyperTransport 3.0 fino a 3.2
GT/s di larghezza di banda
Chipset
AMD 760G
AMD SB710
Super I/O
ITE 8728F-BX
Fornisce le funzionalità legacy Super I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR3 x 2
Capacità massima della memoria 16GB
Ciascun DIMM supporta DDR3
512MB/1GB/2GB/4GB/8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 800/1066/1333/1600(OC)
DIMM registrati e DIMM ECC non sono supportati
Grafica Integrata nel Chipset AMD 760G La memoria video condivisa massima è di 1024 MB
SATA Controller Serial ATA integrato
Velocità di trasferimento dei dati fino a 3 Gb/s.
Compatibile specifiche SATA Versione 2.0.
LAN Realtek RTL 8105T Negoziazione automatica 10 / 100 Mb/s
Supporto
audio HD VT1708B / ALC662
Uscita audio 5.1 canali
Supporto audio High-Definition (HD)
Alloggio PCI Express X16 x1
Alloggi
Alloggio PCI x1
Connettore SATA x4 Ciascun connettore supporta 1 unità SATA
Connettore IDE x1 Ciascun connettore supporta 2 unità IDE
Connettore pannello frontale x1 Supporta i servizi del pannello frontale
Connettore audio frontale x1 Supporta la funzione audio pannello frontale
Connettori
su scheda
Collettore ventolina CPU x1 Alimentazione ventolina CPU (con funzione Smart Fan)
A780L3C
37
SPECIFICA
Collettore ventolina sistema x1 Alimentazione ventolina di sistema
Collettore cancellazione CMOS x1
Connettore USB x2
Ciascun connettore supporta 2 porte USB pannello
frontale
Connettore alimentazione x1
(24 pin)
Connettore alimentazione x1
(4 pin)
Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante
I/O pannello
posteriore
Tastiera PS/2 x1
Mouse PS/2 x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Connettore audio x3
Dimensioni
scheda 182 mm (larghezza) x 225 mm (altezza)
Caratteristic
he speciali Supporto RAID 0 / 1 / 10
Sistemi
operativi
supportati
Windows XP / Vista / 7 / 8
Biostar si riserva il diritto di aggiungere o rimuovere il
supporto di qualsiasi sistema operativo senza
preavviso.
Motherboard Manual
38
Spanish
Especificación
CPU
Conector AM3
Procesadores AMD Sempron / Phenom II /
Athlon II (Vatio máximo: 95W)
La arquitectura AMD 64 permite el procesado de 32 y 64 bits
Soporta las tecnologías Hyper Transport 2.0
FSB
Admite HyperTransport 3.0 con un ancho de
banda de hasta 3.2 GT/s
Conjunto de
chips
AMD 760G
AMD SB710
Súper E/S
ITE 8728F-BX
Le ofrece las funcionalidades heredadas de uso
más común Súper E/S.
Interfaz de cuenta Low Pin
Iniciativas de control de entorno,
Monitor hardware
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR3 x 2
Capacidad máxima de memoria de 16GB
Cada DIMM admite DDR de
512MB/1GB/2GB/4GB/8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 800/1066/1333/1600(OC)
No admite DIMM registrados o DIMM compatibles con ECC
Gráficos Integrados en el conjunto de chips AMD 760G Memoria máxima de vídeo compartida de 1024 MB
SATA Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3 Gb/s.
Compatible con la versión SATA 2.0.
Red Local Realtek RTL 8105T Negociación de 10 / 100 Mb/s
Soporte de
sonido HD VT1708B / ALC662
Salida de sonido de 5.1 canales
Soporte de sonido Alta Definición
Ranura PCI Express X16 X1
Ranuras
Ranura PCI X1
Conector SATA X4 Cada conector soporta 1 dispositivos SATA
Conector IDE X1 Cada conector soporta 2 dispositivos IDE
Conector de panel frontal X1 Soporta instalaciones en el panel frontal
Conectores
en placa
Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal
A780L3C
39
Especificación
Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con función
Smart Fan)
Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema
Cabecera de borrado de CMOS X1
Conector USB X2 Cada conector soporta 2 puertos USB frontales
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(4 patillas)
Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora
Panel trasero
de E/S
Teclado PS/2 X1
Ratón PS/2 X1
Puerto VGA X1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Tamaño de
la placa 182 mm. (A) X 225 Mm. (H)
Funciones
especiales Admite RAID 0 / 1 / 10
Soporte de
sistema
operativo
Windows XP / Vista / 7 / 8
Biostar se reserva el derecho de añadir o retirar el soporte de
cualquier SO con o sin aviso previo.
Motherboard Manual
40
Portuguese
ESPECIFICAÇÕES
CPU
Socket AM3
Processadores AMD Sempron / Phenom II /
Athlon II (Watt máximo: 95W)
A arquitectura AMD 64 permite uma computação de 32 e 64
bits
Suporta as tecnologias Hyper Transport 2.0
FSB Suporta a tecnologia HyperTransport 2.0 com
uma largura de banda até 3.2 GT/s
Chipset AMD 760G
AMD SB710
Especificaçã
o Super I/O
ITE 8728F-BX
Proporciona as funcionalidades mais utilizadas
em termos da especificação Super I/O.
Interface LPC (Low Pin Count).
Iniciativas para controlo do ambiente
Monitorização do hardware
Função "Smart Guardian" da ITE
Memória
principal
Ranhuras DIMM DDR3 x 2
Capacidade máxima de memória: 16GB
Cada módulo DIMM suporta uma memória
DDR3 de 512MB/1GB/
2GB/4GB/8GB
Módulo de memória DDR3 de canal duplo
Suporta módulos DDR3 800/1066/1333/1600(OC)
Os módulos DIMM registados e os DIMM ECC não são
suportados
Placa gráfica Integrada no chipset AMD 760G Memória de vídeo máxima partilhada: 1024 MB
SATA Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3 Gb/s.
Compatibilidade com a especificação SATA versão 2.0.
LAN Realtek RTL 8105T Auto negociação de 10 / 100 Mb/s
Suporte para
áudio de alta
definição
VT1708B / ALC662
Saída de áudio de 5.1 canais
Suporta a especificação High-Definition Audio
Ranhura PCI Express X16 x1
Ranhuras
Ranhura PCI x1
Conector SATA x4 Cada conector suporta 1 dispositivo SATA
Conector IDE x1 Cada conector suporta 2 dispositivos IDE
Conector do painel frontal x1 Para suporte de várias funções no painel frontal
Conectores
na placa
Conector de áudio frontal x1 Suporta a função de áudio no painel frontal
A780L3C
41
ESPECIFICAÇÕES
Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (com a função Smart Fan)
Conector da ventoinha do sistema x1 Alimentação da ventoinha do sistema
Conector para limpeza do CMOS x1
Conector USB x2 Cada conector suporta 2 portas USB no painel frontal
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(4 pinos)
Conector da para impressora x1 Cada conector suporta 1 Porta para impressora
Entradas/Saí
das no painel
traseiro
Teclado PS/2 x1
Rato PS/2 x1
Porta VGA x1
Porta LAN x1
Porta USB x4
Tomada de áudio x3
Tamanho da
placa 182 mm (L) X 225 mm (A)
Característic
as especiais Suporta as funções RAID 0 / 1 / 10
Sistemas
operativos
suportados
Windows XP / Vista / 7 / 8
A Biostar reserva-se o direito de adicionar ou remover suporte
para qualquer sistema operativo com ou sem aviso prévio.
Motherboard Manual
42
Polish
SPEC
Procesor
Socket AM3
AMD Sempron / Phenom II / Athlon II Procesory
(Maksymalny Watt: 95W)
Architektura AMD 64 umożliwia przetwarzanie 32 i 64 bitowe
Obsługa Hyper Transport 2.0
FSB
Obsługa HyperTransport 3.0 o szerokości
pasma do 3.2 GT/s
Chipset
AMD 760G
AMD SB710
Pamięć
główna
Gniazda DDR3 DIMM x 2
Maks. wielkość pamięci 16GB
Każde gniazdo DIMM obsługuje moduły
512MB/1GB/2GB/4GB/8GB DDR3
Moduł pamięci DDR3 z trybem podwójnego kanału
Obsługa DDR3 800/1066/1333/1600(OC)
Brak obsługi Registered DIMM oraz ECC DIMM
Super I/O
ITE 8728F-BX
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Monitor H/W
Funkcja ITE "Smart Guardian"
Grafika Zintegrowana w chipsecie AMD 760G Maks. wielkość współdzielonej pamięci video wynosi 1024 MB
SATA Zintegrowany kontroler Serial ATA
Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0.
LAN Realtek RTL 8105T 10 / 100 Mb/s z automatyczną negocjacją szybkości
Obsługa
audio HD VT1708B / ALC662
5.1 kanałowe wyjście audio
Obsługa High-Definition Audio
Gniazdo PCI Express X16 x1
Gniazda
Gniazdo PCI x1
Złącze SATA x4 Każde złącze obsługuje 1 urządzenie SATA
Złącze IDE x1 Każde złącze obsługuje 2 urządzenia IDE
Złącze panela przedniego x1 Obsługa elementów panela przedniego
Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim
Złącza
wbudowane
Złącze główkowe wentylatora procesora x1 Zasilanie wentylatora procesora (z funkcją Smart Fan)
A780L3C
43
SPEC
Złącze główkowe wentylatora systemowego x1 Zasilanie wentylatora systemowego
Złącze główkowe kasowania CMOS x1
Złącze USB x2 Każde złącze obsługuje 2 porty USB na panelu przednim
Złącze zasilania (24 pinowe) x1
Złącze zasilania (4 pinowe) x1
Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki
Back Panel
I/O
Klawiatura PS/2 x1
Mysz PS/2 x1
Port VGA x1
Port LAN x1
Port USB x4
Gniazdo audio x3
Wymiary
płyty 182 mm (S) X 225 mm (W)
Funkcje
specjalne Obsługa RAID 0 / 1 / 10
Obsluga
systemu
operacyjneg
o
Windows XP / Vista / 7 / 8
Biostar zastrzega sobie prawo dodawania lub odwoływania
obsługi dowolnego systemu operacyjnego bez
powiadomienia.
Motherboard Manual
44
Russian
СПЕЦ
CPU
(центральн
ый
процессор)
Гнездо AM3
Процессоры AMD Sempron / Phenom II /
Athlon II (Максимальный ватт: 95W)
Архитектура AMD 64 разрешать обработка данных на 32 и
64 бит
Поддержка Hyper Transport 2.0
FSB Поддержка HyperTransport 3.0 с пропускной
способностью до 3.2 GT/s
Набор
микросхем
AMD 760G
AMD SB710
Основная
память
Слоты DDR3 DIMM x 2
Максимальная ёмкость памяти 16ГБ
Каждый модуль DIMM поддерживает
512МБ/1ГБ/2ГБ/4ГБ/8ГБ DDR3
Модуль памяти с двухканальным режимом DDR3
Поддержка DDR3 800/1066/1333/1600(OC)
Не поддерживает зарегистрированные модули DIMM and
ECC DIMM
Super I/O
ITE 8728F-BX
Обеспечивает наиболее используемые
действующие функциональные
возможности Super I/O.
Интерфейс с низким количеством выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Функция ITE "Smart Guardian" (Интеллектуальная защита)
Графика Встроенная в набор микросхем AMD 760G Максимальная совместно используемая видео память
составляет 1024 МБ
SATA Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3 гигабит/с.
Соответствие спецификации SATA версия 2.0.
Локальная
сеть Realtek RTL 8105T Автоматическое согласование 10 / 100 Мб/с
Звуковая
поддержка
жесткого
диска
VT1708B / ALC662 Звуковая поддержка High-Definition
5.1канальный звуковой выход
Слот PCI Express X16 x1
Слоты
Слот PCI x1
Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA
Разъём IDE x1
Каждый разъём поддерживает 2 встроенных интерфейса
накопителей
Разъём на лицевой панели x1 Поддержка устройств на лицевой панели
Встроенный
разъём
Входной звуковой разъём x1 Поддержка звуковых функций на лицевой панели
A780L3C
45
СПЕЦ
Контактирующее приспособление
вентилятора центрального
процессора x1
Источник питания для вентилятора центрального
процессора (с функцией интеллектуального вентилятора)
Контактирующее приспособление
вентилятора системы x1
Источник питания для вентилятора системы
Открытое контактирующее
приспособление CMOS x1
USB-разъём x2
Каждый разъём поддерживает 2 USB-порта на лицевой
панели
Разъем питания (24 вывод) x1
Разъем питания (4 вывод) x1
Разъём Порт подключения
принтера x1
Каждый разъём поддерживает 1 Порт подключения
принтера
Задняя
панель
средств
ввода-выво
да
Клавиатура PS/2 x1
Мышь PS/2 x1
Порт VGA x1
Порт LAN x1
USB-порт x4
Гнездо для подключения
наушников x3
Размер
панели 182 мм (Ш) X 225 мм (В)
Специальн
ые
технические
характерист
ики
Поддержка RAID 0 / 1 / 10
Поддержка
OS Windows XP / Vista / 7 / 8
Biostar сохраняет за собой право добавлять или удалять
средства обеспечения для OS с или без
предварительного уведомления.
Motherboard Manual
46
Arabic
تﺎﻔﺻاﻮﻤﻟا
ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺑ ﺔﻴﺑﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺟإ 32 و64 ﺖﺑ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 2.0
ﺲﺒﻘﻣAM3
تﺎﺠﻟﺎﻌﻣAMD Sempron / Phenom II / Athlon II
(طاو ىﻮﺼﻗ: 95و)
ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو
ﺔﻳﺰآﺮﻤﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺑ 3.0 3.2 GT/s ﻲﺒﻧﺎﺠﻟا ﻲﻣﺎﻣﻷا ﻞﻗﺎﻨﻟا
AMD 760G
AMD SB710
ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗLow Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ﺐﻗاﺮﻣةﺰﻬﺟﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE
ITE 8728F-BX
ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘ ﺳ ا ﺮﺜآﻷا .
Super I/O
ةﺮآاذ ةﺪﺣوDDR3 ةﺎﻨﻘﻟا ﺔﺟودﺰﻣ
عﻮﻧ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800/1066/1333/1600)OC(
ﺖﻳﺎﺑ ﺎﺠﻴﻣ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ DIMM ﻓاﻮﺘﺗ ﻲﺘﻟا ﻚﻠﺗو ﻊﻣ ECC
ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺑ ﺎﺠﻴﺟ
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻧ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ /512 ﺖﻳﺎ ﺎﺠﻴﻣ
و1/و 2/و 4/و 8 ﺖﻳﺎﺑ ﺎﺠﻴﺟ
ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا
ﺔآﺮﺘﺸﻤﻟا ﻮﻳﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ1024ﺖﻳﺎﺑ ﺎﺠﻴﻣ ﻖﺋﺎﻗر ﻲﻓ ﺔﺠﻣﺪﻣ AMD 760G تﺎﻣﻮﺳﺮﻟا ﺔﻗﺎﻄﺑ
ﻟا ﻞﻘﻧ ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺑ تﺎﻧﺎﻴﺒ 3ﺖﺑﺎﺠﻴﺟ /ﺔﻴﻧﺎﺛ.
تﺎﻔﺻاﻮﻤﻟ ﺔﻘﺑﺎﻄﻣSATA راﺪﺻﻹا 2.0.
ﻢﻜﺤﺘﻣSerial ATAﻞﻣﺎﻜﺘﻣ SATA
ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻧﺎﺛ Realtek RTL 8105T ﺔﻴﻠﺧاد ﺔﻜﺒﺷ
5.1تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ
VT1708B / ALC662
ﻲﻟﺎﻋ تﻮﺼﻟا ﻢﻋد
ﻳﺮﻌﺘﻟا
ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓPCI دﺪﻋ1
تﺎﺤﺘﻔﻟا
ةﺰﻬﺟأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳSATA ﺬﻔﻨﻣSATA دﺪﻋ4
ةﺰﻬﺟأ ﻦﻣ ﻦﻴﻨﺛا ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳIDE ﺬﻔﻨﻣIDE دﺪﻋ1
ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠ ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا
ﺔﺣﻮﻠﻟا
A780L3C
47
تﺎﻔﺻاﻮﻤﻟا
ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟSmart Fan ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1
مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1
ﺢﺴﻣ ﺔﻠﺻوCMOS دﺪﻋ1
ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳUSBﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ ﻨﻣ ﺬﻔUSB دﺪﻋ2
ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨ)24سﻮﺑد( دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨ)4سﻮﺑد( دﺪﻋ1
ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1
ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1
سوﺎﻣ PS/2 دﺪﻋ1
ﺬﻔﻨﻣVGA دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺷ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻓﺎﻨﻣUSB دﺪﻋ4
تﻮﺻ ﺲﺒﻘ ﺪﻋ3
ﻞﺧد ﺬﻓﺎﻨ/ جﺮﺧ
ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا
182 )ضﺮﻋ (X 225 ﻢﻣ)عﺎﻔﺗرا( ﺔﺣﻮﻠﻟا ﻢﺠﺣ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 10 ﺔﺻﺎﺧ ﺎﻳاﺰﻣ
ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺧﺈﺑ ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ
رﺎﻄﺧإ نوﺪﺑ.
Windows XP / Vista / 7 / 8 ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻧأ ﻢﻋد
Motherboard Manual
48
Japanese
仕様
CPU
Socket AM3
AMD Sempron / Phenom II / Athlon II プロセッ
(最高のワット: 95W)
AMD 64アーキテクチャでは、32ビットと64ビット計算が可能
です
ハイパートランスポート2.0とクールアンドクワイアットをサ
ポートします
FSB
3.2 GT/sのバンド幅までハイパートランスポー
3.0をサポートします
チップセッ
AMD 760G
AMD SB710
メインメモ
DDR3 DIMMスロット x 2
最大メモリ容量16GB
DIMM 512MB/1GB/2GB/4GB/8GB DDR3
をサポート
デュアル チャンネルモードDDR3メモリモジュール
DDR3 800/1066/1333/1600(OC) をサポート
登録済みDIMMECC DIMMはサポートされません
Super I/O
ITE 8728F-BX
もっとも一般に使用されるレガシーSuper I/O
機能を採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ITEの「スマートガーディアン」機能
グラフィッ
クス AMD 760Gチップセットに統 最大の共有ビデオメモリは1024MBです
SATA 統合シリアルATAコントローラ 最高3Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
LAN Realtek RTL 8105T 10 / 100 Mb/秒のオートネゴシエーション
HDオーディ
オのサポー
VT1708B / ALC662
5.1チャンネルオーディオアウト
ハイデフィニションオーディオのサポート
PCI Express X16スロット x1
スロット
PCIスロット x1
SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします
IDEコネクタ x1 各コネクタは2つのIDEデバイスをサポートします
オンボード
コネクタ
フロントパネルコネクタ x1 フロントパネル機能をサポートします
A780L3C
49
仕様
フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします
CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)
システムファンヘッダ x1 システムファン電源装置
CMOSクリアヘッダ x1
USBコネクタ x2
各コネクタは2つのフロントパネルUSBポートをサポートし
ます
電源コネクタ(24ピン) x1
電源コネクタ(4ピン) x1
プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートしま
背面パネル
I/O
PS/2キーボード x1
PS/2マウス x1
VGAポート x1
LANポート x1
USBポート x4
オーディオジャック x3
ボードサイ
182 mm () X 225 mm (高さ)
特殊機能 RAID 0 / 1 / 10 のサポート
OSサポート Windows XP / Vista / 7 / 8
Biostarは事前のサポートなしにOSサポートを追加または削
除する権利を留保します。
2013/04/01

Navigation menu
