TH61MU3/H61MU3/H61MH/H61ML Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Dichiarazione di conformità
sintetica
Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied
Table of Contents
Chapter 1: Introduction ........................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation .......................... 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory ................................................................ 8
2.4 Connectors and Slots....................................................................... 10
Chapter 3: Headers & Jumpers Setup .................. 13
3.1 How to Setup Jumpers .................................................................... 13
3.2 Detail Settings.................................................................................. 13
Chapter 4: Useful Help ........................................ 17
4.1 Driver Installation Note.................................................................. 17
4.2 Software............................................................................................ 18
4.3 Extra Information............................................................................ 22
4.4 AMI BIOS Beep Code....................................................................... 23
4.5 Troubleshooting............................................................................... 24
Appendix: SPEC In Other Languages ................... 26
German.................................................................................................................. 26
French .................................................................................................................... 28
Italian..................................................................................................................... 30
Spanish ................................................................................................................... 32
Portuguese ............................................................................................................ 34
Polish...................................................................................................................... 36
Russian ................................................................................................................... 38
Arabic..................................................................................................................... 40
Japanese ................................................................................................................ 42
TH61MU3/H61MU3/H61MH/H61ML
1
CHAPTER 1: INTRODUCTION
1.1 BEFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be
0 to 45 degrees Celsius.
1.2 PACKAGE CHECKLIST
Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver CD X 1
USB 2.0 Cable X1 (optional)
Serial ATA Power Cable X 1 (optional)
Note: The package contents may be different due to area or your motherboard version.
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Intel Core i7 / i5 / i3 / Pentium p rocessor
Supports Execute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Intel Core i7 / i5 / i3 / Pentium p rocessor
Supports Execute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipset Intel H61 Intel H61
Super I/O
ITE 8728
Provides the most commonly used leg acy Super
I/O functionality.
Low Pin Count Interface
Environment Control in it iatives,
Hardware Monitor Controller
Fan Speed Contro ller
ITE's "S mart Guard ian " funct ion
ITE 8728
Provides the most commonly used leg acy Super
I/O functionality.
Low Pin Count Interface
Environment Control in it iatives,
Hardware Monitor Controller
Fan Speed Contro ller
ITE's "S mart Guard ian " funct ion
Main Memory
DIMM Slots x 2
Each DIMM supports 512MB / 1GB / 2GB / 4GB
DDR3
Max Memory Capacity 8GB
Dual Channel Mode DDR3 memory modu le
Supports DDR3 1333/1066
Registered DIMM and ECC DIMM is not
supported
DIMM Slots x 2
Each DIMM supports 512MB / 1GB / 2GB / 4GB
DDR3
Max Memory Capacity 8GB
Dual Channel Mode DDR3 memory modu le
Supports DDR3 1333/1066
Registered DIMM and ECC DIMM is not
supported
SATA 2
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Vers ion 2.0 s pecif icat ion co mp liant
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Vers ion 2.0 s pecif icat ion co mp liant
LAN Realtek RTL8111E
10 / 100 Mb/s / 1Gb/s auto negotiation
Realtek RTL8111E (H61MH)
10 / 100 Mb/s / 1Gb/s auto negotiation
Realtek RTL8105E (H61ML)
10 / 100 Mb/s auto negotiation
Sound Codec
ALC662
5.1 channels audio out
High Definition Audio
ALC662
5.1 channels audio out
High Definition Audio
USB3.0 Asmedia ASM1042
PCI Express Gen2 x16 Slot x1 PCI Express Gen2 x16 Slot x1
PCI Express Gen2 x1 Slot x1 PCI Express Gen2 x1 Slot x1
Slots
PCI Slot x2 PCI Slot x2
Printer Port Connector x1 Printer Port Connector x1
Serial Port Connector x1 Serial Port Connector x1
SATA Connector x4 SATA Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
On Board
Connectors
S/PDIF out Connector x1 S/PDIF out Connector x1
TH61MU3/H61MU3/H61MH/H61ML
3
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
Clear CMOS Head er x1 Clear CMOS Head er x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Consumer IR Connector x1 Consumer IR Connector x1
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port (by H61) x2
USB3.0 Port (by ASM1042) x2
Audio Jack x3
PS/2 Keyboard / Mouse x1
HDMI Port (H61MH) x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
Board Size 200 (W) x 244 (L) mm 200 (W) x 244 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

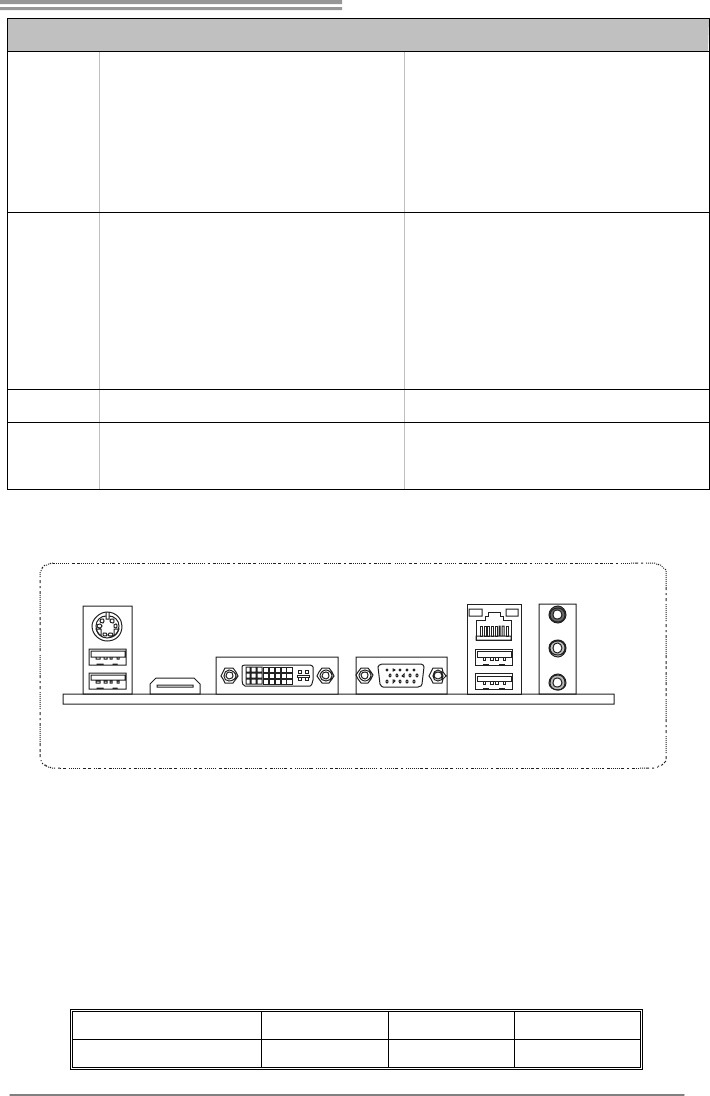

1.4 REAR PANEL CONNECTORS
USB3.0X2
LAN
HDMI VGADVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
US B2 .0X 2
(For TH61MU3 &
H61MU3 & H61MH)
(For TH61MU3 & H61MU3)
USB2.0X2
(For H61MH & H61ML)
NOTE: HDMI / DV I-D / VGA Output require an Inte l Core family processor with Intel Graphics
Te c h n o l o g y.
NOTE: Maximum resolution:
HDMI: 1920 x 1200 @60Hz
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz
NOTE: This motherboard supports Multiple VGA output, and the configuration is as below:
(HDMI is not supported under DOS and BIOS setup.)
Display Devices VGA + HDMI VGA + DVI-D HDMI + DVI-D
Enabled O O O
Motherboard Manual
4

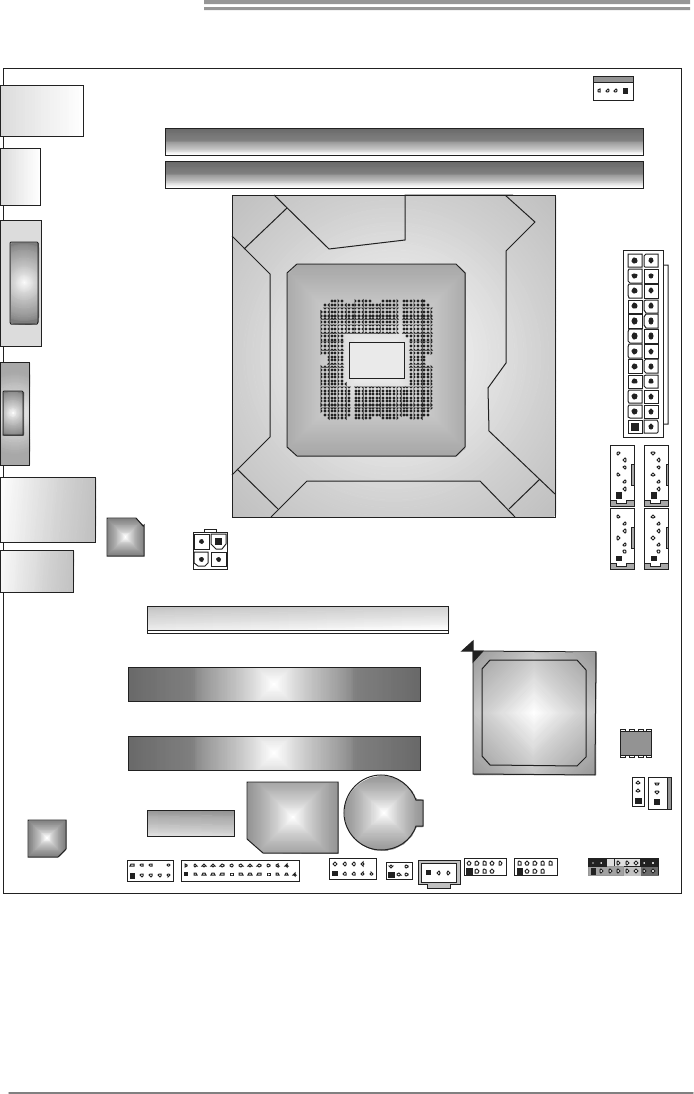

1.5 MOTHERBOARD LAYOUT
USBKB1
HDMI1 VGA1
DVI1
RJ45USB1
AUDIO1 ATXPWR2
LAN
CODEC
F_ AU DIO1 J _PRINT1 J_COM1
CIR1
JSPDIFOUT1
F_USB1 F_USB2 PAN EL1
SYS_FAN1
JCMOS1
BIOS
SATA4
SATA2
SATA3
SATA1
BAT1
PCI1
PCI2
PEX16_1
PEX1_1
Super
I/O
ATXPWR1
DDR3_B1
DDR3_A1
CPU_FAN1
Socket 1155
CPU1
H61
Note: ■ represents the 1st pin.
TH61MU3/H61MU3/H61MH/H61ML
5
CHAPTER 2: HARDWARE INSTALLATION

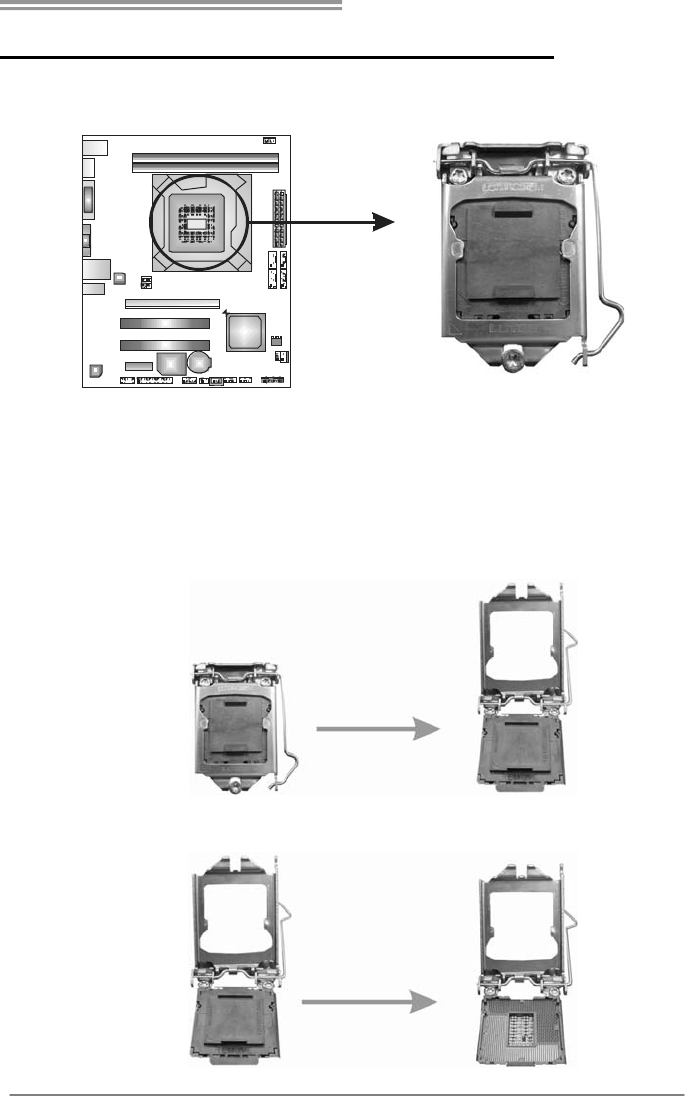

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Special Notice:
Remove Pin Cap before installation, and make good preservation
for future use. When the CPU is removed, cover the Pin Cap on the
empty socket to ensure pin legs won’t be damaged.
Step 1: Pull the socket locking lever out from the socket and then raise
the lever up.
Step 2: Remove the Pin Cap.
Motherboard Manual
6

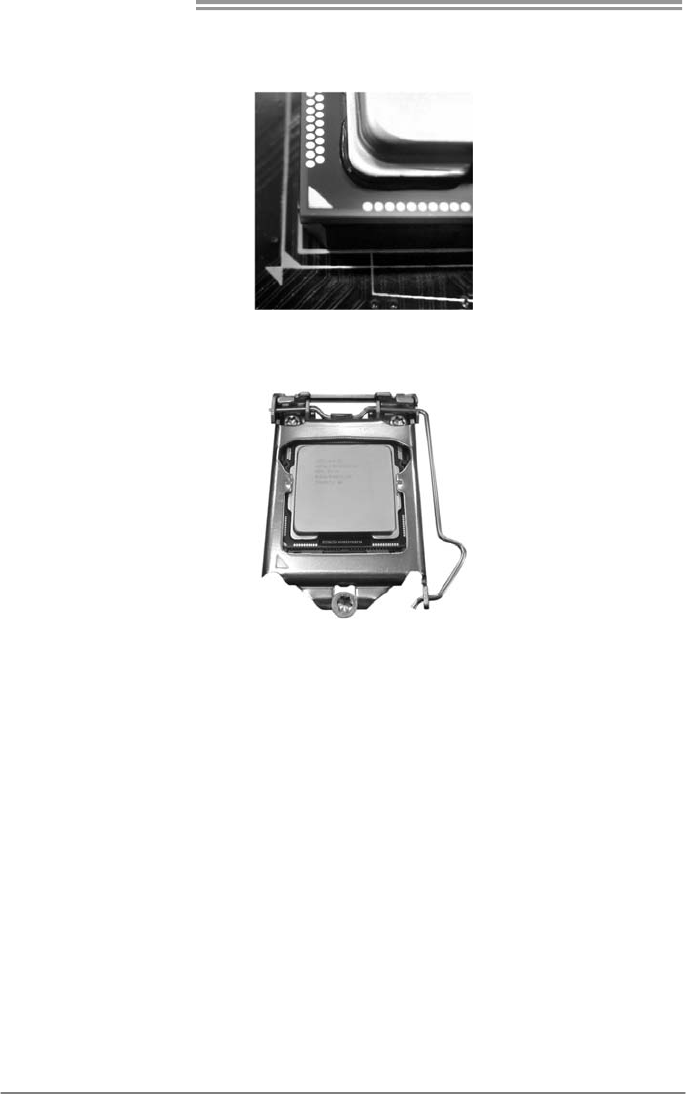

Step 3: Look for the triangular cut edge on socket, and the golden dot on
CPU should point forwards this triangular cut edge. The CPU will
fit only in the correct orientation.
Step 4: Hold the CPU down firmly, and then lower the lever to locked
position to complete the installation.
Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.
TH61MU3/H61MU3/H61MH/H61ML
7

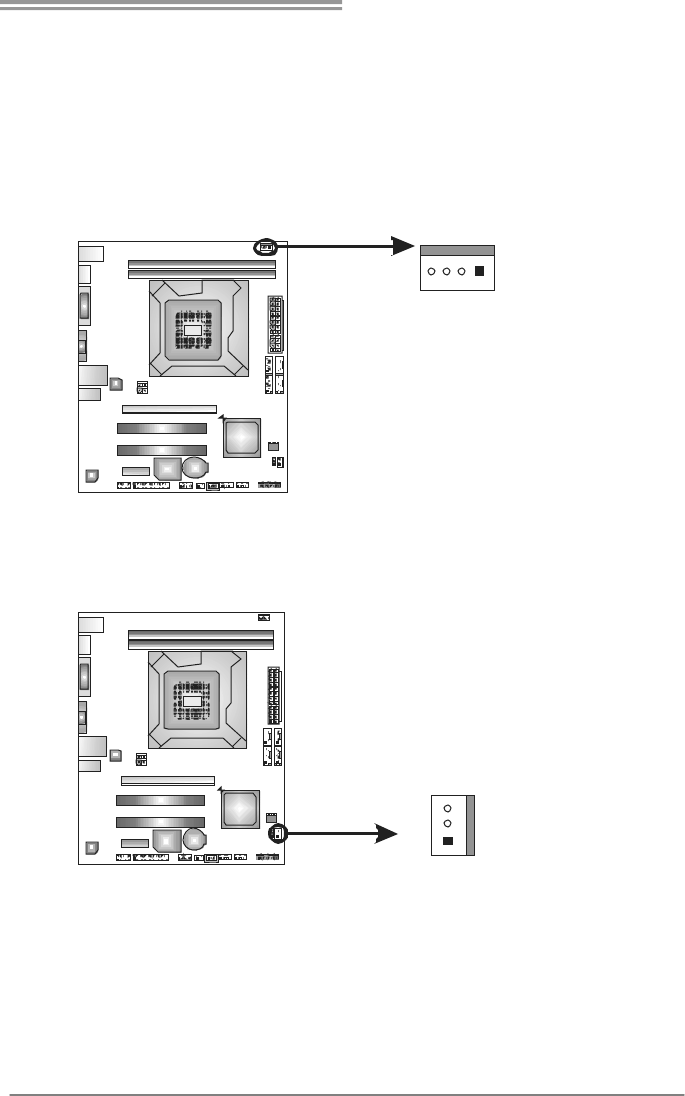

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different due to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU_FAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 Power
3 FAN RPM rate sense
14
4 Smart Fan Control
SYS_FAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
1
3
3 FAN RPM rate sense
Note:
CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
Motherboard Manual
8

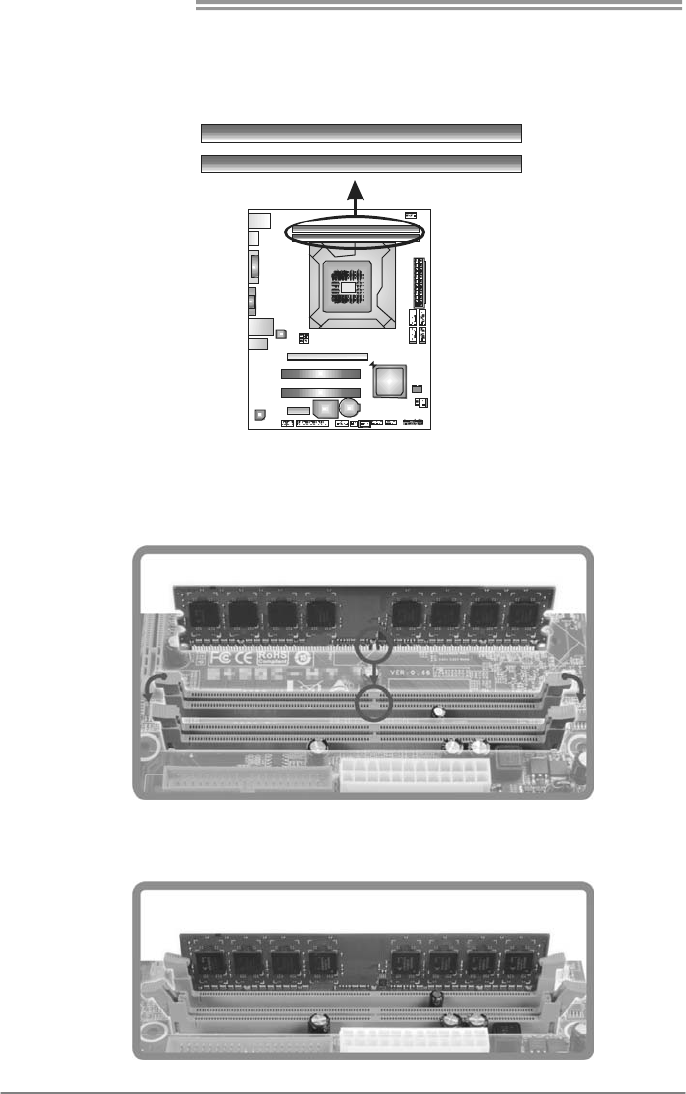

2.3 INSTALLING SYSTEM MEMORY
A. DDR3 module
DDR3_A1
DDR3_B1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
TH61MU3/H61MU3/H61MH/H61ML
9
B. Memory Capacity
DIMM Socket
Location DDR3 Module Total Mem ory
Size
DDR3_A1 512MB/1GB/2GB/4GB
DDR3_B1 512MB/1GB/2GB/4GB
Max is 8GB.
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR3_A1 DDR3_B1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed; X, not installed.)
The DRAM bus width of the memory module must be the same(x8 or
x16)
Motherboard Manual
10
2.4 CONNECTORS AND SLOTS

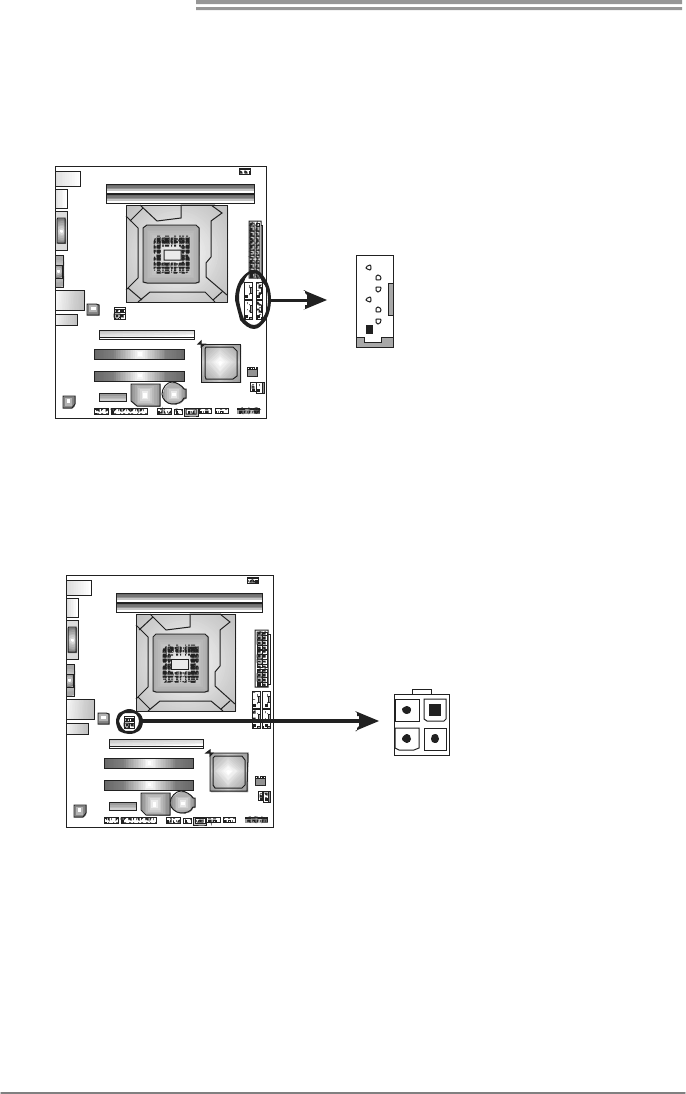

SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA 1 S ATA 3
SATA 2 S ATA 4
7 Ground
ATXPWR2: ATX Power Source Connector
This connector provides +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
12
34
4 Ground
TH61MU3/H61MU3/H61MH/H61ML
11

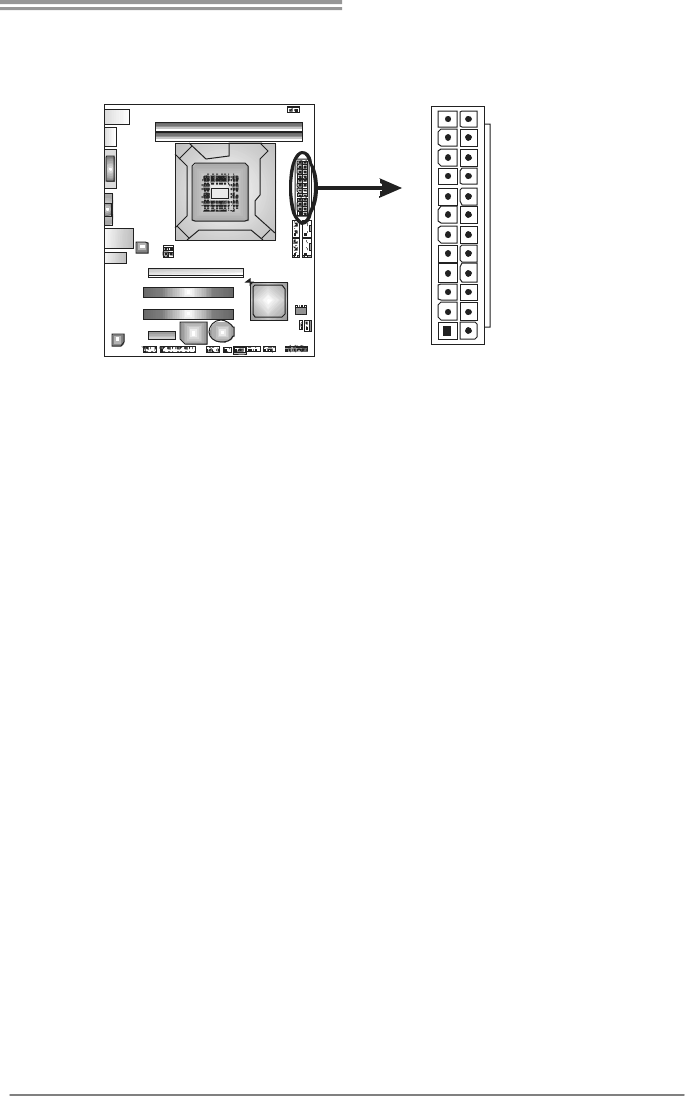

ATXPWR1: ATX Power Source Connector
This connector is for 24-pin power connector on the ATX power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
Note:
Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2
connectors have been plugged-in.
Motherboard Manual
12

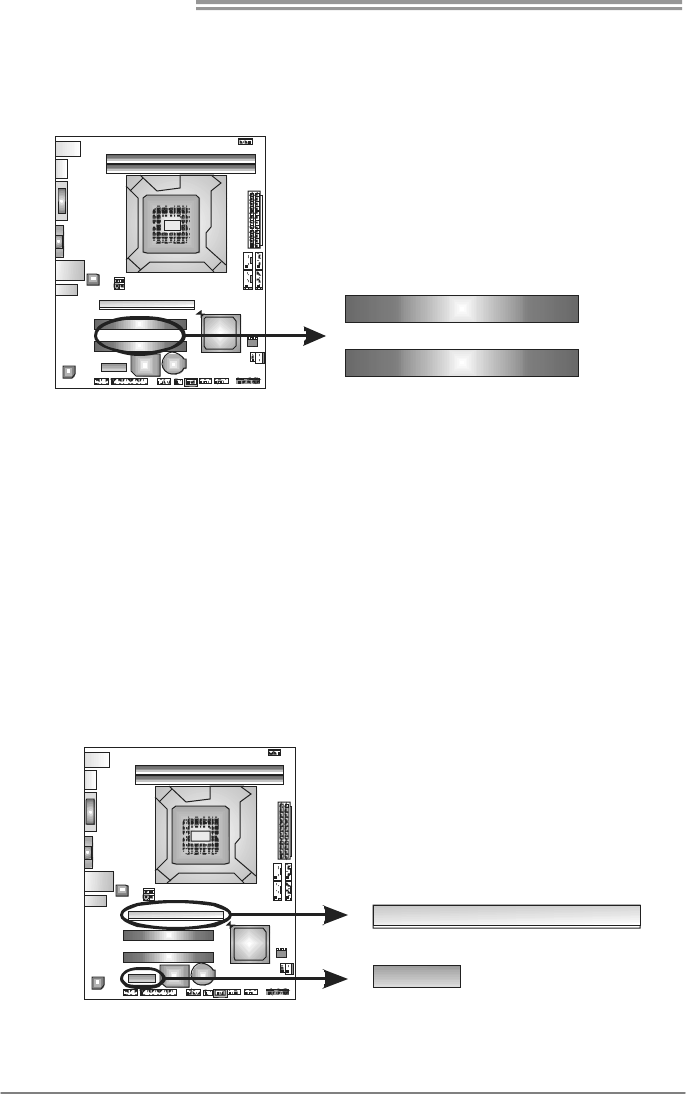

PCI1/PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI2
PCI1
PEX16_1: PCI-Express Gen2 x16 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s simultaneously per
direction, for an aggregate of 16GB/s totally.
- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.
- 2X bandwidth over the PCI-Express 1.1 architecture.
PEX1_1: PCI-Express Gen2 x1 Slot
- PCI-Express 1.1 compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
PEX16_1
PEX1_1
TH61MU3/H61MU3/H61MH/H61ML
13
CHAPTER 3: HEADERS & JUMPERS SETUP

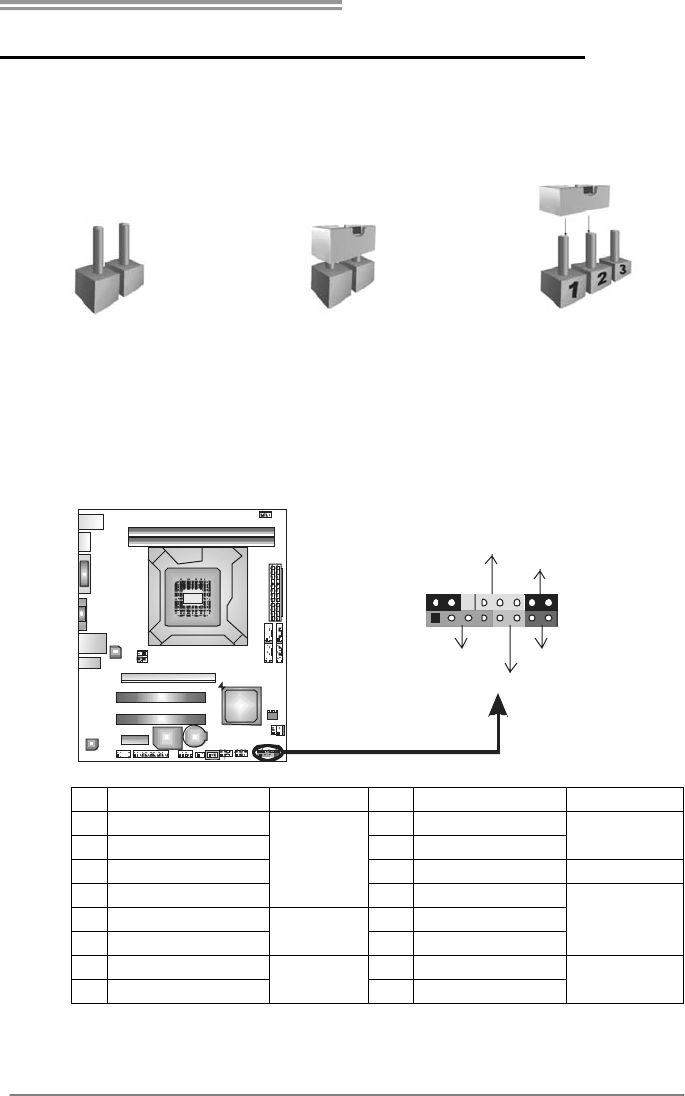

3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
1
9
8
16
POW_LED
On/Off
RST
HLED
SPK
++
+
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED 14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control Reset button 16 Ground Power-on button
Motherboard Manual
14
F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
19
210
F_USB1 F_USB2
10 NC
JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.
1
3
Pin 1-2 Close:
Normal Operation
(Default).
1
3
1
3
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
TH61MU3/H61MU3/H61MH/H61ML
15

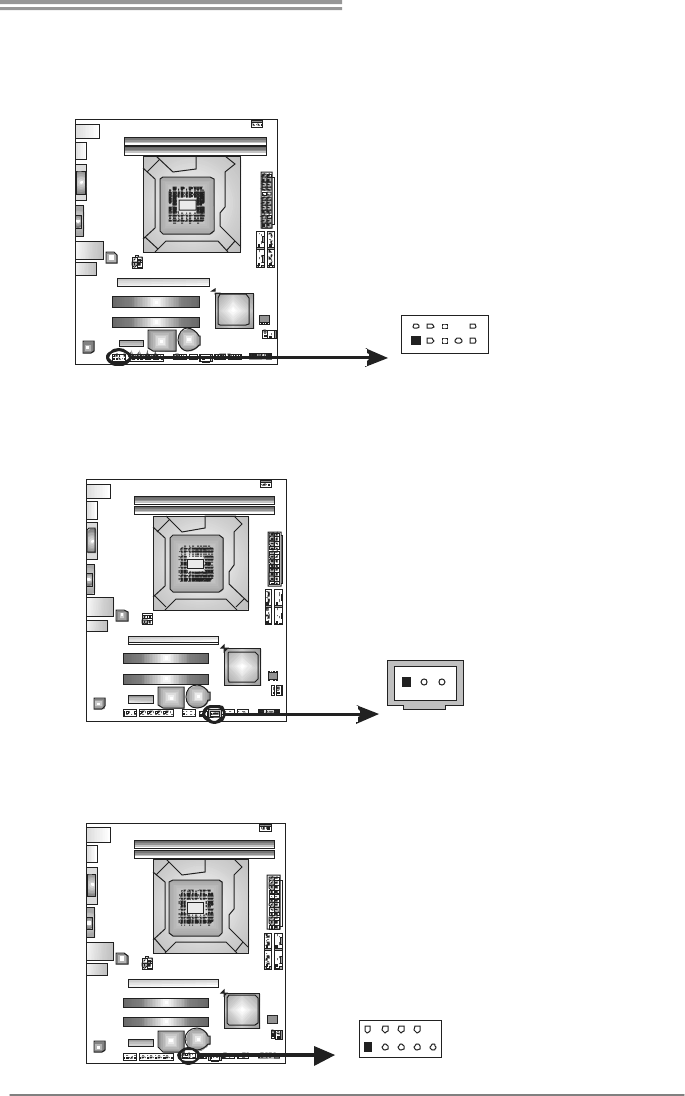

F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector, not AC’97.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
19
210
JSPDIFOUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V
2 SPDIF_OUT
31
3 Ground
J_COM1: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin
Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
19
210
10 NC
Motherboard Manual
16

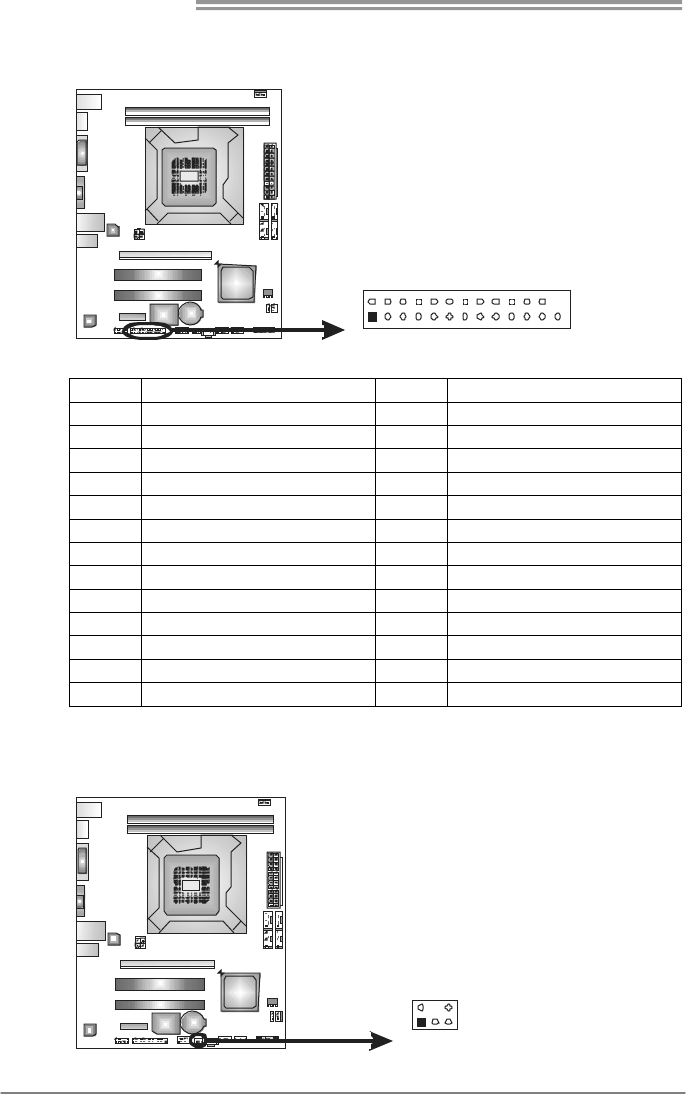

J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
CIR1: Consumer IR Connector
This header is for infrared remote control and communication.
Pin Assignment
1 IrDA serial input
2 Ground
3 Ground
4 Key
5 IrDA serial output
6 IR Power
1
2
5
6
TH61MU3/H61MU3/H61MH/H61ML
17
CHAPTER 4: USEFUL HELP
4.1 DRIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.

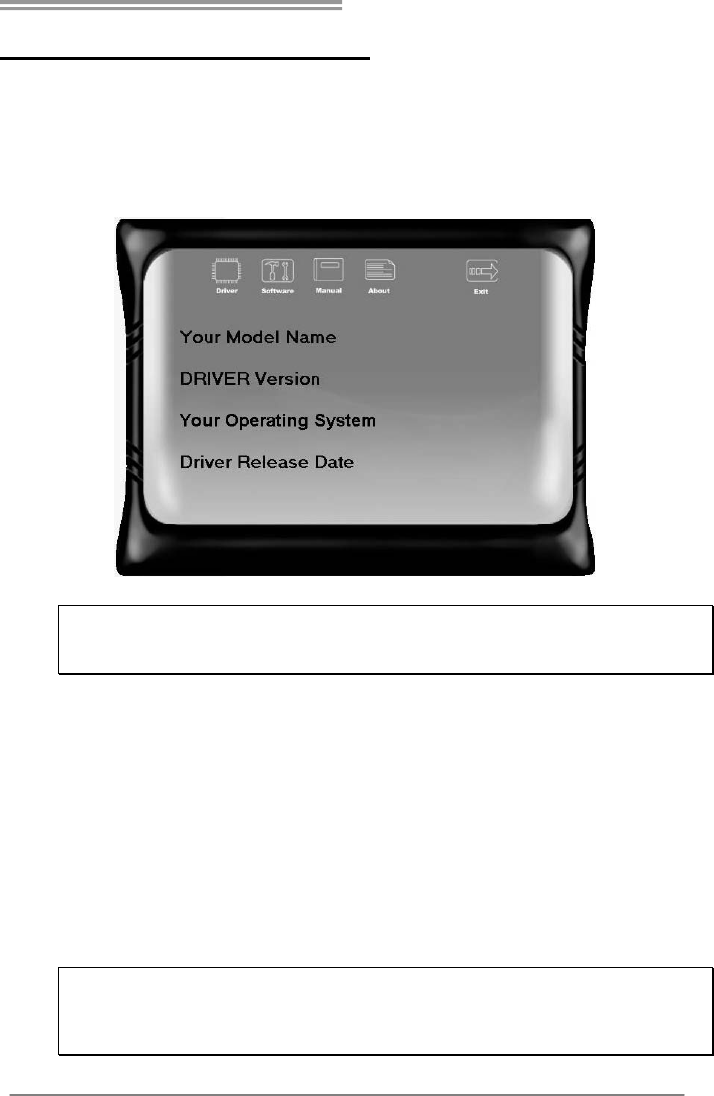

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
Motherboard Manual
18
4.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program
would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.
Launching Software
After the installation process, you will see the software icon “eHOT Line” /
“BIOS Update” appears on the desktop. Double-click the icon to launch the
utility.

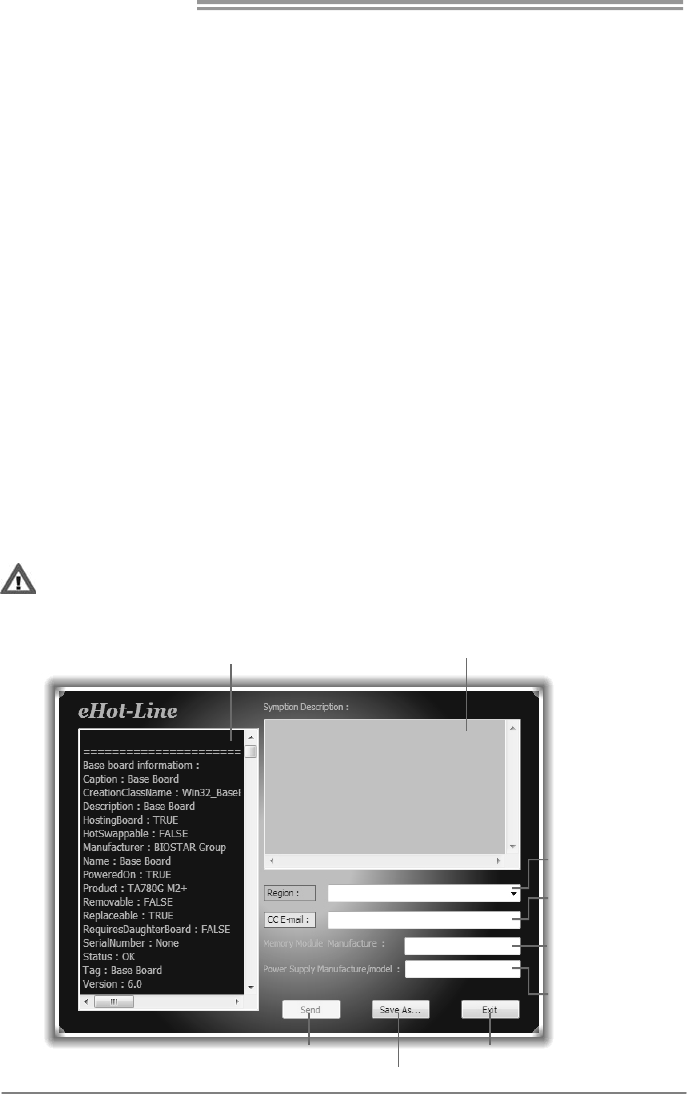

eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.
Before you use this utility, please set Outlook Express as your default e-mail client application program.
This block will show
the information which
would be collected in
the mail.
Provide the e-mail
address that you would
like to send the copy to.
Provide the name of
the po wer sup pl y
manufacturer and the
model no.
Sen d t he mail out.
Save thes e in forma tion to a .txt fil
e
Exit this dialog.
Select your area or
the area close to you.
*
Pr ov id e the name of
the memory module
manufacturer.
*
Describe condition
of your system.
*
*
rep r es ents impor t ant
information that you
must provide. Without
this information, you may
not be able to send out
the mail.
TH61MU3/H61MU3/H61MH/H61ML
19

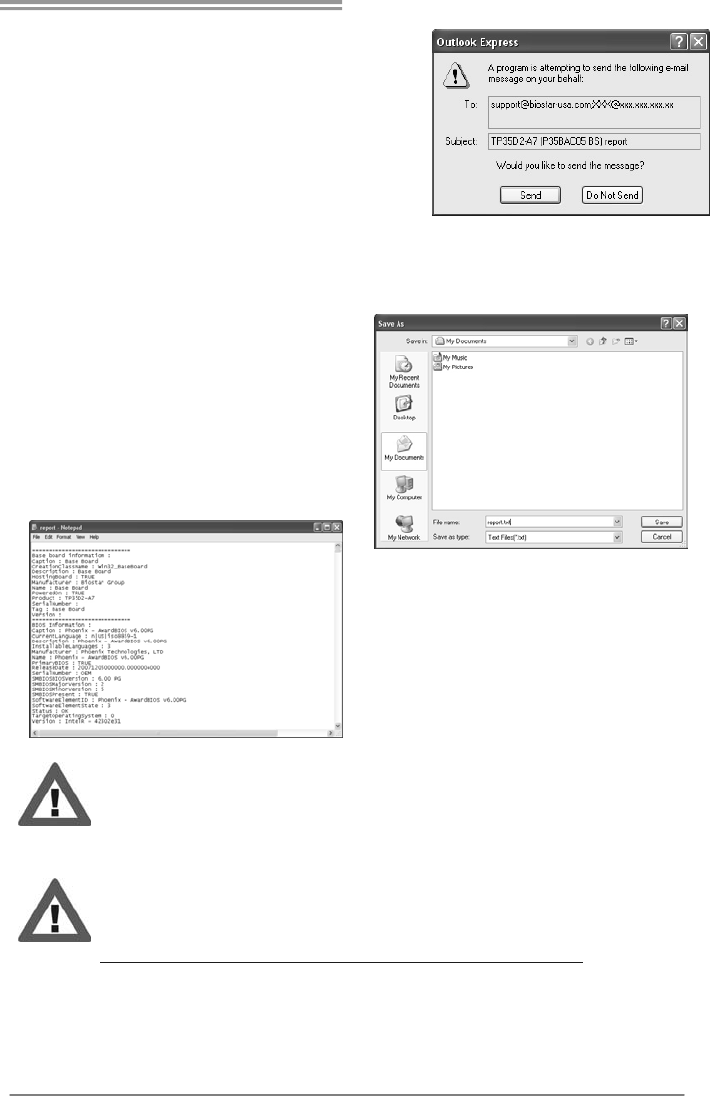

After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.
Enter the file name and then click
“Save”. Your system information
will be saved to a .txt file.
Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.
We will not share customer’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.
If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.
Go to the following web
http://www.biostar.com.tw/app/en-us/about/contact.php for getting
our contact information.
Motherboard Manual
20

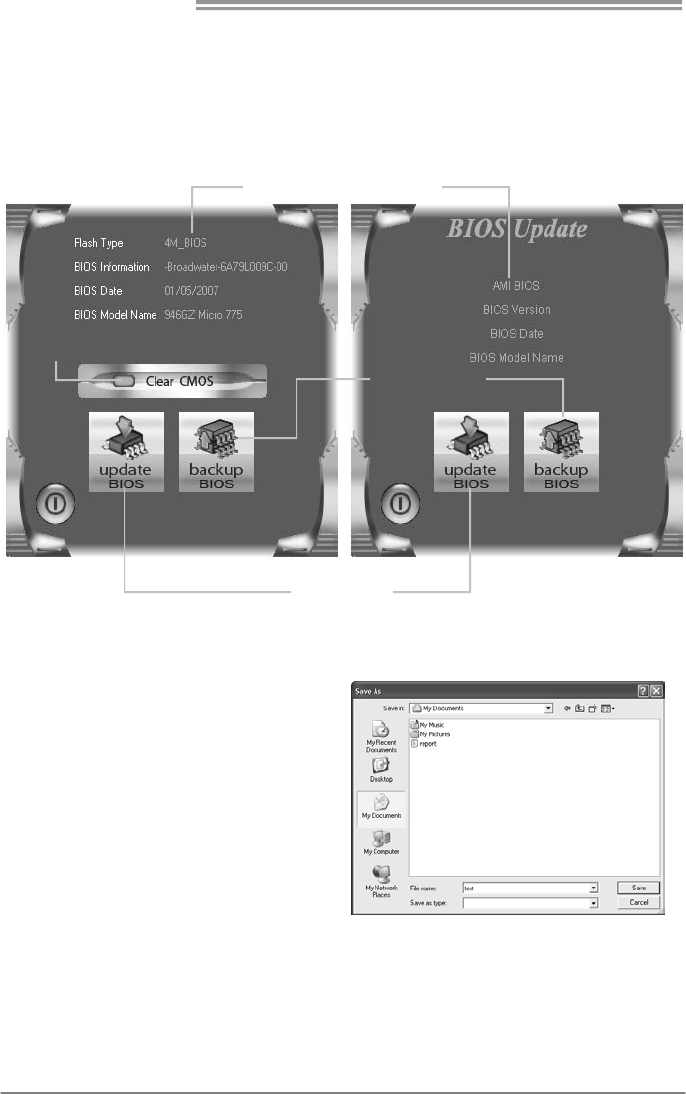

BIOS Update
BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.
Update BIOS
with a BIOS file
Clear CMOS function
(On ly for AWARD BIOS)
Show current BIOS information
Save cur rent BIOS
to a .bin file
AWARD BIOS AMI BIOS
<Backup BIOS>
Once click on this button, the saving
dialog will show. Choose the
position to save file and enter file
name. (We recommend that the file
name should be English/number
and no longer than 7 characters.)
Then click Save.
TH61MU3/H61MU3/H61MH/H61ML
21

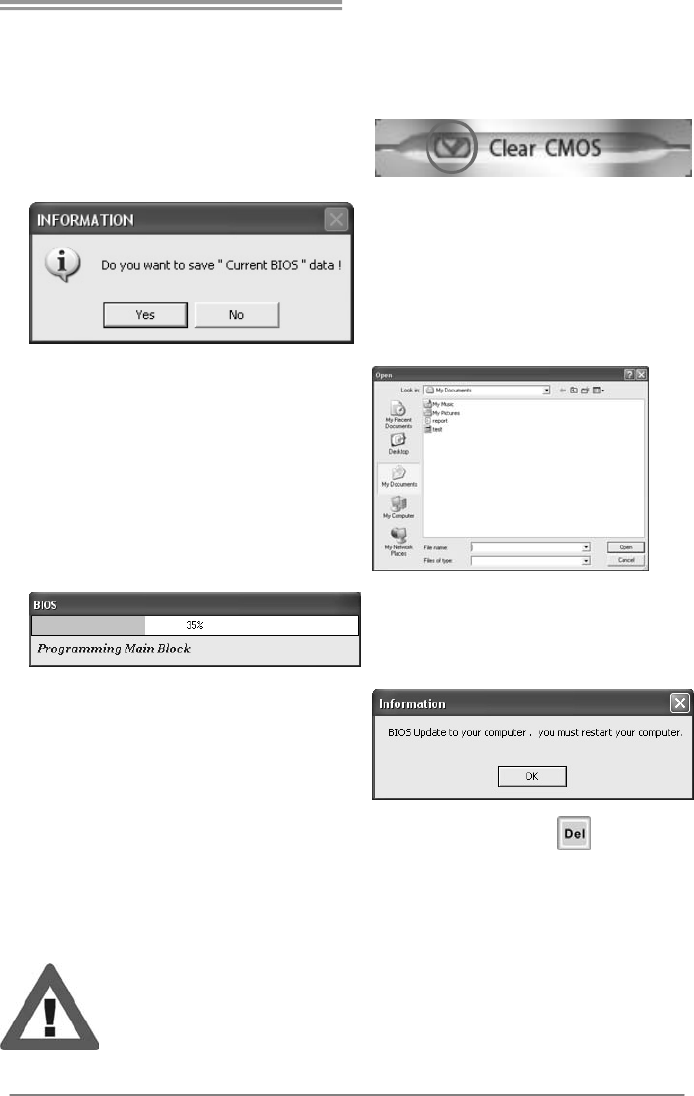

<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS procedure
should be run with Clear CMOS function, so
please check on Clear CMOS first.
Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.
After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.
The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.
After the BIOS Update process, click on
OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.
All the information and content above about the software are subject to be changed
without notice. For better performance, the software is being continuously updated.
The information and pictures described above are for your reference only. The actual
information and settings on board may be slightly different from this manual.
Motherboard Manual
22
4.3 EXTRA INFORMATION
CPU Overheated
If the system shuts down automatically after system is powered on for
seconds, the phenomenon means the CPU protection function has
been activated.
When the CPU is over heated, the motherboard will shutdow n
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
TH61MU3/H61MU3/H61MH/H61ML
23
4.4 AMI BIOS BEEP CODE
Boot Block Beep Codes
Number of Beeps Description
1 No media present. (Insert diskette in floppy drive A:)
2 “AMIBOOT.ROM” file not found in root directory of diskette in
A:
3 Insert next diskette if multiple diskettes are used for recovery
4 Flash Programming successful
5 File read error
7 No Flash EPROM detected
10 Flash Erase error
11 Flash Program error
12 “AMIBOOT.ROM” file size error
13 BIOS ROM image mismatch (file layout does not match
image present in flash device)
POST BIOS Beep Codes
Number of Beeps Description
1 Memory refresh timer error
3 Base memory read/write test error
6 Keyboard controller BAT command failed
7 General exception error (processor exception interrupt error)
8 Display memory error (system video adapter)
Troubleshooting POST BIOS Beep Codes
Number of Beeps Troubleshooting Action
1, 3 Reseat the memory, or replace with known good modules.
6, 7
Fatal error indicating a serious problem with the system.
Consult your system manufacturer. Before declaring the
motherboard beyond all hope, eliminate the possibility of
interference by a malfunctioning add-in card. Remove all
expansion cards except the video adapter.
z If beep codes are generated when all other expansion
cards are absent, consult your system manufacturer’s
technical support.
z If beep codes are not generated when all other expansion
cards are absent, one of the add-in cards is causing the
malfunction. Insert the cards back into the system one at a
time until the problem happens again. This will reveal the
malfunctioning card.
8
If the system video adapter is an add-in card, replace or
reseat the
video adapter. If the video adapter is an integrated part of the
system board, the board may be faulty.
Motherboard Manual
24
4.5 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
TH61MU3/H61MU3/H61MH/H61ML
25
This page is intentionally left blank.
Motherboard Manual
26
APPENDIX: SPEC IN OTHER LANGUAGES
GERMAN
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Intel Core i7 / i5 / i3 / Pentium Prozessoren
Unterstützt Execute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Intel Core i7 / i5 / i3 / Pentium Prozessoren
Unterstützt Execute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipsatz Intel H61 Intel H61
Super E/A
ITE 8728
Bietet die häufig verwendeten alten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE
ITE 8728
Bietet die häufig verwendeten alten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR3 DIMM-Steckplätze x 2
Jeder DIMM unterstützt 512MB / 1GB / 2GB /
4GB DDR3.
Max. 8GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
DDR3 DIMM-Steckplätze x 2
Jeder DIMM unterstützt 512MB / 1GB / 2GB /
4GB DDR3.
Max. 8GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
SATA 2
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3.0Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3.0Gb/s
Konform mit der SATA-Spezifikation Version 2.0.
LAN Realtek RTL8111E
10 / 100 / 1000 Mb/s Auto-Negotiation
Realtek RTL8111E (H61MH)
10 / 100 / 1000 Mb/s Auto-Negotiation
Realtek RTL8105E (H61ML)
10 / 100 Mb/s Auto-Negotiation
HD
Audio-Unters
tützung
ALC662
Unterstützt High-Definition Audio
5.1-Kanal-Audioausgabe
ALC662
Unterstützt High-Definition Audio
5.1-Kanal-Audioausgabe
USB3.0 Asmedia ASM1042
PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x16 Steckplatz x1
PCI Express Gen2 x1 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1
Steckplätze
PCI Steckplatz x2 PCI Steckp latz x2
TH61MU3/H61MU3/H61MH/H61ML
27
TH61MU3 / H61 MU3 H61 M H / H61ML
Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1
Serieller Anschluss x1 Serieller Anschluss x1
SATA-Anschluss x4 SATA-Anschluss x4
Fronttafelanschluss x1 Fronttafelanschluss x1
Front-Audioanschluss x1 Front-Audioanschluss x1
S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1
CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1
System-Lüfter-Sockel x1 System-Lüfter-Sockel x1
"CMOS löschen"-Sockel x1 "CMOS löschen"-Sockel x1
USB 2.0-Anschluss x2 USB 2.0-Anschluss x2
Verbraucher-IR Anschluss x1 Verbraucher- IR Anschluss x1
Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1
Onboard-Ans
chluss
Stromansch luss (4-polig ) x1 Stromansch luss (4- polig ) x1
Rückseiten-E
/A
PS/2-Tastatur / Maus x1
HDMI-Anschluss x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss (durch H61) x2
USB 3.0-Anschluss
(durch ASM1042) x2
Audioanschluss x3
PS/2-Tastatur / Maus x1
HDMI-Anschluss (H61MH) x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss x4
Audioanschluss x3
Platinengröße
200mm (B) X 244 mm (L) 200mm (B) X 244 mm (L)
OS-Unterstüt
zung
Windows XP / Vista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfernen.
Windows XP / Vista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfernen.
Motherboard Manual
28
FRENCH
TH61MU3 / H61 MU3 H61 M H / H61ML
UC
Socket 1155
Processeurs Intel Core i7 / i5 / i3 / Pentiu m
Prend en charge les technologies d'exécut ion de
bit de désactivation / Intel SpeedStep®
optimisée/ d' arch ite cture Int el 64 / de mémo ir e
étendue 64 / de virtualisat ion
Socket 1155
Processeurs Intel Core i7 / i5 / i3 / Pentiu m
Prend en charge les technologies d'exécut ion de
bit de désactivation / Intel SpeedStep®
optimisée/ d' arch ite cture Int el 64 / de mémo ir e
étendue 64 / de virtualisat ion
Chipset Intel H61 Intel H61
Super E/S
ITE 8728
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à f aib le co mpte de b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ér iel
Contrôleur /moniteur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
ITE 8728
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Interface à f aib le co mpte de b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ér iel
Contrôleur /moniteur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR3 DIMM x 2
Chaque DIMM prend en charge des DDR3 de
512Mo / 1Go / 2Go / 4Go
Capacité mémo ire max imale de 8Go
Module de mémoire DDR3 à mode à double voie
Prend en charge la DDR3 1333/1066
Les DIMM à registres et DIMM avec code
correcteurs d'erreurs ne sont pas prises en
charge
Fentes DDR3 DIMM x 2
Chaque DIMM prend en charge des DDR3 de
512Mo / 1Go / 2Go / 4Go
Capacité mémo ire max imale de 8Go
Module de mémoire DDR3 à mode à double voie
Prend en charge la DDR3 1333/1066
Les DIMM à registres et DIMM avec code
correcteurs d'erreurs ne sont pas prises en
charge
SATA 2
Contrôleur Serial ATA
int égr é
Taux de transfert jusqu'à 3.0Go/s.
Conforme à la spécif icat ion SATA Vers ion 2.0
Contrôleur Serial ATA
int égr é
Taux de transfert jusqu'à 3.0Go/s.
Conforme à la spécif icat ion SATA Vers ion 2.0
LAN Realtek RTL8111E
10 / 100 / 1000 Mb/s négociation automatique
Realtek RTL8111E (H61MH)
10 / 100 / 1000 Mb/s négociation automatique
Realtek RTL8105E (H61ML)
10 / 100 Mb/s négociation automatique
Prise en
charg e aud io
HD
ALC662
Prise en charge de l'audio haute définition
Sortie audio à 5 .1 voies
ALC662
Prise en charge de l'audio haute définition
Sortie audio à 5 .1 voies
USB3.0 Asmedia ASM1042
Fente PCI Express Gen2 x16 x1 Fente PCI Express Gen2 x16 x1
Fente PCI Express Gen2 x1 x1 Fente PCI Express Gen2 x1 x1
Fentes
Fente PCI x2 Fente PCI x2
TH61MU3/H61MU3/H61MH/H61ML
29
TH61MU3 / H61 MU3 H61 M H / H61ML
Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1
Port série x1 Port série x1
Connecteur SATA x4 Connecteur SATA x4
Connecteur du panneau avant x1 Connecteur du panneau avant x1
Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1
Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1
Embase de ventilateur UC x1 Embase de ventilateur UC x1
Embase de ventilateur système x1 Embase de ventilateur système x1
Embase d'effacement CMOS x1 Embase d'effacement CMOS x1
Connecteur USB 2.0 x2 Connecteur USB 2.0 x2
Connecteur de IR du consommateur x1 Connecteur de IR du consommateur x1
Connecteur d'aliment at ion x1
(24 broches)
Connecteur d'aliment at ion x1
(24 broches)
Connecteur
embarqué
Connecteur d'aliment at ion x1
(4 broches)
Connecteur d'aliment at ion x1
(4 broches)
E/S du
panneau
arrière
Clavier / Souris PS/2 x1
Port HDMI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 (par H61) x2
Port USB 3.0 (par ASM1042) x2
Fiche audio x3
Clavier / Souris PS/2 x1
Port HDMI (H61MH) x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 x4
Fiche audio x3
Dimensions
de la carte
200mm (l) X 244 mm (H) 200mm (l) X 244 mm (H)
Support SE
Windows XP / Vista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.
Windows XP / Vista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.
Motherboard Manual
30
ITALIAN
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Process ore Intel Core i7 / i5 / i3/ Pentiu m
Supporto di Execute Disable Bit / Enhanced
Intel SpeedStep® / Architettura Intel 64 /
Tecnologia Extended Memory 64 /
Tecnologia Virtualization
Socket 1155
Process ore Intel Core i7 / i5 / i3/ Pentiu m
Supporto di Execute Disable Bit / Enhanced
Intel SpeedStep® / Architettura Intel 64 /
Tecnologia Extended Memory 64 /
Tecnologia Virtualization
Chipset Intel H61 Intel H61
Super I/O
ITE 8728
Fornis ce le funzionalità legacy Super I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Controller / Monitoraggio velocità ventolin a
Funzione "Smart Guardian" di ITE
ITE 8728
Fornis ce le funzionalità legacy Super I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Controller / Monitoraggio velocità ventolin a
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR3 x 2
Ciascun DIMM supporta DDR3 512MB /
1GB / 2GB / 4GB
Capacità massima della memoria 8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 1333/1066
DIMM registrati e DIMM ECC non sono
supportati
Alloggi DIMM DDR3 x 2
Ciascun DIMM supporta DDR3 512MB /
1GB / 2GB / 4GB
Capacità massima della memoria 8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 1333/1066
DIMM registrati e DIMM ECC non sono
supportati
SATA 2
Controller Ser ial ATA integrato
Velocità di trasferimento dei dati fino a
3.0Gb/s.
Compatibile specifiche SATA Versione 2.0.
Controller Ser ial ATA integrato
Velocità di trasferimento dei dati fino a
3.0Gb/s.
Compatibile specifiche SATA Versione 2.0.
LAN Realtek RTL8111E
Negoziazione automatica 10 / 100 / 1000Mb/s
Realtek RTL8111E (H61MH)
Negoziazione automatica 10/100/1000Mb/s
Realtek RTL8105E (H61ML)
Negoziaz ione automatica 10/100Mb/s
Supporto
audio HD
ALC662
Supporto audio High-Definition (HD)
Uscita audio 5.1 canali
ALC662
Supporto audio High-Definition (HD)
Uscita audio 5.1 canali
USB3.0 Asmedia ASM1042
Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x16 x1
Alloggio PCI Express Gen2 x1 x1 Alloggio PCI Express Gen2 x1 x1
Alloggi
Alloggio PC I x2 Alloggio PC I x2
TH61MU3/H61MU3/H61MH/H61ML
31
TH61MU3 / H61 MU3 H61 M H / H61ML
Connettore Porta stampante x1 Connettore Porta stampante x1
Porta seriale x1 Porta seriale x1
Connettore SATA x4 Connettore SATA x4
Connettore pannello frontale x1 Connettore pannello frontale x1
Connettore audio frontale x1 Connettore audio frontale x1
Connettore output SPDIF x1 Connettore output SPDIF x1
Collettore ventolina C PU x1 Collettore ventolina C PU x1
Collettore ventolina sistema x1 Collettore ventolina sistema x1
Collettore cancellaz ione CMOS x 1 Collettore cancellaz ione CMOS x1
Connettore USB 2.0 x2 Connettore USB 2.0 x2
Connettore IR del consumatore x1 Connettore IR del consumatore x1
Connettore alimentazione x1
(24 pin)
Connettore alimentazione x1
(24 pin)
Connettori
su scheda
Connettore alimentazione x1
(4 pin)
Connettore alimentazione x1
(4 pin)
I/O pannello
posteriore
Tastiera / Mouse PS/2 x1
Porta HDMI x1
Porta VGA x1
Porta DVI-D x1
Porta LAN x1
Porta USB 2.0 (da H61) x2
Porta USB 3.0 (da ASM1042) x2
Connettore audio x3
Tastiera / Mouse PS/2 x1
Porta HDMI (H61 MH) x1
Porta VGA x1
Porta DVI-D x1
Porta LAN x1
Porta USB 2.0 x4
Connettore audio x3
Dimensioni
scheda
200mm (larghezza) x 244 mm (altezza) 200mm (larghezza) x 244 mm (altezza)
Sistemi
operativi
supportati
Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Motherboard Manual
32
SPANISH
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Procesador Inte l Cor e i7 / i5 / i3/ Pent iu m
Admite Bit de deshabilitación de ejecución / Intel
SpeedStep® Mejorado / Int el Architecture-64 /
Tecnología Extended Memory 64 / Tecnología de
virtualización
Socket 1155
Procesador Inte l Cor e i7 / i5 / i3/ Pent iu m
Admite Bit de deshabilitación de ejecución / Intel
SpeedStep® Mejorado / Int el Architecture-64 /
Tecnología Extended Memory 64 / Tecnología de
virtualización
Conjunto de
chips
Intel H61 Intel H61
Súper E/S
ITE 8728
Le ofrece las funcionalidades heredadas de uso
más común Súper E/S.
Interfaz de cuenta Low Pin
In iciat iv as de control d e entorno,
Monitor hardware
Controlador/monitor de velocidad de ventilador
Función "Guardia inteligente" de ITE
ITE 8728
Le ofrece las funcionalidades heredadas de uso
más común Súper E/S.
Interfaz de cuenta Low Pin
In iciat iv as de control d e entorno,
Monitor hardware
Controlador/monitor de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR3 x 2
Cada DIMM admite DDR de 512MB / 1GB / 2GB /
4GB
Capacidad máxima de memoria de 8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066
No admite DIMM registrados o DIMM
compatibles con ECC
Ranuras DIMM DDR3 x 2
Cada DIMM admite DDR de 512MB / 1GB / 2GB
/ 4GB
Capacidad máxima de memoria de 8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066
No admite DIMM registrados o DIMM
compatibles con ECC
SATA 2
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3.0 Gb/s.
Compat ib le con la versión SATA 2.0.
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3.0 Gb/s.
Compat ib le con la versión SATA 2.0.
Red Local
Realtek RTL8111E
Negociación de 10 / 100 / 1000 Mb/s
Realtek RTL8111E (H61MH)
Negociación de 10 / 100 / 1000 Mb/s
Realtek RTL8105E (H61ML)
Negociación de 10 / 100 Mb/s
Soporte de
sonido HD
ALC662
Soporte de sonido de Alta Definición
Salida de sonido de 5.1 canales
ALC662
Soporte de sonido de Alta Definición
Salida de sonido de 5.1 canales
USB3.0 Asmedia ASM1042
Ranura PCI Express Gen2 x16 X1 Ranura PCI Express Gen2 x16 X1
Ranura PCI express Gen2 x1 X1 Ranura PCI express Gen2 x1 X1
Ranuras
Ranura PCI X2 Ranura PCI X2
TH61MU3/H61MU3/H61MH/H61ML
33
TH61MU3 / H61 MU3 H61 M H / H61ML
Conector Puerto de impresora X1 Conector Puerto de impresora X1
Puerto serie X1 Puerto serie X1
Conector SATA X4 Conector SATA X4
Conector de panel frontal X1 Conector de panel frontal X1
Conector de sonido frontal X1 Conector de sonido frontal X1
Conector de salida S/PDIF X1 Conector de salida S/PDIF X1
Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1
Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1
Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1
Conector USB 2.0 X2 Conector USB 2.0 X2
Conector de IR del consumidor X1 Conector de IR del consumidor X1
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(24 patillas)
Conectores
en placa
Conector de alimentación X1
(4 patillas)
Conector de alimentación X1
(4 patillas)
Panel trasero
de E/S
Teclado / Ratón PS/2 X1
Ratón HDMI X1
Puerto VGA X1
Puerto DVI-D X1
Puerto de red local X1
Puerto USB 2.0 (por H61) X2
Puerto USB 3.0 (por ASM1042) X2
Conector de sonido X3
Teclado / Ratón PS/2 X1
Ratón HDMI (H61MH) X1
Puerto VGA X1
Puerto DVI-D X1
Puerto de red local X1
Puerto USB 2.0 X4
Conector de sonido X3
Ta mañ o d e la
placa
200mm. (A) X 244 Mm. (H) 200mm. (A) X 244 Mm. (H)
Soporte de
sistema
operativo
Windows XP / Vista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.
Windows XP / Vista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.
Motherboard Manual
34
PORTUGUESE
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Processador Intel Core i7 / i5 / i3 / Pent ium
Suporta as tecnologias Execute Disable Bit /
Enhanced Intel SpeedStep® / Intel Arquitecture
-64 / Extended Memory 64 / Virtualization
Socket 1155
Processador Intel Core i7 / i5 / i3 / Pent ium
Suporta as tecnologias Execute Disable Bit /
Enhanced Intel SpeedStep® / Intel Arquitecture
-64 / Extended Memory 64 / Virtualization
Chipset Intel H61 Intel H61
Especificação
Super I/O
ITE 8728
Proporciona as funcionalidades mais utilizadas
em termos da especificação Super I/O.
Interface LPC (Low Pin Count).
In iciat iv as par a contro lo do amb iente
Monitoriz ação do hardware
Controlador/Monitor da velocidade da ventoinha
Função "Smart Guardian" da ITE
ITE 8728
Proporciona as funcionalidades mais utilizadas
em termos da especificação Super I/O.
Interface LPC (Low Pin Count).
In iciat iv as par a contro lo do amb iente
Monitoriz ação do hardware
Controlador/Monitor da velocidade da ventoinha
Função "Smart Guardian" da ITE
Memória
principal
Ranhuras DIMM DDR3 x 2
Cada módulo DIMM suporta uma memória
DDR3 de 512 MB / 1GB / 2GB / 4GB
Capacidade máx ima de memór ia:8GB Módu lo
de memória DDR3 de canal duplo
Suporta módulos DDR3 1333/1066
Os módulos DIMM registados e os DIMM ECC
não são suportados
Ranhuras DIMM DDR3 x 2
Cada módulo DIMM suporta uma memória
DDR3 de 512 MB / 1GB / 2GB / 4GB
Capacidade máx ima de memór ia:8GB Módu lo
de memória DDR3 de canal duplo
Suporta módulos DDR3 1333/1066
Os módulos DIMM registados e os DIMM ECC
não são suportados
SATA 2
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3.0 Gb/s.
Compat ib ilidad e co m a especificação SATA
versão 2.0.
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3.0 Gb/s.
Compat ib ilidad e co m a especificação SATA
versão 2.0.
LAN Realtek RTL8111E
Auto negociação de 10 / 100 / 1000 Mb/s
Realtek RTL8111E (H61MH)
Auto negociação de 10 / 100 / 1000 Mb/s
Realtek RTL8105E (H61ML)
Auto negociação de 10 / 100 Mb/s
Suporte para
áudio de alta
definição
ALC662
Suporta a especificação High-Definition Audio
Saída de áudio de 5.1 canais
ALC662
Suporta a especificação High-Definition Audio
Saída de áudio de 5.1 canais
USB3.0 Asmedia ASM1042
Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x16 x1
Ranhura PCI Express Gen2 x1 x1 Ranhura PCI Express Gen2 x1 x1
Ranhuras
Ranhura PCI x2 Ranhura PCI x2
TH61MU3/H61MU3/H61MH/H61ML
35
TH61MU3 / H61 MU3 H61 M H / H61ML
Conector da para impressora x1 Conector da para impressora x1
Porta série x1 Porta série x1
Conector SATA x4 Conector SATA x4
Conector do painel frontal x1 Conector do painel frontal x1
Conector de áudio frontal x1 Conector de áudio frontal x1
Conector de saída S/PDIF x1 Conector de saída S/PDIF x1
Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1
Conector da ventoinha do s istema x1 Conector da ventoinha do s istema x1
Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1
Conector USB 2.0 x2 Conector USB 2.0 x2
Conector de IR do consumidor x1 Conector de IR do consumidor x1
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(24 pinos)
Conectores
na placa
Conector de alimentação x1
(4 p inos)
Conector de alimentação x1
(4 p inos)
Entradas/Saí
das no painel
traseiro
Teclado / Rato PS/2 x1
Porta HD MI x1
Porta VGA x1
Porta DVI-D x1
Porta LAN x1
Porta USB 2.0 (por H61) x2
Porta USB 3.0 (por ASM1042) x2
Tomada de áudio x3
Teclado / Rato PS/2 x1
Porta HDMI (H61MH) x1
Porta VGA x1
Porta DVI-D x1
Porta LAN x1
Porta USB 2.0 x4
Tomada de áudio x3
Tamanho da
placa
200mm (L) X 244 mm (A) 200mm (L) X 244 mm (A)
Sistemas
operativos
suportados
Windows XP / Vista / 7
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Windows XP / Vista / 7
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Motherboard Manual
36
POLISH
TH61MU3 / H61 MU3 H61 M H / H61ML
Procesor
Socket 1155
Procesor Intel Core i7 / i5 / i3/ Pentium
Obsługa Execute Disable B it / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Procesor Intel Core i7 / i5 / i3/ Pentium
Obsługa Execute Disable B it / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipset Intel H61 Intel H61
Pamięć
główna
Gniazda DDR3 DIMM x 2
Każde gniazdo DIMM obsługuje moduły 512MB
/ 1GB / 2GB / 4GB
Maks. wielkość pamięci 8GB Moduł pamięci
DDR3 z trybem podwójnego kanału
Obsługa DDR3 1333/1066
Brak obsługi Registered DIMM oraz ECC D IMM
Gniazda DDR3 DIMM x 2
Każde gniazdo DIMM obsługuje moduły 512MB
/ 1GB / 2GB / 4GB
Maks. wielkość pamięci 8GB Moduł pamięci
DDR3 z trybem podwójnego kanału
Obsługa DDR3 1333/1066
Brak obsługi Registered DIMM oraz ECC D IMM
Super I/O
ITE 8728
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H/W
Kontroler/Monitor prędkości wentylatora
Funkcja ITE "Smart Guardian"
ITE 8728
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H/W
Kontroler/Monitor prędkości wentylatora
Funkcja ITE "Smart Guardian"
SATA 2
Zintegrowany kontroler Serial ATA
Transfer danych do 3.0 Gb/s.
Zgodność ze specyfikacją SATA w wersj i 2.0.
Zintegrowany kontroler Serial ATA
Transfer danych do 3.0 Gb/s.
Zgodność ze specyfikacją SATA w wersj i 2.0.
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/s z automatyczną
negocjacją szybkości
Realtek RTL8111E (H61MH)
10 / 100 / 1000 Mb/s z automatyczną
negocjacją szybkości
Realtek RTL8105E (H61ML)
10 / 100 Mb/s z automatyczną negocjacją
szybkości
Obsługa
audio HD
ALC662
Obsługa High-Defin ition Aud io
5.1 kanałowe wyjście audio
ALC662
Obsługa High-Defin ition Aud io
5.1 kanałowe wyjście audio
USB3.0 Asmedia ASM1042
Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x16 x1
Gniazdo PCI Express Gen2 x1 x1 Gniazdo PCI Express Gen2 x1 x1
Gniazda
Gniazdo PCI x2 Gniazdo PCI x2
TH61MU3/H61MU3/H61MH/H61ML
37
TH61MU3 / H61 MU3 H61 M H / H61ML
Złącze Port drukarki x1 Złącze Port drukarki x1
Port szeregowy x1 Port szeregowy x1
Złącze SATA x4 Złącze SATA x4
Złącze panela przedniego x1 Złącze panela przedniego x1
Przednie złącze audio x1 Przednie złącze audio x1
Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1
Złącze główkowe wentylatora
procesora x1
Złącze główkowe wentylatora
procesora x1
Złącze główkowe wentylatora
systemowego x1
Złącze główkowe wentylatora
systemowego x1
Złącze główkowe kasowania CMOS x1 Złącze głó wkowe kasowania CMOS x1
Złącze USB 2.0 x2 Złącze USB 2.0 x2
Złącze Konsument IR x1 Złącze Konsument IR x1
Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1
Złącza
wbudowane
Złącze zas ilania (4 pino we) x1 Złącze zas ilania (4 pino we) x1
Back Panel
I/O
Klawiatura / Mysz PS /2 x1
Port HDMI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 (przez H61) x2
Port USB 3.0 (przez ASM1042) x2
Gniazdo audio x3
Klawiatura / Mysz PS /2 x1
Port HDMI (H61MH) x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 x4
Gniazdo audio x3
Wymiary
płyty
200mm (S) X 244 mm (W) 200mm (S) X 244 mm (W)
Obsluga
systemu
operacyjnego
Windows XP / Vista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo ln ego systemu
operacyjnego bez powiado mienia.
Windows XP / Vista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo ln ego systemu
operacyjnego bez powiado mienia.
Motherboard Manual
38
RUSSIAN
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
(центральны
й процессор)
Socket 1155
Процессор Intel Core i7 / i5 / i3 / Pent ium
Поддержка технологий Execute Disable B it /
Enhanced Intel SpeedStep® / Intel
Architecture-64 / Extended Memory 64
Technology / технологии виртуализация
Socket 1155
Процессор Intel Core i7 / i5 / i3 / Pent ium
Поддержка технологий Execute Disable B it /
Enhanced Intel SpeedStep® / Intel
Architecture-64 / Extended Memory 64
Technology / технологии виртуализация
Набор
микросхем Intel H61 Intel H61
Основная
память
Слоты DDR3 DIMM x 2
Каждый модуль DIMM поддерживает 512МБ /
1ГБ / 2ГБ / 4ГБ DDR3
Максимальная ёмкость памяти 8ГБ
Модуль памяти с двухканальным режимом
DDR3
Поддержка DDR3 1333/1066
Не поддерживает зарегистрированные
модули DIMM and ECC DIMM
Слоты DDR3 DIMM x 2
Каждый модуль DIMM поддерживает 512МБ /
1ГБ / 2ГБ / 4ГБ DDR3
Максимальная ёмкость памяти 8ГБ
Модуль памяти с двухканальным режимом
DDR3
Поддержка DDR3 1333/1066
Не поддерживает зарегистрированные
модули DIMM and ECC DIMM
Super I/O
ITE 8728
Обеспечивает наиболее используемые
действующие фун кц иональные во зможности
Super I/O.
Интерфейс с низким количеством выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регулятор скорости вентилятора/ монитор
Функция ITE "Smart Guardian"
(Интеллектуальная защита)
ITE 8728
Обеспечивает наиболее используемые
действующие фун кц иональные во зможности
Super I/O.
Интерфейс с низким количеством выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регулятор скорости вентилятора/ монитор
Функция ITE "Smart Guardian"
(Интеллектуальная защита)
SATA 2
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3.0 гигабит/с.
Соответствие спецификации SATA версия
2.0.
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3.0 гигабит/с.
Соответствие спецификации SATA версия
2.0.
Локальная
сеть
Realtek RTL8111E
Автоматическое согласование 10 / 100 / 1000
Мб/с
Realtek RTL8111E (H61MH)
Автоматическое согласование 10/100/1000Мб/с
Realtek RTL8105E (H61ML)
Автоматическое согласование 10/100Мб/с
Звуковая
поддержка
жесткого
диска
ALC662
Звуковая поддержка High-Def in ition
5.1канальный звуковой выход
ALC662
Звуковая поддержка High-Def in ition
5.1канальный звуковой выход
USB3.0 Asmedia ASM1042
Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x16 x1
Слот PCI Express Gen2 x1 x1 Слот PCI Express Gen2 x1 x1
Слоты
Слот PCI x2 Слот PCI x2
TH61MU3/H61MU3/H61MH/H61ML
39
TH61MU3 / H61 MU3 H61 M H / H61ML
Разъём Порт подключения
принтера x1
Разъём Порт подключения
принтера x1
Последовательный порт x1 Последовательный порт x1
Разъём SATA x4 Разъём SATA x4
Разъём на лицевой панели x1 Разъём на лицевой панели x1
Входной звуковой разъём x1 Входной звуковой разъём x1
Разъём вывода для S/PDIF x1 Разъём вывода для S/PDIF x1
Контактирующее приспособление
вентилятора центрального процессора x1
Контактирующее приспособление
вентилятора центрального процессора x1
Контактирующее приспособление
вентилятора системы x1
Контактирующее приспособление
вентилятора системы x1
Открытое контактирующее
приспособление CMOS x1
Открытое контактирующее
приспособление CMOS x1
USB 2.0-разъём x2 USB 2.0-разъём x2
Разъём едока ИКЫЙ x1 Разъём едока ИКЫЙ x1
Разъем питания (24 вывод) x1 Разъем питания (24 вывод) x1
Встроенный
разъём
Разъем питания (4 вывод) x1 Разъем питания (4 вывод) x1
Задняя
панель
средств
ввода-вывод
а
Клавиатура / Мышь PS /2 x1
Порт HDMI x1
Порт VGA x1
Порт DVI-D x1
Порт LAN x1
USB 2.0-порт (по H61) x2
USB 3.0-порт (по ASM1042) x2
Гнездо для подключения
наушников x3
Клавиатура / Мышь PS /2 x1
Порт HDMI (H61MH) x1
Порт VGA x1
Порт DVI-D x1
Порт LAN x1
USB 2.0-порт x4
Гнездо для подключения
наушников x3
Размер
панели 200мм (Ш) X 244 мм (В) 200мм (Ш) X 244 мм (В)
Поддержка
OS
Windows XP / Vista / 7
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведомления.
Windows XP / Vista / 7
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведомления.
Motherboard Manual
40
ARABIC
H61 M H / H61ML TH61MU3 / H61 MU3
Socket 1155
تﺎﺠﻟﺎﻌﻣInte l Cor e i7 / i5 / i3 / Pentiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
تﺎﺠﻟﺎﻌﻣInte l Cor e i7 / i5 / i3 / Pentiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute Disable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا
ﺔﻳﺰآﺮﻤﻟا
Intel H61 Intel H61 ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا
ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ
DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ 512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/
و4 ﺎﺠﻴﺝﺖﻳﺎﺑ
ﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ ى8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ
ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ
عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC
ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ
DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺳ ﺔﻌ 512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/
و4 ﺎﺠﻴﺝﺖﻳﺎﺑ
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ
ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ
عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC
ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا
ITE 8728
ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ا ﺮﺜآﻷا ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳ.
ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE
ITE 8728
ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .
ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ﻣةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ
ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE
Super I/O
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ
ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.
ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ
ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.
ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
SATA 2
Realtek RTL8111E (H61MH)
ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ
Realtek RTL8105E (H61ML)
ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻥﺎﺙ
Realtek RTL8111E
ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺑ ﺎﺠﻴﺝﺖ/ﺔﻴﻥﺎﺙ ﺔﻜﺒﺷ ﺔﻴﻠﺧاد
ALC662
ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ
5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ALC662
ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ
5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ
ﻒیﺮﻌﺘﻟا
Asmedia ASM1042 USB3.0
ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1
ﺔﺤﺘﻓPCI ﺪﻋ2 ﺔﺤﺘﻓPCI ﺪﻋ2
تﺎﺤﺘﻔﻟا
TH61MU3/H61MU3/H61MH/H61ML
41
H61 M H / H61ML TH61MU3 / H61 MU3
ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻔﻨﻣSATA دﺪﻋ4 ﺬﻔﻨﻣSATA دﺪﻋ4
ﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣﺔﻴﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1
جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1
ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1
مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﻣ ﺔﻠﺹومﺎﻈﻨﻟا ﺔﺣوﺮ دﺪﻋ1
ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2 ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2
ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1 ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1
ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺱ
ﺔﺡﻮﻠﻟا
ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1
ﺬﻓﺎﻨﻣHDMI (H61MH) دﺪﻋ1
ﺬﻓﺎﻨﻣVGA دﺪﻋ1
ﺬﻓﺎﻨﻣDVI-D دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ 1
ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3
ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1
ﺬﻓﺎﻨﻣHDMI دﺪﻋ1
ﺬﻓﺎﻨﻣVGA دﺪﻋ1
ﺬﻓﺎﻨﻣDVI-D دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ 1
ﺬﻓﺎﻨﻣ2.0US B(H61 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2
ﺬﻓﺎﻨﻣSB3.0U(ASM1042 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2
تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3
ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ
ﺔﺡﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا
200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا( 200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا( ﻢﺠﺡ ﺔﺡﻮﻠﻟا
Windows XP / Vista / 7
ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ
وأ نوﺪﺏ رﺎﻄﺧإ.
Windows XP / Vista / 7
ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ
وأ نوﺪﺏ رﺎﻄﺧإ.
ﻢﻋد ﺔﻤﻈﻧأ ﻞﻴﻐﺸﺘﻟا
Motherboard Manual
42
JAPANESE
TH61MU3 / H61 MU3 H61 M H / H61ML
CPU
Socket 1155
Intel Core i7 / i5 / i3 / Pentium プロセッサ
Execute D isable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technologyをサポートします
Socket 1155
Intel Core i7 / i5 / i3 / Pentium プロセッサ
Execute D isable Bit / Enhanced Intel
SpeedStep® / Intel Architecture-64 / Extended
Memory 64 Technology / Virtualization
Technologyをサポートします
チップセット Intel H61 Intel H61
メインメモリ
DDR3 DIMMスロット x 2
各DIMMは 512MB / 1GB / 2GB / 4GB DDR3をサ
ポート
最大メモリ容量8GB
デュアル チャンネルモードDDR3メモリモジュール
DDR3 1333/1066をサポート
登録済みDIMMとECC DIMMはサポートされません
DDR3 DIMMスロット x 2
各DIMMは 512MB / 1GB / 2GB / 4GB DDR3をサ
ポート
最大メモリ容量8GB
デュアル チャンネルモードDDR3メモリモジュール
DDR3 1333/1066をサポート
登録済みDIMMとECC DIMMはサポートされません
Super I/O
ITE 8728
もっとも一般に使用されるレガシーSuper I/O機能を
採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
ITE 8728
もっとも一般に使用されるレガシーSuper I/O機能を
採用しています。
低ピンカウントインターフェイス
環境コントロールイニシアチブ、
H/Wモニター
ファン速度コントローラ/ モニター
ITEの「スマートガーディアン」機能
SATA 2
統合シリアルATA コントローラ
最高3.0 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
統合シリアルATA コントローラ
最高3.0 Gb/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/秒のオートネゴシエーション
Realtek RTL8111E (H61MH)
10 / 100 / 1000 Mb/秒のオートネゴシエーション
Realtek RTL8105E (H61ML)
10 / 100 Mb/秒のオートネゴシエーション
HDオーディオ
のサポート
ALC662
ハイデフィニションオーディオのサポート
5.1 チャンネルオーディオアウト
ALC662
ハイデフィニションオーディオのサポート
5.1 チャンネルオーディオアウト
USB3.0 Asmedia ASM1042
PCI Express Gen2 x16スロット x1 PCI Express Gen2 x16スロット x1
PCI Express Gen2 x1スロット x1 PCI Express Gen2 x1スロット x1
スロット
PCIスロット x2 PCIスロット x2
TH61MU3/H61MU3/H61MH/H61ML
43
TH61MU3 / H61 MU3 H61 M H / H61ML
プリンタポートコネクタ x1 プリンタポートコネクタ x1
シリアルポート x1 シリアルポート x1
SATAコネクタ x4 SATAコネクタ x4
フロントパネルコネクタ x1 フロントパネルコネクタ x1
フロントオーディオコネクタ x1 フロントオーディオコネクタ x1
S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1
CPUファンヘッダ x1 CPUファンヘッダ x1
システムファンヘッダ x1 システムファンヘッダ x1
CMOSクリアヘッダ x1 CMOSクリアヘッダ x1
USB 2.0コネクタ x2 USB 2.0コネクタ x2
消費者IR コネクタ x1 消費者IR コネクタ x1
電源コネクタ(24ピン) x1 電源コネクタ(24ピン) x1
オンボードコ
ネsクタ
電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1
背面パネルI/O
PS/2キーボード / マウス x1
HDMIポート x1
VGAポート x1
DVI-Dポート x1
LANポート x1
USB 2.0ポート(で H61 ) x2
USB 3.0ポート(で ASM1042) x2
オーディオジャック x3
PS/2キーボード / マウス x1
HDMIポート(H61MH) x1
VGAポート x1
DVI-Dポート x1
LANポート x1
USB 2.0ポート x4
オーディオジャック x3
ボードサイズ 200mm (幅) X 244 mm (高さ) 200mm (幅) X 244 mm (高さ)
OSサポート
Windows XP / Vista / 7
Biostarは事前のサポートなしにOSサポートを追加ま
たは削除する権利を留保します。
Windows XP / Vista / 7
Biostarは事前のサポートなしにOSサポートを追加ま
たは削除する権利を留保します。
2011/01/20
