TA970 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a particular

installation.

The vendor makes no representations or warranties with respect to the contents here and

specially disclaims any implied warranties of merchantability or fitness for any purpose.

Further the vendor reserves the right to revise this publication and to make changes to

the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the

vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not

be responsible for any mistakes found in this user’s manual. All the brand and product

names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction.......................................... 1

1.1 Before You Start ................................................................................1

1.2 Package Checklist ............................................................................1

1.3 Motherboard Features......................................................................2

1.4 Rear Panel Connectors....................................................................3

1.5 Motherboard Layout..........................................................................4

Chapter 2: Hardware Installation ........................... 5

2.1 Installing Central Processing Unit (CPU).......................................5

2.2 Install a Heatsink...............................................................................6

2.3 Fan Headers ......................................................................................7

2.4 Installing System Memory................................................................8

2.5 Connectors and Slots .....................................................................10

Chapter 3: Headers & Jumpers Setup ................... 13

3.1 How to Setup Jumpers...................................................................13

3.2 Detail Settings..................................................................................13

Chapter 4: UEFI BIOS & Software ........................ 17

4.1 UEFI BIOS Setup ............................................................................17

4.2 BIOS Update....................................................................................17

4.3 Software............................................................................................22

Chapter 5: Useful Help ......................................... 24

5.1 Driver Installation.............................................................................24

5.2 AMI BIOS Beep Code.....................................................................25

5.3 Troubleshooting...............................................................................25

5.4 RAID Functions ...............................................................................27

Appendix: SPEC In Other Languages .................... 32

German .................................................................................................................32

French ...................................................................................................................34

Italian .....................................................................................................................36

Spanish..................................................................................................................38

Portuguese ...........................................................................................................40

Polish.....................................................................................................................42

Russian .................................................................................................................44

Arabic.....................................................................................................................46

Japanese...............................................................................................................48

TA970

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with sufficient

lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

; Serial ATA Cable x4

; Rear I/O Panel for ATX Case x1

; User’s Manual x1

; Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was sold.

For more information about the standard package in your region, please contact your dealer or sales

representative.

Motherboard Manual

1.3 Motherboard Features

SPEC

CPU

Socket AM3+

AMD Sempron / Phenom II / Athlon II / FX

processors (Maximum Watt: 140W)

AMD 64 Architecture enables 32 and 64 bit computing

Supports Hyper Transport 3.0

FSB

Support HyperTransport 3.0

Supports up to 4.8 GT/s Bandwidth

Chipset

AMD 970

AMD SB950

Super I/O

ITE 8728F-BX

Provides the most commonly used legacy Super

I/O functionality

Low Pin Count Interface

Environment Control initiatives

H/W Monitor

Fan Speed Controller

ITE's "Smart Guardian" function

Main Memory

DDR3 DIMM Slots x 4

Max Memory Capacity 64GB

Each DIMM supports 512MB/

1GB/2GB/4GB/8GB/16GB DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 800/1066/1333/1600/1866

Supports DDR3 2000 (OC)

SATA III Integrated Serial ATA Controller

Data transfer rates up to 6 Gb/s.

SATA Version 3.0 specification compliant.

RAID 0,1,5,10 support

LAN Realtek RTL 8111F 10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Sound ALC892 7.1channels audio out

Supports HD Audio

USB3.0 Asmedia ASM1042 A4 Data transfer rates up to 600 MB/s

PCI Slot x2

PCI Express Gen2 x1 Slot x2

Slots

PCI Express Gen2 x16 Slot x2 Supports AMD CrossFireX™ (x16 + x4)

SATA Connector x6 Each connector supports 1 SATA device

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

S/PDIF out Connector x1 Supports digital audio out function

Consumer IR Connector x1 Supports infrared function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x2 System Fan Power supply

CMOS clear Header x1 Restore CMOS data to factory default

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

On Board

Connectors

Printer Port Connector x1 Each connector supports 1 Printer port

TA970

SPEC

Serial Port Connector x1 Connects to RS-232 Port

Power Connector (24-Pin) x1 Connects to Power supply

Power Connector (4-Pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB2.0 Port x6

USB3.0 Port x2

Audio Jack x6

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to RJ-45 ethernet cable

Connect to USB2.0 devices

Connect to USB3.0 devices (by Asmedia ASM1042 A4)

and USB2.0/USB1.X devices (by SB950)

Provide Audio-In/Out and Mic. connection

Board Size 305 mm (L) x 225 mm (W) ATX

OS Support Windows XP / Vista / 7/ 8 Biostar reserves the right to add or remove support for any

OS With or without notice.

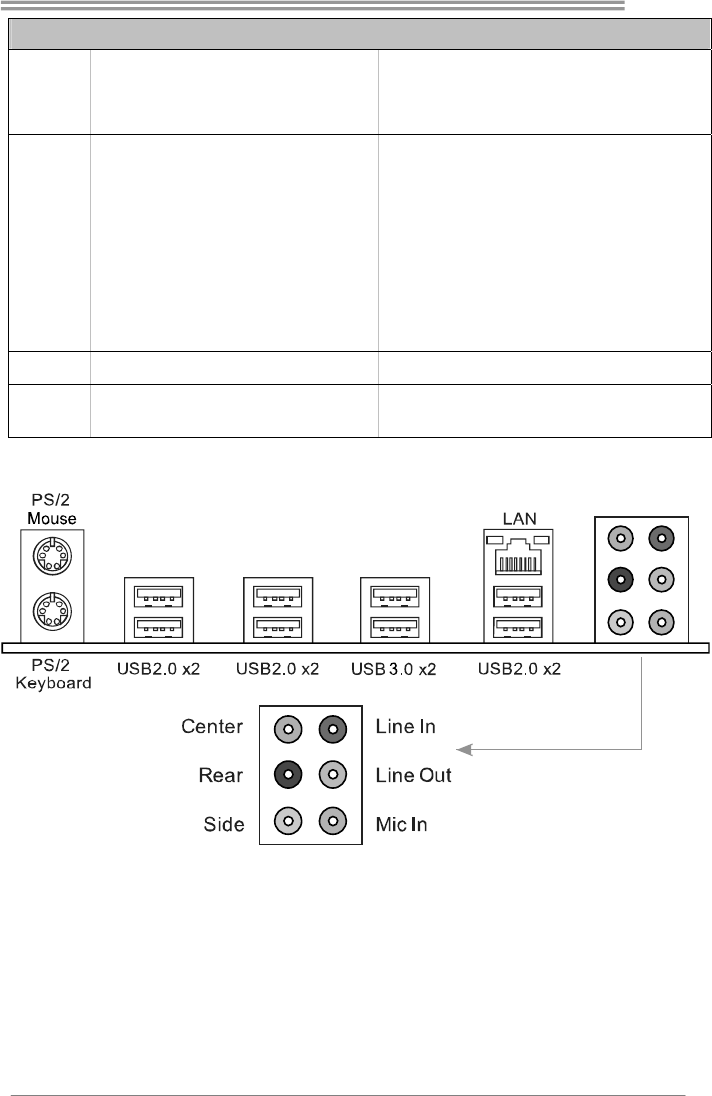

1.4 Rear Panel Connectors

Motherboard Manual

1.5 Motherboard Layout

Note1: ■ represents the 1st pin.

TA970

CHAPTER 2: HARDWARE INSTALLATION

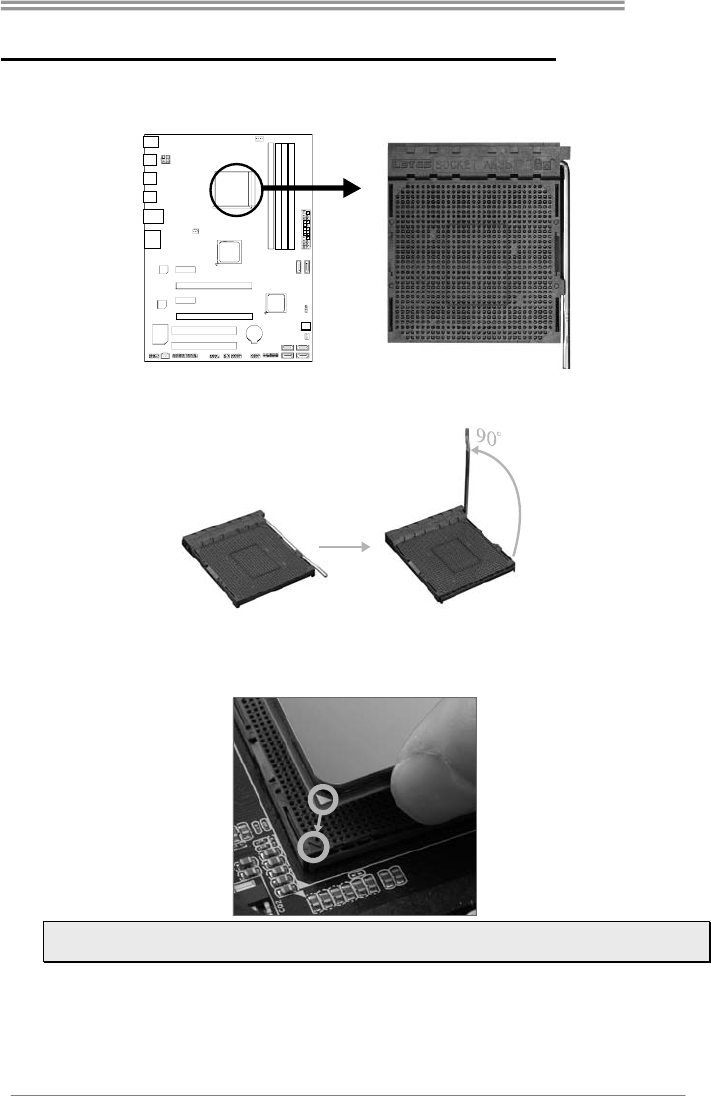

2.1 Installing Central Processing Unit (CPU)

Step 1: Pull the lever toward direction A from the socket and then raise the lever

up to a 90-degree angle.

Step 2: Look for the white triangle on socket, and the gold triangle on CPU should

point towards this white triangle. The CPU will fit only in the correct

orientation.

Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket to

prevent damaging the CPU.

Motherboard Manual

Step 3: Hold the CPU down firmly, and then close the lever toward direct B to

complete the installation.

2.2 Install a Heatsink

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the

heatsink clip with the socket mounting-lug. Hook the spring clip to the

mounting-lug.

Step 2: On the other side, push the retention clip straight down to lock into the

plastic lug on the retention frame, and then press down the locker until it

stops.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU

heatsink.

TA970

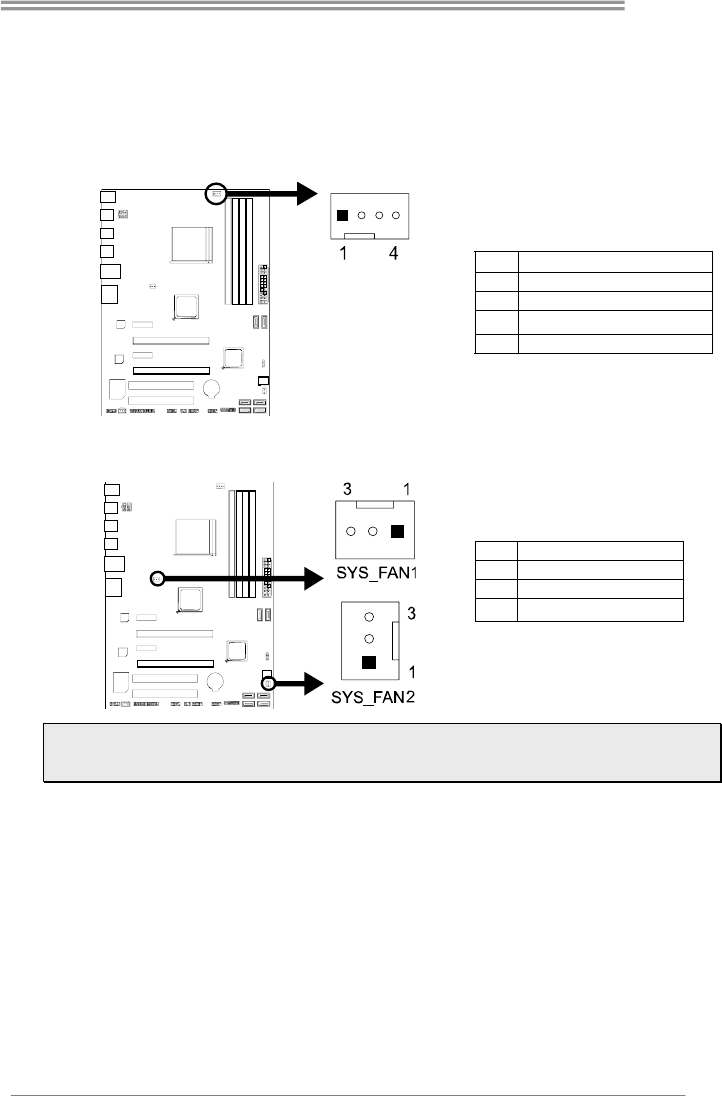

2.3 Fan Headers

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

SYS_FAN1/2: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1/2 support 4-pin and 3-pin head connectors. When connecting

with wires onto connectors, please note that the red wire is the positive and should be

connected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

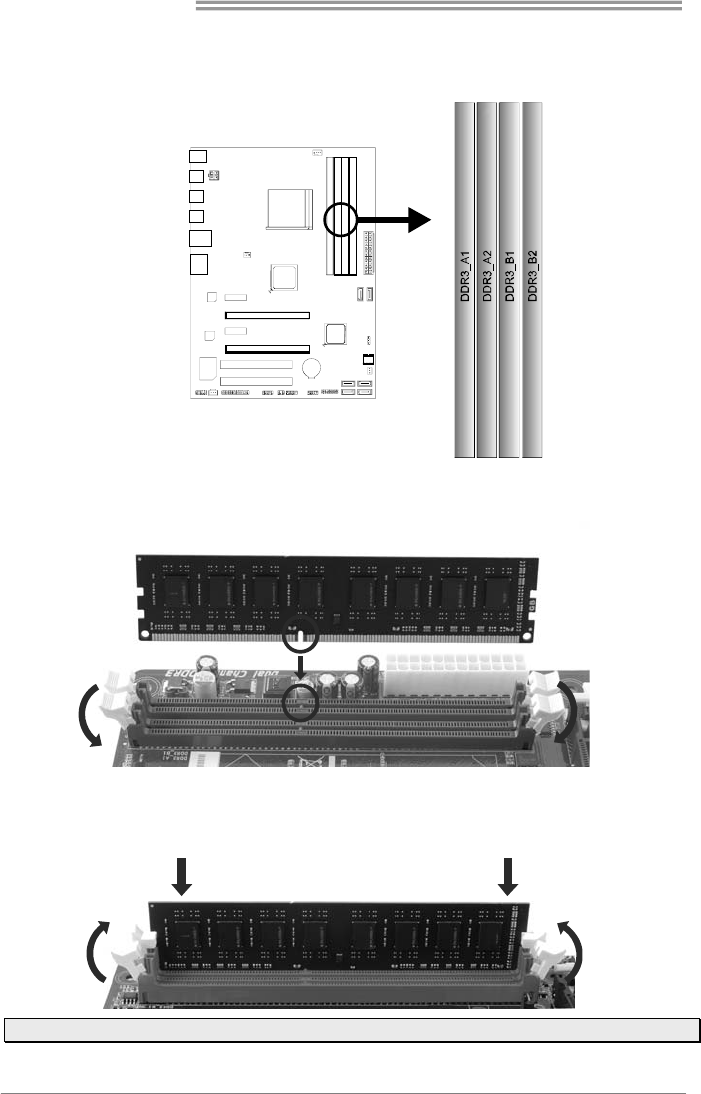

2.4 Installing System Memory

A. DDR3 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap

back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

TA970

B. Memory Capacity

DIMM Socket

Location DDR3 Module Total Memory Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_A2 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_B2 512MB/1GB/2GB/4GB/8GB/16GB

Max is 64GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

Note1: The DRAM bus width of the memory module must be the same (x8 or x16)

Note2: Memory module must be installed in DDR3-A2 or DDR3-B2 to boot the system.

D. DDR Speed Support

Please refer to the following table for DDR speed reference:

DDR Speed (1.5V)

# of DIMM per Channel DDR3-1333 DDR3-1600 DDR3-1866

1 of 2 UDIMMs O O O

2 of 2 UDIMMs O O X

Motherboard Manual

2.5 Connectors and Slots

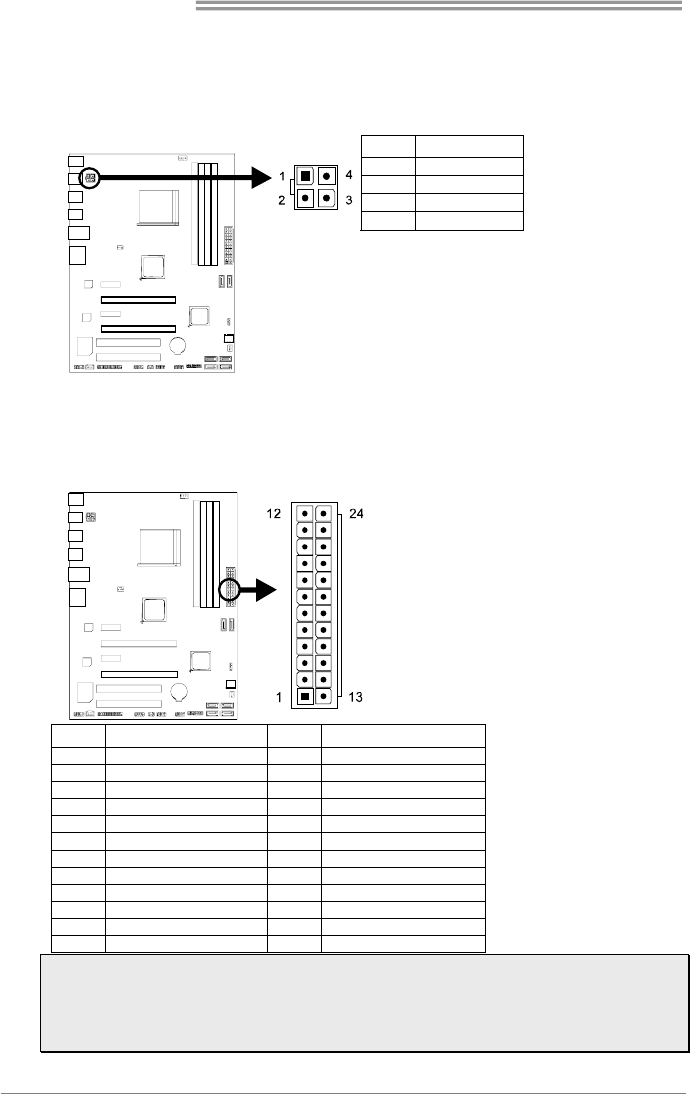

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

Note1: Before you power on the system, please make sure that both ATXPWR1 and

ATXPWR2 connectors have been plugged-in.

Note2: Insufficient power supplied to the system may result in instability or the

peripherals not functioning properly. Use of a PSU with a higher power output is

recommended when configuring a system with more power-consuming devices.

TA970

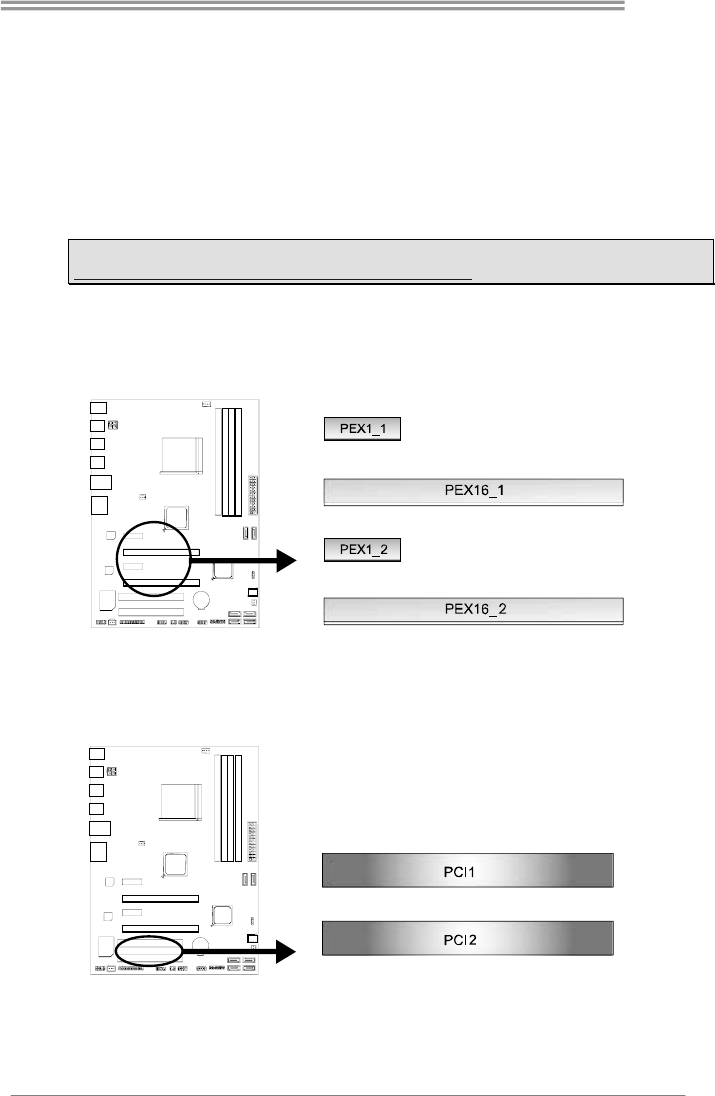

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

PEX16_2: PCI-Express Gen2 x4 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 2GB/s per direction;4GB/s in total.

Note: For more details about AMD CrossFireX, please access the website, respectively:

http://support.amd.com/us/Pages/AMDSupportHub.aspx .

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

PCI1/PCI2: Peripheral Component Interconnect Slots

PCI stands for Peripheral Component Interconnect, and it is a bus standard for

expansion cards. This PCI slot is designated as 32 bits.

Motherboard Manual

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

SATA1~SATA6: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

TA970

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 How to Setup Jumpers

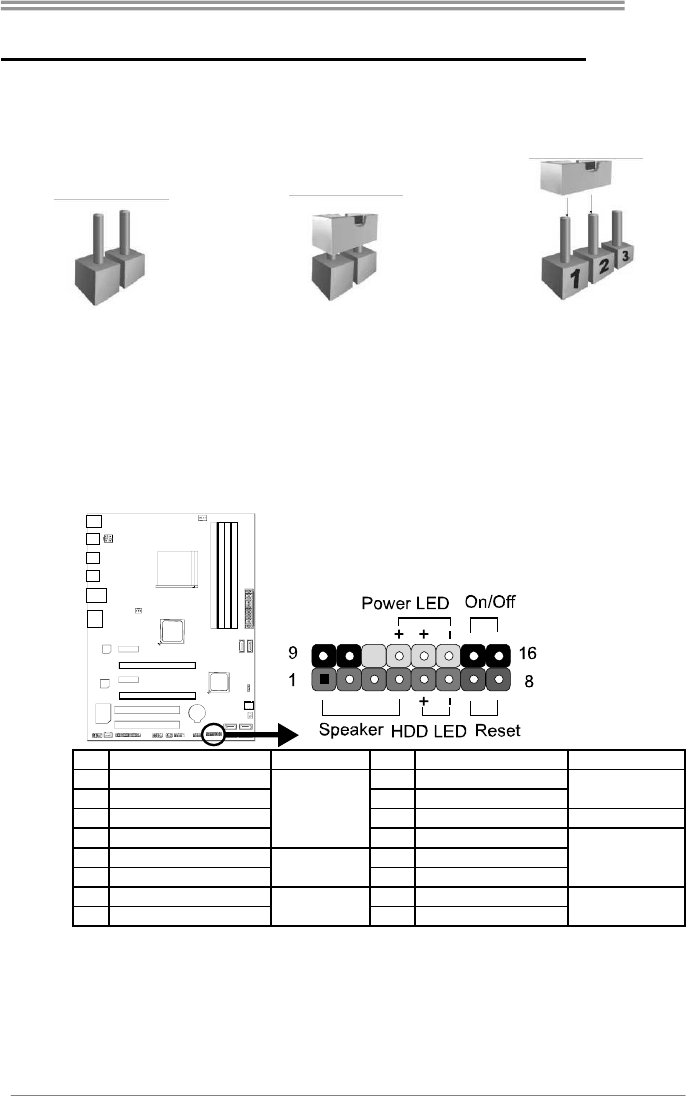

The illustration shows how to set up jumpers. When the jumper cap is placed on

pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 Detail Settings

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

Motherboard Manual

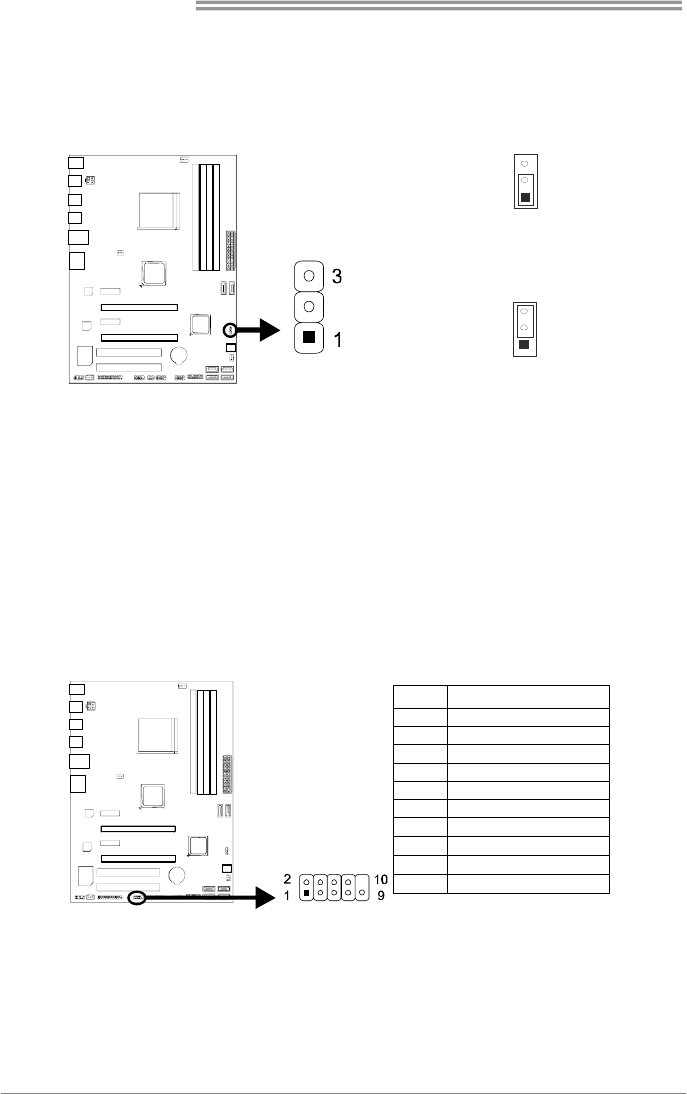

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close: Normal Operation

(default).

Pin 2-3 Close: Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

J_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal read

5Si

nal

round

6 Data set read

7 Request to send

8 Clear to send

9 Ring indicator

10 NC

TA970

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector; AC’97 connector

is not acceptable.

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Pin Assignment

1 +5V

2 SPDIF_OUT

3 Ground

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

Pin Assignment

1 IrDA serial input

2 Ground

3 Ground

4 Key

5 IrDA serial output

6 IR Power

Motherboard Manual

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

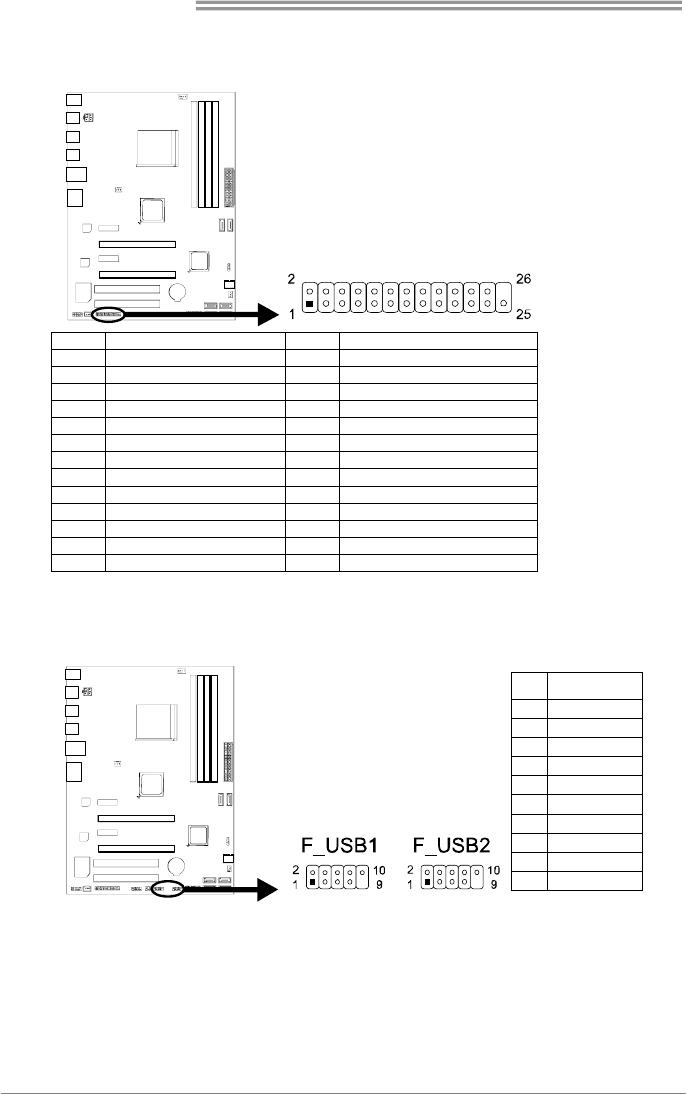

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

TA970

CHAPTER 4: UEFI BIOS & SOFTWARE

4.1 UEFI BIOS Setup

 For better system performance, the UEFI BIOS firmware is being

continuously updated. The UEFI BIOS information described below in this

manual is for your reference only and the actual UEFI BIOS information and

settings on board may be different from this manual

 For further information of setting up the UEFI BIOS, please refer to the UEFI

BIOS Manual in the Setup DVD.

4.2 BIOS Update

There are three ways to update the BIOS:

BIOS Update Utility, BIOS Online Update Utility and BIOS Flasher.

1. BIOS Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from www.biostar.com.tw .

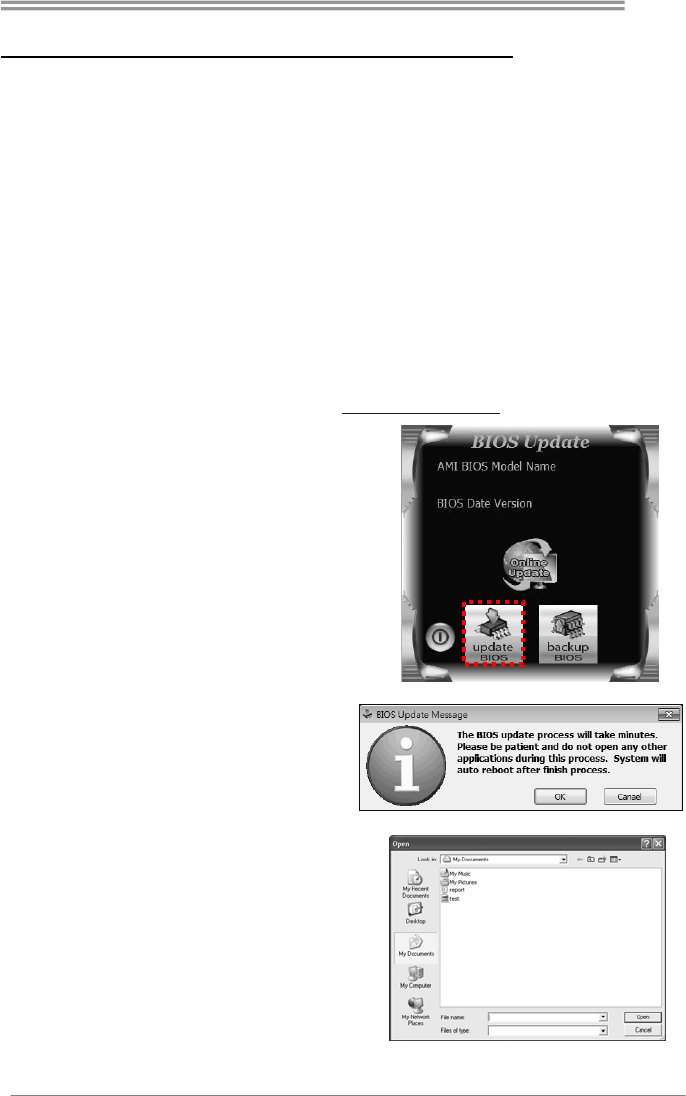

3. Open BIOS Update Utility and

click the Update BIOS button on

the main screen.

4. A warning message will show

up to request your agreement to

start the BIOS update. Click OK to

start the update procedure.

5. Choose the location for your

BIOS file in the system. Please

select the proper BIOS file, and

then click on Open. It will take

several minutes, please be

patient.

Motherboard Manual

6. After the BIOS Update process is

finished, click on OK to reboot the

system.

7. While the system boots up and the full screen logo shows up, please press

the <Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the

main screen for the backup of BIOS,

and select a proper location for your

backup BIOS file in the system, and

click Save.

TA970

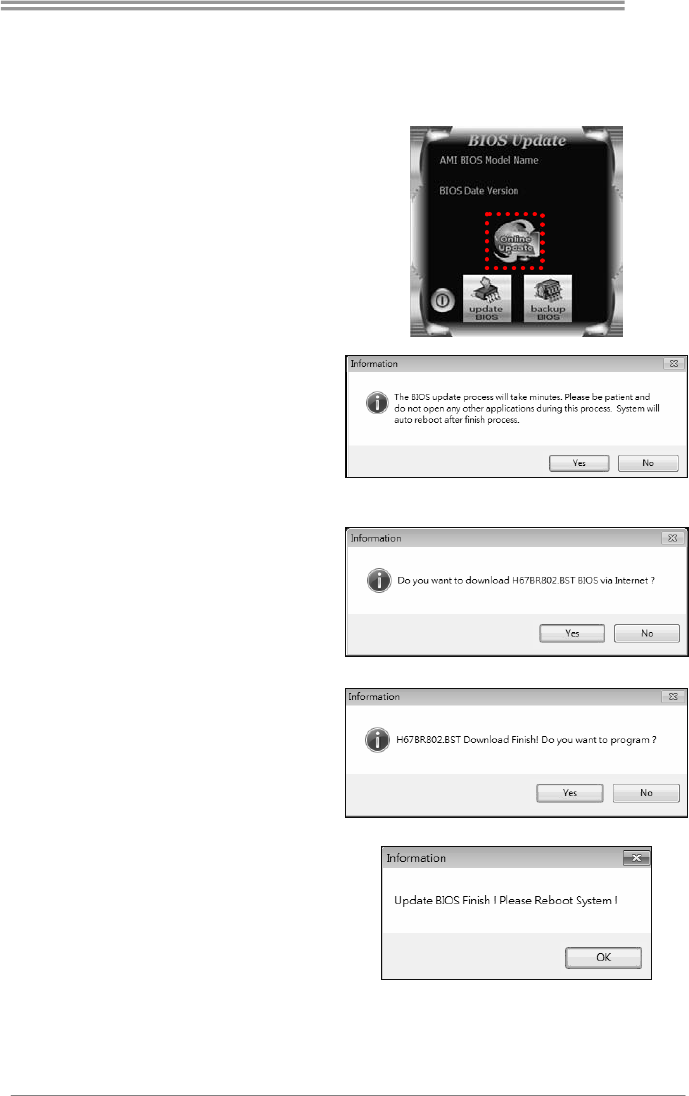

2. Online Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this

function.

3. Open BIOS Update Utility and

click the Online Update button

on the main screen.

4. An open dialog will show up to

request your agreement to

start the BIOS update. Click

Yes to start the online update

procedure.

5. If there is a new BIOS version,

the utility will ask you to

download it. Click Yes to

proceed.

6. After the download is

completed, you will be asked

to program (update) the BIOS

or not. Click Yes to proceed.

7. After the updating process is

finished, you will be asked you

to reboot the system. Click OK

to reboot.

Motherboard Manual

8. While the system boots up and the full screen logo shows up, press

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

3. BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and

simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.

Note2: Shutting down or resetting the system while updating the BIOS will lead to system

boot failure.

The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility, press

<F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, copy and save the BIOS file into a USB flash (pen) drive.

3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press <F12> during the POST process.

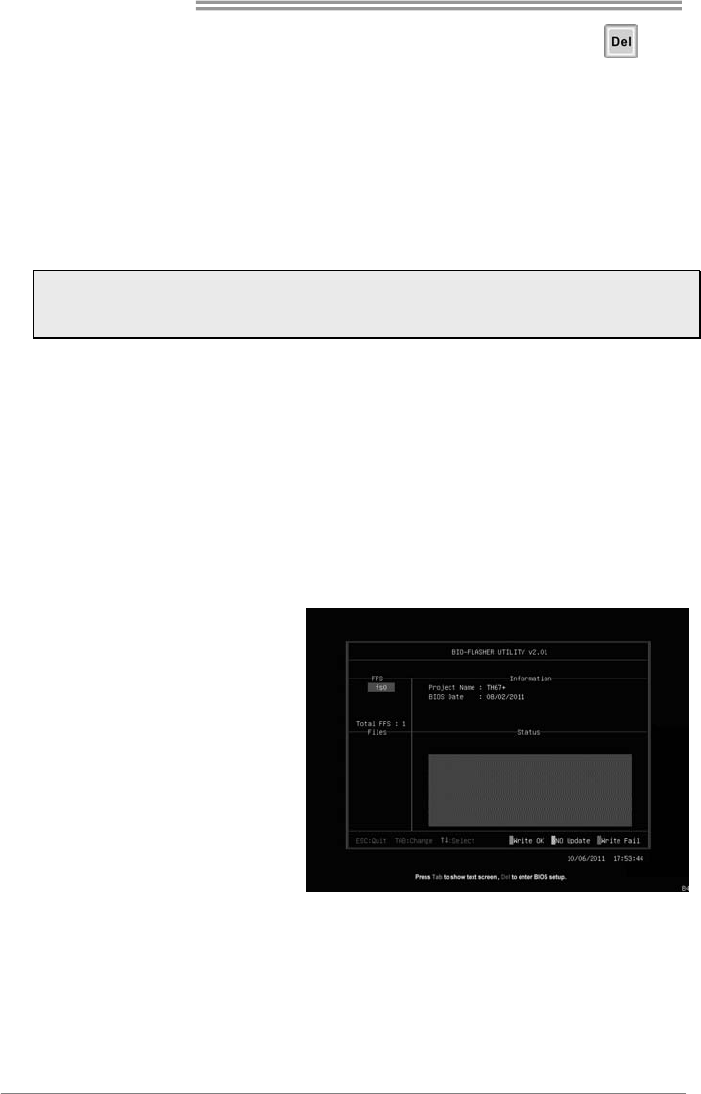

5. After entering the POST

screen, the BIOS-FLASHER

utility pops out. Choose [fs0] to

search for the BIOS file.

TA970

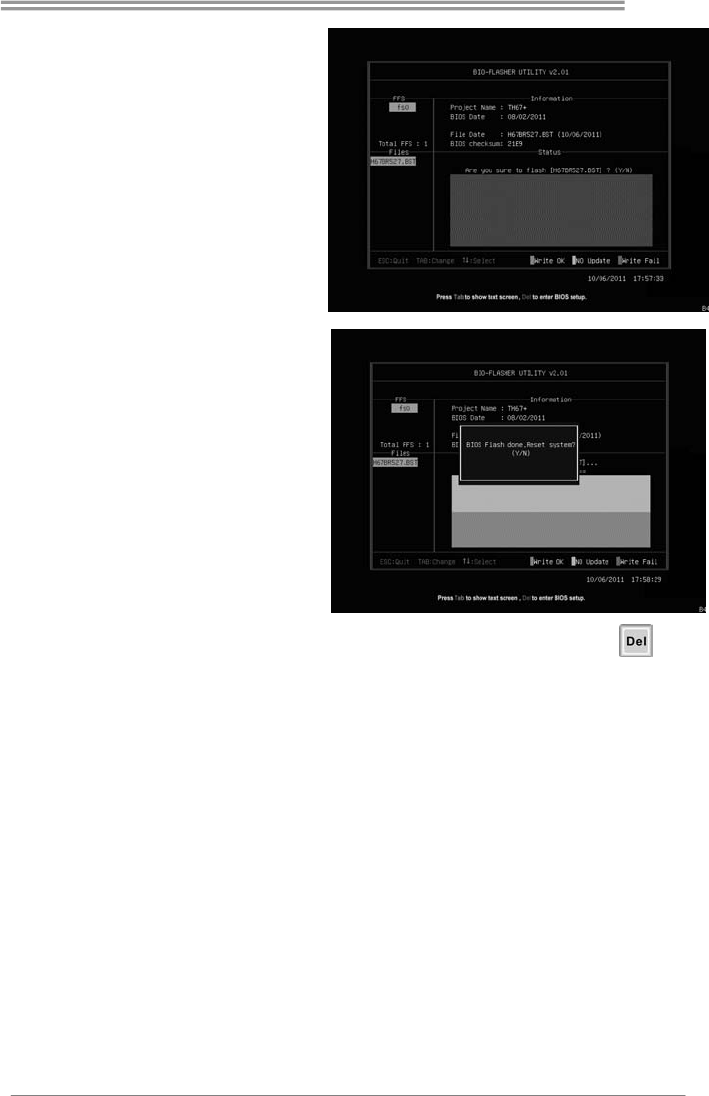

6. Select the proper BIOS file,

and a message asking if you

are sure to flash the BIOS file.

Click Yes to start updating

BIOS.

7. A dialog pops out after BIOS

flash is completed, asking you

to restart the system. Press the

[Y] key to restart system.

8. While the system boots up and the full screen logo shows up, press

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and

Reset to restart the computer. Then, the BIOS Update is completed.

Motherboard Manual

4.3 Software

Installing Software

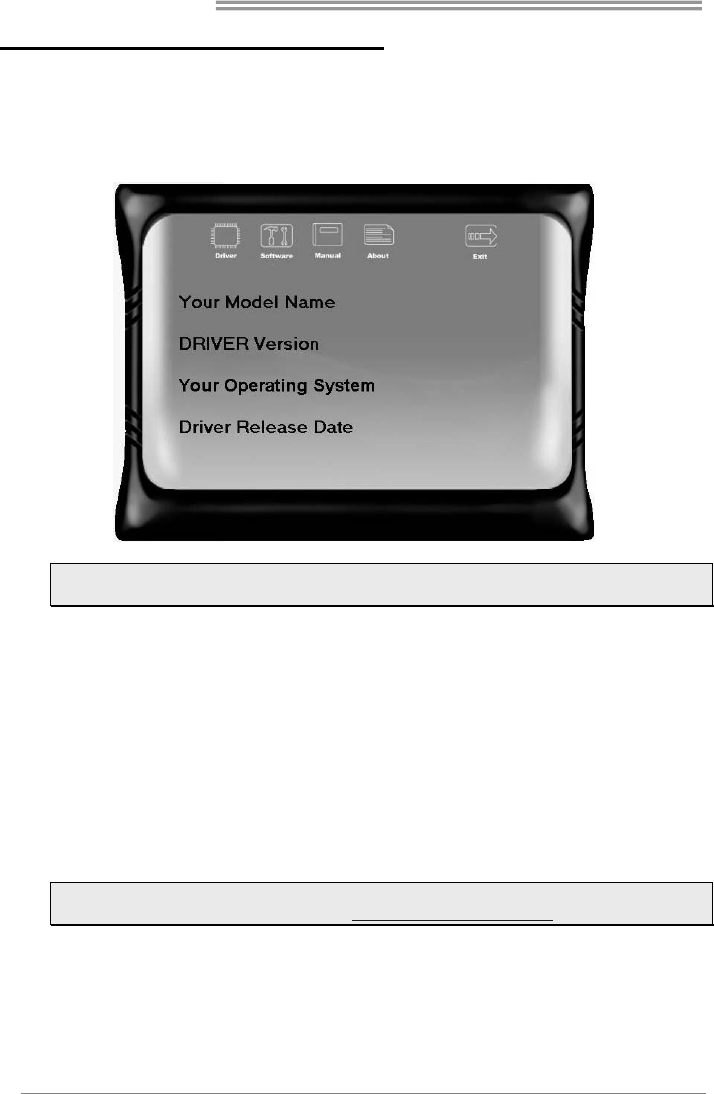

1. Insert the Setup DVD to the optical drive. The driver installation program would

appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Note1: All the information and content about following software are subject to be changed

without notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual

information and settings on board may be slightly different from this manual.

Launching Software

After the installation process is completed, you will see the software icon showing on

the desktop. Double-click the icon to launch it.

eHot-Line (Optional)

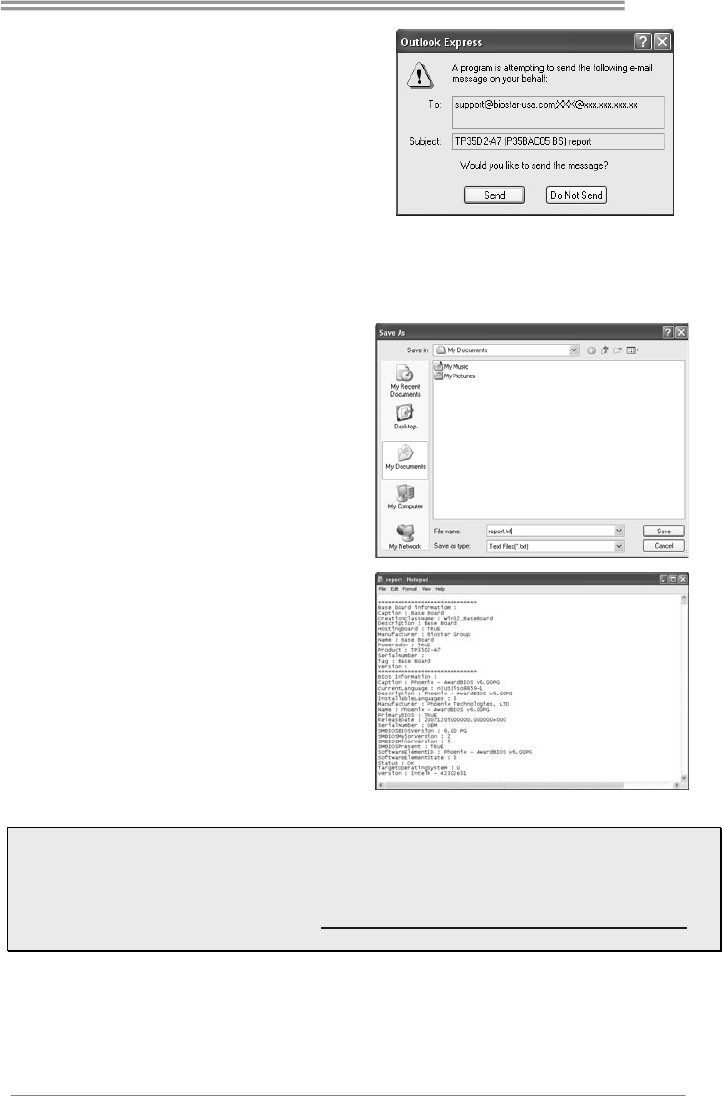

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system.

This utility will collect the system information which is useful for analyzing the problem

you may have encountered, and then send these information to our tech-support

department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application

program.

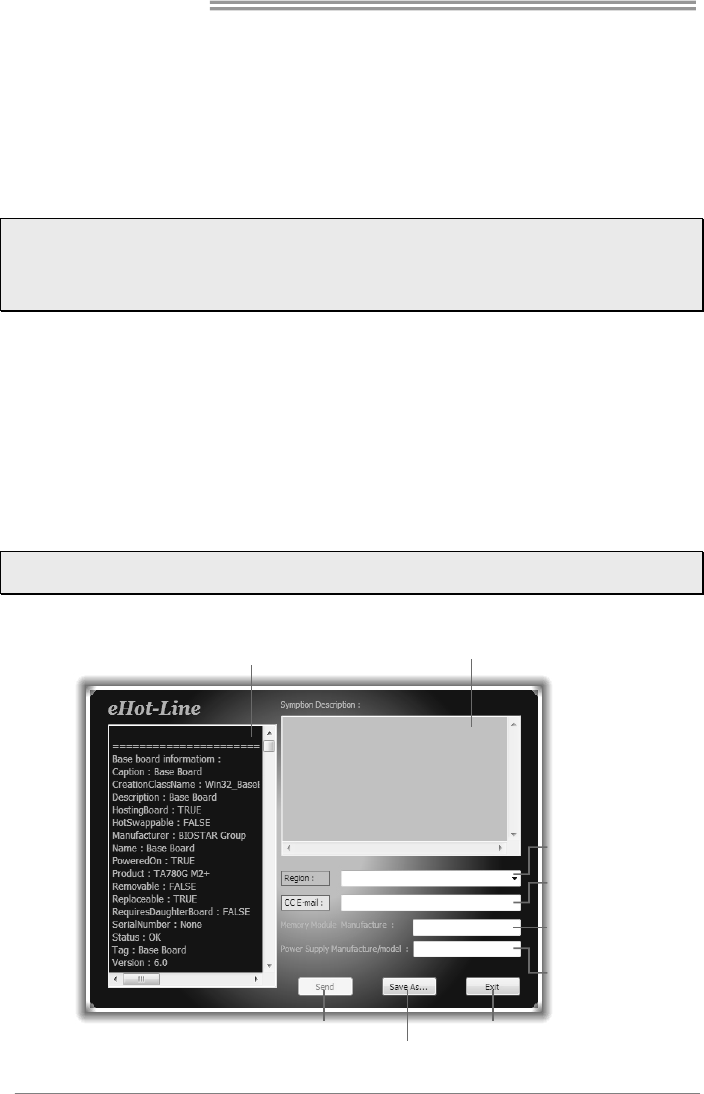

This block will show

the information which

wou ld be col lected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the power supply

manufacturer and the

model no.

Send the mail out.

Save these information to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Provide the name of

the memory module

manufacturer.

Describe condition

of your system.

represents important

information that you

must provide. Without

this information, you may

not be able to send out

the mail.

TA970

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see

a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”.

Your system information will be saved to

a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This information

is also concluded in the sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to

provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may

need to save the system information to a .txt file and send the file to our tech support with other

e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php for

getting our contact information.

Motherboard Manual

CHAPTER 5: USEFUL HELP

5.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver

DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note: If this window didn’t show up after you insert the Driver DVD, please use file browser

to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the

compatible driver for your motherboard and operating system. Click on each

device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list

the software available for your system, click on each software title to launch the

installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD.

Click on the Manual icon to browse for available manual.

Note: You will need Acrobat Reader to open the manual file. Please download the latest

version of Acrobat Reader software from http://get.adobe.com/reader/

TA970

5.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description

1 Success booting.

8 Display memory error (system video adapter)

5.3 Troubleshooting

Probable Solution

1. There is no power in the system.

Power LED does not shine; the fan

of the power supply does not work

2. Indicator light on keyboard does

not shine.

1. Make sure power cable is securely

plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drives are running.

Using even pressure on both ends of the

DIMM, press down firmly until the module

snaps into place.

System does not boot from a hard disk

drive, but can be booted from optical

drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged in;

check the drive type in the standard

CMOS setup.

2. Backing up the hard drive is

extremely important. All hard disks

are capable of breaking down at any

time.

System only boots from an optical

drive. Hard disks can be read,

applications can be used, but system

fails to boot from a hard disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install

applications and data using backup

disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs

a second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility with

other drives.

Motherboard Manual

CPU Overheated

If the system shutdown automatically after power on system for seconds, that

means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to

avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TA970

5.4 RAID Functions

Operating System

Supports Windows Vista , Windows 7 and Windows 8.

Raid Arrays

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write

times for many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

RAID Definitions

RAID 0:

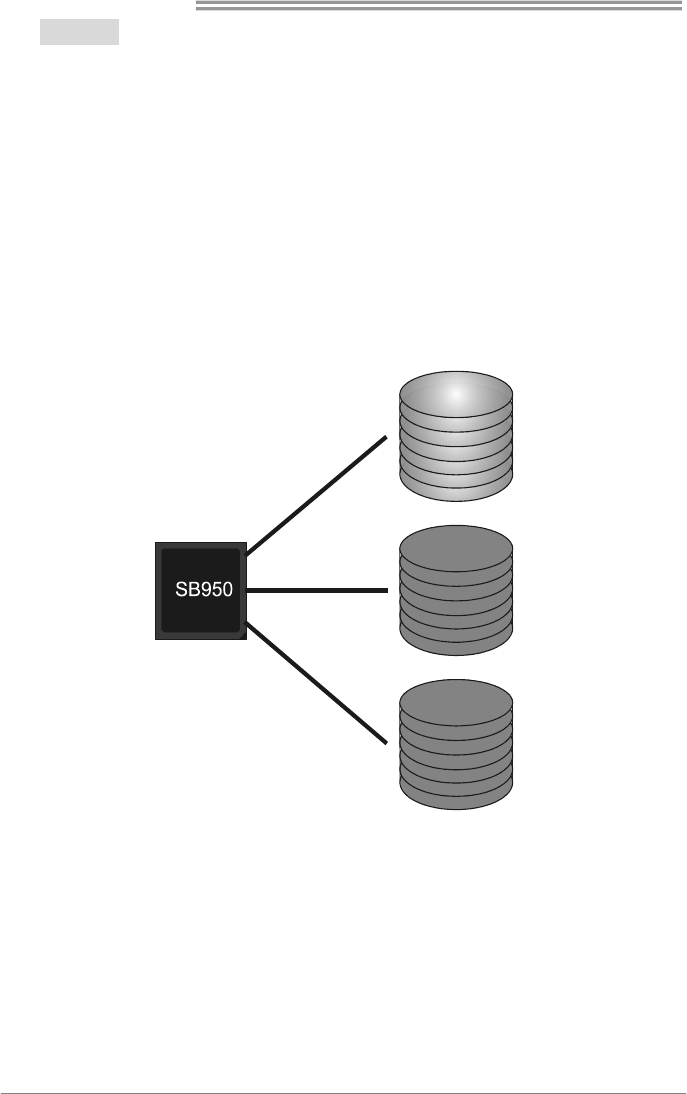

The controller “stripes” data across multiple drives in a RAID 0 array system. It

breaks up a large file into smaller blocks and performs disk reads and writes

across multiple drives in parallel. The size of each block is determined by the

stripe size parameter, which you set during the creation of the RAID set based on

the system environment. This technique reduces overall disk access time and

offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

 Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Motherboard Manual

RAID 1:

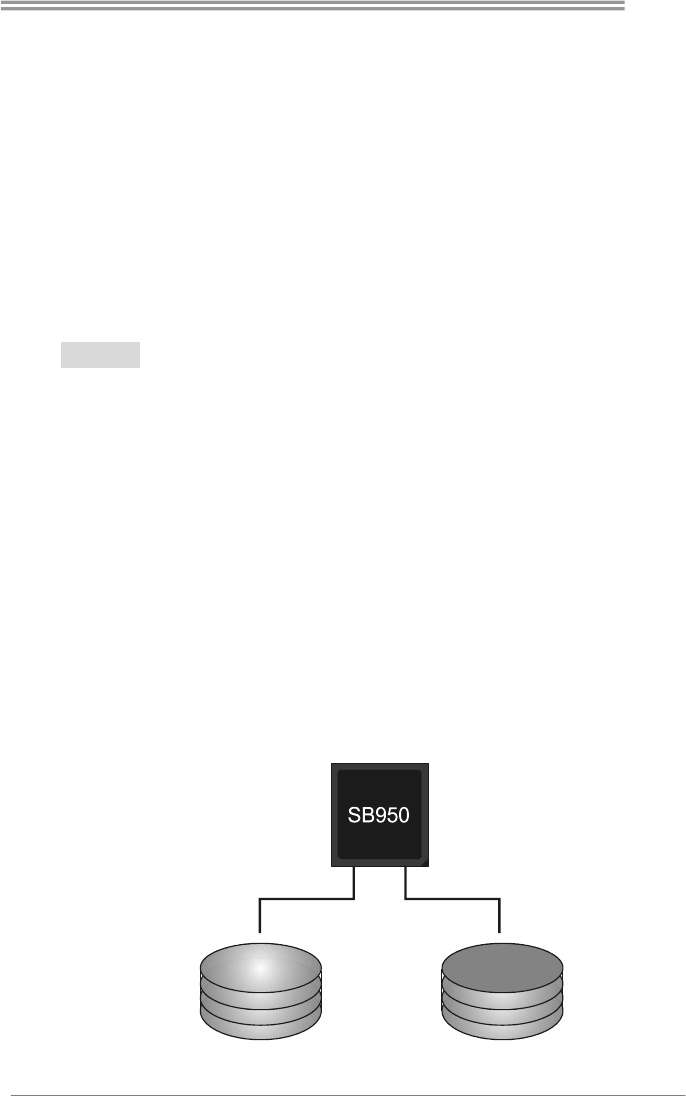

Every read and write is actually carried out in parallel across 2 disk drives in a

RAID 1 array system. The mirrored (backup) copy of the data can reside on the

same disk or on a second redundant drive in the array. RAID 1 provides a

hot-standby copy of data if the active volume or drive is corrupted or becomes

unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of

automatic backup that eliminates tedious manual backups to more expensive and

less reliable media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.

 Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes.

Block 1

Block 2

Block 3

Block 1

Block 2

Block 3

TA970

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques.Resulting in a RAID 10

solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.

 Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID levels

in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes.

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Motherboard Manual

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It

writes data and parity blocks across all the drives in the array. Fault tolerance is

maintained by ensuring that the parity information for any given block of data is

placed on a different drive from those used to store the data itself.

Features and Benefits

 Drives: Minimum 3.

 Uses: RAID 5 is recommended for transaction processing and general

purpose service.

 Benefits: An ideal combination of good performance, good fault tolerance,

and high capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Disk 1

DATA 3

PARITY

DATA 7

DATA 1

DATA 9

PARITY

Disk 2

PARITY

DATA 5

DATA 8

DATA 2

PARITY

DATA 11

Disk 3

DATA 4

DATA 6

PARITY

DATA 10

DATA 12

TA970

This Page Intentionally Left Blank

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

German

Spezifikationen

CPU

Sockel AM3+

AMD Sempron / Phenom II / Athlon II / FX

Prozessoren (Maximales Watt: 140W)

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport 3.0

FSB Unterstützt HyperTransport 3.0 mit einer

Bandbreite von bis zu 4.8 GT/s

Chipsatz AMD 970

AMD SB950

Super E/A

ITE 8728F-BX

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller

"Smart Guardian"-Funktion von ITE

Arbeitsspeicher

DDR3 DIMM-Steckplätze x 4

Max. 64GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/

1GB/2GB/4GB/8GB/16GB DDR3.

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 800/1066/1333/1600/1866

Unterstützt DDR3 2000 (OC)

SATA III Integrierter Serial ATA-Controller

Datentransferrate bis zu 6 Gb/s

Konform mit der SATA-Spezifikation Version 3.0

Unterstützt RAID 0,1,5,10

LAN Realtek RTL 8111F 10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Codec ALC892 7.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

USB3.0 Asmedia ASM1042 A4 Datenübertragungsraten bis zu 600 MB / s

PCI Steckplatz x2

PCI Express Gen2 x1 Steckplatz x2

Steckplätze

PCI Express Gen2 x16 Steckplatz x2 unterstützt AMD CrossFireX™ (x16,x4)

SATA-Anschluss x6 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

Onboard-Ansc

hluss

S/PDIF Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

TA970

Spezifikationen

Verbraucher-IR Anschluss x1

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funktion)

System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB2.0-Anschluss x2 Jeder Anschluss unterstützt 2

Fronttafel-USB2.0-Anschlüsse

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

Serieller Anschluss x1

Stromanschluss (24-polig) x1

Stromanschluss (4-polig) x1

Rückseiten-E/A

PS/2-Tastatur x1

PS/2-Maus x1

LAN-Anschluss x1

USB2.0-Anschluss x6

USB3.0-Anschluss x2

Audioanschluss x6

Platinengröße 305 mm (B) X 225 mm (L)

OS-Unterstützu

ng Windows XP / Vista / 7/ 8

Biostar behält sich das Recht vor, ohne Ankündigung die

Unterstützung für ein Betriebssystem hinzuzufügen oder zu

entfernen.

Motherboard Manual

French

SPEC

Socket AM3+

Processeurs AMD Sempron / Phenom II / Athlon

II / FX (Watt maximum : 140W)

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyper Transport 3.0

Bus frontal Prend en charge Hyper Transport 3.0 jusqu'à

une bande passante de 4.8 GT/s

Chipset AMD 970

AMD SB950

Super E/S

ITE 8728F-BX

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

Initiatives de contrôle environnementales,

Moniteur de matériel

Contrôleur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 4

Capacité mémoire maximale de 64Go

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go/16Go

Module de mémoire DDR3 à mode à double voie

Prend en charge la DDR3 800/1066/1333/1600/1866

Prend en charge la DDR3 2000 (OC)

SATA III

Contrôleur Serial ATA

intégré

Taux de transfert jusqu'à 6 Go/s.

Conforme à la spécification SATA Version 3.0

Prise en charge RAID 0,1,5,10

LAN Realtek RTL 8111F

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Codec audio ALC892 Sortie audio à 7.1 voies

Prise en charge de l'audio haute définition

USB3.0 Asmedia ASM1042 A4 Taux de transfert de données jusqu'à 600 Mo / s

Fente PCI x2

Fente PCI Express Gen2 x1 x2

Fentes

Fente PCI Express Gen2 x16 x2 supports AMD CrossFireX™ (x16,x4)

Connecteur SATA x6 Chaque connecteur prend en charge 1 périphérique SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique

Connecteur

embarqué

Connecteur de IR du consommateur x1

TA970

SPEC

Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec fonction de

ventilateur intelligent)

Embase de ventilateur système x2 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB2.0 x2 Chaque connecteur prend en charge 2 ports USB2.0 de

panneau avant

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Port série x1

Connecteur d'alimentation x1

(24 broches)

Connecteur d'alimentation x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port LAN x1

Port USB2.0 x6

Port USB3.0 x2

Fiche audio x6

Dimensions

de la carte 305 mm (l) X 225 mm (H)

Support SE Windows XP / Vista / 7/ 8 Biostar se réserve le droit d'ajouter ou de supprimer le support

de SE avec ou sans préavis.

Motherboard Manual

Italian

SPECIFICA

CPU

Socket AM3+

Processori AMD Sempron / Phenom II /

Athlon II / FX (Watt massimo: 140W)

L’architettura AMD 64 abilita la computazione 32 e 64

bit

Supporto di Hyper Transport 3.0

FSB Supporto di HyperTransport 3.0 fino a 4.8

GT/s di larghezza di banda

Chipset AMD 970

AMD SB950

Super I/O

ITE 8728F-BX

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 4

Capacità massima della memoria 64GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB/16GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800/1066/1333/1600/1866

Supporto di DDR3 2000 (OC)

SATA III Controller Serial ATA integrato

Velocità di trasferimento dei dati fino a 6 Gb/s.

Compatibile specifiche SATA Versione 3.0

Supporto RAID 0,1,5,10

LAN Realtek RTL 8111F Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Codec

audio

ALC892 Uscita audio 7.1 canali

Supporto audio High-Definition (HD)

USB3.0 Asmedia ASM1042 A4 Velocità di trasferimento dati fino a 600 MB / s

Alloggio PCI x2

Alloggio PCI Express Gen2 x1 x2

Alloggi

Alloggio PCI Express Gen2 x16 x2 supporta AMD CrossFireX™ (x16, x4)

Connettore SATA x6 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore output S/PDIF x1 Supporta la funzione d’output audio digitale

Connettori

su scheda

Connettore IR del consumatore x1

TA970

SPECIFICA

Collettore ventolina CPU x1 Alimentazione ventolina CPU (con funzione Smart Fan)

Collettore ventolina sistema x2 Alimentazione ventolina di sistema

Collettore cancellazione CMOS x1

Connettore USB2.0 x2 Ciascun connettore supporta 2 porte USB2.0 pannello

frontale

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Porta seriale x1

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4 pin)

I/O pannello

posteriore

Tastiera PS/2 x1

Mouse PS/2 x1

Porta LAN x1

Porta USB2.0 x6

Porta USB3.0 x2

Connettore audio x6

Dimensioni

scheda 305 mm (larghezza) x 225 mm (altezza)

Sistemi

operativi

supportati

Windows XP / Vista / 7/ 8

Biostar si riserva il diritto di aggiungere o rimuovere il

supporto di qualsiasi sistema operativo senza

preavviso.

Motherboard Manual

Spanish

Especificación

CPU

Conector AM3+

Procesadores AMD Sempron / Phenom II /

Athlon II / FX (Vatio máximo: 140W)

La arquitectura AMD 64 permite el procesado de 32 y 64 bits

Soporta las tecnologías Hyper Transport 3.0

FSB Admite HyperTransport 3.0 con un ancho de

banda de hasta 4.8 GT/s

Conjunto de

chips

AMD 970

AMD SB950

Súper E/S

ITE 8728F-BX

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

Iniciativas de control de entorno,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 4

Capacidad máxima de memoria de 64GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB/16GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800/1066/1333/1600/1866

Admite DDR3 de 2000 (OC)

SATA III Controlador ATA Serie Integrado

Tasas de transferencia de hasta 6 Gb/s.

Compatible con la versión SATA 3.0

Admite RAID 0,1,5,10

Red Local Realtek RTL 8111F Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Códecs de

sonido ALC892 Salida de sonido de 7.1 canales

Soporte de sonido de Alta Definición

USB3.0 Asmedia ASM1042 A4 Tasas de transferencia de datos hasta 600 MB / s

Ranura PCI X2

Ranura PCI express Gen2 x1 X2

Ranuras

Ranura PCI express Gen2 x16 X2 soporta AMD CrossFireX™ (x16, x4)

Conector SATA X6 Cada conector soporta 1 dispositivos SATA

Conector de panel frontal X1 Soporta instalaciones en el panel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Conectores

en placa

Conector de IR del consumidor X1

TA970

Especificación

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con función

Smart Fan)

Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB2.0 X2 Cada conector soporta 2 puertos USB2.0 frontales

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Puerto serie X1

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4 patillas)

Panel trasero

de E/S

Teclado PS/2 X1

Ratón PS/2 X1

Puerto de red local X1

Puerto USB2.0 X6

Puerto USB3.0 X2

Conector de sonido X6

Tamaño de la

placa 305 mm. (A) X 225 mm. (H)

Soporte de

sistema

operativo

Windows XP / Vista / 7/ 8 Biostar se reserva el derecho de añadir o retirar el soporte de

cualquier SO con o sin aviso previo.

Motherboard Manual

Portuguese

ESPECIFICAÇÕES

CPU

Socket AM3+

Processadores AMD Sempron / Phenom II /

Athlon II / FX (Watt máximo: 140W)

A arquitectura AMD 64 permite uma computação de 32 e 64

bits

Suporta as tecnologias Hyper Transport 3.0

FSB Suporta a tecnologia HyperTransport 3.0 com

uma largura de banda até 4.8 GT/s

Chipset AMD 970

AMD SB950

Especificação

Super I/O

ITE 8728F-BX

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

Iniciativas para controlo do ambiente

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "Smart Guardian" da ITE

Memória

principal

Ranhuras DIMM DDR3 x 4

Capacidade máxima de memória: 64GB

Cada módulo DIMM suporta uma memória

DDR3 de 512MB/ 1GB/2GB/4GB/8GB/16GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 800/1066/1333/1600/1866

Suporta módulos DDR3 2000 (OC)

SATA III Controlador Serial ATA integrado

Velocidades de transmissão de dados até 6 Gb/s.

Compatibilidade com a especificação SATA versão 3.0

Suporta as funções RAID 0,1,5,10

LAN Realtek RTL 8111F Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Codec de

som ALC892 Saída de áudio de 7.1 canais

Suporta a especificação High-Definition Audio

USB3.0 Asmedia ASM1042 A4 Taxas de transferência de dados até 600 MB / s

Ranhura PCI x2

Ranhura PCI Express Gen2 x1 x2

Ranhuras

Ranhura PCI Express Gen2 x16 x2 suporta AMD CrossFireX™ (x16, x4)

Conector SATA x6 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector de saída S/PDIF x1 Suporta a saída de áudio digital

Conectores

na placa

Conector de IR do consumidor x1

TA970

ESPECIFICAÇÕES

Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (com a função Smart Fan)

Conector da ventoinha do sistema x2 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB2.0 x2 Cada conector suporta 2 portas USB2.0 no painel frontal

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Porta série x1

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(4 pinos)

Entradas/Saí

das no painel

traseiro

Teclado PS/2 x1

Rato PS/2 x1

Porta LAN x1

Porta USB2.0 x6

Porta USB3.0 x2

Tomada de áudio x6

Tamanho da

placa 305 mm (L) X 225 mm (A)

Sistemas

operativos

suportados

Windows XP / Vista / 7/ 8 A Biostar reserva-se o direito de adicionar ou remover suporte

para qualquer sistema operativo com ou sem aviso prévio.

Motherboard Manual

Polish

SPEC

Procesor

Socket AM3+

AMD Sempron / Phenom II / Athlon II / FX

Procesory (Maksymalny Watt: 140W)

Architektura AMD 64 umożliwia przetwarzanie 32 i 64 bitowe

Obsługa Hyper Transport 3.0

FSB Obsługa HyperTransport 3.0 o szerokości

pasma do 4.8 GT/s

Chipset AMD 970

AMD SB950

Pamięć

główna

Gniazda DDR3 DIMM x 4

Maks. wielkość pamięci 64GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB/16GB DDR3

Moduł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 800/1066/1333/1600/1866

Obsługa DDR3 2000 (OC)

Super I/O

ITE 8728F-BX

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Guardian"

SATA III Zintegrowany kontroler Serial ATA

Transfer danych do 6 Gb/s.

Zgodność ze specyfikacją SATA w wersji 3.0

Obsługa RAID 0,1,5,10

LAN Realtek RTL 8111F 10 / 100 / 1000 Mb/s z automatyczną negocjacją szybkości

Działanie w trybie połowicznego/pełnego dupleksu

Kodek

dźwiękowy ALC892 7.1 kanałowe wyjście audio

Obsługa High-Definition Audio

USB3.0 Asmedia ASM1042 A4 Cena transferu danych do 600 MB / s

Gniazdo PCI x2

Gniazdo PCI Express Gen2 x1 x2

Gniazda

Gniazdo PCI Express Gen2 x16 x2 obsługuje AMD CrossFireX™ (x16, x4)

Złącze SATA x6 Każde złącze obsługuje 1 urządzenie SATA

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio

Złącza

wbudowane

Złącze Konsument IR x1

TA970

SPEC

Złącze główkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze główkowe wentylatora systemowego........

Zasilanie wentylatora systemowego

Złącze główkowe kasowania

CMOS x1

Złącze USB2.0 x2 Każde złącze obsługuje 2 porty USB2.0 na panelu przednim

Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki

Port szeregowy x1

Złącze zasilania (24 pinowe) x1

Złącze zasilania (4 pinowe) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS/2 x1

Port LAN x1

Port USB2.0 x6

Port USB3.0 x2

Gniazdo audio x6

Wymiary

płyty 305 mm (S) X 225 mm (W)

Obsluga

systemu

operacyjnego

Windows XP / Vista / 7/ 8 Biostar zastrzega sobie prawo dodawania lub odwoływania

obsługi dowolnego systemu operacyjnego bez powiadomienia.

Motherboard Manual

Russian

СПЕЦ

CPU

(центральны

й процессор)

Гнездо AM3+

Процессоры AMD Sempron / Phenom II / Athlon II

/ FX (Максимальный ватт: 140W)

Архитектура AMD 64 разрешать обработка данных на

32 и 64 бит

Поддержка Hyper Transport 3.0

FSB Поддержка HyperTransport 3.0 с пропускной

способностью до 4.8 GT/s

Набор

микросхем

AMD 970

AMD SB950

Основная

память

Слоты DDR3 DIMM x 4

Максимальная ёмкость памяти 64ГБ

Каждый модуль DIMM поддерживает

512МБ/1ГБ/2ГБ/4ГБ/8ГБ/16ГБ DDR3

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 800/1066/1333/1600/1866

Поддержка DDR3 2000 (OC)

Super I/O

ITE 8728F-BX

Обеспечивает наиболее используемые

действующие функциональные возможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости

Функция ITE "Smart Guardian" (Интеллектуальная

защита)

SATA III Встроенное последовательное устройство

управления ATA

скорость передачи данных до 6 гигабит/с.

Соответствие спецификации SATA версия 3.0

Поддержка RAID 0,1,5,10

Локальная

сеть Realtek RTL 8111F Автоматическое согласование 10 / 100 / 1000 Мб/с

Частичная / полная дуплексная способность

Звуковой

кодек ALC892 Звуковая поддержка High-Definition

7.1канальный звуковой выход

USB3.0 Asmedia ASM1042 A4 скорости передачи данных до 600 МБ / с

Слот PCI x2

Слот PCI Express Gen2 x1 x2

Слоты

Слот PCI Express Gen2 x16 x2 поддерживает AMD CrossFireX™ (x16, x4)

Разъём SATA x6 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуковых функций на лицевой панели

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой функции

Встроенный

разъём

Разъём едока ИКЫЙ x1

TA970

СПЕЦ

Контактирующее приспособление вентилятора

центрального процессора x1

Источник питания для вентилятора центрального

процессора (с функцией интеллектуального

вентилятора)

Контактирующее приспособление вентилятора

системы x2

Источник питания для вентилятора системы

Открытое контактирующее приспособление

CMOS x1

USB2.0-разъём x2

Каждый разъём поддерживает 2 USB2.0-порта на

лицевой панели

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Последовательный порт x1

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-вывод

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт LAN x1

USB2.0-порт x6

USB3.0-порт x2

Гнездо для подключения

наушников x6

Размер

панели 305 мм (Ш) X 225 мм (В)

Поддержка

OS Windows XP / Vista / 7/ 8

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

Arabic

تﺎﻔﺻاﻮﻤﻟا

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔﻳﺰآﺮﻤﻟا

ﺲﺒﻘﻣAM3+

تﺎﺠﻟﺎﻌﻣAMD Sempron / Phenom II / Athlon II (طا

ىﻮﺼﻗ: 140و) / FX

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺑﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺟإ ﺔﻋﺮﺴﺑ ﺔﻴ32 و64 ﺖﺑ

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 3.0

ﻲﺒﻧﺎﺠﻟا ﻲﻣﺎﻣﻷا ﻞﻗﺎﻨﻟا

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺑ 3.0 4.8 GT/s

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ

AMD 970

AMD SB950

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ4

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ64ﺖﻳﺎﺑ ﺎﺠﻴﺟ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗ DIMM ﻢﻋﺪﺗعﻮﻧ ﻦﻣ ةﺮآاذ DDR3 ﺔﻌﺳ/512

و ﺖﻳﺎﺑ ﺎﺠﻴﻣ1 /و2 /و4 /و8 /و16ﺖﻳﺎﺑ ﺎﺠﻴﺟ

ةﺮآاذ ةﺪﺣوDDR3 ةﺎﻨﻘﻟا ﺔﺟودﺰﻣ

عﻮﻧ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800/1066/1333/1600/1866 ﺎﺠﻴﻣ

ﺖﻳﺎﺑ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻧ DDR3 تﺎﻌﺳ 2000 (OC)

Super I/O

ITE 8728F-BX

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ﺜآﻷا ًﺎ ﻣ ا ﺪ ﺨ ﺘ ﺳ ا ﺮ.

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗLow Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺟﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE

SATA III

ﻢﻜﺤﺘﻣSerial ATAﻞﻣﺎﻜﺘﻣ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺑ تﺎﻧﺎﻴﺒﻟا ﻞﻘﻧ6 ﺖﺑﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

ﻮﻤﻟ ﺔﻘﺑﺎﻄﻣ تﺎﻔﺻا SATA راﺪﺻﻹا 3.0

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0,1,5,10

ﺔﻴﻠﺧاد ﺔﻜﺒﺷ

Realtek RTL 8111F

ﻲﺋﺎﻘﻠﺗ ضوﺎﻔﺗ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻧﺎﺛ1ﺖﺑ ﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻧﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

تﻮﺼﻟا ﻚﻳدﻮآ

ALC892

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

7.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

USB3.0

Asmedia ASM1042 A4 تﻻﺪﻌﻣ ﻞﻘﻧ تﺎﻧﺎﻴﺑ ﻞﺼﺗ ﻰﻟإ 600 ﺎﻐﻴﻣ ﺖﻳﺎﺑ / ﺔﻴﻧﺎﺛ

ﺔﺤﺘﻓPCI

ﺔﺤﺘﻓPCI Express Gen2 x1 تﺎﺤﺘﻔﻟا

ﺔﺤﺘﻓPCI Express Gen2 x16

ىد مإ ﻪﻳا ةﺪﻋﺎﻗAMD ﺮﻴﻓ سوﺮآ )AMD CrossFire ™(

(x16, x4)

ﺬﻔﻨﻣSATA

ةﺰﻬﺟأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳSATA

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳ

جﺮﺧ ﺬﻔﻨﻣS/PDIF

ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺧ ﺔﻔﻴﻇو ﻢﻋﺪﻳ

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

ﺬﻔﻨﻣﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺗ ﺮﻤﺣﻷا دﺪﻋ1

TA970

تﺎﻔﺻاﻮﻤﻟا

ﺣوﺮﻣ ﺔﻠﺻوﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔ دﺪﻋ1

ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟSmart Fan

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺻو ﺪﻋ2

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟ

ﺢﺴﻣ ﺔﻠﺻوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB2.0 دﺪﻋ2 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳUSB2.0ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

ﺴﺗ ﺬﻔﻨﻣﻲﻠﺴﻠ دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﻞﺧد ﺬﻓﺎﻨﻣ/ جﺮﺧ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺷ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣ2.0USB دﺪﻋ6

ﺬﻓﺎﻨﻣ3.0USB دﺪﻋ2

تﻮﺻ ﺲﺒﻘﻣ دﺪﻋ6

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

305 ﻢﻣ)ضﺮﻋ (X 225 ﻢﻣ)عﺎﻔﺗرا(

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻧأ ﻢﻋد

Windows XP / Vista / 7/ 8

ﻆﻔﺘﺤﺗBiostar نوﺪﺑ وأ رﺎﻄﺧﺈﺑ ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ

رﺎﻄﺧإ.

Motherboard Manual

Japanese

仕様

CPU

Socket AM3+

AMD Sempron / Phenom II / Athlon II / FX プロセッ

サ (最高のワット: 140W)

AMD 64アーキテクチャでは、32ビットと64ビット計算が

可能です

ハイパートランスポート3.0サポートします

FSB 4.8 GT/sのバンド幅までハイパートランスポート

3.0をサポートします

チップセット AMD 970

AMD SB950

メインメモリ

DDR3 DIMMスロット x 4

最大メモリ容量646GB

各DIMMは 512MB/1GB/2GB/4GB/8GB/16GB

DDR3をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800/1066/1333/1600/1866 をサポート

DDR3 2000 (OC) をサポート

Super I/O

ITE 8728F-BX

もっとも一般に使用されるレガシーSuper I/O機能

を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

SATA III 統合シリアルATAコントローラ

最高6 Gb/秒のデータ転送速度

SATAバージョン3.0仕様に準拠。

RAID 0,1,5,10のサポート

LAN Realtek RTL 8111F 10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

サウンド

Codec ALC892 ハイデフィニションオーディオのサポート

7.1 チャンネルオーディオアウト

USB3.0 Asmedia ASM1042 A4 データ転送速度最大600 MB /秒の

PCIスロット x2

PCI Express Gen2 x1スロット x2

スロット

PCI Express Gen2 x16スロット x2 AMD CrossFireX™ (x16, x4)

SATAコネクタ x6 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

オンボードコ

ネクタ

消費者IRコネクタ x1

TA970

仕様

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x2 システムファン電源装置

CMOSクリアヘッダ x1

USB2.0コネクタ x2

各コネクタは2つのフロントパネルUSB2.0ポートをサポー

トします

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

シリアルポート x1

電源コネクタ(24ピン) x1

電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

LANポート x1

USB2.0ポート x6

USB3.0ポート x2

オーディオジャック x6

ボードサイズ 305 mm (幅) X 225 mm (高さ)

OSサポート Windows XP / Vista / 7/ 8 Biostarは事前のサポートなしにOSサポートを追加または

削除する権利を留保します。

2013/02/07

Biostar Ta970 Owners Manual A97XA A3S_130207

Navigation menu

Versions of this User Manual:

Views

Navigation
