TForce 590 SLI Deluxe Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ........................................1

1.1 Before You Start................................................................................1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features......................................................................2

1.4 Rear Panel Connectors.....................................................................3

1.5 Motherboard Layout.........................................................................4

Chapter 2: Hardware Installation...........................5

2.1 Installing Central Processing Unit (CPU).......................................5

2.2 FAN Headers......................................................................................6

2.3 Installing System Memory................................................................ 8

2.4 Connectors and Slots.......................................................................10

Chapter 3: Headers & Jumpers Setup ................... 12

3.1 How to Setup Jumpers.................................................................... 12

3.2 Detail Settings.................................................................................. 12

Chapter 4: NVIDIA RAID Functions...................... 23

4.1 Operation System............................................................................23

4.2 Raid Arrays...................................................................................... 23

4.3 How RAID Works.............................................................................23

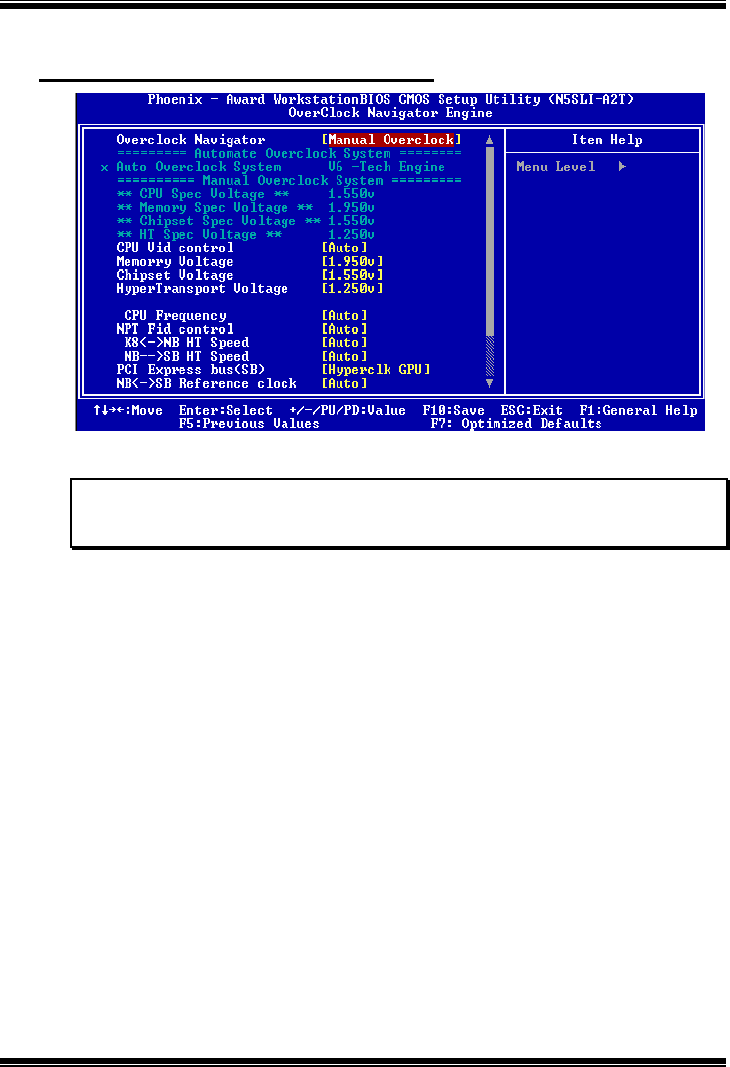

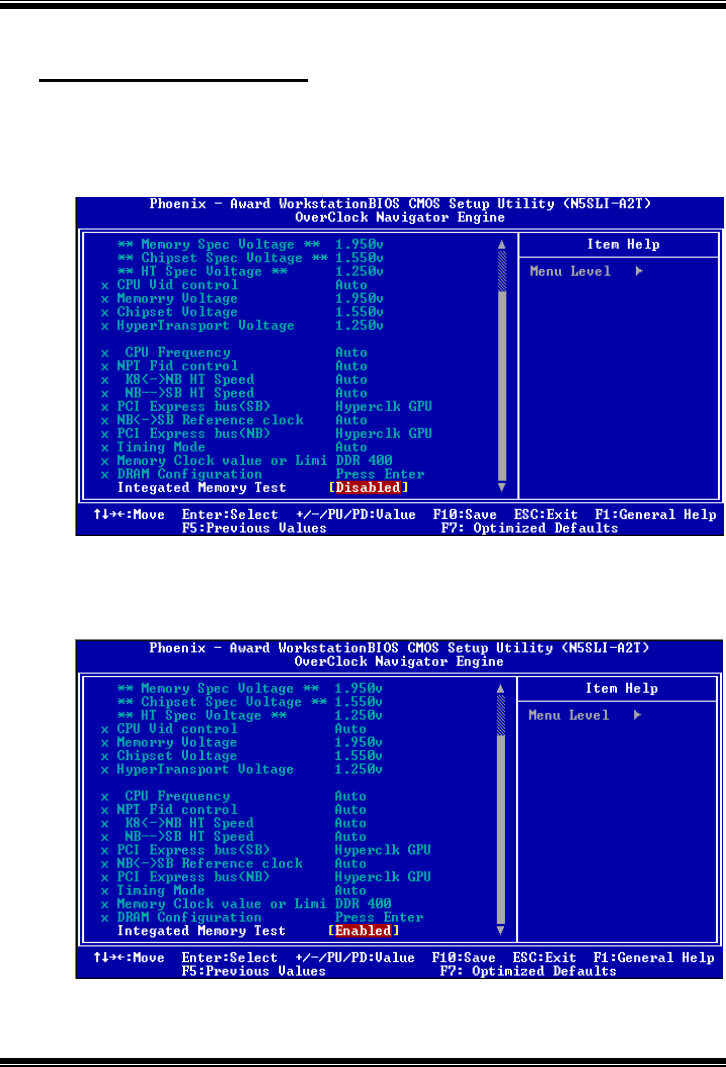

CHAPTER 5: OverClock Quick Guide..................... 27

5.1: T-Power Introduction......................................................................27

5.2: T-Power BIOS Feature....................................................................28

5.3 T-Power Windows Feature............................................................36

Chapter 6: Useful Help......................................... 45

6.1 Driver Installation Note.................................................................. 45

6.2 Award BIOS Beep Code..................................................................46

6.3 Extra Information............................................................................46

6.4 Troubleshooting...............................................................................48

6.5 BIOS Post Code List.........................................................................49

Appendencies: SPEC In Other Language .............. 52

German.................................................................................................................. 52

France ....................................................................................................................54

Italian.....................................................................................................................56

Spanish...................................................................................................................58

Portuguese............................................................................................................60

Polish......................................................................................................................62

RUSSIAN.................................................................................................................64

ARABIC.................................................................................................................. 66

JAPANESE..............................................................................................................68

TForce 590 SLI Deluxe

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

FDD Cable X 1

HDD Round Cable X 1

Serial ATA Cable X 4

Serial ATA Power Cable X 4

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

SLI Bridge X1

USB 2.0 Cable X1 (optional)

S/PDIF out Cable X 1 (optional)

Motherboard Manual

1.3 MOTHERBOARD FEATURES

SPEC

CPU

Socket AM2

AMD Athlon 64 / Athlon 64 FX

Athlon 64

x2/ Sempron processors

AMD 64 Architecture enables 32 and 64 bit computing

Supports Hyper Transport and Cool=n=Quiet

FSB Support HyperTransport Supports up to 1.3 GHz Bandwidth (by overclocking)

Chipset nForce SPP190 nForce 590 SLI

Super I/O

ITE 8712F / 8716F

Provides the most commonly used leg acy

Super I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

H/W Monitor

Fan Sp eed Contro ller

ITE's "Smart Guardian " function

Main

Memory

DIMM Slots x 4

Each DIMM supports 256/512MB & 1GB

DDR2

Max Memory Capicity 4GB

Dual Channel Mode DDR2 memory module

Supports DDR2 533 / 667 / 800 / 800+

Registered D IMM and ECC DIMM is not supported

IDE

Integr ated IDE Contro ller

Ultra DMA 33 / 66 / 100 / 133 Bus Master

Mode

supports PIO Mode 0~4,

SATA II Integrated Serial ATA Controller

Data transfer rates up to 3 Gb/s. SATA Version 2.0 specific at ion co mp liant.

LAN Marvell 88E1116 PHY x 2 10 / 100 Mb/s and 1Gb/s Auto-Negotiation

Sound Realtek ALC882 / ALC883 8 channels audio out

1394 VIA VT6307 / VT6308 Supports IEEE 1394a with Transfer rate up to 400 Mbps

PCI slot x2 Supports PCI expansion cards

PCI Express x16 slot x2 Supports PCI express x16 expansion cards

PCI Express x4 slot x1 Supports PCI express x4 expansion cards

Slots

PCI Express x 1 slot x1 Supports PCI express x1 expansion cards

Floppy connector x1 Each connector supports 2 Floppy drives

Serial Port connector x1 Each connector supports 1 Serial port

Printer Port connector x1 Each connector supports 1 Printer port

IDE Connector x1 Each connector supports 2 IDE device

SATA Connector x5 Each connector supports 1 SATA devices

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CD-in Connector x1 Supports CD audio-in function

S/PDIF in connector x1 Supports digital audio in function

S/PDIF out connector x1 Supports digital audio out function

On Board

Connector

CPU Fan header x1 CPU Fan power supply (with Smart Fan function)

TForce 590 SLI Deluxe

SPEC

System Fan header x3 System Fan Po wer supply

CMOS clear header x1 Restore CMOS data to factory default

USB connector x2 Each connector supports 2 front panel USB ports

1394 Connector x1 Each Connector supports 1 1394 Port

Power Connector (24pin) x1 Connects to Power supply

Power Connector (8pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

External SATA Connector x1

LAN port x2

USB Port x6

1394 Port x1

Audio Jack x6

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connects to SATA device

Connects to RJ-45 ethernet cable

Connects to USB devices

Connects to 1394 devices

Provide Audio-In/Out and microphone connection

Board Size 244 x 305 (mm) ATX Size Board

Special

Features

NVIDIA nTunes

RAID 0 / 1 / 0+1 / 5 support

Tuning and monitoring system performance

Supports Raid 0 / 1 / 0+1 / 5 through SATA connector.

OS Support

Windows 2000 / XP Biostar Reserves the right to add or remove support for

any OS With or without notice.

1.4 REAR PANEL CONNECTORS

Line In

Line Out

Mic In

Center

Rear

Side

PS/2

Mouse

PS/2

Keyboard USBX2USBX2

LAN

1394

EXT. SATAX1

USBX2

LAN

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

JKBMS1

JAUDIO1

JUSBLAN1

BIOS

PEX1-1

PC I1

FDD1

BAT1

JUSBV2

JCDIN1

LAN

PHY

JAUDIOF1

JATXPWR2

JPRNT1

PCI2

1394

J USBV1

JUSB2

JUSB1

DDR2A1

JSBFAN

JPANEL1

IDE1

JATXPWR1

JCFAN1

JSATA4

JSFAN1

JNFAN1

JDDRII_OV_2.3V

DDR2B1

DDR2B2

DDR2A2

Socket A M2

JCOM1

PEX16-1

PEX4-1

nForce

590 SLI

JSATA3

JSATA2

J1394B1

JSPDIF_IN

RSTSW2

(optional)

PWRSW1

(optional)

J1394_USB1

ESATAX1

JUSBLAN2

JKB MSV1

PEX16-2

nForce

SPP 190

Super I/O

JSATA5

JCMOS1

J1394V1

JSP DI F_OU T

LED_5S B

LE D_ DIMM

Codec

LAN

PHY

DEBUG LED

JSATA1

Note: represents the 1■st pin.

TForce 590 SLI Deluxe

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only

in the correct orientation.

Motherboard Manual

Step 4: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the installation.

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

JCFAN1

4 Smart Fan

Control

TForce 590 SLI Deluxe

JNFAN1: North Bridge Fan Header

Assignment

1 Ground

2 +12V

JNFAN1

3 NIL

JSBFAN/ JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

JSBFAN

JSFAN1

3 FAN RPM rate

sense

Note:

The JSBFAN/JSFAN1 and JNFAN1 support 3-pin head connector. When connecting with

wires onto connectors, please note that the red wire is the positive and should be

connected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR2A1

DDR2B1

DDR2A2

DDR2B2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

B. Memory Capacity

DIMM Socket

Location DDR Module Total Memory Size

DDR2A1 256MB/512MB/1024MB

DDR2B1 256MB/512MB/1024MB

DDR2A2 256MB/512MB/1024MB

DDR2B2 256MB/512MB/1024MB

Max is 4GB.

TForce 590 SLI Deluxe

C. Dual Channel Memory installation

To trigger the Dual Channel function of the motherboard, the memory module

must meet the following requirements:

Install memory module of the same density in pairs, shown in the following

table.

Dual Channel Status DDR2A1 DDR2B1 DDR2A2 DDR2B2

Enabled O O X X

Enabled X X O O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or x16)

Motherboard Manual

2.4 CONNECTORS AND SLOTS

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

33 34

IDE1: Hard Disk Connectors

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

39 40

TForce 590 SLI Deluxe

PEx16-1/ PEx16-2: PCI-Express x16 Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per

direction, for an aggregate of 8GB/s totally.

PEx1-1: PCI-Express x1 slots

- PCI-Express 1.0a compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

PEx4-1: PCI-Express x4 slots

- PCI-Express 1.0a compliant.

- Data transfer bandwidth up to 1.0GB/s per direction; 2.0GB/s in total.

PEX16-1

PEX1-1

PEX4-1

PEX16-2

PCI1~PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

Motherboard Manual

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

JPANEL1: Front Panel Header

This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep

button and speaker connection. It allows user to connect the PC case’s front

panel switch functions.

SLP PWR_LED

On/Off

RST

HLED

SPK

Pin Assignment Function Pin Assignment Function

1 +5V 9 Sleep control

2 N/A 10 Ground Sleep button

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+) Power LED

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-) Hard drive

LED

14 Power LED (-)

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

TForce 590 SLI Deluxe

JATXPWR1: ATX Power Source Connector

JATXPWR1 allows user to connect 24-pin power connector on the ATX power

supply.

113

1224

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

JATXPWR2: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Motherboard Manual

JKBMSV1: Power Source Selection Headers for Keyboard/Mouse

Pin 1-2 Close:

JKBMSV1: +5V for PS/2 keyboard and mouse。

Pin 2-3 Close:

JKBMSV1: PS/2 keyboard and mouse are powered with +5V standby

voltage.

Pin 1-2 close

Pin 2-3 close

JUSB1/JUSB2: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

TForce 590 SLI Deluxe

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at JUSBLAN1.

JUSBV2: +5V for USB ports at front panel (JUSB1/JUSB2).

Pin 2-3 Close:

JUSBV1: USB ports at JUSBLAN1 are powered by +5V standby voltage.

JUSBV2: USB ports at front panel (JUSB1/JUSB2) are powered by +5V

standby voltage.

Pin 1-2 close

JUSBV1

JUSBV2

Pin 2-3 close

Note:

In order to support this function “Power-On system via USB device,” “JUSBV1/ JUSBV2”

jumper cap should be placed on Pin 2-3 individually.

J1394B1: Header for 1394 Firewire Port at Front Panel

This header allows user to connect the digital image device, like DV, D8, or V8,

etc.

Assignment

1 A+

2 A-

3 Ground

4 Ground

5 B+

6 B-

7 +12V

8 +12V

9 Key

10 Ground

Motherboard Manual

J1394PWR1: Power Source for 1394 Firewire Port

Pin 1-2 Close:

J1394PWR1: +12V for 1394 Port at J1394B1.

Pin 2-3 Close:

J1394PWR1: 1394 header at J1394PWR1 are powered by +12V standby

voltage.

Pin 1-2 Close

+3.3V for 1394 chipset.

(Default)

Pin 2-3 close

+3.3V SB for 1394 chipset.

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. It will disable the output on back panel audio connectors.

Pin Assignment

1 Mic in/center

2 Ground

3 Mic power/Bass

4 Audio power

5 Right line out/

Speaker out Right

6 Right line out/

Speaker out Right

7 Reserved

8 Key

9 Left line out/

Speaker out Left

10 Left line out/

Speaker out Left

TForce 590 SLI Deluxe

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel

Input

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting

and the CMOS data, please carefully follow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

Clear CMOS Procedures:※

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

Motherboard Manual

JSATA1~JSATA5: Serial ATA Connectors

The motherboard has 5 SATA connectors and an external SATA connector,

which satisfies the SATA 2.0 spec with transfer rate of 3GB/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

JSATA1

JSATA2

JSATA3

JSATA5

JSATA4

7 Ground

JSPDIF_OUT: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

JSPDIF_IN: Digital Audio-in Connector

This connector allows user to connect the PCI bracket SPDIF input header.

Assignment

1 +5V

2 SPDIF_IN

3 Ground

TForce 590 SLI Deluxe

JDDRII_OV>2.3V: Header for Memory Voltage Overclocking

When processing Memory Voltage Overclocking, please place the jumper to

pin1-2 Closed. The Default setting is Pin 2-3 Closed.

Pin 1-2 Close:

Normal status (default).

Pin 2-3 Close:

Memory voltage Overclocking.

Note:

1. When “JDDRII_OV>2.3V” jumper cap is placed on Pin 1-2, memory

voltage can be manually adjusted under CMOS setup.

2. When “JDDRII_OV>2.3V” jumper cap is placed on Pin 2-3, memory

voltage will be fixed at 2.3V, and can’t be adjusted under COMS setup.

Before setting memory voltage overclocking, please ensure that your DDR

supports up to 2.3V. (Consult your DDR2 supplier to make sure)

On-Board LED Indicators

There are 2 LED indicators on the motherboard to show system status.

LED_5SB

LED_DIMM

LED_DIMM:

This LED indicates the voltage of memory is activated normally.

LED_5SB:

This LED indicates the system is ready for Power-on.

Motherboard Manual

Debug LED

The Debug LED is used to display BIOS POST Code, which helps you to

identify the problem occurred.

The explanations for the most frequently seen codes are provided below, for a

full code reference list please see Chapter 6.5 BIOS Post Code list.

Code Explanation

C0 Please Check Memory

C1 Please Check Memory

2B Initial Video Device error

52 Memory Module Error

75 Please Check HDD

TForce 590 SLI Deluxe

On-Board Buttons

There are 2 on-board buttons.

RSTSW2

PWRSW1

PWRSW1:

This is an on-board Power Switch button.

RSTSW2 :

This is an on-board Reset button.

JCOM1: Serial port Connectors

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

JCOM1

Motherboard Manual

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5

TForce 590 SLI Deluxe

CHAPTER 4: NVIDIA RAID FUNCTIONS

4.1 OPERATION SYSTEM

Supports Windows XP Home/Professional Edition, and Windows 2000 Professional.

4.2 RAID ARRAYS

NVRAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 0+1: RAID 0+1 combines the techniques used in RAID 0 and RAID 1.

Spanning (JBOD): JBOD provides a method for combining drives of different sizes in to

one large disk.

RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks

up a large f ile into smaller blocks and performs disk reads and writes across multip le

drives in parallel. The size of each block is determined by the stripe size parameter,

which you set during the creation of the RAID set based on the system environment. This

technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 1, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Motherboard Manual

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1

array system. The mirrored (backup) copy of the data can reside on the same disk or on

a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if

the active volume or drive is corrupted or becomes unavailable because of a hardware

failure.

RAID techniques can be applied for high-availability solutions, or as a form of

automatic backup that eliminates tedious manual backups to more expensive and less

reliable media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.

 Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes.

Block 1

Block 2

Block 3

Block 1

Block 2

Block 3

TForce 590 SLI Deluxe

RAID 0+1:

RAID 0 drives can be mirrored using RAID 1 techniques. Resulting in a RAID 0+1

solution for improved performance plus resiliency.

Features and Benefits

- Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.

- Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID

levels in an array, and allows for spare disks.

- Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

- Fault Tolerance: Yes.

Blo ck 2

Blo ck 4

Blo ck 6

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Block 1

Block 3

Block 5

Spanning (JBOD):

JBOD stands for “Just a Bunch of Disks”. Each drive is accessed as if it were on a

standard SCSI host bus adapter. This is useful when a single drive configuration is

needed, but it offers no speed improvement or fault tolerance.

Features and Benefits

- Uses: JBOD works best if you have odd sized drives and you want to

combine them to make one big drive.

- Benefits: JBOD provides the ability to combine odd size drives using all of

the capacity of the drives.

- Drawbacks: Decreases performance because of the difficulty in using

drives concurrently.

- Fault Tolerance: Yes.

Disk 1: 40GB

Disk 2: 80GB

Disk 3: 40GB

Disk 4: 120GB

Single Logical

Drive

Motherboard Manual

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It writes

data and parity blocks across all the drives in the array. Fault tolerance is maintained

by ensuring that the parity information for any given block of data is placed on a

different drive from those used to store the data itself.

Features and Benefits

- Drives: Minimum 3.

- Uses: RAID 5 is recommended for transaction processing and

general purpose service.

- Benefits: An ideal combination of good performance, good fault

tolerance, and high capacity and storage efficiency.

- Drawbacks: Individual block data transfer rate same as a single disk.

Write performance can be CPU intensive.

- Fault Tolerance: Yes.

Disk 1

DATA 3

PARITY

DATA 7

DATA 1

DATA 9

PARITY

Disk 2

PAR ITY

DATA 5

DATA 8

DATA 2

PAR ITY

DATA 11

Disk 3

DATA 4

DATA 6

PAR ITY

DATA 10

DATA 12

※ For more detailed setup information, please refer to the Driver CD, or go to

http://www.nvidia.com/page/pg_20011106217193.html to download NVIDIA nForce Tutorial Flash.

TForce 590 SLI Deluxe

CHAPTER 5: OVERCLOCK QUICK GUIDE

5.1: T-POWER INTRODUCTION

Biostar T-Power is a whole new utility that is designed for overclock users.

Based on many precise tests, Biostar Engineering Team (BET) has

developed this ultimate overclock engine to raise system performance.

No matter whether under BIOS or Windows interface, T-Power is able to

present the best system state according to users’ overclock setting.

T-Power BIOS Features:

Overclocking Navigator Engine (O.N.E.)

CMOS Reloading Program (C.R.P.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

Integrated Flash Program (I.F.P.)

Smart Fan Function (under PC Health Status)

Self Recovery System (S.R.S)

T-Power Windows Feature:

Hardware Monitor

Overclock Engine

Smart Fan Function

Life Update

Motherboard Manual

5.2: T-POWER BIOS FEATURE

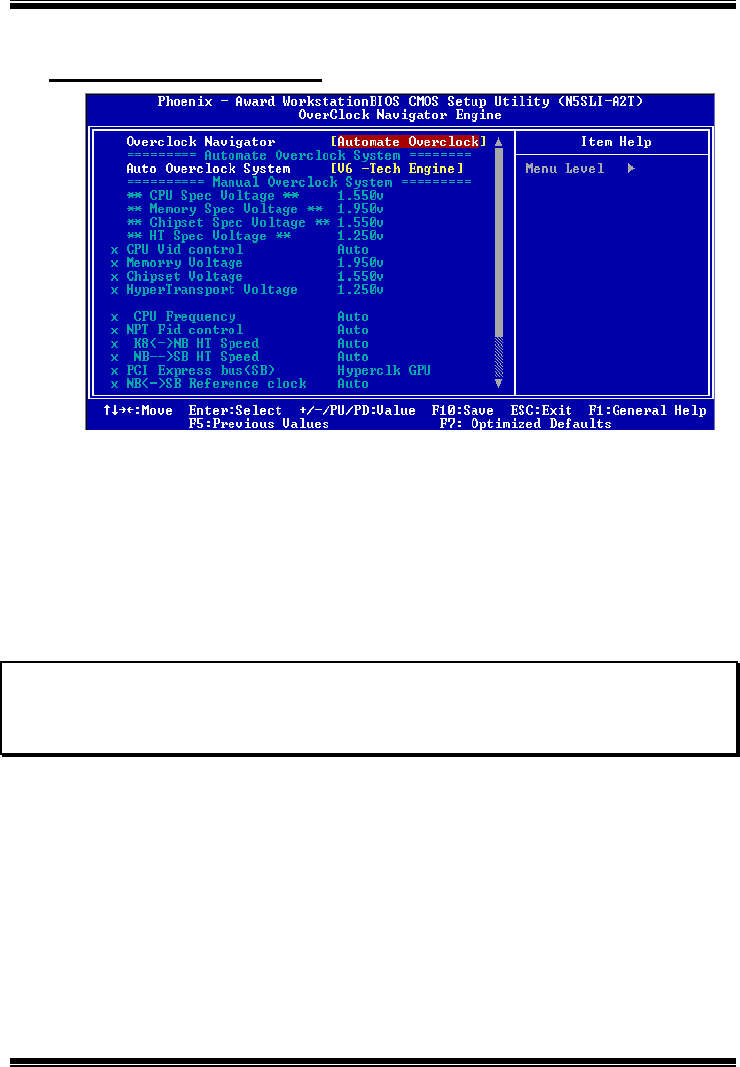

A. Overclocking Navigator Engine (O.N.E.):

ONE provides two powerful overclocking engines: MOS and AOS for both

Elite and Casual overclockers.

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users.

It allows users to customize personal overclock settings.

TForce 590 SLI Deluxe

CPU Overclock Setting:

CPU Voltage:

This function will increase CPU stability when overclocking. However, the

CPU temperature will increase when CPU voltage is increased.

Choices: The range is from 1.2V to 1.725V, with an interval of 0.0.25V.

CPU Frequency:

CPU Frequency is directly in proportion to system performance. To

maintain the system stability, CPU voltage needs to be increased also

when raising CPU frequency.

Choices: This range is from 200 to 450, with an interval of 1MHz.

Hammer CPU Multiplier:

The MOS allows users to downgrade the CPU ratio when overclocking.

Choices: The lower limit is x4 (800MHz). The upper limit is decided by

different CPU type. With an x1 (200MHz) interval.

Memory Overclock Setting:

Memory Voltage:

This function will increase memory stability when overclocking.

Choices: The range is from 1.85V to 2.0V, with an interval of 0.05V.

Memclock Frequency:

To get better system performance, sometimes downgrading the memory

frequency is necessary when CPU frequency is adjusted over the upper

limit.

Choices: DDR2 400, DDR2 533, DDR2 667, DDR2 800 (MHz).

PCI-Express Overclock Setting:

PCIE Clock:

It helps to increase VGA card performance.

Choices: The range is from 100 to 145, with an interval of 1MHz.

Chipset Overclock Setting:

NB/SB Voltage Regulator:

This function will increase chipset stability when overclocking.

Choices: 1.52V, 1.60V, 1.68V, 1.76V.

HT Frequency:

We recommend users to set this item at “x4” when overclocking.

Choices: x1, x2, x3, x4, x5, Auto.

Motherboard Manual

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and

powerful feature to increase the system performance, named A.O.S.

Based on many tests and experiments, A.O.S. provides 3 ideal overclock

configurations that are able to raise the system performance in a single

step.

V6 Tech Engine:

This setting will raise about 10%~15% of whole system performance.

V8 Tech Engine:

This setting will raise about 15%~25% of whole system performance.

TForce 590 SLI Deluxe

V12 Tech Engine:

This setting will raise about 25%~30% of whole system performance.

Notices:

1. Not all types of AMD CPU perform above overclock setting ideally; the difference will be based

on the selected CPU model.

2. From BET experiments, the Atholon64 FX CPU is not suitable for this A.O.S. feature.

B. CMOS Reloading Program (C.R.P.):

It allows users to save different CMOS settings into BIOS-ROM.

Users are able to reload any saved CMOS setting for customizing system

configurations.

Moreover, users are able to save an ideal overclock setting during overclock

operation.

There are 50 sets of record addresses in total, and users are able to name the

CMOS data according to personal preference.

Motherboard Manual

C. Memory Integration Test (M.I.T.):

This function is under “Overclocking Navigator Engine” item.

MIT allows users to test memory compatibilities, and no extra devices or

software are needed.

Step 1:

The default setting under this item is “Disabled”; the condition parameter should

be changed to “Enable” to proceed this test.

↓

Step 2:

Save and Exit from CMOS setup and reboot the system to activate this test.

Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3:

When the process is done, change the setting back from “Enable” to “Disable”

to complete the test.

TForce 590 SLI Deluxe

D. Self Recovery System (S.R.S.):

This function can’t be seen under T-Power BIOS setup; and is always on

whenever the system starts up.

However, it can prevent system hang-up due to inappropriate overclock

actions.

When the system hangs up, S.R.S. will automatically log in the default BIOS

setting, and all overclock settings will be re-configured.

E. Integrated Flash Program (I.F.P.):

IFP is a safe and quick way to upgrade BIOS.

Step 1:

Go to Biostar website (http://www.biostar.com.tw) to download the latest BIOS

file. Then, save the file into a floppy disk.

Step 2:

Insert the floppy disk and reboot the system to get into CMOS screen.

Step 3:

Select the item “Integrated Flash Program” to get the following frame and

choose the BIOS file downloaded in step 1.

Step 4:

Press “Enter” key to start BIOS file loading, and BIOS updating will process

automatically.

Step 5:

When the BIOS update is completed, press YES to the message “Flash done,

Reset system”, and the system will reboot automatically to finish the process.

Advise:

You can update the system BIOS by simply pressing “Enter” key for three times.

Motherboard Manual

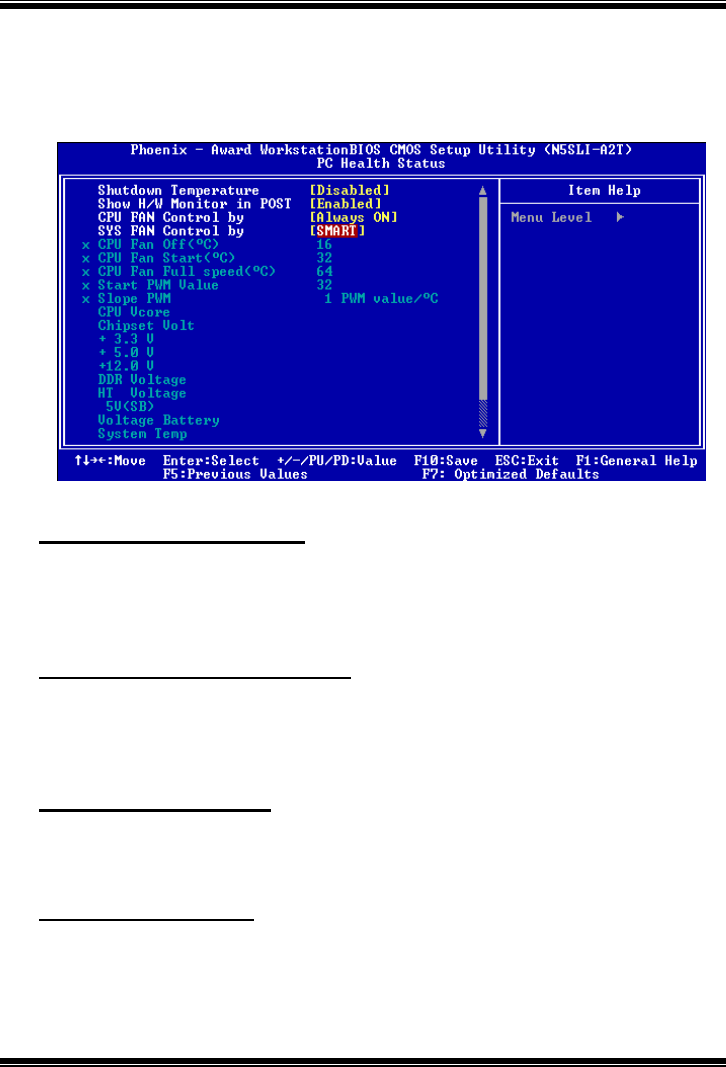

F. Smart Fan Function:

Smart Fan Function is under “PC Health Status”.

This is a brilliant feature to control CPU Temperature vs. Fan speed.

When enabling Smart Fan function, Fan speed is controlled automatically by

CPU temperature.

This function will protect CPU from overheat problem and maintain the system

temperature at a safe level.

↓

CPU Fan Off <℃>:

If the CPU temperature is lower than the set value, the CPU fan will turn

off. The range is from 0℃~127℃, with an interval of 1℃.

Choices: 16℃ (default).

CPU Fan Start <℃>

The CPU fan starts to work when CPU temperature arrives to this set

value. The range is from 0℃~127℃, with an interval of 1℃.

Choices: 32℃ (default).

CPU Fan Full speed <℃>

When CPU temperature arrives to the set value, the CPU fan will work

under Full Speed. The range is from 0℃~127℃, with an interval of 1℃.

Choices: 52℃ (default).

TForce 590 SLI Deluxe

Start PWM Value

When CPU temperature arrives to the set value, the CPU fan will work

under Smart Fan Function mode. The range is from 0~127, with an

interval of 1.

Choices: 32 (default).

Slope PWM

Choices: 1 PWM Value/℃ (default), 2 PWM Value/℃, 4 PWM Value/℃, 8

PWM Value/℃, 16 PWM Value/℃, 32 PWM Value/℃, 64PWM Value/℃.

S1: CPU temperature is 60℃, and PWM value is 1 PWM/℃.

S2: CPU temperature is 60℃, and PWM value is 2 PWM/℃.

S3: CPU temperature is 60℃, and PWM value is 3 PWM/℃.

Increasing the value of slope PWM will raise the speed of CPU fan.

As in above diagram, when the CPU temperature reaches 60℃, the CPU

fan speed for 3 PWM/℃ is higher than 1 PWM/℃ (S1<S2<S3).

Motherboard Manual

5.3 T-POWER WINDOWS FEATURE

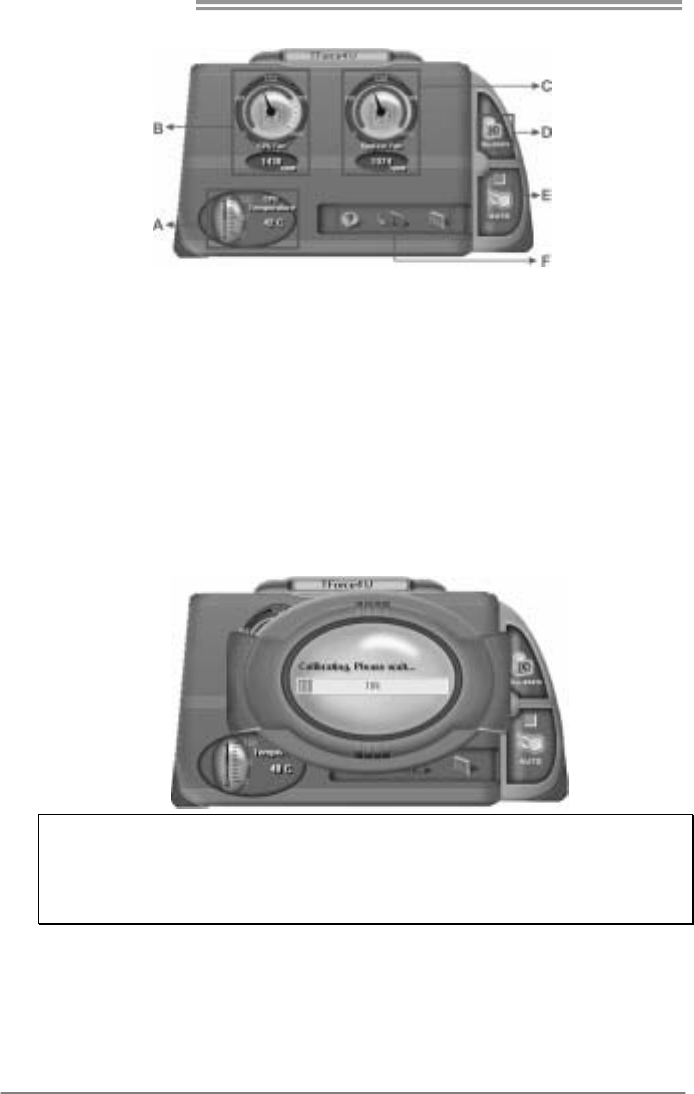

A.Hardware Monitor:

T-Power Hardware monitor allows users to monitor system voltage,

temperature and fan speed accordingly.

Additionally, a rescue action will be taken by the program automatically

while the system faces an abnormal condition. The program will trigger an

alarm or shut down the system when unpredictable errors occur.

All the monitoring items are illustrated by a waveform diagram.

Hardware Monitor Toolbar

i. Start-up Setting

Click on this item to run Hardware Monitor Program when the Windows

starts-up.

ii. Dialogue-Box Setting

Click on this item to pop-up warning dialogue-box when PC system is

abnormal.

iii. Exit

Click on this item to exit Hardware Monitor Program.

iv. Hide

Click on this item to hide this program in system tray. When hiding the

program, there will be a check icon in the system tray.

TForce 590 SLI Deluxe

CPU Temperature

This column configures the CPU temperature. There is a waveform to

represent the status of CPU temperature.

By adjusting , users can easily configure the upper limit of CPU

temperature for system operating.

In this diagram, the white line represents the upper limit which user-set for CPU

temperature and the green line shows present CPU temperature.

If the CPU temperature is higher than the upper limit, the status line color will

change from green to red, and a warning sound will alert you. Also, the system

tray icon would change to .

FAN Speed

By adjusting , users can easily configure the lower limit of the fan speed.

In this diagram, the green line shows present CPU Fan speed, and the yellow

line shows System Fan speed (if any).

If any one of the fans speeds is lower than the set value, the status line will

change into a red warning line, and the program will trigger an alarm system

automatically. Also, the system tray icon would change to .

Motherboard Manual

CPU/Battery Voltage

i. VCore

This item displays the CPU voltage, represented by a light blue line.

Users can set the upper and lower limit by adjusting to monitor the

CPU operating voltage.

If CPU voltage is higher or lower than the set value, the status line will

change into a red warning line, and a warning sound will alert you. Also,

the system tray icon will change to .

ii. VBAT

This item displays the CMOS battery voltage, represented by a light green

line.

Users can set the upper and lower limit by adjusting to monitor the

status of battery voltage.

If battery voltage is higher or lower than the set value, the status line will

change to a red warning line, and a warning sound will alert you. Also, the

system tray icon will change to .

Reference data

This column represents the status of power supply voltage and cannot be

adjusted, it is only for present status reference.

TForce 590 SLI Deluxe

B. Overclocking Configurations

This diagram is designed for T-series

Overclocking utility. Friendly interface and solid

overclock features are the major concept of this

utility.

Graphic 1 will appear when activating this utility.

Graphic 1

Graphic 2

A. Clicking on “Biostar” will lead you to the

Biostar Homepage.

B. This column shows the CPU speed

information.

C. Click on this button and the utility will

pop-up 4 sub-screens (Please refers to

Graphic 3).

D. Click on this button to minimize this

program to taskbar.

E. This column shows present CPU speed

and overclocking percentage.

F. Clicking on this button will make the

program start up as soon as the

Windows starts up.

G. Click on this button to exit this overclock

utility.

H. Click on this button to reset all the

overclock features to default setting.

By adjusting the overclocking

features in 4 sub-screens, users can

tune the system performance to an

optimal level.

Graphic 3

Motherboard Manual

CPU Overclocking Settings:

By adjusting can configure three items

for CPU overclocking.

A. CPU Frequency

Range: 200MHz~450MHz.

Interval: 1MHz.

B. CPU Ratio

Range: 4~25.

Interval: 1.

C. CPU Voltage

Range: 0.8V~2.0V.

Interval: 0.0125V.

Memory Overclocking Settings:

By adjusting can configure two items for

Memory overclocking.

A. Memory Clock Frequency

Choices: 100, 133, 200, 266, 333, 400, 533,

667, 800.

B. Memory Voltage

Range: 1.8V~2.8V.

Interval: 0.1V.

AGP/PCI-Express Overclocking Setting:

By adjusting can configure VGA card

overclocking. And this function helps to

increase VGA card performance.

Range: 100MHz~150MHz.

Interval: 1MHz.

TForce 590 SLI Deluxe

PCI Overclocking Setting:

This diagram shows present PCI working

status and helps to monitor PCI peripherals

working status.

This item cannot be adjusted.

Motherboard Manual

C. Smart Fan Function

When Smart Fan Function is activated, screens will pop-up to illustrate

the fan speed information.

i. CPU Temperature:

Show current CPU temperature.

ii. CPU Fan speed:

Show current CPU Fan speed.

iii. System Fan speed:

Show current system Fan speed.

iv. Calibrate:

When changing CPU Fan or System Fan, click on this button to

re-calibrate the Fan speed.

Note:

1. When Smart Fan Function activates for the first time, this calibrate function would

auto-run to get upper and lower limitation of CPU Fan and System Fan.

2. When calibrating process is done, the calibrating window will auto-close, and the

main screen will show new fan speed data.

TForce 590 SLI Deluxe

v. Auto:

If the green indicator is lit up, the Smart Fan Function is “On”

(Default Setting).

Click on this button again to close Smart Fan Function, and a

screen as below would pop-up.

There will be pulling-meter besides the CPU Fan and System Fan,

the CPU Fan and the System Fan speed can be adjusted by

adjusting the Cursor Up or Down.

vi. Program Tool Bar:

z About:

Click on this button to get program-related information.

z Minimize:

Click on this button to minimize the program to system tray

z Exit:

Click on this button to exit this program.

Motherboard Manual

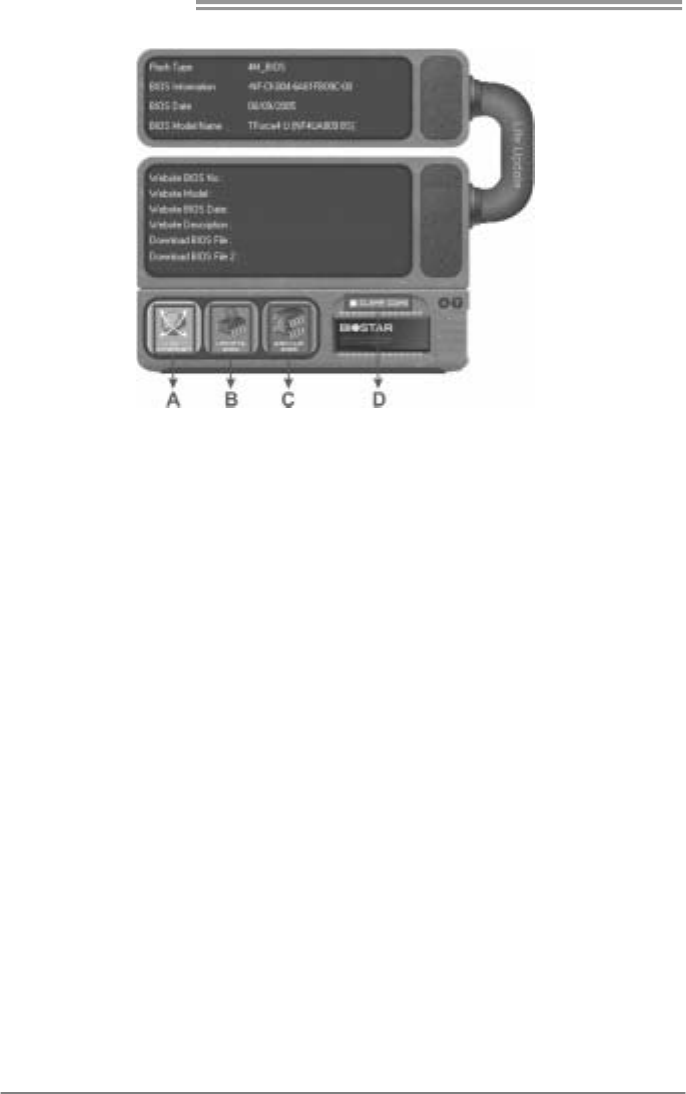

D. Live Update

When Live Update program is activated, a screen will pop up to illustrate

BIOS related information.

i. Link to Internet:

Click on this button will link to Biostar website and BIOS file will

be downloaded.

ii. Update BIOS:

Click on this button to run BIOS flashing process, and it’s easy

and safe.

iii. Backup BIOS:

Click on this button, and BIOS file will be saved into the

user-selected folder.

iv. Clear CMOS:

Click on this item will clear the CMOS Data. When carrying this

job, the previous CMOS data would be cleared and returned to

default setting.

TForce 590 SLI Deluxe

CHAPTER 6: USEFUL HELP

6.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

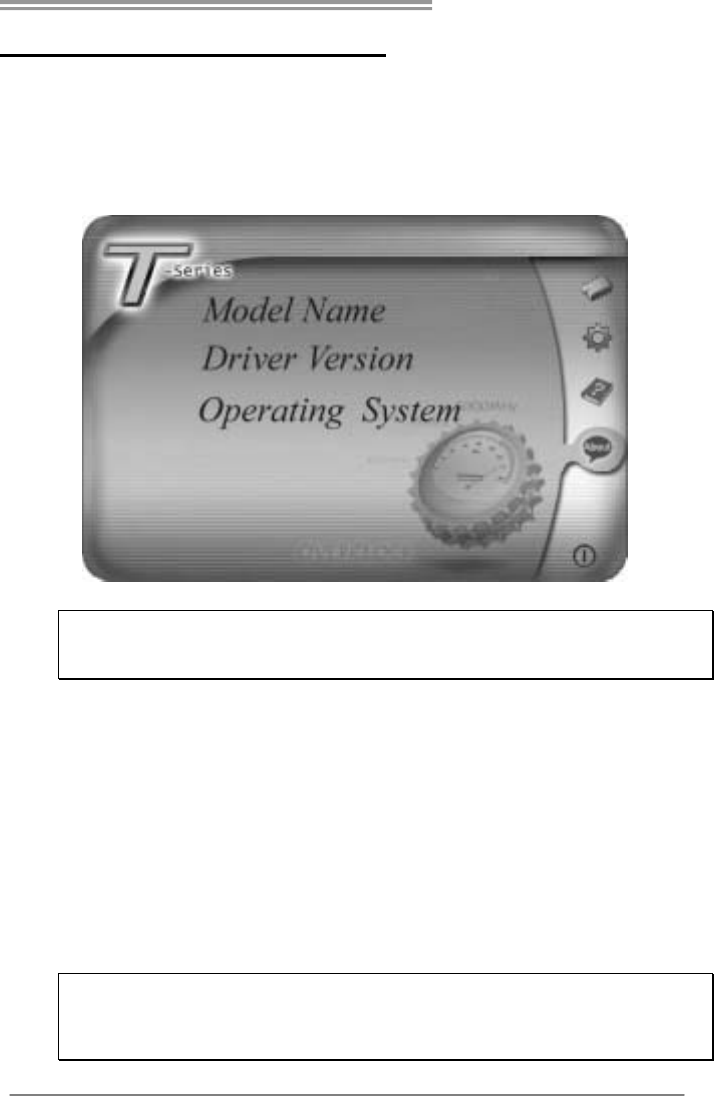

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

Motherboard Manual

6.2 AWARD BIOS BEEP CODE

Beep Sound Meaning

One long beep followed by two short

beeps Video card not found or video card

memory bad

High-low siren sound CPU overheated

System will shut down automatically

One Short beep when system boot-up No error found during POST

Long beeps every other second No DRAM detected or install

6.3 EXTRA INFORMATION

A. BIOS Update

After you fail to update BIOS or BIOS is invaded by virus, the

Boot-Block function will help to restore BIOS. If the following message

is shown after boot-up the system, it means the BIOS contents are

corrupted.

In this Case, please follow the procedure below to restore the BIOS:

1. Make a bootable floppy disk.

2. Download the Flash Utility “AWDFLASH.exe” from the Biostar

website: www.biostar.com.tw

3. Confirm motherboard model and download the respectively BIOS

from Biostar website.

4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.

5. Insert the bootable disk into floppy drive and press Enter.

6. System will boot-up to DOS prompt.

7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.

(xxxx means BIOS name.)

8. System will update BIOS automatically and restart.

9. The BIOS has been recovered and will work properly.

TForce 590 SLI Deluxe

B. CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Motherboard Manual

6.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all

Power light don’t illuminate, fan

inside power supply does not turn

on.

2. Indicator light on keyboard does

not turn on.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drive is spinning.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from hard disk

drive, can be booted from optical drive. 1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from optical drive.

Hard disk can be read and applications

can be used but booting from hard disk

is impossible.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message says “Invalid

Configuration” or “CMOS Failure.” Review system’s equipment. Make sure

correct information is in setup.

Cannot boot system after installing

second hard drive. 1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

TForce 590 SLI Deluxe

6.5 BIOS POST CODE LIST

CODE

Name Description

C0 Turn Off Chipset and CPU test Read/W rite/Verify all CPU reg isters

C1 Memory Presence First block memory detect,presence test

C2 Early Memory Init ial OEM Specif ic- Board Init ialization

C3 Extend Memory DRAM select OEM Specific- Turn on extended memory

C4 Special D isplay Handling OEM Specif ic- Display/V ideo Switch

C5 Early Shadow Early shadow enable for fast boot

C6 Cache presence test External cache size detection

CF CMOS Check CMOS checkup

B0 Spurious If interrupt occurs in protected mode

B1 Unclaimed NMI If unmasked NMI occurs, display Press F1 to disable NMI, F2

reboot.

BF Program Chip Set To program chipset from defaults values

E1-EF Setup Pages E1- Page 1, E2 - Page 2, etc.

1 Build BIOS Engine Build Award Decompression Bios Engine

2 Setup Bios item Setup the Bios item segment and Read CMOS data into stack

3 Build PMM Node In itialize Post Memory Manager

5 Blank video screen Reset Video controller

7 In itial keyboard In itialize the keyboard controller

8 Test Keyboard Test the Keyboard

A In itial mous e In itialize the mouse

E Checksum the BIOS and

message Check the intergraty of the ROM,BIOS and message

10 Auto detec Flash Check Flash type and copy flash write/erase routines to

0F000h segments

12 Check CMOS Check CMOS circuitry

14 Chipset Default load Programs the chipset registers with default values

18 Identify the CPU Check the CPU ID and init Cache controller

1B Setup Interrupt Vector Table Initialize interrupt vectors table

1C Check CMOS Check normal CMOS checksum and battery

1D Record MP system Record MP system

21 initial HPM If support HPM, HPM get in itialized here

23 Programs chipset Programs the chipset registers

24 PNP System Resource PNP System Resource

25 Shadowing system Shadowing system and video BIOS to speedup booting

26 Initialize Dev ice program the Peripheral Device and init Gener ator,Sensor

27 In itial KBC and s etup BIOS

data

Final In itialize the keyboard controller and set up BIOS area

data

29 Set video interface set VGA to special s tate Before initial

2B in itial Video device in itial Video devic e

2D Video memory test Test the video memory

2F show message show Summary message

33 PS2 Mouse setup Setup PS2 Mouse and reset KB

Motherboard Manual

CODE

Name Description

49 Size Base and Extended

Memory

Find and display the size of base memory (0-640k) and

extended memory (1M+)

4E Program CPU and APIC Program CPU's MTRR and Init ial APIC

4F show message show BIOS message

50 initial USB USB initialization

52 Memory Test Test all memory of memory above 1MB

55 CPU display Show CPU Type

57 initial PNP PNP D isplay Logo and PNP Ear ly in it

59 Setup virus protect Setup virus protect according

5D initial Onboard I/O Onboard SuperIO,AUDIO initialization

60 Setup enable Print setup message and enable setup functions

65 Test PS/2 Mouse Test PS/2 pointing device installed and init ialize

67 initial ACPI table in itial ACPI table and Check PC I c ard need EBDA s upport

69 In itial Cache In itialize cache controller

6B Programs the chipset Programs the chipset registers with AUTO table

6D Assign SuperIO Assign system resources for COM/LPT/FDD

6F Initial FDD In itialize floppy controller

73 Force IRQ 12 Force IRQ 12 to be tri-state if no PS2 mouse plugged

75 Ins tall HDD IDE device detect and install

77 Initial CO M In itialize serial ports

7A In itial LPT In itialize parallel ports

7F Report the USB keyboard Report the USB keyboard's existence and Display Setup

messages

82 Security Check Check security and ask for password

83 Write CMOS W rite all of CMOS back to RAM

84 Assign PNP cards Assign system resources for the all PNP cards

85 In itial Final USB USB Final Initialization

87 check clear screen check clear screen

89 Setup ACPI Setup ACPI tables and initial special treatment before option

8B Setup Data Setup BIOS Data , Memory Map ,IDE Device Type

8C Setup CMOS Save standard CMOS and extended CMOS

8D In itial APM In itialize the APM low level interface

8F enable IRQ 12 enable IRQ 12 for PS2 mouse

93 Check SCSI Check SCSI Boot Sequence

94 Final In itial Final In itial for last microsecond details before boot

95 Special KBC patch Force keyboard NUM-LOCK on

96 Setup stack and boot Setup low stack and boot

FF Boot

TForce 590 SLI Deluxe

This page is intentionally left blank

Motherboard Manual

APPENDENCIES: SPEC IN OTHER LANGUAGE

GERMAN

Spezifikationen

CPU

Sockel AM2

AMD Athlon 64 / Athlon 64 FX / Athlon 64

x2/ Sempron Prozessoren

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport und Cool’n’Quiet

FSB Unterstützt HyperTransport mit einer

Bandbreite von bis zu 1.3 GHz

Chipsatz nFORCE SPP190 nForce 590 SLI

Super E/A

ITE 8712F / 8716F

Bietet die häufig verwendeten alten

Super E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt 256/512MB &

1GB DDR2.

Max. 4GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 400 / 533 / 667 / 800 / 800+

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

IDE

Integ r iert er IDE-Controller

Ultra DMA 33 / 66 / 100 / 133 Bus

Master-Modus

Unterstützt PIO-Modus 0~4,

SATA II Integrierter Serial ATA-Controller

Datentransferrate bis zu 3Gb/s Konform mit der SATA-Spezifikation Version 2.0.

LAN Marvell 88E1116 PHY x 2

10 / 100 Mb/s und 1Gb/s

Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Codec Realtek ALC882 / ALC883 8-Kanal-Audioausgabe

1394a VIA VT 6307 / VT 6308 Unterstützt IEEE 1394a mit einer Transferrate von bis

zu 400 Mbps

PCI-Steckp latz x2

PCI Express x16 Steckplatz x2

PCI Express x4 Steckplatz x1

Steckp lätze

PCI Express x 1-Steckplatz x1

Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke

Serieller Anschluss x1 Jeder Anschluss unterstützt 1 Serieller anschluss

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

SATA-Anschluss x5 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Onboard-Ans

chluss

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

TForce 590 SLI Deluxe

Spezifikationen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

CD-IN-Anschluss x1 Unterstützt die CD Audio-In-Funktion

S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

S/PDIF Eingangsanschluss x1 Unterstützt die digitale Audioeingabefunktion

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Fun ktion )

System-Lüfter-Sockel x3 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB-Anschluss x2 Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

1394-Anschluss x1 Jeder Anschluss unterstützt einen

Fronttafel-1394-Anschluss

Stromanschluss (24-polig) x1

Stromans ch luss (8-polig ) x1

Rückseiten-E

PS/2-Tastatur x1

PS/2- Maus x1

SATA-Anschluss x1

LAN-Anschluss x2

USB-Anschluss x6

1394-Anschluss x1

Audioanschluss x6

Platinengröße

. 244 mm (B) X 305 mm (L)

Sonderfunkti

onen

NVIDIA nTunes

Unterstützt RAID 0 / 1 / 0+1 / 5

OS-Unterstüt

zung Windows 2000 / XP

Biostar behält sich das Recht vor, ohne Ankündigung die

Unterstützung für ein Betriebssystem hinzuzufügen

oder zu entfernen.

Motherboard Manual

FRANCE

SPEC

Socket AM2

Processeurs AMD Athlon 64 / Athlon 64 FX

/ Athlon 64 x2/ Sempron

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyper Transport et Cool’n’Quiet

Bus frontal Prend en charge Hyper Transport jusqu'à

une bande passante de 1.3 GHz

Chipset nFORCE SPP190 nForce 590 SLI

Super E/S

ITE 8712F / 8716F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Moniteur de mat ériel

Contrôleur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charg e des DDR2

de 256/512 Mo et 1Go

Capacité mémo ire max imale de 4 Go

Module d e mémoire DDR2 à mode à doub le vo ie

Prend en charge la DDR2 400 / 533 / 667 / 800 / 800+

Les DIMM à registres et DIMM sans code correcteurs

d'erreurs ne sont pas prises en charge

IDE

Contrôleur IDE intégré

Mode pr incip ale d e Bus Ultra D MA 33 / 6 6 /

100 / 133

Prend en charge le mode PIO 0~4,

SATA

SATA II

Contrôleur Serial ATA

int égré :

Taux de transfert jusqu'à 3 Go/s. Conforme à la spécif icat ion SATA Vers ion 2.0

LAN Marvell 88E1116 PHY x 2 10 / 100 Mb/s et 1 Gb/s négociation automatique

Half / Full duplex capability

Codec audio

Realtek ALC882 / ALC883

Sortie aud io à 8 vo ies

AC’97 Version 2.3

Sortie S/PDIF

1394a VIA VT 6307 / VT 6308 Prend en charge IEEE 1394a avec un taux de transfert

de jusqu'à 400 Mbps

Fente PCI x2

Slot PCI Express x16 x2

Slot PCI Express x 4 x1

Fentes

Slot PCI Express x 1 x1

Connecteur de disquette x1 Chaque connector prend en charge 2 lecteurs de

disquettes

Connecteur de Port d'imprimante x1 Chaque connector prend en charge 1 Port d'imprimante

Connecteur de Port série x1 Chaque connector prend en charge 1 Port série

Connecteur

embarqué

Connecteur IDE x1 Chaque connecteur prend en charge 2 périphériques

IDE

TForce 590 SLI Deluxe

SPEC

Connecteur SATA x5 Chaque connecteur prend en charge 1 périphérique

SATA

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avantx1 x1

Prend en charge la fonction audio du panneau avant

Connecteur d'entrée CD x1 Prend en charge la fonct ion d'entrée audio de CD

Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio numérique

Connecteur d'entrée S/PDIF x1 Prend en charge la fonct ion d'entrée audio numérique

Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Embase de ventilateur système x3 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2 Chaque connecteur prend en charge 2 ports USB de

panneau avant

Connecteur 1394 x1 Chaque connecteur prend en charge 1 port 1394 de

panneau avant

Connecteur d'aliment ation x1

(24 broches)

Connecteur d'aliment ation x1

(8 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Connecteur SATA x1

Port LAN x2

Port USB x6

Port 1394 x1

Fiche audio x6

Dimensions

de la carte 244 mm (l) X 305 mm (H)

Fonctionnali

tés

spéciales

NVIDIA nTunes

Prise en charge RAID 0 / 1 / 0+1 / 5

Support SE Windows 2000 / XP Biostar se réserve le droit d'ajouter ou de supprimer le

support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

SPECIFICA

CPU

Socket AM2

Processori AMD Athlon 64 / Athlon 64

FX / Athlon 64 x2/ Sempron

L’architettura AMD 64 abilita la co mputazione 32

e 64 bit

Supporto di Hyper Transport e Cool’n’Quiet

FSB Supporto di HyperTransport fino a 1.3

GHz di larghezza di banda

Chipset nForce SPP190 nForce 590 SLI

Super I/O

ITE 8712F / 8716F

Fornisce le funzionalità legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2

256/512MB e 1GB

Capacità massima della memoria 4GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 400 / 533 / 667 / 800 / 800+

DIMM registrati e DIMM ECC sono supportati

IDE

Controller IDE integrato

Modalità Bus Master Ultra DMA 33 /

66 / 100 / 133

Supporto modalità PIO Mode 0-4

SATA II

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino

a 3 Gb/s.

Compatibile specifiche SATA Vers ione 2.0.

LAN Marvell 88E1116 PHY x 2 Negoziazione automatica 10 / 100 Mb/s e 1Gb/s

Capacità Half / Full Duplex

Codec

audio Realtek ALC882 / ALC883 Uscita audio 8 canali

1394 VIA VT 6307 / VT 6308 Supporto IEEE 1394a con velocità di

trasferimento dei dati fino a 400 Mbps

Alloggio PC I x2

Alloggio PCI Express x16 x2

Alloggio PCI Express x4 x1

Alloggi

Alloggio PCI Express x1 x1

Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Connettore Porta seriale x1 Ciascun connettore supporta 1 Porta seriale

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore SATA x5 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore CD-in x1 Supporta la funzione input audio CD

Connettore output SPDIF x1 Supporta la funzione d’output audio digitale

Connettori

su scheda

Connettore input S/PDIF x1 Supporta la funzione d’input audio digitale

TForce 590 SLI Deluxe

SPECIFICA

Collettore ventolina C PU x1 Alimentazione ventolina CPU (con funzione Smart

Fan)

Collettore ventolina sis tema x3 Alimentazione ventolina d i sis tema

Collettore cancellaz ione CMOS x1

Connettore USB x2 Ciascun connettore supporta 2 porte USB

pannello frontale

Connettore 1394 x1 Ciascun connettore supporta 1 porta 1394

pannello frontale

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(8 pin)

I/O

pannello

posteriore

Tas t iera PS /2 x 1

Mouse PS/2 x1

Connettore SATA x1

Porta LAN x2

Porta USB x6

Porta 1394 x1

Connettore audio x6

Dimension

i scheda

244 mm (larghezza) x 305 mm

(altezza)

Caratterist

iche

speciali

nTunes NVIDIA

Supporto RAID 0 / 1 / 0+1 / 5

Sistemi

operativi

supportati

Windows 2000 / XP

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Especificación

CPU

Conector AM2

Procesadores AMD Athlon 64 / Athlon 64

FX / Athlon 64 x2/ Sempron

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Soporta las tecnologías Hyper Transport y Cool’n’Quiet

FSB Admite HyperTransport con un ancho de

banda de hasta 1.3 GHz

Conjunto de

chips nForce SPP190 nForce 590 SLI

Súper E/S

ITE 8712F / 8716F

Le ofrece las funcionalidades heredadas de

uso más común Súper E/S.

Interfaz de cuenta Low Pin

In iciat ivas de control d e entorno,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256/512MB y

1GB

Capacidad máxima de memoria de 4GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 400 / 533 / 667 / 800 / 800+

No admite DIMM registrados o DIMM no compatibles

con ECC

IDE

Controlador IDE integrado

Modo bus maestro Ultra DMA 33 / 66 / 100

/ 133

Soporte los Modos PIO 0~4,

SATA II Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3 Gb/s. Compat ib le con la versión SATA 2.0.

Red Local Marvell 88E1116 PHY x 2 Negociación de 10 / 100 Mb/s y 1 Gb/s

Funciones Half / Full dúplex

Códecs de

sonido Realtek ALC882 / ALC883 Salida de sonido de 8 canales

1394 VIA VT 6307 / VT 6308 Soporta IEEE 1394a con tasas de transferencia de

hasta 400 Mbps

Ranura PCI X2

Ranura PCI Express x16 X2

Ranura PCI Express x4 X1

Ranuras

Ranura PCI express x 1 X1

Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conector Puerto serie X1 Cada conector soporta 1 Puerto serie

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Conector SATA X5 Cada conector soporta 1 dispositivos SATA

Conectores

en placa

Conector de p ane l frontal X1 Soporta instalaciones en el p anel frontal

TForce 590 SLI Deluxe

Especificación

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Conector de entrada de CD X1 Soporta función de entrada de sonido de CD

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X3 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Conector 1394 X1 Cada conector soporta 1 puertos frontal 1394

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(8 patillas)

Panel

trasero de

E/S

Tec lad o PS /2 X 1

Ratón PS/2 X1

Conector SATA X1

Puerto de red local X2

Puerto USB X6

Puerto 1394 X1

Conector de sonido X6

Ta mañ o d e

la placa 244 mm. (A) X 305 Mm. (H)

Funciones

especiales

NVIDIA nTunes

Admite RAID 0 / 1 / 0+1 / 5

Soporte de

sistema

operativo

Windows 2000 / XP Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

ESPECIFICAÇÕES

CPU

Socket AM2

Processadores AMD Athlon 64 / Athlon 64

FX / Athlon 64 x2/ Sempron

A arquitectura AMD 64 permite uma co mputação de 32

e 64 bits

Suporta as tecnologias Hyper Transport e Cool’n’Quiet

FSB Suporta a tecnologia HyperTransport com

uma largura de banda até 1.3 GHz

Chipset nForce SPP190 nForce 590 SLI

Especificaçã

o Super I/O

ITE 8712F / 8716F

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a contro lo do amb iente

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "S mart Gu ard ian" da ITE

Memória

principal

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma

memória DDR2 de 256/512 MB & 1 GB

Capacidade máx ima de memória: 4 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 400 / 533 / 667 / 800 / 800+

Os módulos DIMM registados e os DIMM ECC são

suportados

IDE

Controlador IDE integrado

Modo Bus master Ultra DMA 33 / 66 / 100

/ 133

Suporta o modo PIO 0~4,

SATA II

Controlador Serial ATA integrado

Velocidades de transmissão de dados até

3 Gb/s.

Compat ibilidade co m a especificação SATA versão 2.0.

LAN Marvell 88E1116 PHY x 2 Auto negociação de 10 / 100 Mb/s e 1Gb/s

Capacidade semi/full-duplex

Codec de

som Realtek ALC 882 / ALC 883 Saída de áudio de 8 canais

1394a VIA VT 6307 / VT 6308

Suporta a especificação IEEE 1394a com uma

velocidade de transferência que pode ir até aos 400

Mbps

Ranhura PCI x2

Ranhura PCI Express x16 x2

Ranhura PCI Express x4 x1

Ranhuras

Ranhura PCI Express x 1 x1

Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de disquetes

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Conectores

na placa

Conector d a Porta série x1 Cada conector suporta 1 Porta série

TForce 590 SLI Deluxe

ESPECIFICAÇÕES

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Conector SATA x5 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector para entrada de CDs x1 Suporta a entrada d e áud io a p art ir de CDs

Conector de saíd a S/PDIF x1 Suporta a saída de áud io digital

Conector de entrada S/PDIF x1 Suporta a entrada de áud io digital

Conector da ventoinha da CPU x1 Alimentação da vento inha da CPU (com a função Smart

Fan )

Conector da ventoinha do sistema x3 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector 1394 x1 Cada conector suporta 1 porta 1394 no painel frontal

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(8 p inos)

Entradas/S

aídas no

painel

traseiro

Tec lad o PS /2 x 1

Rato PS/2 x1

Conector SATA x1

Porta LAN x2

Porta USB x6

Porta 1394 x1

Tomada de áudio x6

Tamanho

da placa 244 mm (L) X 305 mm (A)

Característi

cas

especiais

nTunes da NVIDIA

Suporta as funções RAID 0 / 1 / 0+1 / 5

Sistemas

operativos

suportados

Windows 2000 / XP

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

av iso prév io.

Motherboard Manual

POLISH

SPEC

Procesor

Socket AM2

AMD Athlon 64 / Athlon 64 FX / Athlon 64

x2/ Sempron Procesory

Architektura AMD 64 umożliwia przetwarzanie 32 i 64

bitowe

Obsługa Hyper Transport oraz Cool’n’Quiet

FSB Obsługa HyperTransport o szerokości

pasma do 1.3 GHz

Chipset nForce SPP190 nForce 590 SLI

Pamięć

główna

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły

256/512MB oraz 1GB DDR2

Maks. wielkość pamięci 4GB

Modu ł pamięci DDR2 z trybem podwójnego kanału

Obsługa DDR2 400 / 533 / 667 / 800 / 800+

Brak obsługi Registered DIMM oraz ECC DIMM

Super I/O

ITE 8712F / 8716F

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Gu ard ian"

IDE

Zintegrowany kontroler IDE

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus

Master

obsługa PIO tryb 0~4,

SATA II Zintegrowany kontroler Serial ATA

Transfer danych do 3 Gb/s. Zgodność ze specyfikacją SATA w wersji 2.0.

LAN Marvell 88E1116 PHY x 2

10 / 100 Mb/s oraz 1Gb/s z automatyczną negocjacją

szybkości

Działanie w tryb ie połowicznego / pełnego dupleksu

Kodek

dźwiękowy Realtek ALC 882 / ALC 883 8 kanałowe wyjście audio

1394a VIA VT 6307 / VT 6308 Obsługa IEEE 1394a przy szybkości transferu do to 400

Mbps

Gniazdo PCI x2

Gniazdo PCI Express x16 x2

Gniazdo PCI Express x 4 x1

Gniazda

Gniazdo PCI Express x 1 x1

Złącze napędu dyskietek x1 Każde złącze obs ługuje 2 napędy dyskietek

Złącze Port drukarki x1 Każde złącze obs ługuje 1 Port drukarki

Złącze Port szeregowy x1 Każde złącze obs ługuje 1 Port szeregowy

Złącze IDE x1 Każde złącze obs ługuje 2 urządzenia IDE

Złącze SATA x5 Każde złącze obs ługuje 1 urządzenie SATA

Złącza

wbudowane

Złącze panela przedniego x1 Obsługa elementów panela przedniego

TForce 590 SLI Deluxe

SPEC

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze wejścia CD x1 Obsługa funkcji wejścia audio CD

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia audio

Złącze wejścia S/PDIF x1 Obsługa funkcji cyfrowego wejścia aud io

Złącze g łówkowe wentylatora procesora ... Zasilanie wentylatora procesora (z funkcją Smart Fan)

Złącze g łó wkowe wentylatora

systemowego x3

Zasilanie wentylatora systemowego

Złącze g łó wkowe kasowania

CMOS x1

Złącze USB x2 Każde złącze obsługuje 2 porty USB na panelu

przednim

1394 Connector x1 Each Connector supports 1 1394 Port

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (8 pino we) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS /2 x1

Port SATA x1

Port LAN x2

Port USB x6

Port 1394 x1

Gniazdo audio x6

Wymiary

płyty 244 mm (S) X 305 mm (W)

Funkcje

specjalne

NVIDIA nTunes.

Obsługa RAID 0 / 1 / 0+1 / 5

Obsluga

systemu

operacyjne

Windows 2000 / XP

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsługi dowo ln ego s ys temu

operacyjnego bez powiadomienia.

Motherboard Manual

RUSSIAN

СПЕЦ.

CPU

(центральн

ый

процессор)

Гнездо AM2

Процессоры AMD Athlon 64 / Athlon 64

FX / Althlon 64X2

Архитектура AMD 64 разрешать обработка данных

на 32 и 64 бит

Поддержка Hyper Transport и Cool’n’Quiet

FSB Поддержка HyperTransport с

пропускной способностью до 1.3GГц

Набор

микросхем nForce SPP190 nForce 590 SLI

Основная

память

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает

256/512МБ & 1ГБ DDR2

Максимальная ёмкость памяти 4 ГБ

Модуль памяти с двухканальным режимом DDR2

Поддержка DDR2 400 / 533 / 667 / 800 / 800+

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Super I/O

ITE 8712F / 8716F

Обеспечивает наиболее используемые

действующие фун кц ио нал ьны е

возможности Super I/O.

Интерфейс с низким количеством

выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости

Функц ия ITE "Smart Guard ian" (Интеллектуальная

защита)

IDE Встроенное устройство упр авл ения

встроенными интерфейсами устройств

Режим "хозяина" шин ы Ultra DMA 33 / 66 / 100 / 133

Поддержка режима PIO 0~4,

SATA II Встроенное последовательное

устройство управления ATA

скорость передачи данных до 3 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть Marvell 88E1116 PHY x 2 Автоматическое согласование 10 / 100 Мб /с и 1Гб/с

Частичная / полная дуплексная способность

Звуко вой

кодек Realtek ALC 882 / ALC 883 Восьмиканальный звуковой выход

1394 VIA VT 6307 / VT 6308 Поддержка IEEE 1394a со скоростью передачи до

400 мегабит в секунду.

Слот PCI x2

Слот PCI Express x16 x1

Слот PCI Express x 4 x1

Слоты

Слот PCI Express x 1 x1

Разъём НГ МД x1

Каждый разъём поддерживает 2 накопителя на

гибких магнитных дисках

Разъём Порт подключения

принтера x1

Каждый разъём поддерживает 1 Порт подключения

принтера

Встроенны

й разъём

Разъём Последовательный порт x1 Каждый разъём поддерживает 1 Последовательный

порт

TForce 590 SLI Deluxe

СПЕЦ.

Разъём IDE x1 Каждый разъём поддерживает 2 встроенных

интерфейса накопителей

Разъём SATA x5 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуко вых функций на лицевой панели

Разъём ввода для CD x1 Поддержка функции ввода для CD

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой фун кц ии

Разъём ввода для S/PDIF x1 Поддержка ввод а цифровой звуковой функции

Контактирующее приспособление

вентил ятора центрального процессора..

Источник питания для вентилятор а центрального

процессора (с фун кц ией интеллектуального

вентил ятора)

Контактирующее приспособление

вентил ятора системы x3

Источник питания для вентилятор а системы

Открытое контактир ующее

приспособление CMOS x1

USB-разъём x2

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Разъем 1394 x1 Каждый разъём поддерживает 1 порт 1394 на

лицевой панели

Разъем питания (24 вывод) x1

Разъем питания (8 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт SATA x1

Порт LAN x2

USB-порт x6

Порт 1394 x1

Гнездо для подключения

наушников x6

Размер

панели 244 мм (Ш) X 305 мм (В)

Специальн

ые

технически

характерис

тики

NVIDIA nTunes

Поддержка RAID 0 / 1 / 0+1 / 5

Поддержка

OS Windows 2000 / XP

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

ARABIC

تﺎﻔﺻاﻮﻤﻟا

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺔﻳﺰآﺮﻤﻟا

ﺲﺒﻘﻡAM2

تﺎﺠﻟﺎﻌﻡAMD Athlon 64 / Athlon 64 FX /

Athlon 64 x2/ Sempron

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و Cool’n’Quiet

ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺏ 1300

ددﺮﺗ

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ

nForce SPP190 nForce 590 SLI

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ

256/512 و ﺖﻳﺎﺏ ﺎﺠﻴﻡ 1 ﺎﺠﻴﺝﺖﻳﺎﺏ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ4 ﺖﻳﺎﺏ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR2 ﻘﻟا ﺔﺝودﺰﻡةﺎﻨ

عﻮﻥ ﻦﻡ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR2 تﺎﻌﺳ 400 / 533 / 667 / 800 / 800+ ﺎﺠﻴﻡ

ﺖﻳﺎﺏ

ﻢﻋﺪﺗ ﻻ ةﺮآاﺬﻟا ﻖﺋﺎﻗر DIMM ﻊﻡ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

Super I/O

ITE 8712F / 8716F

ﺔﻔﻴﻇو ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨ ﺘﺳا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ

ﺔﻔﻴﻇو"Smart Guard ian" ﻦﻡ ITE

ﻡ ﺬﻔﻨIDE

ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ

ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133

ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

SATA II

ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎﻥﺎﻴﺒﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺏﺎﻄﻡSATA راﺪﺹﻹا 2.0.

ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

Marvell 88E1116 PHY x 2

ﻘﻠﺗ ضوﺎﻔﺗ ﻲﺋﺎ10/100 ﺖﻳﺎﺏ ﺎﺠﻴﻡ /و ﺔﻴﻥﺎﺙ1ﺖﺏ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا

تﻮﺼﻟا ﻚﻳدﻮآ

Realtek ALC882 / ALC 883

8تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﺬﻔﻨﻡ1394a

VIA VT 6307 / VT 6308

ﺬﻔﻨﻡ ﻢﻋﺪﺗIEEE 1394a ﻞﺼﻳ ﻞﻘﻥ لﺪﻌﻤﺏ 400 ﺔﻴﻥﺎﺜﻟا ﻲﻓ ﺖﻳﺎﺏ ﺎﺠﻴﻡ

ﺔﺤﺘﻓPCI دﺪﻋ2

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ2

ﺔﺤﺘﻓx4 PCI Express دﺪﻋ1 تﺎﺤﺘﻔﻟا

ﺔﺤﺘﻓPCI Express x 1 دﺪﻋ1

ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮﻤﻟا صاﺮﻗﻸﻟ ﻦﻴآﺮﺤﻡ ﻢﻋﺪﻳ

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡIDE دﺪﻋ1 ةﺰﻬﺝأ ﻦﻡ ﻦﻴﻨﺙا ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳIDE

ﺬﻔﻨﻡSATA دﺪﻋ5 ةﺰﻬﺝأ ﻦﻡ ﺪﺣاو ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳSATA

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ

ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳ

ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺞﻡﺪﻤﻟا صﺮﻘﻟا تﻮﺹ ﻞﺥد ﺔﻔﻴﻇو ﻢﻋﺪﻳ

جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 ﺔﻔﻴﻇو ﻢﻋﺪﻳﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ

ﻞﺥد ﺬﻔﻨﻡS/PDIF دﺪﻋ1

ﻲﻤﻗﺮﻟا تﻮﺼﻟا ﻞﺥد ﺔﻔﻴﻇو ﻢﻋﺪﻳ

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ) ﺔﻔﻴﻇو ﻊﻡ Smart Fan(

TForce 590 SLI Deluxe

تﺎﻔﺻاﻮﻤﻟا

مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ3 مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ

ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻡUSB دﺪﻋ2 ﻲﺘﺤﺘﻓ ﺬﻔﻨﻡ ﻞآ ﻢﻋﺪﻳUSBﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ

ﺬﻔﻨﻡ1394 دﺪﻋ1

ﺔﺤﺘﻓ ﻢﻋﺪﻳ1394ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟﺎﺏ

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)8ﺲﻴﺏﺎﺏد( دﺪﻋ1

ﻞﺥد ﺬﻓﺎﻨﻡ/ جﺮﺥ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﺬﻔﻨﻡ SATA1 ﻋ دﺪ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ2

ﺬﻓﺎﻨﻡUSB دﺪﻋ6

ﺬﻔﻨﻡ1394 دﺪﻋ1

تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ6

ﺔﺹﺎﺥ ﺎﻳاﺰﻡ

NVIDIA nTunes

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 0+1 / 5

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

244 ﻢﻡ)ضﺮﻋ (X 305 ﻢﻡ)عﺎﻔﺗرا(

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد

Windows 2000 / XP

ﻆﻔﺘﺤﺗBiostar وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ رﺎﻄﺥإ نوﺪﺏ وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐ ﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ.

Motherboard Manual

JAPANESE

仕様

CPU

Socket AM2

AMD Athlon 64 / Athlon 64 FX / Athlon 64

x2/ Sempron プロセッサ

AMD 64アーキテクチャでは、32ビットと64ビット計算が可

能です

ハイパートランスポートとクールアンドクワイアットをサポ

ートします

FSB 1.3 GHzのバンド幅までハイパートランスポー

トをサポートします

チップセット nForce SPP190 nForce 590 SLI

メインメモリ

DDR2 DIMMスロット x 4

各DIMMは 256/512MB & 1GB DDR2をサポ

ート

最大メモリ容量4GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 400 / 533 / 667 / 800 / 800+をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8712F / 8716F

もっとも一般に使用されるレガシーSuper I/O

機能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

IDE

統合IDEコントローラ

Ultra DMA 33 / 66 / 100 / 133バスマスタモ

ード

PIO Mode 0~4のサポート、

SATA II 統合シリアルATA コントローラ

最高3 Gb/秒のデータ転送速度 SATAバージョン2.0仕様に準拠。

LAN Marvell 88E1116 PHY x 2 10 / 100 Mb/秒および1Gb/秒のオートネゴシエーション

半/全二重機能

サウンド

Codec Realtek ALC 882 / ALC 883 8チャンネルオーディオアウト

1394a VIA VT 6307 / VT 6308 最大400 Mbps の転送速度でIEEE 1394a をサポート

PCIスロット x2

PCI Express x16スロット x1

PCI Express x 4スロット x1

スロット

PCI Express x 1スロット x1

フロッピーコネクタ x1 各コネクタは2つのフロッピードライブをサポートします

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

シリアルポートコネクタ x1 各コネクタは1つのシリアルポートをサポートします

IDE コネクタ x1 各コネクタは2つのIDE デバイスをサポートします

SATAコネクタ x5 各コネクタは1つのSATAデバイスをサポートします

オンボードコ

ネクタ

フロントパネルコネクタ x1 フロントパネル機能をサポートします

TForce 590 SLI Deluxe

仕様

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CDインコネクタ x1 CDオーディオイン機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

S/PDIFインコネクタ x1 デジタルオーディオイン機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x3 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ (2 オプション) x1

各コネクタは2つのフロントパネルUSBポートをサポートし

ます

1394コネクタ x1

各コネクタは1つのフロントパネル1394ポートをサポートし

ます

電源コネクタ(24ピン) x1

電源コネクタ(8ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

SATAポート x1

LANポート x2

USBポート x6

1394ポート x1

オーディオジャック x6

ボードサイズ 244 mm (幅) X 305 mm (高さ)

特殊機能 NVIDIA nTunes

RAID 0 / 1 / 0+1 / 5 のサポート

OSサポート Windows 2000 / XP Biostarは事前のサポートなしにOSサポートを追加または削

除する権利を留保します。

2006/06/15

TForce 590 SLI Deluxe BIOS Setup

BIOS Setup .......................................................................................1

1 Main Menu ....................................................................................................3

2 Standard CMOS Features ..............................................................................7

3 Advanced BIOS Features ..............................................................................9

4 Advanced Chipset Features .........................................................................16

5 Integrated Peripherals..................................................................................19

6 Power Management Setup .........................................................................25

7 PnP/PCI Configurations ..............................................................................29

8 PC Health Status..........................................................................................32

9 Over Clock Navigator..................................................................................35

10CMOS Reload Program(C.R.P.) ...............................................................45

TForce 590 SLI Deluxe

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the Award™ BIOS

Setup program on this motherboard. The Setup program allows users to modify

the basic system configuration and save these settings to CMOS RAM. The

power of CMOS RAM is supplied by a battery so that it retains the Setup

information when the power is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and

output devices such as keyboard, mouse, serial ports and disk drives. BIOS

activates at the first stage of the booting process, loading and executing the

operating system. Some additional features, such as virus and password

protection or chipset fine-tuning options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in

BIOS Setup.

Plug and Play Support

This AWARD BIOS supports the Plug and Play Version 1.0A specification and

ESCD (Extended System Configuration Data) write.

EPA Green PC Support

This AWARD BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AWARD BIOS supports Version 1.1&1.2 of the Advanced Power

Management (APM) specification. Power management features are

implemented via the System Management Interrupt (SMI). Sleep and Suspend

power management modes are supported. Power to the hard disk drives and

video monitors can also be managed by this AWARD BIOS.

ACPI Support

Award ACPI BIOS support Version 1.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management

and device configuration capabilities as defined in the ACPI specification,

developed by Microsoft, Intel and Toshiba.

TForce 590 SLI Deluxe

PCI Bus Support

This AWARD BIOS also supports Version 2.1 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR SDRAM (Double Data Rate Synchronous DRAM) is supported.

Supported CPUs

This AWARD BIOS supports the AMD CPU.

Using Setup

Use the arrow keys to highlight items in most of the place, press <Enter> to

select, use the <PgUp> and <PgDn> keys to change entries, press <F1> for help

and press <Esc> to quit. The following table provides more detail about how to

navigate in the Setup program by using the keyboard.

Keystroke Function

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item on the left (menu bar)

Right arrow Move to the item on the right (menu bar)

Move Enter Move to the item you desired

PgUp key Increase the numeric value or make changes

PgDn key Decrease the numeric value or make changes

+ Key Increase the numeric value or make changes

- Key Decrease the numeric value or make changes

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu – Exit

Current page and return to Main Menu

F1 key General help on Setup navigation keys

F5 key Load previous values from CMOS

F7 key Load the optimized defaults

F10 key Save all the CMOS changes and exit

TForce 590 SLI Deluxe

1 Main Menu

Once you enter Award BIOS™ CMOS Setup Utility, the Main Menu will

appear on the screen. The Main Menu allows you to select from several setup

functions. Use the arrow keys to select among the items and press <Enter> to

accept and enter the sub-menu.

 Figure 1: Main Menu

Standard CMOS Features

This submenu contains industry standard configurable options.

Advanced BIOS Features

This submenu allows you to configure advanced features of the BIOS.

!! WARNING !!

For better system performance, the BIOS firmware is being

continuously updated. The BIOS information described in

this manual (Figure 1, 2, 3, 4, 5, 6, 7, 8, 9) is for your

reference only. The actual BIOS information and settings on

board may be slightly different from this manual.

TForce 590 SLI Deluxe

Advanced Chipset Features

This submenu allows you to configure special chipset features.

Integrated Peripherals

This submenu allows you to configure certain IDE hard drive options and

Programmed Input/ Output features.

Power Management Setup

This submenu allows you to configure the power management features.

PnP/PCI Configurations

This submenu allows you to configure certain “Plug and Play” and PCI options.

PC Health Status

This submenu allows you to monitor the hardware of your system.

OverClock Navigator Engine (O.N.E.)

ONE provides two powerful overclock engines, MOS & AOS for both

overclock expertise and beginner.

Load Optimized Defaults

This selection allows you to reload the BIOS when problem occurs during

system booting sequence. These configurations are factory settings optimized

for this system. A confirmation message will be displayed before defaults are

set.

TForce 590 SLI Deluxe

Set Supervisor Password

Setting the supervisor password will prohibit everyone except the supervisor

from making changes using the CMOS Setup Utility. You will be prompted with

to enter a password.

Set User Password

If the Supervisor Password is not set, then the User Password will function in

the same way as the Supervisor Password. If the Supervisor Password is set and

the User Password is set, the “User” will only be able to view configurations but

will not be able to change them.

Save & Exit Setup

Save all configuration changes to CMOS (memory) and exit setup. Confirmation

message will be displayed before proceeding.

Exit Without Saving

Abandon all changes made during the current session and exit setup.

Confirmation message will be displayed before proceeding.

TForce 590 SLI Deluxe

Integrate Flashing Program

This is a very safe way to upgrade BIOS.

By pressing “Enter” key for three times, and the upgrading process will be

completed easily.

TForce 590 SLI Deluxe

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories.

Each category includes no, one or more than one setup items. Use the arrow

keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the

value you want in each item.

 Figure 2: Standard CMOS Setup

Main Menu Selections

This table shows the items and the available options on the Main Menu.

Item Options Description

Date mm : dd : yy

Set the system date. Note

that the ‘Day’ automatically

changes when you set the

date.

Time hh : mm : ss Set the system internal

clock.

IDE Primary Master Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options

IDE Primary Slave Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

IDE Secondary Master Options are in its sub Press <Enter> to enter the

TForce 590 SLI Deluxe

Item Options Description

menu. sub menu of detailed

options.

IDE Secondary Slave Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

Drive A

Drive B

360K, 5.25 in

1.2M, 5.25 in

720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

None

Select the type of floppy

disk drive installed in your

system.

Video

EGA/VGA

CGA 40

CGA 80

MONO

Select the default video

device.

Halt On

All Errors

No Errors

All, but Keyboard

All, but Diskette

All, but Disk/ Key

Select the situation in which

you want the BIOS to stop

the POST process and

notify you.

Base Memory N/A

Displays the amount of

conventional memory

detected during boot up.

Extended Memory N/A

Displays the amount of

extended memory detected

during boot up.

Total Memory N/A Displays the total memory

available in the system.

TForce 590 SLI Deluxe

3Advanced BIOS Features

 Figure 3: Advanced BIOS Setup

Cache Setup

TForce 590 SLI Deluxe

CPU Internal Cache

Depending on the CPU/chipset in use, you may be able to increase memory

access time with this option.

Enabled (default) Enable cache.

Disabled Disable cache.

External Cache

This option enables or disables “Level 2” secondary cache on the CPU, which

may improve performance.

Enabled (default) Enable cache.

Disabled Disable cache.

Boot Seq & Floppy Setup

This item allows you to setup boot sequence & Floppy.

TForce 590 SLI Deluxe

Removable Device Priority

Select Removable Boot Device Priority.

The Choices: Floppy Disks, Zip100, USB-FDD0, USB-FDD1, USB-ZIP0,

USB-ZIP1, LS120.

Hard Disk Boot Priority

The BIOS will attempt to arrange the Hard Disk boot sequence automatically.

You can change the Hard Disk booting sequence here.

The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USB HDD0, USB

HDD1, USB HDD2, and Bootable Add-in Cards.

TForce 590 SLI Deluxe

CD-ROM Boot Priority

Select CD-ROM Boot Priority.

The Choices: Pri. Master, Sec. Master, Sec. Slave, USB CDROM0, USB

CDROM1, Pri. Slave.

Network Boot Priority

Select Network Boot Priority.

The Choices: Network 0, Network 1,

First/Second/Third Boot Device

The BIOS will attempt to load the operating system in this order.

The Choices: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2,

HDD-3, ZIP100, LAN, HPT370, Disabled.

Boot Other Device

When enabled, BIOS will try to load the operating system from other device

when it failed to load from the three devices above.

The Choices: Enabled (default), Disabled

Boot Up Floppy Seek

When enabled, System will test the floppy drives to determine if they have 40

or 80 tracks during boot up. Disabling this option reduces the time it takes to

boot-up.

The Choices: Enabled (default), Disabled.

TForce 590 SLI Deluxe

Virus Warning

This option allows you to choose the VIRUS Warning feature that is used to

protect the IDE Hard Disk boot sector. If this function is enabled and an attempt

is made to write to the boot sector, BIOS will display a warning message on the

screen and sound an alarm beep.

Disabled (default) Virus protection is disabled.

Enabled Virus protection is activated.

Quick Power On Self Test

Enabling this option will cause an abridged version of the Power On Self-Test

(POST) to execute after you power up the computer.

Disabled Normal POST.

Enabled (default) Enable quick POST.

Boot Up NumLock Status

Selects the NumLock State after the system switched on.

The Choices:

On (default) Numpad is number keys.

Off Numpad is arrow keys.

Gate A20 Option

Select if chipset or keyboard controller should control Gate A20.

Normal A pin in the keyboard controller controls GateA20.

Fast (default) Lets chipset control Gate A20.

Typematic Rate Setting

When a key is held down, the keystroke will repeat at a rate determined by the

keyboard controller. When enabled, the typematic rate and typematic delay can

be configured.

The Choices: Disabled (default), Enabled.

Typematic Rate (Chars/Sec)

Sets the rate at which a keystroke is repeated when you hold the key down.

The Choices: 6 (default), 8, 10, 12, 15, 20, 24, 30.

TForce 590 SLI Deluxe

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat the

keystroke.

The Choices: 250 (default), 500, 750, 1000.

Security Option

This option will enable only individuals with passwords to bring the system

online and/or to use the CMOS Setup Utility.

System: A password is required for the system to boot and is also

required to access the Setup Utility.

Setup (default): A password is required to access the Setup Utility only.

This will only apply if passwords are set from the Setup main menu.

APIC MODE

Selecting Enabled enables APIC device mode reporting from the BIOS to the

operating system.

The Choices: Enabled (default), Disabled.

MPS Version Control For OS

The BIOS supports version 1.1 and 1.4 of the Intel multiprocessor specification.

Select version supported by the operation system running on this computer.

The Choices: 1.4 (default), 1.1.

OS Select For DRAM > 64MB

A choice other than Non-OS2 is only used for OS2 systems with memory

exceeding 64MB.

The Choices: Non-OS2 (default), OS2.

Full Screen Logo Show

The Choices: Enabled (default), Disabled

TForce 590 SLI Deluxe

Small Logo(EPA) Show

This item allows you to select whether the “Small Logo” shows. Enabled

(default) “Small Logo” shows when system boots up. Disabled No “Small

Logo” shows when system boots

The Choices: Enabled (default), Disabled

Summary Screen Show

This item allows you to enable/disable the summary screen. Summary screen

means system configuration and PCI device listing.

The Choices: Disabled (default), Enabled.

TForce 590 SLI Deluxe

4 Advanced Chipset Features

This submenu allows you to configure the specific features of the chipset

installed on your system. This chipset manage bus speeds and access to system

memory resources, such as DRAM. It also coordinates communications with the

PCI bus. The default settings that came with your system have been optimized

and therefore should not be changed unless you are suspicious that the settings

have been changed incorrectly.

 Figure 4: Advanced Chipset Setup

Frame Buffer Size

The Choices: 16M, 32M (default), 64M, 128M, 256M, Disabled.

PMU

This item allows you to enable or disable the PMU function.

The Choices: Disabled (default), Enabled.

K8<->NB HT Width

This item allows you to select the K8<->NB HT Width

The Choices: [↓8 ↑8] , [↓16 ↑16], Auto (default).

TForce 590 SLI Deluxe

NB<->SB HT Width

This item allows you to select the NB<->SB HT Width

The Choices: [↓8 ↑8] , [↓16 ↑16], Auto (default).

CPU Spread Spectrum

This item allows you to select CPU Spread Spectrum function.

The Choices: Center (default).

SATA /PCIE Spread Spectrum

This item allows you to enable/disable the Spread Spectrum function.

The Choices: Disabled (Default), Enabled.

HT Spread Spectrum

This item allows you to enable/disable the Spread Spectrum function.

The Choices: Disabled (Default), Enabled.

SSE/SSE2 instruction

This item allows you to enable/disable SSE/SSE2 instruction.

The Choices: Enabled (Default), Disabled.

CPU Feature

TForce 590 SLI Deluxe

K8 NPT CIE Support

The Choices: Disabled (default), Enabled

AMD K8 Cool&Quiet Control

This function supports AMD Cool ’n’ Quick function.

The Choices: Auto (default), Disabled.

System BIOS Cacheable

Selecting the “Enabled” option allows caching of the system BIOS ROM at

F0000h-FFFFFh, which is able to improve the system performance. However,

any programs that attempts to write to this memory block will cause conflicts

and result in system errors.

The Choices: Disabled (default), Enabled.

TForce 590 SLI Deluxe

5 Integrated Peripherals

 Figure 5. Integrated Peripherals

IDE Function Setup

Highlight the “Press Enter” label next to the “IDE Function Setup” label and

press enter key will take you a submenu with the following options:

TForce 590 SLI Deluxe

RAID Config

RAID Enable

This option allows you to enable or disable RAID function.

The Choices: Disabled (default), Enabled.

SATA 1/2/3 Primary/Secondary RAID

This option allows you to enable or disable SATA1/2/3 Primary/Secondary

RAID.

The Choices: Disabled (default), Enabled.

On-chip IDE Channel 0/1

The motherboard chipset contains a PCI IDE interface with support for two

IDE channels. Select “Enabled” to activate the first and/or second IDE interface.

Select “Disabled” to deactivate an interface if you are going to install a primary

and/or secondary add-in IDE interface.

The Choices: Enabled (default), Disabled.

Primary/Master/Slave PIO

The IDE PIO (Programmed Input / Output) fields let you set a PIO mode (0-4)

for each of the IDE devices that the onboard IDE interface supports. Modes 0

to 4 will increase performance progressively. In Auto mode, the system

automatically determines the best mode for each device.

The Choices: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4.

TForce 590 SLI Deluxe

Primary/Secondary/Master/Slave UDMA

Ultra DMA function can be implemented if it is supported by the IDE hard

drives in your system. As well, your operating environment requires a DMA

driver (Windows 95 or OSR2may need a third party IDE bus master driver). If

your hard drive and your system software both support Ultra DMA, select Auto

to enable BIOS support.

The Choices: Auto (default), Disabled.

IDE DMA Transfer Access

This item allows you to enable or disable the IDE DMA transfer access.

The Choices: Enabled (default), Disabled.

Serial-ATA Controller

The Choices: All Enabled (default).

IDE Prefetch Mode

The “onboard” IDE drive interfaces supports IDE prefetch function for faster

drive access. If the interface on your drive does not support prefetching, or if

you install a primary and/or secondary add-in IDE interface, set this option to

“Disabled”.

The Choices: Enabled (default), Disabled.

Onboard Device

Highlight the “Press Enter” label next to the “Onboard Device” label and press

the enter key will take you a submenu with the following options:

TForce 590 SLI Deluxe

OnChip USB

This option should be enabled if your system has a USB installed on the system

board. You may need to disable this feature if you add a higher performance

controller.

The Choices: V1.1+V2.0 (default), Disabled, V1.1

USB Memory Type

The Choices: SHADOW(default).

USB Keyboard Support

This item allows you to enable or disable the USB Keyboard Legacy Support.

Enabled Enable USB Keyboard Support.

Disabled (default) Disable USB Keyboard Support.

HD Audio

The Choices: Auto (default).

MAC LAN

This option allows you to control the onboard MAC LAN.

The Choices: Auto (default), Disabled.

MAC Media Interface

This option allows you to control the onboard MAC Media Interface.

The Choices: Pin Strap (default), Disabled

MAC1 LAN

This option allows you to control the onboard MAC1 LAN.

The Choices: Auto (default), Disabled.

MAC1 Media Interface

This option allows you to control the onboard MAC1 Media Interface.

The Choices: Pin Strap (default), Disabled

Onboard LAN Boot ROM

This item allows you to enable or disable the Onboard LAN Boot ROM.

The Choices: Disabled (default), Enabled.

TForce 590 SLI Deluxe

Onboard I/O Address

Press Enter to configure the Onboard I/O Address.

Onboard FDC Controller

Select enabled if your system has a floppy disk controller (FDC) installed on

the system board and you wish to use it. If you installed another FDC or the

system uses no floppy drive, select disabled in this field.

The Choices: Enabled (default), Disabled.

Onboard Serial Port 1

Select an address and corresponding interrupt for the first and second serial

ports.

The Choices: 3F8/IRQ4 (default), Disabled, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,

Auto.

Onboard Parallel Port

This item allows you to determine access onboard parallel port controller with

which I/O Address.

The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.

TForce 590 SLI Deluxe

Parallel Port Mode

This item allows you to determine how the parallel port should function. The

default value is SPP.

The Choices:

SPP (default) Using Parallel port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

ECP Mode Use DMA

Select a DMA Channel for the port.

The Choices: 3 (default), 1.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector

read / write. If your IDE hard drive supports block mode (most new drives

do),select Enabled for automatic detection of the optimal number of block

mode(most new drives do), select Enabled for automatic detection of the

optimalnumber of block read / write per sector where the drive can support.

The Choices: Enabled (default), Disabled.

TForce 590 SLI Deluxe

6 Power Management Setup

The Power Management Setup Menu allows you to configure your system to

utilize energy conservation and power up/power down features.

 Figure 6. Power Management Setup

ACPI Function

This item displays the status of the Advanced Configuration and Power

Management (ACPI).

The Choices: Enabled (default), Disabled.

ACPI Suspend Type

The item allows you to select the suspend type under the ACPI operating

system.

The Choices: S1 (POS) (default) Power on Suspend

S3 (STR) Suspend to RAM

S1 & S3 POS+STR

TForce 590 SLI Deluxe

Power Management

This category allows you to select the power saving method and is directly

related to the following modes:

1. HDD Power Down.

2. Suspend Mode.

There are three options of Power Management, three of which have fixed mode

settings

Min. Power Saving

Minimum power management.

Suspend Mode = 1 hr.

HDD Power Down = 15 min

Max. Power Saving

Maximum power management only available for sl CPU’s.

Suspend Mode = 1 min.

HDD Power Down = 1 min.

User Define (default)

Allow you to set each option individually.

When you choose user define, you can adjust each of the item from 1 min. to 1

hr. except for HDD Power Down which ranges from 1 min. to 15 min.

Video Off Method

This option determines the manner when the monitor goes blank.

V/H SYNC+Blank (default)

This selection will cause the system to turn off the vertical and horizontal

synchronization ports and write blanks to the video buffer.

Blank Screen

This option only writes blanks to the video buffer.

DPMS Support (default)

Initial display power management signaling.

HDD Power Down

When enabled, the hard-disk drives will power down after a set time of system

inactivity. All other devices remain active.

The Choices: Disabled (default), 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7

Min, 8 Min, 9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15Min.

TForce 590 SLI Deluxe

HDD Down In Suspend

The Choices: Disabled (default), Enable.

Soft-Off by PWR-BTN

This item determines the behavior of system power button. Instant off turn off

the power immediately, and Delay 4 Sec. will require you to press and hold the

power button for 4 seconds to cut off the system power.

The Choices: Delay 4 Sec, Instant-Off (default).

WOL(PME#)/ From Soft-Off

This item allows you to enable or disable Wake On LAN from Soft-Off

function.

The Choices: Disabled (default), Enabled.

WOR(RI#) From Soft-Off

This item allows you to enable or disable Wake On Ring from Soft-Off function.

The Choices: Disabled (default), Enabled.

Power-On by Alarm

This function is for setting date and time for your computer to boot up. When

enabled, you can choose the date and time to boot up the system.

The Choices: Disabled (default), Enabled.

Date (of Month) Alarm

You can choose which month the system will boot up.

Time (hh:mm:ss) Alarm

You can choose the system boot up time, input hour, minute and second to

specify.

Note: If you have change the setting, you must let the system boot up until it

goes to the operating system, before this function will work.

POWER ON Function

This item allows you to choose the power on method.

The Choices: Button Only (default), Password, Hot Key, Mouse/Click, Mouse

Double/Click, Any Key, Keyboard 98.

TForce 590 SLI Deluxe

KB Power ON Password

Input password and press Enter to set the Keyboard power on password.

Hot Key Power ON

Choose the Hot Key combination to boot up the system.

The Choices: Ctrl-F1 (default), Ctrl-F2, Ctrl-F3, Ctrl-F4, Ctrl-F5, Ctrl-F6,

Ctrl-F7, Ctrl-F8, Ctrl-F9, Ctrl-F10, Ctrl-F11, and Ctrl-F12.

POWER After PWR-Fail

This setting specifies how your system should behave after a power fail or

interrupts occurs. By choosing off will leave the computer in the power off state.

Choosing On will reboot the computer. Former-Sts will restore the system to the

status before power failure or interrupt occurs.

The Choices: Off (default), On, Former-Sts.

TForce 590 SLI Deluxe

7 PnP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or Personal

Computer Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed of the CPU itself uses when communicating with its

own special components. This section covers some very technical items and it is

strongly recommended that only experienced users should make any changes to

the default settings.

 Figure 7: PnP/PCI Configurations

Init Display First

This item allows you to decide to active whether PCI Slot or on-chip VGA first.

The Choices: PCI Ex (default), PCI Slot.

Reset Configuration Data

The system BIOS supports the PnP feature which requires the system to record

which resources are assigned and protects resources from conflict.

Every peripheral device has a node, which is called ESCD. This node records

which resources are assigned to it. The system needs to record and update ESCD

to the memory locations. These locations are reserved in the system BIOS. If the

Disabled (default) option is chosen, the system‘s ESCD will update only when

the new configuration varies from the last one. If the Enabled option is chosen,

TForce 590 SLI Deluxe

the system is forced to update ESCDs and then is automatically set to the

“Disabled” mode.

The above settings will be shown on the screen only if “Manual” is chosen for

the resources controlled by function.

Legacy is the term, which signifies that a resource is assigned to the ISA Bus

and provides non-PnP ISA add-on cards. PCI / ISA PnP signify that a resource

is assigned to the PCI Bus or provides for ISA PnP add-on cards and

peripherals.

The Choices: Disabled (default), Enabled.

Resources Controlled By

By Choosing “Auto(ESCD)” (default), the system BIOS will detect the system

resources and automatically assign the relative IRQ and DMA channel for each

peripheral. By Choosing “Manual”, the user will need to assign IRQ & DMA for

add-on cards. Be sure that there are no IRQ/DMA and I/O port conflicts.

The Choices: Auto (ESCD) (default), Manual.

IRQ Resources

This submenu will allow you to assign each system interrupt a type, depending

on the type of device using the interrupt. When you press the “Press Enter” tag,

you will be directed to a submenu that will allow you to configure the system

interrupts. This is only configurable when “Resources Controlled By” is set to

“Manual”.

IRQ-3 assigned to PCI Device

IRQ-4 assigned to PCI Device

IRQ-5 assigned to PCI Device

IRQ-7 assigned to PCI Device

IRQ-9 assigned to PCI Device

IRQ-10 assigned to PCI Device

IRQ-11 assigned to PCI Device

IRQ-12 assigned to PCI Device

IRQ-14 assigned to PCI Device

IRQ-15 assigned to PCI Device

PCI / VGA Palette Snoop

Some old graphic controllers need to “snoop” on the VGA palette and then map

it to their display as a way to provide boot information and VGA compatibility.

This item allows such snooping to take place.

The Choices: Disabled (default), Enabled

TForce 590 SLI Deluxe

Maximum Payload Size

Set the maximum payload size for Transaction packets (TLP).

The Choice: 4096 (default.), 128, 256, 512, 1024, 2048.

TForce 590 SLI Deluxe

8 PC Health Status

 Figure 8: PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item is

only effective under Windows 98 ACPI mode.

The Choices: Disabled (default) , 60℃/ 140℉, 65℃/ 149℉, 70℃/ 158℉.

Show H/W Monitor in POST

If you computer contains a monitoring system, it will show PC health status

during POST stage. The item offers several different delay times.

The Choices: Enabled (default), Disabled.

CPU FAN Control by

Choose “smart” to reduce the noise caused by CPU FAN.

The Choices: Smart, Always On (default).

SB FAN Control by

Choose “smart” to reduce the noise caused by the South bridge FAN.

The Choices: SMART (default), Always On.

TForce 590 SLI Deluxe

CPU Fan Off<℃>

If the CPU Temperature is lower than the set value, FAN will turn off.

The Choices: 16 (default).

CPU Fan Start<℃>

CPU fan starts to work under smart fan function when arrive this set value.

The Choices: 32(default).

CPU Fan Full speed <℃>

When CPU temperature is reach the set value, the CPU fan will work under Full

Speed.

The Choices: 64(default).

Start PWM Value

When CPU temperature arrives to the set value, the CPU fan will work under

Smart Fan Function mode. The range is from 0~127, with an interval of 1.

The Choices: 32 (default).

Slope PWM

Increasing the value of slope PWM will raise the speed of CPU fan.

The Choices: 1 PWM Value/℃(default), 2 PWM Value/℃, 4 PWM Value/℃,

8 PWM Value/℃,16 PWM Value/℃,32 PWM Value/℃, 64PWM Value/℃.

CPU Vcore, Chipset Volt, +3.3V, +5.0V, +12.0V, DDR Voltage,

HT Voltage, 5V (SB), Voltage Battery

Detect the system’s voltage status automatically.

SYSTEM Temp

This field displays the current temperature of SYSTEM.

CPU Temp

This field displays the current temperature of CPU.

Current CPU FAN Speed

This field displays the current speed of CPU fan.

TForce 590 SLI Deluxe

Current SB FAN Speed

This field displays the current speed SB fan.

Current SYS FAN Speed

This field displays the current speed SYSTEM fan.

TForce 590 SLI Deluxe

9 Over Clock Navigator

OverClock Navigator

OverClock .Navigator is designed for beginners in overclock field.

Based on many test and experiments from Biostar Engineer Team, OverClock

Navigator provides 3 default overclock configurations that are able to raise the

system performance

The Choices: Normal (default), Automate Overclock, Manual Overclock

TForce 590 SLI Deluxe

Auto OverClock System

The Overclock Navigator provides 3 different engines helping you to overclock

your system. These engines will boost your system performance to different

level.

The Choices:

V6 Tech Engine

This setting will raise about 5%~10% of whole system performance.

V8 Tech Engine

This setting will raise about 15%~25% of whole system performance.

V12 Tech Engine

This setting will raise about 25%~30% of whole system performance.

Cautions:

1. Not every AMD CPU performs the above overclock setting ideally; the difference may vary

with the installed CPU model.

2. From BET experiment, the Atholon64 FX CPU is not suitable for this A.O.S. feature.

TForce 590 SLI Deluxe

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users.

It allows users to customize personal overclock setting.

Note:

Based on our test results; the overclock function achieved the best performance on AMD

3000+ CPU

CPU Vid control

The Choices: Auto (default).

Memory Voltage

The Choices: 1.950V (default), 2.000V, 2.050V, 2.100V.

Chipset Voltage

The Choices: 1.550V (default), 1.600V, 1.650V, 1.700V.

HyperTransport Voltage

The Choices: 1.250V (default), 1.300V, 1.350V, 1.400V.

CPU Frequency

This item allows you to select the CPU Frequency.

The Choices: AUTO (default), 200, 201, 202, 203, 204, 205, 206, 207,

208, 209 … 500 ( Max is 500).

NPT Fid control

The Choices: AUTO (default).

TForce 590 SLI Deluxe

K8<->SB HT Speed

The Choices: AUTO (default), 1X, 2X, 3X, 4X, 5X.

NB<->SB HT Speed

The Choices: AUTO (default) 1X, 2X, 3X, 4X, 5X.

PCI Express bus (SB)

The Choices: Hyperclk GPU (default).

NB<->SB Reference clock

The Choices: Auto (default).

PCI Express bus (NB)

The Choices: Hyperclk GPU (default).

Timing Mode

This item allows you to choose to manually or automatically regulate the DDR

Timing.

The Choices: Auto (default), Manual.

Memory Clock value or Limi

The Choices: DDR 400 (default).

DRAM Configuration

TForce 590 SLI Deluxe

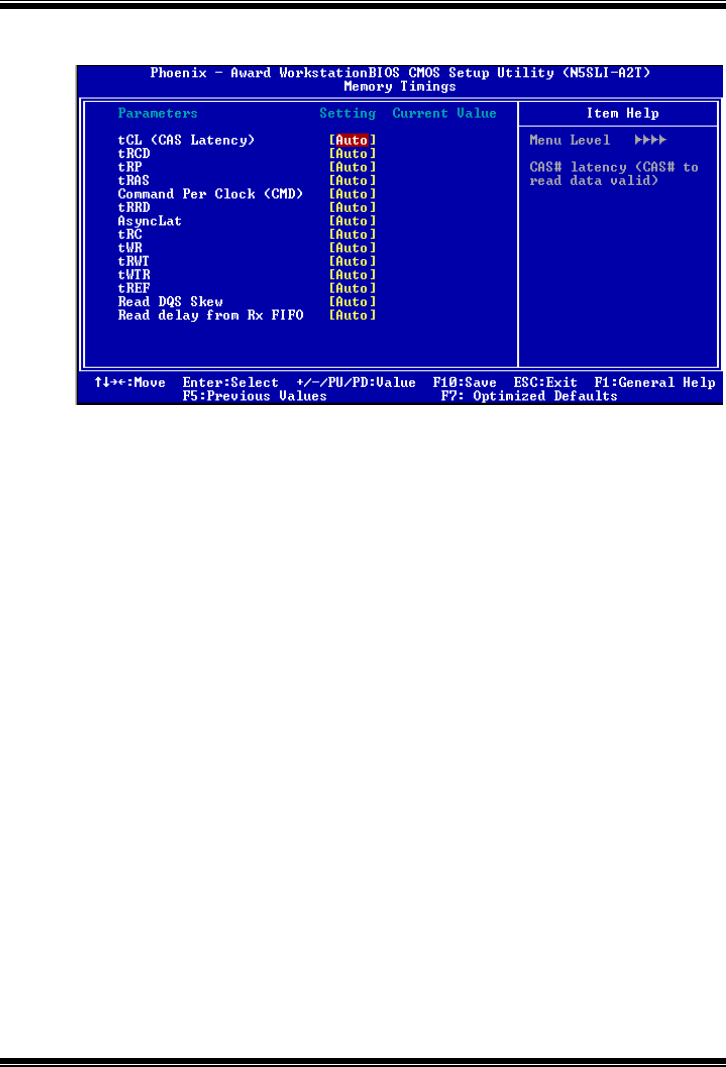

Memory Timings

tCL <CAS Latency>

The Choices: Auto (Default), 3 Clock, 4 Clock, 5 Clock, 6 Clock.

tRCD

The Choices: Auto (Default), 3 Clock, 4 Clock, 5 Clock, 6 Clock.

tRP

The Choices: Auto (Default), 3 Clock, 4 Clock, 5 Clock, 6 Clock.

tRAS

The Choices: Auto (Default), 5 Clock, 6 Clock, 7 Clock, 8 Clock, 9 Clock, 10

Clock, 11 Clock, 12 Clock, 13 Clock, 14 Clock, 15 Clock, 16 Clock, 17 Clock,

18 Clock.

Command Per Clock <CMD>

The Choices: Auto (Default), 1 Clock, 2 Clock.

tRRD

The Choices: Auto (Default), 2 Clock, 3 Clock, 4 Clock, 5 Clock

AsyncLat

The Choices: Auto (Default), 1ns, 2ns, 3ns, 4ns, 5ns, 6ns, 7ns, 8ns, 9ns, 10ns,

11ns, 12ns, 13ns, 14ns, 15ns.

TForce 590 SLI Deluxe

tRC

The Choices: Auto (Default), 11 Clock, 12 Clock, 13 Clock, 14 Clock, 15

Clock, 16 Clock, 17 Clock, 18 Clock, 19 Clock, 20 Clock, 21 Clock, 22 Clock,

23 Clock, 24 Clock, 25 Clock, 26 Clock.

tWR

The Choices: Auto (Default), 3 Clock, 4 Clock, 5 Clock, 6 Clock.

tRWT

The Choices: Auto (Default), 2 Clock, 3 Clock, 4 Clock, 5 Clock, 6 Clock, 7

Clock, 8 Clock, 9 Clock.

tWTR

The Choices: Auto (Default), 1 Clock, 2 Clock, 3 Clock.

tREF

The Choices: Auto (Default), 7.8us, 3.9us.

Read DQS Skew

The Choices: -10/96 Clock…-1/96Clock, Auto (Default),

+1/96Clock…+10/96 Clock,.

Read delay from Rx FIFO

The Choices: Auto (Default), 0.5 Clock, 1.0 Clock, 1.5 Clock, 2.0 Clock, 2.5

Clock, 3.0 Clock, 3.5 Clock, 4.0 Clock.

Drive Strength Setting

TForce 590 SLI Deluxe

Dram driver weak mode

The Choices: Auto (Default), Normal, Weak.

CKE drive strength

The Choices: Auto (Default), 1.0X, 1.25X, 1.5X, 2.0X.

CS drive strength

The Choices: Auto (Default), 1.0X, 1.25X, 1.5X, 2.0X.

MA drive strength

The Choices: Auto (Default), 1.0X, 1.25X, 1.5X, 2.0X.

MCLK drive strength

The Choices: Auto (Default), 0.75X, 1.0X, 1.25X, 1.50X.

MD drive strength

The Choices: Auto (Default), 0.75X, 1.0X, 1.25X, 1.50X.

DQS drive strength

The Choices: Auto (Default), 0.75X, 1.0X, 1.25X, 1.50X.

SLI-Ready Memory

The Choices: Auto (Default), Disabled.

Dram on-die Termination

The Choices: AUTO(Default), 75ohm, 150ohm, 50oham.

Read/Write Queue bypass

The Choices: AUTO (Default).

Bypass maximum

The Choices: AUTO (Default).

32 Byte Granularity

The Choices: AUTO (Default), 64-byte, 32-byte.

DQS Training Control

The Choices: Perform DQS, Skip DQS (default).

CKE base power down mode

The Choices: Enabled (default), Disabled.

CKE base powerdown

The Choices: Per Channel (default), Per CS.

TForce 590 SLI Deluxe

Memclock tri-stating

The Choices: Disabled (default), Enabled.

Memory Hole Remapping

The Choices: Enabled (default), Disabled.

Auto Optimize Bottom IO

The Choices: Enabled (default), Disabled.

Bottom of [31:24] IO space

Auto Optimaize Maximal DRAM size when kemel Assigns PCI Resources

Done.

The Choices: C0 (default).

Bottom of UMA DRAM [31:24]

The Choices: FC (default).

DDRII Timing Item

The Choices: Disabled (default), Enabled.

TwTr Command Delay

The Choices: 3 bus clocks (default).

Trfc0 for DIMM0

The Choices: 75ns (default).

Trfc1 for DIMM1

The Choices: 75ns (default).

Trfc2 for DIMM2

The Choices: 75ns (default).

Trfc3 for DIMM3

The Choices: 75ns (default).

(Twr) Write Recovery Time

The Choices: 6 bus clocks (default).

(Trtp) Precharge Time

The Choices: 3 bus clocks (default).

(Trc) Row Cycle Time

The Choices: 26 bus clocks (default).

TForce 590 SLI Deluxe

(Trcd)RAS# to CAS R/W Delay

The Choices: 6 clocks (default).

(Trrd) RAS to RAS Delay

This field specifies the RAS# to CAS# Delay to read/ write command to the

same bank. Typically -20 Nsec.

The Choices: 5 clocks (default).

(Trp) Row Precharge Time

This field specifies the Row precharge Time. Precharge to Active or

Auto-Refresh of the same bank. Typically 20-24 Nsec.

The Choices: 6 clocks (default).

(Tras) Minimum RAS Active T

The Choices: 18 bus clocks (default).

TForce 590 SLI Deluxe

Integrated Memory Test

Integrated Memory Test allows users to test memory module compatibilities

without additional device or software.

Step 1:

This item is disabled on default; change it to “Enable” to precede memory test.

Step 2:

When the process is done, change the setting back from “Enabled” to

“Disabled” to complete the test.

TForce 590 SLI Deluxe

10 CMOS Reload Program (C.R.P.)

The CMOS Reload Program (CRP) allows you to save different CMOS settings

into BIOS-ROM. You may reload any saved CMOS setting to change system

configurations. Moreover, you may save your ideal overclock setting for easier

overclocking. There are 50 sets record addresses in total, and you may name the

saved CMOS data individually.

Biostar Tforce 590 Sli Deluxe Owners Manual N5slia2t_0615

Navigation menu

Versions of this User Manual:

Views

Navigation
