TP35D2-A7 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start......................................................................................... 1

1.2 Package Checklist..................................................................................... 1

1.3 Motherboard Features.............................................................................. 2

1.4 Rear Panel Connectors (for Ver 5.x) ....................................................... 4

1.5 Rear Panel Connectors (for Ver 6.x)....................................................... 4

1.6 Motherboard Layout................................................................................. 5

Chapter 2: Hardware Installation .......................... 6

2.1 Installing Central Processing Unit (CPU) ............................................... 6

2.2 FAN Headers.............................................................................................. 8

2.3 Installing System Memory ........................................................................ 9

2.4 Connectors and Slots................................................................................ 11

Chapter 3: Headers & Jumpers Setup .................. 13

3.1 How to Setup Jumpers............................................................................. 13

3.2 Detail Settings.......................................................................................... 13

Chapter 4: OverClock Quick Guide ....................... 20

4.1 T-Power Introduction.............................................................................. 20

4.2 T-Power BIOS Feature ............................................................................ 20

4.3 T-Power Windows Feature..................................................................... 26

Chapter 5: Useful Help ........................................ 32

5.1 Driver Installation Note.......................................................................... 32

5.2 Award BIOS Beep Code .......................................................................... 33

5.3 Extra Information.................................................................................... 33

5.4 Troubleshooting....................................................................................... 35

Appendencies: SPEC In Other Language .............. 36

German.................................................................................................................. 36

France .................................................................................................................... 38

Italian..................................................................................................................... 40

Spanish ................................................................................................................... 42

Portuguese ............................................................................................................ 44

Polish...................................................................................................................... 46

Russian ................................................................................................................... 48

Arabic..................................................................................................................... 50

Japanese ................................................................................................................ 52

TP35D2-A7

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

HDD Cable X 1

Serial ATA Cable X 2

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

S/PDIF out Cable X 1 (optional)

Serial ATA Power Cable X 1 (optional)

Motherboard Manual

1.3 MOTHERBOARD FEATURES

Ver 5.x Ver 6.x

CPU

LGA 775

Intel Core2Duo / Core2Quad / Celeron 4xx /

Pent iu m D / Pent iu m 4 / C eleron D pro cess or

Supports Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

LGA 775

Intel Core2Duo / Core2Quad / Celeron 4xx /

Pent iu m D / Pent iu m 4 / C eleron D pro cess or

Supports Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

FSB Support 533 / 800 / 1066 / 1333 MHz Support 533 / 800 / 1066 / 1333 MHz

Chipset Intel P35

Intel ICH9

Intel P35

Intel ICH9

Super I/O

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Speed Controller

ITE's "S mart Guardian" function

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Speed Controller

ITE's "S mart Guardian" function

Main

Memory

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 800 / 667

Supports DDR2 533 (with FSB 533/1066 CPU)

Registered DIMM and ECC DIMM is not

supported

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 800 / 667

Supports DDR2 533 (with FSB 533/1066 CPU)

Registered DIMM and ECC DIMM is not

supported

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

SATA 2

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

TP35D2-A7

Ver 5.x Ver 6.x

LAN

Realtek RTL 8110SC / 8100C (optional)

10 / 100 Mb/s / 1Gb/s auto negotiation (Gigabit

bandwidth is for RTL 8110SC only)

Half / Full duplex capability

Realtek RTL 8110SC / 8100C (optional)

10 / 100 Mb/s / 1Gb/s auto negotiation (Gigabit

bandwidth is for RTL 8110SC only)

Half / Full duplex capability

Sound

Codec

ALC888

7.1 channels audio out

High Definition Audio

ALC861VD

5.1 channels audio out

High Definition Audio

PCI slot x3 PCI slot x3

PCI Express x 16 slot x1 PCI Express x 16 slot x1

PCI Express x 4 slot x1 PCI Express x 4 slot x1

Slots

PCI Express x 1 slot x1 PCI Express x 1 slot x1

Floppy connector x1 Floppy connector x1

Printer Port Connector x1 Printer Port Connector x1

IDE Conn ector x1 IDE Conn ector x1

SATA Connector x4 SATA Connector x4

Front Panel Connector x1 Front Panel Connector x1

Front Audio Connector x1 Front Audio Connector x1

CD-in Connector x1 CD-in Connector x1

S/PDIF out connector x1 S/PDIF out connector x1

S/PDIF in connector(optional) x1 S/PDIF in connector(optional) x1

CPU Fan header x1 CPU Fan header x1

System Fan head er x2 System Fan head er x2

Clear CMOS header x1 Clear C MOS header x1

USB connector x3 USB connector x3

Power Connector (24pin) x1 Power Connector (24pin) x1

On Board

Connector

Power Connector (4pin) x1 Power Connector (4pin) x1

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB Port x6

Audio Jack x6

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB Port x6

Audio Jack x3

Board Size 220 (W) x 305 (L) mm 220 (W) x 305 (L) mm

OS Support

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

Motherboard Manual

1.4 REAR PANEL CONNECTORS (FOR VER 5.X)

Line In

Line Out

Mic In

Center

Rear

Si de

PS/2

Mouse

PS/2

Keyboard

COM1 USBX2 USBX2

LA N

USBX2

Audio Jack

1.5 REAR PANEL CONNECTORS (FOR VER 6.X)

PS/2

Mouse

PS/2

Keyboard

COM1 USBX2 USBX2

LAN

USBX2

Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

TP35D2-A7

1.6 MOTHERBOARD LAYOUT

BI O S

PEX4_1

DDR2_A1

DDR2_B1

FDD1

PEX16_1

PCI1

PCI2

JATXPWR2

JC FAN1

JATXPWR1

SATA1SATA3

CO D E C

JSFAN1

LAN

BAT1

LGA775

CPU1

JKBMS1

JUSB2

JRJ45USB1

JA UDI O 1

(for Ver 5.x)

JSPDIF_OUT1

IDE1

JCOM1

SATA2SATA4

DDR2_A2

DDR2_B2

IDE

Super

I/O

JUSB1

RST SW2

PEX1_1

PCI3

JNFAN1

JCMOS1

JPRNT1

LE D 2

LE D1

JS PDI F_IN1 (opti onal)

JUSB4

JCDIN1

JAUDIOF1

JUSB3

JPANEL1 PWRSW1

JUSB5

Intel

P35

Intel

ICH9

JAUDIO2

(for Ver 6.x)

Note: represents the 1■st pin.

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

Pin Cap

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up to a 90-degree angle.

TP35D2-A7

Step 2: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will

fit only in the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the JCFAN1. This completes the installation.

Motherboard Manual

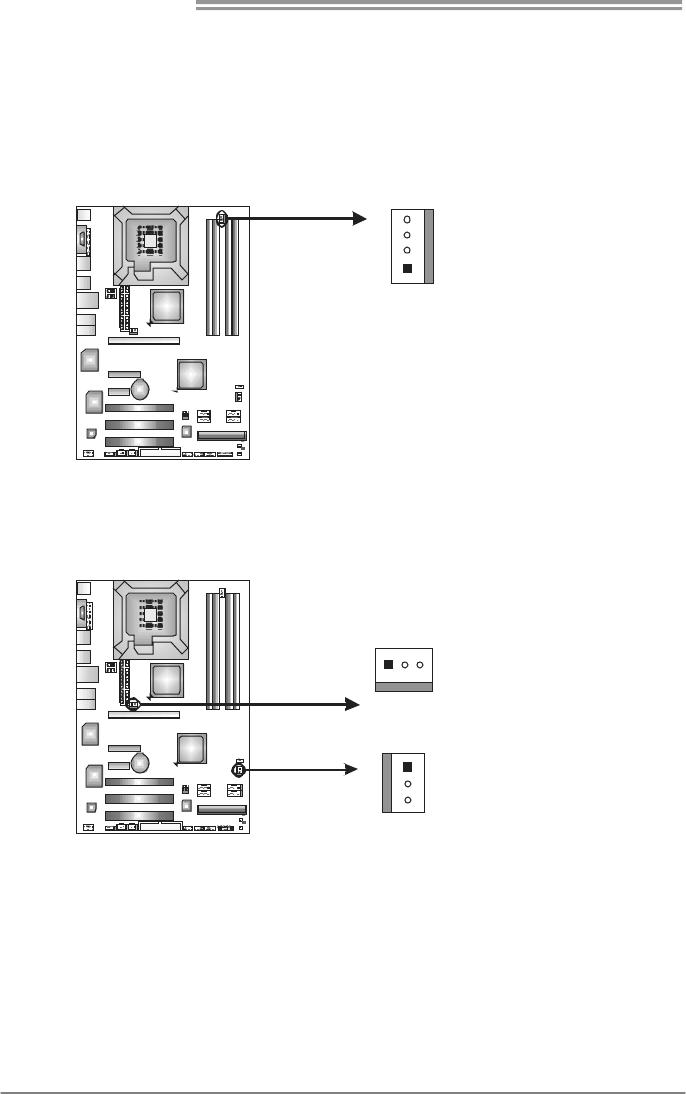

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

4 Smart Fan

Control

JSFAN1: System Fan Header

JNFAN1: Northbridge Fan Header

Assignment

1 Ground

2 +12V

JSFAN1

JNFAN1

3 FAN RPM rate

sense

Note:

The JNFAN1 and JSFAN1 support 3-pin head connector. When connecting with wires

onto connectors, please note that the red wire is the positive and should be connected to

pin#2, and the black wire is Ground and should be connected to GND.

TP35D2-A7

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR2 _A1

DDR2 _B1

DDR2 _A2

DDR2 _B2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

B. Memory Capacity

DIMM Socket

Location DDR Module Total Memory

Size

DDR2_A1 256MB/512MB/1GB/2GB

DDR2_A2 256MB/512MB/1GB/2GB

DDR2_B1 256MB/512MB/1GB/2GB

DDR2_B2 256MB/512MB/1GB/2GB

Max is 8GB.

Motherboard Manual

C. Dual Channel Memory installation

To trigger the Dual Channel function of the motherboard, the memory module

must meet the following requirements:

Install memory module of the same density in pairs, shown in the following

table.

Dual Channel Status DDR2_A1 DDR2_A2 DDR2_B1 DDR2_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or

x16)

TP35D2-A7

2.4 CONNECTORS AND SLOTS

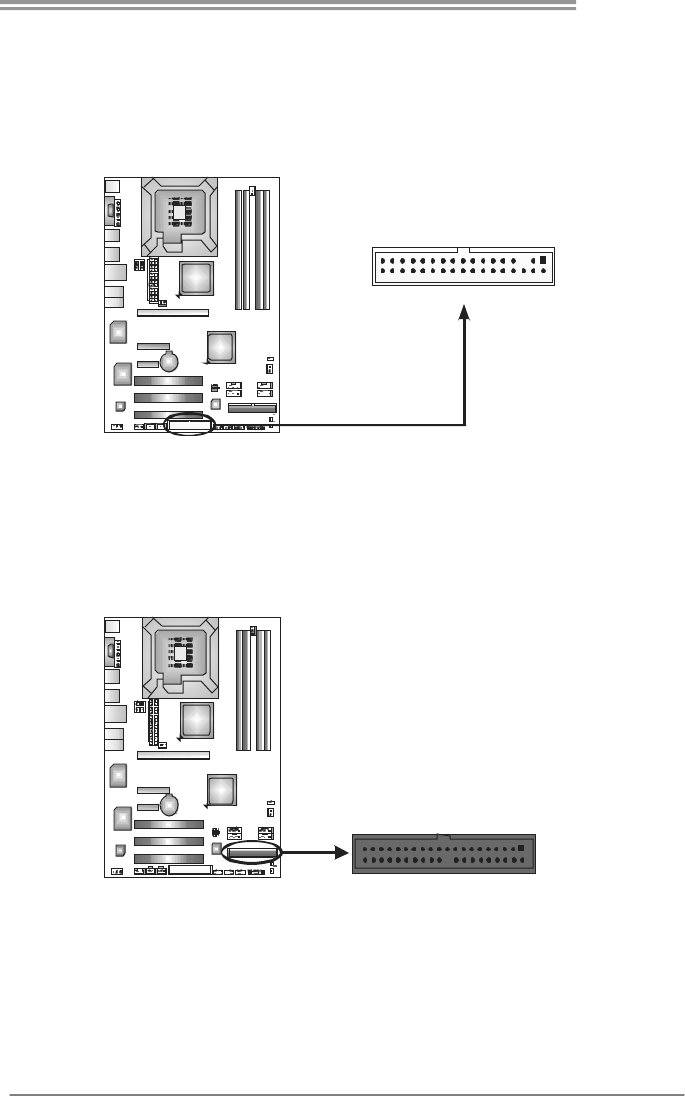

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

33 1

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connector can connect a master and a slave drive, so you can connect

up to two hard disk drives.

240

Motherboard Manual

PEX16_1: PCI-Express x16 Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per

direction, for an aggregate of 8GB/s totally.

PEX4_1: PCI-Express x4 Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 1GB/s simultaneously per

direction, for an aggregate of 2GB/s totally.

PEX1_1: PCI-Express Slot

- PCI-Express 1.0a compliant.

- Maximum theoretical realized bandwidth of 250MB/s simultaneously per

direction, for an aggregate of 500MB/s totally.

PEX16_1

PEX4_1

PEX1_1

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI3

PCI2

PCI1

TP35D2-A7

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

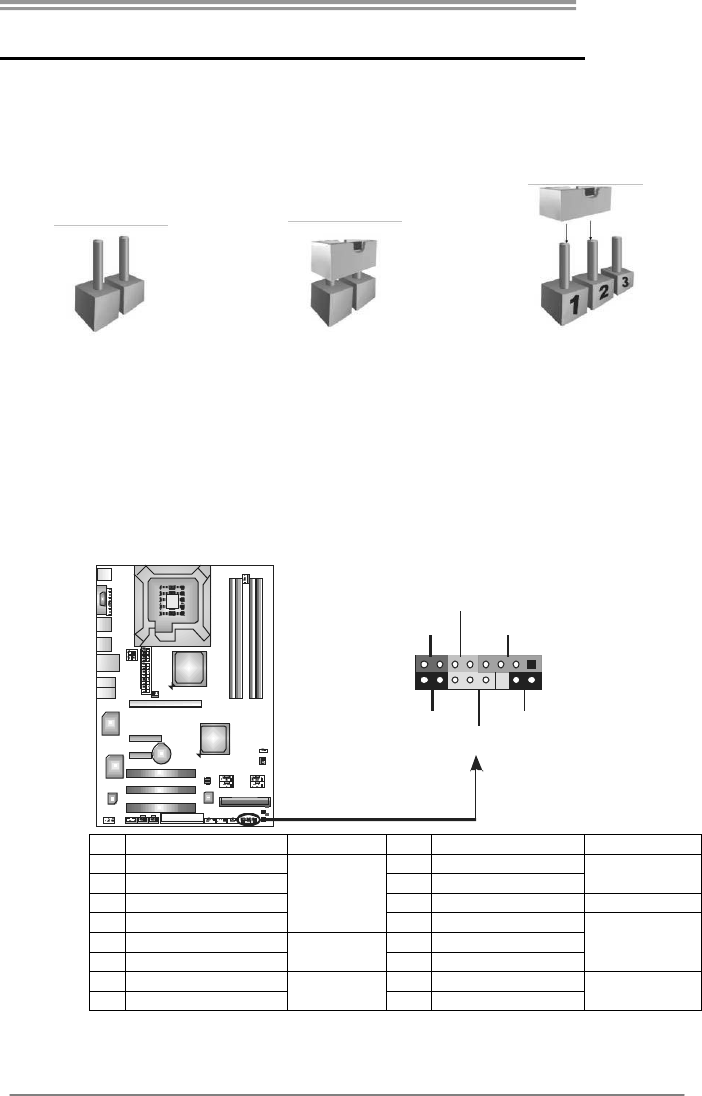

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep

button and speaker connection. It allows user to connect the PC case’s front

panel switch functions.

SLP

PWR_LED

On/Off

RST

HLED

SPK

Pin Assignment Function Pin Assignment Function

1 +5V 9 Sleep control

2 N/A 10 Ground Sleep button

3 N/A 11 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

Motherboard Manual

JATXPWR2: ATX Power Source Connector

JATXPW2 allows user to connect 24-pin power connector on the ATX power

supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Gro und 3 Gro und

16 PS_ON 4 +5V

17 Gro und 5 Gro und

18 Ground 6 +5V

19 Gro und 7 Gro und

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

JATXPWR1: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground

TP35D2-A7

JUSB3/JUSB4/JUSB5: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

JUSB5

JUSB4

JUSB3

10 NC

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. It will disable the output on back panel audio connectors.

Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel

Input

Motherboard Manual

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting

and the CMOS data, please carefully follow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4 channels SATA interface,

it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

SATA3 SATA1

SATA4 SATA2

7 Ground

TP35D2-A7

JSPDIF_OUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

JSPDIF_IN1: Digital Audio-in Connector (Optional)

This connector allows user to connect the PCI bracket SPDIF input header.

Assignment

1 +5V

2 SPDIF_IN

3 Ground

Motherboard Manual

On-Board LED Indicators

There are 2 LED indicators on the motherboard to show system status.

LED2

LED1

LED1 and LED2:

These 2 LED indicate system power on diagnostics.

Please refer to the table below for different messages:

LED1 LED2 Message

ON ON Norma l

ON OFF Memory Error

OFF ON VGA Error

OFF OFF Abnormal: CPU / Chipset error.

On-Board Buttons

There are 2 on-board buttons.

RSTSW2

PWRSW1

PWRSW1:

This is an on-board Power Switch button.

RSTSW2:

This is an on-board Reset button.

TP35D2-A7

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

Motherboard Manual

CHAPTER 4: OVERCLOCK QUICK GUIDE

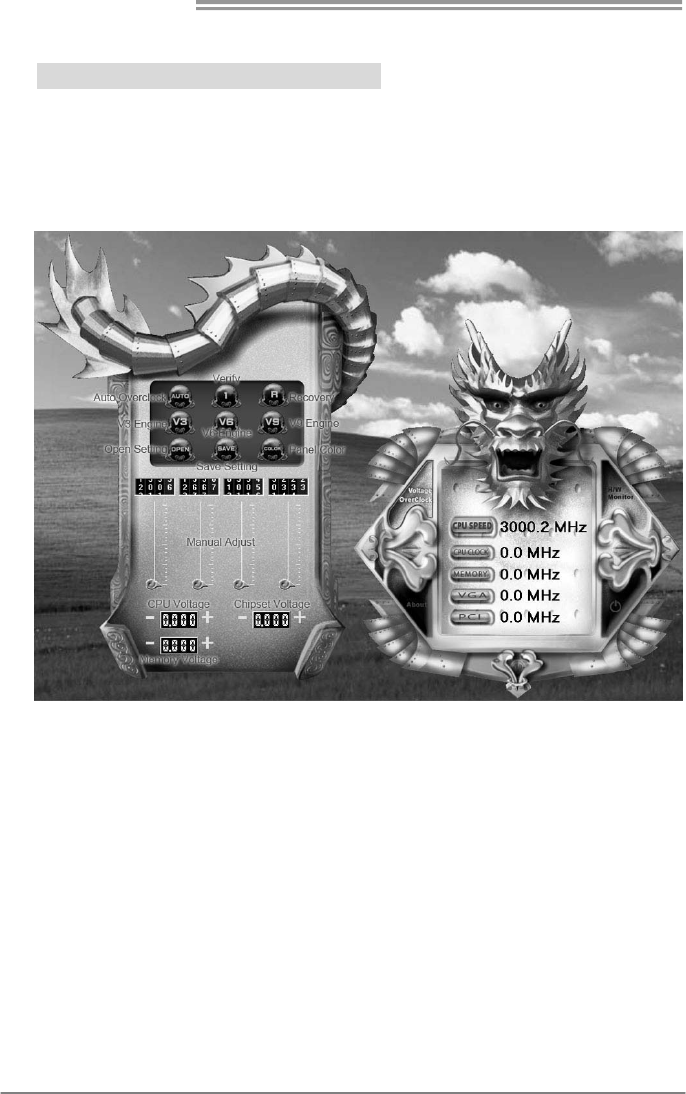

4.1 T-POWER INTRODUCTION

Biostar T-Power is a whole new utility that is designed for overclock users.

Based on many precise tests, Biostar Engineering Team (BET) has

developed this ultimate overclock engine to raise system performance.

No matter whether under BIOS or Windows interface, T-Power is able to

present the best system state according to users’ overclock setting.

T-Power BIOS Features:

Overclocking Navigator Engine (O.N.E.)

CMOS Reloading Program (C.R.P.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

Integrated Flash Program (I.F.P.)

Self Recovery System (S.R.S)

T-Power Windows Feature:

Hardware Monitor

Overclock Engine

System Information

!! WARNING !!

For better system performance, the BIOS firmware is being

continuously updated. The BIOS information described below in

this manual is for your reference only and the actual BIOS

information and settings on board may be different from this

manual. For further information of setting up the BIOS, please

refer to the BIOS Manual in the Setu

CD.

TP35D2-A7

4.2 T-POWER BIOS FEATURE

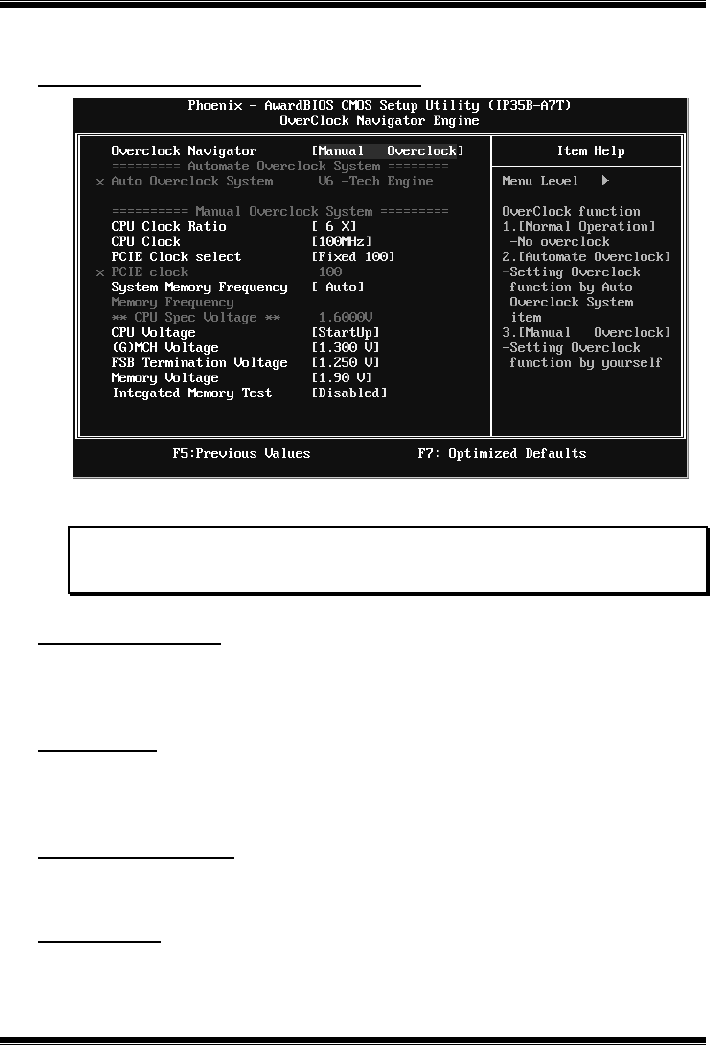

A. Overclocking Navigator Engine (O.N.E.):

ONE provides two powerful overclocking engines: MOS and AOS for both

Elite and Casual overclockers.

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users.

It allows users to customize personal overclock settings.

Motherboard Manual

CPU Clock Ratio & CPU Clock:

CPU Clock Ratio x CPU Clock = CPU Frequency. CPU Frequency is

directly in proportion to system performance. To maintain the system

stability, CPU voltage needs to be increased also when raising CPU

frequency.

PCI-E Clock Select:

It helps to increase VGA card performance.

System Me mory Frequency:

To get better system performance, sometimes downgrading the memory

frequency is necessary when CPU frequency is adjusted over the upper

limit.

CPU Voltage:

This function will increase CPU stability when overclocking. However, the

CPU temperature will increase when CPU voltage is increased.

(G)MCH Voltage:

This function lets you select the (G)MCH voltage.

FSB Termination Voltage:

This function will increase chipset stability when overclocking.

Memory Voltage:

This function will increase memory stability when overclocking.

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and

powerful feature to increase the system performance, named A.O.S.

Based on many tests and experiments, A.O.S. provides 3 ideal overclock

configurations that are able to raise the system performance in a single

step.

TP35D2-A7

V6 Tech Engine:

This setting will raise about 10%~15% of whole system performance.

V8 Tech Engine:

This setting will raise about 15%~25% of whole system performance.

V12 Tech Engine:

This setting will raise about 25%~30% of whole system performance.

Motherboard Manual

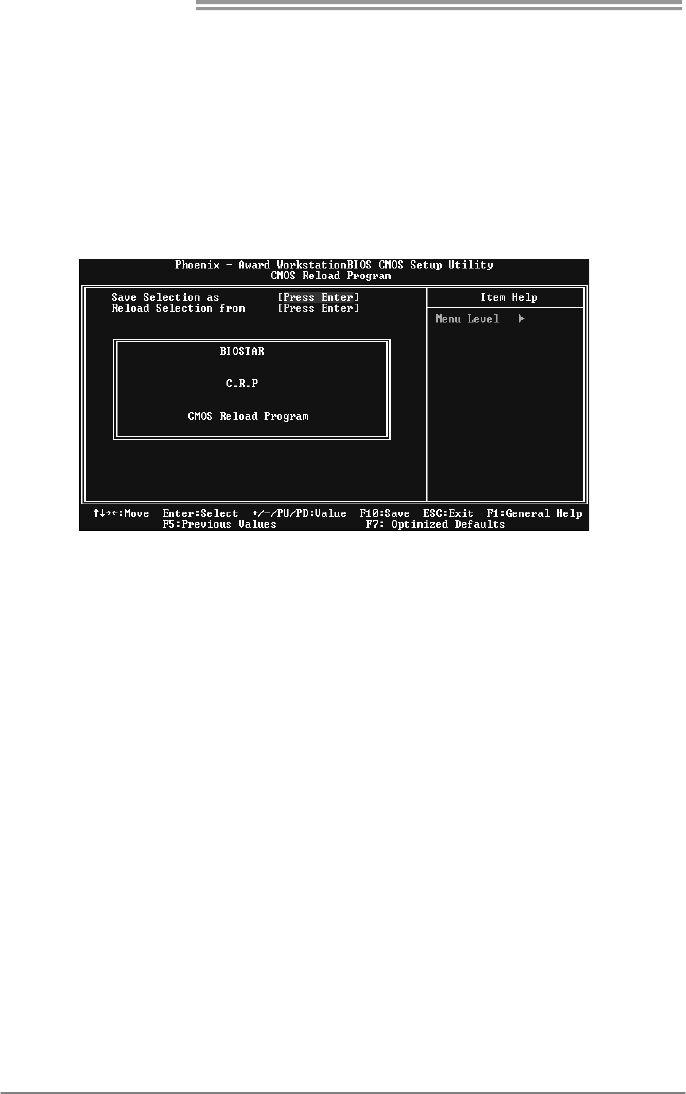

B. CMOS Reloading Program (C.R.P.):

It allows users to save different CMOS settings into BIOS-ROM.

Users are able to reload any saved CMOS setting for customizing system

configurations.

Moreover, users are able to save an ideal overclock setting during overclock

operation.

There are 50 sets of record addresses in total, and users are able to name the

CMOS data according to personal preference.

TP35D2-A7

C. Memory Integration Test (M.I.T.):

This function is under “Overclocking Navigator Engine” item.

MIT allows users to test memory compatibilities, and no extra devices or

software are needed.

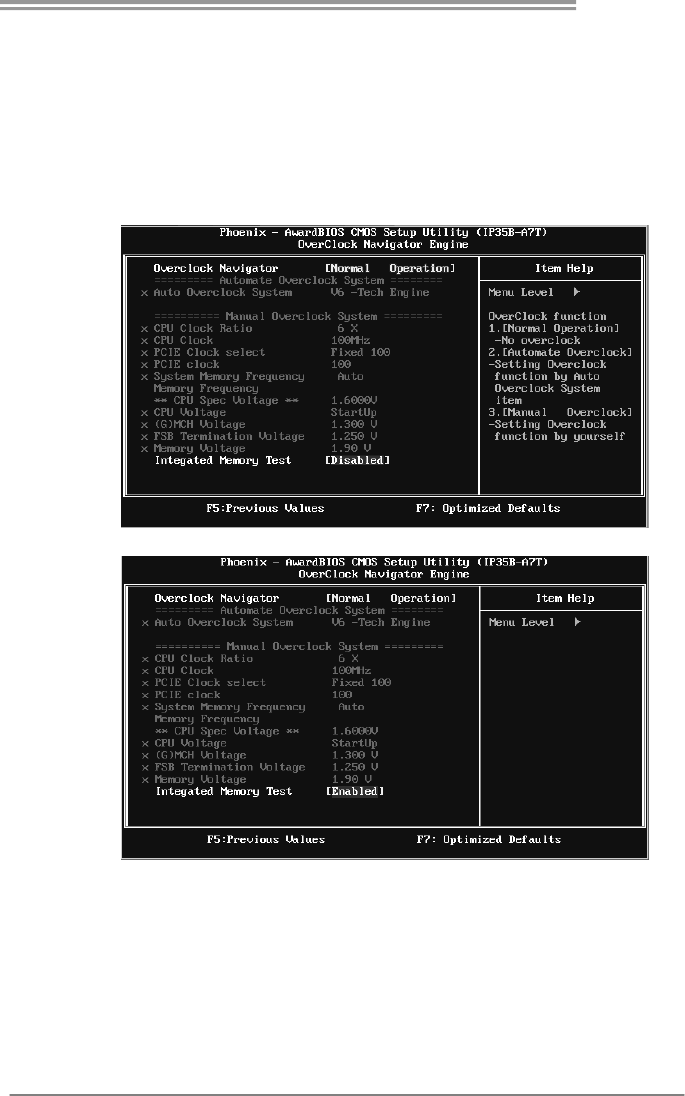

Step 1:

The default setting under this item is “Disabled”; the condition parameter should

be changed to “Enable” to proceed this test.

↓

Step 2:

Save and Exit from CMOS setup and reboot the system to activate this test.

Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3:

When the process is done, change the setting back from “Enable” to “Disable”

to complete the test.

Motherboard Manual

D. Self Recovery System (S.R.S.):

This function can’t be seen under T-Power BIOS setup; and is always on

whenever the system starts up.

However, it can prevent system hang-up due to inappropriate overclock

actions.

When the system hangs up, S.R.S. will automatically log in the default BIOS

setting, and all overclock settings will be re-configured.

E. Integrated Flash Program (I.F.P.):

IFP is a safe and quick way to upgrade BIOS.

Step 1:

Go to Biostar website (http://www.biostar.com.tw) to download the latest BIOS

file. Then, save the file into a floppy disk.

Step 2:

Insert the floppy disk and reboot the system to get into CMOS screen.

Step 3:

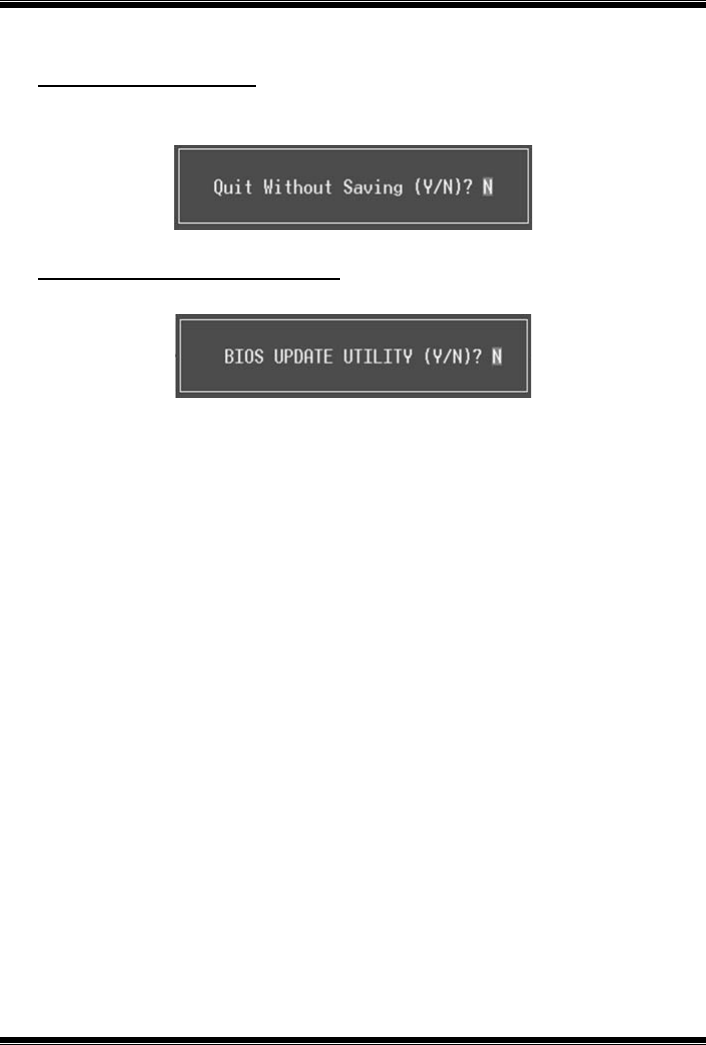

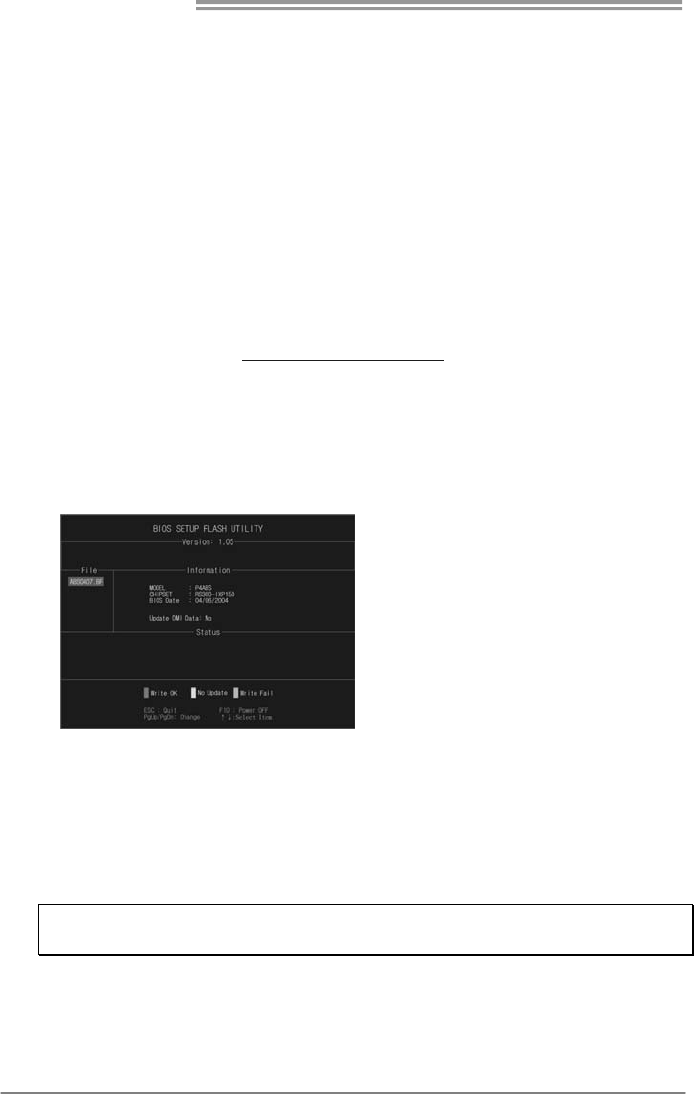

Select the item “Integrated Flash Program” to get the following frame and

choose the BIOS file downloaded in step 1.

Step 4:

Press “Enter” key to start BIOS file loading, and BIOS updating will process

automatically.

Step 5:

When the BIOS update is completed, press YES to the message “Flash done,

Reset system”, and the system will reboot automatically to finish the process.

Advise:

You can update the system BIOS by simply pressing “Enter” key for three times.

TP35D2-A7

4.3 T-POWER WINDOWS FEATURE

1. Desktop Icon

After the T-Utility has been installed, a T-Utility icon will appear on the

desktop, just like the icon shown below.

Now you can launch the T-Utility simply by double-clicking the desktop

icon.

2. Main Panel

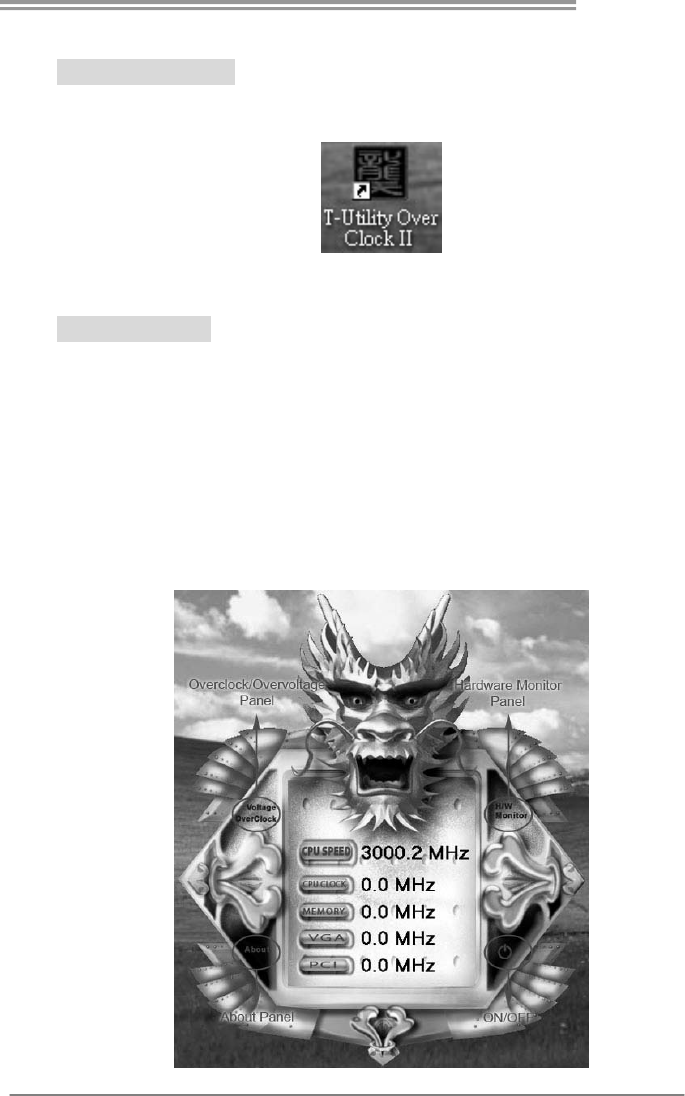

If you double-click the desktop icon, T-Utility will be launched. Please

refer to the following figure; the utility’s first window you will see is

Main Panel.

Main Panel contains features as follows:

a. Display the CPU Speed, CPU external clock, Memory clock, VGA

clock, and PCI clock information.

b. Contains About, Overclock/Overvoltage, and Hardware Monitor

Buttons for invoking respective panels. The On/Off button is for

closing the program.

Motherboard Manual

3. Overclock/Overvoltage Panel

Click the Overclock/Overvoltage button in the Main Panel, the button

will be highlighted and the Overclock/Overvoltage Panel will show

up as the following figure. As you can see, the Overclock Panel is

on the upper side, and the Overvoltage Panel is on the lower side.

TP35D2-A7

Overclock Panel contains these features:

a. “Auto-Overclock”:

User can click t his button and T-Utility will set the best and stable

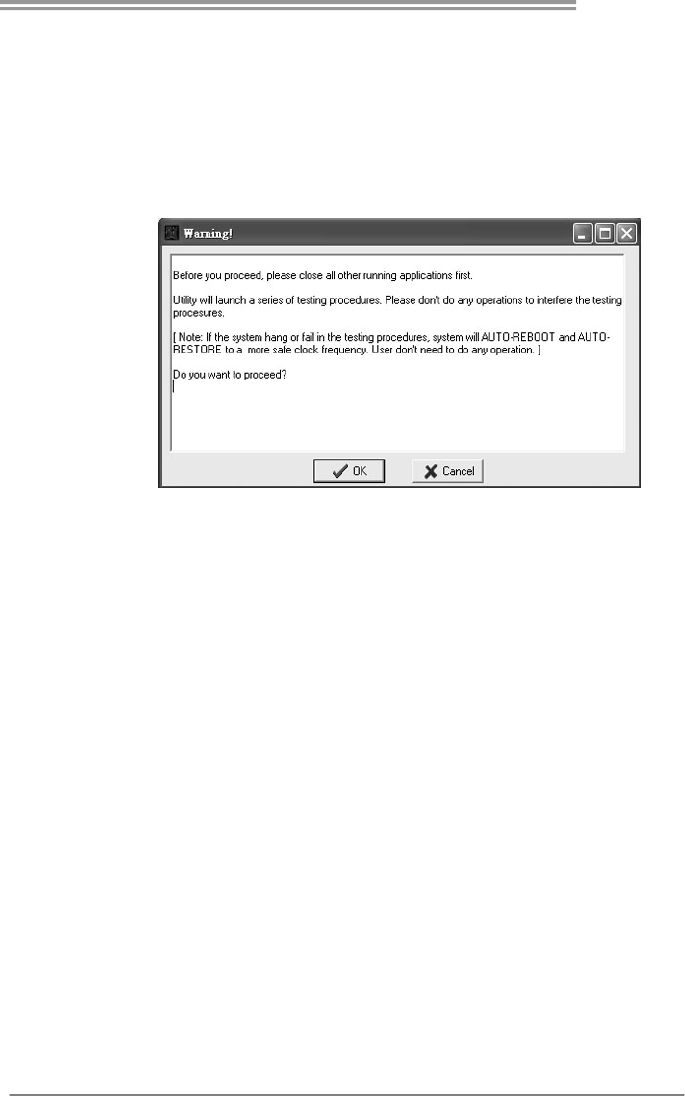

performance and frequency automatically. A warning dialog as

below will show up to notify you that the system may become

unstable, click on “OK” to continue.

Then T-Utility will execute a series of testing until system fail.

Then system will do fail-safe reboot by using Watchdog function.

After reboot, launch the T-Utility again and the utility will load the

previously verified best and stable frequency.

b. “Verify”:

If you use the “Manual Adjust” bar to adjust the CPU frequency,

then you can click this button and T-Utility will proceed a testing for

current frequency. If the testing is ok, then the current frequency

will be saved into system registry. If the testing fails, system will do

a fail-safe rebooting. After reboot, the T-Utility will restore to the

hardware default setting.

Warning:

Manually overclock is potentially dangerous, especially when the

overclocking percentage is over 110 %. We strongly recommend you

verify every speed you overclock by click the Verify button. Or, you can

just click Auto overclock button and let T-Utility automatically gets the

best result for you.

c. “V3 Engine”/“V6 Engine”/“V9 Engine”:

Provide user the ability to do real-time overclock adjustment.

d. “Recovery”:

Click this button and the T-Utility will restore all values to the

hardware default setting.

Motherboard Manual

e. “Save / Open Setting”:

Click Save button to save current setting to a file, and click Open

button to load a previously saved setting.

f. “Panel Color”:

Click this button to change the color of the panel.

Overvoltage Panel contains these features:

a. “CPU Voltage”:

This function allows user to adjust CPU voltage. Click on “+” to

increase or “-“ to decrease the CPU voltage.

b. “Memory Voltage”:

This function allows user to adjust Memory voltage. Click on “+”

to increase or “-“ to decrease the Memory voltage.

c. “Chipset Voltage”:

This function allows user to adjust Chipset voltage. Click on “+”

to increase or “-“ to decrease the Chipset voltage.

4. Hardware Monitor Panel

Click the Hardware Monitor button in Main Panel, the button will be

highlighted and the Hardware Monitor panel will show up as the

following figure.

In this panel, you can get the real-time status information of your

system. The information will be refreshed every 1 second.

TP35D2-A7

5. About Panel

Click the “about” button in Main Panel, the button will be highlighted

and the About Panel will show up as the following figure.

In this panel, you can get model name and detail information in hints

of all the chipset that are related to overclocking. You can also get

the the version number of T-Utility.

Note:

Because the overclock, overvoltage, and hardware monitor features

are controlled by several separate chipset, T-Utility divides these

features to separate panels. If one chipset is not on board, the

correlative button in Main panel will be disabled, but it will not

interfere with other panels’ functions. This property can make

T-Utility more robust.

Motherboard Manual

CHAPTER 5: USEFUL HELP

5.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver CD into your optical drive and install the driver for better system

performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

TP35D2-A7

5.2 AWARD BIOS BEEP CODE

Beep Sound Meaning

One long beep followed by two short

beeps

Video card not found or video card

memory bad

High-low siren sound CPU overheated

System will shut down automatically

One Short beep when system boot-up No error found during POST

Long beeps every other second No DRAM detected or install

5.3 EXTRA INFORMATION

A. BIOS Update

After you fail to update BIOS or BIOS is invaded by virus, the

Boot-Block function will help to restore BIOS. If the following message

is shown after boot-up the system, it means the BIOS contents are

corrupted.

In this Case, please follow the procedure below to restore the BIOS:

1. Make a bootable floppy disk.

2. Download the Flash Utility “AWDFLASH.exe” from the Biostar

website: www.biostar.com.tw

3. Confirm motherboard model and download the respectively BIOS

from Biostar website.

4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.

5. Insert the bootable disk into floppy drive and press Enter.

6. System will boot-up to DOS prompt.

7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.

(xxxx means BIOS name.)

8. System will update BIOS automatically and restart.

9. The BIOS has been recovered and will work properly.

Motherboard Manual

B. CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TP35D2-A7

5.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all

Power light don’t illuminate, fan

inside power supply does not turn

on.

2. Indicator light on keyboard does

not turn on.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drive is spinning.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from hard disk

drive, can be booted from optical drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from optical drive.

Hard disk can be read and applications

can be used but booting from hard disk

is impossible.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message says “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

Cannot boot system after installing

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

Motherboard Manual

APPENDENCIES: SPEC IN OTHER LANGUAGE

GERMAN

Ver 5.x Ver 6.x

CPU

LGA 775

Intel Core2Duo / Core2Quad / C eleron 4xx /

Pent iu m 4 / Pent iu m D / C eleron D Prozessoren

Unterstützt Hyper-Threading / Execute Disable

Bit / Enhanced Intel SpeedStep® / Intel

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

LGA 775

Intel Core2Duo / Core2Quad / C eleron 4xx /

Pent iu m 4 / Pent iu m D / C eleron D Prozessoren

Unterstützt Hyper-Threading / Execute Disable

Bit / Enhanced Intel SpeedStep® / Intel

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Chipsatz Intel P35

Intel ICH9

Intel P35

Intel ICH9

Super E/A

ITE 8718F

Bietet die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

ITE 8718F

Bietet die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt 256MB / 512MB / 1GB /

2GB DDR2.

Max. 8GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 800 / 667

Unterstützt DDR2 533 (w. FSB 533/1066 CPU)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

DDR2 DIMM-Steckplätze x 4

Jeder DIMM unterstützt 256MB / 512MB / 1GB /

2GB DDR2.

Max. 8GB Arbeitsspeicher

Dual-Kanal DDR2 Speichermodul

Unterstützt DDR2 800 / 667

Unterstützt DDR2 533 (w. FSB 533/1066 CPU)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus

Master-Modus

Unterstützt PIO-Modus 0~4,

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus

Master-Modus

Unterstützt PIO-Modus 0~4,

SATA

Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN Realtek RTL 8110SC / RTL 8100C(optional)

10 / 100 / 1000 Mb/s Auto-Negotiation

Realtek RTL 8110SC / RTL 8100C(optional)

10 / 100 / 1000 Mb/s Auto-Negotiation

TP35D2-A7

Ver 5.x Ver 6.x

(Gigabit-Bandbreite nur beim RTL 8110SC)

Halb-/ Vollduplex-Funktion

(Gigabit-Bandbreite nur beim RTL 8110SC)

Halb-/ Vollduplex-Funktion

Audio-Unters

tützung

ALC888

Unterstützt High-Definition Audio

7.1-Kanal-Audioausgabe

ALC861VD

Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

PCI-Steckplatz x3 PCI-Steckplatz x3

PCI Express x16 Steckplatz x1 PCI Express x16 Steckplatz x1

PCI Express x4 Steckplatz x1 PCI Express x4 Steckplatz x1

Steckplätze

PCI Express x 1-Steckplatz x1 PCI Express x 1-Steckplatz x1

Diskettenlaufwerkanschluss x1 Diskettenlaufwerkanschluss x1

Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1

IDE-Anschluss x1 IDE-Anschluss x1

SATA-Anschluss x4 SATA-Anschluss x4

Fronttafelanschluss x1 Fronttafelanschluss x1

Front-Audioanschluss x1 Front-Audioanschluss x1

CD-IN-Anschluss x1 CD-IN-Anschluss x1

S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1

S/PDIF Eingangsanschluss(optional) x1 S/PDIF Eingangsanschluss(optional) x1

CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x2 System-Lüfter-Sockel x2

"CMOS löschen"-Sockel x1 "C MOS löschen"-Sockel x1

USB-Anschluss x3 USB-Anschluss x3

Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-Ans

chluss

Stromansch luss (4-polig ) x1 Stromansch luss (4-polig ) x1

Rückseiten-E

PS/2-Tastatur x1

PS/2- Maus x1

Serieller Anschluss x1

LAN-Anschluss x1

USB-Anschluss x6

Audioanschluss x6

PS/2-Tastatur x1

PS/2- Maus x1

Serieller Anschluss x1

LAN-Anschluss x1

USB-Anschluss x6

Audioanschluss x3

Platinengröße

220 mm (B) X 305 mm (L) 220 mm (B) X 305 mm (L)

OS-Unterstüt

zung

Windows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Windows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Motherboard Manual

FRANCE

Ver 5.x Ver 6.x

LGA 775

Processeurs Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Prend en charge les techno log ies

Hyper-Threading / d'exécution de bit de

désactivation / Intel SpeedStep® opt imisée/

d'architecture Intel 64 / de mémoire étendue 64

/ de virtualisation

LGA 775

Processeurs Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Prend en charge les techno log ies

Hyper-Threading / d'exécution de bit de

désactivation / Intel SpeedStep® opt imisée/

d'architecture Intel 64 / de mémoire étendue 64

/ de virtualisation

Bus frontal 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Chipset Intel P35

Intel ICH9

Intel P35

Intel ICH9

Super E/S

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

ITE 8718F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à f aib le co mpte de b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ér iel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charge des DDR2 de

256Mo / 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 8Go

Module de mémoire DDR2 à mode à double voie

Prend en charge la DDR2 800 / 667

Prend en charge la DDR2 533 (w. FSB 533/1066

CPU)

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charge

Fentes DDR2 DIMM x 4

Chaque DIMM prend en charge des DDR2 de

256Mo / 512Mo / 1Go / 2Go

Capacité mémo ire max imale de 8Go

Module de mémoire DDR2 à mode à double voie

Prend en charge la DDR2 800 / 667

Prend en charge la DDR2 533 (w. FSB 533/1066

CPU)

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charge

IDE

JMicro JMB368

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

JMicro JMB368

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

SATA

Contrôleur Serial ATA

int é gr é :

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécif icat ion SATA Vers ion 2.0

Contrôleur Serial ATA

int é gr é :

Taux de transfert jusqu'à 3.0Go/s.

Conforme à la spécif icat ion SATA Vers ion 2.0

TP35D2-A7

Ver 5.x Ver 6.x

LAN

Realtek RTL 8110SC / RTL 8100C(optional)

10 / 100 / 1000 Mb/s négociation automatique

(La bande passante Gigabit est pour le RTL

8110SC uniquement)

Half / Full duplex capability

Realtek RTL 8110SC / RTL 8100C(optional)

10 / 100 / 1000 Mb/s négociation automatique

(La bande passante Gigabit est pour le RTL

8110SC uniquement)

Half / Full duplex capability

Prise en

charge

audio HD

ALC888

Prise en charge de l'audio haut e définition

Sortie audio à 7.1 vo ies

ALC861VD

Prise en charge de l'audio haut e définition

Sortie audio à 5.1 vo ies

Fente PCI x3 Fente PCI x3

Fente PCI Express x16 x1 Fente PCI Express x16 x1

Fente PCI Express x4 x1 Fente PCI Express x4 x1

Fentes

Fente PCI Express x1 x1 Fente PCI Express x1 x1

Connecteur de disquette x1 Connecteur de disquette x1

Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1

Connecteur IDE x1 Connecteur IDE x1

Connecteur SATA x4 Connecteur SATA x4

Connecteur du panneau avant x1 Connecteur du panneau avant x1

Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1

Connecteur d' entrée CD x1 Connecteur d'entrée CD x1

Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1

Connecteur d' entrée S/PDIF(en option) x1 Connecteur d' entrée S/PDIF(en option) x1

Embase de ventilateur UC x1 Embase de ventilateur UC x1

Embase de ventilateur système x2 Embase de ventilateur système x2

Embase d'effacement CMOS x1 Embase d'effacement CMOS x1

Connecteur USB x3 Connecteur USB x3

Connecteur d' alimentat ion x1

(24 broches)

Connecteur d' alimentat ion x1

(24 broches)

Connecteur

embarqué

Connecteur d' alimentat ion x1

(4 broches)

Connecteur d' alimentat ion x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port série x1

Port LAN x1

Port USB x6

Fiche audio x6

Clavier PS/2 x1

Souris PS/2 x1

Port série x1

Port LAN x1

Port USB x6

Fiche audio x3

Dimensions

de la carte 220 mm (l) X 305 mm (H) 220 mm (l) X 305 mm (H)

Support SE

Windows 2000 / XP / VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Windows 2000 / XP /VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Motherboard Manual

ITALIAN

Ver 5.x Ver 6.x

CPU

LGA 775

Processore Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D /

Celeron D

Supporto di Hyper-Threading / Execute

Disable Bit / Enhanced Intel SpeedStep® /

Architettura Intel 64 / Tecnologia Extended

Memory 64 / Tecnologia Virtualization

LGA 775

Processore Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D /

Celeron D

Supporto di Hyper-Threading / Execute

Disable Bit / Enhanced Intel SpeedStep® /

Architettura Intel 64 / Tecnologia Extended

Memory 64 / Tecnologia Virtualization

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Chipset Intel P35

Intel ICH9

Intel P35

Intel ICH9

Super I/O

ITE 8718F

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

ITE 8718F

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio velocità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2 256MB /

512MB / 1GB / 2GB

Capacità massima della memoria 8GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 800 / 667

Supporto di DDR2 533 (w. FSB 533/1066

CPU)

DIMM registrati e DIMM ECC non sono

supportati

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2 256MB /

512MB / 1GB / 2GB

Capacità massima della memoria 8GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 800 / 667

Supporto di DDR2 533 (w. FSB 533/1066

CPU)

DIMM registrati e DIMM ECC non sono

supportati

IDE

JMicro JMB368

Modalità Bus Master Ultra DMA 33 / 66 /

100 / 133

Supporto modalità PIO Mode 0-4

JMicro JMB368

Modalità Bus Master Ultra DMA 33 / 66 /

100 / 133

Supporto modalità PIO Mode 0-4

SATA

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Compatibile specifiche SATA Versione 2.0.

TP35D2-A7

Ver 5.x Ver 6.x

LAN

Realtek RTL 8110SC / RTL 8100C(optional)

Negoziazione automatica 10 / 100 / 1000

Mb/s (la larghezza di banda Gigabit è solo

per RTL 8110SC)

Capacità Half / Full Duplex

Realtek RTL 8110SC / RTL 8100C(optional)

Negoziazione automatica 10 / 100 / 1000

Mb/s (la larghezza di banda Gigabit è solo

per RTL 8110SC)

Capacità Half / Full Duplex

Supporto

audio HD

ALC888

Supporto audio High-Definition (HD)

Uscita audio 7.1 canali

ALC861VD

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PC I x3 Alloggio PC I x3

Alloggio PCI Express x16 x1 Alloggio PCI Express x16 x1

Alloggio PCI Express x4 x1 Alloggio PCI Express x4 x1

Alloggi

Alloggio PCI Express x1 x1 Alloggio PCI Express x1 x1

Connettore floppy x1 Connettore floppy x1

Connettore Porta stampante x1 Connettore Porta stampante x1

Connettore IDE x1 Connettore IDE x1

Connettore SATA x4 Connettore SATA x4

Connettore pannello frontale x1 Connettore pannello frontale x1

Connettore audio frontale x1 Connettore audio frontale x1

Connettore CD-in x1 Connettore CD-in x1

Connettore output SPDIF x1 Connettore output SPDIF x1

Connettore input SPDIF(optional) x1 Connettore input SPDIF(optional) x1

Collettore ventolina C PU x1 Collettore ventolina C PU x1

Collettore ventolina sistema x2 Collettore ventolina sistema x2

Collettore cancellaz ione CMOS x1 Collettore cancellaz ione CMOS x1

Connettore USB x3 Connettore USB x3

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(24 pin)

Connettori

su scheda

Connettore alimentazione x1

(4 pin)

Connettore alimentazione x1

(4 pin)

I/O

pannello

posteriore

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta LAN x1

Porta USB x6

Connettore audio x6

Tas t ier a PS /2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta LAN x1

Porta USB x6

Connettore audio x3

Dimension

i scheda 220 mm (larghezza) x 305 mm (altezza) 220 mm (larghezza) x 305 mm (altezza)

Sistemi

operativi

supportati

Windows 2000 / XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Windows 2000 / XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Ver 5.x Ver 6.x

CPU

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Admite Hyper-Threading / Bit de deshabilitación

de ejecución / Intel SpeedStep® Mejorado /

Intel Architecture-64 / Tecnología Extended

Memory 64 / Tecnología de virtualización

LGA 775

Procesador Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Admite Hyper-Threading / Bit de deshabilitación

de ejecución / Intel SpeedStep® Mejorado /

Intel Architecture-64 / Tecnología Extended

Memory 64 / Tecnología de virtualización

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Conjunto de

chips

Intel P35

Intel ICH9

Intel P35

Intel ICH9

Súper E/S

ITE 8718F

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In iciat ivas de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

ITE 8718F

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In iciat ivas de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256MB / 512MB /

1GB / 2GB

Capacidad máxima de memoria de 8GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 800 / 667

Admite DDR2 de 533 (w. FSB 533/1066 CPU)

No admite DIMM registrados o DIMM

compatibles con ECC

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256MB / 512MB /

1GB / 2GB

Capacidad máxima de memoria de 8GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 800 / 667

Admite DDR2 de 533 (w. FSB 533/1066 CPU)

No admite DIMM registrados o DIMM

compatibles con ECC

IDE

JMicro JMB368

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

JMicro JMB368

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

SATA

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la versión SATA 2.0.

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.

Compat ib le con la versión SATA 2.0.

Red Local

Realtek RTL 8110SC / RTL 8100C (opcional)

Negociación de 10 / 100 / 1000 Mb/s (el ancho

de banda Gigabit es únicamente para 8110SC)

Funciones Half / Full dúplex

Realtek RTL 8110SC / RTL 8100C (opcional)

Negociación de 10 / 100 / 1000 Mb/s (el ancho

de banda Gigabit es únicamente para 8110SC)

Funciones Half / Full dúplex

TP35D2-A7

Ver 5.x Ver 6.x

Soporte de

sonido HD

ALC888

Soporte de sonido de Alta Definición

Salida de sonido de 7.1 canales

ALC861VD

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI X3 Ranura PCI X3

Ranura PCI Express x16 X1 Ranura PCI Express x16 X1

Ranura PCI Express x4 X1 Ranura PCI Express x4 X1

Ranuras

Ranura PCI express x 1 X1 Ranura PCI express x 1 X1

Conector disco flexible X1 Conector disco flexible X1

Conector Puerto de impresora X1 Conector Puerto de impresora X1

Conector IDE X1 Conector IDE X1

Conector SATA X4 Conector SATA X4

Conector de panel frontal X1 Conector de panel frontal X1

Conector de sonido frontal X1 Conector de sonido frontal X1

Conector de entrada de CD X1 Conector de entrada de CD X1

Conector de salida S/PDIF X1 Conector de salida S/PDIF X1

Conector de entrada S/PDIF(opcional) x1 Conector de entrada S/PDIF(opcional) x1

Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1

Cabecera de ventilador de sistema X2 Cabecera de ventilador de sistema X2

Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1

Conector USB X3 Conector USB X3

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(24 patillas)

Conectores

en placa

Conector de alimentación X1

(4 patillas)

Conector de alimentación X1

(4 patillas)

Panel

trasero de

E/S

Tec lad o PS /2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto de red local X1

Puerto USB X6

Conector de sonido X6

Tec lad o PS /2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto de red local X1

Puerto USB X6

Conector de sonido X3

Ta mañ o d e

la placa 220 mm. (A) X 305 Mm. (H) 220 mm. (A) X 305 Mm. (H)

Soporte de

sistema

operativo

Windows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

Windows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

Ver 5.x Ver 6.x

CPU

LGA 775

Processador Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Suporta as tecno log ias Hyper-Thread ing /

Execute Disable Bit / Enh anced Intel

SpeedStep® / Intel Arqu itecture -64 / Extended

Memory 64 / Virtualization

LGA 775

Processador Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Suporta as tecno log ias Hyper-Thread ing /

Execute Disable Bit / Enh anced Intel

SpeedStep® / Intel Arqu itecture -64 / Extended

Memory 64 / Virtualization

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Chipset Intel P35

Intel ICH9

Intel P35

Intel ICH9

Especificaçã

o Super I/O

ITE 8718F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Guardian" da ITE

ITE 8718F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Guardian" da ITE

Memória

principal

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma memória

DDR2 de 256 MB / 512 MB / 1GB / 2GB

Capacidad e máx ima de memória:8 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 800 / 667

Suporta módulos DDR2 533 (w. FSB 533/1066

CPU)

Os módulos DIMM registados e os DIMM ECC

não são suportados

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma memória

DDR2 de 256 MB / 512 MB / 1GB / 2GB

Capacidad e máx ima de memória:8 GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 800 / 667

Suporta módulos DDR2 533 (w. FSB 533/1066

CPU)

Os módulos DIMM registados e os DIMM ECC

não são suportados

IDE

JMicro JMB368

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

JMicro JMB368

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

SATA

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0

Gb/s.

Compat ibilidad e co m a especificação SATA

versão 2.0.

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0

Gb/s.

Compat ibilidad e co m a especificação SATA

versão 2.0.

LAN

Realtek RTL 8110SC / RTL 8100C(opcional)

Auto negociação de 10 / 100 / 1000 Mb/s (a

largura de banda Gigabit refere-se apenas à

especificação RTL 8110SC)

Capacidade semi/full-duplex

Realtek RTL 8110SC / RTL 8100C(opcional)

Auto negociação de 10 / 100 / 1000 Mb/s (a

largura de banda Gigabit refere-se apenas à

especificação RTL 8110SC)

Capacidade semi/full-duplex

TP35D2-A7

Ver 5.x Ver 6.x

Suporte

para áudio

de alta

definição

ALC888

Suporta a especificação High-Definition Audio

Saída de áudio de 7.1 canais

ALC861VD

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

Ranhura PCI x3 Ranhura PCI x3

Ranhura PCI Express x16 x1 Ranhura PCI Express x16 x1

Ranhura PCI Express x4 x1 Ranhura PCI Express x4 x1

Ranhuras

Ranhura PCI Express x 1 x1 Ranhura PCI Express x 1 x1

Conector da unidade de disquetes x1 Conector da unidade de disquetes x1

Conector da para impressora x1 Conector da para impressora x1

Conector IDE x1 Conector IDE x1

Conector SATA x4 Conector SATA x4

Conector do painel frontal x1 Conector do painel frontal x1

Conector de áudio frontal x1 Conector de áudio frontal x1

Conector para entrada de CDs x1 Conector para entrada de CDs x1

Conector de saída S/PDIF x1 Conector de saída S/PDIF x1

Conector de entrada S/PDIF(opcional) x1 Conector de entrada S/PDIF(opcional) x1

Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1

Conector da ventoinha do s istema x2 Conector da ventoinha do sistema x2

Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1

Conector USB x3 Conector USB x3

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(24 pinos)

Conectores

na placa

Conector de alimentação x1

(4 p inos)

Conector de alimentação x1

(4 p inos)

Entradas/S

aídas no

painel

traseiro

Tec lad o PS /2 x 1

Rato PS/2 x1

Porta série x1

Porta LAN x1

Porta USB x6

Tomada de áudio x6

Tec lad o PS /2 x 1

Rato PS/2 x1

Porta série x1

Porta LAN x1

Porta USB x6

Tomada de áudio x3

Tamanho

da placa 220 mm (L) X 305 mm (A) 220 mm (L) X 305 mm (A)

Sistemas

operativos

suportados

Windows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Windows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Motherboard Manual

POLISH

Ver 5.x Ver 6.x

Procesor

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Obsługa Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

LGA 775

Procesor Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Obsługa Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

Chipset Intel P35

Intel ICH9

Intel P35

Intel ICH9

Pamięć

główna

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły 256MB /

512MB / 1GB / 2GB

Maks. wielkość pamięci 8GB

Modu ł pamięci DDR2 z trybem podwójnego

kanału

Obsługa DDR2 800 / 667

Obsługa DDR2 533 (w. FSB 533/1066 CPU)

Brak obsługi Registered DIMM oraz ECC DIMM

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły 256MB /

512MB / 1GB / 2GB

Maks. wielkość pamięci 8GB

Modu ł pamięci DDR2 z trybem podwójnego

kanału

Obsługa DDR2 800 / 667

Obsługa DDR2 533 (w. FSB 533/1066 CPU)

Brak obsługi Registered DIMM oraz ECC DIMM

Super I/O

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guardian"

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guardian"

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

SATA

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN

Realtek RTL 8110SC / RTL 8100C (opcja)

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości (Pasmo gigabitowe wyłącznie dla RTL

8110SC)

Działanie w tryb ie połowicznego / pełnego

dupleksu

Realtek RTL 8110SC / RTL 8100C (opcja)

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości (Pasmo gigabitowe wyłącznie dla RTL

8110SC)

Działanie w tryb ie połowicznego / pełnego

dupleksu

TP35D2-A7

Ver 5.x Ver 6.x

Obsługa

audio HD

ALC888

Obsługa High-Def in ition Aud io

7.1 kanałowe wyjście audio

ALC861VD

Obsługa High-Def in ition Aud io

5.1 kanałowe wyjście audio

Gniazdo PCI x3 Gniazdo PCI x3

Gniazdo PCI Express x16 x1 Gniazdo PCI Express x16 x1

Gniazdo PCI Express x 4 x1 Gniazdo PCI Express x 4 x1

Gniazda

Gniazdo PCI Express x 1 x1 Gniazdo PCI Express x 1 x1

Złącze napędu dyskietek x1 Złącze napędu dyskietek x1

Złącze Port drukarki x1 Złącze Port drukarki x1

Złącze IDE x1 Złącze IDE x1

Złącze SATA x4 Złącze SATA x4

Złącze panela przedniego x1 Złącze panela przedniego x1

Przednie złącze audio x1 Przednie złącze aud io x1

Złącze wejścia CD x1 Złącze wejścia CD x1

Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1

Złącze wejścia S/PDIF (opcja) x1 Złącze wejścia S/PDIF (opcja) x1

Złącze głó wkowe wentylatora

procesora x1

Złącze głó wkowe wentylatora

procesora x1

Złącze głó wkowe wentylatora

systemowego x2

Złącze głó wkowe wentylatora

systemowego x2

Złącze główkowe kasowania CMOS x1 Złącze główkowe kasowania CMOS x1

Złącze USB x3 Złącze USB x3

Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1

Złącza

wbudowane

Złącze zas ilania (4 p ino we) x1 Złącze zas ilania (4 pinowe) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS /2 x1

Port szeregowy x1

Port LAN x1

Port USB x6

Gniazdo audio x6

Klawiatura PS/2 x1

Mysz PS /2 x1

Port szeregowy x1

Port LAN x1

Port USB x6

Gniazdo audio x3

Wymiary

płyty 220 mm (S) X 305 mm (W) 220 mm (S) X 305 mm (W)

Obsluga

systemu

operacyjne

Windows 2000 / XP / VISTA

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo lnego systemu

operacyjnego b ez powiado mienia.

Windows 2000 / XP / VISTA

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo lnego systemu

operacyjnego b ez powiado mienia.

Motherboard Manual

RUSSIAN

Ver 5.x Ver 6.x

CPU

(центральн

ый

процессор)

LGA 775

Процессор Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Поддержка технологий Hyper-Threading /

Execute Disable Bit / Enh anced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / технологии

виртуализация

LGA 775

Процессор Intel Core2Duo / Core2Quad /

Celeron 4xx / Pentium 4 / Pentium D / Celeron D

Поддержка технологий Hyper-Threading /

Execute Disable Bit / Enh anced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / технологии

виртуализация

FSB 533 / 800 / 1066 / 1333 МГц 533 / 800 / 1066 / 1333 МГц

Набор

микросхем

Intel P35

Intel ICH9

Intel P35

Intel ICH9

Основная

память

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает 256 МБ /

512МБ / 1ГБ / 2ГБ DDR2

Максимальная ёмкость памяти 8ГБ

Модуль памяти с двухканальн ым режимом

DDR2

Поддержка DDR2 800 / 667

Поддержка DDR2 533 (w. FSB 533/1066 CPU)

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает 256 МБ /

512МБ / 1ГБ / 2ГБ DDR2

Максимальная ёмкость памяти 8ГБ

Модуль памяти с двухканальн ым режимом

DDR2

Поддержка DDR2 800 / 667

Поддержка DDR2 533 (w. FSB 533/1066 CPU)

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Super I/O

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц ионал ьны е во зможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функция ITE "Smart Guard ian"

(Интеллектуальная защита)

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц ионал ьны е во зможности

Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функция ITE "Smart Guard ian"

(Интеллектуальная защита)

IDE

JMicro JMB368

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

/ 133

Поддержка режима PIO 0~4,

JMicro JMB368

Режим "хозяина" шины Ultra DMA 33 / 66 / 100

/ 133

Поддержка режима PIO 0~4,

SATA

Встроенное последоват ельное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Встроенное последоват ельное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Локальная

сеть

Realtek RTL 8110SC /

RTL 8100C (дополнительно)

Автоматическое согласование 10 / 100 / 1000

Мб/с (гигабитная пропускная способность

Realtek RTL 8110SC /

RTL 8100C (дополнительно)

Автоматическое согласование 10 / 100 / 1000

Мб/с (гигабитная пропускная способность

TP35D2-A7

Ver 5.x Ver 6.x

только для гигабитного физи чес ког о уровня)

Частичная / полная дуплексная способность

только для гигабитного физи чес ког о уровня)

Частичная / полная дуплексная способность

Звуко вая

поддержка

жесткого

диска

ALC888

Звуко вая поддержка High-Def in ition

7.1канальный звуковой выход

ALC861VD

Звуко вая поддержка High-Def in ition

5.1канальный звуковой выход

Слот PCI x3 Слот PCI x3

Слот PCI Express x16 x1 Слот PCI Express x16 x1

Слот PCI Express x 4 x1 Слот PCI Express x 4 x1

Слоты

Слот PCI Express x 1 x1 Слот PCI Express x 1 x1

Разъём НГМД x1 Разъём НГ МД x1

Разъём Порт подключения

принтера x1

Разъём Порт подключения

принтера x1

Разъём IDE x1 Разъ ём IDE x1

Разъём SATA x4 Разъём SATA x4

Разъём на лицевой панели x1 Разъём на лицевой панели x1

Входной звуковой разъём x1 Входной звуковой разъём x1

Разъём ввода для CD x1 Разъём ввода для CD x1

Разъём вывода для S/PDIF x1 Разъём вывода для S/PDIF x1

Разъём ввода для S/PDIF(дополнительно) x1 Разъём ввода для S/PDIF(дополнительно) x1

Контактирующее приспособление

вентилятора центрального процессора x1

Контактирующее приспособление

вентилятора центрального процессора x1

Контактирующее приспособление

вентилятора системы x2

Контактирующее приспособление

вентилятора системы x2

Открытое контактир ующее

приспособление CMOS x1

Открытое контактир ующее

приспособление CMOS x1

USB-разъём x3 USB-разъём x3

Разъем питания (24 вывод) x1 Разъем питания (24 вывод) x1

Встроенны

й разъём

Разъем питания (4 вывод) x1 Разъем питания (4 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Мышь PS/2 x1

Последоват ельный порт x1

Порт LAN x1

USB-порт x6

Гнездо для подключения

наушнико в x6

Клавиатура PS/2 x1

Мышь PS/2 x1

Последоват ельный порт x1

Порт LAN x1

USB-порт x6

Гнездо для подключения

наушнико в x3

Размер

панели 220 мм (Ш) X 305 мм (В) 220 мм (Ш) X 305 мм (В)

Поддержка

Windows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удал ять средства обеспечения для OS с

или без предварительного уведомления.

Windows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удал ять средства обеспечения для OS с

или без предварительного уведомления.

Motherboard Manual

ARABIC

Ver 6.x Ver 5.x

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo / Core2Quad / Celeron 4xx

/ Pentium 4 / Pent ium D / Celeron D ﺑ ددﺮﺘ ﻳﺼ ﻰﻟإ ﻞ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕHyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

LGA 775

تﺎﺠﻟﺎﻌﻣIntel Core2Duo / Core2Quad / Celeron 4xx

/ Pentium 4 / Pent ium D / Celeron D ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕHyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technology

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔﻳﺰآﺮﻤﻟا

ددﺮﺕ 533 / 800 / 1066 / 1333 ﺰﺕﺮه ﺎﺠﻴﻣ

ﻞﻗﺎﻨﻟا ﻲﻣﺎﻣﻷا ﻲﺒﻥﺎﺠﻟا

Intel P35

Intel ICH9

Intel P35

Intel ICH9 ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻣ

و ﺖﻳﺎﺑ2و ﺖﻳﺎﺑ 1 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

آاذ ةﺪﺣو ةﺮ DDR2 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 667 / 800ﺖﻳﺎﺑ ﺎﺠﻴﻣ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 533ﺖﻳﺎﺑ ﺎﺠﻴﻣ (w. FSB

533/1066 CPU)

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR2 ﺔﻌﺳ 256/512 ﺎﺠﻴﻣ

و ﺖﻳﺎﺑ2و ﺖﻳﺎﺑ 1 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR2 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 667 / 800ﺖﻳﺎﺑ ﺎﺠﻴﻣ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR2 تﺎﻌﺳ 533ﺖﻳﺎﺑ ﺎﺠﻴﻣ (w. FSB

533/1066 CPU)

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ﻊﻣ ﻖﻓا ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ITE 8718F

ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳ ا ﺮﺜآﻷا .

ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE

ITE 8718F

ﺔﻔﻴﻇو ﺮﻓﻮﺕSuper I/O ﺮﺜآﻷا ًﺎ ﻣ ا ﺪ ﺨ ﺘﺳ ا.

ﺕﻢﻋﺪ ﺔﻴﻨﻘﺕ Low Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE

Super I/O

JMicro JMB368 ﻢﻜﺤﺘﻣIDE ﻞﻣﺎﻜﺘﻣ

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

JMicro JMB368 ﻢﻜﺤﺘﻣIDE ﻞﻣﺎﻜﺘﻣ

ﺔﻴﻨﻘﺘﺑ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﺬﻔﻨﻣ IDE

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ ﻥﺎﻴﺒﻟاتﺎ تﺎﻋﺮﺴﺑ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

SATA

Realtek RTL 8110SC /

RTL 8100C )يرﺎﻴﺘﺥا(

ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

Realtek RTL 8110SC /

RTL 8100C )يرﺎﻴﺘﺥا(

ﻲﺋﺎﻘﻠﺕ ضوﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

ﺔﻜﺒﺷ ﺔﻴﻠﺧاد

TP35D2-A7

Ver 6.x Ver 5.x

ﻰﻠﻋ ﻂﻘﻓ رﻮﺼﻘﻣ ﺖﺑﺎﺠﻴﺠﻠﻟ يددﺮﺘﻟا قﺎﻄﻨﻟاRTL 8110SC

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

ﻰﻠﻋ ﻂﻘﻓ رﻮﺼﻘﻣ ﺖﺑﺎﺠﻴﺠﻠﻟ يددﺮﺘﻟا قﺎﻄﻨﻟاRTL 8110SC

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

ALC861VD

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕInt e l

5.1 ا جﺮﺨﻟ تاﻮﻨﻗتﻮﺼﻟ

ALC888

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ

7.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻢﻋد تﻮﺼﻝا ﻲﻝﺎﻋ

ﻒیﺮﻌﺘﻝا

ﺔﺤﺘﻓPCI دﺪﻋ3 ﺔﺤﺘﻓPCI دﺪﻋ3

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓx4 PCI Express دﺪﻋ1 ﺔﺤﺘﻓx4 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express x 1 دﺪﻋ1 ﺔﺤﺘﻓPCI Express x 1 دﺪﻋ1

تﺎﺤﺘﻔﻟا

ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣIDE دﺪﻋ1 ﺬﻔﻨﻣIDE دﺪﻋ1

ﺬﻔﻨﻣSATA دﺪﻋ4 ﺬﻔﻨﻣSATA دﺪﻋ4

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻮﻠﻟا ﺬﻔﻨﻣﺔﻴﻣﺎﻣﻷا ﺔﺣ دﺪﻋ1

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣCD-IN دﺪﻋ1 ﺬﻔﻨﻣCD-IN دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﻞﺥد ﺬﻔﻨﻣS/PDIF( يرﺎﻴﺘﺥا) دﺪﻋ1 ﻞﺥد ﺬﻔﻨﻣS/PDIF( يرﺎﻴﺘﺥا) دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2 مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB دﺪﻋ3 ﺬﻔﻨﻣUSB دﺪﻋ3

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻝا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺣﻮﻠﻝا

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ6

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ6

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻝا ﺔﻴﻔﻠﺨﻝا

220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺕرا( 220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺕرا( ﻢﺠﺣ ﺔﺣﻮﻠﻝا

Windows 2000 / XP / VISTA

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻝازإ ﻢﻋﺪﻝا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

Windows 2000 / XP / VISTA

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻝازإ ﻢﻋﺪﻝا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻝا

Motherboard Manual

JAPANESE

Ver 5.x Ver 6.x

CPU

LGA 775

Intel Core2Duo / Core2Quad / Celeron 4xx /

Pent iu m 4 / Pent iu m D / C eleron D pro cessor

Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technologyをサポート

します

LGA 775

Intel Core2Duo / Core2Quad / Celeron 4xx /

Pent iu m 4 / Pent iu m D / C eleron D pro cessor

Hyper-Threading / Execute Disable Bit /

Enhanced Intel SpeedStep® / Int el

Architecture-64 / Extended Memory 64

Technology / Virtualization Technologyをサポート

します

FSB 533 / 800 / 1066 / 1333 MHz 533 / 800 / 1066 / 1333 MHz

チップセット Intel P35

Intel ICH9

Intel P35

Intel ICH9

メインメモリ

DDR2 DIMMスロット x 4

各DIMMは 256MB / 512MB / 1GB / 2GB DDR2を

サポート

最大メモリ容量8GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 800 / 667をサポート

DDR2 533をサポート (w. FSB 533/1066 CPU)

登録済みDIMMとECC DIMMはサポートされません

DDR2 DIMMスロット x 4

各DIMMは 256MB / 512MB / 1GB / 2GB DDR2を

サポート

最大メモリ容量8GB

デュアルチャンネルモードDDR2メモリモジュール

DDR2 800 / 667をサポート

DDR2 533をサポート (w. FSB 533/1066 CPU)

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~4のサポート、

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~4のサポート、

SATA

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

Realtek RTL 8110SC / RTL 8100C(オプション)

10 / 100 / 1000 Mb/秒のオートネゴシエーション

(G ig ab it バンド幅はRTL 8110SC専用です)

Realtek RTL 8110SC / RTL 8100C(オプション)

10 / 100 / 1000 Mb/秒のオートネゴシエーション

(G ig ab it バンド幅はRTL 8110SC専用です)

TP35D2-A7

Ver 5.x Ver 6.x

半/全二重機能半/全二重機能

HDオーディ

オのサポート

ALC888

ハイデフィニションオーディオのサポート

7.1 チャンネルオーディオアウト

ALC861VD

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCIスロット x3 PCIスロット x3

PCI Express x16スロット x1 PCI Express x16スロット x1

PCI Express x 4スロット x1 PCI Express x 4スロット x1

スロット

PCI Express x 1スロット x1 PCI Express x 1スロット x1

フロッピーコネクタ x1 フロッピーコネクタ x1

プリンタポートコネクタ x1 プリンタポートコネクタ x1

IDE コネクタ x1 IDEコネクタ x1

SATAコネクタ x4 SATAコネクタ x4

フロントパネルコネクタ x1 フロントパネルコネクタ x1

フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

CDインコネクタ x1 CDインコネクタ x1

S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1

S/PDIFインコネクタ(オプション) x1 S/PDIFインコネクタ(オプション) x1

CPUファンヘッダ x1 CPUファンヘッダ x1

システムファンヘッダ x2 システムファンヘッダ x2

CMOSクリアヘッダ x1 CMOSクリアヘッダ x1

USBコネクタ x3 USBコネクタ x3

電源コネクタ(24ピン) x1 電源コネクタ(24ピン) x1

オンボードコ

ネクタ

電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1

背面パネル

I/O

PS/2キーボード x1

PS/2マウス x1

シリアルポート x1

LANポート x1

USBポート x6

オーディオジャック x6

PS/2キーボード x1

PS/2マウス x1

シリアルポート x1

LANポート x1

USBポート x6

オーディオジャック x3

ボードサイズ 220 mm (幅) X 305 mm (高さ) 220 mm (幅) X 305 mm (高さ)

OSサポート

Windows 2000 / XP / VISTA

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

Windows 2000 / XP / VISTA

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2007/05/14

TP35D2-A7 BIOS Setup

BIOS Setup ................................................................................................ 1

1 Main Menu ............................................................................................. 3

2 Standard CMOS Features..................................................................... 7

3 Advanced BIOS Features ...................................................................... 9

4 Advanced Chipset Features................................................................. 16

5 Integrated Peripherals......................................................................... 18

6 Power Management Setup................................................................... 24

7 PnP/PCI Configurations...................................................................... 30

8 PC Health Status .................................................................................. 32

9 OverClock Navigator........................................................................... 34

10 CMOS Reload Program (C.R.P.)...................................................... 39

TP35D2-A7

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the Phoenix-Award™

BIOS Setup program on this motherboard. The Setup program allows users to

modify the basic system configuration and save these settings to CMOS RAM.

The power of CMOS RAM is supplied by a battery so that it retains the Setup

information when the po wer is turned off.

Basic Input-Output Sys tem (BIOS) d etermines what a co mputer c an do without

accessing programs from a disk. This system controls most of the input and

output devices such as keyboard, mouse, serial po rts and d is k d rives. BIOS

activates at the first stage of the booting process, loading and executing the

operating system. Some additional features, such as virus and password

protection or chipset fine-tuning options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in

BIOS Setup.

Plug and Play Support

This PHOENIX-AWARD BIOS suppo rts the Plug and Play Version 1.0A

specification and ESCD (Extended S ystem Configuration Data) write.

EPA Green PC Support

This PHOENIX-AWARD BIOS supports Version 1.03 of the EPA Green PC

specification.

APM Support

This PHOENIX-AWARD BIOS supports Vers io n 1.1&1.2 of the Advanc ed

Power Management (APM) specification. Power management features are

implemented via the System Management Interrupt (SMI). Sleep and Suspend

power management modes are supported. Power to the hard disk drives and

video monitors can also be managed by this PHOENIX-AWARD BIOS.

TP35D2-A7

ACPI Support

Phoenix-Award ACPI BIOS support Version 1.0b of Advanced Configuration

and Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilit ies as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This PHOENIX-AWARD BIOS also supports Vers ion 3.0 of the Intel PCI

(Peripheral Component Interconnect) local bus specification.

DRAM Support

DDR SDRAM (Double Data Rate Synchronous DRAM) is supported.

Supported CPUs

This PHOENIX-AWARD BIOS supports the Intel CPU.

Using Setup

Use the arrow keys to highlight items in most o f the p lace, press <Enter> to

select, use the <PgUp> and <PgDn> keys to change entries, press <F1> for help

and press <Esc> to quit. The following table provides more detail about how to

navigate in the Setup p rogram by us ing the keyboard.

Keystroke Function

Up arro w Move to previo us item

Down arrow Move to next item

Left arrow Move to the item o n the left (menu bar)

Right arro w Move to the item on the right (me nu bar)

Move Enter Move to the item you desired

PgUp key Increase the numeric value or make changes

PgDn key Decrease the numeric value or make changes

+ Key Increase the numeric value or make changes

- Key Decrease the numeric value or make changes

Esc key Main Menu – Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu – Exit

Current page and return to Main Menu

F1 key General help on Setup navigation keys

F5 key Load previous values from CMOS

F7 key Load the optimized defaults

F10 key Save all the CMOS changes and exit

TP35D2-A7

1 Main Menu

Once you enter Phoenix-Award BIOS™ CMOS Setup Utility, the Main Menu

will appear on the screen. The Main Menu allows you to select from several

setup functions. Use the arrow keys to select among the items and press <Enter>

to accept and enter the sub-menu.

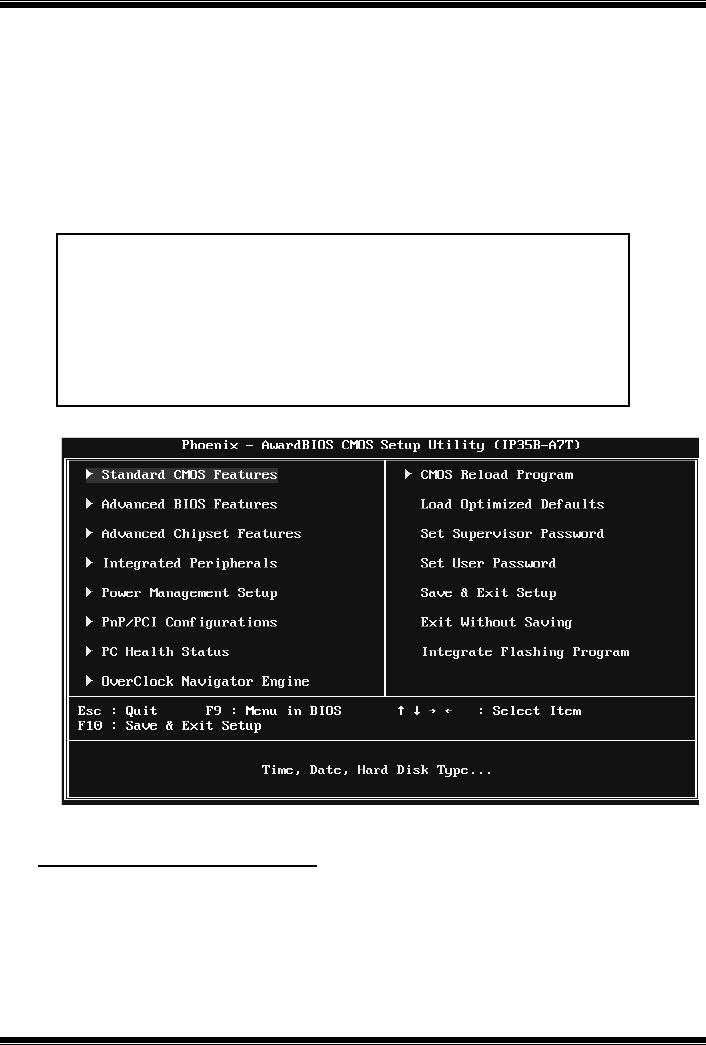

 Figure 1: Main Menu

Stan dard CMOS Features

This submenu contains industry standard configurable options.

!! WARNING !!

For better system performance, the BIOS firmware is being

continuous ly updated. The BIOS informatio n described in

this manual (Figure 1, 2, 3, 4, 5, 6, 7, 8, 9,10) is for your

reference only. The actual BIOS information and settings on

board may be slightly different from this manual.

TP35D2-A7

Advanced BIOS Features

This sub menu allows yo u to configure advanced features o f the BIOS.

Advanced Chipset Features

This submenu allows you to configure special chipset features.

Integrated Peripherals

This submenu allows you to configure certain IDE hard drive options and

Programmed Input/ Output features.

Power Management Setup

This submenu allows you to configure the power management features.

PnP/PCI Configurations

This submenu allows you to configure certain “Plug and Play” and PCI options.

PC Health Status

This sub menu allows you to monitor the hardware of yo ur system.

OverClock Navigator Engine (O.N.E.)

ONE provides two powerful overclock engines, MOS & AOS for both

overclock expertise and beginner.

CMOS Reload Program (C.R.P.)

The CMOS Reload Program (CRP) allows you to save different CMOS settings

into BIOS-ROM.

TP35D2-A7

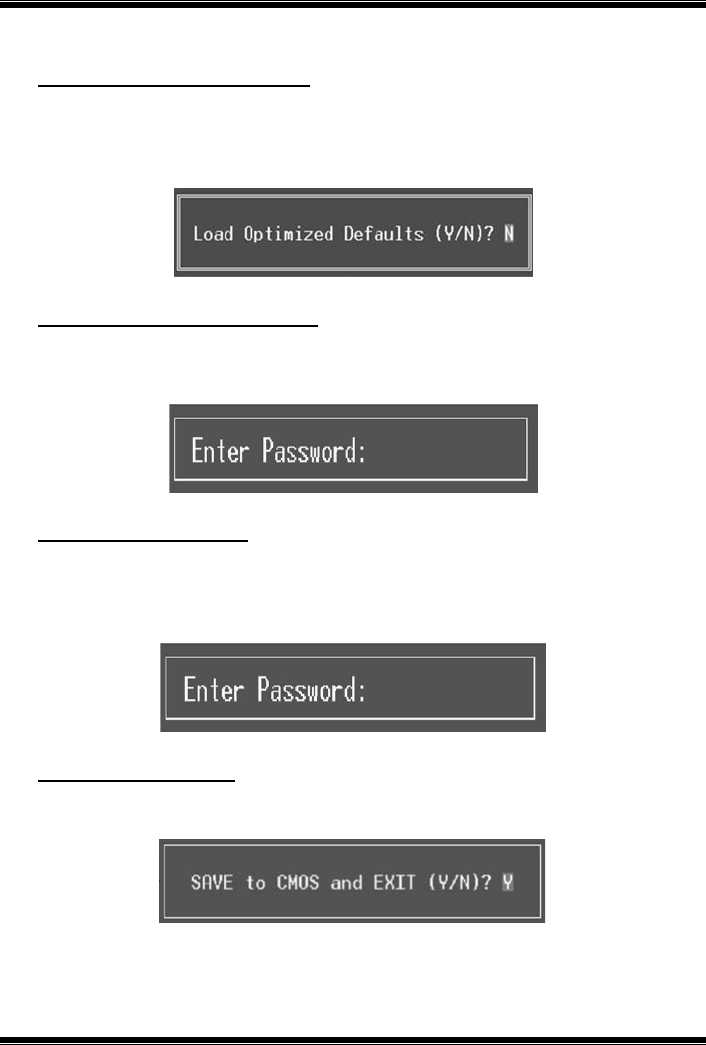

Load Optimized Defaults

This selection allows you to reload the BIOS when problem occurs during

system booting sequence. These configurations are factory settings optimized

for this system. A confirmation message will be displayed before defaults are

set.

Set Supervisor Password

Setting the supervisor password will prohibit everyone except the supervisor

from making c hanges using the CMOS Setup Utility. You will be prompted with

to enter a password.

Set User Password

If the Supervisor Pass word is not s et, then the User Password will function in

the same way as the Supervisor Password. If the Supervisor Password is set and

the User Password is set, the “Us er” will only be able to view configurations but

will not be able to c hange them.

Save & Exit Setup

Save all configuration changes to CMOS (memory) and exit setup. Confirmation

message will be displayed before proceeding.

TP35D2-A7

Exit Without Saving

Abandon all changes made during the current session and exit setup.

Confirmation message will be displayed before proceeding.

Integrate Flashing Program

This submenu allows you to upgrade bios.

TP35D2-A7

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories.

Eac h category inc ludes no, one or more than one setup items. Use the arrow

keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the

value you want in each item.

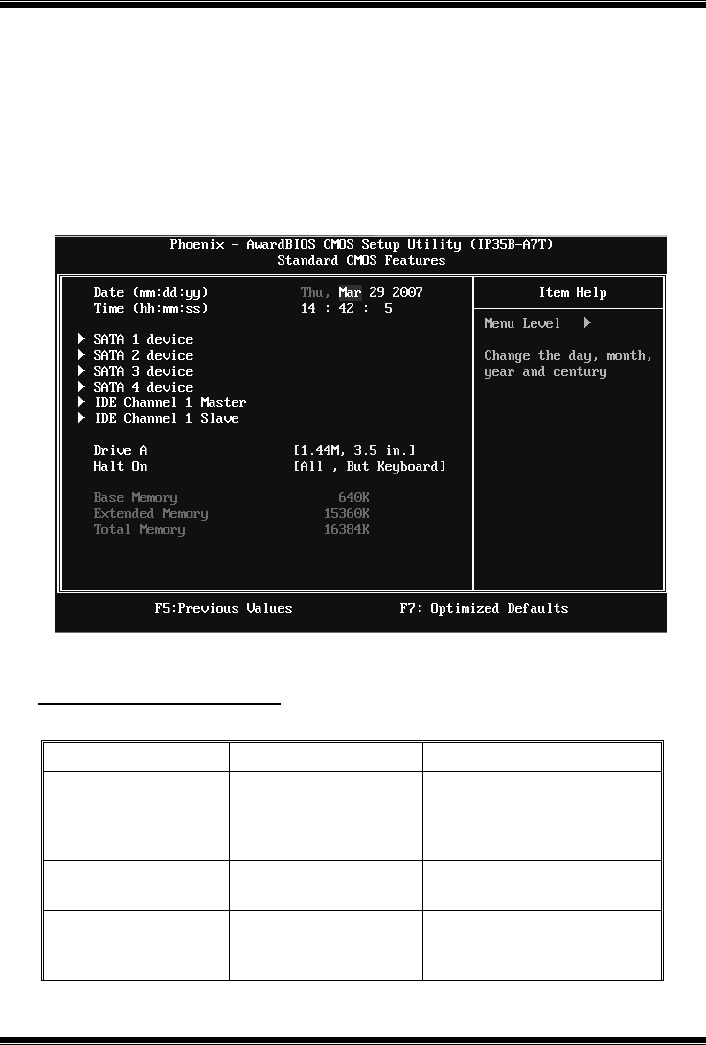

 Figure 2: Standard CMOS Setup

Main Menu Selections

This table shows the items and the available options on the Main Menu.

Item Options Description

Date mm : dd : yy

Set the system date. Note

that the ‘Day’ automatically

changes when you set the

date.

Time hh : mm : ss Set the system internal

clock.

SATA 1 ~ SATA 4

device

Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options

TP35D2-A7

Item Options Description

IDE Channel 1

Master / Slave

Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

Drive A

360K, 5.25 in

1.2M, 5.25 in

720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

None

Select the type of floppy

disk drive installed in your

system.

Halt On

All Errors

No Errors

All, but Keyboard

All, but Diskette

All, but Disk/ Key

Select the situation in which

you want the BIOS to stop

the POST process and

notify you.

Base Memory N/A

Displays the amount of

conventional memory

detected during boot up.

Extended Memory N/A

Displays the amount of

extended memory detected

during boot up.

Total Memory N/A Displays the total memory

available in the system.

TP35D2-A7

3 Advanced BIOS Features

 Figure 3: Advanced BIOS Setup

TP35D2-A7

CPU Feature

Delay Prio r to Thermal

Set this item to enable the CPU Thermal function to engage after the specified

time.

The Choices: 4 Min, 8 Min, 16Min (default), 32 Min.

Thermal Management

This option allows you to select the way to control the “Thermal

Management.”

The Choices: Thermal Monitor 1 (default), Thermal Monitor 2.

TM2 Bus Ratio

This option represents the frequency (bus ratio) of the throttled performance

state that will be in it iated when the on-die sensor detects temperature increase.

Min= 0 Max= 255 Key in a DEC number.

The Choices: 0 X (default).

TM2 Bus VID

This option represents the voltage of the throttled performance state that will be

initiated when the on-die sensor detects temperature increase.

The Choices: 0.8375V (default), 0.8375-1.6000.

PPM Mode

The Choices: Native Mode (default), SMM Mode.

TP35D2-A7

Limit CPUID MaxVal

Set Limit CPUID MaxVal to 3, it should be “Disabled” for Windows XP.

The Choices: Disabled (default), Enabled.

C1E Function

This item allows you to configure the Enhanced Halt State (C1E) function,

which may reduce the power consumption of your system when the system is

id le.

The Choices: Auto (default)，Disabled.

Execute Disable Bit

This item allows you to configure the Execute Disabled Bit function, which

protects your system from buffer overflow attacks.

The Choices: Enabled (default), Disabled.

Virtualization Technology

Virtualization Technology can virtually separate your system resource into

several parts, thus enhance the performance when running virtual machines or

mult i interface systems.

The Choices: Enabled (default), Disabled.

Core Multi-Processing

The Choices: Enabled (default), Disabled.

Cache Setup

CPU L3 Cache

Depending on the CPU/chipset in use, you may be able to increase memory

access time with this opt ion.

Enabled (default) Enable cache.

Disabled Disable cache.

TP35D2-A7

Boot Seq & Floppy Setup

This item allows you to setup boot sequence & Floppy.

Hard Disk Boot Priority

The BIOS will attempt to arrange the Hard Disk boot sequence automatically.

You can change the Hard Disk booting sequence here.

The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USB HDD0, USB

HDD1, USB HDD2, and Bootable Add-in Cards.

TP35D2-A7

First/Second/Third Boot Device

The BIOS will attempt to load the operating system in this order.

The Choices: Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-FDD,

USB-ZIP, USB-CDROM, LAN, Disabled.

Boot Other Device

When enabled, BIOS will try to load the operating system from other device

when it failed to load from the three devices above.

The Choices: Enabled (default), Disabled.

Boot Up Floppy Seek

When enabled, System will test the floppy drives to determine if they have 40

or 80 tracks during boot up. Disabling this option reduces the time it takes to

boot-up.

The Choices: Enabled (default), Disabled.

Virus Warning

This option allows you to choose the VIRUS Warning feature that is used to

protect the IDE Hard Disk boot sector. If this function is enabled and an attempt

is made to write to the boot sector, BIOS will display a warning message on the

screen and sound an alarm beep.

Disabled (default) Virus protection is disabled.

Enabled Virus protection is activated.

Hyper-Threading Technology

This optio n allows you to enab le or disab led Hyper-Thread ing Technology.

“Enabled” for Windows XP and Linux2.4.x (OS optimized for Hyper-Threading

Technology). “Disable” for other OS (OS not optimized for Hyper-Threading

Technology).

The Choices: Enabled (default), Disabled.

Quick Power On Self Test

Enabling this option will cause an abridged version of the Power On Self-Test

(POST) to execute after you po wer up the co mputer.

Disabled Normal POST.

Enabled (default) Enable quick POST.

TP35D2-A7

Boot Up NumLock Status

Selec ts the NumLoc k State after the s ystem switched o n.

The Choices:

On (default) Numpad is number keys.

Off Numpad is arrow keys.

Gate A20 Option

Select if chipset or keyboard controller should control Gate A20.

Normal A pin in the keyboard controller controls GateA20.

Fast (default) Lets chipset control Gate A20.

Typematic Rate Setting

When a key is held down, the keystroke will repeat at a rate determined by the

keyboard controller. When enabled, the typematic rate and typematic delay can

be configured.

The Choices: Disabled (default), Enabled.

Typematic Rate (Chars/Sec)

Sets the rate at whic h a keystro ke is repeated when you ho ld the key do wn.

The Choices: 6 (default), 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat the

keystroke.

The Choices: 250 (default), 500, 750, 1000.

Security Option

This option will enable only individuals with passwords to bring the system

online and/or to use the CMOS Setup Utility.

System: A password is required for the system to boot and is also

required to access the Setup Utility.

Setup (default): A pass word is required to access the Setup Utility only.

This will only apply if passwords are set from the Setup main menu.

TP35D2-A7

APIC MODE

Selecting Enabled enables APIC device mode reporting from the BIOS to the

operating system.

The Choices: Enabled (default), Disabled.

MPS Version Control For OS

The BIOS supports version 1.1 and 1.4 of the Intel multiprocessor specification.

Select version supported by the operatio n system running on this co mputer.

The Choices: 1.4 (default), 1.1.

OS Select For DRAM > 64MB

A choice other than Non-OS2 is only used for OS2 systems with memory

exceeding 64MB.

The Choices: Non-OS2 (default), OS2.

Full Screen LOGO Show

This item allows you to enable/disable Full Screen LOGO Show.

The Choices: Enabled (default), Disabled.

Small Logo(EPA) Show

This item allows you to select whether the “Small Logo” shows.

The Choices: Disabled (default), Enabled.

Summary Screen Show

This item allows you to enable/dis able the summary screen. Summary screen

means system configuration and PCI device listing.

The Choices: Disabled (default), Enabled.

TP35D2-A7

4 Advanced Chipset Features

This submenu allows you to configure the specific features of the chipset

installed on your system. This chipset manage bus speeds and access to system

memory resources, such as DRAM. It also coordinates communications with the

PCI bus. The default settings that came with your system have been optimized

and therefore sho uld not be changed unless you are suspicious that the s ettings

have been changed incorrectly.

 Figure 4: Advanced Chipset Setup

System BIOS Cacheable

Selecting the “Enabled” option allo ws caching o f the system BIOS ROM at

F0000h-FFFFFh, which is able to improve the system performance. However,

any programs that attempts to write to this memory block will cause conflicts

and result in system errors.

The Choices: Enabled (default), Disabled.

TP35D2-A7

Memory Hole At 15M-16M

You can reserve this area o f system memory for ISA adap ter ROM. W hen this

area is reserved it cannot be cached. Check the user information of peripherals

that need to use this area of s ystem memo ry for the memory req uirements.

The Choices: Disabled (default), Enabled.

PEG Force X1

When using on-chip VGA, this item has to be set as X1.

Disabled (default) PCI Express X16

Enabled PCI Express X1

TP35D2-A7

5 Integrated Peripherals

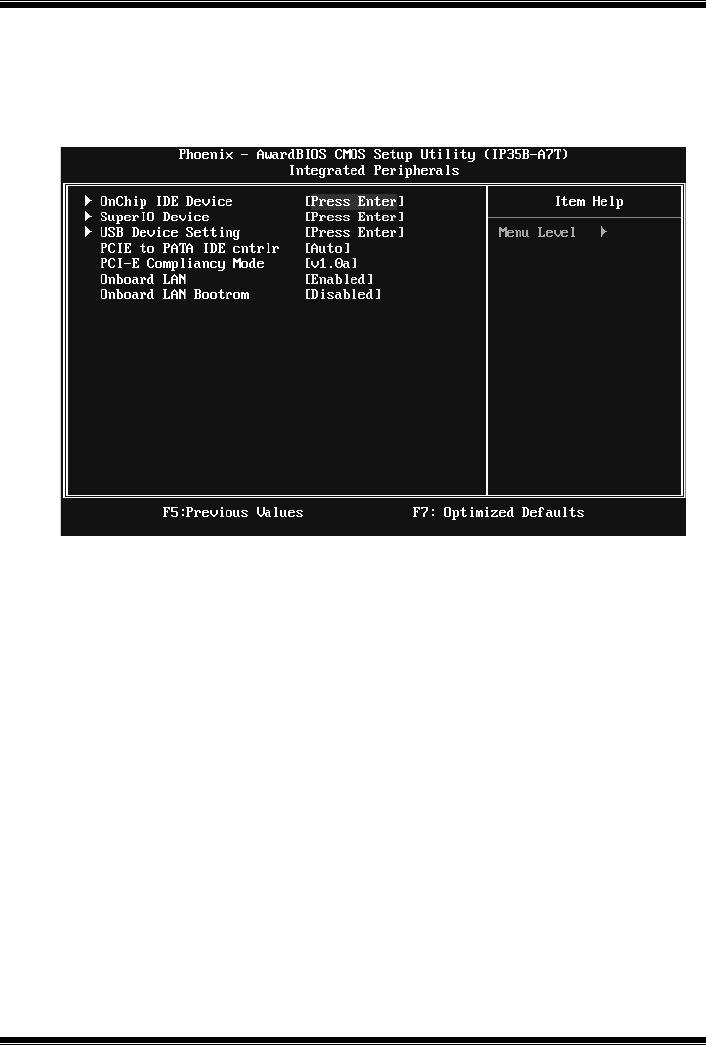

 Figure 5. Integrated Peripherals

TP35D2-A7

OnChip IDE Device

Highlight the “Press Enter” label next to the “OnChip IDE Device” label and

press enter key will take you a s ubmenu with the fo llo wing optio ns:

IDE HDD Block Mode

Block mode is also called block transfer, multip le commands, or multiple

sectors read / write. If your IDE hard drive supports block mode (most new

drives do), select Enabled for automatic detection of the optimal number of

block mode (most new drives do), select Enabled for automatic detection of the

optimal number of block read / write per sector where the drive can support.

The Choices: Enabled (default), Disabled.

IDE DMA Transfer Access

This item allows you to enable or disable the IDE DMA transfer access.

The Choices: Enabled (default), Disabled.

IDE Primary/Secondary/Master/Slave PIO

T he IDE P IO (P rogrammed Input / Output) fields let you set a P IO mode (0-4)

for each of the IDE devices that the onboard IDE interface supports. Modes 0

to 4 will increase performance progressively. In Auto mode, the system

automatically determines the best mode for each device.

The Choices: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4.

TP35D2-A7

On-chip Secondary PCI IDE

This item allows you to enable or disable the primary / secondary IDE

Channel.

The Choices: Enabled (default), Disabled.

IDE Primary/Secondary/Master/Slave UDMA

Ultra DMA function can be implemented if it is supported by the IDE hard

drives in your system. As well, your operating environment requires a DMA

driver (Windows 95 or OSR2may need a third party IDE bus master driver). If

your hard drive and your system software both support Ultra DMA, select Auto

to enable BIOS support.

The Choices: Auto (default), Disabled.

LEGACY Mode Support

T his item allows you to enable or disable legacy mode support.

The Choices: Disabled (default), Enabled.

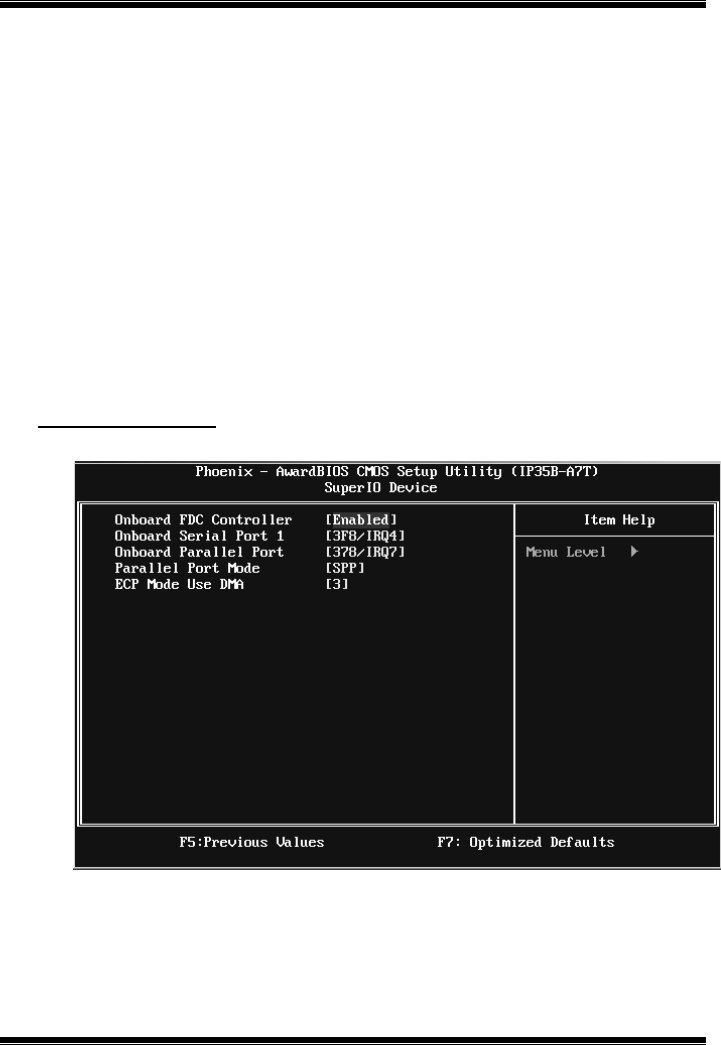

Super IO Device

Press Enter to configure the Super I/O Device.

Onbo ard FDC Contro ller

Select enabled if your system has a floppy disk controller (FDC) installed on

the system board and you wish to use it. If you installed another FDC or the

system uses no floppy drive, select disabled in this field.

The Choices: Enabled (default), Disabled.

TP35D2-A7

Onboard Serial Port 1

Select an address and corresponding interrupt for the first and second serial

ports.

The Choices: 3F8/IRQ4 (default), Disabled, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,

Auto.

Onboard Parallel Port

This item allows you to determine access onboard parallel port controller with

which I/O Address.

The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

This item allows you to determine how the parallel port should function. The

default value is SPP.

The Choices:

SPP (default) Usin g Parallel port as Standard Printer P ort.

EPP Usin g Parallel P ort as Enhanced Paralle l Port.

ECP Usin g Parallel port as Extended Capabilit ies P ort.

ECP +EPP Usin g Parallel port as ECP & EPP mode.

ECP Mode Use DMA

Select a DMA Channel for the port.

The Choices: 3 (default), 1.

TP35D2-A7

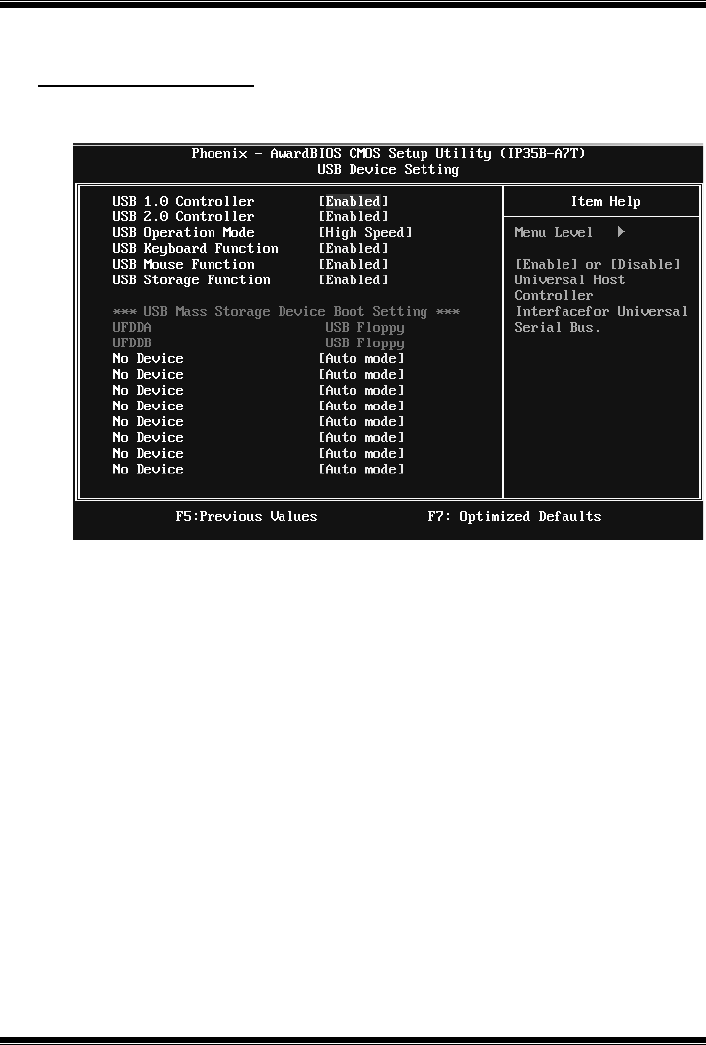

USB Device Setting

Highlight the “Press Enter” label next to the “Onboard Device” label and press

the enter key will take you a submenu with the following options:

USB 1.0/2.0 Controller

If your system contains a Universal Serial Bus (USB) controller, This entry is

to enable/disable Enhanced host controller .

The Choices: Enabled (default), Disabled.

USB Operation Mode

Auto decide USB device operation mode.

[High Speed]: If USB device was high speed device,then it operated on high

speed mode. If USB device was full/low speed,then it operated on full/low

speed mode.

[Full/Low Speed]: All of USB device operated on full/low speed mode.

The Choices: High Speed (default), Full/Low Speed.

USB Keyboard/ Mouse/ USB Storage Function

This item allows you to enable or disable the USB Keyboard/ Mouse/ USB

Storage Legacy Support.

Enabled(default) Enable USB Keyboard/ Mouse/ USB Storage Support.

Disabled Disable USB Keyboard / Mouse/ USB Storage Support.

TP35D2-A7

UFDDA/UFDDB

The Choices: USB Floppy (default).

No Device

[Auto]: According to contents of USB MSD decide boot up type.

[FDD Mode]: The USB MSD always boot up as floppy disk.

[HDD Mode]: The USB MSD always boot up as hard disk.

The Choices: Auto mode (default), FDD mode, HDD mode.

PCIE to PATA IDE cntrlr

The Choices: Auto (default), Disabled.

PCI-E Compliancy Mode

This item allows you to select the PCI-E Compliancy Mode.

The Choices: v1.0a (default), v1.0.

Onboard LAN

This item allows you to enable o r dis able the Onboard LAN.

The Choices: Enabled (default), Disabled.

Onboard LAN Boot ROM

This item allows you to enable o r dis able the Onboard LAN Boot ROM.

The Choices: Disabled (default), Enabled.

TP35D2-A7

6 Power Management Setup

The Power Management Setup Menu allows you to configure your system to

utilize energy conservation and power up/power down features.

 Figure 6. Power Management Setup

TP35D2-A7

ACPI & Wake Up Events

ACPI Function

This item displays the status of the Advanced Configuration and Power

Management (ACPI).

The Choices: Enabled (default), Disabled.

ACPI Suspend Type

The item allows you to select the suspend type under the ACPI operating

system.

The Choices: S1 (POS) (default) Power on Suspend

S3 (STR) Suspend to RAM

S1 & S3 POS+STR

Run VGABIOS if S3 Resume

Choosing Enabled w ill make BIOS run VGA BIOS to initia lize the VGA card

when system wakes up from S3 state. The system resume time is shortened if

you disable the function, but system will need AGP driver to initialize the card.

So, if the AGP driver of the VGA card does not support the init ia lizat ion

feature, the display may work abnormally or not function after S3.

The Choices: Auto (default), Yes, No.

TP35D2-A7

Wake-Up by PCI card

When you select “Enable”, a PME signal from PCI card returns the system to

Full On state.

The Choices: Disabled (default), Enabled.

PCI Express PME

The Choices: Disabled (default), Enabled.

Power On by Ring

An input signal on the serial Ring Indicator (RI) line (in other words, an

incoming call on the modem) awakens the system from a soft off state.

The Choices: Enabled, Disabled (default).

USB KB Wake-Up From S3

This item allows you to enable or disabled the USB keyboard wake up from S3

function.

The Choices: Disabled (default), Enabled.

Resume by Alarm

This function is for setting date and time for your computer to boot up. When

enabled, you can choose the date and time of system resume.

The Choices: Disabled (default), Enabled.

Date (of Month) Alarm

You can choose which month the system will boot up.

Time (hh:mm:ss) Ala rm

You can choose the system boot up time, input hour, minute and second to

specify.

Note: If you have change the setting, you must let the system boot into

operating system, before this function will work.

POWER ON Function

This item allows you to choose the power on method.

The Choices: Button Only (default), P assword, Hot Key, Mouse Move/Click,

Any Key, Keyboard 98.

KB Power ON Password

Input password and press Enter to set the Keyboard power on password.

Hot Key Power ON

Choose the Hot Key combination to boot up the system.

The Choices: Ctrl-F1 (default), Ctrl-F2, Ctrl-F3, Ctrl-F4, Ctrl-F5, Ctrl-F6,

Ctrl-F7, Ctrl-F8, Ctrl-F9, Ctrl-F10, Ctrl-F11, and Ctrl-F12.

TP35D2-A7

PWRON After PWR-Fail

This setting specifies how your system should behave after a power fail or

interrupts occurs. By choosing off will leave the computer in the power off

state. Choosing On will reboot the computer. Former-Sts will restore the

system to the status before power failure or interrupt occurs.

The Choices: Off (default), On, Former-Sts.

Reload Timer Events

Primary/Secondary IDE 0/1

You can enable or disable Primary or Secondary RAID 0 or RAID 1 function

under this item.

The Choices: Disabled (default), Enabled.

FDD, COM, LPT Po rt

You can enable or disable FDD, COM, and LPT port under this item.

The Choices: Disabled (default), Enabled.

PCI PIRQ [A-D]#

You can enable or disable PCI PIRQ [A-D]# under this item.

The Choices: Disabled (default), Enabled.

TP35D2-A7

Power Management

This c ategory allows you to select the power saving method and is directly

related to t he fo llo wing mod es :

1. HDD Po wer Do wn.

2. Suspend Mode.

There are three options of Power Management, three of which have fixed mode

settings

Min. Saving (default)

Minimum power management.

Suspend Mode = 1 hr.

HDD Power Down = 15 min

Max. Saving

Maximum power management only available for sl CPU’s.

Suspend Mode = 1 min.

HDD Power Down = 1 min.

User Define

Allow you to set each option individually.

When you choose user define, you c an ad just each of the item fro m 1 min. to 1

hr. except for HDD Power Down which ranges from 1 min. to 15 min.

Video Off Method

This option determines the manner when the monitor goes blank.

V/H SYNC+Blank

This selection will cause the system to turn off the vertical and horizontal

synchronization ports and write blanks to the video buffer.

Blank Screen

This option only writes blanks to the video buffer.

DPMS (default)

Initial display power management signaling.

Video Off In Suspend

This item determines the monitor status when the system is in Suspend mode.

The Choices: Yes (default), No.

TP35D2-A7

Suspend Type

Select the Suspend Type.

The Choices: Stop Grant (default), PwrOn Suspend.

Modem Use IRQ

This determines the IRQ, which can be applied in MODEM use.

The Choices: 3 (default), 4, 5, 7, 9, 10, 11, NA.

Suspend Mode

The item allows you to adjust the system idle time before suspend.

The Choices: Disabled, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min, 20 Min, 30

Min, 40 Min, 1 Hour (default).

HDD Power Down

When enabled, the hard-disk drives will power down after a set time of system

inactivity. All other devices remain active.

The Choices: Disabled, 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7 Min, 8

Min, 9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15 Min (default).

Soft-Off by PWR-BTN

This item determines the behavior of system power button. Instant off turn off

the power immediately, and Delay 4 Sec. will require you to press and hold the

power button for 4 seconds to cut off the system power.

The Choices: Delay 4 Sec, Instant-Off (default).

HPET Support

The Choices: Enabled(default), Disabled.

HPET Mode

The Choices: 32-bit mode (default), 64-bit mode.

TP35D2-A7

7 PnP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or Personal

Computer Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed of the CPU itself uses when communicating with its

own special components. This section covers some very technical items and it is

strongly recommended that only experienced users should make any changes to

the default settings.

 Figure 7: PnP/PCI Configurations

Init Display First

This item allows you to decide to active whether PCI Slot or on-chip VGA first.

The Choices: PCI Slot (default), PCIEx.

Resources Controlled By

By Choos ing “Auto(ESCD)” (default), the system BIOS will detect the system

resources and automatically assign the relative IRQ and DMA channel for each

peripheral. By Choosing “Manual”, the user will need to assign IRQ & DMA for

add-on cards. Be sure that there are no IRQ/DMA and I/O port conflicts.

The Choices: Auto (default), Manual.

TP35D2-A7

IRQ Resources

This s ubmenu will allow you to assign each sys tem interrupt a type, depending

on the type of device using the interrupt. When you press the “Press Enter” tag,

you will be directed to a submenu that will allow you to configure the system

interrupts. This is only configurable when “Resources Controlled By” is set to

“Manual”.

IRQ-3 assigned to PCI Device

IRQ-4 assigned to PCI Device

IRQ-5 assigned to PCI Device

IRQ-7 assigned to PCI Device

IRQ-9 assigned to PCI Device

IRQ-10 assigned to PCI Device

IRQ-11 assigned to PCI Device

IRQ-12 assigned to PCI Device

IRQ-14 assigned to PCI Device

IRQ-15 assigned to PCI Device

PCI / VGA Palette Snoop

Some old graphic controllers need to “snoop” on the VGA palette and then map

it to their display as a way to provide boot information and VGA compatibility.

This item allows such snooping to take place.

The Choices: Disabled (default), Enabled.

Assign IRQ For USB

This item allows the users to choose which IRQ to assign for the USB.

The Choices: Enabled (default), Disabled.

Ma xi mu m Pa ylo ad Size

Set the maximum payload s ize fo r Transac tio n pac kets (TLP).

The Choice: 4096 (default.), 128, 256, 512, 1024, 2048.

TP35D2-A7

8 PC Health Status

 Figure 8: PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item is

only effective under Windows 98 ACPI mode.

The Choices: 70 / 1℃58℉ (default) , 60 / 1℃40℉,65 / 1℃49℉, 75 / 1℃58℉,

80 / 1℃58℉, 85 / 1℃58℉, 90 / 1℃58℉, 95 / 1℃58℉, Disabled.

Show H/W Monitor in POST

If yo u co mp uter contains a mo nito ring system, it will s how P C health s tatus

during POST stage. The item offers several different delay times.

The Choices: Enabled (default), Disabled.

CPU Vcore, NB/SB/DDR Voltage, +3.3V, +5.0V, 12.0V, 5V (SB),

Voltage Battery

Detect the sys tem’s voltage status automatic ally.

TP35D2-A7

Temperature 2

This field disp lays the current temperature of s ystem.

Current SYS Temp

This field displays the current temperature of the s ystem.

Current CPU Temp

This field disp lays the current temperature of CPU.

Current CPU FAN Speed

This field displays the current speed o f CP U fan.

Current SYS FAN Speed

This field displays the current speed o f SYSTEM fan.

Current NBChip FAN Speed

This field displays the current speed of north bridge chip fan.

TP35D2-A7

9 OverClock Navigator

 Figure 9: Over Clock Navigator

OverClock Navigator

OverClock .Navigator is designed for beginners in overclock field.

Based on many test and experiments from Biostar Engineer Team, OverClock

Navigator provides 3 default overclock configurations that are able to raise the

system performance.

The Choices: Normal Operation (default), Automate Overclock,

Manual Overclock.

TP35D2-A7

Auto OverClock System

The Overclock Navigator provides 3 different engines helping you to overclock

your system. These engines will boost your system performance to different

level.

The Choices:

V6 Tech Engine

This setting will raise about 5%~10% of whole system performance.

V8 Tech Engine

This setting will raise about 15%~25% of whole system performance.

V12 Tech Engine

This setting will raise about 25%~30% of whole system performance.

Cautions:

1. Not every AMD CPU performs the above overclock setting ideally; the difference may vary

with the insta lled CP U model.

2. From BET experiment, the Atholon64 FX CPU is not suitable for this A.O.S. feature.

TP35D2-A7

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users.

It allows users to customize personal overclock setting.

Note:

Based on our test results; the overclock function achieved the best performance

on AMD 3000+ CPU

CPU Clock Ratio

The Choices: 8X (default).

Min=6 Max=50 Key in a DEC number.

CPU Clock

The Choices: 100MHz (default).

Min=100 Max=333 Key in a DEC number.

PCIE Clock select

The Choices: Fixed 100 (default), Manual.

PCIE Clock

Display the PCIE Clock frequency; Min=100, Max=200, key in a DEC number.

TP35D2-A7

System Memory Frequency

The Choices: Auto (default), 533MHz, 677MHz, 800MHz.

Memory Frequency

This item s hows the current memory frequenc y.

CPU Voltage

This item allows you to select CPU Voltage Control.

The Choices: StartUp (default); Scope: +0.012V~+0.787V.

(G)MCH Voltage

The Choices: 1.300V (default); Scope: 1.300~1.650V, Interval: 0.025V.

FSB Termination Voltage

The Choices: 1. 250V (default) ; Scope: 1.250~1.600, Interval: 0.025V.

Memory Voltage

The Choices: 1.90V (d efault); Scope: 1. 90V~2.95V, Interval: 0.05.

TP35D2-A7

Integrated Memory Test

Integrated Memory Test allows users to test memory module compatibilities

without additional device or software.

Step 1:

This item is disabled on default; change it to “Enable” to precede memory test.

Step 2:

When the process is done, change the setting back from “Enabled” to

“Disabled” to complete the test.

TP35D2-A7

10 CMOS Reload Program (C.R.P.)

The CMOS Reload Program (CRP) allows you to save different CMOS settings

into BIOS -ROM. You may reload any s aved CMOS setting to change system

configurations. Moreo ver, you may save yo ur ideal overc lock setting for easier

overclocking. There are 50 sets record address es in to tal, and yo u may name the

saved CMOS data individually.

 Figure 10: CMOS Reload Program(C.R.P)

Biostar Tp35D2 A7 Owners Manual IP35B A7T_0514

Navigation menu

Versions of this User Manual:

Views

Navigation
