TZ77A/TZ75A Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Dichiarazione di conformità

sintetica

Ai sensi dell’art. 2 comma 3 del D.M.

275 del 30/10/2002

Si dichiara che questo prodotto è

conforme alle normative vigenti e

soddisfa i requisiti essenziali richiesti

dalle direttive

2004/108/CE, 2006/95/CE e

1999/05/CE

quando ad esso applicabili

Short Declaration of conf ormity

We declare this product is complying

with the laws in force and meeting all

the essential requirements as specified

by the directives

2004/108/CE, 2006/95/CE and

1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start......................................................................................... 1

1.2 Package Checklist..................................................................................... 1

1.3 Motherboard Features.............................................................................. 2

1.4 Rear Panel Connectors.............................................................................. 4

1.5 Motherboard Layout................................................................................. 5

Chapter 2: Hardware Installation .......................... 6

2.1 Installing Central Processing Unit (CPU) ............................................... 6

2.2 FAN Headers .............................................................................................. 8

2.3 Installing System Memory ........................................................................ 9

2.4 Connectors and Slots................................................................................ 11

Chapter 3: Headers & Jumpers Setup .................. 15

3.1 How to Setup Jumpers............................................................................. 15

3.2 Detail Settings.......................................................................................... 15

Chapter 4: RAID / AHCI Functions....................... 20

4.1 Operating System.................................................................................... 20

4.2 Raid Arrays............................................................................................... 21

4.3 How RAID Works..................................................................................... 22

4.4 Smart Response Technology................................................................... 26

Chapter 5: T-Series UEFI BIOS & Software........... 27

5.1 T-Series UEFI BIOS ................................................................................... 27

5.2 T-Series Software...................................................................................... 30

Chapter 6: Useful Help ........................................ 40

6.1 Driver Installation Note.......................................................................... 40

6.2 Extra Information.................................................................................... 41

6.3 AMI BIOS Post Code................................................................................. 42

6.4 Troubleshooting....................................................................................... 44

Appendix: SPEC In Other Languages ................... 46

German.................................................................................................................. 46

French .................................................................................................................... 48

Italian..................................................................................................................... 50

Spanish ................................................................................................................... 52

Portuguese ............................................................................................................ 54

Polish...................................................................................................................... 56

Russian ................................................................................................................... 58

Arabic..................................................................................................................... 60

Japanese ................................................................................................................ 62

TZ77A/TZ75A

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 4

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver DVD X 1

Note: The package contents may be different due to area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

SPEC

CPU

Socket 1155

Intel Core i7 / i5 / i3 / Pent ium / C ele ron

processor

Supports Execute Disable B it / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technology /

Hyp er Thread ing

Chipset

Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Super I/O

IT8728

Provides the most commonly used legacy

Super I/O functionality.

Low Pin Count Interface

Environment Control in it iatives,

Hardware Monitor Controller

Fan Speed Contro ller

ITE's "S mart Guardian " function

Main

Memory

DDR3 DIMM Slots x 4

Max Memory Capacity 32GB

Each DIMM supports 512MB/

1GB/2GB/4GB/8GB DDR3

Dual Channel Mode DDR3 memory modu le

Supports DDR3 1066 / 1333

Supports DDR3 1600 / 1866 (OC) / 2133 (OC)

Registered D IMM and ECC DIMM is not supported

SATA 2 & 3 Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s / 6.0 Gb/s.

SATA Version 2.0 / 3.0 specification compliant

RAID 0,1,5,10, SRT (TZ77A) support

LAN Realtek RTL 8111E

10 / 100 Mb/s / 1Gb/s auto negotiation

Half / Full duplex capability

Sound

Codec ALC892

7.1 channels audio out

High Definition Audio

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Data transfer rates up to 600 MB/s

PCI slot x2 Supports PCI expansion cards

PCI Express Gen3 x 16 slot

(Depending on CPU) x1

Supports PCI-E Gen3 x16 expansion card

PCI Express Gen2 x 16 slot(x4) x1 Supports PCI-E Gen2 x16 expansion card

Slots

PCI Express Gen2 x 1 slot x2 Supports PCI-E Gen2 x1 expansion cards

TZ77A/TZ75A

SPEC

SATA3 Connector x2 Each connector supports 1 SATA3 devices

SATA2 Connector x4 Each connector supports 1 SATA2 devices

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x2 System Fan Power supply

Clear CMOS Header x1 Restore CMOS dat a to factory default

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

USB3.0 Connector x1 Each connector supports 2 front panel USB3.0 ports

Consumer IR Connector x1 Supports infrared function

Serial Port Connector x1 Connects to RS-232 Port

S/PDIF out Connector x1 Supports digital audio out function

Power Connector (24pin) x1 Connects to Power supply

On Board

Connectors

Power Connector (8pin) x1 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

HDMI Port x1

VGA Port x1

DVI Port x1

LAN port x1

USB2.0 Port x4

USB3.0 Port x2

Audio Jack x6

Connects to PS/2 Keyboard

Connects to HDMI cable

Connect to D-SUB monitor

Connect to DVI monitor

Connect to RJ-45 ethernet cable

Connect to USB2.0 devices

Connect to USB3.0 devices

Provide Audio-In/Out and Mic. connection

Board Size 244 (W) x 305 (L) mm ATX

OS Support

Windows XP / Vista / 7

Biostar reserves the right to add or remove support

for any OS with or without notice

Motherboard Manual

1.4 REAR PANEL CONNECTORS

Line In

Line Out

Mic In

Cen ter

Rear

Side

US B3. 0X2 USB2.0X 2

LAN

HDMI

VGA

DV I- D

PS/2

Keyboard

US B2 .0 X 2

NOTE: USB3.0 ports (only supported by Windows 7) are backward compatible with

USB2.0/USB1.X de vices.

NOTE: Maximum resolution:

HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a

DVI: 1920 x 1200 @60Hz

VGA: 2048 x 1536 @75Hz

NOTE: This motherboard supports dual video output:

Display Devices VGA DVI-D HDMI

VGA X A A

DVI-D A X S1, C, E

HDMI A S1, C, E X

z A = Single Pipe Single Display, Intel® Dual Display Clone (Only

24-bpp), or Extended Desktop Mode

z C = Clone Mode

z E = Extended Desktop Mode

z S

1 = Single Pipe Single Display With One Display Device

Disabled

z X = Unsupported / Note Applicable

TZ77A/TZ75A

1.5 MOTHERBOARD LAYOUT

USB_KBMS1

HDMI1 DVI 1

VGA1

USB3_0

RJ45USB1

AUDIO1

ATXPWR2

PEX16_1

PEX16_2

PEX1_1

PCI1

PCI2

PEX1_2

LA N

CODEC

F_AUDIO1

JSPDIFOUT1

CIR1

SYS_FAN1 J_COM1 F_USB1 F_U SB 2 SW_RST1

SW_PWR1

PAN E L1

JFRONT _U SB3_1

JCMOS1

SATA3SATA5

SATA4SATA6

SATA2SATA1

Super

I/O

BAT1

Intel

Z77/

Z75

DDR3_A1

DDR3_A2

DB2DR3_

DDR3_B1

CPU_FAN1

Socket 1155

CPU1

BIOS

SYS_FAN2

ATXPWR1

Note: represents the 1■st pin.

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

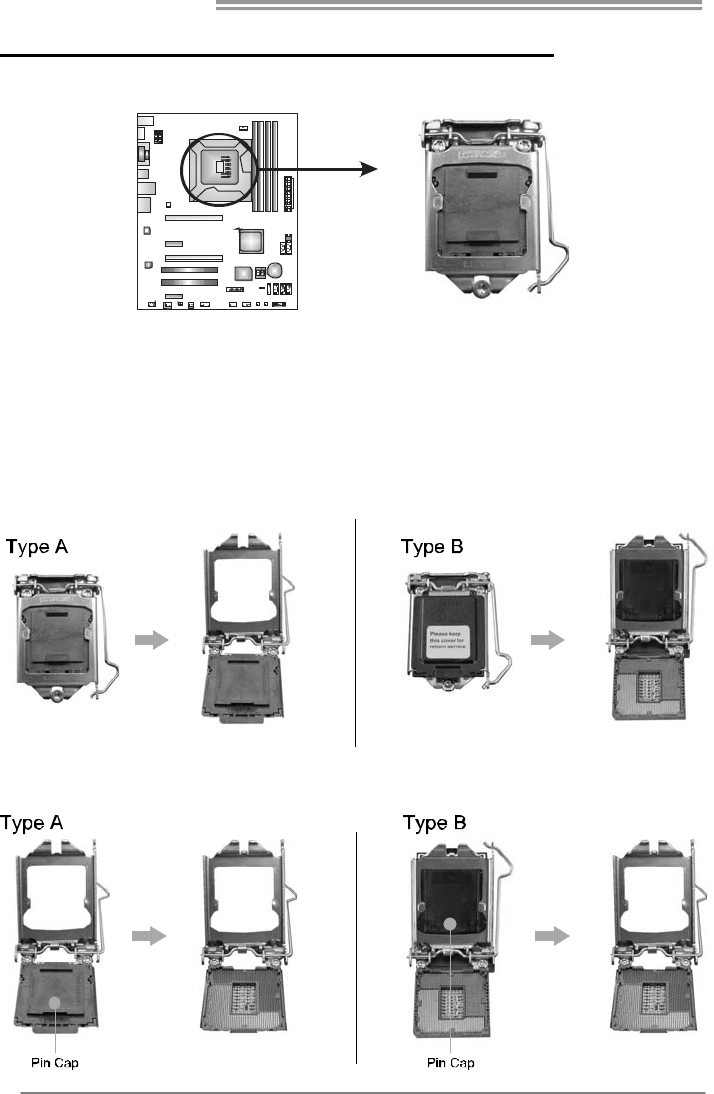

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Notice:

1. Remove Pin Cap before installation, and make good preservation for future use.

When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin

legs won’t be damaged.

2. The motherboard might equip with two different types of pin cap. Please refer

below instruction to remove the pin cap.

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up.

Step 2: Remove the Pin Cap.

TZ77A/TZ75A

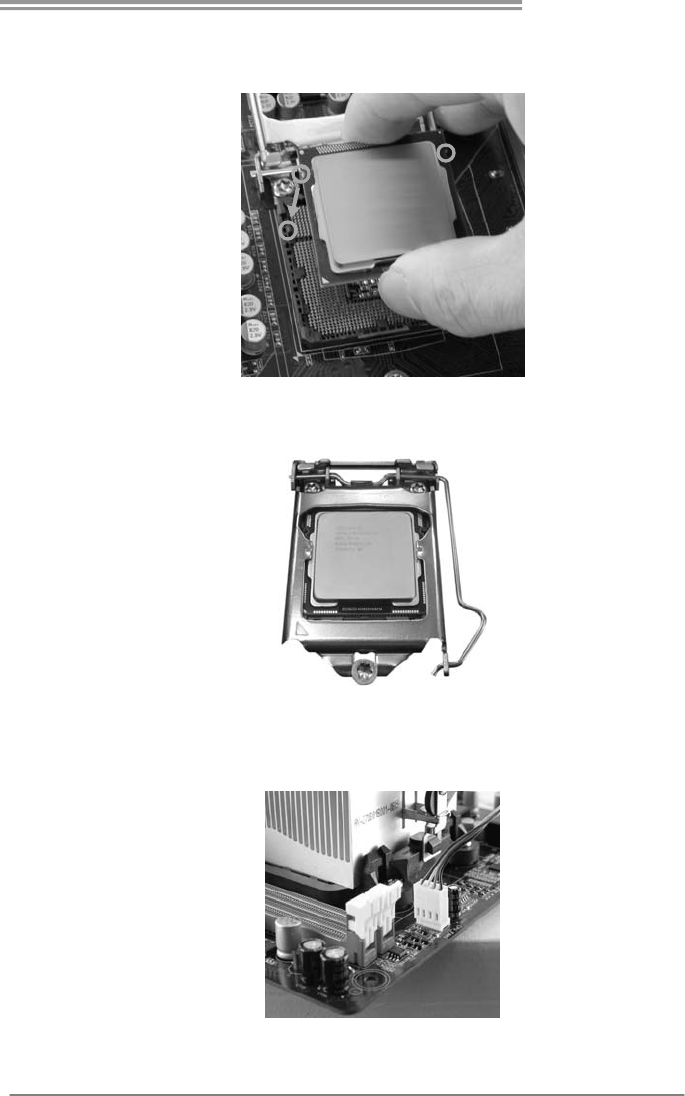

Step 3: Hold processor with your thumb and index fingers, oriented as

shown. Align the notches with the socket. Lower the processor

straight down without tilting or sliding the processor in the socket.

Step 4: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the CPU_FAN1 to complete the installation.

Motherboard Manual

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

CPU_FAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

4 Smart Fan

Control

SYS_FAN1/SYS_FAN2: System Fan Headers

Assignment

1 Ground

2 +12V

SYS_FAN2

SYS_FAN1

3 FAN RPM rate

sense

Note:

The SYS_FAN1/SYS_FAN2 support 3-pin head connectors; the CPU_FAN1 supports

4-pin head connector. When connecting with wires onto connectors, please note that the

red wire is the positive and should be connected to pin#2, and the black wire is Ground

and should be connected to GND.

TZ77A/TZ75A

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR3_A1

DDR3_B1

DDR3_A2

DDR3_B2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

Note:

If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Motherboard Manual

B. Memory Capacity

DIMM Socket

Location DDR3 Module Total Mem ory

Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

DDR3_A2 512MB/1GB/2GB/4GB/8GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB

DDR3_B2 512MB/1GB/2GB/4GB/8GB

Max is 32GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

Enabled O X X O

Enabled X O O X

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or

x16)

TZ77A/TZ75A

2.4 CONNECTORS AND SLOTS

SATA1/SATA2: Serial ATA3.0 Connectors

The motherboard has a PCI to SATA Controller with 2 channels SATA interface,

it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

SATA 1 S ATA 2

7 Ground

SATA3 ~ 6: Serial ATA2.0 Connectors

The motherboard has a PCI to SATA Controller with 4 channels SATA2 interface,

it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

SATA 6 S ATA 4

SATA5 SATA 3

7 Ground

Motherboard Manual

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- PCI-E 3.0 is supported by Core i7-3xxx / i5-3xxx CPU.

PEX16_2: PCI-Express Gen2 x4 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 2GB/s simultaneously per

direction, for an aggregate of 4GB/s totally.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

PEX16_1

PEX1_1

PEX16_2

PEX1_2

TZ77A/TZ75A

PCI1/PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

ATXPWR2: ATX Power Source Connectors

These connectors provide +12V to CPU power circuit. If the CPU power plug is

4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note:

When system is overclocked, it is recommended to plug in both ATXPWR2 for stability.

Motherboard Manual

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 Ground 3 Ground

16 PS_ON 4 +5V

17 Ground 5 Ground

18 Ground 6 +5V

19 Ground 7 Ground

20 NC 8 PW_OK

21 +5V 9 Standby Voltage+5V

22 +5V 10 +12V

23 +5V 11 +12V

24 Ground 12 +3.3V

Note:

Before you power on the system, please make sure that ATXPWR1 and ATXPWR2

connectors have been well plugged-in.

TZ77A/TZ75A

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is

placed on pins, the jumper is “close”, if not, that means the jumper is

“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

POW _LED

On/Off

RST

HLED

SPK

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A N/A

3 N/A 1 1 N/A N/A

4 Speaker

Speaker

Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive

LED 14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control Reset button 16 Ground Power-on button

Motherboard Manual

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

F_ USB2USB1 F_

10 NC

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

20 11

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

NOTE: USB3.0 is only supported by Windows 7.

TZ77A/TZ75A

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header supports HD and AC’97 audio front panel connector.

Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

Pin Assignment

1 IrDA serial input

2 Ground

3 Ground

4 Key

5 IrDA serial output

6 IR Power

Motherboard Manual

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and

the CMOS data. Please carefully follow the procedures to avoid damaging the

motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

J_COM1: Serial Port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

210

10 NC

TZ77A/TZ75A

BIOS POST Code/CPU Temperature Indicator

This indicator will show POST code while booting. After the booting sequence,

it will show current CPU temperature through hexadecimal figure. Please

refer to Chapter 6.3 for all the BIOS POST codes.

On-Board Buttons

There are 2 on-board buttons.

SW_RST1

SW_PWR1

SW_RST1: Reset button.

SW_PWR1: Power Switch button.

Motherboard Manual

CHAPTER 4: RAID / AHCI FUNCTIONS

4.1 OPERATING SYSTEM

CHIP

SATA

Controller

Configuration

Supporting OS

Intel Z77 / Z75

SATA1/SATA2/

SATA3/SATA4/

SATA5/SATA6

AHCI Windows XP SP2 (32 and 64 bit)

Windows Vista SP2 (32 and 64 bit)

Windows 7 (32 and 64 bit)

Intel Z77 / Z75

SATA1/SATA2/

SATA3/SATA4/

SATA5/SATA6

RAID Windows XP SP2 (32 and 64 bit)

Windows Vista SP2 (32 and 64 bit)

Windows 7 (32 and 64 bit)

The 'F6 Method'+ to enable RAID / AHCI Driver when installing Windows XP

1. Before you start Windows installation, copy the proper files for the Windows

version on USB floppy.

Windows XP 32 Windows XP 64

SATA1/SATA2/

SATA3/SATA4/

SATA5/SATA6

AHCI/RAID Driver

Path

x:\Driver\Chipset\Intel\SATA\7

\F6flpy32\Driver\

x:\Driver\Chipset\Intel\SATA\7

\F6flpy64\Driver\

2. When the operating system installation starts, follow Windows indication by

pressing F6 to load the driver.

TZ77A/TZ75A

Enable RAID / AHCI Driver when installing Windows 7/Vista

1. Before you start Windows installation, copy the proper files for the Windows

version to any USB storage.

Windows 7 32 Windows 7 64 Windows Vista 32 Windows Vista 64

SATA1/SATA2/

SATA3/SATA4/

SATA5/SATA6

AHCI/RAID

Driver Path

x:\Driver\Chipset\

Intel\SATA\7\F6flpy

32\Driver\

x:\Driver\Chipset\

Intel\SATA\7\F6flpy

64\Driver\

x:\Driver\Chipset\

Intel\SATA\7\F6flpy

32\Driver\

x:\Driver\Chipset\

Intel\SATA\7\F6flpy

64\Driver\

2. Follow Windows 7 / Vista indication to load the driver in the installation process.

4.2 RAID ARRAYS

CONNECTOR BY CHIP SPEED Support

SATA1/SATA2 Intel Z77 / Z75 6 Gb/s. RAID 0 / 1 / 5 / 10

SATA3/SATA4/SATA5/SATA6 Intel Z77 / Z75 3 Gb/s. RAID 0 / 1 / 5 / 10

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write

times for many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

Motherboard Manual

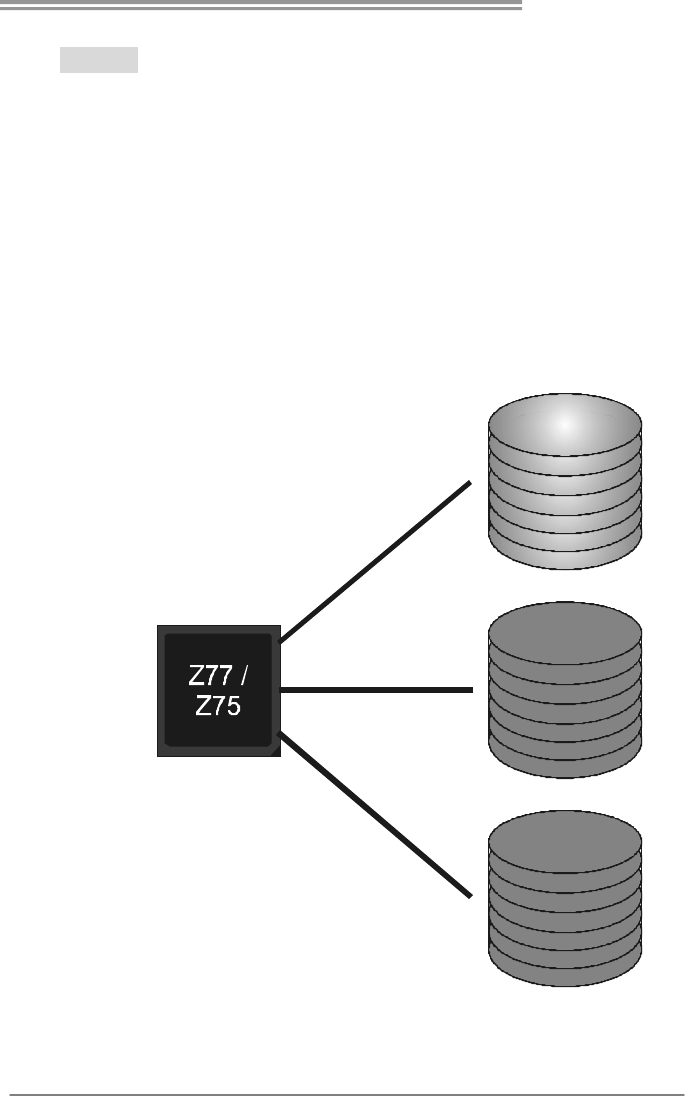

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks

up a large file into smaller blocks and performs disk reads and writes across multip le

drives in parallel. The size of each block is determined by the stripe size parameter,

which you set during the creation of the RAID set based on the system environment. This

technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

TZ77A/TZ75A

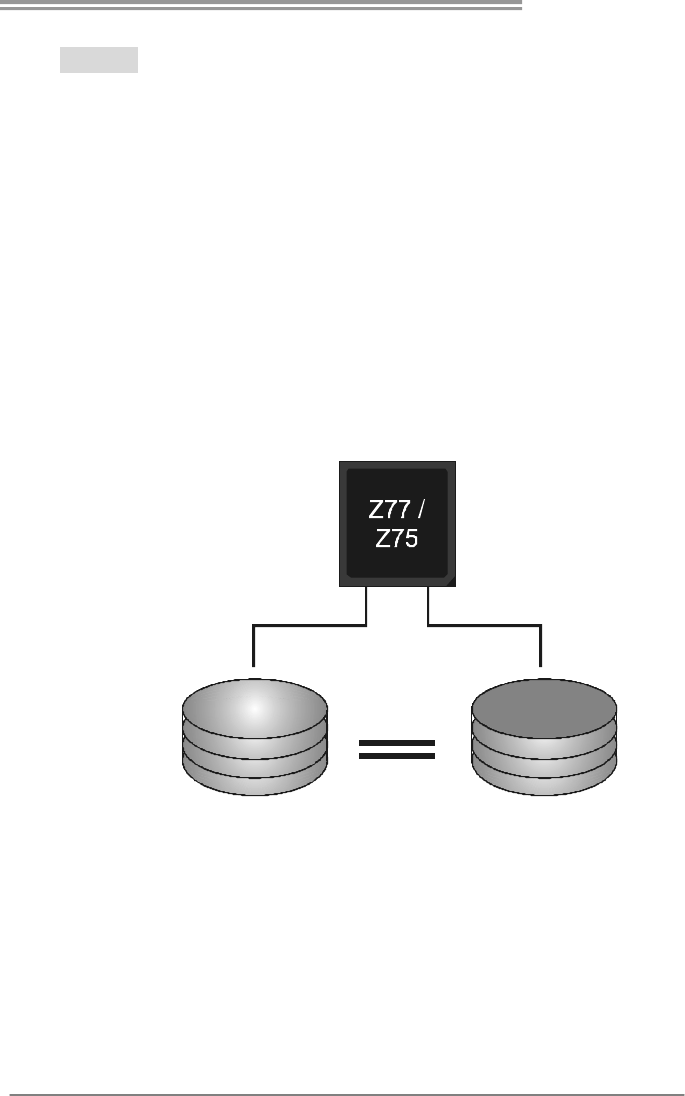

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1

array system. The mirrored (backup) copy of the data can reside on the same disk or on a

second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the

active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of automatic

backup that eliminates tedious manual backups to more expensive and less reliable

media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.

 Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Ye s .

Block 1

Block 2

Block 3

Block 1

Block 2

Block 3

Motherboard Manual

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10

solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.

 Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID levels

in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Ye s .

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

Block 1

Block 3

Block 5

Block 2

Block 4

Block 6

TZ77A/TZ75A

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It writes

data and parity blocks across all the drives in the array. Fault tolerance is maintained by

ensuring that the parity information for any given block of data is placed on a different

drive from those used to store the data itself.

Features and Benefits

 Drives: Mini mum 3.

 Uses: RAID 5 is recommended for transaction processing and general

purpose service.

 Benefits: An ideal combination of good performance, good fault tolerance,

and high capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Disk 1

DATA 3

PA R IT Y

DATA 7

DATA 1

DATA 9

PA R IT Y

Disk 2

PA R IT Y

DATA 5

DATA 8

DATA 2

PA R IT Y

DATA 11

Disk 3

DATA 4

DATA 6

PA R IT Y

DATA 10

DATA 12

Motherboard Manual

4.4 SMART RESPONSE TECHNOLOGY

With Intel(R) Smart Response Technology, the performance of RAID with an Intel

SSD drive can be improved better. This function is only for TZ77A.

Installing Smart Response Technology

1. Install RAID drives (RAID 0, 1, 5) and an Intel SSD.

2. Activate RAID mode from BIOS, and install operating system.

3. Insert the Setup DVD to the optical drive, and Install all drivers (including

Intel(R) Smart Response Technology Driver). After all processes finish,

reboot the system.

4. Intel(R) SRT service icon will show in notification area. Double click it to

open the main windows.

5. Select “Accelerate” page, and make sure the status of accelerated device

has been enabled accelerated.

TZ77A/TZ75A

CHAPTER 5: T-SERIES UEFI BIOS & SOFTWARE

5.1 T-SERIES UEFI

BIOS

T-Series UEFI BIOS Features

Overclocking Navigator Engine (O.N.E.)

Self Recovery System (S.R.S)

Smart Fan Function

BIO-Flasher: Update UEFI BIOS file from USB Flash Drive

A. Overclocking Navigator Engine (O.N.E.)

O.N.E provides 4 systems allowing users to customize personal overclock

settings: Manual CPU System, Manual Memory System, Manual PWM

System, and Manual Voltage System.

Notice:

Not all types of Intel CPU perform above overclock setting ideally; the difference will be based on the

selected CPU model.

!! WARNING !!

For better system performance, the UEFI BIOS firmware is being

continuously updated. The UEFI BIOS information described below

in this manual is for your reference only and the actual UEFI BIOS

information and settings on board may be different from this

manual. For further information of setting up the UEFI BIOS,

lease refer to the UEFI BIOS Manual in the Setu

Motherboard Manual

B. Self Recovery System (S.R.S.)

This function can’t be seen under UEFI BIOS setup, and is always on whenever

the system starts up.

However, it can prevent system hang-up due to inappropriate overclock

actions.

When the system hangs up, S.R.S. will automatically log in the default UEFI

BIOS setting, and all overclock settings will be re-configured.

C. Smart Fan Function

Smart Fan Function is under “Smart Fan Control” in “Advanced Menu”.

This is a brilliant feature to control CPU/System Temperature vs. Fan speed.

When enabling Smart Fan function, Fan speed is controlled automatically by

CPU/System temperature.

This function will protect CPU/System from overheat problem and maintain the

system temperature at a safe level.

↓

NOTE

Overclock is an optional process, but not a “must-do” process; it is not

recommended for inexperienced users. Therefore, we will not be responsible

for any hardware damage which may be caused by overclocking. We also

would no t

uarantee an

overclockin

erformance.

TZ77A/TZ75A

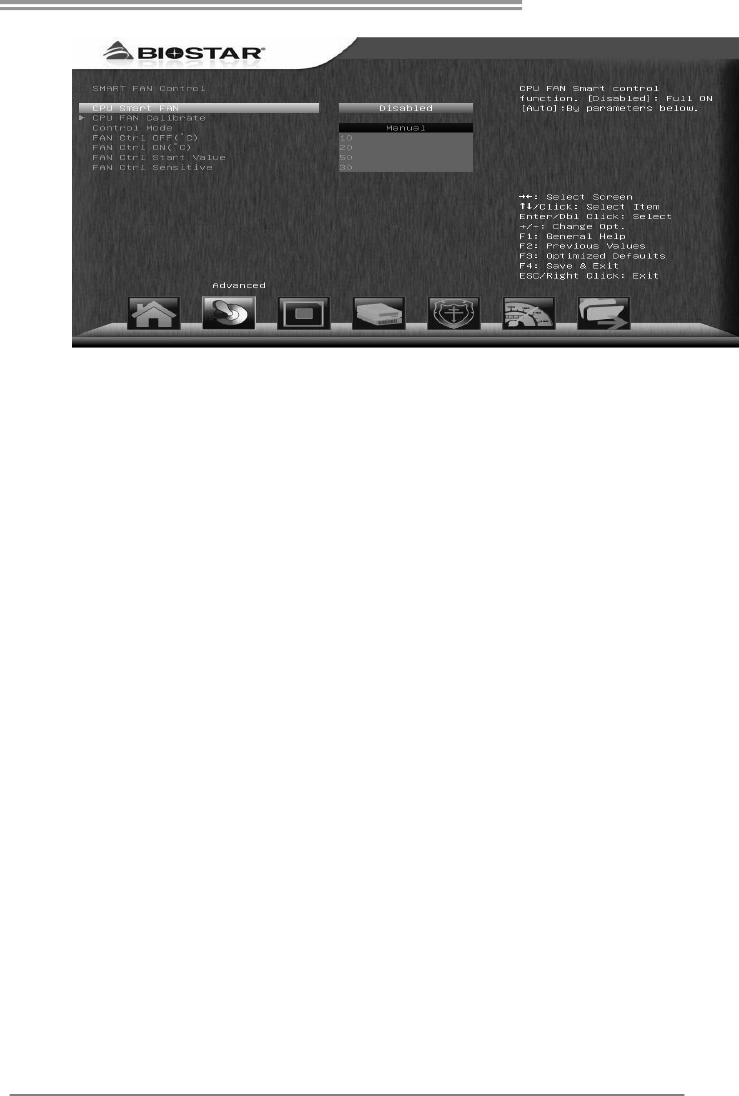

CPU Smart FAN

This item allows you to control the CPU Smart Fan function.

CPU FAN Calibrate

Press [ENTER] to calibrate CPU FAN.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

When CPU temperature is lower than this value, the CPU fan will keep

lowest RPM. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

When CPU temperature is higher than this value, the CPU fan controller

will turn on. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

This item sets CPU FAN Start Speed Value. The range is from 0~127, with

an interval of 1.

Fan Ctrl Sensitive

The bigger the numeral is, the higher the FAN speed is. The range is from

0~127, with an interval of 1.

Motherboard Manual

5.2 T-SERIES SOFTWARE

Installing T-Series Software

6. Insert the Setup DVD to the optical drive. The driver installation program

would appear if the Auto-run function has been enabled.

7. Select Software Installation, and then click on the respective software

title.

8. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process is completed, you will see the software icon

showing on the desktop. Double-click the icon to launch it.

TOverclocker

TOverclocker presents a simple Windows-based system performance

enhancement and manageability utility. It features several powerful and easy

to use tools such as Overclocking for enhancing system performance, also for

special enhancement on CPU and Memory. Smart-Fan management and PC

health are for monitoring system status. This utility also allows you to make

overclocking profiles saving unlimitedly, and pre-set OC modes are for easy

OC. (The illustration below is for reference only)

TZ77A/TZ75A

The CPU tab provides information on the CPU and motherboard.

The Memory tab provides information on the memory module(s).

You can select memory module on a specific slot to see its information.

The OC Tweaker tab allows you to change system clock settings and voltages

settings. It also provides six pre-set modes for you:

Motherboard Manual

3 Pre-set Modes: V6, V12, AUTO for different overclocking experience.

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and

temperature. Besides, you also can set related values for CPU Smart Fan.

TZ77A/TZ75A

Pressing TOVERCLOCKER logo

displays information about

manufacturer and software version.

You can upd ate current version by

clicking the button “Live Update.”

Green Power II Utility

BIOSTAR G.P.U II (Green Power Utility) is a new function. The utility enhances

energy efficiency by disabling extra phases while CPU is on light loading; it

features 4+1 power phases, current power saving, and toal power saving. This

tool integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU

Temperature. Moreover, it optimizes power saving and best power efficiency

on your system. (The illustration below is for reference only)

Displa

manufacturer &

software version information

Display CPU

information

Reset Time &

C onsu m ption

Auto P hase Mode

Maxi-Energy Mode

Typical Mode

Medium Mode

Performance

Mode

Motherboard Manual

G.P.U Mode Setting

This utility provides five modes, upon your requirements, to improve

system performance or to save power consumption.

Note: Even if the modes saving more power consumption are chosen, the

system still can keep excellent performance.

 Auto Phase Mode

System switches the mode automatically according to current system

loading condition.

 Performance Mode

This is the mode saving power consumption most. Least energy will

be used in the system.

 Typical Mode

Compared with that in Performance Mode, energy consumption in this

mode is a little bit more.

 Medium Mode

This is the standard system power saving mode.

 Maxi-Energy Mode

This is the best system performance mode.

TZ77A/TZ75A

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our

Tech-Support system. This utility will collect the system information which is

useful for analyzing the problem you may have encountered, and then send

these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

This block will show

the information which

would be collected in

the mail.

Provide the e-mail

address that you would

like to send the copy to.

Provide the name of

the power supply

manufacturer and the

model no.

Send the mail out.

Save these information to a .txt fil

Exit this dialog.

Select your area or

the area close to you.

Provide the name of

the memory module

manufactu rer.

Describe condition

of your system.

represents important

information that you

must provide. Withou t

this informat ion, you may

not be able to send out

the mail.

After filling up this information, click “Send”

to send the mail out. A warning dialog would

appear asking for your confirmation; click

“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you

will see a saving dialog appears asking you to enter file name.

Motherboard Manual

Enter the file name and then click

“Save”. Your system information

will be saved to a .txt file.

Open the saved .txt file, you will see

your system information including

motherboard/BIOS/CPU/video/

device/OS information. This

information is also concluded in the

sent mail.

We will not share customer’s data with any other third parties,

so please feel free to provide your system information while using

eHot-Line service.

If you are not using Outlook Express as your default e-mail client

application, you may need to save the system information to a .txt file

and send the file to our tech support with other e-mail application.

TZ77A/TZ75A

BIOS Update

BIOS Update is a convenient utility which allows you to update your

motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(On ly for AWARD BIOS)

Show current BIOS information

Save cur rent BIOS

to a .bin file

AWARD BIOS AMI BIOS

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

Motherboard Manual

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure

should be run with Clear CMOS function, so

please check on Clear CMOS first.

Then click Update BIOS button, a

dialog will show for asking you backup

current BIOS. Click Yes for BIOS

backup and refer to the Backup BIOS

procedure; or click No to skip this

procedure.

After the BIOS Backup procedure, the

open dialog will show for requesting the

BIOS file which is going to be updated.

Please choose the proper BIOS file for

updating, then click on Open.

The utility will update BIOS with the

proper BIOS file, and this process may

take minutes. Please do not open any

other applications during this process.

After the BIOS Update process, click on

OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and

Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the T-Series software are subject to be

changed without notice. For better performance, the software is being continuously

updated. The information and pictures described above are for your reference only.

The actual information and settings on board may be slightly different from this

manual.

TZ77A/TZ75A

BIOScreen Utility (Optional)

This utility allows you to personalize your boot logo easily. You can choose

JPG or BMP as your boot logo so as to customize your computer.

Please follow the following instructions to update boo logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.

Motherboard Manual

CHAPTER 6: USEFUL HELP

6.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup

Driver DVD into your optical drive and install the driver for better system

performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver DVD, please use file browser to

locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will

list the compatible driver for your motherboard and operating system.

Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide

will list the software available for your system, click on each software title

to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver

DVD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version

of Acrobat Reader software from

http://www.adobe.com/products/acrobat/readstep2.html

TZ77A/TZ75A

6.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for

seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown

automatically to avoid a damage of the CPU, and the system may not

power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection

function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.

(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Motherboard Manual

6.3 AMI BIOS POST CODE

Checkpoint Description

Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS,

POST, Runtime da ta area. Also initiali ze B IOS modules on POST entry and

GPNV area. Initialized CMOS as mentioned in the Kernel Variable

"wCMOSFlags."

Check CMOS diagnostic byte to determine if battery power is OK and

CMOS checksum is OK. Verify CMOS checksum manually by reading

storage area. If the CMOS checksum is bad, update CMOS with power-on

default values and clear passwords. Initialize status register A.

Initializes data variables that are based on CMOS setup questions.

Initializes both the 8259 compatible PICs in the system

05 Initializes the interrupt controlling hardware (generally PIC) and interrupt

vector table.

Do R/W test to C H-2 count reg. Initiali ze CH-0 as system timer. Install the

POSTINT1Ch handler. E nable IRQ-0 in P IC for system timer interrupt.

Traps INT1Ch vector to "POSTINT1ChHandlerBlock."

07 Fixes CPU POST interface calling pointer.

Initializes the CPU. The BAT test is bei ng done o n KBC. Program the

keyboard controller command byte is being done after Auto detection of

KB/MS using AMI KB-5.

C0 Early CPU Init Start -- Disable Cache – Init Local APIC.

C1 Set up boot strap processor Information.

C2 Set up boot strap processor for POST.

C5 Enumerate and set up application processors.

C6 Re-enable cache for boot strap processor.

C7 Early CPU Init Exit.

0A Initializes the 8042 compatible Key Board Controller.

0B Detects the presence of PS/2 mouse.

0C Detects the presence of Keyboard in KBC port.

Testing and initialization of different Input Devices. Also, update the Kernel

Variables.

Traps the INT09 h vector, so that the POST INT09 h ha nd ler ge ts control for

IRQ1. Uncompress all available language, BIOS logo, and Silent logo

modules.

13 Early POST initialization of chipset registers.

20 Relocate System Management Interrupt vector for all CPU in the system.

24 Uncompress and i nitialize a ny pla tform specific B IOS modules. GPNV is

initialized at this checkpoint.

2A Initializes different devices through DIM.

See DIM Code Checkpoints section of document for more information.

2C Initializes different devices. Detects and initializes the video adapter

installed in the system that have optional ROMs.

2E Initializes all the output devices.

Allocate memory for ADM module and uncompress it. Give control to ADM

module for initialization. Initialize language and font modules for ADM.

Activate ADM module.

33 Initializes the silent boot module. Set the window for displaying text

information.

TZ77A/TZ75A

Checkpoint Description

37 Displaying sign-on message, CPU information, setup key message, and any

OEM specific information.

Initializes different devices through DIM. See DIM Code Checkpoints section

of document for more information. USB controllers are initialized at this

point.

39 Initializes DMAC-1 & DMAC-2.

3A Initialize RTC date/time.

3B Test for total memory installed in the system. Also, Check for DEL or ESC

keys to limit memory test. Display total memory in the system.

3C Mid POST initialization of chipset registers.

Detect different devices (Parallel ports, serial ports, and coprocessor in

CPU, etc.) successfully installed in the system and update the BDA,

EBDA…etc.

Updates CMOS memory size from memory found in memory test. Allocates

memory for Extended BIOS Data Area from base memory. Programming the

memory hole or any kind of implementation that needs an adjustment in

system RAM size if needed.

60 Initializes NUM-LOCK status and programs the KBD typematic rate.

75 Initialize Int-13 and prepare for IPL detection.

78 Initializes IPL devices controlled by BIOS and option ROMs.

7C Generate and write conte nts of ESCD in NVRam.

84 Log errors encountered during POST.

85 Display errors to the user and gets the user response for error.

87 Execute BIOS setup if needed / requested. Check boot password if installed.

8C Late POST initialization of chipset registers.

8D Build ACPI tables (if ACPI is supported).

8E Program the peripheral parameters. Enable/Disable NMI as selected.

90 Initialization of system management interrupt by invoking all handlers.

Please note this checkpoint comes right after checkpoint 20h.

A1 Clean-up work needed before booting to OS.

Takes care of runtime image preparation for different BIOS modules. Fill the

free area in F000h segment with 0FFh. Initializes the Microsoft IRQ Routin

Table. Prepares the runtime language module. Disables the system

configuration display if needed.

A4 Initialize runtime language module. Display boot option popup menu.

A7 Displays the system configuration screen if enabled. Initialize the CPU’s

before boot, which includes the programming of the MTRR’s.

A9 Wait for user input at config display if needed.

AA Uninstall POST INT1Ch vector and INT09h vector.

AB Prepare BBS for Int 19 boot. Init MP tables.

AC End of POST initialization of chipset registers. De-initializes the ADM

module.

B1 Save system context for ACPI. Prepare CPU for OS boot including final

MTRR values.

00 Passes control to OS Loader (typically INT19h).

Motherboard Manual

6.4 TROUBLESHOOTING

Probable Solution

1. There is no power in the system.

Power LED does not shine; the

fan of the power supply does not

work

2. Indicator light on keyboard does

not shine.

1. Make sure power cable is

securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights

are on, power indicator lights are lit,

and hard drives are running.

Using even pressure on both ends of

the DIMM, press down firmly until the

module snaps into place.

System does not boot from a hard disk

drive, but can be booted from optical

drive.

1. Check cable running from disk to

disk controller board. Make sure

both ends are securely plugged

in; check the drive type in the

standard CMOS setup.

2. Backing up the hard drive is

extremely important. All hard

disks are capable of breaking

down at any time.

System only boots from an optical

drive. Hard disks can be read,

applications can be used, but system

fails to boot from a hard disk.

1. Back up data and applications

files.

2. Reformat the hard drive.

Re-install applications and data

using backup disks.

Screen message shows “Invalid

Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure

correct information is in setup.

System cannot boot after user installs a

second hard drive.

1. Set master/slave jumpers

correctly.

2. Run SETUP program and select

correct drive types. Call the drive

manufacturers for compatibility

with other drives.

TZ77A/TZ75A

This page is intentionally left blank.

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN

Spezif ikationen

CPU

Socket 1155

Intel Core i7 / i5 / i3 / Pent ium / C ele ron

Prozessoren

Unterstützt Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technology /

Hyp er Thread ing

Chipsatz Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Super E/A

IT8728

Bietet die häufig verwendeten alten Sup er

E/A-Funktionen.

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller/-Überwachung

"Smart Guardian"-Funktion von ITE

Arbeitsspeich

DDR3 DIMM-Steckplätze x 4

Max. 32GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/

1GB/2GB/4GB/8GB DDR3.

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 1066 / 1333

Unterstützt DDR3 1600 / 1866(OC) / 2133(OC)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

SATA 2 & 3 Integrierter Serial ATA-Controller

Datentransferrate bis zu 3.0Gb/s / 6.0Gb/s.

Konform mit der SATA-Spezifikation Version 2.0 / 3.0

Unterstützt RAID 0,1,5,10, SRT (TZ77A)

LAN Realtek RTL 8111E 10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

Audio-Unters

tützung

ALC892 Unterstützt High-Definition Audio

7.1-Kanal-Audioausgabe

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Datenübertragungsraten bis zu 600 MB / s

PCI-Steckplatz x2

PCI Express Gen3 x16 Steckplatz x1

PCI Express Gen2 x16 Steckplatz(x4) x1

Steckplätze

PCI Express Gen2 x 1-Steckplatz x2

SATA3-Anschluss x2 Jeder Anschluss unterstützt 1 SATA3-Laufwerk

SATA2-Anschluss x4 Jeder Anschluss unterstützt 1 SATA2-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Onboard-Ans

chluss

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

TZ77A/TZ75A

Spezif ikationen

CPU-Lüfter-Sockel x1

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funktio n )

System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB2.0-Anschluss x2 Jeder Anschluss unterstützt 2

Fronttafel-USB2.0-Anschlüs se

USB3.0-Anschluss x1 Jeder Anschluss unterstützt 2

Fronttafel-USB3.0-Anschlüs se

Verbraucher-IR Anschluss x1

Serieller Anschluss x1

S/PDIF Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

Stromanschluss (24-polig) x1

Stromansch lus s (8-polig ) x1

Rückseiten-E

PS/2-Tastatur x1

HDMI-Anschluss x1

VGA-Anschluss x1

DVI-Anschluss x1

LAN-Anschluss x1

USB2.0-Anschluss x4

USB3.0-Anschluss x2

Audioanschluss x6

Platinengröße

244 mm (B) X 305 mm (L) ATX

OS-Unterstüt

zung

Windows XP / Vista / 7

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

Motherboard Manual

FRENCH

SPEC

Socket 1155

Processeurs Intel Core i7 / i5 / i3 / Pent ium /

Celeron

Prend en charge les techno logies d'exécution de bit

de désactivation / Intel SpeedStep® optimisée/

d'archit ecture Intel 64 / de mémoire étendue 64 / de

virtualisation / Hyper Threading

Chipset Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Super E/S

IT8728

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faib le co mpte de b roches

Initiatives de contrôle environnementales,

Moniteur d e mat ériel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 4

Capacité mémo ire max imale de 32 Go

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go

Module d e mémo ire DDR3 à mode à double vo ie

Prend en charge la DDR3 1066 / 1333

Prend en charge la DDR3 1600 / 1866 (OC) / 2133

(OC)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

SATA 2 & 3

Contrôleur Serial ATA

int égré :

Taux de transfert jusqu'à 3.0Go/s / 6.0Go/s.

Conforme à la spécification SATA Version 2.0 / 3.0

Prise en charge RAID 0,1,5,10, SRT (TZ77A)

LAN Realtek RTL 8111E 10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Prise en

charge

audio HD

ALC892 Prise en charge de l'audio haut e définition

Sortie audio à 7.1 vo ies

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Taux de transfert de données jusqu'à 600 Mo / s

Fente PCI x2

Fente PCI Express Gen3 x16 x1

Fente PCI Express Gen2 x16(x4) x1

Fentes

Fente PCI Express Gen2 x1 x2

Connecteur SATA3 x2 Chaque connecteur prend en charge 1 périphérique

SATA3

Connecteur SATA2 x4 Chaque connecteur prend en charge 1 périphérique

SATA2

Connecteur

embarqué

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

TZ77A/TZ75A

SPEC

Connecteur Aud io du panneau avant x1 Prend en charge la fonction audio du panneau avant

Embase de ventilateur UC x1 Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Embase de ventilateur système x2 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB2.0 x2 Chaque connecteur prend en charge 2 ports USB2.0

de panneau avant

Connecteur USB3.0 x1 Chaque connecteur prend en charge 2 ports USB3.0

de panneau avant

Connecteur de IR du consommateur x1

Port série x1

Connecteur de sortie S/PDIF x1 Prend en charge la fonction de sortie audio

numérique

Connecteur d'aliment ation x1

(24 broches)

Connecteur d'aliment ation x1

(8 broch es)

E/S du

panneau

arrière

Clavier PS/2 x1

Port HDMI x1

Port VGA x1

Port DVI x1

Port LAN x1

Port USB2.0 x4

Port USB3.0 x2

Fiche audio x6

Dimensions

de la carte

244 mm (l) X 305 mm (H) ATX

Support SE Windows XP / Vista / 7 Biostar se réserve le droit d'ajouter ou de supprimer

le support de SE avec ou sans préavis

Motherboard Manual

ITALIAN

SPECIFICA

CPU

Socket 1155

Proces sore Intel Core i7 / i5 / i3 /

Pentium / Celeron

Supporto di Execute Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 / Tecnologia

Virtualization / Hyper Threading

Chipset Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Super I/O

IT8728

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller / Monitoraggio ve locità ventolina

Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 4

Capacità massima della memoria 32GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 1066 / 1333

Supporto di DDR3 1600 / 1866 (OC) / 2133

(OC)

DIMM registrati e DIMM ECC non sono

supportati

SATA 2 & 3

Controller Ser ial ATA integrato

Velocità di trasferimento dei dati fino a 3.0Gb/s

/ 6.0Gb/s.

Compatibile specifiche SATA Versione 2.0/3.0

Supporto RAID 0,1,5,10, SRT (TZ77A)

LAN Realtek RTL 8111E Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Supporto

audio HD ALC892 Supporto audio High-Definition (HD)

Uscita audio 7.1 canali

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Velocità di trasferimento dati fino a 600 MB / s

Alloggio PCI x2

Alloggio PCI Express Gen3 x16 x1

Alloggio PCI Express Gen2 x16(x4) x1

Alloggi

Alloggio PCI Express Gen2 x1 x2

Connettore SATA3 x2 Ciascun connettore supporta 1 unità SATA3

Connettore SATA2 x4 Ciascun connettore supporta 1 unità SATA2

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettori

su scheda

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

TZ77A/TZ75A

SPECIFICA

Collettore ventolina C PU x1 Alimentazione ventolina CPU (con funzione

Smart Fan)

Collettore ventolina sistema x2 Alimentazione ventolina d i sistema

Collettore cancellaz ione CMOS x 1

Connettore USB2.0 x2 Ciascun connettore supporta 2 porte USB2.0

pannello frontale

Connettore USB3.0 x1 Ciascun connettore supporta 2 porte USB3.0

pannello frontale

Connettore IR del consumatore x1

Porta seriale x1

Connettore output S/PDIF x1 Supporta la funzione d’output audio digitale

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(8 pin)

I/O

pannello

posteriore

Tas t ier a PS/2 x 1

Porta HDMI x1

Porta VGA x1

Porta DVI x1

Porta LAN x1

Porta USB2.0 x4

Porta USB3.0 x2

Connettore audio x6

Dimension

i scheda

244 mm (larghezza) x 305 mm

(altezza) ATX

Sistemi

operativi

supportati

Windows XP / Vista / 7

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Motherboard Manual

SPANISH

Especificación

CPU

Socket 1155

Procesador Intel Core i7 / i5 / i3 / Pent iu m /

Celeron

Admite Bit de deshabilitación de ejecución / Intel

SpeedStep® Mejorado / Intel Architecture-64 /

Tecno logía Extended Memory 64 / Tecnología d e

virtualización / Hyper Threading

Conjunto de

chips

Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Súper E/S

IT8728

Le ofrece las funcionalidades heredadas de

uso más comú n Súper E/S.

Interfaz de cuenta Low Pin

In iciat ivas de control d e entorno,

Monitor hardware

Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 4

Capacidad máxima de memoria de 32GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 1066 / 1333

Admite DDR3 de 1600 / 1866(OC) / 2133(OC)

No admite DIMM registrados o DIMM compatibles

con ECC

SATA 2 & 3 Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s / 6.0 Gb/s.

Compat ib le con la versión SATA 2.0 / 3.0.

Admite RAID 0,1,5,10, SRT (TZ77A)

Red Local Realtek RTL 8111E Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Soporte de

sonido HD

ALC892 Soporte de sonido de Alta Definición

Salida de sonido de 7.1 canales

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Tasas de transferencia de datos hasta 600 MB / s

Ranura PCI X2

Ranura PCI Express Gen3 x16 X1

Ranura PCI Express Gen2 x16(x4) X1

Ranuras

Ranura PCI Express Gen2 x 1 X2

Conector SATA3 X2 Cada conector soporta 1 dispositivos SATA3

Conector SATA2 X4 Cada conector soporta 1 dispositivos SATA2

Conector de p anel f rontal X1 Soporta instalaciones en el p anel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Conectores

en placa

Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema

TZ77A/TZ75A

Especificación

Cabecera de borrado de CMOS X1

Conector USB2.0 X2 Cada conector soporta 2 puertos USB2.0 frontales

Conector USB3.0 X1 Cada conector soporta 2 puertos USB3.0 frontales

Conector de IR del consumidor X1

Puerto serie X1

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(8 patillas)

Panel

trasero de

E/S

Tec l ado PS /2 X 1

Puerto HDMI x1

Puerto VGA X1

Puerto DVI X1

Puerto de red local X1

Puerto USB2.0 X4

Puerto USB3.0 X2

Conector de sonido X6

Ta mañ o d e

la placa

244 mm. (A) X 305 Mm. (H) ATX

Soporte de

sistema

operativo

Windows XP / Vista / 7 Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

PORTUGUESE

ESPECIFICAÇÕES

CPU

Socket 1155

Processador Intel Core i7 / i5 / i3 / Pent iu m /

Celeron

Suporta as tecno logias Execute Disable B it /

Enhanced Intel Sp eedStep® / Intel Arqu itecture -64

/ Extended Memory 64 / V irtualization / Hyper

Threading

Chipset Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Especificaçã

o Super I/O

IT8728

Proporciona as funcionalidades mais

utilizadas em termos da especificação Super

I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a contro lo do amb iente

Monitorização do hardware

Controlador/Monitor da velocidade da ventoinha

Função "S mart Guardian" d a ITE

Memória

principal

Ranhuras DIMM DDR3 x 4

Capacidad e máx ima d e memór ia: 32 GB

Cada módulo DIMM suporta uma memória

DDR3 de 512MB/ 1GB/2GB/4GB/8GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 1066 / 1333

Suporta módulos DDR3 1600 / 1866 (OC) / 2133

(OC)

Os módulos DIMM registados e os DIMM ECC não

são suportados

SATA 2 & 3 Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0 Gb/s /

6.0 Gb/s.

Compat ibilidade com a especificação SATA versão

2.0 / 3.0.

Suporta as funções RAID 0,1,5,10, SRT (TZ77A)

LAN Realtek RTL 8111E Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Suporte

para áudio

de alta

definição

ALC892 Suporta a especificação High-Definition Audio

Saída de áudio de 7.1 canais

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Taxas de transferência de dados até 600 MB / s

Ranhura PCI x2

Ranhura PCI Express Gen3 x16 x1

Ranhura PCI Express Gen2 x16(x4) x1

Ranhuras

Ranhura PCI Express Gen2 x 1 x2

Conector SATA3 x2 Cada conector suporta 1 dispositivo SATA3

Conector SATA2 x4 Cada conector suporta 1 dispositivo SATA2

Conectores

na placa

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

TZ77A/TZ75A

ESPECIFICAÇÕES

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector da ventoinha da CPU x1 Alimentação da ventoinha da CPU (com a função

Smart Fan)

Conector da ventoinha do s istema x2 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB2.0 x2 Cada conector suporta 2 portas USB2.0 no painel

frontal

Conector USB3.0 x1 Cada conector suporta 2 portas USB3.0 no painel

frontal

Conector de IR do consumidor x1

Porta série x1

Conector de saíd a S/PDIF x1 Suporta a saída de áudio dig ital

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(8 p inos)

Entradas/S

aídas no

painel

traseiro

Tec l ado PS /2 x 1

Porta HDMI x1

Porta VGA x1

Porta DVI x1

Porta LAN x1

Porta USB2.0 x4

Porta USB3.0 x2

Tomada de áudio x6

Tamanho

da placa

244 mm (L) X 305 mm (A) ATX

Sistemas

operativos

suportados

Windows XP / Vista / 7

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema operativo

com ou sem aviso prévio.

Motherboard Manual

POLISH

SPEC

Procesor

Socket 1155

Procesor Intel Core i7 / i5 / i3 / Pent ium /

Celeron

Obsługa Execute Disable B it / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technology /

Hyp er Thread ing

Chipset Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Pamięć

główna

Gniazda DDR3 DIMM x 4

Maks. wielkość pamięci 32GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

Modu ł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 1066 / 1333

Obsługa DDR3 1600 / 1866 (OC) / 2133 (OC)

Brak obsługi Registered DIMM oraz ECC DIMM

Super I/O

IT8728

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler/Monitor prędkości wentylatora

Funkcja ITE "Smart Guard ian"

SATA 2 & 3 Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s / 6.0 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0 / 3.0.

Obsługa RAID 0,1,5,10, SRT (TZ77A)

LAN Realtek RTL 8111E

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w tryb ie połowicznego / pełnego dupleksu

Obsługa

audio HD

ALC892 Obsługa High-Def inition Aud io

7.1 kanałowe wyjście audio

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) Cena transferu danych do 600 MB / s

Gniazdo PCI x2

Gniazdo PCI Express Gen3 x16 x1

Gniazdo PCI Express Gen2 x16(x4) x1

Gniazda

Gniazdo PCI Express Gen2 x 1 x2

Złącze SATA3 x2 Każde złącze obs ługuje 1 urządzenie SATA3

Złącze SATA2 x4 Każde złącze obs ługuje 1 urządzenie SATA2

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przedn ie złącze aud io x1 Obsługa funkcji audio na panelu przednim

Złącza

wbudowane

Złącze głó wkowe wentylatora

procesora x1

Zasilanie wentylatora procesora (z funkcją Smart

Fan )

TZ77A/TZ75A

SPEC

Złącze głó wkowe wentylatora

systemowego x2

Zasilanie wentylatora systemowego

Złącze głó wkowe kasowania CMOS x1

Złącze USB2.0 x2 Każde złącze obs ługuje 2 porty USB2.0 na panelu

przednim

Złącze USB3.0 x1 Każde złącze obs ługuje 2 porty USB3.0 na panelu

przednim

Złącze Konsument IR x1

Port szeregowy x1

Złącze wyjścia S/PDIF x1 Obsługa funkcji cyfrowego wyjścia aud io

Złącze zasilania (24 pinowe) x1

Złącze zas ilania (8 p inowe) x1

Back Panel

I/O

Klawiatura PS/2 x1

Port HDMI x1

Port VGA x1

Port DVI x1

Port LAN x1

Port USB2.0 x4

Port USB3.0 x2

Gniazdo audio x6

Wymiary

płyty

244 mm (S) X 305 mm (W) ATX

Obsluga

systemu

operacyjne

Windows XP / Vista / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i dowo ln ego systemu

operacyjnego bez powiado mienia.

Motherboard Manual

RUSSIAN

СПЕЦ

CPU

(центральн

ый

процессор)

Socket 1155

Процессор Intel Core i7 / i5 / i3 / Pent iu m /

Celeron

Поддержка технологий Execute Disable B it /

Enhanced Intel SpeedStep® / Intel Architecture-64

/ Extended Memory 64 Technology / технологии

виртуализация / Hyper Threading

Набор

микросхем

Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

Основная

память

Слоты DDR3 DIMM x 4

Максимальная ёмкость памяти 32 ГБ

Каждый модуль DIMM поддерживает

512МБ /1ГБ/2ГБ/4ГБ/8 ГБ DDR3

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 1066 / 1333

Поддержка DDR3 1600 / 1866(OC) / 2133(OC)

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Super I/O

IT8728

Обеспечивает наиболее используемые

действующие фун кц иональны е

возможности Super I/O.

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости вентилятора/ монитор

Функция ITE "Smart Guard ian"

(Интеллектуальная защита)

SATA 2 & 3 Встроенное последовательное устройство

управления ATA

скорость передачи данных до 3.0 гигабит/с /

6.0 гигабит/с.

Соответствие спецификации SATA версия 2.0/3.0

Поддержка RAID 0,1,5,10, SRT (TZ77A)

Локальная

сеть

Realtek RTL 8111E

Автоматическое согласование 10 / 100 / 1000

Мб/с

Частичная / полная дуплексная способность

Звуковая

поддержка

жесткого

диска

ALC892 Звуковая поддержка High-Def in ition

7.1канальный звуковой выход

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) скорости передачи данных до 600 МБ / с

Слот PCI x2

Слот PCI Express Gen3 x16 x1

Слот PCI Express Gen2 x16(x4) x1

Слоты

Слот PCI Express Gen2 x 1 x2

Разъём SATA3 x2 Каждый разъём поддерживает 1 устройство SATA3

Разъём SATA2 x4 Каждый разъём поддерживает 1 устройство SATA2

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Встроенны

й разъём

Входной звуковой разъём x1

Поддержка звуко вых функций на лицевой

панели

TZ77A/TZ75A

СПЕЦ

Контактирующее приспособление

вентилятора центрального процессора x1

Источник питания для вентилятор а центрального

процессора (с функц ией интеллектуального

вентилятора)

Контактирующее приспособление

вентилятора системы x2

Источник питания для вентилятора системы

Открытое контактирующее

приспособление CMOS x1

USB2.0-разъём x2

Каждый разъём поддерживает 2 USB2.0-порта на

лицевой панели

USB3.0-разъём x1

Каждый разъём поддерживает 2 USB3.0-порта на

лицевой панели

Разъём едока ИКЫЙ x1

Последовательный порт x1

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой функц ии

Разъем питания (24 вывод) x1

Разъем питания (8 вывод) x1

Задняя

панель

средств

ввода-выв

ода

Клавиатура PS/2 x1

Порт HD MI x1

Порт VGA x1

Порт DVI x1

Порт LAN x1

USB2.0-порт x4

USB3.0-порт x2

Гнездо для подключения

наушников x6

Размер

панели

244 мм (Ш) X 305 мм (В) ATX

Поддержка

Windows XP / Vista / 7

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

Motherboard Manual

ARABIC

تﺎﻔﺻاﻮﻤﻟا

تﺎﻴﻨﻘﺗ ﻢﻋﺪﺗExecute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technology /

Hyp er Thread ing

Socket 1155

تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pentiu m /

Celeron ﺑ ددﺮﺘ ی ﻰﻟإ ﻞﺼ

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔیﺰآﺮﻤﻟا

Intel Z77 (TZ77A)

Intel Z75 (TZ75A) ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ4

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ32 ﺖیﺎﺑ ﺎﺠﻴﺝ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ /512 و ﺖیﺎﺑ ﺎﺠﻴﻣ 1/

و2/و 4/و 8 ﺎﺠﻴﺝﺖیﺎﺑ

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

ا ﻢﻋﺪﺗ عﻮﻥ ﻦﻣ ةﺮآاﺬﻟ DDR3 تﺎﻌﺳ 1066 / 1333ﺖیﺎﺑ ﺎﺠﻴﻣ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻧ DDR3 تﺎﻌﺳ 1866 (OC) / 2133

(OC) / 1600 ﺎﺠﻴﻣ ﺖیﺎﺑ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ﻞﺋﺎﺳو ﻢﻜﺤﺘﻟا ﻲﻓ ﺔﺌﻴﺒﻟا:

ﺐﻗاﺮﻣ ﺔﻓﺮﻌﻤﻟ ﺔﻟﺎﺣ ةﺰﻬﺝﻷا

ﺐﻗاﺮﻣ ﻲﻓ ﺔﻋﺮﺳ اﺔﺣوﺮﻤﻟ

ﺔﻔﻴﻇو"Smart Guard ian" ﻦﻣ ITE

IT8728

ﺮﻓﻮﺗ ﺔﻔ ﻴﻇو Super I/O ﺮﺜآﻷا ًﺎ ﻣ ا ﺪ ﺨﺘ ﺳ ا.

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

Super I/O

ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺑ ﻞﺼﺗ ﻰﻟإ 3.0 ﺖﺑﺎﺠﻴﺝ/ ﺔﻴﻧﺎﺛ / 6.0

ﺖﺑﺎﺠﻴﺝ/ ﺔﻴﻧﺎﺛ.

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0 / 3.0.

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0,1,5,10, SRT (TZ77A)

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

SATA 2 & 3

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻣ ﺖیﺎﺑ /ﺔﻴﻥﺎﺙ و1ﺎﺠﻴﺝ ﺖﺑ/ﺔﻴﻥﺎﺙ

ﺔﻴﻥﺎﻜﻣإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻣﺎﻜﻟا/ﻲﻔﺼﻨﻟا

Realtek RTL 8111E

ﺔﻜﺒﺵ ﺔﻴﻠﺥاد

ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ تﻮﺼﻟا ﻲﻟﺎﻋ ﻒیﺮﻌﺘﻟا ﻦﻣ

7.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا

ALC892

ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ

ﻌﺘﻟاﻒیﺮ

تﻻﺪﻌﻣ ﻞﻘﻧ تﺎﻧﺎﻴﺑ ﻞﺼﺗ ﻰﻟإ 600 ﺎﻐﻴﻣ ﺖیﺎﺑ / ﺔﻴﻧﺎﺛ

Z77 (TZ77A) / Z75 (TZ75A)

USB3.0

ﺔﺤﺘﻓPCI دﺪﻋ2

ﺔﺤﺘﻓGen3 x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓGen2 (x4)x16 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI Express Gen2 x 1 دﺪﻋ2

تﺎﺤﺘﻔﻟا

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA3 ﺬﻔﻨﻣSATA3 دﺪﻋ2

ةﺰﻬﺝأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیSATA2 ﺬﻔﻨﻣSATA2 دﺪﻋ4

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪی ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪی ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺣﻮﻠﻟا

TZ77A/TZ75A

تﺎﻔﺻاﻮﻤﻟا

ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟSmart Fan ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ2

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB2.0ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB2.0 دﺪﻋ2

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪیUSB3.0ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB3.0 دﺪﻋ1

ﺬﻔﻨﻣم ﺔﻜﻠﻬﺘﺳ ﺖﺤﺗ ﺮﻤﺣﻷا دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻤﻗﺮﻟا تﻮﺼﻟا جﺮﺥ ﺔﻔﻴﻇو ﻢﻋﺪی جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)8ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣHDMI دﺪﻋ1

ﺬﻓﺎﻨﻣVGA دﺪﻋ1

ﺬﻓﺎﻨﻣDVI دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB2.0 دﺪﻋ4

ﺬﻓﺎﻨﻣUSB3.0 دﺪﻋ2

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ6

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺣﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

ATX 244 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺗرا( ﻢﺠﺣ ﺔﺣﻮﻠﻟا

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺑ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺗ رﺎﻄﺧﺈﺑ وأ

نوﺪﺑ رﺎﻄﺧإ. Windows XP / Vista / 7 ﻢﻋد ﺔﻤﻈﻧأ ﻞﻴﻐﺸﺘﻟا

Motherboard Manual

JAPANESE

仕様

CPU

Socket 1155

Intel Cor e i7 / i5 / i3 / Pent iu m / C eleron プロ

セッサ

Execute Disable Bit / Enhanced Intel Sp eedStep® /

Intel Architecture-64 / Extended Memory 64

Technology / Virtualization Technology / Hyper

Threadingをサポートします

チップセット Intel Z77 (TZ77A)

Intel Z75 (TZ75A)

メインメモリ

DDR3 DIMMスロット x 4

最大メモリ容量32GB

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3

をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 1066 / 1333 をサポート

DDR3 1600 / 1866(OC) / 2133(OC) をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

IT8728

もっとも一般に使用されるレガシーSuper I/O機

能を採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

SATA 2 & 3 統合シリアルATA コントローラ

最高3.0 Gb/秒 / 6.0 Gb/秒のデータ転送速度

SATAバージョン2.0 / 3.0仕様に準拠。

RAID 0,1,5,10, SRT (TZ77A)のサポート

LAN Realtek RTL 8111E 10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

HDオーディ

オのサポート

ALC892

ハイデフィニションオーディオのサポート

7.1 チャンネルオーディオアウト

USB3.0 Z77 (TZ77A) / Z75 (TZ75A) データ転送速度最大600 MB /秒の

PCIスロット x2

PCI Express Gen3 x16スロット x1

PCI Express Gen2 x16スロット(x4) x1

スロット

PCI Express Gen2 x 1スロット x2

SATA3コネクタ x2 各コネクタは1つのSATA3デバイスをサポートします

SATA2コネクタ x4 各コネクタは1つのSATA2デバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

オンボードコ

ネクタ

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

TZ77A/TZ75A

仕様

システムファンヘッダ x2 システムファン電源装置

CMOSクリアヘッダ x1

USB2.0コネクタ x2

各コネクタは2つのフロントパネルUSB2.0ポートをサポ

ートします

USB3.0コネクタ x1

各コネクタは2つのフロントパネルUSB3.0ポートをサポ

ートします

消費者IR コネクタ x1

シリアルポート x1

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

電源コネクタ(24ピン) x1

電源コネクタ(8ピン) x1

背面パネル

I/O

PS/2キーボード x1

HDMIポート x1

VGAポート x1

DVI-Dポート x1

LANポート x1

USB2.0ポート x4

USB3.0ポート x2

オーディオジャック x6

ボードサイズ 244 mm (幅) X 305 mm (高さ) ATX

OSサポート Windows XP / Vista / 7 Biostarは事前のサポートなしにOSサポートを追加または

削除する権利を留保します。

2012/04/10

Biostar Tz75A Owners Manual IZ77B AHT & IZ75C AHT_120410

Navigation menu

Versions of this User Manual:

Views

Navigation
