2Thank You

USER'S GUIDE

23T7 SERIES

Safety Instructions

Product View

Assembly

Operations

Maintenance and Care

Troubleshooting

Consumer Services

Replacement Parts

3

4

5

6-7

8-12

13

16

14

Warranty

Product Registration

15

16

Earn BISSELL Rewards!

Register your

product today!

See details on

back page

Product images may vary

www.bissell.com 800.237.7691

Thanks for buying a BISSELL Vacuum

We’re glad you purchased a BISSELL vacuum. Everything we know about

floor care went into the design and construction of this complete, high-

tech home cleaning system.

Your BISSELL vacuum is well made, and we back it with a limited one

year warranty. We also stand behind it with a knowledgeable, dedicated

Consumer Services department, so, should you ever have a problem,

you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today,

BISSELL is a global leader in the design, manufacture, and service of

high quality homecare products like your BISSELL vacuum.

Thanks again, from all of us at BISSELL.

Mark J. Bissell

Chairman & CEO

2

www.bissell.com 800.237.7691

IMPORTANT SAFETY INSTRUCTIONS

3

When using an electrical

appliance,

basic precautions should be observed,

including the following:

READ ALL

INSTRUCTIONS

BEFORE USING YOUR

UPRIGHT VACUUM.

Always connect to a polarized outlet

(left slot is wider than right). Unplug

from outlet when not in use and before

conducting maintenance.

WARNING: To

reduce the risk of fire,

electric shock, or injury:

■ Do not modify the polarized plug to fit a

non-polarized outlet or extension cord.

■ Do not leave vacuum cleaner unattended

when it is plugged in.

■ Unplug from outlet when not in use and

before servicing.

■ Do not use outdoors or on wet surfaces.

■ Do not allow children to operate vacuum

cleaner or use as a toy.

■ Close attention is necessary when used

by or near children.

■ Do not use for any purpose other than

described in this User’s Guide.

■ Use only manufacturer’s recommended

attachments.

■ Do not use with damaged cord or plug.

■ If appliance is not working as it should,

has been dropped, damaged, left out-

doors, or dropped into water, have it

repaired at an authorized service center.

■ Do not pull or carry by cord, use cord as

a handle, close a door on cord, or pull

cord around sharp edges or corners. Do

not run appliance over cord. Keep cord

away from heated surfaces.

■ Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

■ Do not handle vacuum cleaner or plug

with wet hands.

■ Do not put any object into openings.

Do not use with any opening blocked;

keep openings free of dust, lint, hair,

and anything that may reduce air flow.

■ Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

■ Turn off all controls before plugging or

unplugging vacuum cleaner.

■ Use extra care when cleaning stairs.

■ Do not pick up flammable materials

(lighter fluid, gasoline, kerosene, etc.) or

use in the presence of explosive liquids

or vapors.

■ Do not pick up toxic material (chlorine

bleach, ammonia, drain cleaner, etc.).

■ Do not use vacuum cleaner in an

enclosed space filled with vapors given

off by oil base paint, paint thinner, some

moth proofing substances, flammable

dust, or other explosive or toxic vapors.

■ Do not pick up hard or sharp objects

such as glass, nails, screws, coins, etc.

■ Do not pick up anything that is burning

or smoking, such as cigarettes, matches,

or hot ashes.

■ Do not use without filters in place.

■ Use only on dry, indoor surfaces.

■ Keep appliance on a level surface.

SAVE THESE

INSTRUCTIONS

FOR FUTURE

USE

THIS APPLIANCE

HAS A POLARIZED

PLUG.

To reduce the risk of electric shock,

this appliance has a polarized plug (one

blade is wider than the other). This plug

will fit in a polarized outlet only one

way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to

install a proper outlet. Do not change

the plug in any way.

This model is for household use only.

www.bissell.com 800.237.7691

4

Product view

Cord Hook

Quick

Release™

Cord Wrap

Power Switch

Pedal

Carrying Handle

Dusting Brush

Easy Empty™

Dirt Cup

Accessory

Holder

(select models)

Power Cord

Dirt Cup

Release

Lever

Upper

Tank

Filter Cup

(Inner and

Outer

Circular

Filters)

Handle Recline

Pedal

Hose Holder

Primary

Separator

Foot Hose

Handle

Crevice Tool

Stretch Hose

Assembly

This user’s guide has been designed to help

you get the utmost satisfaction from your Easy

Vac or PowerForce Compact vacuum. You’ll

find assembly and operating instructions,

safety precautions, as well as maintenance

and troubleshooting instructions. Please read

this guide thoroughly before assembling your

vacuum cleaner.

Pay particular attention to the product diagram,

assembly instructions, and part names. Locate

and organize all parts before assembly.

Familiarize yourself with the parts and where

they go. Following this user’s guide will

greatly enhance your ability to get the most

performance from your vacuum for many years.

Your vacuum comes in two, easy-to-assemble

components: the handle and the base.

1. Position the handle so the lower snap is

facing the back of the vacuum.

2. Line up the holes on the base with the

snap and knob on the handle.

3. Insert the handle into the base and push

until you hear it lock into place.

Note: The handle is designed

so only the correct snaps will fit

comfortably with the holes in the

base. Do not use excessive force

while assembling this vacuum. It

should fit together with ease.

4. To install the lower cord wrap hook, insert

the bottom clip of the U-shaped cord wrap

hook, with the U-shape facing downward.

Push the cord wrap hook upward to secure.

5. Wrap power cord around cord wraps and

place attachments in their correct holders.

Your vacuum assembly is now

complete.

Handle position

Press the handle recline pedal with

your foot to place your vacuum in one

of three positions.

1. Upright- For storage and transporting.

2. Normal Cleaning- Press handle release

pedal once. Use for most household floor

cleaning tasks.

3. Low Cleaning- With the vacuum in normal

cleaning position, press handle release

pedal again. Use for reaching under low

furniture, such as tables, chairs, or beds. 5

Stretch Hose

Base

Product

images

may vary

Product images

may vary

Dusting/

Upholstery Tool

(select models)

Crevice Tool

1. 2.

3.

WARNING:

Do not plug in your vacuum clean-

er until you have completely assem-

bled it per the following instructions

and are familiar with all instructions

and operating procedures.

www.bissell.com 800.237.7691

Accessory

Storage

(select

models)

Handle

Lower Snap

Cord Wrap

Hook

4.

www.bissell.com 800.237.7691

Operations

6

Special tools

Your BISSELL vacuum is not only a powerful

carpet and rug vacuum cleaner, it’s also a

versatile above floor vacuum cleaner when

you select one of the special tools.

1. Raise handle to upright position.

2. Grasp hose and remove from hose holder.

3. Attach tools by firmly pushing onto

vacuum hose.

Crevice Tool:

Use in tight narrow spaces.

Dusting/Upholstery Tool

(select models):

Use to dust upholstery, drapes, blinds,

shelves, baseboards, and much more.

*Note: The floor brush will continue

to rotate while tools are in use.

Transporting cleaner

1. To move your cleaner from room to room,

put the handle in the upright position, tilt

the cleaner back on its rear wheels, and

push forward.

2. The cleaner can also be moved by

using the carrying handle on the front

of the vacuum.

NOTICE:

The floor brush will continue to rotate

while you use the hose on your vacuum

for above floor cleaning. To prevent carpet

damage, do not lean on the vacuum or

let the powerfoot tilt forward.

ATTENTION:

Some berber carpets have a

tendency to fuzz with wear. Repeated

strokes in the same area may

enhance this condition.

2.

3.

1. 2.

Product

images

may vary

Using your cleaner

1. For first time use, remove the plastic

plug guard and dispose.

2. Rotate the Quick Release cord wrap

towards floor and slip power cord from

upper and lower cord wraps.

3. Connect power cord plug to a

polarized outlet.

4. To keep the power cord out of your

way while cleaning, place it in the

cord hook by the top of the vacuum.

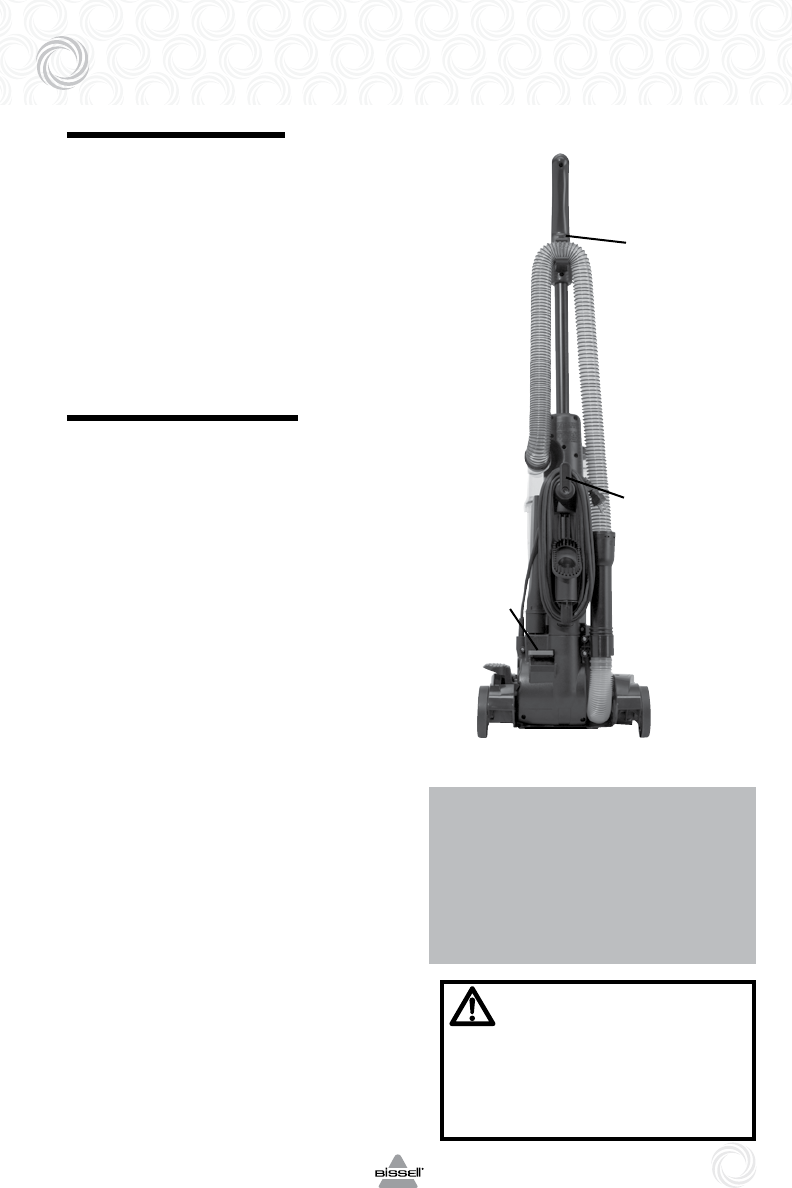

Power Switch pedal

The red power switch pedal is located

on the back of the cleaner, under the

cord wraps.

1. Step on the power switch to turn the

unit “On”. The rotating floor brush and

suction will start.

2. Step on the pedal again to turn the

vacuum “Off”.

www.bissell.com 800.237.7691

7

Operations

CAUTION:

Before using your vacuum, make

sure that all filters (pre-motor

and post-motor) are in place.

Do not operate your vacuum

without the filters.

Tip:

Before cleaning under low furniture, check

for objects that might block the vacuum

hose. Do not pick up hard or sharp

objects such as glass, nails, screws, coins,

paper clips, etc. with vacuum.

Power

Switch

Pedal

Quick

Release

Cord

Wrap

Cord

Hook

Product

images

may vary

www.bissell.com 800.237.7691

Maintenance and care

8

How to maintain your Vacuum

To maintain maximum cleaning

performance, the following maintenance

steps must be performed:

1. Clean the dirt tank if any visible

clogs occur.

2. Empty the dirt cup when the dirt reaches

the “Full” line on the side.

3. Check the inner and outer circular filters

in the filter cup, as well as the pre-motor

filter at least once per month and clean

or replace as needed.

4. Check rotating floor brush frequently,

remove any strings, hair or debris that

might interfere with the suction power.

Note: More frequent filter cleaning

or replacement may be necessary

if you are vacuuming new carpet,

fine dust, or have allergy concerns.

Follow the instructions on the

following pages to perform these

simple maintenance steps.

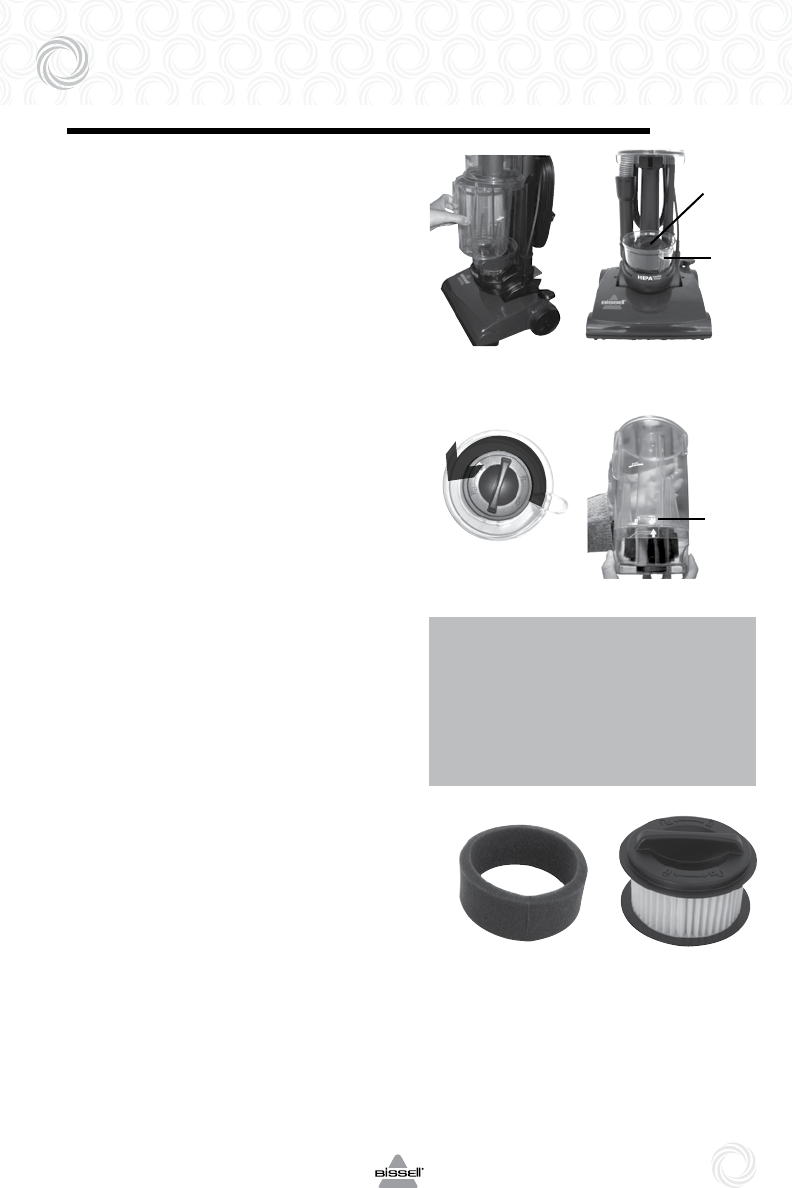

Cleaning the dirt tank

You have three parts to your dirt tank:

upper tank, dirt cup, and filter cup.

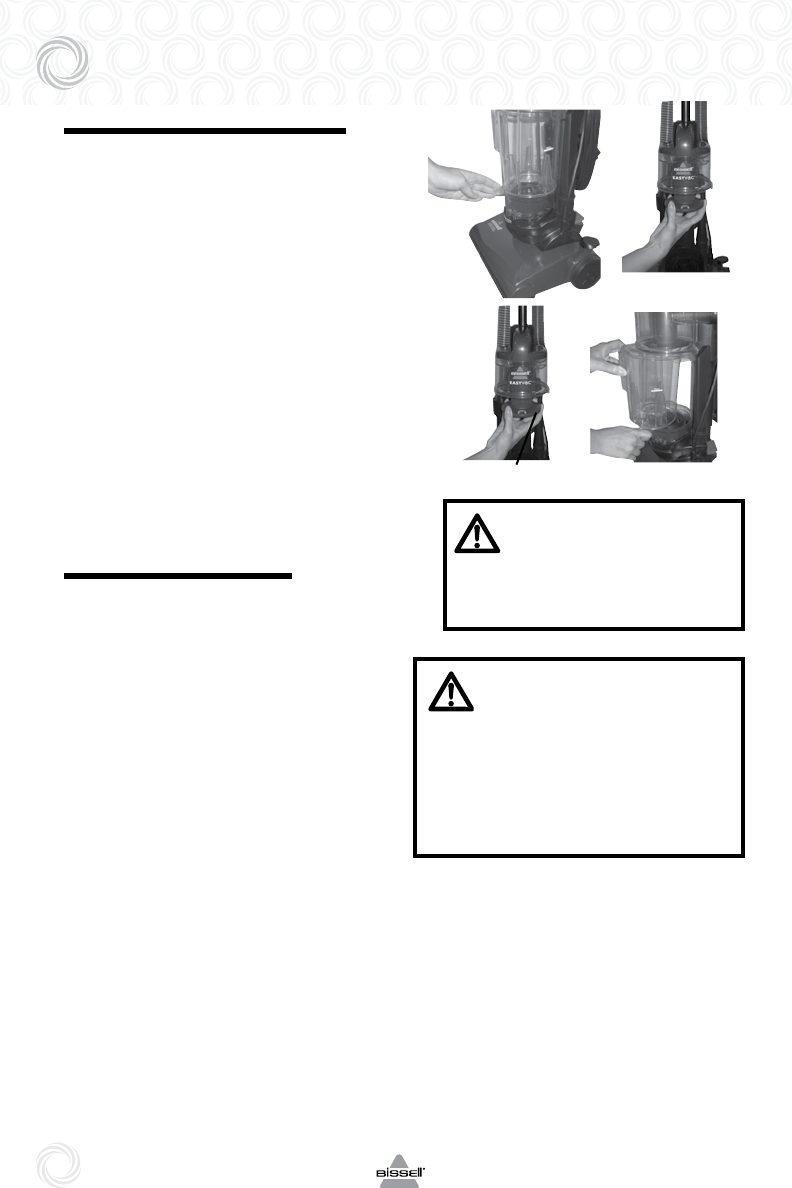

Emptying the dirt cup

The dirt cup needs to be emptied when

dirt reaches the “Full” line.

1. Turn off vacuum and unplug it from

electrical outlet.

2. Remove dirt cup by sliding the dirt cup

release lever. Then pull dirt cup out.

3. Empty dirt into garbage container.

4. Put the dirt cup back in the vacuum

and push in the dirt cup release handle

to lock into place.

Note: There are two clips on

the base of the vacuum that

the cup will fit into to ensure

proper placement.

WARNING:

To reduce the risk of injury from

moving parts and/or electrical

shock, step power switch to “OFF”

and disconnect polarized plug

from electrical outlet before per-

forming troubleshooting checks

Tip:

The dirt cup may

be washed in

warm water with

a mild detergent.

Remove the lower

tank from the bot-

tom before wash-

ing. Rinse and dry

thoroughly before

re-attaching it.

This is not

dishwasher safe.

2. 3.

4.

Upper Tank

Dirt Cup

Filter Cup

Full Line

www.bissell.com 800.237.7691

9

Maintenance and care

1. Turn off the vacuum and unplug it

from the electrical outlet.

2. Remove dirt cup by sliding the dirt

cup release lever to the right. Then

pull dirt cup out.

3. Located below the dirt cup is the filter

cup. Pull up on the filter cup

to remove from the unit.

4. Grasp the circular filters and twist

counterclockwise to unlock. Pull

straight up to remove.

5. Separate the black outer foam filter

from the white inner pleated filter.

Note: The white inner pleated

filter should not be touched;

when handling be sure to touch

only the plastic frame.

6. The white inner pleated filter is NOT

washable. To clean this filter, hold over

a trash can and gently tap the frame

of the filter to remove excess dust.

Note: If the filter is still

excessively dirty, damaged

or torn, it will need to be

replaced (see page 14 for

replacement parts).

7. The black outer foam filter can be

washed by hand in warm water. Mild

detergent may be used if desired.

Rinse well, then air dry completely

before putting back over the white

inner filter.

8. With the black outer filter replaced

overtop the white inner filter, place

the filters back in the lower tank and

twist clockwise to lock into place.

9. Set the filter cup back in the unit.

Put the dirt cup back into place and

slide the dirt cup release lever to the

left to close.

Tip:

Vacuuming new carpet or vacuuming

fine powders such as drywall dust may

clog the filters, so check them more

frequently. Shake out or replace as

necessary.

2.

4.

3.

Cleaning the filter tank and inner/outer circular filters

Inner

& Outer

Circular

Filters

Lock

Position

Filter

Cup

Outer Filter Inner white

pleated filter

7.

U

N

L

O

C

K

www.bissell.com 800.237.7691

Maintenance and care

10

Cleaning the upper tank

1. Turn off vacuum and unplug it from

electrical outlet.

2. Remove dirt cup by sliding the dirt cup

release lever to the right. Then pull dirt

cup out.

3. Twist the primary separator to unlock it

and pull it down. Brush off any dirt and

rinse off screen with warm water. Air

dry completely before replacing.

4. Check hose inlet for any clogging.

5. Reassemble the primary separator by

centering the front symbol and twisting

toward lock position, as shown.

6. Replace dirt cup and slide lever to

lock position.

Power cord storage

When you have finished using your vacuum,

store the power cord on the cord wrap.

1. Turn off vacuum cleaner and unplug

power cord.

2. Loop power cord around cord wraps

on back of cleaner, making certain

Quick Release cord wrap is pointed

up towards handle.

3. Clip molded plug to power cord

to secure.

WARNING:

Do not operate cleaner with

damp or wet filters or without

all filters in place.

6.

Lock Position

5.

2. 3.

WARNING:

To reduce the risk of injury from

moving parts and/or electrical

shock, turn power switch OFF and

disconnect polarized plug from

electrical outlet before performing

troubleshooting checks.

www.bissell.com 800.237.7691

11

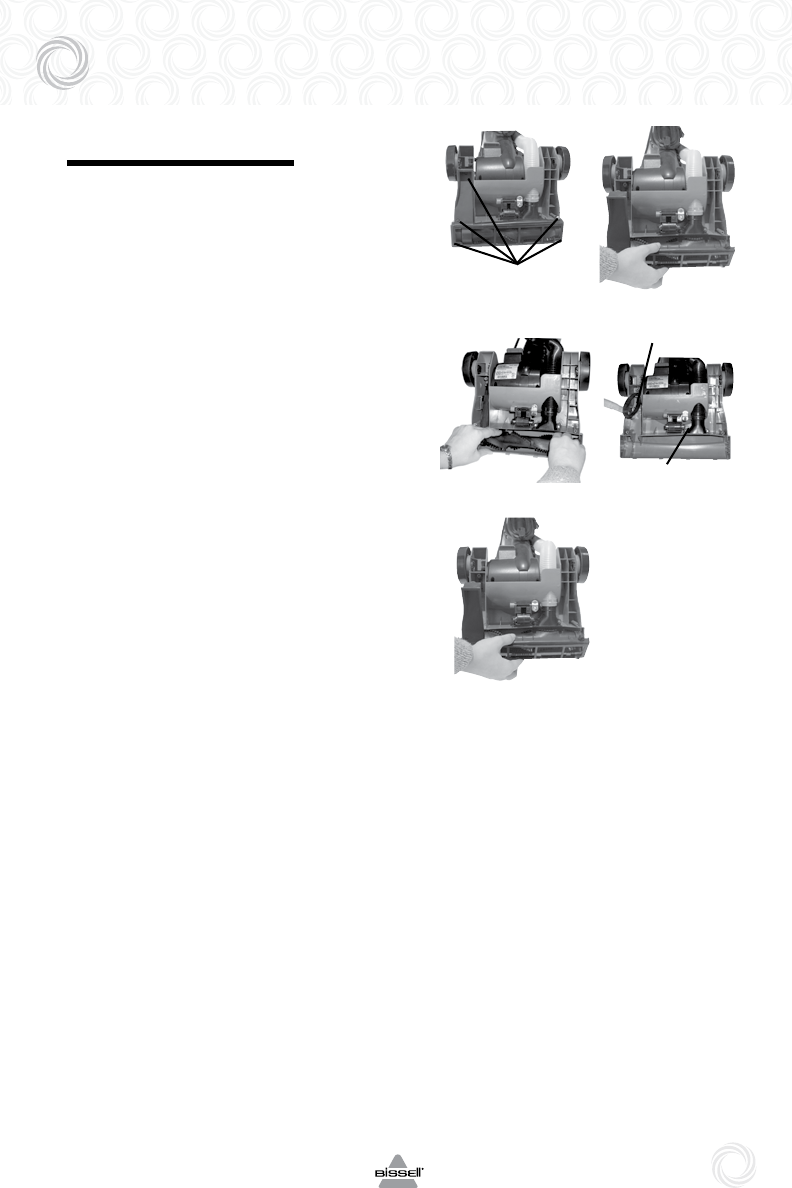

Clean and replace

rotating floor brush

You should check your cleaner’s rotating

floor brush and drive belt regularly for wear

or damage. You should also clean the brush

and brush ends by removing string, hair and

carpet fibers. These can wrap around the

brush and hamper its ability to effectively

clean your carpet. Also, remove any debris

that has accumulated under the brush cover.

1. Turn off vacuum and unplug from

electrical outlet.

2. Place vacuum upside down with

brush roll facing upwards.

3. Remove five screws as shown with

a small Phillips screwdriver.

4 Lift off brush cover.

5. Grasp floor brush at both ends and

lift out.

6. Clean strings, hair and other debris from

floor brush, motor pulley, and drive belt.

7. Check floor brush for worn areas and

replace if needed.

8. Check air passageway for obstructions.

Remove debris from this area.

9. When finished cleaning, reposition floor

brush and drive belt. Then replace the

brush cover and five screws.

10. Turn floor brush by hand several times

in the direction of the motor pulley. If

properly installed, drive belt will align

itself on floor brush.

9.

8.

5.

4.

3.

Air Passageway

Motor Pulley

Five Screws

Maintenance and care

www.bissell.com 800.237.7691

Maintenance and care

12

Replace drive belt

1. Follow steps 1-4 of previous section,

“Clean and replace rotating floor brush”.

2. Check drive belt carefully for wear,

cuts and stressed areas. If the drive belt

appears worn, you will need to replace it.

3. Grasp old drive belt and remove from

motor shaft. Discard old drive belt.

4. Loop new drive belt over motor shaft

and stretch other end over floor brush in

the space provided between the bristles.

5. Place ends of floor brush down into

slots on sides as shown.

6. Turn floor brush by hand several times

in the direction of the motor shaft. If

properly installed, drive belt will align

itself on floor brush.

7. Replace brush cover and five screws.

1. Locate the stretch hose where it connects

to the dirt cup on the back of the vacuum.

2. Rotate hose downward toward unlock

position and pull out to release hose

from the holder.

3. Look to see if there is any debris in

the hose. Clean as necessary.

4. Locate the clear foot hose under the

hose holder.

5. Remove the two screws located to the

left of the hose.

6. Check for any debris in the hose.

7. Use a long narrow object such as a

broomstick to clean the hose. Remove

clogs or debris.

8. Replace two screws to attach foot hose.

Replace stretch hose by sliding over

inlet and rotating upwards towards the

lock position.

*Note: If the debris cannot be

reached through the hose, then

follow the instructions for cleaning

the air passageway in the

“Clean and replace rotating floor

brush” section.

Cleaning stretch hose and foot hose

7.

5.

4.

3.

Motor Shaft

CAUTION:

Do not use sharp objects, such as

a hanger, to remove clogs.

2.

5.

Two Screws

www.bissell.com 800.237.7691

13

Troubleshooting

Vacuum cleaner won’t run

Possible causes Remedies

1. Vacuum cleaner is not plugged in 1. Check electrical plug

2. Blown fuse/tripped breaker 2. Check/replace fuse or reset breaker

Vacuum cleaner won’t pick up dirt

Possible causes Remedies

1. Dirt cup is full 1. Empty dirt cup

2. Filter dirty 2. Check, remove debris or clean

3. Hose not secure 3. Check to be sure hose is snapped into place at both ends

4. Dirt cup not in place 4. Make sure dirt cup is fully inserted and dirt cup

release handle is pushed in completely

5. Vacuum path clogged 5. Visually check air passageway, hose inlet,

and hose for anything that might be obstructing.

the vacuum path. Carefully remove blockage

6. Rotating power brush drive belt broken 6. Replace drive belt

7. Drive belt stretched 7. Check drive belt area and remove obstructions

Replace drive belt if necessary

8. Floor brush bristles worn 8. Replace floor brush

9. Floor brush jammed 9. Remove floor brush and clean debris from

brush and ends Check drive belt for any damage

Other maintenance or service not included in the manual should be

performed by an authorized service representative.

Thank you for selecting a BISSELL product.

Please do not return this product to the store.

For any questions or concerns, BISSELL is happy to be of service.

Contact us directly at 1-800-237-7691.

WARNING:To reduce the risk

of electric shock, turn power OFF and disconnect

plug from electrical outlet before performing main-

tenance or troubleshooting.

www.bissell.com 800.237.7691

Replacement parts - BISSELL Easy Vac® and PowerForce® Compact vacuum

14

Item Part No. Part Name

1 203-7592 Dirt Cup

2 203-7034 Drive Belt

3 203-7627 Floor Brush

4 203-7593 Inner & Outer Circular Filter Set

5 203-7943 Crevice Tool

6 203-7882 Dusting/Upholstery Tool (select models)

7 203-7596 Vacuum Hose Replacement

8 203-8163 Cord Wrap

9 203-8123 Replacement Handle with Accessory Holder

12345

6 7 8 9

Replacement parts - BISSELL Easy Vac® and PowerForce® Compact vacuum

www.bissell.com 800.237.7691

15

Warranty - BISSELL Easy Vac® and PowerForce

®

Compact vacuum

This warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state. If you need additional instruction regarding this warranty or have

questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail,

telephone, or regular mail as described below.

Limited One Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the

product BISSELL will repair or replace (with new or remanufactured components or products),

at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for

one year any defective or malfunctioning part.

See information below on "If your BISSELL product should require service".

This warranty applies to product used for personal, and not commercial or rental service. This

warranty does not apply to fans or routine maintenance components such as filters, belts, or

brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or

any other use not in accordance with the User's Guide is not covered.

If your BISSELL product should require service:

Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in

your area.

If you need information about repairs or replacement parts, or if you have questions about

your warranty, contact BISSELL Consumer Services.

Website or E-mail:

www.bissell.com

Use the “Customer Services” tab.

Or Call:

BISSELL Consumer Services

1-800-237-7691

Monday – Friday 8 am - 10 pm ET

Saturday 9 am - 8 pm ET

Or Write:

BISSELL Homecare, Inc.

PO Box 3606

Grand Rapids, MI 49501

ATTN: Consumer Services

BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY

NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL

NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER

ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION

OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE

DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty last so the

above limitation may not apply to you.

Registering is quick, easy and offers you benefits over the lifetime of your product.

You’ll receive:

BISSELL Rewards Points

Automatically earn points for discounts and free shipping on future purchases.

Faster Service

Supplying your information now saves you time should you need to contact us with

questions regarding your product.

Product Support Reminders and Alerts

We’ll contact you with any important product maintenance reminders and alerts.

Special Promotions

Optional: Register your email to receive notice of offers, contests, cleaning tips and more!

Visit www.bissell.com/registration now!

Don't forget to register your product!

©2012 BISSELL Homecare, Inc

Grand Rapids, Michigan

All rights reserved. Printed in China

Part Number 110-4485

Rev 2/12

Visit our website at:

www.bissell.com

For information about repairs or replacement parts, or questions about your warranty, call:

BISSELL Consumer Services

1-800-237-7691

Monday – Friday 8 am - 10 pm ET

Saturday 9 am - 8 pm ET

Or write:

BISSELL Homecare, Inc.

PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

Or visit the BISSELL website - www.bissell.com

When contacting BISSELL, have model number of cleaner available.

Please record your Model Number: ___________________

Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It

provides proof of purchase date in the event of a

warranty claim. See Warranty on page 15 for details.

BISSELL consumer services

www.bissell.com 800.237.7691

16

Registering is quick, easy and offers you benefits over the lifetime of your product.

You’ll receive:

BISSELL Rewards Points

Automatically earn points for discounts and free shipping on future purchases.

Faster Service

Supplying your information now saves you time should you need to contact us with

questions regarding your product.

Product Support Reminders and Alerts

We’ll contact you with any important product maintenance reminders and alerts.

Special Promotions

Optional: Register your email to receive notice of offers, contests, cleaning tips and more!

Visit www.bissell.com/registration now!

Don't forget to register your product!
