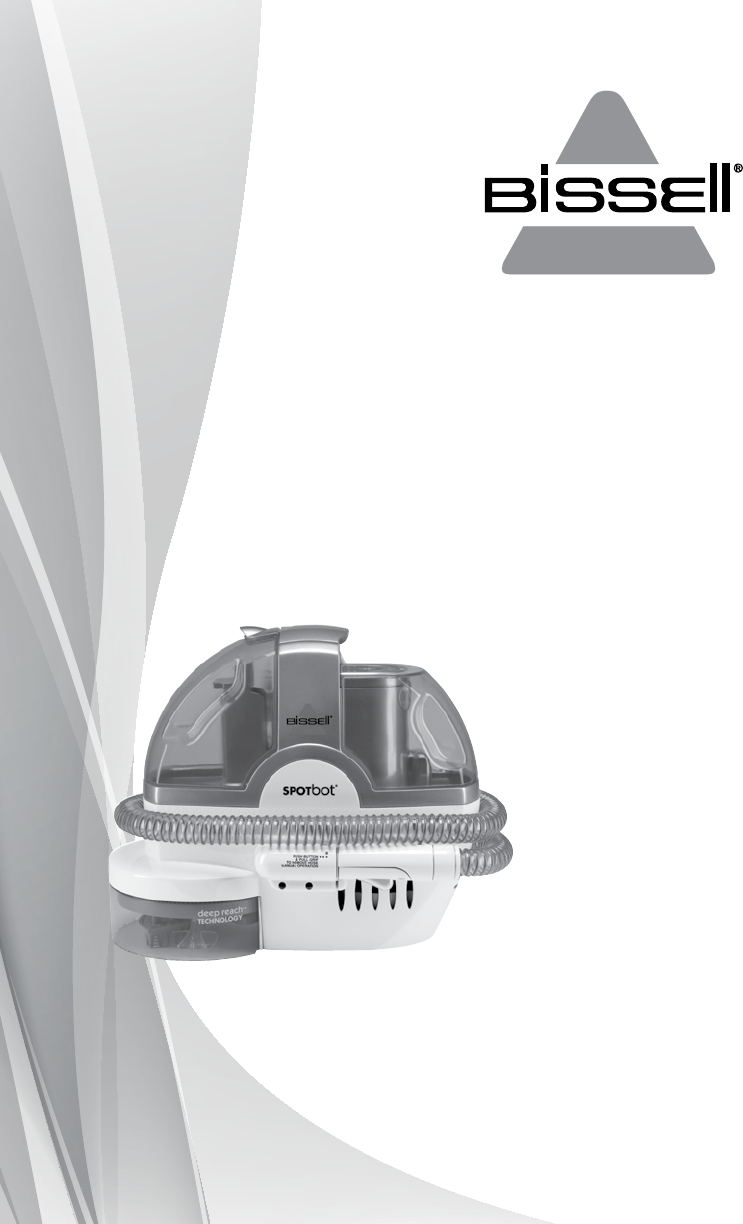

SPOTBOTPET
USER GUIDE
33N8, 78R5 SERIES
www.BISSELL.com 800.237.7691
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce The risk of fire,
elecTric shock, or injury:
» Use only BISSELL cleaning
products intended for use in this
machine to prevent internal com-
ponent damage. See the Cleaning
fluid section of this guide.
» Connect to a properly grounded
outlet only. See grounding
instructions. Do not modify the
3-prong grounded plug.
» Do not leave appliance when
it is plugged in. Unplug from
outlet when not in use and
before servicing.
» Do not expose to rain.
Store indoors.
» Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
» Do not use for any purpose other
than described in this User’s
Guide. Use only manufacturer’s
recommended attachments.
» Do not use with damaged cord or
plug. If appliance is not working as
it should, has been dropped, dam-
aged, left outdoors, or dropped
into water, have it repaired at an
authorized service center.
» Do not pull or carry by cord, use
cord as a handle, close a door on
cord, or pull cord around sharp
edges or corners. Do not run
appliance over cord. Keep cord
away from heated surfaces.
» Do not unplug by pulling on
cord. To unplug, grasp the plug,
not the cord.
» Do not handle plug or appliance
with wet hands.
» Do not put any object into
openings. Do not use with any
opening blocked; keep openings
free of dust, lint, hair, and
anything that may reduce air flow.
» Keep hair, loose clothing, fingers,
and all parts of body away from
openings and moving parts.
» Turn off all controls before plug-
ging or unplugging appliance.
» Use extra care when cleaning
on stairs.
» Do not use to pick up flammable
or combustible materials (lighter
fluid, gasoline, kerosene, etc.)
or use in areas where they may
be present.
» Do not use appliance in an
enclosed space filled with vapors
given off by oil base paint, paint
thinner, some moth proofing
substances, flammable dust, or
other explosive or toxic vapors.
» Do not use to pick up toxic
material (chlorine bleach,
ammonia, drain cleaner, etc.).
» Do not pick up anything that
is burning or smoking, such as
cigarettes, matches, or hot ashes.
» Keep appliance on a level surface.
» Do not carry the appliance while
in use.
READ ALL INSTRUCTIONS BEFORE USING YOUR PORTABLE DEEP CLEANER.
When using an electrical appliance, basic precautions should be observed, including the following:
This model is for household use only. Commercial use of this unit voids the manufacturer’s warranty.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
WARNING
Improper connection of the equipment-grounding conductor can
result in a risk of electrical shock. Check with a qualified electrician
or service person if you aren’t sure if the outlet is properly grounded.
DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician. This appliance is designed
for use on a nominal 120-volt circuit, and has a grounding attachment
plug that looks like the plug in the illustration. Make certain that the
appliance is connected to an outlet having the same configuration as
the plug. No plug adapter should be used with this appliance.
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded wiring system. If it
should malfunction or break down, grounding provides a safe path
of least resistance for electrical current, reducing the risk of electrical
shock. The cord for this appliance has
an equipment-grounding conductor
and a grounding plug. It must only be
plugged into an outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
Grounded
Outlets
Grounding Pin
Th for buying a BISSELL portable dp cleer
We’re glad you purchased a
BISSELL SpotClean deep cleaner.
Everything we know about floor
care went into the design and
construction of this complete,
high-tech home cleaning system.
Your BISSELL SpotClean deep cleaner
is well made, and we back it with a
limited one-year warranty. We also
stand behind it with a knowledgeable,
dedicated Consumer Care
department, so, should you ever
have a problem, you’ll receive fast,
considerate assistance.
My great-grandfather invented the
floor sweeper in 1876. Today, BISSELL
is a global leader in the design,
manufacture, and service of high
quality homecare products like your
BISSELL SpotClean deep cleaner.
Thanks again, from all of us at
BISSELL.
Mark J. Bissell
Chairman & CEO
Safety Instructions...........2
Product View................4
Assembly ...................5
Operations ................6-8
Troubleshooting .............9
Accessories ................10
Warranty ....................11
Consumer Care..............11
Product Registration........12
» Deep cleaning stairs and high-trac areas on a regular
basis helps prolong carpet life.
» Check upholstery stung before cleaning. Colored
stung may bleed through the fabric when it
becomes wet.
» Before turning o the machine, suction up clean
water to thoroughly rinse out the interior of the flex
hose. Then, lift the cleaning tool and point it upwards
to drain any remaining water into the dirty water/
collection tank.
Tips
www.BISSELL.com 800.237.7691 3

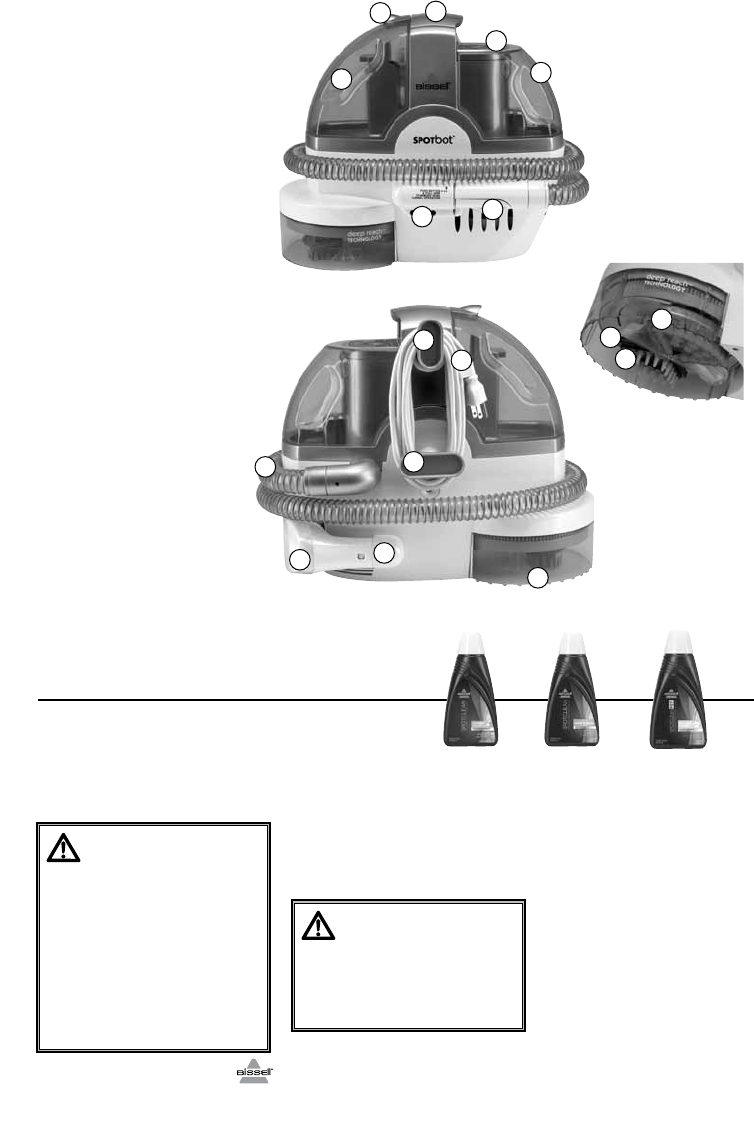

1 Dirty Water/Collection Tank
2 Tank Release Latch
3 Carry Handle
4 Automatic Smart System™ Control
Panel
5 Clean Water/Solution Tank
6 Hose Connector
7 Spray Trigger
8 Cord Wraps
9 Power Cord
10 Vacuum Flex Hose
11 Tough Stain Brush
12 Tough Stain Brush™ Storage
13 Cleaning Window
14 Automated Cleaning Brush
15 Suction Nozzles
16 Deep Reach™ Technology
see page 5 for more details
Product View
WARNING
To reduce the risk of fire and electric shock
due to internal component damage, use
only BISSELL cleaning fluids intended for use
with the deep cleaner.
Cleaning fluid
Keep plenty of genuine BISSELL Cleaning
Solution on hand so you can clean whenever
it fits your schedule. Always use genuine
BISSELL deep cleaning formulas. Non-BISSELL
cleaning solutions may harm the machine and
will void the warranty.
BISSELL 2X
Portable
Machine
Spot &
Stain
Formula
BISSELL
OXYgen
BOOST
formula for
carpet &
upholstery
BISSELL 2X
Portable
Machine
Pet Stain
& Odor
Formula
1
23
4
5
67
15
14
16
8
8
9
10
11 12
13
WARNING
Use only BISSELL portable machine formula
in your cleaner. Use of cleaning formulas
which contain lemon or pine oil may
damage this appliance and void the
warranty. Chemical spot cleaners or solvent-
based soil removers also should not be used.
These products may react with the plastic
materials used in your cleaner, causing
cracking or pitting.
www.BISSELL.com 800.237.7691
4
www.BISSELL.com 800.237.7691 5
Front view
Clean water/solution tank
Looking at the front of the unit, the clean water/
solution tank is on the right side.
Automatic Smart System™ control paneI
Located on top of the unit, you will find the
control panel. Select the cleaning cycle you
would like to use (detailed instructions on
page 6).
Dirty water/collection tank
Looking at the front of the unit, the dirty water/
collection tank is on the left side.
Vacuum flex hose
Wraps around the center of the unit, and serves
as the travel path for dirty water and formula
suctioned into the dirty water/collection tank.
Spray trigger
When cleaning in the manual mode, press the
spray trigger to release water and formula onto
the area to be cleaned.
Underside view
Handsfree cleaning brushes
Provides cleaning action when using the surface
stain or set-in handsfree cleaning cycles.
Deep Reach™ Technology
Water and solution are dispensed here when
cleaning in the handsfree mode. Deep Reach
Technology delivers solution further into
the carpet where the deepest part of the
stain resides.
Suction nozzles
Provides suction path when using the
handsfree cleaning cycles.
Back view
Cleaning window
Provides an area to see the handsfree
cleaning action.
Tough Stain Brush™ Storage
The Tough Stain Brush is conveniently stored
on board.
Power cord
Has a three-prong plug stored on the back
of the unit, around the oval cord wraps.
NOTE: Unwrap power cord
completely before operating the unit.
Special Features
WARNING
Do not plug in your vacuum cleaner until
you are familiar with all instructions and
operating procedures.
Getting ready
1. To fill the clean water/solution tank:
a. Remove the clean water tank by lifting it
straight up and then away from the unit.
b. Unscrew the cap at the bottom of the
clean water tank.
2. There are 2 ways you can fill and use the tank:
For common stains such as dirt, grime, pet
or oily stains, use the fill lines on the left side
of the tank and fill with BISSELL 2X com-
pact formula (trial size included) and water.
For dye based stains such as coffee, fruit
juices, cola and red wine, use the fill lines
on the right hand side of the tank and fill with
BISSELL 2X compact formula and OXYgen
Boost formula (trial sizes included) and water.
DO NOT BOIL OR MICROWAVE WATER.
3. Tighten black cap on bottom of clean tank
and replace.
How to begin

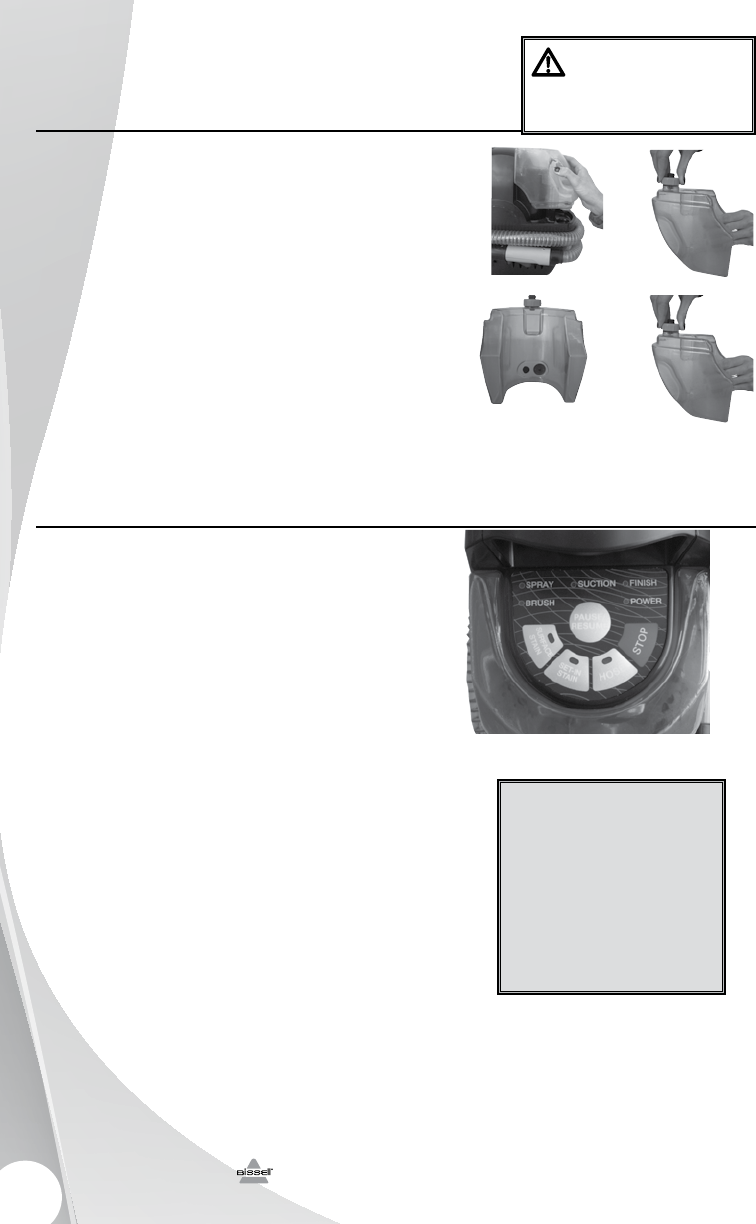

Using the Automatic Smart System™
Your new SpotBot features an Automatic Smart
System that takes the guesswork out of spot and
stain removal. With the touch of a button, you
can select the cleaning cycle to use your pre-
ferred method of cleaning.
1. Surface Stain Cycle This cycle has been
designed for stains that are on the surface of
your carpeting. This cycle will run for approxi-
mately 3 minutes.
2. Set-In Stain Cycle Use on stains that have had
a period of time to set-in. These are typically the
most difficult stain types to remove. This cycle
runs for approximately 6 minutes.
3. Manual/Hose By selecting this option you can
clean spots and stains manually on surfaces such
as upholstery, stairs, car interiors, or any other
hard to reach area.
4. Pause/Resume If you press the pause/resume
button once, it will pause the cleaning cycle. Press
again to resume your current cleaning cycle.
5. Stop By pressing the red stop button, you
will stop the cleaning cycle completely. To begin
cleaning again, you will need to start over and
select a cleaning cycle.
6. Status Indicator Lights Will give you a visual
update on the cleaning cycle. During a clean-
ing cycle you will hear changes in the sound of
the machine that correspond with a given step.
When the cleaning cycle is complete, the Finish
light will illuminate and you will hear a series
of “beeps”. Press the STOP button to turn the
machine off. The machine will not
beep when turned off.
Operatis
www.BISSELL.com 800.237.7691
WARNING
Keep spray away from face. Failure to do
so may result in personal injury.
6

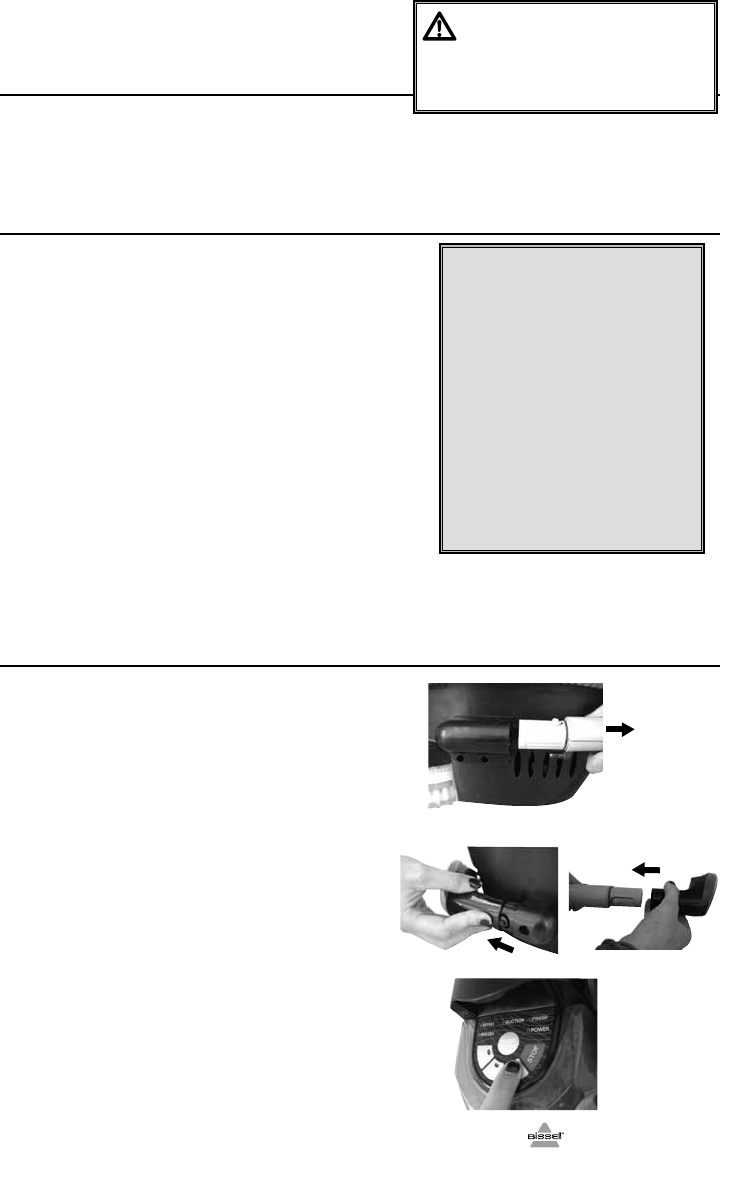

1a.
3.2.
1b.
» Dry vacuum the area first, before spot
cleaning with the SpotBot.
» Some spots and spills require that you
pick up the chunky debris with a rag or
towel before you begin cleaning in the
automatic or manual cycles.
Tips
www.BISSELL.com 800.237.7691 7
To begin cleaning
1. Place the filled clean water/solution tank onto
the unit.
2. Plug your SpotBot in. The power light
will illuminate, indicating your SpotBot
is ready to go.
Automated cleaning
1. Place the unit directly over the spot or stain,
making sure the stain is in the center of the
cleaning area.
2. Select which cleaning cycle (surface stain or
set-in) you would like to use. SpotBot will begin
spraying, brushing and suctioning the soiled
area, in a pre-programmed cycle. Both cycles
have been tested and proven to deliver superior
cleaning results, taking the guesswork and effort
out of cleaning for you.
3. When the cleaning cycle you have selected is
complete, the Finish light will illuminate and the
machine will sound a series of “beeps”. Press
the STOP button to turn the machine off. The
machine will not beep when turned off.
4. Pick up the unit and check the area that was
cleaned.
5. If you use OXYgen Boost, it will continue to
work for the next six to eight hours, cleaning
your spots and stains all the way to the backing
of the carpet.
Manual cleaning

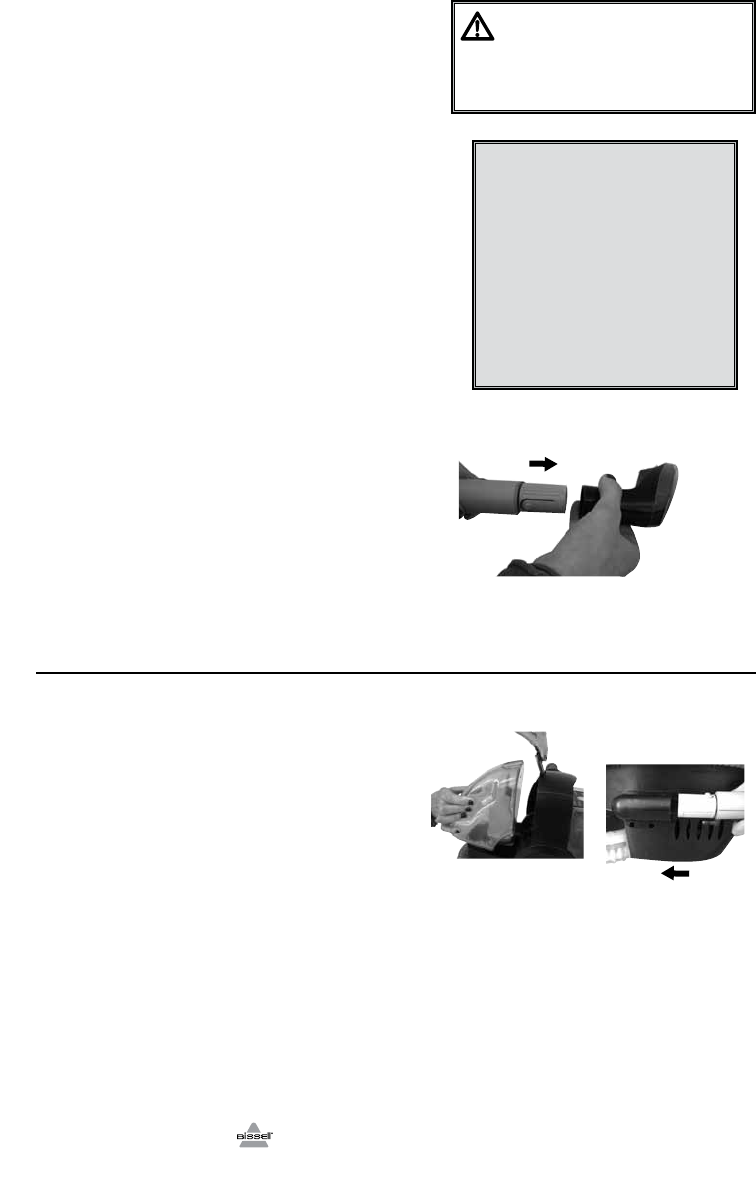

1. Remove the hose from the unit by
depressing the release button.
2a. Remove the Tough Stain Brush from the back
of the unit.
2b. Attach the Tough Stain Brush onto the grip
of the hose.
3. Select the hose button on the control panel to
start the SpotBot.
NOTE: In manual mode, the SpotBot will not
turn on until the hose is disconnected from the
hose connector. If it is not removed within 30
seconds of pushing the hose button, the unit
will shut off.
4. Begin cleaning by holding the tool no more
than six inches above the soiled surface. Depress
the spray trigger for about 5 seconds to apply
the cleaning solution to the soiled area. Release
the trigger. Be careful not to overwet.
5. Using the brush on the tool, gently scrub the
soiled area until it appears to be clean.
Operatis
WARNING
To reduce the risk of electric shock, turn power switch
o and disconnect plug from electrical outlet before
performing maintenance or troubleshooting checks.
1.
2a. 2b.
3.
» One of the eective stain removing ingredients
in OXYgen Boost is Hydrogen Peroxide. Certain
people may be aected by the product when it
comes into contact with their skin; it may turn
the skin white and/or cause tingling. Washing
your hands after use and applying hand lotion
will remove any possible white discoloration.
» Check upholstery stung before cleaning.
Colored stung may bleed through the fabric
when it becomes wet. Check manufacturer’s
tag before cleaning.
Tips
6. To suction up the dirt and cleaning solution,
position the suction nozzle over the cleaned
area, apply downward pressure on the tool,
and pull nozzle toward you. You should see the
dirty solution pass through the nozzle. Continue
until no more solution can be removed.
NOTE: In manual mode, the SpotBot is
equipped with a safety feature which will shut
the unit off after 30 minutes. Press start to
resume cleaning.
7. If the stain is still visible, repeat steps 4-6 as
necessary.
8. When the cleaning is complete, lightly drag
the suction nozzle across the stain to further aid
in drying the cleaned area.
9. Before turning off the SpotBot, suction up
clean water to thoroughly rinse out the inside of
the vacuum flex hose. Then, lift the vacuum flex
hose upwards to drain any remaining water into
the dirty tank.
10. Press the STOP button to turn off the
machine.
11. Disconnect the cleaning tool from the vacuum
flex hose by pushing down on the button lock
and pulling straight off (do not twist tools to
remove them).
12. Unplug the machine and wrap the cord
around the cord wraps. Attach the Tough Stain
Brush to the base of machine. Wrap the hose
around the machine.
Storage
1. Press the STOP button to turn the unit off.
Unplug the power cord from the outlet. Wrap
power cord around the cord wrap.
2. Empty and rinse the dirty water/collection
tank after each use, or when dirty water reaches
the indicated maximum fill line. To remove the
tank, lift up the dirty tank latch and pull the tank
out. Dump out the dirty water and rinse. Replace
the tank into the unit for storage. After using the
SpotBot’s automated feature, wipe the window
and brushing area with a soft cloth.
3. If you were using your SpotBot manually, wrap
the vacuum flex hose around the unit and secure
the hose into the hose connector on the front of
the unit.
4. Store unit indoors at room temperature
(40° to 110°F).
www.BISSELL.com 800.237.7691
8
2. 3.
11.
Operatis
WARNING
To reduce the risk of electric shock, turn power switch
o and disconnect plug from electrical outlet before
performing maintenance or troubleshooting checks.
» If a significant amount of water and solution
remains in the clean tank, your unit can be
stored with liquid in the clean tank. However,
if you have added OXYgen Boost into the clean
tank, it cannot be stored in the the unit and
should be flushed.
» Clean out the black valve periodically inside of
the dirty water/collection tank.
Tips
Trbleshting
Problem Possible causes Remedies
AUTOMATED CLEANING
SpotBot will
not run
Power cord not plugged in Check electrical plug
Blown fuse/tripped breaker
Replace household fuse or reset breaker
Vacuum flex hose is not snapped
into place securely Check to make sure the vacuum flex
hose is snapped into place
Unusual or
odd noise
Clean water/solution tank is
out of fluid Fill clean water/solution tank
Reduce or
no spray
Clean water/solution tank is out of fluid
Fill clean water/solution tank
Clean water/solution tank is not
inserted into the unit securely Gently press the clean water/solution
tank until you see "bubbles" coming
from the base of the tank
Deep Reach spray tips clogged Clean Deep Reach spray tips
No suction
Tank is full Empty tank
Dirty water/collection tank latch
is not down Push latch down, securely into place
Black valve on the dirty
water/collection tank is missing Replace black valve into dirty
water/collection tank
MANUAL CLEANING
Cleaner will
not run
Power cord not plugged in Check electrical plug
Blown fuse/tripped breaker
Replace household fuse or reset breaker
Hose not removed from receiver Remove hose
SpotBot shut off automatically
during use Press start button to resume manual
cleaning
Unusual or
odd noise
Clean water/solution tank is
out of fluid Fill clean water/solution tank
Reduce or
no spray
Spray tip clogged on Tough stain brush
Clean spray tip
Clean water/solution tank is out of fluid
Fill clean water/solution tank
Clean water/solution tank is not
inserted into the unit securely Gently press the clean water/solution
tank until you see “bubbles” coming
from the base of the tank
No suction
Tank is full Empty tank
Dirty water/collection tank latch is
not down Push latch down, securely into place
Black valve on the dirty
water/collection tank is missing Replace black valve into dirty
water/collection tank
Other maintenance or service not included in the manual should
be performed by an authorized service representative.
Thank you for selecting a BISSELL product.
For any questions or concerns, BISSELL is happy to
be of service. Contact us directly at 1-800-237-7691.
Please do
not return
this product
t o t h e s t o r e . 9
WARNING
To reduce the risk of electric shock, turn power switch
o and disconnect plug from electrical outlet before
performing maintenance or troubleshooting checks.
Replacement Parts
Accessories
These items are available for your BISSELL portable deep cleaner.
Call 1-800-237-7691 or visit www.BISSELL.com
These items are available for your BISSELL portable deep cleaner. Call 1-800-237-7691
or visit www.BISSELL.com. Not all accessories are included in all models.
www.BISSELL.com 800.237.7691
ParT # ParT name ParT # ParT name
203-7471 Dirty Water/Collection Tank
(33N8 series)
203-7472 Dirty Water/Collection Tank
(78R5 series)
203-7473 Dirty Water/Collection Latch
(33N8 series)
203-7473 Dirty Water/Collection Latch
(78R5 series)
203-7475 Clean Water Tank (33N8 series) 203-7476 Clean Water Tank (78R5 series)
203-7477 Cap & Insert 203-7488 Cord Wrap, Upper & Lower
(33N8 series)
203-7488 Cord Wrap, Upper & Lower (78R5
series)
10
ParT # ParT name ParT # ParT name
160-3649 3" Tough Stain Brush 203-6652 TurboBrush® Tool
203-6653 4” Upholstery Tool 203-6654 6” Wide Stair Tool
203-6655 Spraying Crevice Tool 203-7490 Storage Tray
79B9 SpotClean Spot & Stain
Formula 32 oz.
79B9-1 SpotClean Spot & Stain
Formula 16 oz.
74R7 SpotClean Pet Stain & Odor
Formula 32 oz.
74R7-1 SpotClean Pet Stain & Odor
Formula 16 oz.
0801 OXYgen Boost Formula 32 oz
This warranty gives you specific legal rights, and you may also
have other rights which may vary from state to state. If you need
additional instruction regarding this warranty or have questions
regarding what it may cover, please contact BISSELL Consumer Care
by E-mail, telephone, or regular mail as described below.
Limited One-Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon
receipt of the product BISSELL will repair or replace (with new or
remanufactured components or products), at BISSELL’s option, free of
charge from the date of purchase by the original purchaser, for one
year any defective or malfunctioning part.
See information below on "If your BISSELL product should require service".
This warranty applies to product used for personal, and not commercial
or rental service. This warranty does not apply to fans or routine
maintenance components such as filters, belts, or brushes. Damage or
malfunction caused by negligence, abuse, neglect, unauthorized repair,
or any other use not in accordance with the User's Guide is not covered.
BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S
LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.
Some states do not allow the exclusion or
limitation of incidental or consequential
damages, so the above limitation or exclusion
may not apply to you.
*EXCEPTIONS AND EXCLUSIONS FROM
THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES
WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE
OF PURCHASE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied
warranty last so the above limitation may not apply to you.
NOTE: Please keep your original sales
receipt. It provides proof of date of
purchase in the event of a warranty claim.
If your BISSELL product should
require service:
Contact BISSELL Consumer Care to locate a BISSELL Authorized
Service Center in your area.
If you need information about repairs or replacement parts,
or if you have questions about your warranty, contact BISSELL
Consumer Care.
Website or E-mail:
www.BISSELL.com
Or Call:
BISSELL Consumer Care
1-800-237-7691
Monday – Friday 8am - 10pm ET
Saturday 9am - 8pm ET
Sunday 10am - 7pm ET
Or Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids, MI 49501
ATTN: Consumer Care
Warrty Service
www.BISSELL.com 800.237.7691 11
©2013 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 160-3595 Rev 12/13
Visit our website at: www.BISSELL.com
For information about repairs or replacement parts, or questions about your warranty:
Registering is quick, easy and offers you benefits over the lifetime of your product.
You’ll receive:
Visit www.BISSELL.com/registration now!
Visit the BISSELL website: www.BISSELL.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It provides proof of purchase
date in the event of a warranty claim. See Warranty on page 15 for details.
Call:
BISSELL Consumer Care
1-800-237-7691
Monday - Friday 8 am - 10 pm ET
Saturday 9 am - 8 pm ET
Sunday 10am - 7pm ET
Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Care
BISSELL Csumer Care
Regr yr product tod!
BISSELL Rewards Points
Automatically earn points for
discounts and free shipping on
future purchases.
Faster Service
Supplying your information now
saves you time should you need to
contact us with questions regarding
your product.
Product Support Reminders
and Alerts
We’ll contact you with any
important product maintenance
reminders and alerts.
Special Promotions
Optional: Register your email
to receive notice of offers,
contests, cleaning tips and more!
We c’t wait to ar from y!
Rate this product and let us (and millions
of your closest friends) know what you think!
www.BISSELL.com
12

Navigation menu
