SPOTCLEAN™
PROHEAT
USER GUIDE
5207, 9749, & 7786 SERIES
www.BISSELL.com 800.237.7691
2

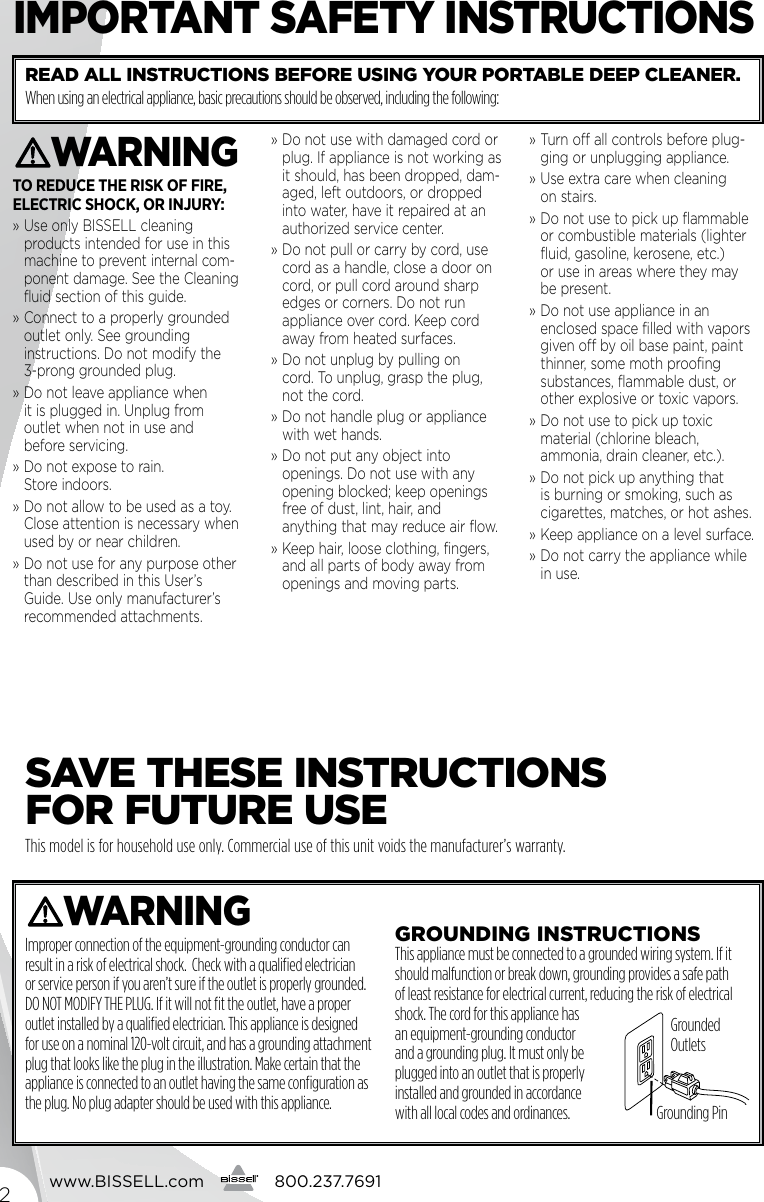

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce The risk of fire,
elecTric shock, or injury:
» Use only BISSELL cleaning
products intended for use in this
machine to prevent internal com-
ponent damage. See the Cleaning
fluid section of this guide.
» Connect to a properly grounded
outlet only. See grounding
instructions. Do not modify the
3-prong grounded plug.
» Do not leave appliance when
it is plugged in. Unplug from
outlet when not in use and
before servicing.
» Do not expose to rain.
Store indoors.
» Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
» Do not use for any purpose other
than described in this User’s
Guide. Use only manufacturer’s
recommended attachments.
» Do not use with damaged cord or
plug. If appliance is not working as
it should, has been dropped, dam-
aged, left outdoors, or dropped
into water, have it repaired at an
authorized service center.
» Do not pull or carry by cord, use
cord as a handle, close a door on
cord, or pull cord around sharp
edges or corners. Do not run
appliance over cord. Keep cord
away from heated surfaces.
» Do not unplug by pulling on
cord. To unplug, grasp the plug,
not the cord.
» Do not handle plug or appliance
with wet hands.
» Do not put any object into
openings. Do not use with any
opening blocked; keep openings
free of dust, lint, hair, and
anything that may reduce air flow.
» Keep hair, loose clothing, fingers,
and all parts of body away from
openings and moving parts.
» Turn off all controls before plug-
ging or unplugging appliance.
» Use extra care when cleaning
on stairs.
» Do not use to pick up flammable
or combustible materials (lighter
fluid, gasoline, kerosene, etc.)
or use in areas where they may
be present.
» Do not use appliance in an
enclosed space filled with vapors
given off by oil base paint, paint
thinner, some moth proofing
substances, flammable dust, or
other explosive or toxic vapors.
» Do not use to pick up toxic
material (chlorine bleach,
ammonia, drain cleaner, etc.).
» Do not pick up anything that
is burning or smoking, such as
cigarettes, matches, or hot ashes.
» Keep appliance on a level surface.
» Do not carry the appliance while
in use.
READ ALL INSTRUCTIONS BEFORE USING YOUR PORTABLE DEEP CLEANER.
When using an electrical appliance, basic precautions should be observed, including the following:
This model is for household use only. Commercial use of this unit voids the manufacturer’s warranty.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
WARNING
Improper connection of the equipment-grounding conductor can
result in a risk of electrical shock. Check with a qualified electrician
or service person if you aren’t sure if the outlet is properly grounded.
DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician. This appliance is designed
for use on a nominal 120-volt circuit, and has a grounding attachment
plug that looks like the plug in the illustration. Make certain that the
appliance is connected to an outlet having the same configuration as
the plug. No plug adapter should be used with this appliance.
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded wiring system. If it
should malfunction or break down, grounding provides a safe path
of least resistance for electrical current, reducing the risk of electrical
shock. The cord for this appliance has
an equipment-grounding conductor
and a grounding plug. It must only be
plugged into an outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
Grounded
Outlets
Grounding Pin

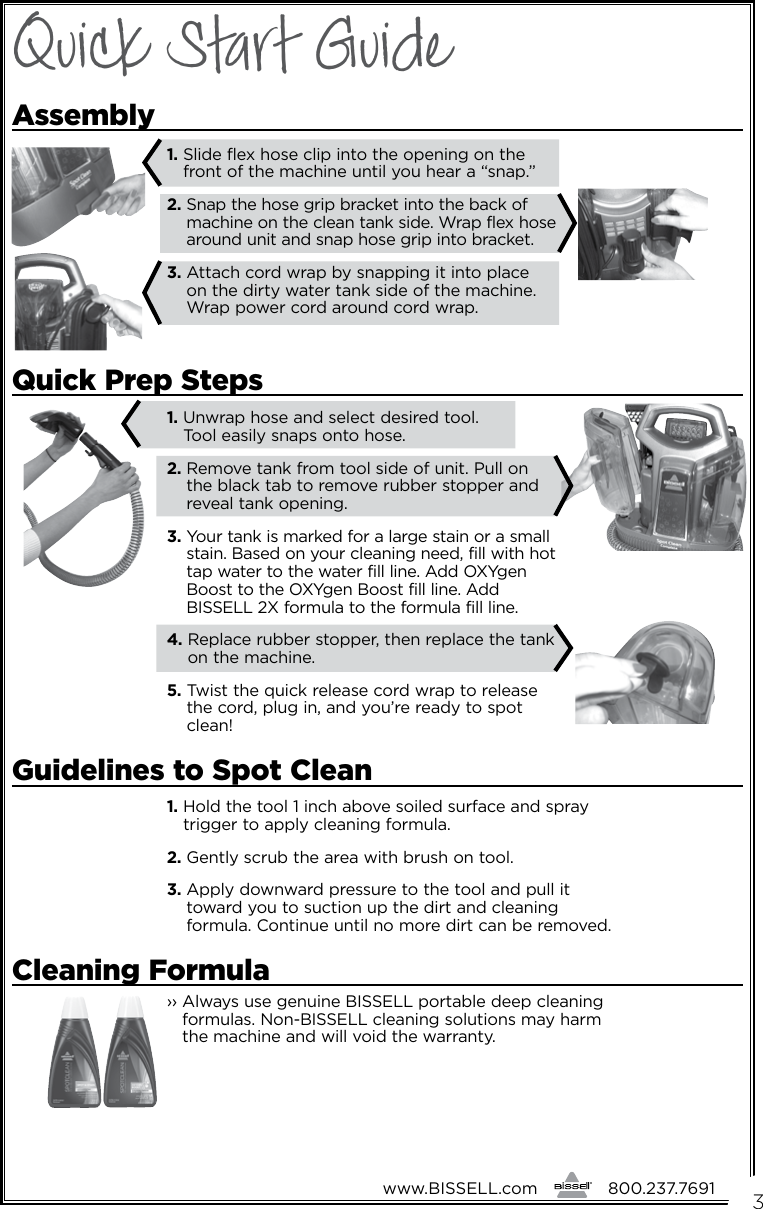

Quick Start Guide
1. Hold the tool 1 inch above soiled surface and spray
trigger to apply cleaning formula.
2. Gently scrub the area with brush on tool.
3. Apply downward pressure to the tool and pull it
toward you to suction up the dirt and cleaning
formula. Continue until no more dirt can be removed.
Quick Prep Steps
Assembly
1. Unwrap hose and select desired tool.
Tool easily snaps onto hose.
2. Remove tank from tool side of unit. Pull on
the black tab to remove rubber stopper and
reveal tank opening.
3. Your tank is marked for a large stain or a small
stain. Based on your cleaning need, fill with hot
tap water to the water fill line. Add OXYgen
Boost to the OXYgen Boost fill line. Add
BISSELL 2X formula to the formula fill line.
4. Replace rubber stopper, then replace the tank
on the machine.
5. Twist the quick release cord wrap to release
the cord, plug in, and you’re ready to spot
clean!
Guidelines to Spot Clean
1. Slide flex hose clip into the opening on the
front of the machine until you hear a “snap.”
2. Snap the hose grip bracket into the back of
machine on the clean tank side. Wrap flex hose
around unit and snap hose grip into bracket.
3. Attach cord wrap by snapping it into place
on the dirty water tank side of the machine.
Wrap power cord around cord wrap.
Cleaning Formula
›› Always use genuine BISSELL portable deep cleaning
formulas. Non-BISSELL cleaning solutions may harm
the machine and will void the warranty.
www.BISSELL.com 800.237.7691 3

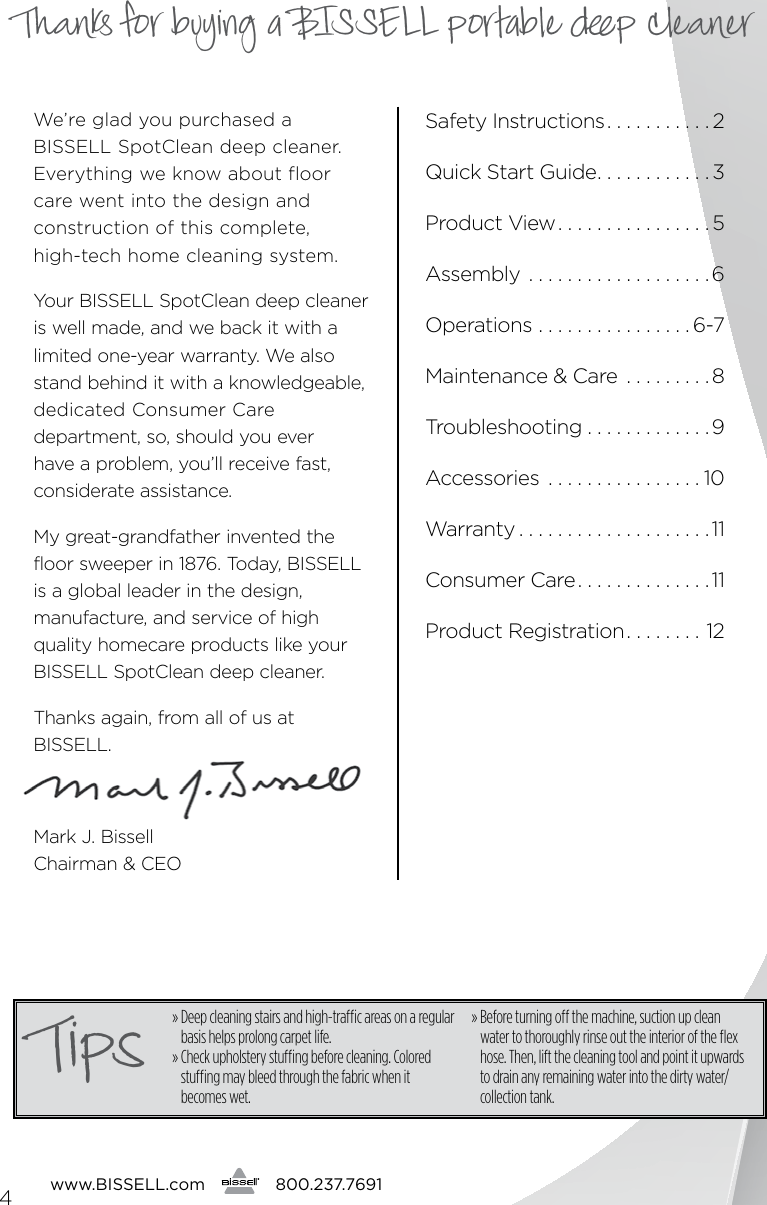

Th for buying a BISSELL portable dp cleer
We’re glad you purchased a
BISSELL SpotClean deep cleaner.
Everything we know about floor
care went into the design and
construction of this complete,
high-tech home cleaning system.
Your BISSELL SpotClean deep cleaner
is well made, and we back it with a
limited one-year warranty. We also
stand behind it with a knowledgeable,
dedicated Consumer Care
department, so, should you ever
have a problem, you’ll receive fast,
considerate assistance.
My great-grandfather invented the
floor sweeper in 1876. Today, BISSELL
is a global leader in the design,
manufacture, and service of high
quality homecare products like your
BISSELL SpotClean deep cleaner.
Thanks again, from all of us at
BISSELL.
Mark J. Bissell
Chairman & CEO
Safety Instructions...........2
Quick Start Guide............3
Product View................5
Assembly ...................6
Operations ................6-7
Maintenance & Care .........8
Troubleshooting .............9
Accessories ................10
Warranty ....................11
Consumer Care..............11
Product Registration........12
» Deep cleaning stairs and high-trac areas on a regular
basis helps prolong carpet life.
» Check upholstery stung before cleaning. Colored
stung may bleed through the fabric when it
becomes wet.
» Before turning o the machine, suction up clean
water to thoroughly rinse out the interior of the flex
hose. Then, lift the cleaning tool and point it upwards
to drain any remaining water into the dirty water/
collection tank.
Tips
www.BISSELL.com 800.237.7691
4

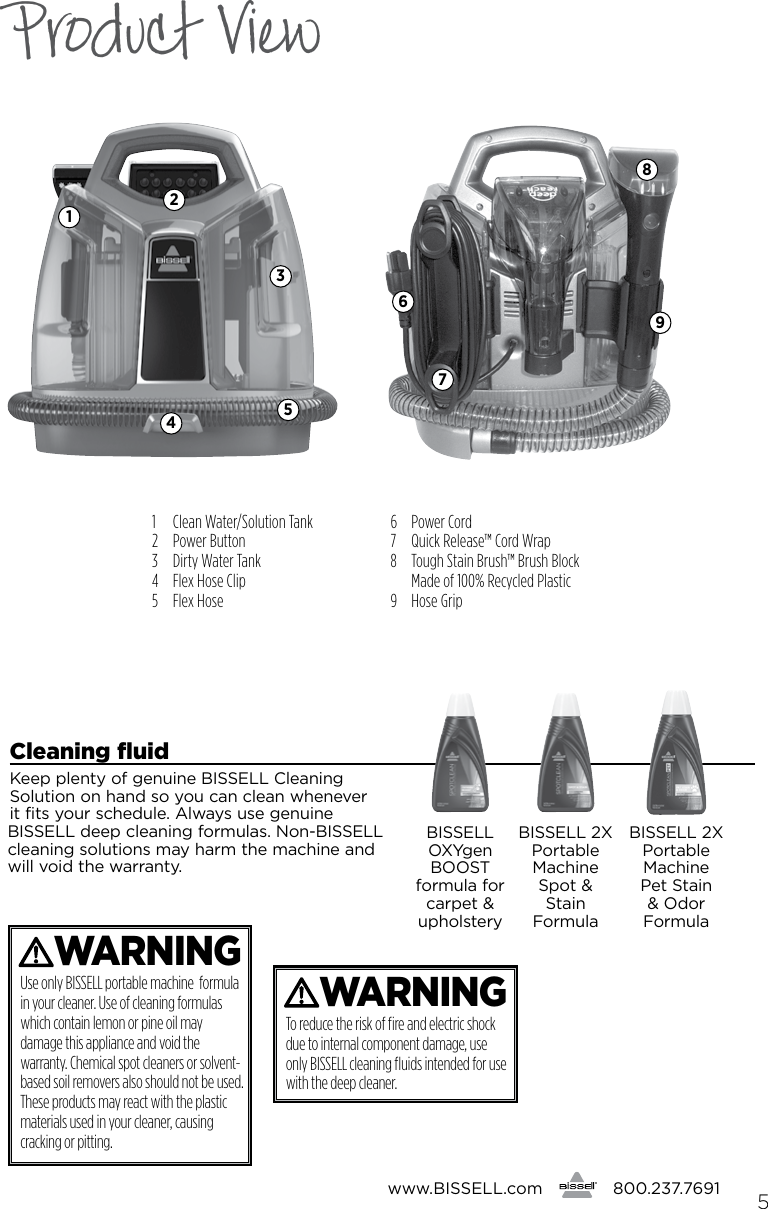

1 Clean Water/Solution Tank
2 Power Button
3 Dirty Water Tank
4 Flex Hose Clip
5 Flex Hose
6 Power Cord
7 Quick Release™ Cord Wrap
8 Tough Stain Brush™ Brush Block
Made of 100% Recycled Plastic
9 Hose Grip
Product View
WARNING
To reduce the risk of fire and electric shock
due to internal component damage, use
only BISSELL cleaning fluids intended for use
with the deep cleaner.
www.BISSELL.com 800.237.7691 5
Cleaning fluid
Keep plenty of genuine BISSELL Cleaning
Solution on hand so you can clean whenever
it fits your schedule. Always use genuine
BISSELL deep cleaning formulas. Non-BISSELL
cleaning solutions may harm the machine and
will void the warranty.
BISSELL 2X
Portable
Machine
Spot &
Stain
Formula
BISSELL
OXYgen
BOOST
formula for
carpet &
upholstery
BISSELL 2X
Portable
Machine
Pet Stain
& Odor
Formula
1
2
3
5
4
6
7
9
8
WARNING
Use only BISSELL portable machine formula
in your cleaner. Use of cleaning formulas
which contain lemon or pine oil may
damage this appliance and void the
warranty. Chemical spot cleaners or solvent-
based soil removers also should not be used.
These products may react with the plastic
materials used in your cleaner, causing
cracking or pitting.

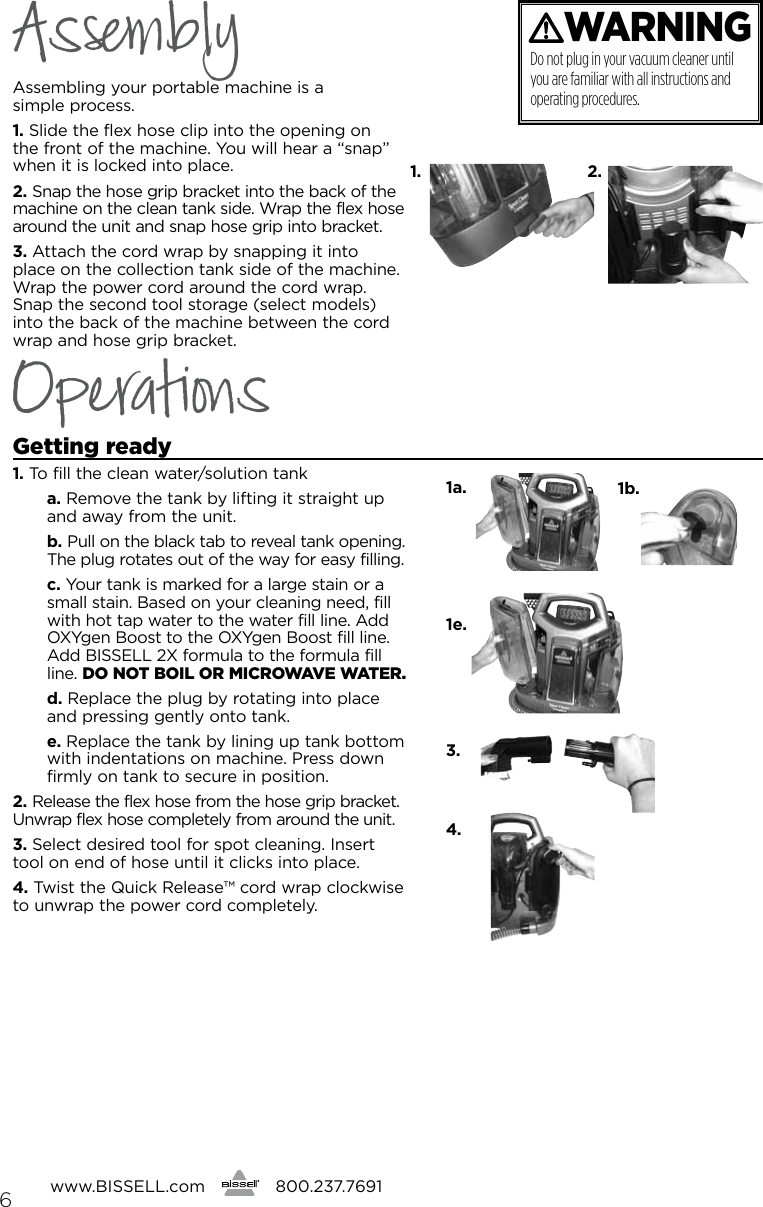

Assembling your portable machine is a
simple process.
1. Slide the flex hose clip into the opening on
the front of the machine. You will hear a “snap”
when it is locked into place.
2. Snap the hose grip bracket into the back of the
machine on the clean tank side. Wrap the flex hose
around the unit and snap hose grip into bracket.
3. Attach the cord wrap by snapping it into
place on the collection tank side of the machine.
Wrap the power cord around the cord wrap.
Snap the second tool storage (select models)
into the back of the machine between the cord
wrap and hose grip bracket.
Getting ready
1. To fill the clean water/solution tank
a. Remove the tank by lifting it straight up
and away from the unit.
b . Pull on the black tab to reveal tank opening.
The plug rotates out of the way for easy filling.
c. Your tank is marked for a large stain or a
small stain. Based on your cleaning need, fill
with hot tap water to the water fill line. Add
OXYgen Boost to the OXYgen Boost fill line.
Add BISSELL 2X formula to the formula fill
line. DO NOT BOIL OR MICROWAVE WATER.
d. Replace the plug by rotating into place
and pressing gently onto tank.
e . Replace the tank by lining up tank bottom
with indentations on machine. Press down
firmly on tank to secure in position.
2. Release the flex hose from the hose grip bracket.
Unwrap flex hose completely from around the unit.
3. Select desired tool for spot cleaning. Insert
tool on end of hose until it clicks into place.
4. Twist the Quick Release™ cord wrap clockwise
to unwrap the power cord completely.
Asmbly
www.BISSELL.com 800.237.7691
WARNING
Do not plug in your vacuum cleaner until
you are familiar with all instructions and
operating procedures.
6

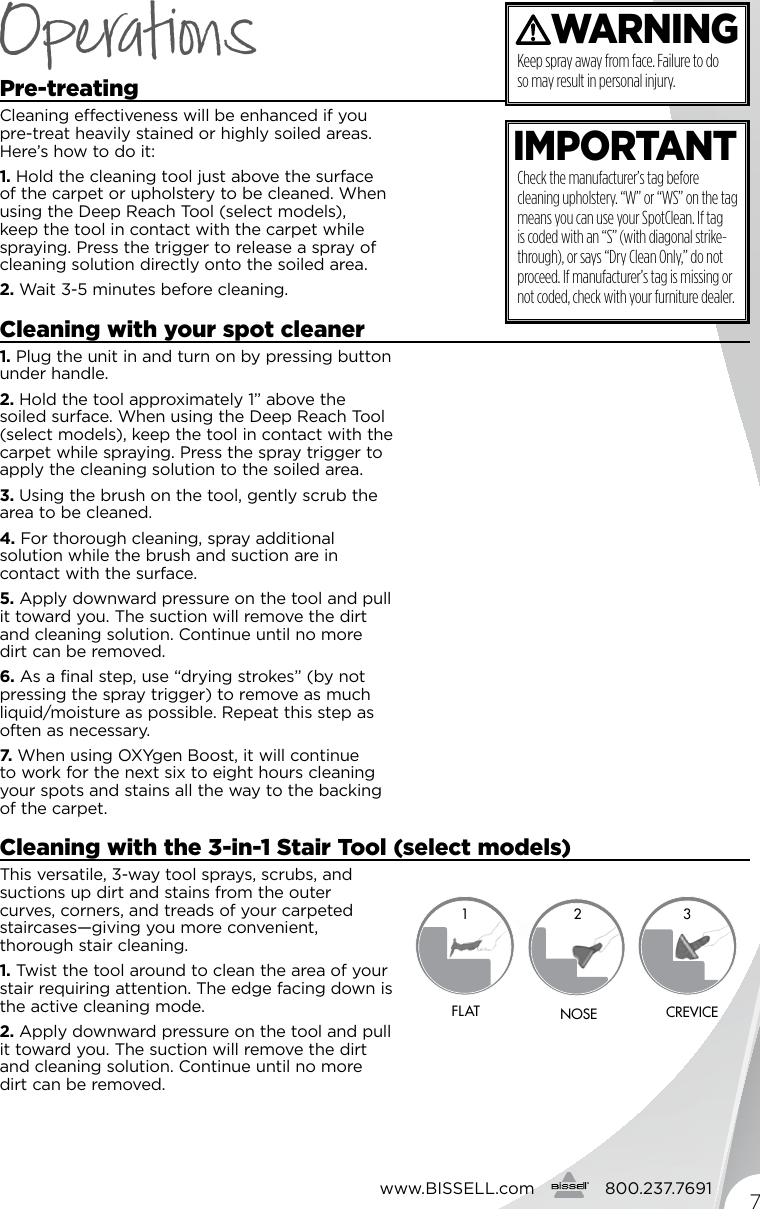

Operatis
1a. 1b.
1e.
3.
4.
1. 2.
Pre-treating
Cleaning effectiveness will be enhanced if you
pre-treat heavily stained or highly soiled areas.
Here’s how to do it:
1. Hold the cleaning tool just above the surface
of the carpet or upholstery to be cleaned. When
using the Deep Reach Tool (select models),
keep the tool in contact with the carpet while
spraying. Press the trigger to release a spray of
cleaning solution directly onto the soiled area.
2. Wait 3-5 minutes before cleaning.
Cleaning with your spot cleaner
1. Plug the unit in and turn on by pressing button
under handle.
2. Hold the tool approximately 1” above the
soiled surface. When using the Deep Reach Tool
(select models), keep the tool in contact with the
carpet while spraying. Press the spray trigger to
apply the cleaning solution to the soiled area.
3. Using the brush on the tool, gently scrub the
area to be cleaned.
4. For thorough cleaning, spray additional
solution while the brush and suction are in
contact with the surface.
5. Apply downward pressure on the tool and pull
it toward you. The suction will remove the dirt
and cleaning solution. Continue until no more
dirt can be removed.
6. As a final step, use “drying strokes” (by not
pressing the spray trigger) to remove as much
liquid/moisture as possible. Repeat this step as
often as necessary.
7. When using OXYgen Boost, it will continue
to work for the next six to eight hours cleaning
your spots and stains all the way to the backing
of the carpet.
Cleaning with the 3-in-1 Stair Tool (select models)
This versatile, 3-way tool sprays, scrubs, and
suctions up dirt and stains from the outer
curves, corners, and treads of your carpeted
staircases—giving you more convenient,
thorough stair cleaning.
1. Twist the tool around to clean the area of your
stair requiring attention. The edge facing down is
the active cleaning mode.
2. Apply downward pressure on the tool and pull
it toward you. The suction will remove the dirt
and cleaning solution. Continue until no more
dirt can be removed.
Operatis
www.BISSELL.com 800.237.7691
WARNING
Keep spray away from face. Failure to do
so may result in personal injury.
IMPORTANT
Check the manufacturer’s tag before
cleaning upholstery. “W” or “WS” on the tag
means you can use your SpotClean. If tag
is coded with an “S” (with diagonal strike-
through), or says “Dry Clean Only,” do not
proceed. If manufacturer’s tag is missing or
not coded, check with your furniture dealer.
7
1 2 3
FLAT NOSE CREVICE
www.BISSELL.com 800.237.7691

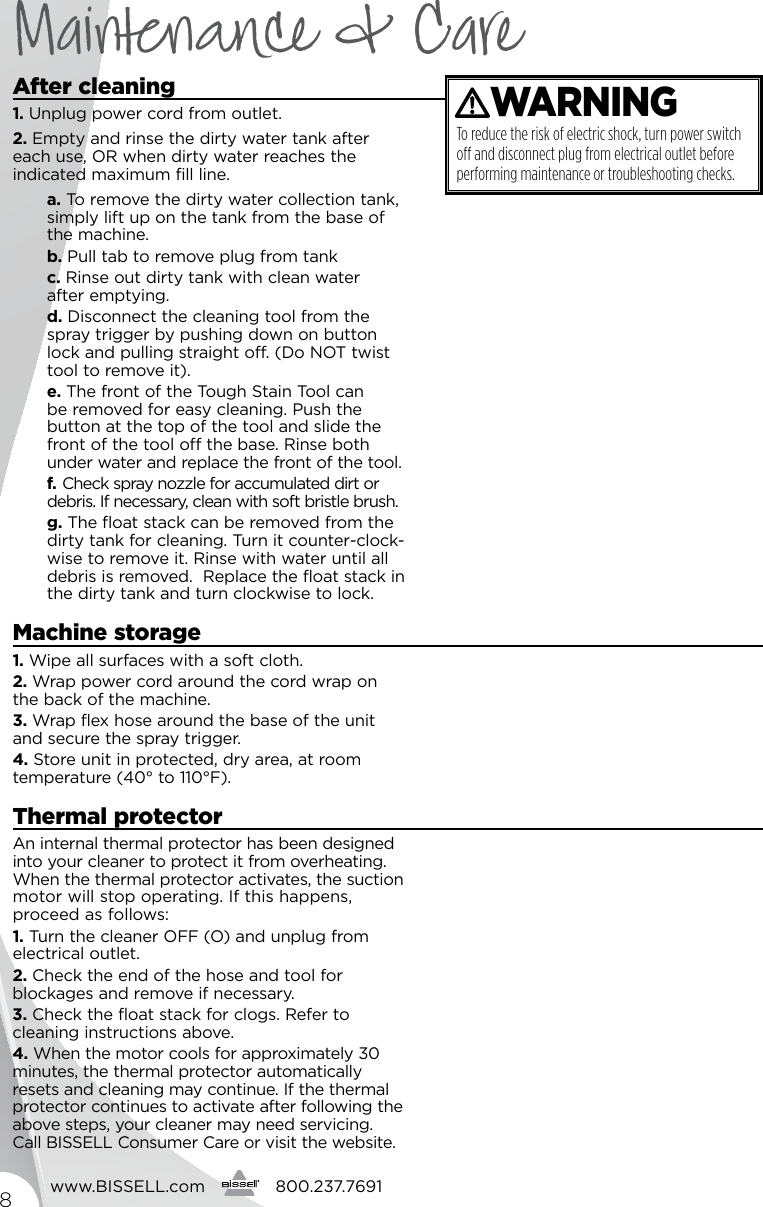

After cleaning
1. Unplug power cord from outlet.
2. Empty and rinse the dirty water tank after
each use, OR when dirty water reaches the
indicated maximum fill line.
a. To remove the dirty water collection tank,
simply lift up on the tank from the base of
the machine.
b. Pull tab to remove plug from tank
c. Rinse out dirty tank with clean water
after emptying.
d. Disconnect the cleaning tool from the
spray trigger by pushing down on button
lock and pulling straight off. (Do NOT twist
tool to remove it).
e. The front of the Tough Stain Tool can
be removed for easy cleaning. Push the
button at the top of the tool and slide the
front of the tool off the base. Rinse both
under water and replace the front of the tool.
f. Check spray nozzle for accumulated dirt or
debris. If necessary, clean with soft bristle brush.
g. The float stack can be removed from the
dirty tank for cleaning. Turn it counter-clock-
wise to remove it. Rinse with water until all
debris is removed. Replace the float stack in
the dirty tank and turn clockwise to lock.
Machine storage
1. Wipe all surfaces with a soft cloth.
2. Wrap power cord around the cord wrap on
the back of the machine.
3. Wrap flex hose around the base of the unit
and secure the spray trigger.
4. Store unit in protected, dry area, at room
temperature (40° to 110°F).
Thermal protector
An internal thermal protector has been designed
into your cleaner to protect it from overheating.
When the thermal protector activates, the suction
motor will stop operating. If this happens,
proceed as follows:
1. Turn the cleaner OFF (O) and unplug from
electrical outlet.
2. Check the end of the hose and tool for
blockages and remove if necessary.
3. Check the float stack for clogs. Refer to
cleaning instructions above.
4. When the motor cools for approximately 30
minutes, the thermal protector automatically
resets and cleaning may continue. If the thermal
protector continues to activate after following the
above steps, your cleaner may need servicing.
Call BISSELL Consumer Care or visit the website.
8
Mainnce & Care
WARNING
To reduce the risk of electric shock, turn power switch
o and disconnect plug from electrical outlet before
performing maintenance or troubleshooting checks.

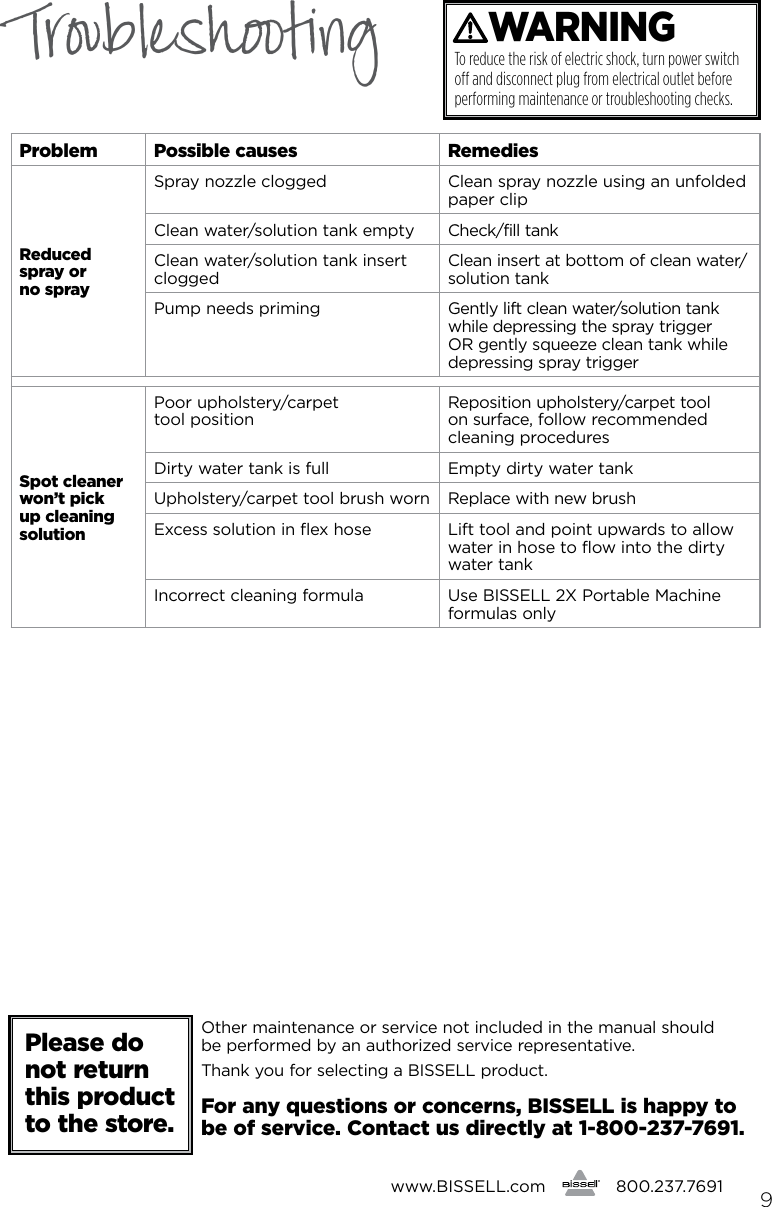

Trbleshting
WARNING
To reduce the risk of electric shock, turn power switch
o and disconnect plug from electrical outlet before
performing maintenance or troubleshooting checks.
Problem Possible causes Remedies
Reduced
spray or
no spray
Spray nozzle clogged Clean spray nozzle using an unfolded
paper clip
Clean water/solution tank empty Check/fill tank
Clean water/solution tank insert
clogged
Clean insert at bottom of clean water/
solution tank
Pump needs priming Gently lift clean water/solution tank
while depressing the spray trigger
OR gently squeeze clean tank while
depressing spray trigger
Spot cleaner
won’t pick
up cleaning
solution
Poor upholstery/carpet
tool position
Reposition upholstery/carpet tool
on surface, follow recommended
cleaning procedures
Dirty water tank is full Empty dirty water tank
Upholstery/carpet tool brush worn Replace with new brush
Excess solution in flex hose Lift tool and point upwards to allow
water in hose to flow into the dirty
water tank
Incorrect cleaning formula Use BISSELL 2X Portable Machine
formulas only
www.BISSELL.com 800.237.7691
Other maintenance or service not included in the manual should
be performed by an authorized service representative.
Thank you for selecting a BISSELL product.
For any questions or concerns, BISSELL is happy to
be of service. Contact us directly at 1-800-237-7691.
Please do
not return
this product
t o t h e s t o r e .
9

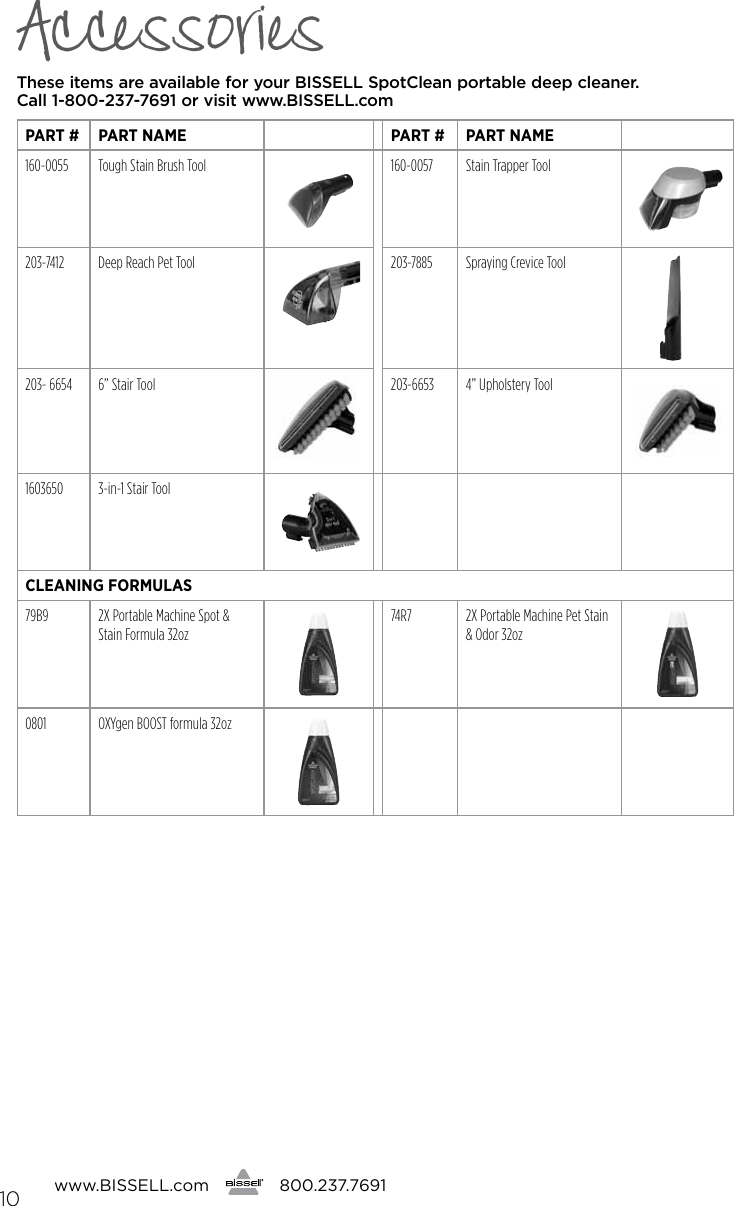

Accessories
These items are available for your BISSELL SpotClean portable deep cleaner.
Call 1-800-237-7691 or visit www.BISSELL.com
www.BISSELL.com 800.237.7691
ParT # ParT name ParT # ParT name
160-0055 Tough Stain Brush Tool 160-0057 Stain Trapper Tool
203-7412 Deep Reach Pet Tool 203-7885 Spraying Crevice Tool
203- 6654 6” Stair Tool 203-6653 4” Upholstery Tool
1603650 3-in-1 Stair Tool
cleaning formulas
79B9 2X Portable Machine Spot &
Stain Formula 32oz
74R7 2X Portable Machine Pet Stain
& Odor 32oz
0801 OXYgen BOOST formula 32oz
10

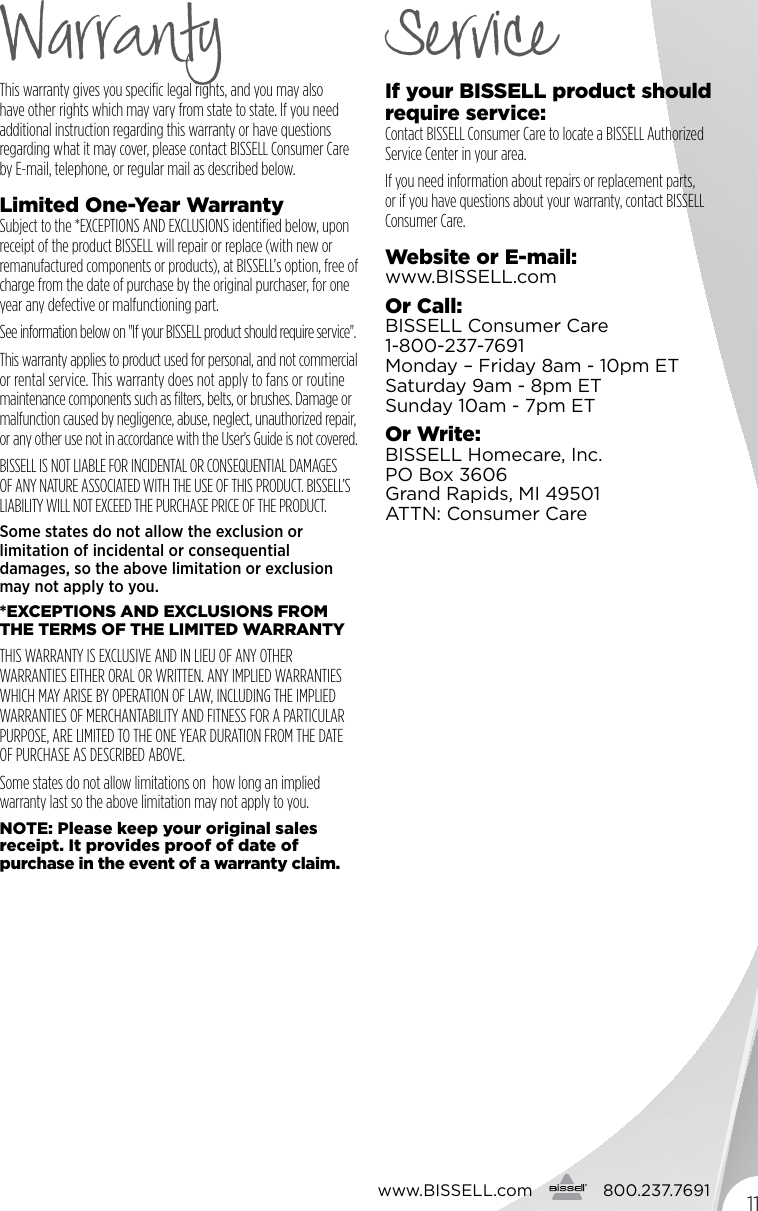

This warranty gives you specific legal rights, and you may also
have other rights which may vary from state to state. If you need
additional instruction regarding this warranty or have questions
regarding what it may cover, please contact BISSELL Consumer Care
by E-mail, telephone, or regular mail as described below.
Limited One-Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon
receipt of the product BISSELL will repair or replace (with new or
remanufactured components or products), at BISSELL’s option, free of
charge from the date of purchase by the original purchaser, for one
year any defective or malfunctioning part.
See information below on "If your BISSELL product should require service".
This warranty applies to product used for personal, and not commercial
or rental service. This warranty does not apply to fans or routine
maintenance components such as filters, belts, or brushes. Damage or
malfunction caused by negligence, abuse, neglect, unauthorized repair,
or any other use not in accordance with the User's Guide is not covered.
BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S
LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.
Some states do not allow the exclusion or
limitation of incidental or consequential
damages, so the above limitation or exclusion
may not apply to you.
*EXCEPTIONS AND EXCLUSIONS FROM
THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES
WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE
OF PURCHASE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied
warranty last so the above limitation may not apply to you.
NOTE: Please keep your original sales
receipt. It provides proof of date of
purchase in the event of a warranty claim.
If your BISSELL product should
require service:
Contact BISSELL Consumer Care to locate a BISSELL Authorized
Service Center in your area.
If you need information about repairs or replacement parts,
or if you have questions about your warranty, contact BISSELL
Consumer Care.
Website or E-mail:
www.BISSELL.com
Or Call:
BISSELL Consumer Care
1-800-237-7691
Monday – Friday 8am - 10pm ET
Saturday 9am - 8pm ET
Sunday 10am - 7pm ET
Or Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids, MI 49501
ATTN: Consumer Care
Warrty Service
www.BISSELL.com 800.237.7691 11
©2013 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 160-3650 Rev 01/14
Visit our website at: www.BISSELL.com
For information about repairs or replacement parts, or questions about your warranty:
Registering is quick, easy and offers you benefits over the lifetime of your product.
You’ll receive:
Visit www.BISSELL.com/registration now!
Visit the BISSELL website: www.BISSELL.com
When contacting BISSELL, have model number of cleaner available.
Please record your Model Number: ___________________
Please record your Purchase Date: ___________________
NOTE: Please keep your original sales receipt. It provides proof of purchase
date in the event of a warranty claim. See Warranty on page 15 for details.
Call:
BISSELL Consumer Care
1-800-237-7691
Monday - Friday 8 am - 10 pm ET
Saturday 9 am - 8 pm ET
Sunday 10am - 7pm ET
Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Care
BISSELL Csumer Care
Regr yr product tod!
BISSELL Rewards Points
Automatically earn points for
discounts and free shipping on
future purchases.
Faster Service
Supplying your information now
saves you time should you need to
contact us with questions regarding
your product.
Product Support Reminders
and Alerts
We’ll contact you with any
important product maintenance
reminders and alerts.
Special Promotions
Optional: Register your email
to receive notice of offers,
contests, cleaning tips and more!
We c’t wait to ar from y!
Rate this product and let us (and millions
of your closest friends) know what you think!
www.BISSELL.com
12
