Safety Instructions

Product view

Assembly Instructions

Features / Operations

steamMOP™

USER’S GUIDE

1867 SERIES – 220/240V

3

4

5

6-8

Routine Maintenance

8-9

Warranty

12

Troubleshooting

10

Replacement Parts

11

Consumer Services

11

Thanks for buying a BISSELL Steam Mop

We’re glad you purchased a BISSELL Steam Mop. Everything we know

about floor care went into the design and construction of this complete,

high-tech home cleaning system.

Your Steam Mop is well made, and we back it with a limited one-year

warranty. We also stand behind it with a knowledgeable, dedicated

Consumer Services Department, so, should you ever have a problem, you’ll

receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today,

BISSELL is a global leader in the design, manufacture, and service of high

quality homecare products like your Steam Mop.

Thanks again, from all of us at BISSELL.

Mark J. Bissell

President and Chief Executive Officer

2

3

IMPORTANT SAFETY INSTRUCTIONS

■Do not pick up toxic material (chlorine bleach,

ammonia, drain cleaner, petrol, etc.)

■Do not modify the 3-pin Earthed plug

■Do not allow to be used as a toy

■Do not use for any purpose other than

described in this User’s Guide

■Use only manufacturer’s recommended

attachments

■Use only cleaning products formulated by

BISSELL for use in this appliance

■Keep openings free of dust, lint, hair, etc.

■Keep appliance on a level surface

■Turn off all controls before unplugging

■Be extra careful when cleaning stairs

■Pay close attention when working

around children

■Not intended for use by young children or

infirm persons without supervision

■Young children should be supervised

to ensure that they do not play with

the appliance

SAVE THESE INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY.

WARNING:

This appliance must be earthed

.

IMPORTANT FOR OPERATION ON

A 220/240 VOLT A.C. 50/60 Hz POWER

SUPPLY ONLY.

FOR RESIDENTS OF THE UNITED KINGDOM ONLY

If your appliance is fitted with a nonrewireable BS

1363 plug it must not be used unless a 13 amp

(ASTA approved to BS 1362) fuse is fitted in the

carrier contained in the plug. Spares may be

obtained from your BISSELL supplier. If for any

reason the plug is cut off, it must be disposed of,

as it is an electric shock hazard should it be

inserted into a 13 amp socket.

When using an electrical appliance, basic

precautions should be observed, including

the following:

READ ALL INSTRUCTIONS BEFORE

USING YOUR UPRIGHT

DEEP CLEANER.

Always connect to a properly Earthed Outlet.

Unplug from outlet when not in use and before

conducting maintenance or troubleshooting.

WARNING: To reduce the risk of

fire, electric shock, or injury:

■Do not direct steam at people, animals, or

electrical outlets

■Use indoors only

■Do not immerse

■Do not leave machine when it is plugged in

■Do not service machine when it is plugged in

■If the supply cord is damaged, it must be

replaced by an authorized Service Centre in

order to avoid a hazard

■Do not use machine if it has been dropped,

damaged, left outdoors or dropped into water

■Do not expose to rain, store indoors

■Do not pull or carry by cord, use cord as a

handle, close door on cord, pull cord around

sharp corners or edges, run appliance over

cord, or expose cord to heated surfaces

■Do not carry the appliance while in use

■Do not unplug by pulling on cord. Unplug by

grasping plug not the cord

■Do not handle plug or appliance with wet hands

■Do not put any object into appliance openings,

use with blocked opening, or restrict air flow

■Do not expose hair, loose clothing, fingers or

body parts to openings or moving parts

■Do not pick up hot or burning objects

■Do not pick up flammable or combustible

materials (lighter fluid, petrol, kerosene, etc.) or

use in the presence of explosive liquids or vapour

■Do not use appliance in an enclosed space filled

with vapours given off by oil base paint, paint

thinner, some moth proofing substances,

flammable dust, or other explosive or toxic vapours

4

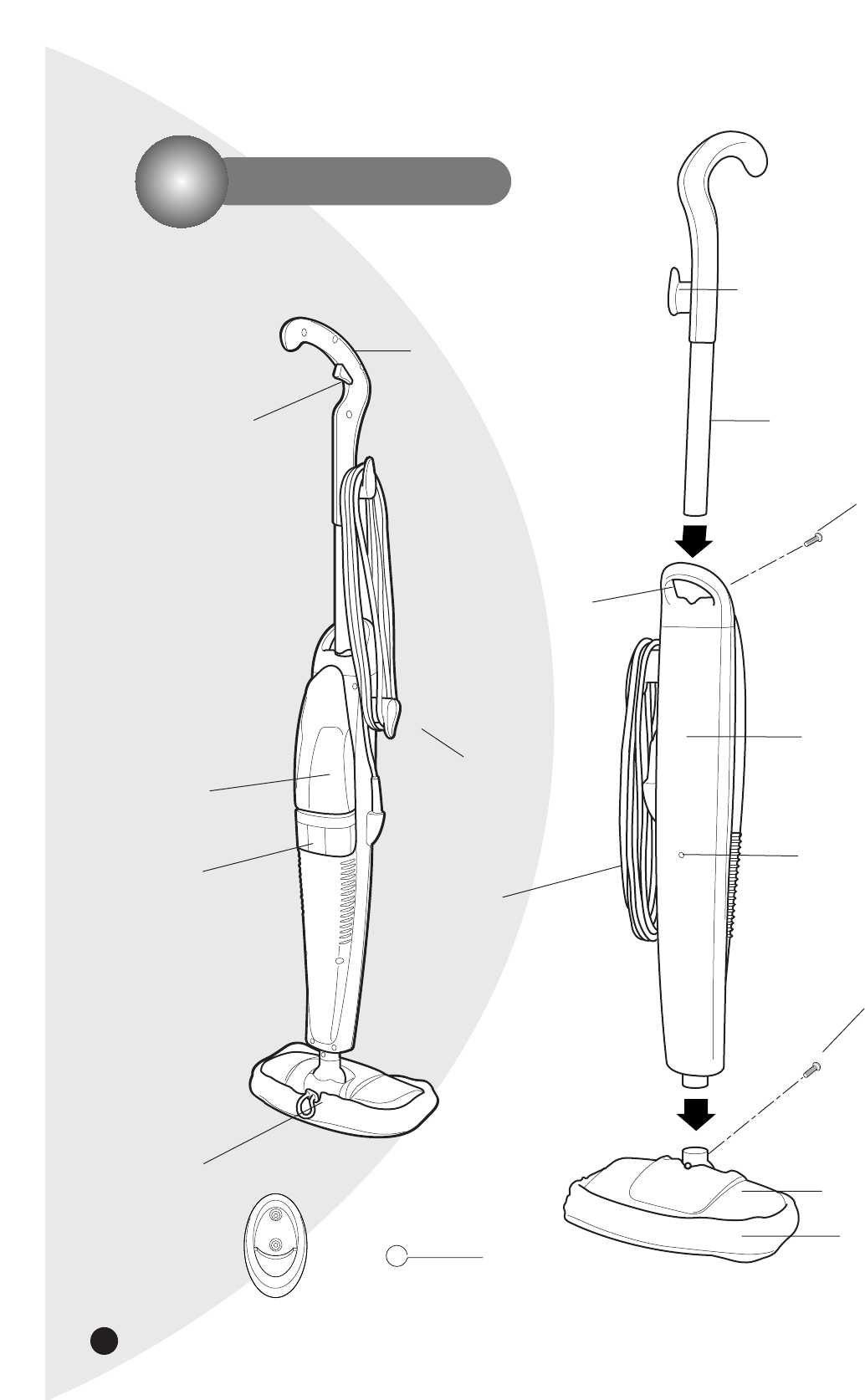

Trigger

Strain Reliever

HandleTM

Water Tank

Filter

Toggle

Quick ReleaseTM

Cord Wrap

Handle Assembly

Large Screw

Lower Body

Ready Light

Small Screw

Swivel Head

Mop Pad

Power Cord

Lower Cord Wrap

Carrying Handle

Product View

Storage Hook Clean Out Pin

5

How To Assemble Your Steam Mop

How To Use This Guide

This User’s Guide has been designed to help you get the utmost

satisfaction from your BISSELL Steam Mop bare floor steam cleaner.

You’ll find assembly and operating instructions, safety precautions,

maintenance and troubleshooting instructions. Please read this User’s

Guide thoroughly before assembling your Steam Mop.

Pay particular attention to the parts diagram, assembly instructions,

and part names. Locate and organize all parts before assembly.

Familiarize yourself with the parts and where they fit. Following

this User’s Guide will greatly enhance your ability to get the best

performance from your BISSELL Steam Mop for many years.

Your Steam Mop assembles quickly and easily. The only tool you will

need to assemble your cleaner is a Phillips Head Screwdriver.

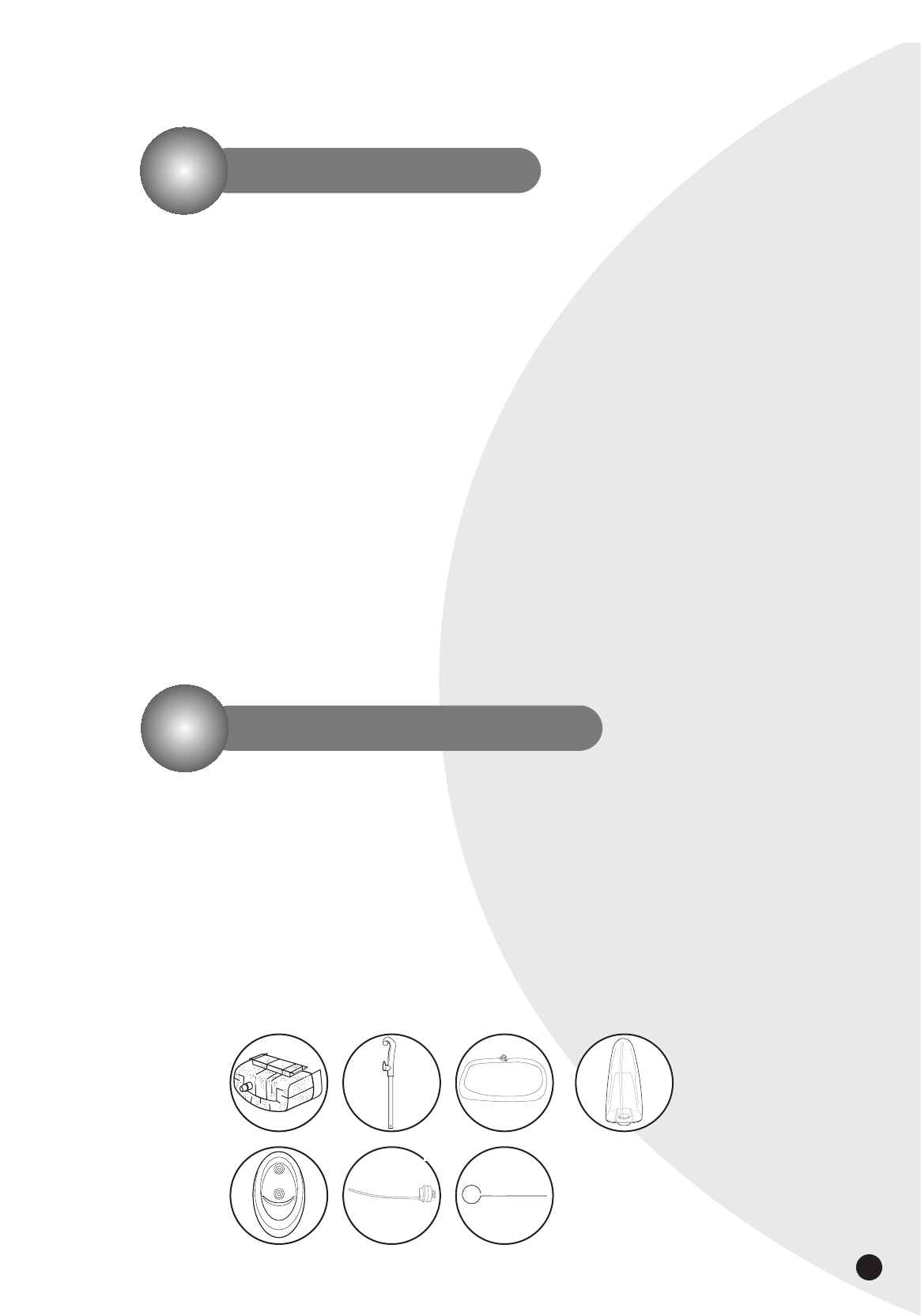

Your Steam Mop is packaged with the following items:

Handle Assembly 1 Large Philips Head Screw

Lower Body with Filter 1 Small Philips Head Screw

Swivel Head 2 Mop Pads

Water Tank Storage Hook with 2 Screws

Clean Out Pin

Attach Swivel Head.

Secure Swivel Head with small Phillips Head Screw.

Tighten until secure.

Slide Handle Assembly down into Lower Body until it will go

no further.

Secure the handle by placing the Large Phillips Head

Screw through the screw opening in the Lower Body and into

the rear of the Handle Assembly. Tighten with screwdriver

until secure.

Slide Water Tank onto Lower Body by lining up vertical glides

and gently sliding tank into place.

1.

2.

3.

4.

5.

1

2

3

4

5

6

Steam Mop Product Features

Tip:

Do not attempt to

use your Steam

Mop without water

in the tank.

Water Tank. The Water Tank is located on the back of the

Steam Mop. It can be refilled with water any time during

use. Distilled or demineralized water may be used in place

of tap water.

Do not use chemicals with your Steam Mop.

Water Filter. The Filter removes minerals and other

impurities from tap water, preventing water deposits from

damaging your Steam Mop. It should be replaced when the

bright green grains turn blue. To maximize performance of

the Filter, distilled or demineralized water may be used.

Ready Light. The Ready Light will glow when tap water

has been converted to steam and the Steam Mop is ready

to use.

Trigger. Press to release steam.

Swivel Head. Allows you to clean in tight spaces and

under cabinets.

Mop Pad. The absorbent terry cloth Mop Pad picks up the

dirt loosened by the steam. The Mop Pad is reusable and

machine washable.

Storage Hook. Mount on a wall for convenient storage in a

closet or utility room.

Mounting instructions:

A. Choose a mounting location that is over a stud.

B. Hold the Storage Hook against the wall with the

screw holes at the top of the hook. With a pencil,

mark the position of both screw holes.

C. Drill 1/8” diameter holes in the center of your pencil

marks.

D. Place Storage Hook over drilled holes.

E. Secure Storage Hook by screwing in place with the

provided screws.

Clean Out Pin. The Clean Out Pin is used to clear

blockages in the Steam Nozzle. To clean the Nozzle, insert

the Clean Out Pin into the brass spray tip.

1.

2.

3.

4.

5.

6.

7.

8.

7

Attach Mop Pad

A. Set Swivel Head in Mop Pad.

B. Tighten Mop Pad by pulling on cord while

pressing on Toggle.

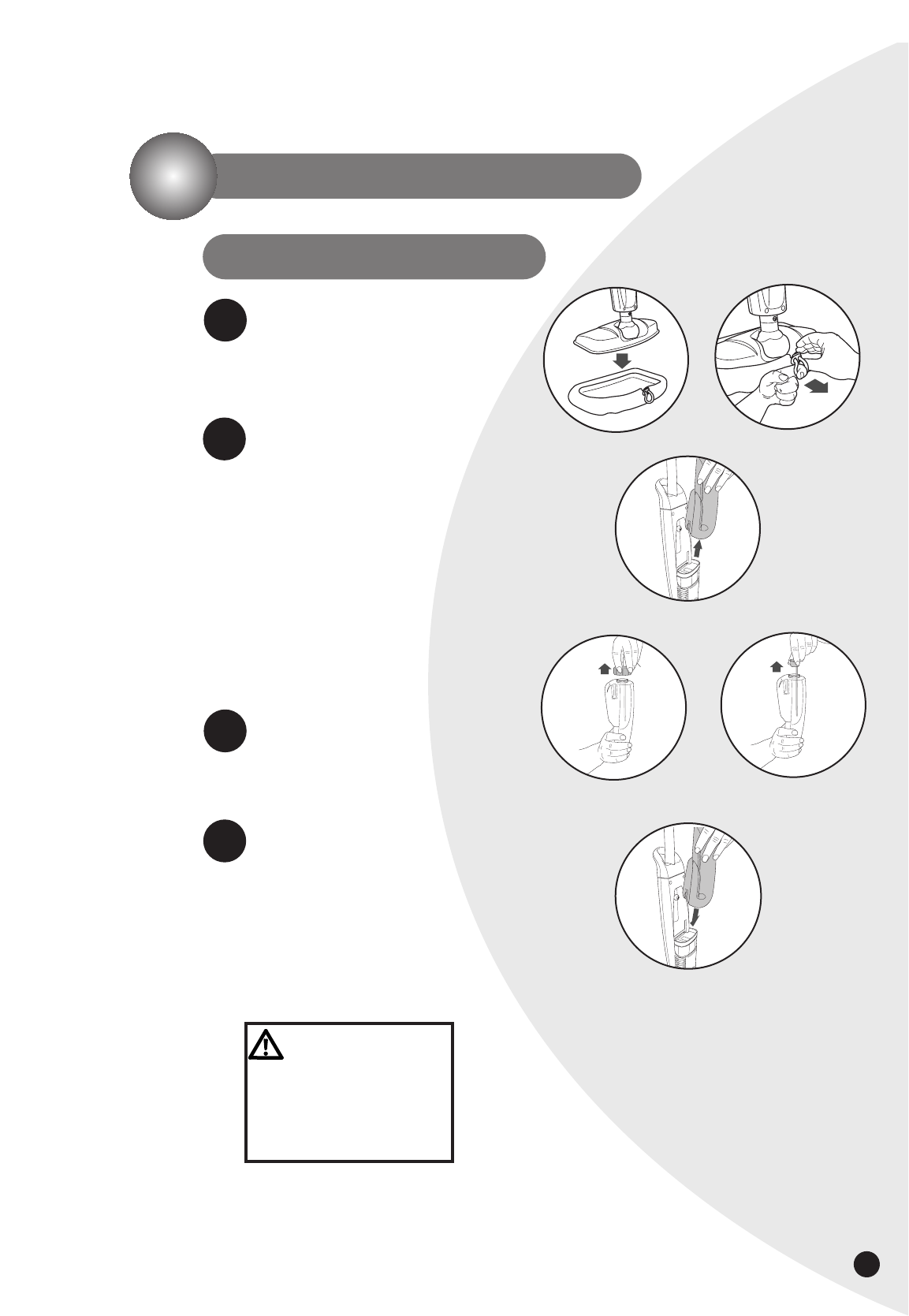

Fill the Water Tank

A. Remove Tank by lifting straight up and

away from unit.

B. Unscrew cap at bottom of Water Tank,

remove the insert assembly.

C. Fill Water Tank with cool tap water.

D. Replace the insert assembly, replace and

tighten cap.

E. Replace Water Tank by lining up vertical

guides and gently sliding tank into place.

Twist the Quick Release Cord Wrap clockwise

to unwrap the Power Cord completely and plug

into a 220-240 Volt grounded outlet as

described in the Important Safety Instructions

on page 3.

The Ready Light will illuminate when the

Steam Mop is ready for cleaning.

WARNING:

Never put descaling,

alcoholic, or detergent

products into the steam

cleaner, as this may

damage it or make it

unsafe for use.

Operations

Getting Ready

1.

2.

3.

4.

1A

2A

2B 2B

2E

1B

Your Steam Mop is designed to clean bare flooring such as ceramic

tile, vinyl, laminate, marble, stone and sealed hard wood floors. Use of

your Steam Mop on waxed or some unwaxed floors may result in a

diminished glossiness. The Steam Mop is not for use on unsealed wood

floors. For best results test in an inconspicuous area or check the care

instructions from your flooring manufacturer.

Sweep or vacuum floor prior to using.

Slowly pass over surface to be cleaned while pressing

trigger to emit steam.

To sanitize an area of your floor, leave the Steam Mop over

that area for a minimum of 15 seconds, but no longer than

20 seconds. For larger areas, overlap Swivel Head placement.

When the Steam Mop stops emitting steam, simply remove

the Water Tank, refill, and continue cleaning.

Unplug Power Cord from outlet.

Carefully remove Mop Pad from Swivel Head, as Mop Pad and

Lower Assembly will be hot.

Any water remaining in the Water Tank should be emptied

prior to machine storage.

Mop Pad can be machine washed in hot water and

tumbled dry.

Wrap Power Cord around Quick Release Cord Wrap on side

of Steam Mop.

Wipe all surfaces of Steam Mop with a soft cloth. Store

upright in a protected, dry area or hang by storage hook.

8

CAUTION:

Upright storage of the

Steam Mop with a wet Mop

Pad may result in the

formation of white marks on

your floor. To remove the

white marks, clean area

with vinegar.

2.

3.

4.

5.

6.

Cleaning Bare Floors

1.

2.

3.

4.

Tip:

During first use, it

may take several

seconds for the

Steam Mop to

begin steaming.

The water needs

to flow through

the Filter to the

heater. This delay

will only occur

during initial use

or when using a

new Filter.

Routine Maintenance

When You’re Done

1.

9

Replacing The Water Filter

Use only BISSELL Water Filters (218-5600) in your BISSELL Steam Mop steam cleaner. To locate a

retailer near you, or to place an order, call us as follows:

For UK inquiries:

Monday - Thursday 9 a.m. — 5 p.m.

Friday 9 a.m. — 4 p.m.

Telephone: 0870-225-0109

For all other inquiries:

Monday - Friday 8 a.m. — 4 p.m.

Telephone: 01-616-453-4451

Replacement Filter

If you fill your steam cleaner with normal tap water, it is

essential to check the Water Filter and replace it when

it is no longer effective. Change the Filter when the bright

green grains turn blue. If the Filter is not changed at the

appropriate time, calcium deposits will accumulate on the

heating element, causing damage or reduced performance.

Using distilled or demineralized water will maximize the

performance of your Filter.

10

Troubleshooting

Reduced Steam Or No Steam.

Possible Causes Remedies

Water Tank empty Fill Water Tank

Depleted Water Filter Replace Water Filter

Blocked Steam Nozzle Remove Swivel Head - pour vinegar through

head. Clear Nozzle by inserting the Clean Out

Pin into the brass spray tip.

If suggested solution for this or any function of your Steam Mop does not correct the problem, call BISSELL

Consumer Services.

11

22

33

WARNING:

To reduce the risk of

fire, electric shock

or injury, unplug

appliance from outlet

before servicing.

Item Part No. Part Name

1 218-5600 Water Filter

2 603-2047 Handle / with screw

3 603-2043 Mop Pads - 2 pack

4 603-2045 Water Tank

5 603-2050 Storage Hook

6 603-2046 Cap and Insert Assembly

7 203-1020 Clean Out Pin

Replacement Parts

1234

567

11

If your BISSELL product should require service:

In the UK call BISSELL Consumer Services at the number below and we will give you the location of a BISSELL Authorized Service

Center in your area. For all other countries contact your local in country distributor for questions service, or repair.

If you have questions about your warranty or need replacement parts please contact the numbers below.

For UK inquiries:

Monday - Thursday 9 a.m. — 5 p.m.

Friday 9 a.m. — 4 p.m.

BISSELL Homecare (Overseas) Inc.

The Boat Yard

105 Straight Road

Old Windsor

Berkshire, SL4 2SE

United Kingdom

Telephone: 0870-225-0109

Or visit the BISSELL website - www.bissell.com

When contacting BISSELL, have model number of unit available.

Please record your Model Number: ___________________

Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty

claim. See "About Your Warranty" on page 12 for details.

Please do not return this product to the store.

BISSELL Consumer Services

For all other inquiries:

Monday - Friday 8 a.m. — 4 p.m.

BISSELL Homecare, Inc.

PO Box 1888

Grand Rapids, MI 49501 USA

Telephone: 01-616-453-4451

Fax: 01-616-453-1383

12

©2003 BISSELL HOMECARE, Inc.

Grand Rapids, Michigan

All rights reserved. Printed in China.

Part Number 603-5531

Rev 10/03

Visit our website at:

www.bissell.com

About Your Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from

country to country. If you need additional instruction regarding this warranty or have questions regarding

what it may cover, please contact BISSELL Consumer Services by telephone or regular post as described

below, or contact your local in country distributor.

Limited One Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL

Homecare, Inc., will replace (with new or remanufactured components),at BISSELL’s option, free of charge

from the date of purchase by the original purchaser, for one year any defective or

malfunctioning part do to manufacturers defect.

This warranty applies to product used for personal, and not commercial or rental service. This warranty

does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or

malfunction caused by negligence, abuse, or use not in accordance with the User’s Guide is not covered.

For UK inquiries:

Monday - Thursday 9 a.m. — 5 p.m.

Friday 9 a.m. — 4 p.m.

BISSELL Homecare (Overseas) Inc.

The Boat Yard

105 Straight Road

Old Windsor

Berkshire, SL4 2SE

United Kingdom

Telephone: 0870-225-0109

For all other inquiries:

Monday - Friday 8 a.m. — 4 p.m.

BISSELL Homecare, Inc.

PO Box 1888

Grand Rapids, MI 49501 USA

Telephone: 01-616-453-4451

Fax: 01-616-453-1383

BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY

NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE

PURCHASE PRICE OF THE PRODUCT.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER

ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION

OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION

FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.
