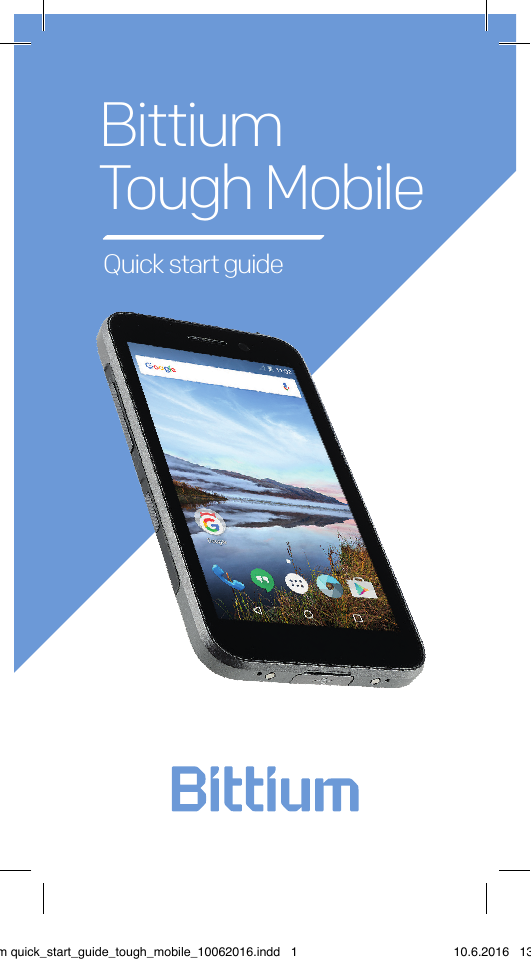

Bittium Tough MobileQuick start guidebittium quick_start_guide_tough_mobile_10062016.indd 1 10.6.2016 13.50

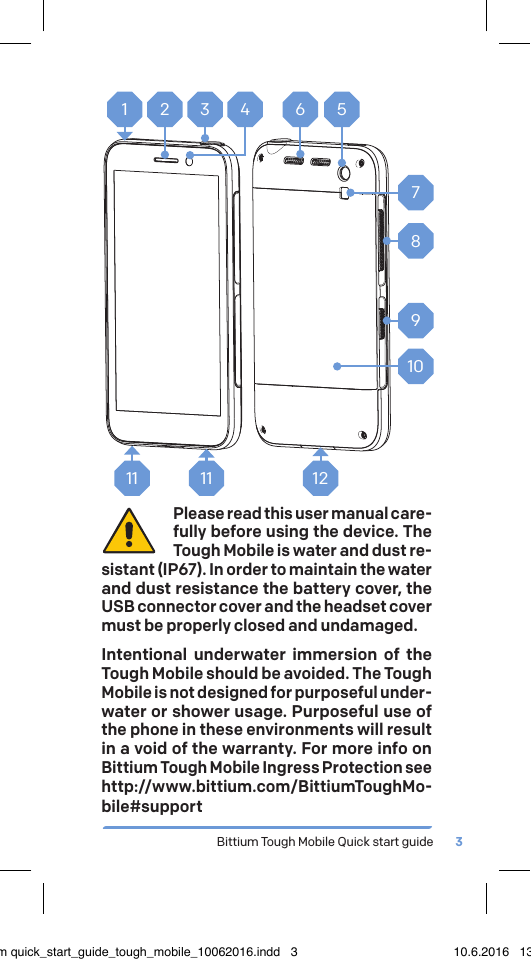

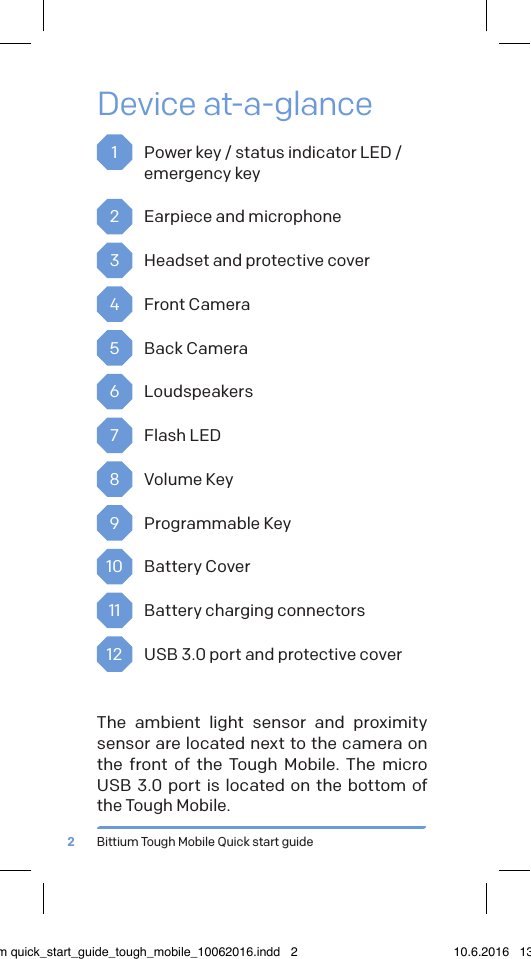

Bittium Tough Mobile Quick start guide2Device at-a-glance1 Power key / status indicator LED / emergency key2 Earpiece and microphone3 Headset and protective cover4 Front Camera5 Back Camera 6 Loudspeakers7 Flash LED8 Volume Key9 Programmable Key10 Battery Cover11 Battery charging connectors12 USB 3.0 port and protective coverThe ambient light sensor and proximity sensor are located next to the camera on the front of the Tough Mobile. The micro USB 3.0 port is located on the bottom of the Tough Mobile.bittium quick_start_guide_tough_mobile_10062016.indd 2 10.6.2016 13.50
Bittium Tough Mobile Quick start guide 31 2 3 4 567891011 11 12Please read this user manual care-fully before using the device. The Tough Mobile is water and dust re-sistant (IP67). In order to maintain the water and dust resistance the battery cover, the USB connector cover and the headset cover must be properly closed and undamaged. Intentional underwater immersion of the Tough Mobile should be avoided. The Tough Mobile is not designed for purposeful under-water or shower usage. Purposeful use of the phone in these environments will result in a void of the warranty. For more info on Bittium Tough Mobile Ingress Protection see http://www.bittium.com/BittiumToughMo-bile#supportbittium quick_start_guide_tough_mobile_10062016.indd 3 10.6.2016 13.50

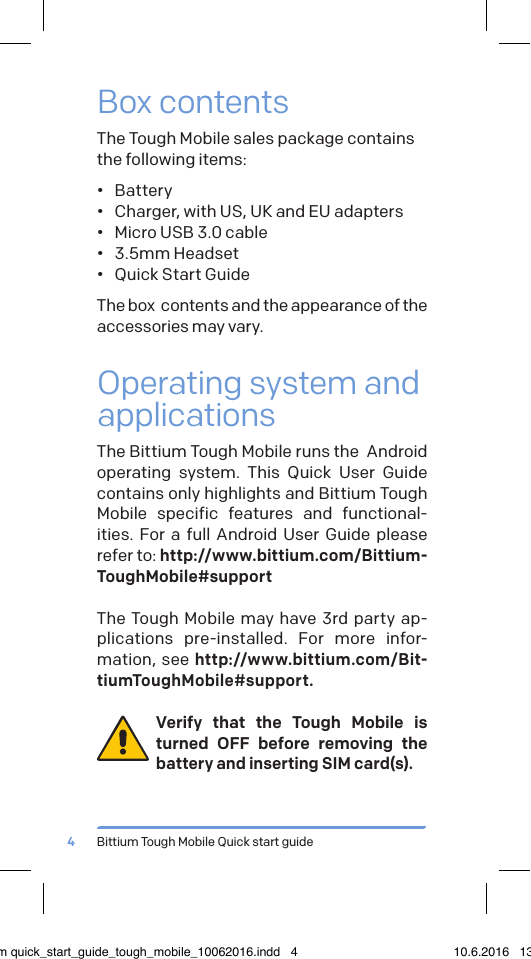

Bittium Tough Mobile Quick start guide4Box contentsThe Tough Mobile sales package contains the following items:• Battery• Charger, with US, UK and EU adapters• Micro USB 3.0 cable• 3.5mm Headset• Quick Start GuideThe box contents and the appearance of the accessories may vary.Operating system and applicationsThe Bittium Tough Mobile runs the Android operating system. This Quick User Guide contains only highlights and Bittium Tough Mobile specific features and functional-ities. For a full Android User Guide please refer to: http://www.bittium.com/Bittium-ToughMobile#supportThe Tough Mobile may have 3rd party ap-plications pre-installed. For more infor-mation, see http://www.bittium.com/Bit-tiumToughMobile#support.Verify that the Tough Mobile is turned OFF before removing the battery and inserting SIM card(s).bittium quick_start_guide_tough_mobile_10062016.indd 4 10.6.2016 13.50
Bittium Tough Mobile Quick start guide 5Getting startedTo start using the Tough Mobile first remove the battery cover and insert the SIM card(s).To open the Tough Mobile battery cover insert a thin plastic wedge to the slot be-tween the battery cover and the body at the lower left and pry the cover open. The back cover of the Tough Mobile should “pop-up” with a moderate level of force.Battery cover opening slotThe Battery Cover of the Tough Mobile is intentionally tight to meet IP67 requirements. Use only micro SIM cards in the Tough Mobile. Insert your primary micro SIM card into the SIM card slot 1. If you have a secondary micro SIM card, insert it into the SIM card slot 2. In-sert your micro SD card into the SD card slot. After the SIM and SD cards are inserted, insert the battery. Close the battery cover and push the power key to power the Tough Mobile.bittium quick_start_guide_tough_mobile_10062016.indd 5 10.6.2016 13.50

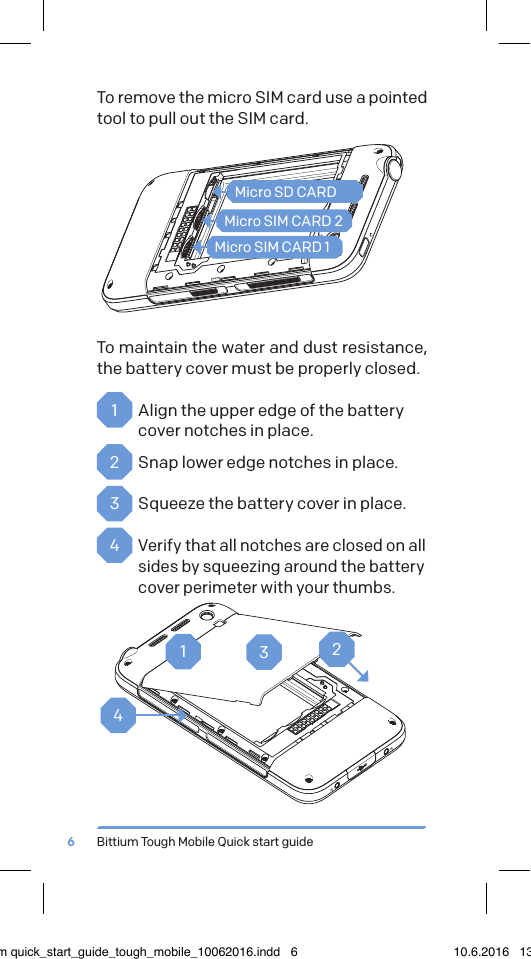

Bittium Tough Mobile Quick start guide6To remove the micro SIM card use a pointed tool to pull out the SIM card. To maintain the water and dust resistance, the battery cover must be properly closed.1 Align the upper edge of the battery cover notches in place.2 Snap lower edge notches in place.3 Squeeze the battery cover in place.4 Verify that all notches are closed on all sides by squeezing around the battery cover perimeter with your thumbs.Micro SD CARDMicro SIM CARD 2Micro SIM CARD 11234bittium quick_start_guide_tough_mobile_10062016.indd 6 10.6.2016 13.50

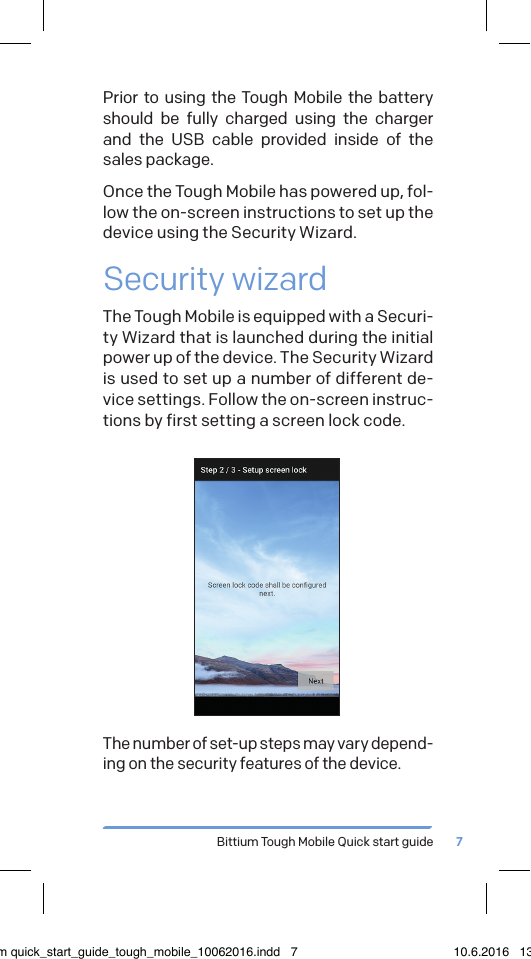

Bittium Tough Mobile Quick start guide 7Prior to using the Tough Mobile the battery should be fully charged using the charger and the USB cable provided inside of the sales package.Once the Tough Mobile has powered up, fol-low the on-screen instructions to set up the device using the Security Wizard.Security wizardThe Tough Mobile is equipped with a Securi-ty Wizard that is launched during the initial power up of the device. The Security Wizard is used to set up a number of different de-vice settings. Follow the on-screen instruc-tions by first setting a screen lock code.The number of set-up steps may vary depend-ing on the security features of the device.bittium quick_start_guide_tough_mobile_10062016.indd 7 10.6.2016 13.50

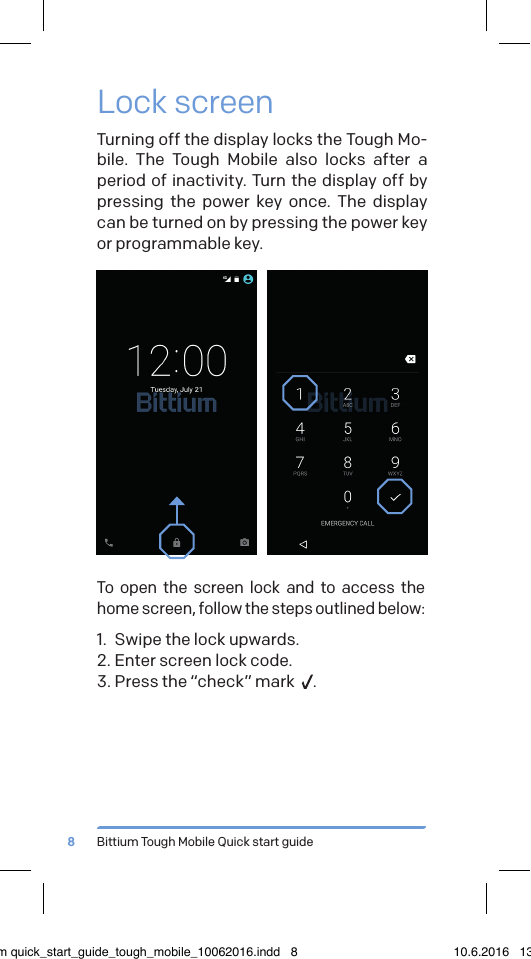

Bittium Tough Mobile Quick start guide8Lock screenTurning off the display locks the Tough Mo-bile. The Tough Mobile also locks after a period of inactivity. Turn the display off by pressing the power key once. The display can be turned on by pressing the power key or programmable key.To open the screen lock and to access the home screen, follow the steps outlined below:1. Swipe the lock upwards.2. Enter screen lock code.3. Press the “check” mark .bittium quick_start_guide_tough_mobile_10062016.indd 8 10.6.2016 13.50

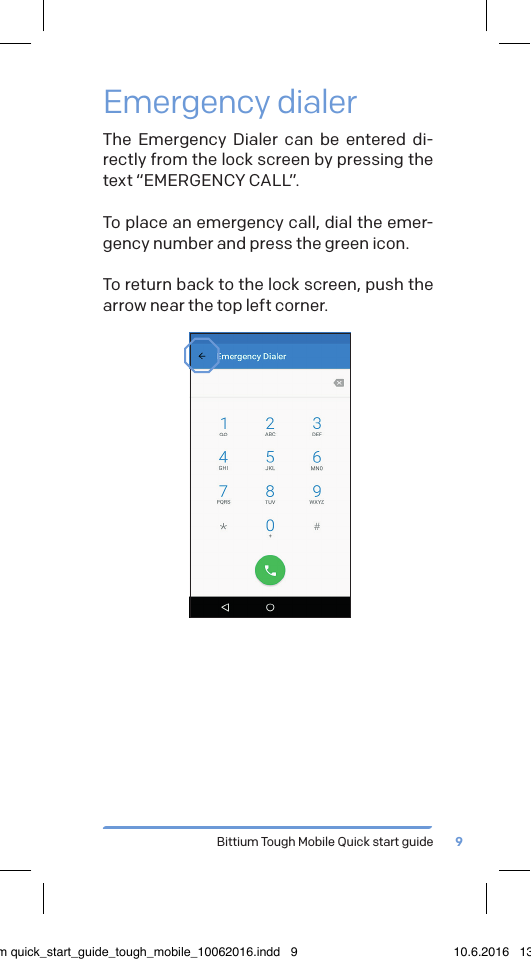

Bittium Tough Mobile Quick start guide 9Emergency dialerThe Emergency Dialer can be entered di-rectly from the lock screen by pressing the text “EMERGENCY CALL”.To place an emergency call, dial the emer-gency number and press the green icon.To return back to the lock screen, push the arrow near the top left corner.bittium quick_start_guide_tough_mobile_10062016.indd 9 10.6.2016 13.50

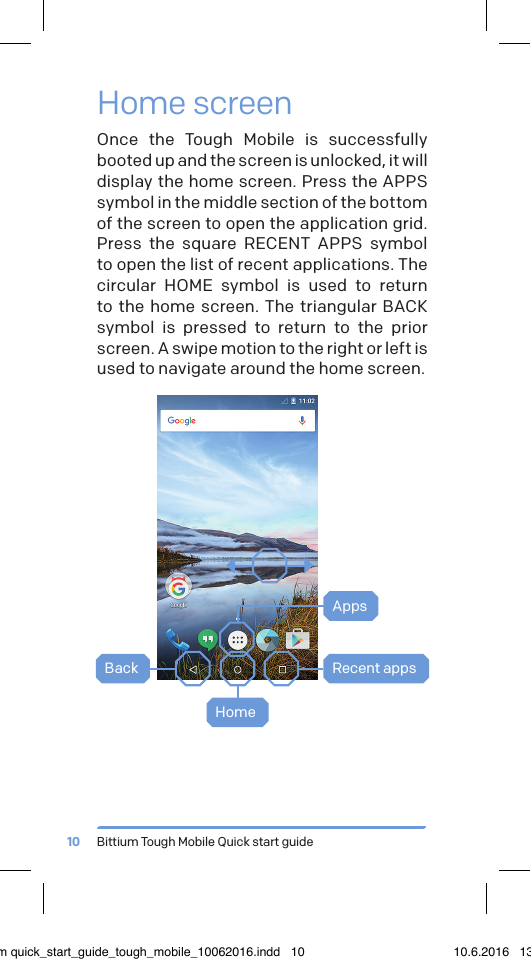

Bittium Tough Mobile Quick start guide10Home screenOnce the Tough Mobile is successfully booted up and the screen is unlocked, it will display the home screen. Press the APPS symbol in the middle section of the bottom of the screen to open the application grid. Press the square RECENT APPS symbol to open the list of recent applications. The circular HOME symbol is used to return to the home screen. The triangular BACK symbol is pressed to return to the prior screen. A swipe motion to the right or left is used to navigate around the home screen.Back Recent appsAppsHomebittium quick_start_guide_tough_mobile_10062016.indd 10 10.6.2016 13.50

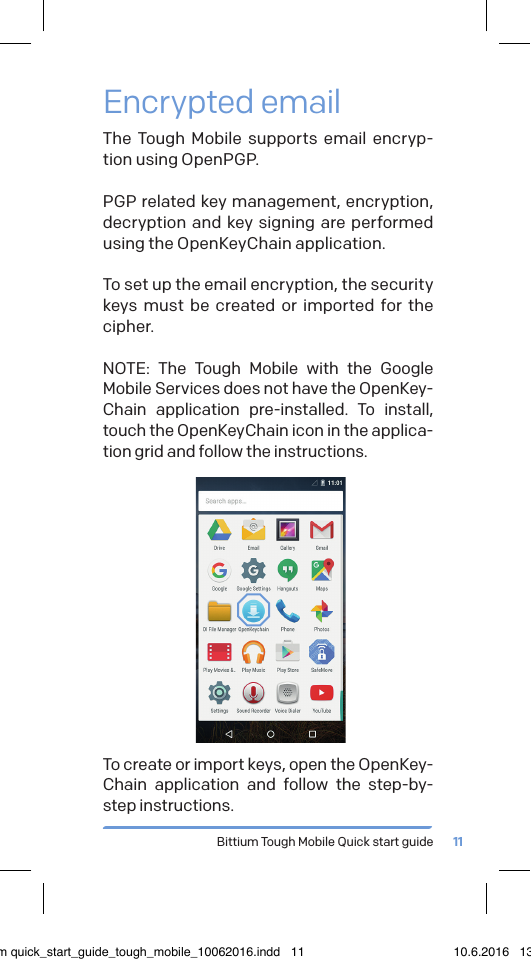

Bittium Tough Mobile Quick start guide 11Encrypted emailThe Tough Mobile supports email encryp-tion using OpenPGP. PGP related key management, encryption, decryption and key signing are performed using the OpenKeyChain application.To set up the email encryption, the security keys must be created or imported for the cipher.NOTE: The Tough Mobile with the Google Mobile Services does not have the OpenKey-Chain application pre-installed. To install, touch the OpenKeyChain icon in the applica-tion grid and follow the instructions.To create or import keys, open the OpenKey-Chain application and follow the step-by-step instructions. bittium quick_start_guide_tough_mobile_10062016.indd 11 10.6.2016 13.50

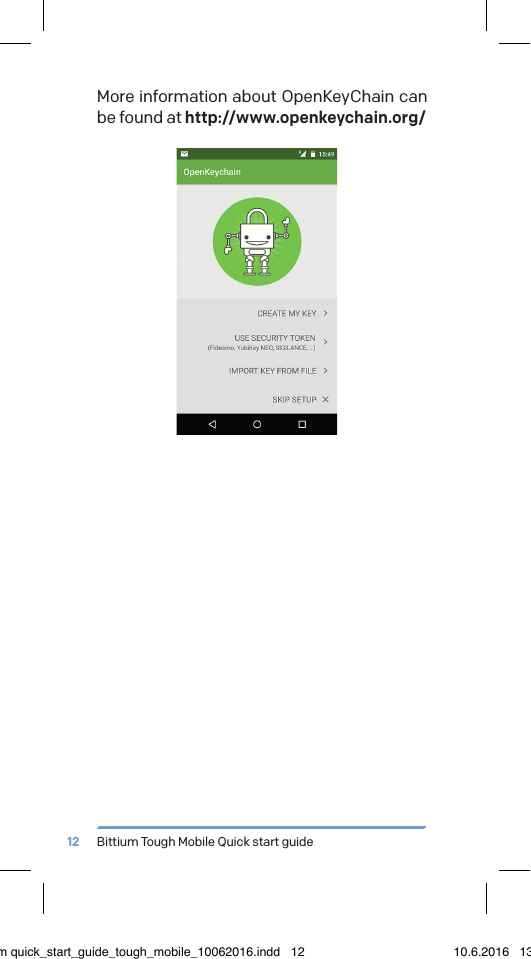

Bittium Tough Mobile Quick start guide12More information about OpenKeyChain can be found at http://www.openkeychain.org/bittium quick_start_guide_tough_mobile_10062016.indd 12 10.6.2016 13.50

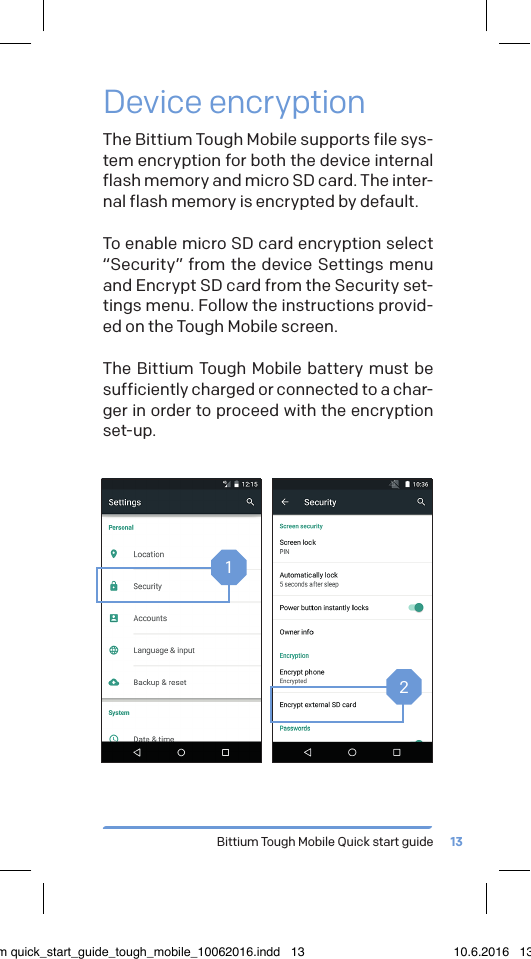

Bittium Tough Mobile Quick start guide 13Device encryptionThe Bittium Tough Mobile supports file sys-tem encryption for both the device internal flash memory and micro SD card. The inter-nal flash memory is encrypted by default.To enable micro SD card encryption select “Security” from the device Settings menu and Encrypt SD card from the Security set-tings menu. Follow the instructions provid-ed on the Tough Mobile screen.The Bittium Tough Mobile battery must be sufficiently charged or connected to a char-ger in order to proceed with the encryption set-up.12bittium quick_start_guide_tough_mobile_10062016.indd 13 10.6.2016 13.50

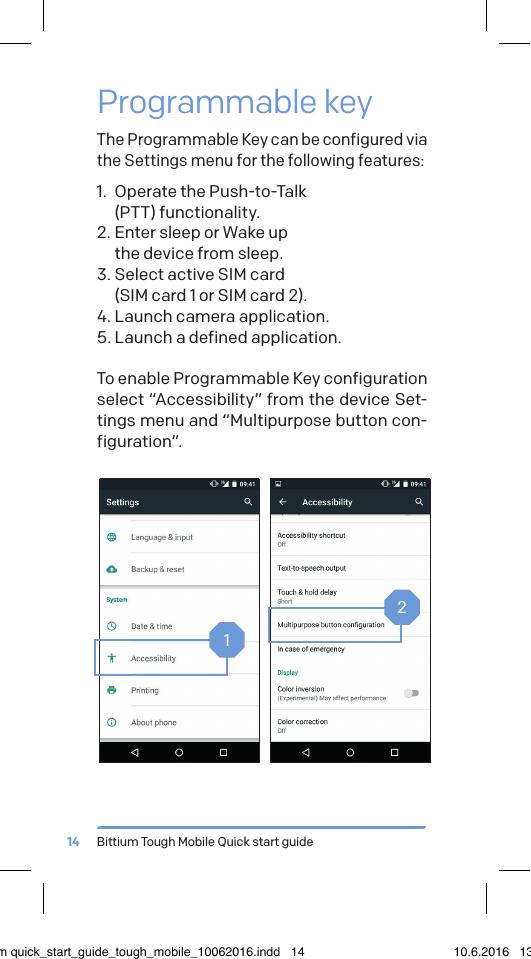

Bittium Tough Mobile Quick start guide14Programmable keyThe Programmable Key can be configured via the Settings menu for the following features:1. Operate the Push-to-Talk (PTT) functionality.2. Enter sleep or Wake up the device from sleep.3. Select active SIM card (SIM card 1 or SIM card 2).4. Launch camera application.5. Launch a defined application.To enable Programmable Key configuration select “Accessibility” from the device Set-tings menu and “Multipurpose button con-figuration”.12bittium quick_start_guide_tough_mobile_10062016.indd 14 10.6.2016 13.50

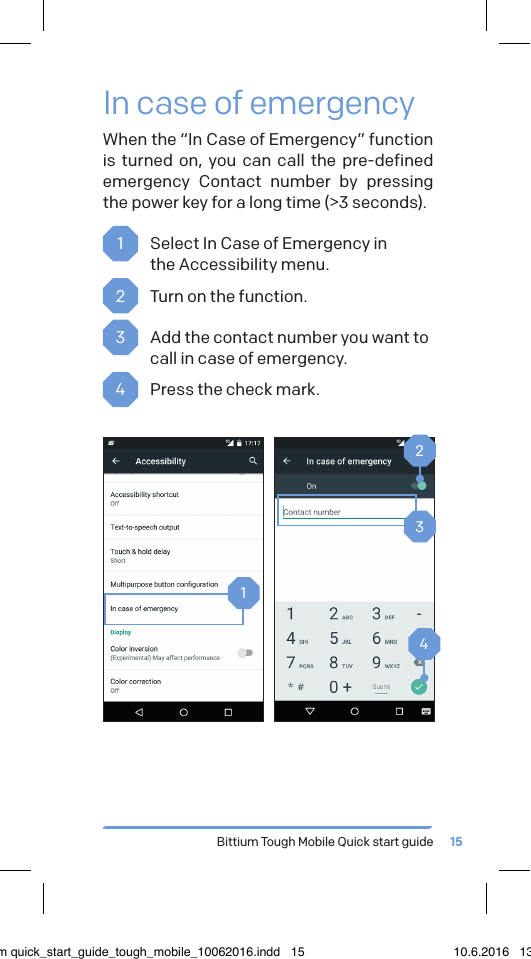

Bittium Tough Mobile Quick start guide 15In case of emergencyWhen the “In Case of Emergency” function is turned on, you can call the pre-defined emergency Contact number by pressing the power key for a long time (>3 seconds).1 Select In Case of Emergency in the Accessibility menu. 2 Turn on the function.3 Add the contact number you want to call in case of emergency.4 Press the check mark.1324bittium quick_start_guide_tough_mobile_10062016.indd 15 10.6.2016 13.50
Bittium Tough Mobile Quick start guide161Application permission firewallThe Tough Mobile allows the user to restrict access permissions of applications to phone data. This allows the user to control the data which applications may access.Change the application permissions via the Security Settings menu.Tamper detectionThe Tough Mobile is equipped with hard-ware tamper detection. An intrusion, other than opening the battery cover, will result in a notification from the Security Wizard. The Security Wizard will notify the user that the device integrity has possibly been com-promised. Upon detection of a tampering event, the user data, including encryption keys, will be erased.bittium quick_start_guide_tough_mobile_10062016.indd 16 10.6.2016 13.50

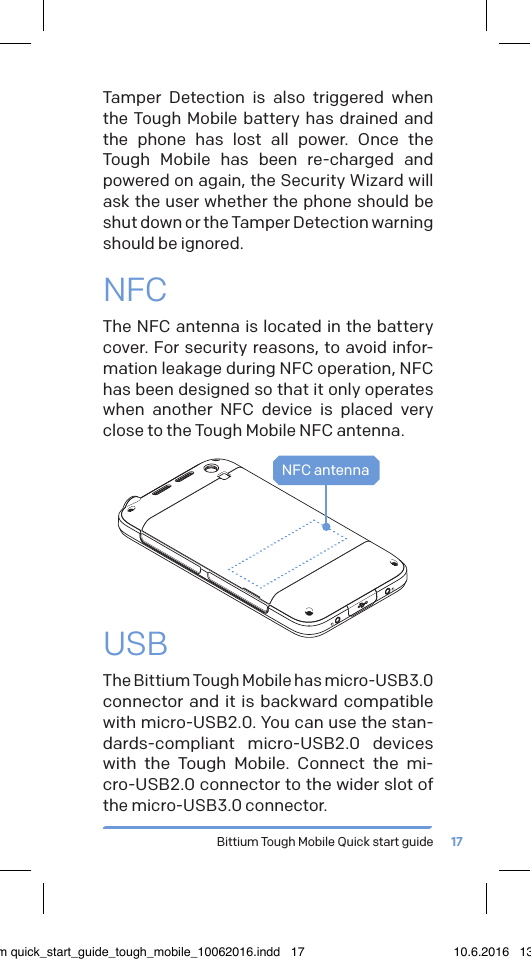

Bittium Tough Mobile Quick start guide 17USBThe Bittium Tough Mobile has micro-USB3.0 connector and it is backward compatible with micro-USB2.0. You can use the stan-dards-compliant micro-USB2.0 devices with the Tough Mobile. Connect the mi-cro-USB2.0 connector to the wider slot of the micro-USB3.0 connector.NFC antennaTamper Detection is also triggered when the Tough Mobile battery has drained and the phone has lost all power. Once the Tough Mobile has been re-charged and powered on again, the Security Wizard will ask the user whether the phone should be shut down or the Tamper Detection warning should be ignored.NFCThe NFC antenna is located in the battery cover. For security reasons, to avoid infor-mation leakage during NFC operation, NFC has been designed so that it only operates when another NFC device is placed very close to the Tough Mobile NFC antenna.bittium quick_start_guide_tough_mobile_10062016.indd 17 10.6.2016 13.50

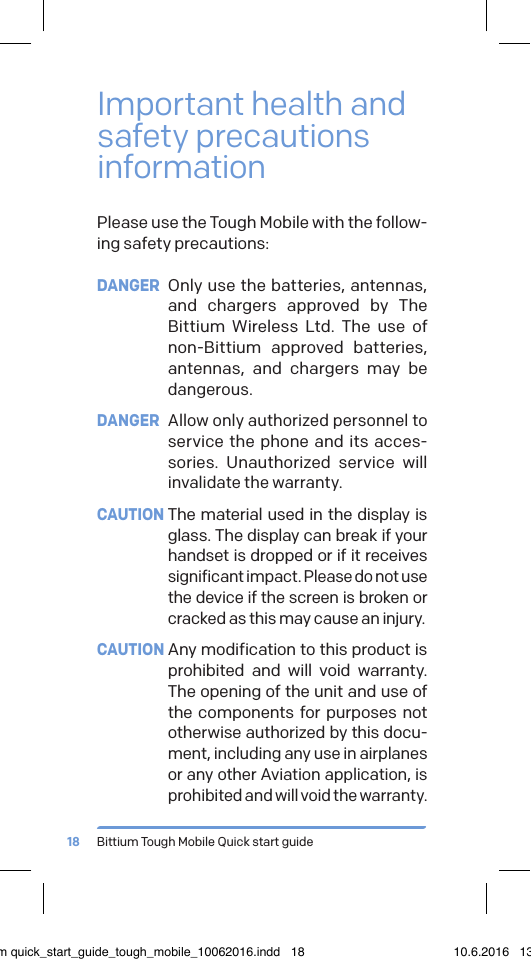

Bittium Tough Mobile Quick start guide18Important health and safety precautions informationPlease use the Tough Mobile with the follow-ing safety precautions:DANGER Only use the batteries, antennas, and chargers approved by The Bittium Wireless Ltd. The use of non-Bittium approved batteries, antennas, and chargers may be dangerous.DANGER Allow only authorized personnel to service the phone and its acces-sories. Unauthorized service will invalidate the warranty.CAUTION The material used in the display is glass. The display can break if your handset is dropped or if it receives significant impact. Please do not use the device if the screen is broken or cracked as this may cause an injury.CAUTION Any modification to this product is prohibited and will void warranty. The opening of the unit and use of the components for purposes not otherwise authorized by this docu-ment, including any use in airplanes or any other Aviation application, is prohibited and will void the warranty.bittium quick_start_guide_tough_mobile_10062016.indd 18 10.6.2016 13.50

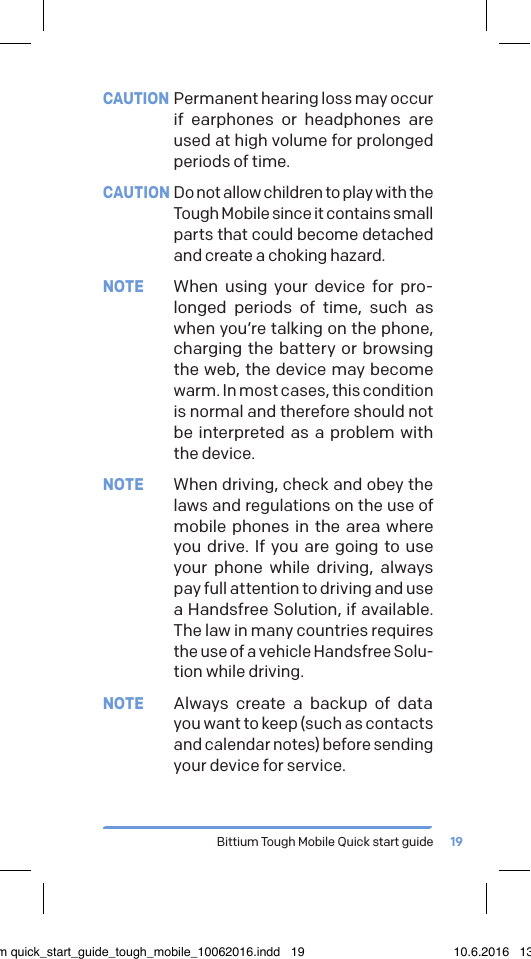

Bittium Tough Mobile Quick start guide 19CAUTION Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.CAUTION Do not allow children to play with the Tough Mobile since it contains small parts that could become detached and create a choking hazard.NOTE When using your device for pro-longed periods of time, such as when you’re talking on the phone, charging the battery or browsing the web, the device may become warm. In most cases, this condition is normal and therefore should not be interpreted as a problem with the device.NOTE When driving, check and obey the laws and regulations on the use of mobile phones in the area where you drive. If you are going to use your phone while driving, always pay full attention to driving and use a Handsfree Solution, if available. The law in many countries requires the use of a vehicle Handsfree Solu-tion while driving.NOTE Always create a backup of data you want to keep (such as contacts and calendar notes) before sending your device for service.bittium quick_start_guide_tough_mobile_10062016.indd 19 10.6.2016 13.50
Bittium Tough Mobile Quick start guide20Important customer informationThe Tough Mobile is a wireless device, containing a radio transmitter and receiver which emit radio fre-quency energy during its use. Most modern electron-ic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the radio signals from a wireless phone.Do not use the Tough Mobile near medical equipment without permission. A minimum of six (6) inches should be maintained between the Tough Mobile and an implantable medical device, such as a pacemaker or implantable cardiac defibrilla-tor in order to avoid potential interference with the medical device. Persons having implanted medical devices should follow instructions from the manu-facturer of the medical device for safe use within proximity of wireless devices. Wireless phones may also interfere with some hearing aids. In the event of such interference, consult the service provider or call customer service line to discuss alternatives.Radio signals may interfere with improperly in-stalled or inadequately shielded electronic systems in motor vehicles. Check with the vehicle manufac-turer or its representative regarding your vehicle. Aftermarket electronics which have been added to the vehicle should also be checked.Any modification of the Tough Mobile is prohib-ited. Only authorized personnel should service the Tough Mobile and its accessories.Only use software updates provided by Bittium. Accessories for the Tough Mobile should be either purchased from or approved by Bittium.Only use the battery specified by and provided by Bittium in the Tough Mobile. Do not short-circuit the battery. Do not use the battery with a charging system which has not been approved by Bittium.bittium quick_start_guide_tough_mobile_10062016.indd 20 10.6.2016 13.50

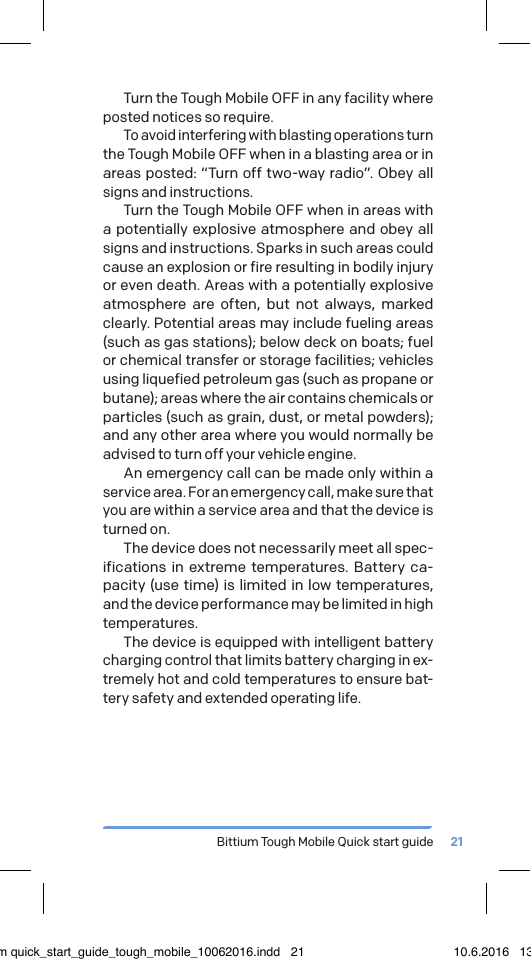

Bittium Tough Mobile Quick start guide 21Turn the Tough Mobile OFF in any facility where posted notices so require.To avoid interfering with blasting operations turn the Tough Mobile OFF when in a blasting area or in areas posted: “Turn off two-way radio”. Obey all signs and instructions.Turn the Tough Mobile OFF when in areas with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, marked clearly. Potential areas may include fueling areas (such as gas stations); below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine.An emergency call can be made only within a service area. For an emergency call, make sure that you are within a service area and that the device is turned on.The device does not necessarily meet all spec-ifications in extreme temperatures. Battery ca-pacity (use time) is limited in low temperatures, and the device performance may be limited in high temperatures. The device is equipped with intelligent battery charging control that limits battery charging in ex-tremely hot and cold temperatures to ensure bat-tery safety and extended operating life.bittium quick_start_guide_tough_mobile_10062016.indd 21 10.6.2016 13.50

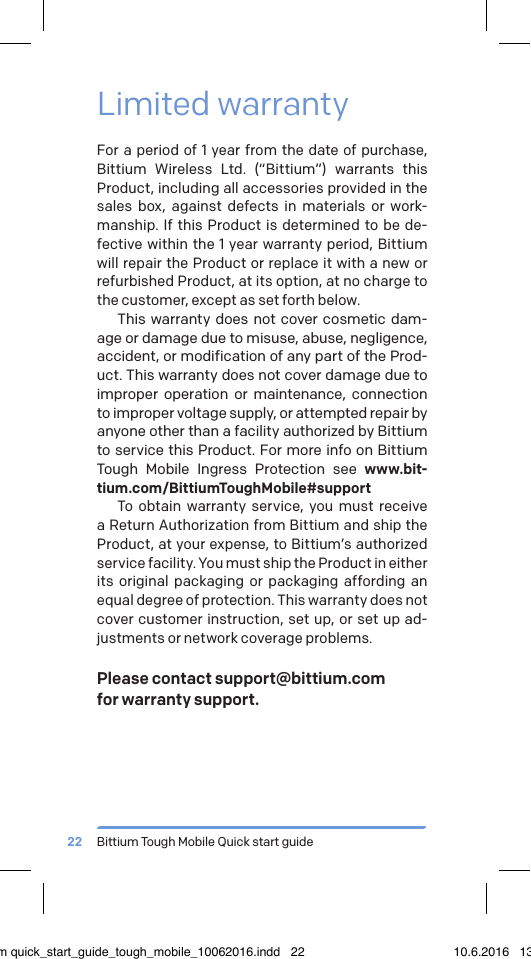

Bittium Tough Mobile Quick start guide22Limited warrantyFor a period of 1 year from the date of purchase, Bittium Wireless Ltd. (“Bittium”) warrants this Product, including all accessories provided in the sales box, against defects in materials or work-manship. If this Product is determined to be de-fective within the 1 year warranty period, Bittium will repair the Product or replace it with a new or refurbished Product, at its option, at no charge to the customer, except as set forth below.This warranty does not cover cosmetic dam-age or damage due to misuse, abuse, negligence, accident, or modification of any part of the Prod-uct. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone other than a facility authorized by Bittium to service this Product. For more info on Bittium Tough Mobile Ingress Protection see www.bit-tium.com/BittiumToughMobile#supportTo obtain warranty service, you must receive a Return Authorization from Bittium and ship the Product, at your expense, to Bittium’s authorized service facility. You must ship the Product in either its original packaging or packaging affording an equal degree of protection. This warranty does not cover customer instruction, set up, or set up ad-justments or network coverage problems.Please contact support@bittium.com for warranty support.bittium quick_start_guide_tough_mobile_10062016.indd 22 10.6.2016 13.50

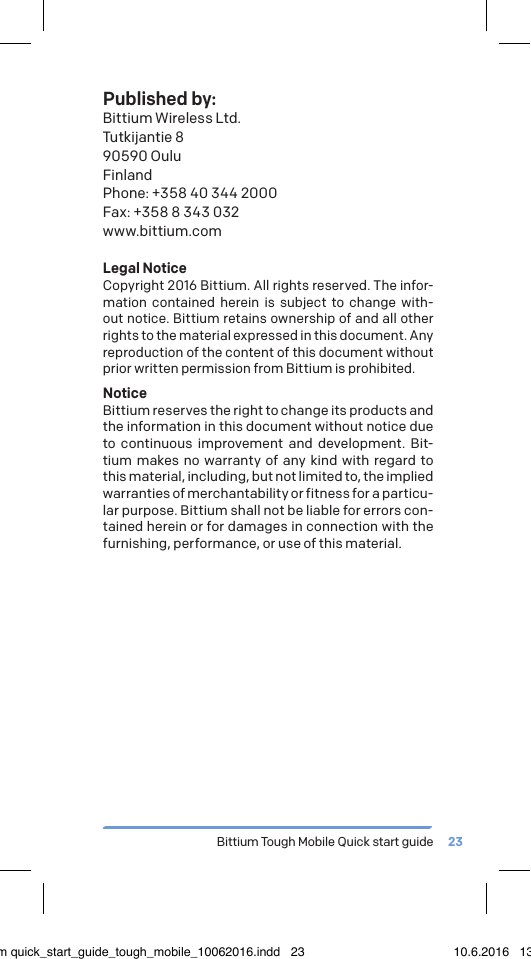

Bittium Tough Mobile Quick start guide 23Published by:Bittium Wireless Ltd.Tutkijantie 890590 OuluFinlandPhone: +358 40 344 2000Fax: +358 8 343 032www.bittium.comLegal NoticeCopyright 2016 Bittium. All rights reserved. The infor-mation contained herein is subject to change with-out notice. Bittium retains ownership of and all other rights to the material expressed in this document. Any reproduction of the content of this document without prior written permission from Bittium is prohibited.NoticeBittium reserves the right to change its products and the information in this document without notice due to continuous improvement and development. Bit-tium makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability or fitness for a particu-lar purpose. Bittium shall not be liable for errors con-tained herein or for damages in connection with the furnishing, performance, or use of this material.bittium quick_start_guide_tough_mobile_10062016.indd 23 10.6.2016 13.50
