PROGRAMMING MANUAL
Function/Arbitrary Waveform Generator

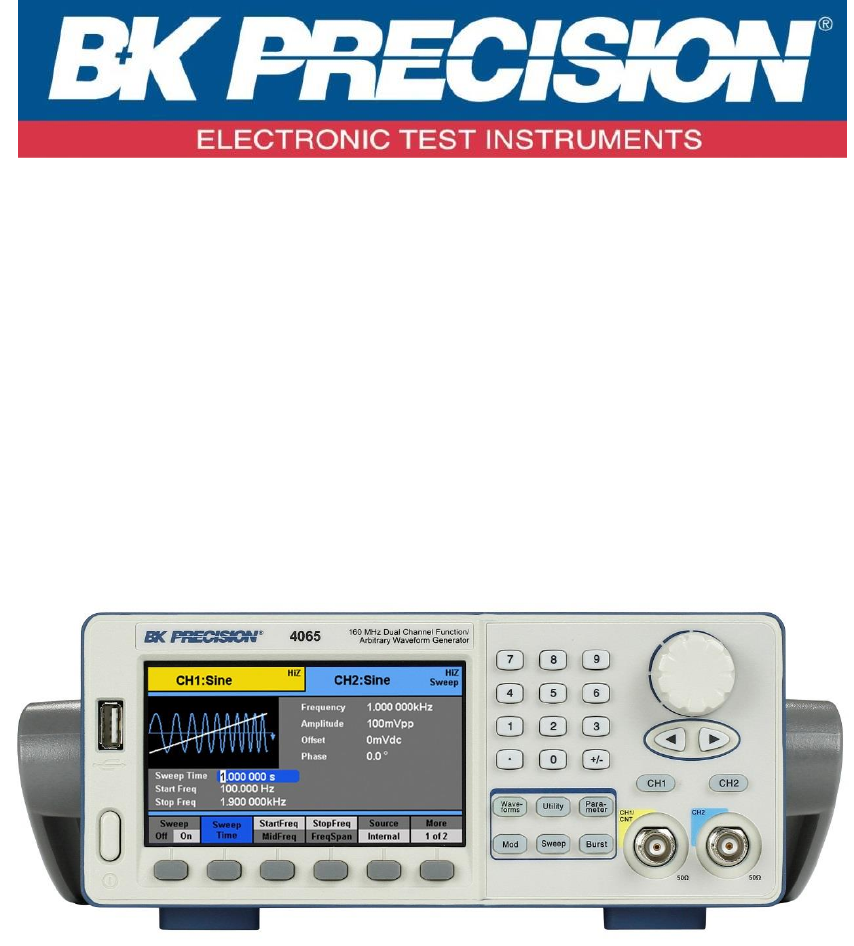

MODEL: 4060 Series (4063, 4064, 4065)
4060 Series Programming Manual
2
Table of Contents
1.1. About Commands & Queries ......................................................................... 3
1.1.1. How they are listed .................................................................................................. 3
1.1.2. How they are described ........................................................................................... 3
1.1.3. When can they be used? ......................................................................................... 3
1.1.4. Command Notation ................................................................................................. 3
1.2. Table of Commands & Queries ...................................................................... 4
1.3. IEEE 488.2 Common Command Introduction .................................................. 5
1.3.1. CHDR ........................................................................................................................ 5
1.3.2. OPC .......................................................................................................................... 5
1.3.3. IDN ........................................................................................................................... 5
1.4. Output Command ......................................................................................... 6
1.5. Basic Wave Command ................................................................................... 7
1.6. Modulation Wave Command ......................................................................... 9
1.7. Sweep Wave Command ............................................................................... 12
1.8. Burst Wave Command ................................................................................. 13
1.9. Parameter Copy Command .......................................................................... 16
1.10. Arbitrary Wave Command ........................................................................... 16
1.11. Phase Command ......................................................................................... 17
1.12. Sync Command ........................................................................................... 18
1.13. Configuration Command ............................................................................. 18
1.14. Buzzer Command ........................................................................................ 18
1.15. Screen Saver Command ............................................................................... 19
1.16. Clock Source Command ............................................................................... 19
1.17. Frequency Counter ...................................................................................... 19
1.18. Store List Command .................................................................................... 20
1.19. Get or Send Arbitrary Wave Data Command ................................................ 21
1.20. Virtual Key Command .................................................................................. 24
4060 Series Programming Manual
3
1.1. About Commands & Queries
This section lists and describes the remote control commands and queries recognized by
the instrument. All commands and queries can be executed in either local or remote state.
The description for each command or query, with syntax and other information, begins on
a new page. The name (header) is given in both long and short form, and the subject is
indicated as a command or query or both. Queries perform actions such as obtaining
information, and are recognized by the question mark (?) following the header.
1.1.1. How they are listed
The descriptions are listed in alphabetical order according to their short form.
1.1.2. How they are described
In the descriptions themselves, a brief explanation of the function performed is given. This is
followed by a presentation of the formal syntax, with the header given in Upper-and-Lower-
Case characters and the short form derived from it in ALL UPPER-CASE characters. Where
applicable, the syntax of the query is given with the format of its response.
1.1.3. When can they be used?
The commands and queries listed here can be used for 4060 Series arbitrary/function
waveform generators.
1.1.4. Command Notation
The following notation is used in the commands:
< > Angular brackets enclose words that are used placeholders, of which there are two types:
the header path and the data parameter of a command.
:= A colon followed by an equals sign separates a placeholder from the description of the type
and range of values that may be used in a command instead of the placeholder.
{ } Braces enclose a list of choices, one of which one must be made.
[ ] Square brackets enclose optional items.
… An ellipsis indicates that the items both to its left and right may be repeated a number of
times.
4060 Series Programming Manual
4
1.2. Table of Commands & Queries
Short
Long Form
Subsystem
What Command/Query dose
*IDN
*IDN
SYSTEM
Get identification from device.
*RST
*RST
SYSTEM
Resets instrument parameters
to default values.
*OPC
*OPC
SYSTEM
Get or set the OPC bit (0) in
the Event Status Register
(ESR).
CHDR
COMM_HEADER
Set the format of return data
(Long, short, off)
BSWV
BASIC_WAVE
SIGNAL
Set or get basic wave
parameters. Turns on or off
channel signal.
ARWV
ARBWAVE
Data
SYSTEM
Change arbitrary wave type.
BUZZ
BUZZER
SYSTEM
Set or get buzzer State.
S_CFG
SYSTEM_CONFIG
SYSTEM
Set or get power on initializing
parameter way
ROSC
ROSCILLATOR
SIGNAL
Set or get clock source.
MOD
MODULATION
SIGNAL
Set or get modulated wave
parameters.
OUTP
OUTPUT
SIGNAL
Set or get output state.
CHCP
CHANNEL_COPY
SIGNAL
Copy parameters from channel
one to channel two, or from
channel two to channel one.
INVT
INVERT
SIGNAL
Set or get output signal phase
state.
SCSV
SCREEN_SAVE
SYSTEM
Set or get screen save State.
SWE
SWEEP
SIGNAL
Set or get sweep wave.
SYNC
SYNC
SIGNAL
Set or get in-phase signal.
BTWV
BURSTWAVE
SIGNAL
Set or get burst wave
parameters.
MDWV
MODULATEWAVE
SIGNAL
Set or get modulate wave
parameters.
STL
STORE_LIST
SIGNAL
Get the list of store wave.
WVDT
WAVE_DATA
SIGNAL
Get the wave data of store.
VKEY
VIRTUALKEY
SYSTEM
Set the virtual key.
4060 Series Programming Manual
5
1.3. IEEE 488.2 Common Command Introduction
IEEE standard defines the common commands used for querying the basic information of the
instrument or executing basic operations. These commands usually start with "*" and the length
of the keywords of the command is usually 3 characters.
1.3.1. CHDR
DESCRIPTION This Command is used to change query command return format.
SHORT parameter is return short format. LONG parameter is return long
format. Off is that command header and parameter unit will not return.
COMMAND SYNTAX Comm_HeaDeR <parameter>
<parameter>:= {SHORT,LONG,OFF}
QUERY SYNTAX Comm_HeaDeR?
RESPONSE FORMAT SYNC <parameter>
EXAMPLE 1 Set query command format to long.
CHDR LONG
EXAMPLE 2 Read query command format.
CHDR?
Return:
COMM_HEADER LONG
1.3.2. OPC
DESCRIPTION The *OPC (OPeration Complete) command sets to true the OPC bit (bit
0) in the standard Event Status Register (ESR).
The *OPC? query always responds with the ASCII character 1 because
the device only responds to the query when the previous command has
been entirely executed.
QUERY SYNTAX *OPC?
RESPONSE FORMAT *OPC 1
1.3.3. IDN
DESCRIPTION The *IDN? Query causes the instrument to identify itself. The
response comprises manufacturer, model number, serial
number, software version and firmware version.
4060 Series Programming Manual
6
QUERY SYNTAX *IDN?
RESPONSE FORMAT *IDN , <device id>, <model>, <serial number>, <software>, <version>,
<firmware version>
<device id>：=“BK Precision” is used to identify instrument.
<model>:= A model identifier less than 14 characters.
<serial number>:= A nine- or 10-digit decimal code .
<software version>:= A serial numbers about software version.
<firmware version>:= two digits giving the major release level followed
by a period, then one digit giving the minor release level followed by a
period and a single-digit update level (xx.y.z).
EXAMPLE 1 Reads version information.
*IDN?
Return:
*IDN BK Precision, 4065, 00-00-00-13-22, 5.01.01.10R1, 20.2.3.
1.3.4. RST
DESCRIPTION The *RST causes the instrument to reset all settings to default
values.
SYNTAX *RST
1.4. Output Command
DESCRIPTION Enable or disable the output of the [Output] connector at the
front panel corresponding to the channel.
The query returns ON or OFF.
COMMAND SYNTAX <channel>: OUTPut <parameter>
<channel>:={C1,C2}
<parameter >:= {a parameter from the table below}
Parameters
Value
ON
---
OFF
---
Load
<load>
Value of load
QUERY SYNTAX <channel>: OUTPut?
RESPONSE FORMAT <channel>:OUTPut <load>
4060 Series Programming Manual
7
EXAMPLE 1 Turns on channel one.
C1:OUTP ON
EXAMPLE 2 Reads channel one output state.
C1:OUTP?
return:
C1:OUTP ON,LOAD,HZ
EXAMPLE 3 Set the load to 50Ω
C1:OUTP LOAD,50
1.5. Basic Wave Command
DESCRIPTION Set or get basic wave parameters.
COMMAND SYNTAX <channel>:BaSicWaVe <parameter>
<channel>:={C1, C2}
<parameter>:= {a parameter from the table below}
Parameters
Value
Description
WVTP
<type>
Type of wave
FRQ
<frequency>
Value of frequency. This
parameter cannot be set for noise
wave.
AMP
<amplifier>
Value of amplifier. This parameter
cannot be set for noise wave.
OFST
<offset>
Value of offset. This parameter
cannot be set for noise wave.
SYM
<symmetry>
Value of symmetry. This
parameter is for ramp wave only.
DUTY
<duty>
Value of duty cycle.
Only Pulse and Duty can set this
parameter.
PHSE
<phase>
Value of phase. This parameter
cannot be set for noise wave.
STDEV
<Stdev>
Value of noise wave Stdev. This
parameter can be set for noise
wave only.
MEAN
<mean>
Value of noise wave mean. This
parameter can be set for noise
wave only.
4060 Series Programming Manual
8
WIDTH
<width>
Value of width. Parameter is valid
only when WVTP is PULSE
RISE
<rise>
Value of rise. Parameter is valid
only when WVTP is PULSE
FALL
<fall>
Value of fall. Parameter is valid
only when WVTP is PULSE
DLY
<delay>
Value of delay. This parameter
can be set for pulse wave only.
Note: If the command doesn’t set basic wave type, the parameter will set parameters
to current device wave type by default.
where: <type>:={SINE, SQUARE, RAMP, PULSE, NOISE, ARB ,DC}
<frequency>:= { Default unit is "HZ". Minimum value is 1e-6 HZ,
maximum value depends on the 4060 model.}
<amplifier>:= {Default unit is "V". Minimum value is 0.001V (50Ω)
0.002(HiZ), Maximum is 10V(50Ω) 20V(HiZ). }
<offset>:= { Default unit is "V". maximum value depends on the
amplifier setting.}
<duty>:= {If wave type is square, range is from 20% to 80%. if
wave type is pulse, range is from 0.1% to 99.9%}
<symmetry> :={ 0% to 100%}
<phase>:= {-360° to 360°}
<stdev>:= Maximum is .799V, minimum value is .001V. The
default unit is "V".
<mean>:= The range depends on Stdev . The default unit is "V".
<delay>:= Maximum is Pulse Period, minimum value is 0.Unit is s.
QUERY SYNTAX <channel>:BaSicWaVe?
<channel>:={C1, C2}
RESPONSE <channel>:BSWV <type>, <frequency>, <amplifier>, <offset>,
<duty>, <symmetry>, <phase>
EXAMPLE 1 change channel one current wave type to ramp.
C1:BSWV WVTP,RAMP
EXAMPLE 2 Changes current signal frequency of channel one to 2000 Hz.
C1: BSWV FRQ, 2000HZ
EXAMPLE 3 Set current signal amplifier of channel one.
C1: BSWV AMP, 3V
4060 Series Programming Manual
9
EXAMPLE 4 Reads channel basic wave parameters from device.
C1:BSWV?
Return:
C1: BSWV WVTP,SINE,FRQ,1000,AMP,3,OFST,3,PHSE,0
RELATED CMDS ARWV, BTWV, CFG, CPL, MDWV, SWWV
1.6. Modulation Wave Command
DESCRIPTION Set or get modulated wave parameters.
COMMAND SYNTAX <channel>:MoDulateWaVe <parameter>
<channel>:={C1, C2}
<parameter>:= {a parameter from the table below. }
Parameters
Value
Description
STATE
<state>
Enable or disable modulation.
Note: if you want to set or read
modulating waveform
parameters modulation must be
enabled.
AM,SRC
<src>
AM signal source.
AM,MDSP
<mod wave shape>
AM modulation wave. Only AM
signal source is set to INT.
AM,FRQ
<am frequency>
AM frequency. Only AM signal
source is set to INT.
AM,DEPTH
<depth>
AM deep. Only AM signal
source is set to INT.
DSBAM,SRC
<src>
DSBAM signal source
DSBAM,MDSP
<mod wave shape>
DSBAM modulation wave. Only
AM signal source is set to INT.
DSBAM,FRQ
<dsbam frequency>
DSBAM frequency. Only AM
signal source is set to INT.
FM,SRC
<src>
FM signal source
FM, MDSP
<mod wave shape>
FM modulation wave. Only FM
signal source is set to INT.
FM,FRQ
<fm frequency>
FM frequency. Only FM signal
source is set to INT.
FM,DEVI
<fm frequency offset>
FM frequency offset. Only FM
signal source is set to INT.
PM,SRC
<src>
PM signal source
PM,MDSP
<mod wave shape>
PM modulation wave. Only PM
signal source is set to INT.
PM,FRQ
<pm frequency>
PM frequency. Only PM signal
source is set to INT.
PWM,FRQ
<pwm frequency>
PWM frequency. Only carry
4060 Series Programming Manual
10
wave is PULSE wave.
PWM,DEVI
<pwm devi>
Duty cycle deviation. Only carry
wave is Pulse
Wave.
PWM,MDSP
<mod wave shape>
PWM modulation wave. Only
carry wave is PULSE wave.
PWM,SRC
<src>
PWM signal source.
PM,DEVI
<pm phase offset>
PM phase offset. Only PM signal
source is set to INT.
ASK,SRC
<src>
ASK signal source.
ASK,KFRQ
<ask key frequency>
ASK key frequency. Only ASK
signal source is set to INT.
FSK,KFRQ
<fsk frequency>
FSK frequency. Only FSK signal
source is set to INT.
FSK,HFRQ
<fsk hop frequency>
FSK jump frequency
FSK,SRC
<src>
FSK signal source
CARR,WVTP
<wave type>
Value of carrier wave type.
CARR,FRQ
<frequency>
Value of frequency.
CARR,AMP
<amplifier>
Value of amplifier.
CARR,OFST
<offset>
Value of offset.
CARR,SYM
<symmetry>
Value of symmetry.
CARR,DUTY
<duty>
Value of duty cycle.
Only Square can set this
parameter.
CARR,PHSE
<phase>
Value of phase.
CARR DLY
<delay>
Value of delay.
Note: If Carrier wave is Pulse or Noise you cannot set the modulation waveform. Also,
modulation parameters and carrier parameters cannot be combined into a command. They
must be sent separately. See example #8 below.
Where: <state>:={ON,OFF}
<src>:= {INT,EXT}
<mod wave shape>:={SINE, SQUARE, TRIANGLE, UPRAMP,
DNRAMP, NOISE, ARB}
<am frequency>:= {0.001Hz to 50000Hz}
<depth>:= {0% to 120%}
<fm frequency>:= {0.001Hz to 50000Hz}
<pm frequency> :={ 0.001Hz to 50000Hz}
<pm phase offset>:= {0° to 360°}
<pwm frequency>:= {0.001Hz to 50kHz }
<pwm devi>:= {depends on carry wave duty}
<ask key frequency>:= {0.002Hz to 20000Hz}
<fsk frequency>:= {0.001Hz to 1000000Hz}
<fsk jump frequency>:= { the same as basic wave frequency}
<wave type>:={SINE ,SQUARE, RAMP, ARB, PULSE }
4060 Series Programming Manual
11
<frequency>:= { Default unit is "HZ". Minimum value is 1e-6 HZ,
maximum value depends on the 4060 model.}
<amplifier>:={ Default unit is "V". Minimum value is 0.001V (50Ω)
0.002(HiZ), Maximum is 10V(50Ω) 20V(HiZ). }
<offset>:={ Default unit is "V".}
<duty>:={ If wave type is square, range is from 20% to 80% . If
wave type is pulse, range is from 0.1% to 99.9%.}
<symmetry>:={ 0% to 100%}
<delay>:={the maximum value is 2ks}
QUERY SYNTAX <channel>:MoDulateWaVe?
<channel>:={C1, C2}
RESPONSE FORMAT <channel>:MoDulateWaVe <parameter>
<parameter>:={return all parameter of the current modulate
wave parameters, including carrier wave.}
EXAMPLE 1 Set channel one modulation type to AM.
C1:MDWV AM
EXAMPLE 2 Set modulation shape to AM, and set AM modulating wave shape
to sine wave.
C1:MDWV AM, MDSP, SINE
EXAMPLE 3 Reads channel one modulate wave parameters that STATE is ON.
C1:MDWV?
return:
C1:MDWV STATE, ON, AM, MDSP, SINE, SRC, INT, FRQ, 100HZ,
DEPTH, 100, CARR, WVTP, RAMP, FRQ, 1000HZ, AMP, 4V, OFST,
0V, SYM, 50
EXAMPLE 4 Reads channel one modulate wave parameters that STATE is OFF.
C1:MDWV?
return:
C1:MDWV STATE,OFF
EXAMPLE 5 Set channel one FM frequency to 1000HZ
C1:MDWV FM, FRQ, 1000HZ
EXAMPLE 6 Set the Value of channel one carrier wave shape to SINE.
C1:MDWV CARR,WVTP,SINE
EXAMPLE 7 Set the Value of channel one carrier wave frequency to 1000HZ.
C1:MDWV CARR,FRQ,1000HZ
4060 Series Programming Manual
12
EXAMPLE 8 Setup a modulated signal with various parameters.
C1:MDWV STATE,ON
C1:MDWV
CARR,WVTP,SQUARE,FRQ,100000HZ,AMP,5V,OFST,2.5V,PHSE,0,D
UTY,50
C1:MDWV FM,MDSP,TRIANGLE,SRC,INT,FRQ,1000HZ,DEVI,500HZ
RELATED CMDS ARWV, BTWV, CFG, CPL, SWWV, BSWV
1.7. Sweep Wave Command
DESCRIPTION Set or get sweep wave parameters.
COMMAND SYNTAX <channel>:SWeepWaVe <parameter>
<channel>:={C1, C2}
<parameter>:= {a parameter from the table below. }
Parameters
Value
Description
STATE
<state>
Turn on or off sweep wave.
Note if you want to set or read
sweep wave parameters, you
must first enable sweep mode.
TIME
<time>
Value of sweep time
STOP
<stop frequency>
Value of stop frequency
START
<start frequency>
Value of start frequency
TRSR
<trigger src>
Trigger source
TRMD
<trigger mode>
Value of trigger output. If TRSR
is EXT, the parameter is invalid.
SWMD
<sweep mode >
Sweep way
DIR
<direction>
Sweep direction
EDGE
<edge>
Value of edge. Only TRSR is
EXT, the parameter is valid.
MTRIG
<manual trigger>
Make the device once manual
trigger. The parameter is valid
only when TRSR is set to MAN.
CARR,WVTP
<wave type>
Value of carrier wave type.
CARR,FRQ
<frequency>
Value of frequency.
CARR,AMP
<amplifier>
Value of amplifier.
CARR,OFST
<offset>
Value of offset.
CARR,SYM
<symmetry>
Value of symmetry.
CARR,DUTY
<duty>
Value of duty cycle.
Only Square can set this
parameter.
4060 Series Programming Manual
13
CARR,PHSE
<phase>
Value of phase.
Note: If Carrier wave is Pulse or Noise, enabling sweep is not allowed.
where: state>:= {ON|OFF}
<time>:= {0.001S to 500S}
<stop frequency> :={ the same with basic wave frequency}
<start frequency> :={ the same with basic wave frequency}
<trigger src>:= {EXT,INT,MAN}
<trigger mode>:= {ON,OFF}
<sweep way>:= {LINE,LOG}
<direction>:= {UP,DOWN}
<edge>:={ON, OFF}
<wave type>:={SINE ,SQUARE, RAMP, ARB}
<frequency>:= { Default unit is "HZ". Minimum value is 1e -6 HZ,
maximum value depends on the 4060 model.}
<amplifier>:={ Default unit is "V". Minimum value is 0.001V (50Ω)
0.002(HiZ), Maximum is 10V(50Ω) 20V(HiZ). }
<offset>:={ Default unit is "V".}
<duty>:={ 20% to 80%. }
<symmetry>:={ 0% to 100%}
QUERY SYNTAX <channel>:SWeepWaVe?
<channel>:={C1, C2}
RESPONSE FORMAT <parameter>:={return all parameter of the current sweep wave
parameters.}
EXAMPLE 1 Set channel one sweep time to 1 s.
C1:SWWV TIME, 1S
EXAMPLE 2 Set channel one sweep stop frequency to 1000Hz.
C1: SWWV STOP, 1000HZ
EXAMPLE 3 Reads channel one modulate wave parameters that STATE is ON.
C2:SWWV?
Return:
C2:SWWV STATE, ON, TIME, 1S, STOP, 100HZ, START, 100HZ,
TRSR, MAN, TRMD, OFF, SWMD, LINE, DIR, UP, CARR, WVTP,
SQUARE, FRQ, 1000HZ, AMP, 4V, OFST, 0V, DUTY, 50
EXAMPLE 4 Reads channel two modulate wave parameters that STATE is OFF.
C2:SWWV?
Return:
C2:SWWV STATE,OFF
1.8. Burst Wave Command
4060 Series Programming Manual
14
DESCRIPTION Set or get burst wave parameters.
COMMAND SYNTAX <channel>:BursTWaVe <parameter>
<channel>:={C1, C2}
<parameter>:= {a parameter from the table below.}
Parameters
Value
Description
STATE
<state>
Enable or disable burst wave.
Note if you want to set or read
burst wave parameters you must
first enable burst mode.
PRD
<period>
When carrier wave is NOISE
wave, this cannot be set. When
GATE is selected, you cannot set
this. This can be set only when
trig source is IN (internal).
STPS
<start phase>
When carrier wave is NOISE or
PULSE wave, you can’t set it.
GATE_NCYC
<gate ncycle>
When carrier wave is NOISE, you
can’t set it.
TRSR
<trigger>
When carrier wave is NOISE
wave, you can’t set it. When
NCYC was chosen you can set it.
DLAY
<delay>
When carrier wave is NOISE
wave, you can’t set it. When
NCYC was chosen you can’t set it.
PLRT
<polarity>
When GATE was chosen you can
set it.
When carrier wave is NOISE, it is
the only parameter.
TRMD
<trig mode>
When carrier wave is NOISE
wave, you can’t set it. When
NCYC was chosen you can set it.
When TRSR is set to EXT, you
can’t set is.
EDGE
<edge>
When carrier wave is NOISE
wave, you can’t set it. When
NCYC is selected and TRSR is set
to EXT, you can set it.
TIME
<circle time>
When carrier wave is NOISE
wave, you can’t set it. When
NCYC is selected, you can set it.
MTRIG
When TRSR’s parameter be
chosen to MAN, that it can be
set.
CARR,WVTP
<wave type>
Value of carrier wave type.
CARR,FRQ
<frequency>
Value of frequency.
CARR,AMP
<amplifier>
Value of amplifier.
4060 Series Programming Manual
15
CARR,OFST
<offset>
Value of offset.
CARR,SYM
<symmetry>
Value of symmetry.
CARR,DUTY
<duty>
Value of duty cycle.
Only Square can set this
parameter.
CARR,PHSE
<phase>
Value of phase.
CARR,DLY
<carr delay>
Value of carrier wave delay. This
is valid only when the carrier
wave is pulse.
CARR VAR
<stdev>
Value of carrier wave stdev. This
is valid only when the carrier
wave is noise.
CARR MEAN
<mean>
Value of carrier wave mean. This
is valid only when the carrier
wave is noise.
where: <state>:= {ON,OFF}
<period>:= { Default unit is “S ”. 1us to 500s }
<start phase>:= {0 to 360}
<gate ncycle>:= {GATE,NCYC}
<trigger>:= {EXT,INT,MAN}
<delay>:= { Default unit is "S". 0s to 500s }
polarity>:= {NEG,POS}
<trig mode >:= {RISE,FALL,OFF}
<edge>:= { RISE,FALL}
<circle time> :={ 1cycle to 1000000 cycle}
<wave type>:={SINE ,SQUARE, RAMP,PULSE,NOISE, ARB}
<frequency>:= { Default unit is "HZ". Minimum value is 1e-6 HZ,
maximum value depends on the 4060 model.}
<amplifier>:={ Default unit is "V". Minimum value is 0.001V (50Ω)
0.002(HiZ), Maximum is 10V(50Ω) 20V(HiZ). }
<offset>:={ Default unit is "V}
<duty>:={ If wave type is Square, range is from 20% to 80%. If wave type
is pulse, range is from 0.1% to 99.9%}
<symmetry>:={ 0% to 100%}
<carr delay>:= {Maximum is Pulse Period, minimum valve is 0. Unit is S.}
<stdev>:= Maximum is .799V, minimum value is .001V. The
default unit is "V".
<mean>:= The range depends on Stdev . The default unit is "V".
QUERY SYNTAX <channel>:BursTWaVe? <parameter>
<parameter>:=<period>
RESPONSE FORMAT <channel>:BursTWaVe <type>|<state>|<period>
4060 Series Programming Manual
16
EXAMPLE 1 Set channel one burst wave period to 1S.
C1:BTWV PRD, 1S
EXAMPLE 2 Set channel one burst wave delay to 0S
C1:BTWV DLAY, 0S
EXAMPLE 3 Reads channel two burst wave parameters that STATE is ON.
C2: BTWV?
Return:
C2:BTWV STATE, ON, PRD, 0.01S, STPS, 0, TRSR, INT, TRMD, OFF,
TIME, 1, DLAY, 2.4e 07S, GATE_NCYC, NCYC, CARR, WVTP, SINE, FRQ,
1000HZ, AMP, 4V, OFST, 0V, PHSE, 0
EXAMPLE 4 Reads channel two modulate wave parameters that STATE is OFF.
C2: BTWV?
Return:
C2: BTWV STATE,OFF
1.9. Parameter Copy Command
DESCRIPTION Copy channel data.
COMMAND SYNTAX PAraCoPy <destination channel>, <src channel>
<destination channel>:= {C1, C2}
<src channel>:= {C1, C2}
Note: The parameters C1 and C2 must be set to device together. C1 is destination
channel, C2 is source channel.
EXAMPLE 1 Copy parameters from channel one to channel two.
PACP C2,C1
RELATED CMDS ARWV, BTWV, CFG, CPL, MDWV, SWWV, BSWV
1.10. Arbitrary Wave Command
DESCRIPTION Change arbitrary wave type.
COMMAND SYNTAX <channel>:ARbWaVe {INDEX, NAME}
<channel>:={C1, C2}
<index>: 0 to 67 (see table below for index information.)
<name>: see table below.
Index
Name
Index
Name
Index
Name
Index
Name
0
StairUp
10
Sinc
20
SNR
30
Sec
1
StairDn
11
Gaussian
21
Hamming
31
Csc
4060 Series Programming Manual
17
2
StarUD
12
Dlorentz
22
Hanning
32
Asin
3
Trapezia
13
Haversine
23
Kaiser
33
Acos
4
ExpFall
14
Lorentz
24
Blackman
34
Atan
5
ExpRise
15
Gauspuls
25
GaussiWin
35
Acot
6
LogFall
16
Gmonopuls
26
Harris
36~59
(16K Point
Waveform Mem)
7
LogRise
17
Cardiac
27
Bartlett
8
Sqrt
18
Quake
28
Tan
60~67
(512K Point
Waveform Mem)
9
X^2
19
TwoTone
29
Cot
QUERY SYNTAX <channel>:ARbWaVe?
<channel>:={C1, C2}
RESPONSE FORMAT <channel>:ARbWaVe <index>
EXAMPLE 1 Set StairUD arbitrary wave output by index.
ARWV INDEX, 2
EXAMPLE 2 Reads system current wave.
ARWV?
Return:
ARWV INDEX,2,NAME,StairUD
EXAMPLE 3 Set Atan arbitrary wave output by name.
ARWV NAME, ATAN
RELATED CMDS BSWV
1.11. Phase Command
DESCRIPTION Set or get phase parameters.
COMMAND SYNTAX INVerT <parameter>
<parameter>:= {OFF, ON}
QUERY SYNTAX INVerT?
RESPONSE FORMAT INVERT <parameter>
EXAMPLE 1 Set current channel load to invert.
INVT ON
EXAMPLE 2 Set current channel load to invert.
INVT OFF
EXAMPLE 3 Set channel 2 load to invert.
4060 Series Programming Manual
18
C2: INV ON
EXAMPLE 4 Set channel 1 load to normal.
C1: INV OFF
1.12. Sync Command
DESCRIPTION Set signal output from backward panel in phase with forward.
COMMAND SYNTAX <channel>: SYNC <parameter>
<channel>:={C1,C2}
<parameter>:= {ON,OFF}
QUERY SYNTAX <channel>:SYNC?
RESPONSE FORMAT <channel>:SYNC <parameter>
EXAMPLE 1 Sync function on defend of channel one
C1:SYNC ON
EXAMPLE 2 Reads channel one sync state.
C1:SYNC?
Return:
C1:SYNC OFF\n
1.13. Configuration Command
DESCRIPTION Changes system load data of power on.
COMMAND SYNTAX Sys_CFG<parameter>
<parameter>:= {DEFAULT,LAST}
QUERY SYNTAX Sys_CFG?
RESPONSE FORMAT Sys_CFG <parameter>
EXAMPLE 1 Set system load data of power on to last time data.
SCFG LAST
1.14. Buzzer Command
DESCRIPTION Turns on or off buzzer.
4060 Series Programming Manual
19
COMMAND SYNTAX BUZZer <parameter>
<parameter>:= {ON,OFF}
QUERY SYNTAX BUZZer?
RESPONSE FORMAT BUZZer <parameter>
EXAMPLE 1 Turns on buzzer.
BUZZ ON
1.15. Screen Saver Command
DESCRIPTION Turns on or off Screen Saver.
COMMAND SYNTAX SCreen_SaVe <parameter>
<parameter>:= {OFF,1,5,15,30,60,120,300, Unit is minute}
QUERY SYNTAX SCreen_SaVe?
RESPONSE FORMAT SCreen_SaVe <parameter>
EXAMPLE 1 Set screen saver time 5 minutes.
SCSV 5
1.16. Clock Source Command
DESCRIPTION Set or get signal oscillator resource .
COMMAND SYNTAX ROSCillator <parameter>
<parameter>:= {INT, EXT }
QUERY SYNTAX ROSCillator?
RESPONSE FORMAT ROSC <parameter>
EXAMPLE 1 Uses system clock source.
ROSC INT
1.17. Frequency Counter
DESCRIPTION Set or get frequency counter.
COMMAND SYNTAX FreqCouNTer {TRG,<value>,MODE, <value>,HFR,<value>,DEF ,<value>}
4060 Series Programming Manual
20
<value> = {see table below.}
Parameters
Value
Description
STATE
<state>
Turn on or off frequency counter
FRQ
<frequency>
Input signal frequency.
DUTY
<duty>
Input signal duty.
TRG
<trig level>
Input signal trig level.
PW
<positive width>
Input signal positive width.
NW
<negative width>
Input signal negative width.
MODE
<mode>
Frequency counter mode.
DEF
<default>
Set configuration to default.
HFR
<hfr>
Turn HFR on or off
Note: To use this function, you must turn on the frequency counter. You can only set the mode,
trigger level, def and hfr from the above list. The rest of the parameters are for query only.
where: <state>:= {ON|OFF}
<frequency>:= {Input signal frequency.}
<duty>:={ Input signal duty.}
<trig level>:= { Input signal trig level. 1.8V Maximum}
<positive width>:= { Input signal positive width.}
<negative width>:= { Input signal negative width.}
<mode>:={AC|DC}
<default>:= { Set configuration to default.}
<hfr>:= {ON|OFF}
QUERY SYNTAX FreqCouNTer? {FRQ, DUTY, TRG, PW, NW, MODE, HFR}
RESPONSE FORMAT FreqCouNTer <parameter>
EXAMPLE 1 set trig level to 1.8v.
FCNT TRG, 1.8v
EXAMPLE 2 get signal frequency.
FCNT?
Return:
FCNT STATE, ON, FRQ, 0.01HZ, DUTY, 0, TRG, 0V, PW, 0, NW, 0, MODE,
AC, HFR, OFF, FRQ, 0.01HZ\n
1.18. Store List Command
DESCRIPTION This command is used to read the device wave data name. If the store
unit is empty, the command will return “EMPTY” string.
4060 Series Programming Manual
21
Note: M36~ M67 is user defined memory. The name will return what you defined, if it’s not
defined, the name will “EMPTY”.
QUERY SYNTAX SToreList?
RESPONSE FORMAT STL M0, StairUp, M1, StairDn, M2, StairUD, M3, Trapezia, M4, ExpFall,
M5, ExpRise, M6, LogFall, M7, LogRise, M8, Sqrt, M9, X^2, M10, Sinc,
M11, Gaussian, M12, Dlorentz, M13, Haversine, M14, Lorentz, M15,
Gauspuls, M16, Gmonopuls, M17, Cardiac, M18, Quake, M19, TwoTone,
M20, SNR, M21, Hamming, M22, Hanning, M23, Kaiser, M24, Blackman,
M25, GaussiWin, M26, Harris, M27, Bartlett, M28, Tan, M29, Cot, M30,
Sec, M31, Csc, M32, Asin, M33, Acos, M34, Atan, M35, ACot, M36,
EMPTY, M37, EMPTY, M38, EMPTY, M39, EMPTY, M40, EMPTY, M41,
EMPTY, M42, EMPTY, M43, EMPTY, M44, EMPTY, M45, EMPTY, M46,
EMPTY, M47, EMPTY, M48, EMPTY, M49, EMPTY, M50, EMPTY, M51,
EMPTY, M52, EMPTY, M53, EMPTY, M54, EMPTY, M55, EMPTY, M56,
EMPTY, M57, EMPTY, M58, EMPTY, M59, EMPTY, M60, EMPTY, M61,
EMPTY, M62, EMPTY, M63, EMPTY, M64, EMPTY, M65, EMPTY, M66,
EMPTY, M67, EMPTY
EXAMPLE 1 Read device memory saved arbitrary data.
STL?
return:
STL M0, StairUp, M1, StairDn, M2, StairUD, M3, Trapezia, M4, ExpFall,
M5, ExpRise, M6, LogFall, M7, LogRise, M8, Sqrt, M9, X^2, M10, Sinc,
M11, Gaussian, M12, Dlorentz, M13, Haversine, M14, Lorentz, M15,
Gauspuls, M16, Gmonopuls, M17, Cardiac, M18, Quake, M19, TwoTone,
M20, SNR, M21, Hamming, M22, Hanning, M23, Kaiser, M24, Blackman,
M25, GaussiWin, M26, Harris, M27, Bartlett, M28, Tan, M29, Cot, M30,
Sec, M31, Csc, M32, Asin, M33, Acos, M34, Atan, M35, ACot, M36,
EMPTY, M37, EMPTY, M38, EMPTY, M39, EMPTY, M40, EMPTY, M41,
EMPTY, M42, EMPTY, M43, EMPTY, M44, EMPTY, M45, EMPTY, M46,
EMPTY, M47, EMPTY, M48, EMPTY, M49, EMPTY, M50, EMPTY, M51,
EMPTY, M52, EMPTY, M53, EMPTY, M54, EMPTY, M55, EMPTY, M56,
EMPTY, M57, EMPTY, M58, EMPTY, M59, EMPTY, M60, EMPTY, M61,
EMPTY, M62, EMPTY, M63, EMPTY, M64, EMPTY, M65, EMPTY, M66,
EMPTY, M67, EMPTY
1.19. Get or Send Arbitrary Wave Data Command
DESCRIPTION This command changes the user defined memory unit arbitrary wave
data.
4060 Series Programming Manual
22
COMMAND SYNTAX WaVe_DaTa <address>, <parameter>
<address>:= {M36~M67}
<parameter>:= {a parameter from the table below. }
Parameters
Value
Description
WVNM
<wavename>
Arbitrary wave name
TYPE
<type>
Arbitrary wave type .Note the
value has to be set to 5.
LENGTH
<length>
Arbitrary wave data Length. It must
be set to "32KB" or “1024KB”
FREQ
<frequency>
Arbitrary wave frequency.
AMPL
<amplifier>
Value of amplify.
OFST
<offset>
Value of offset.
PHASE
<phase>
Value of phase.
WAVEDATA
<wavedata>
Wave data is a 14-bit signed little-
endian 2 byte number. Negative
values are in two’s complement.
Note: All parameters must be sent in one command. If not, the command will not execute
successfully. User memory locations, M36~M59 are for 32KB length only. M60~M67 are for
1024KB length only.
QUERY SYNTAX WaVe_DaTa
RESPONSE FORMAT WaVe_DaTa <parameter>?
EXAMPLE 1 Read device memory saved arbitrary data.
WVDT M3?
return:
WVDT POS, M9, WVNM, Trapezia, LENGTH, 32KB, TYPE, 5,
WAVEDATA,\x01\x00\x05\x00\t\x00\r\x00\x11\x00\x15\x00\x19\x00\x
1D\x00!\x00%\x00)\x00\x001\x005\x009\x00=\x00A\x00E\x00I\x00M\
x00Q\x00U\x00Y\x00]\x00a\x00e\x00i\x00m\x00q\x00u\x00y\x00}\x00
\x81\x00\x85\x00\x89\x00\x8D\x00\x91\x00\x95\x00\x99\x00\x9D\x0
0\xA1\x00\xA5\x00\xA9\x00\xAD\x00\xB1\x00\xB5\x00\xB9\x00\xBD\
x00\xC1\x00\xC5\x00\xC9\x00\xCD\x00\xD1\x00\xD5\x00\xD9\x00\xD
D\x00\xE1\x00\xE5\x00\xE9\x00\xED\x00\xF1\x00\xF5\x00\xF9\x00\xF
D\x00\x01\x01\x05\x01\t\x01\r\x01\x11\x01\x15\x01\x19\x01\x1D\x0
1!\x01%\x01)\x01\x011\x015\x019\x01=\x01A\x01E\x01I\x01M\x01Q\
x01U\x01Y\x01]\x01a\x01e\x01i\x01m\x01q\x01u\x01y\x01}\x01\x81\
x01\x85\x01\x89\x01\x8D\x01\x91\x01\x95\x01\x99\x01\x9D\x01\xA1
\x01\xA5\x01\xA9\x01\xAD\x01\xB1\x01\xB5\x01\xB9\x01\xBD\x01\xC
1\x01\xC5\x01\xC9\x01\xCD\x01\xD1\x01\xD5\x01\xD9\x01\xDD\x01\
4060 Series Programming Manual
23
xE1\x01\xE5\x01\xE9\x01\xED\x01\xF1\x01\xF5\x01\xF9\x01\xFD\x01\
x01\x02\x05\x02…
EXAMPLE 2 Send arbitrary data to saved memory.
WVDT M37, WVNM, SQUAREWAVE1, TYPE, 5, LENGTH, 32KB,
FREQ, 1000, AMPL, 2, OFST, 0, PHASE, 0, WAVEDATA,
\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF
\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F
\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF
\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F
\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF
\x1F\xFF\x1F\xFF\x1F\…
...
x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\xFF\x1F\
x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
\x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00 \x00
Note: The Examples of the wave data above are only partial of the return syntax. The
generators are 14 bit, one wave point needs 2 bytes, 32KB can store 16K points and
1024KB can store 512K points.
Follow the steps below to convert data values to signed decimal values received from the
generator.
1. Obtain 14-bit signed little-endian 2 byte data.
2. Reverse byte order.
3. Determine if 14 bit value is positive or negative. If positive, skip step 4. If negative,
proceed to step 4.
4. Takes two’s complement of the value based on 14-bit value.
5. The values obtained should be between -8192 and 8191 (decimal)
Conversion of received Waveform Data Examples:
FF 1F (hex) → 1F FF (hex) → positive 14 bit number → +8191 (decimal)
05 00 (hex) → 00 05 (hex) → positive 14 bit number → +5 (decimal)
FF 3F (hex) → 3F FF (hex) → negative 14 bit number → two’s complement → -1 (decimal)
00 20 (hex) → 20 00 (hex) → negative 14 bit number → two’s complement → -8192 (decimal)
4060 Series Programming Manual
24
Note: Hexadecimal values in bold is data received from the 4060 generators. They are in little-
endian format.
Before sending wave data to the 4060 generators, the user must convert the 14-bit signed 2-
byte number into little endian format. Negative values are represented in two’s
complement form.

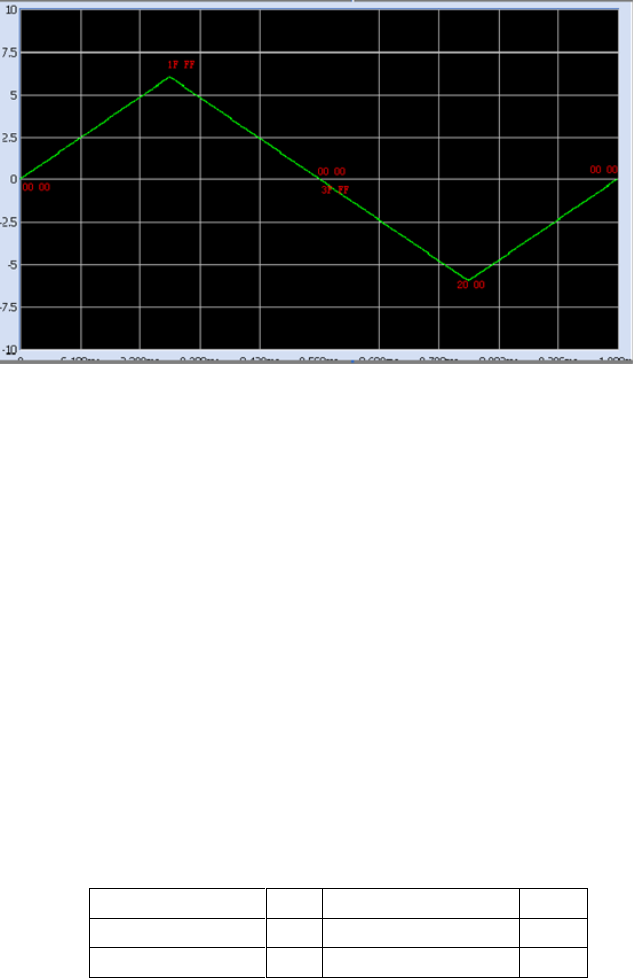

The following figure shows a triangle waveform with wave data (not little-endian
format) points for reference.
Conversion to send wave data to 4060 generators.
+8191 (decimal) → positive 14 bit number → 1F FF (hex) → FF 1F (hex)
0 (decimal) → positive 14 bit number → 00 00 (hex) → 00 00 (hex)
-1 (decimal) → negative 14 bit number → 3F FF (hex) → FF 3F (hex)
-8192 (decimal) → negative 14 bit number → 20 00 (hex) → 00 20 (hex)
Note: Hexadecimal values in bold is data to be sent to the 4060 generators. They are in little-
endian format.
1.20. Virtual Key Command
DESCRIPTION This sends a virtual key command to the device. The keys are
representations of the front panel buttons.
COMMAND SYNTAX VirtualKEY VALUE, <value>,STATE, 1
<value>:= {a parameter from the table below. }
Name
#
Name
#
KB_FUNC1
28
KB_NEGATIVE
43
KB_FUNC2
23
KB_POINT
46
4060 Series Programming Manual
25
KB_FUNC3
18
KB_WAVES
4
KB_FUNC4
13
KB_PARAMETER
5
KB_FUNC5
8
KB_MOD
15
KB_FUNC6
3
KB_UTILITY
11
KB_NUMBER_0
48
KB_SWEEP
16
KB_NUMBER_1
49
KB_BURST
17
KB_NUMBER_2
50
KB_LEFT
44
KB_NUMBER_3
51
KB_RIGHT
40
KB_NUMBER_4
52
KB_OUTPUT1
153
KB_NUMBER_5
53
KB_OUTPUT2
152
KB_NUMBER_6
54
KB_KNOB_RIGHT
175
KB_NUMBER_7
55
KB_KNOB_DOWN
176
KB_NUMBER_8
56
KB_KNOB_LEFT
177
KB_NUMBER_9
57
22820 Savi Ranch Parkway
Yorba Linda, CA 92887
www.bkprecision.com
© 2015 B&K Precision Corp.

Navigation menu
