DVB-T

DVB-T2

DVB-S

DVB-S2

SEFRAM 7848

Sefram

Sefram

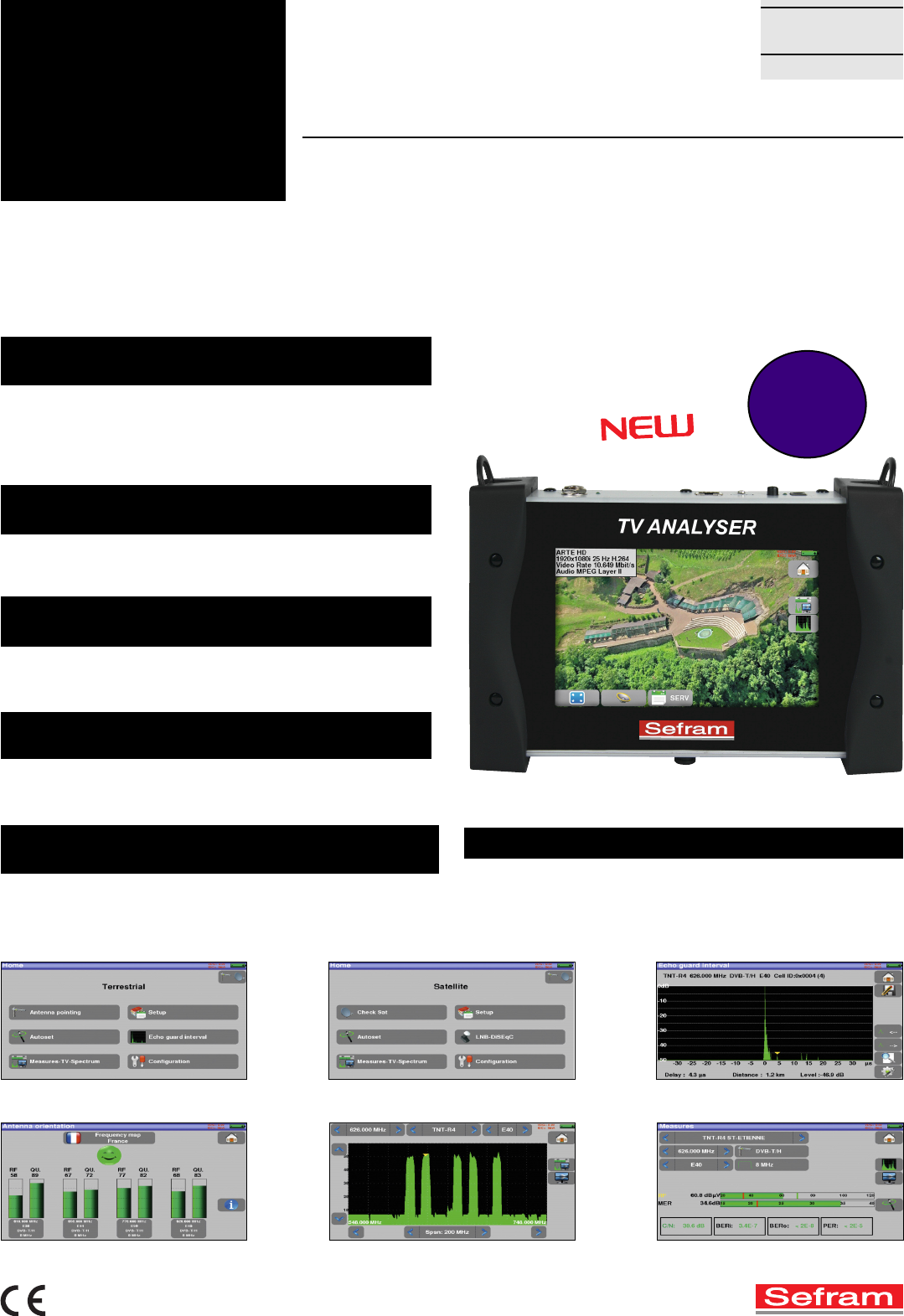

The 7848 offers a bright and panoramic hight quality LCD display for

measurements results and free-to-air MPEG-2 / MPEG-4 programs

display.

Panoramic LCD with display of

MPEG-2 and MPEG-4* TV programs

The 7848 has a very simple and intuitive man-machine inter-

face. Special functions have been added to save time and

money.

All necessary functions

and tools to save time

The 7848 includes one USB interface for updating and getting

the benefit of free firmware update.

USB interface

The 7848 includes a checksat mode for satellite and a special

tool to align terrestrial antennas. User will have a graphical

information combined with a beeper.

Checking the alignment

of antennas

With its panoramic 7 inches touch screen, you have full

benefit of the touch screen technology: intuitive access to

functions, menus and measurements. The new rugged hou-

sing with protective bumpers is designed for extensive field

use and protection of sensitive parts of the instrument.

Touch screen, compact,

robust and easy to use

* only for free-to-air

Home page for terrestrial: simple

and intuitive

Home page for satellite

Echoes / guard interval (terrestrial)

Alignment of terrestrial antenna

with 4 multiplex

Spectrum in terrestrial mode

All measurements on a single screen

Make sure to visit

our Website

http://www.sefram.fr

The ideal companion for Digital Terrestrial TV

(DVB-T, DVB-T2/T2) and Digital Satellite (DVB-S/S2)

Display SD and HD* TV programs

The 7848 provides all measurements in DVB-T/T2, DVB-S/S2.

For each digital standard, we provide all measurements, inclu-

ding BER, MER, lost packets, noise margin and echoes analysis.

All digital measurements in

DVB-T, DVB-T2 , DVB-S and DVB-S2

FT7848 A01 - Specifications can be updated without notice

SEFRAM 7848

Terrestrial & satellite TV Meter

Sefram

Sefram

For assistance and ordering

Optional accessories : • Sun protector + rain protector + belt hanger kit : 978489000

• Car cigar lighter adapter : 978361000

• Rain protector : 978489500

Supplied with : main wall plug adapter, user's manual (CD-ROM), F adaptor, carrying belt, carrying pouch.

32, rue Edouard Martel - BP55- 42009 - St Etienne - cedex 2

Tél. +33 (0) 4.77.59.01.01

Fax. +33 (0) 4.77.57.23.23

Web : www.sefram.fr - e-mail : sales@sefram.fr

Specifications Terrestrial band Satellite band

Frequency

Range 45-900 MHz 900-2200 MHz

Resolution Measure: 50kHz, display: 1kHz Measure and display: 1 MHz

Level measurements

Dynamic range 20-120 dBµV 30-110 dBµV

Measurements level, RF power, C/N level, RF power, C/N

Noise level 10dBµV (typical) 20dBµV (typical)

Units dBµV dBµV

Accuracy ±2dB ± 0.05dB/°C ±2dB ± 0.05dB/°C

Resolution 0,1dB 0,1dB

Measurement filters 100kHz, 300kHz, 1MHz 1MHz, 3MHz, 10MHz

Standards B, G, D, K, I, L, M, N, FM, DVB-T/H/T2/T2Lite, PAL, SECAM, NTSC, DVB-S, DVB-S2, DSS

DVB-C/C2 (level measurements only)

Digital measurements DVB-T/H DVB-T2 DVB-S / DSS DVB-S2

BERi (before Viterbi), Before LDPC CBER, BERi, BERo, UNC, LDPC (BERi), BCH (BERo),

Error rate BERo (after Viterbi), BCH (after LDPC) PER, Link margin Link Margin

UNC/PER (lost packets),

FER (lost packets, after BCH)

NM (Noise Margin)

Modulation Error Rate (MER)

5-35dB 5-35dB 0-20dB 0-20dB

Bandwidth 6, 7 or 8 MHz 1.7, 5, 6, 7 or 8 MHz --

Symbol rate --1-45Ms/s 1-45Ms/s

Viterbi 1/2, 2/3, 3/4, 5/6, 7/8 (auto) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,

1/2, 2/3, 3/4, 5/6, 6/7, 7/8, auto 2/5, 1/2, 3/5, 2/3, 3/4, 5/6,

1/3, 2/5, auto 8/9, 9/10, auto

Guard interval auto, manual auto auto auto

Inverted spectrum auto auto auto auto

Carriers / FFT 2k / 8k (auto) 1k, 2k, 4k, 8k, 16k, 32k -

+ band extention

HP/LP - PLP- Data Slice HP/LP PLP --

Standards EN 300-744 ETS 302-755 ETS 300-421 ETS 302 307

Spectrum analysis

Sweep rate 350 ms typical, 400 points

Filters 100kHz, 300kHz, 1MHz 1MHz, 3MHz, 10MHz

Attenuator automatic (0 to 55 dB, with 5 dB steps)

Dynamic (display) 60 dB (10 dB/div) 60 dB (10 dB/div)

Span 5MHz to full span in 1-2-5 sequence

Pointing mode

fast search of transmitter fast search of satellite

10 transmitters max 30 satellites max

4 multiplex per transmitter 4 transponders per satellite, with NIT

Input / output

Interface USB A, Ethernet 10/100 baseT

Power supply 15V / 1A with 5.5mm jack

Remote supply

Voltage 5V/13/18V/24, 500mA max 13V/18V, 500mA max

DiSEqC - DiSEqC 1.2: dishes, committed

and uncommitted switches

22 kHz (mini DiSEqC) - 22 kHz / 0,6V cc

SatCR and DCSS - DiSEqC protocol extention, 8 slots maximum

RF input

Connector 75 Ohms (F/BNC adapter supplied)

Maximum input voltage 70 V DC, 50 Vrms/50Hz max

(DC or AC peak)

Audio and video decoding

Audio MPEG-1, MPEG-2, AAC, HE AAC, Dolby® Digital, Dolby® Digital Plus

Service table SDT, LCN

Video MPEG-2 SD and MPEG4 HD (high definition H264)

General specifications

Display 7 inches (16:9), LCD TFT, backlight (500 cd/m2), resolution: 800 x 480

Power supply main adaptor 100-240V, output: 15V DC / 1A

Battery (factory installed) Lithium Ion (25W)

Autonomy 2 hours (typical)

Charging time 80% charging in 1H15

Operating temperature -5°C to 45°C

Storage temperature -10°C to 60°C

EMC and safety NF-EN 61362-1 / NF-EN 61326-3 / NF-EN 61010-1

Dimensions 250 x 165 x 65 mm

Weight 1,35kg

Warranty 1 year
