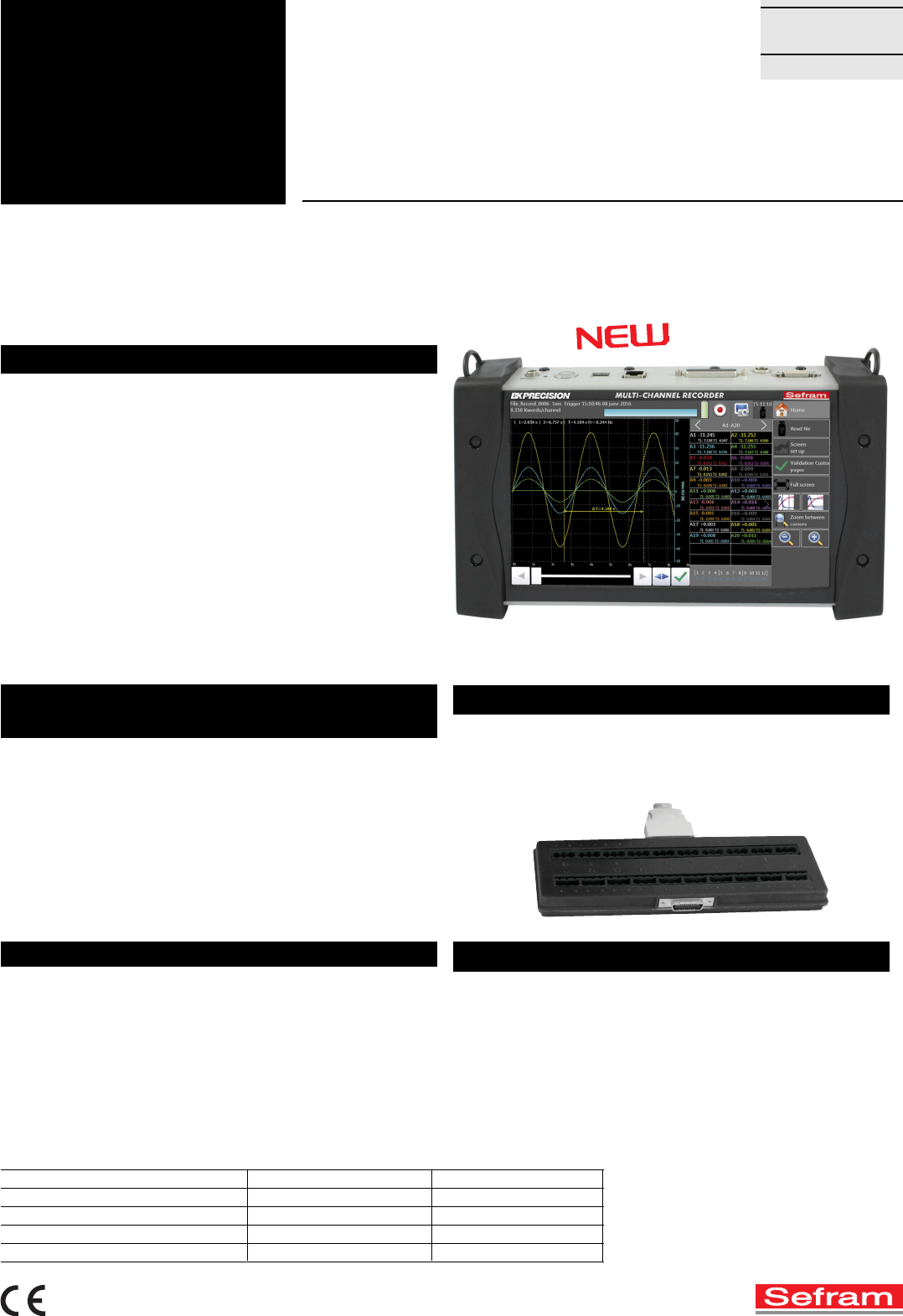

SEFRAM DAS 240

Sefram

Sefram

• 20 to 200 analogue channels

• Input: voltage, thermocouple, Pt100-Pt1000, current

(with optional adapter), resistance

• Voltage: from 1mV to 200V (±100V)

• Temperature: thermocouples (all types),

Pt100-Pt1000 (2 or 3 wires)

• 16 Bit vertical resolution

• Max sampling rate: 1ms (1kHz)

• 12 logical channels

• 4 alarms (output)

• 4 logical function input with counter

& frequency meter capability

• 10" TFT panoramic touch screen

• Internal hard drive: 32 Gb

• Interfaces: USB, Ethernet, Wifi (option)

• Lithium-ion battery (factory option): 15h autonomy

• DasLab software (licence free)

• Safety: IEC 61010 CAT I 100V

Capabilities

Selection guide

The DAS240 is supplied with 20 analogue channels, but you can

add 180 analogue channels, by steps of 20. All modules (20

channels) are strictly identical and can perform the same mea-

surements (voltage, temperature, resistance, current).

A modular solution

The DAS240 recorder is really a general purpose recorder for

process applications:

- multi channel temperature monitoring and recording

- 0-10V sensors monitoring and recording

- voltage measurements

- pulse counting

- 4-20mA measurement and monitoring

(with optional shunt).

Multiple applications

The DAS240 is equipped with a panoramic 10" touch screen:

the user interface becomes absolutely interactive. The icons

and symbols used makes the browsing very easy and will save

your time.

User-friendly interface

The new DAS240 recorder has been designed to measure all

parameters you can find in a process: voltage measurements,

measurements on sensors (0-10V), temperature measurements

(thermocouple, Pt100-Pt1000), current measurements (with

optional shunt), resistance measurement, counter, frequency.

You can view directly the results of measurements (graphs,

numerical values) and memorize your results in the recorder

memory or in a USB memory stick. The data transfer and data

processing can be done later with a personal computer using

the licence free DasLab software.

A multi channel handheld recorder

dedicated to process

Multi Channel Handheld Recorder

DAS 240

DAS240 DAS240BAT

20 analogue multiplexed channels ••

12 logical channels input ••

Internal battery (15h autonomy) - •

20 channels module option option

WiFi interface (USB dongle) option option

SEFRAM DAS 240

Multi Channel Handheld Recorder

Sefram

Sefram

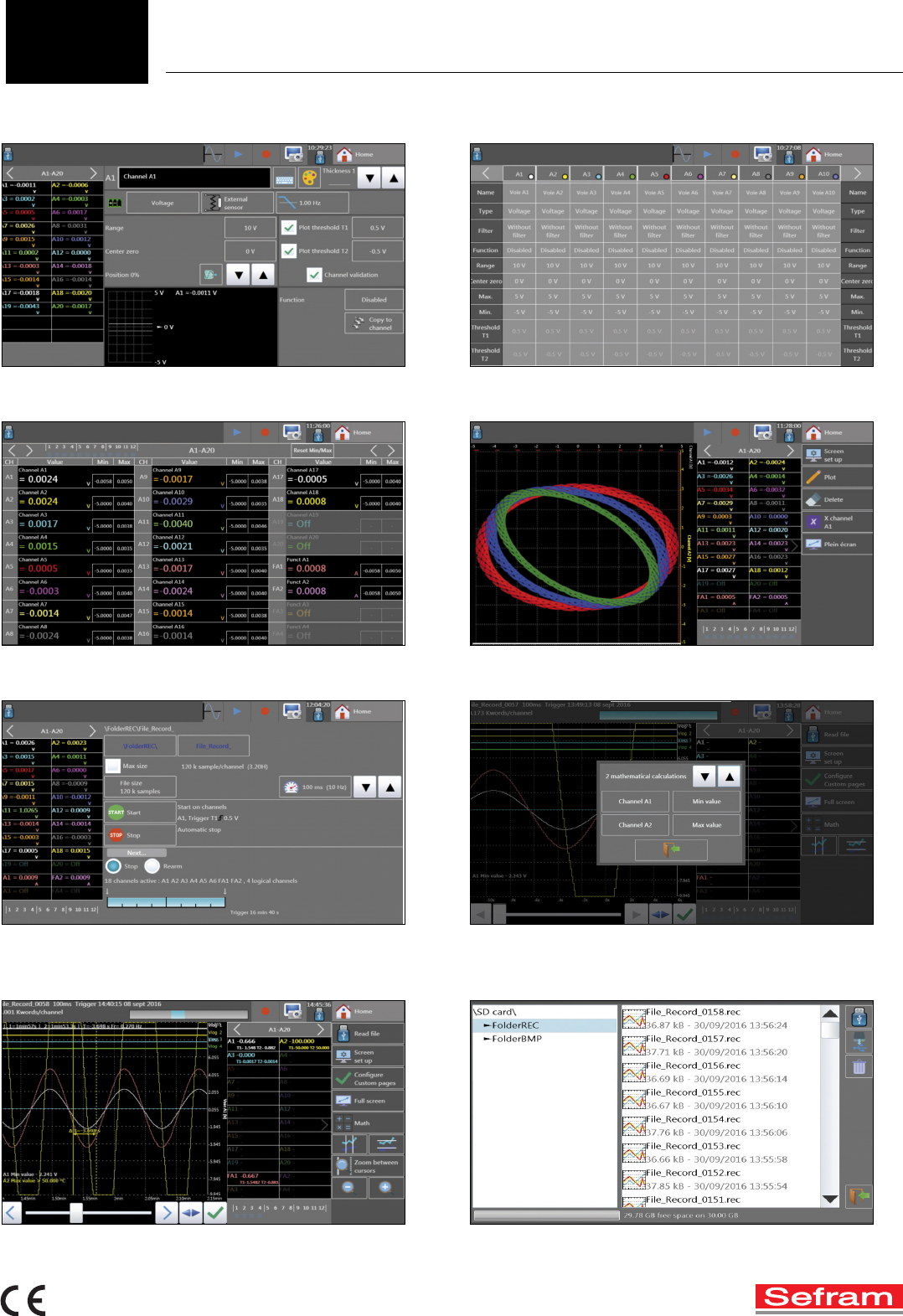

Setup: self-explanatory icons to guide the user

Channels setup: all parameters can be displayed on a single screen

Numerical display of measurements XY mode

Trigger: multiple choice and combination of threshold, channels

and conditions

Math calculation between channels

Measurement display with zoom and cursors File management with the DAS240

SEFRAM DAS 240

Multi Channel Handheld Recorder

Sefram

Sefram

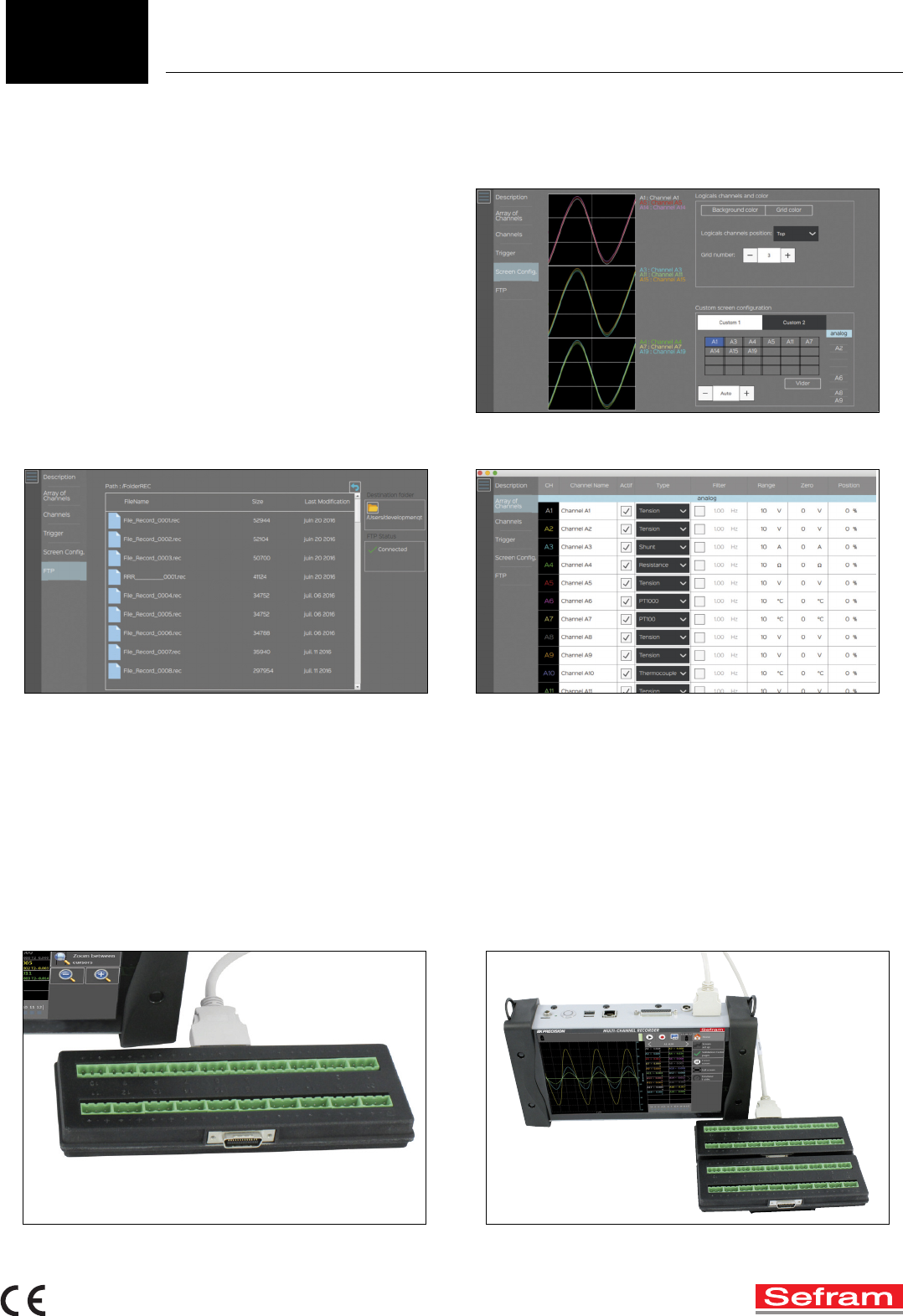

The new DasLab software for PC (under Windows)

is suitable for:

- Managing recorder setup (online & offline)

- Remote setup of the DAS240

- Managing & downloading files

(records, setup) from the recorder

DasLab is a licence free software and can be

downloaded from Sefram website.

The link between your DAS240 and your compu-

ter can be set up through the Ethernet interface

or the Wifi interface (option).

SEFRAM DasLab Software

DAS 240: a flexible solution with the optional 20 channels modules

Your applications needs more measurement channels? The DAS240 is a flexible and scalable system!

Supplied with 20 measurement channels, you can add up to 180 channels, by increment of 20, for reaching a total of

200 channels. The 20 channels modules (P/N: 902401000) are all versatile: you can measure voltage, temperature with

thermocouples, Pt100-1000 and are supplied with fast connectors and a mechanical system to fix them together.

20 channels module (P/N: 902401000) DAS240 equipped with 40 channels

DasLab : Remote setup

DasLab: channels setupDasLab: files management

FTDAS240A00 - Specifications can be updated without notice

For assistance and ordering

32, rue Edouard Martel - BP55- 42009 - St Etienne - cedex 2

Tél. +33 (0) 4.77.59.01.01

Fax. +33 (0) 4.77.57.23.23

Web : www.sefram.fr - e-mail : sales@sefram.fr

INTERNAL STORAGE

Internal flash drive size: 32Gb min

Maximum file size: 2Gb

INTERFACES

USB: 2 x USB type A

Ethernet: 10/100base-T with RJ45 socket

Wifi: with optional USB dongle

GENERAL SPECIFICATIONS

Display: 10" TFT touch screen LCD, backlighted,

1024 x 600 dots

Power supply:

15V / 4A max with main adapter (100/240VAC)

Battery:

factory option, non removable, Lithium-ion

Autonomy with battery: 15h with standby mode, 10h without

stand-by mode

Operating temperature: 0°C to 40°C, 80% RH (no condensation)

Storage temperature: -20°C to 60°C

Dimensions: 66 x 298 x 176mm

Weight: 1,5kg

Safety: Cat I 100V, according to IEC61010-1

Warranty: 2 years

ACCESSORIES AND OPTIONS

902401000: 20 channels module

902408000: Rugged carrying case

902402000: Wifi option (USB dongle)

984405500: 12 isolated logical channels board

902407000: Logical channels patch cord

902406500: 4-20mA / 50 ohms shunt

902409000: 19" rackmount kit:

TECHNICAL SPECIFICATIONS

Number of channels: 20 channels, expandable to 200

with optional 20 channels modules

INPUT SPECIFICATIONS

DC Voltage

Ranges: 1mV (±0,5mV) to 200V (±100V)

Maximum input voltage: 100V DC

Accuracy: 0,1% of the full scale ±10µV

TEMPERATURE WITH THERMOCOUPLES

Sensors Range

Couple J -210°C to 1200°C

Couple K -250°C to 1370°C

Couple T -200°C to 400°C

Couple S -50°C to 1760°c

Couple B 200°C to 1820°C

Couple E -250°C to 1000°C

Couple N -250°C to 1300°C

Couple C 0°C to 2320°C

Couple L -200°C to 900°C

Cold junction compensation: ±0,5°C

TEMPERATURE WITH PT100 - PT1000

Current: 1mA (Pt100) & 100µA (Pt1000)

Range: -200°C to 850°C

Measurements: 2 and 3 wires

Accuracy (at 20°C): 0,3°C ±0,1% of reading

Compensated resistance with 2 wire: 30 ohms max.

Compensated resistance with 3 wires: 50 ohms max

RESISTANCE

Ranges: 1kΩand 10kΩ

Accuracy: 1Ω(range 1kΩ) and 10Ω(range (10kΩ)

ACQUISITION - SAMPLING

Resolution: 16 bit

Acquisition system: scanner, one sample per channel

Sampling rate: 1ms to 20mn for V >50mV

2ms to 20mn for V ≤50mV,

thermocouples & Pt100-Pt1000

Trigger: date, delay, threshold, combination

of thresholds (and/or),

word on logical channels (and, or, slope, level)

Pre-trigger : variable from 0 to 100k samples

ADDITIONNAL I/O

Logical channels

Number: 12

Maximum permitted voltage: 24V Cat I

Input impedance: 4,7kΩ

Sampling rate: 1ms max.

LOGICAL FUNCTION INPUT

Number of channels: 4 (K1 to K4)

Maximum permitted voltage: 24V Cat I

Input impedance: 4,7kΩ

Sampling rate: 1ms max.

Pulse counter: 0 to 10000000

Frequency measurement: 1Hz to 10kHz

ALARMS (OUTPUT)

Number: 4 alarms (A, B, C, D)

Output level: 0-5V

Supplied with: a main adaptor 100/240V, manual (CD-ROM), 1 male connector with

25 pins male and cover, 1 cable (70cm) for measurement module connection, 1 mea-

surement module (20 channels) with connectors, a stylus, a soft wipe, a screwdriver.
