OWNER’S MANUAL
Mobile Audio System

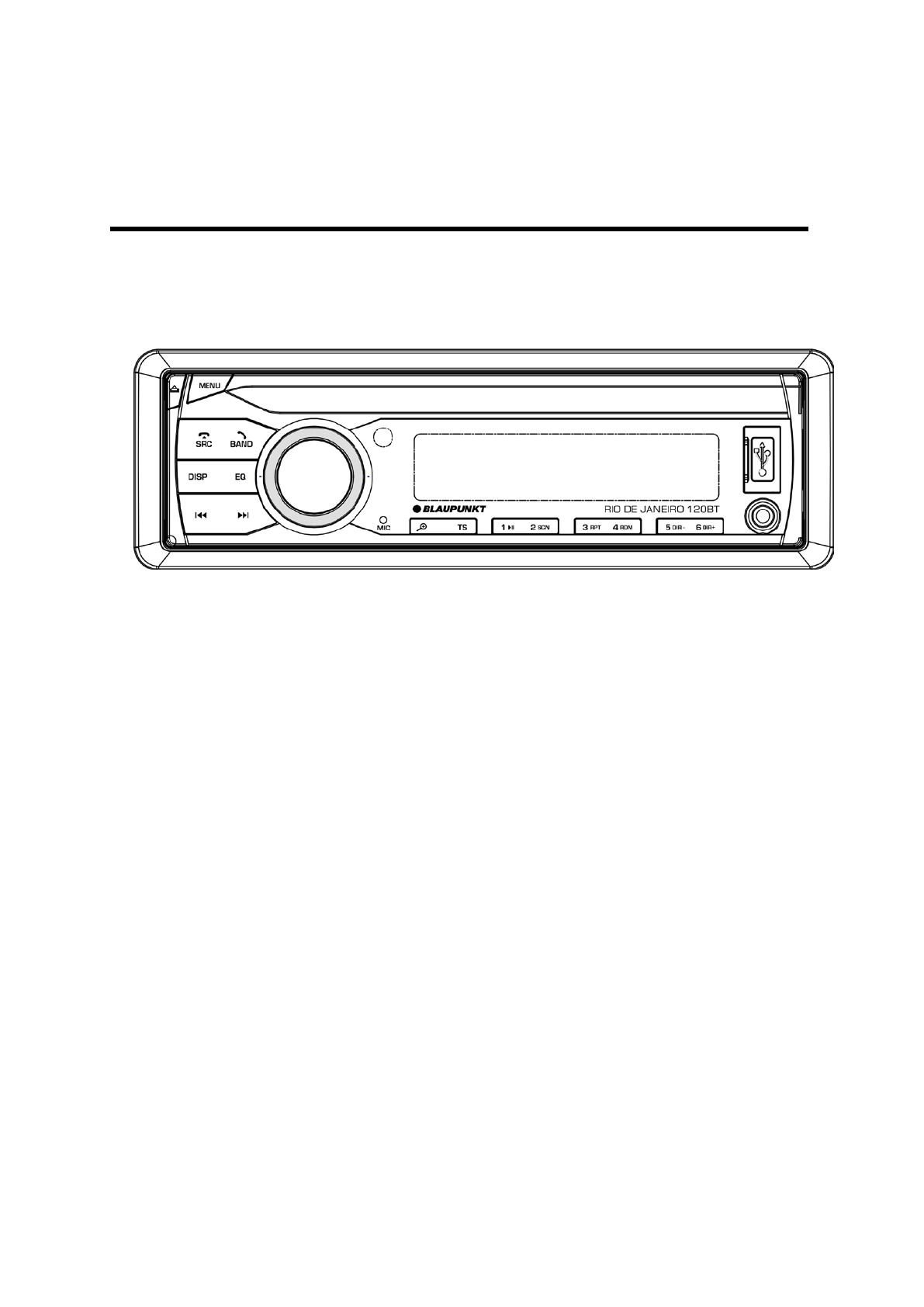

RIO DE JANEIRO 120BT
PLL Synthesizer Stereo Radio
MP3/WMA Player
Full Detachable Panel
USB/ SD Interface
3.5mm Jack Input
Bluetooth function
Remote control function
2
CONTENTS
Installation ........................................... 3
Take out screw before installation ......... 3
DIN Front-Mount (Method A) ................. 3
Installing the unit ............................... 3
Removing the unit ............................. 4
DIN Rear-Mount (Method B) ................. 5
Using the detachable front panel ...... 6
Wiring Connection .............................. 7
Operation ............................................. 8
Location of keys .................................... 8
Switching on/off the unit ........................ 9
Faceplate release ................................. 9
Sound adjustment ................................. 9
Display information ............................... 10
Liquid crystal display ............................. 10
Reset function ....................................... 10
Radio operation .................................... 10
Switching to radio mode .................... 10
Selecting the frequency band ............ 10
Selecting station ................................ 10
Automatic memory storing& program
scanning ............................................ 11
Station storing ................................... 11
RDS operation ...................................... 11
USB play operation ............................... 12
Selecting tracks ................................. 12
Pausing playing ................................. 12
Scan play all tracks ........................... 12
Repeating the same track ................. 12
Playing all tracks in random .............. 12
Select directory
up/down..............................12
Selecting files by button ............... 12
TF Card operation ............................. 13
Bluetooth operation ............................... 13
Remote control .................................... 15
Specification ........................................ 17
Trouble shooting ................................. 18
3
INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,
utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.
DIN FRONT-MOUNT (Method A)

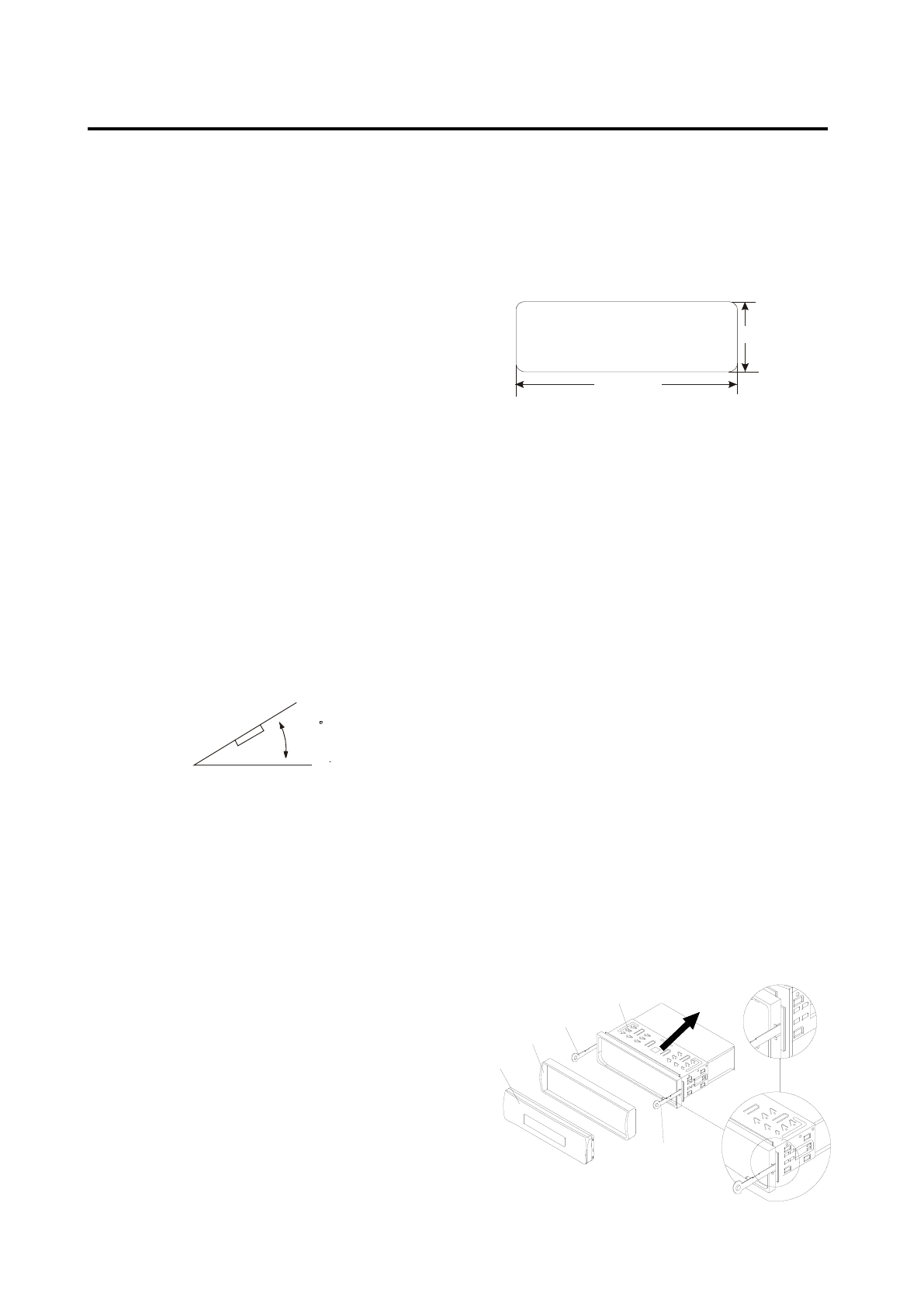

Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of “removing the front
panel”).
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.
30
Outer Trim Ring
Front Panel
L Key
Sleeve
R Key
53mm
182mm
4
INSTALLATION
6. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the
sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the appropriate
tabs behind the dashboard to secure
the sleeve in place.
7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
8. Slide the unit into the sleeve until it
locks into place.
9. To further secure the unit, use the
supplied metal strap to secure the
back of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap to
the mounting bolt on the back of the unit.
If necessary, bend the metal strap to fit
your vehicle’s mounting area. Then use
the supplied hardware (Tapping Screw
(5x25mm) and Plain Washer) to attach
the other end of metal strap to a solid
metal part of the vehicle under the
dashboard. This strap also helps ensure
proper electrical grounding of the unit.
Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to
the dashboard.

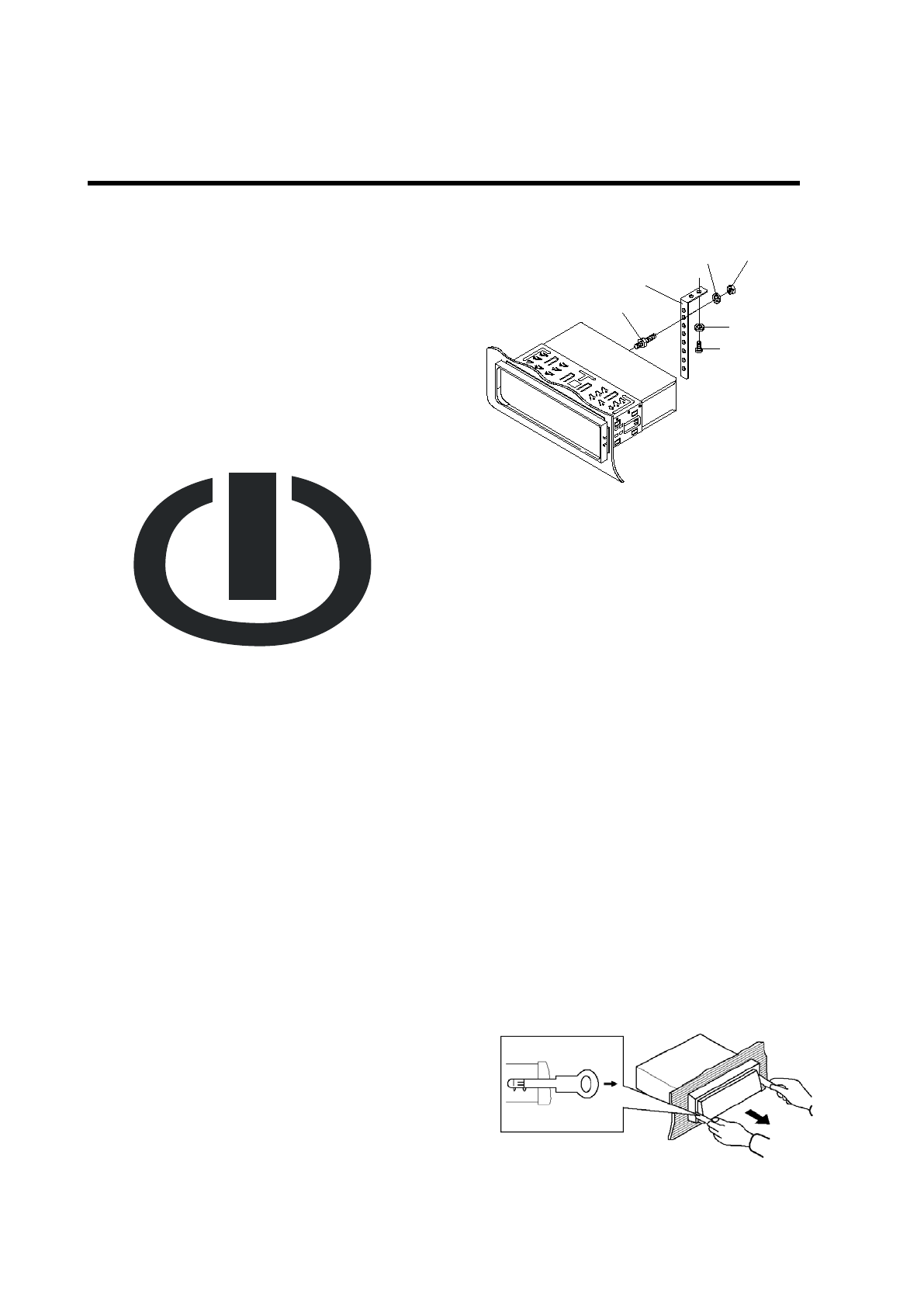

Mounting Bolt
Spring Washer
Plain Washer
Tapping Screw
Hex Nut
Metal Strap
10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install the
unit’s front panel (see the steps of
“installing the front panel”).
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
3. Press the release button to remove the
front panel.
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
5

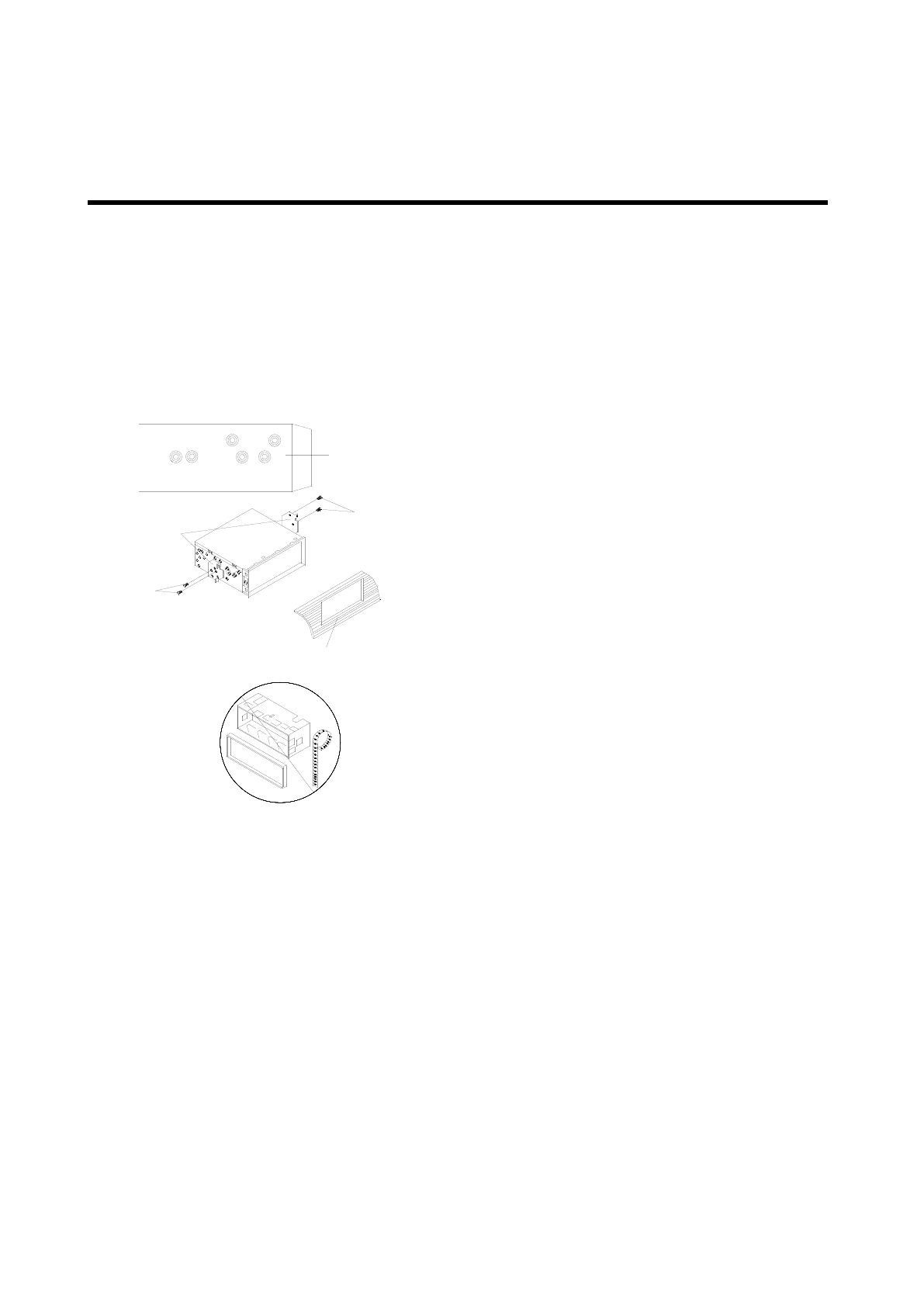

INSTALLATION
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.
Dashboard or Console
Screw
Factory Radio
Mounting Bracket
Side View showing
Screw Holes marked
T, N
Screw
To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
6

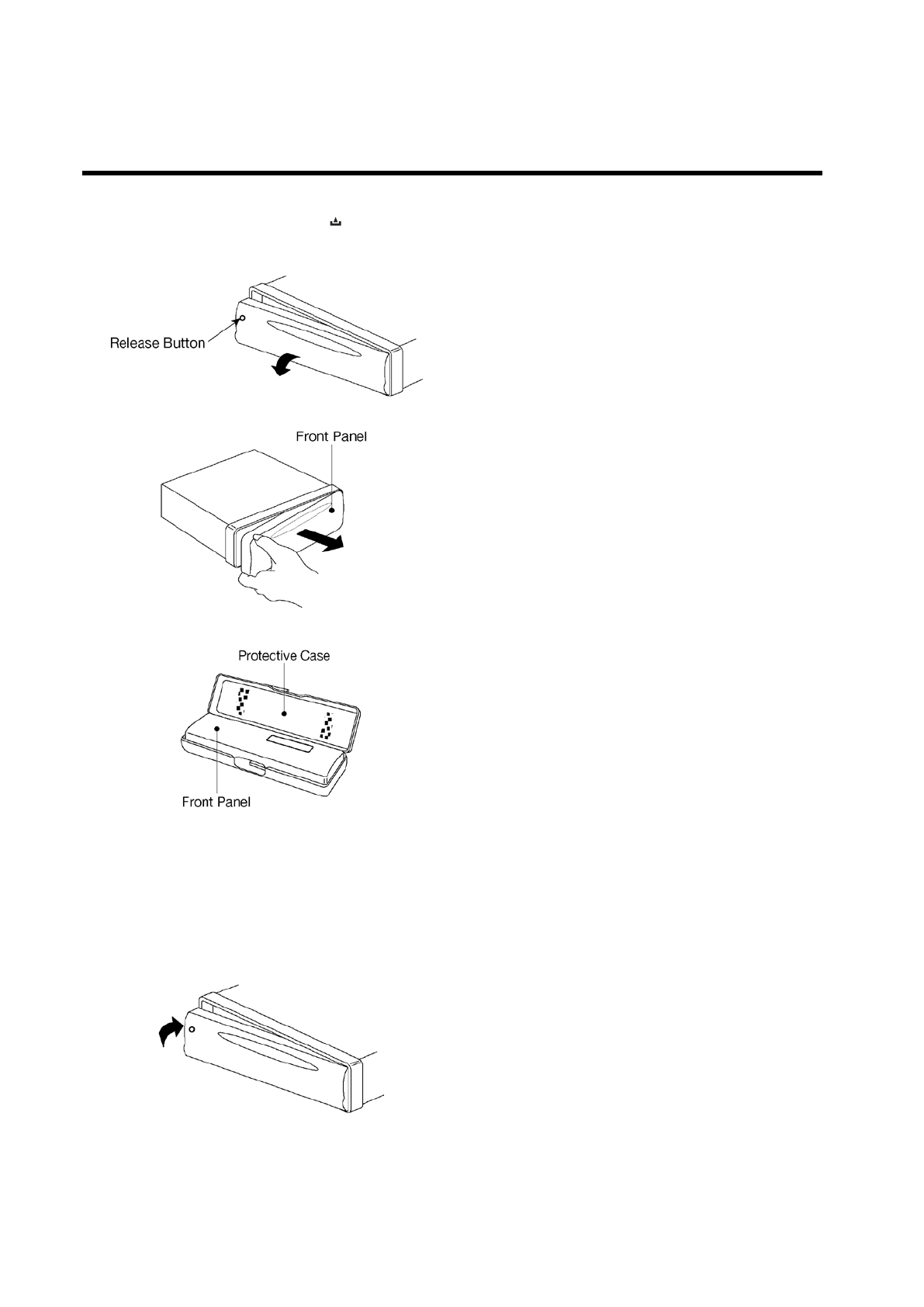

REMOVING THE FRONT PANEL
- Press the release button ( ) on the
front panel and pull off the front panel.
- Keep front panel into the case.
INSTALLING THE FRONT PANEL
To install the front panel, insert the panel
into the housing and make sure the panel is
properly installed. Otherwise, abnormality
occurs on the display or some keys will not
function properly.
Precautions when handling
- Do not drop the front panel.
- Do not put pressure on the display or
control buttons when removing or
installing the front panel.
- Do not touch the contacts on the front
panel or on the main unit body. It may
result in poor electrical contact.
- If any dirt or foreign substances
adhered on the contacts, they can be
removed with a clean and dry cloth.
- Do not expose the front panel to high
temperatures or direct sunlight in
anywhere.
- Keep away any volatile agents (e.g.
benzene, thinner, or insecticides) from
touching the surface of the front panel
- Do not attempt to disassemble the front
panel.
USING THE DETACHABLE FRONT PANEL
7
WIRING CONNECTION

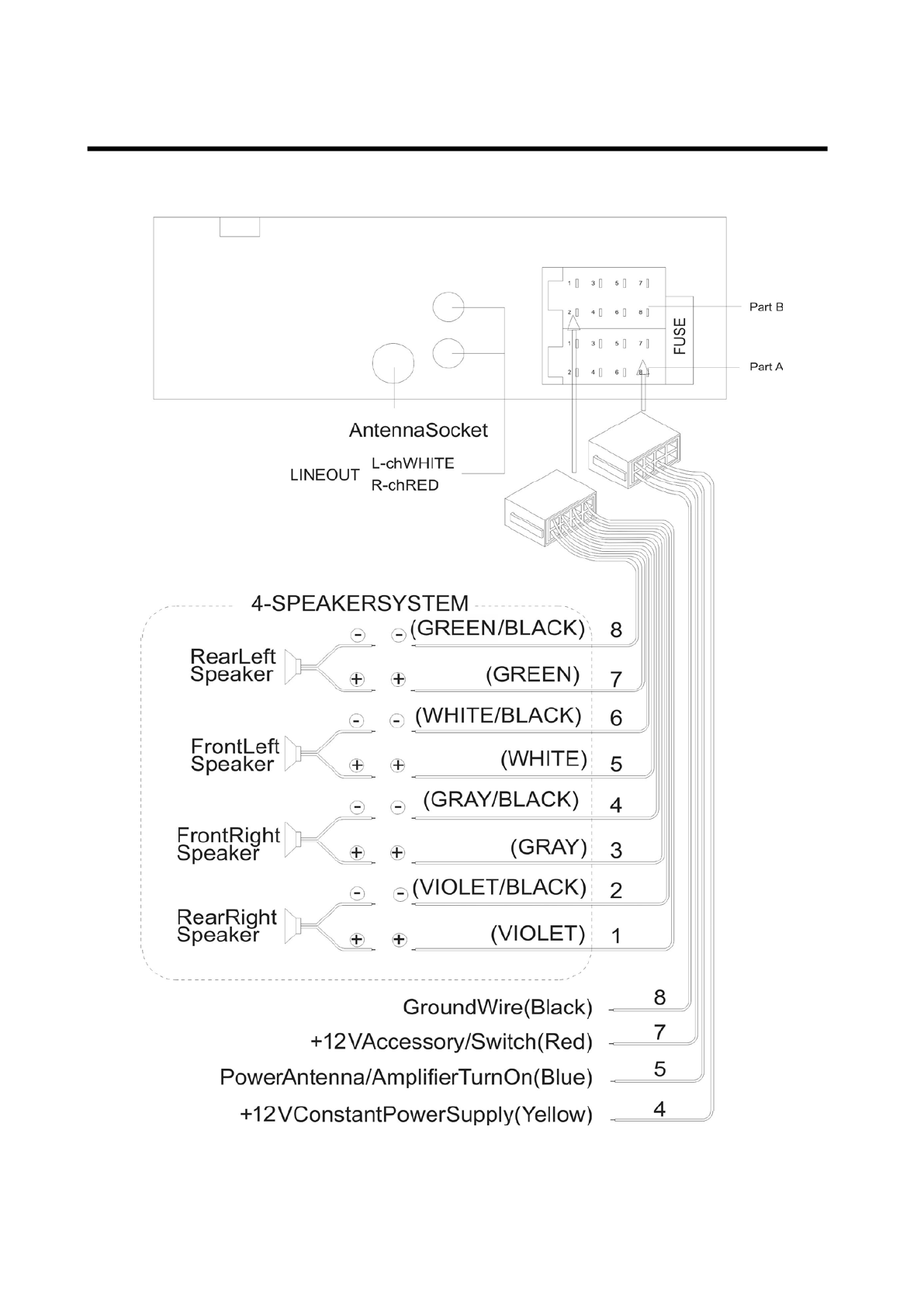

ISO CONNECTION
FUSE
8
OPERATION

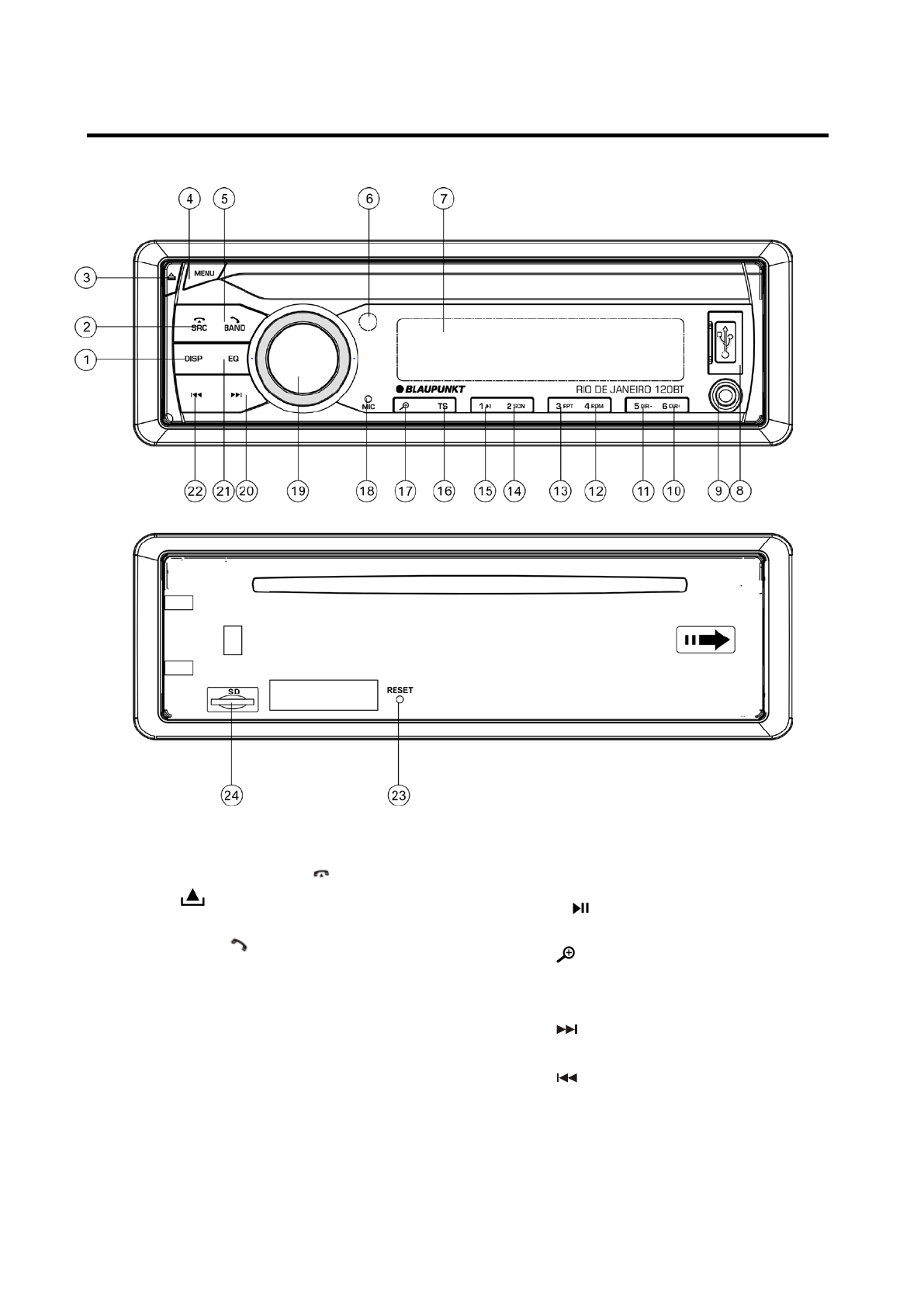

LOCATION OF KEYS
1. “DISP” button.
2. “SRC
（
source
）
”/ button.
3. “” (panel release) button.
4. “MENU” button.
5. “BAND/ ” button.“
6. IR SENSOR.
7. LCD ” display.
8. USB port
9. “AUX IN” jack.
10. “6 DIR+” button.
11. “5 DIR-” button.
12. “4 RDM” button
13. “3 RPT ” button.
14. “2 SCN ” button.
15. “1 ” button.
16. “TS” button.
17. “” MP3 search button
18. Microphone.
19. “VOL / POWER/MUTE” button.
20. “”(SEEK UP) button.
21. “EQ ” button.
22. “”(SEEK DOWN) button.
23. RESET button.
24. TF card slot.
9
OPERATION
TURN ON/OFF THE UNIT
Turn on the unit by pressing button(19).
When system is on. Press and hold
button (19) for 2 seconds to turn off the unit.
MUTE
Shortly press MUTE button(19) to muting
the audio output. Press it again to recover
output.
FACEPLATE RELEASE
Press release button (3) to detach the
removable faceplate.
SOUND ADJUSTMENT
Press MENU button (4) shortly to select the
desired adjustment mode. The adjustment
mode will change in the following order:
-BASS-TRE-BAL-FAD-EQ-XBASS-BEEP-
DX-STEREO-CLOCK-AREA
TRE: treble
BAL: balance
FAD: fader
EQ: equalization
DX: distance
By rotating the audio knob (19) it is possible
to adjust the desired sound quality or
setting.
Press and hold MENU button (4) for 2 seconds
into the RDS menu as below:
AF-TA-TA VOL-REG-EON
AF: Alternative Frequencies
TA: Traffic Announcement
TA VOL：TA volume
EON: Enhanced Other Network
EQ (Equalisation)
Press it shortly to select the preset EQ
mode as below:
FLAT—CLASSICS—POP—ROCK—EQ
OFF
XBASS
Press and hold the EQ button for 2 seconds
to active the XBASS function. Press and
hold it again to cancel this function.
BEEP on/off:
The car audio device is equipped with 2
beep tone modes.
Rotate
the volume
knob to choose one.
-
Beep on
mode:
The confirmation beep
sound is
heard whenever
a button is
pressed.
-
Beep off
mode:
The confirmation
beep is switched off whenever a key
is pressed.
LOC/DX:
In this item rotating the audio knob (19)
to turn on/off local function. In LOC mode
the unit will reduce the receiving
sensitivity when you search station.
That means you can receive the
station that sound is good. It will
ignores the station that sound is not
good. In DX mode it will increase the
receiving sensitivity when you search
the station. That means you can
receive more stations.
STEREO/MONO: In this item rotating the
audio knob (19) to choose STEREO or MONO
mode. In STEREO mode you can receive FM
stereo signal. In MONO mode the stereo
station will be switched to monochrome.
Sometimes when the signal is not good. If
you change it to MONO mode. The noise
will be reduced.
CLOCK
In the CLOCK item of the SEL menu. There are
12 HOUR and 24 HOUR format for your
choose.
Note: If you select the EUR(USA or LAT) region
in AREA item. The clock will become to 24(12)
HOUR format automatically. If you want to use
12(24) HOUR format in EUR(USA or LAT)
10
region. You have to setting the clock format
again.
AREA:
In the AREA item of the menu. There are
EUR/USA/LAT for your selecting.
TA volume:
This function allows you to
OPERATION
define the minimum volume for the traffic
announcements. The adjustable range is
10~43. The defaulted value
is 21. Rotate
the volume knob to adjust the volume of
the traffic.
REG on/off
When AF function is on. In SEL menu
you can switch on or off region mode in
REG item. Some broadcasting stations
change their program from normal
broadcasting to regional broadcasting for
a certain time period. When region is on,
the current listening program remains
unchanged
.
EON on/off
In SEL menu You can set the EON on/off.
Normally set the EON to on.
DISPLAY INFORMATION
Press DISP button (1) to show the time for
5 seconds. Then it returns to show the
information.
SET THE TIME
(1) Manual setting:
Press and hold DISP button for 2 seconds.
The hour of the time will be flashing. Press
/ button (or rotating the audio knob)
to set the hour. Press DISP button shortly
to change to minute. Also use /
button (or rotating the audio knob) to set
the correct minute. After that press DISP
button to confirm.
(2) Synchronize the time from the RDS
station:
To receive a RDS station which has good
signal(The AF symbol of the LCD does not
flashing). Several minutes later the time will
be synchronized to the correct time by the
station’s signal. (Note: None RDS station
does not have this function.)
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated
functions on the display.
AUXILIARY INPUT
The unit can be connected to a portable
audio player through the AUX IN jack (9).
Pressing SRC button to switch to AUX IN
mode when inserted an audio source to the
unit.
RESET FUNCTION
RESET button (23) must be activated with
either a ballpoint pen or thin metal object.
The RESET button is to be activated for the
following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
Note: if press RESET button (23), the unit
can’t work yet, please use a cotton swab
soaked in isopropyl alcohol to clean the
socket on the front panel. When pressed
the RESET button all the memory will be
lost.
RADIO OPERATION
SWITCHING TO RADIO MODE
Press SRC button (2) to select radio
mode, the radio mode appears in the
display.
SELECTING THE RADIO BAND
At radio mode, press BAND button (5)
11
to select the desired band.
The reception band will change in
following order:
→FM1→ FM2→ FM3 → MW1(AM1)→ MW2(AM2)
SELECTING STATION
Press button (20) or button
(22) shortly to activate automatic seek
OPERATION
function. It will search up/down a station
automatically. Press for 2 seconds until
“MANUAL” appears on the display, the
manual tuning mode is selected. In this
mode you can turn up/down a step
frequency one by one till searched a
station. If both buttons have not been
pressed for 5 seconds, it will return to
seek tuning mode and “AUTO” appears
on the display.
AUTOMATIC STORING & PROGRAM
SCANNING
- Automatic storing
- Press TS button (16) for 2 seconds the
radio searches from the 87.5MHz
frequency and checks the signal
strength until one cycle search is
finished. And then 6 strong stations are
stored into the corresponding preset
number button of the FM3 band. In the
first cycle it will in LOCAL mode to
receive the stronger station. If it is less
than 6 pcs station it will searching
stations in 2nd cycle in DX mode.
- Program scanning
Press TS button (16) shortly to scan
preset station. The radio is holding at
that preset number for 5 seconds with
release mute.
STATION STORING
To received a station, Press one of the
preset button (1~6) for 2 seconds. The
current station is stored into the number
button. Shortly press the preset button
(1~6) to directly listen the station that
saved in the corresponding preset button.
RDS (RADIO DATA SYSTEM)
OPERATION
Setting RDS mode
In AF item of RDS menu rotating the audio
knob to switch on/off AF function.
Whenever AF is on, symbol “AF” appears
on the display.
Program name is displayed on receiving a
RDS station.
“AF” starts blinking if the broadcasting
signal getting worse.
“ALARM” will be displayed when an
emergency broadcasting is received,
meanwhile sound output level will be
adjusted to the preset output level
automatically when the volume control is
set at minimum.
Listening to Traffic Announcement
In TA item of the RDS menu. Rotating the
audio knob to switch on or off the TA
function. When TA mode is on and a traffic
announcement is transmitted:
When the unit was in MP3 or AUX IN mode,
it will switch temporarily to radio mode.
Temporary switch over to an EON linked
station when EON detects a traffic
announcement on that other program. If the
volume level was under the threshold point
it will be raised to the threshold point.
When TA mode is on, TA of individual
segment is turned on. When a TP station is
received, TP of individual segment is
turned on.
The current traffic announcement is
cancelled by turn the TA function to STOP
(in TA item of RDS menu, when the TA
station is not received it only has on/off. But
when received a TA station the TA item will
have on/stop/off for your selection). But the
TA mode will not be off. unwanted EON TA
12
switching, which EON TA information was
received from current station and the radio
switched to that EON linked station, but no
Information could not be received because
the EON linked station is located too far
from that area. So the radio is switched
back to current station again. In above
operation, a
customer listens to a wrong program or
mute sound for a while. The RDS data used
are the PI, PS, AF, TP, TA, EON and PTY
data.
PS: Program Service Name
Broadcast station name data expressed
in alphanumerically characters
OPERATION
AF: Alternative Frequencies
Frequency list of broadcasting stations
transmitting the same program
TP: Traffic Program Identification
Identification data for traffic
information-broadcasting station
TA: Traffic Announcement Identification
Identification data showing traffic
information is being transmitted or not.
EON: Enhanced Other Networks
Information
Broadcasting information on PI, AF, TP,
TA, etc, relating to networks other than
the network used for current reception.
USB PLAY OPERATION
In the front panel of the unit, there is an
USB interface (8). You can connect an USB
driver through this interface (8).
When you connect an USB driver through
the interface, the unit will search the MP3/
WMA files in the USB driver and start to
play. If in other mode, you can also press
SRC button to select USB mode.
The operation please refer to the following
instruction.
SELECTING FILE
Press button (20) or button
(22) to move to the previous file or the
followingfile. File number shows on the
display.
Hold button (20) or button (22)
to fast reverse or fast forward.
PAUSING PLAYING
Press button (15) to pause playing.
Press it again to resume play.
SCAN PLAY ALL FILES
Press SCN button (14) to play first
several seconds of each file. Press
again to stop
intro play and listen to file.
REPEATING THE SAME TRACK/FILE
There are 3 ways to repeat file as
below:
Repeat folder---Repeat one---Repeat
all.
The default mode is repeat all. Press
RPT button (13) to select one way as
above.
PLAYING ALL FILES IN RANDOM
Press RDM button (12) to play all files in
random order. Press it again to cancel
the random function.
SELECT DIRECTORY UP/DOWN
Press DIR- button (11) or DIR+ button
(10) to select previous directory or next
directory. If the MP3/WMA disc does not
contain any directory, there is no
function of pressing DIR- button (11) or
DIR+ button (10).
SELECTING FILES BY BUTTON
(17) is assigned as selection
button in MP3/WMA operation.
Press button. It is activated the
“Search file number” mode. Rotating
knob (19) to select the file number then
press MENU button to confirm. The unit
searches the selected file to play. You
13
also can select the file by following
direct numeric buttons:
1-6 button: 1-6
EQ button: 7
button : 8
button : 9
DISP button: 0.
If the file number was selected. The
unit
wait for MENU button for seconds. The
unit searches the file after few seconds,
even if the MENU button is not
pressed.
Note：
The main unit can only support the
standard USB-memory disc which is
approved by Microsoft.
USB MP3 player is not a standard
which
OPERATION
means different brand name or different
models have their own standard. So
our product cannot support every MP3
player.
When connecting an MP3 player which
has normal battery (non rechargeable
battery), you should remove the battery
from the MP3 player then connect it to
the USB interface. Otherwise, it may
cause battery burst.
TF CARD OPERATION
There is a TF card interface (24) on the
hosing (behind the front panel of the
unit). When you insert a TF card in the
TF interface, the unit will search the
MP3/WMA files and start to play. The
operation is the same with the
MP3/WMA operation described above.
If in other mode. You can also press
SRC (2) button to select SD mode.
SUPPORTED MP3/WMA DECODING
MODES
The main unit supports MP3/WMA
(Windows Media Audio) decoding modes
as below.
Standard Bit Rate
(kbps)
Supports
Mode
MPEG1 Audio
Layer 3
(44.1kHz)
32,48,64,96,
128,192,256,
320
Stereo
Windows
Media Audio
(44.1kHz)
64,96,128,192 Stereo
The USB solution can support:
1. Folder: 500 max.
2. File: 999 max.
3. Depth of folder: 8 layers
4. Size: 32 GB
CAUTION
When there are important files in the USB
device or TF card, do not connect it to the
main unit to play. Because any wrong
operation may cause files loss. And our
company assumes no responsibility for this.
BLUETOOTH OPERATION
PRE-PAIR FOR BLUETOOTH
OPERATION
(i) When use Bluetooth, please make sure
the mobile phone supports Bluetooth
function.
(ii) For the different kind of mobile phone,
Bluetooth emissive power has some
difference. To get the best conversation
quality, it is commended that the distance
between the mobile phone and the unit is
within 3m. And please don’t put any metal
object or any obstacle between the path of
the mobile phone and the unit.
14
PAIRING
1) On the mobile phone, select the
Bluetooth set up. (Please refer to the
instruction manual of your mobile phone on
how to operate Bluetooth.)
2) “CAR KIT” should appear in the list on
your mobile phone, please select “CAR
KIT” and then input password “0000”. If it
needs a password.
3) When successful paired, the BT mark
will be displayed on LCD.
Answering / rejecting an incoming
call
When there is a phone is coming in. Press
key to answer the call. Press key to
reject the call.
Hang up a call
When finished a conversation ,press
key to hang up this call.
Call out
1) Making an outgoing call
OPERATION
Press SRC key to switch to the “BT”mode.
Press and hold key. The LCD will
become BLANK. Then you can enter phone
number and press key to confirm the
dialing. (Note: If you inputted wrong
numbers. Press the key to cancel
wrong numbers.)
In front panel except there are 1~6 digit.
please note 0/7/8/9/*/# as below:
0: DSP button.
7: EQ button.
8: button.
9: button.
*: press and hold 5 key for 2 seconds.
#: press and hold 6 key for 2 seconds.
2) Redialing the last outgoing call
In BT mode. Press and hold key for 2
seconds it will redial the last phone number.
Transfer the call between mobile
phone and unit
During the talking mode, you can press
button to transfer the phone call
between the mobile phone and the unit.
Bluetooth audio (A2DP function)
Press SRC button (2) it will show “BT” on
the
display. Then turn on the music player of
your mobile phone and playing a song. The
sound will come out from the speaker of the
unit. Press key (15) of the front panel
of the unit to pause/play the song. Press
button (20) or button (22) to select
next/previous song.
15

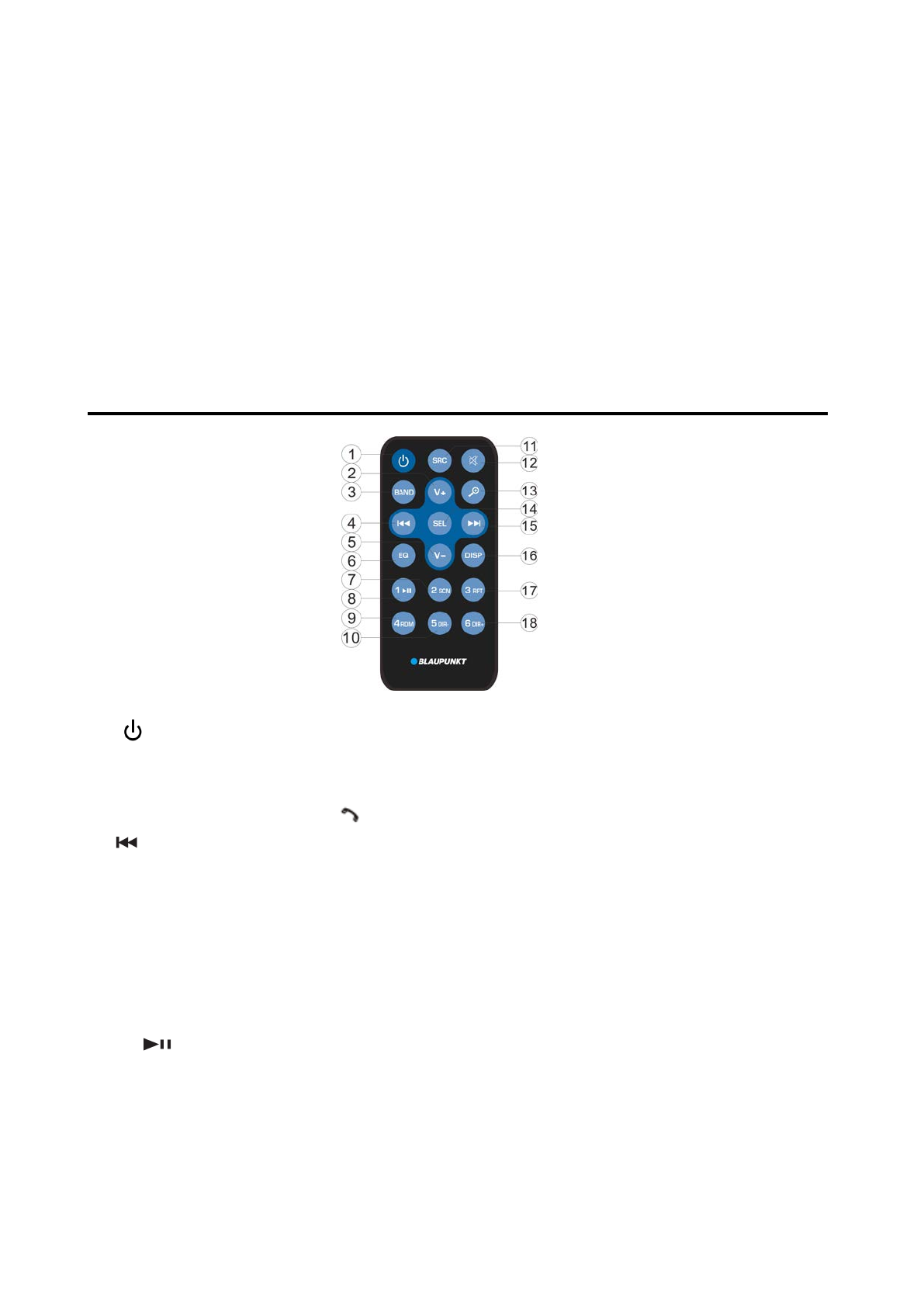

REMOTE CONTROL HANDSET
FUNCTION KEY & CONTROL
1. : Power ON/OFF Button.
2. VOL+: Volume up button.
3. BAND: To select FM1/FM2/FM3/MW1/MW2 band in RADIO mode.
It is key in BT mode.
1. : In RADIO mode: Press it shortly for seek down function. Press
and hold it for manual turn down.
In MP3/WMA mode: Press it shortly for skip previous one file.
Press and hold it for fast reverse.
5. VOL- : Volume down button.
6. EQ: It is EQ button.
7. 2 SCN: In RADIO mode: Number 2. See page 11 STATION STORING.
In MP3/WMA mode: Press it turn on/off SCANNING function.
8. 1 : In RADIO mode: Number 1. See page 11 STATION STORING.
In MP3/WMA mode: Press to pause/resume playing.
9. 4 RDM: In RADIO mode: Number 4. See page 11 STATION STORING.
In MP3/WMA mode: turn on/off random function.
10. 5 DIR-: In RADIO mode: Number 5. See page 11 STATION STORING.
In MP3/WMA mode: Press it back to previous folder.
16
11. SRC: It is SRC/ key. When no coming call, it is SRC function. When
incoming a call or finish a call. It is key.
12. : Press it to mute/recover the sound.
13. : In RADIO mode: It is TS function (See page 11).
In MP3/WMA mode: It is file searching function. (See page 12).
In BT mode. It’s function please reference page 14: Call out.
14. SEL: It is same as MENU button. Reference page 9.
REMOTE CONTROL HANDSET
15. : In RADIO mode: Press it shortly for seek up function. Press
and hold it for manual turn up.
16. DISP: Press DISP to show the time.
17. 3 RPT: In RADIO mode: Number 3. See page 11 STATION STORING.
In MP3/WMA mode: Press it turn on/off repeat function.
18. 6 DIR+: In RADIO mode: Number 6. See page 11 STATION STORING.
In MP3/WMA mode: Press it to next folder.
SPECIFICATION
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 97 (D) x 50 (H)
Tone Controls
- Bass (at 100 Hz) : ±10 dB
- Treble (at 10 kHz) : ±10 dB
Maximum Output Power : 4x40 watts
Current Drain : 10 Ampere (max.) (For Normal Power Version)
RADIO
FM
Frequency Coverage 87.5 to 108 MHz
IF 10.7 MHz
Sensitivity (S/N=30dB) 4μV
Stereo Separation >25dB
AM(MW)
Frequency Coverage 522 to 1620 kHz
IF 450 kHz
Sensitivity (S/N=20dB) 36 dBuV
17
TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems persist
after checklist has been made, consult your nearest service dealer.
Symptom
Cause
Solution
No power.
The car ignition switch is
not on.
If the power supply is
connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
The fuse is blown. Replace the fuse.
Disc cannot be
loaded or
ejected.
Presence of CD disc
inside the player.
Remove the disc in the player,
then put a new one.
Inserting the disc in reverse
direction.
Insert the compact disc with the
label facing upward.
Compact disc is extremely
dirty or detective disc.
Clean the disc or try to play a new
one.
Temperature inside the car
is too high.
Cool off or until the ambient
temperature return to normal.
Condensation.
Leave the player off for an hour or
so, then try again.
No sound.
Volume is in minimum Adjust volume to a desired level.
Wiring is not properly
connected.
Check wiring connection.
Sound skips.
The installation angle is
more than 30 degree.
Adjust the installation angle less
than 30 degree.
The disc is extremely
dirty or defective disc.
Clean the compact disc, then try to
play a new one.
The operation
keys do not
work.
The built-
in microcomputer
is not operating properly
due to noise.
Press the RESET button.
Front panel is not properly fix into
its place.
The radio does
not Work. The
radio station
automatic
selection does
not work.
The antenna cable is not
connected.
Insert the antenna cable firmly.
The signals are too weak. Select a station manually.
18
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
