OWNER’S MANUAL
Mobile Audio System
MADRID 120BT
PLL Synthesizer Stereo Radio
CD/MP3/WMA Player
Full Detachable Panel
USB/ TF Interface
3.5mm Jack Input
Bluetooth function
Electronic Shockproof (ESP) Function
2
CONTENTS
Installation ........................................... 3
Take out screw before installation ......... 3
DIN Front-Mount (Method A) ................. 3
Installing the unit ............................... 3
Removing the unit ............................. 4
DIN Rear-Mount (Method B) ................. 5
Using the detachable front panel ...... 6
Wiring Connection .............................. 7
Operation ............................................. 8
Location of keys .................................... 8
Turn on/off the unit ................................ 9
Mute ...................................................... 9
Faceplate release ................................. 9
Sound adjustment ................................. 9
REG on/off ............................................ 9
TA volume ............................................. 9
LOC on/off ............................................ 9
Stereo/mono ......................................... 9
Beep on/off ........................................... 9
AREA .................................................... 9
EQ ........................................................ 10
XBASS .................................................. 10
Display information ............................... 10
Set the time ........................................... 10
Liquid crystal display ............................. 10
ESP function ......................................... 10
Auxiliary input ...................................... 10
Reset function ....................................... 10
Radio operation .................................... 10
Switching to radio mode .................... 10
Selecting the frequency band ............ 10
Selecting station ................................ 10
Automatic memory storing& program
scanning ............................................ 11
Manually store station & recall preset
station ................................................. 11
RDS (Radio Data System )
operation ….…………………..……..11
CD/ MP3/ WMA operation ..................... 12
Switching to disc mode ......................... 12
Selecting tracks/file ............................... 12
Pausing playing ..................................... 12
Scan play all tracks/files ........................ 12
Repeating the same track/file................ 12
Playing all tracks/files in random ........... 12
Ejecting a disc ....................................... 12
Select directory
up/down.................................12
Selecting files by button ................... .12
USB play operation ............................... .13
TF operation.......................................... .13
Disc notes ............................................. .14
Bluetooth operation ............................... .14
Remote control .................................. ..17
Specification ...................................... ..19
Trouble shooting ............................... ...20
3
INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,
utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.
TAKE OUT SCREW BEFORE INSTALLATION
Before install the unit, please remove the
two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of “removing the front
panel”).

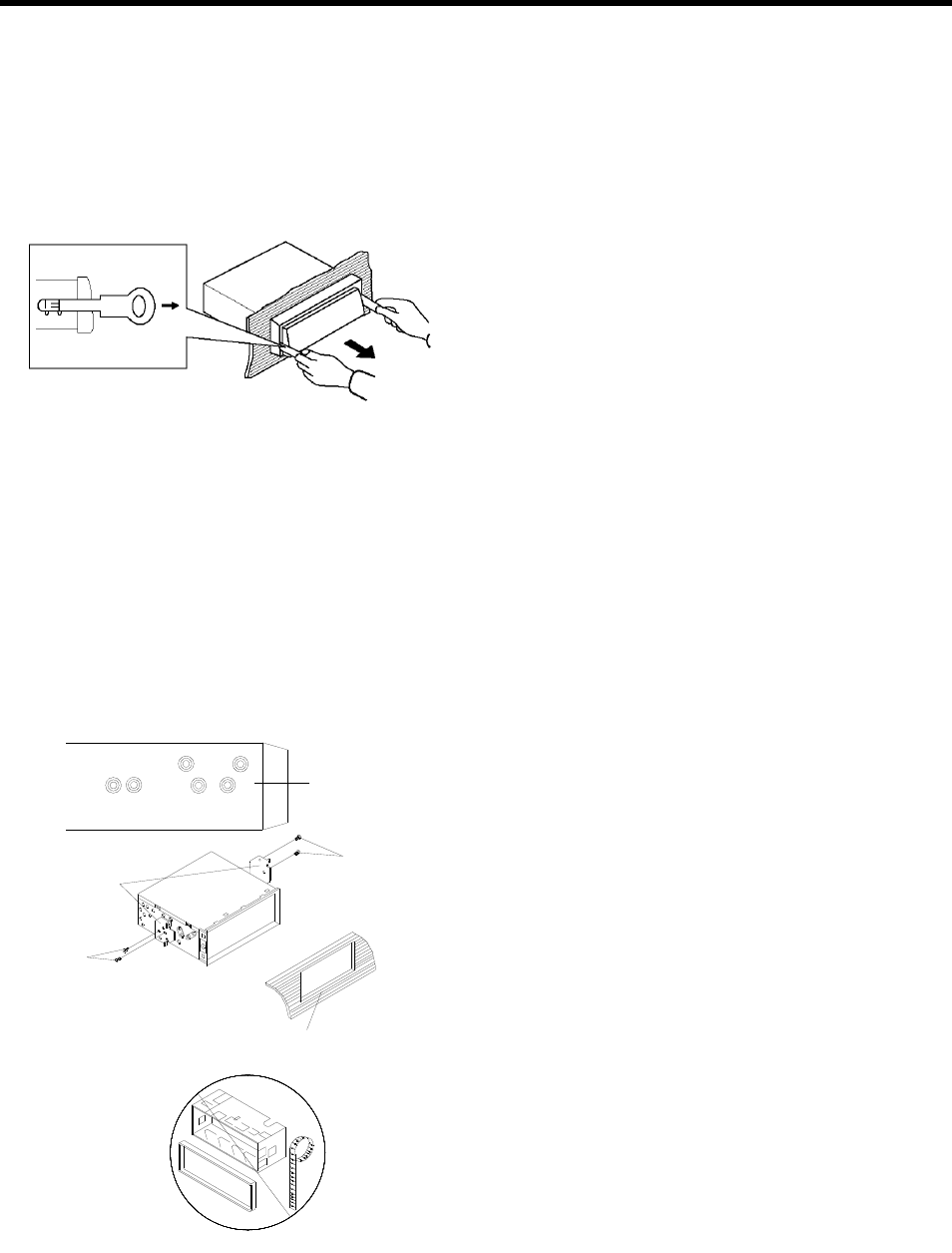

4. Lift the top of the outer trim ring then pull
it out to remove it.

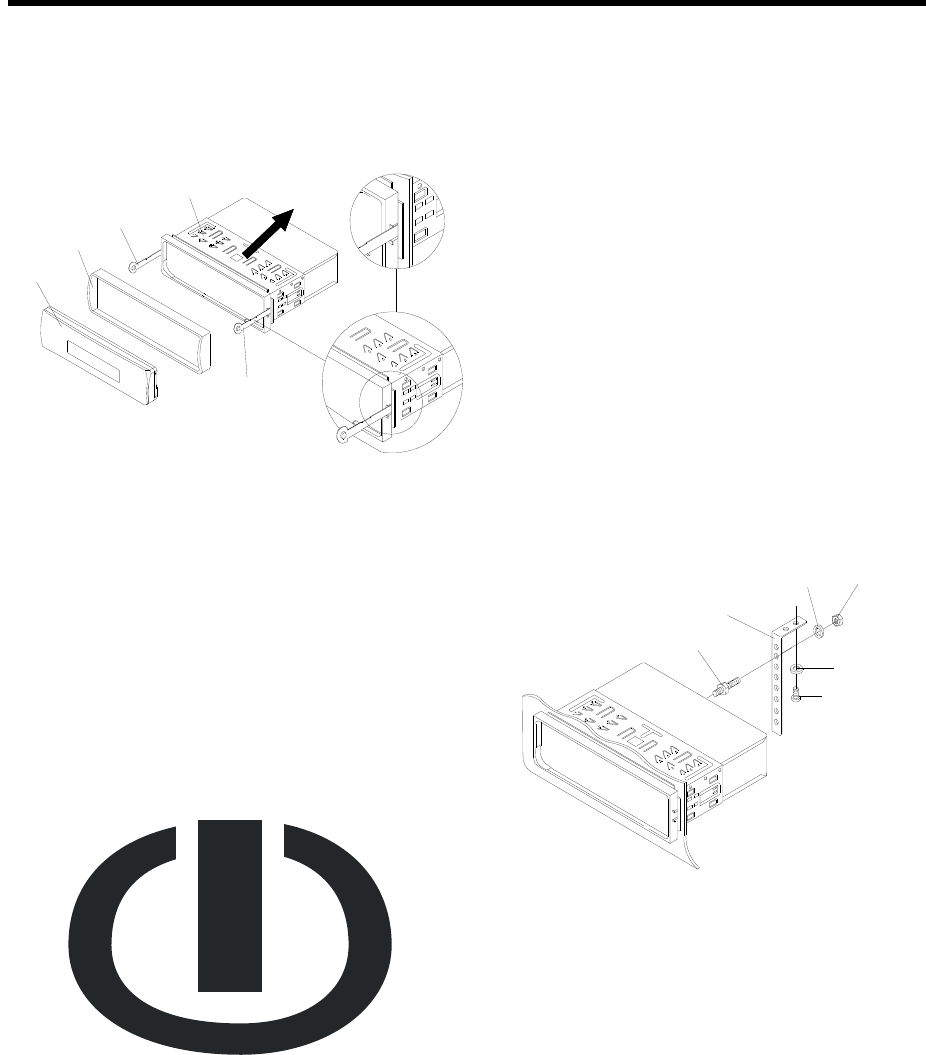

5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
30
53mm
182mm
Take out screw
before installation.
4
INSTALLATION
they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.
6. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the
sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the appropriate
tabs behind the dashboard to secure
the sleeve in place.
7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
8. Slide the unit into the sleeve until it
locks into place.
9. To further secure the unit, use the
supplied metal strap to secure the
back of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap to
the mounting bolt on the back of the unit. If
necessary, bend the metal strap to fit your
vehicle’s mounting area. Then use the
supplied hardware (Tapping Screw
(5x25mm) and Plain Washer) to attach the
other end of metal strap to a solid metal
part of the vehicle under the dashboard.
This strap also helps ensure proper
electrical grounding of the unit.
Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to the dashboard.
Mounting Bolt
Spring Washer
Plain Washer
Tapping Screw
Hex Nut
Metal Strap
10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install the
unit’s front panel (see the steps of
“installing the front panel”).
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
3. Press the release button to remove the
Outer Trim Ring
Front Panel
L Key
Sleeve
R Key
5
front panel.
INSTALLATION
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.
Dashboard or Console
Screw
Factory Radio
Mounting Bracket
Side View showing
Screw Holes marked
T, N
Screw
To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
6

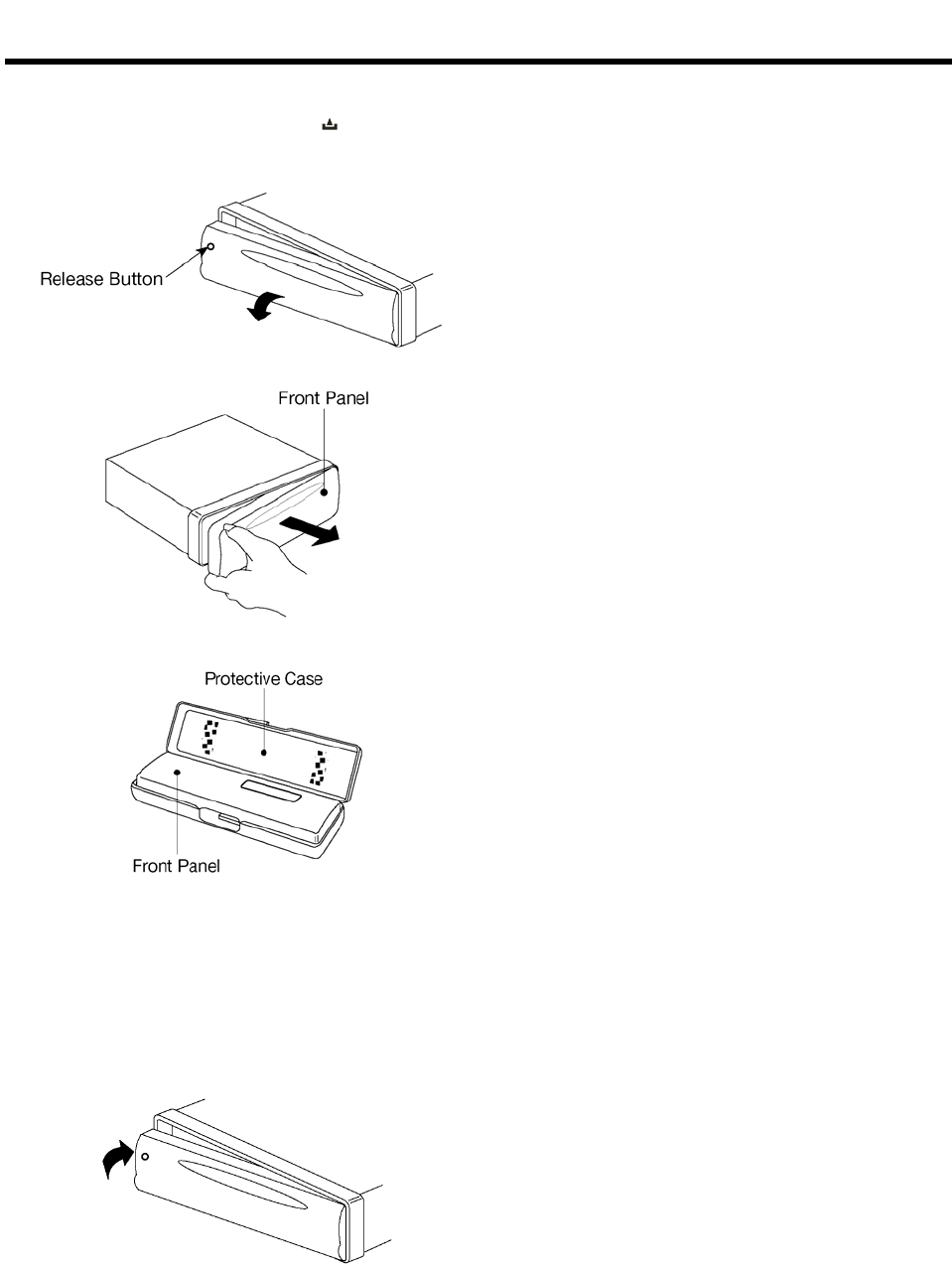

REMOVING THE FRONT PANEL
- Press the release button ( ) on the
front panel and pull off the front panel.
- Keep front panel into the case.
INSTALLING THE FRONT PANEL
To install the front panel, insert the panel
into the housing and make sure the panel is
properly installed. Otherwise, abnormality
occurs on the display or some keys will not
function properly.
Precautions when handling
- Do not drop the front panel.
- Do not put pressure on the display or
control buttons when removing or
installing the front panel.
- Do not touch the contacts on the front
panel or on the main unit body. It may
result in poor electrical contact.
- If any dirt or foreign substances
adhered on the contacts, they can be
removed with a clean and dry cloth.
- Do not expose the front panel to high
temperatures or direct sunlight in
anywhere.
- Keep away any volatile agents (e.g.
benzene, thinner, or insecticides) from
touching the surface of the front panel
- Do not attempt to disassemble the front
panel.
USING THE DETACHABLE FRONT PANEL
7

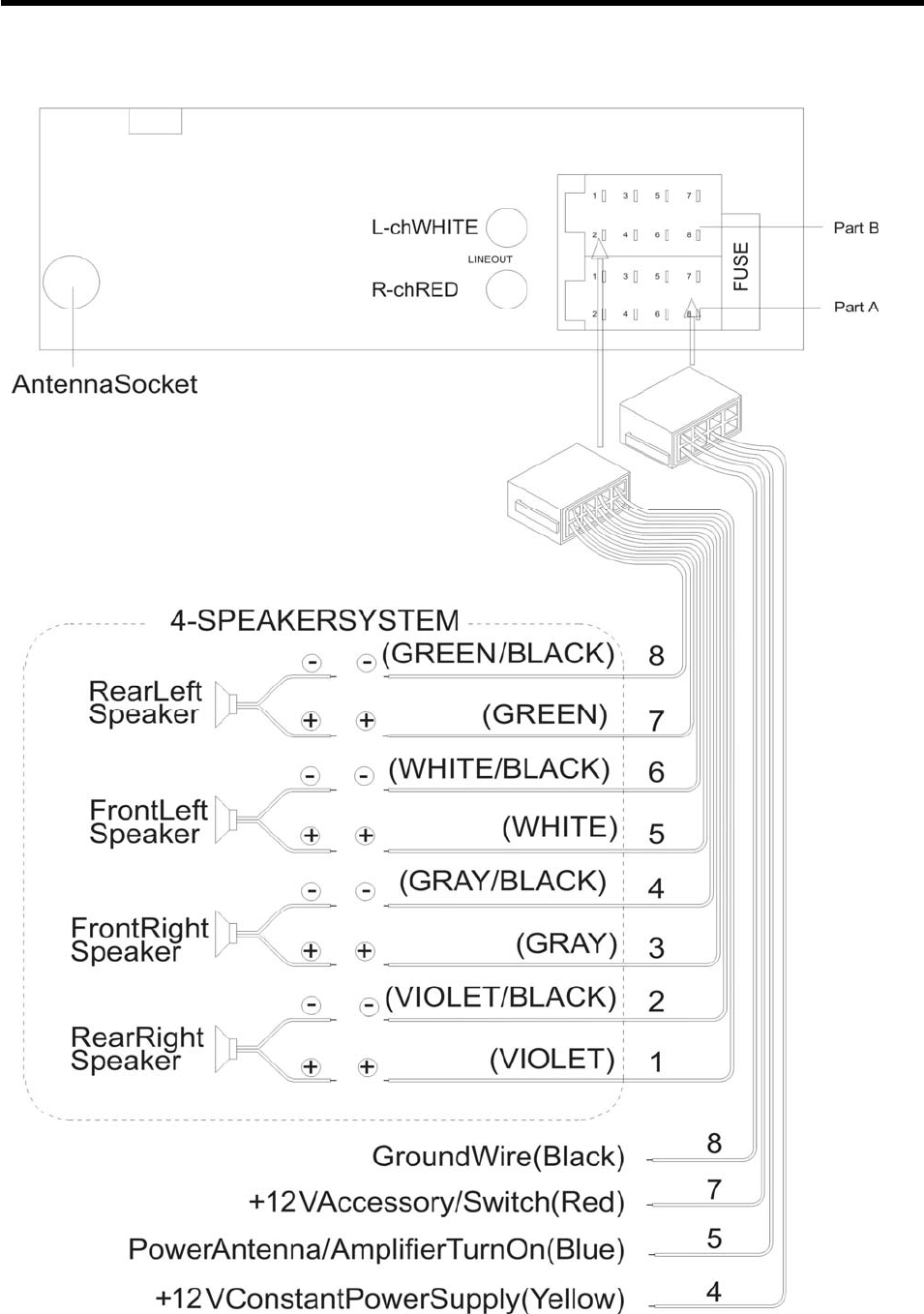

WIRING CONNECTION
ISO CONNECTION
8
OPERATION

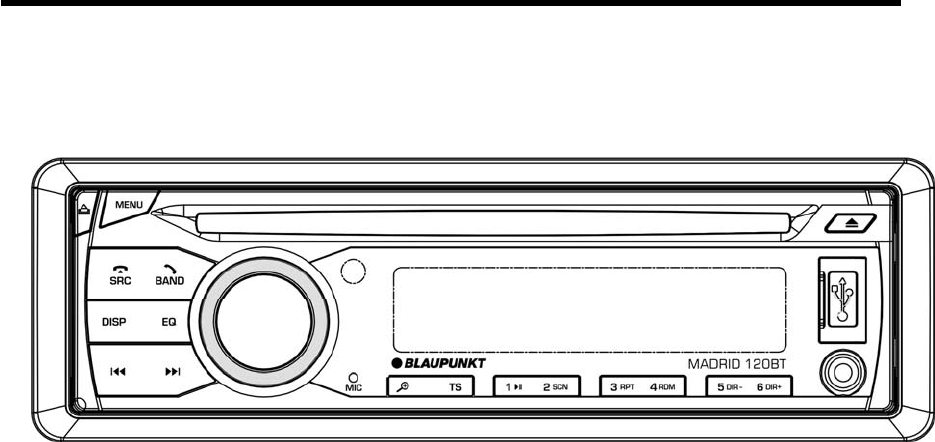

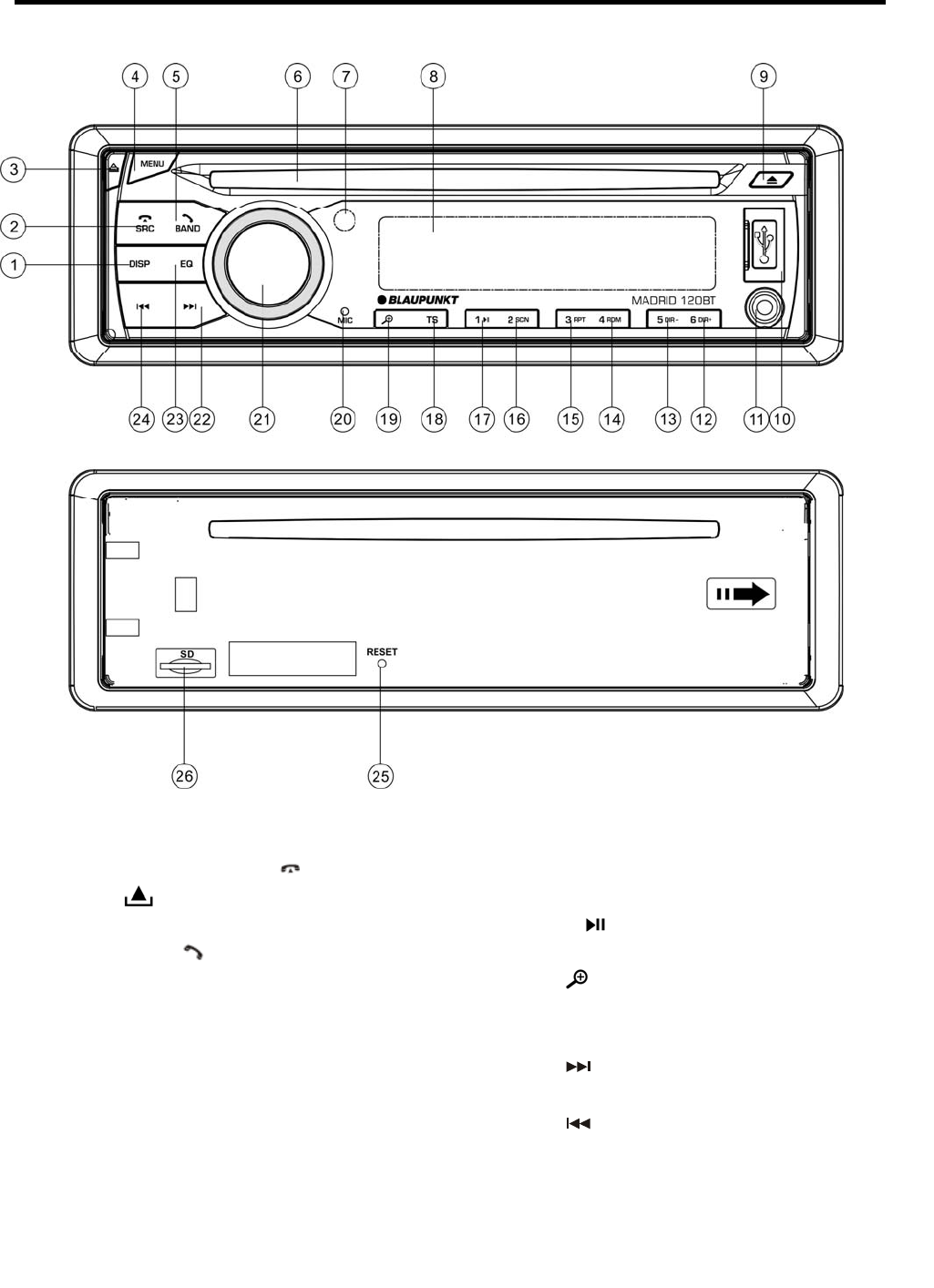

LOCATION OF KEYS
1. “DISP” button.
2. “SRC（source）”/ button.
3. “ ” (panel release) button.
4. “MENU” button.
5. “BAND/ ” button.“
6. DISC SLOT
7. IR SENSOR
8. LCD ” display.
9. EJECT button.
10. USB port
11. “AUX IN” jack.
12. “6 DIR+” button.
13. “5 DIR-” button.
14. “4 RDM” button
15. “3 RPT ” button.
16. “2 SCN ” button.
17. “1 ” button.
18. “TS” button.
19. “ ” (MP3 search)/BT menu button
20. Microphone.
21. “VOL / POWER/MUTE” button.
22. “ ”(SEEK UP) button.
23. “EQ ” button.
24. “ ”(SEEK DOWN) button.
25. RESET button.
26. TF card slot.
9
OPERATION
TURN ON/OFF THE UNIT
Turn on the unit by pressing button(21).
When system is on. Press and hold
button (21) for 2 seconds to turn off the unit.
MUTE
Shortly press MUTE button(21) to muting
the audio output. Press it again to recover
output.
FACEPLATE RELEASE
Press release button (3) to detach the
removable faceplate.
SOUND ADJUSTMENT
Press MENU button (4) shortly to select the
desired adjustment mode. The adjustment
mode will change in the following order:
-BAS-TRE-BAL-FAD- VOL-
BAS: bass
TRE: treble
BAL: balance
FAD: fader
VOL: volume
By rotating the audio knob (21) it is possible
to adjust the desired sound quality.
Press and hold MENU button (4) for 2
seconds into the system menu as below:
AF– TA – REG – TAVOL – LOC – STEREO
– BEEP – AREA
AF:
Alternative Frequencies
TA: Traffic Announcement
REG: region
TAVOL：TA volume
LOC: local
EUR: Europe
LAT: Latin
REG on/off
When AF function is on. In REG item of
the system menu you can switch it on or
off. Some broadcasting stations change
their program from normal broadcasting
to regional broadcasting for a certain
time period. When region is on, the
current listening program remains
unchanged
.
TA volume
This function allows you to define the
minimum volume for the traffic
announcements. The adjustable range is
20~43. The defaulted value
is 25. Rotate
the volume knob to adjust the volume of
the traffic.
LOC on/off
In this item rotating the audio knob (21) to
turn on/off local function. In LOC ON mode the
unit will reduce the receiving sensitivity
when you search station. That means you
can receive the station that sound is good.
It will ignores the station that sound is not
good. In LOC OFF mode it will increase the
receiving sensitivity when you search the
station. That means you can receive more
stations.
STEREO/MONO
In this item rotating the audio knob (21) to
choose STEREO or MONO mode. In STEREO
mode you can receive FM stereo signal. In
MONO mode the stereo station will be
switched to monochrome. Sometimes
when the signal is not good. If you change
it to MONO mode. The noise will be
reduced.
BEEP on/off
The car audio device is equipped with 2
beep tone modes.
Rotate
the volume
knob to choose one.
- Beep on mode:
The confirmation beep
sound is
heard whenever
a button is
pressed.
- Beep off mode:
The confirmation beep
is switched off whenever a key is pressed
AREA
In this item, rotate the volume to select
10
Europe/USA/LAT area.
OPERATION
EQ (Equalisation)
Press EQ button shortly to select the preset
EQ mode as below:
FLAT-CLASSICS-POP-ROCK-EQ OFF
XBASS
Press and hold the EQ button for 2 seconds
to active the XBASS function. Press it and
hold it again to cancel this function.
DISPLAY INFORMATION
Press DISP button (1) to show the time for
5 seconds. Then it returns to show the
information.
SET THE TIME
(1) Manual setting:
Press and hold DISP button for 2 seconds.
The hour of the time will be flashing. Press
/ button to set the correct hour.
Press DISP button shortly to change to
minute. Also use / button to set the
correct minute. After that press DISP button
to confirm.
(2) Synchronize the time from the RDS
station:
To receive a RDS station which has good
signal(The AF symbol of the LCD does not
flashing). Several minutes later the time will
be synchronized to the correct time by the
station’s signal. (Note: None RDS station
does not have this function.)
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated
functions on the display.
ESP FUNCTION
The unit can be shockproof between ten
seconds and twenty seconds.
AUXILIARY INPUT
The unit can be connected to a portable
audio player through the AUX IN jack (11).
Pressing SRC button to switch to AUX
mode when inserted an audio source to the
unit.
RESET FUNCTION
RESET button (25) must be activated with
either a ballpoint pen or thin metal object.
The RESET button is to be activated for the
following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
Note: if press RESET button (25), the unit
can’t work yet, please use a cotton swab
soaked in isopropyl alcohol to clean the
socket on the front panel.
RADIO OPERATION
SWITCHING TO RADIO MODE
Press SRC button (2) to select radio
mode, the radio mode appears in the
display together with the memory band
and frequency.
SELECTING THE RADIO BAND
At radio mode, press BAND button (5)
to select the desired band.
The reception band will change in
following order:
→FM1→ FM2→ FM3 → MW1(AM1)→ MW2(AM2)
SELECTING STATION
Press button (22) or button
(24) shortly to activate automatic seek
function. It will search up/down a station
11
automatically. Press for 2 seconds until
“MANUAL” appears on the display, the
manual tuning mode is selected. In this
OPERATION
mode you can turn up/down a step
frequency one by one till searched a
station. If both buttons have not been
pressed for 5 seconds, it will return to
seek tuning mode and “AUTO” appears
on the display.
AUTOMATIC STORING & PROGRAM
SCANNING
- Automatic storing
- Press TS button (18) for 2 seconds the
radio searches from the 87.5MHz
frequency and checks the signal
strength until one cycle search is
finished. And then some strong stations
are stored into the corresponding preset
number button of the FM3 band. In the
first cycle it will in LOCAL mode to
receive the stronger station. If it is less
than 6 pcs station it will searching
stations in 2nd cycle in LOCAL OFF
mode.
- Program scanning
Press TS button (18) shortly to scan
preset station. The radio is holding at
that preset number for 5 seconds with
release mute.
MANUALLY STORE STATION &
RECALL PRESET STATION
To received a station, Press one of the
preset button (1~6) for 2 seconds. The
current station is stored into the number
button. Shortly press the preset button
(1~6) to directly listen the station that
saved in the corresponding preset
button.
RDS (RADIO DATA SYSTEM)
OPERATION
Setting RDS mode
In AF item of system menu. Rotating
audio knob to switch on or off the AF
function.
Whenever AF is on, symbol “AF”
appears on the display.
Program name is displayed on receiving
a RDS station.
“AF” starts blinking if the broadcasting
signal getting worse.
“ALARM” will be displayed when an
emergency broadcasting is received,
meanwhile sound output level will be
adjusted to the preset output level
automatically when the volume control
is set at minimum.
Regional Program Operation
When AF function is on. In REG item of
system menu. Rotating audio knob to
turn the REG function on or off. When
AF function is off. The REG function
can’t set to off.
Some broadcasting stations change
their program from normal broadcasting
to regional broadcasting for a certain
time period. When region is on, the
current listening program remains
unchanged. When region is off, it allows
the reception moves to the regional
station.
Listening to Traffic Announcement
In TA item of system menu. Rotating
audio knob to switch on or off the TA
function. When TA mode is on and a
traffic announcement is transmitted:
When the unit was in CD (MP3) or AUX
mode, it will switch temporarily to radio
mode.
Temporary switch over to an EON linked
station when EON detects a traffic
announcement on that other program.
If the volume level was under the
threshold point it will be raised to the
threshold point.
When TA mode is on, TA of individual
segment is turned on. When a TP
station is received, TP of individual
12
segment is turned on.
TA interruption function
The current traffic announcement is
cancelled by turn the TA function to
STOP (in TA item of RDS menu, when
the TA station is not received it only has
on/off. But when received a TA station
the TA item will have on/stop/off for your
selection). But the TA mode will not be
off.
OPERATION
unwanted EON TA switching, which
EON TA information was received from
current station and the radio switched to
that EON linked station, but no
Information could not be received
because the EON linked station is
located too far from that area. So the
radio is switched back to current station
again. In above operation, a customer
listens to a wrong program or mute
sound for a while. The RDS data used
are the PI, PS, AF, TP, TA, EON and
PTY data.
PS: Program Service Name
Broadcast station name data expressed
in alphanumerically characters
AF: Alternative Frequencies
Frequency list of broadcasting stations
transmitting the same program
TP: Traffic Program Identification
Identification data for traffic
information-broadcasting station
TA: Traffic Announcement Identification
Identification data showing traffic
information is being transmitted or not.
EON: Enhanced Other Networks
Information
Broadcasting information on PI, AF, TP,
TA, etc, relating to networks other than
the network used for current reception.
CD/MP3/WMA OPERATION
SWITCHING TO DISC MODE
If there is no disc inserted in the driver:
Gently insert a disc with the printed
side uppermost into the disc
compartment until you feel some
resistance. The disc is drawn into the
driver automatically. disc playback
begins.
If a disc is already inserted in the driver:
Keep pressing SRC button (2) shortly
until the DISC mode display appears.
SELECTING TRACKS/FILE
Press button (22) or button
(24) to move to the previous track/file or
the following track/file. Track/file number
shows on the display.
Hold button (22) or button (24)
to fast reverse or fast forward. disc play
starts from when you release the button.
PAUSING PLAYING
Press button (17) to pause playing.
Press it again to resume play.
SCAN PLAY ALL TRACKS/FILES
Press SCN button (16) to play first
several seconds of each track/file.
Press again to stop intro play and listen
to track/file.
REPEATING THE SAME TRACK/FILE
Press RPT button (15) to continuously
repeat the same track/file. Press it again
to repeat all the tracks/files.
PLAYING ALL TRACKS IN RANDOM
Press RDM button (14) to play all tracks
/files in random order. Press it again to
cancel the random function.
EJECTING A DISC
Press button (9) to stop disc playing
and eject the disc from the disc slot (6).
SELECT DIRECTORY UP/DOWN
Press DIR-button (13) or DIR+ button
(12) to select previous directory or next
directory. If the MP3/WMA disc does not
contain any directory, there is no
function of pressing DIR- button (13) or
13
DIR+ button (12).
SELECTING FILES BY BUTTON
(19) is assigned as selection
button in MP3/WMA operation.
When pressed, it is activated the
selecting each mode as below:
Search from folder. => Search file
number.
Search From Folder
Press button for one time. It
enter into “Searching from folder”
mode. Rotating the VOL knob to
select desired folder. After that
press
OPERATION
MENU knob (4) to enter the folder.
Rotating knob (21) to select desired
file. And then press MENU knob (4)
again to play.
Press button will back to
previous folder.
Search File number
Press button for two times. It
is activated the “Search file number”
mode. Rotating knob (21) to select
the file number then press MENU
knob (4) to confirm. The unit
searches the selected file to play.
You also can enter the file’s number.
In front panel except there are 1~6
digit. please note7/8/9/0 as below:
EQ: 7
: 8
: 9
DISP: 0.
If the file number was selected.
The unit wait for seconds. The unit
searches the track after few seconds,
even if the MENU (4) button is not
pressed.
USB PLAY OPERATION
In the front panel of the unit, there is an
USB interface (10). You can connect an
USB driver through this interface (10).
When you connect an USB driver through
the interface, the unit will search the MP3/
WMA files in the USB driver and start to
play. If in other mode, you can also press
SRC button to select USB mode.
When playing the MP3/WMA files in the
device, the operation is the same with the
CD/MP3/WMA operation described above.
Note：
The main unit can only support the
standard USB-memory disc which is
approved by Microsoft.
USB MP3 player is not a standard
which means different brand name or
different models have their own
standard. So our product cannot
support every MP3 player.
When connecting an MP3 player which
has normal battery (non rechargeable
battery), you should remove the battery
from the MP3 player then connect it to
the USB interface. Otherwise, it may
cause battery burst.
TF OPERATION
There is a TF interface (26) on the front
panel of the unit.
When you insert a TF card in the TF
interface, the unit will search the MP3/WMA
files in the card and start to play. The
operation is the same with the
CD/MP3/WMA operation described above.
If in other mode. You can also press SRC
(1) button to select SD mode.
SUPPORTED MP3/WMA DECODING
MODES
The main unit supports MP3/WMA
14
(Windows Media Audio) decoding modes
as below.
Standard Bit Rate
(kbps)
Supports
Mode
MPEG1 Audio
Layer 3
(44.1kHz)
32,48,64,96,
128,192,256,
320
Stereo
Windows
Media Audio
(44.1kHz)
64,96,128,192 Stereo
The USB solution can support:
1. Folder: 500 max.
2. File: 999 max.
3. Depth of folder: 8 layers
4. Size: 32 GB
OPERATION
CAUTION
When there are important files in the USB
device or TF card, do not connect it to the
main unit to play. And don’t play the
CD-R/RW disc that has important files in it.
Because any wrong operation may cause
files loss. And our company assumes no
responsibility for this.
DISC NOTES
A. Notes on discs:
Attempting to use non-standard shape
discs (e.g. square, start, heart) may
1. damage the unit. Be sure to use round
shape CD discs only for this unit.
2. Do not stick paper or tape, etc, onto the
label side or the recording side of any
discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warping discs
will cause mis-operation.
B. Notes on CD-Rs (recordable
CDs)/CD-RWs (rewritable CDs):

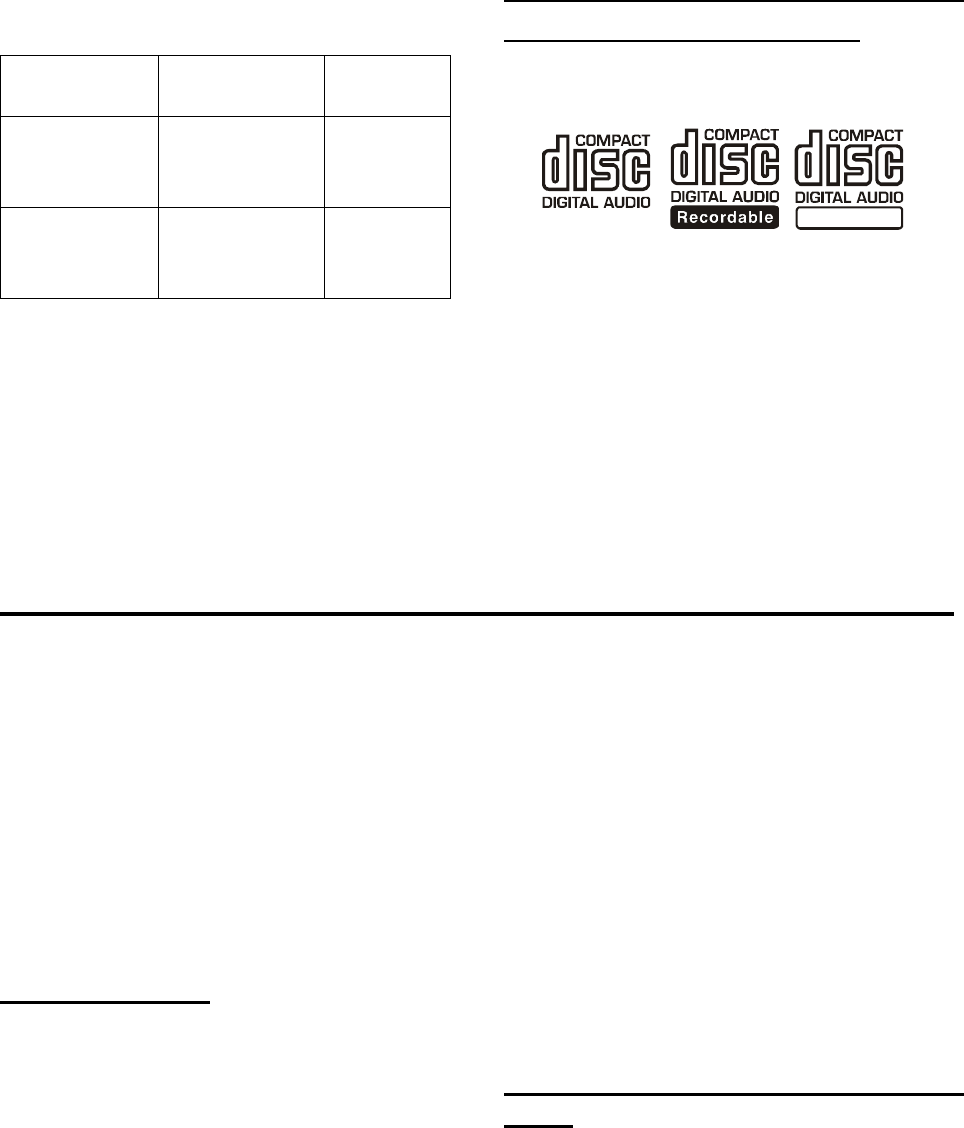

1. Be sure to use discs with following
marks only for the unit to play:
2. The unit cannot play a CD-R and
CD-RW that is not finalized. (Please
refer to the manual of your
CD-R/CD-RW recorder or
CD-R/CD-RW software for more
information on finalization process).
3. Depending on the recording status,
conditions of the disc and the
equipment used for the recording, some
CD-Rs/CD-RWs may not be played on
this unit. (see *1)
*1: To have more reliable play back, please
0
see following recommendations:
a: Use CD-RWs with speed 1x to 4x
and write with speed 1x to 2x.
b. Use CD-Rs with speed 1x to 8x and
write with speed 1x to 2x.
c. Do not play a CD-RW which has been
written for more than 5 times.
C. Notes on MP3 files (MP3 Version
Only):
1. The disc must be in the ISO9660 level 1
or level 2 format, or Joliet or Romeo in
the expansion format.
2. When naming a MP3 file, be sure the
file name extension is “.MP3”.
3. For a non-MP3 file, even though the file
name extension is “.MP3”, the unit
cannot recognize it.
ReWritable
15
BLUETOOTH OPERATION
PRE-PAIR FOR BLUETOOTH
OPERATION
(i) When use Bluetooth, please make sure
the mobile phone supports Bluetooth
function.
(ii) For the different kind of mobile phone,
Bluetooth emissive power has some
difference. To get the best conversation
quality, it is commended that the distance
between the mobile phone and the unit is
within 3m. And please don’t put any metal
object or any obstacle between the path of
the mobile phone and the unit.
PAIRING
1) On the mobile phone, select the
Bluetooth set up. (Please refer to the
instruction manual of your mobile phone on
how to operate Bluetooth.)
2) “CAR KIT” should appear in the list on
your
OPERATION
mobile phone, please select “CAR KIT”
and then input password “0000”. If it needs
a password.
3) When successful paired, the BT mark
will be displayed on LCD.
Answering / rejecting an incoming
call
When there is a phone is coming in. Press
key to answer the call. Press key to
reject the call.
Hang up a call
When finished a conversation ,press
key to hang up this call.
Checking phone book / received /
dialed / missed call (for Android and
Iphone mobile)
Press SRC key it will show “PHONE” on
the display. press button it will
show BOOK on the LCD. Then
repeatedly press it will show items as
below:
BOOK---RECEIVED---DIALED---MISSE
D---PHONE
In each item you can use button or
button to check corresponding
number.
Note: In the first time your mobile will
receive a message that the unit will visit
your mobile through Bluetooth. You have
to agree and press “YES” to confirm.
(Note: It is necessary the phone number is
in the phone not in the SIM card).
Call out
1) Making an outgoing call by inputting
the phone number manually.
Press SRC key it will show “PHONE” on the
display. Press and hold key. The
LCD will become BLANK. Then you can
enter phone number and press key to
confirm
the dialing. (Note: If you inputted wrong
numbers. Press the key to cancel
wrong numbers.)
In front panel except there are 1~6 digit.
please note 0/7/8/9/*/# as below:
0: DISP button.
7: EQ
8:
9:
*: press and hold 5 key for 2 seconds.
#: press and hold 6 key for 2 seconds.
1) Redialing an outgoing call
Press SRC key it will show “PHONE” on the
16
display. Press and hold key for 2
seconds it will redial the last phone number.
2) Making an outgoing call from the
phone book / received / dialed /
missed call (for Android and
Iphone mobile)
- Please reference “Checking phone
book / received / dialed / missed
call” item then select a phone number.
Press key to dial.
Note: If there are 2 pcs of SIM card in
your mobile phone. When you dial out
a call from the front panel of the unit.
The call will be dialed out from the
default card (or asking using which
card each time dial out).
Transfer the call between mobile
phone and unit
During the talking mode, you can press
button (19) to transfer the phone call
between the mobile phone and the unit.
Bluetooth audio (A2DP function)
Press SRC button (2) it will show “PHONE”
on the display. Then turn on the music
player of your mobile phone and playing a
song. The sound will come out from the
speaker of the
OPERATION
unit. Press key (22) of the front panel
of the unit to pause/play the song. Press
button (22) or button (24) to select
next/previous song.
Connect/disconnect bluetooth
Press and hold SRC button for 2 seconds
to connect/disconnect bluetooth.
17

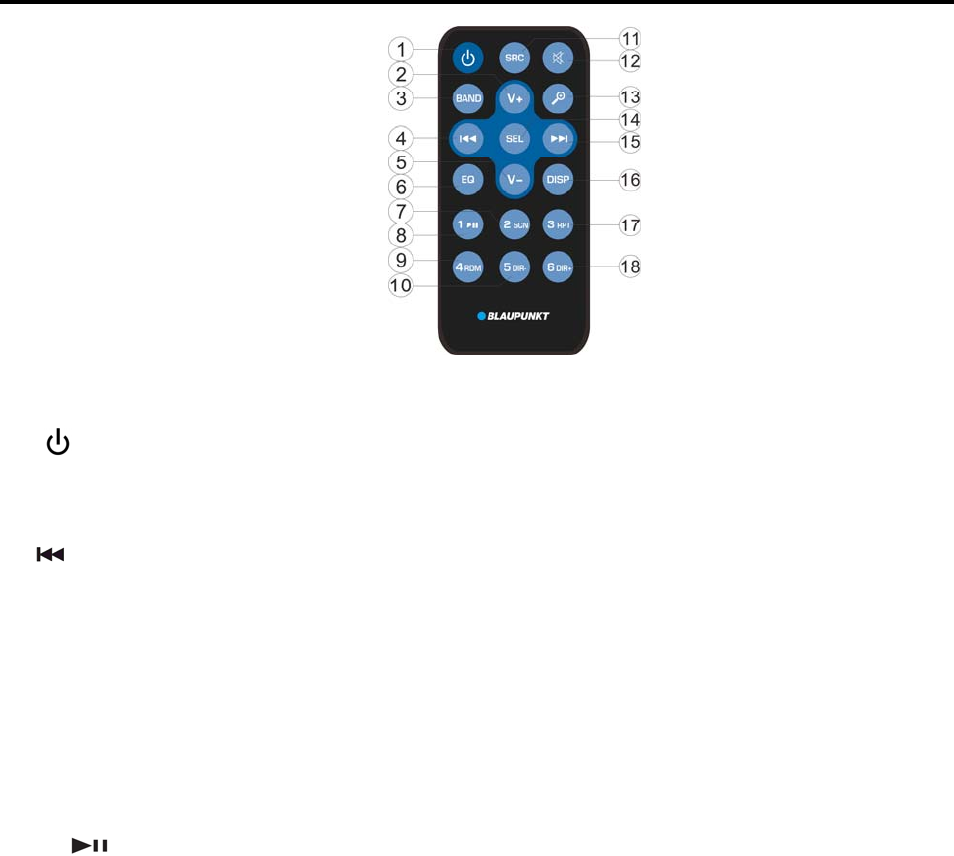

REMOTE CONTROL HANDSET
FUNCTION KEY & CONTROL
1. : Power ON/OFF Button.
2. VOL+: Volume up button.
3. BAND: To select FM1/FM2/FM3/AM1/AM2 band in RADIO mode.
4. : In RADIO mode: Press it shortly for seek down function. Press
and hold it for manual turn down.
In CD/MP3/WMA mode: Press it shortly for skip previous one
track/file. Press and hold it for fast reverse.
5. VOL- : Volume down button.
6. EQ: It is EQ button.
7. 2 SCN: In RADIO mode: Number 2. See page 11 MANUALLY STORE
STATION & RECALL PRESET STATION.
In CD/MP3/WMA mode: Press it turn on/off SCANNING function.
8. 1 : In RADIO mode: Number 1. See page 11 MANUALLY STORE
STATION & RECALL PRESET STATION.
In CD/MP3/WMA mode: Press to pause/resume playing.
9. 4 RDM: In RADIO mode: Number 4. See page 11 MANUALLY STORE
18
STATION & RECALL PRESET STATION.
In CD/MP3/WMA mode: turn on/off random function.
10. 5 DIR-: In RADIO mode: Number 5. See page 11 MANUALLY STORE
STATION & RECALL PRESET STATION.
In MP3/WMA mode: Press it back to previous folder.
11. SRC: It is SRC/ key. When no coming call, it is SRC function. When
incoming a call or finish a call. It is key.
12. : Press it to mute/recover the sound.
13. : In RADIO mode: It is TS function. See page 11 AUTOMATIC
STORING & PROGRAM SCANNING
REMOTE CONTROL HANDSET
In MP3/WMA mode: It is file searching function. (See page 12).
In PHONE mode. Its function seeing page 15 BLUETOOTH
OPERATION
14. SEL: Press it shortly for audio menu. Press and hold for system menu
(See page 9). In MP3/WMA searching mode press it for confirm
function （See page 13）.
15. : In RADIO mode: Press it shortly for seek down function. Press
and hold it for manual turn up.
In CD/MP3/WMA mode: Press it shortly for skip next one
track/file. Press and hold it for fast forward.
16. DISP: Press DISP to show the time.
17. 3 RPT: In RADIO mode: Number 3. See page 11 MANUALLY STORE
STATION & RECALL PRESET STATION.
In CD/MP3/WMA mode: Press it turn on/off repeat function.
18. 6 DIR+: In RADIO mode: Number 6. See page 11 MANUALLY STORE
STATION & RECALL PRESET STATION.
In MP3/WMA mode: Press it to next folder.
19
SPECIFICATION
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 160 (D) x 50 (H)
Tone Controls
- Bass (at 100 Hz) : ±10 dB
- Treble (at 10 kHz) : ±10 dB
- Maximum Output Power : 4x40 watts
- Current Drain : 10 Ampere (max.) (For Normal Power Version)
CD PLAYER
Signal to Noise Ratio : More than 55 dB
Channel Separation : More than 45 dB
Frequency Response : 40Hz – 18 kHz
RADIO
FM
Frequency Coverage 87.5 to 108 MHz
IF 10.7 MHz
Sensitivity (S/N=30dB) 4μV
Stereo Separation >25dB
AM(MW)
Frequency Coverage 522 to 1620 kHz
IF 450 kHz
Sensitivity (S/N=20dB) 36 dBuV
20
TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems persist
after checklist has been made, consult your nearest service dealer.
Symptom Cause Solution
No power. The car ignition switch is
not on.
If the power supply is
connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
The fuse is blown. Replace the fuse.
Disc cannot be
loaded or
ejected.
Presence of CD disc
inside the player.
Remove the disc in the player,
then put a new one.
Inserting the disc in reverse
direction.
Insert the compact disc with the
label facing upward.
Compact disc is extremely
dirty or detective disc.
Clean the disc or try to play a new
one.
Temperature inside the car
is too high.
Cool off or until the ambient
temperature return to normal.
Condensation. Leave the player off for an hour or
so, then try again.
No sound. Volume is in minimum Adjust volume to a desired level.
Wiring is not properly
connected.
Check wiring connection.
Sound skips. The installation angle is
more than 30 degree.
Adjust the installation angle less
than 30 degree.
The disc is extremely
dirty or defective disc.
Clean the compact disc, then try to
play a new one.
The operation
keys do not
The built-in microcomputer
is not operating properly
Press the RESET button.
Front panel is not properly fix into
21
work. due to noise. its place.
The radio does
not Work. The
radio station
automatic
selection does
not work.
The antenna cable is not
connected.
Insert the antenna cable firmly.
The signals are too weak. Select a station manually.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
