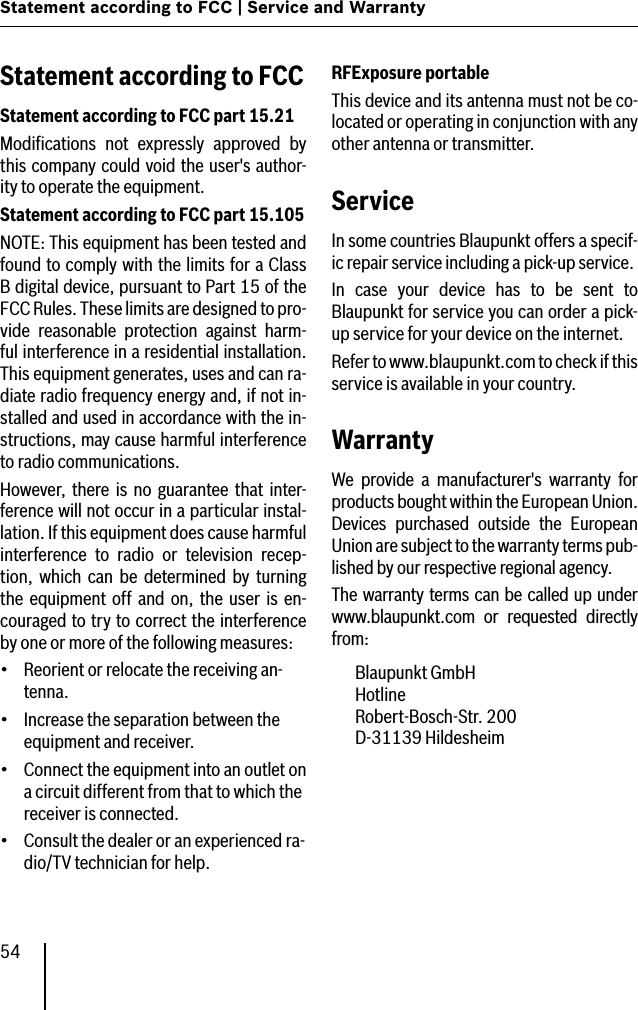

54Statement according to FCC | Service and WarrantyStatement according to FCCStatement according to FCC part 15.21Modifications not expressly approved by this company could void the user's author-ity to operate the equipment.Statement according to FCC part 15.105NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harm-ful interference in a residential installation. This equipment generates, uses and can ra-diate radio frequency energy and, if not in-stalled and used in accordance with the in-structions, may cause harmful interference to radio communications.However, there is no guarantee that inter-ference will not occur in a particular instal-lation. If this equipment does cause harmful interference to radio or television recep-tion, which can be determined by turning the equipment off and on, the user is en-couraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving an-tenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced ra-dio/TV technician for help.••••RFExposure portableThis device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.ServiceIn some countries Blaupunkt offers a specif-ic repair service including a pick-up service.In case your device has to be sent to Blaupunkt for service you can order a pick-up service for your device on the internet.Refer to www.blaupunkt.com to check if this service is available in your country.WarrantyWe provide a manufacturer's warranty for products bought within the European Union. Devices purchased outside the European Union are subject to the warranty terms pub-lished by our respective regional agency.The warranty terms can be called up under www.blaupunkt.com or requested directly from: Blaupunkt GmbH Hotline Robert-Bosch-Str. 200 D-31139 Hildesheim

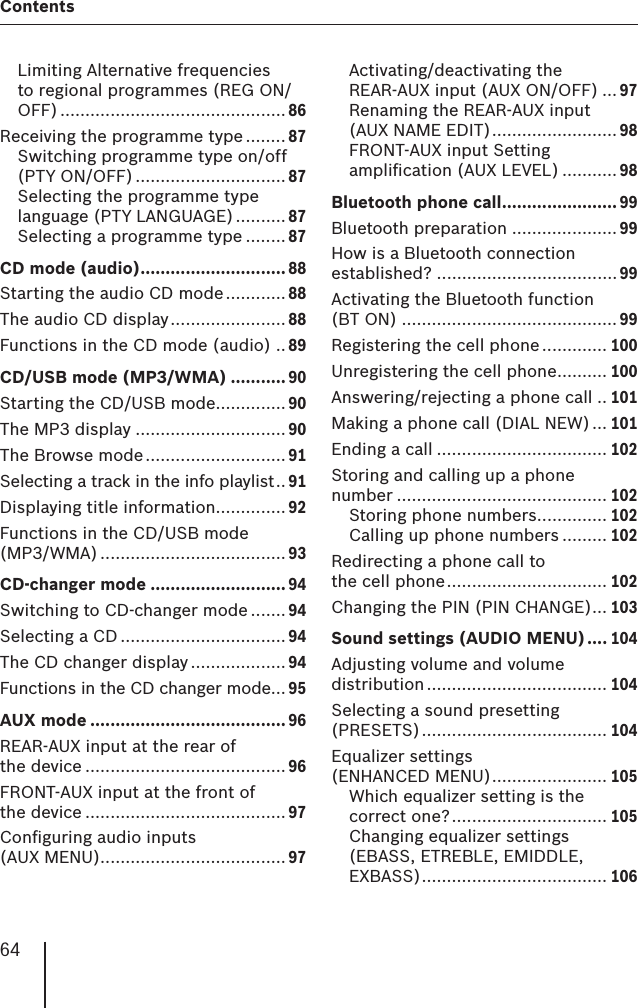

63 ContentsENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAContentsAbout these instructions ................ 66Symbols used .................................. 66Use as directed ................................ 66Declaration of conformity ................ 66Safety Notes .................................... 67If you are installing device yourself .. 67Observe the following! .................... 67Cleaning notes ................................. 68Disposal note ..................................68Scope of delivery ............................ 69Device description .......................... 70What can the device do? ................. 70Controls ........................................... 70Theft protection .............................. 72Device card ...................................... 72Displaying the serial number ...........72Detaching/attaching the control panel ................................................ 72Startup ............................................ 73USB port .......................................... 73Connecting the USB cable ........... 73Connecting the USB medium ....... 73What characteristics do USB media have to have? ..................... 73Selecting the USB as audio source .......................................... 74Handling CDs ................................... 74What features do MP3 or WMA CDs have to have? ............................... 75Inserting and removing a CD ........ 75Selecting the CD as audio source .. 76Switching the device on/off ............. 76Adjusting the volume .......................76Muting the device ............................ 77Changing the switch-off time (OFF TIMER) .................................... 77Resetting the device (NORMSET) .... 77Overview of the operation.............. 78Buttons for menu operation ............78The functions of the audio sources... 79The displays of the audio sources ... 80Tuner mode ..................................... 82Set the device to the region Europe, USA or Thailand .................. 82Starting the tuner mode (BAND) ..... 82The tuner display ............................. 82Setting the waveband/memory bank ................................................. 82Tuning into a station ........................83Station seek tuning ...................... 83Tuning into stations manually ....... 83Selecting stored stations ............. 83Storing stations ............................... 84Storing stations manually ............. 84Searching and storing stations automatically (TRAVELSTORE) ..... 84Changing the seek tuning sensitivity (SENSITIVITY) .................................. 84Scanning all receivable stations (SCAN) ............................................. 85Receiving traffi c announcements ..... 85Switching the priority of traffi c reports on/off .............................. 85Skipping a traffi c announcement .. 86Receiving an alternative frequency of a station ....................................... 86Allowing/preventing alternative frequencies (RDS ON/OFF) .......... 86
64ContentsLimiting Alternative frequencies to regional programmes (REG ON/OFF) ............................................. 86Receiving the programme type ........ 87Switching programme type on/off (PTY ON/OFF) .............................. 87Selecting the programme type language (PTY LANGUAGE) .......... 87Selecting a programme type ........ 87CD mode (audio) ............................. 88Starting the audio CD mode ............ 88The audio CD display ....................... 88Functions in the CD mode (audio) .. 89CD/USB mode (MP3/WMA) ........... 90Starting the CD/USB mode .............. 90The MP3 display .............................. 90The Browse mode ............................ 91Selecting a track in the info playlist .. 91Displaying title information.............. 92Functions in the CD/USB mode (MP3/WMA) ..................................... 93CD-changer mode ........................... 94Switching to CD-changer mode .......94Selecting a CD ................................. 94The CD changer display ................... 94Functions in the CD changer mode... 95AUX mode ....................................... 96REAR-AUX input at the rear of the device ........................................96FRONT-AUX input at the front of the device ........................................97Confi guring audio inputs (AUX MENU) ..................................... 97Activating/deactivating the REAR-AUX input (AUX ON/OFF) ... 97Renaming the REAR-AUX input (AUX NAME EDIT) ......................... 98FRONT-AUX input Setting amplifi cation (AUX LEVEL) ........... 98Bluetooth phone call ....................... 99Bluetooth preparation ..................... 99How is a Bluetooth connection established? .................................... 99Activating the Bluetooth function (BT ON) ...........................................99Registering the cell phone ............. 100Unregistering the cell phone .......... 100Answering/rejecting a phone call .. 101Making a phone call (DIAL NEW) ... 101Ending a call .................................. 102Storing and calling up a phone number .......................................... 102Storing phone numbers .............. 102Calling up phone numbers ......... 102Redirecting a phone call to the cell phone ................................ 102Changing the PIN (PIN CHANGE) ... 103Sound settings (AUDIO MENU) .... 104Adjusting volume and volume distribution .................................... 104Selecting a sound presetting (PRESETS) ..................................... 104Equalizer settings (ENHANCED MENU) ....................... 105Which equalizer setting is the correct one? ............................... 105Changing equalizer settings (EBASS, ETREBLE, EMIDDLE, EXBASS) ..................................... 106
65 ContentsENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAUser settings ................................. 107Changing the welcome text (ON MESSAGE) .............................. 107Changing the clock settings (CLOCK MENU) .............................. 107Switching time display on/off .... 108Selecting 12h/24h time display (12HR/24HR MODE) .................. 108Setting the clock ........................ 108Changing volume presettings (VOLUME MENU) ........................... 109Changing the presetting of the power-on volume (ON VOLUME/LAST VOLUME) ........................... 109Changing volume presettings for TA, TEL and MUTE ................. 109Activating/deactivating the signal tone (BEEP ON/OFF) ....... 110Setting the speed-dependent volume increase (AUTO SOUND) .. 110Changing display settings (DISPLAY MENU)............................ 111Adjusting the display viewing angle (ANGLE ADJ) .................... 111Changing the day/night brightness (DIM DAY/DAY NIGHT) ................ 111Changing the scan time (SCAN TIME) .................................. 112Additional settings........................ 113Confi guring the preamplifi er output for the subwoofer (SUBOUT) ......... 113Activating/deactivating demo mode .............................................. 113Error correction ............................ 114Technical data ............................... 115Service .......................................... 116Warranty ....................................... 116Glossary ........................................ 117Appendix ....................................... 122A1 Factory settings ........................ 122A2 Supported Bluetoothcell phones ........................................... 122

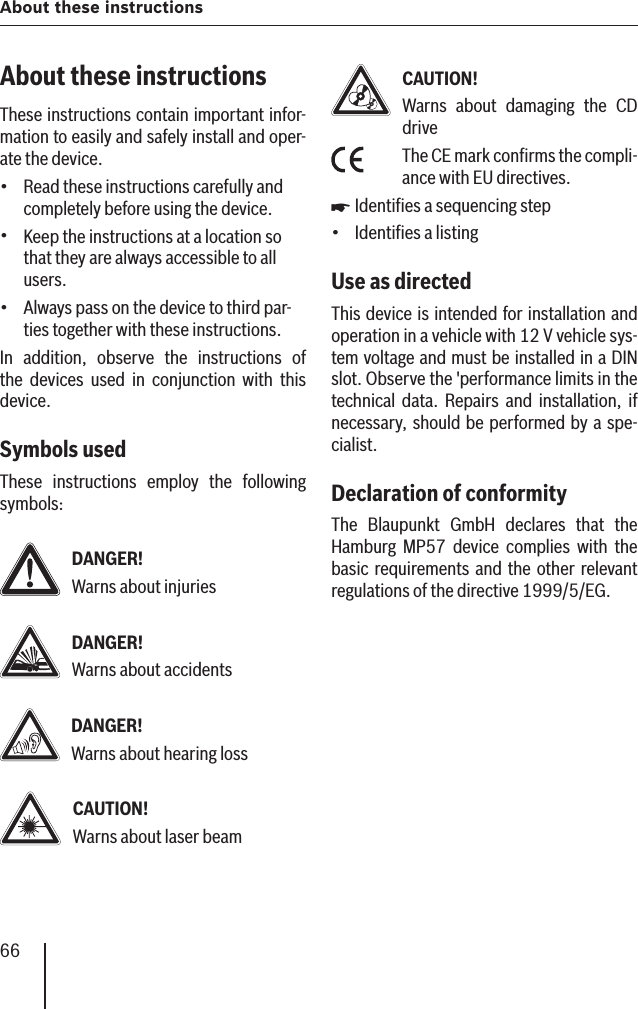

66About these instructionsAbout these instructionsThese instructions contain important infor-mation to easily and safely install and oper-ate the device.Read these instructions carefully and completely before using the device.Keep the instructions at a location so that they are always accessible to all users.Always pass on the device to third par-ties together with these instructions.In addition, observe the instructions of the devices used in conjunction with this device.Symbols usedThese instructions employ the following symbols:DANGER!Warns about injuriesDANGER!Warns about accidentsDANGER!Warns about hearing lossCAUTION!Warns about laser beam•••CAUTION!Warns about damaging the CD driveThe CE mark confi rms the compli-ance with EU directives.Identifi es a sequencing stepIdentifi es a listingUse as directed This device is intended for installation and operation in a vehicle with 12 V vehicle sys-tem voltage and must be installed in a DIN slot. Observe the 'performance limits in the technical data. Repairs and installation, if necessary, should be performed by a spe-cialist.Declaration of conformityThe Blaupunkt GmbH declares that the Hamburg MP57 device complies with the basic requirements and the other relevant regulations of the directive 1999/5/EG.쏅•

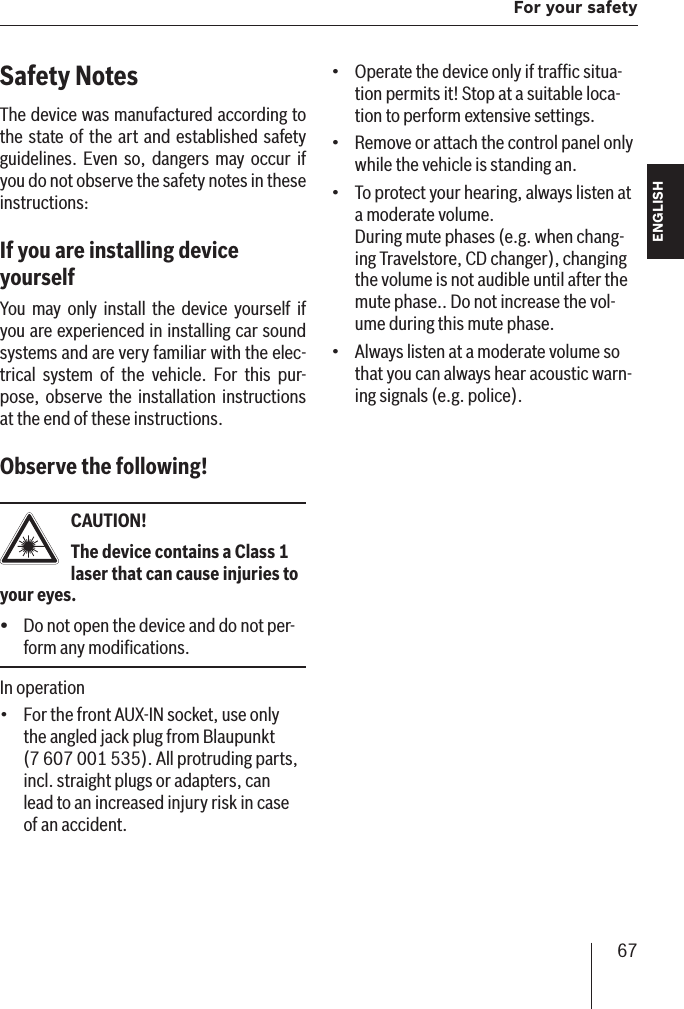

67 For your safetyENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKASafety Notes The device was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions:If you are installing device yourself You may only install the device yourself if you are experienced in installing car sound systems and are very familiar with the elec-trical system of the vehicle. For this pur-pose, observe the installation instructions at the end of these instructions.Observe the following!CAUTION!The device contains a Class 1 laser that can cause injuries to your eyes.Do not open the device and do not per-form any modifi cations.In operationFor the front AUX-IN socket, use only the angled jack plug from Blaupunkt (7 607 001 535). All protruding parts, incl. straight plugs or adapters, can lead to an increased injury risk in case of an accident.y•Operate the device only if traffi c situa-tion permits it! Stop at a suitable loca-tion to perform extensive settings.Remove or attach the control panel only while the vehicle is standing an.To protect your hearing, always listen at a moderate volume.During mute phases (e.g. when chang-ing Travelstore, CD changer), changing the volume is not audible until after the mute phase.. Do not increase the vol-ume during this mute phase.Always listen at a moderate volume so that you can always hear acoustic warn-ing signals (e.g. police).••••

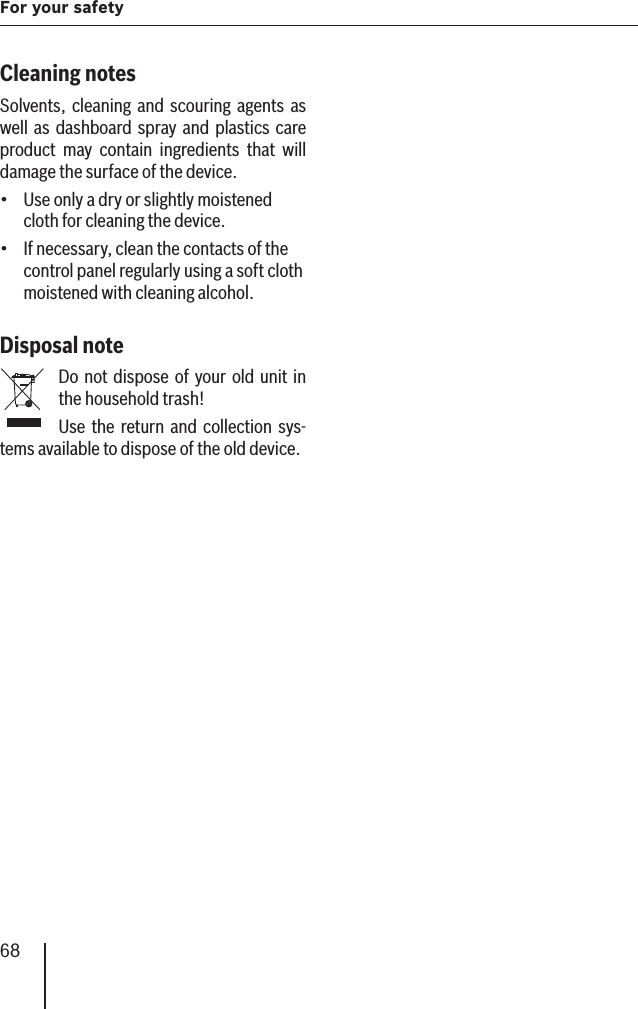

68For your safetyCleaning notes Solvents, cleaning and scouring agents as well as dashboard spray and plastics care product may contain ingredients that will damage the surface of the device.Use only a dry or slightly moistened cloth for cleaning the device.If necessary, clean the contacts of the control panel regularly using a soft cloth moistened with cleaning alcohol.Disposal note Do not dispose of your old unit in the household trash!Use the return and collection sys-tems available to dispose of the old device.••

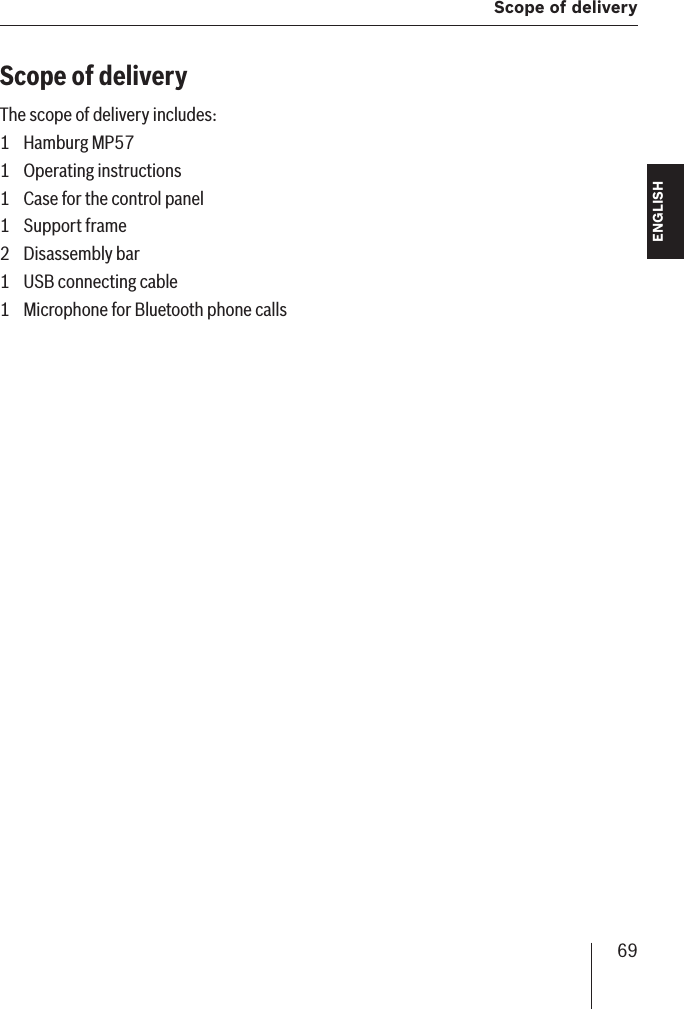

69 Scope of delivery ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAScope of deliveryThe scope of delivery includes:1 Hamburg MP571 Operating instructions1 Case for the control panel1 Support frame2 Disassembly bar1 USB connecting cable1 Microphone for Bluetooth phone calls

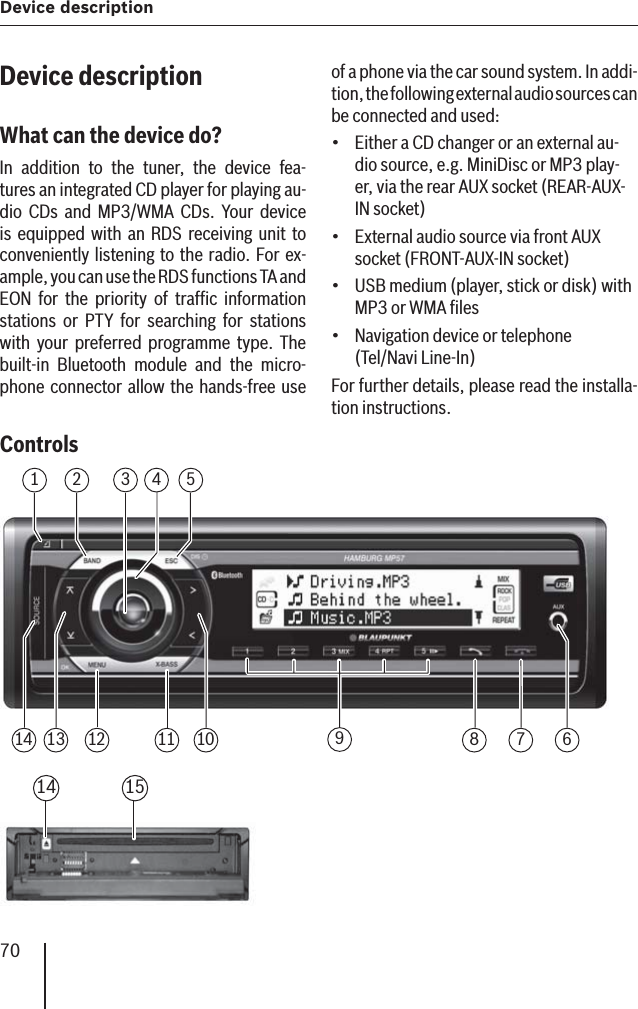

Device description70Device descriptionWhat can the device do? In addition to the tuner, the device fea-tures an integrated CD player for playing au-dio CDs and MP3/WMA CDs. Your device is equipped with an RDS receiving unit to conveniently listening to the radio. For ex-ample, you can use the RDS functions TA and EON for the priority of traffi c information stations or PTY for searching for stations with your preferred programme type. The built-in Bluetooth module and the micro-phone connector allow the hands-free use Controls 1234 56781011121314 914 15of a phone via the car sound system. In addi-tion, the following external audio sources can be connected and used:Either a CD changer or an external au-dio source, e.g. MiniDisc or MP3 play-er, via the rear AUX socket (REAR-AUX-IN socket)External audio source via front AUX socket (FRONT-AUX-IN socket)USB medium (player, stick or disk) with MP3 or WMA fi lesNavigation device or telephone (Tel/Navi Line-In)For further details, please read the installa-tion instructions.••••

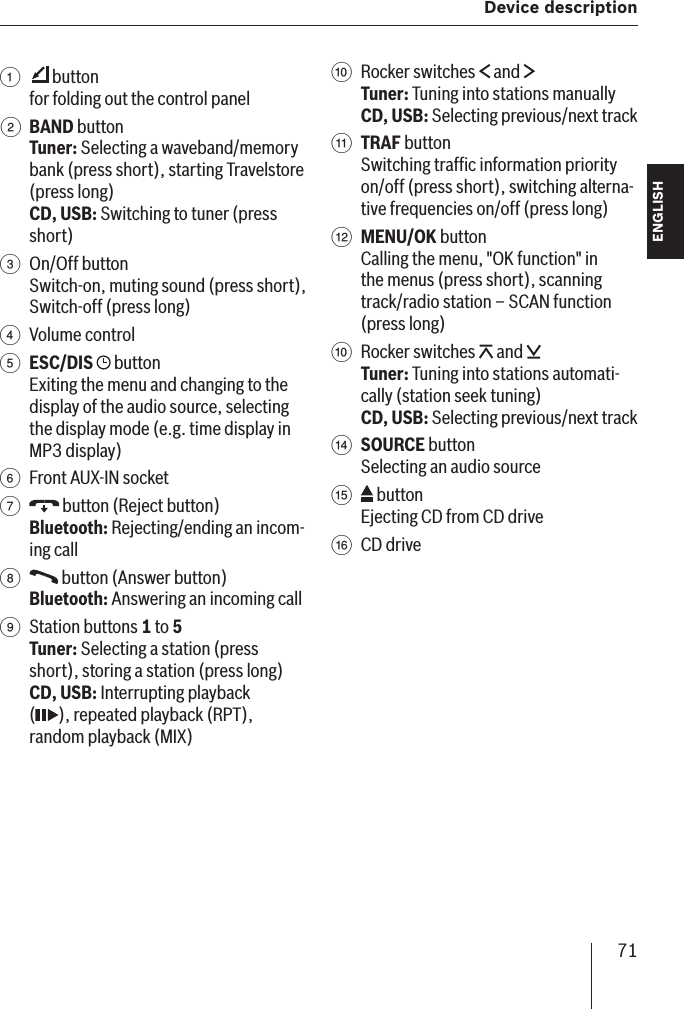

71 Device descriptionENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKA1 buttonfor folding out the control panel2 BAND buttonTuner: Selecting a waveband/memory bank (press short), starting Travelstore (press long)CD, USB: Switching to tuner (press short)3 On/Off buttonSwitch-on, muting sound (press short),Switch-off (press long)4 Volume control5 ESC/DIS buttonExiting the menu and changing to the display of the audio source, selecting the display mode (e.g. time display in MP3 display)6 Front AUX-IN socket7 button (Reject button) Bluetooth: Rejecting/ending an incom-ing call8 button (Answer button) Bluetooth: Answering an incoming call9 Station buttons 1 to 5Tuner: Selecting a station (press short), storing a station (press long)CD, USB: Interrupting playback (), repeated playback (RPT), random playback (MIX): Rocker switches and Tuner: Tuning into stations manuallyCD, USB: Selecting previous/next track; TRAF buttonSwitching traffi c information priority on/off (press short), switching alterna-tive frequencies on/off (press long)< MENU/OK buttonCalling the menu, "OK function" in the menus (press short), scanning track/radio station – SCAN function (press long): Rocker switches and Tuner: Tuning into stations automati-cally (station seek tuning)CD, USB: Selecting previous/next track> SOURCE buttonSelecting an audio source? buttonEjecting CD from CD drive@ CD drive

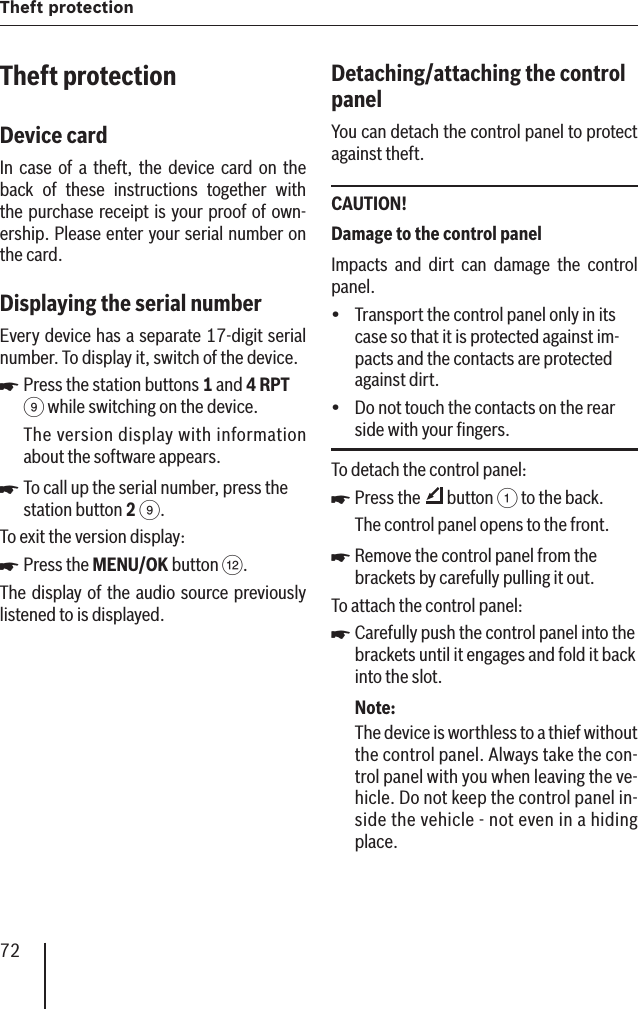

72Theft protection Theft protectionDevice card In case of a theft, the device card on the back of these instructions together with the purchase receipt is your proof of own-ership. Please enter your serial number on the card.Displaying the serial number Every device has a separate 17-digit serial number. To display it, switch of the device.Press the station buttons 1 and 4 RPT 9 while switching on the device. The version display with information about the software appears.To call up the serial number, press the station button 2 9.To exit the version display:Press the MENU/OK button <.The display of the audio source previously listened to is displayed.쏅쏅쏅Detaching/attaching the control panel You can detach the control panel to protect against theft.CAUTION!Damage to the control panel Impacts and dirt can damage the control panel.Transport the control panel only in its case so that it is protected against im-pacts and the contacts are protected against dirt.Do not touch the contacts on the rear side with your fi ngers.To detach the control panel:Press the button 1 to the back.The control panel opens to the front.Remove the control panel from the brackets by carefully pulling it out.To attach the control panel:Carefully push the control panel into the brackets until it engages and fold it back into the slot.Note:The device is worthless to a thief without the control panel. Always take the con-trol panel with you when leaving the ve-hicle. Do not keep the control panel in-side the vehicle - not even in a hiding place. yy쏅쏅쏅

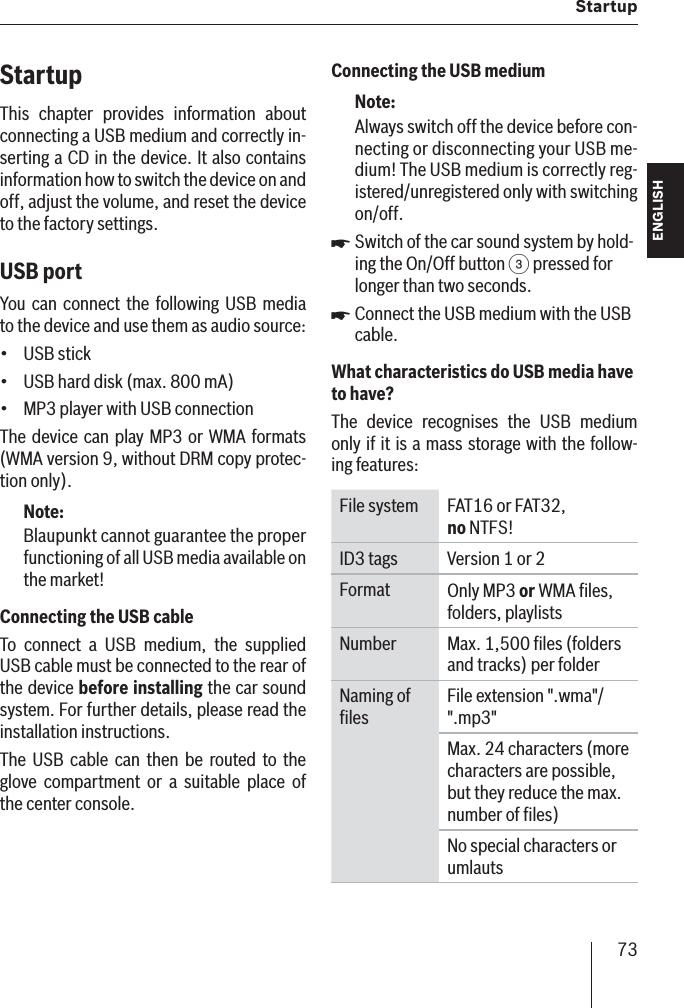

73 StartupENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAStartupThis chapter provides information about connecting a USB medium and correctly in-serting a CD in the device. It also contains information how to switch the device on and off, adjust the volume, and reset the device to the factory settings.USB port You can connect the following USB media to the device and use them as audio source:USB stickUSB hard disk (max. 800 mA)MP3 player with USB connectionThe device can play MP3 or WMA formats (WMA version 9, without DRM copy protec-tion only).Note:Blaupunkt cannot guarantee the proper functioning of all USB media available on the market!Connecting the USB cableTo connect a USB medium, the supplied USB cable must be connected to the rear of the device before installing the car sound system. For further details, please read the installation instructions.The USB cable can then be routed to the glove compartment or a suitable place of the center console.•••Connecting the USB mediumNote:Always switch off the device before con-necting or disconnecting your USB me-dium! The USB medium is correctly reg-istered/unregistered only with switching on/off.Switch of the car sound system by hold-ing the On/Off button 3 pressed for longer than two seconds.Connect the USB medium with the USB cable.What characteristics do USB media have to have? The device recognises the USB medium only if it is a mass storage with the follow-ing features:File system FAT16 or FAT32, no NTFS!ID3 tags Version 1 or 2Format Only MP3 or WMA fi les, folders, playlistsNumber Max. 1,500 fi les (folders and tracks) per folderNaming of fi lesFile extension ".wma"/".mp3"Max. 24 characters (more characters are possible, but they reduce the max. number of fi les)No special characters or umlauts쏅쏅
74StartupBit rate MP3: 32 to 320 kbps WMA: 32 to 192 kbpsUnder Windows 2000/XP, the FAT32 for-matting creates a maximum partition size of 32 GB. If you are using a USB medium with more than 32 GB, it may result in read errors for additional partitions.If a large number of fi les is stored on your USB medium, the speed of the fi le search may be reduced.Selecting the USB as audio source Press the SCR button > repeatedly un-til the MP3 display appears.The display briefly shows "READING USB". The playback starts.To operate the MP3 display, please read the chapter "CD/USB mode (MP3/WMA)".쏅Handling CDsThe device can play the following CD for-mats: CD audio with the CompactDisc logo (some CDs with copy protection cannot be played)NoteBlaupunkt cannot guarantee the proper functioning of copy-protected CDs!CD-R or CD-RW with MP3 or WMA fi les (WMA version 9, without DRM copy pro-tection only)Note:The quality of self-burnt CDs fl uctuates due to different CD blanks, burner soft-ware, and burn speeds. For this reason, it is possible that the device cannot play some self-burnt CDs.If you cannot play a CD-R/CD-RW:Use blanks from a different manufactur-er or a different colour.Reduce the burn speed.••••

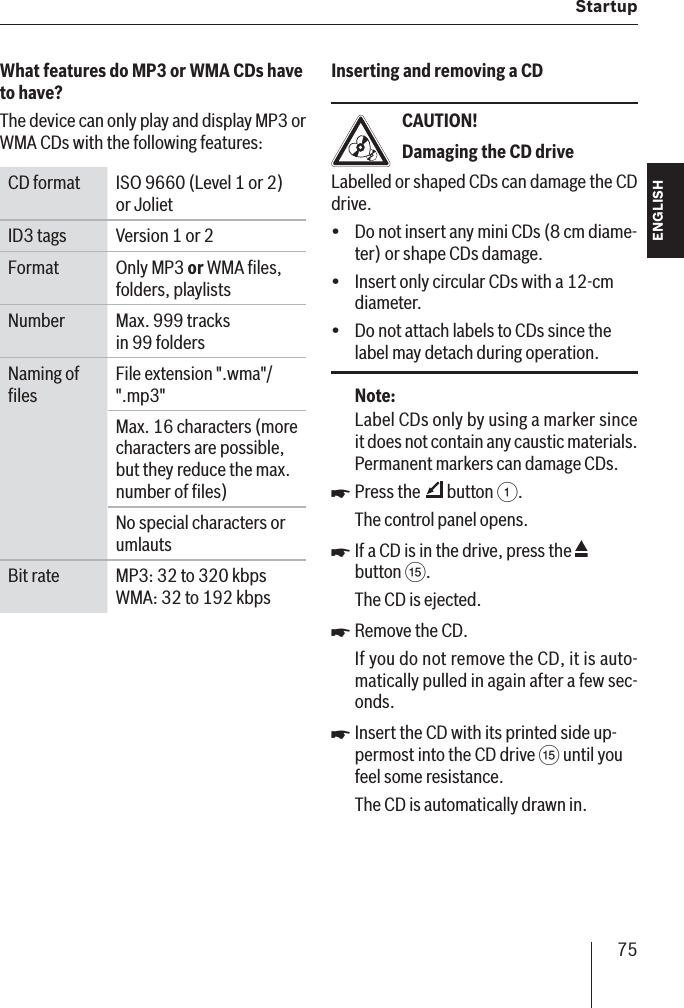

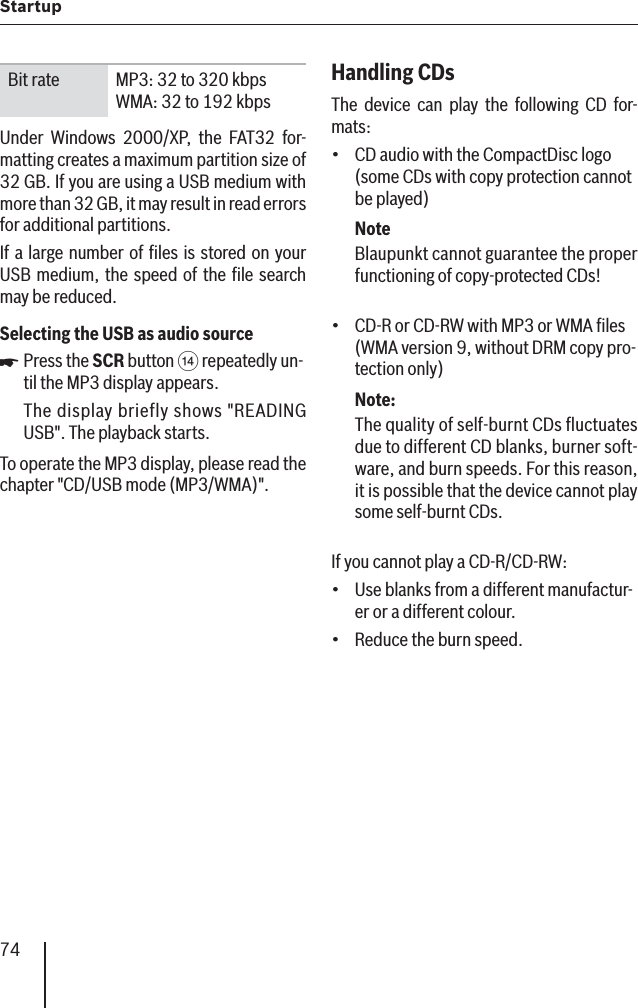

75 StartupENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAWhat features do MP3 or WMA CDs have to have?The device can only play and display MP3 or WMA CDs with the following features:CD format ISO 9660 (Level 1 or 2) or JolietID3 tags Version 1 or 2Format Only MP3 or WMA fi les, folders, playlistsNumber Max. 999 tracks in 99 foldersNaming of fi lesFile extension ".wma"/".mp3"Max. 16 characters (more characters are possible, but they reduce the max. number of fi les)No special characters or umlautsBit rate MP3: 32 to 320 kbps WMA: 32 to 192 kbps Inserting and removing a CD CAUTION!Damaging the CD driveLabelled or shaped CDs can damage the CD drive.Do not insert any mini CDs (8 cm diame-ter) or shape CDs damage.Insert only circular CDs with a 12-cm diameter.Do not attach labels to CDs since the label may detach during operation.Note:Label CDs only by using a marker since it does not contain any caustic materials. Permanent markers can damage CDs.Press the button 1.The control panel opens. If a CD is in the drive, press the button ?.The CD is ejected.Remove the CD.If you do not remove the CD, it is auto-matically pulled in again after a few sec-onds.Insert the CD with its printed side up-permost into the CD drive ? until you feel some resistance.The CD is automatically drawn in.yyy쏅쏅쏅쏅

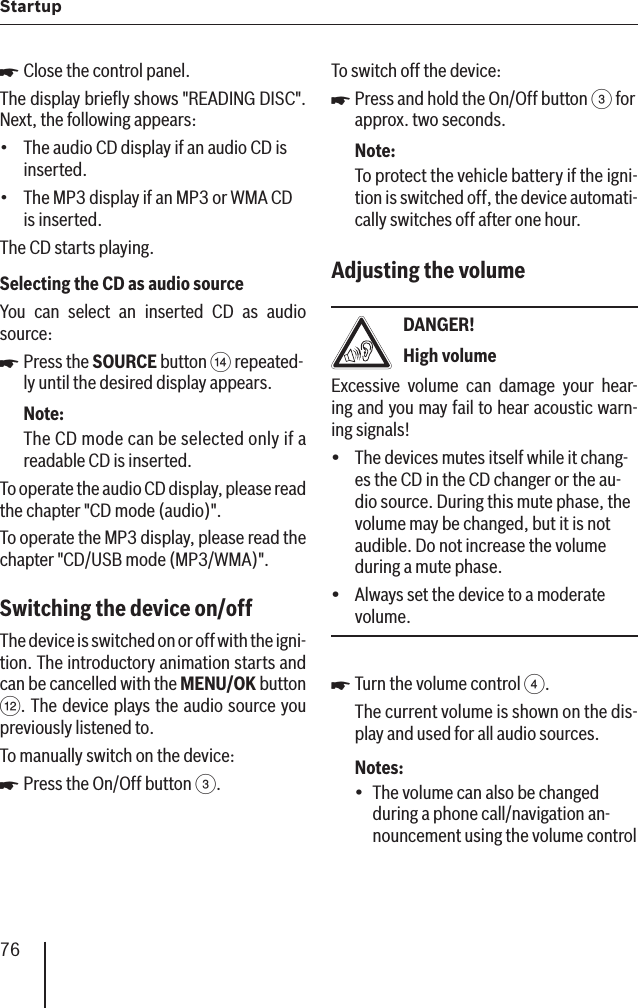

76StartupClose the control panel.The display briefl y shows "READING DISC". Next, the following appears:The audio CD display if an audio CD is inserted.The MP3 display if an MP3 or WMA CD is inserted.The CD starts playing.Selecting the CD as audio sourceYou can select an inserted CD as audio source:Press the SOURCE button > repeated-ly until the desired display appears.Note:The CD mode can be selected only if a readable CD is inserted.To operate the audio CD display, please read the chapter "CD mode (audio)".To operate the MP3 display, please read the chapter "CD/USB mode (MP3/WMA)".Switching the device on/off The device is switched on or off with the igni-tion. The introductory animation starts and can be cancelled with the MENU/OK button <. The device plays the audio source you previously listened to.To manually switch on the device:Press the On/Off button 3.쏅••쏅쏅To switch off the device:Press and hold the On/Off button 3 for approx. two seconds.Note:To protect the vehicle battery if the igni-tion is switched off, the device automati-cally switches off after one hour.Adjusting the volume DANGER!High volumeExcessive volume can damage your hear-ing and you may fail to hear acoustic warn-ing signals!The devices mutes itself while it chang-es the CD in the CD changer or the au-dio source. During this mute phase, the volume may be changed, but it is not audible. Do not increase the volume during a mute phase.Always set the device to a moderate volume.Turn the volume control 4.The current volume is shown on the dis-play and used for all audio sources.Notes:The volume can also be changed during a phone call/navigation an-nouncement using the volume control 쏅yy쏅•
77 StartupENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKA4 for the duration of the phone call or the announcement.During phone calls/navigation an-nouncements, you can adjust the vol-ume distribution for the phone call or the announcement. For further de-tails, please read the chapter "Sound settings", section "Volume".Muting the device Press the On/Off button 3.The display shows "MUTE".To cancel the mute function:Press the On/Off button 3 again.ORTurn the volume control 4.Changing the switch-off time (OFF TIMER )If you remove the control panel, the device is factory set to automatically switch off after 15 seconds. This switch-off time can be changed:Press the MENU/OK button 9.Press the rocker switch = until "VARIOUS MENU" appears on the display.VARIOUS MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.•쏅쏅쏅쏅쏅쏅Press the rocker switch = repeated-ly until "OFF TIMER" is displayed.Press the rocker switch : to display the setting.The current switch-off time is displayed.Press the rocker switch or = to change the switch-off time.You can adjust the switch-off times from 15 to 30 seconds.Resetting the device (NORMSET )You can reset the device to the factory settings (see appendix A1). Your person-al settings. e.g. your welcome text, will be deleted in the process.Press the MENU/OK button 9.Press the rocker switch = until "VARIOUS MENU" appears on the display.VARIOUS MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.Press the rocker switch = repeated-ly until "NORMSET" is displayed.Press and hold the rocker switch : for approx. four seconds."NORMSET OK" appears on the display. The device is reset to the factory set-tings.쏅쏅쏅쏅쏅쏅쏅쏅

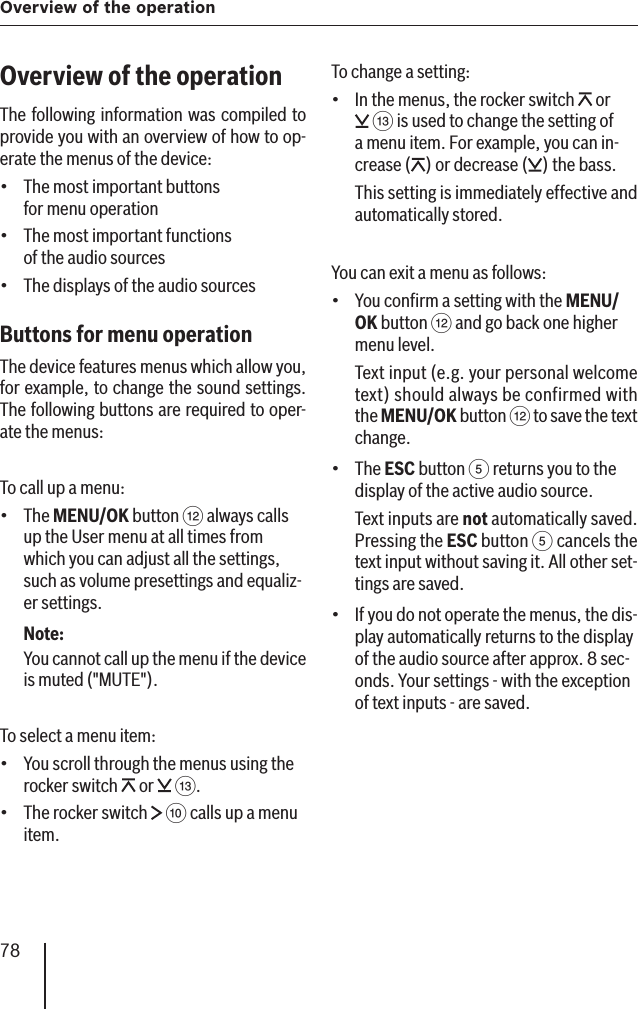

78Overview of the operationOverview of the operationThe following information was compiled to provide you with an overview of how to op-erate the menus of the device:The most important buttons for menu operationThe most important functions of the audio sourcesThe displays of the audio sourcesButtons for menu operation The device features menus which allow you, for example, to change the sound settings. The following buttons are required to oper-ate the menus:To call up a menu:The MENU/OK button < always calls up the User menu at all times from which you can adjust all the settings, such as volume presettings and equaliz-er settings.Note:You cannot call up the menu if the device is muted ("MUTE").To select a menu item:You scroll through the menus using the rocker switch or =.The rocker switch : calls up a menu item.••••••To change a setting:In the menus, the rocker switch or = is used to change the setting of a menu item. For example, you can in-crease ( ) or decrease ( ) the bass.This setting is immediately effective and automatically stored.You can exit a menu as follows:You confi rm a setting with the MENU/OK button < and go back one higher menu level.Text input (e.g. your personal welcome text) should always be confirmed with the MENU/OK button < to save the text change.The ESC button 5 returns you to the display of the active audio source.Text inputs are not automatically saved. Pressing the ESC button 5 cancels the text input without saving it. All other set-tings are saved.If you do not operate the menus, the dis-play automatically returns to the display of the audio source after approx. 8 sec-onds. Your settings - with the exception of text inputs - are saved.••••
79 Overview of the operationENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAThe functions of the audio sources Some functions during the playback of music, such as forward or reverse music, are activat-ed with the rocker switches and : as well as and =.ButtonAudio sourceTuner Audio CD MP3/WMA CDUSB CDC AUX SOURCE (selecting the audio source)TunerUSB FRONT-AUX-INCDC/REAR-AUX-INCD (CD-R)BAND(selecting the tuner, waveband)FM1 LWMWFMTFM2Hold or pressed Adjusting radio stationsForward/reverseNo operation possible of the device.Press or briefl y Previous/next trackPress or briefl yStation seek tuningPrevious/next CD/folderTRAF (traffi c announcement ) ONOFFMENU/OK press for two seconds Scanning radio stations/tracks (SCAN )Press station button 3 (Pause) Calling up a station (press short), saving (press long)PLAYPAUSEPress station button 4 RPT (repeat mode ) TRKOFFTRKDIROFFTRKDIROFFTRACKDISCOFFPress station button 5 MIX (random playback )OFFALL ALL OFFDIRALL OFFDIRCDALLOFF

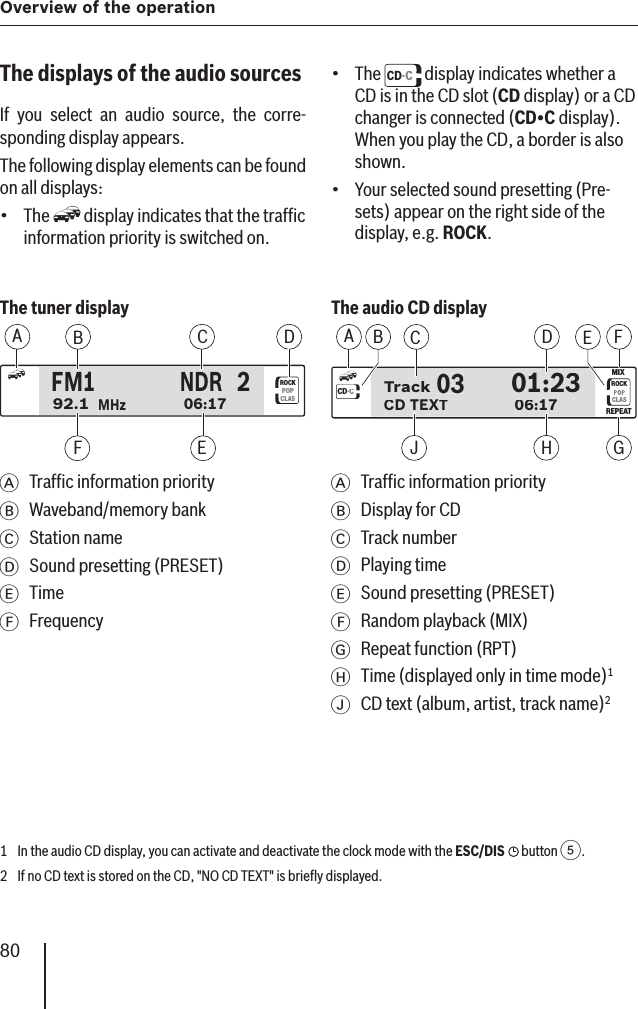

80Overview of the operation The tuner display ROCKPOPCLASFM1NDR92.106:172MHzABDFCEA Traffi c information priorityB Waveband/memory bankC Station nameD Sound presetting (PRESET)E TimeF Frequency The audio CD display0301:23CD TEXT06:17Track0301:23CD TEXT06:17TrackCD·CROCKCLASMIXREPEATABDCEFGHJA Traffi c information priorityB Display for CDC Track numberD Playing timeE Sound presetting (PRESET)F Random playback (MIX)G Repeat function (RPT)H Time (displayed only in time mode)1I CD text (album, artist, track name)2 The displays of the audio sources If you select an audio source, the corre-sponding display appears. The following display elements can be found on all displays: The display indicates that the traffi c information priority is switched on.•The CD·C display indicates whether a CD is in the CD slot (CD display) or a CD changer is connected (CD•C display). When you play the CD, a border is also shown.Your selected sound presetting (Pre-sets) appear on the right side of the display, e.g. ROCK.••1 In the audio CD display, you can activate and deactivate the clock mode with the ESC/DIS button 5.2 If no CD text is stored on the CD, "NO CD TEXT" is briefl y displayed.
81 Overview of the operationENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAThe MP3 displayMIXREPEATmp301:23MP3 INFOTRACKNAMEABCDEFHJGCDROCKPOPCLASA Traffi c information priorityB Display for CD3C Track name (fi le name)D Sound presetting (PRESET)E Random playback (MIX)F Repeat function (RPT)G Playing time4H MP3 info (album, artist)5J Display for MP3 Note: The MP3 display appears if you play a CD or a USB medium with MP3 or WMA fi les.The CD changer displayCD·CROCKPOPCLASMIXREPEAT0301:23TrackDisc0206:17GHJABDCEFA Traffi c information priorityB Display for CD changerC Track numberD Playing timeE Sound presetting (PRESET)F Random playback (MIX)G Repeat function (RPT)H Time6I CD number3 If you play an MP3/WMA CD, the CD symbol is shown with a border.4 In the MP3 display, you can use the ESC/DIS button 5 to switch between display of playing time, time and Browse mode.5 Album and artist are displayed only if they are stored in the ID3 tags of the MP3 track.6 In the CD changer display, you can switch the time display on and off with the ESC/DIS button 5.

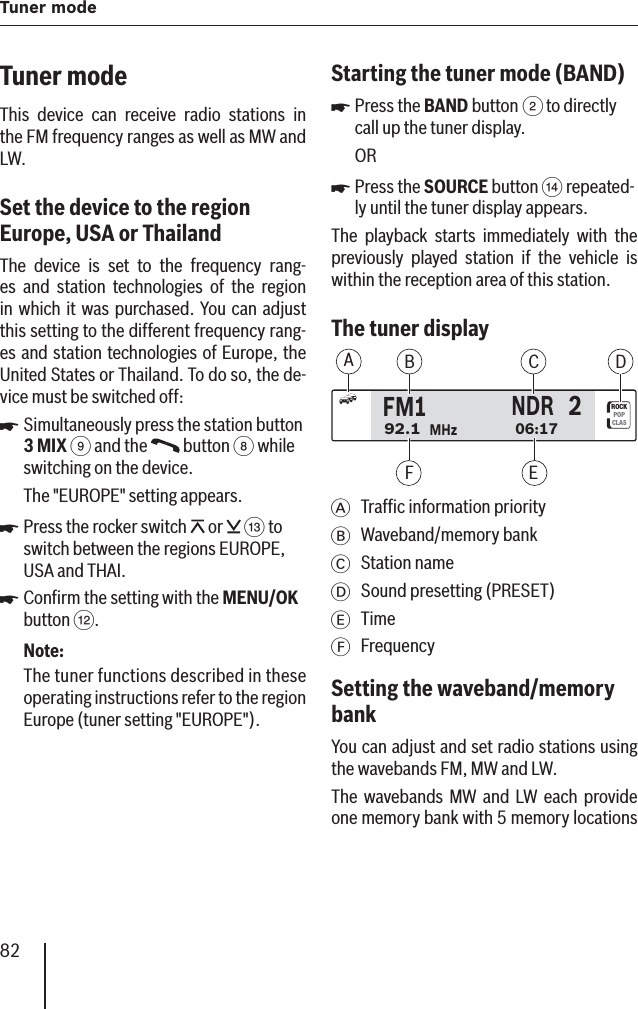

82Tuner modeTuner mode This device can receive radio stations in the FM frequency ranges as well as MW and LW.Set the device to the region Europe, USA or Thailand The device is set to the frequency rang-es and station technologies of the region in which it was purchased. You can adjust this setting to the different frequency rang-es and station technologies of Europe, the United States or Thailand. To do so, the de-vice must be switched off :Simultaneously press the station button 3 MIX 9 and the button 8 while switching on the device.The "EUROPE" setting appears.Press the rocker switch or = to switch between the regions EUROPE, USA and THAI.Confi rm the setting with the MENU/OK button <.Note:The tuner functions described in these operating instructions refer to the region Europe (tuner setting "EUROPE").쏅쏅쏅Starting the tuner mode (BAND)Press the BAND button 2 to directly call up the tuner display.ORPress the SOURCE button > repeated-ly until the tuner display appears.The playback starts immediately with the previously played station if the vehicle is within the reception area of this station.The tuner displayROCKPOPCLASFM1NDR92.106:172MHzABDFCEA Traffi c information priorityB Waveband/memory bankC Station nameD Sound presetting (PRESET)E TimeF FrequencySetting the waveband/memory bank You can adjust and set radio stations using the wavebands FM, MW and LW. The wavebands MW and LW each provide one memory bank with 5 memory locations 쏅쏅

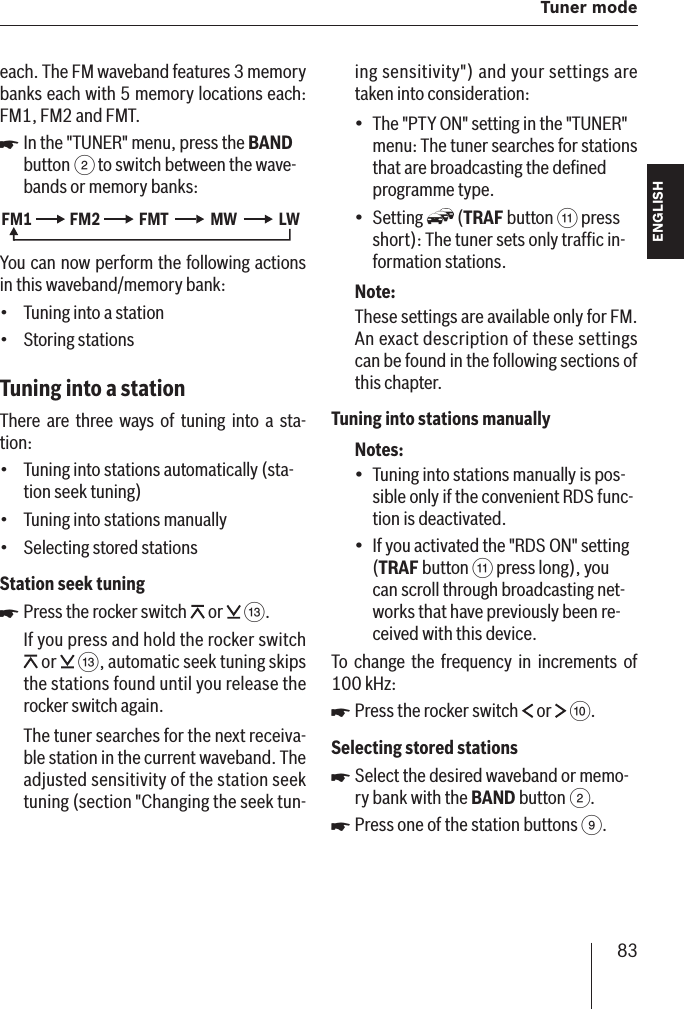

Tuner mode83ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAeach. The FM waveband features 3 memory banks each with 5 memory locations each: FM1, FM2 and FMT .In the "TUNER" menu, press the BAND button 2 to switch between the wave-bands or memory banks:FM1 LWMWFMTFM2You can now perform the following actions in this waveband/memory bank :Tuning into a stationStoring stationsTuning into a station There are three ways of tuning into a sta-tion:Tuning into stations automatically (sta-tion seek tuning)Tuning into stations manuallySelecting stored stationsStation seek tuningPress the rocker switch or =.If you press and hold the rocker switch or =, automatic seek tuning skips the stations found until you release the rocker switch again.The tuner searches for the next receiva-ble station in the current waveband. The adjusted sensitivity of the station seek tuning (section "Changing the seek tun-쏅•••••쏅ing sensitivity") and your settings are taken into consideration:The "PTY ON" setting in the "TUNER" menu: The tuner searches for stations that are broadcasting the defi ned programme type.Setting (TRAF button ; press short): The tuner sets only traffi c in-formation stations.Note:These settings are available only for FM. An exact description of these settings can be found in the following sections of this chapter.Tuning into stations manuallyNotes:Tuning into stations manually is pos-sible only if the convenient RDS func-tion is deactivated.If you activated the "RDS ON" setting (TRAF button ; press long), you can scroll through broadcasting net-works that have previously been re-ceived with this device.To change the frequency in increments of 100 kHz:Press the rocker switch or :.Selecting stored stationsSelect the desired waveband or memo-ry bank with the BAND button 2.Press one of the station buttons 9.••••쏅쏅쏅

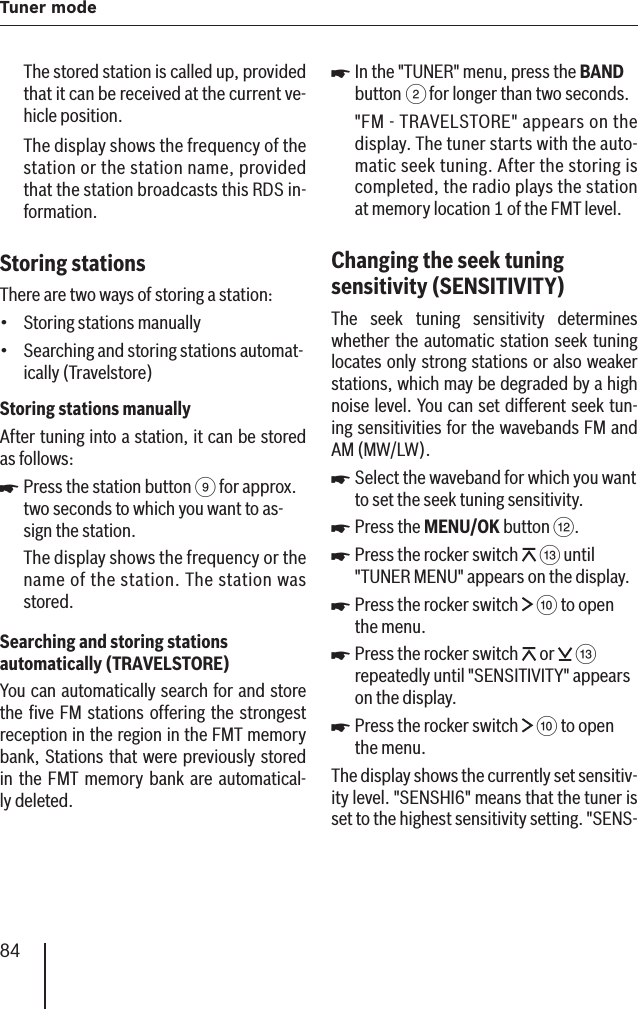

84Tuner modeThe stored station is called up, provided that it can be received at the current ve-hicle position.The display shows the frequency of the station or the station name, provided that the station broadcasts this RDS in-formation.Storing stations There are two ways of storing a station:Storing stations manuallySearching and storing stations automat-ically (Travelstore)Storing stations manuallyAfter tuning into a station, it can be stored as follows:Press the station button 9 for approx. two seconds to which you want to as-sign the station.The display shows the frequency or the name of the station. The station was stored.Searching and storing stations automatically (TRAVELSTORE )You can automatically search for and store the fi ve FM stations offering the strongest reception in the region in the FMT memory bank , Stations that were previously stored in the FMT memory bank are automatical-ly deleted.••쏅In the "TUNER" menu, press the BAND button 2 for longer than two seconds."FM - TRAVELSTORE" appears on the display. The tuner starts with the auto-matic seek tuning. After the storing is completed, the radio plays the station at memory location 1 of the FMT level.Changing the seek tuning sensitivity (SENSITIVITY )The seek tuning sensitivity determines whether the automatic station seek tuning locates only strong stations or also weaker stations, which may be degraded by a high noise level. You can set different seek tun-ing sensitivities for the wavebands FM and AM (MW/LW).Select the waveband for which you want to set the seek tuning sensitivity.Press the MENU/OK button <.Press the rocker switch = until "TUNER MENU" appears on the display.Press the rocker switch : to open the menu.Press the rocker switch or = repeatedly until "SENSITIVITY" appears on the display.Press the rocker switch : to open the menu.The display shows the currently set sensitiv-ity level. "SENSHI6" means that the tuner is set to the highest sensitivity setting. "SENS-쏅쏅쏅쏅쏅쏅쏅
85 Tuner modeENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKALO1" means it is set to the lowest sensitivi-ty setting.Set the desired sensitivity with the rock-er switch or =.Scanning all receivable stations (SCAN )You can scan all receivable stations of a waveband. The scan time can be set as described in the chapter "User settings".Select the waveband (FM, MW, LW) whose receivable stations you want to scan.Press and hold the MENU/OK button < for approx. two seconds.The display shows "SCAN". The tuner is searching for stations.As soon as the tuner has located a sta-tion, it is played.After a complete search of the frequency band, scanning stops. The previously set station is played.You can do the following at any time:Store the currently scanned station (press any station button 9 for approx. two seconds)Cancel the scan (briefl y pressing the MENU/OK button <)쏅쏅쏅••Receiving traffi c announcementsIf you switch on the priority for traffi c an-nouncements, the device uses the RDS serv-ices TA (Traffi c Announcement) and EON (Enhanced Other Networks). TA switches traffi c reports even if you are currently lis-tening to a different audio source. The vol-ume for the traffi c announcement can be adjusted (see the chapter "User settings", section "Changing volume presettings").If no traffi c information station is currently defi ned, the RDS service EON ensures that the device automatically changes to a traffi c information station of the same broadcast-ing network for the duration of a traffi c an-nouncement. Switching the priority of traffi c reports on/off The priority of traffi c reports is switched on if the displays shows the symbol. This setting limits the station search and scan-ning (SCAN) for traffi c information stations.To switch the traffi c report priority on/off:Press the TRAF button ;.To search for traffi c information sta-tions, start the station seek tuning.Note:For the device to switch through traffic reports, a station must be defined that supports TA or belongs to a broadcast-ing network with traffi c information sta-tions.쏅쏅

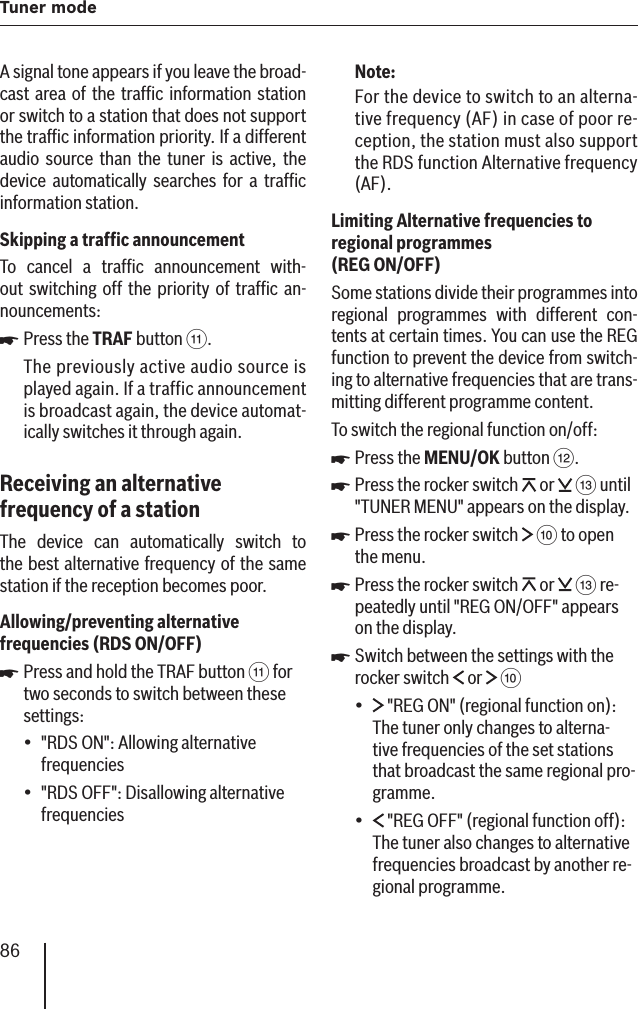

86Tuner modeA signal tone appears if you leave the broad-cast area of the traffi c information station or switch to a station that does not support the traffi c information priority. If a different audio source than the tuner is active, the device automatically searches for a traffi c information station.Skipping a traffi c announcement To cancel a traffi c announcement with-out switching off the priority of traffi c an-nouncements:Press the TRAF button ;.The previously active audio source is played again. If a traffic announcement is broadcast again, the device automat-ically switches it through again.Receiving an alternative frequency of a stationThe device can automatically switch to the best alternative frequency of the same station if the reception becomes poor.Allowing/preventing alternative frequencies (RDS ON/OFF )Press and hold the TRAF button ; for two seconds to switch between these settings:"RDS ON": Allowing alternative frequencies"RDS OFF": Disallowing alternative frequencies쏅쏅••Note:For the device to switch to an alterna-tive frequency (AF) in case of poor re-ception, the station must also support the RDS function Alternative frequency (AF).Limiting Alternative frequencies to regional programmes (REG ON/OFF )Some stations divide their programmes into regional programmes with different con-tents at certain times. You can use the REG function to prevent the device from switch-ing to alternative frequencies that are trans-mitting different programme content .To switch the regional function on/off :Press the MENU/OK button <.Press the rocker switch or = until "TUNER MENU" appears on the display. Press the rocker switch : to open the menu.Press the rocker switch or = re-peatedly until "REG ON/OFF" appears on the display.Switch between the settings with the rocker switch or : "REG ON" (regional function on): The tuner only changes to alterna-tive frequencies of the set stations that broadcast the same regional pro-gramme. "REG OFF" (regional function off): The tuner also changes to alternative frequencies broadcast by another re-gional programme.쏅쏅쏅쏅쏅••

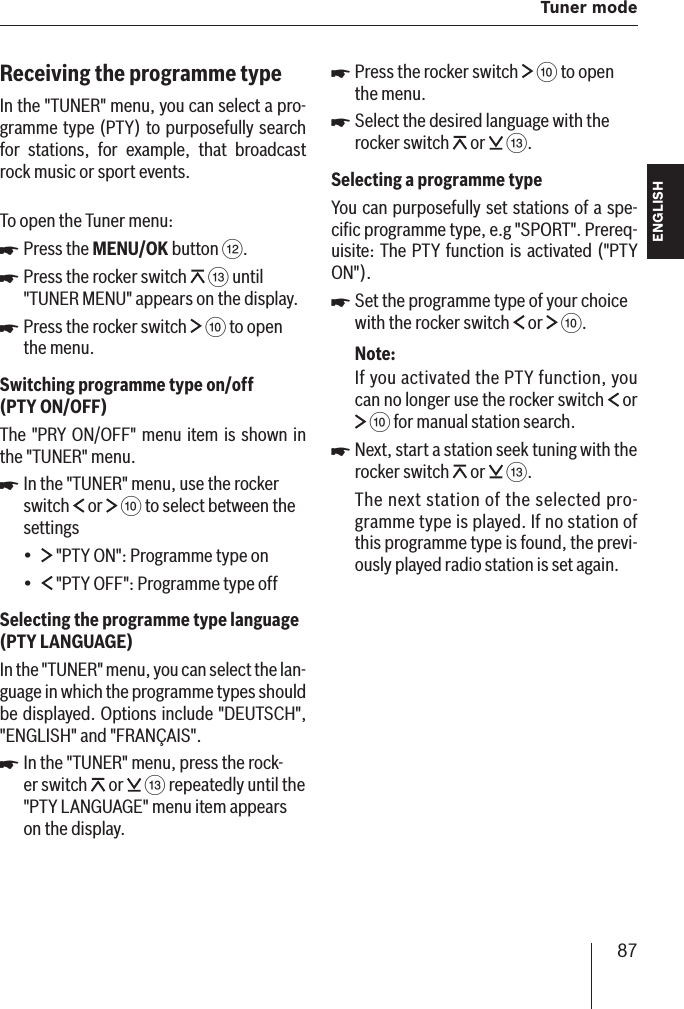

87 Tuner modeENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAReceiving the programme typeIn the "TUNER" menu, you can select a pro-gramme type (PTY) to purposefully search for stations, for example, that broadcast rock music or sport events .To open the Tuner menu:Press the MENU/OK button <.Press the rocker switch = until "TUNER MENU" appears on the display.Press the rocker switch : to open the menu.Switching programme type on/off (PTY ON/OFF )The "PRY ON/OFF" menu item is shown in the "TUNER" menu.In the "TUNER" menu, use the rocker switch or : to select between the settings "PTY ON": Programme type on "PTY OFF": Programme type offSelecting the programme type language (PTY LANGUAGE )In the "TUNER" menu, you can select the lan-guage in which the programme types should be displayed. Options include "DEUTSCH", "ENGLISH" and "FRANÇAIS" .In the "TUNER" menu, press the rock-er switch or = repeatedly until the "PTY LANGUAGE" menu item appears on the display.쏅쏅쏅쏅••쏅Press the rocker switch : to open the menu.Select the desired language with the rocker switch or =.Selecting a programme typeYou can purposefully set stations of a spe-cifi c programme type, e.g "SPORT" . Prereq-uisite: The PTY function is activated ("PTY ON").Set the programme type of your choice with the rocker switch or :.Note:If you activated the PTY function, you can no longer use the rocker switch or : for manual station search.Next, start a station seek tuning with the rocker switch or =.The next station of the selected pro-gramme type is played. If no station of this programme type is found, the previ-ously played radio station is set again.쏅쏅쏅쏅
88CD mode (audio)CD mode (audio)Audio CDs are played in the CD mode (au-dio). How to insert and remove CDs is de-scribed in the chapter "Startup".Starting the audio CD mode You can select an inserted CD as audio source:Press the SOURCE button > repeated-ly until the audio CD display appears.The playback starts.Note:As long as the CD is in the drive, the de-vice stores track and playing time of the previously played CD. After calling up the audio source, the playback starts at the point where it was interrupted.쏅The audio CD display 0301:23CD TEXT06:17Track0301:23CD TEXT06:17TrackCD·CROCKCLASMIXREPEATABDCEFGHJA Traffi c information priorityB Display for CDC Track numberD Playing timeE Sound presetting (PRESET)F Random playback (MIX)G Repeat function (RPT)H Time (displayed only in time mode)1I CD text (album, artist, track name)21 In the audio CD display, you can activate and deactivate the clock mode with the ESC/DIS button 5.2 If no CD text is stored on the CD, "NO CD TEXT" is briefl y displayed.

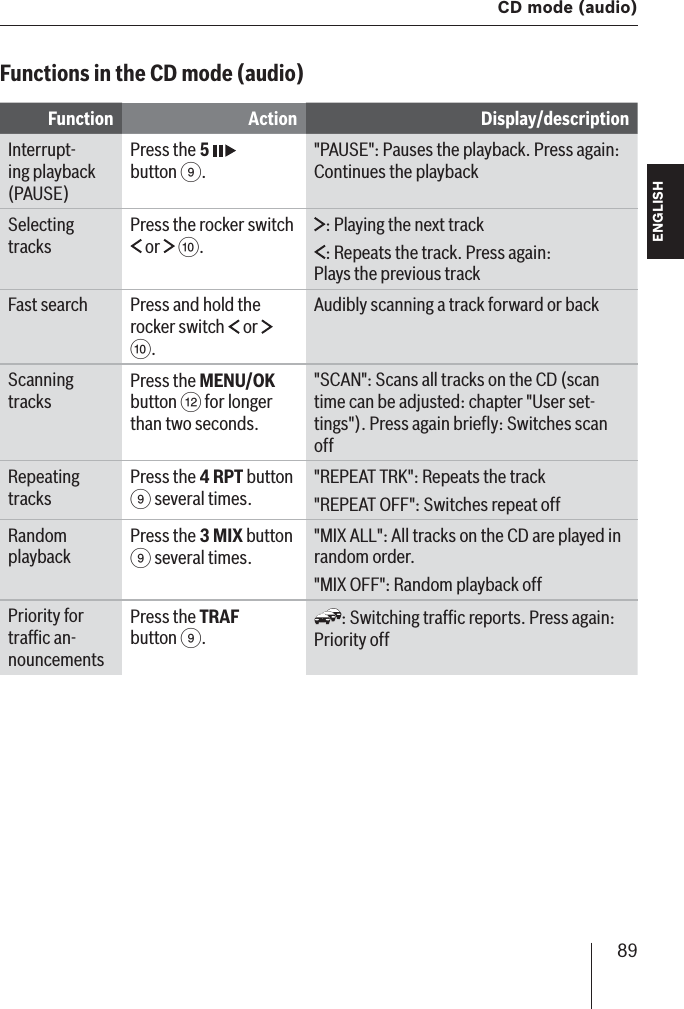

89 CD mode (audio)ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAFunctions in the CD mode (audio) Function Action Display/descriptionInterrupt-ing playback (PAUSE)Press the 5 button 9."PAUSE": Pauses the playback. Press again: Continues the playbackSelecting tracksPress the rocker switch or :.: Playing the next track: Repeats the track. Press again: Plays the previous trackFast search Press and hold the rocker switch or :.Audibly scanning a track forward or backScanning tracksPress the MENU/OK button < for longer than two seconds."SCAN": Scans all tracks on the CD (scan time can be adjusted: chapter "User set-tings"). Press again briefl y: Switches scan offRepeating tracksPress the 4 RPT button 9 several times."REPEAT TRK": Repeats the track "REPEAT OFF": Switches repeat offRandom playbackPress the 3 MIX button 9 several times."MIX ALL": All tracks on the CD are played in random order."MIX OFF": Random playback offPriority for traffi c an-nouncementsPress the TRAF button 9.: Switching traffi c reports. Press again: Priority off
90CD/USB mode (MP3/WMA)CD/USB mode (MP3 /WMA )In CD/USB mode, you can play CD-Rs or CD-RWs or a USB medium with MP3 or WMA tracks. The chapter "Startup" describes what you must observe when connecting and discon-necting USB media. It also contains infor-mation about inserting and removing CDs.Starting the CD/USB mode You can select an already inserted CD-R or CD-RW or a USB medium as audio source:Press the SOURCE button > repeated-ly until the MP3 display appears.The playback starts.Note:The USB mode can be selected only if a valid USB medium is connected.쏅The MP3 display MIXREPEATmp301:23MP3 INFOTRACKNAMEABCDEFHJGCDROCKPOPCLASA Traffi c information priorityB Display for CD1C Track name (fi le name)D Sound presetting (PRESET)E Random playback (MIX)F Repeat function (RPT)G Playing timeH MP3 info (album, artist)2J MP3 displayThe track name C is displayed as scrolling text if it has more than 14 characters.You can switch between the following modes with the ESC/DIS button 5:MP3 display with playing timeMP3 display with timeBrowse modePlaylist mode (if playlist is available on USB/CD)••••1 If you play an MP3/WMA CD, the CD symbol is shown with a border.2 Album and artist are displayed only if they are stored in the ID3 tags of the MP3 track.

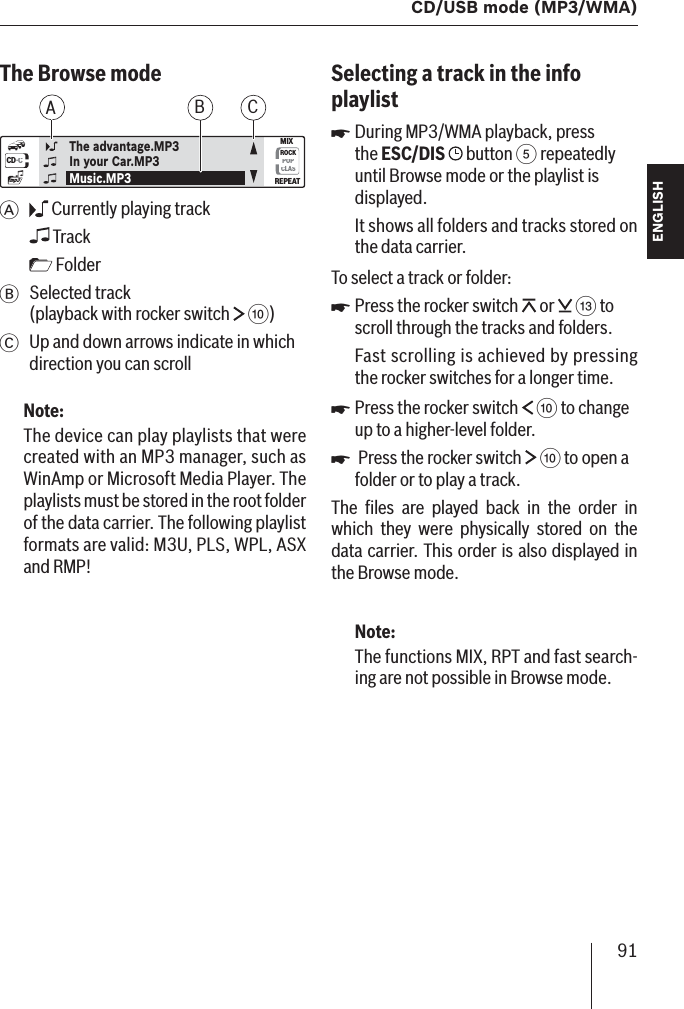

91 CD/USB mode (MP3/WMA)ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAThe Browse mode MIXREPEATmp3The advantage.MP3In your Car.MP3Music.MP3ACBCD·CROCKPOPCLASA Currently playing track Track FolderB Selected track (playback with rocker switch :)C Up and down arrows indicate in which direction you can scrollNote:The device can play playlists that were created with an MP3 manager, such as WinAmp or Microsoft Media Player. The playlists must be stored in the root folder of the data carrier. The following playlist formats are valid: M3U, PLS, WPL, ASX and RMP!Selecting a track in the info playlist During MP3/WMA playback, press the ESC/DIS button 5 repeatedly until Browse mode or the playlist is displayed.It shows all folders and tracks stored on the data carrier.To select a track or folder:Press the rocker switch or = to scroll through the tracks and folders.Fast scrolling is achieved by pressing the rocker switches for a longer time.Press the rocker switch : to change up to a higher-level folder. Press the rocker switch : to open a folder or to play a track.The fi les are played back in the order in which they were physically stored on the data carrier. This order is also displayed in the Browse mode.Note:The functions MIX, RPT and fast search-ing are not possible in Browse mode.쏅쏅쏅쏅
92CD/USB mode (MP3/WMA)Displaying title information To show all the available information about the current track (artist and album) on the display:Press the MENU/OK button <.Press the rocker switch = until "VARIOUS MENU" appears on the dis-play.Press the rocker switch : to open the menu.Press the rocker switch or = repeatedly until "MP3 INFO ON/OFF" appears on the display.Switch between the settings with the rocker switch or :. "MP3 INFO ON": Title information is displayed "MP3 INFO OFF": Artist and album are not displayedThe title information is displayed as scroll-ing text if it has more than 15 characters. If this information is not available, the folder name or "ROOT DIRECTORY" is displayed.쏅쏅쏅쏅쏅••

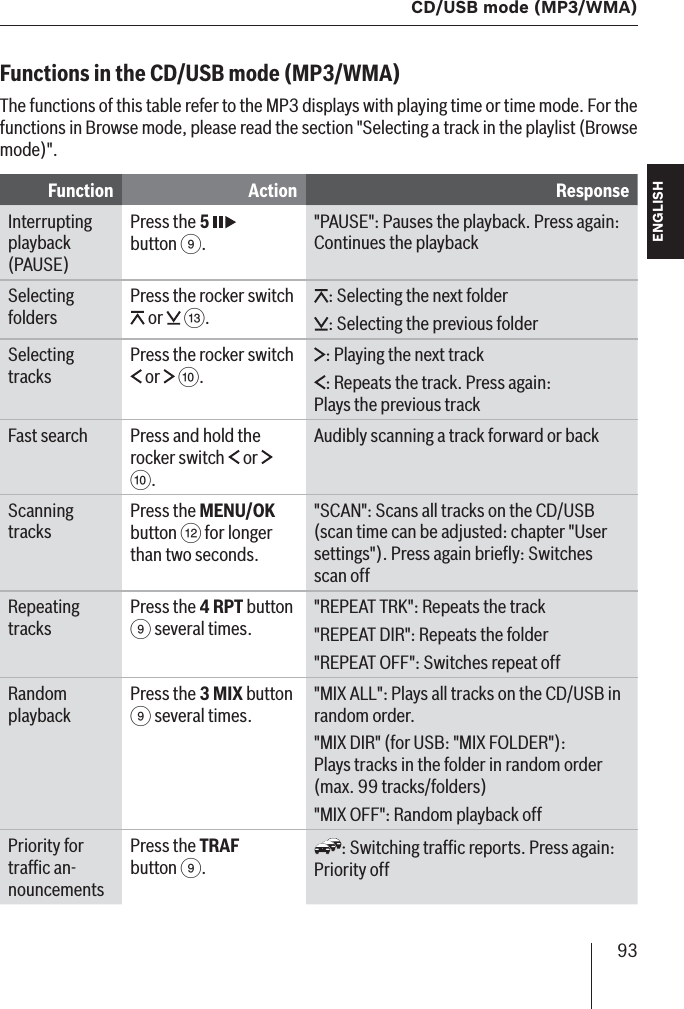

93 CD/USB mode (MP3/WMA)ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAFunctions in the CD/USB mode (MP3/WMA) The functions of this table refer to the MP3 displays with playing time or time mode. For the functions in Browse mode, please read the section "Selecting a track in the playlist (Browse mode)".Function Action ResponseInterruptingplayback (PAUSE)Press the 5 button 9."PAUSE": Pauses the playback. Press again: Continues the playbackSelecting foldersPress the rocker switch or =.: Selecting the next folder: Selecting the previous folderSelecting tracksPress the rocker switch or :.: Playing the next track: Repeats the track. Press again: Plays the previous trackFast search Press and hold the rocker switch or :.Audibly scanning a track forward or backScanning tracksPress the MENU/OK button < for longer than two seconds."SCAN": Scans all tracks on the CD/USB (scan time can be adjusted: chapter "User settings"). Press again briefl y: Switches scan offRepeating tracksPress the 4 RPT button 9 several times."REPEAT TRK": Repeats the track"REPEAT DIR": Repeats the folder"REPEAT OFF": Switches repeat offRandom playbackPress the 3 MIX button 9 several times."MIX ALL": Plays all tracks on the CD/USB in random order."MIX DIR" (for USB: "MIX FOLDER"): Plays tracks in the folder in random order (max. 99 tracks/folders)"MIX OFF": Random playback offPriority for traffi c an-nouncementsPress the TRAF button 9.: Switching traffi c reports. Press again: Priority off

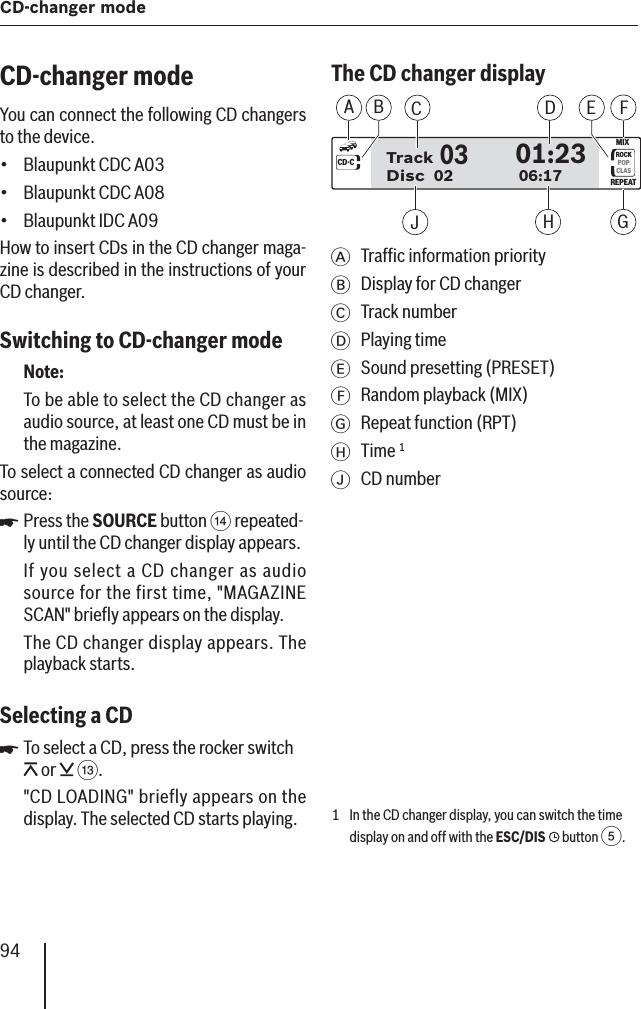

94CD-changer modeCD-changer modeYou can connect the following CD changers to the device.Blaupunkt CDC A03Blaupunkt CDC A08Blaupunkt IDC A09How to insert CDs in the CD changer maga-zine is described in the instructions of your CD changer.Switching to CD-changer mode Note:To be able to select the CD changer as audio source, at least one CD must be in the magazine.To select a connected CD changer as audio source:Press the SOURCE button > repeated-ly until the CD changer display appears.If you select a CD changer as audio source for the first time, "MAGAZINE SCAN" briefl y appears on the display.The CD changer display appears. The playback starts.Selecting a CDTo select a CD, press the rocker switch or =."CD LOADING" briefly appears on the display. The selected CD starts playing.•••쏅쏅 The CD changer displayCD·CROCKPOPCLASMIXREPEAT0301:23TrackDisc0206:17GHJABDCEFA Traffi c information priorityB Display for CD changerC Track numberD Playing timeE Sound presetting (PRESET)F Random playback (MIX)G Repeat function (RPT)H Time 1I CD number1 In the CD changer display, you can switch the time display on and off with the ESC/DIS button 5.
95 CD-changer modeENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAFunctions in the CD changer mode Function Action Display/responseInterrupt-ing playback (PAUSE)Press the 5 button 9."PAUSE": Pauses the playback. Press again: Continues the playbackSelecting tracksPress the rocker switch or :.: Playing the next track: Repeats the track. Press again: Plays the previous trackFast search Press and hold the rocker switch or :.Audibly scanning a track forward or backScanning tracksPress the MENU/OK button < for longer than two seconds."SCAN": Scans all tracks of all CDs (scan time can be adjusted: chapter "User set-tings"). Press again briefl y: Switches scan offRepeating tracksPress the 4 RPT button 9 several times."REPEAT TRACK": Repeats the track"REPEAT DISC": Repeats the CD"REPEAT OFF": Switches repeat offRandom playbackPress the 3 MIX button 9 several times."MIX ALL": Plays all tracks on all CDs in random order."MIX DISC": Plays tracks on the current CD in random order."MIX OFF": Random playback offPriority for traffi c an-nouncementsPress the TRAF button 9.: Switching traffi c reports. Press again: Priority off
96AUX mode AUX modeThe device features two AUX-IN sockets (REAR-AUX and FRONT-AUX) to which you can connect external audio sources such as portable CD players, MiniDisc players or MP3 players.REAR-AUX input at the rear of the deviceYou can connect either a Blaupunkt CD changer or an external audio source to the REAR-AUX input. A Blaupunkt CD changer is automatically recognised and is then availa-ble as audio source. To be able to select an external device as audio source, the REAR-AUX input must be switched on in the Audio menu (AUX ON). For instructions, please read the section "Confi guring audio inputs" in this chapter.Note:An adapter cable is needed to connect an external audio source to the REAR AUX input. You can obtain this cable (Blaupunkt no.: 7 607 897 093) from your Blaupunkt dealer.The REAR-AUX input can be selected with the SOURCE button >. The display brief-ly shows "CDC / AUX", followed by the name of the REAR-AUX input. In the delivery state (NORMSET), "AUXILIARY1" is displayed.You can change this name. For instructions, please read the section "Confi guring audio inputs" in this chapter.

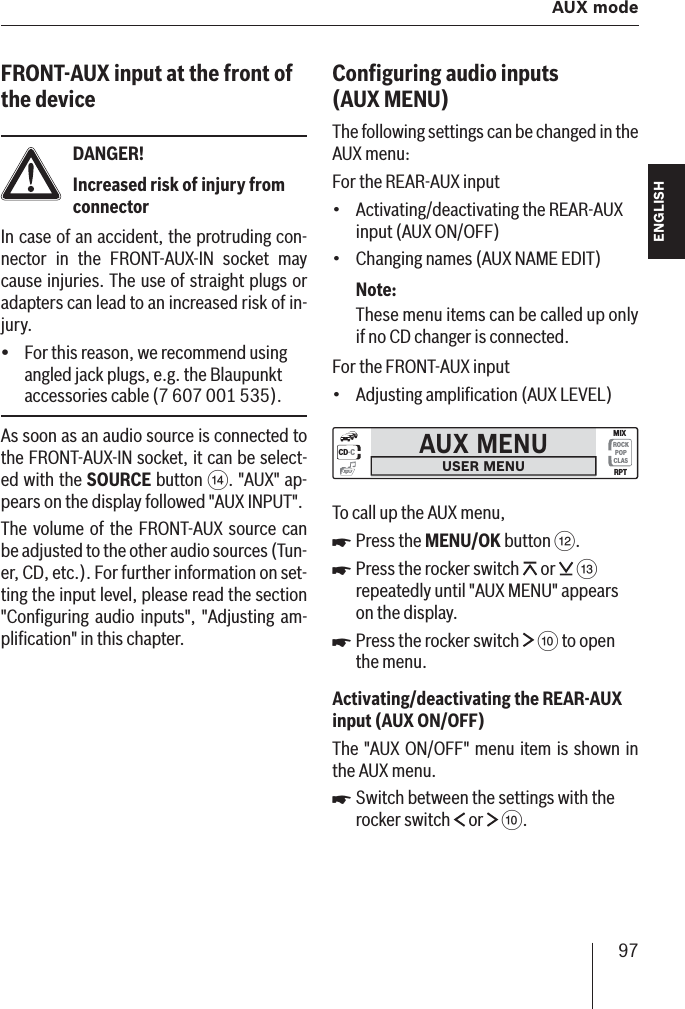

97 AUX mode ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAFRONT-AUX input at the front of the deviceDANGER!Increased risk of injury from connectorIn case of an accident, the protruding con-nector in the FRONT-AUX-IN socket may cause injuries. The use of straight plugs or adapters can lead to an increased risk of in-jury.For this reason, we recommend using angled jack plugs, e.g. the Blaupunkt accessories cable (7 607 001 535).As soon as an audio source is connected to the FRONT-AUX-IN socket, it can be select-ed with the SOURCE button >. "AUX" ap-pears on the display followed "AUX INPUT".The volume of the FRONT-AUX source can be adjusted to the other audio sources (Tun-er, CD, etc.). For further information on set-ting the input level, please read the section "Confi guring audio inputs", "Adjusting am-plifi cation" in this chapter.yConfi guring audio inputs (AUX MENU )The following settings can be changed in the AUX menu:For the REAR-AUX inputActivating/deactivating the REAR-AUX input (AUX ON/OFF)Changing names (AUX NAME EDIT)Note:These menu items can be called up only if no CD changer is connected.For the FRONT-AUX inputAdjusting amplifi cation (AUX LEVEL)AUX MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3To call up the AUX menu,Press the MENU/OK button <.Press the rocker switch or = repeatedly until "AUX MENU" appears on the display. Press the rocker switch : to open the menu.Activating/deactivating the REAR-AUX input (AUX ON/OFF)The "AUX ON/OFF" menu item is shown in the AUX menu.Switch between the settings with the rocker switch or :.•••쏅쏅쏅쏅

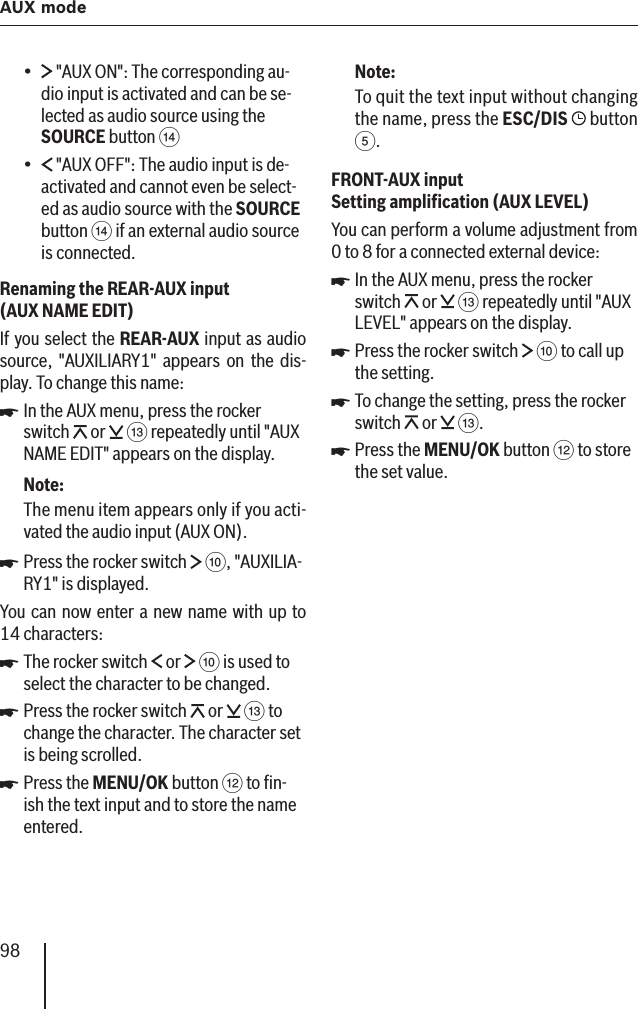

98AUX mode "AUX ON ": The corresponding au-dio input is activated and can be se-lected as audio source using the SOURCE button > "AUX OFF": The audio input is de-activated and cannot even be select-ed as audio source with the SOURCE button > if an external audio source is connected.Renaming the REAR-AUX input (AUX NAME EDIT )If you select the REAR-AUX input as audio source, "AUXILIARY1 " appears on the dis-play. To change this name:In the AUX menu, press the rocker switch or = repeatedly until "AUX NAME EDIT" appears on the display.Note:The menu item appears only if you acti-vated the audio input (AUX ON).Press the rocker switch :, "AUXILIA-RY1" is displayed.You can now enter a new name with up to 14 characters:The rocker switch or : is used to select the character to be changed.Press the rocker switch or = to change the character. The character set is being scrolled.Press the MENU/OK button < to fi n-ish the text input and to store the name entered.••쏅쏅쏅쏅쏅Note:To quit the text input without changing the name, press the ESC/DIS button 5.FRONT-AUX input Setting amplifi cation (AUX LEVEL )You can perform a volume adjustment from 0 to 8 for a connected external device:In the AUX menu, press the rocker switch or = repeatedly until "AUX LEVEL" appears on the display.Press the rocker switch : to call up the setting.To change the setting, press the rocker switch or =.Press the MENU/OK button < to store the set value.쏅쏅쏅쏅

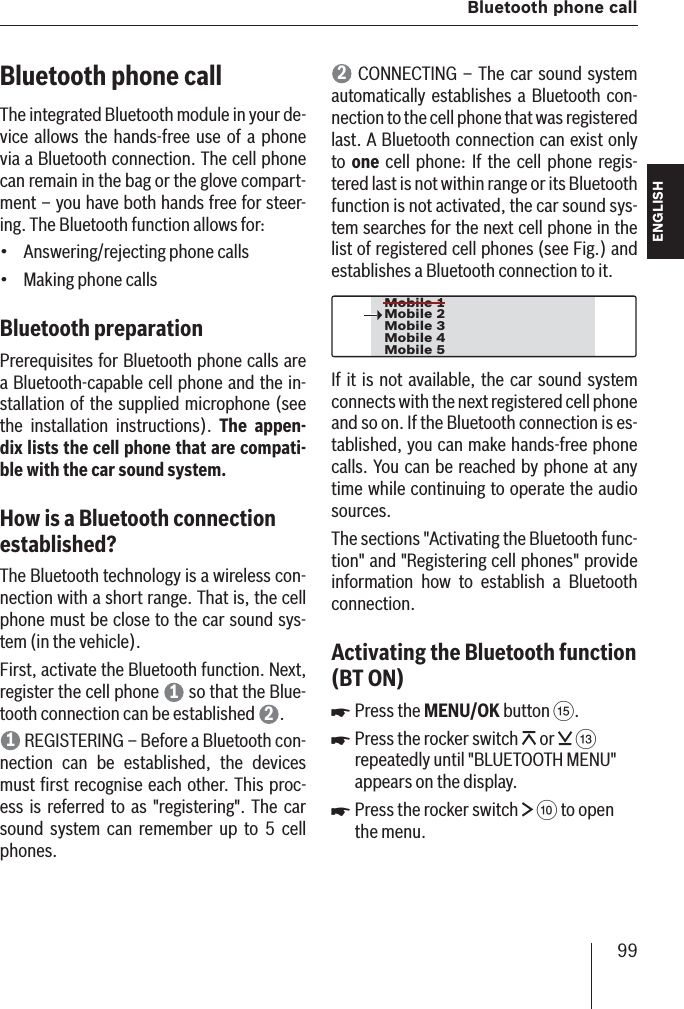

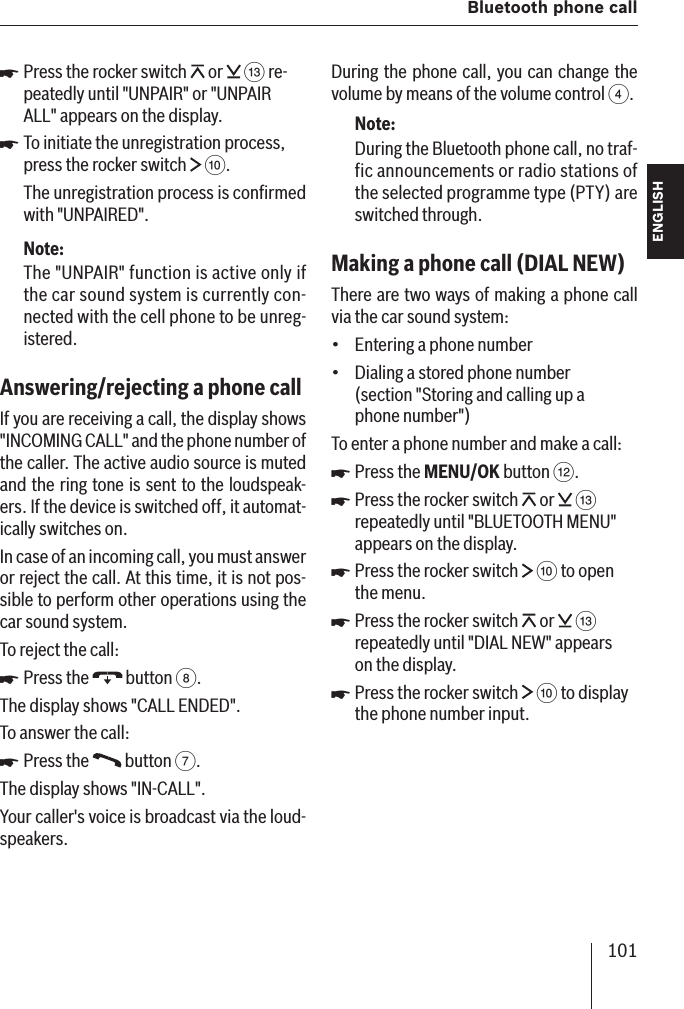

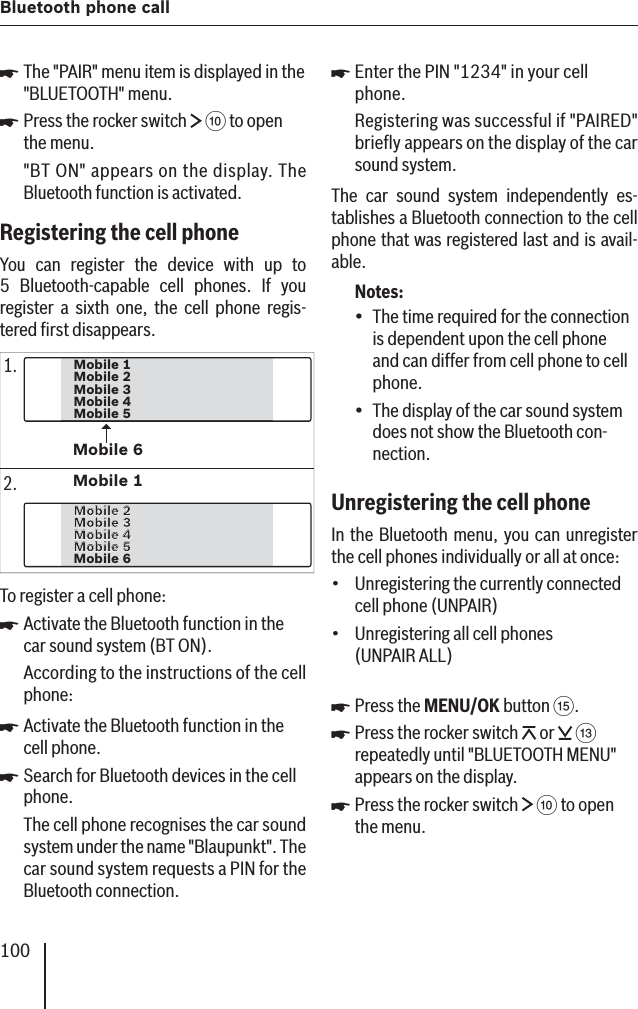

99 Bluetooth phone callENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKABluetooth phone call The integrated Bluetooth module in your de-vice allows the hands-free use of a phone via a Bluetooth connection. The cell phone can remain in the bag or the glove compart-ment – you have both hands free for steer-ing. The Bluetooth function allows for:Answering/rejecting phone callsMaking phone callsBluetooth preparation Prerequisites for Bluetooth phone calls are a Bluetooth-capable cell phone and the in-stallation of the supplied microphone (see the installation instructions). The appen-dix lists the cell phone that are compati-ble with the car sound system.How is a Bluetooth connection established? The Bluetooth technology is a wireless con-nection with a short range. That is, the cell phone must be close to the car sound sys-tem (in the vehicle). First, activate the Bluetooth function. Next, register the cell phone 1 so that the Blue-tooth connection can be established 2.1 REGISTERING – Before a Bluetooth con-nection can be established, the devices must fi rst recognise each other. This proc-ess is referred to as "registering". The car sound system can remember up to 5 cell phones.••2 CONNECTING – The car sound system automatically establishes a Bluetooth con-nection to the cell phone that was registered last. A Bluetooth connection can exist only to one cell phone: If the cell phone regis-tered last is not within range or its Bluetooth function is not activated, the car sound sys-tem searches for the next cell phone in the list of registered cell phones (see Fig.) and establishes a Bluetooth connection to it.Mobile 3Mobile 4Mobile 5Mobile 2Mobile 1If it is not available, the car sound system connects with the next registered cell phone and so on. If the Bluetooth connection is es-tablished, you can make hands-free phone calls. You can be reached by phone at any time while continuing to operate the audio sources.The sections "Activating the Bluetooth func-tion" and "Registering cell phones" provide information how to establish a Bluetooth connection.Activating the Bluetooth function (BT ON )Press the MENU/OK button ?.Press the rocker switch or = repeatedly until "BLUETOOTH MENU" appears on the display. Press the rocker switch : to open the menu.쏅쏅쏅
100Bluetooth phone callThe "PAIR" menu item is displayed in the "BLUETOOTH" menu.Press the rocker switch : to open the menu."BT ON" appears on the display. The Bluetooth function is activated.Registering the cell phone You can register the device with up to 5 Bluetooth-capable cell phones. If you register a sixth one, the cell phone regis-tered fi rst disappears.Mobile 3Mobile 4Mobile 5Mobile 2Mobile 1Mobile 6Mobile 4Mobile 4Mobile 5Mobile 5Mobile 6Mobile 3Mobile 3Mobile 2Mobile 2Mobile 11.2.To register a cell phone:Activate the Bluetooth function in the car sound system (BT ON).According to the instructions of the cell phone:Activate the Bluetooth function in the cell phone.Search for Bluetooth devices in the cell phone.The cell phone recognises the car sound system under the name "Blaupunkt". The car sound system requests a PIN for the Bluetooth connection.쏅쏅쏅쏅쏅Enter the PIN "1234" in your cell phone.Registering was successful if "PAIRED" briefl y appears on the display of the car sound system.The car sound system independently es-tablishes a Bluetooth connection to the cell phone that was registered last and is avail-able.Notes:The time required for the connection is dependent upon the cell phone and can differ from cell phone to cell phone.The display of the car sound system does not show the Bluetooth con-nection.Unregistering the cell phone In the Bluetooth menu, you can unregister the cell phones individually or all at once:Unregistering the currently connected cell phone ( UNPAIR)Unregistering all cell phones (UNPAIR ALL )Press the MENU/OK button ?.Press the rocker switch or = repeatedly until "BLUETOOTH MENU" appears on the display. Press the rocker switch : to open the menu.쏅••••쏅쏅쏅
101 Bluetooth phone callENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAPress the rocker switch or = re-peatedly until "UNPAIR" or "UNPAIR ALL" appears on the display.To initiate the unregistration process, press the rocker switch :.The unregistration process is confi rmed with "UNPAIRED".Note:The "UNPAIR" function is active only if the car sound system is currently con-nected with the cell phone to be unreg-istered.Answering/rejecting a phone call If you are receiving a call, the display shows "INCOMING CALL" and the phone number of the caller. The active audio source is muted and the ring tone is sent to the loudspeak-ers. If the device is switched off, it automat-ically switches on.In case of an incoming call, you must answer or reject the call. At this time, it is not pos-sible to perform other operations using the car sound system.To reject the call:Press the button 8.The display shows "CALL ENDED".To answer the call:Press the button 7.The display shows "IN-CALL".Your caller's voice is broadcast via the loud-speakers.쏅쏅쏅쏅During the phone call, you can change the volume by means of the volume control 4.Note:During the Bluetooth phone call, no traf-fic announcements or radio stations of the selected programme type (PTY) are switched through.Making a phone call (DIAL NEW )There are two ways of making a phone call via the car sound system:Entering a phone numberDialing a stored phone number (section "Storing and calling up a phone number")To enter a phone number and make a call:Press the MENU/OK button <.Press the rocker switch or = repeatedly until "BLUETOOTH MENU" appears on the display. Press the rocker switch : to open the menu.Press the rocker switch or = repeatedly until "DIAL NEW" appears on the display.Press the rocker switch : to display the phone number input.••쏅쏅쏅쏅쏅

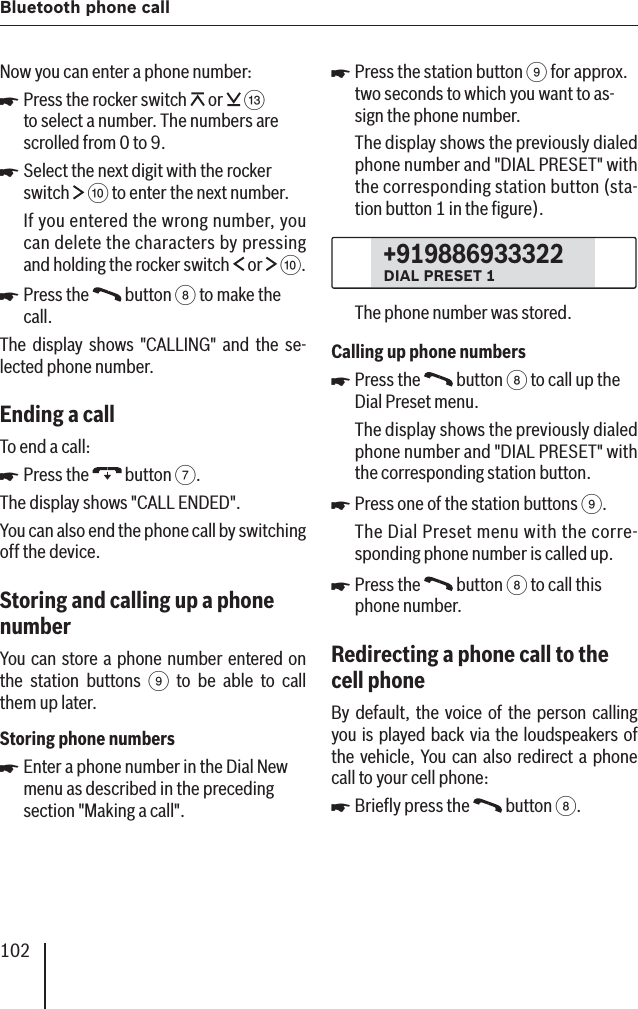

102Bluetooth phone callNow you can enter a phone number:Press the rocker switch or = to select a number. The numbers are scrolled from 0 to 9.Select the next digit with the rocker switch : to enter the next number.If you entered the wrong number, you can delete the characters by pressing and holding the rocker switch or :.Press the button 8 to make the call.The display shows "CALLING" and the se-lected phone number.Ending a call To end a call:Press the button 7.The display shows "CALL ENDED".You can also end the phone call by switching off the device.Storing and calling up a phone numberYou can store a phone number entered on the station buttons 9 to be able to call them up later.Storing phone numbersEnter a phone number in the Dial New menu as described in the preceding section "Making a call".쏅쏅쏅쏅쏅Press the station button 9 for approx. two seconds to which you want to as-sign the phone number.The display shows the previously dialed phone number and "DIAL PRESET" with the corresponding station button (sta-tion button 1 in the fi gure).+919886933322DIAL PRESET 1The phone number was stored.Calling up phone numbersPress the button 8 to call up the Dial Preset menu.The display shows the previously dialed phone number and "DIAL PRESET" with the corresponding station button.Press one of the station buttons 9.The Dial Preset menu with the corre-sponding phone number is called up.Press the button 8 to call this phone number.Redirecting a phone call to the cell phoneBy default, the voice of the person calling you is played back via the loudspeakers of the vehicle, You can also redirect a phone call to your cell phone:Briefl y press the button 8.쏅쏅쏅쏅쏅

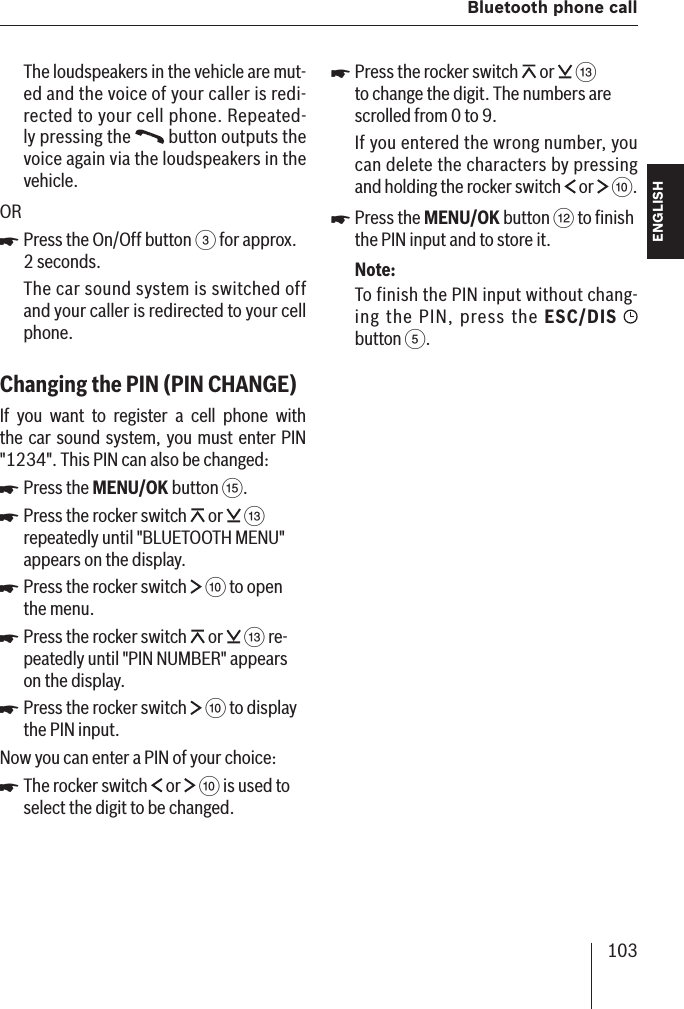

103 Bluetooth phone callENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAThe loudspeakers in the vehicle are mut-ed and the voice of your caller is redi-rected to your cell phone. Repeated-ly pressing the button outputs the voice again via the loudspeakers in the vehicle.ORPress the On/Off button 3 for approx. 2 seconds.The car sound system is switched off and your caller is redirected to your cell phone.Changing the PIN (PIN CHANGE )If you want to register a cell phone with the car sound system, you must enter PIN "1234". This PIN can also be changed:Press the MENU/OK button ?.Press the rocker switch or = repeatedly until "BLUETOOTH MENU" appears on the display. Press the rocker switch : to open the menu.Press the rocker switch or = re-peatedly until "PIN NUMBER" appears on the display.Press the rocker switch : to display the PIN input.Now you can enter a PIN of your choice:The rocker switch or : is used to select the digit to be changed.쏅쏅쏅쏅쏅쏅쏅Press the rocker switch or = to change the digit. The numbers are scrolled from 0 to 9.If you entered the wrong number, you can delete the characters by pressing and holding the rocker switch or :.Press the MENU/OK button < to fi nish the PIN input and to store it.Note:To finish the PIN input without chang-ing the PIN, press the ESC/DIS button 5.쏅쏅

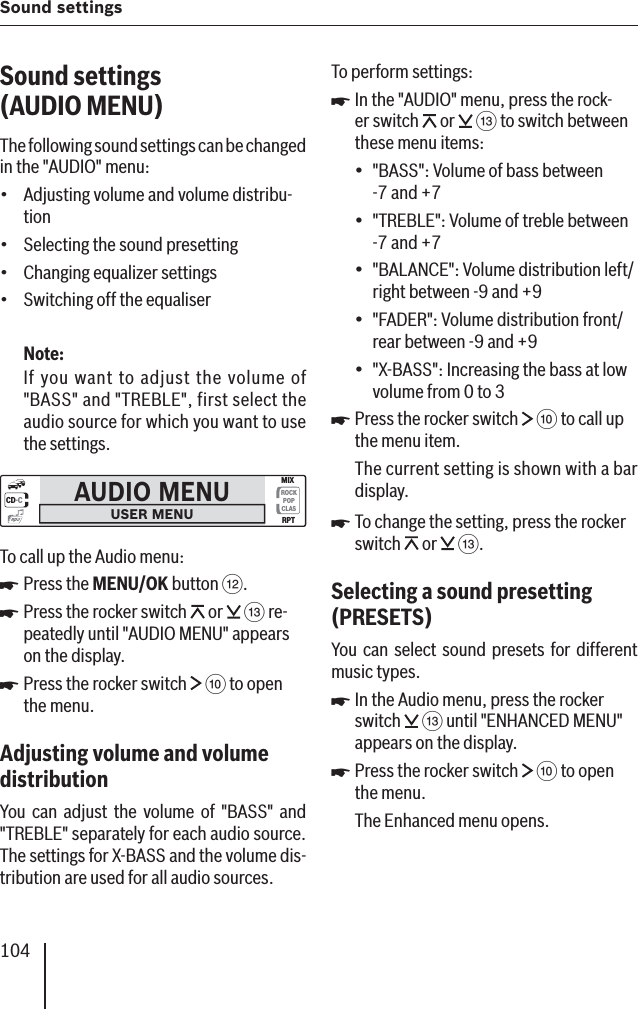

104Sound settingsSound settings (AUDIO MENU )The following sound settings can be changed in the "AUDIO" menu:Adjusting volume and volume distribu-tionSelecting the sound presettingChanging equalizer settingsSwitching off the equaliserNote:If you want to adjust the volume of "BASS" and "TREBLE", first select the audio source for which you want to use the settings.AUDIO MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3To call up the Audio menu:Press the MENU/OK button <.Press the rocker switch or = re-peatedly until "AUDIO MENU" appears on the display. Press the rocker switch : to open the menu.Adjusting volume and volume distribution You can adjust the volume of "BASS" and "TREBLE" separately for each audio source. The settings for X-BASS and the volume dis-tribution are used for all audio sources.••••쏅쏅쏅To perform settings:In the "AUDIO" menu, press the rock-er switch or = to switch between these menu items:"BASS ": Volume of bass between -7 and +7"TREBLE ": Volume of treble between -7 and +7"BALANCE ": Volume distribution left/right between -9 and +9"FADER ": Volume distribution front/rear between -9 and +9"X-BASS ": Increasing the bass at low volume from 0 to 3Press the rocker switch : to call up the menu item.The current setting is shown with a bar display.To change the setting, press the rocker switch or =.Selecting a sound presetting (PRESETS )You can select sound presets for different music types .In the Audio menu, press the rocker switch = until "ENHANCED MENU" appears on the display.Press the rocker switch : to open the menu.The Enhanced menu opens.쏅•••••쏅쏅쏅쏅

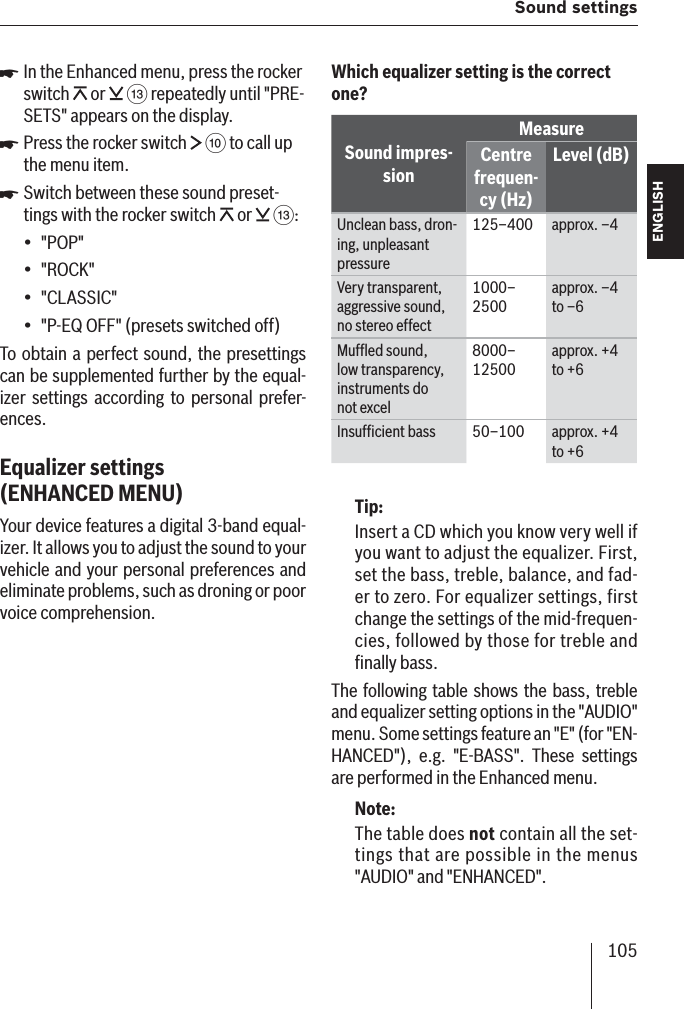

105 Sound settingsENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAIn the Enhanced menu, press the rocker switch or = repeatedly until "PRE-SETS" appears on the display. Press the rocker switch : to call up the menu item.Switch between these sound preset-tings with the rocker switch or =:"POP""ROCK""CLASSIC""P-EQ OFF " (presets switched off)To obtain a perfect sound, the presettings can be supplemented further by the equal-izer settings according to personal prefer-ences.Equalizer settings (ENHANCED MENU)Your device features a digital 3-band equal-izer. It allows you to adjust the sound to your vehicle and your personal preferences and eliminate problems, such as droning or poor voice comprehension.쏅쏅쏅••••Which equalizer setting is the correct one?Sound impres-sionMeasureCentre frequen-cy (Hz)Level (dB)Unclean bass, dron-ing, unpleasant pressure125–400 approx. –4Very transparent, aggressive sound, no stereo effect1000–2500 approx. –4 to –6 Muffl ed sound, low transparency, instruments do not excel8000–12500 approx. +4 to +6 Insuffi cient bass 50–100 approx. +4 to +6 Tip:Insert a CD which you know very well if you want to adjust the equalizer. First, set the bass, treble, balance, and fad-er to zero. For equalizer settings, first change the settings of the mid-frequen-cies, followed by those for treble and fi nally bass.The following table shows the bass, treble and equalizer setting options in the "AUDIO" menu. Some settings feature an "E" (for "EN-HANCED"), e.g. "E-BASS". These settings are performed in the Enhanced menu.Note:The table does not contain all the set-tings that are possible in the menus "AUDIO" and "ENHANCED".

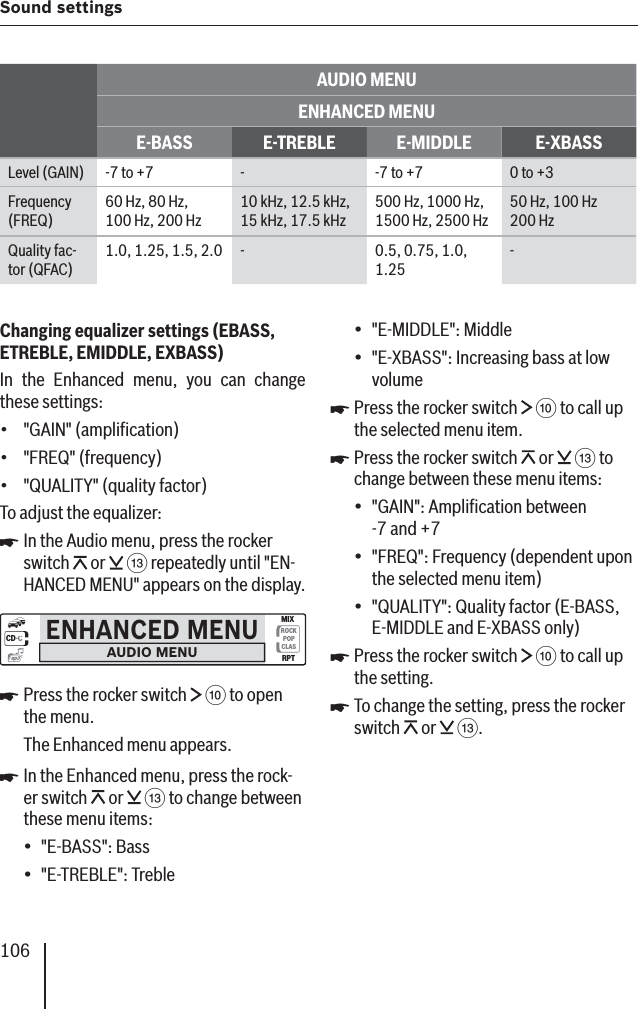

106Sound settingsAUDIO MENUENHANCED MENUE-BASS E-TREBLE E-MIDDLE E-XBASSLevel (GAIN) -7 to +7 - -7 to +7 0 to +3Frequency (FREQ)60 Hz, 80 Hz, 100 Hz, 200 Hz10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz500 Hz, 1000 Hz, 1500 Hz, 2500 Hz50 Hz, 100 Hz 200 HzQuality fac-tor (QFAC)1.0, 1.25, 1.5, 2.0 - 0.5, 0.75, 1.0, 1.25-Changing equalizer settings (EBASS, ETREBLE, EMIDDLE, EXBASS)In the Enhanced menu, you can change these settings : "GAIN " (amplifi cation )"FREQ " (frequency )"QUALITY " (quality factor )To adjust the equalizer:In the Audio menu, press the rocker switch or = repeatedly until "EN-HANCED MENU" appears on the display.ENHANCED MENUAUDIO MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.The Enhanced menu appears.In the Enhanced menu, press the rock-er switch or = to change between these menu items:"E-BASS ": Bass"E-TREBLE": Treble•••쏅쏅쏅••"E-MIDDLE": Middle"E-XBASS ": Increasing bass at low volumePress the rocker switch : to call up the selected menu item.Press the rocker switch or = to change between these menu items:"GAIN": Amplifi cation between -7 and +7"FREQ": Frequency (dependent upon the selected menu item)"QUALITY": Quality factor (E-BASS, E-MIDDLE and E-XBASS only)Press the rocker switch : to call up the setting.To change the setting, press the rocker switch or =.••쏅쏅•••쏅쏅

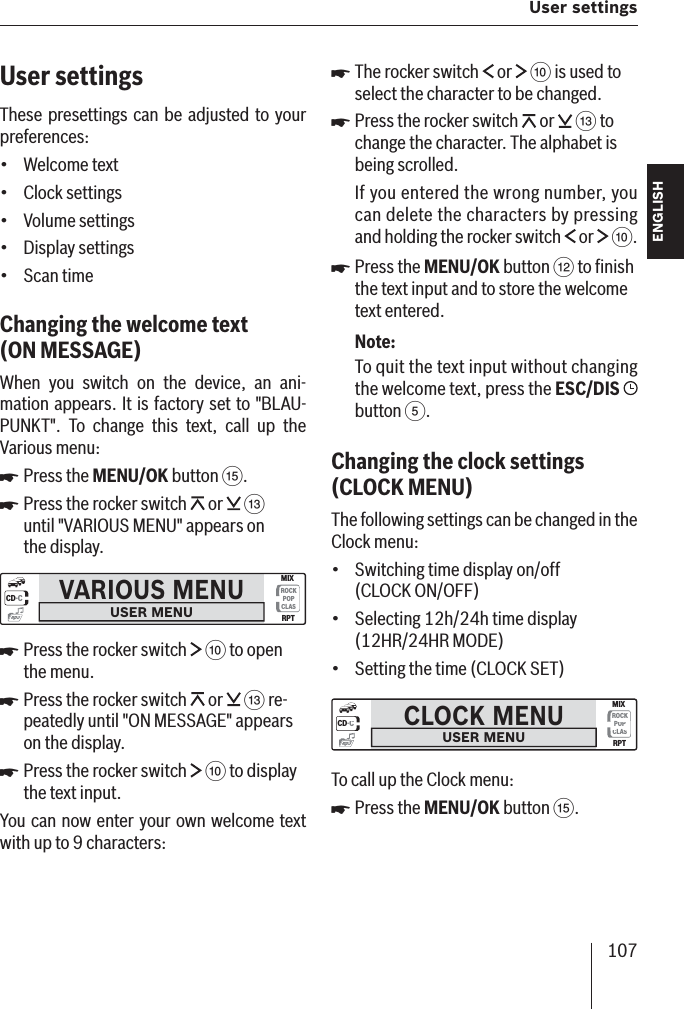

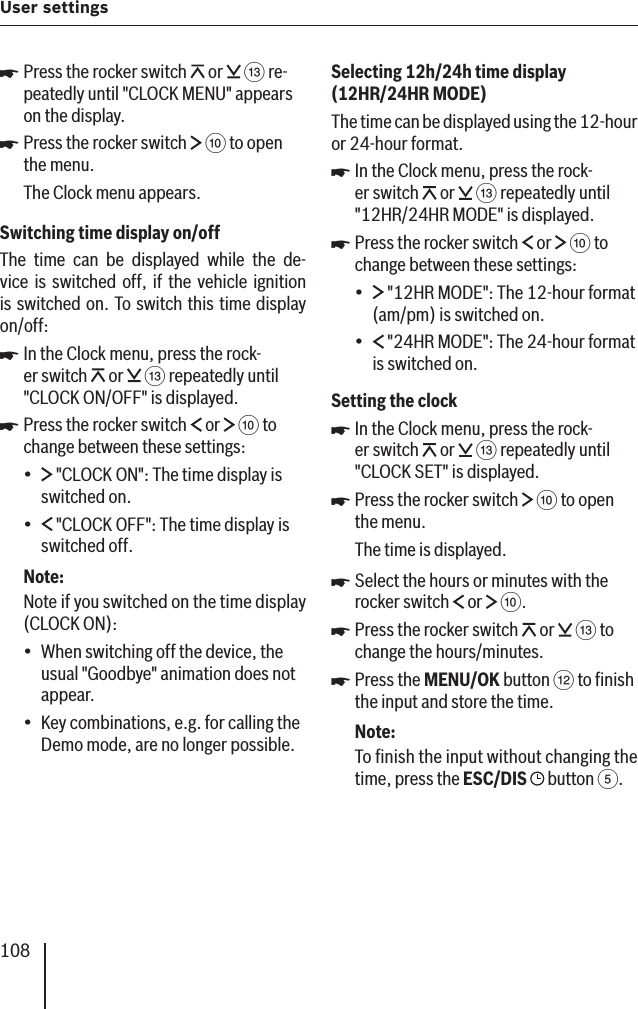

107 User settings ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAUser settingsThese presettings can be adjusted to your preferences:Welcome textClock settingsVolume settingsDisplay settingsScan timeChanging the welcome text (ON MESSAGE )When you switch on the device, an ani-mation appears. It is factory set to "BLAU-PUNKT". To change this text, call up the Various menu:Press the MENU/OK button ?.Press the rocker switch or = until "VARIOUS MENU" appears on the display.VARIOUS MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.Press the rocker switch or = re-peatedly until "ON MESSAGE" appears on the display.Press the rocker switch : to display the text input.You can now enter your own welcome text with up to 9 characters:•••••쏅쏅쏅쏅쏅The rocker switch or : is used to select the character to be changed.Press the rocker switch or = to change the character. The alphabet is being scrolled.If you entered the wrong number, you can delete the characters by pressing and holding the rocker switch or :.Press the MENU/OK button < to fi nish the text input and to store the welcome text entered.Note:To quit the text input without changing the welcome text, press the ESC/DIS button 5.Changing the clock settings (CLOCK MENU)The following settings can be changed in the Clock menu:Switching time display on/off (CLOCK ON/OFF)Selecting 12h/24h time display (12HR/24HR MODE)Setting the time (CLOCK SET)CLOCK MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3To call up the Clock menu:Press the MENU/OK button ?.쏅쏅쏅•••쏅
108User settings Press the rocker switch or = re-peatedly until "CLOCK MENU" appears on the display. Press the rocker switch : to open the menu.The Clock menu appears.Switching time display on/offThe time can be displayed while the de-vice is switched off, if the vehicle ignition is switched on. To switch this time display on/off:In the Clock menu, press the rock-er switch or = repeatedly until "CLOCK ON/OFF" is displayed.Press the rocker switch or : to change between these settings: "CLOCK ON ": The time display is switched on. "CLOCK OFF": The time display is switched off.Note:Note if you switched on the time display (CLOCK ON):When switching off the device, the usual "Goodbye" animation does not appear.Key combinations, e.g. for calling the Demo mode, are no longer possible.쏅쏅쏅쏅••••Selecting 12h/24h time display (12HR/24HR MODE )The time can be displayed using the 12-hour or 24-hour format.In the Clock menu, press the rock-er switch or = repeatedly until "12HR/24HR MODE " is displayed.Press the rocker switch or : to change between these settings: "12HR MODE": The 12-hour format (am/pm) is switched on. "24HR MODE": The 24-hour format is switched on.Setting the clockIn the Clock menu, press the rock-er switch or = repeatedly until "CLOCK SET" is displayed.Press the rocker switch : to open the menu.The time is displayed.Select the hours or minutes with the rocker switch or :.Press the rocker switch or = to change the hours/minutes.Press the MENU/OK button < to fi nish the input and store the time.Note:To fi nish the input without changing the time, press the ESC/DIS button 5.쏅쏅••쏅쏅쏅쏅쏅

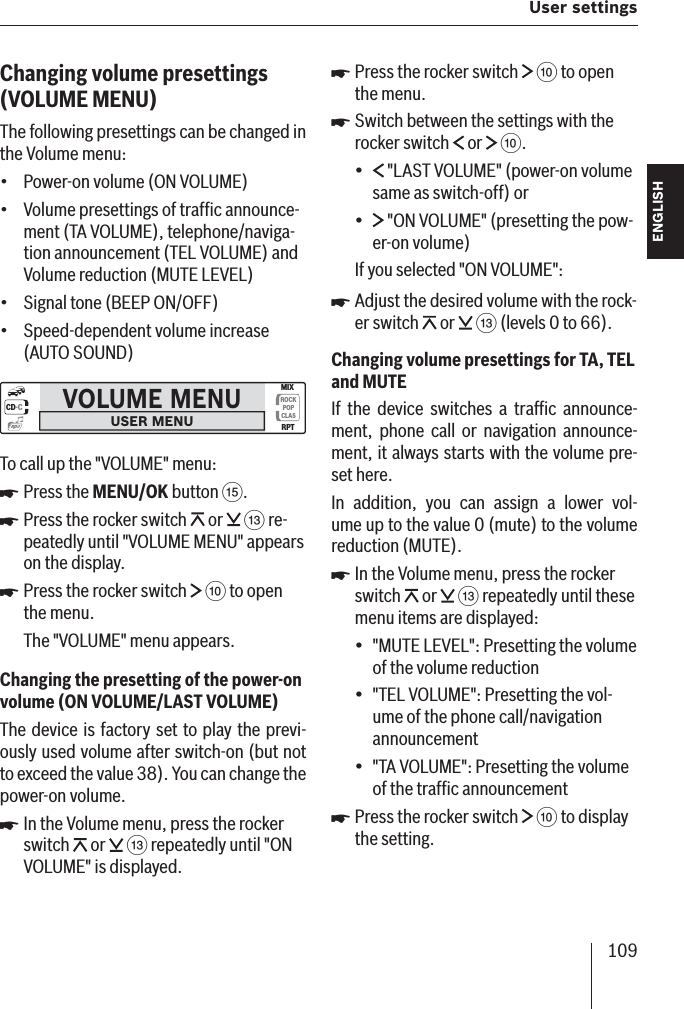

109 User settings ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAChanging volume presettings (VOLUME MENU)The following presettings can be changed in the Volume menu:Power-on volume (ON VOLUME)Volume presettings of traffi c announce-ment (TA VOLUME), telephone/naviga-tion announcement (TEL VOLUME) and Volume reduction (MUTE LEVEL)Signal tone (BEEP ON/OFF)Speed-dependent volume increase (AUTO SOUND)VOLUME MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3To call up the "VOLUME" menu:Press the MENU/OK button ?.Press the rocker switch or = re-peatedly until "VOLUME MENU" appears on the display. Press the rocker switch : to open the menu.The "VOLUME" menu appears.Changing the presetting of the power-on volume (ON VOLUME /LAST VOLUME )The device is factory set to play the previ-ously used volume after switch-on (but not to exceed the value 38). You can change the power-on volume.In the Volume menu, press the rocker switch or = repeatedly until "ON VOLUME" is displayed.••••쏅쏅쏅쏅Press the rocker switch : to open the menu.Switch between the settings with the rocker switch or :. "LAST VOLUME" (power-on volume same as switch-off) or "ON VOLUME" (presetting the pow-er-on volume)If you selected "ON VOLUME":Adjust the desired volume with the rock-er switch or = (levels 0 to 66).Changing volume presettings for TA, TEL and MUTEIf the device switches a traffi c announce-ment, phone call or navigation announce-ment, it always starts with the volume pre-set here.In addition, you can assign a lower vol-ume up to the value 0 (mute) to the volume reduction (MUTE).In the Volume menu, press the rocker switch or = repeatedly until these menu items are displayed:"MUTE LEVEL ": Presetting the volume of the volume reduction"TEL VOLUME ": Presetting the vol-ume of the phone call/navigation announcement"TA VOLUME ": Presetting the volume of the traffi c announcementPress the rocker switch : to display the setting.쏅쏅••쏅쏅•••쏅

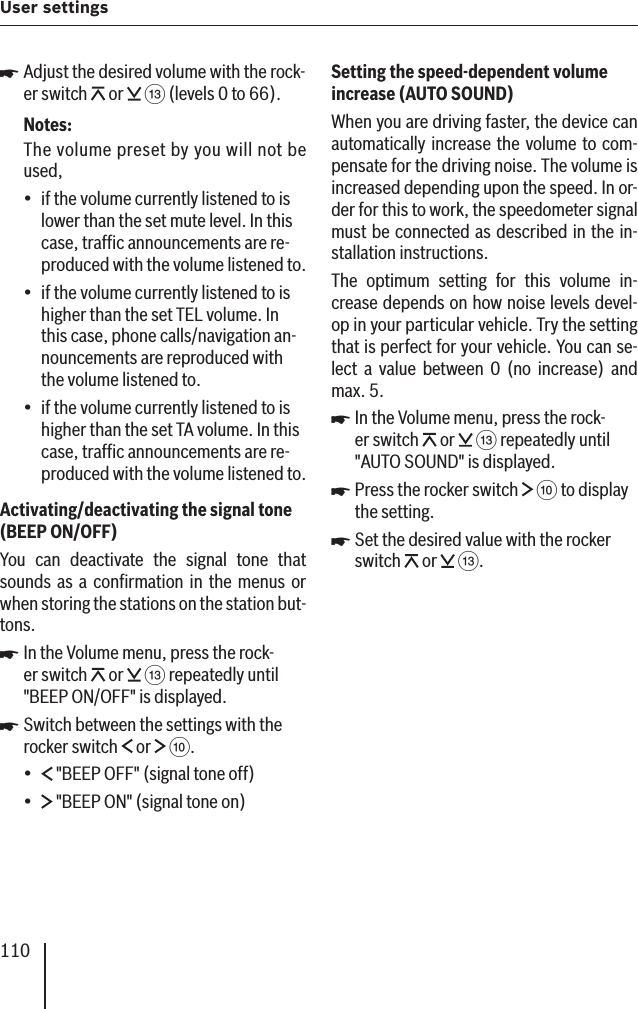

110User settings Adjust the desired volume with the rock-er switch or = (levels 0 to 66).Notes:The volume preset by you will not be used,if the volume currently listened to is lower than the set mute level. In this case, traffi c announcements are re-produced with the volume listened to.if the volume currently listened to is higher than the set TEL volume. In this case, phone calls/navigation an-nouncements are reproduced with the volume listened to.if the volume currently listened to is higher than the set TA volume. In this case, traffi c announcements are re-produced with the volume listened to. Activating/deactivating the signal tone (BEEP ON/OFF)You can deactivate the signal tone that sounds as a confi rmation in the menus or when storing the stations on the station but-tons.In the Volume menu, press the rock-er switch or = repeatedly until "BEEP ON/OFF" is displayed.Switch between the settings with the rocker switch or :. "BEEP OFF" (signal tone off) "BEEP ON " (signal tone on)쏅•••쏅쏅••Setting the speed-dependent volume increase (AUTO SOUND )When you are driving faster, the device can automatically increase the volume to com-pensate for the driving noise. The volume is increased depending upon the speed. In or-der for this to work, the speedometer signal must be connected as described in the in-stallation instructions.The optimum setting for this volume in-crease depends on how noise levels devel-op in your particular vehicle. Try the setting that is perfect for your vehicle. You can se-lect a value between 0 (no increase) and max. 5.In the Volume menu, press the rock-er switch or = repeatedly until "AUTO SOUND" is displayed.Press the rocker switch : to display the setting.Set the desired value with the rocker switch or =.쏅쏅쏅

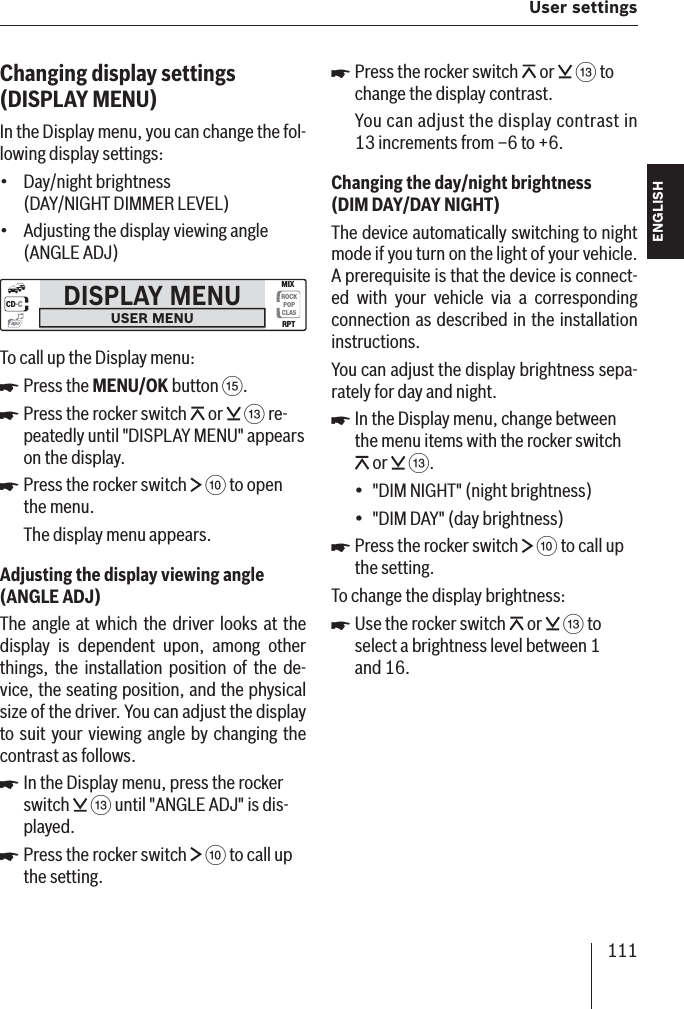

111 User settings ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAChanging display settings (DISPLAY MENU)In the Display menu, you can change the fol-lowing display settings:Day/night brightness (DAY/NIGHT DIMMER LEVEL)Adjusting the display viewing angle (ANGLE ADJ)DISPLAY MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3To call up the Display menu:Press the MENU/OK button ?.Press the rocker switch or = re-peatedly until "DISPLAY MENU" appears on the display. Press the rocker switch : to open the menu.The display menu appears.Adjusting the display viewing angle (ANGLE ADJ )The angle at which the driver looks at the display is dependent upon, among other things, the installation position of the de-vice, the seating position, and the physical size of the driver. You can adjust the display to suit your viewing angle by changing the contrast as follows.In the Display menu, press the rocker switch = until "ANGLE ADJ" is dis-played.Press the rocker switch : to call up the setting.••쏅쏅쏅쏅쏅Press the rocker switch or = to change the display contrast.You can adjust the display contrast in 13 increments from –6 to +6.Changing the day/night brightness (DIM DAY/DAY NIGHT )The device automatically switching to night mode if you turn on the light of your vehicle. A prerequisite is that the device is connect-ed with your vehicle via a corresponding connection as described in the installation instructions.You can adjust the display brightness sepa-rately for day and night.In the Display menu, change between the menu items with the rocker switch or =."DIM NIGHT" (night brightness)"DIM DAY" (day brightness)Press the rocker switch : to call up the setting.To change the display brightness:Use the rocker switch or = to select a brightness level between 1 and 16.쏅쏅••쏅쏅

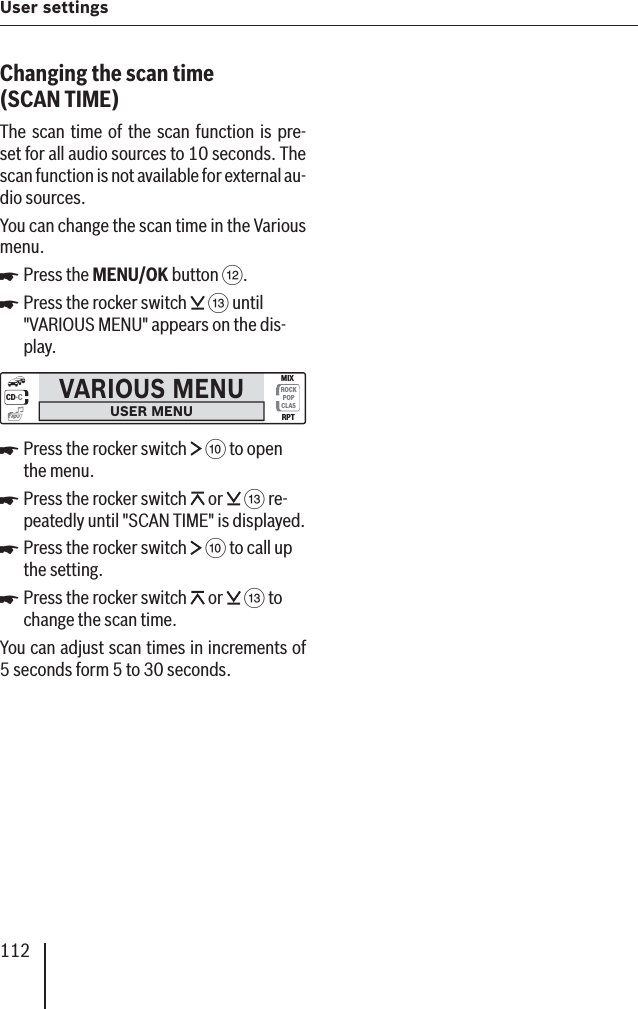

112User settings Changing the scan time (SCAN TIME )The scan time of the scan function is pre-set for all audio sources to 10 seconds. The scan function is not available for external au-dio sources. You can change the scan time in the Various menu.Press the MENU/OK button <.Press the rocker switch = until "VARIOUS MENU" appears on the dis-play.VARIOUS MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.Press the rocker switch or = re-peatedly until "SCAN TIME" is displayed.Press the rocker switch : to call up the setting.Press the rocker switch or = to change the scan time.You can adjust scan times in increments of 5 seconds form 5 to 30 seconds.쏅쏅쏅쏅쏅쏅

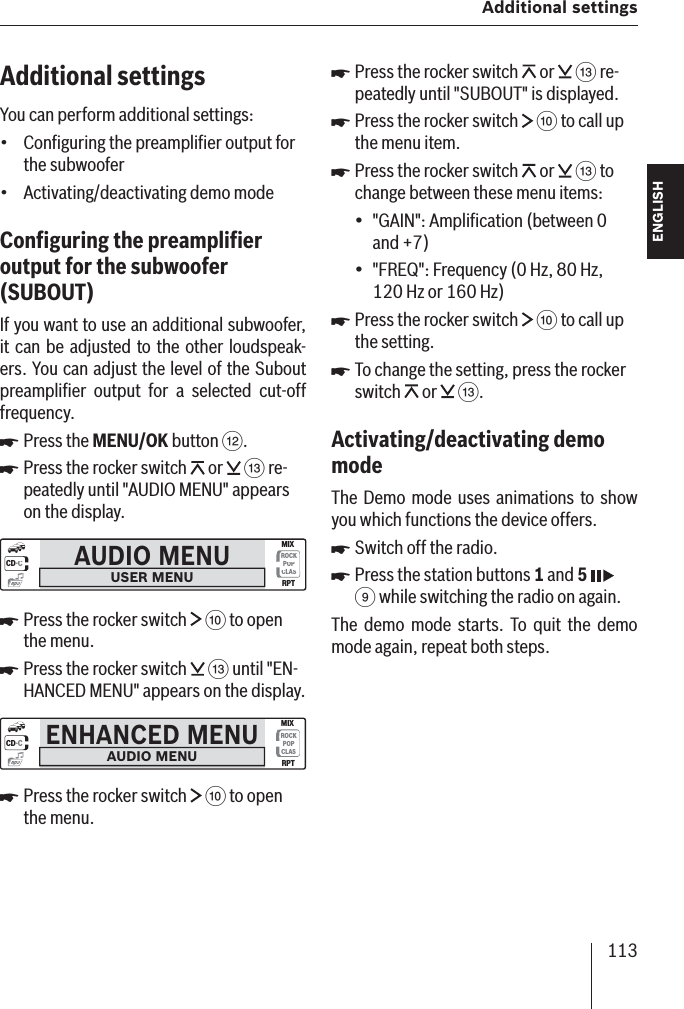

113 Additional settingsENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAAdditional settingsYou can perform additional settings:Confi guring the preamplifi er output for the subwooferActivating/deactivating demo modeConfi guring the preamplifi er output for the subwoofer (SUBOUT )If you want to use an additional subwoofer , it can be adjusted to the other loudspeak-ers. You can adjust the level of the Subout preamplifi er output for a selected cut-off frequency.Press the MENU/OK button <.Press the rocker switch or = re-peatedly until "AUDIO MENU" appears on the display. AUDIO MENUUSER MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.Press the rocker switch = until "EN-HANCED MENU" appears on the display. ENHANCED MENUAUDIO MENUCD·CROCKPOPCLASMIXRPTmp3Press the rocker switch : to open the menu.••쏅쏅쏅쏅쏅Press the rocker switch or = re-peatedly until "SUBOUT" is displayed. Press the rocker switch : to call up the menu item.Press the rocker switch or = to change between these menu items:"GAIN": Amplifi cation (between 0 and +7)"FREQ": Frequency (0 Hz, 80 Hz, 120 Hz or 160 Hz)Press the rocker switch : to call up the setting.To change the setting, press the rocker switch or =.Activating/deactivating demo mode The Demo mode uses animations to show you which functions the device offers.Switch off the radio.Press the station buttons 1 and 5 9 while switching the radio on again.The demo mode starts. To quit the demo mode again, repeat both steps.쏅쏅쏅••쏅쏅쏅쏅

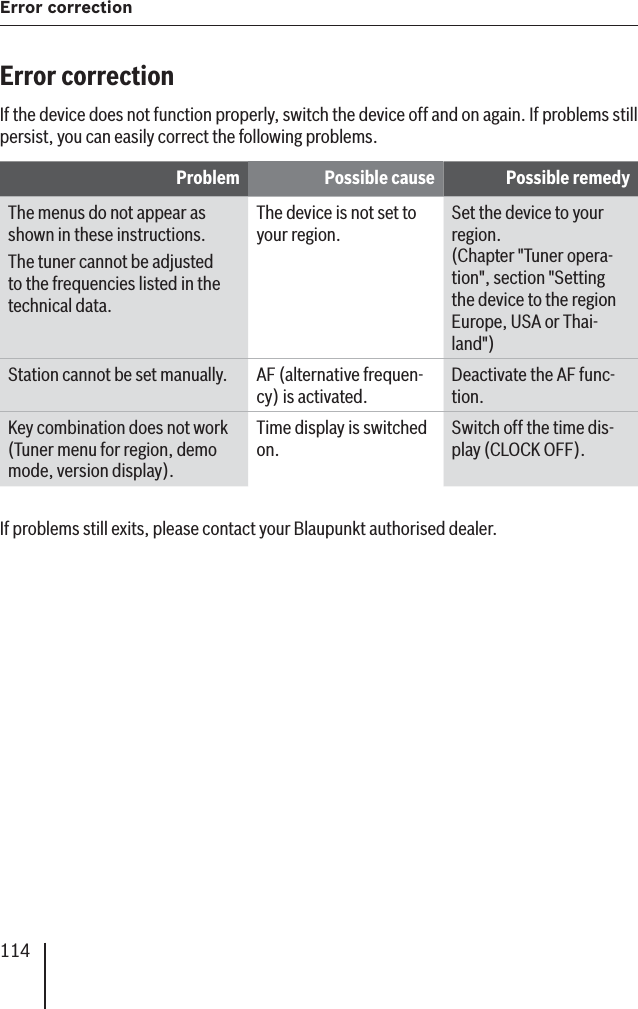

114Error correction Error correction If the device does not function properly, switch the device off and on again. If problems still persist, you can easily correct the following problems.Problem Possible cause Possible remedyThe menus do not appear as shown in these instructions.The tuner cannot be adjusted to the frequencies listed in the technical data.The device is not set to your region.Set the device to your region. (Chapter "Tuner opera-tion", section "Setting the device to the region Europe, USA or Thai-land")Station cannot be set manually. AF (alternative frequen-cy) is activated.Deactivate the AF func-tion.Key combination does not work (Tuner menu for region, demo mode, version display).Time display is switched on.Switch off the time dis-play (CLOCK OFF).If problems still exits, please contact your Blaupunkt authorised dealer.

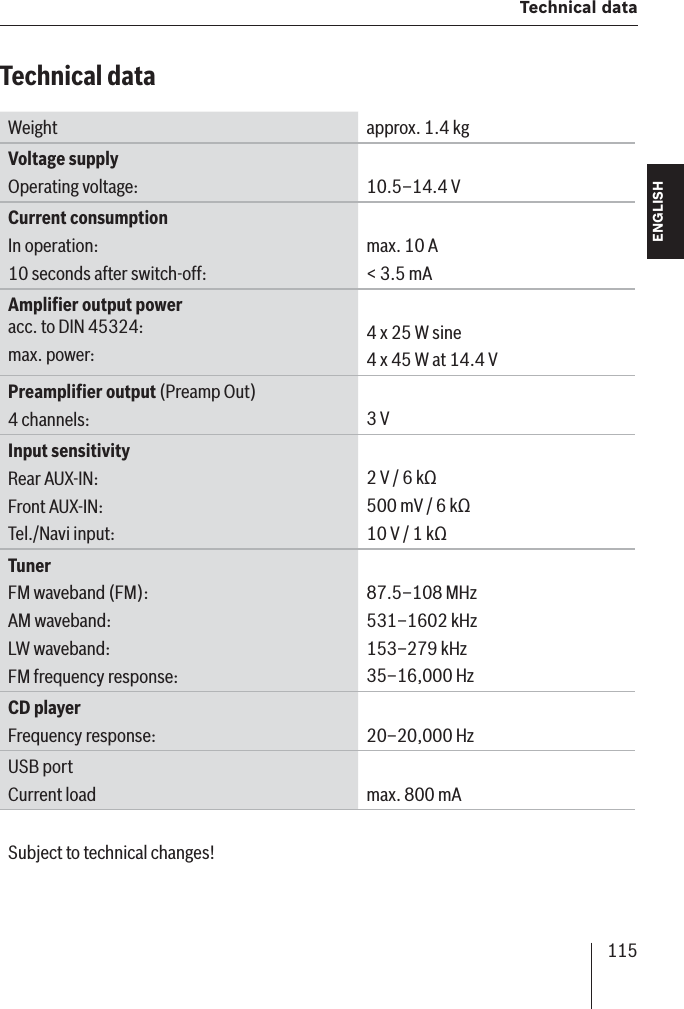

115 Technical data ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKATechnical dataWeight approx. 1.4 kgVoltage supplyOperating voltage: 10.5–14.4 VCurrent consumptionIn operation:10 seconds after switch-off:max. 10 A< 3.5 mAAmplifi er output power acc. to DIN 45324:max. power:4 x 25 W sine4 x 45 W at 14.4 VPreamplifi er output (Preamp Out)4 channels: 3 VInput sensitivityRear AUX-IN:Front AUX-IN:Tel./Navi input:2 V / 6 kΩ500 mV / 6 kΩ10 V / 1 kΩTunerFM waveband (FM):AM waveband:LW waveband:FM frequency response:87.5–108 MHz531–1602 kHz153–279 kHz35–16,000 HzCD playerFrequency response: 20–20,000 HzUSB portCurrent load max. 800 mASubject to technical changes!

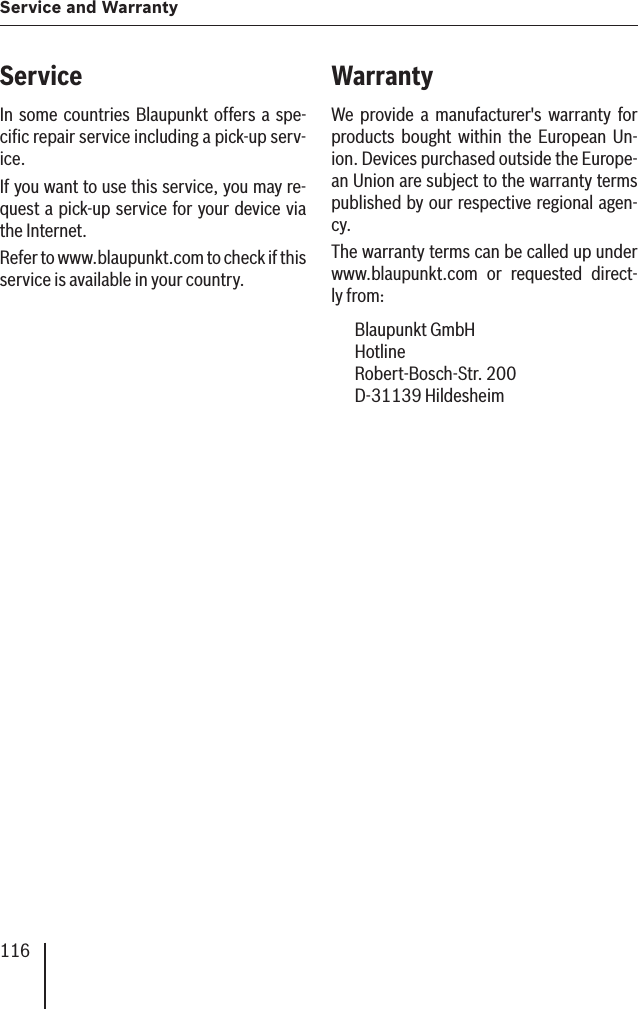

116Service and WarrantyServiceIn some countries Blaupunkt offers a spe-cifi c repair service including a pick-up serv-ice.If you want to use this service, you may re-quest a pick-up service for your device via the Internet.Refer to www.blaupunkt.com to check if this service is available in your country.WarrantyWe provide a manufacturer's warranty for products bought within the European Un-ion. Devices purchased outside the Europe-an Union are subject to the warranty terms published by our respective regional agen-cy.The warranty terms can be called up under www.blaupunkt.com or requested direct-ly from: Blaupunkt GmbH Hotline Robert-Bosch-Str. 200 D-31139 Hildesheim

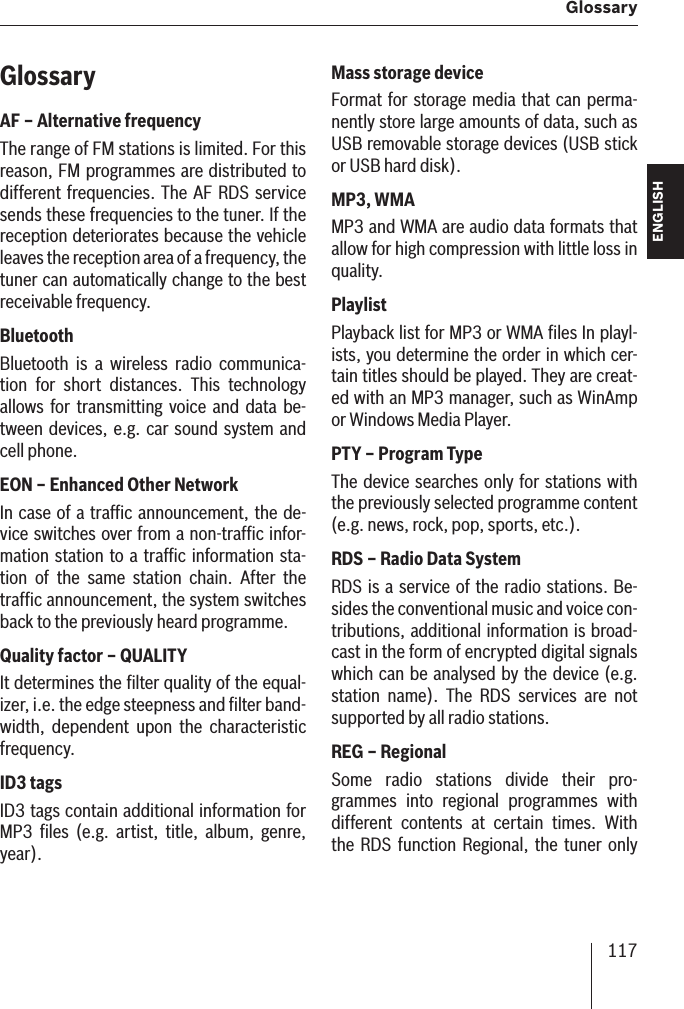

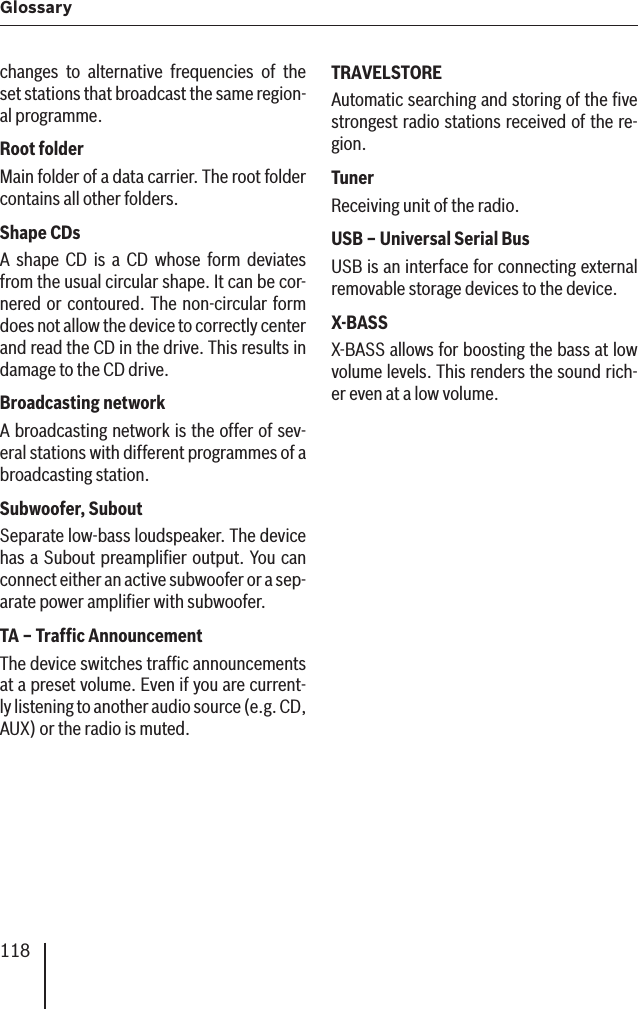

117 Glossary ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAGlossaryAF – Alternative frequency The range of FM stations is limited. For this reason, FM programmes are distributed to different frequencies. The AF RDS service sends these frequencies to the tuner. If the reception deteriorates because the vehicle leaves the reception area of a frequency, the tuner can automatically change to the best receivable frequency.Bluetooth Bluetooth is a wireless radio communica-tion for short distances. This technology allows for transmitting voice and data be-tween devices, e.g. car sound system and cell phone.EON – Enhanced Other Network In case of a traffi c announcement, the de-vice switches over from a non-traffi c infor-mation station to a traffi c information sta-tion of the same station chain. After the traffi c announcement, the system switches back to the previously heard programme.Quality factor – QUALITYIt determines the fi lter quality of the equal-izer, i.e. the edge steepness and fi lter band-width, dependent upon the characteristic frequency.ID3 tags ID3 tags contain additional information for MP3 fi les (e.g. artist, title, album, genre, year).Mass storage deviceFormat for storage media that can perma-nently store large amounts of data, such as USB removable storage devices (USB stick or USB hard disk).MP3, WMAMP3 and WMA are audio data formats that allow for high compression with little loss in quality.Playlist Playback list for MP3 or WMA fi les In playl-ists, you determine the order in which cer-tain titles should be played. They are creat-ed with an MP3 manager, such as WinAmp or Windows Media Player.PTY – Program Type The device searches only for stations with the previously selected programme content (e.g. news, rock, pop, sports, etc.).RDS – Radio Data System RDS is a service of the radio stations. Be-sides the conventional music and voice con-tributions, additional information is broad-cast in the form of encrypted digital signals which can be analysed by the device (e.g. station name). The RDS services are not supported by all radio stations.REG – RegionalSome radio stations divide their pro-grammes into regional programmes with different contents at certain times. With the RDS function Regional, the tuner only
118Glossary changes to alternative frequencies of the set stations that broadcast the same region-al programme.Root folder Main folder of a data carrier. The root folder contains all other folders.Shape CDs A shape CD is a CD whose form deviates from the usual circular shape. It can be cor-nered or contoured. The non-circular form does not allow the device to correctly center and read the CD in the drive. This results in damage to the CD drive.Broadcasting network A broadcasting network is the offer of sev-eral stations with different programmes of a broadcasting station.Subwoofer , SuboutSeparate low-bass loudspeaker. The device has a Subout preamplifi er output. You can connect either an active subwoofer or a sep-arate power amplifi er with subwoofer.TA – Traffi c Announcement The device switches traffi c announcements at a preset volume. Even if you are current-ly listening to another audio source (e.g. CD, AUX) or the radio is muted.TRAVELSTORE Automatic searching and storing of the fi ve strongest radio stations received of the re-gion.Tuner Receiving unit of the radio.USB – Universal Serial Bus USB is an interface for connecting external removable storage devices to the device.X-BASS X-BASS allows for boosting the bass at low volume levels. This renders the sound rich-er even at a low volume.
119 Index ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKAIndexAAlternative frequency (AF) 86, 117Amplifi cation 106ANGLE ADJ 111AUDIO 104Audio sources 70Displays 80Functions 79AUTO SOUND 110AUX 79, 97AUX INPUT 98AUX LEVEL 98AUX ON, AUX OFF 98BBALANCE 104BASS 104BEEP ON, BEEP OFF 110Bluetooth 99, 117Activating, deactivating 99Changing the PIN 103Connection 99, 100Making a phone call 101, 102Preparation 99Broadcasting network 83, 85, 118BT ON, BT OFF 99CCD (audio, CD-R, CD-RW) 74, 75, 79, 118CD changer 79, 94, 95CD playerInserting/removing a CD 74, 75Playing an audio CD 88, 89Playing an MP3/WMA CD 90, 91, 93Selecting 88, 90Changing the scan time 112Changing the switch-off time 77Cleaning 68CLOCK, CLOCK MODE, CLOCK SET 107, 108Clock, time display 107, 108CLOCK ON, CLOCK OFF 108Confi guring audio inputs 97, 98Connection, Bluetooth 99, 100Control panel 72Correcting errors 114DDemo mode 113Device card 72DIAL NEW (dialing a phone number) 101DIM DAY, DIM NIGHT (brightness for day and night) 111DisplayAudio sources 80Settings 111Displaying the serial number 72Displaying title information 92Disposal 68Note:Keywords in capital letters refer to menu items.

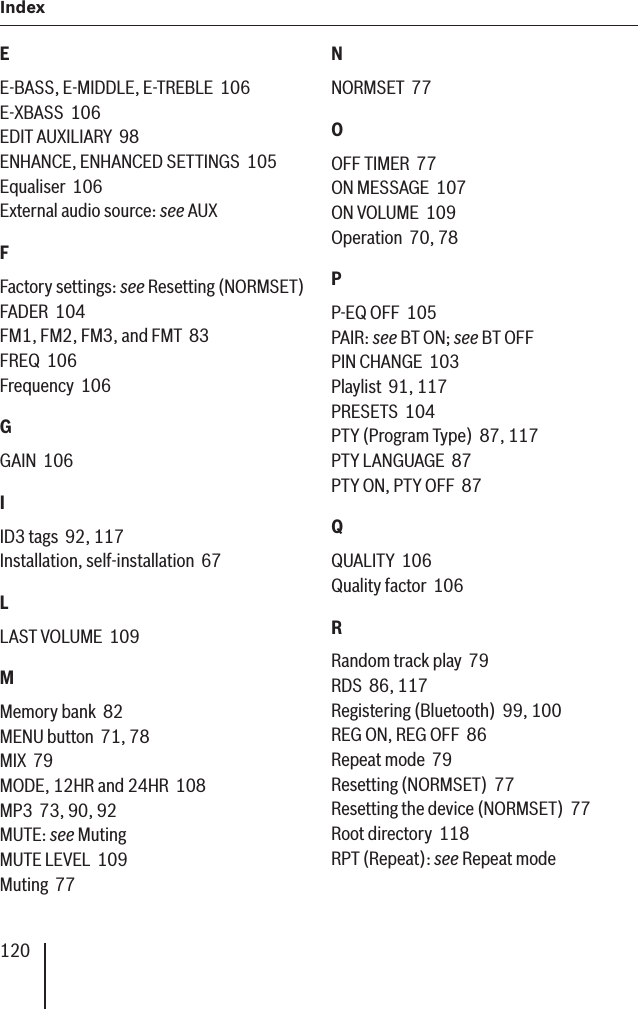

120Index EE-BASS, E-MIDDLE, E-TREBLE 106E-XBASS 106EDIT AUXILIARY 98ENHANCE, ENHANCED SETTINGS 105Equaliser 106External audio source: see AUXFFactory settings: see Resetting (NORMSET)FADER 104FM1, FM2, FM3, and FMT 83FREQ 106Frequency 106GGAIN 106IID3 tags 92, 117Installation, self-installation 67LLAST VOLUME 109MMemory bank 82MENU button 71, 78MIX 79MODE, 12HR and 24HR 108MP3 73, 90, 92MUTE: see MutingMUTE LEVEL 109Muting 77NNORMSET 77OOFF TIMER 77ON MESSAGE 107ON VOLUME 109Operation 70, 78PP-EQ OFF 105PAIR: see BT ON; see BT OFFPIN CHANGE 103Playlist 91, 117PRESETS 104PTY (Program Type) 87, 117PTY LANGUAGE 87PTY ON, PTY OFF 87QQUALITY 106Quality factor 106RRandom track play 79RDS 86, 117Registering (Bluetooth) 99, 100REG ON, REG OFF 86Repeat mode 79Resetting (NORMSET) 77Resetting the device (NORMSET) 77Root directory 118RPT (Repeat): see Repeat mode

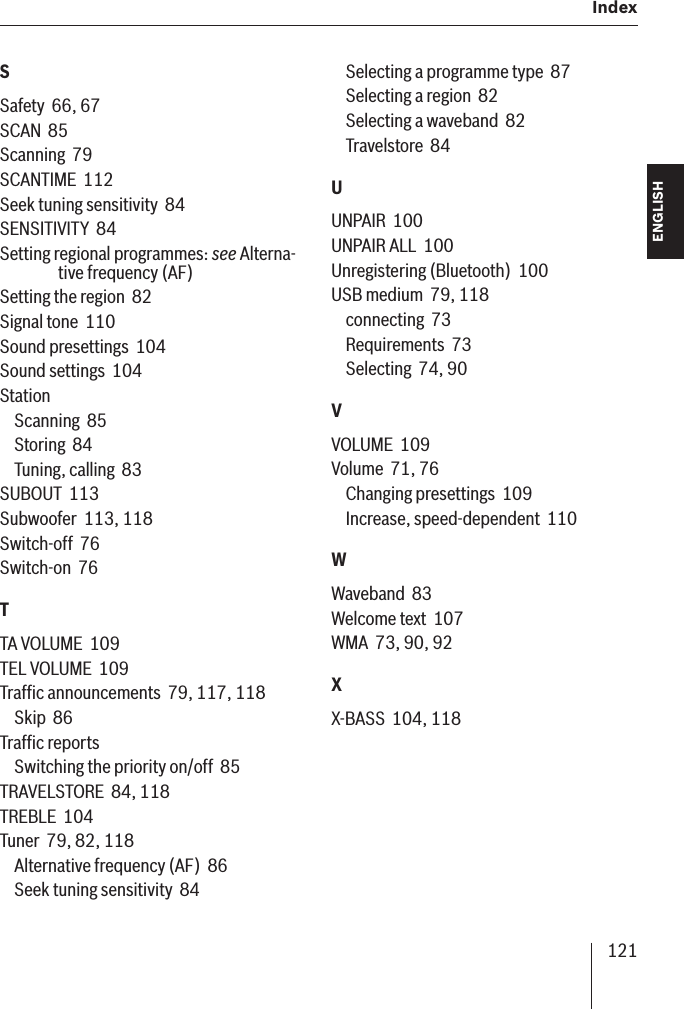

121 Index ENGLISH DEUTSCHFRANÇAISITALIANONEDERLANDSSVENSKASSafety 66, 67SCAN 85Scanning 79SCANTIME 112Seek tuning sensitivity 84SENSITIVITY 84Setting regional programmes: see Alterna-tive frequency (AF)Setting the region 82Signal tone 110Sound presettings 104Sound settings 104StationScanning 85Storing 84Tuning, calling 83SUBOUT 113Subwoofer 113, 118Switch-off 76Switch-on 76TTA VOLUME 109TEL VOLUME 109Traffi c announcements 79, 117, 118Skip 86Traffi c reportsSwitching the priority on/off 85TRAVELSTORE 84, 118TREBLE 104Tuner 79, 82, 118Alternative frequency (AF) 86Seek tuning sensitivity 84Selecting a programme type 87Selecting a region 82Selecting a waveband 82Travelstore 84UUNPAIR 100UNPAIR ALL 100Unregistering (Bluetooth) 100USB medium 79, 118connecting 73Requirements 73Selecting 74, 90VVOLUME 109Volume 71, 76Changing presettings 109Increase, speed-dependent 110WWaveband 83Welcome text 107WMA 73, 90, 92XX-BASS 104, 118

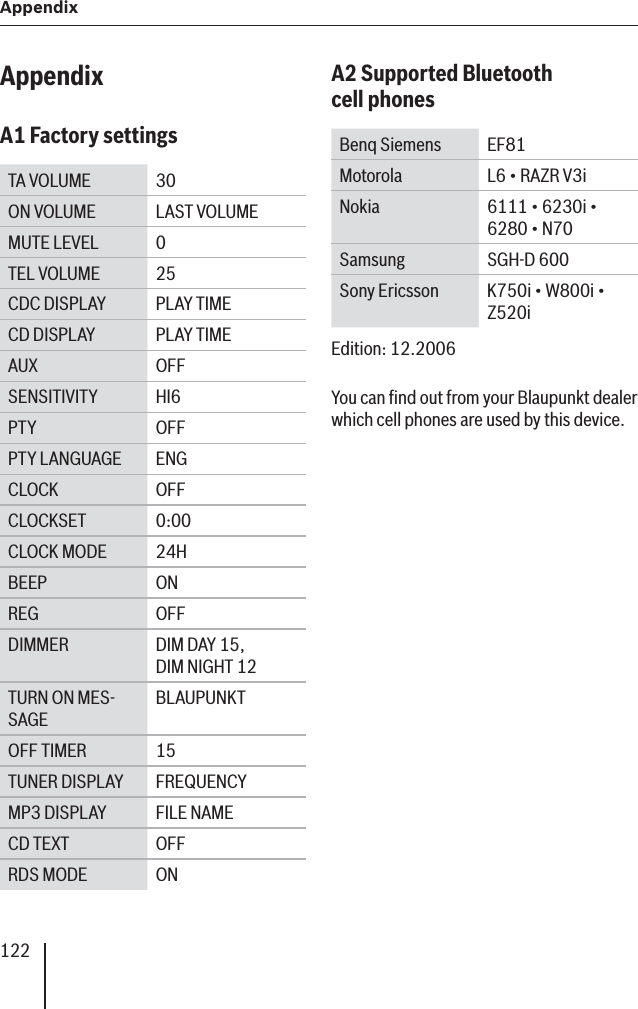

122Appendix AppendixA1 Factory settingsTA VOLUME 30ON VOLUME LAST VOLUMEMUTE LEVEL 0TEL VOLUME 25CDC DISPLAY PLAY TIMECD DISPLAY PLAY TIMEAUX OFFSENSITIVITY HI6PTY OFFPTY LANGUAGE ENGCLOCK OFFCLOCKSET 0:00CLOCK MODE 24HBEEP ONREG OFFDIMMER DIM DAY 15, DIM NIGHT 12TURN ON MES-SAGEBLAUPUNKTOFF TIMER 15TUNER DISPLAY FREQUENCYMP3 DISPLAY FILE NAMECD TEXT OFFRDS MODE ONA2 Supported Bluetoothcell phonesBenq Siemens EF81Motorola L6 • RAZR V3iNokia 6111 • 6230i • 6280 • N70 Samsung SGH-D 600Sony Ericsson K750i • W800i • Z520iEdition: 12.2006You can fi nd out from your Blaupunkt dealer which cell phones are used by this device.
373SVENSKABitte den ausgefüllten Gerätepass sicher aufbewahren!Please keep the fi lled-in radio pass in a safe place!Prière de conserver soigneusement la carte d’autoradio remplie !Tenete per favore il libretto di apparecchio, debitamente riempito, in un posto sicuro!Bewaar de ingevulde apparaatpas op een veilige plaats!Vänligen förvara ifyllt apparatpass på säker plats!

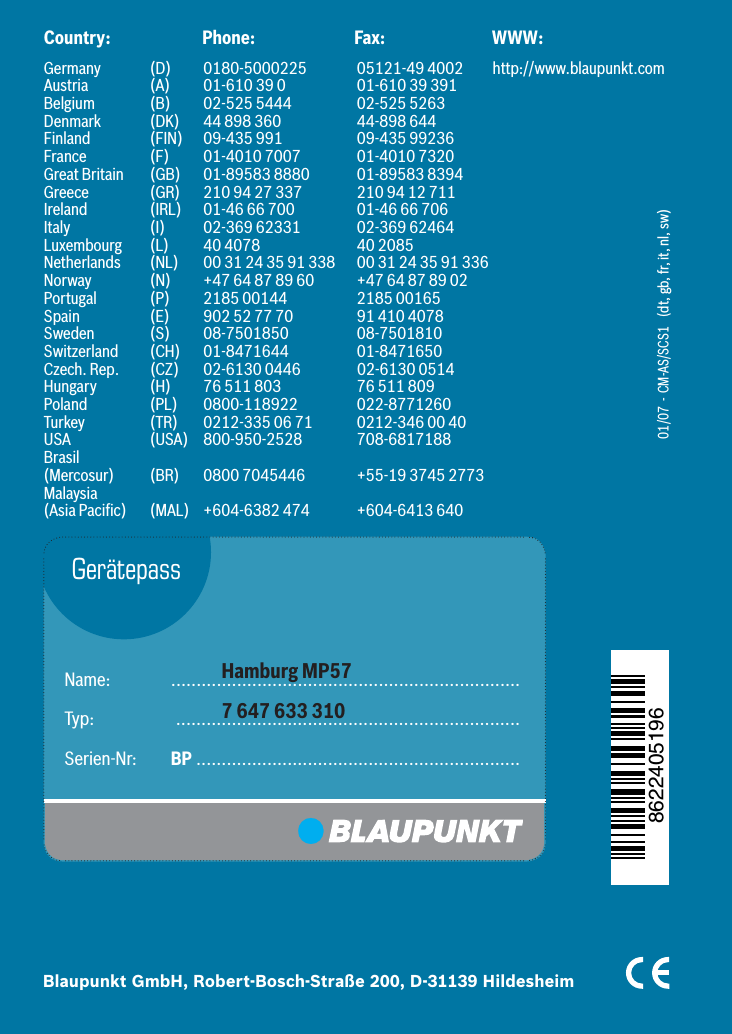

37401/07 - CM-AS/SCS1 (dt, gb, fr, it, nl, sw)Name: .....................................................................Typ: ....................................................................Serien-Nr: BP ................................................................ Hamburg MP577 647 633 310GerätepassCountry: Phone: Fax: WWW:Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.comAustria (A) 01-610 39 0 01-610 39 391Belgium (B) 02-525 5444 02-525 5263Denmark (DK) 44 898 360 44-898 644Finland (FIN) 09-435 991 09-435 99236France (F) 01-4010 7007 01-4010 7320Great Britain (GB) 01-89583 8880 01-89583 8394Greece (GR) 210 94 27 337 210 94 12 711Ireland (IRL) 01-46 66 700 01-46 66 706Italy (I) 02-369 62331 02-369 62464Luxembourg (L) 40 4078 40 2085Netherlands (NL) 00 31 24 35 91 338 00 31 24 35 91 336Norway (N) +47 64 87 89 60 +47 64 87 89 02Portugal (P) 2185 00144 2185 00165Spain (E) 902 52 77 70 91 410 4078Sweden (S) 08-7501850 08-7501810Switzerland (CH) 01-8471644 01-8471650Czech. Rep. (CZ) 02-6130 0446 02-6130 0514Hungary (H) 76 511 803 76 511 809Poland (PL) 0800-118922 022-8771260Turkey (TR) 0212-335 06 71 0212-346 00 40USA (USA) 800-950-2528 708-6817188Brasil (Mercosur) (BR) 0800 7045446 +55-19 3745 2773Malaysia (Asia Pacifi c) (MAL) +604-6382 474 +604-6413 640Blaupunkt GmbH, Robert-Bosch-Straße 200, D-31139 Hildesheim8622405196
