T1 QUICK START GUIDE

T1 Quick Start Guide: English

1

Vol - Vol +

Multi-

Function

Button

(MFB)

Microphones

Indicator

Light

Charging

Port

Charge Your T1

Your T1 has been given an initial partial charge to get

started, but for best results charge it using the supplied USB

cable and adaptor until the indicator light turns white.

> Charge the T1 whenever it announces that the battery is

Very Low.

> A full charge takes about 3 hours.

> During charging, the indicator light fl ashes red.

> When the light goes white, the charge is complete.

2

Pair Your T1

1. Turn the T1 on by

sliding the power

switch on the back to

the green on position.

2. Put the T1 in your ear.

3. The fi rst time you use the T1 it will go straight to pair

mode and talk you through the pairing process.

For subsequent pairings, make sure the T1 is not

connected to any phones, then hold down the MFB. The T1

will announce that it is going into pairing mode.

Tip: The pairing code is 0000 (four zeros).

3

Power switch (on)

Transfer Your Phonebook

Once the pairing is complete, your T1 will attempt to transfer

your phonebook contacts so that it can announce the names

of incoming callers. Please accept any connection requests

from the T1 and wait for the transfer to fi nish.

Some phones do not support automatic phonebook

transfers. If the T1 announces that this is the case, you need

to go to your phone’s address book and send contacts via

Bluetooth to the T1. See www.blueantwireless.com for help.

Note: Whenever you add contacts to your phone in future

you must update your phonebook on the T1: with the T1

connected to your phone but not on a call, hold down the

MFB for 3 seconds to initiate a phonebook update.

4

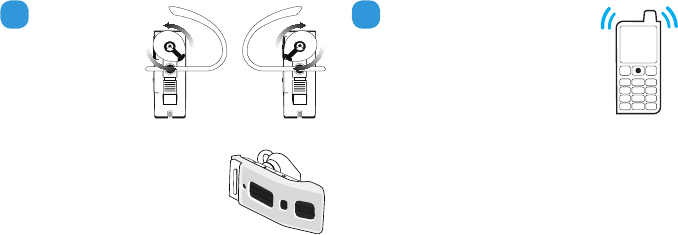

Wearing the T1

You can wear your T1

on either ear.

For best results:

> Position the hook and

ear gel as shown here.

> Make sure the T1 is angled

towards your mouth.

Protective Skins

Your T1 is supplied with optional rubber

skins to protect against dust and

moisture.

5

RIGHT

EAR

LEFT

EAR

Making Calls

Use your voice to make calls:

1. Click the MFB and wait for the T1 to ask you

to Say A Command.

2. Say Phone Commands to activate the voice

dial feature on your phone (if supported by

your phone).

Or:

> Dial the number on your phone and the audio will

automatically transfer to the T1.

> Hold down Vol + for 1 second to redial the last outgoing

call.

6

Taking Calls

When the phone rings, you can answer the

call with your voice: wait for the prompt to ask

you if you want to take the call, and then say

Answer or Ignore.

If you don’t want to wait for the prompt, or you

are in a noisy place:

> Click the MFB once to accept the call.

> Double click the MFB to reject the call.

During a call, click the MFB to end the call.

7 Voice Commands

To use any of the voice commands, click the MFB, wait for

the T1 to ask you to Say A Command, then say the command:

> Check Battery — Tells you the battery level on the T1.

> Call Information — Calls an information service number

stored in your headset. Call charges may apply.

> Phone Commands — Activates your phone’s voice dialing

feature (if available on your phone). Depending on your

phone model, you may need to record voice tags on the

phone to use this feature.

Voice recognition will cancel automatically after a short

period of time if you do not say a command. You can also

cancel voice recognition by clicking the MFB.

8

Listening to Audio

The T1 supports A2DP audio streaming: if your phone or

Bluetooth device supports the A2DP profi le then you can

simply start playing music or any other audio (including

directions from a GPS application on the phone) and it will

automatically transfer to the T1.

The audio will mute automatically if you make or receive a

phone call, and resume when the call ends.

9 Multipoint

Up to 2 phones can connect to the T1 at the same time. To

pair a second phone:

1. Use your phone’s Bluetooth menu to disconnect the

existing paired phone from the T1.

2. With the T1 switched on, hold down the MFB until the T1

starts to talk you through the pairing process.

3. When the pairing is complete, use the Bluetooth menu on

each phone to reconnect them to the T1.

When you have 2 phones connected, you can always answer

a call on either phone. If you initiate a call through the T1 it

will happen on the “primary phone”: the one that connected

to the T1 fi rst.

10

Advanced Button Functions

> To hold an active call and switch to an incoming or held

call, press Vol + for about 1 second.

> To end an active call and answer a new incoming call,

press Vol - for about 1 second.

> You can conference two active calls together by holding

the MFB for 3 seconds (if your phone and network support

this).

> To transfer audio to the phone, click Vol + and Vol -

together during a call.

> To disconnect your phone from the T1, click Vol + and Vol-

together when you are not on a call. Hold down Vol + for

about 1 second to reconnect.

11 Advanced Button Functions

> During a call you can mute and unmute the T1 microphone

by holding Vol + and Vol - together until the T1 beeps twice

(about 1 second).

> Whenever you add contacts to your phone you must also

update your phonebook on the T1: with the T1 connected

to your phone but not on a call, hold down the MFB for 3

seconds to initiate a phonebook update.

> To turn the fl ashing indicator light on or off, disconnect

the T1 from your phone and hold down Vol + and Vol - for

1 second.

> Click the MFB to: end a call, cancel pair mode, cancel voice

recognition, or cancel a phonebook transfer/update.

12

Reset your T1

If you are having problems with the T1, you can reset the T1

and your phone and start again:

1. Disconnect the T1 from your phone by deleting the pairing

from your phone’s Bluetooth menu.

2. Turn your phone off and back on again to clear its memory.

3. With the T1 switched on, but not connected to any phones,

click all three buttons (Vol +, Vol -, and the MFB) together.

Note that you must quickly press and release all three

buttons at the same time (do not hold down the buttons).

The T1 will reset and go straight to pairing mode.

You will now need to pair your phone with the T1 again.

13 Troubleshooting Tips

The following are some troubleshooting tips for using the T1

with specifi c phone models.

Phonebook Transfers

When you pair your phone the T1 will attempt to transfer the

contacts from your phonebook so that it can announce the

names of incoming callers.

Note: If your phone prompts you to allow a connection to the

T1, you must select “YES” or “OK”.

14

BlackBerry®

If you are using a BlackBerry smartphone you may see a

message like this one during the phonebook transfer.

Accept connection request

from BlueAnt T1?

YES

NO

Don’t ask this again

Select “Don’t ask this again” so that a tick appears in the

box, and then choose “YES”.

15 Android™

On Android devices a message

about the phonebook transfer

may appear in the notifi cations

area at the top of the screen.

In order to transfer your contacts

you must swipe your fi nger over

this message and accept the

phonebook transfer request from

the T1.

16

Phonebook Access Request

Notifi cation

shown on

Android

devices

Automatic Transfer Not Supported

Some phones do not support automatic phonebook

transfers. If this is the case on your phone the T1 will

announce that it cannot transfer the contacts automatically:

1. Go to your phonebook and select the contacts you want

to send to the T1. Choose the option to “Mark All” or

“Select All” if this is available on your phone (if this is

not available, you will need to transfer each contact

individually).

2. Select the option on your phone to “send” or “beam”

contacts, business cards, or v-cards via Bluetooth, and

select the T1 from the list of Bluetooth devices. See your

phone’s manual for help with this step.

17 Phonebook Transfer Not Supported

Some phones do not support phonebook transfers at all.

In order to transfer your phonebook to the T1, your phone

must support either the Phonebook Access Profi le (PBAP),

AT commands, or the Object Push Profi le (OPP).

If your phone does not support any of these Bluetooth

profi les, then you will not be able to copy your contacts to the

T1. When you receive a call, the T1 will read out the caller’s

number instead.

18

Voice Dialing

Use the command Phone Commands to activate your

phone’s voice dial feature. Your phone must support “voice

dialing over Bluetooth”.

This feature is supported by the iPhone 3GS (iOS 3.1+) and

iPhone 4, most BlackBerry smartphones, and most Android

devices running Android 2.2 and above.

Once you have activated the voice dial feature, you are using

your phone’s voice recognition software.

Please check your phone manual for help on getting the

most out of this feature and to fi nd out what commands your

phone supports, as well as any limitations of your phone’s

voice recognition software.

19 Help and Support

This guide is just to get you started with the T1. If you

are having trouble getting the T1 to work, please visit

www.blueantwireless.com for online help, support, and

troubleshooting tips.

Please contact us before returning the T1 to a store and we

will help you through any diffi culty you may have.

20

Version: T1-QSG-EN-2.0

“HOW-TO VIDEOS FOR YOUR BLUEANT DEVICE”

NEED MORE HELP?

www.blueantwireless.com/geekspeak
