Bluetake Technology BT430TX0511A Bluetooth Stereo Headphone User Manual
Bluetake Technology Co., Ltd. Bluetooth Stereo Headphone
User Manual
BLUETOOTH STEREO DONGLE
P/N: BT430Tx
QUICK SETUP GUIDE
BLUETAKE

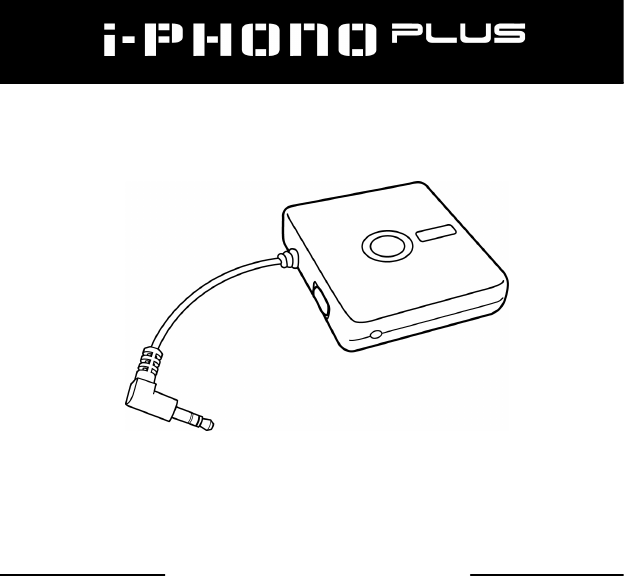

BLUETOOTH STEREO DONGLE
–
QUICK SETUP GUIDE
Bluetooth® Stereo Dongle
BT430Tx Quick Setup Guide
Page
Index
English…………………………………………………...2
Trademarks
"Bluetake" name and logo are trademarks of Bluetake Technology Co., Ltd. “Bluetooth” word mark and logos are
owned by the Bluetooth SIG, Inc. and any use of such marks by Bluetake Technology Co., Ltd. is under license.
Copyrights
© Copyright 2005 Bluetake Technology Co., Ltd.
All Rights Reserved.
E
ng
li
s
h
1
BLUETOOTH STEREO DONGLE
–
QUICK SETUP GUIDE
[Turn On / Off ] < If this is the first time you use the i-PHONO
PLUS Bluetooth Stereo Dongle (P/N: BT430Tx),
please FULLY charge the device in advance. >
Turn On / Off:
Sliding the power switch to turn on / off the
i-PHONO PLUS Stereo Dongle.
Charge Socket
Status Indictor
Pairing Button
3.5mm (1/8 in.) Stereo Plug
Power Switch
Function Pairing Button Status Indicator
Turn on / Active - Blinking Blue
Pairing mode Press and Hold for 3 sec. Red/Blue alternately
Low Battery - Blinding Red every 3 sec
Charging - Constant Red
Note: When the stereo dongle fully charged, the status indictor will switch off all light.
[ Pairing ]
Step-1: Turn off both the stereo dongle and the headphone (i-PHONO mini headphone or i-PHONO PLUS headphone) in
advance, and then put the headphone in the pairing mode.
Step-2: Afterward, put the stereo dongle in the pairing mode. Press and hold the Power/Pairing Button of stereo dongle until its
Status Indicator flashes Blue and Red alternately.
Step-3: Once the stereo dongle is putting in the pairing mode, it will begin to search and pair with the headphone automatically.
After the pairing is completed, both the Status Indicators of headphone and stereo will flash Blue regularly.
Notice:
z Please go to (http://www.bluetake.com/products/BT450Rx.htm) to know more information about i-PHONO mini headphone.
z Please go to (http://www.bluetake.com/products/BT420Rx.htm) to know more information about i-PHONO PLUS headphone.
E
ng
li
s
h
2
BLUETOOTH STEREO DONGLE
–
QUICK SETUP GUIDE
[ Using Bluetooth Stereo Dongle with General Music Player ]
You can enjoy the stereo music transmitted wirelessly
from the music player which is installed the i-PHONO
PLUS Bluetooth Stereo Dongle (P/N: BT430Tx) , the
music player can be a CD Player, MP3 Player, Mini
Hi-Fi system, Handheld Game Condole, Portable
Media Player, Non-Bluetooth supported computer, etc.
Step-1: Pair the stereo dongle with the stereo
headphone (i-PHONO mini headphone or i-PHONO
PLUS headphone) in advance.
Step-2: Install the stereo dongle to the music
player. The installation is effortless and no driver
or software is necessary. You only need to
connect the Stereo Plug of the i-PHONO PLUS
stereo dongle to the 3.5mm (1/8 in.) stereo out
jack of the music player.
3.5mm (1/8 in.) Stereo-out jack
Stereo Plug
Pairing Button
Status Indictor
Power Switch
Step-3: Play Music.
Notice
Any changes or modifications (including the antennas) made to
this device that are not expressly approved by the manufacturer
may void the user's authority to operate the equipment.
E
ng
li
s
h
3
BLUETOOTH STEREO DONGLE–QUICK SETUP GUIDE
4
FCC Statement
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause
undesired operation
.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This dongle must not be co-located or
operating in conjunction with any other antenna or dongle.
CE and European Union Regulatory Notice
This product complies with the following EU Directives:
z CE R&TTE RF Test: EN 300 328-1
z CE R&TTE EMC Test: EN 301 489-1 & 17
z CE R&TTE LVD Test: EN 60950
