The Ultimate

Driving Machine

Owner's Manual

for Vehicle

Contents

A to Z

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

X5 3.0i

X5 4.4i

X5 4.8is

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Congratulations, and thank you for choosing a BMW.

Thorough familiarity with your vehicle will provide you with enhanced control and

security when you drive it. We therefore have this request:

Please take the time to read this Owner's Manual and familiarize yourself with the

information that we have compiled for you before starting off in your new BMW. The

manual contains important data and instructions intended to assist you in obtaining

maximum satisfaction from your BMW's unique array of advanced technical fea-

tures. It also contains information on vehicle maintenance designed to enhance

operating safety while simultaneously helping you to maintain your BMW's value

throughout an extended service life. For additional information refer to the supple-

mental manuals.

This Owner's Manual should be considered a permanent part of this vehicle. It

should stay with the vehicle when sold to provide the next owner with important

operating, safety and maintenance information.

We wish you an enjoyable driving experience.

BMW AG

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Contents

© 2005 Bayerische Motoren Werke

Aktiengesellschaft

Munich, Germany

Reprinting, including excerpts,

only with the written consent of

BMW AG, Munich.

Order No. 01 41 0 159 867

US English VIII/05

Printed in Germany

Printed on environmentally friendly paper,

bleached without chlorine, suitable for recycling.

Notes

Overview

Controls and features

About this Owner's Manual 8

Symbols used 8

Your individual vehicle 8

Status at time of printing 9

For your own safety 9

Symbol on vehicle parts 10

Service and Warranty 10

Reporting safety defects 11

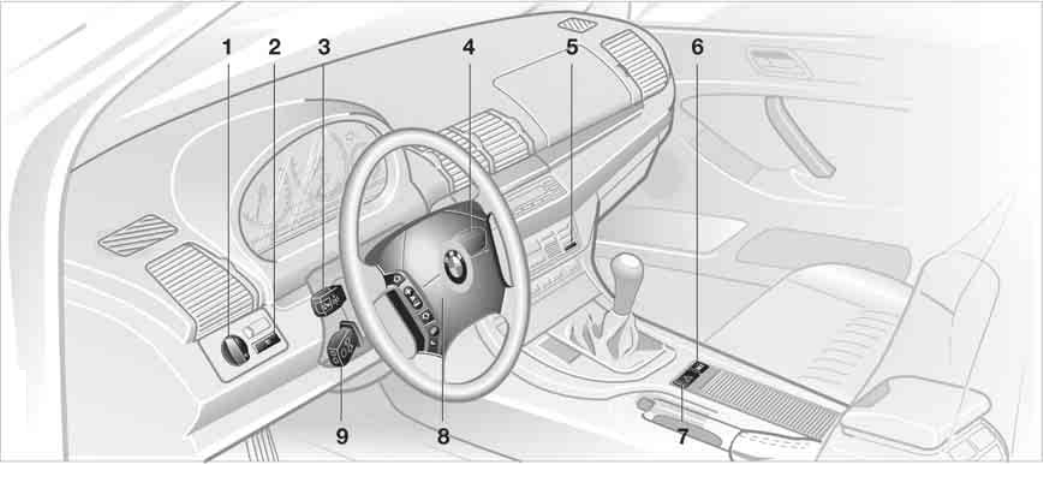

Cockpit 14

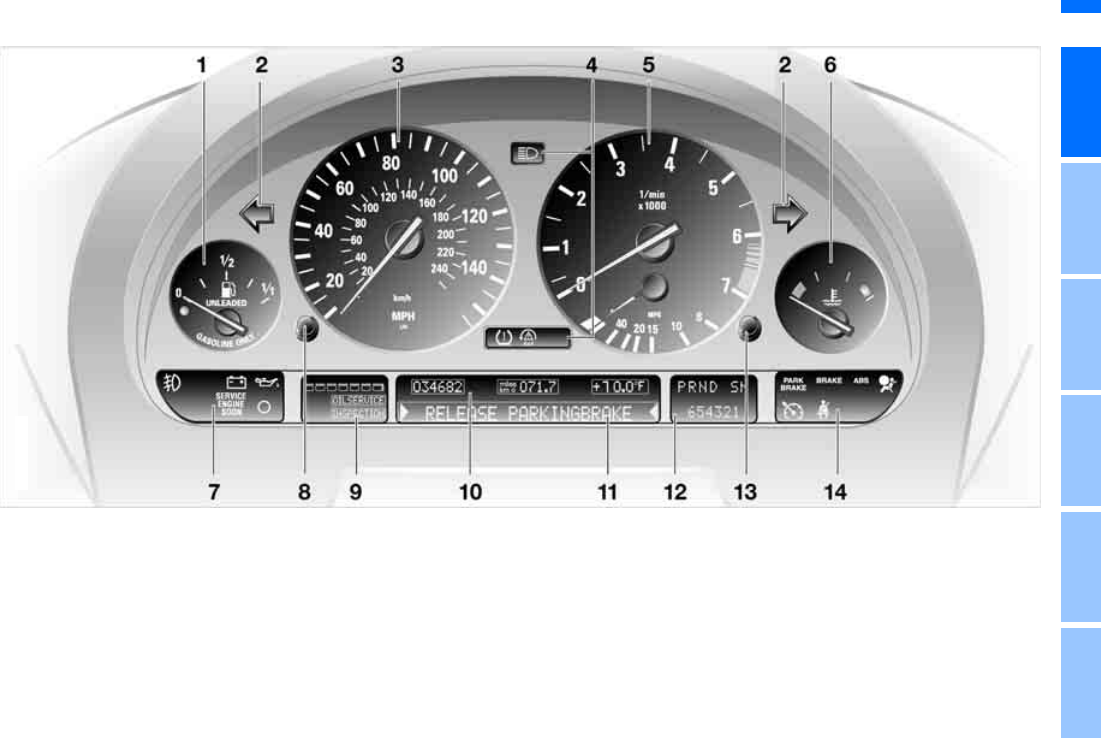

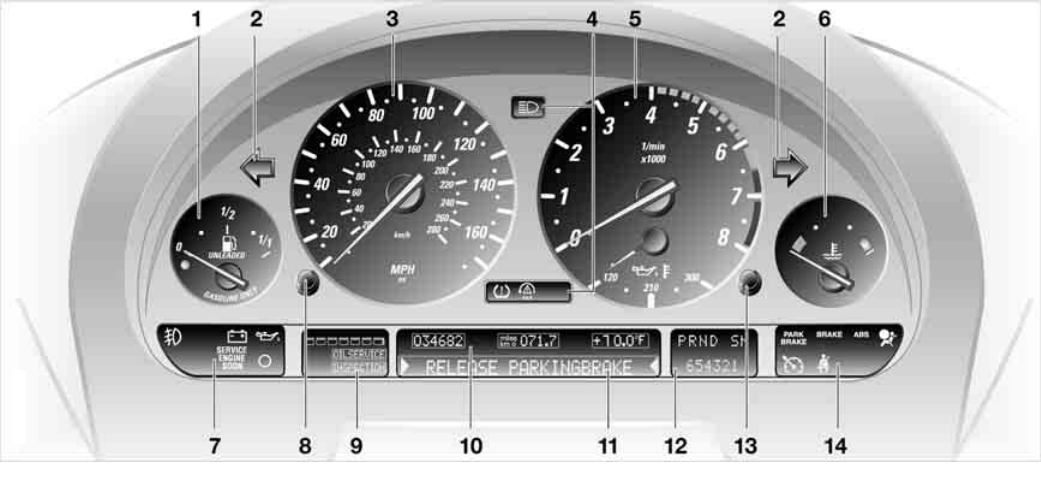

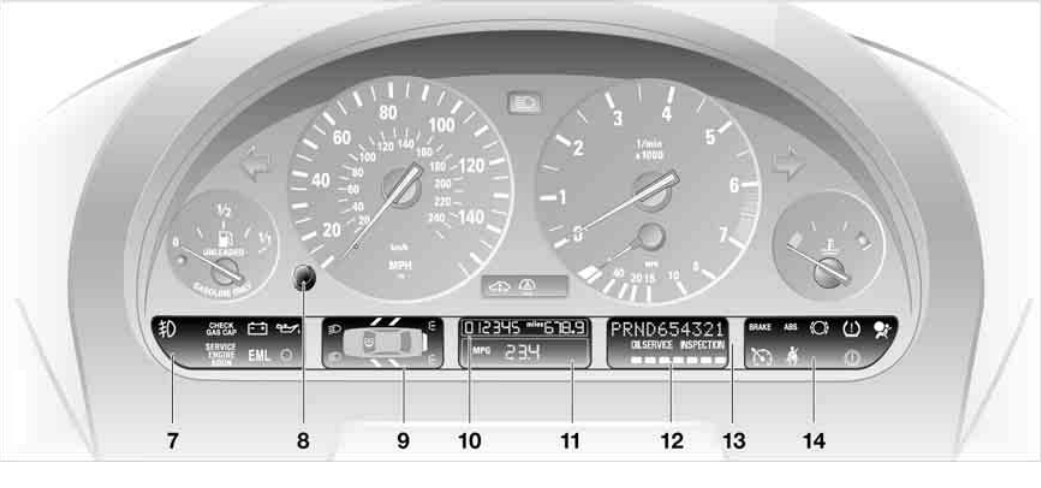

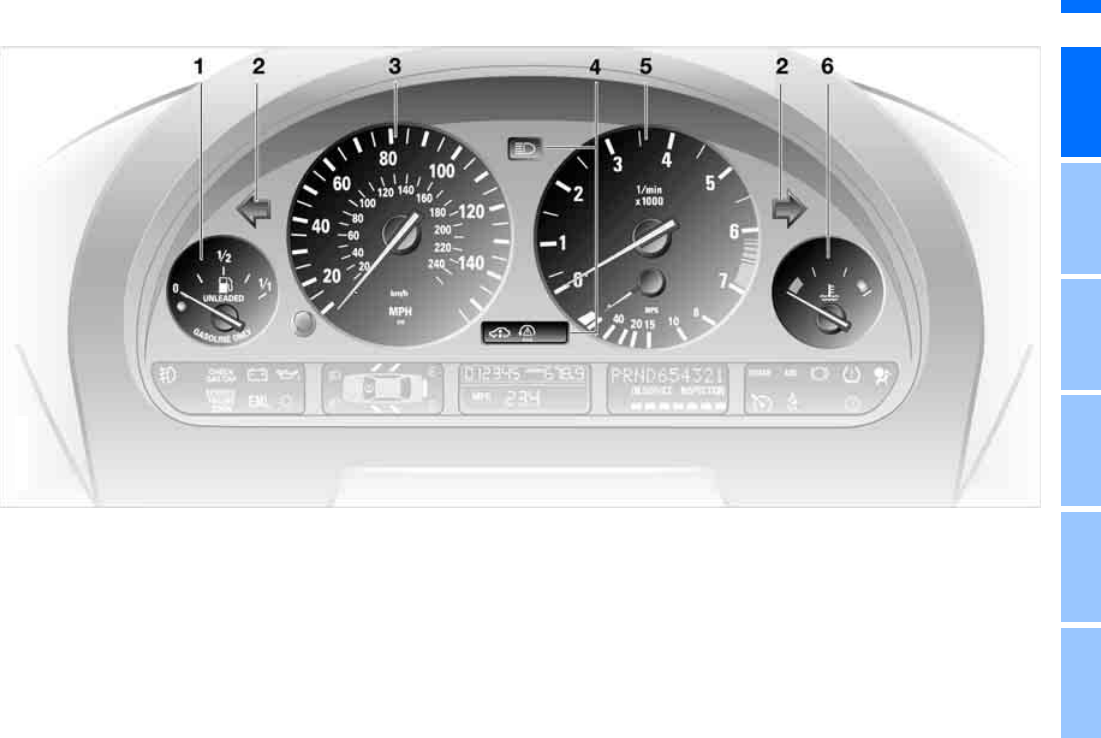

Instrument cluster 15

Indicator and warning lamps 19

Buttons on steering wheel 23

Warning triangle 24

First-aid kit 24

Refueling 24

Fuel specifications 26

Locks and security systems:

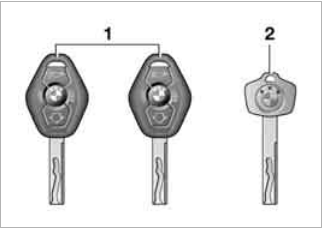

Keys 30

Central locking system 30

Opening and closing:

from outside 31

Opening and closing:

from inside 34

Liftgate 35

Tailgate 36

Alarm system 38

Windows 39

Panorama glass roof 41

Adjustments:

Sitting safely 43

Seats 44

Mechanical seat adjustment 45

Power seat adjustment 46

Head restraints 47

Power rear-seat backrest

adjustment 48

Safety belts 49

Seat, mirror and steering wheel

memory 50

Heated seats 52

Steering wheel 52

Steering wheel heater 53

Mirrors 53

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

5n

OverviewControlsMaintenanceRepairsDataIndex

Controls and features

Passenger safety systems:

Airbags 55

Transporting children safely 57

Vehicle Memory,

Key Memory 61

Driving:

Ignition lock 62

Starting engine 62

Switching off engine 63

Handbrake 64

Manual transmission 64

Automatic transmission with

Steptronic 65

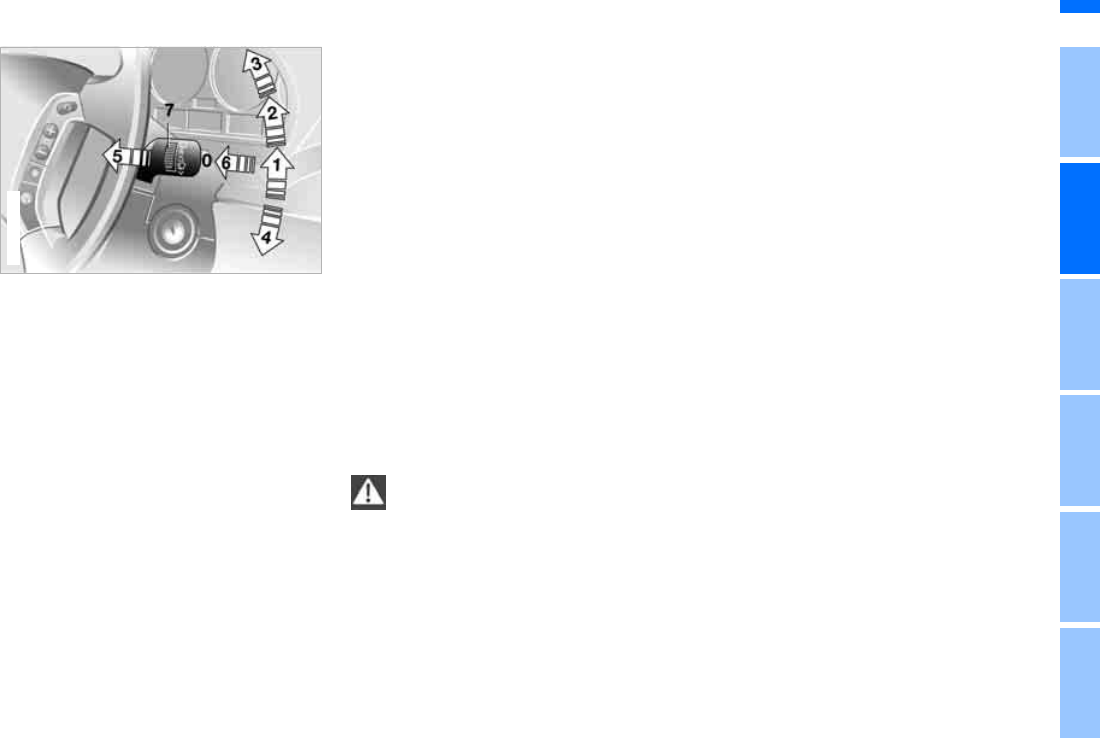

Turn signals/

headlamp flasher 68

Washer/wiper system/

rain sensor 69

Cruise control 71

Everything under control:

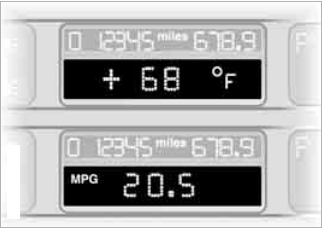

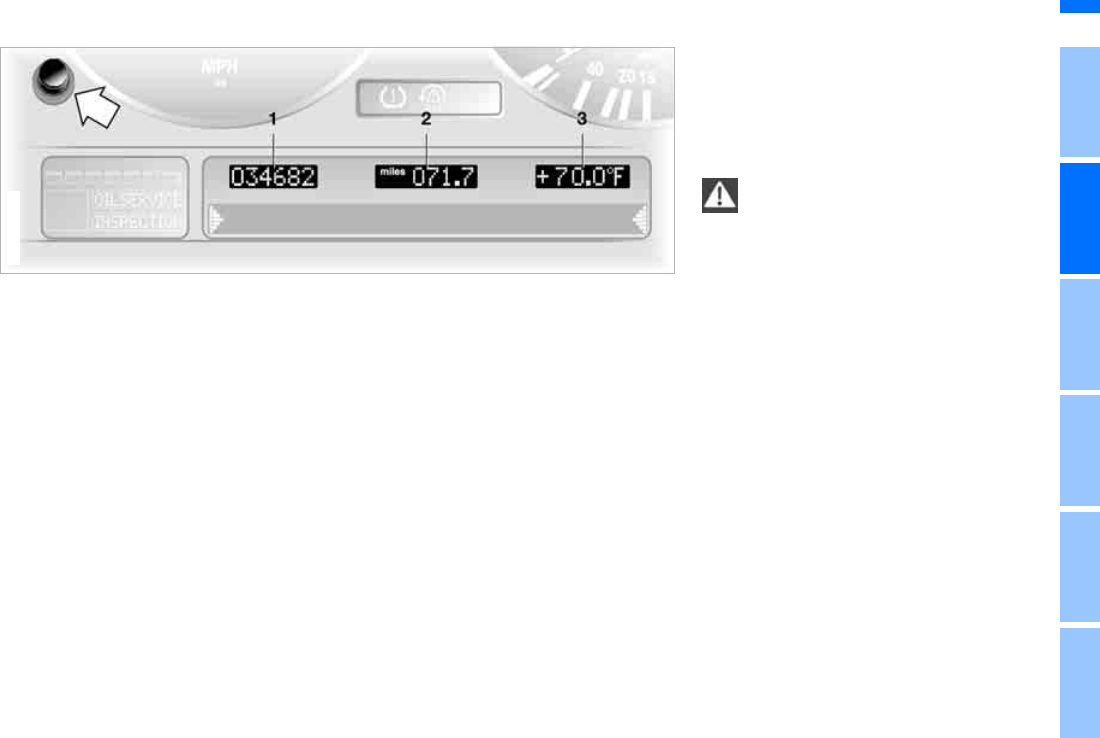

Odometer, outside temperature

display 73

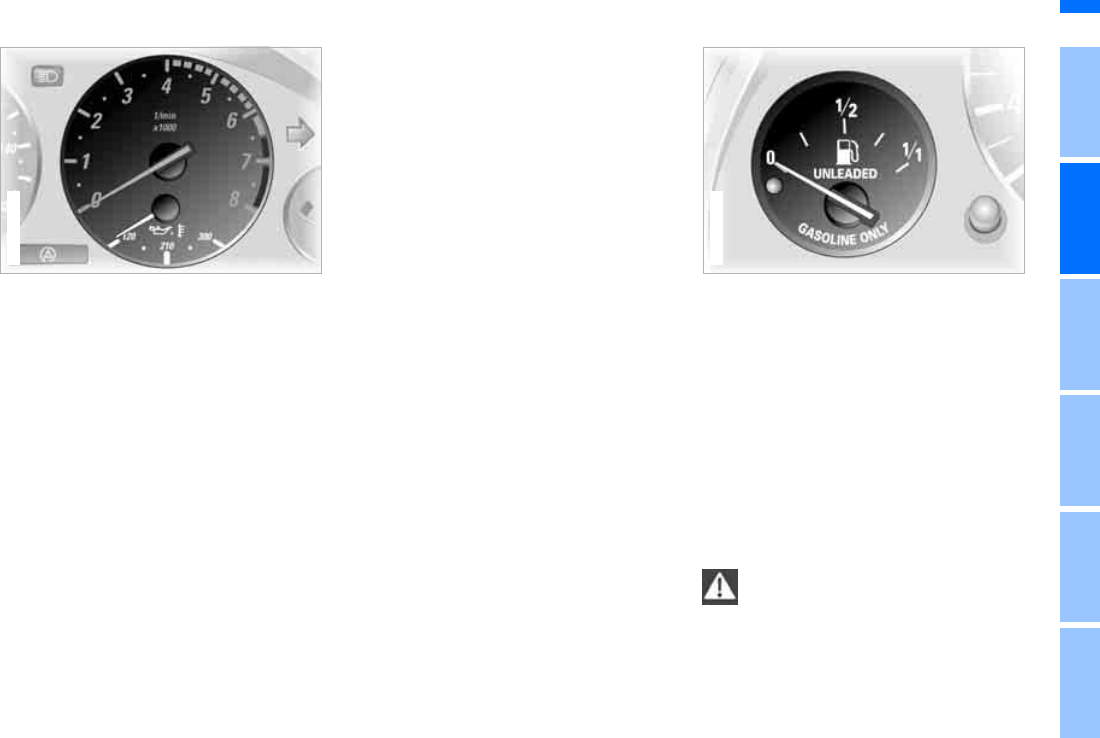

Tachometer 74

Energy control 74

Engine oil temperature gauge 75

Fuel gauge 75

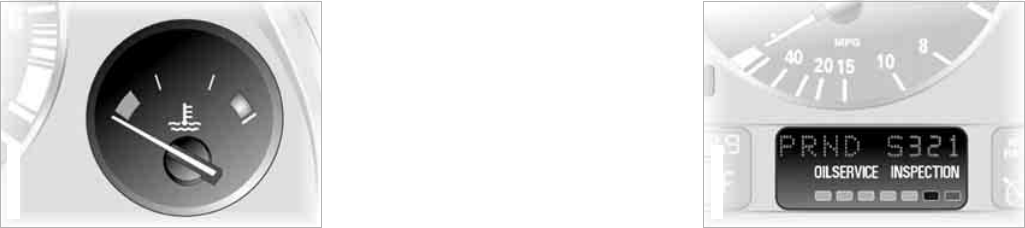

Coolant temperature gauge 76

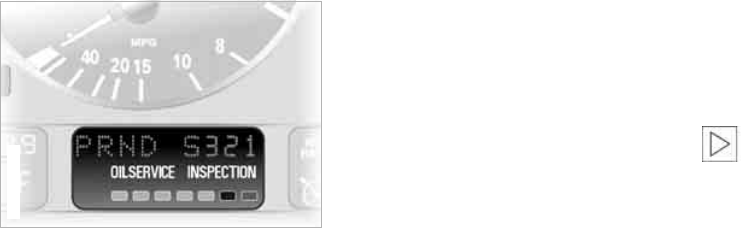

Service Interval Display 76

Check Control 77

Computer 79

MID Multi-Information

Display 81

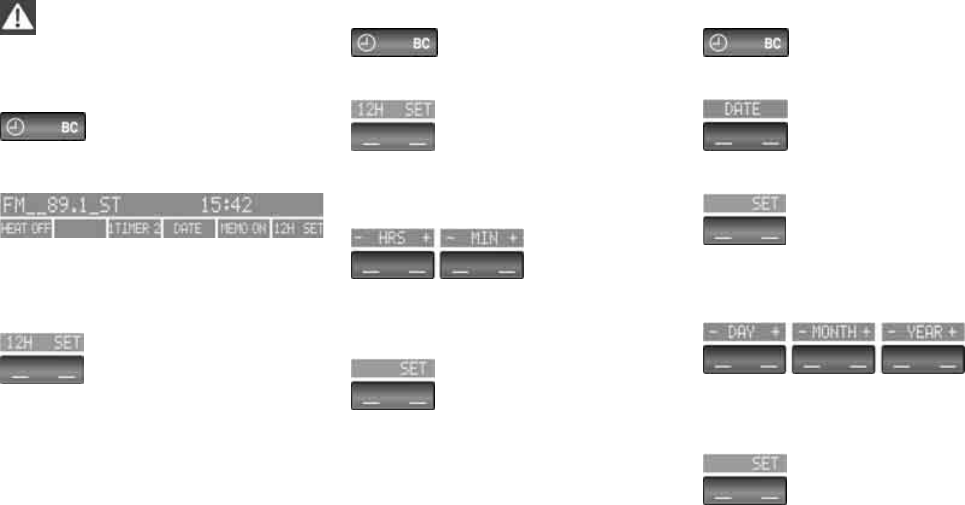

Digital clock in MID 82

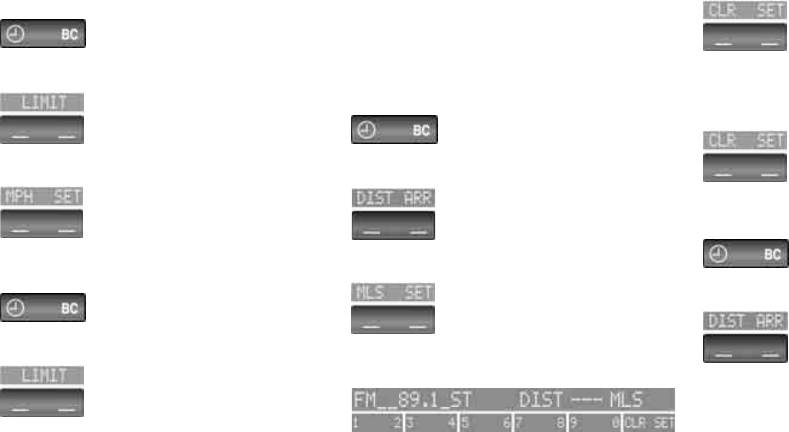

Computer in MID 85

Technology for safety and

driving convenience:

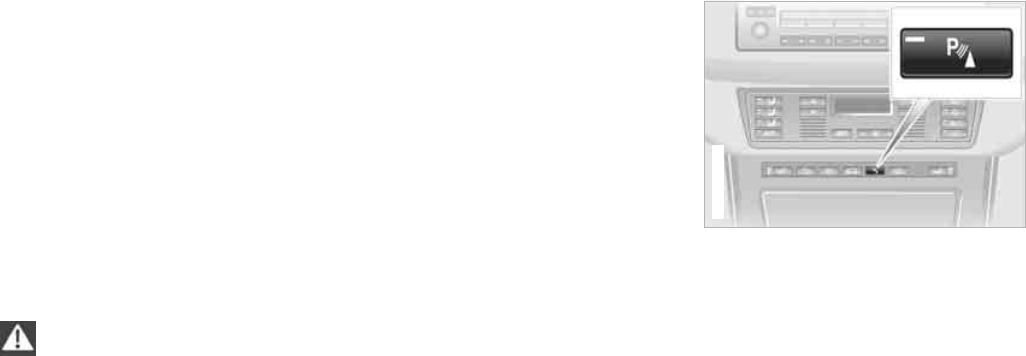

PDC Park Distance Control 90

Antilock Brake System 91

DSC Dynamic Stability

Control 92

xDrive 94

HDC Hill Descent Control 94

Self-leveling suspension 95

2-axle self-leveling

suspension 96

Brake force display 98

Flat Tire Monitor 98

Lamps:

Parking lamps/low beams 100

Adaptive Head Light 101

High beams/roadside parking

lamps 101

Front fog lamps 102

Instrument lighting 102

Interior lamps 103

Controlling the climate for

pleasant driving:

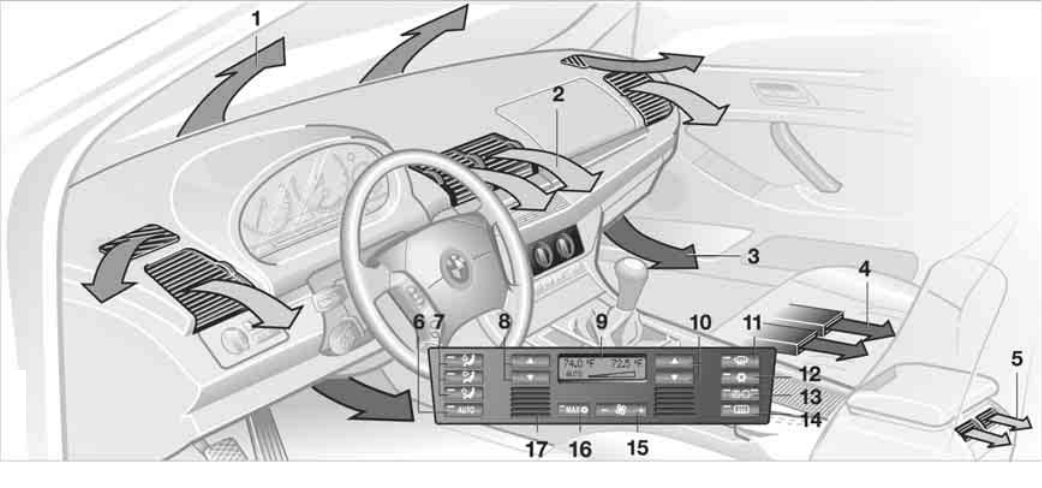

Air conditioner 104

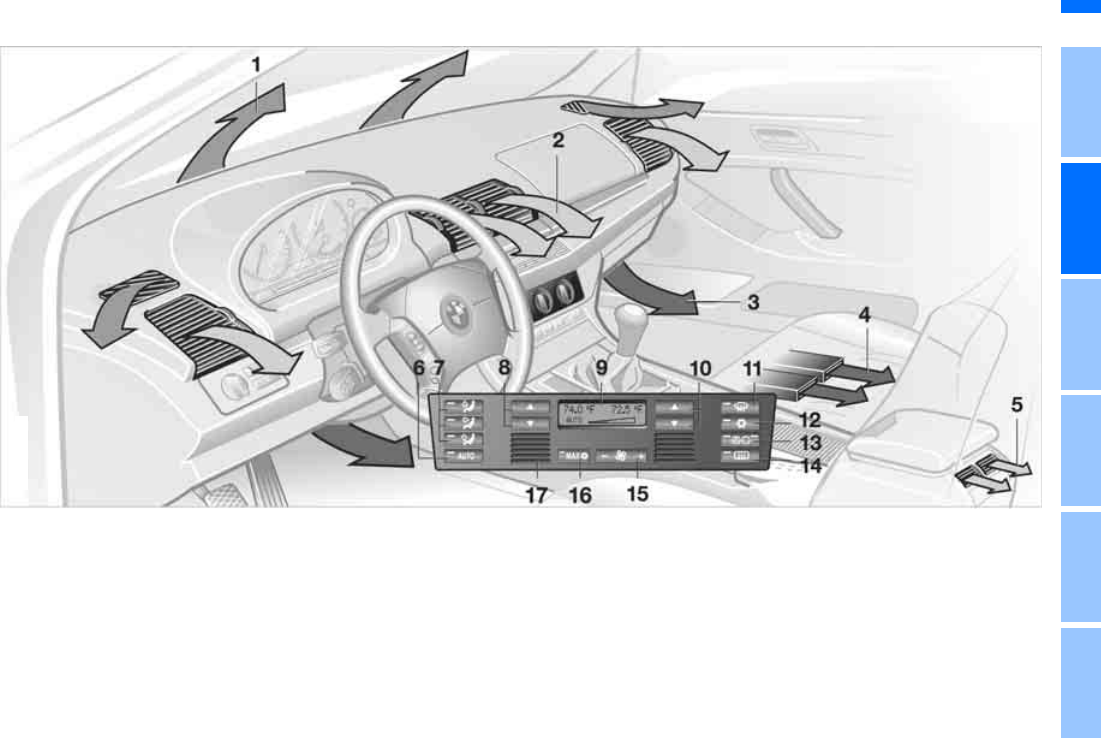

Automatic climate control 107

Roller sun blinds 113

Parked car ventilation 113

Cabin convenience:

Integrated universal remote

control 114

Telephone 116

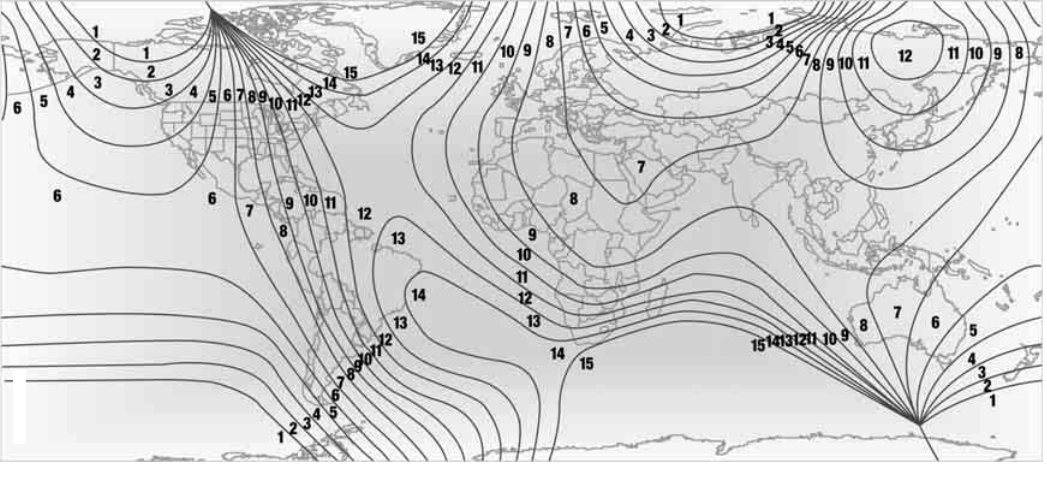

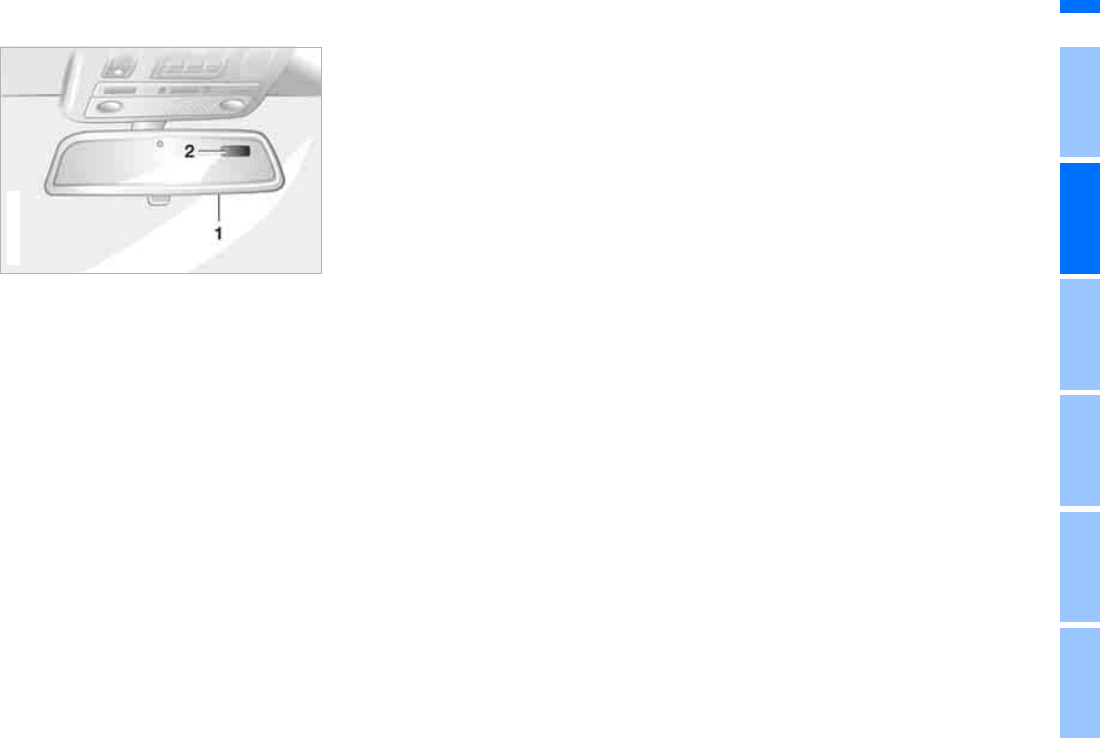

Interior rearview mirror with

digital compass 117

Glove compartment 119

Storage compartments 119

Cup holders 120

Ashtray, front 121

Ashtray, rear 121

Cigarette lighter, rear 122

Loading and transporting:

Ski bag 123

Cargo area

Folding rear backrests

down 124

Roll-up cover 125

Partition net 125

Covers in cargo area 127

Sockets 128

Pull-out cargo floor 128

Cargo loading 130

Roof-mounted luggage rack 132

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Contents

Operation, maintenance

Owner service procedures

Special operating instructions:

Breaking-in 136

General driving notes 137

Driving your X5 138

Safe braking 140

Wheels and tires:

Tire inflation pressure 141

Tire identification marks 145

Wheel/tire condition 146

Replacing wheels/tires 148

Snow chains 149

Under the hood:

Hood 150

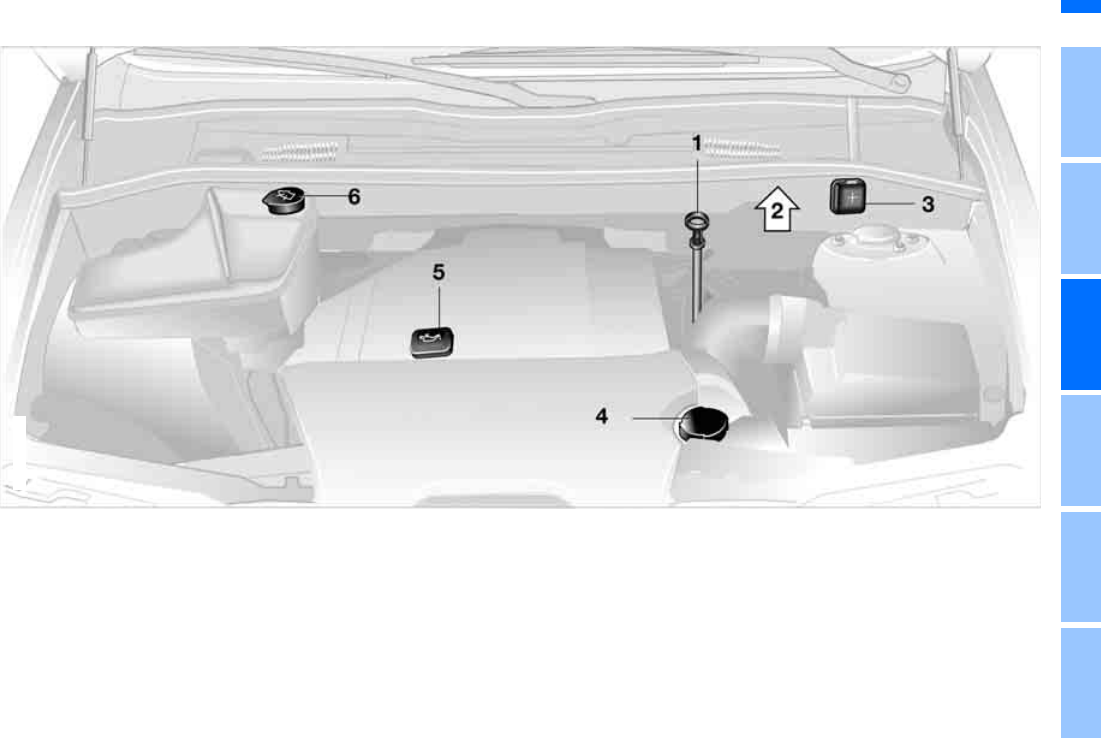

Engine compartment

essentials 151

Washer fluid 152

Engine oil 152

Coolant 154

Brake fluid 155

Care and maintenance:

The BMW Maintenance

System 156

OBD interface socket 157

Replacement procedures:

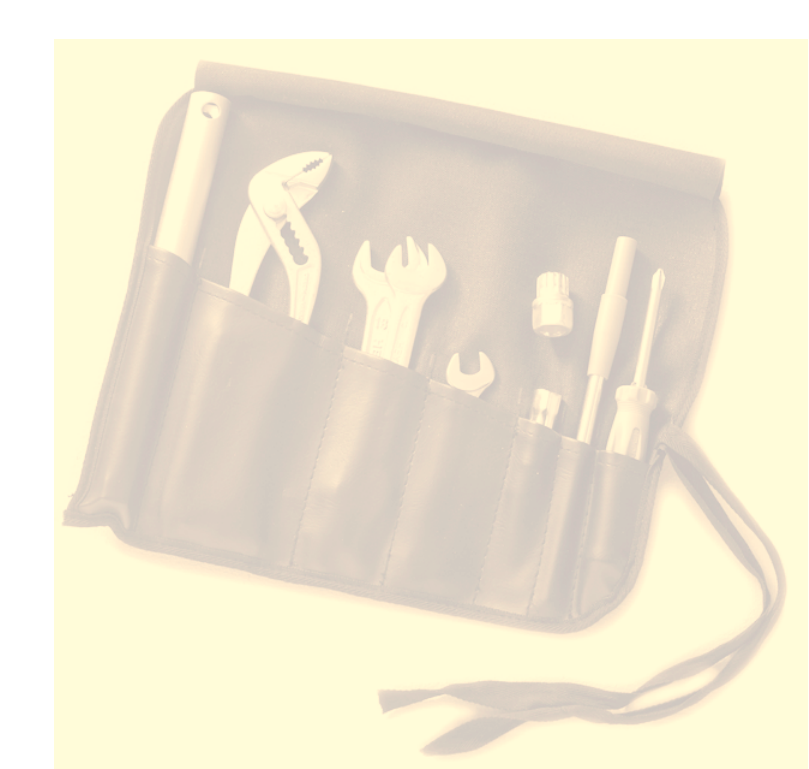

Onboard tool kit 160

Windshield wiper blades 160

Lamps and bulbs 161

Changing a wheel 165

Vehicle battery 171

Fuses 172

Assistance, giving and

receiving:

Receiving assistance 173

Jump starting 174

Tow-starting and towing 175

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

7n

OverviewControlsMaintenanceRepairsDataIndex

Technical data

Index

Engine specifications 180

Dimensions 181

Weights 182

Capacities 183

Everything from A to Z 186

Notes

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

8n

About this Owner's Manual

We have made every effort to ensure

that you are able to find what you need

in this Owner's Manual as quickly as

possible. The fastest way to find certain

topics is by using the detailed index at

the end. If you desire an initial overview

of your vehicle, this can be found in the

first chapter.

Should you want to sell your BMW

some day, please remember to hand

over the Owner's Manual as well; it is

an important component of your vehi-

cle.

Additional sources of information:

If you have any questions, your BMW

Sports Activity Vehicle center will be

glad to advise you.

You can find information on BMW, e.g.

technology, on the Internet at

www.bmwusa.com.

Symbols used

Indicates precautions that must be

followed precisely in order to

avoid the possibility of personal injury

and serious damage to the vehicle.

Indicates information that will

assist you in gaining the optimum

benefit from your vehicle and enable

you to care more effectively for your

vehicle.

Refers to measures that can be

taken to help protect the environ-

ment.

< Marks the end of a specific item of

information.

*Indicates special equipment, country-

specific equipment and optional extras,

as well as equipment and functions not

yet available at the time of printing.

Vehicle Memory, Key Memory,

refer to page 61. Identifies func-

tions that can be specifically adapted

for a particular key or vehicle. These

adjustments can be performed by your

BMW Sports Activity Vehicle center.

Your individual vehicle

On buying your BMW, you have

decided in favor of a model with individ-

ualized equipment and features. This

Owner's Manual describes all models

and equipment that BMW offers within

the same group.

We hope you will understand that

equipment and features are included

that you might not have chosen for your

vehicle. Sections describing options

and special equipment are marked by

an asterisk *

to assist you in identifying

possible differences between the

descriptions in this manual and your

own vehicle's equipment.

Should equipment of your BMW not be

described in this Owner's Manual,

please refer to the included Supple-

mentary Owner's Manuals.

Notes

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

9n

OverviewControlsMaintenanceRepairsDataIndex

Status at time of printing

BMW pursues a policy of continuous,

ongoing development that is conceived

to ensure that our vehicles continue to

embody the highest quality and safety

standards combined with advanced,

state-of-the-art technology. Thus in

rare circumstances, the features

described in this Owner's Manual may

differ from those of your vehicle.

For your own safety

Maintenance and repair:

Advanced technology, e.g. the

use of modern materials and high-

performance electronics, requires spe-

cially adapted maintenance and repair

methods. Therefore, only have corre-

sponding work on your BMW carried

out by a BMW Sports Activity Vehicle

center or a workshop that works

according to BMW repair procedures

with correspondingly trained personnel.

If work is carried out improperly, there

is a danger of consequential damage

and the related safety risks.<

California Proposition 65 Warning:

California laws require us to state the

following warning:

Engine exhaust and a wide variety

of automobile components and

parts, including components found in

the interior furnishings in a vehicle, con-

tain or emit chemicals known to the

State of California to cause cancer and

birth defects and reproductive harm.

In addition, certain fluids contained in

vehicles and certain products of com-

ponent wear contain or emit chemicals

known to the State of California to

cause cancer and birth defects or other

reproductive harm.

Battery posts, terminals and related

accessories contain lead and lead com-

pounds. Batteries also contain other

chemicals known to the State of Cali-

fornia to cause cancer. Wash your

hands after handling.

Used engine oil contains chemicals that

have caused cancer in laboratory ani-

mals. Always protect your skin by

washing thoroughly with soap and

water.<

Parts and accessories:

For your own safety, use genuine

parts and accessories approved

by BMW.

When you purchase accessories tested

and approved by BMW and Genuine

BMW Parts, you simultaneously acquire

the assurance that they have been thor-

oughly tested by BMW to ensure opti-

mum performance when installed on

your vehicle.

BMW warrants these parts to be free

from defects in material and workman-

ship.

BMW will not accept any liability for

damages resulting from installation of

parts and accessories not approved

by BMW.

Notes

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

10nNotes

BMW cannot test every product on the

market to determine whether it can be

used on a BMW safely and without risk

to either the vehicle, its operation, or its

occupants.

Genuine BMW Parts, BMW Accessories

and other products approved by BMW,

together with professional advice on

using these items, are available from all

BMW Sports Activity Vehicle centers.

Installation and operation of non-BMW

approved accessories such as alarms,

radios, amplifiers, radar detectors,

wheels, suspension components, brake

dust shields, telephones – including

operation of any mobile phone from

within the vehicle without using an

externally mounted antenna – or trans-

ceiver equipment such as CBs, walkie-

talkies, ham radios or similar accesso-

ries, may cause extensive damage to

the vehicle, compromise its safety,

interfere with the vehicle's electrical

system or affect the validity of the BMW

Limited Warranty. Refer to your BMW

Sports Activity Vehicle center for addi-

tional information.<

Maintenance, replacement, or

repair of the emission control

devices and systems may be performed

by any automotive repair establishment

or individual using any certified auto-

motive part.<

Symbol on vehicle parts

Indicates that you should consult

the relevant section of this

Owner's Manual for information on a

particular part or assembly.

Service and Warranty

This manual is supplemented by a Ser-

vice and Warranty Information Booklet

for US models or a Warranty and Ser-

vice Guide Booklet for Canadian mod-

els.

We recommend that you read this pub-

lication thoroughly.

Your BMW is covered by the following

warranties:

>New Vehicle Limited Warranty

>Rust Perforation Limited Warranty

>Federal Emissions System Defect

Warranty

>Federal Emissions Performance

Warranty

>California Emissions Control System

Limited Warranty

Detailed information about these war-

ranties is listed in the Service and War-

ranty Information Booklet for US mod-

els or in the Warranty and Service

Guide Booklet for Canadian models.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

11n

OverviewControlsMaintenanceRepairsDataIndex

Reporting safety defects

For US customers:

The following only applies to vehicles

owned and operated in the US.

If you believe that your vehicle has a

defect which could cause a crash or

could cause injury or death, you should

immediately inform the National High-

way Traffic Safety Administration

NHTSA in addition to notifying BMW of

North America, LLC, P.O. Box 1227,

Westwood, New Jersey 07675-1227,

Telephone 800-831-1117.

If NHTSA receives similar complaints,

it may open an investigation, and if it

finds that a safety defect exists in a

group of vehicles, it may order a recall

and remedy campaign. However,

NHTSA cannot become involved in indi-

vidual problems between you, your

dealer, or BMW of North America, LLC.

To contact NHTSA, you may call the

Vehicle Safety Hotline toll-free at

1-800-327-4236 (TTY: 1-800-424-

9153); go to http://www.safercar.gov;

or write to: Administrator, NHTSA, 400

Seventh Street, SW., Washington, DC

20590. You can also obtain other infor-

mation about motor vehicle safety from

http://www.safercar.gov

For Canadian customers:

Canadian customers who wish to report

a safety-related defect to Transport

Canada, Defect Investigations and

Recalls, may telephone the toll-free

hotline 1-800-333-0510, or contact

Transport Canada by mail at: Trans-

port Canada, ASFAD, Place de Ville

Tower C, 330 Sparks Street, Ottawa

ON K1A 0N5.

Notes

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

12n

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

13n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Overview

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

14n

1 Parking lamps/low beams 100

2Fog lamps 102

3>Turn signals 68

>Roadside parking lamps 101

>High beams 101

>Headlamp flasher 68

>Computer 79

4 Washer/wiper system/rain sensor 69

5Rear window defroster 105, 110

6 Central locking system 30

7 Hazard warning flashers

8 Horn: the entire surface

9 Adjusting steering wheel 52

Cockpit

530de427

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

15n

OverviewControlsMaintenanceRepairsDataIndex

1 Fuel gauge 75

2 Indicator lamp for turn signals 22

3 Speedometer

4 Indicator and warning lamps 19

to 22

5 Tachometer 74

Energy control 74

6 Coolant temperature gauge 76

Instrument cluster X5 3.0i, 4.4i

530us233

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

16nInstrument cluster X5 3.0i, 4.4i

7 Indicator and warning lamps 19

to 22

8 Reset button for trip odometer 73

9 Display for Check Control 77

10 Odometer and trip odometer 73

11 Display for computer; operation via

turn signal lever, refer to page 79:

>Outside temperature

>Average fuel consumption

>Cruising range

>Average speed

12 Service Interval Display 76

13 Selector lever and program display

for automatic transmission*65

14 Indicator and warning lamps 19

to 22

530us234

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

17n

OverviewControlsMaintenanceRepairsDataIndex

Instrument cluster* X5 3.0i, 4.4i

1 Fuel gauge 75

2 Indicator lamp for turn signals 22

3 Speedometer

4 Indicator and warning lamps 19

to 22

5 Tachometer 74

Energy control 74

6 Coolant temperature gauge 76

7 Indicator and warning lamps 19

to 22

8 Reset button for trip odometer 73

9 Service Interval Display 76

10 Display for

>Trip odometer/odometer 73

>Outside temperature 73

11 Display for Check Control 77

12 Selector lever and program display

for automatic transmission*65

13 CHECK button 77

14 Indicator and warning lamps 19

to 22

530us251

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

18nInstrument cluster X5 4.8is

1 Fuel gauge 75

2 Indicator lamp for turn signals 22

3 Speedometer

4 Indicator and warning lamps 19

to 22

5 Tachometer 74

Engine oil temperature gauge

6 Coolant temperature gauge 76

7 Indicator and warning lamps 19

to 22

8 Reset button for trip odometer 73

9 Service Interval Display 76

10 Display for

>Trip odometer/odometer 73

>Outside temperature 73

11 Display for Check Control 77

12 Selector lever and program display

for automatic transmission 65

13 CHECK button 77

14 Indicator and warning lamps 19

to 22

530us252

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

19n

OverviewControlsMaintenanceRepairsDataIndex

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are

identified by

+

are tested for proper

functioning whenever the ignition key is

turned. They each light up once for dif-

ferent periods of time.

If a malfunction should occur in one of

the monitored systems, the corre-

sponding lamp will not go out after the

engine is started or it will light up while

the vehicle is moving. The section

below will instruct you on what to do in

this situation.

Red: stop immediately

Battery charge current

+

The battery is not being

charged. There is a malfunction

of the alternator drive belt or in the

charging circuit of the alternator. Have

the system checked immediately.

If the drive belt is defective, do not

continue driving. The engine could

be damaged due to overheating. When

the drive belt is defective, you will also

have to exert increased steering

effort.<

Engine oil pressure

+

Stop immediately and switch off

the engine. Check the engine oil

level; top up as required. If the oil level

is correct: have the system checked

immediately.

Do not continue driving. The

engine could be damaged due to

inadequate lubrication.<

Handbrake*/

brake hydraulic system

+

Lights up with handbrake

engaged.

For additional information, refer to

page 64

Lights up although the handbrake is

released: stop immediately. The brake

fluid in the reservoir has fallen to below

the minimum level. At the same time, a

considerably longer brake pedal travel

may be noticeable. Have the system

checked immediately.

During continued driving,

increased brake pedal pressure

may be necessary and considerably

longer braking distances may result.

Please remember to adapt your driving

style accordingly.<

Before continuing your journey, be sure

to read the notes on pages 140

and 155.

Also lights up in the Check Control with

the message CHECK BRAKE LININGS.

Display of the previously

described malfunction in Cana-

dian models.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

20nIndicator and warning lamps

Transmission temperature*

+

The transmission is overheated.

Reduce speed immediately and

stop at a suitable location so that the

system can cool down again. Have the

system checked immediately.

Yellow: stop immediately

Flat Tire Monitor

+

An acoustic signal also sounds:

there is a flat tire or extensive

inflation pressure loss. Reduce speed

immediately for stopping while avoiding

extreme braking and steering maneu-

vers.

For additional information, refer to

page 99

Red or yellow: continue to drive

cautiously

The red brake warning lamp

lights up together with the warn-

ing lamps for ABS and DSC/

xDrive. In addition, a warning

signal sounds:

ABS, DSC, HDC and xDrive

have failed. Drive may be being

exerted exclusively via the rear

axle. Have the system checked

as soon as possible.

For additional information, refer to

pages 91, 92

Proceed cautiously and defen-

sively. When driving on poor

roads, avoid using full throttle or press-

ing the accelerator beyond the kick-

down point and also avoid forceful

braking or full braking. Otherwise, the

drive train may be damaged or acci-

dents can occur.<

If the brake warning lamp lights up in

yellow in the above-described combi-

nation, the EBV Electronic brake-force

distribution is still available.

Display of the previously

described malfunction in Cana-

dian models.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

21n

OverviewControlsMaintenanceRepairsDataIndex

Indicator and warning lamps

Red: an important reminder

Handbrake*

Lights up with handbrake

engaged.

For additional information, refer to

page 64

Handbrake warning lamp* for

Canadian models

Please fasten safety belts

+

Indicator lamp flashes or lights

up. In addition, a signal sounds

and, depending on the equipment, a

message* appears in the Check Con-

trol. Please check safety belts for cor-

rect placement.

The belt reminder is activated when the

safety belt on the driver's side has not

yet been fastened.

The belt reminder is also active at

speeds greater than approx. 5 mph/

8 km/h when the passenger belt has

not yet been fastened, heavy objects

are placed on the front passenger seat,

or passengers sitting in the front

remove their safety belts.

For additional information on safety

belts, refer to page 49

Airbags

+

Malfunction in airbag system.

Have the system checked as

soon as possible.

For additional information, refer to

page 55

Yellow: check as soon as possible

DBC Dynamic Brake Control

+

Malfunction in the DBC system.

Please have the system

checked as soon as possible.

For details on DBC, refer to page 91

Display of the previously

described malfunction in Cana-

dian models.

Engine oil level

Comes on while driving: the oil

level is at the absolute minimum;

refill as soon as possible. Do not drive

more than approx. 30 miles/50 km until

you do.

For additional information, refer to

page 152

Engine oil level

Comes on after the engine has

been switched off: add engine

oil at your earliest opportunity, e.g.

when you stop to refuel.

For additional information, refer to

page 152

Automatic transmission*

The automatic transmission

switches into the emergency

program due to a malfunction. Have the

system checked as soon as possible.

For additional information, refer to

page 67

Brake pads*

+

Have the condition of the brake

pads checked.

For additional information, refer to

page 140

Self-leveling suspension*

+

The self-leveling suspension

is inactive. Have the system

checked as soon as possible.

For additional information, refer to

page 95

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

22nIndicator and warning lamps

DSC Dynamic Stability Control/

xDrive

+

The warning lamp lights up con-

tinuously and a warning signal sounds:

DSC and HDC or the xDrive 4-wheel

drive system have failed.

The stabilizing interventions of DSC or

the xDrive 4-wheel drive system are no

longer available. Drive may be being

exerted exclusively via the rear axle.

Have the system checked as soon as

possible.

For additional information, refer to

page 92

Proceed cautiously and defen-

sively. When driving on poor

roads, avoid using full throttle or press-

ing the accelerator beyond the kick-

down point and also avoid forceful

braking or full braking. Otherwise, the

drive train may be damaged or acci-

dents can occur.<

Engine electronics*

Malfunction in the engine elec-

tronics. You can continue to

drive with reduced engine output or

engine speed. Have the system

checked as soon as possible.

Service Engine Soon

+

If the indicator lamp lights up

continuously or intermittently,

there is a malfunction in the exhaust-

relevant electronic systems. Although

the vehicle remains operable, the sys-

tem must be checked as soon as possi-

ble.

For additional information, refer to

page 157

Display of the previously

described malfunction in Cana-

dian models.

Check Gas Cap*

+

Warning lamp lights up. Fuel

filler cap is not properly closed

or is missing. Check whether the fuel

filler cap is properly closed. For addi-

tional information, refer to page 25

Green: for your information

Turn signals

Flashes when the turn signals

are operated. Rapid flashing

indicates a system malfunction.

For additional information, refer to

page 68

Cruise control*

Lights up when system is

switched on: ready for operation

using the buttons on the steering

wheel.

For additional information, refer to

page 71

Fog lamps

Lights up when fog lamps are

switched on. For additional

information, refer to page 102

Blue: for your information

High beams

Lights up when the high beams

are on or the headlamp flasher

is actuated.

For additional information, refer to

pages 68, 101

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

23n

OverviewControlsMaintenanceRepairsDataIndex

Buttons on steering wheel*

The buttons integrated into the steering

wheel are provided so that you can

operate a number of accessories

quickly and without being distracted

from traffic conditions. You may oper-

ate:

>selected functions of the audio

sources*

>the recirculated-air mode of the air

conditioner* or the steering-wheel

heater*

>the cruise control

>selected phone functions* and

>the voice command system*.

In order to operate a system, the

corresponding system must be

switched on.<

Press briefly:

Accept incoming call, start dialing,

terminate call.

Extended pressure:

Switch voice command system on

and off

Display/hide phonebook. Display the

entries consecutively with the buttons

for forward/back

Forward:

>Radio

Press briefly: next stored station

Extended pressure: station search

function

>CD

Press briefly: track search

Extended pressure: fast forward in

track

>Cassette

Press briefly: stop track search or

fast forward

Extended pressure: fast forward

>Telephone

Scroll through list of names

Reverse: functions the same as fast

forward

Volume

On the sports steering wheel*, there

are +/– buttons for volume on the left

side of the steering wheel.

Cruise control: resume

Cruise control: store and accelerate +

as well as store and decelerate –

On the sports steering wheel*, there

are +/– buttons on the right side of the

steering wheel for the cruise control.

Cruise control: activate/interrupt/deac-

tivate

Recirculated-air mode* and AUC auto-

matic recirculated-air control or steer-

ing wheel heater*: switch on/off

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

24nWarning triangle* First-aid kit* Refueling

1. Open the cover on the left in the

cargo area by lifting the handle on

the cover

2. Pull the tab of the retaining strap,

refer to arrow, and remove the haz-

ard warning triangle from the support

bracket

3. To install: slide the hazard warning

triangle into the support bracket and

press on the retaining strap.

530us005

The first-aid kit is located under the

front passenger's seat.

To open: pull the handle and fold the

cover down.

To close: fold the cover up.

Some of the articles in the first-aid kit

may be used within a limited time only.

Therefore, check the expiration dates of

the contents regularly and replace the

contents concerned in good time as

needed.

530de242

Fuel filler door

Before filling the tank, switch off

the engine. If you do not, fuel can-

not be added to the tank and the Ser-

vice Engine Soon lamp may come on.<

To open the fuel filler door, press on the

front edge.

In the event of an electrical malfunction,

you can also open the fuel filler door

manually:

1. Open the cover on the right in the

cargo area by lifting the handle on

the cover

2. Pull the knob with the fuel pump

symbol.

530de243

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

25n

OverviewControlsMaintenanceRepairsDataIndex

Refueling

When handling fuels, always

observe any safety guidelines

posted at the service station. Never

carry spare fuel containers in your vehi-

cle. Whether empty or full, these con-

tainers can leak, cause an explosion, or

lead to fire in the event of a collision.<

Observe the following when

refueling

Open the filler cap carefully to

prevent fuel from spraying out.

Fuel spray may cause injury.

Do not top off. Topping off may cause

fuel spillage.<

Keep the filler cap in the bracket

attached to the fuel filler door.

When refueling, insert the filler nozzle

completely into the filler pipe. Pulling

the nozzle out of the pipe during refuel-

ing

>results in premature pump shutoff

>and will reduce the effect of the vapor

recovery system on the pump.

The fuel tank is full when the filler noz-

zle clicks off the first time.

530us008

To close the fuel filler cap:

Fit the cap and turn it clockwise until

you clearly hear a click.

Close the filler cap carefully after

refueling until a click is heard.

While closing, be sure not to jam the

strap attached to the cap between the

gas cap and the vehicle. A loose or

missing cap will activate the message

CHECK GAS CAP in the Check Con-

trol* or the Check Gas Cap lamp*.<

Tank capacity:

approx. 24.6 gal./93 liters,

including a reserve of:

6-cylinder engine: approx. 2.0 gal./

8 liters:

8-cylinder engine: approx. 2.5 gal./

10 liters.

Never attempt to continue driving

until the tank is completely empty,

as engine functions could be affected,

and the vehicle could sustain damage

as a result.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

26nFuel specifications

The engine uses lead-free gasoline

only.

Required fuel

Premium Unleaded Gasoline,

Minimum Octane Rating: 91.

Minimum Octane Rating corresponds to

the Anti Knock Index AKI and is deter-

mined according to the so-called

(R+M)/2 method.

Do not use leaded gasoline: use of

leaded fuel will permanently dam-

age the lambda probe and catalytic

converter of your vehicle.<

Use high-quality brands

Field experience has indicated signifi-

cant differences in fuel quality: volatility,

composition, additives, etc., among

gasolines offered for sale in the United

States and Canada. Fuels containing up

to and including 10% ethanol or other

oxygenates with up to 2.8% oxygen by

weight, that is, 15 % MTBE or 3% meth-

anol plus an equivalent amount of co-

solvent, will not void the applicable

warranties with respect to defects in

materials or workmanship.

The use of poor-quality fuels may

result in drivability, starting and

stalling problems, especially under cer-

tain environmental conditions such as

high ambient temperature and high alti-

tude.

Should you encounter drivability prob-

lems that you suspect could be related

to the fuel you are using, we recom-

mend that you respond by switching to

a recognized high-quality brand.

Failure to comply with these recom-

mendations may also result in unsched-

uled maintenance.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

27n

OverviewControlsMaintenanceRepairsDataIndex

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

28n

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

29n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Index

Technical data

Controls

Owner service procedures

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

30nKeys Central locking system

The key set

1 Each master key with remote control

contains a long-life battery as a

power supply, which is automatically

recharged in the ignition lock while

driving. It is therefore necessary to

use each master key at least twice

per year in order to maintain the

charge. Depending on which master

key the vehicle detects during

unlocking, different settings will be

requested and executed in the vehi-

cle, refer to Vehicle and Key memory

on page 61.

530de367

2 Spare key for storage in a safe place,

such as in your wallet.

This key does not fit in the lock of the

glove compartment. This is an advan-

tage in a hotel, for example. The key

is not intended for continuous use.

Replacement keys

Additional or replacement keys are

available at your BMW Sports Activity

Vehicle center.

The concept

The central locking system is ready for

operation as soon as you close the front

doors. The system engages or releases

the locks on the

>doors

>liftgate/tailgate

>fuel filler door.

The central locking system can be

operated

>from outside via the remote control

as well as via the driver's door lock

>from inside via the button for the cen-

tral locking system.

If the system is locked from inside, the

fuel filler door remains unlocked, refer

to page 34.

When the system is actuated from out-

side of the vehicle, the anti-theft system

is actuated simultaneously. This pre-

vents the doors from being unlocked via

lock buttons or door handles. The alarm

system is also armed or disarmed.

In an accident of sufficient severity the

central locking system automatically

unlocks, but only doors which have not

been locked separately with the lock

buttons, refer to page 34. In addition,

the hazard warning flashers and the

interior lamps are switched on.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

31n

OverviewControlsMaintenanceRepairsDataIndex

Opening and closing: from outside

Using remote control

When you engage/release the vehicle

locks, you also activate/deactivate the

anti-theft system, arm/disarm the alarm

system, and switch the interior lamps

on/off.

Protect the remote control against

unauthorized use by handing over

only the spare key, for example when

using hotel valet parking.<

You can find more detailed information

on the alarm system on page 38.

Since passengers or animals

remaining in the vehicle might be

able to lock the doors from the inside,

take the vehicle's keys with you so that

the vehicle can be opened again from

the outside at any time.<

Unlocking vehicle

Press the button.

Press the button once to unlock the

driver's door and the fuel filler door

only; press a second time to unlock all

remaining doors as well as the liftgate/

tailgate.

Convenience opening mode

Press the button briefly and then hold

down.

The windows and the panorama glass

roof open.

Locking and securing

Press the button.

As a confirmation that the vehicle is

correctly locked, the hazard warning

flashers light up.

If you so desire, you can have this

function deactivated if your vehi-

cle is not equipped with an alarm sys-

tem.<

Switching on interior lamps

If the vehicle is locked, press the but-

ton.

With this function, you can also search

for your vehicle, e.g. when parked in an

underground garage.

Switching off tilt alarm sensor and

interior motion sensor

Press the button once again immedi-

ately after locking.

For more detailed information, refer to

page 39.

Opening liftgate

Briefly press the button.

The liftgate will open slightly, regardless

of whether it was previously locked or

unlocked.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

32nOpening and closing: from outside

If the vehicle is locked, the liftgate

is also locked again when closed.

Before and after a trip, be sure that the

liftgate was not opened unintention-

ally.<

Panic mode

When the alarm system is armed, you

can trigger an alarm in response to an

impending danger by pressing and

holding the button for more than two

seconds.

To switch off the alarm

Press the button.

Malfunction

The remote control can be subjected to

malfunctions by local radio waves.

Should the remote control fail to oper-

ate owing to interference of this kind,

unlock and lock the vehicle via the door

lock using the master key.

If it is no longer possible to lock the

vehicle via the remote control, the bat-

tery is discharged. Use this remote con-

trol during an extended drive; this will

recharge the battery, refer to page 30.

For US owners only

The transmitter and receiver units com-

ply with part 15 of the FCC/Federal

Communication Commission regula-

tions. Operation is governed by the fol-

lowing:

FCC ID: LX8EWS

LX8FZVS

LX8FZVE

Compliance statement:

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

>This device may not cause harmful

interference, and

>this device must accept any interfer-

ence received, including interference

that may cause undesired operation.

Any unauthorized modifications

to these devices could void the

user's authority to operate the equip-

ment.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

33n

OverviewControlsMaintenanceRepairsDataIndex

Opening and closing: from outside

Using door lock

One turn of the key in the driver's door

lock unlocks the driver's door only.

Turning the key a second time unlocks

all of the remaining doors, the liftgate/

tailgate and the fuel filler door.

As a confirmation that the vehicle is

correctly locked, the hazard warning

flashers light up.

If you so desire, you can deacti-

vate this function if your vehicle is

not equipped with an alarm system.<

530de244

Convenience operation

You also have the option of operating

the windows and the panorama glass

roof from the door lock.

>To open: with the door closed, turn

the key to the Unlock position and

hold it.

>To close: with the door closed, turn

the key to the Lock position and hold

it.

Watch during the closing process

to be sure that no one is injured.

Releasing the key stops the operation.<

Manual operation

In the event of an electrical malfunction,

turn the key to the extreme left or right

to unlock/lock the door.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

34nOpening and closing: from inside

This button serves to unlock or lock

doors and the liftgate, but does not

activate the anti-theft system. The fuel

filler door remains unlocked.

You have the option of setting the

central locking system to lock

automatically as soon as you begin to

drive. This can be set to be key-

specific.<

530de220

If only the driver's door was

unlocked from the outside and

you press the button

>all other doors, the liftgate/tailgate

and the fuel filler door will be

unlocked when the driver's door is

opened

>the driver's door will be locked again

when it is closed.<

Unlocking and opening doors

>Either unlock the doors together with

the button for the central locking sys-

tem and then pull the door handle

above the armrest or

>pull the release handle for each door

twice: the first pull unlocks the door,

and the second one opens it.

Locking

>Use the central locking button to lock

all of the doors simultaneously, or

>press down the individual lock but-

tons. As an added design feature to

prevent the driver from being inad-

vertently locked out of the vehicle,

the driver's lock button will not

engage as long as the door is open.

When the vehicle is moving, do

not lock the doors with the lock

buttons. Doors locked in this manner

would not unlock automatically in the

event of an accident.

Since passengers or animals remaining

in the vehicle might be able to lock the

doors from the inside, take the vehicle's

keys with you so that the vehicle can be

opened again from the outside at any

time.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

35n

OverviewControlsMaintenanceRepairsDataIndex

Liftgate

Opening from outside

Press the button, refer to arrow:

The liftgate opens slightly.

The cargo area is illuminated whenever

the liftgate is opened, refer also to

page 103.

With the liftgate open, the dis-

tance from the ground to the

upper edge is more than 6.6 ft/2 m.

Please remember this, e.g. when open-

ing the liftgate in a garage.<

530de245

Opening from inside

Press this button to open the liftgate

when the vehicle is stationary.

If pointed or sharp-edged objects

could strike the rear window while

driving, be sure to provide protection

around all edges. Failure to do so could

result in damage to the heating conduc-

tors of the rear window.<

For information on the cargo area cover

and on other details in the cargo area,

refer to Cargo area, beginning on

page 124.

530de415

Manual release

In the event of an electrical malfunction,

you can release the liftgate manually:

1. Remove the plastic plug from inside

the cargo area and pull toward the

interior, refer to arrow. The liftgate

will be released

2. Reinstall the plug.

530de316

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

36nLiftgate Tailgate

Closing

You can pull the liftgate down by plac-

ing both hands in the handle recesses,

refer to arrows.

Automatic Soft Close function

To close the liftgate, merely press it

down gently. The closing process will

then be carried out automatically.

To avoid injuries, be sure that the

travel path of the liftgate is clear

when it is closed, as with all closing

procedures.<

530us017

Opening

Press the button:

You can fold the tailgate down.

When opened, the tailgate can

accept loads of up to 440 lbs./

200 kg. When the vehicle is stationary

you may, for example, utilize the tail-

gate as a seat or as a loading platform

for luggage or recreation gear.<

530de246

Manual release

In the event of an electrical malfunction,

you can release the tailgate manually:

1. Unfasten the trim panel clip with the

vehicle key or with a screwdriver,

refer to arrow 1, and remove it

toward the top, refer to arrow 2

530de317

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

37n

OverviewControlsMaintenanceRepairsDataIndex

Tailgate

2. Using the same tool, press the latch

in the direction of the arrow; the tail-

gate is released

3. Reinstall the trim panel.

530de241

Luggage straps

Use the luggage straps on the cargo

floor cover to secure smaller items of

luggage.

Movement is reduced when objects are

placed on the straps.

The lashing eyes located at the corners

of the cargo area provide you with a

convenient means of attaching luggage

nets* or flexible straps for securing lug-

gage.

Refer also to Cargo loading on

page 130.

394de302

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

38nAlarm system

The concept

The vehicle alarm system responds:

>When a door, the hood or the liftgate

is opened

>To movement in the vehicle interior:

interior protection, refer to Tilt alarm

sensor and Interior motion sensor

>To variations in the vehicle tilt angle

such as occur during attempts to

steal the wheels or tow the vehicle

>To interruption of battery voltage.

The system responds to unauthorized

vehicle entry and attempted theft by

simultaneously activating the following:

>An acoustical alarm, which sounds

for 30 seconds

>The hazard warning flashers, which

flash for approx. five minutes

>The high beams, which flash on and

off in the same rhythm as the hazard

warning flashers.

Arming and disarming alarm

system

When you lock or unlock the vehicle,

either with the remote control or at the

door lock, the alarm system is armed or

disarmed at the same time.

You can have different acknowl-

edgment signals set to confirm

arming and disarming.<

The liftgate can also be opened with the

system armed using the button on the

remote control, refer to page 31. The

liftgate is locked again when closed.

Pressing the button longer triggers the

alarm: panic mode, refer to page 32.

Indicator lamp displays

>The indicator lamp below the interior

rearview mirror flashes continuously:

the system is armed.

>The indicator lamp flashes when the

vehicle is locked: the doors or liftgate

are not properly closed. Even if you

do not close the alerted area, the sys-

tem begins to monitor the remaining

areas, and the indicator lamp flashes

continuously after 10 seconds. How-

ever, the interior motion sensor is not

activated.

>The indicator lamp goes out when the

vehicle is unlocked: no manipulation

or attempted intrusions have been

detected in the period since the sys-

tem was armed.

530us241

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

39n

OverviewControlsMaintenanceRepairsDataIndex

Alarm system Windows

>The indicator lamp flashes for 10 sec-

onds after the vehicle is unlocked: an

attempted entry has been detected in

the period since the system was

armed.

Following triggering of an alarm, the

indicator lamp will flash continuously.

Tilt alarm sensor

The tilt of the vehicle is monitored. The

alarm system reacts, for example, if

someone attempts to steal the wheels

or tow the vehicle.

Interior motion sensor

In order for the interior motion sensor to

function properly, the windows and

panorama glass roof must be com-

pletely closed.

Avoiding unintentional alarms

The tilt alarm sensor and interior motion

sensor may be switched off at the same

time. This prevents unintentional

alarms, e.g. in the following situations:

>In duplex garages

>When transporting on car-carrying

trains

>If animals are to remain in the vehicle.

To switch off the tilt alarm sensor and

interior motion sensor:

Press the button on the remote control

twice consecutively.

The indicator lamp lights up briefly and

then flashes continuously. The tilt alarm

sensor and the interior motion sensor

are switched off until the next unlocking

and locking actions are executed.

To prevent injuries, exercise care

when closing the windows and

keep them in your field of vision until

they are shut.

Always take along the ignition key when

you leave the vehicle, as otherwise chil-

dren could, for example, operate the

windows and injure themselves.<

Opening and closing windows

As of ignition key position 1:

>Press the switch up to the resistance

point:

The window continues to move

downward as long as you continue to

hold the switch

>Briefly press the switch beyond the

resistance point:

The window moves downward auto-

530us020

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

40nWindows

matically. Briefly press the switch

again to stop the opening movement.

You can close the windows in the same

manner by pulling the switch.

After the ignition has been switched off:

You can still operate the windows for

approx. 1 minute, as long as no door

has been opened.

For the convenience mode via the

remote control or the door lock, refer to

pages 31, 33.

Anti-trapping mechanism

A contact strip is integrated into the

inner side of each of the upper window

frame sections. If pressure is exerted

against this contact strip while a win-

dow is being raised, the system will

respond by stopping the window and

then retracting it a small distance.

Despite the anti-trapping mecha-

nism, be extremely careful that the

closing path of the window is not

obstructed whenever it is closed.

Otherwise, an object might not touch

the contact strip in some situations,

with very thin objects, for instance.

You can disable the anti-trapping

mechanism by pulling the switch

beyond the resistance point and hold-

ing it.

Because the power windows are sealed

at high pressure to prevent wind noise

when closed, a powerful motor is

required for efficient closing. When

closing the windows, always ensure

that they are not obstructed in any way.

Unsupervised use of these systems can

result in serious personal injury.

Remove the ignition key to deactivate

the power windows whenever you leave

the vehicle. Never leave the keys in the

vehicle with unsupervised children.

Never place anything that could

obstruct the driver's vision on or next to

the windows.<

Safety switch

With the safety switch, you can prevent

the rear windows from being opened or

closed via the switches in the rear pas-

senger area, by children, for example.

You can also prevent adjustments of

the power rear-seat backrests from the

rear passenger area, refer to page 48.

Always press the safety switch

when children ride in the rear, oth-

erwise unchecked closing of the win-

dows could lead to injuries.<

530us209

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

41n

OverviewControlsMaintenanceRepairsDataIndex

Panorama glass roof*

To avoid bodily injuries, be sure to

watch the panorama glass roof

while closing. Always take along the

ignition key when you leave the vehicle,

as otherwise children could, for exam-

ple, operate the roof and injure them-

selves.<

The panorama glass roof is operational

with the ignition key in position 2.

Raising, opening, closing

Press the switch or slide it in the

desired direction up to the resistance

point.

Release the switch to stop the motion.

The sliding visor is opened slightly

when the panorama glass roof is raised.

The panorama glass roof can be

opened or closed independently with

the sliding visor open.

530ue262

Ventilation setting:

The panorama glass roof is raised and

the sliding visor is opened slightly:

Briefly press the switch twice consecu-

tively.

After the ignition has been switched off:

You can still operate the roof for

approx. 1 minute, as long as no door

has been opened.

Automatic opening and closing

Briefly press the switch beyond the

resistance point and then release it.

Briefly pressing the switch again stops

the motion.

Opening and closing panorama glass

roof and sliding visor together:

Briefly press the switch beyond the

resistance point twice consecutively.

Briefly pressing the switch again stops

the motion.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

42nPanorama glass roof*

Comfort position

Each time the panorama glass roof is

completely opened or closed, it stops in

the comfort position. Use the switch to

continue the motion after this if you

wish.

In the comfort position, the wind noises

in the interior are reduced.

Anti-trapping mechanism

If the panorama glass roof or sliding

visor encounter resistance when clos-

ing from roughly one third of the roof

opening or when closing from the

raised position, the closing action is

interrupted and the panorama glass

roof and sliding visor reopen a little.

Despite the anti-trapping mecha-

nism, inspect the roof's travel path

prior to closing it, as the safety system

might fail to detect certain kinds of

obstructions, such as very thin objects,

and the roof would continue closing.

The anti-trapping mechanism for clos-

ing the panorama glass roof is deacti-

vated if the switch is pressed beyond

the resistance point and held there. The

closing action is interrupted when you

release the switch.<

Following a power failure

Following interruptions in electrical

power, for instance when the battery is

disconnected, it is possible that the

panorama glass roof will extend to its

tilt-up position, but fail to respond to

other commands. The system must be

initialized. BMW recommends having

this work carried out by your BMW

Sports Activity Vehicle center.

Manual operation

In the event of an electrical malfunction,

you can operate the panorama glass

roof manually.

1. Take the Allen wrench and screw-

driver from onboard tool kit, refer to

page 160

2. Remove the cover panel on the

headliner. To do so, insert the screw-

driver from behind slightly off-center

and carefully pry the cover out

3. Insert the Allen wrench into the

opening provided and turn the pan-

orama glass roof in the desired direc-

tion.

530de410

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

43n

OverviewControlsMaintenanceRepairsDataIndex

The ideal sitting position can make a

vital contribution to relaxed driving that

is as fatigue-free as possible. In con-

junction with the safety belts, the head

restraints and the airbags, the seat

position also plays an important role for

the passive safety of the occupants in

an accident. To ensure that the safety

systems operate with optimized effi-

ciency, we strongly urge you to follow

the instructions contained in the section

below.

For additional information on transport-

ing children safely, refer to page 57.

Airbags

Always maintain an adequate dis-

tance between yourself and the

airbags. Always hold the steering wheel

by its rim, with hands at the 9 o'clock

and 3 o'clock positions to minimize the

risk of injuries to your hands and arms

in the event of airbag deployment.

No one and nothing is to come between

the airbags and the seat occupant. Do

not use the cover of the front airbag on

the front passenger side as a storage

area. Make sure that the front passen-

ger is correctly seated and does not

rest feet or legs on the instrument

panel, as otherwise leg injuries can

occur if the front airbag is triggered.

Make sure that the occupants do not

rest their heads on side or head air-

bags, as otherwise injuries can occur if

the airbags are triggered.<

Even if you adhere to all instructions,

injuries resulting from contact with air-

bags cannot be fully excluded, depend-

ing on the circumstances. The ignition

and inflation noise may provoke a mild –

usually temporary – hearing loss in

extremely sensitive individuals.

For airbag locations and additional

information on airbags, refer to

page 55.

Head restraint

A correctly adjusted head restraint

reduces the risk of cervical injuries in

accidents.

Adjust the head restraint so that

its center is approximately at the

height of the ears, as otherwise there is

an increased risk of injury in an acci-

dent.<

Safety belt

For every trip, use the safety belt on all

occupied seats. Airbags complement

the safety belt as an additional safety

device, but they do not represent a sub-

stitute.

Your vehicle has five seats that are all

equipped with a safety belt.

At all times, occupants should sit

upright and be properly restrained

– infants and small children in appropri-

ate child-restraint systems; larger chil-

dren and adults using the safety belts.

Each safety belt should always be used

by only one person; babies and children

may not ride on the lap of another pas-

senger.

In addition, pregnant women should

always wear a safety belt, making espe-

cially sure that the belt rests low on the

hips in the lap area, and does not press

against the abdomen.

Do not route the belt across your neck

or run it across sharp edges. Be sure

that the belt does not become caught

or jammed. Wear the safety belt without

twisting, snugly across the lap and

shoulders, as close to the body as pos-

sible. Be sure not to route it over solid

or breakable objects, otherwise the belt

can slip over the hips in the lap area in a

Sitting safely

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

44nSitting safely Seats

frontal impact and injure the abdomen.

Avoid wearing clothing that prevents

the belt from fitting properly and pull

the belt in the upper body area periodi-

cally to readjust the tension in order to

avoid a reduction in the restraint of the

safety belt.<

If the middle safety belt in the rear is

used, the wider seatback must be

locked, refer to page 124, otherwise the

safety belt has no restraining action.

Fasten safety belt, refer to page 49.

Note before adjusting

Never try to adjust your seat while

operating the vehicle. The seat

could respond with unexpected move-

ment and the ensuing loss of vehicle

control could lead to an accident. On

the front passenger side as well, do not

tilt the backrest too far toward the rear

while driving. Failure to observe this

precaution can prevent the belt from

providing effective protection against

injury, as the passenger could slide

under the belt in an accident.<

Also observe the information on the

safety belts on page 49 and on the

head restraints on page 47.

Seat adjustment

>Mechanical seat adjustment, refer to

following columns

>Power seat adjustment, refer to

page 46

>Head restraints, refer to page 47

>Power rear-seat backrest adjustment,

refer to page 48

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

45n

OverviewControlsMaintenanceRepairsDataIndex

Mechanical seat adjustment

Seat adjustment

1 Backward/forward

Pull the lever and slide the seat to the

desired position.

After you release the lever, move the

seat forward or backward slightly so

that it engages fully.

2Height

Pull the lever and apply weight to or

remove weight from the seat as

needed.

530us211

3Backrest

Pull the lever and apply weight to or

remove weight from the backrest as

needed.

Comply with the adjustment

instructions on page 43. Failure

to do so could result in diminished per-

sonal safety.<

530us212

Sports seat

*

adjustment

You can also adjust the thigh support:

Pull the lever and adjust the position of

the thigh support for your personal

comfort.

530de253

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

46nPower seat adjustment*

Seat adjustment

1Angle

2 Backward/forward

3 Cushion height

4 Backrest angle

Adjust the head restraint manually, refer

to page 47.

Comply with the adjustment

instructions on page 43. Failure

to do so could result in diminished per-

sonal safety.<

530us024

Comfort seat

*

adjustment

This seat allows you to make additional

adjustments for

1Lumbar support

2 Shoulder support

3 Head restraint height

Lumbar support:

You can also adjust the contours of the

backrest to obtain additional support in

the lumbar region.

The upper hips and spinal column

receive supplementary support to help

you maintain a relaxed, upright sitting

position.

530de251

>Increase or decrease curvature: push

switch forward or backward.

>Shift curvature up or down: push

switch up or down.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

47n

OverviewControlsMaintenanceRepairsDataIndex

Power seat adjustment*Head restraints

Shoulder support:

Move the switch in the direction of the

arrow to adjust the tilt angle of the

shoulder support.

You can use the adjustable upper back-

rest for supplementary support in the

shoulder region. This provides a relaxed

sitting position and helps relieve stress

on the shoulder muscles.

For optimum adjustment, the following

is recommended:

Driver and front passenger:

1. Adjust the upper backrest section to

its extreme rear position

2. Adjust for the optimal sitting position

as described on page 43

3. Bring the upper backrest section fur-

ther forward until your shoulders are

well supported.

530de252

Front passenger's seat adjusted for

relaxed traveling:

1. Adjust the upper backrest section to

its extreme rear position

2. Tilt the backrest down to a slightly

more horizontal angle

3. Bring the upper backrest section for-

ward until your shoulders are well

supported.

Make corrections in the forward/

backward adjustment of the seat

to ensure that the safety belt still fits

firmly against your body. If you do not

do this, the protection provided by the

safety belt may be reduced.<

Head restraint height:

Move the switch in the desired direc-

tion.

A correctly adjusted head restraint

reduces the risk of cervical injuries in

accidents.

Adjust the head restraint so that

its center is approximately at the

height of the ears, as otherwise there is

an increased risk of injury in an acci-

dent.<

Adjustments

To adjust the angle of the front head

restraints, tilt the head restraint to the

desired angle.

To adjust the height of the front or rear

head restraints, pull the head restraint

up or push it down.

Power height adjustment, refer to

page 46.

530de250

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

48nHead restraints Power rear-seat backrest adjustment*

Removal – front

1. Pull the head restraint upward to the

stop

2. Press the button, refer to arrow, and

remove the head restraint.

Installation – front

1. Press the button, refer to arrow, and

insert the head restraint into the

guides

2. Adjust the head restraint for your

personal comfort.

Removal and installation – rear

To remove the head restraint, pull it

outward with a firm movement. To

install it, press it down firmly.

530de323

You can make separate adjustments of

the backrest tilt angle on the right and

left sides.

You can select a comfortable sitting

position and also increase the capacity

of the cargo area by moving the back-

rests into their full, upright position.

From the rear seats: press the corre-

sponding switch.

You can prevent adjustments of

the power rear-seat backrest from

the rear passenger area with the safety

switch for the power windows, refer to

page 40.<

530de422

From the cargo area: the switches are

located on both sides of the cargo area.

530de224

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

49n

OverviewControlsMaintenanceRepairsDataIndex

Safety belts

Comply with the instructions on

page 43. Failure to do so could

result in diminished personal safety.<

Use the safety belts on all occupied

seats for every trip. Airbags comple-

ment the safety belt as an additional

safety device, but they do not represent

a substitute.

Fastening

Make sure you hear the latch plate

engage in the belt buckle.

Releasing

1. Press the red button in the belt

buckle

2. Hold the belt firmly

3. Guide the belt back into its reel.

530us034

In the back, the middle safety belt

buckle is provided for use exclu-

sively by the middle passenger.

If it is not possible to extract the center

belt, this indicates that the larger back-

rest is not securely locked, refer to

page 124.<

Safety belt reminder for front

seats

Indicator lamp flashes or lights

up. In addition, a signal sounds

and, depending on the equip-

ment, a message* appears in the

Check Control. Please check to make

sure safety belts are correctly fastened.

The belt reminder is activated when the

safety belt on the driver's side has not

yet been fastened.

The belt reminder is also active at

speeds greater than approx. 5 mph/

8 km/h when the passenger belt has

not yet been fastened, heavy objects

are placed on the front passenger seat,

or passengers sitting in the front

remove their safety belts.

Safety belt height adjustment

You can adjust the safety belts to fit

your own physical dimensions by using

the safety belt height adjustment:

Slide the button up or down as

required.

Also observe the instructions on adjust-

ing the seats on page 44.

530de259

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

50nSafety belts Seat, mirror and steering wheel memory*

Damage to safety belts

If the safety belts are damaged or

stretched in an accident: have the

entire belt system, including the ten-

sioning mechanisms, replaced at your

BMW Sports Activity Vehicle center or

at a workshop that works according to

BMW repair procedures with corre-

spondingly trained personnel. Have the

belt anchorage points inspected for

damage at the same time. Failure to

observe this precaution may prevent

the safety belts from effectively provid-

ing optimal protection when needed.

If a child-restraint system was in the

vehicle during an accident, consult the

manufacturer's instructions regarding

replacement.<

You can store and recall three different

seat, exterior mirror and steering wheel

positions. The illustration shows the

buttons on the seat for making these

position adjustments.

The adjustment of the lumbar sup-

port is not stored in the memory.<

530us032

Storing

1. Turn the ignition key to position 1

or 2

2. Adjust the desired positions for the

seat, exterior mirror and steering

wheel

3. Press the MEMORY button: LED in

the button lights up

4. Press memory button 1, 2 or 3, as

desired: LED goes out.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

51n

OverviewControlsMaintenanceRepairsDataIndex

Seat, mirror and steering wheel memory*

Calling up a stored setting

Do not call up a position from the

memory while the vehicle is mov-

ing. There is a risk of accident from

unexpected movement of the seat or

steering wheel.<

Convenience function:

1. Open the driver's door after unlock-

ing the vehicle or place the ignition

key in position 1

2. Briefly press memory button 1, 2

or 3, as desired.

Movement stops immediately when

one of the seat-adjustment or mem-

ory buttons is activated during the

adjustment process.

Security function:

1. With the driver's door closed and the

ignition key either removed or in

position 0 or 2

2. Maintain pressure on the desired

memory button 1, 2 or 3 until the

adjustment process is completed.

If you press the MEMORY button

accidentally: press the button

again – the LED goes out.<

You can have your vehicle pro-

grammed to automatically dial in

your own individual adjustment settings

for the seat, mirrors and steering wheel

whenever you use your personal

remote control to unlock the vehicle.<

If you make use of this function,

be sure that the footwell behind

the driver's seat is unobstructed before

unlocking the vehicle. If you fail to do

so, any persons or objects behind the

seat could be injured or damaged by a

rearward movement of the seat.<

Passenger-side exterior mirror

tilt function

Automatic curb monitor

Activating:

1. Select the driver's mirror with the

mirror selection switch

2. When you engage reverse gear or

selector-lever position R, the exterior

mirror glass on the front passenger

side tilts downward slightly. This

allows the driver to see the area

immediately adjacent to the vehicle –

such as a curb – when parking, etc.

Deactivating:

Slide the mirror selection switch to the

passenger's side position.

530us214

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

52nHeated seats* Steering wheel

Front

The seat cushion and backrest can be

heated when the ignition key is in posi-

tion 2.

You can call up different heating modes

by repeatedly pressing the button.

You can also switch off the higher heat-

ing modes directly:

Press the button and hold it slightly

longer.

530de417

Rear

The operating concept is the same as

for the front heated seats. You can

select between two heating modes.

530de234

Adjustments

The steering wheel can be moved in

any of four directions. Adjust the steer-

ing wheel by moving the control lever in

the desired direction.

Do not adjust the steering wheel

while the vehicle is moving. There

is a risk of accident from unexpected

movement.<

To store the steering wheel setting,

refer to Seat, mirror and steering wheel

memory on page 50.

530de255

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

53n

OverviewControlsMaintenanceRepairsDataIndex

Steering wheel Steering wheel heater* Mirrors

Automatic steering wheel

adjustment

only in conjunction with seat, mirror and

steering wheel memory

In order to make it easier to get into and

out of the vehicle, the steering wheel

automatically moves into the top posi-

tion and returns to the driving or mem-

ory position.

This automatic feature is influenced by

the position of the ignition key and by

the driver's door. The steering wheel heater functions in

ignition key position 2.

Press the button to activate or deacti-

vate this system.

The LED in the button lights up when

the steering wheel heater is switched

on.

If your vehicle is not equipped with

steering wheel heater, the button for

the recirculated-air mode is located

here, refer to page 23.

530de428

Exterior mirrors

The mirror on the passenger's

side is more curved than the

driver's mirror. Objects reflected in the

mirror are closer than they appear. Do

not attempt to estimate the distance to

following traffic based on the view in

the mirrors, as otherwise an increased

accident risk will result.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

54nMirrors

1 Adjustments

2 Switching to the other mirror or to the

automatic parking function*

3 Folding mirrors in and out*

To store the mirror settings, refer to

Seat, mirror and steering wheel memory

on page 50.

Adjusting manually

The mirrors can also be adjusted manu-

ally by pressing the edges of the mirror

glass.

530de256

Folding mirrors in and out

Pressing button 3 allows you to fold

mirrors in and out up to a speed of

6 mph/10 km/h. This is advantageous,

for example, in narrow streets or for

bringing mirrors that have been manu-

ally folded-in back into the correct posi-

tion.

Before going through a car wash,

fold the exterior mirrors inward

manually or using button 3; otherwise

they could be damaged, depending on

the width of the car wash system.<

Automatic heating

Below a certain outdoor temperature,

both exterior mirrors are automatically

heated when the motor is running or the

ignition is switched on.

Interior rearview mirror

To reduce glare from vehicles behind

you when you are driving at night, tilt

the mirror by turning the button.

530us244

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

55n

OverviewControlsMaintenanceRepairsDataIndex

Airbags

1 Front airbags

2 Head airbags

3 Side airbags for front and rear*

Protective action

Comply with the instructions on

page 43. Failure to do so could

result in diminished personal safety.<

The front airbags supplement the safety

belts by helping to provide additional

protection for the front-seat occupants

in the event of a severe frontal impact in

which the protection afforded by the

safety belts alone may no longer be suf-

ficient. The head airbag and side airbag

help provide protection in the event of a

side impact. The respective side airbag

is designed to help support the body at

530us035

the side of the chest region. The Side

Impact Head Protection System pro-

tects the head.

The airbags are intentionally not trig-

gered in every impact situation, e.g. not

in minor accidents or rear-end colli-

sions.

Stickers on the rear door frame

indicate the status of the rear side

airbags. If the status cannot be clearly

recognized, or if you want to have the

airbags activated/deactivated, please

contact your BMW Sports Activity Vehi-

cle center.<

For information on the correct sitting

position, refer to page 43.

Do not apply adhesive materials to

the cover panels of the airbags,

cover them or modify them in any other

way.

Do not attempt to remove the airbag

restraint system from the vehicle. Do

not modify or tamper with either the

wiring or the individual components in

the airbag system. These include the

padded steering wheel hub, the instru-

ment cluster, the side trim panels, the

doors and the roof pillars or the sides of

the headliner. Do not remove or dis-

mantle the steering wheel yourself.

Do not touch the individual components

directly after the system has been trig-

gered, otherwise there is a danger of

burns. If the airbag restraint system

malfunctions, needs to be decommis-

sioned, or has been triggered, only

entrust the necessary repair work to a

BMW Sports Activity Vehicle center or a

workshop that works according to

BMW repair procedures with corre-

spondingly trained personnel and has

the required explosives permits for test-

ing, repair, dismantling or scrapping of

the airbag generators. Unprofessional

attempts to service the system could

lead to failure in an emergency or

undesired airbag activation, either of

which could result in personal injury.<

Warnings and information on the air-

bags is also provided on the sun visors.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

56nAirbags

Automatically deactivating front

passenger airbags

The occupation of the seat is detected

by evaluating the imprint on the occu-

pied seat surface of the front passenger

seat. The front and side airbag on the

front passenger side are activated or

deactivated accordingly by the system.

The current status of the front

passenger airbag, i.e. deactivated

or activated, is indicated by the indica-

tor lamp over the interior rearview mir-

ror, refer to Status of front passenger

airbags in the following.<

Before transporting a child on the

front passenger seat, observe the

safety information and handling instruc-

tions under Transporting children

safely, refer to page 57.

The front and side airbag on the front

passenger side can be deactivated for

teenagers and adults in certain seat

positions; then the indicator lamp for

the front passenger airbags lights up. In

these cases, change the seat position

so that the front passenger airbags are

activated and the indicator lamp goes

out. If the desired status cannot be pro-

duced by changing the seat position,

transport the corresponding person on

the rear seat. Do not install protective

covers, seat cushions, ball mats or

other objects on the front passenger

seat which are not specially recom-

mended by BMW. Do not lay objects

under the seat which could press

against the seat from below. Otherwise

a correct evaluation of the occupied

seat surface cannot be ensured.<

Status of front passenger airbag

One of the illustrated indicator lamps is

located above the interior rearview mir-

ror.

The indicator lamp for the front passen-

ger airbags indicates the operating sta-

tus of the front and side airbag on the

front passenger side depending on the

seat occupation. The indicator lamp

shows whether the front passenger air-

bags are activated or deactivated.

>The indicator lamp lights up when a

child in a child restraint system

intended for the purpose is properly

detected on the seat.

The front and side airbag on the front

passenger side are not activated

530ue260

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

57n

OverviewControlsMaintenanceRepairsDataIndex

Airbags Transporting children safely

>The indicator lamp does not light up

when, for example, a correctly seated

person of sufficient height is detected

on the seat. The front and side airbag

on the front passenger side are acti-

vated

>The indicator lamp does not light up

when the seat is empty.

The front and side airbag on the front

passenger side are not activated.

Operational readiness of airbag

system

As of ignition key position 1, the

warning lamp in the instrument

cluster lights up for a short time,

thus indicating the operational readi-

ness of the entire airbag system and the

safety belt tensioners.

Airbag system malfunction:

>Warning lamp does not light up as of

ignition key position 1

>Warning lamp lights up continuously.

Have the airbag system checked

immediately if a malfunction

occurs, as otherwise there is a danger

of the system failing to respond in the

expected manner in an accident of cor-

responding severity.<

The right place for children

Do not leave children unattended

in the vehicle, as otherwise they

could endanger themselves and other

persons, e.g. by opening the doors.<

In principle, all seats in your BMW

except the driver's seat are suitable for

mounting universal child restraint sys-

tems for all ages which are approved

for the respective age group.

Children always in the rear:

Accident research shows that the saf-

est place for children is on the back

seat.

Only transport children under

13 years of age or less than 5 ft/

150 cm tall in the rear in child restraint

systems intended for the respective

age, weight and height of the child.

Otherwise there is an increased danger

of injury in an accident.<

Children 13 years of age or older must

wear a safety belt as soon as a suitable

child restraint system can no longer be

used due to their age, size and weight.

All rear seat positions in your vehicle

comply with the recommendations of

the standard SAE J1819 for the safe

securing of child restraint systems in

motor vehicles.

Exception for front passenger seat:

Should it be necessary to use a

child-restraint system on the front

passenger seat, the front and side air-

bags must be deactivated. Otherwise,

there is an increased risk of injury for

the child when the airbags are trig-

gered, even with a child-restraint sys-

tem. Your BMW Sports Activity Vehicle

center will be happy to advise you.<

More information on automatic deacti-

vation of the front passenger airbags,

refer to page 56.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

58nTransporting children safely

Installing child-restraint systems

Follow the child-restraint system

manufacturer's instructions when

selecting, installing and using child-

restraint systems. Otherwise the degree

of protection can be reduced.<

Commercially available child restraint

systems are designed for securing with

a lap belt or with the lap belt section

of a three-point belt. Incorrectly or

improperly installed child restraint sys-

tems can increase the risk of injury for

children. Always follow the instructions

for installing the system exactly.

On front passenger seat:

Before mounting a child restraint

system on the front passenger

seat, make sure that the front and side

airbag on the front passenger side are

deactivated, as otherwise there is an

increased risk of injury if the airbags are

triggered.<

Before mounting a universal child-

restraint system, move the front pas-

senger seat into the highest position to

achieve the best possible belt routing.

Do not change this seat height.

Child-restraint system security

All rear safety belts and the safety belt

for the front passenger can be locked to

prevent them from being pulled out,

enabling them to be used for securing

child restraint systems.

Locking safety belt:

1. Secure child restraint system with

the belt

2. Pull out belt webbing completely

3. Allow belt webbing to be pulled in

and pull taut against child restraint

system. The safety belt is locked.

Unlocking safety belt:

1. Open belt buckle

2. Remove child restraint system

3. Allow belt webbing to be pulled in

completely

530us104

Child restraint system with tether

strap

There are three additional mounting

points for child restraint systems with a

tether strap, refer to arrows.

530us037

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

59n

OverviewControlsMaintenanceRepairsDataIndex

Transporting children safely

The illustration shows the fastening of

the tether strap for the outer seats.

530ue257

The illustration shows the fastening of

the tether strap for the middle seat.

Routing of the tether strap:

1. Push head restraint upward

2. Guide securing strap through head

restraint bracket

3. Slide the head restraint into the bot-

tom position.

When using the cargo area roll-up

cover, also route the tether strap

between the rear backrest and the cas-

ing of the roll-up cover.

530ue256

LATCH child-restraint fixing

system

LATCH: Lower Anchor and Tethers for

CHildren.

To attach a LATCH child's seat,

follow the operating and safety

instructions of the system manufac-

turer.<

The rear outer seating positions are

provided with anchors for a LATCH

child-restraint fixing system.

The illustration shows the left rear seat

as an example. The mounts for attach-

ment of the LATCH child-restraint fixing

system are located behind the cover

panels.

530us255

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

60nTransporting children safely

Remove cover panels by pulling them

toward the front.

To remount, simply slide into place.

On trips

If the rear is equipped with side

airbags, make sure that children

do not lean out of the child's seat

towards the door panels. Otherwise

severe injuries can be caused if the side

airbags are triggered.<

Child-safety locks of rear doors:

Slide down the safety lever on the rear

doors:

The door can now be opened from the

outside only.

Safety switch for power windows:

Always press the safety switch for the

power windows, refer to page 40, when

children are riding in the rear of the

vehicle.

530de226

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

61n

OverviewControlsMaintenanceRepairsDataIndex

Vehicle Memory, Key Memory

How the system functions

You have probably frequently wished

that you could configure individual

functions of your vehicle meet your own

personal requirements. In developing

your vehicle, BMW has included several

user-defined functions in the vehicle's

design. Your BMW Sports Activity Vehi-

cle center can make these settings for

you.

There are vehicle and person-related

adjustments: Vehicle Memory and Key

Memory. You can have up to four differ-

ent basic positions configured for four

different persons. The only requirement

is that each person uses his or her own

remote control key.

When your vehicle is unlocked with the

remote control, the vehicle recognizes

the individual user by means of a data

exchange with the key, and makes

adjustments accordingly.

In order for you to distinguish between

the master keys with remote control,

color-coded decals are supplied

together with the keys.

What the system can do

Your BMW Sports Activity Vehicle cen-

ter can provide you with details on the

capabilities of the Vehicle Memory and

Key Memory systems.

You will see this symbol through-

out the Owner's Manual. It is to

remind you at appropriate places of the

settings that are available to you.<

Following configuration of the

memory functions, vehicle opera-

tion may differ from the description in

the Owner's Manual. Should you want

to sell your BMW some day, please

remember to have the memory func-

tions reset to the default state.<

Examples for Vehicle Memory:

>Various signals that can serve as

acknowledgment for locking and

unlocking the vehicle, refer to

pages 31, 33

>Deactivating/activating the Pathway

lighting function, refer to page 100.

Examples for Key Memory:

>Automatic adjustment of the driver's

seat, exterior mirror and steering

wheel with settings stored in the

memory for the individual driver when

the vehicle is unlocked, refer to

page 51

>Calling up customized settings for

the automatic climate control when

unlocking the vehicle, refer to

page 109.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

62nIgnition lock Starting engine

Ignition key positions

0 Steering lock engaged

1Steering lock disengaged

2 Ignition on

3Starting engine

Steering lock engaged

The key can only be inserted or

removed in this position.

After removing the key, turn the steer-

ing wheel slightly to the left or right until

you hear the lock engage.

If the key is not removed, an acoustic

signal sounds after the driver's door is

opened.

390de010

Automatic transmission:

Only move the selector lever from

position P with the engine running.

To turn the key back to position 0 or to

remove it, first place the selector lever

in position P: interlock.<

Steering lock disengaged

Slightly moving the steering often

makes it easier to turn the key from 0

to 1.

Individual electrical devices are ready

for operation.

Starting engine

Manual transmission:

Depress the clutch when starting

the engine. If you do not, a lock pre-

vents the engine from starting.<

Before starting

>Engage the handbrake

>Be sure that the gearshift lever is in

Neutral or the selector lever in Park if

the vehicle is equipped with an auto-

matic transmission

>Depress the clutch.

If the clutch is not depressed, the

engine cannot be started

>Press the footbrake with an auto-

matic transmission.

Do not run the engine in closed

rooms, otherwise the inhalation of

toxic exhaust gases can cause uncon-

sciousness and death. The exhaust

gases contain carbon monoxide, an

odorless and colorless, but highly toxic

gas.

Never leave an unattended vehicle with

the engine running, as such a vehicle

represents a potential safety hazard.

To prevent the vehicle from rolling,

always select neutral or the position P

and engage the handbrake before leav-

ing the vehicle with the engine run-

ning.<

When starting the engine, do not press

the accelerator pedal.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

OverviewControlsMaintenanceRepairsDataIndex

63nStarting engine Switching off engine

Do not allow the engine to warm up by

leaving it running while the vehicle

remains stationary. Instead, begin to

drive immediately at a moderate engine

speed.

X5 3.0i:

Do not end the starting procedure too

soon, but do not continue for longer

than approx. 20 seconds. Release the

ignition key immediately as soon as the

engine starts.

X5 4.4i, 4.8is:

Your BMW is equipped with the conve-

nience starting feature. With this fea-

ture, it is sufficient to turn the ignition

key only briefly to position 3 'Start

engine' and to let go of it right away.

The starter actuation continues to oper-

ate automatically for a certain period of

time and is stopped automatically as

soon as the engine has started.

The automatic starting mode will not

operate or will be canceled if the bat-

tery voltage is insufficient. The engine

can be jump started, refer to page 174.

Should the engine fail to start on the

first attempt, if it is very hot or cold, for

instance:

>Press the accelerator pedal halfway

down while engaging the starter.

Cold starts at altitudes above 3,300 ft/

1,000 meters and at very low tempera-

tures, from approx. +57/–156:

>For the initial starting attempt, allow

the starter to remain engaged some-

what longer, approx. 10 seconds.

Engine idle speed is controlled by the

engine computer system. Increased

speeds at startup are normal and

should decrease as the engine warms

up. If engine speed does not decrease,

service is required.

To prevent the battery from being

drained, always switch off electrical

devices that are not in use. Switch the

ignition off when the vehicle is not

being driven.

Extended starting attempts, char-

acterized by excessively frequent

or long periods with the starter

engaged, can lead to damage of the

catalytic converter.<

Manual transmission:

1. Turn the ignition key to position 1

or 0

2. Shift into first gear or reverse.

Automatic transmission:

1. Shift into selector lever position P

2. Turn the ignition key to position 1

or 0.

Do not remove the ignition key

when the vehicle is moving, other-

wise, the steering could lock.

When leaving the vehicle, always

remove the ignition key and lock the

steering.

Manual transmission:

Always engage the handbrake when

parking on slopes and inclined sur-

faces. Even placing the gearshift lever

in 1st gear or reverse may not provide

adequate resistance to rolling.

Automatic transmission:

Place the selector lever in the P posi-

tion.<

Automatic transmission:

The vehicle must be stationary and the

selector lever in Park before you can

remove the ignition key.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

64nHandbrake Manual transmission

The handbrake is primarily intended to

prevent the vehicle from rolling while

parked; it brakes the rear wheels.

Engaging

The lever engages automatically when

you pull it up and the indicator lamp

comes on in the instrument cluster in

ignition key position 2, refer to

pages 19, 21.

Releasing

Pull up slightly on the lever, press the

button and lower the lever.

530de262

If exceptional circumstances

should make it necessary to

engage the handbrake while the vehicle

is in motion, do not pull it too strongly.

In doing so, continuously press the but-

ton of the handbrake lever. Otherwise

strong application of the handbrake can

lead to overbraking of the rear axle and

associated 'fishtailing' of the vehicle

rear end.

Manual transmission:

Always engage the handbrake when

parking on slopes and inclined sur-

faces. Even placing the gearshift lever

in 1st gear or reverse may not provide

adequate resistance to rolling.

Automatic transmission:

Place the selector lever in Park.<

To prevent corrosion and one-

sided braking action, occasionally

apply the handbrake lightly when the

vehicle is slowly coming to a stop if the

traffic conditions are suitable.

The brake lamps do not light up when

the handbrake is applied.

Press the clutch all the way down each

time you shift, pressing the gearshift

lever into its proper end position.

Depress the clutch when starting the

vehicle, too. If the clutch is not

depressed, the interlock will prevent the

engine from starting.

While shifting in the 5th/6th gear

slot, press the gearshift lever

toward the right, otherwise, accidental

shifting into the 3rd or 4th gear could

result in engine damage.<

380de044

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

OverviewControlsMaintenanceRepairsDataIndex

65nManual transmission Automatic transmission with Steptronic*

Reverse

Select only when the vehicle is station-

ary. Press the gearshift lever to the left

to overcome the resistance.

As you do this, the backup lamps will

turn on automatically when the ignition

key is in position 2.

In addition to fully automatic operation,

you can also manually shift with the

Steptronic, refer to page 67.

Under normal operating conditions, fuel

consumption is lowest when driving in

position D.

530us238

Selector lever positions

P R N D M/S

The transmission range display varies in

accordance with the equipment of your

vehicle.

Starting engine

The engine can only be started in the

selector lever position Park or Neutral.

530us239

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

66nAutomatic transmission with Steptronic*

Range selection

>The selector lever can be moved out

of the P position with the ignition

switched on or the engine running:

interlock

>With the vehicle stationary, press the

footbrake before shifting out of P

or N, otherwise, the selector lever is

blocked: shiftlock.

Keep the brake pedal pressed down

until you start off. The vehicle will oth-

erwise creep when a drive position is

engaged. A lock prevents accidentally shifting

into the selector lever positions R

and P. To deactivate the lock, press

the button on the front of the selector

lever knob, refer to arrow.

P Park

Select only when the vehicle is station-

ary. The transmission locks to prevent

the rear wheels from turning.

R Reverse

Select only when the vehicle is station-

ary.

N Neutral, idle

For example, engage in automatic car

washes. The vehicle can roll.

530de263

D Drive, automatic driving

position

This position is designed for driving

under all normal operating conditions.

All forward gears are available.

Kick-down

The kick-down mode provides maxi-

mum acceleration.

Depress the accelerator pedal past the

increased resistance point at the full-

throttle position.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

OverviewControlsMaintenanceRepairsDataIndex

67nAutomatic transmission with Steptronic*

Sport Program and manual

operation M/S

Shift selector lever from position D

toward the left into the shifting slot M/S:

the Sport Program is activated and DS

appears in the instrument cluster. This

position is recommended for a perfor-

mance-oriented driving style.

Briefly pressing the selector lever

toward the front or rear activates man-

ual operation and Steptronic changes

gears. The following display appears in

the instrument cluster, depending on

the model:

>1 to 5 or 1 to 6

>M1 to M5 or M1 to M6.

530de264

Upshifts and downshifts are executed

only when they will result in a plausible

combination of engine and vehicle

speed; thus, for example, a downshift

that would cause the engine to overrev

will not be executed by the system. The

gear selected will appear briefly in the

instrument cluster and then the current

gear will reappear.

To return to automatic mode, move the

selector lever toward the right into posi-

tion D.

Malfunction

The warning lamp lights up or

the message TRANS.FAILSAFE

PROG appears in the Check

Control. A malfunction has occurred in

the transmission system. Avoid heavy

loads.

Bring the vehicle to a stop. Move the

transmission selector lever to P. Set the

parking brake and switch the engine off

by turning the ignition key to position 0.

Wait a few seconds, then start the

engine.

If the indicator lamp goes out after a

few seconds, normal transmission per-

formance has been restored. You may

continue to drive as usual. If the indica-

tor lamp does not go out, you can place

the selector lever in all positions, but

the vehicle will now only drive forward

with limited gear selection.

Have the system checked as soon as

possible.

Information on jump starting, tow-

starting and towing begins on

page 174.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

68nTurn signals/headlamp flasher

1High beams

2 Headlamp flasher

3Turn signals

Signaling briefly

Press lever to resistance point and hold

for as long as you wish to signal.

Atypically rapid flashing of the turn

signal light indicates the failure of

a turn signal lamp and when towing a

trailer, may indicate the failure of one of

the trailer's turn signal lamps.<

530de265

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

OverviewControlsMaintenanceRepairsDataIndex

69nWasher/wiper system/rain sensor*

0 Wipers retracted

1 Intermittent mode or rain sensor

2Normal wipe

3Fast wipe

4Brief wipe

5 Windshield washing

6 Special wash program*

7 Knurled wheel for control of the wipe

interval or the sensitivity of the rain

sensor

530de324

Fold-out position

The left wiper is partially concealed by

the hood. To bring the wipers to roughly

a vertical position, which is important

when changing the wiper blades or

when folding the wipers out during

frosty weather, for example, proceed as

follows:

>With the lever in position 1, switch off

the ignition as soon as the wipers

come to a stop.

If equipped with a rain sensor:

1. Switch on the wipers with the lever in

position 1, 2 or 4

2. When the wipers are roughly vertical,

switch the ignition off.

For changing the wiper blades, refer to

page 160.

Fold the wipers back down onto

the windshield before you turn the

ignition key to position 1 or 2 again. If

you do not, they could be damaged.<

Intermittent mode

Not provided in vehicles with rain sen-

sor.

You can set the wipe interval to four

stages with the knurled wheel 7.

In addition, the wipe interval is varied

automatically depending on road

speed.

Rain sensor

The rain sensor automatically controls

the wiper operation as a function of the

rain intensity. It is located on the wind-

shield, directly in front of the interior

rearview mirror.

To activate the rain sensor:

Move the lever to position 1 as of igni-

tion key position 1. The wipers travel

once across the windshield, regardless

of the weather conditions.

You can leave the lever permanently in

position 1. It is then only necessary to

activate the rain sensor as of ignition

key position 1.

To do this, turn the knurled wheel 7

briefly.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

70nWasher/wiper system/rain sensor*

To adjust the sensitivity of the rain

sensor:

Turn the knurled wheel 7.

To deactivate the rain sensor:

Move the lever to position 0.

Deactivate the rain sensor when

passing through an automatic car

wash. Failure to do so could result in

damage caused by undesired wiper

activation.<

Normal wipe

The system switches automatically to

intermittent mode when the vehicle is

stationary, not on vehicles with rain

sensor.

Fast wipe

The wipers operate at normal speed

when the vehicle is not moving, not on

vehicles with rain sensor.

Windshield washing

The system sprays washer fluid against

the windshield and activates the wipers

for a brief period.

Special wash program

*

As with 5; several additional wash

cycles are carried out and the head-

lamps are cleaned*.

This program is recommended after you

have driven on extremely dirty roads.

Headlamp washing

*

>With the special wash program 6

>At appropriate intervals, the head-

lamps will also be cleaned upon actu-

ation of the windshield washer func-

tion 5 while the vehicle's headlamps

are switched on.

Do not use the washers if there

is any danger that the fluid will

freeze on the windshield. If you do so,

your vision could be obscured. Use

antifreeze to prevent this, refer to

page 152.

Do not actuate washer systems when

the fluid reservoir is empty, otherwise,

the washer pump will be damaged.<

Windshield washer nozzles

The windshield washer jets are heated

automatically when the ignition key is in

position 2.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

OverviewControlsMaintenanceRepairsDataIndex

71nWasher/wiper system/rain sensor*Cruise control*

Rear window wiper

0 Retracted position of the rear window

wiper

1 Rear window wiper in intermittent

mode. When the transmission is

shifted into reverse, continuous rear

wiper operation is switched on auto-

matically

2 Cleaning rear window

You can also program the interval:

>Switch briefly from position 0 to posi-

tion 1

>Wait the desired interval time and

then switch from position 0 to 1 again

to establish the programmed inter-

val; max. 30 seconds.

530de266

Programming is deleted:

>approximately 10 seconds after the

lever is placed in position 0 or

>after the engine is switched off.

For changing the wiper blade, refer to

page 160.

You can automatically maintain and

store any desired vehicle speed above

approx. 20 mph/30 km/h.

You can use cruise control whenever

the system is active while the engine is

running.

On the sports steering wheel*, there

are +/– buttons on the right side of the

steering wheel for the cruise control.

Do not use the cruise control

when unfavorable conditions do

not permit driving at constant speed.

Otherwise you could lose control of the

vehicle and cause an accident. These

unfavorable conditions include winding

roads, heavy traffic or poor road condi-

tions, e.g. snow, rain, ice or a loose

road surface.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

72nCruise control*

Activating system

As of ignition key position 2:

Press the button; the indicator lamp in

the instrument cluster comes on, refer

to page 22. Cruise control is ready to

use.

Deactivating system

Press the button repeatedly until the

indicator lamp in the instrument cluster

goes out.

The cruise control is also deactivated

when the ignition key is turned to posi-

tion 0.

The speed stored in the memory is

deleted.

Maintaining and storing speed or

accelerating

Briefly press button +:

The system maintains and stores the

current vehicle speed. Every time you

briefly press the button, the speed

increases by approx. 0.6 mph/1 km/h.

Press and hold button +:

The vehicle accelerates without pres-

sure on the accelerator pedal. When

you release the button, the system

maintains and stores the current speed.

On downhill grades, the controlled

speed can be exceeded if the engine's

braking action is insufficient. Speed can

drop on uphill grades if the engine out-

put is insufficient.

Deceleration

Briefly press button –:

When cruise control is active, every

brief touch of the button reduces the

speed by approx. 0.6 mph/1 km/h.

Press and hold button –:

With the cruise control active, the sys-

tem automatically reduces the throttle

opening to slow the vehicle. When you

release the button, the system main-

tains and stores the current speed.

Interrupting cruise control

When the system is activated, press

button 1. The indicator lamp stays on.

You can use the cruise control again

whenever required by resuming the

speed that was stored last.

In addition, cruise control is interrupted

automatically:

>When you apply pressure to the

brake pedal

>When you apply pressure to the

clutch pedal or when you move the

automatic transmission selector lever

from Drive to Neutral

>If you exceed or fall below the con-

trolled speed for an extended period,

by depressing the accelerator, for

example

>When DSC Dynamic Stability Control

is active.

Resuming stored setting

Press the button:

The vehicle accelerates to and main-

tains the last speed stored.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

73n

OverviewControlsMaintenanceRepairsDataIndex

1Odometer

2 Trip odometer

3 Outside temperature display

Odometer

You can activate the displays shown in

the illustration with the ignition key in

position 0 by pressing the button in the

instrument cluster, refer to arrow.

The range of available displays varies

according to your individual vehicle's

equipment.

Trip odometer

To reset the trip odometer to zero,

press the button, refer to arrow, with

the ignition key in position 1 or 2.

530us253

Outside temperature display

The outside temperature appears on

the display as of ignition key position 1.

You can change the units of measure

7/6 by

1. pressing and holding down the but-

ton, refer to arrow, with the ignition

key in position 1 and

2. then turning the ignition key to 0.

At the same time the units of mea-

surement in the temperature display

of the automatic climate control will

be changed, refer to page 107.

Refer also to page 80.

Outside temperature warning

If the display drops to approx. +37.57/

+36, a signal sounds as a warning and

the display flashes for a brief period.

There is an increased danger of ice.

Even at temperatures above

+37.57/+36 ice can form.

Therefore, drive carefully, e.g. on

bridges and sections of road in the

shade, as otherwise there is an

increased accident risk.<

Odometer, outside temperature display

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

74nTachometer Energy control

X5 3.0i, 4.4i

Do not operate the engine with the

needle in the red overspeed zone of the

gauge, refer to arrow.

In this range, the fuel supply is inter-

rupted to protect the engine.

530us227

X5 4.8is

The orange warning sector gradually

moves upward as the engine warms to

its normal operating temperature. As

the engine temperature increases, an

increasing number of sectors in this

warning panel go out.

Avoid allowing the engine speed to rise

as far as the orange warning sector

whenever possible.

Do not operate the engine with the

needle in the red overspeed zone of the

gauge, refer to arrow.

In this range, the fuel supply is inter-

rupted to protect the engine.

530us231

X5 3.0i, 4.4i

Shows the current fuel consumption.

This allows you to see whether your

current driving style is conducive to fuel

economy with minimum exhaust emis-

sions.

390us005

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

75n

OverviewControlsMaintenanceRepairsDataIndex

Engine oil temperature gauge Fuel gauge

X5 4.8is

The general operating temperature lies

between 1767/806 and 2487/

1206. Do not exceed the maximum

value of 3027/1506.

530us232

If the LED comes on and stays on, there

are approx.

>2.0 gal./8 liters, 6-cylinder engine

>2.5 gal./10 liters, 8-cylinder engine

of fuel still in the tank.

Tank capacity: approx. 24.6 gal./

93 liters.

If the tilt of the vehicle varies, when you

are driving in mountainous areas, for

example, the indicator may fluctuate

slightly.

Refuel well before the tank is

empty, otherwise engine functions

will not be ensured. Damage can occur

if you drive down to the last drop.<

When you switch on the ignition, the

LED lights up briefly to confirm that the

system is operational.

390us006

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

76nCoolant temperature gauge Service Interval Display

Blue

The engine is still cold. Drive at moder-

ate engine and vehicle speeds.

Red

When you switch on the ignition, the

warning lamp* comes on briefly to con-

firm that the system is operational.

If the warning lamp lights up during

driving or the message COOLANT

TEMPERATURE appears in the Check

Control; the engine is overheated.

Switch off the engine immediately and

allow it to cool down.

Checking coolant level, refer to

page 154.

390de007

Between blue and red zones

Normal operating range. The dial may

drift up to the red field.

The range of available displays varies

according to your individual vehicle's

equipment.

Green lamps

The number of illuminated lamps

decreases as the time for your next

maintenance visit approaches.

Yellow lamp

This field appears together with

OILSERVICE or INSPECTION.

Maintenance is due. Please contact

your BMW Sports Activity Vehicle cen-

ter for an appointment.

Red lamp

The maintenance deadline has been

passed.

390us008

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

77n

OverviewControlsMaintenanceRepairsDataIndex

Check Control

Graphic display

*

The following alerts or status messages

are displayed with icons as of ignition

key position 2 until the defects are cor-

rected:

1 Check low beams

2 Add washer fluid, goes out after

approx. 1 minute

3Door open

4 Tailgate open

5 Check brake and tail lamps. A defec-

tive center brake lamp is indicated by

the upper symbol.

When you open the door after stopping,

a warning signal sounds without a

visual indicator for:

>LIGHTS ON

>KEY IN IGNITION LOCK.

390de121

Alphanumeric display

*

Text messages are used to alert the

driver to system malfunctions as of igni-

tion key position 2. The alert is accom-

panied by an acoustic signal.

1 Status messages symbol

2Display

3CHECK button

Messages concerning system defects

are differentiated based on two priori-

ties:

530de254

Priority 1

These defects are immediately indi-

cated by an acoustic signal and a flash-

ing warning symbol 1. Simultaneous

defects will be displayed consecutively.

These status messages remain on the

display until the defects are corrected.

They cannot be deleted by pressing the

CHECK button 3:

>RELEASE PARKINGBRAKE

>COOLANT TEMPERATURE

Temperature too high. Stop the vehi-

cle immediately and switch off the

engine, refer to pages 76 and 154

>STOP! ENGINE OILPRESS

Oil pressure too low. Stop the vehicle

immediately and switch off the

engine, refer to pages 19 and 152

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

78nCheck Control

>CHECK BRAKE FLUID

Level has dropped approx. to mini-

mum. Have the brake fluid replen-

ished as soon as possible, refer to

page 155. Have the reason for the

brake fluid loss eliminated by your

BMW Sports Activity Vehicle center

>DSC/4x4 INACTIVE

DSC and/or four-wheel drive system

xDrive has failed.

The stabilizing interventions of DSC

and/or the four-wheel drive system

xDrive are no longer available. Drive

may be being exerted exclusively via

the rear axle.

Have the system checked at the

nearest BMW Sports Activity Vehicle

center.

For additional information, refer to

page 94

>SELFLEVEL SUSP.INACT*

Please consult the nearest BMW

Sports Activity Vehicle center

>SELFLEVEL SUSP.INACT*

MAX. 35 MPH/MAX. 60 KM/H*

These messages are displayed con-

secutively.

Do not exceed a maximum speed of

35 mph/60 km/h.

Please consult the nearest BMW

Sports Activity Vehicle center

>TRANSMISS'N OVERHEAT*

Reduce speed immediately and stop

at a suitable location so that the sys-

tem can cool down again. Please

contact the nearest BMW Sports

Activity Vehicle center.

>LIMIT*

Display when the programmed road-

speed limit is exceeded, refer to

page 85.

Priority 2

These displays appear for 20 seconds

as of ignition key position 2. The warn-

ing symbols remain after the message

disappears. You can open the mes-

sages again for display by pressing the

CHECK button.

>TRUNKLID OPEN

This message only appears when

starting off

>DOOR OPEN

This message appears after a minimal

defined road speed has been

exceeded

>FASTEN SEAT BELTS*

In addition, the indicator lamp with

the belt symbol lights up and an

acoustic signal sounds

>WASHER FLUID LOW

Too low, top up at the next opportu-

nity, refer to page 152

>CHECK ENGINE OIL LEV

The oil level is at the absolute mini-

mum point. Therefore, have the

engine oil replenished as soon as

possible, refer to page 152. Until

then, do not drive more than approx.

30 miles/50 km.

>CHECK GAS CAP

Check to see whether the fuel filler

cap has been closed properly, refer

to page 25

>OUTSIDE TEMP. +237/–56

This display is only an example. The

current temperature is displayed at

outside temperatures of +37.57/

+36 and below, refer also to

page 73

>CHECK BRAKE LIGHTS

A lamp has failed or the electrical

circuit has a malfunction, refer to

page 163 or consult a BMW Sports

Activity Vehicle center

>CHECK LOWBEAM LIGHTS

CHECK SIDE LIGHTS

CHECK REAR LIGHTS

CHECK FRONT FOGLAMPS

CHECK LICPLATE LIGHT

CHECK HIGHBEAM LIGHT

CHECK BACK UP LIGHTS

The respective lamp may have failed

or the electrical circuit may be defec-

tive, refer to page 161 or consult a

BMW Sports Activity Vehicle center

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

79n

OverviewControlsMaintenanceRepairsDataIndex

Check Control Computer

>TRANS. FAILSAFE PROG*

Please consult the nearest BMW

Sports Activity Vehicle center, refer to

page 67

>CHECK BRAKE LININGS

Have the brake pads inspected by

your BMW Sports Activity Vehicle

center, refer to page 140

>CHECK COOLANT LEVEL

Coolant too low, top off at the next

opportunity, refer to page 154

>ENGINE FAILSAFE PROG

Fault in the engine electronics.

You can continue to drive with

reduced engine output or engine

speed.

Please have the system inspected by

your BMW Sports Activity Vehicle

center.

Displays after completion of trip

All of the malfunctions registered during

the trip appear consecutively when the

ignition key is turned to position 0.

The following displays will appear when

appropriate:

>LIGHTS ON

>KEY IN IGNITION LOCK

>CHECK ENGINE OIL LEV

Replenish engine oil at the next

opportunity, e.g. while refueling, refer

to page 152.

This display appears when you open

the driver's door after parking the vehi-

cle. A supplementary acoustic signal

also sounds.

Status messages remain available with

the CHECK button 3 for a period of

approx. three minutes after the display

goes out and the key is removed from

the ignition lock. If there are multiple

messages, press the CHECK button

repeatedly to view them all in

sequence.

Checking Check Control

Press the CHECK button 3 with the

ignition key in position 2:

CHECK CONTROL OK appears on the

display.

No malfunctions are present in the

monitored systems.

Computer

You can find a description of the com-

puter below and on page 85 as well as

in the Owner's Manual for Onboard

Computer.

You can have the Check Control

and computer messages dis-

played in a different language.<

Mode selection

As of ignition key position 1, you can

request information from the computer

using the computer button in the turn

signal lever.

A new function appears each time you

briefly press the computer button.

The display sequence:

>Outside temperature

>Average fuel consumption

>Cruising range

>Average speed.

As of ignition key position 1, the last

active setting is displayed.

The range of available displays varies

according to your individual vehicle's

equipment.

530de228

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

80nComputer

Outside temperature and

average fuel consumption

You can change the units of measure

7/6 for the outside temperature dis-

play by

1. pressing and holding the trip odome-

ter reset button with the ignition key

in position 1 and

2. then turning the ignition key to 0.

At the same time the units of mea-

surement in the temperature display

of the automatic climate control will

be changed, refer to page 107.

Refer also to page 73.

The average fuel consumption is calcu-

lated for the time during which the

engine is running.

390us126

Cruising range and average speed

Displays the estimated cruising range

available with the remaining fuel. The

fuel level is measured and the range is

calculated taking into account the driv-

ing style over the last 20 miles/30 km.

Periods with the vehicle parked and the

engine off are not included in the calcu-

lations of average speed.

Canceling display

You can hide the computer display by

briefly pressing the button in the turn

signal lever while the average speed is

being displayed.

Restarting calculations

If you continue to press the computer

button in the turn signal lever, the aver-

age values which were just displayed

for fuel consumption and speed will be

recalculated from that point. The engine

must be running in order for this calcu-

lation to be executed.

Computer with alphanumeric

display

*

If your vehicle has Check Control with

alphanumeric display, the system's

computer is described beginning on

page 85 and in the Owner's Manual for

Onboard Computer.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

81n

OverviewControlsMaintenanceRepairsDataIndex

MID Multi-Information Display

Central display

The MID is used for centralized display

and operation for the following onboard

systems:

>Digital clock, e.g. time display, date

>Audio systems: radio, cassette, CD

>Computer, e.g. fuel consumption,

cruising range

>Telephone, e.g. dialing

You will find notes and instructions for

operating the digital clock and the com-

puter on the following pages. Please

refer to the separate Owner's Manuals

for operating the audio systems, the

telephone and the onboard computer.

Any unrealistic numerical entries

will not be accepted.

All stored data will be lost if the power

supply is interrupted. Time display,

switch-on times for parked car ventila-

tion, distance and cruise control speed

limit may have to be reset once the

power supply has been reestablished.<

1 Function button for audio systems

2 Function button for the telephone

3 LED for parked car ventilation

>remains on if switch-on time is

active

>flashes while operating

4 Function button for the digital clock

and computer

5 Indicator display for the various

onboard systems

390us705

6 Display for the entry and request but-

tons. Depending on the operating

mode, the functions and options that

can be selected with the buttons are

displayed here

7 Entry and request buttons for operat-

ing the various onboard systems

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

82nDigital clock in MID

To avoid endangering yourself or

other road users, only make

entries when the vehicle is stationary.<

Displaying time or date

Press the left side of the button.

Display shows:

You can have the time displayed in

12 or 24 hours.

To change the display:

Press the left side of the button.

If the 12-hour time display is in use,

AM or PM appears after the time.

Changing time

Press the left side of the button.

Press the right side of the button:

The dots flash on the display.

To change the setting:

Press the left/right side of the button, or

hold the button down.

To store the entry:

Press the right side of the button.

Changing date

Press the left side of the button.

Press the button.

Press the right side of the button:

The dots and the DATE display flash.

To change the setting:

Press the left/right side of the button, or

hold the button down.

To store the entry:

Press the right side of the button.

The clock takes leap years into account

and therefore does not have to be reset

manually.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

83n

OverviewControlsMaintenanceRepairsDataIndex

Digital clock in MID

Reminder signal

You can program a reminder signal –

memo – to be heard every hour, so that

you are sure not to miss a news broad-

cast.

Press the left side of the button.

Press the button:

MEMO OFF appears on the display for

entry and request buttons, and the tone

symbol will appear in the upper right of

the display.

A signal is then heard 15 seconds

before each hour.

Stopwatch

Press the left side of the button.

Press the button.

Display shows:

To start the stopwatch function:

Press the right side of the button.

To take an intermediate time reading:

Press the button.

Press the button:

The stopwatch display can be seen

counting up; the stopwatch continues

to run.

To halt the stopwatch:

Press the right side of the button.

The stopwatch is halted when the

ignition key is turned back to 0,

but starts to run again when the ignition

key is turned to 1.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

84nDigital clock in MID

Entering switch-on times for

parked car ventilation

You can enter two different switch-on

times.

The ventilation will switch off automati-

cally after 30 minutes.

Please follow the instructions for

operating the parked car ventila-

tion that start on page 113.<

Press the left side of the button.

Press the left/right side of the button.

Display shows:

Press the right side of the button:

Display flashes, e.g. TIMER 1.

To enter the time:

Press the left/right side of the button, or

hold the button down.

To confirm the entry:

Press the right side of the button.

The activated time is marked with an

asterisk.

The switch-on times remain stored until

new entries are made.

You can change switch-on times that

have already been stored by making a

new time entry as described above.

When the switch-on time is active, the

LED comes on in the MID. During actual

operation of the ventilation, the LED

flashes. The LED goes out when the

system is switched off.

To activate/deactivate the time:

Press the button twice.

Switching parked car ventilation

on and off directly

The parked car ventilation function

can only be requested in ignition

key position 1.<

Press the left side of the button.

Press the button.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

85n

OverviewControlsMaintenanceRepairsDataIndex

Computer* in MID

To avoid endangering yourself or

other road users, only make

entries when the vehicle is stationary.<

Computer calculations begin at the

start of the journey.

Information can also be called up on the

display by the remote control, refer to

page 89.

Speed limit

Speed limit entry:

You can enter the road speed at which

you wish to hear and see a reminder

signal: a signal will sound, the word

LIMIT will flash, and with the Check

Control with alphanumeric display*, the

speed limit warning stored in the mem-

ory will appear on the instrument clus-

ter briefly: limit.

The speed limit reminder is only

repeated if road speed has fallen at

least 3 mph/5 km/h below the preset

speed limit since the last time the

speed limit reminder was triggered.

Press the right side of the button.

Press the button.

Press the right side of the button.

Display shows:

Enter the limit by pressing the function

buttons.

To correct an entry:

Press the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

86nComputer* in MID

To adopt the current speed as the

speed limit:

Press the right side of the button.

Press the button.

Press the right side of the button twice.

To deactivate the speed limit:

Press the right side of the button.

Press the button.

The LIMIT display goes out, but the

stored value is not lost and can be

reactivated by pressing the LIMIT but-

ton.

Distance to destination

The remaining distance to the destina-

tion will be displayed on the screen.

Enter the entire distance before starting

the journey.

To enter:

Press the right side of the button.

Press the left side of the button.

Press the right side of the button.

Display shows:

You can enter the distance by pressing

the function buttons.

To correct an entry:

Press the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

To check a stored value:

Press the right side of the button.

Press the left side of the button.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

87n

OverviewControlsMaintenanceRepairsDataIndex

Computer* in MID

Estimated time of arrival

When you have entered the distance to

your destination, you can obtain an esti-

mated time of arrival display that is con-

tinuously updated by the computer as

your average driving period varies.

Press the right side of the button.

Press the right side of the button:

The estimated time of arrival is dis-

played.

Cruising range

The distance that the vehicle should

cover on the remaining fuel in the tank

is displayed.

Press the right side of the button.

Press the button:

The display shows the probable range.

Always refuel as soon as possible

once your cruising range falls to

below 30 miles/50 km, otherwise

engine functions are not ensured and

damage can occur.<

The computer will only register fuel

amounts over 1.8 gal/6 liters.

Fuel consumption

You can have the average fuel con-

sumption displayed for two different

distances, for example a complete jour-

ney and part of the journey.

To start the calculation, select the func-

tion with the engine running:

Press the right side of the button.

Press the left or right side of the button:

The display will show the average fuel

consumption.

To restart the fuel consumption calcula-

tion:

Press the left or right side of the button.

Press the right side of the button.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

88nComputer* in MID

Speed

You can open a display of the vehicle's

average speed.

To start the calculation, select the func-

tion with the engine running:

Press the right side of the button.

Press the button:

The display shows the average speed.

To recalculate the speed:

Press the right side of the button.

Extended immobilizer function

You can establish a code that will pre-

vent the engine from being started

unless the code is entered.

If you do not have access to the code,

the emergency deactivation procedure

will have to be carried out, refer to next

page.

To establish and activate the code:

Press the right side of the button.

Press the left side of the button.

Display shows:

Enter the code with the function but-

tons.

To correct an entry:

Press the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

Turn the ignition key to position 0.

To deactivate the code:

When you are asked to enter the code

with the ignition key in position 1 or 2:

>Enter the code at the function but-

tons.

Press the right side of the button.

After the code has been entered cor-

rectly and confirmed with the SET but-

ton, the time display appears.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

89n

OverviewControlsMaintenanceRepairsDataIndex

Computer* in MID

After three incorrect code entries, or

three attempts to start the engine with-

out a code entry, the alarm will sound

for 30 seconds on vehicles fitted with

an alarm system.

Deactivating the alarm in an emer-

gency:

If you have forgotten the code, proceed

as follows:

1. Disconnect the battery, wait approx.

2 minutes, then reconnect it. Note

that on vehicles with an alarm sys-

tem, the alarm will sound

2. Set the ignition key to position 1: the

time display will count down for the

next ten minutes

3. After ten minutes, start the engine.

If the code becomes available

again in the meantime, it can be

entered during the waiting period after

pressing the CODE button.<

Remote control

The computer button on the turn signal

lever can be used to select the items of

computer information to be displayed.

To do this, press:

>the button on the lever until PROG

shows on the display

>the MID buttons in the order in which

you wish the information to be dis-

played.

Each time an entry is stored, the pro-

gram number appears on the display.

To terminate the selection procedure:

Press the right side of the button.

530de228

To have all the available information

displayed, press

>the button on the lever until PROG

shows on the display

>the SET button.

To obtain individual items of informa-

tion, briefly press the button as often as

necessary.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

90nPDC Park Distance Control*

The concept

PDC provides extra safety and conve-

nience during parking maneuvers. Sig-

nal tones indicate the current distance

to an object behind or in front of your

vehicle. To do this, four ultrasonic sen-

sors in the front and rear bumpers each

measure the distance to the nearest

object. The detection range of the front

sensors and the two sensors located at

the ends of the rear bumper is approx.

2 ft/60 cm, while the rear center sen-

sors can detect objects up to a distance

of approx. 5 ft/1.50 m.

PDC is a parking aid that can

indicate objects when they are

approached slowly, as is usually the

case when parking. Avoid approaching

objects too quickly; otherwise the phys-

ical circumstances may cause the sys-

tem to issue the warning too late.<

Automatic operation

When the engine is running or the igni-

tion is switched on, the PDC system

starts to operate automatically approx.

one second after you shift into reverse

or move the selector lever into the R

position. Wait this short period before

backing up.

Manual activation

Press the button; the LED lights up.

Manual deactivation

Press the button again; the LED goes

out.

Automatic deactivation

After driving a distance of more than

approx. 95 ft/30 m or exceeding a

speed of approx. 20 mph/30 km/h, the

system switches off and the LED goes

out. You may switch the system on

again manually as needed.

530de418

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

91n

OverviewControlsMaintenanceRepairsDataIndex

PDC Park Distance Control* Antilock Brake System

Signal tones

The distance from an object is indicated

in front with a higher intermittent tone,

and at the rear with a lower intermittent

tone. As the distance between vehicle

and object decreases, the intervals

between the tones become shorter.

The signal tone becomes continuous

once the distance to the nearest object

falls to below roughly 1 ft/30 cm.

The warning signal is canceled after

approx. 3 seconds if you are moving

parallel to a wall.

Malfunctions

The LED flashes and a short steady sig-

nal tone is sounded

>if you activate PDC with the button

>when you select reverse for the first

time after switching on the ignition

>if a malfunction occurs while the PDC

system is active.

Switch the system off and have the

cause of the malfunction corrected by

your BMW Sports Activity Vehicle cen-

ter.

System limits

Even with PDC, final responsibility

for estimating the distance

between the vehicle and any obstruc-

tions always remains with the driver.

Even when sensors are involved, there

is a blind spot in which objects cannot

be detected. This applies especially in

those cases where the system

approaches the physical constraints of

ultrasonic measurement, as occurs with

tow bars and trailer couplings, and in

the vicinity of thin or wedge-shaped

objects. It is also possible that low

objects already displayed, such as curb

edges, may come into the blind spot of

the sensors before a continuous signal

sounds or that higher, protruding

objects, such as ledges, will not be

detected.

Loud sources of sound, inside and out-

side the vehicle, could drown out the

PDC signal tone.<

Keep the sensors clean and free

of ice or snow in order to ensure

that they will continue to operate effec-

tively.

When using high-pressure washers, do

not spray sensors for long periods and

keep the sprayer at least 4 in/10 cm

away from the sensors.<

The concept

The ABS Antilock Brake System pre-

vents the wheel brakes from locking

during braking. Safe steering response

is maintained even during full braking.

This increases active safety.

The ABS is operational every time you

start the engine. Safe braking, refer to

page 140.

EBV Electronic brake-force

distribution

EBV controls the brake system's appli-

cation pressure at the rear wheels to

ensure stable deceleration.

DBC Dynamic Brake Control

When the brake pedal is depressed

rapidly, this system automatically gen-

erates a maximum boost of braking

force and thus aids in keeping braking

distances as short as possible during

full braking. This system exploits all of

the benefits provided by ABS.

Do not reduce the pressure on the

brake pedal for the duration of the

brake application. DBC is deactivated

when you release the brake pedal.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

92nAntilock Brake System DSC Dynamic Stability Control

Malfunctions

Please be absolutely sure to follow

instructions regarding possible combi-

nations of indicator lights on page 20.

The concept

DSC prevents the drive wheels from

slipping when starting off and acceler-

ating. DSC also identifies unstable driv-

ing conditions, such as a loss of trac-

tion at the rear of the vehicle or sliding

of the vehicle in its front wheels. Under

these circumstances, DSC helps the

vehicle maintain a safe course within

the physical limits by reducing the

engine output and by applying the

brakes in the individual wheels.

The DSC is operational every time you

start the engine.

The laws of physics cannot be

repealed, even with DSC. An

appropriate driving style always

remains the responsibility of the driver.

So please do not further limit the addi-

tional safety margin by taking unneces-

sary risks.<

Indicator lamp

The indicator lamp in the instru-

ment cluster goes out shortly

after the engine is started.

The indicator lamp flashes:

DSC is active and is regulating drive

and braking force.

The indicator lamp stays lit:

DSC has been switched off using the

button and the stabilizing interventions

are no longer available.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

93n

OverviewControlsMaintenanceRepairsDataIndex

DSC Dynamic Stability Control

Switching DSC off

Press the button; the indicator lamp

comes on and stays on.

Stabilizing interventions of the chassis

control system DSC are no longer avail-

able. However, the braking interven-

tions that simulate the function of the

differential lock continue to be active.

In the following exceptional circum-

stances, it may be effective to switch off

the DSC for a short period:

>When rocking a stuck vehicle free

and when starting off in deep snow or

on loose road surfaces

>On sandy road surfaces

>On poor surfaces with deep ruts

530de414

>If the wheels churn on muddy sur-

faces

>When driving with snow chains.

When the DSC system is switched

off, braking maneuvers may sub-

ject the brakes to additional loads.

Automatic limitation of braking action

may briefly occur in order to limit brake

temperatures.

To maintain vehicle stability, always

drive with the system switched on when

possible.<

Switching DSC on

Press the button a second time – the

indicator lamp goes out. DSC is now

activated.

Malfunctions

Please be sure to read the information

on the DSC Dynamic Stability Control/

xDrive warning lamp on page 22 and on

the possible lamp combinations that

can light up on page 20.

530de414

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

94nxDrive HDC Hill Descent Control

xDrive is the 4-wheel drive system of

your X5. The combined effects of xDrive

and DSC further optimize the traction

and dynamic driving characteristics.

The 4-wheel drive system xDrive vari-

ably distributes the drive torque to the

front and rear axle depending on the

driving situation and prevailing road

conditions.

Malfunctions

Please be sure to read the information

on the DSC Dynamic Stability Control/

xDrive warning lamp on page 22 and on

the possible lamp combinations that

can light up on page 20.

The concept

HDC is a system for driving downhill in

steep terrain. This system reduces vehi-

cle speed on steep downhill gradients,

thus allowing you to maintain even bet-

ter control of your BMW under these

conditions.

The vehicle moves at slightly more than

walking speed without active interven-

tion from the driver.

HDC is available for activation at vehi-

cle speeds below approx. 20 mph/

35 km/h. When driving down steep hills

with a speed below approx. 20 mph/

35 km/h, the vehicle reduces speed

automatically down to slightly more

than walking speed, approx. 5 mph/

8 km/h, and then maintains this speed

at a constant.

You can use the accelerator or brakes

to vary this automatically controlled

speed within a range extending from

approx. 3 mph/5 km/h to 15 mph/

25 km/h.

You can specify a target speed within

the same range by using the +/– but-

tons of the cruise control.

HDC is automatically deactivated once

vehicle speed again exceeds approx.

35 mph/60 km/h.

Activating system

Press the button; the LED lights up.

The LED flashes when the brakes are

applied automatically.

Deactivating system

Press the button again; the LED goes

out.

HDC is deactivated automatically above

a road speed of approx. 35 mph/

60 km/h and when the ignition is

switched off.

530de416

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

95n

OverviewControlsMaintenanceRepairsDataIndex

HDC Hill Descent Control Self-leveling suspension*

Using HDC

With manual transmission:

Use HDC in first gear and in Reverse

since the engine's braking action is

diminished in the higher gears.

With automatic transmission:

You can use HDC in every drive posi-

tion.

In case of a malfunction

If the LED in the button goes out during

HDC operation or does not light up

when the HDC is activated:

HDC is temporarily unavailable due to

excessive brake temperature.

The warning lamp for the self-

leveling suspension comes on,

or the message SELFLEVEL

SUSP.INACT appears in the Check

Control: there is a malfunction in the

self-leveling suspension.

Stop and inspect the vehicle. If the rear

of the vehicle is visibly lower than the

front, possibly accompanied by a tilt

noticeable when you compare the left

rear with the right rear, please respond

by immediately proceeding to the near-

est BMW Sports Activity Vehicle center.

Drive with appropriate caution in the

meantime. The vehicle has reduced

ground clearance and driving comfort

may be noticeably reduced.

Even when the position of the vehicle is

normal, have the system checked as

soon as possible when a malfunction is

indicated.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

96n2-axle self-leveling suspension*

The concept

Your vehicle is equipped with 2-axle

self-leveling suspension acting on both

the front and rear suspension. This sys-

tem combines automatic self-leveling,

which compensates for variations in

front-to-rear load-distribution patterns,

with a selection feature allowing drivers

to choose from among several ride-

height options.

You may choose from among the fol-

lowing ride heights:

>Normal

The standard setting is intended for

most operating conditions, including

trailer towing

>Off-Road

Increased level for more ground

clearance

>Access

Lowers vehicle for more convenient

cargo handling or easier passenger

entries and exits.

Changes in ride height are initiated

either manually, using the control but-

ton, refer to page 97, or automatically in

response to specific speeds. When the

ride height is selected manually, the

driver has the additional option of revis-

ing the ride-height selection by entering

a new command during the adjustment

process.

When the vehicle is stationary, the sys-

tem executes ride-height changes in

both directions – up and down – when-

ever the doors are closed. The tailgate/

liftgate may be open. The system raises

the vehicle only when the engine is run-

ning.

The system's automatic self-leveling

feature automatically compensates for

variations in the vehicle's load.

The ground clearance of the vehicle

6.5-9 in/16.5-22 cm, depending on the

level selected.

Frequent changes in ride height

initiated at short intervals can

overheat the compressor, causing the

system to briefly suspend active opera-

tion.<

Self-leveling suspension display

1 Off-Road

2Standard

3 Access

The LEDs not only show the current ride

height, but also indicate changes:

>LED on: indicates the vehicle's cur-

rent ride height

>Ride-height LED flashes while the

LED for the earlier level remains on:

the ride height is being adjusted to a

new level, either automatically or in

response to driver input at the button.

When the suspension reaches the new

ride height the flashing LED reverts to

continuous operation, and the LED for

the earlier level goes out.

530de218

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

97n

OverviewControlsMaintenanceRepairsDataIndex

2-axle self-leveling suspension*

>LED for current ride height flashes for

roughly 3 seconds when you press

the button: change in ride height is

not possible.

Raising

Available only when the engine is run-

ning.

From Standard to Off-Road:

Press button 1 while traveling at a

speed of less than approx. 30 mph/

50 km/h.

From Access to Standard:

>Press button 1 or

>automatically once the vehicle

exceeds a speed of approx. 20 mph/

35 km/h.

530de219

Lowering

Available with ignition key in position 2.

From Standard to Access:

1. Press button 2 while traveling at less

than approx. 50 mph/80 km/h. The

system enters its preselection mode.

The preselection mode is canceled

>by pressing button 1

>automatically once the vehicle

exceeds a speed of approx.

50 mph/80 km/h or approx.

60 seconds after button 2 is

pressed

2. Reduce speed to below approx.

15 mph/25 km/h within approx.

60 seconds after pressing button 2.

When you press button 2 at

speeds below approx. 15 mph/

25 km/h the system automatically low-

ers the vehicle to the Access level.<

From Off-Road to Standard:

>Press button 2 or

>automatically once the vehicle

exceeds a speed of approx. 30 mph/

50 km/h.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

98nBrake force display Flat Tire Monitor

The brake lamps light up in two stages,

depending on how forcefully you apply

the brakes.

>Normal braking:

The brake lamp 1 and the center

brake lamp light up

>Heavy braking:

The brake lamps 1 and 2 light up

together with the center brake lamp.

530de400

The concept

The Flat Tire Monitor keeps track of the

inflation pressures in the four fitted tires

as you drive. The system provides an

alert whenever the inflation pressure in

one tire drops significantly in relation to

the pressure in another tire.

The check of the tire inflation pressure

is based on monitoring the relative

speeds of the wheels. A flat is detected

and reported on the basis of a deviation

in certain speed ratios.

Functional requirement

To ensure reliable operation, the sys-

tem should have been initialized with

the correct tire inflation pressure.

System limits

The Flat Tire Monitor cannot indi-

cate sudden severe tire damage

caused by outside factors and does not

detect a natural, even pressure drop in

all four tires.<

In the following situations, the system

could be delayed or malfunction:

>When driving on snow-covered or

slippery road surfaces

>In the case of performance-oriented

driving: slip in the drive wheels, high

lateral acceleration

>False alarms and undetected loss of

pressure may occur when you are

driving with snow chains fitted.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

99n

OverviewControlsMaintenanceRepairsDataIndex

Flat Tire Monitor

Initializing system

Perform the initialization immedi-

ately every time you correct the

inflation pressure, change a tire or

change a wheel or all wheels. The vehi-

cle must be driven during initialization.<

1. Start the engine, but do not begin to

drive immediately.

2. Press the button until the yellow indi-

cator lamp in the instrument cluster

lights up for a few seconds.

3. Begin driving.

530de419

It takes a few minutes of driving before

the Flat Tire Monitor can detect and

report a flat tire.

When driving with snow chains,

do not initialize the system.<

Indication of a flat tire

The warning lamp lights up yel-

low. There is a flat tire or exten-

sive inflation pressure loss.

1. Reduce speed and stop the vehicle

carefully. Avoid sudden braking and

steering maneuvers

2. Identify damaged tire

If identification is not possible,

contact your BMW Sports

Activity Vehicle center.<

3. Replace the damaged wheel, refer to

Changing a wheel on page 165.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

100n

Parking lamps/side marker lamps

The front, rear and side vehicle

lighting is switched on. You can

use the parking lamps for park-

ing. For lighting on one side for parking

as an additional feature, refer to

page 101.

Low beams

When the ignition is switched off

and the low beams are on, only

the parking lamps/side marker

lamps remain on.

530us215

Pathway lighting:

When you activate the headlamp

flasher after parking the vehicle and

switching off the lamps, the low beams

will come on for a brief period. You may

also have this function deactivated if

you wish.<

Lights on warning

Whenever you open the driver's door,

after having turned the ignition key to

position 0, an acoustic signal will sound

for a few seconds to remind you that

the lamps have not been switched off.

Alphanumeric Check Control*:

The reminder is given through the

Check Control.

Daytime driving lamps

*

The headlamps are automatically

switched on for daytime driving at igni-

tion key position 2.

Automatic headlamp control

*

When you set the switch to this

position, the system activates

and switches on and off the low

beams in response to changes in ambi-

ent light conditions, for instance, in tun-

nels, at dawn and dusk, and in rain and

snow.

The low beams remain switched

on regardless of the ambient light

when you switch on the front fog

lamps.<

Automatic headlamp control can-

not serve as a substitute for the

driver's judgment in determining when

the vehicle lamps should be switched

on. For example, the system cannot

detect fog. To avoid safety risks, you

should always switch on the lamps

manually under these conditions.<

You can have the sensitivity of the

headlamp control system adjusted

on your vehicle.<

Parking lamps/low beams

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

101n

OverviewControlsMaintenanceRepairsDataIndex

Adaptive Head Light*High beams/roadside parking lamps

The concept

Adaptive Head Light is a variable head-

lamp control system that enables better

illumination of the road surface.

Depending on the steering angle and

other assumptions, the light from the

headlamp follows the course of the

road.

Activating Adaptive Head Light

In ignition key position 2, turn

the light switch to the position

'Automatic headlamp control',

refer to page 100.

To avoid blinding oncoming traffic, the

Adaptive Head Light

>is not active when driving in reverse

>is active only when pointing toward

the passenger side.

Malfunctions

The LED next to the symbol for auto-

matic headlamp control flashes. Adap-

tive Head Light is faulty or has failed.

Have the system checked as soon as

possible.

1High beams

2Headlamp flasher

3 Roadside parking lamps

Roadside parking lamps, left or

right

*

As an additional feature, you can illumi-

nate your vehicle on either side for

parking, if you wish:

With the ignition key in position 0,

engage the lever in the appropriate turn

signal position.

The roadside parking lamps

drain the battery. Avoid use for

extended periods of time, otherwise, it

will no longer be possible to start the

engine.<

530de265

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

102nFront fog lamps

Instrument lighting

Briefly press the button to switch on/off.

The parking lamps or low beams

must be switched on for the fog

lamps to operate. A green indi-

cator lamp appears in the instrument

cluster to indicate that the front fog

lamps are on.

If the high beams are switched on, the

front fog lamps go out.

If the automatic headlamp control

is activated, the low beams will

automatically be switched on when the

front fog lamps are switched on.<

530us210

Turn the knurled wheel to adjust the

illumination intensity.

530us216

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

103n

OverviewControlsMaintenanceRepairsDataIndex

Interior lamps

The interior lamps operate automati-

cally.

Switching interior lamps on and

off manually

Briefly press button 1.

If you want the interior lamps to remain

off all the time, press and hold the but-

ton for approx. 3 seconds.

Briefly press the button to revert to nor-

mal operation.

The button for the interior lamps in the

rear passenger area only switches

these lamps on and off.

530ue263

Reading lamps

*

Reading lamps are located at the front

and in the rear next to the dome light.

They can be switched on and off with

the respective buttons 2 located next to

them.

Footwell and cargo area lamps

The lamps are controlled in the same

manner as the front interior lamps.

Courtesy lighting

*

This lighting system in the two exterior

mirrors illuminates the ground in the

area near the two front doors. It is also

controlled in the same manner as the

front interior lamps, but it does not

function while the vehicle is moving.

In order to prevent battery dis-

charge, all of the lamps in the

vehicle are switched off automatically

approx. 15 minutes after the ignition

key is turned to position 0.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

104n

1 Airflow directed toward the wind-

shield and side windows

2 Airflow for the upper body 106

3 Front footwell ventilation

4 Rear footwell ventilation

5 Airflow for the upper body in the

rear seat 106

6 Temperature 105

7 Air distribution 105

8 Air supply 105

9 Rear window defroster 105

10 Air conditioning 105

11 Recirculated-air mode 105

Air conditioner

530ue258

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

105n

OverviewControlsMaintenanceRepairsDataIndex

Air conditioner

Temperature

The graduations on the dial

provide general reference val-

ues for the interior tempera-

ture. 707/226 is recom-

mended as a comfortable setting. After

driving begins, the selected tempera-

ture is reached as quickly as possible

and kept constant by the control sys-

tem.

Air distribution

You can direct air to flow onto

the windows , toward the

upper body and into the

footwell . All intermediate

settings are possible. In the setting,

there is a low flow of air onto the win-

dows to keep them free of condensa-

tion.

Air supply

You can adjust the air supply

through an infinitely-variable

range. The heating and venti-

lation become more and more

effective as the air supply settings are

increased. In the 0 setting, the blower

and climate control are switched off

and the outside air supply is blocked.

Rear window defroster

When the rear window

defroster is activated, the

LED lights up. The rear window

defroster switches off automatically.

Air conditioning

The air is cooled and dehu-

midified and — depending on

the temperature setting — warmed

again. Depending on the weather, the

windshield may fog over briefly when

the engine is started. You can reduce

condensation forming on the windows

by switching on the air conditioning.

During air conditioning, condensa-

tion forms, which then exits under

the vehicle. Traces of water on the

ground are therefore normal.<

Recirculated-air mode

You can respond to unpleas-

ant odors outside the vehicle

by temporarily switching off the outside

air supply. The system then recirculates

the air currently within the vehicle.

You can also use the button on the

steering wheel to switch over to the

recirculated-air mode, refer to page 23.

If the windows fog over in the

recirculated-air mode, switch the

recirculated-air mode off and increase

the air supply as required.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

106n

Air conditioner

Ventilation

The air vents for the upper body region

are adjustable:

1 Knurled wheels for opening and

closing the vent outlets through an

infinitely-variable range

2 Levers for adjusting airflow direction

3 Use this knurled wheel to adjust the

temperature of the incoming air:

>Turn toward blue: colder

>Turn toward red: warmer.

530de270

Rear ventilation

*

1 Knurled wheel for opening and clos-

ing the vent outlets through an infi-

nitely-variable range

2 Levers for adjusting airflow direction

The air that flows out here is somewhat

cooler than the air delivered to the foot-

well.

Microfilter

The microfilter removes dust and pollen

from the incoming air and in the recircu-

lated-air mode. It is replaced by your

BMW Sports Activity Vehicle center

during regular maintenance. A substan-

tial reduction in air supply indicates that

the filter must be replaced before nor-

mal maintenance.

530de271

Defrosting windows and removing

condensation

1. You can specify an interior tempera-

ture that is comfortable for you with

the rotary temperature dial. A good

starting point is 707/226

2. Set the air distribution rotary dial

to

3. Set the blower/air supply rotary dial

completely to the right

4. Close the vent outlets in the rear

seating area

5. Switch on the rear window defroster

to defrost the rear window.

530us149

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

107n

OverviewControlsMaintenanceRepairsDataIndex

1 Airflow directed toward the wind-

shield and side windows

2 Airflow for the upper body 111

3 Airflow for the footwell

4 Rear footwell ventilation

5 Airflow for the upper body in the

rear seat 111

6 Automatic air distribution and

supply 109

7 Individual air distribution 109

8 Temperature, left side of passenger

compartment 109

9 Display for temperature and air

supply 109

Automatic climate control

*

530ue259

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

108n

Automatic climate control

*

10 Temperature, right side of passen-

ger compartment 109

11 Defrosting windows and removing

condensation 109

12 Air conditioning 110

13 AUC Automatic recirculated-air

control 110

14 Rear window defroster 110

15 Air supply 109

16 Maximum cooling 110

or residual heat utilization 110

17 Air grill for interior temperature

sensor – please keep clear and

unobstructed

530ue259

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

109n

OverviewControlsMaintenanceRepairsDataIndex

Automatic climate control

*

Tips for pleasant driving

For nearly all conditions, AUTO pro-

gram 6 offers the optimal air distribution

and airflow volume. Select the interior

temperature that is comfortable for you.

Detailed setting options are described

for you in the following section.

Your BMW Sports Activity Vehicle

center can program the settings of

your vehicle in such a manner that,

when you unlock the vehicle with your

individualized key, your own personal-

ized setting for the automatic climate

control is initiated.<

Automatic air distribution

The AUTO program

adjusts the airflow and dis-

tribution patterns for you while also

using your preselected temperature

setting as the basis for adjusting the

interior climate to adapt to external

influences: summer, winter.

Individual air distribution

You can cancel the AUTO

program by selecting spe-

cific air distribution patterns

for your personal comfort,

the automatic air supply

remains in operation. You can direct air

to flow onto the windows , toward

the upper body , and into the foot-

well . You can reactivate the auto-

matic air distribution mode by pressing

the AUTO button.

Temperature

Set the desired tempera-

ture individually on the

driver's and front passen-

ger side.

The automatic climate control adjusts

this temperature as quickly as possible

at any time of year, if necessary with the

maximum cooling or heating capacity,

and then keeps it constant.

When switching between differ-

ent temperature settings in rapid

succession, the automatic climate con-

trol does not have sufficient time to

adjust the set temperature.<

To change the units of measure in the

display 7/6, refer to page 73 or 80.

Air supply

In the AUTO program,

the air supply is automati-

cally controlled, and AUTO appears on

the display 9, refer to overview on

page 107. You can vary the air supply

by pressing the left or right half of the

button. When your setting is displayed

as bars, the automatic air supply is

switched off. Automatic air distribution

maintains its setting. You can reactivate

the automatic air supply by pressing the

AUTO button.

When you press the left side of the but-

ton during operation at minimum blower

speed, all displays are canceled: the

blower, heating and air conditioner are

switched off. The outside air supply is

closed. You can switch the system back

on by pressing any button of the auto-

matic climate control, except the MAX

button 16.

Defrosting windows and removing

condensation

Quickly remove ice and

condensation from the

windshield and front side windows.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

110n

Automatic climate control

*

Air conditioning

The air is cooled and

dehumidified and —

depending on the temperature setting —

warmed again. Depending on the

weather, the windshield may fog over

briefly when the engine is started. You

can reduce condensation forming on

the windows by switching on the air

conditioning.

During air conditioning, condensa-

tion forms, which then exits under

the vehicle. That traces of water on the

ground are therefore normal.<

Maximum cooling

Maximally cooled air is

obtained as quickly as possi-

ble from an outside temperature above

327/06 and with the engine running.

The automatic climate control changes

over to the lowest temperature and

switches into the recirculated-air mode.

The maximum air quantity only flows

out of the vents for the upper body.

Therefore, open these vents for maxi-

mum cooling.

AUC Automatic recirculated-air

control

You can respond to

unpleasant odors or pollut-

ants in the immediate environment by

shutting off the supply of outside air.

The system then recirculates the air

currently within the vehicle. In AUC

operating mode, a sensor detects pol-

lutants in the external air and controls

the shut-off automatically.

Press the button repeatedly to run

through the following control sequence

>LEDs off: outside air supply opera-

tional

>Left LED on, AUC mode: the system

detects pollutants in the outside air

and blocks the flow of air when nec-

essary. The system then recirculates

the air currently within the vehicle.

Depending on the air quality, the

automatic system then switches back

and forth between outside air supply

and recirculation of the air within the

vehicle

>Right LED on: the outside air supply

into the vehicle is shut off continu-

ously. The system then recirculates

the air currently within the vehicle.

You can also use the button on the

steering wheel to switch between Off

and recirculated-air mode or between

AUC and recirculated-air mode, refer to

page 23.

If the windows fog over in the

recirculated-air mode, switch the

recirculated-air mode off and increase

the air supply as required.<

Rear window defroster

When the rear window

defroster is activated, the

LED lights up. The rear window

defroster switches off automatically

after a while.

Residual heat

Press the button when the

motor is switched off, but

warm.

The heat stored in the engine is utilized

for heating the interior when the engine

has been switched off – while waiting at

a railroad crossing, for instance.

This function may be activated when

the outside temperature is below

approx. 597/156, the engine is at

operating temperature, and the battery

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

111n

OverviewControlsMaintenanceRepairsDataIndex

Automatic climate control

*

is adequately charged. The LED on the

button will light up when all conditions

have been met.

Ventilation

The air vents for the upper body region

are adjustable:

1 Knurled wheels for opening and clos-

ing the vent outlets through an infi-

nitely-variable range

2 Selector levers for airflow direction

3 Use this knurled wheel to control the

temperature of the airflow:

>Turn toward blue: colder

>Turn toward red: warmer.

530de270

Rear climate control

*

1 Air supply

2 Temperature

3 Adjusting the direction of the airflow

530de272

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

112n

Automatic climate control

*

Air supply

0 Blower off

I Maximum blower speed

You can adjust the air supply for the

vent outlets through an infinitely-vari-

able range between the 0 and I set-

tings.

In the 0 setting, the blower is switched

off and the supply of air through the

vent outlets is blocked.

Individual adjustments on the front-seat

control elements influence the air sup-

ply for rear passenger area climate con-

trol.

530de273

Temperature

Passengers in the rear seating area can

adjust their own temperature for the

vent outlets:

>Turn toward blue: colder

>Turn toward red: warmer.

When you start the vehicle, this system

ensures that the selected temperature

is achieved as quickly as possible.

It then maintains this temperature,

regardless of the season.

It is only possible to adjust the

temperature when the blower is

switched on, not in the 0 setting.<

530de274

Microfilter/activated-charcoal

filter

The microfilter removes dust and pollen

from the incoming air. The activated-

charcoal filter provides additional pro-

tection by filtering gaseous pollutants

from the outside air. Your BMW Sports

Activity Vehicle center replaces this

combined filter as a standard part of

your scheduled maintenance. A sub-

stantial reduction in air supply indicates

that the filter must be replaced before

normal maintenance.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

113n

OverviewControlsMaintenanceRepairsDataIndex

Roller sun blinds

*

Parked car ventilation

*

Roller sun blinds for rear side

windows

*

Use the strap to pull out the blinds, then

hook them in the attachment provided.

With roller sun blinds attached,

do not open the windows during

travel. The blinds may otherwise be

damaged by the wind.<

You can use this system to ventilate the

interior and lower its temperature, using

the blower of the parked car ventilation

or of the automatic climate control.

The parked car ventilation is operated

via the MID Multi-Information Display,

refer to page 84 or via the onboard

computer, refer to the separate

Owner's Manual.

You can set two different times for the

system to start; it will remain active for

30 minutes. You can also switch it on

and off directly. Since the system uses

a substantial amount of electrical cur-

rent, you should refrain from switching

it on twice in succession without allow-

ing the battery to be recharged in nor-

mal operation between uses.

When a preselected activation time is

set, the parked car ventilation is opera-

tional at outside temperatures above

approx. 607/166, or by direct switch

activation.

The air enters the passenger compart-

ment through the vent outlets in the

instrument cluster, which can be

adjusted for both direction and airflow.

The vent outlets must therefore be open

for the system to operate.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

114n

The concept

The integrated universal remote control

can replace as many as three hand-

held transmitters for various remote-

controlled accessories, such as door

openers and house alarm systems. The

integrated universal remote control rec-

ognizes and learns the transmitted sig-

nal of each of the original hand-held

transmitters.

The signal of an original hand-held

transmitter can be programmed on one

of the three memory buttons 1. Follow-

ing that, each of the devices can be

actuated with the appropriately-pro-

grammed memory button 1. The LED 2

flashes to confirm transmission of the

signal.

Should you sell your vehicle one day,

be sure to delete the stored programs

beforehand for your safety, refer to

page 116.

To prevent possible damage or

injury, before programming or

using the integrated universal remote

control, always inspect the immediate

area to make certain that no people,

animals or objects are within the travel

range of the device. Also, comply with

the safety precautions of the original

hand-held transmitter.<

To Canadian residents:

During programming, your hand-

held transmitter may automatically stop

transmitting after two seconds, which

may not be long enough to program the

integrated universal remote control. If

you are programming from one of these

hand-held transmitters, the Universal

Transmitter's light may begin to flash in

a series of double-blinks. If this occurs,

continue to hold the button of the inte-

grated universal remote control while

you reactivate your hand-held transmit-

ter. You may have to repeat this func-

tion several times while programming.<

Checking compatibility

If you see this symbol on the

packaging or in the manual sup-

plied with the original hand-held

transmitter, it is safe to assume that it is

compatible with the integrated universal

remote control.

A list of compatible hand transmitters

is available via fax polling by calling

+49 (0)6838 907283 3333. For details,

please call the toll-free HomeLink

Hotline at +49 (0)6838 907 277 or

0800 0466 35465 in Germany.

HomeLink is a registered trademark of

Johnson Controls.

Integrated universal remote control

*

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

115n

OverviewControlsMaintenanceRepairsDataIndex

Integrated universal remote control

*

Programming

1Memory buttons

2LED

Fixed-code hand-held transmitter

1. Switch on the ignition.

2. For initial use: press both outer

buttons 1 for approx. 20 seconds

until the LED 2 flashes. The three

memory buttons 1 are cleared.

3. Hold the original hand-held transmit-

ter at a distance of approx. 2 to 8 in/

5 to 20 cm from the memory but-

tons 1.

The required distance between

the hand-held transmitter and

memory buttons 1 depends on the

relevant system of the original hand-

held transmitter used.<

530ue264

4. Simultaneously press the transmit

button on the original hand-held

transmitter and the desired memory

button 1 of the integrated universal

remote control. The LED 2 flashes

slowly at first. As soon as the LED 2

flashes rapidly, release both buttons.

If the LED 2 does not flash rapidly

after approx. 15 seconds, alter the

distance.

5. To program other original hand-held

transmitters, repeat steps 3 and 4.

The corresponding memory button 1 is

now programmed with the signal of the

original hand-held transmitter.

You can operate the system when the

engine is running or when the ignition is

switched on.

If the system cannot be operated

after repeated programming,

check whether the original hand-held

transmitter uses an alternating-code

system. To do so, either read the

instructions of the original hand-held

transmitter or press and hold down the

programmed memory button 1 of the

integrated universal remote control.

If the LED 2 on the integrated universal

remote control flashes quickly for a

brief period and then remains lit up for

approx. two seconds, this indicates that

the original hand-held transmitter is

equipped with an alternating code. In

the case of an alternating-code system,

program the memory buttons 1 as

described in the section on alternating-

code hand-held transmitters.

If you have additional questions, please

consult your BMW Sports Activity Vehi-

cle center or call 1-800-355-3515.

You can also visit our website

www.bmwusa.com.<

Alternating-code hand-held

transmitter

To program the integrated universal

remote control, consult the Owner's

Manuals for the equipment to be set.

You will find information there on the

possibilities for synchronization.

When programming alternating-code

hand-held transmitters, please follow

the supplementary instructions below:

Programming will be easier with

the aid of a second person.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

116n

Integrated universal remote control

*

Car phone

*

1. Park your vehicle within the range of

the remote-controlled device

2. Program the integrated universal

remote control as described at the

section on fixed-code hand-held

transmitters

3. Locate the button on the receiver of

the device you want to set up, e.g. on

the upper section of the motor

4. Press the button on the receiver of

the device you want to set up. After

step 4, you have approx. 30 seconds

for step 5

5. Press the programmed memory

button 1 on the integrated universal

remote control three times.

The corresponding memory button 1 is

now programmed with the signal of the

original hand-held transmitter.

If you have any additional ques-

tions, please contact your BMW

Sports Activity Vehicle center.<

Clearing memory buttons

It is not possible to clear memory but-

tons 1 individually. To clear all three

memory buttons 1, proceed as follows:

Press both outer buttons 1 of the inte-

grated universal remote control for

approx. 20 seconds, maintaining pres-

sure until the LED 2 starts to flash.

Hands-free system

On vehicles with telephone provisions*,

the hands-free microphone is located in

the headliner.

For further information on the tele-

phone, refer to the telephone Owner's

Manual.

530ue265

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

117n

OverviewControlsMaintenanceRepairsDataIndex

Interior rearview mirror with digital compass

*

1 Adjusting knob for compass zones

2Display

The display indicates the cardinal and/

or intercardinal direction in which you

are currently driving.

Setting compass zones

Depending on where you and your vehi-

cle are located, it is necessary to set

the appropriate compass zone, refer to

world map with compass zones,

page 118.

To set the compass zone, press the

adjusting button in the mirror frame for

approx. 3-4 seconds with a sharp

object, e.g. a ball-point pen or the like.

The display indicates the number of the

currently set compass zone.

530de425

To change the zone setting, press the

adjusting button repeatedly until the

number of the compass zone that

applies to your current position is dis-

played.

The compass will be operational again

after approximately 10 seconds.

For automatic dimming action, refer to

Interior and exterior mirrors, automatic

dimming feature on page 138.

Calibrating digital compass

In the following situations, the digital

compass must be calibrated:

>C or CAL appears on the display

>The wrong cardinal direction appears

on the display

>The cardinal direction displayed does

not change despite a change in the

direction of travel

>Not all cardinal directions are dis-

played.

How to correct this:

1. Make sure that there are no large

metal objects or overhead power

lines in the vicinity of your vehicle

and that you have enough space to

drive in a circle

2. Input the currently applicable com-

pass zone

3. Press the adjustment button to bring

up C or CAL. Then drive in a com-

plete circle at a maximum speed of

4mph/7km/h.

If the calibration was successful, the

displays C or CAL are replaced with

the points of the compass.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

118n

Interior rearview mirror with digital compass

*

530de413

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

119n

OverviewControlsMaintenanceRepairsDataIndex

Glove compartment Storage compartments

Opening

Pull the handle. The lamp inside the

glove compartment comes on.

Closing

Fold the cover up.

To prevent injury in the event of an

accident, close the glove com-

partment immediately after use.<

530de275

Locking

Use one of the master keys. A master

key is also required for unlocking.

If you turn over only your spare

key for valet parking, for example,

refer to page 30, this prevents unautho-

rized access to the glove compart-

ment.<

Rechargeable flashlight

Located on the left-hand side of the

glove compartment.

Features integral overload-protection,

so it can be left in its holder continu-

ously.

To avoid completely discharging

and possibly damaging the lamp,

always ensure that it is switched off

before inserting it into the socket.<

You will find two storage compartments

in the armrest between the front seats.

To open the top compartment:

Press the button, refer to arrow 1.

A built-in phone* is located in this com-

partment.

To move the armrest or open the lower

compartment:

Pull the handle, refer to arrow 2.

This compartment contains a coin tray

and a storage compartment* for cas-

settes or CDs.

You will find additional storage com-

partments in all of the doors as well as

on the backrests of the front seats.

530de276

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

120n

Storage compartments Cup holders

Clothes hooks

When suspending clothing from

the hooks, ensure that it will not

obstruct the driver's vision. Do not hang

heavy objects on the hooks. If you do

so, they could cause endanger passen-

gers during braking or evasive maneu-

vers.<

Front

Below the sliding cover, refer to illustra-

tion.

530de277

Rear

At the end of the center console under

the lighter.

Briefly press to open; push back inward

to close.

Do not place glass containers in

the cup holders, otherwise there is

a danger of injury in an accident.<

530de278

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

121n

OverviewControlsMaintenanceRepairsDataIndex

Ashtray, front Ashtray, rear

Emptying

Press the edge of the lid, refer to arrow:

the ashtray moves up and can be

removed.

Cigarette lighter, front

Press the lighter 1 in.

The lighter can be removed as soon as

it pops out.

Hold or briefly press the hot ciga-

rette lighter by the knob only.

Holding or touching it in other areas

could result in burns.

The cigarette lighter remains opera-

tional when the ignition key has been

removed. For this reason, do not leave

unsupervised children in the vehicle.<

530de338

Socket

The cigarette lighter socket can be

used to plug in hand flashlights, car

vacuum cleaners etc., with power rat-

ings of up to approx. 200 W at 12 V.

Be careful not to damage the socket

with unsuitable plugs.

Additional sockets are located in the

cargo area, refer to page 128, and in

the front passenger footwell.

Emptying

Remove the insert tray.

530de282

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

122n

Cigarette lighter, rear

Press the lighter in.

The lighter can be removed as soon as

it pops out.

Hold or briefly press the hot ciga-

rette lighter by the knob only.

Holding or touching it in other areas

could result in burns.

The cigarette lighter remains opera-

tional when the ignition key has been

removed. For this reason, do not leave

unsupervised children in the vehicle.<

530de239

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

123n

OverviewControlsMaintenanceRepairsDataIndex

Ski bag

*

The ski bag allows the safe and clean

transport of up to four pairs of standard

skis or up to two snowboards.

With the length of the ski bag and the

additional space in the cargo area, you

can store skis up to 6.8 ft/2.1 m length.

Because stowing skis of this maximum

length causes the ski bag to narrow, it

can only accommodate two pairs of

skis with a length of 6.8 ft/2.1 m.

Loading

1. Fold down the center armrest.

Loosen the trim from the upper

Velcro® fastener and place it onto the

armrest

530us077

2. Press button 1 downward and swing

the cover forward

3. Press button 2: the cover in the

cargo area is unlocked.

With pull-out cargo floor, refer to

page 128: pull out floor, release

cover and push back floor again; the

floor then conceals the cover

4. Place ski bag between the front

seats and load. The zip fastener facil-

itates access to the stowed items.

Make sure that only clean skis are

loaded into the ski bag. Wrap sharp

edges so that no damage occurs.

530de283

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

124n

Ski bag

*

Cargo area

Securing load

After loading, secure the ski bag and its

contents. To do so, tighten the retaining

belt at the buckle.

Secure the ski bag in this way. If

you fail to do so, it could endanger

occupants during braking or evasive

maneuvers.<

When stowing the ski bag, proceed in

the reverse order from loading.

530de284

If the cover in the cargo area is

concealed by the pull-out cargo

floor, do not fold the larger rear back-

rest down. If you do so, it will damage

the cover.<

Folding rear backrests down

Reach into the recess and pull forward,

refer to arrow.

When you fold back the backrest,

be sure that the catch engages

securely. The red warning indicator dis-

appears in the recess when the catch is

engaged.

The center safety belt can only be

pulled out when the larger backrest is

locked.<

530de285

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

125n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

Roll-up cover

Pull out the roll-up cover and hook it

into the brackets at the rear.

You can carry light objects such as

items of clothing on the roll-up cover.

Do not place heavy or hard

objects on the roll-up cover. If you

do so, they could pose a danger to

vehicle occupants during braking or

evasive maneuvers.

Do not allow the roll-up cover to snap

back, otherwise it could be damaged.<

530de348

Removing roll-up cover

1. Unlock the case with the button,

refer to arrow 1, lift it out of the

bracket on the side and hold it in

place on the opposite side with the

other hand

2. Then push the case toward the side

window, refer to arrow 2. This pulls it

out of the second bracket and it can

be removed.

Installation

Lay the case in the two side brackets

and then press down until it engages.

530de349

Partition net

*

1. Remove the bag with the partition

net from the retainer by releasing the

hooks from the lashing eyes on both

sides

530de028

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

126n

Cargo area

2. Remove the partition net from the

bag, unroll it half way and hook it into

the retaining strap on both sides,

refer to arrow

Note how the partition net is

stored in the bag and secured

in the vehicle so that you can return

everything to its proper place again

after use.

If your vehicle has a pull-out cargo

floor, follow the instructions on

page 128.<

530de350

3. Slide back the covers on the retain-

ers for the partition net on both sides

of the roof, refer to arrow

4. Insert the curved ends of the partition

net rod into the retainers on both

sides

5. Now you can slide the covers toward

the front again, refer to arrow

530de289

6. Pull the partition net down by the

loop on both sides, refer to arrow,

and hook the hook into the eye on

the backrest

The case with the roll-up cover is

not shown in the illustration. With

the case removed, it is easier to hook

the hooks of the partition net onto the

backrest.<

530de351

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

127n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

7. When the rear backrests are folded

down, you can unhook the partition

net from the retaining straps, com-

pletely unroll it, insert it in the front

retainers on the roof and attach the

three hooks into the eyes on the

backrests.

The illustration shows securing at the

bottom right as an example.

530de352

Side covers

Pull the handle to open the side covers.

530de290

Floor cover

To access the spare wheel.

To open: press the recess in the han-

dle, refer to arrow, and raise the cover

with the handle.

530de291

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

128n

Cargo area

Folding floor cover up

Disengage the loop end on the under-

side of the floor cover and hook it in

with the catch on the upper frame of the

liftgate cutout.

Before swinging down the floor cover,

reengage the loop end in the retainer

on the underside of the floor cover.

530de355

Sockets

When you fold the cover caps up, you

have access to additional sockets.

You can use the sockets for flashlights,

car vacuum cleaners or other automo-

tive appliances with up to approx.

200 watts at 12 volts. Be careful not to

damage the socket with unsuitable

plugs.

Also refer to page 121.

530us084

Pull-out cargo floor

*

To release, pull the handle recess

upward. Then pull the floor out.

Do not drive when the cargo floor

is pulled out.

Do not release the cargo floor on steep

grades. If you do, it could extend auto-

matically and cause personal injuries.

A load which is not properly secured

could slide if the floor extends automat-

ically and then drop to the ground as a

result of the rapid braking of the cargo

floor at the limit stop.<

530de292

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

129n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

When it is extended, you can load the

cargo floor:

>With up to 990 lbs./450 kg, distrib-

uted evenly across the entire surface

>With up to 330 lbs./150 kg on the

rear edge.

Do not overload the cargo floor

when it is extended. If you do so, it

could cause damage.

When sliding the cargo floor back in, do

not reach under the floor. Otherwise

there is a risk of injury.<

Raising cargo floor

For access to the spare wheel or other

stored items:

Swing the cargo floor up and secure it

with the rod, refer to illustration.

If your vehicle has a partition net:

Take the bag with the partition net

out of the retainer, refer to page 125,

before you raise the cargo floor. Other-

wise, the bag could slide downward.<

530de240

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

130n

Cargo loading

Avoid overloading the vehicle

so that the permissible loading

capacity of the tires is not exceeded.

Overloading can lead to overheating

and increases the rate at which damage

develops inside the tires. The ultimate

result can assume the form of a sudden

air loss.<

Determining loading limit

1. Locate the following statement on

your vehicle's placard*:

The combined weight of occu-

pants and cargo should never

exceed XXX lbs. or YYY kg, other-

wise the vehicle may be damaged

and unstable driving conditions may

result.<

2. Determine the combined weight of

the driver and passengers that will be

riding in your vehicle

3. Subtract the combined weight of the

driver and passengers from XXX lbs.

or YYY kg

530de225

4. The resulting figure equals the avail-

able amount of cargo and luggage

load capacity.

For example, if the XXX amount

equals 1,350 lbs. and there will be

five 150 lbs. passengers in your vehi-

cle, the amount of available cargo

and luggage load capacity is

600 lbs.:

1,350 lbs. minus 750 lbs. = 600 lbs.

5. Determine the combined weight of

luggage and cargo being loaded into

the vehicle. That weight may not

safely exceed the available cargo

and luggage load capacity calculated

in step 4

6. If your vehicle will be towing a trailer,

load from your trailer will be trans-

ferred to your vehicle. Consult the

manual for transporting a trailer to

determine how this may reduce the

available cargo and luggage load

capacity of your vehicle.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

131n

OverviewControlsMaintenanceRepairsDataIndex

Cargo loading

Load:

The permitted load is the total of the

weight of occupants and cargo/lug-

gage. The greater the weight of occu-

pants, the less cargo/luggage can be

transported.

530us249

Stowing cargo

>Use the partition net to protect the

occupants, refer to page 125

>Position heavy cargo as far forward

as possible directly behind the back-

rests and as low as possible

>Cover sharp edges and corners

>Do not pile objects higher than the

top edge of the backrest

>Appropriately wrap objects that could

strike the rear window while driving

>If you are transporting very heavy

loads when the rear seat is not occu-

pied, secure the outer safety belts in

the opposite buckles.

530de426

Securing load

>Secure smaller, light pieces with the

retaining straps or a luggage net*, or

use elastic straps, refer to page 37

>Heavy-duty cargo straps* for secur-

ing larger and heavier objects are

available at your BMW Sports Activity

Vehicle center. The lashing eyes pro-

vided at the corners of the cargo area

serve for mounting these heavy-duty

cargo straps

>Read and comply with the informa-

tion enclosed with the heavy-duty

cargo straps.

530us090

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

132n

Cargo loading Roof-mounted luggage rack

*

Always position and secure the

load as described above. If you do

not, it can endanger the passengers

during braking or evasive maneuvers.

Do not exceed the permissible gross

vehicle weight and the permissible axle

loads, refer to page 182. If you do, the

operating safety of the vehicle is no

longer ensured and you are in violation

of the law.

You should never transport heavy or

hard objects unsecured in the passen-

ger compartment, as they could fly

around and pose a safety hazard to the

vehicle's occupants even during abrupt

braking or evasive maneuvers.<

A special rack system is available as an

option for your BMW. Please comply

with the precautions included with the

installation instructions.

Mounting points

Access to the mounting points:

To fold up the cover, refer to arrow,

please use the tool which is provided

with the rack system.

530de293

Loading luggage rack

Roof-mounted luggage racks raise the

center of gravity of the vehicle when

they are loaded and therefore signifi-

cantly effect the vehicle's handling and

steering response.

It is thus crucial never to exceed the

approved roof weight, the approved

gross vehicle weight or the axle loads

when loading the rack.

You will find the specifications under

Technical data on page 182.

Make sure that the load is distributed

evenly, and that it does not extend out-

ward to beyond the limits of the loading

surface. Always load the heaviest

pieces on the bottom. Be sure that ade-

quate clearance is maintained for rais-

ing the panorama glass roof, and that

objects do not project into the opening

path of the liftgate.

Always ensure that roof-mounted

loads are tightly secured, as loose

loads can shift or even fly off the roof,

posing a serious hazard for following

traffic.<

Drive smoothly. Avoid sudden accelera-

tion and braking maneuvers. Take cor-

ners gently.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

133n

OverviewControlsMaintenanceRepairsDataIndex

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

134n

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

135n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Maintena

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

136n

Moving parts should be allowed to

break in. To ensure that your vehicle

provides maximum economy through-

out a long service life, we request that

you comply with the following instruc-

tions:

Engine and differential

Obey your local and state maximum

speed limits.

Up to 1,200 miles/2,000 km:

Drive at varying engine speeds and

road speeds, but do not exceed

4,500 rpm and the following road

speeds during this initial period:

>6-cylinder engine

100 mph/160 km/h

>8-cylinder engine

106 mph/170 km/h

Avoid full-throttle operation and use of

the transmission's kick-down mode

during these initial miles.

From 1,200 miles/2,000 km:

The engine and vehicle speed can

gradually be increased.

Tires

Due to technical factors associated with

their manufacture, tires do not achieve

their full traction potential until after an

initial break-in period. Therefore, drive

reservedly during the first 200 miles/

300 km.

Obey your local and state maximum

speed limits.

When the vehicle is operated on

wet or slushy roads, a wedge of

water may form between the tire and

the road surface. This phenomenon is

referred to as hydroplaning and can

lead to partial or complete loss of trac-

tion, vehicle control and braking effec-

tiveness. Reduce your speed on wet

roads.<

Brake system

Brakes require an initial break-in period

of approx. 300 miles/500 km to achieve

optimal contact and wear patterns

between brake pads and rotors.

To break in the separate handbrake

drums, apply the handbrake lightly

when coasting to a standstill at a traffic

signal, for instance, provided that traffic

conditions allow you to do so.

To avoid corrosion, repeat this proce-

dure from time to time.

The brake lamps do not light up

when the handbrake is applied.

Vacuum for the brake system servo unit

on your BMW is available only when the

engine is running. When you move the

vehicle with the engine switched off,

when towing, for instance, substantially

higher levels of pedal force will be

required to brake the vehicle.<

Clutch

The function of the clutch is only at its

optimized level after a distance driven

of approx. 300 miles/500 km. During

this break-in period, engage the clutch

gently.

Following component

replacements

Observe the break-in instructions again

if previously addressed components

must be replaced again during subse-

quent driving.

Breaking-in

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

137n

OverviewControlsMaintenanceRepairsDataIndex

General driving notes

Closing liftgate/tailgate

Operate the vehicle only when the

tailgate and liftgate are completely

closed. Otherwise, exhaust fumes

could enter into the passenger com-

partment.<

However, if special circumstances

should make it absolutely necessary to

operate the vehicle with the liftgate/tail-

gate open:

1. Close all windows and the panorama

glass roof

2. Increase the air supply for the air

conditioner or automatic climate

control to a high level, refer to

page 105 or 109.

Hot exhaust system

Extreme temperatures occur on

the exhaust system on any vehi-

cle. Do not remove the heat shields

installed adjacent to it, and never apply

undercoating to them. When driving,

standing at idle and while parking, take

care to avoid possible contact between

a hot exhaust system and any highly

flammable materials such as hay,

leaves, grass etc. Otherwise, there is a

danger of ignition and fire, with the risk

of serious injuries and damage.<

Mobile communications devices

in vehicle

BMW advises against using

mobile communications devices

such as mobile phones inside the vehi-

cle unless they are directly connected

to the external antenna. Otherwise, it is

impossible to prevent a mutual interfer-

ence of the vehicle electronics with the

mobile phone device. Also, there is no

guarantee that the radiation generated

by the transmission will be conveyed

out from the interior of the vehicle.<

When vehicle is parked

Condensation forms in the air condi-

tioner system during operation and then

exits under the vehicle. Traces of water

on the ground are therefore normal.

Brakes

Do not drive with your foot resting

on the brake pedal. Even light but

consistent pedal pressure can lead to

excessively high temperatures, brake

wear and possibly even brake failure.<

Road hazards

If road hazards, obstacles or curbs

are unavoidable, only drive over

them very slowly and carefully, other-

wise the wheels and suspension parts,

especially on vehicles fitted with low

profile tires, can be damaged.<

For more information on wheels and

tires, refer to page 146.

Before driving into a car wash

Fold in the exterior mirrors, refer to

page 53, otherwise they could be dam-

aged due to the width of the vehicle.

Hydroplaning

When driving on wet or slushy

roads, reduce road speed. If you

do not, a wedge of water can form

between tires and road surface. This

state can cause a partial or total loss

of contact with the road surface, of

braking control and of control over the

vehicle.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

138n

General driving notes Driving your X5

Driving through water

Do not drive through water on the

road if it is deeper than 20 in/

50 cm, and then only at walking speed

at the most. Otherwise, the vehicle's

engine, the electrical systems and the

transmission may be damaged. When

equipped with 2-axle self leveling sus-

pension*, switch the vehicle into the

Off-Road setting before driving through,

refer to page 97.<

Using handbrake on slopes

Do not hold the vehicle in place on

slopes by slipping or riding the

clutch; use the handbrake instead. Oth-

erwise, severe clutch wear will result.<

Interior and exterior mirrors,

automatic dimming feature

*

Two photocells serve to control the

automatic dimming of the interior and

exterior rearview mirrors. One photocell

is in the mirror glass, refer to arrow,

while the other is on the back of the

mirror, offset somewhat from the first.

For trouble-free operation, keep the

photocells clean and do not cover the

area between the interior rearview mir-

ror and the windshield. Do not attach

any kind of stickers to the windshield in

front of the mirror either.

530us245

On poor roads

When you are driving on poor roads,

there are a few points which you should

strictly observe — for your own safety,

for that of your passengers, and for the

safety of the vehicle:

Driving on unpaved terrain can

cause damage to the vehicle.<

>Always adapt the driving speed to the

road conditions. The rougher or

steeper the road surface is, the lower

the speed should be

>You can operate your vehicle on

uphill and downhill gradients with a

maximum slope of 50%. If you want

to drive on uphill or downhill gradi-

ents of this kind, make sure before-

hand that the engine oil and coolant

levels are near the max mark, refer to

pages 152 and 154.

Use the HDC Hill Descent Control

when driving down steep grades,

refer to page 94.

It is possible to start off on grades of

up to 33%.

The permissible body roll is also 50%

>While driving, watch carefully for

obstacles such as rocks or holes. Try

to avoid these obstacles whenever

possible

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

139n

OverviewControlsMaintenanceRepairsDataIndex

Driving your X5

>Please note that it is possible for the

undercarriage to touch the ground,

for example on crests and bumpy

roads. The ground clearance of the

vehicle is:

– without self-leveling suspension

X5 3.0i, 4.4i: 8 in/20 cm

X5 3.0d: 7 in/17.5 cm

– with 2-axle self-leveling suspen-

sion*

6.5-9 in/16.5-22 cm, depending on

the level selected.

>Only drive through water up to a max-

imum depth of 20 in/50 cm and only

at walking speed, making sure not to

stop in the process. When equipped

with 2-axle self leveling suspension*,

switch the vehicle to the Off-Road

setting before driving through, refer

to page 97.

After leaving the water, apply the

footbrake lightly several times while

driving at low speeds so as to dry the

brakes by braking and to prevent

decreased braking action due to wet-

ness.

Back onto paved road

Our recommendation that you observe

the following points after driving on

adverse road surfaces is not intended

as a beauty treatment for your BMW.

Instead, it is intended to maintain driv-

ing safety:

>Clean the worst of the dirt from the

body and inspect the undercarriage

for damage.

>Clean mud, snow, ice etc. from the

wheels and tires and check the

wheels for damage.

>Check to determine whether rocks,

gravel or accumulations of dirt on the

brake rotors and calipers could influ-

ence braking performance. Remove

all such foreign objects.

>In order to clean the brake rotors,

apply the footbrake gently several

times while driving at a low speed.

Be sure that following traffic is not

endangered by this.

>For cleaning the handbrake, apply the

lever slightly at approx. 25 mph/

40 km/h and continue to drive for

approx. 200 yards/200 meters, pro-

vided that traffic conditions allow you

to do so.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

140n

Safe braking

Emergency stops

You brake most effectively when you

apply maximum pedal pressure in situa-

tions requiring it: emergency stops.

Since the vehicle maintains steering

responsiveness, you can nevertheless

avoid possible obstacles with a mini-

mum of steering effort.

Pulsation at the brake pedal combined

with sounds from the hydraulic circuits

indicates to the driver that ABS is in its

active mode.

Brake fluid level

If the brake fluid level is too low and

brake pedal travel has become longer,

there may be a malfunction in one of

the two brake system's hydraulic cir-

cuits.

Proceed to the nearest BMW

Sports Activity Vehicle center.

In so doing, increased pressure on the

brake pedal may be required, and slight

pulling to the side and longer braking

distances may result. Please remember

to adapt your driving style accord-

ingly.<

Disk brakes

When the vehicle is driven only occa-

sionally, during extended periods when

the vehicle is not used at all, and in

operating conditions where brake appli-

cations are less frequent, there is an

increased tendency for corrosion to

form on rotors, while contaminants

accumulate on the brake pads. This

occurs because the minimal pressure

that the pads must exert to clean the

rotors during brake applications is not

reached.

If the brake rotors are corroded, they

will tend to respond to braking with a

pulsating effect that even extended

application will fail to cure.

When driving in wet conditions and in

heavy rain, it is advisable to apply light

pressure to the brake pedal from time

to time. Monitor traffic conditions to

ensure that this maneuver does not

endanger other road users. The heat

generated in this process helps dry the

pads and rotors to ensure that the brak-

ing force is then immediately available

when required.

Extended or steep mountain descents

should be driven in the gear in which

only minimal periodic brake application

is required. This avoids excessive strain

on the brakes and possible impairment

of braking action.

Do not drive with the clutch pedal

depressed, at idle or with the

engine switched off, as otherwise there

will be no engine braking effect or

power assistance for braking and steer-

ing.

BMW recommends having brake

inspections performed at a BMW

Sports Activity Vehicle center only. If

you do not, parts of the 4-wheel drive

system could be damaged.

No floor mats, carpets or other objects

may lie in the area of pedal travel, as

otherwise pedal operation may be

impaired.<

Brake pads

For your own safety: use only

brake pads that BMW has

approved for your particular vehicle

model. BMW cannot evaluate non-

approved brake pads to determine if

they are suited for use, and therefore

cannot ensure the operating safety of

the vehicle if they are installed.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

141n

OverviewControlsMaintenanceRepairsDataIndex

Information for your safety

The condition of the tires and the main-

tenance of the specified tire pressure

are crucial not only to the tire's service

life, but also to driving comfort and

most importantly, driving safety.

Checking pressure

Only check tire inflation pressure when

the tires are cold. This means after a

maximum of 1.25 miles/2 km driving or

when the vehicle has been parked for at

least 2 hours. When tires are warm, the

tire inflation pressure increases.

Check the tire inflation pressure

regularly and correct it as needed,

even on the spare wheel: at least twice

a month and before starting long trips. If

you fail to observe this precaution, you

may be driving on tires with incorrect

tire pressures, a condition that can not

only compromise your vehicle's driving

stability, but also lead to tire damage

and the risk of an accident. Do not drive

with deflated, i.e. flat, tires. A flat tire

will seriously impairs your vehicle's

handling and braking response.

Attempts to drive on a flat tire can lead

to loss of control over the vehicle.<

After correcting the inflation pres-

sure(s), always reinitialize the Flat

Tire Monitor, refer to page 99.<

Inflation pressures for factory-

installed tires

The tire inflation pressure specifications

for your factory-installed tires at ambi-

ent temperature are listed on the edge

of the driver's door and can be con-

sulted when the door is open.

Inflation pressures

The tire pressure tables in the following

pages give all of the pressure specifica-

tions for the tire sizes indicated at ambi-

ent temperature.

The inflation pressures apply to

the tire sizes and tire brands

respectively approved and recom-

mended by BMW; a list of these is avail-

able from your BMW Sports Activity

Vehicle center.<

530de225

Tire inflation pressure

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

142n

Tire inflation pressure

For correct identification of the right tire

inflation pressure for your tires, observe

the following:

>Tire sizes for your vehicle

>Load conditions

>Maximum allowable driving speed

Tire inflation pressures for driving up to

100mph or 160km/h:

For normal driving up to 100 mph or

160 km/h adjust pressures to the

respective tire inflation pressures listed

on the following page in the traveling

speeds column for normal driving at

speeds up to a maximum of 100 mph or

160 km/h to achieve optimum driving

comfort.

The permissible top speed for

these tire inflation pressures is

100mph or 160km/h. Do not exceed

this speed, as otherwise tire damage

and accidents may result.<

Tire inflation pressures for driving

above 100 mph or 160 km/h:

In order to drive at maximum

speeds in excess of 100 mph or

160 km/h, please observe, and, if nec-

essary, adjust tire pressures for speeds

exceeding 100 mph or 160 km/h from

the relevant table on the following

pages. Otherwise tire damage and acci-

dents could occur.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

143n

OverviewControlsMaintenanceRepairsDataIndex

Tire inflation pressure

BMW Tire size Pressure specifications in psi/kPa

Traveling speeds

up to a max. of

100 mph/160 km/h

Traveling speeds

including those exceeding

100 mph/160 km/h

All pressure specifications in

the table are indicated in psi/

kilopascal with cold tires,

cold = ambient temperature

X5 3.0i

235/65 R 17 104 H M+S

255/55 R 18 105 H M+S

32/220 33/230 32/220 32/220 32/220 39/270

Front: 255/50 R 19 103 V

Rear: 285/45 R 19 107 V

Front: 275/40 R 20 102 W

Rear: 315/35 R 20 106 W

32/220

–

32/220

–

–

32/220

–

32/220

32/220

–

32/220

–

–

32/220

–

32/220

32/220

–

32/220

–

–

39/270

–

39/270

You will find more information on permissible loads and weights on page 182.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

144n

Tire inflation pressure

BMW Tire size Pressure specifications in psi/kPa

Traveling speeds

up to a max. of

100 mph/160 km/h

Traveling speeds

including those exceeding

100 mph/160 km/h

All pressure specifications in

the table are indicated in psi/

kilopascal with cold tires,

cold = ambient temperature

X5 4.4i

235/65 R 17 104 H M+S

255/55 R 18 105 H M+S

32/220 33/230 32/220 33/230 32/220 39/270

Front: 255/50 R 19 103 V

Rear: 285/45 R 19 107 V

Front: 275/40 R 20 102 W

Rear: 315/35 R 20 106 W

32/220

–

32/220

–

–

32/220

–

32/220

32/220

–

32/220

–

–

32/220

–

32/220

32/220

–

32/220

–

–

39/270

–

39/270

X5 4.8is

Front: 275/40 R 20 102 W

Rear: 315/35 R 20 106 W

255/55 R 18 105 H M+S

32/220

–

32/220

–

35/240

35/240

32/220

–

32/220

–

35/240

35/240

33/230

–

33/230

–

39/270

39/270

Compact wheel:

T 155/80 R 19 114 M

61/420

You will find more information on permissible loads and weights on page 182.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

145n

OverviewControlsMaintenanceRepairsDataIndex

Tire identification marks

Knowledge of the labeling on the side

of the tire makes it easier to identify and

choose the right tires.

Tire size

Speed code letter:

Q = up to 105 mph/160 km/h

T = up to 118 mph/190 km/h

H = up to 131 mph/210 km/h

V = up to 150 mph/240 km/h

W = up to 167 mph/270 km/h

Tire Identification Number

Tires with DOT codes meet the guide-

lines of the U.S. Department of Trans-

portation.

e.g.

Nominal width

in mm

Cross-sectional ratio

in Ξ

Belted construction

radial

Rim diameter in inches

Load index,

not with ZR tires

Speed code letter,

with ZR tires before the R

235/65 R

1

7104H

DOT code:

Tire age

The manufacturer of your BMW recom-

mends that all tires, i.e. including the

spare wheel, be replaced regardless of

the actual wear after 6 years at the lat-

est.

The tire's date of manufacture is indi-

cated on the sidewall:

DOT... 2605 indicates that the tire was

manufactured in week 26 of 2005.

Uniform Tire Quality Grading

Quality grades can be found where

applicable on the tire sidewall between

tread shoulder and maximum section

width. For example:

e.g.

Manufacturer's code

for tire brand

Tire size and tire model

Tire age

DOT xxxx xxx 2605

DOT Quality Grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger car tires must con-

form to Federal Safety Require-

ments in addition to these grades.<

Tread wear

The tread wear grade is a comparative

rating based on the wear rate of the tire

when tested under controlled condi-

tions on a specified government test

course.

For example, a tire graded 150 would

wear one and one-half, 1γ, times as

well on the government course as a tire

graded 100. The relative performance

of tires depends upon the actual condi-

tions of their use, however, and may

depart significantly from the norm due

to variations in driving habits, service

practices and differences in road char-

acteristics and climate.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

146n

Tire identification marks Wheel/tire condition

Traction

The traction grades, from highest to

lowest, are AA, A, B, and C.

Those grades represent the tire's ability

to stop on wet pavement as measured

under controlled conditions on speci-

fied government test surfaces of

asphalt and concrete. A tire marked C

may have poor traction performance.

The traction grade assigned to

this tire is based on straight-ahead

braking traction tests, and does not

include acceleration, cornering, hydro-

planing, or peak traction characteris-

tics.<

Temperature

The temperature grades are A, the

highest, B, and C, representing the

tire's resistance to the generation of

heat and its ability to dissipate heat

when tested under controlled condi-

tions on a specified indoor laboratory

test wheel.

Sustained high temperature can cause

the material of the tire to degenerate

and reduce tire life, and excessive tem-

perature can lead to a sudden flat tire.

The grade C corresponds to a level of

performance which all passenger car

tires must meet under the Federal

Motor Vehicle Safety Standard No. 109.

Grades B and A represent higher levels

of performance on the laboratory test

wheel than the minimum required by

law.

The temperature grade for this tire

is established for a tire that is

properly inflated and not overloaded.

Excessive speed, underinflation, or

excessive loading, either separately or

in combination, can cause heat buildup

and possible a tire failure.<

M+S

Winter and all-season tires.

These have better winter properties

than summer tires.

Wheel/tire damage

Inspect your wheels and tires frequently

for tread wear, signs of damage and for

foreign objects lodged in the tread.

Check the tread pattern depth.

Please note that low-profile tires

make your wheels, tires and sus-

pension parts more susceptible to road

hazard and consequential damages.

Unusual vibrations encountered during

normal vehicle operation can indicate

tire failure or some other vehicle mal-

function. This can, for example, be

caused by driving over curbs. This is

also true for irregularities in the vehi-

cle's handling characteristics, such as a

pronounced tendency to pull to the left

or right. Should this occur, respond by

immediately reducing your speed.

Carefully proceed – or have your vehicle

towed – to the nearest BMW Sports

Activity Vehicle center or tire dealer to

have the wheels or tires inspected.

Tire damage, extending to sudden and

complete loss of pressure in extreme

cases, can pose a potentially lethal

safety hazard for the vehicle's occu-

pants and other road users alike.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

147n

OverviewControlsMaintenanceRepairsDataIndex

Wheel/tire condition

Tire tread

The tread depth should not fall below

0.12 in/3 mm although, for example,

European regulations only require a

minimum tread depth of 0.063 in/

1.6 mm.

At tread depths below 0.12 in/3 mm,

there is an increased risk of high-speed

hydroplaning, even when only small

amounts of water are present on the

road surface.

As winter tires display a noticeable

loss in their ability to cope with cold-

weather driving conditions once the

tread wears to below 0.16 in/4 mm, you

should always have such tires replaced

to ensure continued safety.

Wear indicators at the tread-groove

base are distributed over the tire's cir-

cumference and are marked on the side

of the tire with TWI – Tread Wear Indi-

cator. If the tire tread has worn down

to the wear indicators, then the legally

permissible tread depth limit of

0.063 in/1.6 mm has been reached.

530de423

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

148n

Replacing wheels/tires

Have new wheels and tires

installed only by your BMW Sports

Activity Vehicle center or tire shop that

works according to BMW repair proce-

dures with correspondingly trained per-

sonnel. If this work is not carried out

properly, there is a danger of subse-

quent damage and related safety haz-

ards.<

Retreaded tires

BMW does not recommend the

use of retreaded tires, otherwise

driving safety may be reduced. The rea-

son for this is that possible variations in

the design and aging – which could be

substantial – of the tire casing can

result in a limited service life.<

The right wheels and tires

BMW recommends that you use

only wheel and tire combinations

that BMW has tested and approved for

your particular vehicle. Variations in fac-

tors such as manufacturing tolerances

mean that even wheels and tires with

identical official size ratings could actu-

ally have different dimensions than the

approved units – these differences

could lead to body contact, and with it

the risk of severe accidents. If non-

approved wheels and tires are used,

BMW cannot evaluate their suitability,

and therefore cannot be held liable for

driving safety.<

You can ask your BMW Sports Activity

Vehicle center for the correct wheel/tire

combination.

The correct wheel/tire combination also

affects various systems whose function

would otherwise be impaired, e.g. ABS,

DSC, xDrive.

To maintain good handling and vehicle

response, use only tires of a single

tread configuration from a single manu-

facturer. After tire damage, always

remember to have the original wheel

and tire combination remounted on the

vehicle as soon as possible.

Recommended tire brands:

BMW recommends particular tire

brands for each tire size. You will rec-

ognize them by the clearly visible BMW

identification on the tire sidewall.

With proper use, these tires meet the

highest standards for safety and han-

dling characteristics.

530de424

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

149n

OverviewControlsMaintenanceRepairsDataIndex

Replacing wheels/tires Snow chains

*

Special features of winter tires

BMW recommends winter tires for use

in cold winter driving conditions.

Although all-season M+S tires provide

better winter traction than summer

tires, they generally fail to provide the

same levels of cold-weather perfor-

mance as winter tires.

When switching to winter tires, observe

the description under Tire condition,

page 146, and Replacing wheels/tires.

Observing speed ratings:

Never exceed the maximum

speed for which the winter tires

are rated. Unprofessional attempts by

laymen to service tires can lead to dam-

age and accidents. Have this work per-

formed by skilled professionals only.

The technicians at your BMW Sports

Activity Vehicle center will be glad to

assist you with the required profes-

sional knowledge and specialized

equipment.<

Storage

Store wheels or tires in a cool, dry

place, protecting them against light

whenever possible. Always protect tires

against all contact with oil, grease and

fuels.

Do not exceed the maximum tire infla-

tion pressure indicated on the side wall

of the tire.

Only certain fine-link snow chains are

tested, classified as road-safe, and rec-

ommended by BMW. Consult your

BMW Sports Activity Vehicle center for

details. Use is only permitted in pairs on

the rear wheels with the following tire

sizes:

X5 4.8is: 255/55 R 18

All other models: 235/65 R 17

Follow the manufacturer's instructions

when installing snow chains. Do not

exceed a maximum speed of 30 mph/

50 km/h.

Do not initialize the Flat Tire Moni-

tor after mounting snow chains, as

the monitor may then incorrectly indi-

cate flat tires.

When you are driving with snow chains,

it can be beneficial to switch off DSC

briefly, refer to page 93.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

150n

Hood

Unlocking

Pull the lever located under the left side

of the instrument cluster.

Never attempt to perform any ser-

vice or repair operations on your

vehicle without the required profes-

sional technical training. If you are not

familiar with the regulations to be

observed, only have work on your vehi-

cle carried out by a BMW Sports Activ-

ity Vehicle center or a workshop that

uses personnel trained in accordance

with BMW requirements. If this work is

not carried out properly, there is a dan-

ger of subsequent damage and related

safety hazards.<

530de295

Opening

Pull the release handle and open the

hood.

530de296

Closing

Allow the hood to fall from a height of

about 12 in/30 cm so that it audibly

engages.

Observe the same precautions

that apply to all closing operations

by ensuring that the hood's travel range

is clear and unobstructed before allow-

ing the hood to fall into position.

If you discover that the hood is not

completely closed while driving, stop

immediately and close it securely.<

530de369

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

151n

OverviewControlsMaintenanceRepairsDataIndex

1Engine oil dipstick 152

2 Brake fluid reservoir, located beneath

the microfilter cover 155

3 Auxiliary terminal for jump

starting 174

4 Coolant expansion tank 154

5 Engine oil filler neck 152

6 Reservoir for windshield and

headlamp washer system 152

Engine compartment essentials

530de341

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

152n

Washer fluid Engine oil

Windshield and headlamp washer

system

Approximate capacity is 8.2 US quarts/

7.8 liters.

Fill with water and — if required — with

the addition of a washer antifreeze,

according to manufacturer's recom-

mendations.

We recommend that you mix the

washer fluid before adding it to

the reservoir.<

Antifreeze agent for the washer

systems is flammable. For this

reason, keep it away from sources of

flame and store it only in its original

containers. Store it so that it is inacces-

sible to children. Comply with the

instructions on the containers.<

530de298

Checking oil level

Oil consumption depends on driving

style and operating conditions.

1. With the engine at operating temper-

ature, i.e. after at least 6 miles/10 km

of continuous driving, park the vehi-

cle in a horizontal position

2. Switch off the engine

3. After approx. 5 minutes, pull the dip-

stick out and wipe it off with a clean

lint-free cloth, paper towel, or similar

material

530us100

4. Slide the dipstick carefully all the way

into the dipstick tube and pull it out

again.

The oil level should be in between

the two marks on the dipstick

5. Slide the dipstick all the way into the

dipstick tube again.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

153n

OverviewControlsMaintenanceRepairsDataIndex

Engine oil

The oil volume between the two marks

on the dipstick corresponds to approx.

1.1 US quarts/1 liter.

Do not fill beyond the upper mark

on the dipstick. Excess oil will

damage the engine.<

X5 4.8is:

With a very sporty driving style, the

engine oil level should be at the upper

mark on the dipstick.

530us205

Adding engine oil

Wait until the level has dropped to just

above the lower mark on the dipstick

before adding oil.

Add oil within the next 30 miles/

50 km, otherwise, the engine

could be damaged.<

Keep oil, grease, etc. out of reach

of children and heed warnings on

the containers to avoid health risks.<

Oil change:

Have oil changed only by your BMW

Sports Activity Vehicle center or by a

repair shop that works according to

BMW guidelines with appropriately

trained personnel.

530de326

Specified engine oils

The quality of the engine oil selected

has critical significance for the opera-

tion and service life of an engine.

Based on extensive testing, BMW has

approved only certain engine oils.

Only use approved BMW High Perfor-

mance Synthetic Oil.

If you are unable to obtain BMW High

Performance Synthetic Oil, you can add

small amounts of other synthetic oil in

between oil changes. Only use oils with

the API SH specification or higher.

Ask your BMW Sports Activity

Vehicle center for details concern-

ing the specific BMW High Performance

Synthetic Oil or synthetic oils which

have been approved.<

You can also call BMW of North Amer-

ica at 1-800-831-1117 or visit this web-

site: www.bmwusa.com to obtain this

information.

Never use oil additives as they can

damage your engine under some

circumstances.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

154n

Engine oil Coolant

Viscosity ratings

Viscosity is the oil flow rating as estab-

lished in SAE classes.

The selection of the correct SAE class

depends on the climatic conditions in

the area where you typically drive your

BMW.

Approved oils are in SAE classes

5W-40 and 5W-30.<

These oils may be used for driving in all

ambient temperatures.

Do not open the cooling system

when the engine is hot. Escaping

coolant can cause burns.<

Coolant is comprised of water and

coolant additive. Not all commercially

available additives are suitable for your

BMW. Your BMW Sports Activity Vehi-

cle center knows which additives are

suitable.

Use only suitable additives, other-

wise you could damage your

engine. The additives can be harmful to

your health.<

Always observe all applicable

environmental rules and regula-

tions when disposing of coolant addi-

tives.<

Checking coolant level

1. The engine must be at ambient tem-

perature.

2. Start by turning the cap of the expan-

sion tank counterclockwise. Pause to

allow any accumulated pressure to

escape, then open.

3. The coolant level is correct when the

end of the red float is aligned with

the upper edge of the filler opening,

refer to the arrow in the illustration,

or max. 0.8 in/2 cm higher, i. e. up to

the mark on the float, refer also to the

schematic diagram, next to the cap.

530us102

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

155n

OverviewControlsMaintenanceRepairsDataIndex

Coolant Brake fluid

4. When necessary, slowly add coolant

until the correct level is reached; do

not overfill.

5. Close the cap and tighten snugly.

6. Have the cause of the coolant loss

corrected as soon as possible.

Brake fluid level

If the warning lamp lights up

or

the message CHECK BRAKE

FLUID appears in the Check

Control: stop immediately. The

brake fluid in the reservoir has

fallen to below the minimum

level.

Add brake fluid

The brake fluid reservoir is located

under the microfilter housing trim panel

on the driver's side of the vehicle. For

adding brake fluid or for determining

and correcting the cause of brake fluid

loss, consult your BMW Sports Activity

Vehicle center. Your BMW Sports Activ-

ity Vehicle center is familiar with the

specifications for factory-approved

DOT 4 brake fluids.

Brake fluid loss may result in extended

brake pedal travel. For this situation,

refer to the notes on page 140.

Brake fluid is hygroscopic, that is,

it absorbs moisture from the air

over time.

In order to ensure the safety and reli-

ability of the brake system, have the

brake fluid changed every two years by

a BMW Sports Activity Vehicle center.

Refer also to the Service and Warranty

Information Booklet for US models or

the Warranty and Service Guide Book-

let for Canadian models.

Brake fluid is toxic and also damages

vehicle paintwork. Always store these

agents in tightly-closed original con-

tainers kept well away from the reach of

children.

Do not spill the fluid and do not refill the

brake fluid reservoir to beyond the MAX

mark. The brake fluid could ignite upon

contact with hot engine parts and cause

serious burns.<

Always observe all applicable

environmental rules and regula-

tions when disposing of used brake

fluid.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

156n

The BMW Maintenance System helps

maintain the road and driving safety of

your BMW.

Please keep in mind that regular main-

tenance is not only necessary for the

safety of your vehicle, but also plays a

significant role in maintaining the resale

value of the vehicle.

Service Interval Display

Conventional systems rely solely on

distance traveled to determine when

service is due. The BMW Maintenance

System, on the other hand, began many

years ago to take the actual conditions

under which the vehicle is driven into

consideration. After all, different drivers

can accumulate mileage in very differ-

ent ways.

390us008

From the point of view of maintenance,

62,000 miles/100,000 km accumulated

in short-distance urban driving are not

the equivalent of the same distance

covered at moderate speeds in long-

distance highway travel.

The BMW Maintenance System

includes the Engine Oil Service and

Inspections I and II.

Determining the maintenance intervals

according to the actual loads on the

vehicle covers every kind of operating

situation. However, even those who

drive only short distances, significantly

less than 6,000 miles/10,000 km annu-

ally, should have the engine oil changed

at least every 2 years since oil deterio-

rates over time, regardless of use.

Service and Warranty Information

Booklet for US models/Warranty

and Service Guide Booklet for

Canadian models

For additional information on mainte-

nance intervals and procedures, please

refer to the Service and Warranty Infor-

mation Booklet for US models or the

Warranty and Service Guide Booklet for

Canadian models.

As a precaution against corrosion, it is

advisable to have the body checked for

damage from rocks or gravel at the

same time, depending upon operating

conditions.

Have your BMW Sports Activity

Vehicle center do the mainte-

nance and repair.

Be sure that all maintenance work is

confirmed in the Service and Warranty

Information Booklet for US models or

the Warranty and Service Guide Book-

let for Canadian models.

These entries will constitute your proof

that the vehicle has received regular

maintenance. They are also required for

warranty claims.<

Car care

For all information on this subject, refer

to the Caring for your vehicle brochure.

The BMW Maintenance System

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

157n

OverviewControlsMaintenanceRepairsDataIndex

OBD interface socket

The interface socket for the Onboard

Diagnostics is located on the left of the

driver's side at the bottom of the instru-

ment cluster and under a cover. The

cover has the letters OBD on it.

The purpose of the OBD system is to

ensure proper operation of the emission

control system for the vehicle's lifetime.

The system monitors emission-related

components and systems for deteriora-

tion and malfunction.

An illuminated indicator lamp

informs you of the need for ser-

vice, not of the need to stop the

vehicle. However, the systems should

be checked by your BMW Sports Activ-

ity Vehicle center at the earliest possi-

ble opportunity.

530us105

Display of the previously

described malfunction in Cana-

dian models.

Under certain conditions, the indicator

lamp will blink or flash. This indicates a

rather severe level of engine misfire.

When this occurs, you should reduce

speed and consult the nearest BMW

Sports Activity Vehicle center as soon

as possible. Severe engine misfire over

only a short period of time can seriously

damage emission control components,

especially the catalytic converter.

When the filler cap is not properly

tightened, the OBD system can

detect the vapor leak and the indicator

lamp will light up. If the filler cap is sub-

sequently tightened, the indicator lamp

should extinguish within a few days.<

Event Data Recorders

Your vehicle may be equipped with one

or more sensing and diagnostic mod-

ules or a recording device capable of

recording or transmitting certain vehicle

data or information. In addition, if you

have a Subscription Service Agree-

ment for the BMW Assist system, cer-

tain vehicle information may be trans-

mitted or recorded in order to provide

such services.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

158n

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

159n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Repairs

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

160n

Under the cargo floor cover in a pocket.

530us106

Front

1. Move the wiper to a fold-out position,

refer to page 69

2. Lift the wiper arm and press the

securing spring, refer to arrow

3. Pull the wiper blade off toward the

wiper arm

4. Insert the new blade and snap it into

place.

Fold the wipers back down onto

the windshield before you turn the

ignition key to position 1 or 2 again. If

you do not, they could be damaged.<

530de300

Rear

1. Hold the wiper blade on the window

and remove/unclip the wiper arm at

the articulated joint, refer to arrow

2. Insert a new wiper blade and press it

on/clip it into the wiper arm.

Use only wiper blades approved

by BMW.<

530de301

Onboard tool kit Windshield wiper blades

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

161n

OverviewControlsMaintenanceRepairsDataIndex

Lamps and bulbs

The lamps and bulbs make essential

contributions to the safety of your vehi-

cle. For this reason, follow the instruc-

tions below carefully when replacing a

bulb. If you are not familiar with any of

the procedures, consult your BMW

Sports Activity Vehicle center.

Never touch the glass on new

bulbs with your bare fingers, as

even minute amounts of contamination

will burn into the bulb's surface and

reduce its service life. Use a clean

cloth, paper napkin, or a similar mate-

rial, or hold the bulb by its metallic

base.<

A replacement bulb set is available from

your BMW Sports Activity Vehicle cen-

ter.

To prevent short circuits, before

working on any electrical system,

equipment or accessory you should

always switch it off and disconnect the

cable from the battery's negative termi-

nal before starting.

To avoid possible injury or equipment

damage when replacing bulbs, follow

any instructions provided by the bulb

manufacturer.<

Releasing lamp cover

The illustration shows the right-hand

side of the engine compartment.

1 Halogen low beams

Turn cover cap to left, refer to arrow

2 High beams and parking lamps

Press tab downward, refer to arrow

For checking and adjusting head-

lamp aim, please contact your

BMW Sports Activity Vehicle center.<

530de357

1 Halogen low beams

H7 bulb, 55 watts

The bulb is pressurized. There-

fore, wear safety glasses and pro-

tective gloves. Otherwise there is a

danger of injury if the bulb is acciden-

tally damaged during replacement.<

1. Remove the cover

2. Turn the bulb holder to the left and

remove

3. Pull bulb out of bulb holder by base

and replace.

530de358

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

162n

Lamps and bulbs

2 Halogen high beams

H1 bulb, 55 watts

The bulb is pressurized. There-

fore, wear safety glasses and pro-

tective gloves. Otherwise there is a

danger of injury if the bulb is acciden-

tally damaged during replacement.<

1. Remove the cover

2. Disconnect the plug

3. Unhook wire spring

4. Remove and replace the bulb.

530de359

3 Parking lamps and roadside

parking lamps

10 watt bulb: H 10 W

1. Remove the cover

2. Disconnect the plug

3. Turn reflector module with bulb to

left and remove

4. Replace module with bulb.

Xenon lamps

*

The operating life of these lamp units

is extremely long and the likelihood of

failure very low, provided that they are

not switched on and off a very great

number of times. If one of these bulbs

should nevertheless fail, it is possible to

continue driving with great caution

using the fog lamps, provided traffic

laws in your area do not prohibit this.

To avoid risk of potentially fatal

injuries: owing to the extremely

high voltages at which these units oper-

ate, service work should always be

entrusted to qualified personnel.<

Front turn signals/side-marker

lamps

Bulb S8 yellow

Please contact a BMW Sports Activity

Vehicle center in case of a malfunction.

Side turn signals

5 watt bulb: WY 5 W

1. Use finger pressure against the rear

end of the lamp, refer to arrow, to

press it forward for removal

2. Apply gentle pressure to the bulb

while turning it to the left and pull it

out

3. Replace the bulb.

530de304

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

163n

OverviewControlsMaintenanceRepairsDataIndex

Lamps and bulbs

Front fog lamps

H11 bulb, 55 watts

The bulb is pressurized. There-

fore, wear safety glasses and pro-

tective gloves. Otherwise there is a

danger of injury if the bulb is acciden-

tally damaged during replacement.<

1. Pull the cover in front of the fog lamp

forward.

2. Loosen the two screws, refer to

arrows, and remove the fog lamp.

When pulling out, overcome initial

resistance and turn the headlamp

slightly to the left.

3. Pull the cable connector off the bulb.

4. Turn the bulb to the left and remove.

530de356

5. Insert a new bulb in the headlamp

and turn as far to the right as possi-

ble.

6. Connect the plug connector to the

bulb, ensuring proper engagement.

Tail lamps

21 watt bulbs: P 21 W and PY 21 W,

recommendation: BMW special bulbs

with neutral coloration

1 Turn signal

2 Rear lamp/side marker lamp

3 Backup lamp

4Brake lamp

5Reflector

530us235

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

164n

Lamps and bulbs

Lamps in the side panel:

1. Open the cover in the side panel

2. Lift the side panel if necessary

3. Apply gentle pressure to the bulb

holder while turning it to the left for

removal and replacement

4. Remove the bulb.

530de305

Lamps in the tailgate:

1. Unclip the trim panel in the tailgate

with a screwdriver

2. Apply gentle pressure to the bulb

holder while turning it to the left for

removal and replacement

3. Remove the bulb.

Center brake lamp

LED strip in the rear spoiler: please

contact a BMW Sports Activity Vehicle

center in case of a malfunction.

530de306

License plate lamps

5 watt bulb

1. Press the lamp out to the side with a

screwdriver

2. Remove the lamp and replace the

bulb.

530de307

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

165n

OverviewControlsMaintenanceRepairsDataIndex

Lamps and bulbs Changing a wheel

Light-emitting diodes LEDs

Light-emitting diodes installed behind

translucent lenses serve as the light

source for many of the controls and dis-

plays in your vehicle. The concept

behind their operation is related to that

employed for lasers.

Do not remove the covers, and

never stare into the unfiltered light

several hours, as irritation of the retina

could result.<

Safety precautions to observe in

the event of a flat and during all

tire changes:

Park the vehicle as far as possible from

passing traffic. Park on a firm, flat, sur-

face. Switch on the hazard warning

flashers.

Turn the steering wheel to the straight-

ahead position, remove the key and

engage the steering lock. Shift into 1st

or reverse, selector lever in Park with

automatic transmission, and engage the

handbrake.

All passengers should be outside the

vehicle and well away from your imme-

diate working area, behind a guardrail,

for instance.

If a warning triangle or portable hazard

warning lamp is required, set it up on

the roadside at an appropriate distance

from the rear of the vehicle. Comply

with all safety guidelines and regula-

tions.

Change the wheel only on a level, firm

surface that is not slippery. The vehicle

or the jack could slip to the side if you

attempt to raise the vehicle on a soft

or slippery surface such as snow, ice,

tiles, etc.

Position the jack on a firm support sur-

face.

Do not place wooden blocks or similar

objects under the jack. If this is done,

the jack might not be able to reach its

full support capacity because of the

limited height. To avoid serious or fatal

injury: never lie under the vehicle, and

never start the engine while it is sup-

ported by the jack.<

Your BMW has either a compact wheel

for temporary use to ensure your mobil-

ity, or a spare wheel of the size 235/

65 R 17. Please observe the differences

in handling when removing the wheel

from the cargo area.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

166n

Changing a wheel

What you will need

In order to avoid rattling noises later,

note the position of the tools when you

remove them and return them to their

original position when you are through

using them.

>Two wheel chocks

Open liftgate and tailgate.

Raise the floor panel flap or pull-out

cargo floor in the cargo area, refer to

page 128 or 129. On vehicles with a

compact wheel, remove the cover,

refer to page 167.

Remove the wheel chocks, refer to

arrow, next to the spare wheel

530us117

>Lug wrench

Located beside the spare wheel

530us120

>Handle for the jack

Remove from its holder

530de405

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

167n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel

>Jack

Remove the rubber band from the

holder, refer to arrow, and take out

the jack.

Following use, crank down the vehi-

cle jack completely again and clip in

the crank.

530de404

Compact wheel

Remove the cover under the floor panel

flap.

Vehicles with pull-out cargo floor: the

cover is secured at the rear on both

sides with quick-release locks.

1. Loosen the wing nut 1

2. Remove the plate 2 to the side

3. Remove the wheel.

530de309

Spare wheel

*

1. Loosen the wing nut 1

2. Remove the plate 2 to the side

3. Unscrew the threaded rod 3 com-

pletely.

530us118

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

168n

Changing a wheel

Removal aid for spare wheel

By using this device, you do not have to

lift the spare wheel out of the recess by

hand.

Its task is to help you to move the wheel

onto the tailgate, from where you can

easily lift it off.

1. Close the tailgate again

2. Grasp the handle of the removal aid

behind the spare wheel with both

hands and pull upward over the tail-

gate, refer to arrow.

530de310

3. Hook both buckles into the latch of

the tailgate, refer to arrow; the tail-

gate is released.

530de311

4. Remove the support rod from the

bracket.

530de312

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

169n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel

5. Press the tailgate down and hold it

there. The spare wheel is now pulled

by means of the removal aid onto the

tailgate.

Hold the tailgate in the opened

position and do not allow it to

spring upward abruptly. If you do so,

there is a risk of vehicle damage and

injury.<

530de313

6. Insert the support rod in the tailgate

lock and press down until it engages,

refer to arrow 1; then lock hook of

rod in striker, refer to arrow 2.

Make sure that the support rod is

locked firmly in place. If you fail to

do so, the tailgate could move upward

quickly and cause personal injury and

vehicle damage.<

7. You can now release the locked tail-

gate and take down the spare wheel.

It is recommended that you leave the

tailgate locked into place until you

have completed the wheel change

and placed the wheel with the defec-

tive tire into the removal aid.

530de314

Procedure

1. Read carefully and comply with the

safety precautions on page 165.

2. Secure the vehicle to prevent it from

rolling:

Place the wedges – chocks – behind

the wheels on the side opposite the

side you are lifting. If the vehicle is

parked on a downward slope, place

the wedges securely in front of the

wheels. If the wheel must be

changed on a surface with a more

severe slope, take additional precau-

tions to secure the vehicle from roll-

ing.

3. Loosen the lug bolts 1/2-turn.

4. Insert the jack handle into the jack,

refer to the illustration in the next col-

umn.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

170n

Changing a wheel

5. Position the jack at the jacking point

closest to the flat tire so that the jack

base is vertically below the jacking

point and the entire surface of the

head of the jack will move into the

square recess of the jacking point,

refer to the illustration detail, when

the jack is cranked.

6. Jack the vehicle up until the wheel

you are changing is raised from the

ground.

7. Unscrew the lug bolts and remove

the wheel.

8. Remove accumulations of mud or dirt

from the mounting surfaces of the

wheel and hub. Clean the lug bolts.

9. Move the spare wheel into position.

Secure the wheel by turning at least

two lug bolts into opposite bolt

holes.

530de236

10. Screw in the remaining lug bolts.

Tighten all the bolts securely in a

diagonal pattern.

11. Lower the jack and remove it from

beneath the vehicle.

12. Tighten the lug bolts in a diagonal

pattern.

13. Check and correct the tire inflation

pressure at the earliest opportunity.

After mounting the spare wheel or

correcting the inflation pressure,

reinitialize the Flat Tire Monitor,

refer to page 99.

Protect valve stems and valves from dirt

using screw-on valve stem caps. Dirt in

the valve stems frequently leads to slow

leaks.

The vehicle jack is designed for

changing wheels only. Do not

attempt to raise another vehicle model

with it or to raise any load of any kind.

To do so could cause accidents and

personal injury.

To ensure safety, always have the lug

bolts checked with a calibrated torque

wrench as soon as possible to ensure

that they are tightened to the specified

torque. The tightening torque is

101 lb ft/140 Nm.<

Store the wheel and the tools in the

order opposite that for removal.

Before removing the support rod,

be sure that the tailgate is held

down firmly. If you fail to do so, it could

spring upward abruptly and cause per-

sonal injury and vehicle damage.

After you remove the rod, close the tail-

gate carefully. Continue to hold it firmly

until it is completely closed.<

If light-alloy wheels other than Genuine

BMW light-alloy wheels have been

mounted, it may be necessary to use

different lug bolts for those wheels.

Replace the defective tire as soon as

possible and have the new wheel/tire

balanced.

Driving with compact wheel

Drive reservedly and do not exceed a

maximum speed of 50 mph/80 km/h.

Altered handling characteristics, such

as reduced track stability during brak-

ing, longer braking distances and

altered self-steering properties at the

driving limit can occur. These proper-

ties are more apparent in conjunction

with winter tires.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

171n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel Vehicle battery

Only one compact wheel may be

mounted. Wheels and tires of the

original size should be mounted again

as soon as possible.<

Driving with spare wheel

*

Do not exceed a speed of

130 mph/210 km/h, otherwise tire

damage could lead to accidents.<

With certain wheel-and-tire com-

binations the size of the spare

wheel differs from that of the other

wheels. To restore the original state,

the normal wheel should be remounted

as soon as possible.<

Battery posts, terminals and

related accessories contain lead

and lead compounds. Wash hands after

handling.<

Battery care

The battery is maintenance-free, that is,

the original electrolyte will normally last

for the service life of the battery under

moderate climatic conditions. Your

BMW Sports Activity Vehicle center will

be glad to advise in all matters con-

cerning the battery.

Charging battery

Only charge the battery in the vehicle

via the terminals in the engine compart-

ment with the engine off. For correct

connections, refer to Jump starting on

page 174.

Disposal

Following replacement, have old

batteries disposed of by your

BMW Sports Activity Vehicle center or

turn them over to a recycling center.

Maintain the battery in an upright posi-

tion for transport and storage. Always

restrain the battery to prevent it from

tipping over during transport.<

Power failure

Following a temporary power failure,

e.g. in the case of a dead battery, some

equipment is subject to restricted use

and must be reinitialized. Individual set-

tings are also lost and must be updated

again:

>Seat, mirror and steering wheel

memory

The positions must be stored again,

refer to page 50

>Time and date

Have to be updated again, refer to

page 82

>Activation time for parked car

ventilation

Has to be updated again, refer to

page 84.

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

172n

Fuses

In glove compartment

Open the fuse cover in the glove com-

partment by the indentations on the

right and left.

530us121

In cargo area

Open the right cover by pulling the

handle.

Never attempt to repair a blown

fuse, and do not replace a defec-

tive fuse with a substitute of another

color or amperage rating, as this could

lead to a circuit overload, ultimately

resulting in a fire in the vehicle.<

530us122

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

173n

OverviewControlsMaintenanceRepairsDataIndex

The Roadside Assistance of the BMW

Group offers you assistance in the

event of a breakdown around the clock,

also on weekends and public holidays.

The phone numbers of the Roadside

Assistance control center in your home

country can be found in the BMW

Dealer Directory.

In the case of vehicles with the corre-

sponding equipment, you can use but-

tons in the headliner to contact Road-

side Assistance or initiate an

emergency call.

When the emergency call is initiated, a

telephone connection with the BMW

Assist response center is established.

In vehicles with activated BMW Assist,

if the current position of your vehicle

can be determined, it is transmitted to

the BMW Assist response center.

The requirements for initiating an emer-

gency call or contacting Roadside

Assistance:

>Ignition key in position 1

>The car phone is logged on to a

mobile telephone network

>The emergency call system is opera-

ble.

1 Initiating an emergency call

2 Establishing contact to Roadside

Assistance

Initiating an emergency call

*

Press button 1 for at least 2 seconds.

The LED in the button lights up. As

soon as the voice connection to the

BMW Assist response center has been

established, the LED flashes. If the LED

flashes, but you are unable to hear the

response center, you can still be heard

by the response center.

530ue261

For technical reasons, the emer-

gency call cannot be guaranteed

under the most unfavorable condi-

tions.<

Under certain conditions, an emer-

gency call is initiated automatically

immediately after a severe accident.

The automatic emergency call is not

affected by the button being pressed.

Roadside Assistance

*

Press button 2 for at least 2 seconds.

With the BMW Assist activated, the cur-

rent position of your vehicle will be

transmitted in the specific country.

Receiving assistance

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

174n

Jump starting

When your battery is discharged, you

can use two jumper cables to start your

vehicle with power from the battery in a

second vehicle. You can also use the

same method to help start another vehi-

cle. Use only jumper cables with fully-

insulated clamp handles.

To avoid the risk of potentially

fatal injury, always avoid all con-

tact with electrical components while

the engine is running. Carefully observe

the following instructions to avoid per-

sonal injury and/or damage to one or

both vehicles.<

Preparing

1. Check whether the battery of the

other vehicle has a voltage of

12 Volts and approximately the same

capacitance in Ah. This information

can be found on the battery.

2. Switch off the engine of the support

vehicle.

3. Switch off any electrical systems and

components in both vehicles.

Ensure that no contact exists

between the bodywork on the two

vehicles, otherwise there is a danger of

short circuits.<

Connecting jumper cables

To avoid personal injury from

sparks, always follow this

sequence when connecting jumper

cables.<

On your BMW the so-called jump-start

connection point in the engine com-

partment acts as the battery positive

terminal, also refer to the engine com-

partment overview on page 151. The

cover cap is marked with +.

1. Fold up the cap of the BMW jump-

start connection point, refer to arrow.

2. Attach one end of the positive/+

jumper cable to the positive terminal

of the battery or a jump-start connec-

tion point of the vehicle providing

assistance.

3. Connect the second terminal clamp

of the positive/+ jumper cable to the

positive terminal of the battery or a

jump-start connection point of the

vehicle to be started.

530de325

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

175n

OverviewControlsMaintenanceRepairsDataIndex

Jump starting Tow-starting and towing

Your BMW is equipped with a special

nut on the left side panel as a body

ground or negative terminal, refer to

arrow in illustration.

4. Attach one end of the negative/–

jumper cable to the negative terminal

of the battery or to an engine or body

ground of the vehicle providing

assistance.

5. Connect the second terminal clamp

of the negative/– jumper cable to the

negative terminal of the battery or to

the engine or body ground of the

vehicle to be started.

530us127

Starting engine

1. Start the engine on the support vehi-

cle and allow it to run for several min-

utes at a fast idle.

2. Start the engine on the other vehicle

in the usual way.

If the first start attempt is not suc-

cessful, wait a few minutes before

another attempt in order to allow the

discharged battery to recharge.

3. Let the engines run for a few min-

utes.

4. Disconnect the jumper cables by

reversing the connection sequence.

Depending on the cause of the mal-

function, have the battery recharged by

your BMW Sports Activity Vehicle cen-

ter.

Never use spray fluids to start the

engine.<

Using tow fitting

The screw-in tow fitting is stored

beneath the cargo floor cover. Carry it

with you at all times. It can be screwed

in at the front or rear of the vehicle.

Only use the tow fitting that

comes with the vehicle and screw

it in as far as it will go. Use the tow fit-

ting for towing only on the roadway.

Avoid lateral loading of the tow fitting,

e.g. do not lift the vehicle by the tow fit-

ting. Otherwise damage to the tow fit-

ting and the vehicle can occur.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

176n

Tow-starting and towing

Access to screw thread

Front:

Use a screwdriver to press the right or

left cover out, refer to arrows.

530de370

Rear:

Pull the cover off.

Being towed

Make sure that the ignition key is

in position 1, otherwise the steer-

ing lock could engage and it would not

be possible to steer the vehicle. When

the engine is stopped, there is no

power assist. This requires increased

braking and steering effort.<

Switch on the hazard warning flashers

depending on the local regulations.

If the electrical system fails, mark the

vehicle to be towed, e.g. with a sign or

warning triangle in the rear window.

530de318

Do not exceed a towing speed of

30 mph/50 km/h and a towing dis-

tance of 95 miles/150 km, otherwise

the automatic transmission may be

damaged.<

Manual transmission:

Gearshift lever in idle position

Automatic transmission:

Selector lever in N.

Towing methods

In some countries, towing with a tow

bar or rope on public roads is not per-

mitted.

Familiarize yourself with all regulations

on towing in the respective country.

With tow bar:

The towing vehicle may not be

lighter than the vehicle to be

towed, otherwise handling will be

uncontrollable.<

The tow fitting of both vehicles should

be on the same side. If an angled posi-

tion of the bar cannot be avoided, be

aware of the following:

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

177n

OverviewControlsMaintenanceRepairsDataIndex

Tow-starting and towing

>The freedom of movement is

restricted during cornering

>The angled position of the tow bar

creates lateral forces.

Only attach the tow bar to the tow

fittings, as attachment to other

vehicle parts can lead to damage.<

With tow-rope:

When starting off in the towing vehicle,

make sure that the tow-rope is taut.

Use nylon ropes or nylon straps

for towing, and avoid all exces-

sively sudden jerking movements. Only

attach tow ropes to the tow fittings, as

attachment to other vehicle parts can

lead to damage.<

With tow truck:

Do not tow the X5 with the front or

rear axle raised individually, other-

wise the wheels may lock and the

transfer case may be damaged.<

The X5 may only be transported on a

flat bed.

530de403

Tow-starting

Do not tow-start vehicles with an

automatic transmission.

For information on jump starting, refer

to page 174.<

Only tow-start vehicles with a catalytic

converter with the engine cold. It is bet-

ter to jump start the engine, refer to

page 174.

1. Switch on the hazard warning flash-

ers and observe local regulations.

2. Turn the ignition key to position 2.

3. Shift into 3rd gear.

4. Tow-start with the clutch completely

depressed and slowly release the

clutch. After the engine starts, imme-

diately depress the clutch again

completely.

5. Stop at a suitable location, remove

the tow bar or rope and switch off the

hazard warning flashers.

6. Have the vehicle checked.

Do not activate the HDC Hill

Descent Control during tow-

starting, refer to page 94.<

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

178n

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

179n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Data

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

180n

An engine performance test is authorized only on an appropriate chassis dynamometer.

X5 3.0i X5 4.4i X5 4.8is

Displacement

Number of cylinders

cu in/cm

3

181.8/2,979

6

268.4/4,398

8

292.9/4,799

8

Maximum output

at engine speed

hp

rpm

225

5,900

315

5,400

355

6,200

Maximum torque

at engine speed

Ib ft/Nm

rpm

214/290

3,500

324/440

3,600

369/500

3,500

Engine specifications

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

181n

OverviewControlsMaintenanceRepairsDataIndex

Dimensions

530de210

530de368

All dimensions are given in inches/mm. Height: with self-leveling suspension 67.2/1,707; without self-leveling

suspension 67.5/1,715; X5 4.8is 66.4-67.8/1,668-1,723. Height with roof-mounted luggage rack: with self-leveling

suspension 68.5/1,740; without self-leveling suspension 68.9/1,750. Track width: X5 3.0i 62.0/1,576;

X5 4.8is front 61.7/1,566, rear 62.8/1,596. Min. turning circle dia.: 39.7 ft/12.1 meters.

73.7/1,872 85.8/2,180

61.4/1,560 61.4/1,560

111.0/2,820

183.7/4,667

67.2/1,707

81.7/2,076

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

182n

Weights

X5 3.0i X5 4.4i X5 4.8is

Curb weight

with manual transmission

with automatic transmission

lbs./kg

lbs./kg

4,652/2,110

4,696/2,130

–

4,927/2,235

–

5,016/2,275

Approved gross vehicle weight

with manual transmission

with automatic transmission

lbs./kg

lbs./kg

6,008/2,725

6,008/2,725

–

6,008/2,725

–

6,008/2,725

Load

with manual transmission

with automatic transmission

lbs./kg

lbs./kg

1,356/615

1,312/595

–

1,080/490

–

992/450

Approved front axle load lbs./kg 2,712/1,230 2,789/1,265 2,789/1,265

Approved rear axle load lbs./kg 3,307/1,500 3,307/1,500 3,307/1,500

Approved roof load capacity lbs./kg 220/100

Never exceed either the approved axle loads or the gross vehicle weight.

Cargo area capacity cu ft/l 16.4/465, according to DIN

69.01/1,955, according to SAE

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

183n

OverviewControlsMaintenanceRepairsDataIndex

Capacities

Notes

Fuel tank

including a reserve of:

X5 3.0i

X5 4.4i, 4.8is

gal./liters

gal./liters

gal./liters

approx. 24.6/approx. 93

approx. 2.1/approx. 8

approx. 2.6/approx. 10

Fuel specification: page 26

Windshield washer system

with headlamp washer system

quarts/liters approx. 8.2/approx. 7.8 For details: page 152

Engine with oil filter change

X5 3.0i

X5 4.4i, 4.8is

quarts/liters

quarts/liters

8.0/7.5

8.5/8.0

BMW High Performance

Synthetic Oil.

For details: page 153

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

184

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

185n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Index

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

A

Ability to climb, refer to

Driving on poor roads 138

ABS Antilock Brake

System 91

warning lamp 20

Accessories, refer to For

your own safety 9

Accident, refer to

Emergency call 173

Roadside Assistance 173

Activated-charcoal filter 112

Adaptive Head Light 101

Adjusting cooling capacity of

rear climate control 112

Adjusting seats 44

electric 46

electric comfort seat 46

mechanical 45

mechanical sports seat 45

Air, drying, refer to Air

conditioning 105,110

Airbags 55

sitting safely 43

warning lamp 21

Air circulation, refer to

Recirculated-air mode 105

Air conditioner 104

Air conditioning

air conditioner 105

automatic climate

control 110

Air distribution

air conditioner 105

automatic climate

control 109

individual 109

Airing, refer to

Ventilation 106,111

Air outlets, refer to

Ventilation 106,111

Air pressure, refer to Tire

inflation pressure 141

Air recirculation, refer to

AUC Automatic recircu-

lated-air control 110

Air supply

air conditioner 105

automatic climate

control 109

rear climate control 112

Air vents, refer to

Ventilation 104,107

Alarm system 38

avoiding unintentional

alarms 39

All-season tires, refer to

Special features of winter

tires 149

All-wheel drive, refer to

xDrive 94

Antenna, refer to Caring for

your vehicle brochure

Antifreeze

coolant 154

washer fluid 152

Antilock Brake System

ABS 91

warning lamp 20

Anti-theft alarm system, refer

to Alarm system 38

Anti-theft system 30

Anti-trapping

mechanism 40,42

panorama glass roof 42

power windows 40

Armrest, refer to Storage

compartments 119

Artificial leather, refer to

Caring for your vehicle

brochure

Artificial wood trim, refer to

Caring for your vehicle

brochure

Ashtray 121

front 121

rear 121

AUC Automatic recirculated-

air control 110

Automatic

air distribution 109

air supply 109

cruise control 71

headlamp control 100

recirculated-air control

AUC 110

steering wheel

adjustment 53

Automatic car wash, refer to

Caring for your vehicle

brochure

Automatic climate

control 107

Automatic cruise control 71

Automatic curb monitor 51

Automatic headlamp

control 100

Automatic rear window

washer 71

Automatic Soft Close

function, liftgate 36

Automatic speed reduction

for descents, refer to HDC

Hill Descent Control 94

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

187n

OverviewControlsMaintenanceRepairsDataIndex

Automatic transmission with

Steptronic 65

interlock 62

selector lever interlock 66

shiftlock 66

towing 176

tow-starting 176

warning lamp 20,21

AUTO program, refer to

Automatic air distribution

and supply 109

Average fuel

consumption 80,87

Average speed 80,88

Avoiding alarms 39

Axle loads, refer to

Weights 182

B

Backrest contour, refer to

Lumbar support 46

Backrests, refer to Adjusting

seats 45,46

Backup lamps 65

replacing bulbs 163

Bandages, refer to First-aid

kit 24

Bar, towing 176

Battery 171

disposal 171

indicator lamp 19

jump starting 174

power failure 171

remote control 30

Belts, refer to Safety belts 49

Beverage can holders, refer

to Cup holders 120

Beverage holder, refer to

Cup holders 120

Blower

air conditioner 105

automatic climate

control 109

refer to Air supply 105,109

BMW High Performance

Synthetic Oil 153

BMW Maintenance

System 156

Bottle holder, refer to Cup

holders 120

Brake fluid 155

adding 155

level 155

replacing 155

warning lamp 19

Brake force display 98

Brake hydraulic system 140

warning lamp 19,20

Brake lamps, replacing

bulbs 163

Brake lights, refer to Brake

lamps 163

Brake pads 140

breaking-in 136

warning lamp 19,21

Brake rotors

brake system 140

breaking-in 136

Brakes 140

ABS 91

brake fluid 155

brake pads 140

breaking-in 136

handbrake 64

indicator/warning

lamp 19,20

Brake system

brake fluid 155

brake fluid level 140,155

brake pads 140

breaking-in 136

disk brakes 140

warning lamp 19

Brake wear warning

warning lamp 19,21

Breakdown, Flat Tire

Monitor 98

Breakdown assistance,

refer to Roadside

Assistance 173

Breaking-in 136

Break wear warning, refer to

Brake pads 140

Buttons on steering wheel 23

C

California Proposition

65 Warning 9

Calling, refer to telephone

Owner's Manual

Can holders, refer to Cup

holders 120

Capacities 183

Car care, refer to Caring for

your vehicle brochure

Car-care products, refer to

Caring for your vehicle

brochure

Care, refer to Caring for your

vehicle brochure

Care of paintwork, refer to

Caring for your vehicle

brochure

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Cargo area 124

capacity 182

cover, refer to Roll-up

cover 125

emergency operation,

refer to Unlocking

manually 35,36

enlarging 124

floor cover 127

lamps 103

lid, refer to Liftgate/

tailgate 35,36

opening, remote control 31

opening/closing, refer to

Liftgate 35

opening/closing, refer to

Tailgate 36

opening from inside 35

opening from outside 35

Cargo-area partition net 125

Cargo bay, refer to Cargo

area 124

Cargo floor, pull-out 128

Cargo loading 130

Caring for leather, refer to

Caring for your vehicle

brochure

Caring for the carpet, refer to

Caring for your vehicle

brochure

Car keys, refer to Keys 30

Car phone, refer to separate

Owner's Manual

Car phone provision 116

Car radio, refer to Owner's

Manual for Radio/Onboard

Computer

Car wash, refer to Caring for

your vehicle brochure

Cassette operation, refer to

Owner's Manual for Radio/

Onboard Computer

CD changer, refer to Owner's

Manual for Radio/Onboard

Computer

CD operation, refer to

Owner's Manual for Radio/

Onboard Computer

Center armrest, refer to

Storage

compartments 119

Center brake lamp, replacing

bulbs 164

Central locking system 30

interior 34

Changes, technical, refer to

For your own safety 9

Changing a wheel 165

Changing gears with

automatic transmission

with Steptronic 66

Changing tires 145

Changing wheels

compact wheel 167

spare wheel 167

Charge-current indicator

lamp 19

Charging battery 171

CHECK button 77

Check Control 77

Child's seat, refer to Child-

restraint systems 57

Child-restraint fixing system

LATCH 59

Child-restraint systems 57

Child-safety locks 60

Chocks 166

Chrome parts, care, refer to

Caring for your vehicle

brochure

Cigarette lighter 121,122

Cigarette lighter socket, refer

to Socket 121

Circulation of air, refer to

Recirculated-air

mode 105,110

Cleaning, vehicle, refer to

Caring for your vehicle

brochure

Cleaning rear window 71

Climate control in the rear

passenger area 111

Clock 82

12 or 24-hour mode 82

hour signal 83

setting 82

setting, also refer to

Owner's Manual for Radio/

Onboard Computer

setting time and date 82

Closing

from inside 34

from outside 31

Clothes hooks 120

Clutch 136

breaking-in 136

Cockpit 14

Code

activating 88

deactivating 89

establishing 88

Cold starting, refer to

Starting engine 63

Combination of wheels/

tires 148

Comfort seat 46

Comfort starting, refer to

Starting engine 63

Compact Disc operation,

refer to Owner's Manual

for Radio/Onboard

Computer

Compact wheel, changing

wheels 167

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

189n

OverviewControlsMaintenanceRepairsDataIndex

Compartments, refer to

Storage

compartments 119

Compass interior rearview

mirror 117

Computer 79,85

also refer to Owner's

Manual for Onboard

Computer

Condensation, refer to

Air conditioning 105,110

Connecting vacuum cleaner,

refer to Sockets 121,128

Consumption, refer to

Average fuel

consumption 80

Fuel consumption 87

Consumption display, refer

to Energy control 74

Consumption indicator, refer

to Fuel gauge 75

Contents 4

Controls, refer to Cockpit 14

Convenience opening mode

panorama glass roof 31

windows 31

Convenience operation

from outside 33

panorama glass roof 33

windows 33

Coolant 154

level 154

temperature gauge 76

warning lamp 76

Coolant temperature 76

Coolant temperature

gauge 76

Cooling, maximum 110

Cooling, refer to

Air conditioning 105,110

Temperature 105,109

Copyright 4

Cornering light, refer to

Adaptive Head Light 101

Correct tires

wheel/tire

replacement 148

winter tires 149

Courtesy illumination, refer

to Courtesy lighting 103

Courtesy lighting 103

Cruise control 71

buttons on steering

wheel 23

indicator lamp 22

Cruising range 80,87

Cup holders 120

Curb weight, refer to

Weights 182

Current consumption, refer

to Energy control 74

Cylinders, refer to Engine

data 180

D

Dashboard, refer to

Cockpit 14

Dashboard lighting, refer to

Instrument lighting 102

Data, technical 180

dimensions 181

engine 180

filling capacities 183

weights 182

Date

also refer to Owner's

Manual for Onboard

Computer

changing 82

displaying 82

Daytime driving lamps 100

DBC Dynamic Brake

Control 91

indicator lamp 21

Deactivating the alarm in an

emergency 89

Defective lamp 161

Defrosting windows 106,109

air conditioner 106

automatic climate

control 109

Defrosting windows and

removing condensation

air conditioner 106

automatic climate

control 109

Defrost position, refer to

Defrosting

windows 106,109

Digital clock 82

also refer to Owner's

Manual for Onboard

Computer

Digital compass 117

Dimensions 181

Dimming feature, interior

mirror 138

Dipstick, engine oil 152

Directional indicators, refer

to Turn signals 68

Disk brakes 140

Displacement, refer to

Engine specifications 180

Display, refer to Instrument

cluster 15,17,18

Display lighting, refer to

Instrument lighting 102

Disposal, vehicle battery 171

Distance to destination 86

Distance warning, refer to

PDC Park Distance

Control 90

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Divided rear seat backrest,

refer to Folding rear seat

back 124

Door keys 30

Door lock 33

DOT Quality Grades 145

Draft-free

ventilation 106,111

Driving lamps, refer to

Parking lamps/low

beams 100

Driving notes

breaking-in 136

driving hints 137,138

Driving on poor roads 138

Driving stability control 92

Driving tips, refer to Driving

notes 137

Driving your X5 138

Dry air, refer to Air

conditioning 105,110

DSC Dynamic Stability

Control 92

warning lamp 22

DVD changer, refer to

Owner's Manual for Radio/

Onboard Computer

Dynamic Brake Control

DBC 91

indicator lamp 21

Dynamic Stability Control

DSC 92

warning lamp 22

E

EBV Electronic brake-force

distribution 91

Electrical defect

liftgate 35

tailgate 36

Electrical malfunction

automatic transmission

with Steptronic 67

door lock 33

driver's door 33

fuel filler door 24

panorama glass roof 42

Electric steering wheel

adjustment 52

Electronic brake-force distri-

bution EBV 91

Electronic Stability Program

ESP, refer to DSC Dynamic

Stability Control 92

Emergency call 173

Emergency operation, refer

to Manual operation

driver's door 33

fuel filler door 24

liftgate 35

panorama glass roof 42

tailgate 36

Emergency Service, refer to

Roadside Assistance 173

Energy-conscious driving,

refer to Energy control 74

Energy control 74

Engine

breaking-in 136

data 180

electronic circuitry 22

overheated, refer to

Coolant temperature

gauge 76

speed 74

starting 62

switching off 63

Engine compartment 151

Engine coolant 154

Engine oil 152

additives, refer to

Specified engine oils 153

filling capacity 183

indicator/warning lamp 19

specified engine oils 153

Engine oil level 152

indicator/warning lamp 21

Engine oil pressure,

indicator/warning lamp 19

Engine oil temperature

gauge 75

Engine output, refer to

Engine specifications 180

Engine overheating, refer to

Coolant temperature

gauge 76

Engine specifications 180

Engine speed, refer to

Engine specifications 180

Environmentally friendly

driving, refer to Energy

control 74

ESP Electronic Stability

Program, refer to DSC

Dynamic Stability

Control 92

Event Data Recorders 157

Exhaust system 137

Extended immobilizer

function 88

Exterior mirrors 53

automatic dimming

feature 138

folding in and out 54

External air, automatic

climate control 110

F

Failure messages, refer to

Check Control 77

Failure of a current

consumer 172

False alarms, refer to

Avoiding unintentional

alarms 39

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

191n

OverviewControlsMaintenanceRepairsDataIndex

Fastening seat belts

refer to Safety belts 49

Fasten safety belts

warning lamp 21,49

Fault displays, refer to Check

Control 77

Filter, refer to

Microfilter 106

Microfilter/activated-

charcoal filter 112

First aid, refer to First-aid

kit 24

First-aid kit 24

Flashlight 119

Flat, compact wheel 167

Flat tire 165

compact wheel 167

Flat Tire Monitor 98

refer to Changing a

wheel 165

refer to Tire inflation

pressure 141

spare wheel 167

Flat Tire Monitor 98

false alarms 98

initializing system 99

limits of system 98

show chains 149

warning lamp 99

Flooding, refer to Driving

through water 138

Floor mats, refer to Caring

for your vehicle brochure

Fluid level, indicator lamp 21

Fog lamps, indicator lamp 22

Folding floor cover up 128

Folding rear backrest 124

Folding rear seat back 124

Footbrake, refer to General

driving notes 137

Footwell lamps 103

For information on breaking

in the differential, refer to

Engine and differential 136

Four-wheel drive system,

refer to xDrive 94

Front airbags 55

Front fog lamps 102

replacing bulbs 163

Fuel

average

consumption 80,87

display 75

quality 26

volume, refer to

Capacities 183

Fuel display, refer to Fuel

gauge 75

Fuel filler door 24

manual operation 24

Fuel gauge 75

Fuel-saving driving, refer to

Energy control 74

Fuel tank capacity, refer to

Capacities 183

Full preparation package

mobile phone, refer to

separate Owner's Manual

Fuses 172

G

Garage-door opener, refer to

Integrated universal

remote control 114

Gasoline, refer to Fuel

quality 26

Gasoline display, refer to

Fuel gauge 75

Gear display 65

Gearshift lever, manual

transmission 64

General driving notes 137

Glove box, refer to Glove

compartment 119

Glove compartment 119

Grills, refer to

Ventilation 106,111

Gross weight, refer to

Weights 182

Ground clearance 139

H

Handbrake 64

indicator lamp 19,21

Hand lamp, refer to

Rechargeable

flashlight 119

Hands-free microphone,

refer to Telephone 116

Hands-free system 116

refer to Microphone 116

Hazard warning flashers 14

HDC Hill Descent Control 94

Head airbags 55

Headlamp control,

automatic 100

Headlamp cover, care, refer

to Caring for your vehicle

brochure

Headlamp flasher 68

indicator lamp 22

Headlamps

care, refer to Caring for

your vehicle brochure

replacing bulbs 161

Headlamp washer

reservoir 152

volume, refer to Filling

capacities 183

Headlamp washer system

headlamp washing 70

washer fluid 152

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Head restraints 47

adjusting 47

installing in front 48

removing and installing in

rear 48

removing in front 48

sitting safely 43

Heated mirrors 54

Heated rear window

air conditioner 105

automatic climate

control 110

Heated seats 52

Heated steering wheel 53

Heater

rear window 105,110

steering wheel 53

Heating

exterior mirror 54

residual heat

utilization 110

seats 52

Heating and

ventilation 104,107

Heating while stationary 110

Heavy cargo, refer to Cargo

loading 131

Heavy-duty cargo straps,

refer to Cargo loading 131

Height, refer to

Dimensions 181

Height adjustment

seats 45,46

steering wheel 52

High beams 101

headlamp flasher 68

indicator lamp 22

replacing bulbs 162

High temperatures 137

Hill Descent Control HDC 94

Hills 138,140

Holder for cups 120

Hood 150

Horn 14

Hotel function 30

Hot exhaust system 137

Hydraulic brake assistant,

refer to DBC 91

Hydraulic system, brakes 19

Hydroplaning 137,147

I

Ice, refer to Outside

temperature warning 73

Identification, tire 145

Ignition 62

Ignition key 30

Ignition key positions, refer

to Ignition lock 62

Ignition lock 62

Immobilizer function 88

Imprint 4

Independent ventilation,

refer to Parked car

ventilation 113

Indicating

elements 15,17,18

Indicator/warning lamp

airbags 57

alarm system 38

automatic transmission

with Steptronic 67

brakes 155

coolant temperature 76

DSC 92

engine temperature 76

fasten safety belts 49

Flat Tire Monitor 99

front fog lamps 102

reserve 75

self-leveling

suspension 95

Indicator and warning lamps,

overview 19

Indicator lighting, refer to

Instrument lighting 102

Individual air distribution 109

Individual settings, refer to

Vehicle Memory, Key

Memory 61

Inflation pressure, tires, refer

to Tire inflation

pressure 141

Initializing, refer to Power

loss 42

INSPECTION 76

Instrument cluster 15,17,18

refer to Cockpit 14

Instrument lighting 102

Instrument panel 14

Integrated universal remote

control 114

Interface socket for Onboard

Diagnostics 157

Interior lamps 103

remote control 31

Interior mirror, automatic

dimming feature 138

Interior motion sensor 39

switching off 31,39

Interior rearview mirror 54

compass 117

Interlock, refer to Steering

lock engaged 62

Intermittent operation of

wipers 69,71

Interval Display, Service 76

J

Jacking points for vehicle

jack 170

Jumpering, refer to Jump

starting 174

Jump starting 174

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

193n

OverviewControlsMaintenanceRepairsDataIndex

K

Key Memory 61

Keys 30

key-related settings, refer

to Vehicle Memory, Key

Memory 61

Kick-down 66

L

Lamps, refer to Parking

lamps/low beams 100

Lamps and bulbs 161

Lashing eyes, refer to

Securing load 131

LATCH child-restraint fixing

system 59

Length, refer to

Dimensions 181

License plate lamp,

replacing bulbs 164

Liftgate 35

emergency operation,

refer to Unlocking

manually 35

opening, remote control 31

Liftgate/tailgate

opening from inside 35

opening from the

outside 35

unlocking manually 35,36

Light-alloy wheels, care,

refer to Caring for your

vehicle brochure

Light-emitting diodes

LEDs 165

Lighter 121,122

Lighting of instruments 102

Lights on warning 100

Light switch 100

Limit 85

Limit speed, refer to Speed

limit 85

Load, refer to Cargo

loading 130

Loading, securing load 131

Lock buttons, doors, refer to

Locking 34

Locking

from inside 34

from outside 31

Locking, vehicle

from inside 34

from outside 31

Locking and unlocking doors

from inside 34

from outside 31

Low beams 100

automatic 100

replacing bulbs 161

Lower back support, refer to

Lumbar support 46

Low-fuel indicator lamp,

refer to Fuel gauge 75

Lug bolts 169

torque 170

Luggage compartment

capacity 182

opening from inside 35

Luggage compartment, refer

to Cargo area 124

Luggage compartment

cover, refer to Roll-up

cover 125

Luggage compartment

lamps, refer to Cargo area

lamps 103

Luggage compartment lid

refer to Liftgate 35

refer to Tailgate 36

Luggage net, refer to

Partition net 125

Luggage rack, refer to Roof-

mounted luggage rack 132

Luggage straps 37

Lumbar support 46

M

M+S tires, refer to Winter

tires 149

Maintenance, refer to

Service Interval Display 76

Maintenance system 156

Malfunction

automatic transmission

with Steptronic 67

door lock 33

fuel filler door 24

liftgate 35

panorama glass roof 42

tailgate 36

Manual operation

door lock 33

driver's door 33

fuel filler door 24

liftgate 35

panorama glass roof 42

tailgate 36

Manual transmission 64

Master key 30

with remote control 30

Maximum cooling 110

Maximum roof weight 182

Maximum speed with winter

tires 149

Measurements, refer to

Dimensions 181

Mechanical key, refer to

Door and ignition key 30

Mechanical seats 45

Memo 83

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Memory, refer to

Seat, mirror and steering

wheel memory 50

Vehicle Memory, Key

Memory 61

Microfilter

air conditioner 106

automatic climate

control 112

Microphone for telephone,

refer to Car phone 116

MID Multi-Information

Display

displays and controls 81

information display 81

Mirror dimming feature 138

Mirrors 53

automatic curb monitor 51

mirror heating 54

mirror memory, refer to

Seat, mirror and steering

wheel memory 50

Mobile communications

devices in vehicle 137

Mobile phone, refer to

separate Owner's Manual

Monitoring pressure of tires,

refer to Flat Tire Monitor 98

Multi-function steering

wheel, refer to Buttons on

steering wheel 23

Multifunction switch

turn signals/headlamp

flasher 68

washer/wiper system 69

Multi-Information Display

MID 81

N

Navigation system, refer to

separate Owner's Manual

Neck support, refer to Head

restraints 47

Nozzles, refer to

Ventilation 106,111

Nylon rope, refer to Tow-

starting and towing 177

O

OBD interface socket 157

Odometer 73

Oil

additives, refer to

Specified engine oils 153

consumption 152

consumption, refer to

Engine oil, checking 152

dipstick 152

filling capacity 183

level 152

refilling, refer to Engine oil,

adding 153

specified engine oils 153

Oil change interval, refer to

Service and Warranty

Information Booklet, US

models or Warranty and

Service Guide Booklet,

Canadian models

Oil consumption 152

Oil level 152

checking 152

Oil pressure, indicator/

warning lamp 19

OILSERVICE 76

Oil temperature 75

Old batteries, refer to

Disposal 171

Onboard tool kit 160

Opening and closing

from inside 34

from outside 31

using the door lock 33

using the remote

control 31

Output, refer to Engine

specifications 180

Outside air, air

conditioner 105

Outside temperature

display 73

changing unit of

measure 73,80

on onboard computer 80

P

Package shelf, refer to Roll-

up cover 125

Panorama glass roof 41

automatic opening and

closing 41

closing in the event of an

electrical malfunction 42

comfort operation 33

comfort position 42

initializing 42

power failure 42

remote control 31

Park Distance Control

PDC 90

Parked car ventilation 113

activating/deactivating

switch-on times 84

also refer to Owner's

Manual for Onboard

Computer

entering switch-on

times 84

switching on and off

directly 84

Parking, vehicle 63

Parking aid, refer to PDC

Park Distance Control 90

Parking assistant, refer to

PDC Park Distance

Control 90

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

195n

OverviewControlsMaintenanceRepairsDataIndex

Parking brake, refer to

Handbrake 64

Parking lamps 100

replacing bulbs 162

Parking lamps/low

beams 100

Parts and accessories, refer

to For your own safety 9

Passenger-side mirror tilt

function 51

Pathway lighting 100

PDC Park Distance

Control 90

Permissible axle load, refer

to Weights 182

Permissible gross weight,

refer to Weights 182

Plastic, care, refer to Caring

for your vehicle brochure

Pollen, refer to

Microfilter 106

Microfilter/activated-

charcoal filter 112

Power electric seat 46

Power failure 171

Power rear seat backrest 48

Power windows 39

safety switch 40

Pressure, tires 141

Pressure monitoring, tires 98

Flat Tire Monitor 98

Programming settings, refer

to Vehicle Memory, Key

Memory 61

Protective function,

panorama glass roof 42

Pull-out cargo floor 128

R

Radio, refer to Owner's

Manual for Radio/Onboard

Computer

Radio-control key, refer to

Master key with remote

control 30

Radio navigation, refer to

separate Owner's Manual

Rain sensor 69

Reading lamps

front 103

rear 103

Real wood, refer to Caring

for your vehicle brochure

Rear backrests, power 48

Rear climate control 111

air supply 112

temperature 112

Rear lamps

refer to Tail lamps 163

replacing bulbs 163

Rear seat back, folding 124

Rear seat backrest,

electric 48

Rear-seat backrest, folding

down 124

Rear seats, heating 52

Rearview mirror 53

Rear window blinds, refer to

Roller sun blinds 113

Rear window defroster

air conditioner 105

automatic climate

control 110

Rear window safety

switch 40

Rear window wiper 71

replacing bulbs 160

Rechargeable flashlight 119

Recirculated-air mode

air conditioner 105

automatic climate

control 110

Reflectors, refer to Tail

lamps 163

Refueling 24

fuel filler door 24

Remaining distance, refer to

Cruising range 80,87

Remaining distance for

service, refer to Service

Interval Display 76

Remote control 31

garage door opener, refer

to Integrated universal

remote control 114

liftgate 31

malfunction 32

Removal aid for spare

wheel 168

Removing condensation,

windows

air conditioner 106

automatic climate

control 109

Replacement fuses 172

Replacement keys 30

Replacement tire 167

Replacing bulbs, refer to

Lamps and bulbs 161

Replacing light bulbs 161

Replacing tires

changing a wheel 165

tire replacement 145

Reporting an accident, refer

to Initiating an emergency

call 173

Reporting safety defects 11

Residual heat 110

Restraint systems, refer to

Safety belts 49

Restraint systems for

children 57

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Reverse gear

automatic transmission

with Steptronic 66

manual transmission 65

Roadside Assistance 173

Roadside parking lamps 101

replacing bulbs 162

Roller blind for cargo area,

refer to Roll-up cover 125

Roller sun blinds 113

Roll-up cover 125

Roof-mounted luggage

rack 132

Rope, refer to Tow-starting

and towing 177

Rotating coin holder, refer to

Storage

compartments 119

S

Safe braking 140

Safety belt height

adjustment 49

Safety belts 49

adjusting belt height 49

care, refer to Caring for

your vehicle brochure

sitting safely 43

warning lamp 21,49

Safety belt tensioners, refer

to Safety belts 50

Safety defects 11

Safety feature, power

windows 40

Safety systems, refer to

Airbags 55

Antilock Brake System 91

Brake system 140

DSC Dynamic Stability

Control 92

xDrive 94

Screw thread for tow

fitting 176

Seat heating 52

Seat memory, refer to Seat,

mirror and steering wheel

memory 50

Seats 44

adjusting comfort seat 46

adjusting electrically 46

adjusting sports seat 45

heating 52

memory, refer to Seat,

mirror and steering wheel

memory 50

sitting safely 43

storing adjustment 50

Securing cargo, refer to

Cargo loading 130

Securing load 131

Selector lever, automatic

transmission with

Steptronic 66

Selector lever interlock, refer

to Changing selector lever

positions 66

Selector lever positions,

automatic transmission

with Steptronic 65

Self-leveling suspension 95

2-axle self-leveling

suspension 96

inactive 95

Service, refer to Roadside

Assistance 173

Service and Warranty Infor-

mation Booklet for US

models 156

Service Interval

Display 76,156

Setting interior

temperature 105,109

Setting time, refer to Prese-

lecting switch-on times 84

Shifting

automatic transmission

with Steptronic 66

manual transmission 64

Shiftlock 66

Shoulder support 47

Side airbags 55

Side Impact Head Protection

System 55

Side tilt, permissible 138

Side turn signals, replacing

bulbs 162

Side window blinds, refer to

Roller sun blinds 113

Signal horn, refer to Horn 14

Signaling briefly 68

Sitting safely 43

with airbags 43

with head restraint 43

with safety belts 43

Ski bag 123

Sliding sunroof, refer to

Panorama glass roof 41

Snow chains 149

Sockets 121

Sockets in cargo area 128

Soft closure aid for liftgate,

refer to Automatic Soft

Close function 36

Spare fuses 172

Spare key 30

Spare wheel 167

removal aid 168

Special wash program 70

Specified engine oils 153

Speed

with compact wheel 170

with spare wheel 171

with winter tires 149

Speed limit 85

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

197n

OverviewControlsMaintenanceRepairsDataIndex

Speedometer 15,17,18

refer to Instrument

cluster 15,17,18

Sport Program, automatic

transmission with

Steptronic 67

Sports seat 45

Stability control, refer to

DSC Dynamic Stability

Control 92

xDrive 94

Starting, refer to Starting

engine 62

Starting engine 62

Starting problems

at very low

temperatures 63

jump starting 174

Status of this Owner's

Manual at time of printing 9

Steering lock 62

Steering wheel

adjustment 52

buttons on steering

wheel 23

entry/exit aid 53

heating 53

lock 62

memory 50

Steering wheel adjustment,

automatic 53

Steering wheel heater 53

Steering wheel memory 50

Steering wheel with multi-

function buttons 23

Steptronic, refer to Manual

operation 67

Stopwatch 83

Storage compartments 119

Storage compartments in

cargo area 127

Storage space, refer to

Cargo area 124

Storing desired speed, refer

to Cruise control 71

Storing seat adjustment 50

Storing sitting position, refer

to Seat, mirror and

steering wheel memory 50

Storing tires 149

Supply reservoir, washer

systems 152

Switches, refer to Cockpit 14

Switching air conditioner

mode on and off

manually 105,110

Switching off engine 63

Switching on hour signal 83

Switch-on times, entering 84

Symbols 8

Synthetic oil 153

T

Tachometer 74

Tailgate 36

emergency operation,

refer to Unlocking

manually 35,36

opening, remote control 31

remote control 31

unlocking manually 36

Tail lamps, replacing

bulbs 163

Taking time, refer to

Stopwatch 83

Tank capacity, refer to Fuel

tank capacity 183

Technical data 180

Technical modifications 9

Telephone 116

refer to separate Owner’s

Manual

Telephone provisions, refer

to Hands-free telephone

operation 116

Temperature

air conditioner 105

automatic climate

control 109

Temperature display

interior temperature 109

outside temperature 73,80

outside temperature

warning 73

setting the units 73,80

Temperature of coolant,

refer to Coolant temper-

ature gauge 76

Temperature warning 73

Tempomat, refer to Cruise

control 71

Thigh support adjustment 45

Third brake lamp

refer to Center brake

lamp 164

replacing bulbs 164

Three-point belt 49

Tightening torque of lug

bolts 170

Tilt alarm sensor 39

remote control 31

switching off 39

Tilt function, passenger-side

mirror 51

Time of arrival 87

Timer, refer to Stopwatch 83

Tire Identification

Number 145

Tire inflation pressure 141

producing 141

Tire inflation pressure

monitoring, refer to Flat

Tire Monitor 98

Tire Quality Grading 145

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

Tires

age 145

breaking-in 136

changing 148,165

condition 146

damage 146

DOT Quality Grades 145

flat 165

inflation pressure 141

size 145

storage 149

traction 146

tread 147

tread wear 145

Uniform Tire Quality

Grading 145

wear indicators, refer to

Tire tread 147

winter tires 149

Tools, refer to Onboard tool

kit 160

Torque

engine 180

lug bolts 170

Tow bar 176

Tow fittings 175

Towing the vehicle 175,176

with automatic

transmission 176

Tow-rope 177

Tow sockets for tow

fitting 176

Tow-starting 175

Track width, refer to

Dimensions 181

Traction 146

Traction aid, refer to DSC

Dynamic Stability

Control 92

Traction control, refer to

DSC Dynamic Stability

Control 92

Transmission

automatic transmission

with Steptronic 65

manual transmission 64

Transmission lockout, refer

to P Park 66

Transmission malfunction,

refer to Malfunction 67

Transporting children

safely 57

Transport securing device,

refer to Securing load 131

Tread depth, refer to Tire

tread 147

Tread wear 145

Trip-distance counter, refer

to Trip odometer 73

Trip odometer 73

Trunk lamps, refer to Cargo

area lamps 103

Trunk lid, refer to

Liftgate 35

Tailgate 36

Turning circle, refer to

Dimensions 181

Turn signals 68

indicator lamp 22

replacing bulbs 162,163

Turn signals, side, replacing

bulbs 162

TV function, refer to Owner's

Manual for Onboard

Computer

TV set, refer to Owner's

Manual for Onboard

Computer

Two-axle self-leveling

suspension

display 96

lowering 97

raising 97

U

Underbody protection, refer

to Caring for your vehicle

brochure

Uniform Tire Quality

Grading 145

Units,

temperature 73,80,109

Universal garage door

control, refer to Integrated

universal remote

control 114

Universal remote control 114

Unlocking

from inside 34

from outside 31

hood 150

Using antifreeze 152,154

V

Vacuum cleaner,

connecting, refer to

Sockets 121,128

Valve

inserts 170

screw caps 170

Vehicle

battery 171

breaking-in 136

care, refer to Caring for

your vehicle brochure

cargo loading 130

measurements, refer to

Dimensions 181

parking 63

storage, refer to Caring for

your vehicle brochure

washing, refer to Caring for

your vehicle brochure

weight 182

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

Everything from A to Z

199n

OverviewControlsMaintenanceRepairsDataIndex

Vehicle battery 171

Vehicle jack 167

jacking points 170

Vehicle Memory 61

Ventilation 106,111

Ventilation in the rear 106

Ventilation while parked 113

Viscosity 154

Voice command system 23

Voice control, refer to

separate Owner's Manual

Volume, cargo area 182

W

Warning and indicator

lamps 19

Warnings, refer to Check

Control 77

Warning triangle 24

Warranty 10

refer also to Service and

Warranty Information

Booklet for US models or

Warranty and Service

Guide Booklet for

Canadian models

Warranty and Service Guide

Booklet for Canadian

models 156

Washer fluid 152

Washer fluid reservoir,

content 183

Washer jets, refer to

Windshield washer

nozzles 70

Washer reservoir, refer to

Windshield and headlamp

washer system 152

Waste container, refer to

Ashtray 121

Water on roads, flooding 138

Wear indicators in tires, refer

to Tire tread 147

Weights 182

Wheel/tire combinations 148

Wheelbase, refer to

Dimensions 181

Wheel bolts, wrench 166

Wheel replacement 148

Width, refer to

Dimensions 181

Windows 39

convenience operation 33

defrosting, refer to

Defrosting

windows 106,109

safety switch 40

Windshield

defrosting, refer to

Defrosting

windshield 106,109

washing 70

Windshield cleaner reservoir

volume, refer to Filling

capacities 183

Windshield washer, washer

fluid 152

Windshield washer fluid

reservoir 152

Windshield washer

nozzles 70

Windshield washer system,

washer/wiper system 69

Windshield wiper blades

care, refer to Caring for

your vehicle brochure

replacement 160

Windshield wipers, refer to

Wiper/washer system 69

Winter tires 149

changing 149

condition 146

storage 149

Wiper blade

replacement 160

Wiper system 69

Working in the engine

compartment 150

Wrenches/screwdrivers,

refer to Onboard

toolkit 160

X

xDrive 94

Xenon lamps, replacing

bulbs 162

Y

Your individual vehicle 8

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

So that you will have important speci-

fications available when you stop to

refuel, we recommend that you fill in

this table with data which apply to your

vehicle.

Consult the index for individual specifi-

cations.

Fuel

Please enter your preferred fuel here.

Engine oil

The oil volume between the two marks

on the oil dipstick corresponds to

approx. 1.1 US quarts/1 liter.

Designation

Quality

Tire inflation pressures

Summer tires Winter tires

Front Rear Front Rear

4 persons

5 persons or 4 plus luggage

Refueling

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

The Ultimate

Driving Machine

01410159867 ue

More about BMW

bmwusa.com

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG

X5 US-En

Online Edition for Part No. 01 41 0 159 867 - © 07/05 BMW AG
