1-Series M Coupe Supplementary Owner's Handbook for Vehicle
Thank you for choosing a BMW 1-Series M Coupe.
The more familiar you are with your vehicle, the better control
you will have over it on the road.
We therefore strongly suggest:
Read the information provided in this Supplementary Owner's
Handbook before starting out in your new BMW. It contains
important information on vehicle operation that will help you
make full use of the technical features available in your BMW.
We wish you an enjoyable driving experience.
BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
© 2011 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts, only with the
written consent of BMW AG, Munich.
US English VIII/11
Printed on environmentally friendly paper,
bleached without chlorine, suitable for recycling.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Contents
The quickest way to find special topics is to
consult the index, refer to page 44.
4Notes
At a glance
8Dashboard
Controls
16 Driving
17 Controls overview
19 Technology for driving comfort and
safety
Driving tips
24 Things to remember when driving
26 BMW 1-Series M Coupe technology
Mobility
30 Refueling
31 Wheels and tires
32 Replacing components
36 Indicator and warning lamps
Reference
40 Technical data
44 Everything from A to Z
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
4
Notes
Notes
Using this Owner's Manual
This Supplementary Owner's Handbook
contains all important equipment information,
operating instructions, and technical data of the
BMW 1-Series M Coupe that differ from the
BMW 1-Series. Descriptions that are not con-
tained in this Supplementary Owner's Hand-
book can be found in the Owner's Manual for
Vehicle or in the additional brochures that may
be included in the onboard literature.
We have tried to make the information in this
Supplementary Owner's Handbook easy to
locate. The fastest way to find specific topics is
to refer to the detailed index at the back of the
manual. If you wish to gain an initial overview of
your vehicle, you will find this in the first chap-
ter.
Should you sell your BMW one day, please
remember to hand over the Supplementary
Owner's Handbook as well; it is an important
component of your vehicle.
Symbols used
Indicates precautions that must be
followed precisely in order to avoid the
possibility of personal injury and serious
damage to the vehicle.<
Indicates information that will assist you
in gaining the optimum benefit from your
vehicle and enable you to care more effectively
for your vehicle.<
Refers to measures that can be taken to
help protect the environment.<
<Marks the end of a specific item of informa-
tion.
Symbols on vehicle components
Indicates that you should consult the
relevant section of this Owner's Manual
for information on a particular part or assembly.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
5
Notes
Vehicle equipment
This Supplementary Owner's Handbook
describes all models and all series-specific
equipment, country-specific equipment, and
optional equipment that is offered in the series.
For this reason, this Supplementary Owner's
Handbook also describes and illustrates some
equipment that may not be available in your
vehicle, for example due to the special options
or national-market version selected.
This also applies to safety related functions and
systems.
If equipment and models are not described in
this Supplementary Owner's Handbook, please
consult the accompanying Owner's Manual.
Status of this Owner's Manual
at time of printing
BMW pursues a policy of continuous, ongoing
development that is conceived to ensure that
our vehicles continue to embody the highest
quality and safety standards combined with
advanced, state-of-the-art technology. In rare
cases, therefore, the features described in this
Supplementary Owner's Handbook may differ
from those in your vehicle.
Updates after press date
Updates after press date for the Owner's
Manuals, when necessary, are issued as appen-
dices to the printed Quick Reference Guide for
the vehicle.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
8
At a glance Dashboard
Dashboard
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.

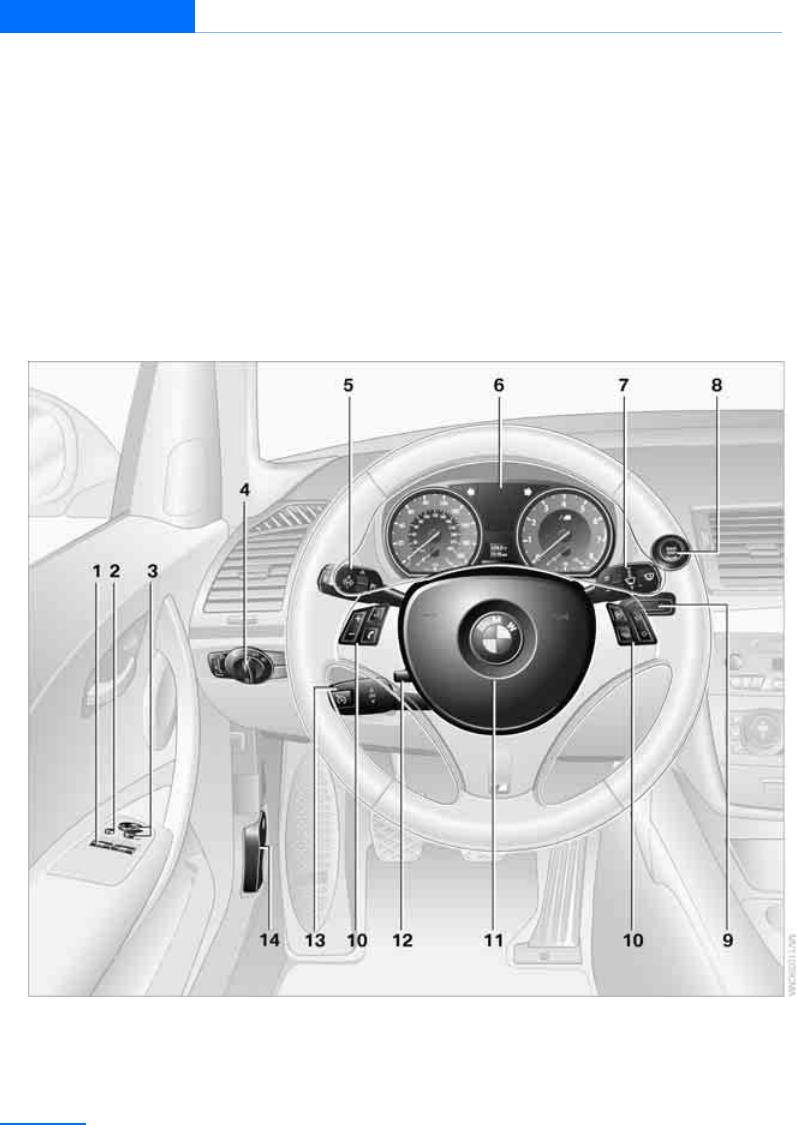

Around the steering wheel: Controls and displays
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
9
Dashboard At a glance
The description of features without spe-
cific page references can be found in the
Owner's Manual for Vehicle under the respec-
tive keyword.<
2Exterior mirrors folding in and out
3Adjusting exterior mirrors, automatic curb
monitor
6Instrument cluster 10
9Ignition lock
10 Buttons on the steering wheel
11 Horn, entire surface
12 Adjusting the steering wheel
14 Releasing the hood
1Opening and closing windows
4Parking lamps/low beams
Low-beam headlamps
Automatic
headlamp control
Adaptive Light Control
High-Beam Assistant
5Turn signal indicators
High beams, headlamp flasher
Roadside parking lamps
Computer
Settings and information about the
vehicle
7Windshield wipers
Rain sensor
8Switching the ignition on/off and
starting/stopping the engine
Telephone:
Accepting and ending a call; dial-
ing selected phone number. Redi-
aling if no phone number is
selected
Volume
Voice commands for telephone
Changing the radio station
Interrupting a traffic bulletin
Selecting a music track
Scrolling through the redial list
M Engine Dynamics Control 16
Next entertainment source
13 Cruise control
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
10
At a glance Dashboard
Instrument cluster
The description of features without spe-
cific page references can be found in the
Owner's Manual for Vehicle under the respec-
tive keyword.<

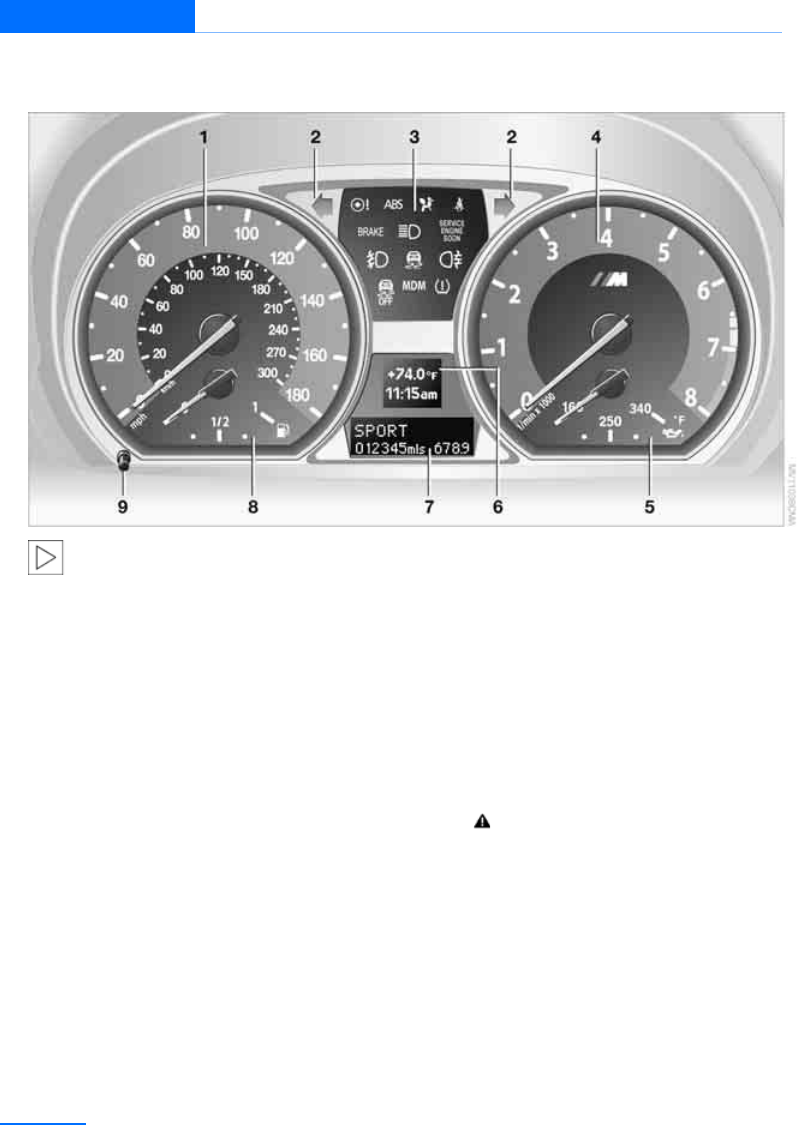

1Speedometer
2Indicator lamps for turn signals
3Indicator and warning lamps 11
4Tachometer 17
5Engine oil temperature 17
6Display for
>Clock
>Outside temperature
>Indicator and warning lamps
7Display for
>Computer
>Date of next scheduled service, and
remaining distance to be driven
>Odometer and trip odometer
>High-beam Assistant
>Initializing Flat Tire Monitor
>Resetting the Tire Pressure Monitor
>Checking oil level
>Settings and information
>There is a Check Control message
>SPORT M Engine Dynamics
Control 16
8Fuel gauge 17
9Resetting the trip odometer
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
12
At a glance Dashboard

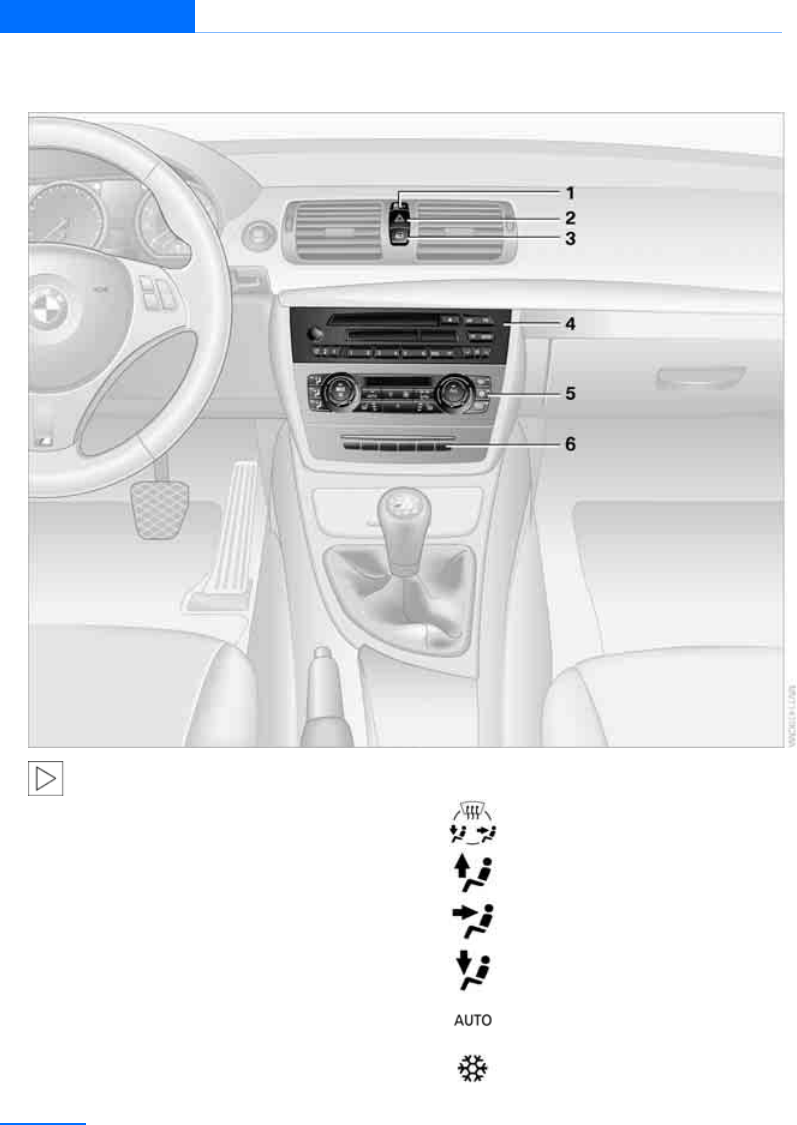

Around the center console: Controls and displays
The description of features without spe-
cific page references can be found in the
Owner's Manual for Vehicle under the respec-
tive keyword.<
1Driving stability control systems
>Dynamic Stability Control DSC 19
>M Dynamic Mode MDM 19
2Hazard warning flashers
3Central locking system
4Radio, refer to separate Owner's Manual
5Air conditioner or automatic climate control
Air distribution
Air distribution to the windshield
Air distribution to the upper body
area
Air distribution to the footwell
Automatic air distribution and flow
rate
Cooling function
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
13
Dashboard At a glance
Automatic recirculated-air control
AUC and recirculated-air mode
Recirculated-air mode
Maximum cooling
ALL program
Air flow rate
Defrosting windows
Rear window defroster
Seat heating
6Seat heating
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
This chapter is intended to provide you with
information for complete control of your vehicle.
All features and accessories that are useful for
driving and your safety, comfort and
convenience, are described here.
Controls
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
16
Controls Driving
Driving
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Overboost
Overboost briefly increases the maximum
torque to 369 lb ft/500 Nm, e.g. for passing.
To activate it, press the accelerator down all the
way.
M Engine Dynamics Control
The concept
Die M Engine Dynamics Control permits you, at
the push of a button, to have your BMW react in
an even more sporty fashion when driving:
>Optimal use is made of the engine's speed
range.
>The engine reacts more spontaneously to
accelerator pedal movements.
>Cruise control:
The stored speed is reached more quickly.
Activating the system
Press the button on the steering wheel.
SPORT is displayed in the instrument cluster.
M Engine Dynamics Control is active.
Deactivating the system
Press the button on the steering wheel
again.
The SPORT displayed in the instrument cluster
goes out.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
17
Controls overview Controls
Controls overview
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.

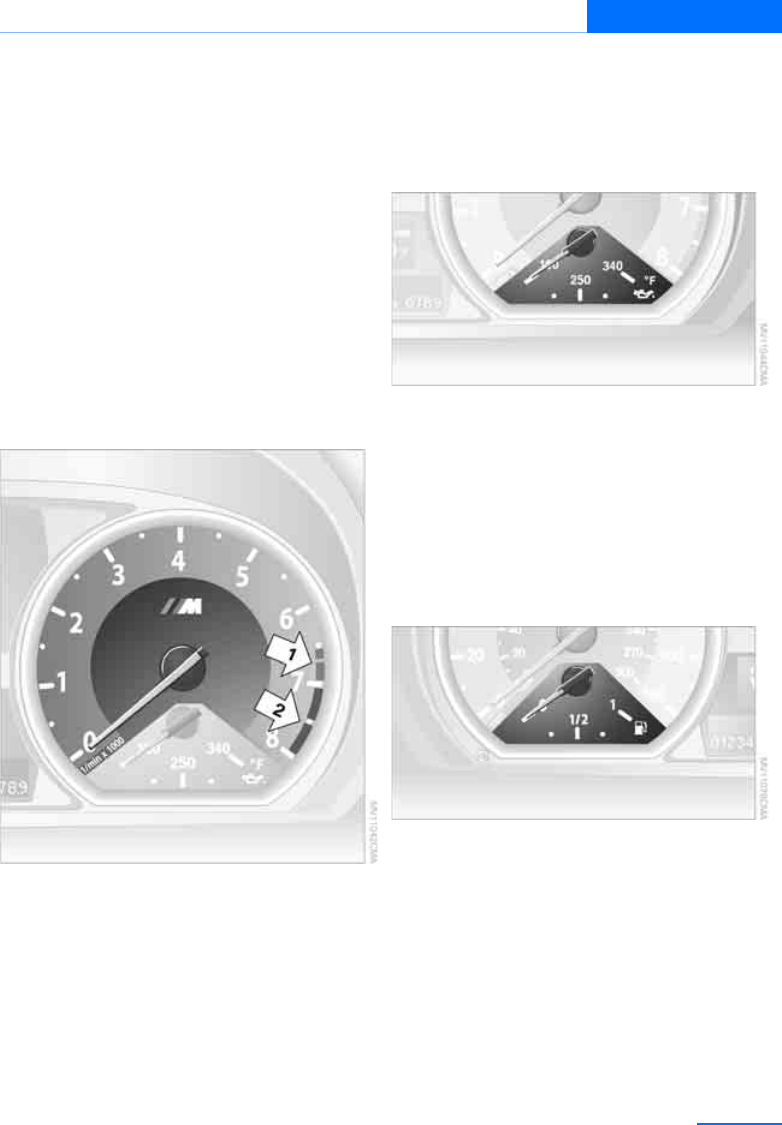

Tachometer
If at all possible, avoid engine speeds in the yel-
low advance warning zone, arrow 1.
Absolutely avoid engine speeds in the red
warning field, arrow 2. In this range, the engine
speed is limited to protect the engine.
Engine oil temperature
When the engine is at normal operating temper-
ature, the engine oil temperature is between
approx. 2107/1006 and approx. 3007/
1506.
If the engine oil temperature is too high, a warn-
ing lamp lights up in the instrument cluster.
Fuel gauge
Fuel tank capacity: approx. 14 US gal/53 liters.
You can find information on refueling on
page 30.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
18
Controls Controls overview
Reserve
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Once the fuel level has fallen to the reserve
zone of approx. 2.1 US gal/8 liters, the indicator
lamp and cruising range for the remaining
amount of fuel are displayed briefly. The indica-
tor lamp remains permanently on when the
remaining range is less than approx. 30 miles/
50 km.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
19
Technology for driving comfort and safety Controls
Technology for driving comfort and safety
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Driving stability control
systems
Contrary to the description in the Owner's Man-
ual for Vehicle, your BMW 1-Series M Coupe is
not equipped with Dynamic Traction Control
DTC.
Dynamic Stability Control DSC
DSC optimizes driving stability and traction. In
addition, the system recognizes unstable driv-
ing situations such as understeering and over-
steering, and helps keep the vehicle on a safe
course within physical limits by reducing engine
power and applying the brakes on individual
wheels.
The laws of physics cannot be repealed,
even with DSC. An appropriate driving
style always remains the responsibility of the
driver. Therefore, do not reduce the additional
safety margin again by taking risks, as this could
result in an accident.<
M Dynamic Mode MDM
M Dynamic Mode is a mode of the Dynamic
Stability Control DSC that permits greater
longitudinal and lateral acceleration when
driving on dry surfaces, yet with reduced driving
stability. Only at the absolute limit of stability
does the system intervene to stabilize the
vehicle by reducing engine power and applying
the brakes on the wheels. In such situations,
additional corrective steering maneuvers may
be necessary.
M Dynamic Mode is switched off every time the
engine is started.
When the M Dynamic Mode is on, stabi-
lizing measures are performed to a limited
degree only. Take action yourself, otherwise
there is a risk of an accident.<
To maintain vehicle stability, drive with
the DSC activated and the
M Dynamic Mode deactivated whenever possi-
ble.<
Activating MDM

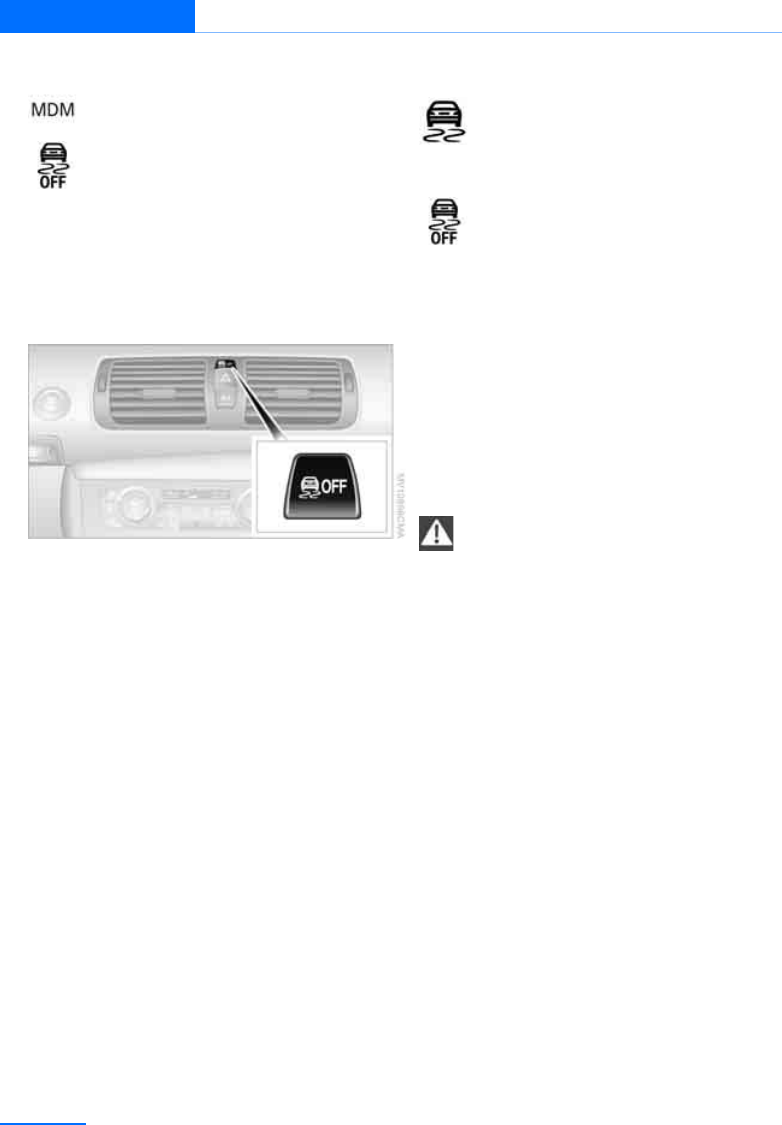

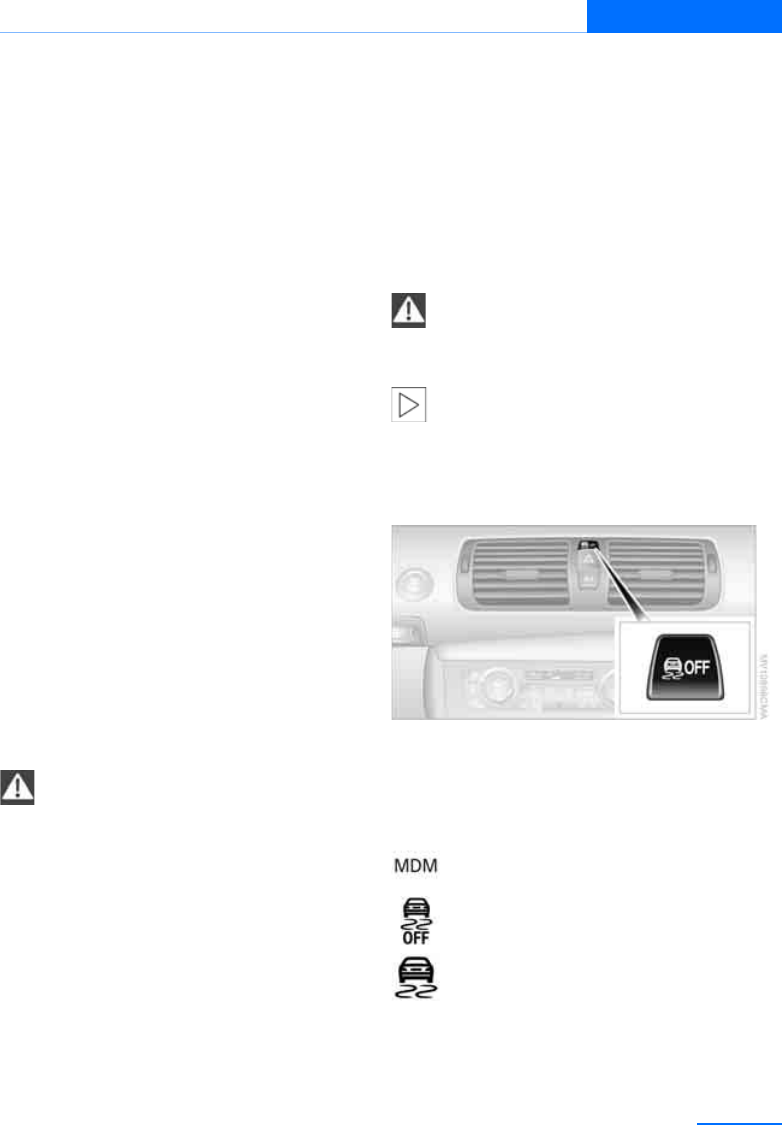

Push the button: the indicator lamps for MDM
and DSC OFF light up.
For better control
The indicator lamps MDM and
DSC OFF light up and the indicator
lamp DSC flashes:
M Dynamic Mode is controlling the
drive and braking forces.
The indicator lamp DSC lights up: DSC
and M Dynamic Mode have failed.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
20
Controls Technology for driving comfort and safety
Deactivating MDM
Press the button again; the indicator lamps in
the instrument cluster go out.
Deactivating DSC
Press the button for at least 3 seconds until the
indicator lamp for DSC OFF lights up and DSC
OFF is displayed in the instrument cluster. DSC
and M Dynamic Mode are both deactivated.
Stabilizing and drive-output promoting actions
are no longer executed.
You may find it useful to briefly deactivate DSC
under the following exceptional circumstances:
>When driving uphill on snow-covered roads,
in slush or on unplowed, snow-covered
roads
>When rocking a stuck vehicle free or start-
ing off in deep snow or on loose ground
>When driving with snow chains
To increase vehicle stability, activate DSC again
as soon as possible.
Activating DSC
Press the button again; the indicator lamp in the
instrument cluster goes out.
For better control
If the indicator lamp flashes: The DSC
controls the driving and braking forces.
If the indicator lamp lights up: DSC and
MDM have failed.
The indicator lamp lights up and
DSC OFF is displayed in the instrument
cluster: DSC is deactivated.
Drive-off assistant
The drive-off assistant enables you to drive off
smoothly on uphill gradients. It is not necessary
to use the parking brake for this.
1. Hold the car in place by depressing the
brake.
2. Release the brake and drive off without
delay.
The drive-off assistant holds the car in
place for approx. 2 seconds after the
brake is released. Drive off without delay after
releasing the brake. Otherwise, the drive-off
assistant will no longer hold the car in place
after approx. 2 seconds and the car will start to
roll backwards.<
The indicator lamps MDM and
DSC OFF light up:
M Dynamic Mode is activated.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
21
Technology for driving comfort and safety Controls
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
This section provides you with information
useful in dealing with specific driving and
operating conditions.
Driving tips
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
24
Driving tips Things to remember when driving
Things to remember when driving
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be available in a
particular vehicle, for example due to the
options or national-market version selected.
This also applies to safety related functions and
systems.
Break-in period
Note the following instructions for your
BMW 1-Series M Coupe that deviate from the
description in the Owner's Manual for Vehicle.
Engine and differential
Always obey all official speed limits.
Up to 1,200 miles/2,000 km
Drive at varying engine and road speeds, but do
not exceed an engine speed of 5,500 rpm and a
road speed of 105 mph/170 km/h.
Do not depress the accelerator all the way.
From 1,200 miles/2,000 km to
3,000 miles/5,000 km
Engine and road speeds can be increased
gradually up to a traveling speed of 135 mph/
220 km/h. Use the maximum speed only for
brief intervals, e.g. when passing.
Transmission
The transmission begins functioning at an
optimal level only after a distance of approx.
300 miles/500 km. Do not exceed engine
speeds of 5,500 rpm during this period.
General driving notes
Clearance
Take into account the limited clearance of
your BMW 1-Series M Coupe, e.g. when
driving into underground parking garages or
over obstacles. Otherwise, the vehicle may be
damaged.<
Braking safely
Hills
To prevent overheating and the resulting
reduced efficiency of the brake system,
drive long or steep downhill gradients in the
gear in which the least braking is required. Even
light but consistent brake pressure can lead to
high temperatures, brake wear and possibly
even brake failure.<
You can increase the engine's braking effect by
shifting down, all the way to first gear if neces-
sary. This strategy helps you avoid placing
excessive loads on the brake system.
Never drive with the clutch held down,
with the transmission in neutral or with
the engine switched off; otherwise, engine
braking action will not be present or there will be
no power assistance to the brakes or steering.
Never allow floor mats, carpets or any other
objects to protrude into the area around the
pedals; otherwise, pedal function could be
impaired.<
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
25
Things to remember when driving Driving tips
Corrosion on brake rotors
When the vehicle is driven only occasionally,
during extended periods when the vehicle is not
used at all, and in operating conditions where
brake applications are less frequent, there is an
increased tendency for corrosion to form on
rotors, while contaminants accumulate on the
brake pads. This occurs because the minimum
pressure which must be exerted by the pads
during brake applications to clean the rotors is
not reached.
This can also lead to a permanent loss in ride
comfort and to squealing noises during braking.
A loss in comfort can also be caused by
extended braking with little pressure on the
pedal.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
For information on brake system technology,
refer to Compound brake on page 26.
Right-hand/left-hand traffic
When crossing the border into countries in
which one drives on the other side of the road
than in the country of registration, it is neces-
sary to take steps to avoid blinding oncoming
traffic with the headlamps.
Your BMW center stocks adhesive film. Follow
the accompanying instructions for applying the
film.
When the headlamps have been covered with
the adhesive film, rotate the light switch to
position 2, refer to the Owner's Manual for the
vehicle to switch on the low beams, even with
automatic headlamp control.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
26
Driving tips BMW 1-Series M Coupe technology
BMW 1-Series M Coupe technology
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be available in a
particular vehicle, for example due to the
options or national-market version selected.
This also applies to safety related functions and
systems.
High-performance engine
With a displacement of 182 cu in/3 liters, the
high-performance engine produces a maximum
output of 335 hp and a maximum torque of
332 lb ft/450 Nm, with Overboost 369 lb ft/
500 Nm.
The engine is equipped with a reduced-weight
dual-mass flywheel to achieve very spontane-
ous response characteristics.
Warming up the engine
During the warm-up phase, the high-perfor-
mance V8 engine runs a little more roughly due
to its emissions control system.
For technical reasons, the exhaust system
sounds slightly metallic when the engine is
cold.

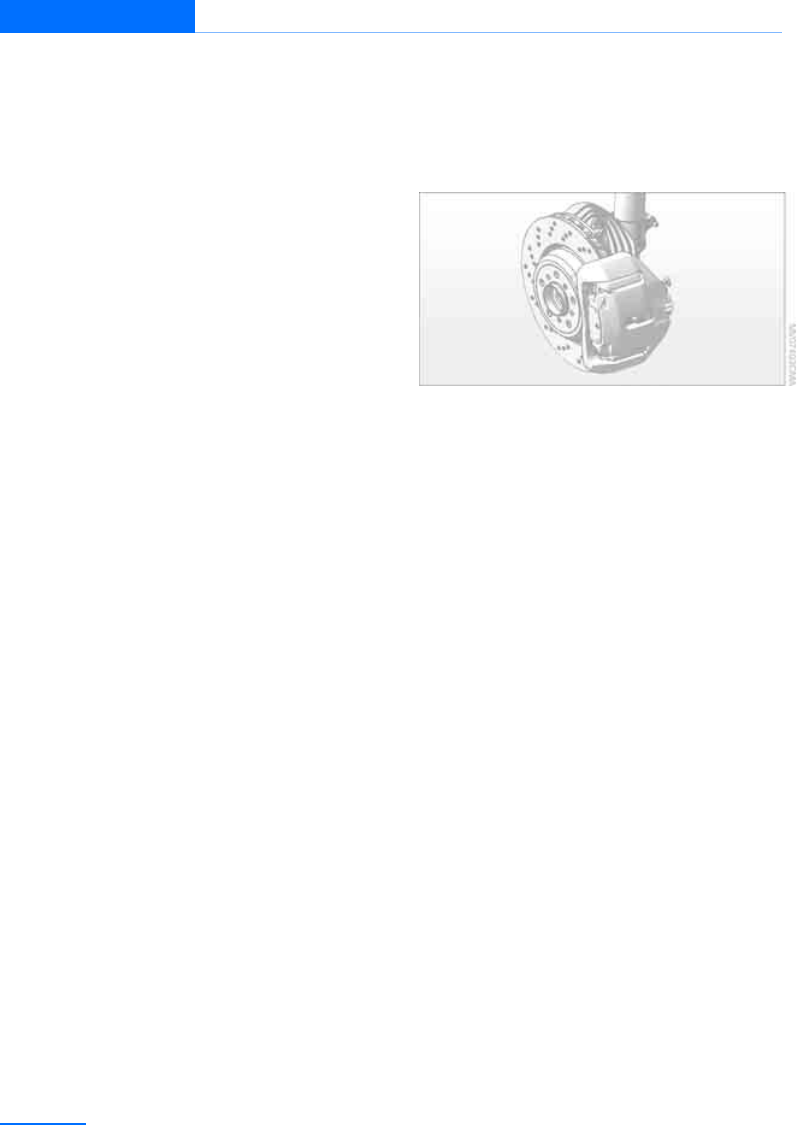

Compound brake
Your BMW 1-Series M Coupe is equipped with
a high-performance brake system with perfo-
rated compound brake discs.
Due to special design features of the perforated
compound brake discs, operating noise is
audible during braking. However, this does not
affect the brake's performance, safe operation
or stability under load.
Braking correctly
To keep the brake system in optimal condition,
it is advisable to apply the brakes at regular
intervals as appropriate for the character of the
vehicle.
Refer also to Corrosion on brake rotors on
page 25.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
27
BMW 1-Series M Coupe technology Driving tips
Drive train
In your BMW 1-Series M Coupe, special
emphasis has been placed on the direct con-
nection between the engine and drive. The tor-
sionally rigid execution of the drive train results
in acoustic feedback of the torque, as is typical
in sports cars. Clacking sounds can arise during
load changes. They do not impair functionality
or shorten the lifespan of any component.
Driving on a race track
BMW recommends the following measures
before driving on a race track:
>Participate in a BMW driver training course
>Have the vehicle checked by your BMW
center
Operation on race tracks results in a
higher rate of wear. The BMW 1-Series M
Coupe is not designed for use in competitive
motor sports. This wear is not covered by the
vehicle warranty.<
The series brake pads and wear indicator are
not designed for operation on a race track. Your
BMW center will be glad to advise you.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
This section helps you maintain your car's
mobility by supplying important information
on vital topics including fuels and lubricants,
wheels and tires, service, maintenance and
Roadside Assistance.
Mobility
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
30
Mobility Refueling
Refueling
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Observe the following when
refueling
Note the following instructions for your
BMW 1-Series M Coupe that deviate from the
description in the Owner's Manual for Vehicle.
Fuel tank capacity
Approx. 14 US gal/53 liters, including the
reserve capacity of 2.1 US gal/8 liters.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur.<
Fuel specifications
Never use fuels labeled at the fuel pump as
metal-containing.
Do not use leaded gasoline or gasoline
with metallic additives such as manga-
nese or iron; doing so can cause permanent
damage to the catalytic converter and other
components.<
Do not fill the tank with E85, i.e. fuel con-
taining 85X ethanol, nor with FlexFuel.
Otherwise, the engine and fuel supply system
will be damaged.<
Required fuel
Super premium gasoline/AKI 93
Always use this premium grade fuel to obtain
maximum fuel economy and performance.
The minimum approved fuel grade is AKI 91.
Do not use any gasoline below the speci-
fied minimum fuel grade. Otherwise, the
engine could be damaged.<
Use high-quality brands
Field experience has indicated significant dif-
ferences in fuel quality: volatility, composition,
additives, etc., among gasolines offered for sale
in the United States and Canada. Fuels contain-
ing up to and including 10X ethanol or other
oxygenates with up to 2.8X oxygen by weight,
that is, 15X MTBE or 3X methanol plus an
equivalent amount of cosolvent, will not void the
applicable warranties with respect to defects in
materials or workmanship.
The use of poor-quality fuels may result in
drivability, starting and stalling problems
especially under certain environmental condi-
tions such as high ambient temperature and
high altitude.
Should you encounter drivability problems
which you suspect could be related to the fuel
you are using, we recommend that you respond
by switching to a recognized high-quality brand
such as gasoline that is advertised as Top Tier
Detergent Gasoline.
Failure to comply with these recommendations
may also result in unscheduled maintenance.<
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
31
Wheels and tires Mobility
Wheels and tires
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Correct wheels and tires
Contrary to the description in the Owner's Man-
ual for Vehicle, your BMW 1-Series M Coupe is
not equipped with run-flat tires.
Information for your safety
The tires approved for your vehicle by the man-
ufacturer were chosen specifically to meet the
requirements of your vehicle and offer optimum
driving safety and the desired driving comfort
when used properly.

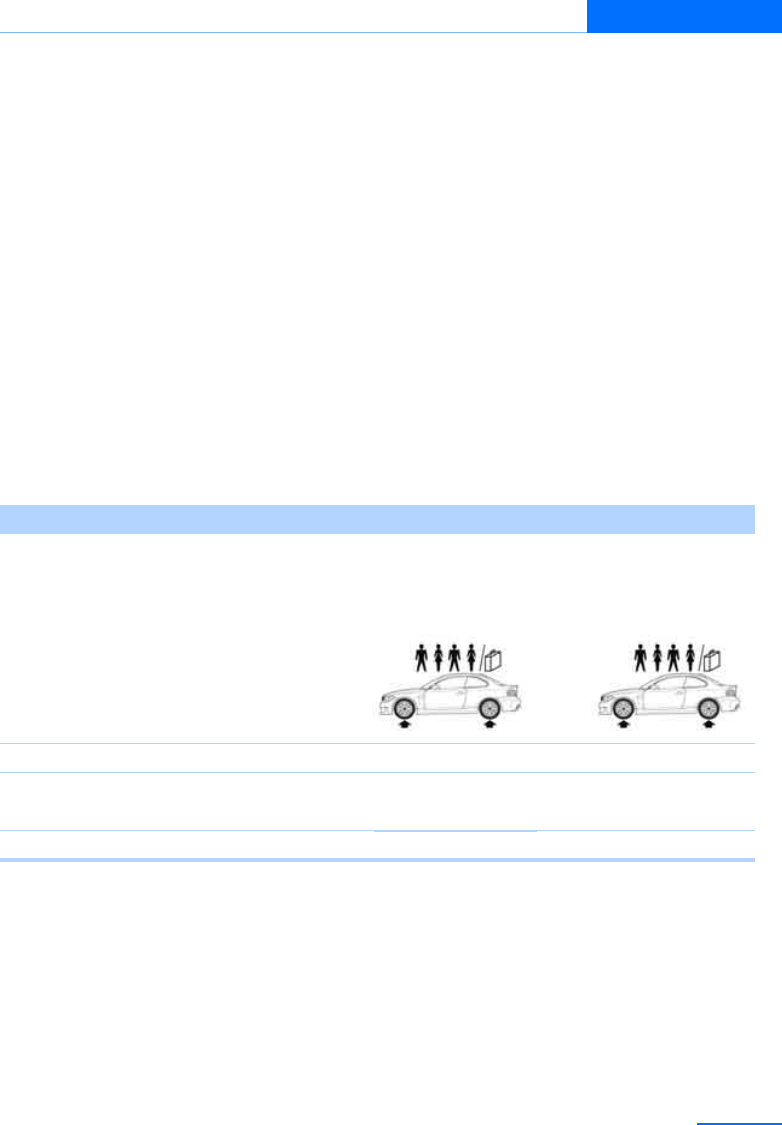

Tire inflation pressures
Tire size Pressure specifications in bar/PSI
Traveling speeds
up to a max. of
100 mph/160 km/h
Traveling speeds
including those
exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in PSI/kilopascals with cold tires.
Cold = ambient temperature
235/40 R 18 95 V M+S XL 2.4/34 2.6/37 2.8/40 2.8/40
Front: 245/35 R 19 93 Y XL 2.4/34 - 2.6/37 -
Rear: 265/35 R 19 98 Y XL - 2.4/34 - 2.8/40
More details on the permissible load and weights can be found on page 42.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
32
Mobility Replacing components
Replacing components
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
Flat tire, repairing
Safety measures in the event of a flat tire:
Park the vehicle as far away from moving
traffic as possible and on a firm surface. Switch
on the hazard warning flashers.
Set the parking brake and shift into first gear or
reverse. Have all occupants leave the vehicle
and move beyond the danger zone, e.g. behind
the guard rails.
If necessary, set up a warning triangle or warn-
ing flasher at a suitable distance. Adhere to
country-specific regulations.<
BMW Mobility System
Notes
>Follow the instructions on using the
Mobility System found on the compressor
and the sealant bottle.
>Use of the Mobility System may not be
effective against tire damage larger than
approx. 0.16 in/4 mm.
>Contact the nearest BMW center if the tire
cannot be made drivable with the Mobility
System.
>If possible, leave any foreign bodies that
have penetrated the tire in place.
>Remove the label with the speed restriction
from the sealant bottle and apply it to the
steering wheel.
Storage
The Mobility System is stored in the cargo area
under the floor mat.

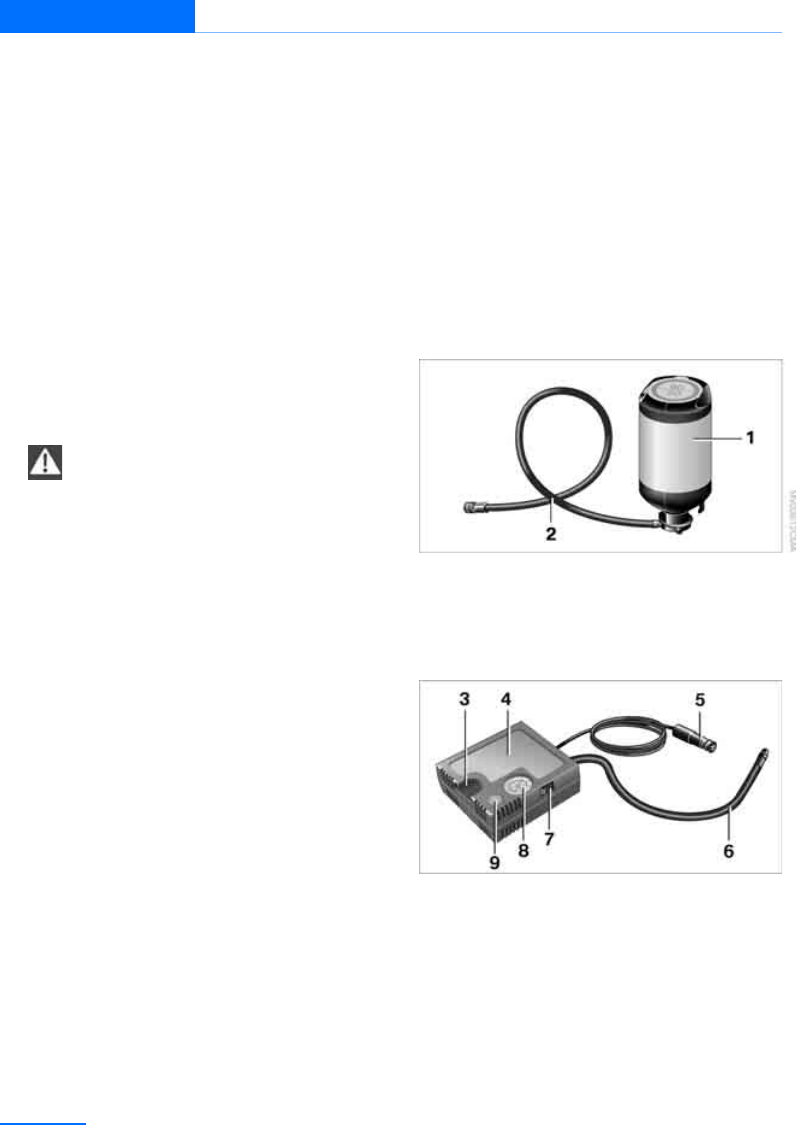

Sealant cylinder and compressor
1Sealant bottle and label with speed restric-
tion
2Filling hose
Note the use-by date on the sealant bottle.
3Holder for sealant bottle
4Compressor
5Connector/cable for socket
6Hose to connect compressor and sealant
bottle or compressor and wheel
7On/off switch
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
33
Replacing components Mobility
8Pressure gauge for displaying the tire infla-
tion pressure
9Deflation button for reducing the inflation
pressure
The connector, cable and connection hose are
stored in the compressor housing.
Using the Mobility System
To repair a flat tire with the Mobility System,
proceed as follows:
>Fill with sealant.
>Distribute the sealant.
>Correct the tire inflation pressure.
Filling with sealant
Follow the specified sequence, otherwise
the sealant may escape under high pres-
sure.<

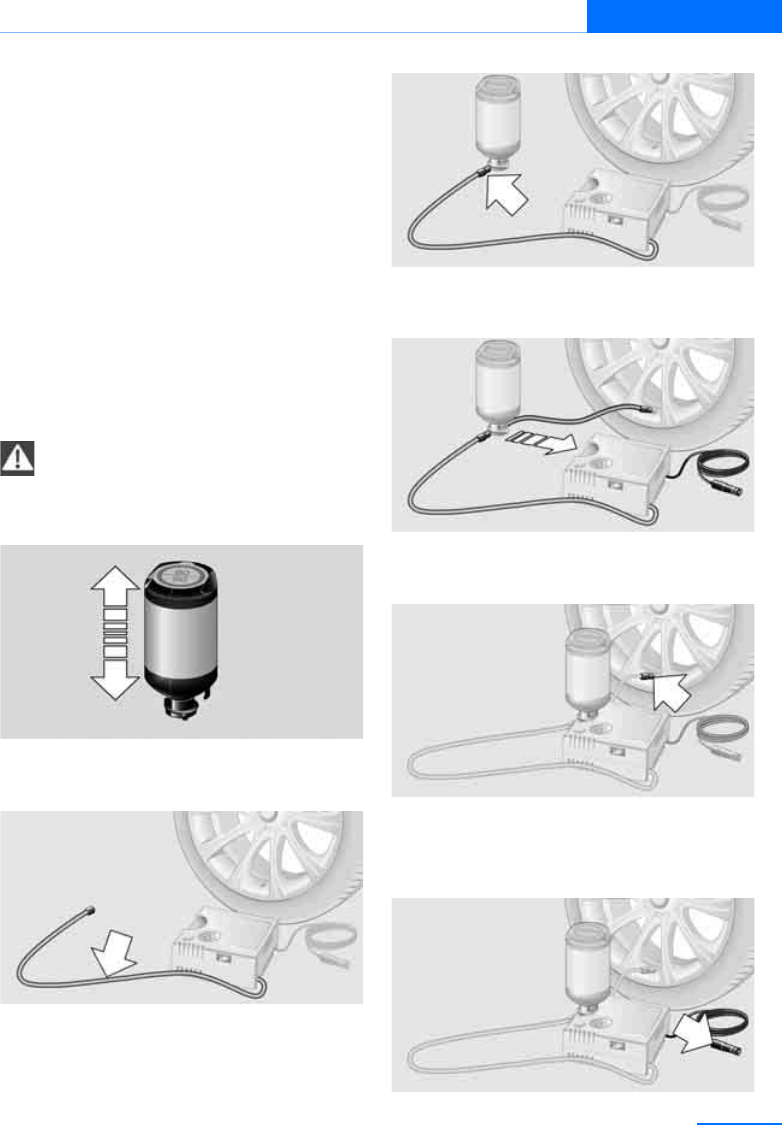

1. Shake the sealant bottle.
2. Remove connecting hose completely from
the compressor housing.
3. Screw the connecting hose to the connec-
tion of the sealant bottle. Do not kink the
hose.
4. Insert the sealant bottle into the housing of
the compressor so that the bottle is upright.
5. Screw the filler hose of the sealant bottle
onto the valve of the faulty tire.
6. Ensure that the compressor is switched off.
7. Insert the plug into the power socket in the
vehicle interior.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
34
Mobility Replacing components

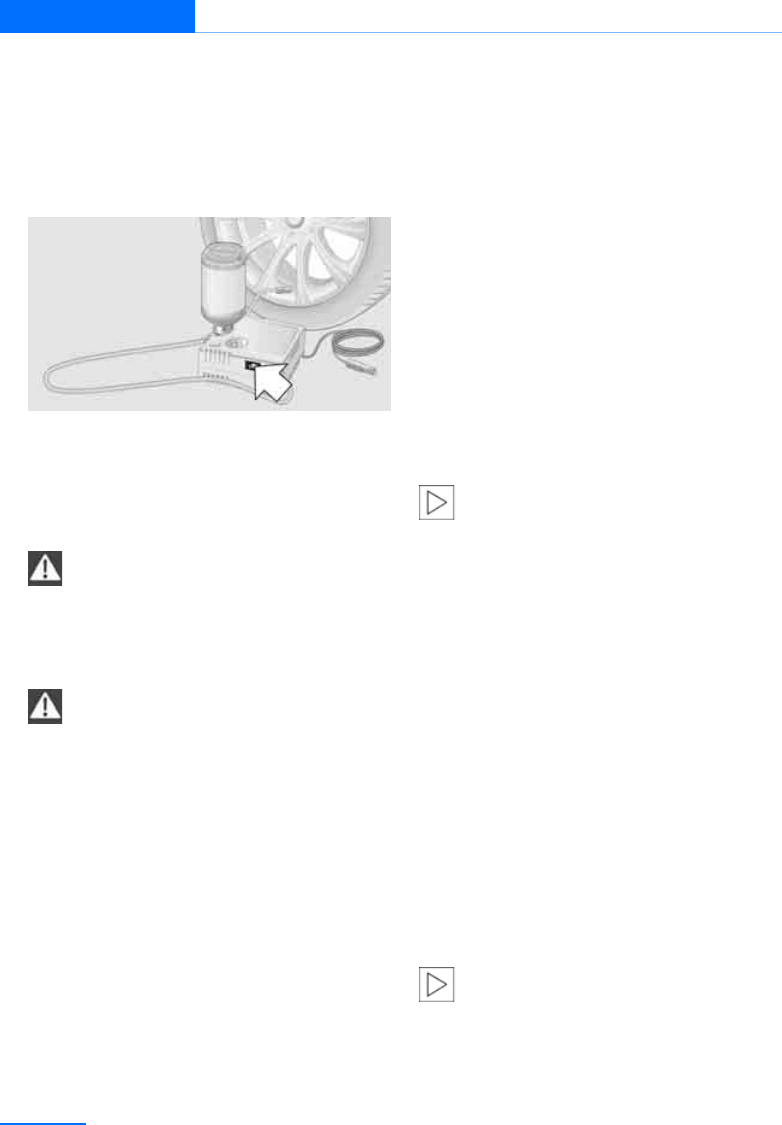

8. With the ignition switched on or the engine
running, switch on the compressor.
Let the compressor run for approx. 3 to
8 minutes to fill the tire with sealant and
achieve a tire inflation pressure of approx.
36 PSI/250 kPa.
9. Switch off the compressor.
While the tire is being filled with sealant, the dis-
played inflation pressure may briefly reach
approx. 73 PSI/500 kPa. Do not switch off the
compressor in this phase.
Do not run the engine in enclosed areas;
otherwise, the inhalation of toxic exhaust
gases can cause loss of consciousness and
death. The exhaust gases contain carbon
monoxide, an odorless and colorless, but highly
toxic gas.<
Do not let the compressor run for more
than 10 minutes, otherwise the device will
overheat and may be damaged.<
If an inflation pressure of 29 PSI/2 bar cannot be
reached:
1. Switch off the compressor.
2. Unscrew the filler hose from the tire valve.
3. Drive 33 ft/10 m forward and in reverse to
distribute the sealing compound in the tire.
4. Inflate the tire again with the compressor.
If an inflation pressure of 29 PSI/200 kPa
still cannot be reached, the tire is too heavily
damaged. Contact your BMW center.
Stowing Mobility System
1. Unscrew the filler hose of the sealant bottle
from the tire valve.
2. Unscrew the connecting hose of the
compressor from the sealant bottle.
3. Connect the filler hose of the sealant bottle
to the unoccupied connection on the
sealant bottle.
This prevents the rest of the sealant from
escaping from the bottle.
4. Wrap the empty sealant bottle in suitable
material to avoid dirtying the cargo area.
5. Stow Mobility System back in the vehicle.
Distributing the sealant
Immediately drive approx. 3 miles/5 km to
evenly distribute the sealant in the tire.
Do not exceed a speed of 50 mph/
80 km/h. If possible, do not fall below a
speed of 12 mph/20 km/h.<
Correcting the tire inflation pressure
1. Stop at a suitable location.
2. Connect connecting hose of the compres-
sor directly to the tire valve.
3. Insert the plug into the power socket in the
vehicle interior.
4. Adjust the tire inflation pressure to 36 PSI/
250 kPa. With the engine running:
>To increase the inflation pressure: With
the ignition switched on or the engine
running, switch on the compressor.
To check the inflation pressure, switch
off the compressor.
>To reduce the inflation pressure: Press
the discharge button on the compres-
sor.
If the inflation pressure is not maintained,
drive the vehicle a second time, refer to
Distributing the sealant. Then repeat steps 1
to 4.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
35
Replacing components Mobility
If the tire is still unable to maintain an inflation
pressure, then the tire is too badly damaged.
Contact your BMW center.<
Continuing your trip
Do not exceed the maximum allowable
speed of 50 mph/80 km/h to avoid the risk
of an accident.<
Reinitialize the Flat Tire Monitor.
Have the faulty tire and the sealant bottle
of the Mobility System replaced as soon as pos-
sible.<
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
36
Mobility Indicator and warning lamps
Indicator and warning lamps
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehicle, for example due to
the special options or national-market version
selected. This also applies to safety related
functions and systems.
The concept
Indicator and warning lamps appear in the dis-
play area. See the table for information on
causes and how to react. Note whether a lamp
lights up alone or in combination with another.
Some lamps can light up in different colors.
Corresponding distinctions are made in the
text.
In addition to the indicator lamps described in
the Owner's Manual for the vehicle, please note
the following indicator lamps in your
BMW 1-Series M Coupe:

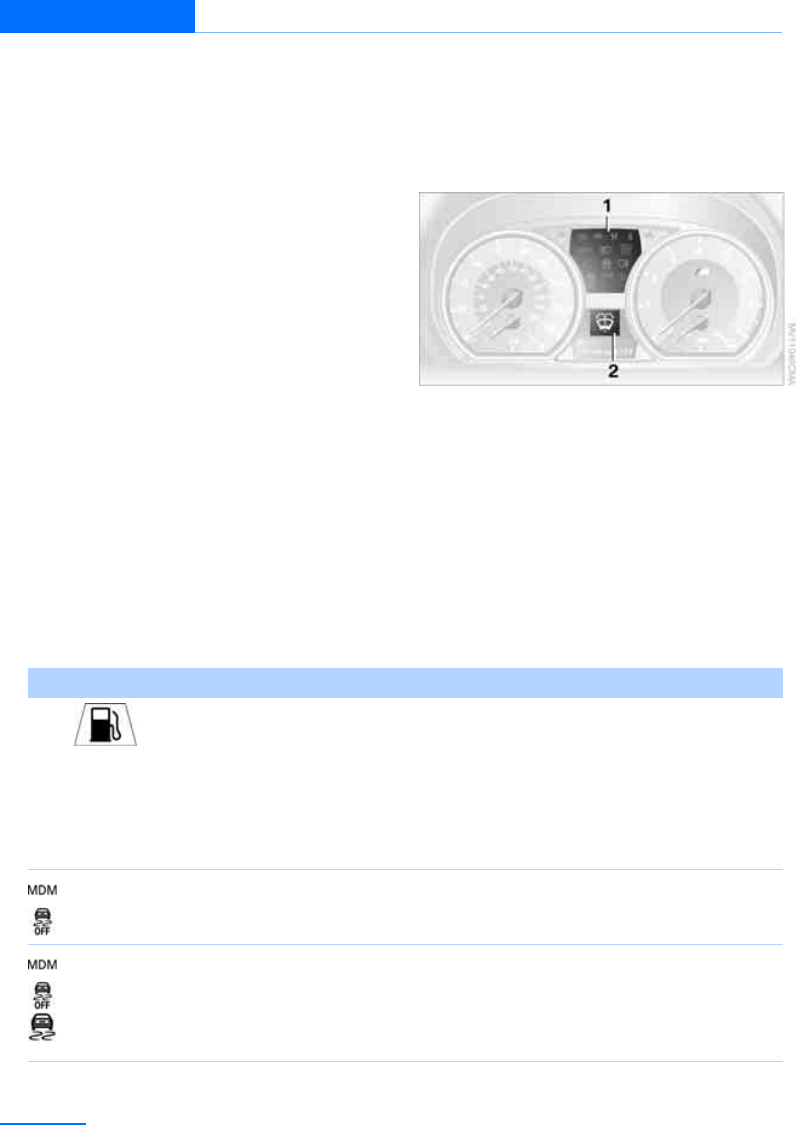

1 2 Cause What to do
Lights up briefly:
Approx. 2.1 US gal/8 liters of fuel
remain in the tank
Remains on:
Remaining operating range is no more
than 30 miles/50 km, refer to page 18
M Dynamic Mode MDM activated, also
refer to page 19
MDM and DSC OFF light up
DSC flashes:
M Dynamic Mode MDM is controlling
the drive and braking forces, also refer
to page 19
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
37
Indicator and warning lamps Mobility

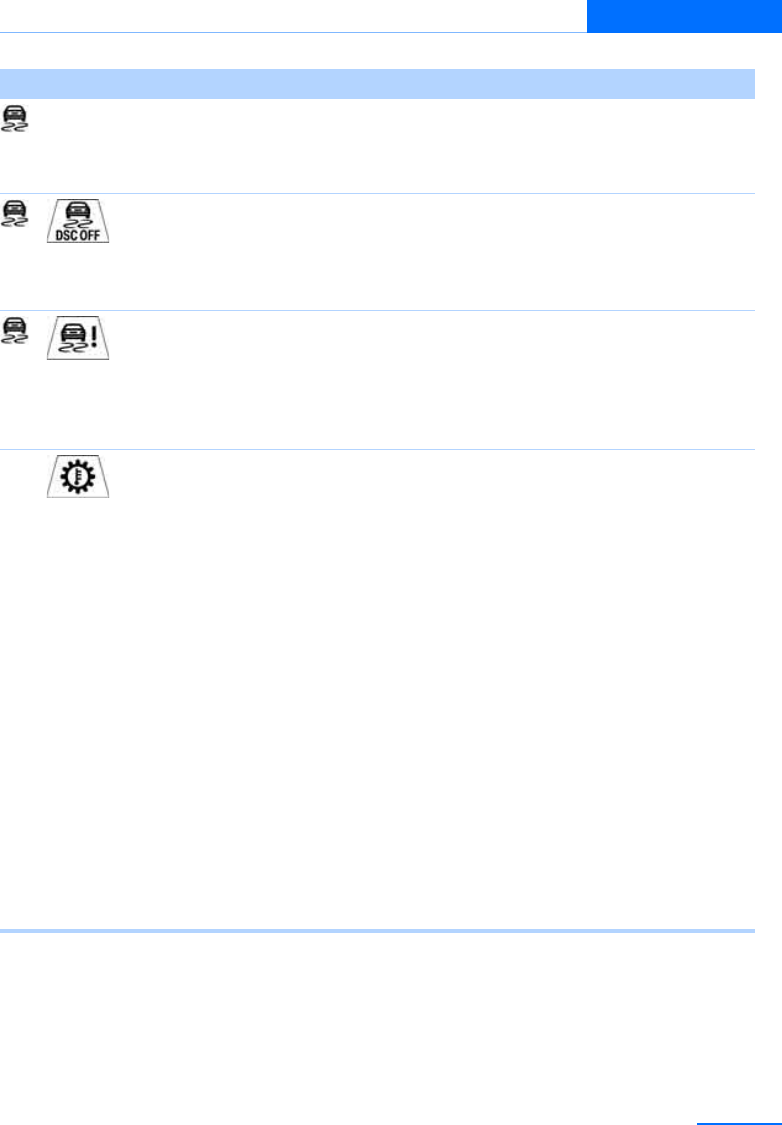

Flashing:
Dynamic Stability Control DSC is regu-
lating the drive and brake forces, also
refer to page 20
Dynamic Stability Control DSC and
M Dynamic Mode MDM are deacti-
vated, also refer to page 20
Driving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution.
Suspension control system has failed Driving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked as
soon as possible.
Lights up in red:
>Clutch overheated Bring the vehicle to a stop and allow the
clutch to cool down. You can continue
your journey, but moderate your speed
and exercise due caution. Have the sys-
tem checked if the situation reoccurs.
>Transmission overheating Stop the car and switch off the engine.
Allow the transmission to cool down.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked if the
situation reoccurs.
Lights up in yellow:
>Clutch too hot Avoid frequent accelerations from zero
and driving at walking speed. You can
continue your journey, but moderate
your speed and exercise due caution.
>Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate your
speed and exercise due caution.
1 2 Cause What to do
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
This chapter contains technical data and an
index that will help you find information most
quickly.
Reference
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
40
Reference Technical data
Technical data
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be available in a
particular vehicle, for example due to the
options or national-market version selected.
This also applies to safety related functions and
systems.
Engine data
1-Series M Coupe
Displacement cu in/cmm182/2,979
Number of cylinders 6
Maximum output hp 335
at engine speed rpm 5,900
Maximum torque lb ft/Nm 332/450
with Overboost lb ft/Nm 369/500
at engine speed rpm 1,500-4,500
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
41
Te c h nical d a t a Reference
Dimensions

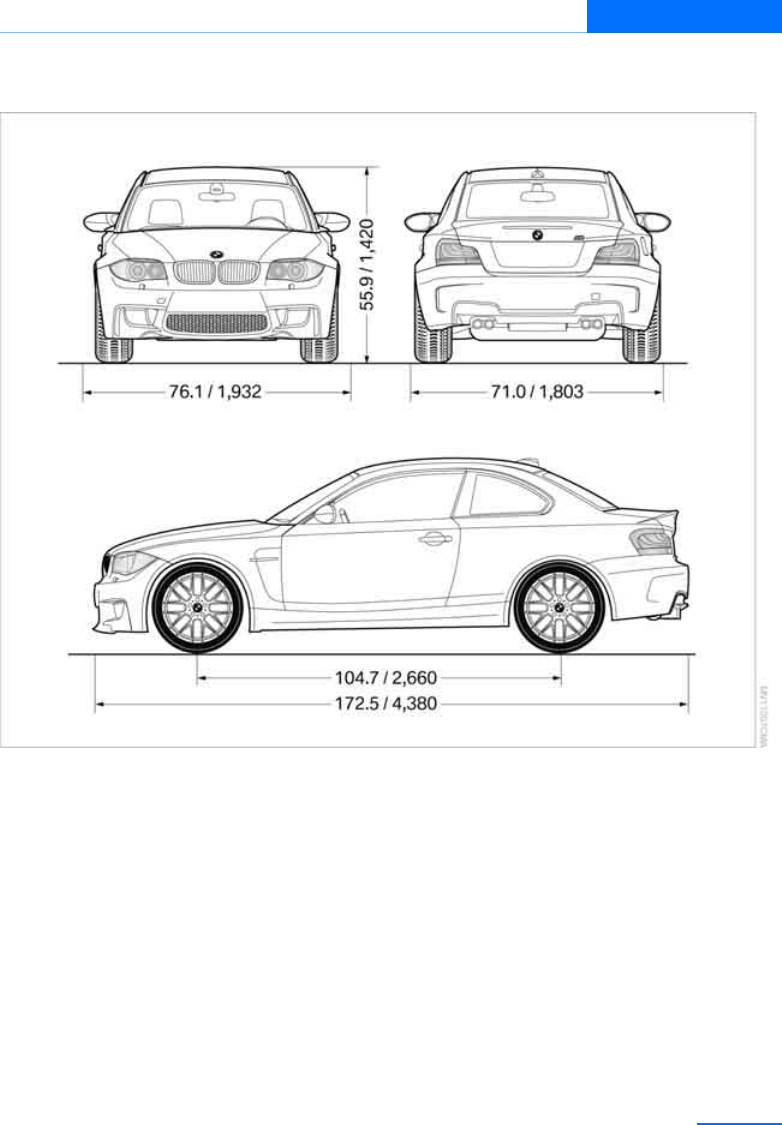

All dimensions given in inches/mm.
Smallest turning circle diam.: 37.7 ft/11.5 m.
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
42
Reference Technical data
Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
1-Series M Coupe
Approved gross weight lbs/kg 4,255/1,930
Load lbs/kg 893/360
Approved front axle load lbs/kg 2,072/940
Approved rear axle load lbs/kg 2,271/1,030
Approved roof load capacity lbs/kg 165/75
Cargo area capacity cu ft/liters 13.1/370
Notes
Fuel tank US gal/liters approx. 14.0/53 Fuel grade: page 30
including reserve of US gal/liters approx. 2.1/8.0
Window washer system
including headlamp washers US quarts/liters approx. 5.9/5.6
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
43
Te c h nical d a t a Reference
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
44
Reference Everything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 19
Accessories, refer to Vehicle
equipment 5
Adhesive film, refer to Right-
hand/left-hand traffic 25
Air pressure, refer to Tire
inflation pressure 31
AKI, refer to Fuel grade 30
Antilock Brake System
ABS 19
Approved axle loads, refer to
Weights 42
Approved gross vehicle
weight, refer to Weights 42
Assist systems, refer to
Driving stability control 19
Axle loads, refer to Weights 42
B
BMW Mobility System 32
Brake pedal, refer to Braking
safely 24
Brake rotors 26
Brakes, refer to Braking
safely 24
Brake system, disc brakes 26
Breaking in the differential,
refer to Engine and
differential 24
Break-in period 24
Buttons on the steering
wheel 9
C
Capacities 42
Center console, refer to
Around the center
console 12
Cockpit 8
Comfort area, refer to Around
the center console 12
Controls and displays 8
Copyright 2
Curb weight, refer to
Weights 42
D
Dashboard, refer to Cockpit 8
Dashboard, refer to
Instrument cluster 10
Data, technical 40
– capacities 42
– dimensions 41
– engine 40
– weights 42
Dimensions 41
Displacement, refer to Engine
data 40
Displays, refer to Instrument
cluster 10
Displays and controls 8
Drive-off assistance, refer to
Dynamic Stability Control
DSC 19
Drive-off assistant 20
Driving notes 24
Driving off on hills, refer to
Drive-off assistant 20
Driving stability control
systems 19
Driving tips, refer to Driving
notes 24
DSC Dynamic Stability
Control 19
Dynamic Stability Control
DSC 19
– indicator/warning lamp 20
– M Dynamic Mode MDM 19
E
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC 19
Engine
– breaking in 24
– data 40
– speed 40
Engine output, refer to Engine
data 40
Engine speed, refer to Engine
data 40
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC 19
F
Flat tire, repairing 32
Fuel 30
– gauge 17
– high-quality brands 30
– quality 30
– specifications 30
– tank contents, refer to
Capacities 42
Fuel clock, refer to Fuel
gauge 17
Fuel display, refer to Fuel
gauge 17
Fuel filler flap 30
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
45
Everything from A to Z Reference
G
Gasoline, refer to Required
fuel 30
Gasoline display, refer to Fuel
gauge 17
General driving notes 24
Gross vehicle weight, refer to
Weights 42
H
Hands-free system 12
Hazard warning flashers 12
Headlamp flasher, indicator
lamp 9
Height, refer to
Dimensions 41
Hills 24
Horn 8,9
I
Imprint 2
Indicator and warning lamps,
M Dynamic Mode 19
Indicator and warning lamps,
overview 36
Inflation pressure, refer to Tire
inflation pressure 31
Instrument cluster 10
Instrument cluster, refer to
Cockpit 8
Instrument combination, refer
to Instrument cluster 10
K
Knock control 30
L
Left-hand traffic 25
Length, refer to
Dimensions 41
Luggage compartment,
volume 42
M
MDM, refer to M Dynamic
Mode 19
M Dynamic Mode MDM 19
– indicator lamp 19
Measurements, refer to
Dimensions 41
M Engine Dynamics
Control 16
Microphone
– telephone 12
– voice commands 12
Mobility System 32
– compressor 32
– continuing the trip 35
– correcting inflation
pressure 34
– dispensing sealing
compound 33
– distributing sealant 34
– preparation 32
– sealing compound 32
Multifunctional steering
wheel, refer to Buttons on
the steering wheel 9
N
Number of cylinders, refer to
Engine data 40
O
Octane ratings, refer to Fuel
specifications 30
Output, refer to Engine
data 40
Overboost 16
P
Parts and accessories, refer to
Vehicle equipment 5
Pressure, tires 31
R
Refueling 30
Reserve warning, refer to Fuel
gauge 17
Right-hand/left-hand traffic,
adhesive film 25
Roof load capacity 42
S
Safety systems
– Antilock Brake System
ABS 19
– driving stability control 19
– Dynamic Stability Control
DSC 19
Signal horn, refer to Horn 8,9
Speedo, refer to
Speedometer 10
Speedometer 10
Stability control, refer to
Driving stability control
systems 19
Status of this Owner's Manual
at time of printing 5
Steering wheel
– buttons on steering wheel 9
Summer tires, refer to Wheels
and tires 31
Switches, refer to Cockpit 8
Symbols 4
T
Tachometer 17
Tank contents, refer to
Capacities 42
Technical data 40
– dimensions 41
Tire inflation pressure 31
Tires
– inflation pressure 31
Torque, refer to Engine
data 40
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
46
Reference Everything from A to Z
Traction control, refer to
Dynamic Stability Control
DSC 19
Turning circle, refer to
Dimensions 41
Turn signal indicators,
indicator/warning lamp 10
U
Using the Mobility System 33
V
Vehicle
– breaking in 24
– measurements, refer to
Dimensions 41
– weight 42
Vehicle equipment 5
Volume
– cargo area, refer to
Weights 42
– fuel tank, refer to
Capacities 42
W
Warning and indicator
lamps 11
Warning and indicator lamps,
overview 36
Weights 42
Wheelbase, refer to
Dimensions 41
Wheels and tires 31
Width, refer to Dimensions 41
Windshield washing, reservoir
capacity 42
X
Xenon headlamps, right-hand/
left-hand traffic 25
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
01 40 2 609 935 ue
*BL260993500C*
The Ultimate
Driving Machine
More about BMW
bmwusa.com
Online Edition for Part no. 01 40 2 609 935 - © 08/11 BMW AG
