Owner's Manual

for Vehicle

X5 3.0i

X5 4.4i

X5 4.6is

Congratulations, and thank you for choosing a BMW.

Thorough familiarity with your vehicle will provide you with enhanced control and

security when you drive it. We therefore have this request:

Please take the time to read this Owner's Manual and familiarize yourself with the

information that we have compiled for you before starting off in your new vehicle. It

contains important data and instructions intended to assist you in gaining maximum

use and satisfaction from the unique range of technical features on your BMW. The

manual also contains information on vehicle maintenance designed to enhance

operating safety and contribute to maintaining the value of your BMW throughout an

extended service life.

For additional information refer to the supplemental manuals.

This Owner's Manual should be considered a permanent part of this vehicle. It

should stay with the vehicle when sold to provide the next owner with important

operating, safety and maintenance information.

This manual is supplemented by a Service and Warranty Information Booklet

(US models) or a Warranty and Service Guide Booklet (Canadian models).

We recommend that you read this publication thoroughly.

Your BMW is covered by the following warranties:

– New Vehicle Limited Warranty

– Limited Rust Perforation Warranty

– Federal Emissions System Defect Warranty

– Federal Emissions Performance Warranty

– California Emission Control System Limited Warranty

Detailed information about these warranties is listed in the Service and Warranty

Information Booklet (US models) or in the Warranty and Service Guide Booklet

(Canadian models).

We wish you an enjoyable driving experience.

BMW AG

Vorwort

Contents

Aktiengesellschaft

Munich, Germany

Reprinting, including excerpts, only with the

written consent of BMW AG, Munich.

Order no. 01 41 0 156 416

US English IX/2001

Printed in Germany

Printed on environmentally friendly paper

(bleached without chlorine, suitable for recycling).

Overview

Controls and features

Cockpit 14

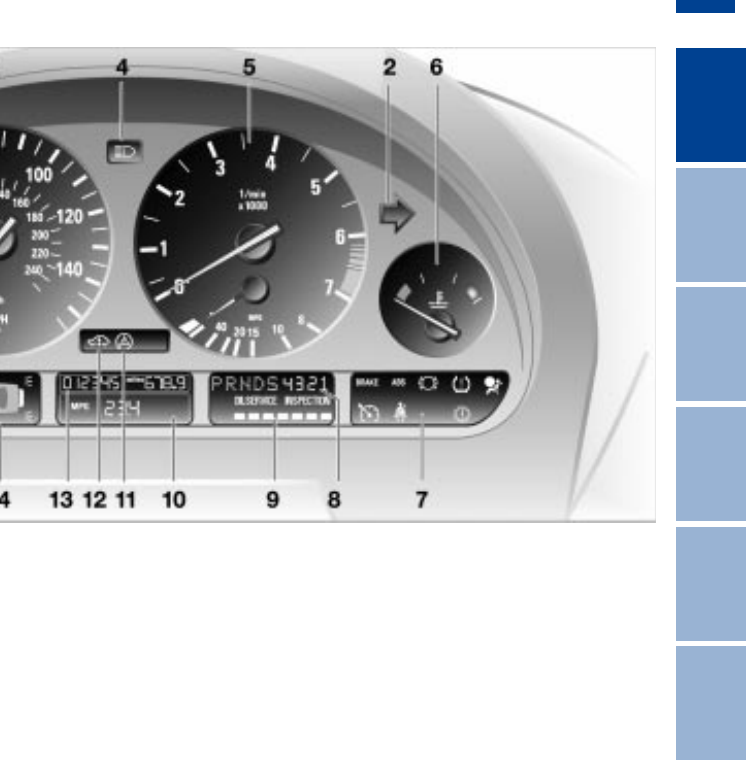

Instrument cluster 15

Indicator and warning lamps 18

Steering wheel with multifunction

buttons 22

Warning triangle 23

First-aid kit 23

Refueling 24

Fuel specifications 25

Tire inflation pressures 26

Locks and security systems:

Keys 30

Central locking system 30

Opening and closing

– via the door lock 31

Opening and closing

– via the remote control 32

Opening and closing

– from the inside 35

Liftgate 36

Tailgate 37

Alarm system 39

Electric power windows 40

Sliding/tilt sunroof with glass

moonroof 42

Adjustments:

Correct sitting posture 44

Seats 44

Mechanical seat 45

Power seat 46

Head restraints 47

Power rear-seat backrest

adjustment 48

Safety belt 49

Seat, mirror and steering wheel

memory 50

Seat heating 51

Adjusting steering wheel 52

Steering wheel heating 53

Mirrors 53

Passenger safety systems:

Airbags 55

Transporting children safely 58

Vehicle Memory, Key

Memory 61

Driving:

Ignition lock 62

Starting the engine 62

Switching off the engine 64

Parking brake 64

Manual transmission 65

Automatic transmission with

Steptronic 66

Indicator/Headlamp flasher 68

Washer/Wiper system/Rain

sensor 69

Cruise control 71

Everything under control:

Odometer, outside temperature

display 74

Tachometer 75

Energy control 75

Fuel gauge 75

Coolant temperature gauge 76

Service Interval Display 76

Check Control 77

Computer 80

Multi-Information Display

(MID) 82

Digital clock in the MID 83

Computer in the MID 86

Inhalt

OverviewControlsMaintenanceRepairsDataIndex

Controls and features

Operation, maintenance

Technology for safety and

driving convenience:

Park Distance Control (PDC) 91

Dynamic Stability Control

(DSC) 92

Hill Descent Control (HDC) 94

Variable Ride Height 95

Variable Ride Height on both

axles 95

Tire Pressure Monitor (RDC) 98

Adaptive brake light 99

Lamps:

Parking lamps/Low beams 100

Instrument lighting 101

High beams/Standing

lamps 101

Fog lamps 101

Interior lamps 102

Reading lamps 102

Controlling the climate for

pleasant driving:

Air conditioner 103

Automatic climate control 106

Sunshades

Independent ventilation

system 112

Cabin convenience:

BMW Universal Transmitter 113

Glove compartment 116

Storage compartments 116

Cellular phone 117

Beverage holder 117

Glasses compartment 118

Ashtray, front 118

Cigarette lighter, front 118

Ashtray, rear 119

Cigarette lighter, rear 119

Loading and transporting:

Ski bag 120

Cargo area

Fold the rear backrests

down 122

Cargo area cover 122

Partition net 123

Cover panels in the cargo

area 124

Power outlets 125

Pull-out cargo floor 126

Stowing cargo 127

Roof-mounted luggage rack 128

Special operating instructions:

Break-in procedures 132

Driving your BMW X5 133

General driving notes 134

Antilock Brake System

(ABS) 134

Brake system 135

Wheels and tires:

Tire inflation pressures 136

Tire condition 136

Tire replacement 137

Wheel and tire

combinations 139

Winter tires 140

Snow chains 140

Contents

Operation, maintenance

Owner service procedures

Technical data

Under the hood:

Hood 141

Engine compartment

essentials 142

Washer fluid 143

Engine oil 143

Coolant 145

Brake fluid 146

Care and maintenance:

The BMW Maintenance

System 147

Laws and regulations:

Technical modifications 148

California Proposition

65 Warning 148

OBD interface socket 149

Replacement procedures:

Onboard tool kit 152

Windshield wiper blades 152

Lamps and bulbs 153

Changing a wheel 156

Battery 162

Fuses 163

Assistance, giving and

receiving:

Jump-starting 164

Towing the vehicle 166

Engine specifications 170

Dimensions 171

Weights 172

Capacities 173

OverviewControlsMaintenanceRepairsDataIndex

Index

Everything from A to Z 176

Notes on the Owner's Manual

We have made every effort to ensure

that you are able to find what you need

in this Owner's Manual as quickly as

possible. The fastest way to find certain

topics is by using the detailed index at

the end. If you desire an initial overview

of your vehicle, this can be found in the

first chapter. The detailed table of

contents on the preceeding pages is

intended to stimulate your curiosity

regarding your BMW and to encourage

you to read the Owner's Manual.

Should you wish to sell your BMW at

some time in the future, please

remember to hand over the Owner's

Manual to the new owner; it is legal part

of the vehicle.

If you have any questions, your

BMW Sports Activity Vehicle center

will be glad to advise you.

Symbols used

Indicates precautions that must

be followed precisely in order to

avoid the possibility of personal injury

and serious damage to the vehicle.

Contains information that will

assist you in gaining the optimum

benefit from your vehicle and enable

you to care more effectively for your

vehicle.

Refers to measures that can

be taken to help protect the

environment.

Marks the end of a specific item of

information.

Indicates special equipment, country-

specific equipment and optional extras.

Identifies index entries that refer to

owner service procedures or topics on

vehicle maintenance.

Identifies systems or components,

which can either be activated or

adapted to suit an individual driver's

requirements ("Vehicle Memory", "Key

Memory"), refer to page 61.

Remember that activation and adjust-

ments on some of these systems can

only be performed at your BMW Sports

Activity Vehicle center.

Notes

Symbols

The individual vehicle

OverviewControlsMaintenanceRepairsDataIndex

The individual vehicle

On buying your BMW, you have

decided in favor of a model with individ-

ualized equipment and features. This

Owner's Manual describes all models

and equipment that BMW offers within

the same group.

We hope you will understand that

equipment and features are included

that you might not have chosen for your

vehicle. Any differences can easily be

identified, since all optional accessories

and special equipment are marked with

an asterisk

If your BMW features equipment which

is not described in this Owner's Manual

(car radio or telephone, for instance),

Supplementary Owner's Manuals are

enclosed. We ask you to read these

manuals as well.

Status at time of printing

BMW pursues a policy of continuous,

ongoing development that is conceived

to ensure that our vehicles continue to

embody the highest quality and safety

standards combined with advanced,

state-of-the-art technology. For this

reason, it is possible that the features

described in this Owner's Manual could

differ from those on your vehicle. Nor

can errors and omissions be entirely

ruled out. You are therefore asked to

appreciate that no legal claims can be

entertained on the basis of the data,

illustrations or descriptions in this

manual.

Aktualität bei Drucklegung

10n

For your own safety

Use unleaded gasoline only. Fuels

containing up to and including

10% ethanol or other oxygenates with

up to 2.8% oxygen by weight (that is,

15% MTBE or 3% methanol plus an

equivalent amount of co-solvent) will

not void the applicable warranties

respecting defects in materials or work-

manship. Field experience has indi-

cated significant differences in fuel

quality (volatility, composition, addi-

tives, etc.) among gasolines offered for

sale in the United States and Canada.

The use of poor-quality fuels may result

in driveability, starting and stalling

problems especially under certain envi-

ronmental conditions such as high

ambient temperature and high altitude.

Should you encounter driveability prob-

lems which you suspect could be

related to the fuel you are using, we

recommend that you respond by

switching to a recognized high-quality

brand.

Failure to comply with these recom-

mendations may result in unscheduled

maintenance.

Follow the relevant safety rules when

you are handling gasoline.

Important safety information.

For your own safety, use genuine parts

and accessories approved by BMW.

When you purchase accessories tested

and approved by BMW and Original

BMW Parts, you simultaneously acquire

the assurance that they have been thor-

oughly tested by BMW to ensure

optimum performance when installed

on your vehicle.

BMW warrants these parts to be free

from defects in material and workman-

ship.

BMW will not accept any liability for

damage resulting from installation of

parts and accessories not approved by

BMW.

BMW cannot test every product from

other manufacturers to verify if it can be

used on a BMW safely and without risk

to either the vehicle, its operation, or its

occupants.

Original BMW Parts, BMW Accessories

and other products approved by BMW,

together with professional advice on

using these items, are available from all

BMW Sports Activity Vehicle centers.

Installation and operation of non-BMW

approved accessories such as alarms,

radios, amplifiers, radar detectors,

wheels, suspension components, brake

dust shields, telephones (including

operation of any portable cellular phone

from within the vehicle without using an

externally mounted antenna) or trans-

ceiver equipment (for instance, CBs,

walkie-talkie, ham radio or similar

accessories) may cause extensive

damage to the vehicle, compromise its

safety, interfere with the vehicle's elec-

trical system or affect the validity of the

BMW Limited Warranty. Contact your

BMW Sports Activity Vehicle center for

additional information.

Maintenance, replacement, or

repair of the emission control

devices and systems may be performed

by any automotive repair establishment

or individual using any certified auto-

motive part.

Symbol on vehicle parts

Indicates that you should consult

the relevant section of this

Owner's Manual for information on a

particular part or assembly.

For your own safety

11n

OverviewControlsMaintenanceRepairsDataIndex

The following only applies to vehicles owned and operated in the US.

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should

immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying BMW of

North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone (201) 307-4000.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a

group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in indi-

vidual problems between you, your dealer or BMW of North America, LLC.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in

Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can

also obtain other information about motor vehicle safety from the Hotline.

12n

13n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Overview

14n

1 Parking lamps/Low beams 100

2 Fog lamps 101

Turn signal indicator 69

Standing lamps 101

High beams 101

Headlamp flasher 68

Computer 80

4 Wiper/Washer system 69

5 Rear window defroster 104, 109

6 Central locking system 30

7 Hazard warning flashers

8 Horn, the entire surface

9 Adjusting steering wheel 52

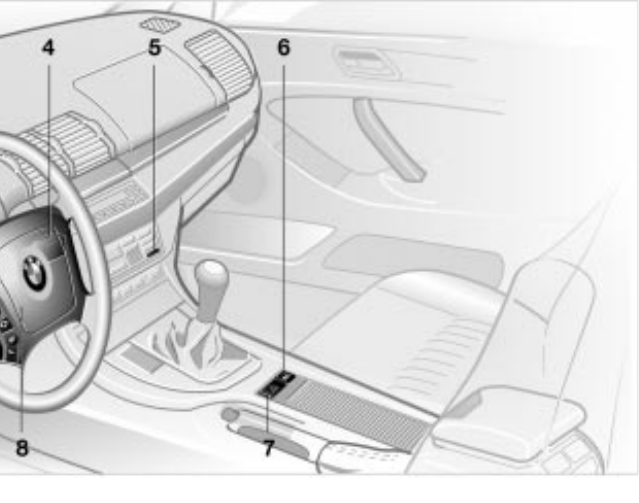

Cockpit

530de328

15n

OverviewControlsMaintenanceRepairsDataIndex

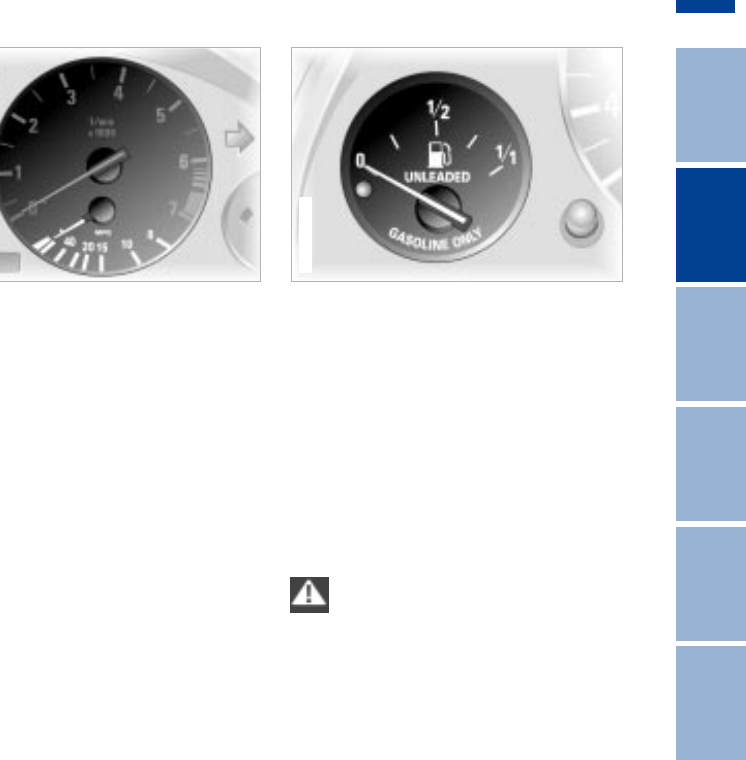

1 Fuel gauge 75

2 Indicator lamp for turn signals 21

3 Speedometer

4 Indicator lamp for high beams 21

5 Tachometer and Energy Control 75

6 Coolant temperature gauge 76

7 Indicator and warning

lamps 18 to 21

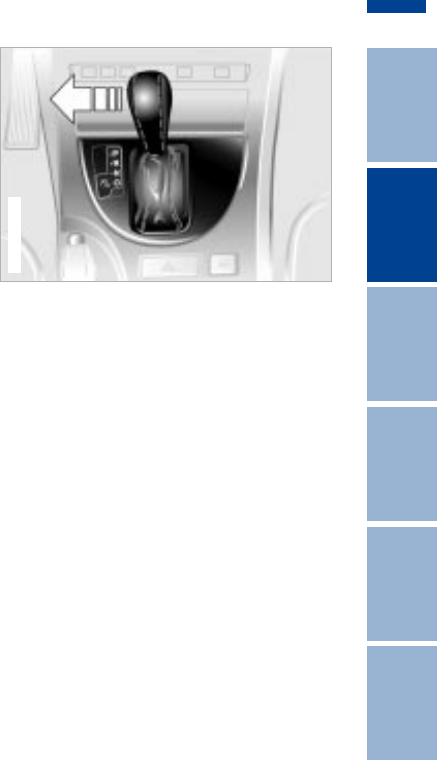

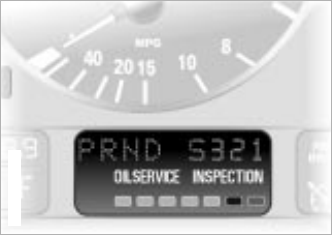

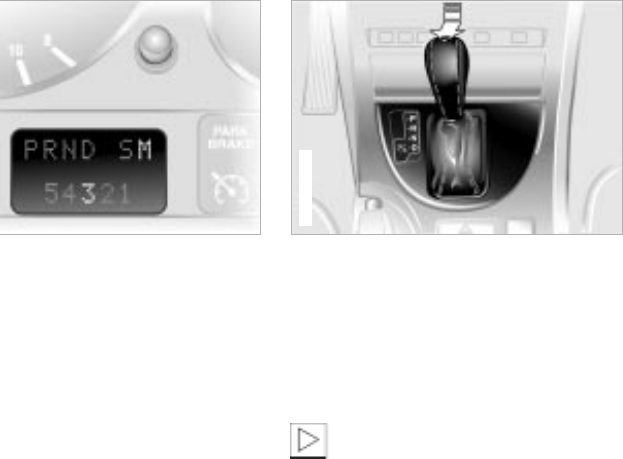

8 Selector lever and program display

for automatic transmission

9 Service Interval Display 76

10 Computer display –

operation via the turn signal lever,

refer to page 80:

Outside temperature

Average fuel consumption

Cruising range

Average speed

Instrument cluster

530us220

16n

Instrument cluster

11 Indicator lamp for Dynamic Stability

Control (DSC) 20

12 Variable Ride Height

13 Odometer and trip odometer 74

14 Indicator for Check Control 77 15 Reset button for trip odometer 74

16 Indicator and warning

lamps 18 to 21

530us220

17n

OverviewControlsMaintenanceRepairsDataIndex

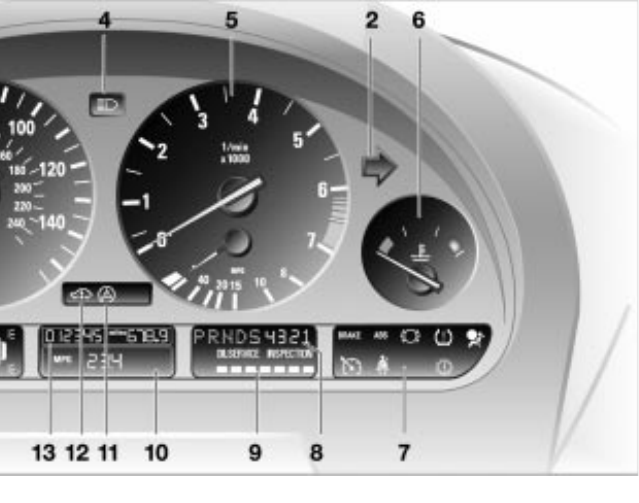

Instrument cluster

1 Fuel gauge 75

2 Indicator lamp for turn signals 21

3 Speedometer

4 Indicator lamp for high beams 21

5 Tachometer and Energy Control 75

6 Coolant temperature gauge 76

7 Indicator and warning

lamps 18 to 21

8 CHECK button 77

9 Selector lever and program display

for automatic transmission

10 Outside temperature display 74

11 Indicator lamp for Dynamic Stability

Control (DSC) 20

12 Trip odometer 74

13 Indicator for Check Control 77

14 Odometer 74

15 Service Interval Display 76

16 Reset button for trip odometer 74

17 Indicator and warning

lamps 18 to 21

530us221

18n

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are

identified by "

●

" are tested for proper

functioning whenever the ignition key is

turned. They each light up once for

different periods of time.

If a fault should occur in one of these

systems, the corresponding lamp does

not go out after the engine is started or

it lights up while the vehicle is moving.

You will see how to react to this in the

following section.

Red: stop immediately

Battery charge current

●

The battery is no longer being

charged. There is a malfunction

of the alternator drive belt or in the

charging circuit of the alternator. Please

contact the nearest BMW Sports

Activity Vehicle center.

If the drive belt is defective, do not

continue driving. The engine could

be damaged due to overheating. If the

drive belt is defective, increased

steering effort is also required.

Engine oil pressure

●

Stop the vehicle immediately

and switch off the engine.

Check the engine oil level; top off as

required. If the oil level is correct:

please contact the nearest BMW Sports

Activity Vehicle center.

Do not continue driving. The

engine could be damaged

because of inadequate lubrication.

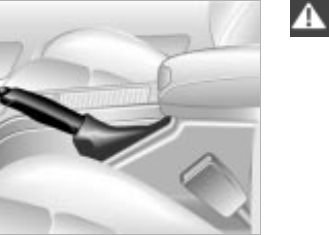

Parking brake

Brake hydraulic system

●

Comes on when you engage the

parking brake. For additional informa-

tion: refer to page 64.

Comes on although the parking brake

is released: have the brake fluid level

checked. Before continuing your

journey, be sure to read the notes on

pages 135 and 146.

Also comes on in the Check Control

with the message "CHECK BRAKE

LININGS".

Parking brake warning lamp

Brake hydraulic system warning

lamp for Canadian models.

Tire Pressure Monitor (RDC)

●

In addition, an acoustic signal is

sounded: a flat tire has

occurred. Reduce vehicle speed imme-

diately and stop the vehicle. Avoid hard

brake applications. As you steer the

vehicle, use caution and avoid overcor-

recting.

For additional information: refer to

page 98

19n

OverviewControlsMaintenanceRepairsDataIndex

Indicator and warning lamps

Red or yellow: continue to drive;

drive cautiously

If the brake warning lamp

comes on red together with the

yellow warning lamps for ABS

and DSC:

Continue to drive; drive

cautiously and defensively and

avoid full brake applications.

Have the system checked by the

nearest BMW Sports Activity Vehicle

center.

For additional information: refer to

pages 92 and 134.

If all three warning lamps come on

yellow:

Continue to drive; drive cautiously and

defensively and avoid full brake appli-

cations.

Have the system checked by your

BMW Sports Activity Vehicle center as

soon as possible.

Warning lamps for Canadian

models.

Red: an important reminder

Parking brake

Comes on when the parking

brake is engaged.

For additional information: refer to

page 64.

Parking brake warning lamp

for

Canadian models.

Please fasten safety belts

●

Together with an acoustic signal

or a message

in the Check

Control. Comes on until the safety belts

are fastened. For additional information

on safety belts: refer to page 49.

Airbags

●

Please have the system

inspected by your BMW Sports

Activity Vehicle center.

For additional information: refer to

page 55.

Yellow: check as soon as possible

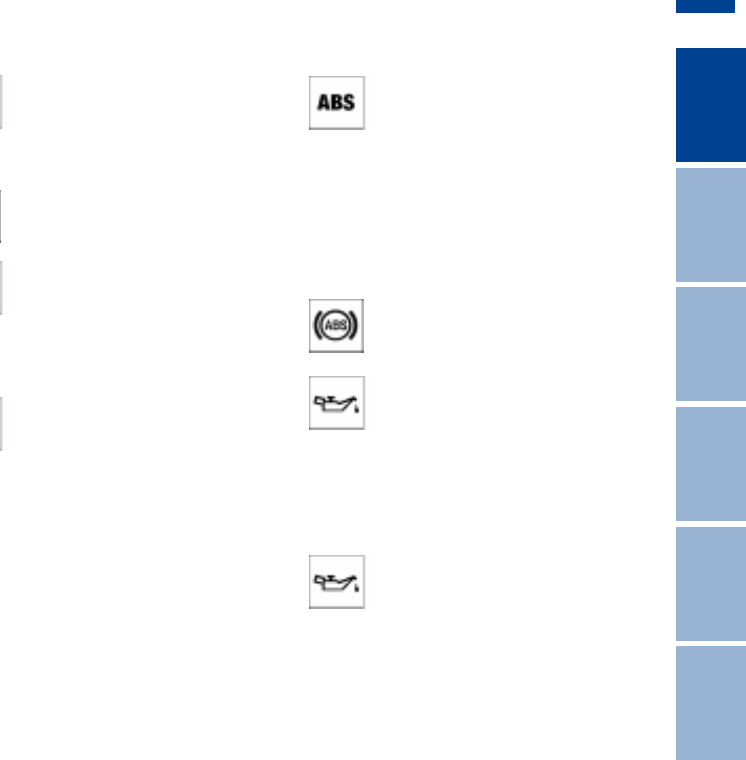

Antilock Brake System (ABS)

●

ABS has been deactivated in

response to system malfunction.

Conventional braking performance

remains available with no loss of effi-

ciency. Please have the system

inspected by your BMW Sports Activity

Vehicle center.

For additional information: refer to

page 134

ABS warning lamp for Canadian

models.

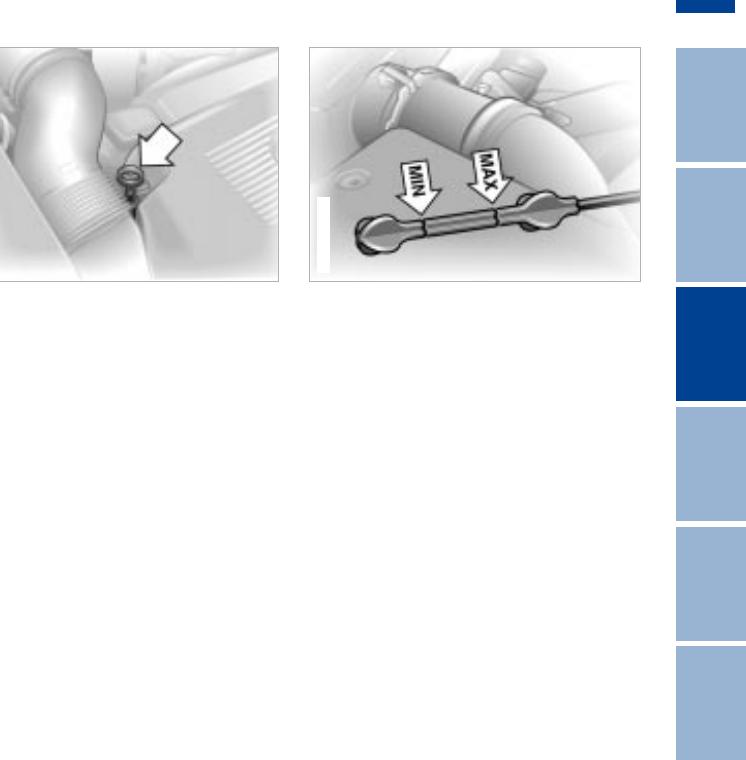

Engine oil level

Comes on while driving:

The oil level is at the absolute

minimum; refill as soon as possible. Do

not drive more than approx. 30 miles

(50 km) until you do.

For additional information: refer to

page 143.

Engine oil level

Comes on after the engine has

been switched off: add engine

oil at your earliest opportunity (when

you stop to refuel).

For additional information: refer to

page 143.

20n

Indicator and warning lamps

Automatic transmission

Because of a malfunction, the

automatic transmission shifts

only in the emergency program. Please

consult the nearest BMW Sports

Activity Vehicle center.

For additional information: refer to

page 68.

Brake pads

●

Have the brake pads checked.

For additional information: refer

to page 135.

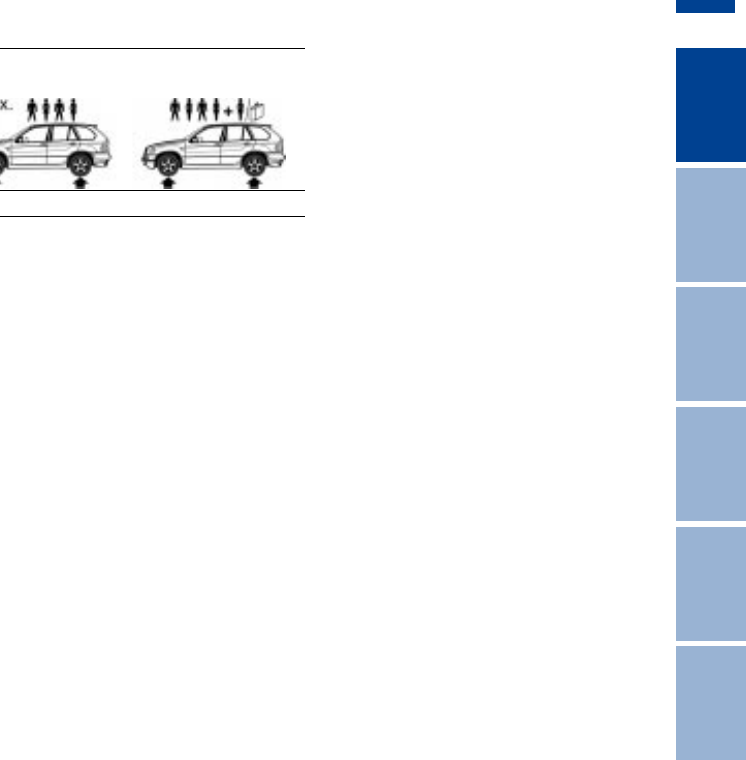

Variable Ride Height

●

Variable Ride Height is inactive.

Please consult the nearest

BMW Sports Activity Vehicle center.

For additional information: refer to

page 95

Dynamic Brake Control (DBC)

●

Fault in the DBC system.

Conventional braking perfor-

mance remains available with no loss of

efficiency. Please have the system

checked and repaired by your

BMW Sports Activity Vehicle center.

For additional information: refer to

page 93

Dynamic Brake Control (DBC)

warning lamp for Canadian

models

Dynamic Stability Control

(DSC)

●

Indicator lamp flashes:

The system is active and governs drive

and braking force.

The warning lamp comes on and stays

on while driving:

DSC has been switched off with the

button. If, after repeatedly pressing the

DSC button, the warning lamp still does

not go off, then that means that the

DSC, HDC and the vehicle's road-

holding ability are defective.

Please have the system checked by the

nearest BMW Sports Activity Vehicle

center.

For additional information: refer to

pages 92 and 94.

Engine electronics

There is a fault in the engine's

electronic control system. You

can continue to drive with reduced

engine output or engine speed. Please

have the system inspected by your

BMW Sports Activity Vehicle center.

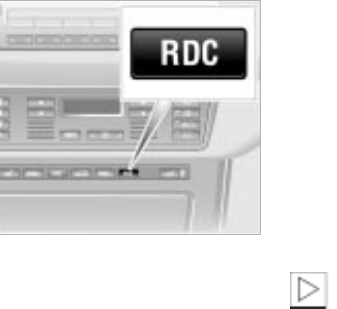

Tire Pressure Monitor (RDC)

●

Check tire inflation pressures,

refer to pages 26, 98

Service Engine Soon

●

If the indicator lamp comes on

either continuously or intermit-

tently, this indicates a fault in the

emissions-related electronic systems.

Although the vehicle remains opera-

tional, you should have the systems

checked by your BMW Sports Activity

Vehicle center at the earliest possible

opportunity.

For additional information: refer to

page 149.

Service Engine Soon warning

lamp for Canadian models.

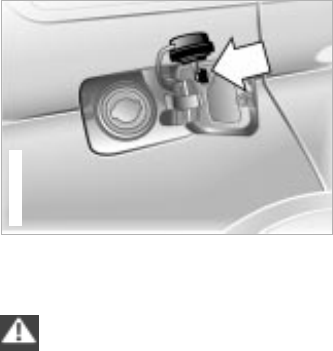

Check Filler Cap

●

If the indicator lamp comes on

although the fuel cap is secured

correctly: this indicates a malfunction in

the fuel system. Have the system

inspected by your BMW Sports Activity

Vehicle center at the earliest opportu-

nity.

Additional information: refer to page 25

21n

OverviewControlsMaintenanceRepairsDataIndex

Indicator and warning lamps

Green: for your information

Turn signal indicators

Flashes when the turn signal

indicators are operated. Rapid

flashing indicates a system malfunction.

For additional information: refer to

page 68.

Cruise control

Comes on when the cruise

control is activated: available for

operation via the steering wheel with

multifunction buttons.

For additional information: refer to

page 71.

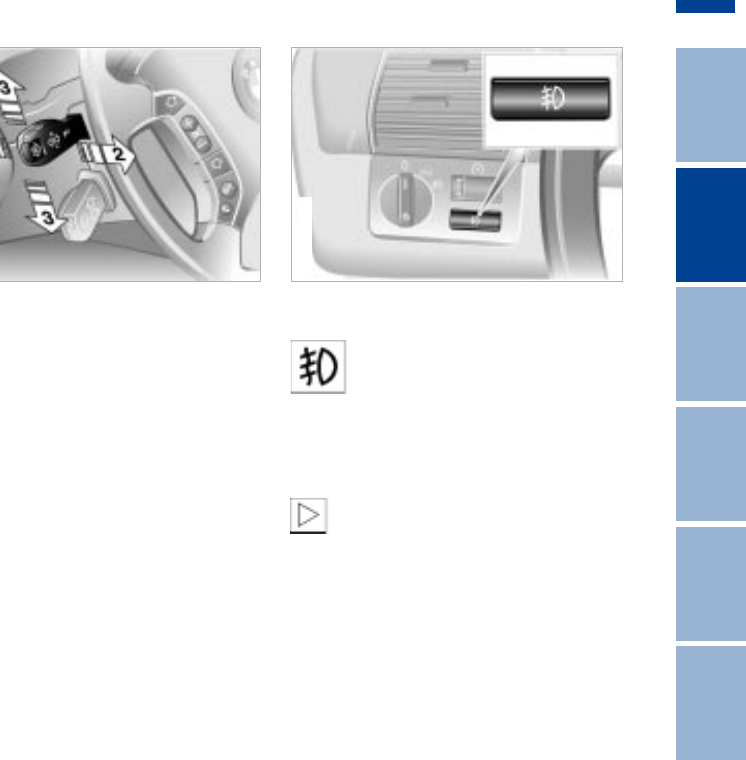

Fog lamps

Lights up whenever you switch

on the fog lamps.

For additional information: refer to

page 101.

Blue: for your information

High beams

Lights up when the high beams

are on or the headlamp flasher

is actuated.

For additional information: refer to

pages 68 and 101.

22n

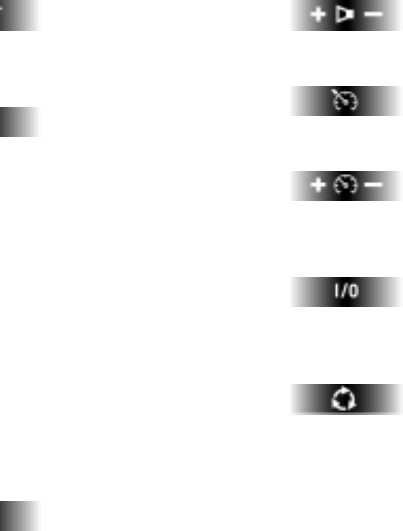

Steering wheel with multifunction buttons

The buttons integrated in the steering

wheel are provided so that you can

operate a number of accessories

quickly and without being distracted

from traffic conditions. You may

operate:

Selected control functions for the

radio along with CD and cassette

player

The recirculated-air mode of the air

conditioner or the steering-wheel

heating

>The cruise control,

>Selected phone functions* and

>The voice entry*

In order to operate a system, the

corresponding system must be

switched on.<

Press briefly:

Accept incoming call, start dialing,

terminate call.

Extended pressure:

Activate/deactivate voice entry.

Switch between phone and radio,

cassette and CD.

Forward:

>Radio

Press briefly: scans for stations in FM

band

Extended pressure: search function

>CD

Press briefly: jump to next track

Extended pressure: fast forward in

track

>Cassette

Press briefly: stop track scan or fast

forward

Extended pressure: fast forward

>Phone

Scan personal phone book.

Rewind: functions as for fast forward.

Volume

Cruise control: calling up.

Cruise control: store and accelerate (+);

decelerate and store (–).

Cruise control: activate/interrupt/deac-

tivate.

Recirculated-air mode and automatic

recirculated-air control (AUC) or heated

steering wheel: switch on/off.

23n

OverviewControlsMaintenanceRepairsDataIndex

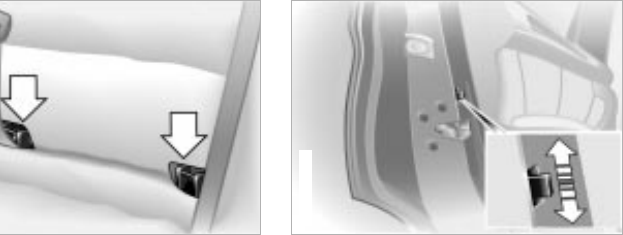

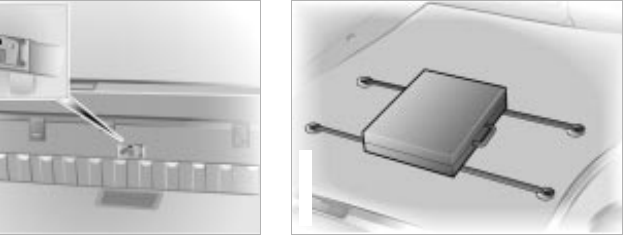

Warning triangle* First-aid kit*

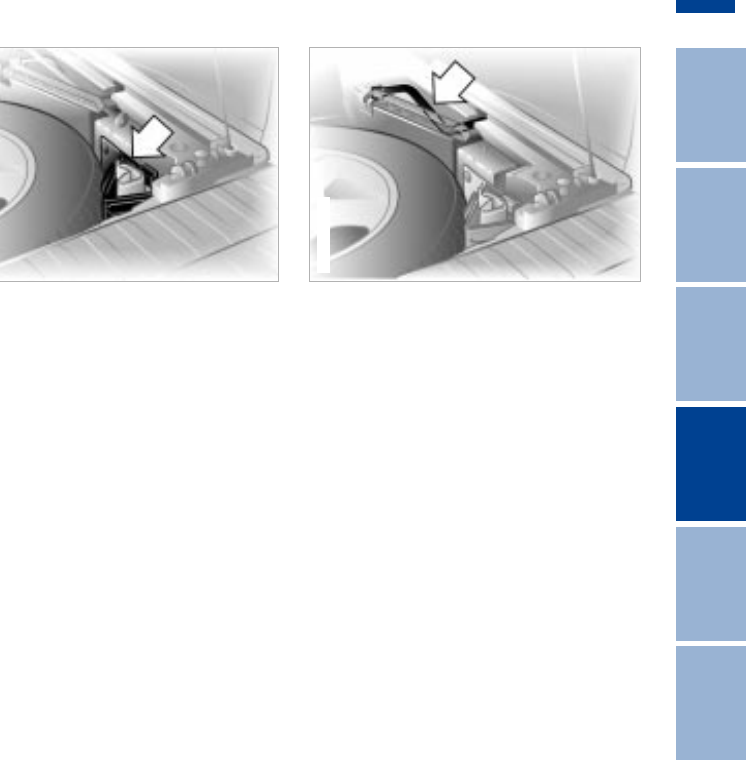

1. Open the cover on the left in the

cargo area: lift the handle on the

cover

2. Pull the tab of the retaining strap

(arrow) and remove the hazard

warning triangle from the support

bracket

3. To install: slide the hazard warning

triangle into the support bracket and

press on the retaining strap.

Always observe all legal regula-

tions requiring a warning triangle

to be carried in the vehicle.<

530us005

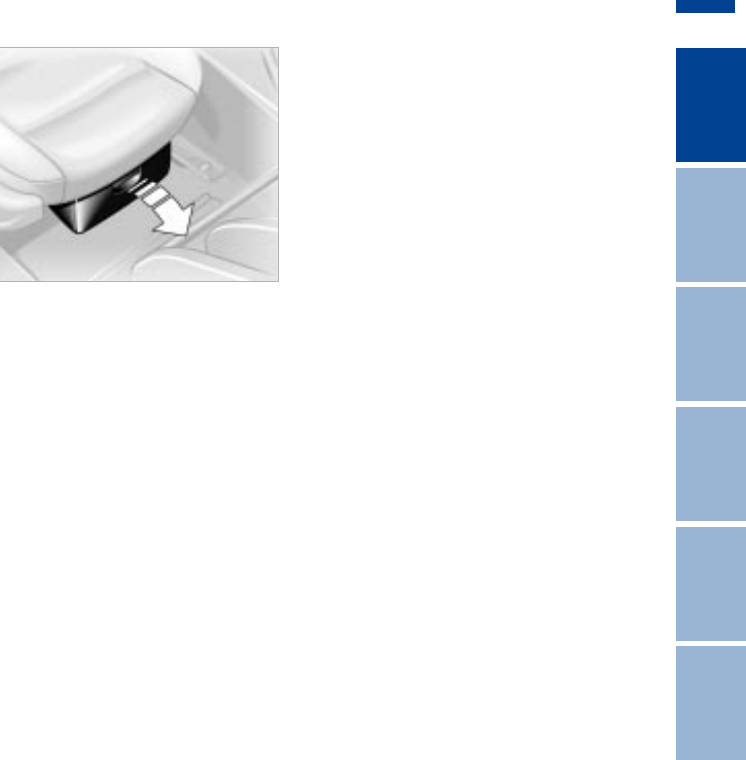

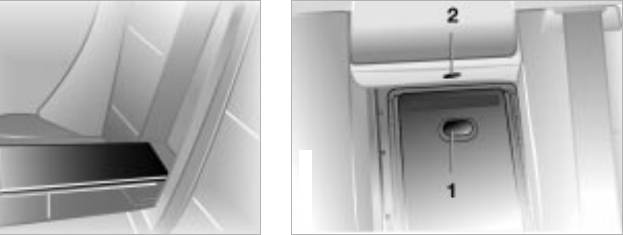

The first-aid kit is located under the

front passenger's seat.

To open: pull the handle and fold the

cover down.

To close: fold the cover up.

Some of the articles in the first-aid

kit may be used within a limited

time only. For this reason, check the

expiration dates of each of the items

regularly, and replace any whose

expiration dates have passed. You can

acquire replacements in any drugstore

or pharmacy.

Always observe all legal regulations

requiring a first-aid kit to be carried in

the vehicle.<

530de242

24nRefueling

Fuel filler door

Before filling the tank, switch off

the engine. If you do not, fuel

cannot be filled into the tank and the

"Service Engine Soon" lamp may come

on.<

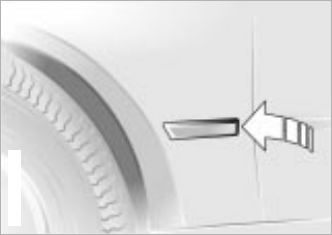

To open the fuel filler door, press on the

front edge.

In the event of an electrical malfunction,

you can also open the fuel filler door

manually:

1. Open the cover on the right in the

cargo area: lift the handle on the

cover

2. Pull the knob with the fuel pump

symbol.

530de243

When handling fuels, comply with

all of the applicable safety precau-

tions and regulations pertaining to

fuels. Never carry spare fuel containers

in your vehicle. Whether empty or full,

these containers can leak, cause an

explosion, or lead to fire in the event of

a collision.<

Simple and environmentally

friendly

Open the filler cap carefully to

prevent fuel from spraying out.

Fuel spray may cause injury.

Do not top off. Topping off may cause

fuel spillage.<

Keep the filler cap in the bracket

attached to the fuel filler door.

When refueling, insert the filler nozzle

completely into the filler pipe. Pulling

the nozzle out of the pipe during refu-

eling

>results in premature pump shutoff

>and will reduce the effect of the vapor

recovery system on the pump.

530us008

25n

OverviewControlsMaintenanceRepairsDataIndex

Refueling Fuel specifications

As long as the filler nozzle is used prop-

erly, the fuel tank is full whenever the

nozzle shuts off the first time.

To prevent damage to the cata-

lytic converter, do not drive until

the fuel tank is empty.<

Tank capacity: approx. 24.6 gal.

(approx. 93 liters), with a reserve

capacity of

>6-cylinder engine: approx. 2.0 gal.

(approx. 8 liters)

>8-cylinder engine: approx. 2.5 gal.

(approx. 10 liters).

Close the filler cap carefully after

refueling until a "click" is heard.

While closing, be sure not to squeeze

the strap which is fastened to the cap.

A loose or missing cap will activate the

message "CHECK FILLER CAP" in the

Check Control* or the "Check Filler

Cap" lamp*.<

The engine uses lead-free gasoline

only.

Required fuel:

>Premium Unleaded Gasoline,

min. 91 AKI.

AKI = Anti Knock Index

Do not use leaded fuels. The use

of leaded fuels will cause perma-

nent damage to the system's oxygen

sensor and the catalytic converter.<

26nTire inflation pressures

You will find tire inflation pressures on

the inside door pillar.

Check tire pressures

All pressure specifications are indicated

in psi (kilopascal) for tires at ambient

temperature (refer also to the next

page).

Vehicles with Tire Pressure Monitor

(RDC)*:

After correcting the inflation pressures,

reactivate the system, refer to page 98.

530de225

Check tire inflation pressures

regularly — at least every two

weeks and before beginning a longer

trip. Incorrect tire pressure can other-

wise lead to tire damage and accidents.

Check the tire inflation pressure of the

spare tire. Inflate the spare tire to

the highest inflation of any tire on your

vehicle.<

Comply with tire approval

specifications

The inflation pressures in the table

apply to tire sizes and tires from BMW-

approved manufacturers. Your

BMW Sports Activity Vehicle center is

familiar with these pressures. Higher

pressures may be specified for tires

from other manufacturers.

Your vehicle is equipped with tires that

not only meet US standards, but also

European standards. We recommend

the exclusive use of BMW-approved

tires.

27n

OverviewControlsMaintenanceRepairsDataIndex

Tire inflation pressures

BMW Tires

All pressure specifications in

the table are indicated in psi

(kilopascal) with cold tires

(cold = ambient temperature)

X5 All sizes 32 (220) 32 (220) 32 (220) 39 (270)

28n

Controls

29n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Index

Technical data

Owner service procedures

30nKeys Central locking system

The key set

1 The master keys with remote control

determine the functions of the Key

Memory, refer to page 61.

You can mark individual keys for

subsequent identification by applying

the colored decals that you received

when accepting delivery of your

vehicle.

There is an extended-life battery

in every master key which is

charged automatically in the ignition

lock as you drive.

For this reason, if you have a master

key that is otherwise not used, use that

key approx. once every year while

driving for an extended period. This will

charge the battery, refer also to

page 32.<

463de023

2 Spare key for storage in a safe place,

such as in your wallet. This key is not

intended for continuous use

3 Door and ignition key

The lock for the glove compartment

cannot be operated with this key.

This is recommended for valet

parking, for instance.

The concept

The central locking system is ready for

operation as soon as you close the front

doors. The system engages and

releases the locks on the

>doors

>liftgate/tailgate

>fuel filler door.

The central locking system can be

operated

>from outside via the driver's door lock

as well as via the remote control

>from inside via the button for the

central locking system.

If the system is locked from inside, the

fuel filler door remains unlocked, refer

to page 35.

When the system is actuated from

outside of the vehicle, the anti-theft

system is actuated simultaneously. The

alarm system is also armed or

disarmed.

In the event of an accident, the central

locking system unlocks automatically

(only those doors which were not

locked separately with the safety lock

buttons), refer to page 35. In addition,

the hazard warning flashers and interior

lamps come on.

31n

OverviewControlsMaintenanceRepairsDataIndex

Opening and closing – via the door lock

Using the key

One turn of the key in the driver's door

lock unlocks the driver's door only.

Turning the key a second time unlocks

all of the remaining doors, the liftgate/

tailgate and the fuel filler door.

You can have an acknowledgment

signal set to confirm that the

vehicle is correctly closed.<

530de244

Convenience operation

You can also operate the windows and

sliding/tilt sunroof via the door lock.

>To open: with the door closed, turn

the key to the "Unlock" position and

hold it

>To close: with the door closed, turn

the key to the "Lock" position and

hold it.

Watch during the closing process

to be sure that no one is inadvert-

ently injured. Releasing the key stops

the operation.<

Manual operation

(in the event of an electrical malfunction)

Turn the key to the extreme left or right

to unlock/lock the door.

32nOpening and closing – via the remote control

The concept

The remote control offers you optimal

convenience in using your vehicle's

locking system while also providing

three exclusive supplementary features:

>Switch on the interior lamps, refer to

page 33.

With this function, you can also

"search for" your vehicle — when

parked in an underground garage, for

instance

>Open the liftgate, refer to page 33.

The liftgate will open slightly, regard-

less of whether it was previously

locked or unlocked

>Panic mode, refer to page 33.

In case of danger, you can trigger an

alarm.

Whenever you unlock (lock) the vehicle,

you simultaneously deactivate (activate)

the anti-theft system, disarm (arm) the

alarm system and switch the interior

lamps on (off).

You can have an acknowledgment

signal set to confirm that the

vehicle is correctly closed.<

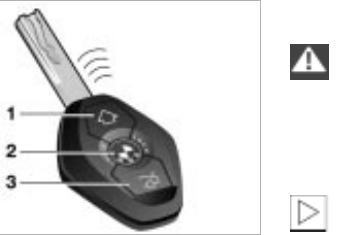

1 Unlock, convenience opening and

alarm system

2 Lock and secure, interior lamp activa-

tion, switching off tilt alarm sensor

and interior motion sensor

3 Open the liftgate, panic mode

390de793

Master keys with remote control

unit Children might be able to lock the

doors from the inside. For this

reason, always take the vehicle's keys

with you so that the vehicle can be

opened again from the outside at any

time.<

Master keys that are used repeat-

edly are always ready for opera-

tion since the battery in the key is

charged automatically in the ignition

lock as you drive.

If it is no longer possible to lock the

vehicle via the remote control, the

battery is discharged. Use this key

while driving for an extended period in

order to charge the battery, refer also to

page 30.

To prevent unauthorized use of the

remote control, surrender only the door

and ignition key 3 or the spare key 2

(refer to page 30) when leaving the

vehicle for valet parking, for example.

In the event of a system malfunction,

please contact your BMW Sports

Activity Vehicle center. You can also

obtain replacement keys there.<

33n

OverviewControlsMaintenanceRepairsDataIndex

Opening and closing – via the remote control

To unlock

Press button.

Press the button once to unlock the

driver's door only; press a second time

to unlock all remaining doors as well as

the tailgate/liftgate and fuel filler door.

Convenience opening mode

Press and hold button. The power

windows and sliding/tilt sunroof are

opened.

To lock and secure

Press button.

To switch on the interior lamps

After locking the vehicle, press button

again.

To switch off the tilt sensor alarm

and interior motion sensor

Press button a second time immedi-

ately after locking.

For additional information: refer to

page 40.

To open the liftgate

Press button.

Before and after a trip, be sure

that the tailgate/liftgate was not

opened unintentionally.<

Panic mode

By pressing and holding the button for

more than two seconds, you can trigger

an alarm via the alarm system if there is

an impending danger (the alarm system

must be armed).

To switch off the alarm

Press button.

34nOpening and closing – via the remote control

System interference

The remote control system may be

affected by other units or equipment

operating in the immediate vicinity of

your vehicle.

If this should occur, you can unlock and

lock the vehicle via the door lock with a

master key.

For US owners only

The transmitter and receiver units

comply with part 15 of the FCC (Federal

Communication Commission) regula-

tions. Operation is governed by the

following:

FCC ID: LX8EWS

LX8FZVS

LX8FZVE

Compliance statement:

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

>This device may not cause harmful

interference, and

>this device must accept any interfer-

ence received, including interference

that may cause undesired operation.

Any unauthorized modifications or

changes to these devices could

void the user's authority to operate this

equipment.<

35n

OverviewControlsMaintenanceRepairsDataIndex

Opening and closing – from the inside

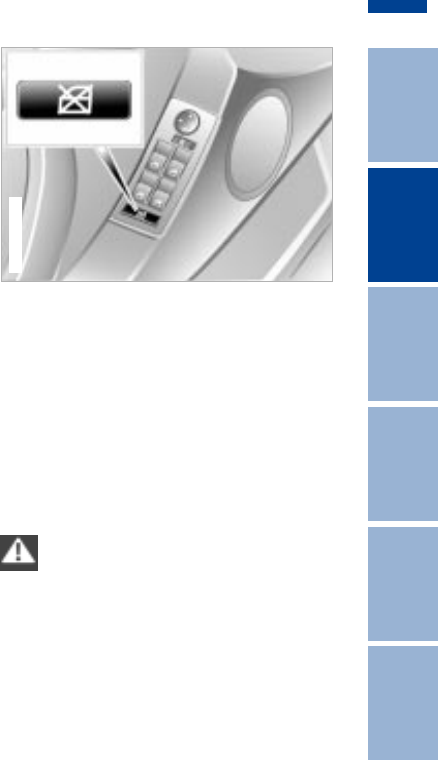

You can operate the central locking

system with this button when the

driver's door is closed. The doors and

liftgate are unlocked or locked only.

However, the anti-theft system is not

activated. Also, the fuel ﬁller door

remains unlocked to allow refueling.

If only the driver's door was

unlocked from the outside and

you press the button

>all other doors, the tailgate/liftgate

and the fuel filler door will be

unlocked when the driver's door is

opened

>the driver's door will be locked again

when it is closed.<

530de220

To unlock and open the doors

>Either unlock the doors together with

the button for the central locking

system and then pull the door handle

above the armrest

>pull the release handle for each door

twice: the first pull unlocks the door,

and the second one opens it.

To engage the locks

>Use the central locking button to lock

all of the doors simultaneously,

>press down the individual safety lock

buttons. The fuel filler door remains

unlocked. As an added design

feature to prevent the driver from

being inadvertently locked out of the

vehicle, the driver's safety lock

button will not engage as long as the

door is open.

When the vehicle is moving, do

not lock the doors with the safety

lock buttons. Doors locked in this

manner would not unlock automatically

in the event of an accident.

Since passengers or animals remaining

in the vehicle might be able to lock the

doors from the inside, take the vehicle's

keys with you so that the vehicle can be

opened again from the outside at any

time.<

36nLiftgate

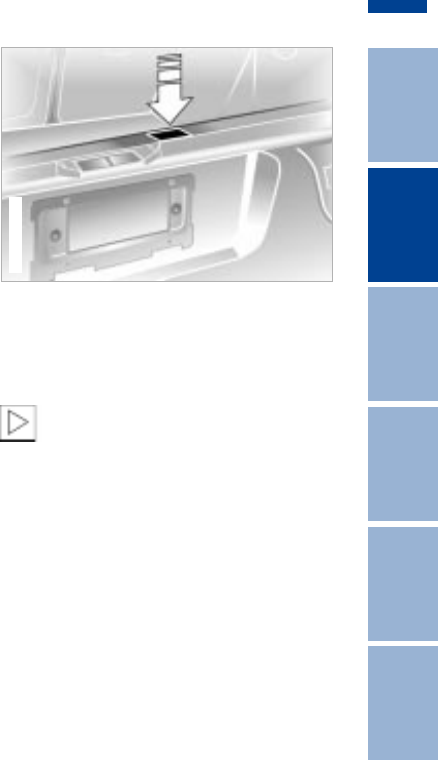

To open from the outside

Press the button (arrow):

The liftgate opens slightly.

The cargo area is illuminated whenever

the liftgate is opened, refer also to

page 102.

When the liftgate is opened, the

clearance from the ground to the

upper edge is more than 6.6 ft (2 m).

Please keep this in mind when opening

the tailgate (in a garage, for example).<

530de245

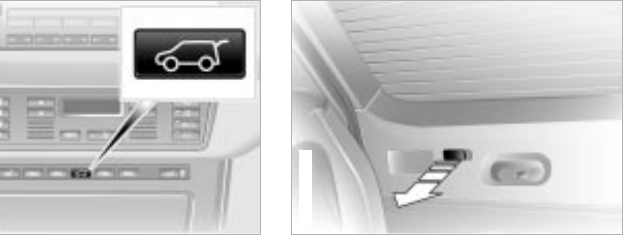

Opening from inside the vehicle

Press this button to open the liftgate

when the vehicle is stationary.

If pointed or sharp-edged objects

could strike the rear window while

driving, be sure to provide protection

around all edges. If you do not do this,

the heating conductors of the rear

window could be damaged.<

For information on the cargo area cover

and on other details in the cargo area,

refer to "Cargo area", beginning on

page 122.

530de221

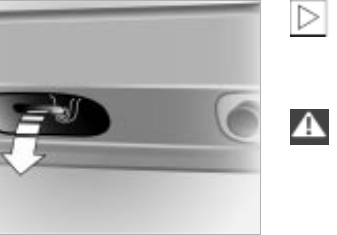

Manual release

In the event of an electrical malfunction,

you can release the liftgate manually:

1. Remove the plastic plug from inside

the cargo area and pull toward the

interior (arrow). The liftgate will be

released

2. Reinstall the plug.

530de316

37n

OverviewControlsMaintenanceRepairsDataIndex

Liftgate Tailgate

To close

You can pull the liftgate down by

placing both hands in the handle

recesses (arrows).

To avoid injuries, be sure that the

travel path of the liftgate is clear

when it is closed, as with all closing

procedures.<

530us017

Operate the vehicle only when

both gates are completely closed.

Otherwise, exhaust fumes could pene-

trate the interior of the vehicle. Should it

be absolutely necessary to operate the

vehicle with an open gate:

>Close all windows. Shut the sliding/

tilt sunroof

>Increase the air supply for the air

conditioner or automatic climate

control to a high level, refer to

page 104 or 108.< To open

Press the button:

You can fold the tailgate down.

When opened, the tailgate can

accept loads of up to 440 lbs

(200 kg). When the vehicle is parked,

you may utilize the tailgate as a seat or

as a loading platform for luggage or

recreation gear, for example.<

530de246

38nTailgate

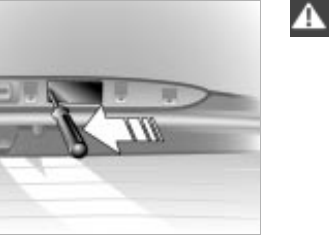

Manual release

In the event of an electrical malfunction,

you can release the tailgate manually:

1. Unfasten the trim panel clip with the

vehicle key or with a screwdriver

(arrow 1) and remove it toward the

top (arrow 2)

530de317

2. Using the same tool, press the latch

in the direction of the arrow; the

tailgate is released

3. Reinstall the trim panel.

530de241

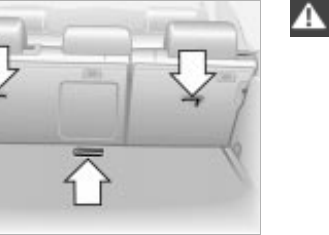

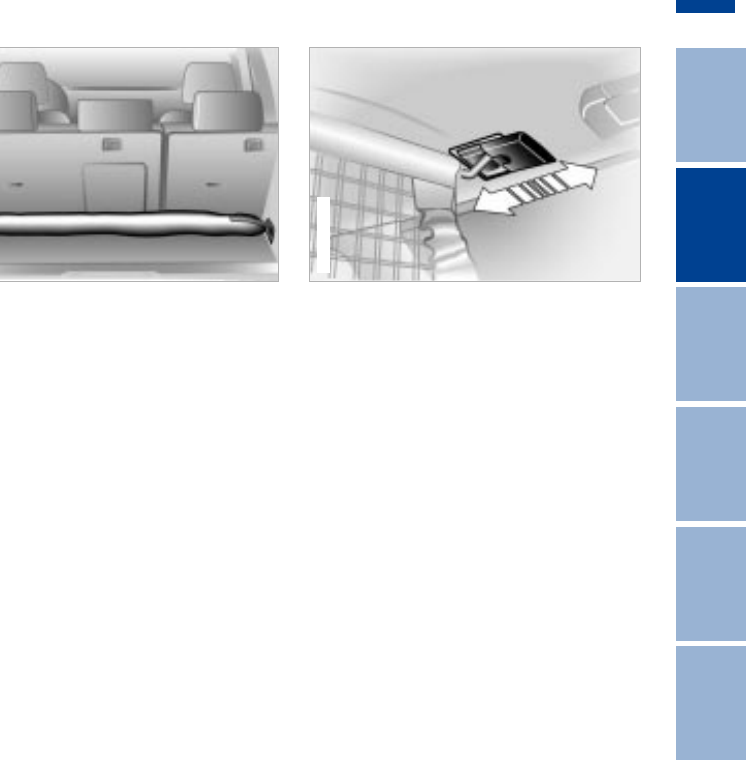

Luggage straps

Use the retaining straps on the cargo

area floor to secure smaller items of

luggage.

Movement is reduced when objects are

placed on the straps.

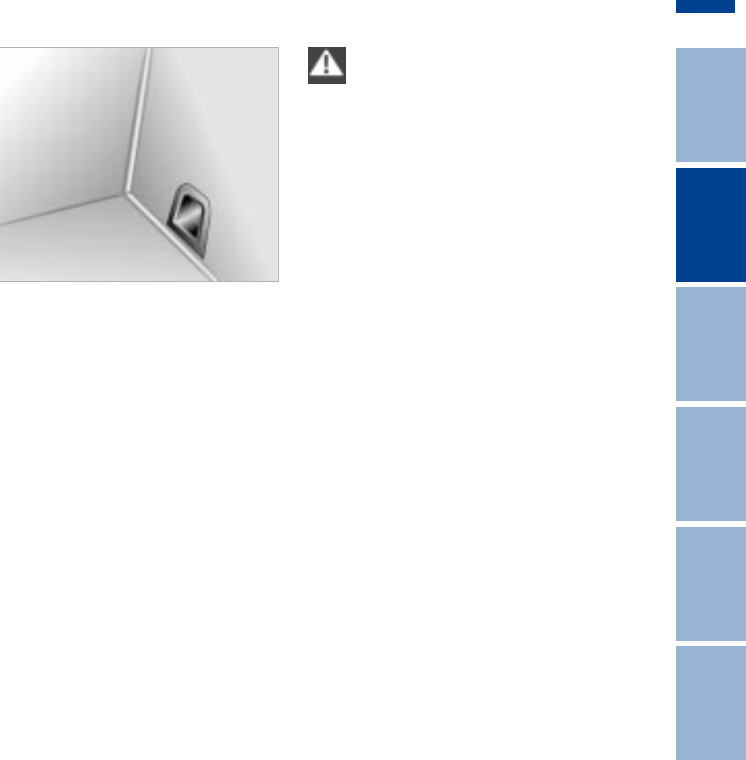

The lashing eyes located at the corners

of the cargo area provide you with a

convenient means of attaching luggage

nets* or flexible straps for securing

luggage.

Refer also to "Stowing cargo" on

page 127.

394de302

39n

OverviewControlsMaintenanceRepairsDataIndex

Alarm system

The concept

The vehicle alarm system responds:

>When a door, the hood, or the liftgate

is opened

>To movement inside the vehicle (inte-

rior motion sensor)

>To variations in the vehicle tilt angle

such as occur during attempts to

steal the wheels or tow the vehicle

>To interruption of battery voltage.

The system responds to unauthorized

vehicle entry and attempted theft by

simultaneously activating the following:

>Sounding an acoustical alarm for

30 seconds

>The hazard warning flashers are acti-

vated for approx. five minutes

>The high beams flash on and off in

the same rhythm.

To arm and disarm the alarm

system

When the vehicle is locked or unlocked

with the key or the remote control, the

alarm system is also simultaneously

armed or disarmed.

You can have different acknowl-

edgment signals set to confirm

system arming and disarming.<

You can still open the liftgate after the

system has been armed by pressing the

button of the remote control, refer to

page 33. When you close the liftgate, it

is secured again.

Indicator lamp displays

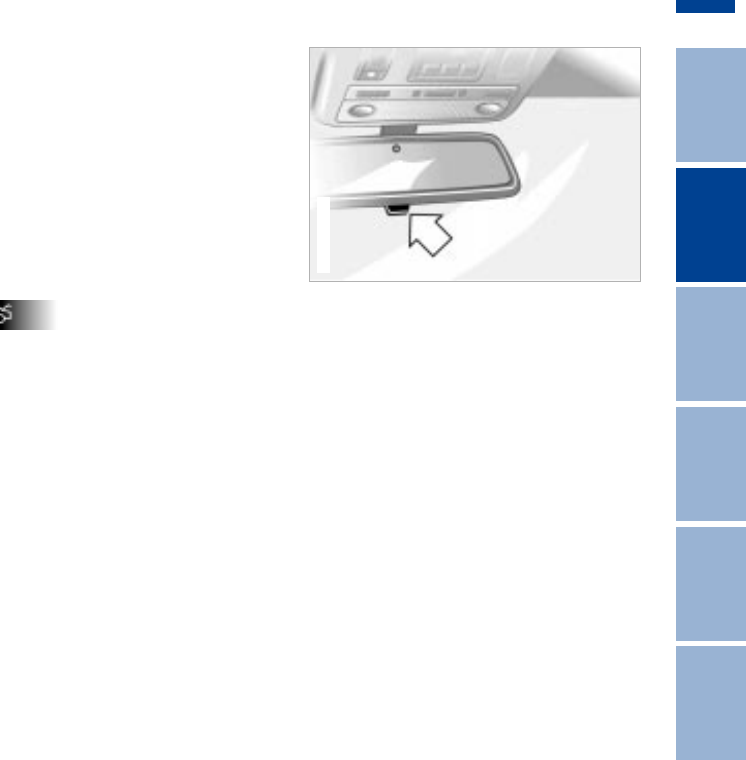

>The indicator lamp below the interior

rearview mirror flashes continuously:

the system is armed

>The indicator lamp flashes during

arming: the door(s), the hood or lift-

gate are not completely closed. Even

if you do not close the alerted area,

the system begins to monitor the

remaining areas, and the indicator

lamp flashes continuously after

10 seconds. However, the interior

motion sensor is not activated

>If the indicator lamp goes out when

the system is disarmed: no manipula-

tion or attempted intrusions have

been detected in the period since the

system was armed

530us018

40nAlarm system Electric power windows

>If the indicator lamp flashes for

10 seconds when the system is

disarmed: an attempted entry has

been detected in the period since the

system was armed.

Following triggering of an alarm, the

indicator lamp will flash continuously.

Avoiding unintentional alarms

The tilt alarm sensor and interior motion

sensor may be switched off at the same

time. To prevent a false alarm from

being triggered (in garages with

elevator ramps, for instance), or when

the vehicle is transported by trailer or

train:

Actuate (= arm the system) the lock

twice; in other words, press button 2 of

the remote control twice in succession,

refer to page 33. You may also actuate

the locks twice with the key, refer to

page 31.

The indicator lamp lights up briefly and

then flashes continuously. The tilt alarm

sensor and the interior motion sensor

are deactivated as long as the system is

armed.

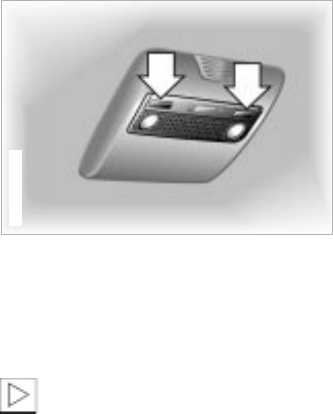

Interior motion sensor

In order for the interior motion sensor to

function properly, the windows and

sliding/tilt sunroof must be completely

closed.

However, be sure to switch off the inte-

rior motion sensor (see the previous

column) when you

>leave children or animals in the

vehicle

>intend to leave the windows or

sliding/tilt sunroof open. Open and close windows

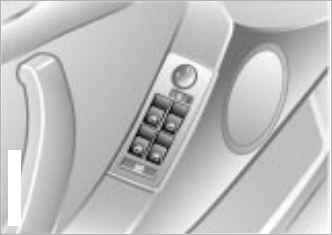

From ignition key position 1:

>Press the switch up to the pressure

point:

The window continues to move as

long as you continue to hold the

switch

>Press the switch beyond the pressure

point:

The window moves downward auto-

matically. Touch the switch again to

stop the opening movement.

You can close the windows in the same

manner by pulling the switch.

530us020

41n

OverviewControlsMaintenanceRepairsDataIndex

Electric power windows

After the ignition has been switched off:

>You can still operate the windows as

long as neither of the front doors has

been opened. To open the windows,

press the switch beyond the pressure

point.

Remove the key from the ignition

lock and close the doors when

you leave the vehicle so that children

cannot operate the power windows and

possibly injure themselves.<

For the convenience mode via the door

lock or the remote control, refer to

page 31 or page 33.

Safety feature

A contact strip is integrated into the

inner side of each of the upper window

frame sections. If pressure is exerted

against this contact strip while a

window is being raised, the system will

respond by stopping the window and

then retracting it a small distance.

Despite this safety feature, be

extremely careful that the closing

path of the window is not obstructed

whenever it is closed. Otherwise, an

object might not touch the contact strip

in some situations (with very thin

objects, for instance).

You can override this safety feature by

pulling the switch beyond the pressure

point and holding it.

Because the power windows are sealed

at high pressure to prevent wind noise

when closed, a powerful motor is

required for efficient closing. When

closing the windows, always ensure

that they are not obstructed in any way.

Unsupervised use of these systems can

result in serious personal injury.

Remove the ignition key to deactivate

the electric power windows whenever

you leave the vehicle. Never leave the

keys in the vehicle with unsupervised

children. Never place anything that

could obstruct the driver's vision on or

next to the windows.<

Safety switch

With the safety switch, you can prevent

the rear windows from being opened or

closed via the switches in the rear

passenger area (by children, for

example). You can also prevent adjust-

ments of the power rear-seat backrests

from the rear passenger area, refer to

page 48.

Press the safety switch whenever

children are riding in the rear of

the vehicle. Careless use of the power

windows can lead to injury.<

530us209

42nSliding/tilt sunroof with glass moonroof*

To prevent injuries, exercise care

when closing the sliding/tilt

sunroof and keep it in your field of

vision until it is shut.

Before leaving the vehicle, switch off

the electric sunroof mechanism by

removing the ignition key. Do not leave

children unattended in the vehicle with

access to vehicle keys. Use of the key

can result in starting of the engine and

operation of vehicle systems such as

the power sunroof, etc. Unsupervised

use of these systems can result in

serious personal injury.<

For the convenience mode via the door

lock or the remote control, refer to

page 31 or 33.

Lifting – Opening – Closing

With the ignition key in position 1 or

higher, press the switch or slide it in the

desired direction until you feel resis-

tance.

The headliner slides back somewhat

when you raise the sunroof. When the

sunroof is opened the headliner retracts

with it. It remains open, and it is possible

to slide it back and forth as long as the

sunroof is not completely open.

The headliner insert cannot be

closed with the sliding/tilt sunroof

in its raised position.<

After the ignition has been switched off,

you can still operate the sliding/tilt

sunroof as long as neither of the front

doors has been opened.

530de247

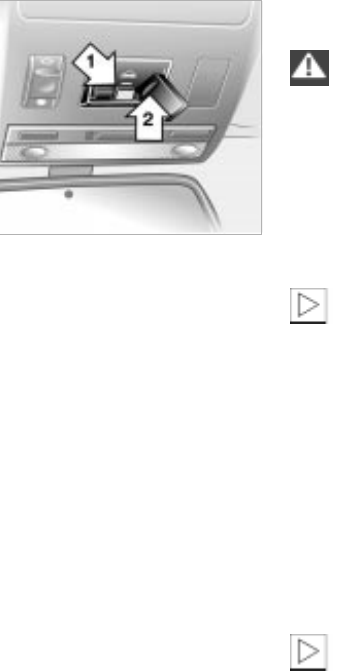

Automatic* opening and closing

Press the switch briefly past the pres-

sure point and then release it.

Other automatic operations are:

>With the sunroof open, press the

switch briefly toward "Lift": the

sunroof automatically extends to its

fully raised position.

Pressing the switch again briefly stops

the motion.

>With the sunroof raised, hold the

switch toward "Open" until the roof

has reached the desired position.

Safety feature

If the sliding/tilt sunroof encounters

resistance at a point roughly past the

middle of its travel when it is closing,

the closing cycle is interrupted and the

sliding/tilt sunroof will open again

slightly.

43n

OverviewControlsMaintenanceRepairsDataIndex

Sliding/tilt sunroof with glass moonroof*

Despite this safety feature, be

extremely careful that the closing

path of the sunroof is not obstructed

whenever it is closed. Otherwise, trig-

gering the closing-force limitation may

not be ensured in some situations (with

very thin objects, for instance). You can

disable this safety feature by pressing

the switch beyond the pressure point

and holding it.<

Power loss

After interruptions in the electrical

supply (when the battery is discon-

nected, for instance), the sunroof may

only lift. To reinitialize the mechanism:

1. Raise the sliding/tilt sunroof fully

2. Press and hold the switch for approx.

twenty seconds.

530de248

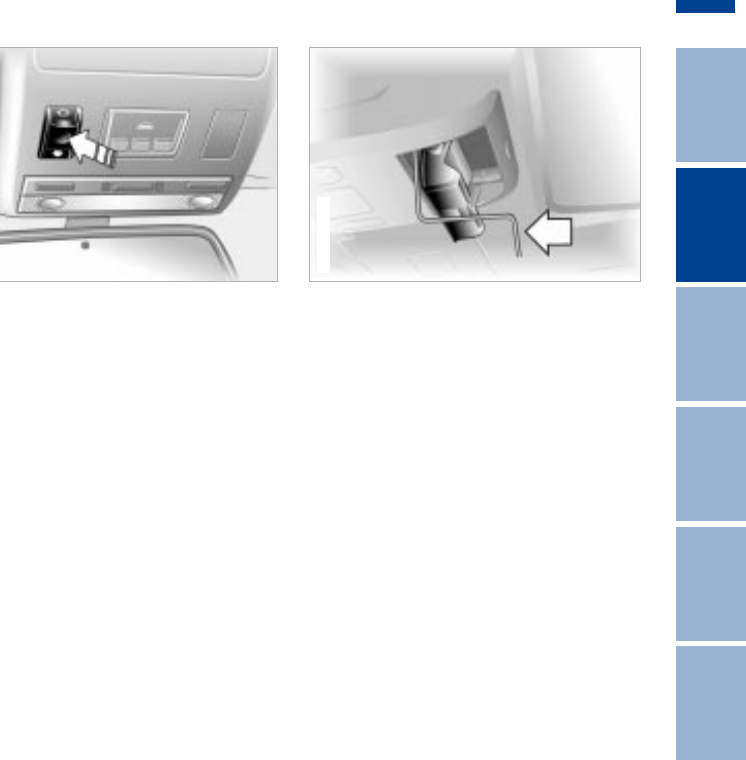

Manual operation

In the event of an electrical malfunction,

you can operate the sliding/tilt sunroof

manually:

1. Open the glasses compartment, refer

to page 118

2. Insert the Allen wrench from the

vehicle tool kit (refer to page 152) in

the opening provided and turn the

sliding/tilt sunroof in the desired

direction.

530us124

44n

The condition for relaxed, fatigue-free

driving is a seating position adjusted to

your needs. Together with the safety

belts and the airbags, the correct

seating position increases the passive

safety of the occupants in the case of

an accident. Therefore, observe the

following instructions, as otherwise the

protective function of the safety

systems may be impaired.

For additional information on trans-

porting children, refer to page 58.

Sitting correctly with airbags

Maintain a distance to the airbags.

Always hold the steering wheel by

the rim to keep any chance of injury to

hands or arms to an absolute minimum,

should the airbag be deployed. No one

and nothing is to come between the

airbags and the seat occupant. Do not

use the cover of the front airbag on the

front passenger side as a storage area

for objects, or as a rest for feet or

legs.<

For the location of the airbags and

additional information, refer to page 55.

Safe with safety belts

Never allow more than one person

to wear a single safety belt. Never

allow infants or small children to ride in

a passenger's lap. Avoid twisting the

belt while routing it firmly across the

pelvis and shoulder, wear it as snugly

against your body as possible. Do not

allow the belt to rest against hard or

fragile objects in your pockets. Never

route the belt across your neck, do not

run it across sharp edges and ensure

that the belt does not become caught

or jammed. Avoid wearing bulky

clothing and pull on the lap belt periodi-

cally to retension it over your shoulders.

In the event of a frontal impact, a loose

lap belt could slide over your hips,

leading to abdominal injury. In addition,

the safety belt's restraint effectiveness

is reduced if the belt is worn loosely.

Expectant mothers should always wear

their safety belts, taking care to position

the lap belt against the lower hips,

where it will not exert pressure against

the abdominal area.<

For instructions on operating the safety

belts, refer to page 49.

Observe the following before

adjusting

Never try to adjust your seat while

operating the vehicle. The seat

could respond with unexpected move-

ment, and the ensuing loss of vehicle

control could lead to an accident. Never

ride with the backrest reclined to an

extreme horizontal angle (especially

important for front passengers to

remember). Keep the backrest relatively

upright to minimize the risk of "sliding

under" the safety belt and sustaining

injury in an accident

Seat adjustment

>Mechanical seat adjustment, refer to

page 45

>Power seat adjustment, refer to

page 46

>Head restraints, refer to page 47

>Power rear backrest adjustment,

refer to page 48

Correct sitting posture Seats

45n

OverviewControlsMaintenanceRepairsDataIndex

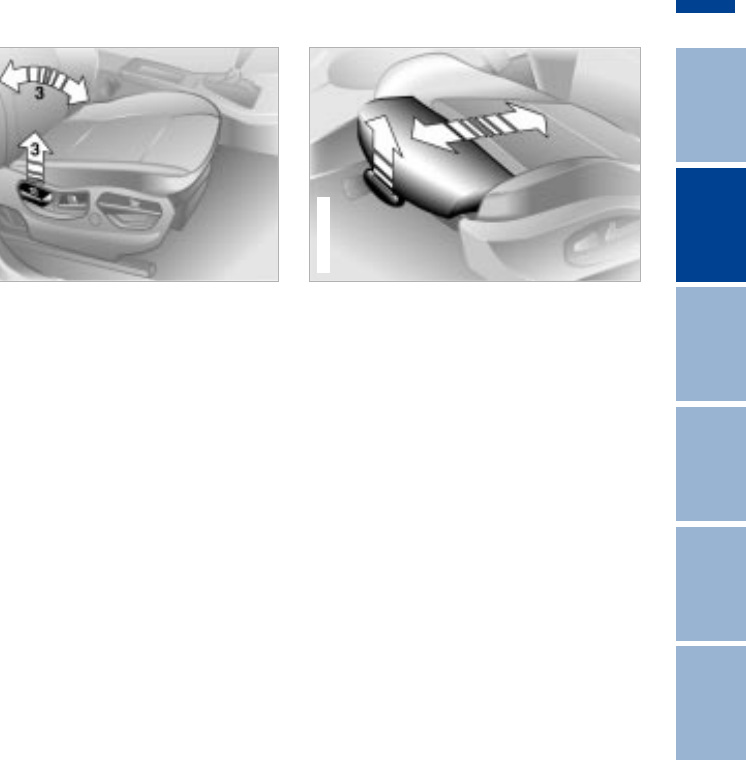

Mechanical seat

Seat adjustment

1 Backward/forward adjustment

Pull the lever and slide the seat to the

desired position.

After you release the lever, move the

seat forward or backward slightly so

that it engages fully

2 Cushion height

Pull the lever and apply weight to or

remove weight from the seat as

required

530us211

3 Backrest angle

Pull the lever and apply weight to or

remove weight from the backrest as

required.

Comply with the adjustment

instructions on page 44. Failure

to do so could result in diminished

personal safety.<

530us212

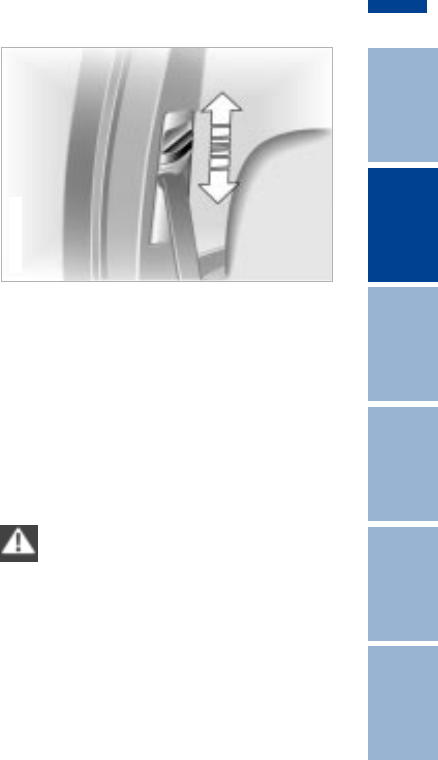

Adjusting the BMW sports seat*

You can adjust the thigh support addi-

tionally:

Pull the lever and adjust the position of

the thigh support for your personal

comfort.

530de253

46nPower seat*

1 Tilt angle (driver's seat only)

2 Backward/forward adjustment

3 Cushion height

4 Backrest angle

Adjust the head restraint manually.

Comply with the adjustment

instructions on page 44. Failure to

do so could result in diminished

personal safety.<

530us024

Adjusting the BMW comfort seat*

This seat allows you to make additional

adjustments for:

1 Lumbar support

2 Shoulder support

3 Head restraint height

Lumbar support:

You can adjust the backrest's contour

for additional support in the curvature

of your spine's lumbar region.

The upper hips and spinal column

receive supplementary support to help

you maintain a relaxed, upright posture.

530de251

>Press the front/rear of the switch:

Increase/decrease curvature

>Press the upper/lower end of the

switch:

Increase the upper/lower curvature.

47n

OverviewControlsMaintenanceRepairsDataIndex

Power seat*Head restraints

Shoulder support:

Move the switch in the direction of the

arrow to adjust the tilt angle of the

shoulder support.

You can use the adjustable upper back-

rest for supplementary support in the

shoulder region. This provides a

relaxed driving position and helps

relieve stress on the shoulder muscles.

To obtain the optimal shoulder support

position, we recommend:

Driver and front passenger:

1. Adjust the upper backrest section to

its extreme rear position

2. Adjust for the optimal sitting position

as described on page 44

3. Bring the upper backrest section

further forward until your shoulders

are well supported.

530de252

Front passenger's seat adjusted for

relaxed traveling:

1. Adjust the upper backrest section to

its extreme rear position

2. Tilt the backrest down to a slightly

more horizontal angle

3. Bring the upper backrest section

forward until your shoulders are well

supported.

Make corrections in the forward/

backward adjustment of the seat

to ensure that the safety belt still fits

firmly against your body. If you do not

do this, the protection provided by the

safety belt may be reduced.<

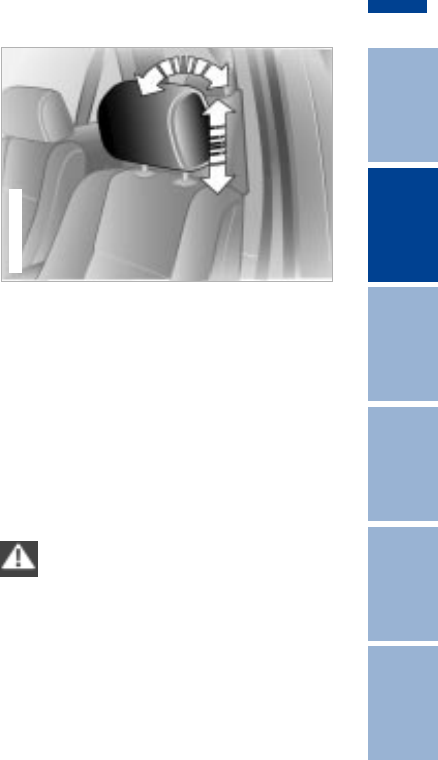

Head restraint height:

Move the switch in the desired direc-

tion.

Adjustments

To adjust the angle of the front head

restraints, tilt the head restraint to the

desired angle.

To adjust the height of the front or rear

head restraints, pull the head restraint

up or push it down.

Power electric height adjustment, refer

to page 46.

Head restraints reduce the risk of

spinal injury in the event of an

accident. Adjust the head restraint so

that its center is approximately level

with your ears.<

530de250

48nHead restraints Power rear-seat backrest adjustment*

Removal – front

1. Pull the head restraint upward to the

stop

2. Press the button (arrow) and remove

the head restraint.

Installation – front

1. Press the button (arrow) and insert

the head restraint into the guides

2. Adjust the head restraint for your

personal comfort.

Removal and installation – rear

To remove the head restraint, pull it

outward with a firm movement. To

install it, press it down firmly.

530de323

You can make separate adjustments of

the backrest tilt angle on the right and

left sides.

You can select a comfortable sitting

position and also increase the capacity

of the cargo area by moving the back-

rests into their most upright position.

From the rear seats: press the corre-

sponding switch.

You can prevent adjustments of

the power rear-seat backrest from

the rear passenger area with the safety

switch for the power windows, refer to

page 41.<

530us143

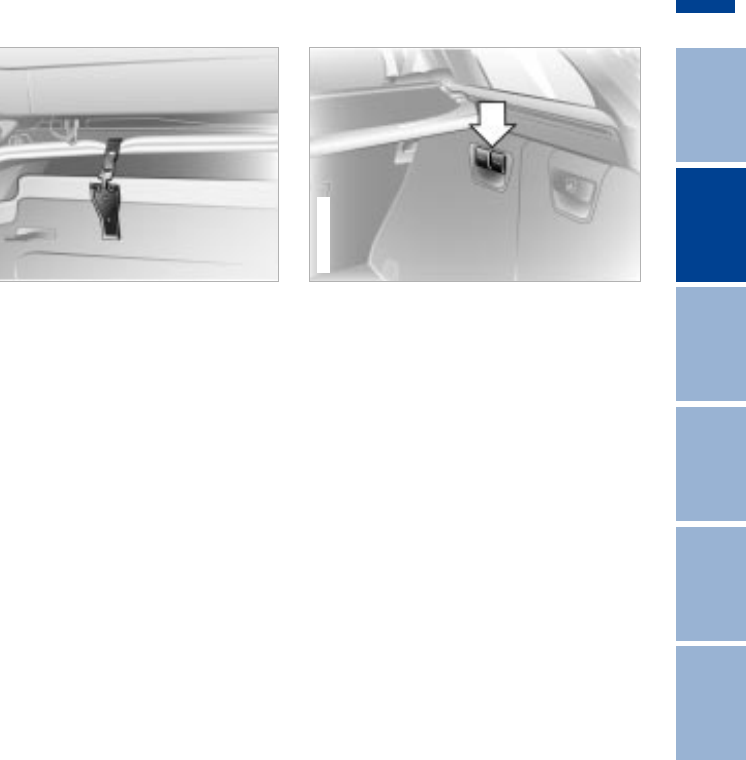

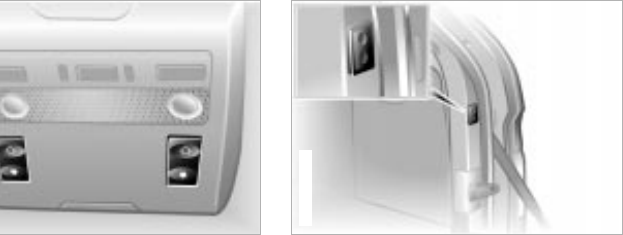

From the cargo area: the switches are

located on both sides of the cargo area.

530de224

49n

OverviewControlsMaintenanceRepairsDataIndex

Safety belt

Drive with your safety belt on

Even though there is an airbag, wear a

safety belt every time you get in the

vehicle, because airbags enhance

safety by providing added protection.

To close

Make sure you hear the lock engage in

the belt buckle.

To open

1. Press the red button in the buckle

2. Hold the belt

3. Guide the belt back into its reel.

530us034

In the rear, the belt buckle with

the word "CENTER" is intended

exclusively for passengers sitting in the

middle. If it is not possible to extract the

center belt, this indicates that the larger

backrest is not securely locked, refer to

page 122.<

Safety belt height adjustment

You can adjust the safety belts to fit

your own physical dimensions by using

the safety belt height adjustment.

Slide the button up or down as

required.

Also observe the instructions on

adjusting the seats on page 44.

If the safety belt system has been

subjected to the stresses involved

in an accident or otherwise damaged:

Have the entire safety belt system

replaced by your BMW Sports Activity

Vehicle center. In addition, have your

BMW Sports Activity Vehicle center

inspect the safety belt anchors. Other-

wise, the safety function can no longer

be ensured.c

530de259

50nSeat, mirror and steering wheel memory*

You can store and call up three different

seat, exterior mirror and steering wheel

positions. The illustration shows the

buttons on the seat for making these

position adjustments.

The adjustment of the lumbar support is

not stored in the memory.

530us032

To store

1. Turn the ignition key to position 1 or 2

2. Adjust the desired positions for the

seat, exterior mirror and steering

wheel

3. Press the MEMORY button: the indi-

cator lamp in the button comes on

4. Press memory button 1, 2 or 3, as

desired: the indicator lamp goes out.

To call up a stored setting

Convenience function:

1. Open the driver's door after

unlocking the vehicle or place the

ignition key in position 1

2. Briefly press memory button 1, 2

or 3, as desired.

Movement stops immediately when

one of the seat-adjustment or

memory buttons is activated during

the adjustment process.

Security function:

1. With the driver's door closed and the

ignition key either removed or in

position 0 or 2

2. Maintain pressure on the desired

memory button (1, 2 or 3) until the

adjustment process is completed.

If you press the MEMORY button acci-

dentally: press the button a second

time — the indicator lamp goes out.

Do not call up a position from the

memory while the vehicle is

moving. There is a risk of accident from

unexpected movement of the seat or

steering wheel.<

51n

OverviewControlsMaintenanceRepairsDataIndex

Seat, mirror and steering wheel memory*Seat heating*

Your BMW Sports Activity Vehicle

center can adjust your vehicle's

systems in such a manner that your

personalized settings are automatically

called up for the seat, mirror and

steering wheel positions when you

unlock the vehicle with your personal

remote control key.<

you make use of the Key Memory

be sure that the footwell behind

the driver's seat is unobstructed before

unlocking the vehicle. If you fail to do

so, persons or objects could be injured

or damaged if the seat should move

backward.<

Passenger side exterior mirror tilt

function

(automatic curb monitor)

1. Move the mirror selector switch

(arrow) to the "driver's mirror" posi-

tion

2. When the gearshift lever or the

selector lever is placed in "Reverse",

the passenger-side mirror tilts down-

ward to help the driver monitor the

area directly adjacent to the vehicle

during parking (curbs, etc.).

You can deactivate this automatic

feature by setting the mirror selector

switch to the "passenger side" position.

530us214

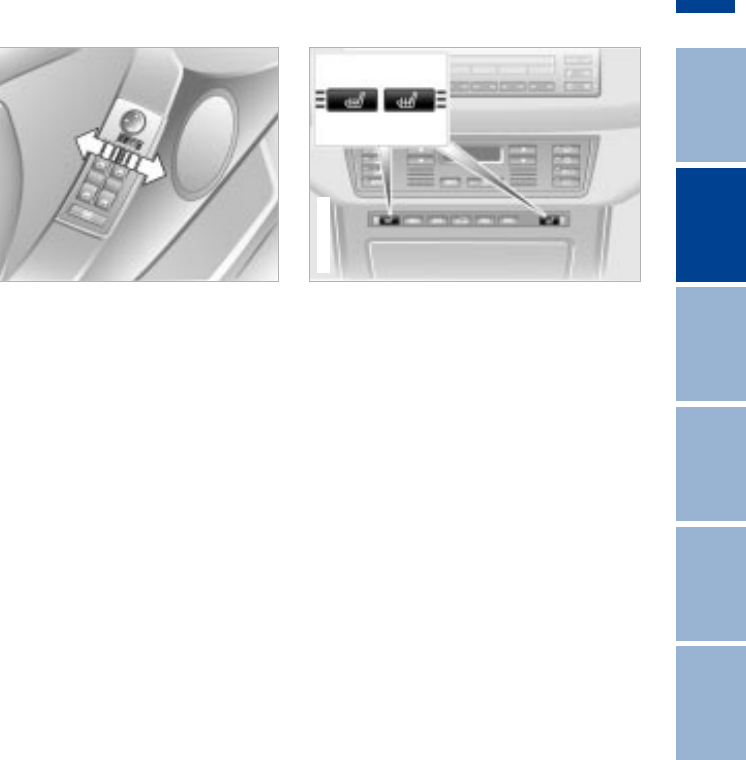

Front

The seat cushion and backrest can be

heated when the ignition key is in posi-

tion 2.

You can call up different heating modes

by repeatedly pressing the button.

You can also switch the higher heating

modes off directly:

Press the button and hold it slightly

longer.

530de233

52nSeat heating*Adjusting steering wheel

Rear

The function is the same as for front

seat heating. You can select between

two heating modes.

530de234

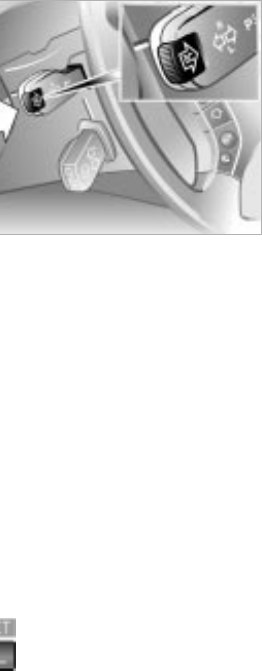

The steering wheel can be moved in

any of four directions. Adjust the wheel

by moving the control lever in the

desired direction.

Do not adjust the steering wheel

while the vehicle is moving. If you

do so, there is a risk of accident from

unexpected movement.<

To store the steering wheel setting,

refer to "Seat, mirror and steering

wheel memory" on page 50.

530de255

Automatic steering wheel

adjustment

(only in conjunction with seat, mirror

and steering wheel memory)

In order to make it easier to get into and

out of the vehicle, the steering wheel

automatically moves into the top posi-

tion and returns to the driving (memory)

position.

This automatic feature is controlled by

the position of the ignition key and by

the driver's door.

53n

OverviewControlsMaintenanceRepairsDataIndex

Steering wheel heating* Mirrors

Steering wheel heating functions in

ignition key position 2.

Press the button to activate or deacti-

vate this system.

The lamp within the button lights up

when the steering wheel heating is in

operation.

If you have a steering wheel with multi-

function buttons without steering wheel

heating, the button for the recirculated-

air mode is in this location, refer to

page 22.

530de235

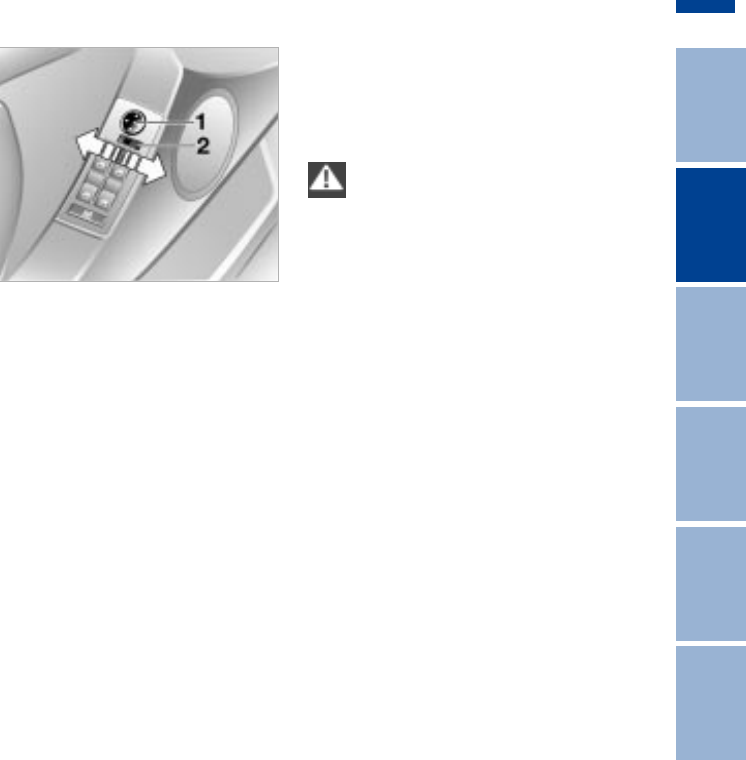

Exterior mirrors

1 Mirror switch for 4-way adjustment

2 Left/right selector switch

Before going through a car wash,

manually fold the exterior mirrors

inward, otherwise they could be

damaged, depending on the width of

the car wash system.<

Adjusting manually

You can also adjust the mirrors manu-

ally:

Press on the outer edges of their

lenses.

530us213

To store the mirror settings, refer to

"Seat, mirror and steering wheel

memory" on page 50.

Convex mirror

The passenger-side mirror

features a convex lens. When esti-

mating the distance between yourself

and other traffic, bear in mind that the

objects reflected in the mirror are closer

than they appear. This means that esti-

mations of the distance to following

traffic should not be regarded as

precise.<

Self-defrosting mirrors

Both mirrors are defrosted automati-

cally when the ignition key is in

position 2.

54nMirrors

Interior rearview mirror

To reduce glare from vehicles behind

you when you are driving at night, tilt

the mirror by turning the button.

530us218

Interior and exterior rearview

mirror with automatic dimmer*

These mirrors automatically dim

through an infinitely-variable range.

They automatically revert to their

undimmed mode whenever the trans-

mission is placed in reverse gear or

selector lever in "Reverse".

There are two photocells located in the

interior rearview mirror for this purpose.

One photocell (arrow) is in the mirror

glass, while the other is offset some-

what on the back of the mirror.

530us031

For trouble-free operation, keep the

photocells clean and do not cover the

area between the interior rearview

mirror and the windshield. Do not

attach any kind of stickers on the wind-

shield in front of the mirror, either.

55n

OverviewControlsMaintenanceRepairsDataIndex

Airbags

1 Front airbag for driver and front

passenger

2 Side Impact Head Protection System

for driver and passenger sides (front

and rear*)

3 Side airbags for driver and passenger

sides (front and rear*)

Protective effect

The front airbags supplement the safety

belts by providing additional protection

for the front-seat occupants in the

event of a severe frontal impact in

which the protection afforded by the

safety belts alone may no longer be

sufﬁcient. The Side Impact Head

Protection System and the side airbags

help provide protection in the event of a

530us035

side impact. Each of the side airbags is

designed to help support the upper

body.

The side airbags in the rear

passenger area* of your vehicle

may already have been deactivated

either at the time of manufacture or by a

BMW Sports Activity Vehicle center.

You may have them activated if you

desire to do so. Please contact your

BMW Sports Activity Vehicle center for

additional information.<

For information on the correct sitting

posture, refer to page 44.

The airbags will not be triggered in

the event of a minor accident, a

vehicle roll-over, or collisions from the

rear.<

Do not apply adhesive materials to

the cover panels of the airbags,

cover them or modify them in any other

way. Do not attempt to remove the

airbag restraint system from the

vehicle. In the event of a malfunction,

deactivation, or triggered actuation (as

a response to an accident) of the airbag

restraint system, consult your

BMW Sports Activity Vehicle center for

testing, repairs or service operations.

Do not modify or tamper with either the

wiring or the individual components in

the airbag system. These include the

padded steering wheel hub, the instru-

ment cluster, the side trim panels of the

front or rear doors and the roof pillars or

the sides of the headliner. Do not

remove or dismantle the steering wheel

yourself. To ensure compliance with

official safety regulations, entrust

disposal of airbag generators to a

BMW Sports Activity Vehicle center.

Unprofessional attempts to service the

system could lead to failure in an emer-

gency or undesired airbag activation,

either of which could result in personal

injury. Do not touch the individual

components directly after the system

has been triggered, as otherwise there

is a danger of burns.<

56nAirbags

At all times, occupants should sit

upright and be properly restrained

(infants and small children in appro-

priate child-restraint systems; larger

children and adults using the safety

belts).

Never let an occupant's head rest near

or on a side airbag because the inflating

airbag could cause a serious or fatal

injury. Please note that the word

"Airbag" imprinted on the door trim

panel indicates the airbag's location.

Accident research shows that the

safest place for children in an auto-

mobile is in the rear seat. However, a

child sitting in the rear seat and not

properly restrained may place his or her

head on or near the airbag, if so

equipped.

For example, a child — even though

belted — may fall asleep with his or her

head against the side airbag. It may be

difficult for a driver to ensure that chil-

dren in the rear seat will remain prop-

erly positioned at all times and do not

place their heads on or near the side

airbag. Therefore, we recommend that

the rear side airbags, if provided, be

deactivated if you plan to transport

children in the rear seat.

The rear seat side airbags may already

have been deactivated, either at the

time of manufacture or by a BMW

Sports Activity Vehicle center. Labels in

the rear door opening should indicate

the status of your rear seat side

airbags. If you are uncertain of their

status, or wish to have the airbags acti-

vated or deactivated, please contact

your BMW Sports Activity Vehicle

center.<

Even when all these guidelines are

observed, there is still a small residual

risk of injuries to the face, hands and

arms occurring from airbag deployment

in isolated instances. The ignition and

inflation noise may provoke a mild

temporary hearing loss in extremely

sensitive individuals.

Airbag warning information is also

provided on both sun visors.

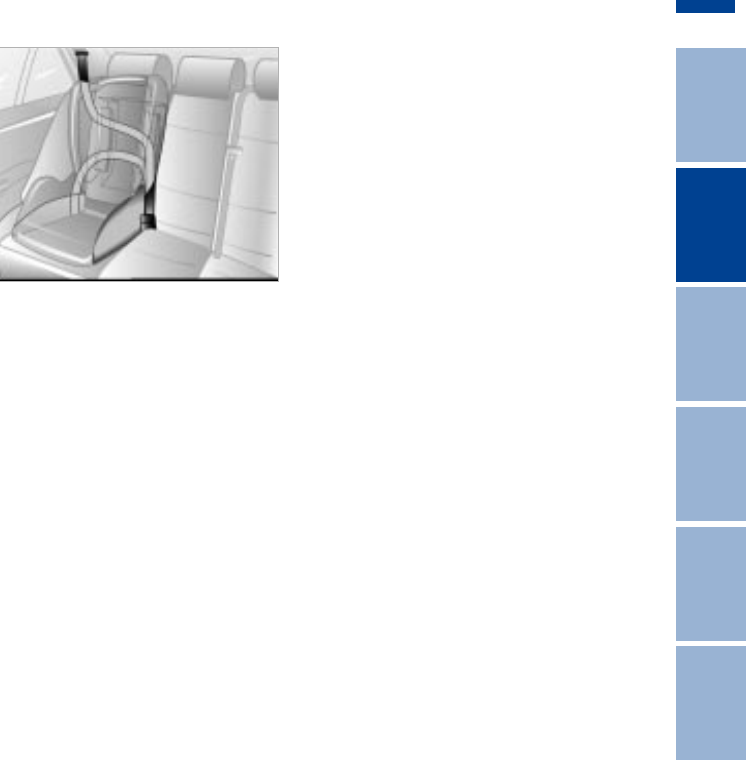

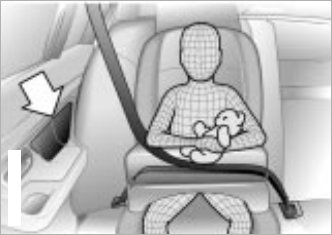

This is the right way a child should sit in

a child-restraint device when rear side

airbags (arrow) are provided.

530us026

57n

OverviewControlsMaintenanceRepairsDataIndex

Airbags

This is the right way a larger child

should sit wearing the safety belt when

rear side airbags (arrow) are provided.

530us099

Indicator lamp

The indicator lamp in the instru-

ment cluster shows the opera-

tional status of the airbag

system from ignition key position 1

and up.

System operational:

>The indicator lamp comes on briefly

then goes out.

System malfunction:

>The indicator lamp fails to come on

>The indicator lamp comes on briefly

before going out and then lighting up

again.

If there is a system malfunction, have

your BMW Sports Activity Vehicle

center inspect the system immediately.

If you do not, there is a risk that the

airbags will not be triggered within their

normal response range, even if the level

of impact would normally have trig-

gered them.

58nTransporting children safely

Commercially-available child-restraint

systems are designed to be secured

with a lap belt or with the lap belt

portion of a combination lap/shoulder

belt. Improperly or inadequately

installed restraint systems can increase

the risk of injury to children. Always

read and follow the instructions that

come with the system.

If you use a child-restraint system with

a tether strap, three additional tether

anchorage points (refer to the arrows in

the illustration) have been provided.

Depending on the location selected for

seating in the rear passenger area,

attach the tether strap to the corre-

sponding anchorage point to secure the

child-restraint system. Remove the

cover first on the middle location.

If the respective seating position is

fitted with a head restraint lift the head

restraint and pass the tether strap

between the head restraint and the seat

back.

Adjust the tether strap according to the

child restraint manufacturer's instruc-

tions.

530us037

Before installing any child-

restraint device or child seat,

please read the following:

Never install a rear-facing child-

restraint system in the front passenger

seat of this vehicle.

Your vehicle is equipped with an airbag

supplemental restraint system for the

front passenger. Because the backrest

on any rear-facing child-restraint

system (of the kind designed for infants

under 1 year and 20 Ibs/9 kg) would be

within the airbag's deployment range,

you should never mount such a device

in the front passenger seat, since the

impact of the airbag against the child

restraint's backrest could lead to

serious or fatal injuries.

If it is necessary for a child (not an

infant) to ride in the front seat, certain

precautions should be taken. First,

move the passenger seat as far away

from the instrument panel as possible.

This important precaution is intended to

maximize the distance between the

airbag and the child. Older children

should be tightly secured with a safety

belt.

59n

OverviewControlsMaintenanceRepairsDataIndex

Transporting children safely

Younger children should be secured in

an appropriate forward-facing child-

restraint system that has first been

properly secured with a safety belt.

Never install a rear-facing child-

restraint system in the front passenger

seat.

We strongly urge you to carefully read

and comply with the instructions for

installation and use provided by the

child restraint's manufacturer when-

ever you use such a device.

Be sure that all occupants (of all ages)

remain properly and securely restrained

at all times.<

All rear seating positions in your

vehicle meet the recommendations of

SAE J1819, an industry-recommended

practice for securing child-restraint

systems in motor vehicles.

Child-restraint system security

All of the rear belt retractors and the

front passenger's safety belt can be

locked for mounting and securing child-

restraint systems.

Information regarding this is located

near the buckle latch of each safety

belt.

530us104

To lock the belt

Pull the entire length of the belt from

the belt retractor. Allow the reel to

retract the belt somewhat and engage

the buckle, then tighten the belt against

the child-restraint system. The retrac-

tion mechanism is now locked.

To release the belt

Release the buckle, remove the child-

restraint device and allow the belt

retractor to reel the belt completely in.

60nTransporting children safely

LATCH child-restraint system

Remove cover panel by pulling it off

toward the front.

Simply put it back on to reattach it.

530de261

The illustration shows the mounts for a

LATCH child-restraint system in the left

rear seat.

To install a LATCH child-restraint

system, please follow the manufac-

turer's operating instructions and safety

precautions.

530de034

Child-safety locks

Slide the safety lever on the rear doors

downward:

The door can now be opened from the

outside only.

530de226

61n

OverviewControlsMaintenanceRepairsDataIndex

Vehicle Memory, Key Memory

How the system functions

You have probably frequently wished

that you could configure individual

functions of your vehicles to reflect your

own personal requirements. In engi-

neering your vehicle, BMW has

included several user-defined func-

tions in the vehicle's design. Your

BMW Sports Activity Vehicle center can

make these settings for you.

There are settings related to the vehicle

("Vehicle Memory") and settings related

to individuals ("Key Memory"). You can

configure up to four different basic

positions for four different persons. The

only requirement is that each person

uses his or her own remote control key.

463de029

When your vehicle is unlocked with the

remote control, the vehicle recognizes

the individual user by means of a data

exchange with the key, and makes

adjustments accordingly.

In order for you to distinguish between

different keys, colored decals are

supplied together with the keys.

What the system can do

Your BMW Sports Activity Vehicle

center can provide you with details on

the capabilities of the "Vehicle Memory"

and "Key Memory" systems. A few

examples follow below:

Examples for Vehicle Memory:

>Various signals that can serve as

acknowledgment for locking and

unlocking the vehicle

>Deactivating/activating the "Follow

me home" lamps function.

Examples for Key Memory:

>Automatically moving the driver's

seat, outside mirror and steering

wheel into position for the respective

person when unlocking the vehicle

>Calling up customized settings for the

automatic climate control when

unlocking the vehicle.

You will see this symbol

throughout the Owner's Manual. It

is to remind you at appropriate places

of the settings that are available to

you.<

62n

0 Steering lock engaged

1 Steering lock disengaged

2 Ignition on

3 Starting the engine

Steering lock engaged

The key can only be inserted and

removed in this position.

After removing the key, turn the

steering wheel slightly to the left or right

until you hear the lock engage.

Once the ignition has been switched off

(ignition key in position 0 or removed),

the radio functions are still available for

approx. 20 minutes. Turn the radio back

on to use it.

390de010

An acoustic warning is sounded when

you fail to remove the ignition key after

opening the driver's door.

Vehicles with automatic trans-

mission:

Do not move the selector lever from the

"Park" position until the engine is

running (ignition key in position 2).

In order to turn the key to position 0 or

to remove it, first move the selector

lever to the "Park" position (Interlock).<

Steering lock disengaged

You will find that it is often easier to turn

the ignition key from position 0 to posi-

tion 1 when you move the steering

wheel slightly to help disengage the

lock.

Individual electrical devices are ready

for operation.

Starting the engine

Vehicles with manual transmis-

sion: depress the clutch when

starting the engine. If you do not, a lock

prevents the engine from starting.<

Before starting

>Engage the parking brake

>Be sure that the gearshift lever is in

"Neutral" (or the selector lever in

"Park" if the vehicle is equipped with

an automatic transmission)

>Depress the clutch pedal.

Do not allow the engine to run in

enclosed spaces. The exhaust

gases contain carbon monoxide, an

odorless and colorless, but highly toxic

gas. Breathing the exhaust gases poses

an extreme health risk, and can lead to

unconsciousness and death.

Do not leave the vehicle unattended

with the engine running. An unattended

vehicle with a running engine repre-

sents a potential safety hazard.<

Ignition lock Starting the engine

63n

OverviewControlsMaintenanceRepairsDataIndex

Starting the engine

Do not press the accelerator pedal

while starting the engine.

BMW X5 3.0i:

Do not actuate the starter for too

short a time. Do not turn it for more

than approx. 20 seconds. Release the

ignition key immediately as soon as the

engine starts.

BMW X5 4.4i, 4.6is:

Your BMW is equipped with the conve-

nience starting feature. Simply turn the

key to position 3 (starter) and then

release it immediately.

The starter actuation continues to

operate automatically for a certain

period of time and is stopped automati-

cally as soon as the engine has started.

The automatic starting mode will not

operate if the battery voltage is low.

The engine can be started by means of

jump-starting, refer to page 164.<

Do not allow the engine to warm up

by leaving it running while the vehicle

remains stationary. Instead, begin to

drive immediately at a moderate engine

speed.

Should the engine fail to start on the

first attempt (if it is very hot or cold, for

instance):

>Press the accelerator pedal halfway

down while engaging the starter.

Cold starts at very low temperatures,

from approx. +5 7 (–15 6) and at alti-

tudes above 3,300 ft (1,000 meters):

>For the initial start attempt, allow the

starter to remain engaged somewhat

longer (approx. 10 seconds).

Engine idle speed is controlled by the

engine computer system. Increased

speeds at start-up are normal and

should decrease as the engine warms

up. If engine speed does not decrease,

service is required.

To prevent the battery from discharging,

always switch off electrical devices that

are not in use. Switch the ignition off

when the vehicle is not being driven.

Extended starting attempts, char-

acterized by excessively frequent

or long periods with the starter

engaged, can lead to damage of the

catalytic converter.<

When driving, standing at idle,

and parking the vehicle, take care

to avoid contact between the hot

exhaust system and flammable mate-

rials (grass, hay, leaves, etc.). Such

contact could lead to a fire, resulting in

serious personal injury and property

damage.<

64nSwitching off the engine Parking brake

Turn the ignition key to position 1 or 0.

Do not remove the ignition key

while the vehicle is still moving. If

you do so, the steering will lock.

Always remove the ignition key and

engage the steering lock before leaving

the vehicle.

Vehicles with manual transmission:

Always engage the parking brake when

parking on slopes and inclined

surfaces. Even placing the gearshift

lever in 1st gear or reverse may not

provide adequate resistance to rolling.

Vehicles with automatic transmission:

Place the selector lever in "Park".<

Vehicles with automatic transmission:

The vehicle must be stationary and the

selector lever in "Park" before you can

remove the ignition key.

The parking brake is primarily designed

to prevent the vehicle from rolling while

parked. It operates against the rear

wheels.

To engage

The lever engages automatically when

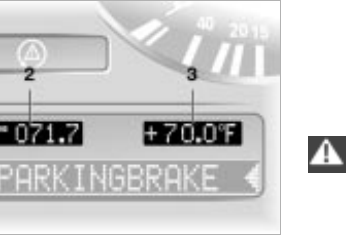

you pull it up and the "PARK BRAKE" or

"BRAKE" (in Canada "P") indicator lamp

comes on in the instrument panel in

ignition key position 2, refer to

pages 18 and 19.

To release

Pull up slightly on the lever, press the

button and lower the lever.

530de262

If, in exceptional circumstances, it

should be necessary to engage

the parking brake while the vehicle is in

motion, do not pull it with excessive

pressure. Keep your thumb pressed

against the release button while care-

fully pulling up the lever to apply

moderate pressure.

Excessive pressure can lead to over-

braking and loss of traction (fishtailing)

at the rear axle.

The brake lamps do not come on when

the parking brake is engaged.

Vehicles with manual transmission:

Always engage the parking brake when

parking on slopes and inclined

surfaces. Even placing the gearshift

lever in 1st gear or reverse may not

provide adequate resistance to rolling.

Vehicles with automatic transmission:

Place the selector lever in "Park".<

To avoid corrosion, apply the parking

brake lightly from time to time when

coasting to a standstill (at a traffic

signal, for instance), provided that it is

safe to do so.

65n

OverviewControlsMaintenanceRepairsDataIndex

Manual transmission

Press the clutch pedal all the way down

each time you shift, pressing the gear-

shift lever into its proper end position.

Depress the clutch when starting the

vehicle, too, otherwise, lockout will

prevent the engine from starting if the

clutch is not depressed.

360de044

Reverse

Select "Reverse" only when the vehicle

is completely stopped. Press the gear-

shift lever to the left to overcome the

resistance.

As you do this, the backup lamps will

turn on automatically when the ignition

key is in position 2.

Do not hold the vehicle in place on

slopes by slipping or "riding" the

clutch. Use the parking brake instead.

A slipping clutch increases clutch

wear.<

66nAutomatic transmission with Steptronic*

You can drive as with a normal auto-

matic transmission. In addition, you can

also shift manually.

When you move the selector lever from

the "D" position to the left into the M/S

range, the performance-oriented shift

programs of the automatic transmission

are engaged. As soon as you tap the

selector lever in the "+" or "–" direction,

Steptronic changes the gear. The

manual mode is engaged. When you

wish to use the automatic transmission

mode again, move the selector lever to

the right into the "D" position.

530us040

Selector lever positions

P R N D M/S

The transmission range display varies

according to the equipment of your

vehicle (refer to the illustrations).

Starting the engine

The engine can only be started in

selector lever positions P ("Park") or

N ("Neutral").

390us607

Range selection

A detent prevents inadvertent shifts to

the "Reverse" or "Park" selector lever

positions. To disengage the detent,

press the button on the front side of

the selector lever knob (arrow).

While the vehicle is stationary and

before shifting out of "Park" or

"Neutral", depress the footbrake in

order to disengage the selector lever's

lock mechanism (Shiftlock).

Hold the footbrake down until starting

off. The vehicle will otherwise "creep"

when a drive position is engaged.<

530de263

67n

OverviewControlsMaintenanceRepairsDataIndex

Automatic transmission with Steptronic*

If you leave the vehicle with the

engine running, move the selector

lever to the "Park" or "Neutral" position

and apply the parking brake. If you fail

to do this, the vehicle could move.

Do not leave the vehicle unattended

with the engine running. An unattended

vehicle with a running engine repre-

sents a potential safety hazard.<

P — Park

Select only when the vehicle is

stationary. The transmission locks to

prevent the rear wheels from turning.

R — Reverse

Select only when the vehicle is

stationary.

N — Neutral

Select only if your journey is interrupted

for a longer period.

D — Drive

(automatic shift program)

This position is designed for driving

under all normal operating conditions.

All forward gears are available.

Kickdown

In the kickdown mode, you achieve

maximum acceleration and in

position D top speed.

Depress the accelerator pedal past the

increased resistance point at the full-

throttle position. M/S Manual mode and

Sport Program

When you change from D to M/S, the

Sport Program is activated. This is indi-

cated by "D S" in the transmission

range display. The Sport Program is

designed for performance-oriented

driving.

With the first brief touch, the automatic

transmission shifts from the Sport

Program to the manual mode.

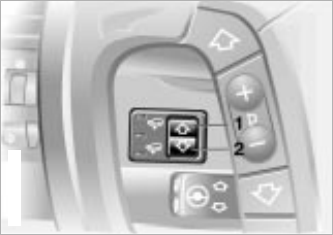

Whenever you tap the selector lever in

the "+" direction, the transmission shifts

up, and when you tap it in the "–" direc-

tion, the transmission will shift down.

Depending on the equipment version,

1 to 5 or M1 to M5 is indicated in the

transmission range display.

530de264

68nAutomatic transmission with Steptronic*Indicator/Headlamp flasher

Upshifts or downshifts will only be

carried out at appropriate engine

speeds and road speeds. If the engine

speed is too high, for instance, the

downshift will not be executed. The

gear selected will appear briefly in the

instrument cluster followed by the

current gear.

If you are driving in the manual

mode and wish to accelerate

rapidly – to pass another vehicle, for

example – shift down manually or with

the kickdown function.<

You can only change from M/S to

selector lever positions "P", "R" and "N"

via the "D" position.

Electronic transmission control

module

If the indicator lamp comes on

or the message "TRANS.FAIL-

SAFE PROG" appears in the

Check Control*, there is a fault in the

transmission system.

Bring the vehicle to a stop. Move the

transmission selector lever to "P". Set

the parking brake and switch the engine

off (ignition key to position 0).

Wait a few seconds, then start the

engine.

If the indicator lamp goes out after a

few seconds, normal transmission

performance has been restored. You

may continue to drive as usual. If the

indicator lamp does not go out, you can

place the selector lever in all positions.

However, the vehicle will now only drive

forward with limited gear selection.

If this happens, avoid extreme engine

loads and consult the nearest

BMW Sports Activity Vehicle center.

Do not work in the engine

compartment when a drive gear

(forward or reverse) is engaged. If you

do this, the vehicle could move.<

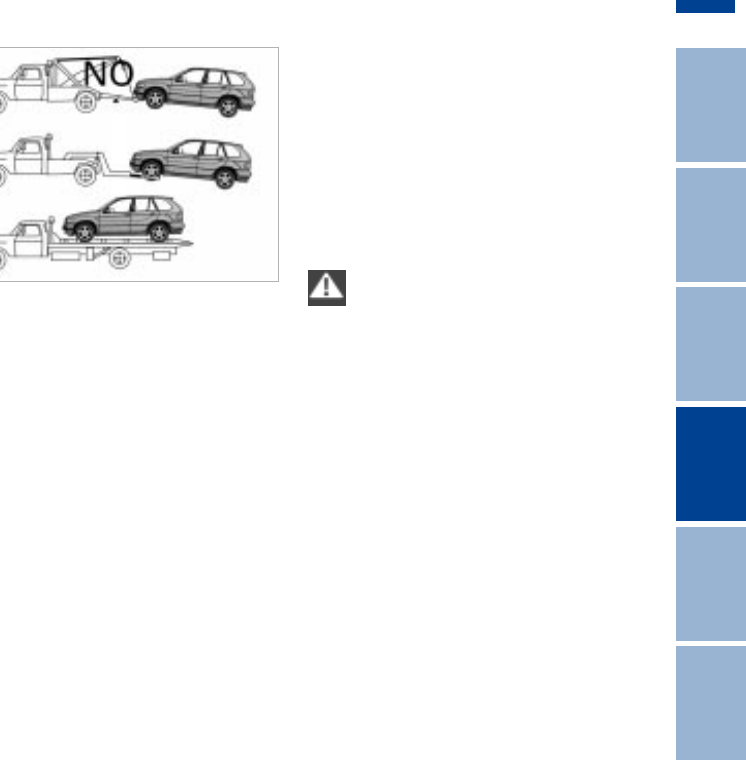

Information on jump-starting, tow-

starting and towing begins on

page 164.

69n

OverviewControlsMaintenanceRepairsDataIndex

Washer/Wiper system

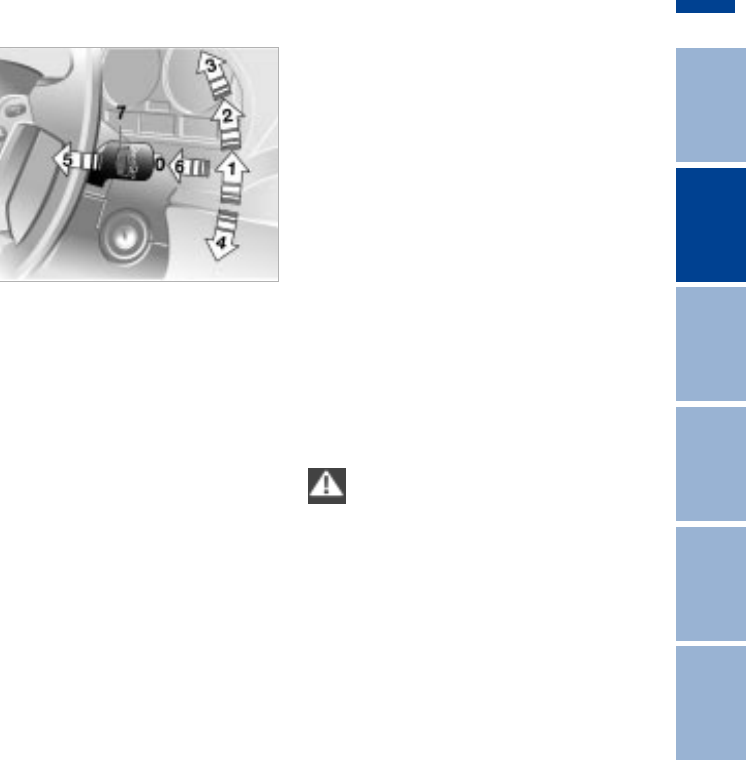

1 High beams (blue indicator)

2 Headlamp flasher (blue indicator)

3 Turn signal indicators (green indicator

accompanied by periodic clicking

sound from the relay)

To signal briefly

Press the lever up to but not beyond

the pressure point. It then returns to the

center position when released.

If the indicator lamp and the

clicking from the relay are both

faster than normal, one of the turn

signal indicators has failed.<

530de265

0 Wipers retracted

1 Intermittent mode or rain sensor*

2 Normal wipe

3 Fast wipe

4 Brief wipe

5 Clean the windshield

6 Special wash program*

7 Rotary dial for control of the wipe

interval or the sensitivity of the rain

sensor*

530de324

Wipers retracted (home position)

The left wiper is partially concealed by

the hood. In order to bring the wipers to

roughly a vertical position (this is impor-

tant for changing the wiper blades or to

fold the wipers out during frosty

weather, for example):

>With the lever in position 1, switch off

the ignition as soon as the wipers

come to a stop.

If equipped with a rain sensor*:

1. Switch on the wipers with the lever in

position 1, 2 or 4

2. When the wipers are approx. vertical,

switch the ignition off.

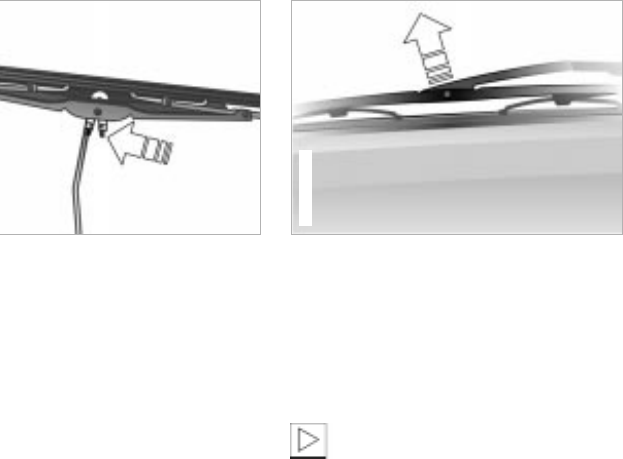

For changing the wiper blades, refer to

page 152.

Fold the wipers back down onto

the windshield before you turn the

ignition key to position 1 or 2 again. If

you do not, they could be damaged.<

70nWasher/Wiper system

Intermittent mode or rain sensor*

Intermittent mode:

You can set the wipe interval to four

stages with rotary dial 7.

In addition, the wipe interval is varied

automatically depending on road

speed.

Rain sensor:

The rain sensor is positioned on the

windshield, directly in front of the inte-

rior rearview mirror.

To activate the rain sensor:

Move the lever to position 1 with the

ignition key in position 1 or higher. The

wipers travel once across the wind-

shield, regardless of the weather

conditions.

You can leave the lever permanently in

position 1. It is then only necessary to

activate the rain sensor from ignition

key position 1 and up. To do this, turn

rotary dial 7 briefly.

To adjust the sensitivity of the rain

sensor:

Turn rotary dial 7.

Deactivating the rain sensor:

Move lever to position 0.

Switch the rain sensor off in auto-

matic car washes. If you do not,

damage may occur if the wipers switch

on unintentionally.<

Normal wipe

The system switches automatically to

intermittent mode when the vehicle is

not moving (not on vehicles with rain

sensor*).

Fast wipe

The wipers operate at normal speed

when the vehicle is not moving (not on

vehicles with rain sensor*).

Clean the windshield

The system sprays washer fluid against

the windshield and activates the wipers

for a brief period.

Special wash program*

As at 5; there are also several additional

wash cycles, and the headlamps are

cleaned*.

This program is recommended after you

have driven on extremely dirty roads.

Clean the headlamps*

>With the special wash program 6

>With every fifth actuation of clean the

windshield 5 when the vehicle's

lighting is switched on.

Do not use the washers if there is

any danger that the fluid will

freeze on the windshield. If you do so,

your vision could be obscured. For this

reason, use an antifreeze agent, refer to

page 143.

Do not use the washers when the reser-

voir is empty. This could cause damage

to the washer pump.<

Windshield washer jets

The windshield washer jets are warmed

automatically when the ignition key is in

position 2.

71n

OverviewControlsMaintenanceRepairsDataIndex

Washer/Wiper system Cruise control*

Rear window wiper

0 Retracted (home) position of the rear

window wiper

1 Rear window wiper in intermittent

mode. When reverse gear is

engaged, continuous operation is

switched on automatically

2 Clean the rear window

You can also program the interval:

>Switch briefly from position 0 to posi-

tion 1

>The time until reactivation (from posi-

tion 0 to 1) is the programmed

interval (max. 30 seconds).

530de266

Programming is deleted:

>Approx. 10 seconds after the lever is

placed in position 0 or

>after the engine is switched off.

For changing the wiper blade, refer to

page 152.

You can automatically maintain and

store any desired vehicle speed above

approx. 20 mph (30 km/h).

You can use cruise control whenever

the system is active while the engine is

running.

72nCruise control*

To activate the system

From ignition key position 2:

Press button; the indicator lamp in the

instrument cluster (refer to page 21)

comes on. You can now use the cruise

control.

Do not use cruise control on

twisting roads, when high traffic

density prevents driving at a constant

speed, when the road surface is slick

(snow, rain, ice), or when the road

surface is loose (rocks or gravel,

sand).<

To deactivate the system

Press the button repeatedly until the

indicator lamp in the instrument cluster

goes out.

The cruise control is also deactivated

when the ignition key is turned into

position 0.

The speed stored in the memory is

deleted.

To maintain and store speed or

to accelerate

Press button (+) briefly:

The system maintains and stores the

current vehicle speed. Every time you

briefly touch the button, the speed

increases by approx. 0.6 mph (1 km/h).

Press and hold button (+):

The vehicle accelerates without pres-

sure on the accelerator pedal. When

you release the button, the system

maintains and stores the current speed.

If, on a downhill gradient, the

engine's braking effect is not suffi-

cient, the controlled speed can be

exceeded. Speed can drop on uphill

grades if the engine output is insuffi-

cient.<

To decelerate

Press button (–) briefly:

When cruise control is active, every

brief touch of the button reduces the

speed by approx. 0.6 mph (1 km/h).

Press and hold button (–):

With the cruise control active, the

system automatically reduces the

throttle opening to slow the vehicle.

When you release the button, the

system maintains and stores the

current speed.

73n

OverviewControlsMaintenanceRepairsDataIndex

To interrupt the cruise control

When the system is activated, press

button 1. The indicator lamp stays on.

You can use the cruise control again

whenever required by calling up the

speed that was stored last.

In addition, the system is automatically

deactivated in response to the following

conditions:

>When you apply pressure to the

brake pedal

>When you apply pressure to the

clutch pedal or when you move the

automatic transmission selector lever

from "Drive" to "Neutral"

>If you exceed or fall below the

controlled speed for an extended

period (by depressing the acceler-

ator, for example).

To recall the stored setting

Press button:

The vehicle accelerates to and main-

tains the last speed stored.

74n

1 Odometer

2 Trip odometer

3 Outside temperature display

Odometer

You can activate the displays shown in

the illustration with the ignition key in

position 0 by pressing the button in the

instrument cluster (arrow).

The range of available displays varies

according to your individual vehicle's

equipment.

Trip odometer

To reset the trip odometer to zero,

press the button (arrow) with the igni-

tion key in position 1 or 2.

390us608

Outside temperature display

The outside temperature appears in the

display from ignition key position 1 and

higher.

You can change the units of measure-

ment (6/7) by

1. pressing and holding down the

button (arrow) with the ignition key

in position 1

2. and then turning the ignition key to 0.

Refer also to page 80.

Ice warning

If the outside temperature drops to

approx. +37.5 7 (+3 6), a signal

sounds as a warning and the display

flashes for a brief period.

The ice warning does not alter the

fact that surface ice can form at

temperatures above +37.5 7 (+3 6),

on bridges or shaded road surfaces, for

instance.<

Odometer, outside temperature display

75n

OverviewControlsMaintenanceRepairsDataIndex

Tachometer Energy control Fuel gauge

Do not operate the engine with the

needle in the red overspeed zone of the

gauge.

To protect the engine, the engine

management system automatically

interrupts the fuel supply in this range.

390us004

Indicates the current fuel consumption

in mpg (in liters/100 km on Canadian

vehicles). This allows you to see

whether your current driving style is

conducive to fuel economy with

minimum exhaust emissions.

When the vehicle is stationary, the

display goes to "Maximum" (zero on

Canadian models).

390us005

If the indicator lamp comes on and

stays on, there are approx.

>2.0 gal. (8 liter) – 6-cylinder engine

>2.5 gal. (10 liter) – 8-cylinder engine

of fuel still in the tank.

Tank capacity: refer to page 173.

Certain operating conditions (such as

those encountered in mountainous

areas) may cause the needle to fluc-

tuate slightly.

Please refuel early, as driving to

the last drop of fuel can result in

damage to the engine and/or catalytic

converter.<

When you switch on the ignition, the

indicator lamp comes on briefly to

confirm that the system is operational.

390us006

76nCoolant temperature gauge Service Interval Display

Blue

The engine is still cold. Drive at

moderate engine and vehicle speeds.

Red

When you switch on the ignition, the

warning lamp comes on briefly to

confirm that the system is operational.

If the warning lamp comes on while

driving or the message "COOLANT

TEMPERATURE" appears in the Check

Control*: the engine is overheated.

Switch off the engine immediately and

allow it to cool down.

Checking coolant level: refer to

page 145.

390de007

Between the blue and red zones

Normal operating range. It is not

unusual for the needle to rise as far as

the edge of the red zone.

The range of available displays varies

according to your individual vehicle's

equipment.

Green lamps

The number of illuminated lamps

decreases as the time for your next

maintenance visit approaches.

Yellow lamp

This field appears together with

OILSERVICE or INSPECTION.

Maintenance is due. Please contact

your BMW Sports Activity Vehicle

center for an appointment.

Red lamp

The maintenance deadline has been

passed.

390us008

77n

OverviewControlsMaintenanceRepairsDataIndex

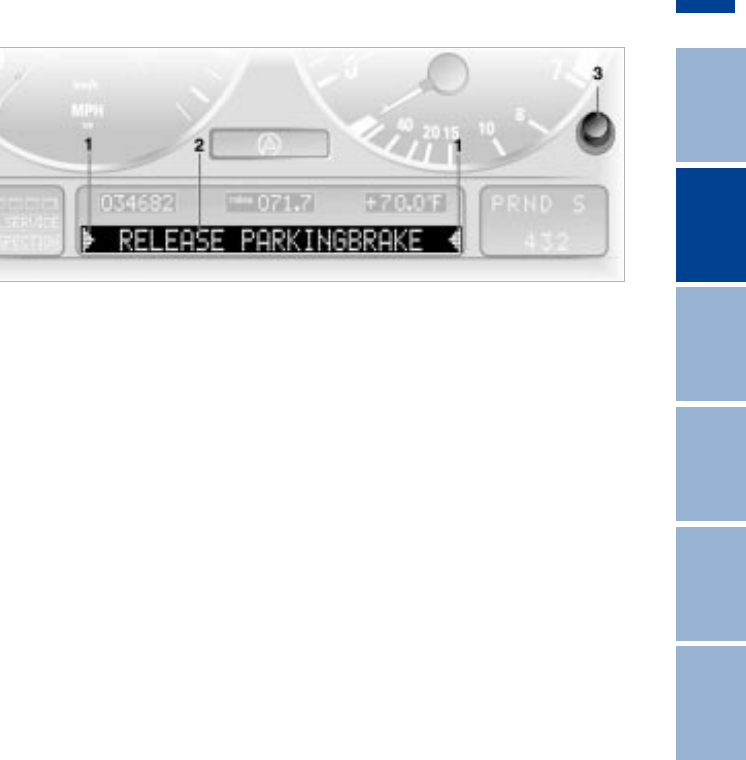

Check Control

Graphic display*

The following alerts or status messages

are displayed with icons from ignition

key position 2 and up until the defects

are corrected:

1 Check low beams

2 Add washer fluid (goes out after

approx. 1 minute)

3 Door open

4 Tailgate open

5 Check brake and tail lamps.

A defective center brake lamp is indi-

cated by the upper symbol.

When you open the door after stopping,

a warning signal sounds without a

visual indicator for:

>LIGHTS ON and

>KEY IN IGNITION LOCK.

390de121

Alphanumeric display*

Text messages are used to alert the

driver to system malfunctions when the

ignition key is turned to position 2. The

alert is accompanied by a gong.

1 Status messages symbol

2 Display

3 CHECK button

Messages concerning system faults are

differentiated based on two priorities:

390us111

Priority 1

These defects are immediately indi-

cated by a gong and a flashing warning

symbol 1. Simultaneous defects will be

displayed consecutively. These status

messages remain in the display until the

defects are corrected. They cannot be

deleted by pressing the CHECK

button 3:

>RELEASE PARKINGBRAKE

>COOLANT TEMPERATURE

The coolant is overheated. Stop the

vehicle immediately and switch off

the engine, refer to pages 76 and 145

>STOP!ENGINE OILPRESS

The oil pressure is too low. Stop the

vehicle immediately and switch off

the engine, refer to pages 18 and 143

78nCheck Control

>CHECK BRAKE FLUID

Indicates that brake fluid is down to

approximately the minimum level.

Top off the brake fluid at the next

opportunity, refer to page 146. Have

the cause of the brake fluid loss diag-

nosed and corrected by your BMW

Sports Activity Vehicle center

>TIRE DEFECTIVE*

Reduce vehicle speed immediately

and stop the vehicle. Avoid hard

brake applications. Do not oversteer,

refer to page 99

>SELFLEVEL SUSP.INACT*

Please consult the nearest

BMW Sports Activity Vehicle center

>SELFLEVEL SUSP.INACT*

"max. 35 mph/max. 60 km/h*"

These displays appear consecutively.

Do not exceed a maximum speed of

35 mph (60 km/h).

Please consult the nearest BMW

Sports Activity Vehicle center

>SPEED LIMIT*

You will see this message if the

programmed speed limit has been

exceeded, refer to page 86.

Priority 2

These displays appear for 20 seconds

when the ignition key is turned to posi-

tion 2. The warning symbols remain

after the message disappears. You can

call up the messages again for display

by pressing the CHECK button.

>TRUNKLID OPEN

This message appears only at the

start of a trip

>DOOR OPEN

This message appears after a

minimal defined road speed has been

exceeded

>FASTEN SEAT BELTS*

In addition to this message, an indi-

cator lamp with the safety belt icon

appears and an acoustical signal is

sounded

>WASHER FLUID LOW

The fluid level is too low; top off at

the next opportunity, refer to

page 143

>CHECK ENGINE OIL LEV

The oil level is at the absolute

minimum; refill as soon as possible,

refer to page 143. Do not drive more

than approx. 30 miles (50 km) until

you add oil

>CHECK FILLER CAP

Check to see whether the fuel filler

cap has been closed properly, refer

to page 24. A fuel filler cap that has

not been closed all the way will set

off the Service Engine Soon lamp

>OUTSIDE TEMP. +23 7 (–5 6)

This display is only an example. The

current temperature is displayed at

outside temperatures of +37.5 7

(+3 6) and below, refer also to

page 74

>SET TIRE PRESSURE*

The RDC has imported the current

inflation pressure in the tires as the

target values which the system will

monitor, refer to page 98

>CHECK TIRE PRESSURE*

Check and correct the tire inflation

pressure to specifications at the

earliest opportunity (next stop to

refuel), refer to page 99

>TIRECONTROL INACTIVE*

A temporary interference of the RDC

or a system fault, refer to page 99

>CHECK BRAKE LIGHTS

A lamp has failed or the electrical

circuit has a fault, refer to pages 155

and 156 or consult a BMW Sports

Activity Vehicle center.

79n

OverviewControlsMaintenanceRepairsDataIndex

Check Control

>CHECK LOWBEAM LIGHTS

CHECK SIDE LIGHTS

CHECK REAR LIGHTS

CHECK FRONT FOGLAMPS

CHECK LICPLATE LIGHT

CHECK HIGHBEAM LIGHT

CHECK BACK UP LIGHTS

Defective bulb or circuit, refer to

page 153 or consult a BMW Sports

Activity Vehicle center

>TRANS. FAILSAFE PROG

Please consult the nearest

BMW Sports Activity Vehicle center,

refer to page 68

>CHECK BRAKE LININGS

Have the brake pads inspected by

your BMW Sports Activity Vehicle

center, refer to page 135

>CHECK COOLANT LEVEL

Coolant too low, top off at the next

opportunity, refer to page 145

>ENGINE FAILSAFE PROG

There is a fault in the engine's elec-

tronic control system.

You can continue to drive with

reduced engine output or engine

speed. Have the system checked by

your BMW Sports Activity Vehicle

center.

Displays after completion of trip

All of the malfunctions registered during

the trip appear consecutively when the

ignition key is turned to position 0.

The following displays will appear when

appropriate:

>LIGHTS ON

>KEY IN IGNITION LOCK

>CHECK ENGINE OIL LEV

Add engine oil at the next opportunity

(next stop to refuel), refer to

page 143.

This display appears when you open

the driver's door after parking the

vehicle. A supplementary gong is also

heard.

Status messages remain available for a

period of approx. three minutes after

the display goes out and the key is

removed from the ignition lock. Press

the CHECK button 3. If there were

multiple messages, press the CHECK

button repeatedly to view them all in

sequence.

To check the Check Control

Press the CHECK button 3 with the

ignition key in position 2:

CHECK CONTROL OK appears in the

display.

No malfunctions are present in the

monitored systems.

Computer

You can find a description of the

computer on pages 80 and 86 as well

as in the Owner's Manual for the

Onboard Computer.

You can have the Check Control

and computer messages

displayed in a different language.<

80nComputer

Mode selection

From ignition key position 1 and up,

you can call up information from the

computer using the button in the turn

signal lever. By pressing the button

briefly in the direction of the steering

column, you can call up a new function

for display.

The displays appear in the following

order: outside temperature, average

fuel consumption, cruising range,

average speed.

Starting with ignition key position 1,

the last active setting is displayed.

The range of available displays varies

according to your individual vehicle's

equipment.

530de228

Outside temperature and average

fuel consumption

You can change the units of measure-

ment (6/7) for the outside tempera-

ture display by

1. pressing and holding the trip

odometer reset button (in ignition

key position 1)

2. and then turning the ignition key to 0.

Refer also to page 74.

390us126

Cruising range and average speed

The computer bases its calculations

of the cruising range on the previous

driving style and conditions.

The computer ignores any time spent

with the vehicle stationary and the

engine switched off in its average

speed calculations.

To cancel the display

If the button in the turn signal lever is

pressed briefly while the average speed

is displayed, the computer display can

be masked out.

To restart calculations

If you continue to press the button in

the turn signal lever, the average values

which were just displayed for fuel

consumption and speed will be recal-

culated from that point. The engine

must be running for this calculation.

Computer with alphanumeric

display*

If your vehicle has Check Control with

alphanumeric display, the system's

computer is described beginning on

page 86 and in the Owner's Manual for

the Onboard Computer.

81n

OverviewControlsMaintenanceRepairsDataIndex

82nMulti-Information Display (MID)

Central display

The MID serves as the central display

and operation for the following onboard

systems:

>Digital clock (e.g. time display, date)

>Audio systems (radio, cassette, CD)

>Computer* (e.g. fuel consumption,

cruising range)

>Cellular phone (e.g. dialing).

You will find explanations and notes

for operating the digital clock and the

computer on the following pages.

Please refer to the separate Owner's

Manuals for operating the audio

systems, the cellular phone and the

onboard computer.

Any unrealistic numerical entries

will not be accepted.

All stored data will be lost if the power

supply is interrupted. Time display,

switch-on times for independent

heating and ventilation, distance and

cruise control speed limit may have to

be reset once the power supply has

been re-established.<

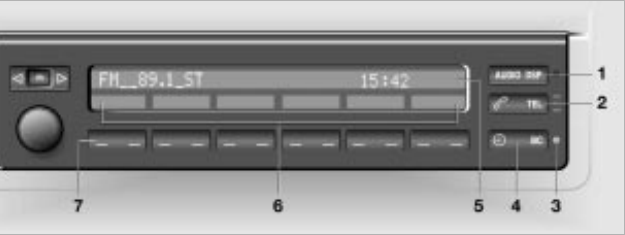

1 Function button for audio systems

2 Function button for the cellular

phone*

3 Indicator lamp for independent venti-

lation*

>remains on if switch-on time is

active

>flashes while operating

4 Function button for the digital clock

and computer*

5 Indicator display for the various

onboard systems

390us705

6 Display for the entry and query

buttons. Depending on the operating

mode, the functions and alternatives

that can be selected at the buttons

are displayed here

7 Entry and query buttons for operating

the various onboard systems

83n

OverviewControlsMaintenanceRepairsDataIndex

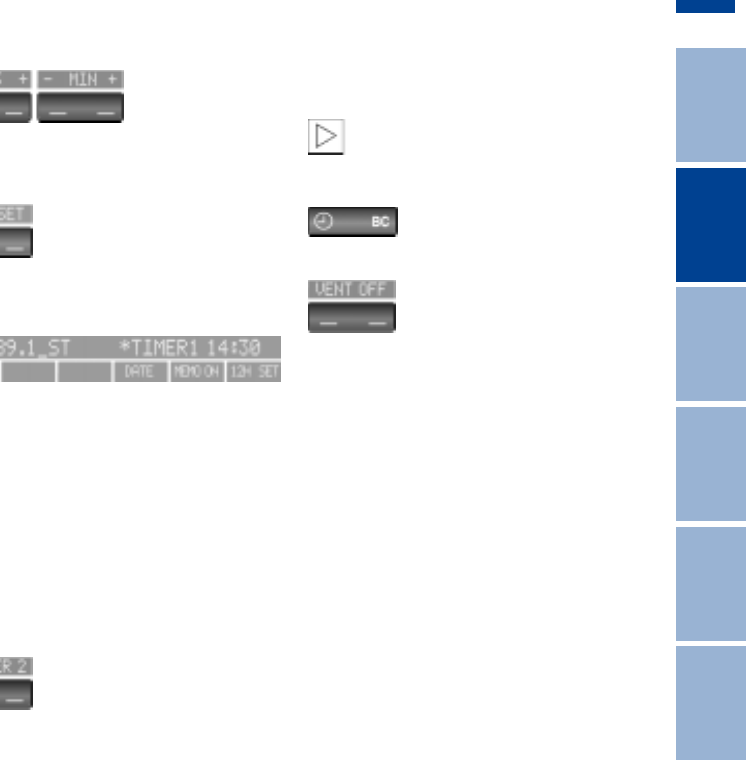

Digital clock in the MID

Only make entries when the

vehicle is stationary – to avoid

endangering yourself or other road

users.<

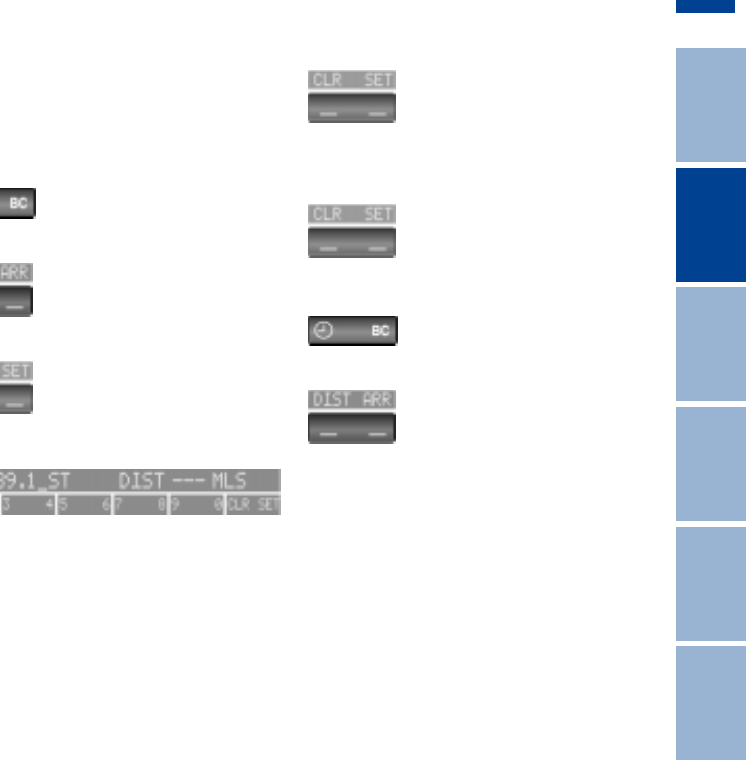

To call up time or date

Press the left side of the button.

Display shows:

You can have the time displayed in

12 or 24 hours.

To change the display:

Press the left side of the button.

If the 12-hour time display is in use, AM

or PM appears after the time.

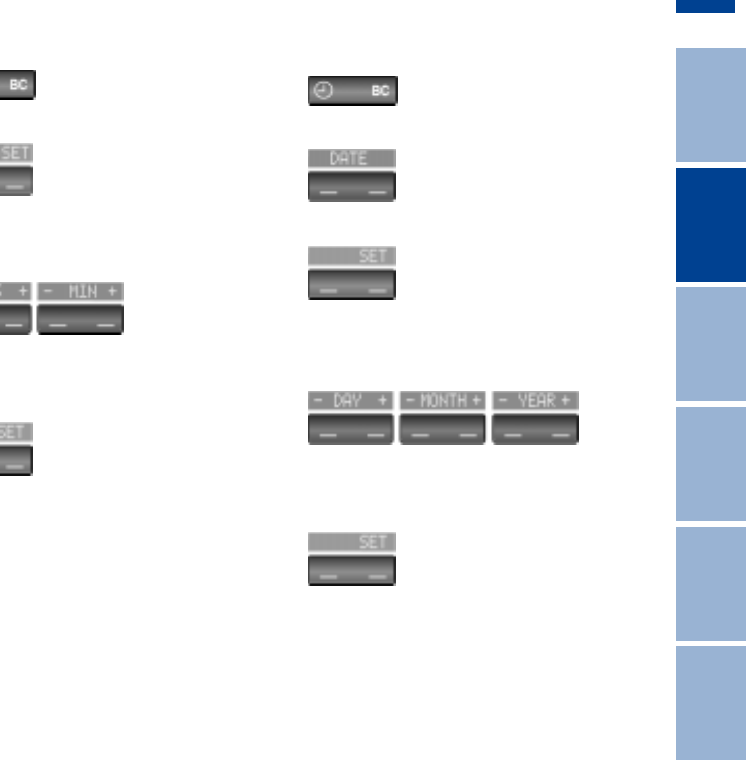

To change the time

Press the left side of the button.

Press the right side of the button:

The dots flash in the display.

To alter the setting:

Press on the left or right, or hold the

button down.

To store the entry:

Press the right side of the button.

To change the date

Press the left side of the button.

Press.

Press the right side of the button:

The dots and the DATE display flash.

To alter the setting:

Press on left or right, or hold the button

down.

To store the entry:

Press the right side of the button.

The clock takes leap years into account

and therefore does not have to be reset

manually.

84nDigital clock in the MID

Reminder signal

You can program a reminder signal

(Memo) to be heard every hour, so that

you are sure not to miss a news

broadcast.

Press the left side of the button.

Press.

MEMO OFF appears in the display for

entry and query buttons, and the tone

symbol will appear in the upper right of

the display.

A signal is then heard 15 seconds

before each hour.

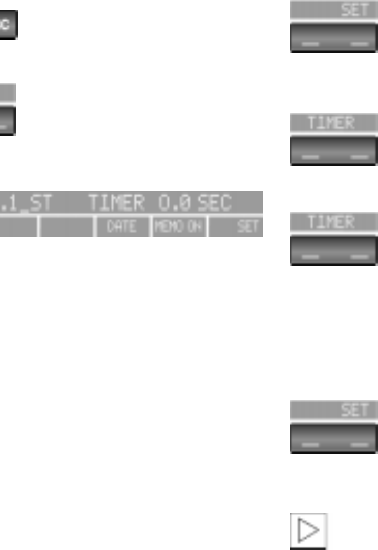

Stopwatch

Press the left side of the button.

Press.

Display shows:

To start the stopwatch function:

Press the right side of the button.

To take an intermediate time reading:

Press.

The stopwatch display can be seen

counting up; the stopwatch continues

to run.

To halt the stopwatch:

Press the right side of the button.

The stopwatch is halted when the

ignition switch is turned back to 0,

but starts to run again when the ignition

key is turned to 1.<

85n

OverviewControlsMaintenanceRepairsDataIndex

Digital clock in the MID

Enter the switch-on times for the

independent ventilation*

You can enter two different switch-on

times.

The ventilation will shut off

automatically after 30 minutes.

Please follow the instructions for

operating the independent ventila-

tion that start on page 112.<

Press the left side of the button.

Press on the left/right.

Display shows:

Press the right side of the button:

Display flashes, e.g. TIMER 1.

To enter the time:

Press on the left/right, or hold the

button down.

To confirm the entry:

Press the right side of the button.

The activated time is marked with an

asterisk.

The switch-on times remain stored until

new entries are made.

You can change switch-on times that

have already been stored by making a

new time entry as described above.

When the switch-on time is active, the

LED comes on in the MID. During actual

operation of the ventilation, the LED

flashes. The LED goes out when the

system is switched off.

To activate/deactivate the time:

Press twice.

Directly switching

the independent ventilation*

on and off

The independent ventilation func-

tion can only be called up in igni-

tion key position 1.<

Press the left side of the button.

Press.

86nComputer**

** in the MID

Only make entries when the

vehicle is stationary – to avoid

endangering yourself or other road

users.<

Computer calculations begin at the

start of the journey.

Information can also be called up in the

display by remote control, refer to

page 90.

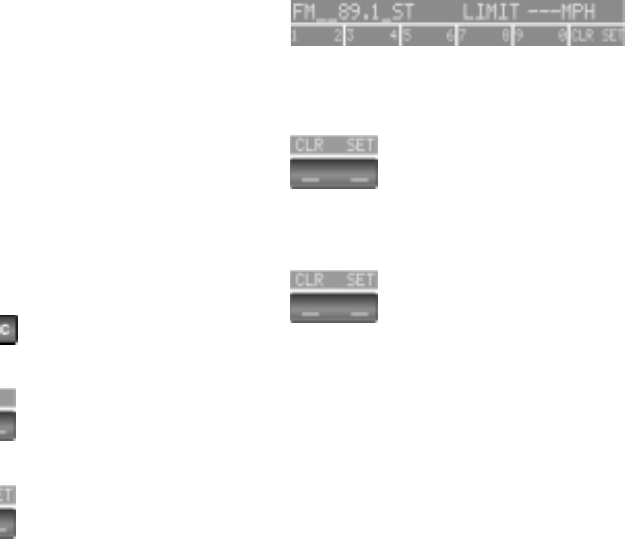

Speed limit

Speed limit entry:

You can enter the road speed here

at which you wish to hear and see a

reminder signal: a signal will sound,

the word LIMIT will flash, and with the

Check Control with alphanumeric

display*, the speed limit warning stored

in the memory will appear on the instru-

ment cluster briefly.

The speed limit reminder is only

repeated if road speed has fallen at

least 3 mph (approx. 5 km/h) below the

preset speed limit.

Press the right side of the button.

Press.

Press the right side of the button.

Display shows:

Enter the limit by pressing the function

buttons.

To correct an entry:

Press the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

87n

OverviewControlsMaintenanceRepairsDataIndex

Computer**

** in the MID

Adopting the current speed as the

speed limit:

Press the right side of the button.

Press.

Press twice at right.

Deactivating the speed limit:

Press the right side of the button.

Press.

The LIMIT display goes out, but the

stored value is not lost and can be

reactivated by pressing the LIMIT

button.

Distance to destination

The remaining distance to the destina-

tion will be displayed on the screen.

Enter the entire distance before starting

the journey.

Enter:

Press the right side of the button.

Press the left side of the button.

Press the right side of the button.

Display shows:

You can enter the distance by pressing

the function buttons.

To correct an entry:

Press the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

Checking stored value:

Press the right side of the button.

Press the left side of the button.

88nComputer**

** in the MID

Estimated time of arrival

When you have entered the distance to

your destination, you can obtain an

estimated time of arrival display which

is continuously updated by the

computer as your average driving

period varies.

Press the right side of the button.

Press the right side of the button:

The estimated time of arrival is

displayed.

Cruising range

The distance which the vehicle should

cover on the remaining fuel in the tank

is displayed.

Press the right side of the button.

Press.

The display shows the probable range.

When you have only enough fuel

left to drive fewer than 30 miles

(50 km), then refuel, as otherwise the

engine or the catalytic converter could

be damaged.<

The computer will only register fuel

amounts over 1.8 gal (6 liters).

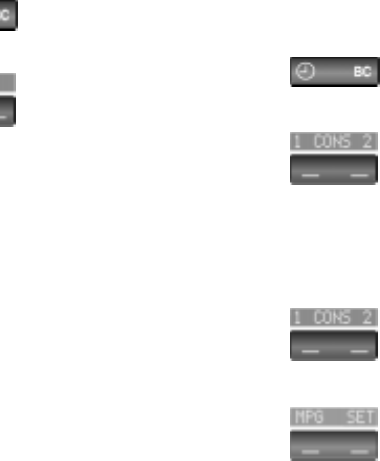

Fuel consumption

You can have the average fuel

consumption displayed for two different

distances, for example a complete

journey and part of the journey.

To start the calculation, select the

CONS function with the engine running.

Press the right side of the button.

Press on the left or right:

The display will show the average fuel

consumption.

To restart the fuel consumption

calculation:

Press on the left or right.

Press the right side of the button.

89n

OverviewControlsMaintenanceRepairsDataIndex

Computer**

** in the MID

Speed

You can call up a display of the

vehicle's average speed.

To start the calculation, select the

SPEED function with the engine

running.

Press the right side of the button.

Press.

The display shows the average speed.

To recalculate the speed:

Press the right side of the button.

Extended immobilizer function

You can establish a code that will

prevent the engine from being started

unless the code is entered.

If you do not have access to the code,

the emergency deactivation procedure

will have to be carried out, refer to next

page.

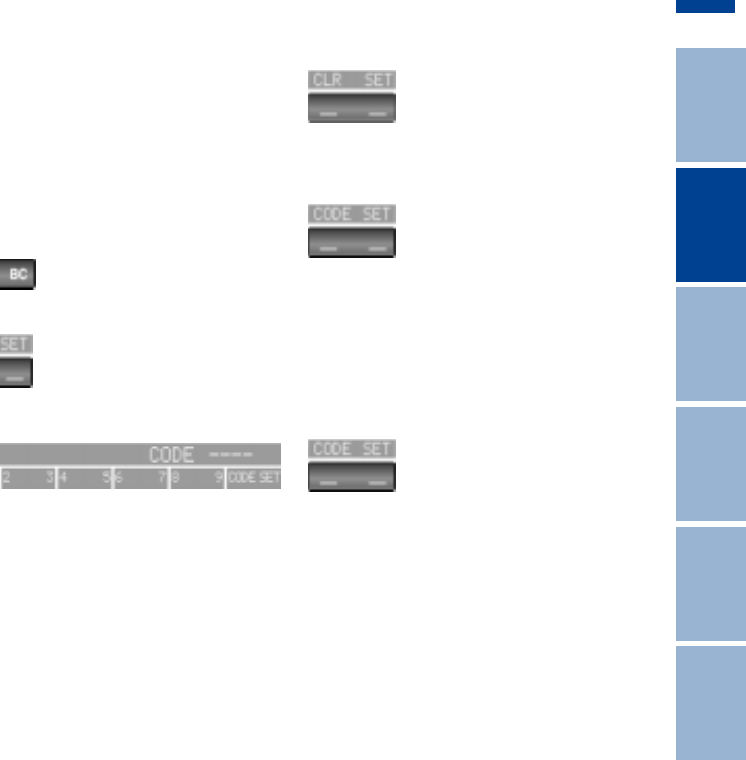

Establishing and activating the code:

Press the right side of the button.

Press the left side of the button.

Display shows:

Enter the code with the function

buttons.

To correct an entry:

Press on the left side of the button and

repeat the entry.

To store the entry:

Press the right side of the button.

Turn the ignition key to position 0.

Deactivate the code:

When you are asked to enter the code

(ignition key in position 1 or 2):

>Enter the code at the function

buttons.

Press the right side of the button.

After the code has been entered

correctly and confirmed with the SET

button, the time display appears.

90nComputer**

** in the MID

After three incorrect code entries, or

three attempts to start the engine

without a code entry, the alarm will

sound for 30 seconds on vehicles fitted

with an alarm system.

Deactivating the alarm in an

emergency:

If you have forgotten the code, proceed

as follows:

1. Disconnect the battery, wait approx.

2 minutes, then reconnect it. Note

that on vehicles with an alarm

system, the alarm will sound

2. Set the ignition key to position 1:

The time display will count down for

the next ten minutes

3. After ten minutes, start the engine.

If the code becomes available

again in the meantime, it can be

entered during the waiting period after

pressing the CODE button.<

Remote control

The button on the turn signal indicator

lever can be used to select the items of

computer information which are to

be displayed.

To do this, press:

>the button on the lever until PROG 1

shows on the display

>the MID buttons in the order in which

you wish the information to be

displayed.

Each time an entry is stored, the

program number appears on the

display.

To terminate the selection procedure:

Press the right side of the button.

530de228

To have all the available information

displayed, press:

>the button on the lever until the

display shows PROG

>the SET button.

To obtain individual items of informa-

tion, press the button in briefly as often

as necessary.

91n

OverviewControlsMaintenanceRepairsDataIndex

The concept

The PDC assists you when you are

parking. Acoustical signals inform you

of the distance to an obstacle. To do

this, four ultrasonic sensors in the front

and rear bumpers each measure the

distance to the nearest object. The

detection range of the front sensors

and the two sensors located at the

ends of the rear bumper is approxi-

mately 2 ft (60 cm), while the rear

center sensors can detect objects to a

distance of roughly 5 ft (1.50 m).

Automatic function

The system starts to operate auto-

matically about one second after you

select reverse with the ignition key in

position 2.

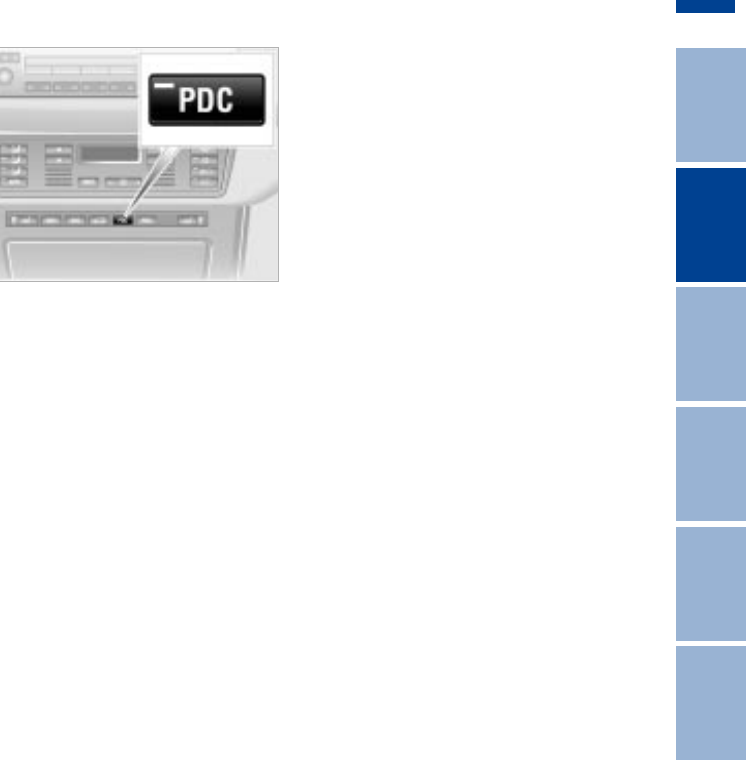

Manual activation

Press the button; the indicator lamp

comes on.

After driving a distance of more than

approx. 160 ft (50 m) or exceeding a

speed of approx. 20 mph (30 km/h), the

system switches off and the indicator

lamp goes out. Switch the system on

again as required.

Manual deactivation

Press the button again.

530de229

Acoustical signals

The distance from an obstacle is indi-

cated in front with a higher intermittent

tone, and at the rear with a lower inter-

mittent tone. As the distance between

vehicle and object decreases, the inter-

vals between the tones become

shorter.

A continuous tone indicates the pres-

ence of an object less than approx. 1 ft

(30 cm) away.

The warning signal is canceled after

approx. 3 seconds if you are moving

parallel to a wall.

If there is a malfunction of the system:

The indicator lamp flashes and a short

steady signal tone is sounded

>if you activate PDC with the button

>when you select reverse for the first

time after switching on the ignition

>if a malfunction occurs while the PDC

system is active.

Switch the system off and have the

cause of the malfunction corrected by

your BMW Sports Activity Vehicle

center.

Park Distance Control (PDC)*

92nPDC* Dynamic Stability Control (DSC)

The PDC system does not remove

the driver's personal responsibility

for evaluating the distance between the

vehicle and any obstacles. Even when

sensors are involved, there is a blind

spot in which objects cannot be

detected. This applies especially in

those cases where the system

approaches the physical constraints of

ultrasonic measurement, as occurs with

tow bars and trailer couplings, and in

the vicinity of thin or wedge-shaped

objects.

Certain sources of sound, such as a

loud radio, could drown out the PDC

signal tone.<

Keep the sensors clean and free

of ice or snow in order to ensure

that they continue to operate effectively.

Do not apply high pressure spray to the

sensors for a prolonged period of time.

Maintain an adequate distance of more

than 4 in (10 cm).<

The concept

DSC maintains vehicle stability, even in

critical driving situations.

The system optimizes vehicle stability

during acceleration and when starting

from a full stop, as well as optimizing

traction. In addition, it recognizes

unstable vehicle conditions, such as

understeering or oversteering, and, as

far as is possible within the laws of

physics, keeps the vehicle on a steady

course by adapting the rpms and brake

applications to the individual wheels.

The system starts up automatically

each time you start the engine.

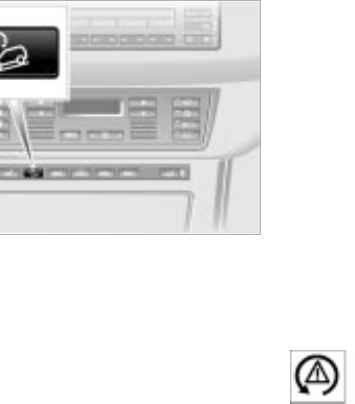

Indicator lamp

The indicator lamp in the instru-

ment cluster goes out shortly

after you switch on the ignition,

refer to page 20.

Indicator lamp ﬂashes:

The system is active and governs drive

and braking force.

If the indicator lamp fails to go out after

the engine is started, or comes on

during normal driving and stays on:

The system is either defective or was

switched off with the button: the stabi-

lizing applications described to the left

are no longer available. The vehicle will

remain completely operational,

however, without DSC.

Consult your BMW Sports Activity

Vehicle center to have the system

repaired.

93n

OverviewControlsMaintenanceRepairsDataIndex

Dynamic Stability Control (DSC)

To switch the system off

Press the button; the indicator lamp

comes on and stays on.

Traction intervention remains active;

that is, braking intervention will

continue.

In the following exceptional circum-

stances, it may be effective to switch

off the DSC for a short period:

>When rocking the vehicle or starting

off in deep snow or on loose surfaces

>On sandy road surfaces

>On poor surfaces with deep ruts

>If the wheels "churn" on muddy

surfaces

>When driving with snow chains.

530de230

As a result of the traction interven-

tion, the brakes may be subjected

to additional loads when the system is

switched off. For this reason, it is

possible that the braking intervention

will be disabled automatically for a brief

period in order to limit brake tempera-

ture.

To maintain vehicle stability, always

drive with the system switched on when

possible.<

To switch the system on again

Press the button again; the indicator

lamp goes out.

The laws of physics cannot be

repealed, even with DSC. An

appropriate driving style always

remains the responsibility of the driver.

We therefore urge you to avoid using

the additional safety margin of the

system as an excuse for taking risks.

Do not make any modifications to the

DSC system. Service procedures on

the system are to be performed by

authorized technicians only.<

Dynamic Brake Control (DBC)

DBC is an integral component of the

DSC system.

The system responds to sudden, high-

intensity applications of force to the

brake pedal by automatically braking

the vehicle with maximum boost to

achieve the shortest-possible braking

distances during "panic stops." This

system exploits all the benefits of ABS.

Do not reduce the pressure exerted

against the brake pedal until the

braking maneuver has been completed.

DBC is deactivated when you release

the brake pedal.

94nHill Descent Control (HDC)

The concept

HDC is a system for driving downhill in

steep terrain. This system reduces

vehicle speed on steep downhill gradi-

ents, thus allowing you to maintain

control of your BMW under these

conditions.

The vehicle moves at slightly more than

walking speed without active interven-

tion from the driver.

HDC is available for activation at

vehicle speeds below approx. 20 mph

(35 km/h). When driving down steep

hills with a speed below approx.

20 mph (35 km/h), the vehicle reduces

speed automatically down to slightly

more than walking speed (approx.

5 mph/8 km/h) and then maintains this

speed at a constant.

You can use the accelerator or brakes

to vary this automatically controlled

speed within a range extending from

approx. 3 mph (5 km/h) to 15 mph

(25 km/h).

You can use the +/– button to set the

cruise control to a target speed in the

range from approx. 3 mph (5 km/h) to

15 mph (25 km/h).

HDC is automatically deactivated once

vehicle speed again exceeds approx.

35 mph (60 km/h).

To switch the system on

Press the button. The indicator lamp

comes on.

The indicator lamp flashes when the

brakes are applied automatically.

To switch the system off

Press the button again; the indicator

lamp goes out.

HDC is deactivated automatically above

a road speed of approx. 35 mph

(60 km/h) and when the ignition is

switched off.

530de231

To use HDC

With manual transmission:

Use HDC in first gear and in Reverse

since the engine's braking effect is

diminished in the higher gears.

With automatic transmission:

You can use HDC in every drive

position.

In the event of a fault

The indicator lamp goes out in the HDC

mode or does not come on when HDC

is switched on:

HDC is temporarily not available if

brake temperature is too high.

If the DSC indicator lamp also

lights up:

There is a fault in the HDC and

DSC systems. Have your BMW Sports

Activity Vehicle center inspect this

system as soon as possible.

95n

OverviewControlsMaintenanceRepairsDataIndex

Variable Ride Height*Variable Ride Height on both axles*

The warning lamp for the Vari-

able Ride Height comes on, or

the message "SELFLEVEL

SUSP.INACT" appears in the Check

Control: there is a malfunction in the

Variable Ride Height.

Stop and inspect the vehicle. If it is

riding significantly lower in the rear than

in the front, or if it is sitting at an incline

(left rear compared to right rear),

consult the nearest BMW Sports

Activity Vehicle center. Drive with

appropriate caution in the meantime.

The vehicle has reduced ground clear-

ance or driving comfort is noticeably

reduced.

Even if the attitude of the vehicle is

normal, you should consult the nearest

BMW Sports Activity Vehicle center if

the warning lamp indicates a system

malfunction.

The concept

Your vehicle is equipped with Variable

Ride Height acting on both the front

and rear suspension. This system

combines automatic self-leveling,

which compensates for variations in

front-to-rear load-distribution patterns,

with a selection feature allowing drivers

to choose from among several ride-

height options.

You may choose from among the

following ride heights:

>Standard

The "standard" setting is intended for

most operating conditions, including

trailer towing

>Off-Road

Higher ride height for increased

ground clearance

>Access

Lowers vehicle for more convenient

cargo handling and easier passenger

ingress and exits

Changes in ride height are initiated

either manually, using the control

button (refer to page 96), or automati-

cally in response to specific speeds.

When the ride height is selected manu-

ally, the driver has the additional option

of revising the ride-height selection by

entering a new command during the

adjustment process.

When the vehicle is stationary, the

system executes ride-height changes in

both directions (up and down) when-

ever the doors are closed. The tailgate/

liftgate may be open. The system raises

the vehicle only when the engine is

running.

The system's automatic self-leveling

feature automatically compensates for

variations in the vehicle's load.

Frequent changes in ride height

initiated at short intervals can

overheat the compressor, causing the

system to briefly suspend active opera-

tion.<

96nVariable Ride Height on both axles*

Ride-height display

1 Off-Road

2 Standard

3 Access

The LEDs not only show the current

ride height, but also indicate changes:

>LED on: indicates the vehicle's

current ride height

>Ride-height LED flashes while the

LED for the earlier level remains on:

the ride height is being adjusted to a

new level, either automatically or in

response to driver input at the button.

530de218

When the suspension reaches the

new ride height the flashing LED

reverts to continuous operation, and

the LED for the earlier level goes out

>LED for current ride height flashes for

roughly 3 seconds when you press

the button: change in ride height is

not possible.

Raising

Available only when the engine is

running.

From "Standard" to "Off-Road":

Press button 1 while traveling at a

speed of less than approx. 30 mph

(50 km/h).

From "Access" to "Standard":

>Press button 1 or

>The setting automatically reverts to

the "standard" setting once the

vehicle exceeds a speed of roughly

20 mph (35 km/h).

530de219

97n

OverviewControlsMaintenanceRepairsDataIndex

Variable Ride Height on both axles*

Lowering

Available with key in position 2.

From "Standard" to "Access":

1. Press button 2 while traveling at less

than approx. 50 mph (80 km/h). The

system enters its preselection mode.

The preselection mode is canceled

>by pressing button 1

>automatically once the vehicle

exceeds a speed of approx.

50 mph (80 km/h) or roughly

60 seconds after button 2 is

pressed

2. Reduce speed to below

approx. 15 mph (25 km/h) within

roughly 60 seconds after pressing

button 2.

When you press button 2 at

speeds below approx. 15 mph

(25 km/h) the system automatically

lowers the vehicle to the "Access"

level.<

From "Off-Road" to "Standard":

>Press button 2 or

>automatically once you exceed a

speed of approx. 30 mph (50 km/h).

98nTire Pressure Monitor (RDC)*

The concept

RDC monitors the tire pressures at all

four wheels, even when the vehicle is

moving. The system provides an alert

whenever the inflation pressure drops

significantly below the specified pres-

sure in one or more tires.

In order for the system to "learn" the

correct tire inflation pressure, check the

inflation pressures in all tires, refer to

the table on page 27 and make any

necessary corrections. Then activate

the system.

This indicator lamp in the instru-

ment cluster or the Check

Control will inform you if the tire

pressure is not correct.

To switch the system on

1. Turn the ignition key to position 2 (do

not start the engine)

2. Maintain pressure on the button until

the yellow indicator lamp in the

instrument cluster comes on for

several seconds or the message

"SET TIRE PRESSURE" appears in

the Check Control

3. After you have driven for a few

minutes, the RDC will import the

current inflation pressure in the tires

as the reference values which the

system will monitor.

You will only have to repeat this proce-

dure if the tire inflation pressure must

be corrected. Otherwise, the RDC func-

tions automatically when the ignition

key is in position 2, and thus operates

whenever the vehicle is driven.

530de232

Loss of tire pressure

If, after a certain period of time, the

inflation pressure has gone down

significantly (which is normal for any

tire), the yellow indicator lamp comes

on or the message "CHECK TIRE

PRESSURE" appears in the Check

Control.

This alerts you that you should have the

tires inflated to the specified pressures

as soon as possible.

If you are prompted to check the

tire pressure shortly after a

correction has been made, this indi-

cates that the corrected values were

not accurate. Please check the inflation

pressure again and make corrections

according to the inflation pressure

table.<

99n

OverviewControlsMaintenanceRepairsDataIndex

Tire Pressure Monitor (RDC)*Adaptive brake light

Flat tire

If there is a tire failure with a loss of

inflation pressure, the red indicator

lamp comes on or the message "TIRE

DEFECTIVE" appears in the Check

Control. In addition, a gong sounds.

If this occurs, reduce vehicle speed

immediately and stop the vehicle in a

safe location. Avoid hard brake applica-

tions. Do not oversteer. Replace the flat

tire.

The spare tire which is available in

your vehicle as standard equip-

ment is equipped with the electronics

required for RDC and, following activa-

tion of the system, is also monitored

after it is mounted.<

RDC cannot alert you to severe

and sudden tire damage caused

by external factors.<

Have the tires changed at your

BMW Sports Activity Vehicle

center.

Your BMW Sports Activity Vehicle

center has the information needed for

working with RDC and is equipped with

the necessary special tools.<

System malfunction

During the period of the malfunction,

the yellow indicator lamp comes on or

the message "TIRECONTROL INAC-

TIVE" appears in the Check Control.

You will also see the same message

>in the event of a system malfunction

>if a wheel is mounted without the

RDC electronics

>if, in addition to the spare tire, addi-

tional wheels with RDC electronics

are on board.

Please contact your BMW Sports

Activity Vehicle center for additional

information.

The adaptive brake light (in preparation)

provides drivers of following vehicles

with an indication of the intensity with

which the brakes are being applied in

your own vehicle.

The display occurs in two stages:

>Normal braking:

The brake light units within the tail-

light clusters and the high-mount

brake light integrated within the rear

spoiler both light up with normal

intensity

>Hard braking or braking with ABS

active:

The taillights also come on, lighting

up with the same intensity as the

brake lights to provide a larger a

more conspicuous warning.

100n

Parking lamps (side marker

lamps)

With the switch in this position,

the front, rear and side vehicle

lighting is switched on.

For lighting on one side for parking as

an additional feature, refer to page 101.

Low beams

When the ignition is switched off

and the low beams are on, only

the parking lamps (side marker

lamps) remain on.

530us215

"Follow me home" lamps:

When you activate the headlamp

flasher after parking the vehicle and

switching off the lamps, the low beams

will come on for a brief period. You may

also have this function deactivated if

you wish.<

LIGHTS ON warning

Whenever you open the driver's door,

after having turned the ignition key to

position 0, you will hear a buzzing

sound for a few seconds to remind you

that the lamps have not been switched

off.

On vehicles with alphanumeric Check

Control*:

The reminder is given through the

Check Control.

Daytime driving lamps*

The headlamps are automatically

switched on for daylight driving at

ignition key position 2.

Automatic headlamp control*

When the switch is set to this

position the system automati-

cally activates or deactivates the

low beams in response to changes in

ambient light (in tunnels, at dusk, etc.)

as well as rain and snow.

The vehicle's external lamps

remain on constantly when you

switch on the fog lamps after the head-

lamps have come on automatically.<

Automatic headlamp control

cannot serve as a substitute for

the driver's judgement in determining

when the vehicle lamps should be

switched on. For example, the sensors

are not able to detect fog. To avoid

safety risks, you should respond to

these kinds of low-visibility situations

by switching the headlamps on manu-

ally.<

You can have the sensitivity of

your vehicle's automatic head-

lamp control adjusted.<

Parking lamps/Low beams

101n

OverviewControlsMaintenanceRepairsDataIndex

Instrument lighting

High beams/Standing lamps

Fog lamps

Turn the rotary dial to adjust the illumi-

nation intensity.

530us216

1 High beams (blue indicator lamp)

2 Headlamp flasher (blue indicator

lamp)

3 Standing lamps

Standing lamps, left or right*

As an additional feature, you can

illuminate your vehicle on either side

for parking, if you wish to do so:

With the ignition key in position 0,

engage the lever in the appropriate

turn signal position.

530de265

Fog lamps

A green indicator lamp appears

in the instrument cluster to indi-

cate that the front fog lamps are

on.

If the high beams are switched on, the

fog lamps go out.

If the automatic headlamp control

is activated, the low beams will

automatically be switched on when the

front fog lamps are switched on.<

530us210

102nInterior lamps Reading lamps*

The interior lamps operate automati-

cally.

Switching the interior lamps on

and off manually

Press the button (arrow) briefly.

If you want the interior lamps to remain

off all the time, press and hold the

button for approx. 3 seconds.

Press the button briefly to revert to

normal operation.

The button for the interior lamps in the

rear passenger area only switches

these lamps on and off.

530us056

Footwell and cargo area lamps

The lamps are controlled in the same

manner as the front interior lamps.

Front area lighting*

This lighting system in the two exterior

mirrors illuminates the ground in the

area near the two front doors. It is also

controlled in the same manner as the

front interior lamps, but it does not

function while the vehicle is moving.

Reading lamps are provided in the front

and rear* near the interior lamp. They

can be switched on and off with the

button (arrows) next to each lamp.

In order to prevent battery

discharge, all of the lamps in the

vehicle are switched off automatically

approx. 15 minutes after the ignition

key is turned to position 0.<

530us057

103n

OverviewControlsMaintenanceRepairsDataIndex

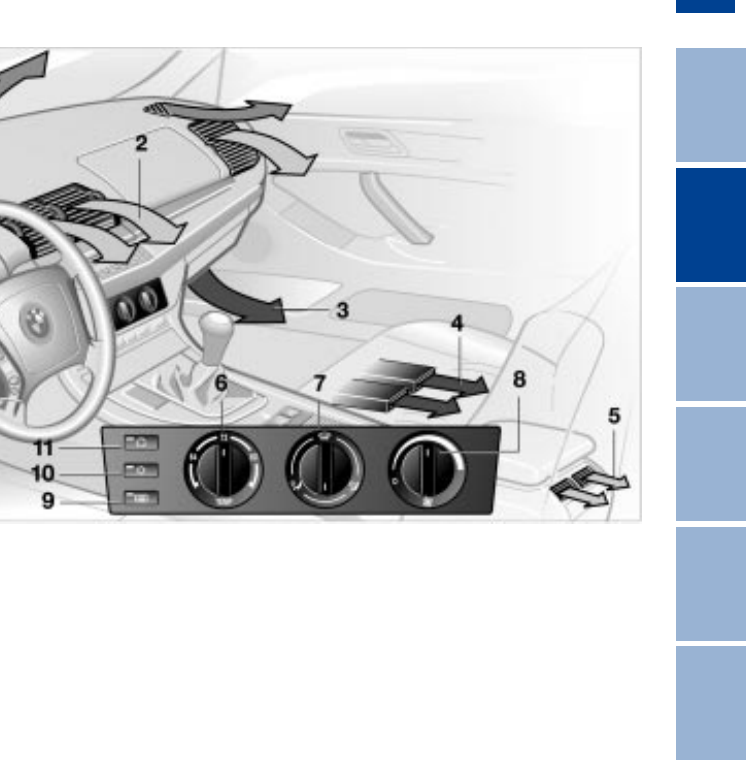

1 Airflow directed toward the wind-

shield and side windows

2 Airflow for the upper body 105

3 Front footwell ventilation

4 Rear footwell ventilation

5 Airflow for the upper body in the rear

seat 105

6 Temperature 104

7 Air distribution 104

8 Air supply 104

9 Rear window defroster 104

10 Cooling 104

11 Recirculated-air mode 104

Air conditioner

530us222

104nAir conditioner

Temperature

The graduations on the dial

provide general reference

values for the interior temper-

ature. We recommend +72 7

(+22 6) as a comfortable setting. When

you start the vehicle, the system

adjusts the air to the selected tempera-

ture as quickly as possible, and then

maintains that temperature constantly.

Air distribution

You can direct air to flow onto

the windows , toward the

upper body and into the

footwell . All intermediate

settings are possible. In the setting,

there is a low flow of air onto the

windows to keep them free of conden-

sation.

Air supply

You can adjust the air supply

through an infinitely-variable

range. The heating and venti-

lation become more and more

effective as the air supply settings are

increased. In the "0" setting, the blower

and climate control are switched off

and the outside air supply is blocked.

Rear window defroster

When the rear window

defroster is activated, the

indicator lamp comes on. The rear

window defroster switches off automat-

ically.

Cooling The air is cooled and dehu-

midified and — depending on

the temperature setting — warmed

again when the air conditioner system

is switched on. Depending on the

weather, the windshield may fog over

briefly when the engine is started. You

can reduce condensation forming on

the windows by switching on the air

conditioner.

Condensation forms in the air

conditioner system during opera-

tion, which then exits under the vehicle.

Traces of condensed water of this kind

are thus normal.<

Recirculated-air mode

You can respond to

unpleasant odors outside the

vehicle by temporarily switching off the

outside air supply. The system then

recirculates the air currently within the

vehicle.

If you have a steering wheel with multi-

function buttons with the button for the

recirculated-air mode, you can also use

this button to switch to the recirculated-

air mode, refer to page 22.

If the windows fog over in the

recirculated-air mode, switch the

recirculated-air mode off and increase

the air supply as required.<

105n

OverviewControlsMaintenanceRepairsDataIndex

Air conditioner

Draft-free ventilation

You can adjust the vent outlets for the

upper body area completely for your

personal comfort:

1 Rotary dials for opening and closing

the vent outlets through an infinitely-

variable range

2 Levers for adjusting airflow direction

3 With the rotary dial you can adjust the

temperature of the incoming air:

>Turn toward blue – colder

>Turn toward red – warmer.

530de270

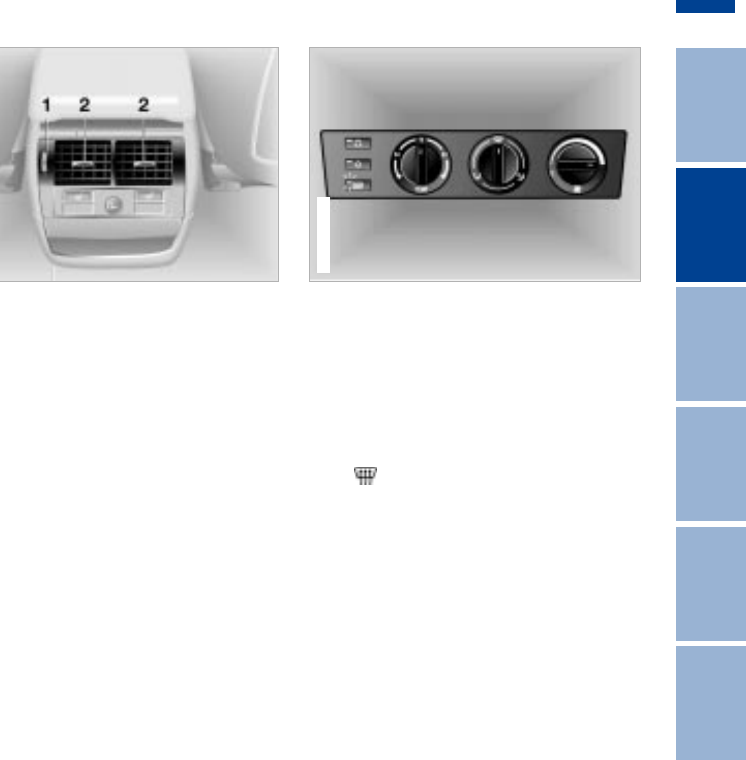

Rear passenger area ventilation

1 Rotary dial for opening and closing

the vent outlets through an infinitely-

variable range

2 Levers for adjusting airflow direction.

The air that flows out here is somewhat

cooler than the air delivered to the foot-

well.

Microfilter

The microfilter removes dust and pollen

from the incoming air. It is replaced by

your BMW Sports Activity Vehicle

center during regular maintenance. A

substantial reduction in air supply indi-

cates that the filter must be replaced

before normal maintenance.

530de271

To defrost windows and remove

condensation

1. You can specify an interior tempera-

ture that is comfortable for you with

the rotary temperature dial. A good

starting point is +72 7 (+22 6)

2. Set the air distribution rotary dial

3. Set the blower/air supply rotary dial

completely to the right

4. Close the vent outlets in the rear

seating area

5. Switch on the rear window defroster

to defrost the rear window.

530us149

106n

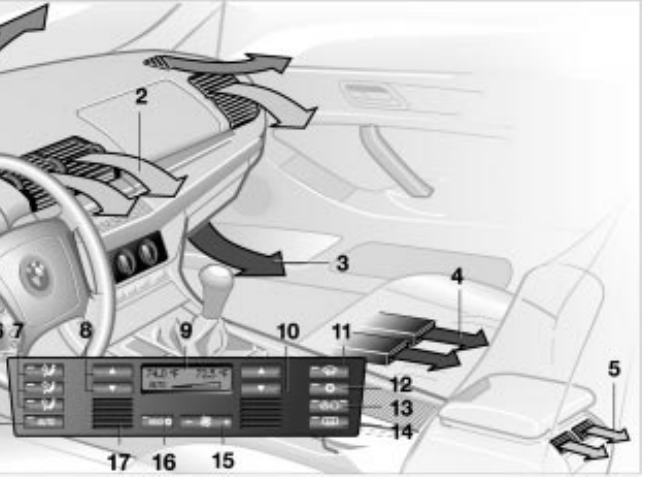

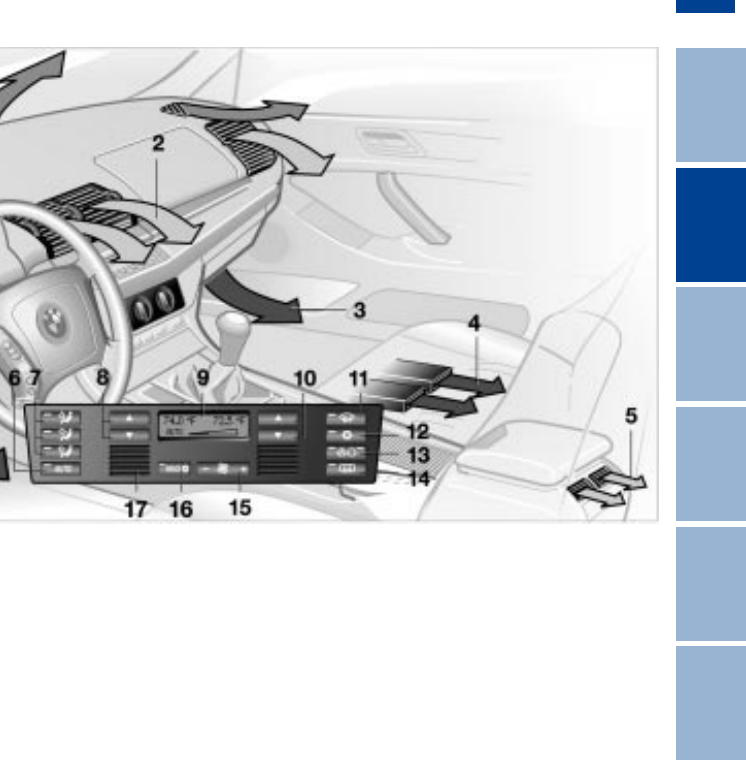

1 Airflow directed toward the wind-

shield and side windows

2 Airflow for the upper body 110

3 Front footwell ventilation

4 Rear footwell ventilation

5 Airflow for the upper body in the rear

seat 110

6 Automatic air distribution 108

7 Individual air distribution 108

8 Temperature control –

left-hand side 108

9 Display for temperature and air

supply 108

Automatic climate control*

530us223

107n

OverviewControlsMaintenanceRepairsDataIndex

Automatic climate control*

10 Temperature control –

right-hand side 108

11 To defrost windows and remove

condensation 109

12 Air conditioner 109

13 Automatic recirculated-air control

(AUC) 109

14 Rear window defroster 109

15 Air supply 108

16 Maximum cooling 109

or using up residual heat 110

17 Air grille for interior temperature

sensor – please keep clear and

unobstructed

530us223

108nAutomatic climate control*

Tips for pleasant driving

Use the automatic system; that is press

AUTO button 6. Select an interior

temperature that is comfortable for you.

Detailed setting options are described

for you in the following section.

Your vehicle is set in such a

manner that, when you unlock the

vehicle via remote control with your

personalized key, your own setting for

the automatic climate control is initi-

ated.<

Automatic air distribution

The AUTO program

assumes the adjustment of

the air distribution and the air supply for

you and also adapts the temperature to

external influences (summer, winter) to

meet preferences you can specify.

Individual air distribution

You can cancel the AUTO

program by selecting

specific air distribution

patterns for your personal

comfort, the automatic air

supply remains in operation. You can

direct air to flow onto the windows ,

toward the upper body , and into the

footwell . You can reactivate the

automatic air distribution mode by

selecting the AUTO button.

Temperature

You can make individual

temperature settings on the

driver's side or the front

passenger side. Your settings will be

shown in the display 9. The displayed

temperatures are reference values for

the interior temperature. We recom-

mend +72 7 (+22 6) as a comfortable

setting, whether the air conditioner is

operating or not. When you start the

vehicle, this system ensures that the

selected temperature is achieved as

quickly as possible. It then maintains

this temperature, regardless of the

season.

Air supply In the AUTO program, the

air supply is controlled

automatically. AUTO will appear in the

display 9, refer to the overview on

page 106. Use "+" and "–" to vary the

air supply. When your setting is

displayed by bars, the automatic air

supply is switched off. Automatic air

distribution maintains its setting. You

can reactivate the automatic air supply

by pressing the AUTO button.

When you press "–" during operation at

minimum blower speed all displays are

canceled: the blower, heating and air

conditioner are switched off. The out-

side air supply is closed. You can

switch the system back on by pressing

any button of the automatic climate

control.

To defrost windows and remove

condensation

This program quickly

removes ice and conden-

sation from the windshield and the side

windows.

109n

OverviewControlsMaintenanceRepairsDataIndex

Automatic climate control*

Air conditioner

The air is cooled and

dehumidified and —

depending on the temperature setting —

warmed again when the air conditioner

system is switched on. Depending on

the weather, the windshield may fog

over briefly when the engine is started.

You can reduce condensation forming

on the windows by switching on the air

conditioner.

Condensation forms in the air

conditioner system during opera-

tion, which then exits under the vehicle.

Traces of condensed water of this kind

are thus normal.<

Maximum cooling

You will get maximum

cooling capacity using this

program if the engine is running and

the outside temperature is above

approx. +41 7(+5 6).

The temperature display 9 jumps to

+60 7 (+16 6), the system switches

over to the recirculated-air mode, and

the air streams out of the ventilation grill

with the maximum amount of flow. That

is why you need to keep these open if

you select this program.

Automatic recirculated-air

control (AUC)

If there are unpleasant

odors or pollutants in the

outside air, you can temporarily block

the airflow from the outside. The

system then recirculates the air

currently within the vehicle.

Press the button repeatedly to run

through the following control sequence:

>Indicator lamps off: outside air supply

operational

>Left-hand indicator lamp on – AUC

mode: the system recognizes pollut-

ants in the outside air and blocks the

flow of air when necessary. The

system then recirculates the air

currently within the vehicle.

Depending on the air quality, the

automatic system then switches back

and forth between outside air supply

and recirculation of the air within the

vehicle

>Right-hand indicator lamp on: the

outside air supply into the vehicle is

completely blocked. The system then

recirculates the air currently within

the vehicle.

If you have a steering wheel with multi-

function buttons with the button for

recirculated-air mode (refer to page 22),

you can also use this button to switch

between "Off" and the recirculated-air

mode or AUC and the recirculated-air

mode.

If the windows fog over in the

recirculated-air mode, switch the

recirculated-air mode off and increase

the air supply as required.<

Rear window defroster

When the rear window

defroster is activated,

the indicator lamp comes on. The

rear window defroster switches off

automatically.

110nAutomatic climate control*

Residual heat mode

The heat which is stored in

the engine is utilized for

heating the interior when the engine

has been switched off (while waiting at

a railroad crossing, for instance). In

ignition key position 1, you can alter the

settings of the automatic climate

control. With the ignition key in posi-

tion 0, the system automatically directs

heated air to the windshield, side

windows and footwells.

This function may be activated

when the outside temperature is

below approx. +59 7 (+15 6), the

engine is at operating temperature, and

the battery is adequately charged. The

LED on the button will light up when all

conditions have been met.<

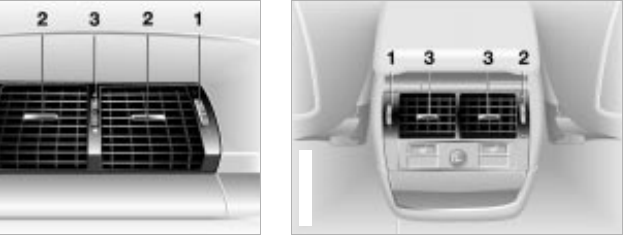

Draft-free ventilation

You can adjust the vent outlets for the

upper body area to select the optimum

airflow rates and directions for your

personal comfort:

1 Rotary dials for opening and closing

the vent outlets through an infinitely-

variable range

2 Selector levers for airflow direction

3 With the rotary dial you can adjust the

temperature of the incoming air.

>Turn toward blue – colder

>Turn toward red – warmer.

530de270

Rear passenger area climate

control

1 Air supply

2 Temperature

3 Adjusting the direction of the airflow

530de272

111n

OverviewControlsMaintenanceRepairsDataIndex

Automatic climate control*

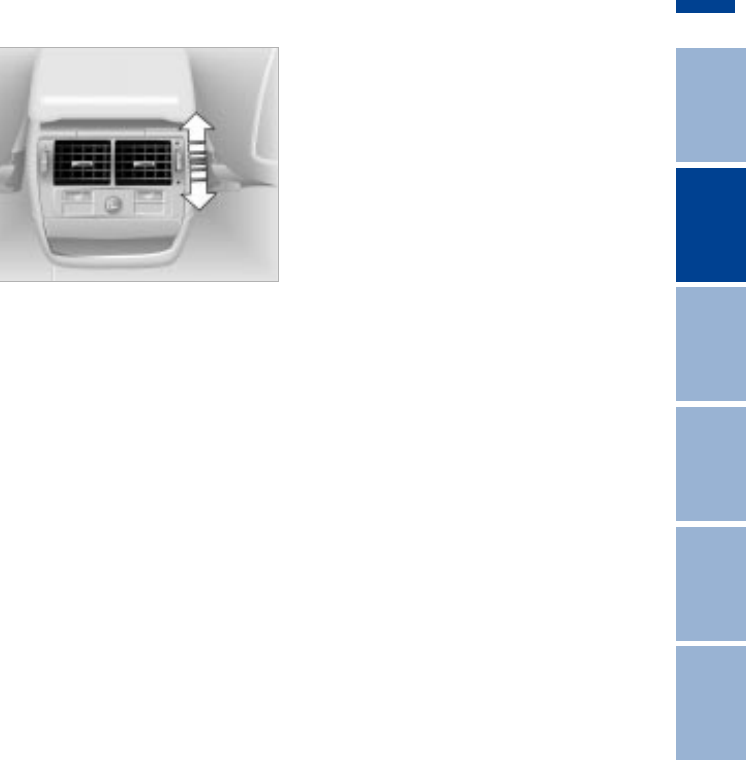

Air supply

0 Blower off

I Maximum blower speed

You can adjust the air supply for the

vent outlets through an infinitely-vari-

able range between the "0" and "I"

settings.

In the "0" setting, the blower is

switched off and the supply of air

through the vent outlets is blocked.

Individual adjustments on the front-seat

control elements influence the air

supply for rear passenger area climate

control.

530de273

Temperature

Passengers in the rear seating area can

adjust their own temperature for the

vent outlets:

>Turn toward blue – colder

>Turn toward red – warmer

When you start the vehicle, this system

ensures that the selected temperature

is achieved as quickly as possible. It

then maintains this temperature,

regardless of the season.

A temperature setting is only

possible when the blower is

switched on (not in the "0" setting).<

530de274

Microfilter, activated-charcoal

filter

The microfilter removes dust and pollen

from the incoming air. The activated-

charcoal filter provides additional

protection by filtering gaseous pollut-

ants from the outside air. Your

BMW Sports Activity Vehicle center

replaces this combined filter as a stan-

dard part of your scheduled mainte-

nance. A substantial reduction in air

supply indicates that the filter must be

replaced before normal maintenance.

112nSunshades* Independent ventilation system*

Sunshades for rear side windows*

Use the strap to pull out the shades,

then hook them in the provided attach-

ment.

You can use this system to ventilate the

interior and lower its temperature, using

the blower of the automatic climate

control.

The independent ventilation system is

operated via the Multi-Information

display (MID), refer to page 85 or via the

onboard computer, refer to the sepa-

rate Owner's Manual.

You can set two different times for the

system to start; it will remain active for

30 minutes. You can also switch it on

and off directly. Since the system uses

a substantial amount of electrical

current, you should refrain from

switching it on twice in succession

without allowing the battery to be

recharged in normal operation between

use.

When a preselected activation time is

set, the independent ventilation system

is operational at outside temperatures

above +60 7 (+16 6), or by direct

switch activation. It cannot be switched

on when the vehicle is moving.

The air emerges via the vent outlets for

the upper body. Therefore, the vent

outlets must be open for the system to

operate.

113n

OverviewControlsMaintenanceRepairsDataIndex

The concept

The BMW Universal Transmitter

replaces up to three hand-held trans-

mitters of different devices such as

garage door openers, alarm systems, or

door locking systems. The BMW

Universal Transmitter recognizes and

"learns" the transmitted signal of each

of the original hand-held transmitters.

The signal of an original hand-held

transmitter can be programmed on one

of the three channel keys. Following

that, each of the devices can be actu-

ated with the appropriately-programmed

channel key. The indicator lamp flashes

to confirm transmission of the signal.

If the vehicle is sold, the memory of the

channel keys should be cleared as

described on page 115.

During programming and before

every remote actuation of a

programmed device by the BMW

Universal Transmitter, check to be sure

that there are no persons, animals or

objects within the actuation range of

the device in order to prevent possible

injuries or damage. Also, comply with

the safety precautions of the original

hand-held transmitter.<

To Canadian residents:

During programming, your hand-

held transmitter may automatically stop

transmitting after two seconds. This

may not be long enough to program the

BMW Universal Transmitter. If you are

programming from one of these hand-

held transmitters, the Universal Trans-

mitter's light may begin to flash in a

series of double-blinks. If this occurs,

continue to hold the button of the

Universal Transmitter while you reacti-

vate your hand-held transmitter. You

may have to repeat this function several

times while programming.<

Before programming, read the

"User information" section on

page 115.<

Original hand-held transmitter

If this symbol is present on the

packaging or in the instructions

of the original hand-held trans-

mitter, it may be assumed that this

hand-held transmitter is compatible

with the BMW Universal Transmitter.

Checking for the conversion code

To determine whether the original

hand-held transmitter is provided with

a conversion-code system, you may

either read the instructions for the orig-

inal hand-held transmitter or program a

channel key as described on the next

page (left-hand column under

"Programming").

Then press and hold the programmed

channel key of the BMW Universal

Transmitter. If the indicator lamp of the

BMW Universal Transmitter flashes for

two seconds and then comes on

steadily, the original hand-held trans-

mitter is provided with a conversion-

code system. With a conversion-code

system, program the channel keys as

described on the next page (right-hand

column under "Programming a hand-

held transmitter with conversion code").

If you have additional questions,

please consult your BMW Sports

Activity Vehicle center or call

1-800-355-3515.

You can also visit this website:

www.bmwusa.com.<

BMW Universal Transmitter

114nBMW Universal Transmitter

Programming

1 Channel keys

2 Indicator lamp

3 Receiver for programming

Read and comply with the safety

precautions on the previous

page.<

1. Turn the ignition key to position 2

2. For initial use:

Press and hold both outside keys 1

until the indicator lamp 2 flashes, and

then release them. The three channel

keys are cleared

530us136

3. Hold the original hand-held trans-

mitter toward the receiver 3 a

maximum of 2 in (5 cm) away

4. Press the transmission key of the

original hand-held transmitter

(arrow 2) and the desired channel

key of the Integrated Universal

Remote Control (arrow 1) simulta-

neously. Release both keys as soon

as the indicator lamp flashes rapidly

5. To program other original hand-held

transmitters, repeat steps 3 and 4.

The corresponding channel key is now

programmed with the signal of the orig-

inal hand-held transmitter.

530us137

Programming a hand-held

transmitter with conversion code

Read and comply with the safety

precautions on the previous

page.<

When programming the BMW Universal

Transmitter, consult the instructions for

the specific device. For using the BMW

Universal Transmitter with a conversion-

code system, note the following supple-

mental programming instructions:

A second person facilitates

programming of the BMW

Universal Transmitter.<

1. Program the BMW Universal

Transmitter as described previously

under "Programming"

2. Press and hold the programming key

on the receiver of the device for

approx. two seconds until the

programming lamp on the device

comes on

3. Press the desired channel key of the

BMW Universal Transmitter three

times.

If you have additional questions,

please consult your BMW Sports

Activity Vehicle center.<

115n

OverviewControlsMaintenanceRepairsDataIndex

BMW Universal Transmitter

Clearing the channel keys

Read and comply with the safety

precautions on page 113.<

The memory of individual channel keys

cannot be cleared. However, the three

channel keys can be cleared together

as follows:

>Press and hold both outside keys of

the BMW Universal Transmitter until

the indicator lamp flashes, and then

release them.

All of the channel keys are cleared.

User information

Do not use this BMW Universal Trans-

mitter with any garage door opener that

lacks safety "stop" and "reverse"

features as required by federal safety

standards (this includes any garage

door opener model manufactured

before April 1, 1982).

This device complies with Section 15 of

the FCC Rules. Operation is subject to

the following two conditions: as defined

in the regulations, this device must not

emit harmful interference, and must be

shielded against interference from

external sources to prevent unautho-

rized or inadvertent activation.

116nGlove compartment Storage compartments

To open

Pull the handle. The lamp inside the

glove compartment comes on.

To close

Fold the cover up.

To prevent injury in the event of an

accident, close the glove

compartment immediately after use.<

530de275

To lock

Use one of the master keys. A master

key is also required for unlocking.

If you turn over only your door and

ignition key for valet parking (refer

to page 30), for example, access to the

glove compartment is not possible.<

Rechargeable flashlight*

Located on the left-hand side of the

glove compartment.

Features integral overload-protection,

so it can be left in its holder continu-

ously.

To avoid completely discharging

and possibly damaging the lamp,

always ensure that it is switched off

before inserting it in the socket.<

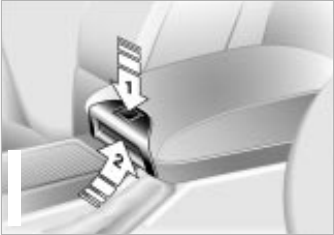

You will find two storage compartments

in the armrest between the front seats.

To open the top compartment:

Press the button (arrow 1).

You will find a cellular phone* in this

compartment.

To move the armrest or open the lower

compartment:

Pull the handle (arrow 2).

In this compartment, you will find a coin

tray and a storage compartment* for

cassettes or CDs.

You will find additional storage

compartments in all of the doors as well

as on the backrests of the front seats.

530de276

117n

OverviewControlsMaintenanceRepairsDataIndex

Cellular phone* Beverage holder

Hands-free system

On vehicles with telephone prepara-

tion*, the hands-free microphone is

positioned in the headliner.

For further information on the cellular

phone, refer to the separate Owner's

Manual.

530us070

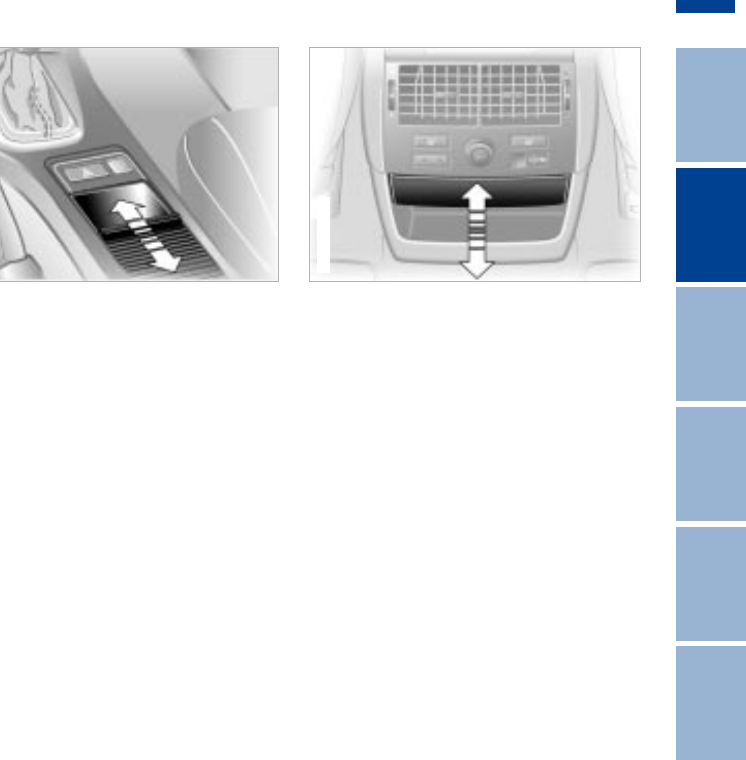

Front

Below the sliding cover (illustration).

Remove the insert which is a compart-

ment for storing pens.

530de277

Rear

At the end of the center console under

the lighter.

Press briefly to open; push back inward

to close.

530de278

118nGlasses compartment Ashtray, front Cigarette lighter, front

Press the button to open; fold upward

to close.

530de279

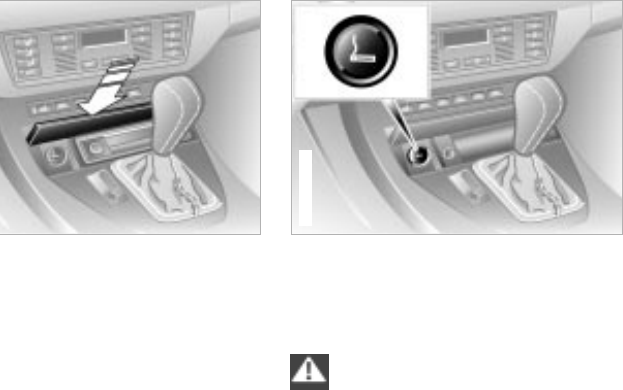

To empty

Press the edge of the lid (arrow):

The ashtray moves up and can be

removed.

530de281

Press the lighter in.

The lighter can be removed as soon as

it retracts.

Hold or touch the hot cigarette

lighter by the knob only. Holding

or touching it in other areas could result

in burns.

The cigarette lighter remains opera-

tional when the ignition key has been

removed.

For this reason, do not leave unsuper-

vised children in the vehicle.<

530de238

119n

OverviewControlsMaintenanceRepairsDataIndex

Cigarette lighter, front Ashtray, rear Cigarette lighter, rear

Cigarette lighter socket

This socket is suitable for attaching

power supplies for flashlights, car

vacuum cleaners and other appliances

up to a rating of approx. 200 watts at

12 volts. Avoid damage to the socket

caused by inserting plugs of a different

shape or size.

You will find additional power outlets in

the cargo area, refer to page 125.

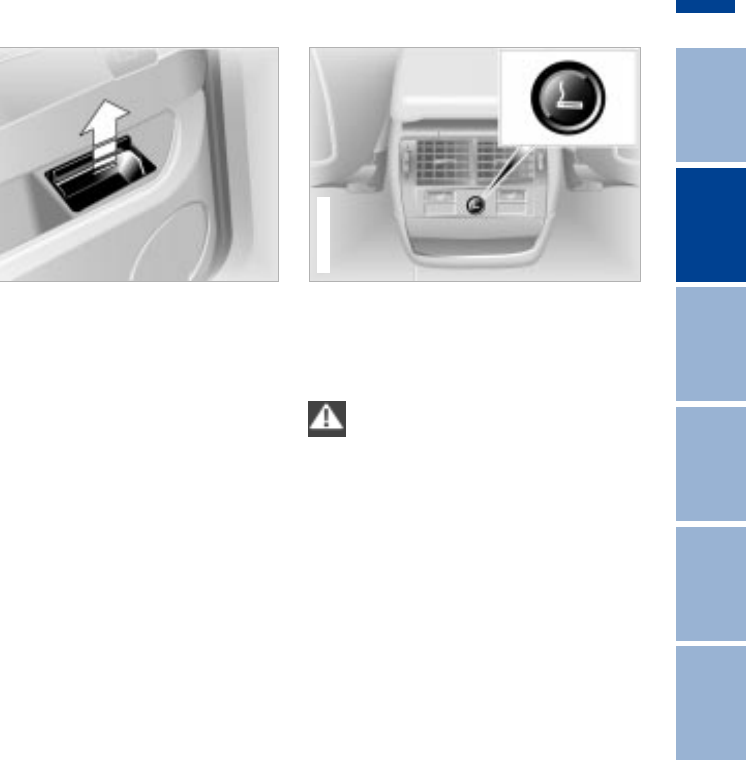

To empty

Remove the insert tray.

530de282

Press the lighter in.

The lighter can be removed as soon as

it retracts.

Hold or touch the hot cigarette

lighter by the knob only. Holding

or touching it in other areas could result

in burns.

The cigarette lighter remains opera-

tional when the ignition key has been

removed.

For this reason, do not leave unsuper-

vised children in the vehicle.<

530de239

120nSki bag*

The ski bag allows the safe and clean

transport of up to 4 pairs of standard

skis or up to two snowboards.

With the length of the ski bag and the

additional space in the cargo area, you

can store skis with a length of up to

6.8 ft (2.1 m). Because of the tapered

shape of the bag, the ski bag can only

accommodate two pairs of skis with a

length of 6.8 ft (2.1 m).

1. Fold the center armrest outward.

Loosen the trim from the upper

Velcro® fastener and place it on the

armrest

530us077

2. Press button 1 downward and swing

the cover forward

3. Press button 2: the cover in the

cargo area is unlocked.

Together with the pull-out cargo

floor* (refer to page 126): pull the

floor out, release the cover and slide

the floor back in – the floor then

conceals the cover

4. Extend the ski bag between the front

seats. The zipper provides conven-

ient access to the inside of the bag,

and can also be left open to promote

drying.

To store the ski bag, perform the above

steps in reverse sequence.

530de283

121n

OverviewControlsMaintenanceRepairsDataIndex

Ski bag*

Securing the load

Secure the bag's contents by

tightening down the retaining

strap at the buckle.<

Please be sure that the skis are clean

before loading them into the bag. Be

careful to avoid damage from sharp

edges.

530de284

If the cover is concealed in the

cargo area by the pull-out cargo

floor, do not fold the larger rear back-

rest down. If you do so, it will damage

the cover.<

122nCargo area

Fold the rear backrests down

Reach into the recess and pull forward

(arrow).

When you fold back the backrest,

be sure that the catch engages

securely. The red warning indicator

disappears in the recess when the

catch is engaged.

The center safety belt can be retracted

only when the larger backrest is

engaged.<

530de285

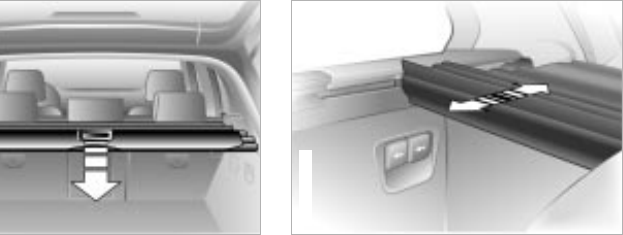

Cargo area cover

Pull the cover out by the handle and

hook it in the rear holders.

You can carry light objects such as

articles of clothing on the cover.

Do not place heavy or hard

objects on the cover. If you do so,

they could pose a danger to vehicle

occupants during braking or evasive

maneuvers.<

Before you slide it back into position,

place the grip in the rear fold of the

cover.

530de286

When the cover is pulled out, it can be

opened behind the rear-seat backrest

to gain access to the cargo area from

the rear seats during a trip, for example.

For removing the cover, refer to the

next page.

530de287

123n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

Removing the cover

1. Use both hands to press the cover

together on both sides and slide it

forward (arrow 1)

2. Lift the cover upward from the rear

on both sides (arrow 2) and remove

it.

Installation

Slide the cover into the retainers on

both sides and then press it down at

the rear until it engages.

530de288

Partition net*

1. Remove the bag with the partition

net from the retainer by releasing the

hooks from the lashing eyes on both

sides

2. Remove the partition net from the

bag and unroll it half way

Note how the bag with the parti-

tion net is secured in the vehicle

and how the partition net is rolled up

and stored in the bag so that you can

return everything to its place after use.

If your vehicle is equiped with a pull-out

cargo floor* be sure to read the note on

page 126.<

530de028

3. Slide back the covers on the

retainers for the partition net on both

sides of the roof (arrow)

4. Insert the curved ends of the parti-

tion net rod in the retainers on both

sides

5. Now you can slide the covers toward

the front again (arrow)

530de289

124nCargo area

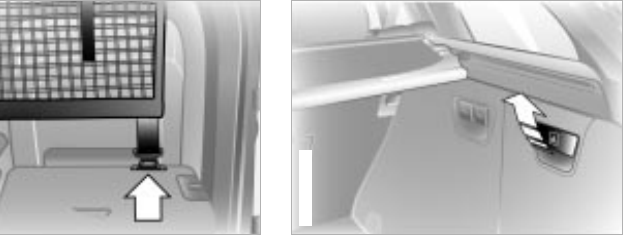

6. Attach the hooks on the bottom of

the partition net into the eyes on both

sides

530de030

7. When the rear backrests are folded

down, you can open the Velcro®

strips, completely unroll the partition

net, insert it in the front retainers on

the roof and attach the three hooks

into the eyes.

The illustration shows securing at the

bottom right as an example.

530de031

Side covers

Pull the handle to open the side covers.

530de290

125n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

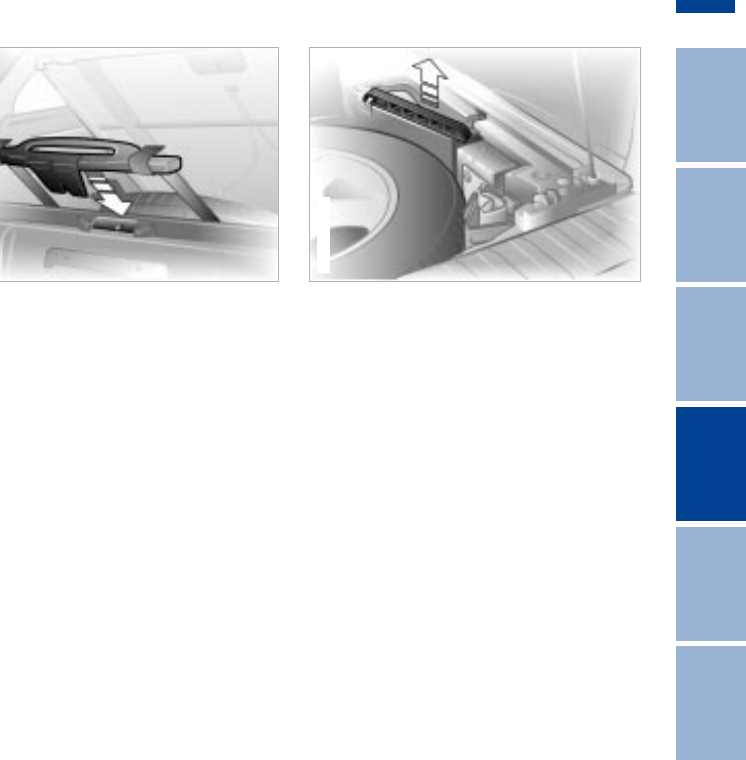

Floor cover

To access the spare wheel.

To release: press the recess in the

handle (arrow) and raise the cover with

the handle.

530de291

Fold the floor cover up

Lift up the black retainer on the lower

side of the floor cover and hook it into

the upper frame of the liftgate cutout.

Before you fold the floor cover down,

return the retainer to its original posi-

tion.

530us086

Power outlets

When you fold the cover cap up, you

have access to additional power

outlets.

You can use the power outlets for flash-

lights, car vacuum cleaners or other

automotive appliances with up to

approx. 200 watts at 12 volts. Avoid

damage to the socket caused by

inserting plugs of a different shape or

size.

Refer also to page 119.

530us084

126nCargo area

Pull-out cargo floor*

To release, pull the handle recess

upward. Then pull the floor out.

Do not drive when the cargo floor

is pulled out.

Do not release the cargo floor on steep

grades. If you do, it could extend auto-

matically and cause personal injuries.

A load which is not properly secured

could begin to slide if the floor extends

automatically and then drop to the

ground as a result of the rapid braking

of the cargo floor at the limit stop.<

530de292

When it is extended, you can load the

cargo floor:

>With up to 990 Ibs (450 kg),

distributed evenly across the

entire surface

>With up to 330 Ibs (150 kg) on the

rear edge.

Do not overload the cargo floor

when it is extended. If you do so,

it could cause damage.

When you slide the cargo floor back in,

do not grasp it on the bottom. If you do

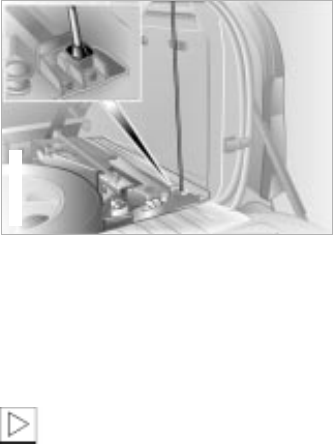

so, there is a risk of personal injury.< Raise the cargo floor

For access to the spare wheel or other

stored items:

Swing the cargo floor up and secure it

with the rod (see detail).

If your vehicle has a partition net*:

Take the bag with the partition net

out of the retainer (refer to page 123),

before you raise the cargo floor panel.

Otherwise, the bag could slide down-

ward.<

530de240

127n

OverviewControlsMaintenanceRepairsDataIndex

Cargo area

Stowing cargo

When transporting cargo in your BMW:

>Load heavy cargo as far forward as

possible – directly behind the back-

rests – and as low as possible

>Cover sharp edges and corners

>Do not pile objects higher than the

top edge of the backrest

>Fasten the partition net* (refer to

page 123) and ensure that carried

items cannot pass through the parti-

tion net

>If you are transporting very heavy

loads when the rear seat is not occu-

pied, secure the outer safety belts in

the opposite buckles.

530de032

Securing the load

>Secure smaller, light pieces with the

retaining straps or a luggage net*, or

use elastic straps, refer to page 38

>For large, heavy pieces, see your

BMW Sports Activity Vehicle center

for load-securing devices*. The

lashing eyes provided at the corners

of the cargo area serve for mounting

these load-securing devices

>Read and comply with the informa-

tion enclosed with the load-securing

devices.

530us090

Always position and secure the

load correctly. If you do not, it can

endanger the passengers during

braking or evasive maneuvers.

Do not exceed the permissible gross

vehicle weight and the permissible axle

loads, refer to page 172. If you do, the

operating safety of the vehicle is no

longer ensured and you are in violation

of the law.

Do not carry hard or heavy objects

unsecured in the passenger compart-

ment. If you do so, they may be

projected through the air during braking

and evasive maneuvers, thus endan-

gering vehicle occupants.<

128nRoof-mounted luggage rack*

A special rack system is available as an

option for your BMW. Please comply

with the precautions included with the

installation instructions.

Mounting points

Access to the mounting points:

To fold up the cover (arrow), please use

the tool which is provided with the rack

system.

530de293

Cargo loading and driving hints

Roof-mounted luggage racks raise the

center of gravity of the vehicle when

they are loaded. For this reason, they

exercise a major effect on the vehicle's

handling and steering response.

You should therefore always remember

not to exceed the approved roof

weight, the approved gross vehicle

weight or the axle loads when loading

the rack.

You will find the specifications under

"Technical Data" on page 172.

Make sure that the load is not too

heavy, and attempt to distribute it

evenly. Always load the heaviest pieces

first (on the bottom). Be sure that

adequate clearance is maintained for

raising the sliding/tilt sunroof, and that

objects do not project into the opening

path of the liftgate.

Always ensure that roof-mounted

loads are tightly secured, as loose

loads can shift or even fly off the roof,

posing a serious hazard for following

traffic.<

Drive smoothly. Avoid sudden accelera-

tion and braking maneuvers. Take

corners gently.

129n

OverviewControlsMaintenanceRepairsDataIndex

130n

131n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Mainte-

132nBreak-in procedures

To ensure that your vehicle provides

maximum economy throughout a long

service life, we request that you

observe the following instructions:

Engine and axle drive

Up to 1,200 miles (2,000 km):

Drive at varying engine speeds and

road speeds, but do not exceed

4,500 rpm and the following road

speeds during this initial period:

6-cylinder engines: 100 mph (160 km/h)

8-cylinder engines: 106 mph (170 km/h)

Obey your local and state maximum

speed limits.

Refrain from using full throttle and avoid

pressing the accelerator beyond the

kickdown point.

Once you have driven 1,200 miles

(2,000 km), engine and vehicle speeds

can gradually be increased.

You should also comply with these

break-in procedures if the engine or

one of the axle drives is replaced later

in the course of the vehicle service life.

Tires

Due to technical factors associated

with their manufacture, tires do not

achieve their full traction potential until

an initial break-in period has elapsed.

For this reason, drive with extra care

during the initial 200 miles (300 km).

Obey your local and state maximum

speed limits.

When the vehicle is operated on

wet or slushy roads, a wedge of

water may form between the tire and

the road surface. This phenomenon is

referred to as aquaplaning, or hydro-

planing, and can lead to partial or

complete loss of traction, vehicle

control and braking effectiveness.

Reduce your speed on wet roads.<

Brake system

Approx. 300 miles (500 km) must

elapse before the brake pads and

rotors achieve the optimal pad-surface

and wear patterns required for trouble-

free operation and long service life later

on.

To break in the separate parking brake

drums, apply the parking brake lightly

when coasting to a standstill (at a traffic

signal, for instance), provided that

traffic conditions allow you to do so.

To avoid corrosion, repeat this proce-

dure from time to time.

The brake lamps do not light up

when the parking brake is applied.

Vacuum for the brake system servo unit

on your BMW is available only when the

engine is running. When you move the

vehicle with the engine switched off –

when towing, for instance – substan-

tially higher levels of pedal force will be

required to brake the vehicle.<

133n

OverviewControlsMaintenanceRepairsDataIndex

Driving your BMW X5

Your BMW is right at home on all roads

and byways – even where the pavement

ends. It combines permanent four-

wheel drive with the agility of a typical

passenger vehicle.

On bad roads

When you are driving on bad roads,

there are a few points which you should

strictly heed — for your own safety, for

that of your passengers, and for the

safekeeping of the vehicle:

>Familiarize yourself with the vehicle

before you begin driving. Do not take

risks with the vehicle under any

circumstances

>Always adapt vehicle speed to road

conditions – the steeper and more

uneven the road surface is, the

slower the vehicle's speed should be

>You can operate your vehicle on

uphill and downhill gradients with a

maximum slope of 50%. If you intend

to drive on either an uphill or downhill

gradient of this steepness, check to

be sure in advance that the engine oil

and coolant levels are both near the

"MAX" mark, refer to pages 143

and 145.

When driving down steep slopes, use

the Hill Descent Control (HDC), refer

to page 94.

Starting from a full stop is possible on

uphill gradients of up to 32%.

The permitted side tilt is also 50%

>While driving, watch carefully for

obstacles such as rocks or holes. Try

to avoid these obstacles whenever

possible

>On hill crests and bumpy roads, for

example, be careful to prevent the

body from "bottoming" (contact

between the body and the ground).

The ground clearance of the vehicle

is:

8 in (200 mm) with up to four

passengers

7 in (180 mm) fully loaded (without

Variable Ride Height)

>Do not drive in water that is deeper

than 20 inches (50 cm). If you must

drive through water up to that depth,

drive at a walking speed and do not

stop.

After leaving the water, press on the

footbrake gently several times while

driving at a low speed. The brake

applications will help to dry the

brakes, thus preventing a reduction in

braking performance caused by the

moisture.

Back onto the paved road

In recommending that you observe the

following points after driving on adverse

road surfaces, it is not as a "beauty

treatment" for your BMW. Instead, it is

intended for the maintenance of driving

safety:

>Clean accumulations of dirt from the

body and check the undercarriage for

damage

>Clean mud, snow, ice and other

materials from the wheels and tires.

Check the tires for damage

>Check to determine whether rocks,

gravel or accumulations of dirt on the

brake rotors and calipers could influ-

ence braking performance. Remove

all such foreign objects

>In order to clean the brake rotors,

apply the footbrake gently several

times while driving at a low speed. Be

sure that following traffic is not

endangered by this

>For cleaning the parking brake, apply

the lever slightly at approx. 25 mph

(40 km/h) and continue to drive for

approx. 200 yards (200 meters),

provided that traffic conditions allow

you to do so.

134nGeneral driving notes

Antilock Brake System (ABS)

Brakes:

Do not drive with your foot resting

on the brake pedal. Even light but

consistent pedal pressure can lead to

high temperatures, brake wear and

possibly even brake failure.

Aquaplaning:

When driving on wet or slushy roads,

reduce vehicle speed. If you do not, a

wedge of water may form between the

tires and the road surface. This

phenomenon is referred to as aqua-

planing or hydroplaning. It is character-

ized by a partial or complete loss of

contact between the tires and the road

surface. The ultimate results are loss of

steering and braking control.

Cargo area cover:

Do not place heavy or hard objects on

the cargo area cover. These objects

could endanger vehicle occupants

during heavy brake applications or

evasive maneuvers.

Clothes hooks:

When suspending articles of clothing

from the hooks, be sure that they will

not obstruct the driver's vision. Do not

hang heavy objects on the hooks. If you

do so, they could cause personal injury

during braking or evasive maneuvers.<

The concept

The Antilock Brake System (ABS) keeps

the wheels from locking during braking,

thereby enhancing active driving safety.

Braking with ABS

If you are in a situation that requires full

braking, you will exploit the full benefits

of the ABS system if you apply

maximum pedal pressure ("panic stop").

Since the vehicle maintains steering

responsiveness, you can avoid possible

obstacles with a minimum of steering

effort, despite the full brake application.

Pulsation at the brake pedal combined

with sounds from the hydraulic circuits

indicates to the driver that ABS is in its

active mode.

135n

OverviewControlsMaintenanceRepairsDataIndex

Brake system

Brake fluid level

If the brake fluid level is too low and

brake pedal travel has become longer,

there may be a defect in one of the two

brake system's hydraulic circuits.

Proceed to the nearest

BMW Sports Activity Vehicle

center. Here increased pressure on the

brake pedal may be required, and slight

pulling to the side and longer braking

distances may result. Please remember

to adapt your driving style accord-

ingly.<

Disc brakes

When the vehicle is driven only occa-

sionally, during extended periods when

the vehicle is not used at all, and in

operating conditions where brake appli-

cations are less frequent, there is an

increased tendency for corrosion of the

rotors and accumulation of contamina-

tion on the brake pads. This occurs

because the minimal pressure which

must be exerted by the pads to clean

the discs by brake applications is not

reached.

If the brake rotors are corroded, they

will tend to respond to braking with a

pulsating effect which even extended

application will fail to cure.

When driving in wet conditions and in

heavy rain, it is advisable to apply light

pressure to the brake pedal from time

to time. Watch traffic conditions to

ensure that this maneuver does not

endanger other road users. The heat

which is generated by the brake appli-

cations helps to dry the brake pads and

rotors. The braking force is then imme-

diately available when required.

Extended or steep mountain descents

should be driven in the gear in which

only minimal periodic brake application

is required. This avoids excessive strain

on the brakes and possible impairment

of the braking effect.

Do not coast with the clutch

depressed or with the transmis-

sion or selector lever in neutral. Do not

drive with the engine switched off. The

engine provides no braking effect when

the clutch is depressed or the transmis-

sion is in neutral, and there is no

power-assist for braking or steering

when the engine is not running.

Have brake inspections performed at a

BMW Sports Activity Vehicle center

only. If you do not, parts of the four-

wheel drive system could be damaged.

Never allow floor mats, carpets or any

other objects to protrude into the area

around the accelerator, clutch and

brake pedals and obstruct their move-

ment.<

Brake pads

For your own safety: use only

brake pads that BMW has

released for your particular vehicle

model. BMW cannot evaluate non-

approved brake pads to determine if

they are suited for use, and therefore

cannot ensure the operating safety of

the vehicle if they are installed.<

136n

Information for your safety

The factory-approved radial tires are

matched to the vehicle and have been

selected to provide optimum safety and

driving comfort on your vehicle.

It is not merely the tire's service life, but

also driving comfort and – above all else

– driving safety which depend on the

condition of the tires and the mainte-

nance of the specified tire pressure.

Incorrect inflation pressure is a frequent

cause of tire damage. It also signifi-

cantly influences the roadholding ability

of your BMW.

Check tire inflation pressures –

including the spare wheel – regu-

larly (refer to page 26), at least every

two weeks and before beginning a

longer trip. If this is not done, incorrect

tire pressures can cause driving insta-

bility and tire damage, ultimately

resulting in an accident.<

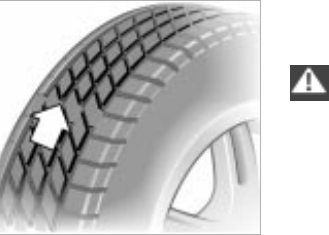

Tire tread – Tire damage

Inspect your tires frequently for tread

wear, signs of damage and for foreign

objects lodged in the tread. Check the

tread pattern depth.

Tread depth should not be allowed to

go below 0.12 in (3 mm), even though

the legally specified minimum tread

depth is 0.063 in (1.6 mm). Tread wear

indicators (arrow) are embedded in the

base of the tire's tread. Their locations

are indicated by the legend TWI – Tread

Wear Indicator – at various points on

the tire's shoulder. When the tread

reaches a depth of 0.063 in (1.6 mm),

these indicators appear to signal that

the tires have worn to the minimum

legal level. Below 0.12 in (3 mm) tread

depth, there is an increased risk of

aquaplaning, even at relatively

390de331

moderate speeds and with only small

amounts of water on the road.

Do not drive on a deflated (flat)

tire. A flat tire greatly impairs

steering and braking response, and can

lead to complete loss of control over

the vehicle.

Avoid overloading the vehicle so that

the permitted load on the tires is not

exceeded. Overloading leads to over-

heating and causes damage inside the

tires. The ultimate result can assume

the form of a sudden air loss.

Unusual vibrations encountered during

normal vehicle operation can indicate a

flat tire or some other vehicle malfunc-

tion. The type of problem can be

caused by contact with curbs, etc. This

is also true for irregularities in the

vehicle's handling characteristics, such

as a pronounced tendency to pull to the

left or right. Should this occur, respond

by immediately reducing your speed.

Tire inflation pressures Tire condition

137n

OverviewControlsMaintenanceRepairsDataIndex

Tire condition Tire replacement

Proceed carefully to the nearest

BMW Sports Activity Vehicle center or

professional tire center, or have the

vehicle towed in to have it, its wheels

and tires inspected.

Tire damage (up to and including blow-

outs) can endanger the lives of both the

vehicle occupants and other road

users.<

To maintain good handling and vehicle

response, use only tires of a single

tread configuration from a single manu-

facturer. BMW tests and approves

wheel/tire combinations.

DOT Quality Grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger vehicle tires must

conform to Federal Safety

Requirements in addition to these

grades.<

Tread wear

The tread wear grade is a comparative

rating based on the wear rate of the tire

when tested under controlled condi-

tions on a specified government test

course.

For example, a tire graded 150 would

wear one and one-half (1g) times as

well on the government course as a tire

graded 100. The relative performance

of tires depends upon the actual condi-

tions of their use, however, and may

depart significantly from the norm due

to variations in driving habits, service

practices and differences in road char-

acteristics and climate.

Traction

The traction grades, from highest to

lowest, are AA, A, B, and C.

Those grades represent the tire's ability

to stop on wet pavement as measured

under controlled conditions on speci-

fied government test surfaces of

asphalt and concrete. A tire marked C

may have poor traction performance.

The traction grade assigned to

this tire is based on straight-

ahead braking traction tests, and does

not include acceleration, cornering,

aquaplaning, or peak traction charac-

teristics.<

138nTire replacement

Temperature

The temperature grades are A (the

highest), B, and C, representing the

tire's resistance to the generation of

heat and its ability to dissipate heat

when tested under controlled condi-

tions on a specified indoor laboratory

test wheel.

Sustained high temperature can cause

the material of the tire to degenerate

and reduce tire life, and excessive

temperature can lead to a sudden flat

tire. The grade C corresponds to a level

of performance which all passenger

vehicle tires must meet under the

Federal Motor Vehicle Safety Standard

No. 109. Grades B and A represent

higher levels of performance on the

laboratory test wheel than the minimum

required by law.

The temperature grade for this tire

is established for a tire that is

properly inflated and not overloaded.

Excessive speed, underinflation, or

excessive loading, either separately or

in combination, can cause heat buildup

and possible a tire failure.<

Uniform Tire Quality Grading

Quality grades can be found where

applicable on the tire sidewall between

tread shoulder and maximum section

width. For example:

Tread wear 200

Traction AA

Temperature A

Do not use retreaded tires, since

driving safety may be impaired by

their use. This is due to the possible

variations in casing structures and, in

some cases, to their extreme age,

which can lead to a decrease in their

durability.<

Tire age

The date on which the tire was manu-

factured is indicated by the code on the

sidewall:

DOT ... 4101 indicates that the tire was

manufactured in week 41 of 2001.

BMW recommends the replacement of

all tires when the tires are no more than

6 years old, even if a tire life of 10 years

is possible.

139n

OverviewControlsMaintenanceRepairsDataIndex

Wheel and tire combinations

The right choice

Use only wheels and tires

approved by BMW for the corre-

sponding vehicle model, as otherwise

the tires may make contact with the

body as the result of tolerances despite

the same nominal size being used,

resulting in serious accidents. If non-

approved wheels and tires are used,

BMW cannot evaluate their suitability,

and therefore cannot be held liable for

driving safety.<

BMW tests certain tire brands for each

tire size, classifies them as road-safe

and approves them. Consult your

BMW Sports Activity Vehicle center for

more information. Observe any regula-

tions applicable in the country of use,

e.g. requiring entry in the vehicle docu-

ments.

The correct wheel and tire combi-

nation affects different systems

such as ABS, ATC and DSC. The func-

tion of these systems is impaired if

improper wheel and tire combinations

are used.

For this reason, use only tires of the

same brand and tread pattern on the

vehicle and, for example, restore the

approved wheel and tire combination

following a flat tire as soon as

possible.<

The use of rims and lug bolts that

do not meet the specifications of

the original factory-installed equipment

will affect the safe operation of your

vehicle and may cause an accident and

personal injury.

Never mix tires of different design, such

as steel-belted radials with radial bias

belted or bias-ply tires, etc. Mixing tire

types will adversely affect roadholding

and can lead to loss of vehicle

control.<

Storage

Store tires in a cool, dry place,

protecting them against light when-

ever possible. Protect the tires against

contact with oil, grease and fuel.

140nWinter tires Snow chains*

Choosing the right tire

BMW recommends winter tires (M+S

radial tires) for operation under

inclement winter driving conditions.

While so-called all-season tires (M+S

designation) provide better winter trac-

tion than summer tires with the load

ratings H, V, W, Y and ZR, they gener-

ally do not achieve the performance of

winter tires.

In the interests of safe tracking and

steering response, install radial tires

made by the same manufacturer and

with the same tread configuration on all

four wheels if you elect to mount winter

tires.

Do not exceed specified

maximum speeds

Never exceed the maximum speed

for which the tires are rated.

Unprofessional attempts by laymen to

service tires can lead to damage and

accidents.

Have this work performed by skilled

professionals only. Your BMW Sports

Activity Vehicle center will be glad to

assist you with both their expertise and

the proper equipment for your vehicle.<

Tire condition, tire pressure

Winter tires display a perceptible loss in

their ability to cope with winter driving

conditions once the tread wears to

below 0.16 in (4 mm), and should thus

be replaced.

Comply with the specified tire inflation

pressures — and be sure to have the

wheel and tire assemblies balanced

every time you change the tires.

The use of narrow-link BMW snow

chains is approved only in pairs on the

rear wheels and only with tire size

235/65 R 17. Comply with all manufac-

turer's safety precautions when

mounting the chains. Do not exceed a

maximum speed of 30 mph (50 km/h).

141n

OverviewControlsMaintenanceRepairsDataIndex

Hood

To unlock

Pull the lever located under the left-

hand side of the instrument panel.

Do not work on your vehicle

without appropriate skills. Failure

to work in an informed, professional

manner when servicing components

and materials constitutes a safety

hazard for vehicle occupants and other

road users. If you are not familiar with

the guidelines, please have the opera-

tions performed by your BMW Sports

Activity Vehicle center.<

530de295

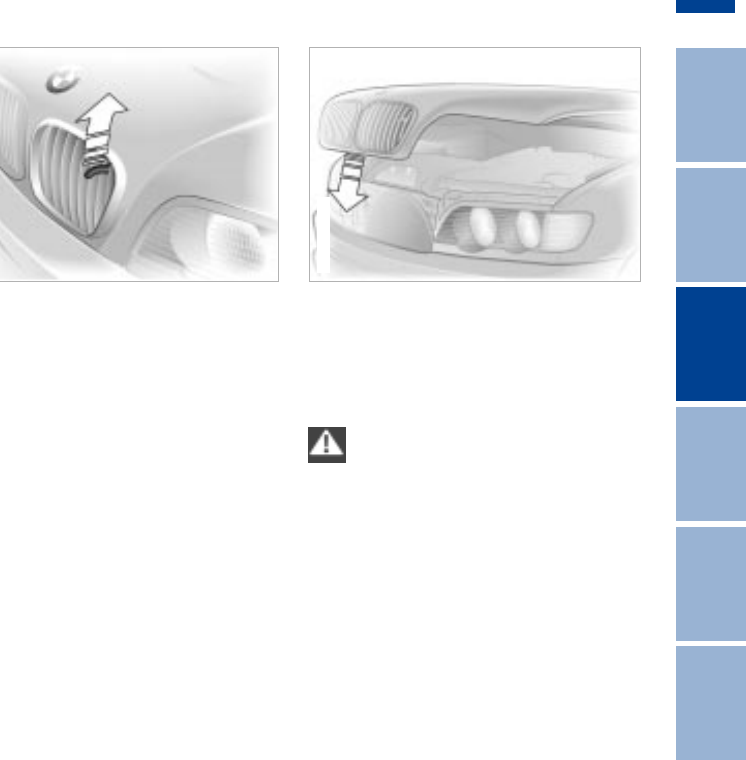

To open

Pull the release handle and open the

hood.

530de296

To close

Allow the hood to fall from a height of

about 12 in (30 cm) so that it audibly

engages.

To avoid injuries, be sure that the

travel path of the hood is clear

when it is closed, as with all closing

procedures

If it is determined that the hood is not

completely closed while driving, stop

immediately and close it securely.<

530de297

142n

1 Engine oil dipstick 143

2 Reservoir for brake fluid

(under the microfilter trim panel) 146

3 Auxiliary terminal for jump

starting 164

4 Coolant expansion tank 145

5 Engine oil filler neck 143

6 Reservoir for windshield and

headlamp washer system*143

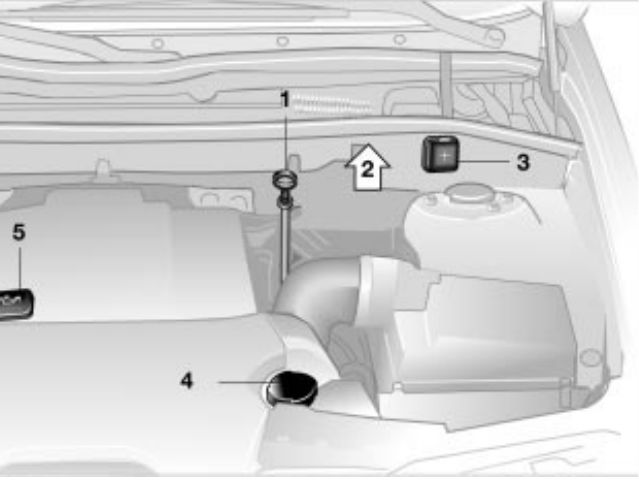

Engine compartment essentials

530de332

143n

OverviewControlsMaintenanceRepairsDataIndex

Washer fluid Engine oil

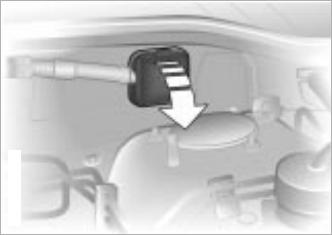

Headlamp* and windshield

washer system

Approximate capacity is 8.2 US quarts

(7.8 liters).

Fill with water and — if required — with a

washer antifreeze (according to manu-

facturer's recommendations).

It is more convenient to mix the

washer fluid before adding it to

the reservoir.<

Antifreeze agent for the washer

systems is inflammable. For this

reason, keep it away from sources of

flame and store it only in its original

containers. Store it so that it is inacces-

sible to children. Comply with the

instructions on the containers.<

530de298

Checking oil level

1. Park the vehicle on a level surface

2. Switch the engine off after it has

reached normal operating tempera-

ture

3. After approx. 5 minutes, pull the

dipstick out and wipe it off with a

clean lint-free cloth, paper towel, or

similar material

4. Push the dipstick carefully all the way

into the guide tube and pull it out

again

5. The oil level should be in between

the two marks on the dipstick.

As with fuel economy, oil consumption

is directly influenced by your driving

style and vehicle operating conditions.

530us100

The oil volume between the two marks

on the dipstick corresponds to approx.

1.1 US quarts (1 liter). Do not fill beyond

the upper mark on the dipstick. Excess

oil will damage the engine

BMW X5 4.6is:

If the vehicle's performance reserves

are used extensively (high-perfor-

mance driving) the oil level should be

maintained at the upper graduation on

the dipstick.

530us205

144nEngine oil

To add oil

While you should wait until the level has

dropped to just above the lower mark

before adding oil, you should never

allow the oil level to fall below this

marking.

BMW engines are designed to

operate without oil additives; the

use of additives could lead to damage

in some cases. This is also true for the

manual transmission, the automatic

transmission, the differential, and the

power steering system.<

Recommendation: have the oil changed

by your BMW Sports Activity Vehicle

center.

530de326

Continuous exposure to used oil

has caused cancer in laboratory

testing. For this reason, any skin areas

that come into contact with oil should

be thoroughly washed with soap and

water.

Always store oils, grease and similar

materials so that they are inaccessible

to children. Comply with warning labels

and information on containers.<

Comply with the applicable envi-

ronmental laws regulating the

disposal of used oil.<

Specified engine oils

The quality of the engine oil selected

has critical significance for the opera-

tion and service life of an engine. Based

on extensive testing, BMW has

approved only certain engine oils.

Use only approved "BMW High Perfor-

mance Synthetic Oil."

If you are unable to obtain "BMW High

Performance Synthetic Oil," you can

add small amounts of synthetic oil in

between oil changes. Use only oils with

the API SH specification or higher.

Ask your BMW Sports Activity

Vehicle center for details

concerning the specific "BMW High

Performance Synthetic Oil" or

"synthetic oils" which have been

approved.<

You can also call BMW of North

America at 1-800-831-1117 or visit this

website: www.bmwusa.com to obtain

this information.

Viscosity ratings

Viscosity is the oil flow rating as estab-

lished in SAE classes.

The selection of the correct SAE class

depends on the climatic conditions in

the area where you typically drive your

BMW.

Approved oils are in SAE classes

5W-40 and 5W-30.<

These oils may be used for driving in all

ambient temperatures.

145n

OverviewControlsMaintenanceRepairsDataIndex

Coolant

Do not add coolant to the cooling

system when the engine is hot. If

you attempt to do so, escaping coolant

can cause burns.

To avoid the possibility of damage later

on, never use anything other than

factory-approved, nitrite and amino-

free extended-duty antifreeze with

corrosion inhibitor. Your BMW Sports

Activity Vehicle center is familiar with

the factory specifications.

Antifreeze and anticorrosion agents are

hazardous to health. You should always

store them in their original container

and in a location which is inaccessible

to children.

Extended-duty antifreeze with corro-

sion inhibitor contains the flammable

substance ethylene–glycol. For this

reason, do not spill antifreeze with

corrosion inhibitor on hot engine parts.

It could ignite and cause serious

burns.<

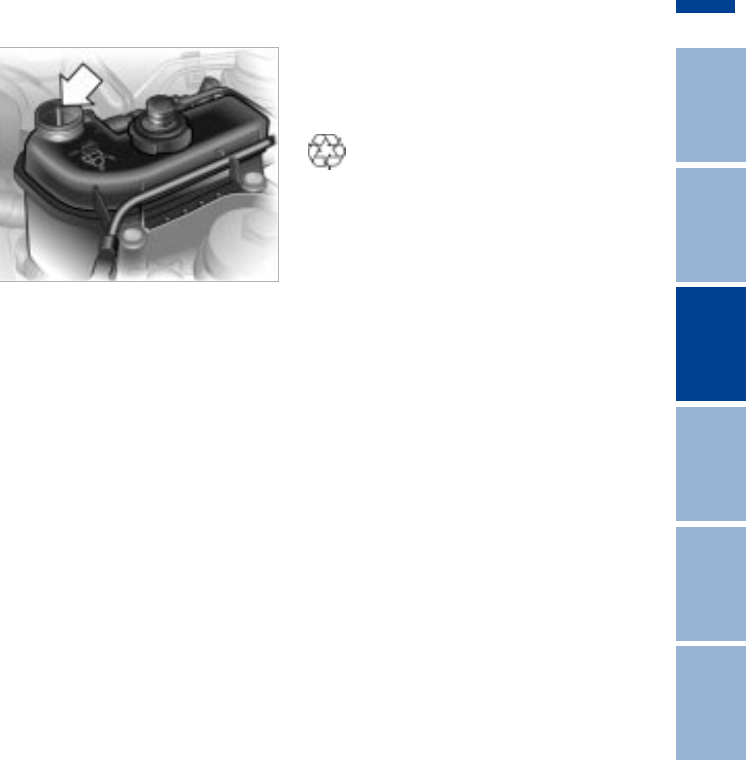

Checking coolant level and

adding coolant

Correct coolant level when the engine

is cold approx. +68 7(+20 6):

1. Start by turning the cap of the expan-

sion tank counterclockwise. Pause to

allow any accumulated pressure to

escape, then open

2. The coolant level is correct when the

end of the red float is aligned with

the upper edge of the filler opening

(refer to the arrow in the illustration),

or max. 0.8 in (2 cm) higher, i. e. up

to the mark on the float (refer also to

the schematic diagram, next to the

cap)

530us102

3. If necessary, add coolant. Slowly add

coolant until the correct level is

reached – do not overfill.

Comply with the applicable envi-

ronmental laws regulating the

disposal of extended-duty antifreeze

with corrosion inhibitor.<

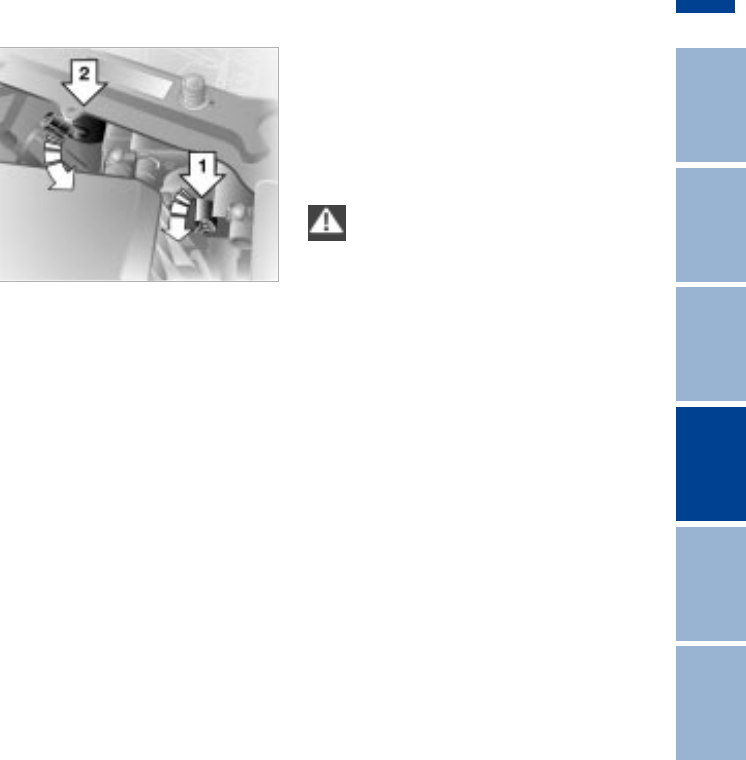

146nBrake fluid

If the indicator lamp for the

brake hydraulic system appears

or if the CHECK BRAKE FLUID

warning appears in the Check

Control: the brake fluid level is

too low.

Add brake fluid

The brake fluid reservoir is located

under the microfilter housing trim panel

on the driver's side of the vehicle. For

adding brake fluid or for determining

and correcting the cause of brake fluid

loss, consult your BMW Sports Activity

Vehicle center. Your BMW Sports

Activity Vehicle center is familiar with

the specifications for factory-approved

brake fluids (DOT 4).

Brake fluid loss may result in extended

brake pedal travel. For this situation,

refer to the notes on page 135.

Brake fluid is hygroscopic, that is,

it absorbs moisture from the air

over time.

In order to ensure the safety and reli-

ability of the brake system, have the

brake fluid changed every two years by

a BMW Sports Activity Vehicle center.

Refer also to the Service and Warranty

Information Booklet (US models) or the

Warranty and Service Guide Booklet

(Canadian models).

Brake fluid is toxic and damages the

vehicle's paint. You should always store

it in its original container and in a loca-

tion which is out of reach of children.

Do not spill the fluid and do not fill the

brake fluid reservoir beyond the "MAX"

mark. The brake fluid could ignite upon

contact with hot engine parts and

cause serious burns.<

Comply with the applicable envi-

ronmental laws regulating the

disposal of brake fluid.<

147n

OverviewControlsMaintenanceRepairsDataIndex

The BMW Maintenance System has

been designed as a reliable means of

providing maximum driving and oper-

ating safety – and as cost-effectively as

possible for you.

Please keep in mind that regular main-

tenance is not only necessary for the

safety of your vehicle, but also plays a

significant role in maintaining the resale

value of the vehicle.

390us008

Service Interval Display

Conventional systems rely solely on

distance traveled to determine when

service is due. The BMW Maintenance

System, on the other hand, began many

years ago to take the actual conditions

under which the vehicle is driven into

consideration. After all, different drivers

can accumulate mileage in very

different ways.

From the point of view of maintenance,

62,000 miles (100,000 km) accumulated

in short-distance urban driving are not

the equivalent of the same distance

covered at moderate speeds in long-

distance highway travel.

The BMW Maintenance System

includes the Engine Oil Service and

Inspections I and II.

Determining the maintenance intervals

according to the actual loads on the

vehicle covers every kind of operating

situation. However, even those who

drive only short distances – significantly

less than 6,000 miles (10,000 km) annu-

ally – should have the engine oil

changed at least every 2 years since oil

deteriorates over time, regardless of

use.

Service and Warranty Information

Booklet (US models)/Warranty

and Service Guide Booklet

(Canadian models)

For additional information on mainte-

nance intervals and procedures, please

refer to the Service and Warranty Infor-

mation Booklet (US models) or the

Warranty and Service Guide Booklet

(Canadian models).

As a precaution against corrosion, it is

advisable to have the body checked for

damage from rocks or gravel at the

same time, depending upon operating

conditions.

Have your BMW Sports Activity

Vehicle center do the mainte-

nance and repair.

Be sure that all maintenance work is

confirmed in the Service and Warranty

Information Booklet (US models) or the

Warranty and Service Guide Booklet

(Canadian models).

These entries will constitute your proof

that the vehicle has received regular

maintenance. They are also required for

warranty claims.<

The BMW Maintenance System

148n

Light-emitting diodes (LEDs)

Light-emitting diodes installed behind

translucent lenses serve as the light

source for many of the controls and

displays in your vehicle. The concept

behind their operation is related to that

employed for lasers, and they are

formally designated as Class 1 light-

emitting diodes.

Do not remove the protective lens

and avoid staring directly at the

unfiltered beam for extended periods

(several hours), as inflammation of the

iris could result.<

California laws require us to state the

following warning:

Engine exhaust, some of its

constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects or other

reproductive harm.<

Technical modifications California Proposition 65 Warning

149n

OverviewControlsMainte-RepairsDataIndex

OBD interface socket

The Onboard Diagnostic (OBD) inter-

face socket is located on the left of the

driver's side at the bottom of the instru-

ment panel and under a cover. The

cover has the letters "OBD" on it.

The purpose of the OBD system is to

ensure proper operation of the emis-

sion control system for the vehicle's

lifetime. The system monitors emission-

related components and systems for

deterioration and malfunction.

530us105

An illuminated lamp informs you

of the need for service, not of

the need to stop the vehicle.

However, the systems should be

checked by your BMW Sports Activity

Vehicle center at the earliest possible

opportunity.

Under certain conditions, the indicator

will blink or flash. This indicates a rather

severe level of engine misfire. When

this occurs, you should reduce speed

and consult the nearest BMW Sports

Activity Vehicle center as soon as

possible. Severe engine misfire over

only a short period of time can seriously

damage emission control components,

especially the catalytic converter.

Service Engine Soon warning

lamp for Canadian models.

When the filler cap is not properly

tightened, the OBD system can

detect the vapor leak and the indicator

will light up. If the filler cap is subse-

quently tightened, the indicator should

go out within a few days.<

150n

151n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Repairs

152n

Under the cargo area floor in a pocket.

530us106

Front

1. Move the wiper to a fold-out position

(refer to page 69)

2. Lift the wiper arm and press the

securing spring (arrow)

3. Pull the wiper blade off toward the

wiper arm

4. Insert the new blade and snap it into

place.

Fold the wipers back down onto

the windshield before you turn the

ignition key to position 1 or 2 again. If

you do not, they could be damaged.<

530de300

Rear

1. Hold the wiper blade on the window

and remove/unclip the wiper arm at

the articulated joint (arrow)

2. Insert a new wiper blade and press it

on/clip it into the wiper arm.

Use only wiper blades approved

by BMW.<

530de301

Onboard tool kit Windshield wiper blades

153n

OverviewControlsMaintenanceRepairsDataIndex

Lamps and bulbs

The lamps and bulbs make essential

contributions to the safety of your

vehicle. For this reason, follow the

instructions below carefully when

replacing a bulb. If you are not familiar

with any of the procedures, consult

your BMW Sports Activity Vehicle

center.

Do not touch the glass portion of a

new bulb with your bare hands

since even small amounts of impurities

burn into the surface and reduce the

service life of the bulb. Use a clean

cloth, paper napkin, or a similar mate-

rial, or hold the bulb by its metallic

base.<

A replacement bulb set is available from

your BMW Sports Activity Vehicle

center.

Whenever working on the elec-

trical system, switch off the elec-

trical accessory you are working on or

disconnect the cable from the negative

terminal of the battery. Failure to do this

could result in short circuits.

To prevent injuries and damage,

comply with any instructions provided

by the bulb manufacturer.<

The right side of the engine compart-

ment.

1 Low beams

2 High beams

For checking and adjusting head-

lamp aim, please contact your

BMW Sports Activity Vehicle center.<

Low beams

H7 bulb, 55 watts

The bulb is pressurized. There-

fore, wear safety glasses and

protective gloves. Failure to comply

with this precaution could lead to injury

if the bulb is accidentally damaged

during replacement.<

530de302

1. Turn the bulb holder to the left

(arrow) and remove

2. Remove and replace the bulb.

High beams

HB3 bulb, 60 watts

The bulb is pressurized. There-

fore, wear safety glasses and

protective gloves. Failure to comply

with this precaution could lead to injury

if the bulb is accidentally damaged

during replacement.<

1. Turn the bulb holder to the left and

remove

2. Disconnect the plug

3. Plug the new bulb into the plug

connector. Be sure that it is securely

engaged

4. Install in the opposite order.

154nLamps and bulbs

When cleaning the headlamps,

please observe the following:

>Do not wipe dry (scratches). Never

use abrasives or strong solvents to

clean the covers

>Remove dirt and contamination (such

as insects) by soaking with BMW Car

Shampoo and then rinsing with plenty

of water

>Always use a deicer spray to remove

accumulated ice and snow – never

use a scraper.<

Xenon lamps*

The operating life of these lamp units is

extremely long and the likelihood of

failure very low, provided that they are

not switched on and off a very great

number of times. If one of these bulbs

should nevertheless fail, it is possible to

continue driving with great caution

using the fog lamps, provided traffic

laws in your area do not prohibit this.

Because of the extremely high

voltages involved, any work on the

xenon lighting system should be carried

out by technically-qualified personnel

only. Failure to comply with this creates

a risk of fatal injury.<

Turn signal indicators/Standing

lamps (side marker lamps), front

Dual-filament bulb, 28/8 watts

Please contact a BMW Sports Activity

Vehicle center in case of a malfunction.

Side turn signal indicators

5 watt bulb

1. Use finger pressure against the rear

end of the lamp (arrow) to press it

forward for removal

2. Press gently on the bulb and turn it to

the left to remove it

3. Replace the bulb.

530de304

155n

OverviewControlsMaintenanceRepairsDataIndex

Lamps and bulbs

Front fog lamps

H3 bulb, 55 watts

The bulb is pressurized. There-

fore, wear safety glasses and

protective gloves. Failure to comply

with this precaution could lead to injury

if the bulb is damaged during replace-

ment.<

1. Pull the cover in front of the fog lamp

forward

2. Loosen the two screws (arrows) and

remove the fog lamp

3. Turn the cover cap on the rear of the

fog lamp to the left and remove

4. Unhook the wire clamp, remove the

contact base and replace the bulb.

530us110

Tail lamp assembly

Tail lamp 2: 21/5 watt bulb

Remaining bulbs: 21 watts

1 Turn signal

indicator yellow or white

2 Rear lamps/

Side marker lamps red

3 Backup lamps white

4 Brake lamps red

5 Reflector red

530de212

Lamps in the side panel:

1. Open the cover in the side panel

2. Lift the side panel if necessary

3. Press gently on the bulb holder and

turn it to the left to remove it

4. Remove the bulb.

530de305

156nLamps and bulbs Changing a wheel

Lamps in the tailgate:

1. Unclip the trim panel in the tailgate

with a screwdriver

2. Press gently on the bulb holder and

turn it to the left to remove it

3. Remove the bulb.

Center (high-mount) brake lamp

LED strip in the rear spoiler: please

contact a BMW Sports Activity Vehicle

center in case of a malfunction.

530de306

License plate lamps

5 watt bulb

1. Press the lamp out to the side with a

screwdriver

2. Remove the lamp and replace the

bulb.

530de307

Safety measures in the event of a

flat tire or wheel change: stop the

vehicle as far as possible from passing

traffic. Park on a firm, flat, surface.

Switch on the hazard warning flashers.

Turn the steering wheel to the straight-

ahead position, remove the key and

engage the steering lock. Shift into 1st

or reverse (selector lever in "Park" with

automatic transmission) and engage

the parking brake.

All passengers should be outside the

vehicle and well away from your imme-

diate working area (behind a guardrail,

for instance).

If a warning triangle or portable hazard

warning lamp is required, set it up on

the roadside at an appropriate distance

from the rear of the vehicle.

Comply with all safety guidelines and

regulations.

Change the wheel only on a level, firm

surface which is not slippery. Avoid

jacking the vehicle up on a soft or slip-

pery surface (snow, ice, very smooth

surfaces, etc.), since it could slide side-

ways.

157n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel

Position the jack on a firm support

surface.

Do not place wooden blocks or similar

objects under the jack. If this is done,

the jack might not be able to reach its

full support capacity because of the

limited height.

Do not lie under the vehicle or start the

engine when the vehicle is supported

by the jack. Failure to comply with this

creates a risk of fatal injury.<

What you will need

In order to avoid rattling noises later,

note the position of the tools when you

remove them and return them to their

original position when you are through

using them.

>Two wedges (wheel chocks)

Open the liftgate and tailgate.

In the cargo area, fold up the floor

cover or pull-out cargo floor, refer to

page 125 or 126.

Take out the wedges (arrow) next to

the spare wheel

530us117

>Lug wrench

Is located next to the spare wheel

530us120

158nChanging a wheel

>Handle for the jack

Remove from its holder

530de213

>Jack

Remove the rubber band from the

holder (arrow) and take out the jack.

When you have completed work,

screw the jack all the way back

down, remove the handle and insert it

into its holder.

530de333

Spare wheel

1. Loosen the wing nut 1

2. Remove the plate 2 to the side

3. Unscrew the threaded rod 3

completely.

530us118

159n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel

Removal aid for the spare wheel

By using this device, you do not have to

lift the spare wheel out of the recess by

hand.

Its task is to help you to move the wheel

onto the tailgate, from where you can

easily lift it off.

1. Close the tailgate again

2. Grasp the handle of the removal aid

behind the spare wheel with both

hands and pull upward over the

tailgate (arrow)

530de310

3. Hook both buckles into the latch of

the tailgate (arrow); the tailgate is

released

530de311

4. Remove the support rod from the

bracket

530de312

160nChanging a wheel

5. Press the tailgate down and hold it

there. The spare wheel is now pulled

by means of the removal aid onto the

tailgate

Hold the tailgate in the opened

position and do not allow it to

retract sharply upward. If you do so,

there is a risk of personal injury and

vehicle damage.<

530de313

6. Insert the support rod in the tailgate

lock and press down until it engages

(arrow 1); then lock hook of rod in

striker (arrow 2)

Be sure that the support rod is

locked firmly in place. If you fail to

do so, it could retract sharply upward

and cause personal injury and vehicle

damage.<

7. You can now release the locked tail-

gate and take the spare wheel down

from the tailgate. It is recommended

that you leave the tailgate locked into

place until you have completed the

wheel change and placed the wheel

with the defective tire into the

removal aid.

530de314

Procedure

1. Read carefully and comply with the

safety precautions on page 156

2. Secure the vehicle to prevent it from

rolling:

Place the wedges (chocks) behind

the wheels on the side opposite the

side you are lifting. If the vehicle is

parked on a downward slope, place

the wedges securely in front of the

wheels. If the wheel must be

changed on a surface with a more

severe slope, take additional precau-

tions to secure the vehicle from

rolling

3. Loosen the lug bolts 1/2-turn

4. Insert the jack handle into the jack

(refer to the illustration in the next

column)

161n

OverviewControlsMaintenanceRepairsDataIndex

Changing a wheel

5. Position the jack at the jacking point

closest to the flat tire so that the jack

base is vertically below the jacking

point and the entire surface of the

head of the jack will move into the

square recess of the jacking point

(refer to the illustration detail) when

the jack is cranked

6. Jack the vehicle up until the wheel

you are changing is raised from the

ground

7. Unscrew the lug bolts and remove

the wheel

8. Remove accumulations of mud or

dirt from the mounting surfaces of

the wheel and hub. Clean the lug

bolts

530de236

9. Position the spare wheel. Secure

the wheel by turning at least two

lug bolts into opposite bolt holes

10. Screw in the remaining lug bolts.

Tighten all the bolts securely

11. Lower the jack and remove it from

beneath the vehicle

12. Tighten the lug bolts in a diagonal

pattern

13. Check and correct the tire inflation

pressure at the earliest opportunity.

Vehicles with Tire Pressure Monitor

(RDC):

After mounting the spare tire or

correcting the tire inflation pres-

sure, reactivate the system, refer to

page 98.

The vehicle jack is designed for

changing wheels only. Do not

attempt to raise another vehicle model

with it or to raise any load of any kind.

To do so could cause accidents and

personal injury.

To ensure continued safety, have the

tightness of the lug bolts checked with

a calibrated lug wrench [torque specifi-

cation: 101 lb-ft (140 Nm)] at the

earliest opportunity.<

Store the wheel and the tools in the

order opposite that for removal.

Before removing the support rod,

be sure that the tailgate is held

down firmly. If you fail to do so, it could

retract sharply upward and cause

personal injury and vehicle damage.

After you remove the rod, close the tail-

gate carefully. Continue to hold it firmly

until it is completely closed.<

If light-alloy wheels other than original

BMW light-alloy wheels have been

mounted, it may be necessary to use

different lug bolts for those wheels.

Replace the defective tire as soon as

possible and have the new wheel/tire

balanced.

162nChanging a wheel Battery

The spare wheel has a size

235/65 R 17 tire. If you have

mounted tires on your vehicle with a

different size, have wheels and tires of

the same size and specification rein-

stalled as soon as possible.

When the spare wheel is mounted, the

maximum speed rating is 130 mph

(210 km/h).<

Protect valve stems and valves from dirt

using screw-on valve stem caps. Dirt in

the valve stems frequently leads to slow

leaks.

Battery posts, terminals and

related accessories contain lead

and lead compounds. Wash hands after

handling.<

Maintenance

The battery is maintenance-free, that is,

the original electrolyte will normally last

for the service life of the battery under

moderate climatic conditions.

For all questions that regard the

battery, please consult your

BMW Sports Activity Vehicle center.

Since the battery is maintenance-free,

the following is for your information

only.<

Do not disconnect the battery

when the engine is running. If

you do so, the ensuing voltage surge

will damage the vehicle's onboard elec-

tronics.<

Charging the battery

Charge the battery in the vehicle only

when the engine is not running. Use the

connections provided in the engine

compartment (for correct connections,

refer to "Jump-starting" on page 164).

Return used batteries to a recy-

cling point or your BMW Sports

Activity Vehicle center. Maintain the

battery in an upright position for trans-

port and storage. Secure the battery

against tilting during transport.<

163n

OverviewControlsMaintenanceRepairsDataIndex

Fuses

In the glove compartment

Open the glove compartment and turn

the two quick-release fasteners to the

left.

530us121

In the cargo area

Open the right cover by pulling the

handle.

Do not attempt to repair a burned

fuse or replace it with a fuse

having a different color or ampere

rating. To do this could cause a fire in

the vehicle resulting from a circuit over-

load.<

530us122

164n

Do not use spray starter fluids to start

the engine.

When your battery is discharged you

can used two jumper cables to start

your vehicle with power from the

battery in a second vehicle. You can

also use the same method to help start

another vehicle. Always use jumper

cables with fully insulated handles on

the terminal clamps.

Do not touch the parts conducting

current while the engine is

running. Failure to comply with this

creates a risk of fatal injury. Carefully

observe the following instructions to

avoid personal injury and/or damage to

one or both vehicles.<

1. Be sure that the battery on the

support vehicle is also rated at

12 volts. This information is provided

on the top of the battery casing

2. Do not disconnect your battery from

your vehicle's electrical system.

Switch off all electrical accessories in

both vehicles

3. Make absolutely certain that there is

no contact between the bodywork of

the two vehicles – short circuit

hazard

4. Start the engine on the support

vehicle and allow it to run 5. Use one jumper cable (+) to connect

the positive terminal of the battery in

the support vehicle with the auxiliary

positive terminal provided in the

engine compartment of your BMW

specifically for jump starting. The

cover on this auxiliary terminal is

identified by a "+" symbol, refer to

the illustration. To remove the cover,

tip up the cap (arrow)

530de325

Jump-starting

165n

OverviewControlsMaintenanceRepairsDataIndex

Jump-starting

6. Next, connect one end of the other

jumper cable (–) to either the support

vehicle's negative battery terminal or

a suitable ground on its engine or

bodywork. Connect the other end to

the negative battery terminal or a

suitable ground on the vehicle being

started. There is a special nut for this

on the left side panel of your BMW.

Refer to the arrow in the illustration

Always adhere to this sequence

when connecting jumper cables;

failure to observe this procedure can

lead to sparks at the battery terminals

and pose an injury hazard.<

530us127

7. Start the support vehicle's engine

and let it run at an increased idling

speed for a few minutes. Start the

engine on the vehicle needing the

jump-start, and allow it to run as

usual. If the first start attempt is not

successful, wait a few minutes

before another attempt in order to

allow the discharged battery to

recharge

8. Before disconnecting the jumper

cables let the engines run for a few

minutes

9. Then disconnect the jumper cables

in reverse sequence.

Depending on the cause of the fault,

have the battery recharged by your

BMW Sports Activity Vehicle center.

166nTowing the vehicle

Tow fitting

The screw-in tow fitting is stored

beneath the cargo area floor. Carry it

with you at all times. This fitting is

designed for installation in the tow

sockets located at the front and rear of

the vehicle, and is intended for towing

on paved road surfaces only.

It should not be used to pull a vehicle

out of deep snow, mud, sand, etc.

Always observe all applicable towing

laws and regulations.

Access to tow sockets

Front:

Use a screwdriver on the left or right

side (arrows) to press the cover out.

530us128

Rear: Pull the cover off.

Screw the tow fittings in until they

are tight. If you do not, the threads

could be damaged.

Do not tow the vehicle by any compo-

nents of the running gear, or lash them

down in any way. If you do so, the

components could be damaged,

leading to possible accidents.<

Use only a nylon towing strap to tow

the vehicle, since the inherent resil-

ience of this material helps protect both

vehicles from sudden jerking move-

ments.

530de318

Avoid "off-center" towing. Be sure

that the tow rope is pulled tightly

when the towing vehicle begins to

move.<

The towed vehicle should always

be the lighter of the two vehicles.

If this is not the case, it is no longer

possible to control vehicle response.<

Tow-starting

It is not possible to start the engine of a

vehicle equipped with an automatic

transmission by towing or pushing.

For instructions on jump starting refer

to page 164.

Never attempt to use your vehicle to

push another vehicle. If you do so,

damage to the energy-absorbing

bumpers could result.

167n

OverviewControlsMaintenanceRepairsDataIndex

Towing the vehicle

Towing a vehicle with automatic

transmission

1. Place the selector lever in position N

2. Towing speed:

Max. 45 mph (70 km/h)

3. Towing distance:

Max. 95 miles (150 km)

4. Leave the ignition key at position 1 to

ensure that the brake lamps, turn

signals, horn and windshield wipers

remain operative, and to prevent the

steering lock from engaging

5. Switch on the hazard warning

flashers (comply with country-

specific regulations).

Find some means of identifying the

vehicle in tow, for instance, place a sign

or warning triangle in the rear window.

Make sure that the ignition key

remains in position 1 even when

the electrical system has failed. This will

prevent the steering lock from

engaging. The steering and brakes are

without power assist when the engine is

not running. This means that increased

effort is required for steering and

braking.<

Towing with a commercial tow

truck

>Do not tow with sling-type equipment

>Use a wheel-lift or flatbed carrier

>Please comply with applicable towing

laws.

Never allow passengers to ride in

a towed vehicle for any reason.<

530us138

Towing with a raised axle

1. Place the gearshift lever or selector

lever in "Neutral"

2. Turn the ignition key to position 0 or

take it out

3. Towing speed:

Maximum 30 mph (50 km/h)

4. Towing distance:

Maximum 95 miles (150 km).

Remove the rear driveshaft for

longer towing distances with the

front axle lifted; remove the front drive-

shaft for towing over longer distances

with the rear axle lifted. Failure to

comply with this will result in damage to

the transfer box.<

168n

169n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Index

Technical data

Index

Owner service procedures

170n

An engine performance test is authorized only on an appropriate chassis dynamometer.

BMW X5 3.0i BMW X5 4.4i BMW X5 4.6is

Displacement

Number of cylinders cu in (cm3) 181.8 (2979)

6268.4 (4398)

8281.9 (4619)

Maximum output

at engine speed hp

rpm 225

5900 290

5400 340

5700

Maximum torque

at engine speed Ib-ft (Nm)

rpm 214 (290)

3500 324 (440)

3600 350 (475)

3700

Compression ratio 10.2 10.0 10.5

Stroke

Bore in (mm)

in (mm) 3.53 (89.6)

3.31 (84) 3.26 (82.7)

3.62 (92.0) 3.35 (85.0)

3.66 (93.0)

Fuel-injection system Digital electronic engine-management system

Engine specifications

171n

OverviewControlsMaintenanceRepairsDataIndex

Dimensions

530de210

All dimensions are given in inch (mm). Height: with Variable Ride Height: 67.2 (1,707); without Variable Ride Height:

67.5 (1,715). Height with roof-mounted luggage rack: with Variable Ride Height: 68.5 (1,740); without Variable Ride

Height system: 68.8 (1,748). Track width X5 3.0i: 62.0 (1,576); X5 4.6is: front 61.7 (1,566), rear 62.8 (1,596).

Min. turning circle dia.: 39.7 ft (12.1 meters)

73.7 (1872)85.8 (2180)

61.4 (1560)61.4 (1560)

111 (2820)

184 (4667)

67.2 (1707)

81.7 (2076)

172nWeights

BMW X5 3.0i BMW X5 4.4i BMW X5 4.6is

Curb weight (with one person, ready for operation, full tank of fuel, options not included)

with manual transmission

with automatic transmission Ibs (kg)

Ibs (kg) 4533 (2056)

4586 (2080) –

4824 (2188) –

4824 (2188)

Approved gross vehicle weight

with manual transmission

with automatic transmission Ibs (kg)

Ibs (kg) 6005 (2724)

6005 (2724) –

6005 (2724)

Approved front axle load Ibs (kg) 2787 (1264) 2787 (1264) 2787 (1264)

Approved rear axle load Ibs (kg) 3307 (1500) 3307 (1500) 3307 (1500)

Approved roof load capacity Ibs (kg) 220 (100)

Never exceed either the approved axle loads or the gross vehicle weight.

Cargo area capacity cu ft (l) 16.4 – 54.4 (465 – 1540) – according to DIN

69.04 (1955) – according to SAE

173n

OverviewControlsMaintenanceRepairsDataIndex

Capacities

Notes

Fuel tank

Reserve gal. (liters)

gal. (liters) approx. 24.6 (approx. 93)

approx. 2.0 (approx. 8) –

BMW X5 3.0i

approx. 2.5 (approx. 10) –

BMW X5 4.4i, 4.6is

Fuel specification: page 25

Windshield washer system

with headlamp washer system quarts (liters) approx. 8.2 (approx. 7.8) For details: page 143

Cooling system including

heater circuit quarts (liters) 11.1 (10.5) – BMW X5 3.0i

13.7 (13.0) – BMW X5 4.4i, 4.6is For details: page 145

Engine oil and filter change quarts (liters) 8.0 (7.5) – BMW X5 3.0i

8.5 (8.0) – BMW X5 4.4i, 4.6is "BMW High Performance

Synthetic Oil"

For details: page 144

Manual and automatic transmission,

transfer box and differential – – Lifetime fluid, no fluid

change required

174n

175n

OverviewControlsMaintenanceRepairsDataIndex

Overview

Controls and features

Operation, maintenance

Owner service procedures

Index

Technical data

Index

Everything from A to Z

ABS (Antilock Brake

System) 19, 134

Accessories 10

Activated-charcoal

filter 111

Adaptive brake light 99

Adding

brake fluid 146t

coolant 145t

engine oil 143t

washer fluid 143t

Adjusting

head restraints 47

mirrors 53

seats 44

steering wheel 52

thigh support 45

Air conditioner 103

Air distribution 104, 108

Air outlets 103, 106

Air supply 104, 108

Airbags 19, 55

Alarm system 39

Antifreeze 145

Antilock Brake System

(ABS) 19, 134

Anti-theft system 32

Approved gross vehicle

weight 172

Aquaplaning 134, 136

Arrival time 88

Ashtray

front 118

rear 119

AUC (Automatic

recirculated-air

control) 109

Automatic climate

control 106

removing condensation

from the windows 108

Automatic cruise control 71

Automatic curb monitor 51

Automatic dimming

exterior rearview

mirrors 54

interior rearview mirror 54

Automatic headlight

control 100

Automatic recirculated-air

control (AUC) 109

Automatic steering wheel

adjustment 52

Automatic transmission with

Steptronic 66

Average fuel

consumption 80

Average speed 80, 89

Avoiding unintentional

alarms 40t

Axle loads 172

Backup lamps 65

bulb replacement 155t

Battery 162

charge 162

discharged 164t

Battery charge indicator

lamp 18

Belts 49

Beverage holder 117

Blower 104, 108

BMW comfort seat 46

BMW High Performance

Synthetic Oil 144

BMW Maintenance

System 147

BMW sports seat 45

BMW Universal

Transmitter 113

Brake fluid 146

Brake lamps

bulb replacement 155t

Brake light, adaptive 99

Brake system 135

brake fluid 146

brake fluid level 135

brake pads indicator 20

disc brakes 135

hydraulic system

indicator 18

malfunctions 135t

Break-in procedures 132

Bulbs and lamps 153

California Proposition

65 Warning 148

Can holder, refer to

beverage holder 117

Capacities 173

Car care, refer to the "Caring

for your vehicle" manual

Car wash systems, refer to

the "Caring for your

vehicle" manual

Care of upholstery materials,

refer to the "Caring for your

vehicle" manual

Cargo area 38, 122

capacity 172

cover 122

lamps 102

Cargo floor, pull-out 126

Cargo loading 127

Cellular phone 117

Center (high-mount) brake

lamp 156

Central locking system 30

button 35

Changing a wheel 157t

CHECK button 77

Everything from A to Z 177n

OverviewControlsMaintenanceRepairsDataIndex

Check Control 77

Check tire pressures 26t

Checking

engine oil level 144

Child's seat 58

Child-restraint systems 58

Child-safety locks 60

Cigarette lighter

front 118

rear 119

socket 119t

Clean the windshield 70

Climate control in the rear

passenger area 110

Clock 83

refer also to the Owner's

Manual for the Onboard

Computer

Cockpit 14

Code 89

activating 89

deactivating 89

selecting 89

Comfort seat 46

Compartments 116

Computer 80, 82, 86

refer also to the Owner's

Manual for the Onboard

Computer

remote control 90

Configuring individual

settings via Vehicle and

Key Memory 61

Consumption, fuel 88

Convenience operation of

windows and sliding/tilt

sunroof 31

Convenience starting

feature 63

Coolant 145

temperature gauge 76

Correct sitting posture 44

seat adjustment 44

Cruise control 71

Cruising range 80, 88

Cup holder 117

Curb weight 172

Data link connector for On-

board Diagnostics 149

Date

calling up 83

changing 83

refer also to the Owner's

Manual for the Onboard

Computer

Daytime driving lamp 100

DBC (Dynamic Brake

Control) 20, 93

Deactivating the interior

motion

sensor 33t, 40t

Deep water 133

Defrosting the

windows 105t, 108t

Digital clock 83

refer also to the Owner's

Manual for the Onboard

Computer

Dimensions 171

Dipstick, engine oil 144t

Disc brakes 135

Displacement 170

Display lighting 101

Displays 15, 17

Disposal

used batteries 162

used oil 144t

Distance from

destination 87

Distance warning 91

Divided rear backrest 122

Door keys 30

Doors

manual operation 31

remote control 33

unlocking and locking 31

DOT Quality Grades 137

Drink holder, refer to

beverage holder 117

Driving notes 134

Driving through water 133

Driving your BMW X5 133

DSC (Dynamic Stability

Control) 20, 92

Dynamic Brake Control

(DBC) 20, 93

Dynamic Stability Control

(DSC) 20, 92

Electric power seat 46

Electric power windows 40

Electrical malfunction

liftgate 36t

sliding/tilt sunroof 43t

tailgate 38t

Elements of operation 14

Emergency operation

doors 31t

liftgate 36t

sliding/tilt sunroof 43t

tailgate 38t

Energy Control 75

Engine

output 170

power rating 170

specifications 170

Engine compartment

essentials 142

Engine coolant 145

Everything from A to Z

Engine oil 143t, 144

consumption 143

grades 144

level 19

pressure 18

Estimated time of arrival 88

Exterior mirrors 53

Exterior rearview mirrors,

automatic dimming

feature 54

Failure of an electrical

accessory 163t

Filling the windshield washer

reservoir 143t

First-aid kit 23t

Fittings, tow-starting and

towing 166t

Flashlight 116

Flat tire 99, 136, 157t

Fog lamps 101

bulb replacement 155t

Folding rear backrest 122

Footbrake 135

Front area lighting 102

Front fog lamps 101

Front seat adjustment 44

Frost protection,

radiator 145

Fuel 25

capacity 173

display 75

gauge 75

quality 25

specifications 25

Fuel consumption 88

average 88

Fuel filler door 24

electrical malfunction 24

Fuses 163t

Garage-door opener 113

Gasoline 25

General driving notes 134

Glasses compartment 118

Glove compartment 116

Gross vehicle weight 172

Ground clearance 133

Handbrake 64

Hands-free system 117

Hazard warning flashers 14

Hazard warning triangle 23

HDC (Hill Descent

Control) 94

Head restraints 47

Headlamp covers,

care 154t

Headlamp flasher 69

Headlamp washer

system 70, 143

Heated seats 51

Heated steering wheel 53

Heating and

ventilation 103, 106

Heating while stopped 110

Heavy cargo 127

Height 171

Height adjustment

seats 46

steering wheel 52

High beams 21, 101

bulb replacement 153t

High-mount brake lamp 156

Hill Descent Control

(HDC) 94

Holder for cans, refer to

beverage holder 117

Hood 141t

Hood release 141t

Hydraulic Brake Assistant

refer to DBC 20

Ice warning 74

Identification, tires 139

Ignition key 30

Ignition lock 62

Imprint 4

Independent ventilation

system 85, 112

switching on and off 85

Indicator lamps 18

Inflation pressures,

tires 136

monitoring 98

INSPECTION 76

Instrument cluster 15, 17

Instrument lighting 101

Instrument panel 15, 17

Intensive cleaning

system 70

Interior lamps 102

remote control 33

Interior mirror 54

Interior motion sensor 40

Interior rearview mirror,

automatic dimming

feature 54

Interlock 62

Intermittent wipe 69

Everything from A to Z 179n

OverviewControlsMaintenanceRepairsDataIndex

Jack 157, 158, 160

Jump-starting 164t

Key Memory 61

Keys 30

Keys with radio remote

control 30

Kickdown mode 67

Lamps and bulbs 153

Lashing eyes 38, 127

LATCH child-restraint

system 60

Lead-free gasoline 25

Length 171

License plate lamps

bulb replacement 156t

Liftgate 36

opening from the

inside 36

radio control operation 33

release following an

electrical

malfunction 36t, 38t

Lighter 118

LIGHTS ON warning 100

Load-securing devices 127

Louvers 103, 106

Low beams 100

automatic 100

bulb replacement 153t

Low-fuel warning lamp 75

Lug bolts 160

Lug wrench 157t

Luggage net 38

Luggage straps 38

Lumbar support 46

M+S radial tires 140

Maintenance 76t, 147t

Maintenance System 147

Malfunction displays 77t

Manual operation

doors 31t

fuel filler door 24

liftgate 36t

sliding/tilt sunroof 43t

tailgate 38t

Manual transmission 65

Master key 30

Maximum cooling 109

Mechanical seat 45

Memory 50

driver's seat 50

mirrors 50

steering wheel 50

Messages concerning

system malfunctions 77

Microfilter 105, 111

MID (Multi-Information

Display) 82

digital clock 83

Mirror defrosting 53

Mirror memory 50

Mirrors 53

Modifications,

technical 10, 148

Monitoring inflation

pressure, tires 98

Moonroof 42

Multifunction buttons,

steering wheel 22

Multi-Information Display

(MID) 82

digital clock 83

Navigation system, refer to

the separate Owner's

Manual

OBD interface socket 149

Odometer 74

Oil

additives 144

consumption 144t

dipstick 144t

grades 144

Oil change interval, refer to

the Service and Warranty

Information Booklet (US

models) or to the Warranty

and Service Guide Booklet

(Canadian models)

Oil level 19

indicator lamp 19

Oil pressure, indicator

lamp 18

OILSERVICE 76

Onboard computer, refer to

the separate Owner's

Manual

Onboard Diagnostic (OBD)

system 149

Onboard tool kit 152t

Opening and closing

from the inside 35

from the outside 31

using the key 31

using the remote

control 32

Outlets, ventilation 103, 106

Outside temperature

display 74

in the computer 80

Everything from A to Z

Park Distance Control

(PDC) 91

Parking aid 91

Parking brake 19, 64

Parking lamps 100

Passenger side mirror tilt

function 51

PDC (Park Distance

Control) 91

"Please fasten safety belt"

warning lamp 19

Poor driving conditions 133

Power loss

sliding/tilt sunroof 43t

Power outlets

flashlight 125t

other appliances 125t

vacuum cleaner 125t

Power rating 170

Power rear-seat

backrests 48

Power windows 40

safety switch 41

Pull-out cargo floor 126

Rain sensor 69

RDC (Tire Pressure

Monitor) 98

warning lamp 18, 20

Reading lamps 102

Rear backrests, folding

down 122

Rear lamps 155t

Rear passenger area climate

control 110

Rear seats, power 48

Rear window

defroster 104, 109

Rear window wiper 71

blade replacement 152t

Rear-seat backrest, folding

down 122

Rear-seat backrests,

power 48

Rearview mirror 53

Rechargeable flashlight 116

Recirculated-air

mode 104, 109

Reclining seat 44

Refueling 24, 183

Releasing

hood 141t

tailgate following an

electrical

malfunction 38t

Reminder signal (Memo) 84

Remote control 32

computer 90

Removal aid for the spare

wheel 159t

Removing condensation

from the

windows 105t, 108t

Replacing

antifreeze, radiator 145t

bulbs 153t

fuses 163t

tires 137t

windshield wiper

blades 152t

Reporting Safety Defects 11

Reservoir, washer

system 143t

Residual heat 107, 110

Restraint systems 58

Reverse 65

Rims 139

Roof load capacity 172

Roof-mounted luggage

rack 128

Safety belts 49

height adjustment 49

Safety Defects, reporting 11

Safety lock buttons 35

Seat adjustment 44

Seat belts 49

Seat, electric power 46

Seat heating 51

Seat, mechanical 45

Seat memory 50

Seat, mirror and steering

wheel memory 50

Securing cargo 38, 127

Selector lever, automatic

transmission 66

Service and Warranty

Information Booklet (US

models) 147

Service Engine Soon

indicator lamp 20

Service Interval

Display 76, 147

Set temperature 108t

Shiftlock 66

Shoulder support 47

Side airbags 55

Side Impact Head Protection

System 55

Side lamps 100

bulb replacement 154t

Sitting correctly 44

Ski bag 120

Sliding/tilt sunroof 42

closing following an

electrical

malfunction 43t

convenience operation 31

power loss 43t

remote control 33

Snow chains 140

Everything from A to Z 181n

OverviewControlsMaintenanceRepairsDataIndex

Socket

power supplies 119t

vacuum cleaner 119t

Spare key 30

Spare tire 158t

Spare wheel 158

removal aid 159t

Speaker 117

Special features of winter

tires 140

Special wash program 70

Speed 89

Speed control 71

Speed limit 86, 87

Speedometer 15, 17

Sports seat 45

Standing lamps 101

Starting assistance 164t

Starting

problems 63t, 164t

Starting the engine 62, 63

Steering wheel

adjustment 52

adjustment, automatic 52

heating 53

lock 62

memory 50

Steering wheel with

multifunction buttons 22

Steptronic 66

Stopwatch 84

Storage compartments 116

in the cargo area 124

Summer tires 139

Sunroof 42

Sunshades 112

Switching off the engine 64

Switching off the vehicle 64

Switch-on times

input 85

Symbols 8

Synthetic oils 144

System malfunction

indicators 77

Tachometer 75

Tail lamps 155t

bulb replacement 155t

Tailgate 37

opening from the

outside 36

radio control operation 33

release following an

electrical

malfunction 38t

Tank capacity 173

Technical

modifications 10, 148

Telephone preparation 117

Temperature display,

outside

temperature 74, 80

Temperature gauge 76

Temperature

layering 105, 110

Temperature setting 108t

Thigh support

adjustment 45

Third brake lamp 156

Tilt alarm 33

Tilt alarm sensor 40

Tilt function, passenger side

mirror 51

Time

calling up 83

changing 83

of arrival, estimated 88

Timer

refer to Stopwatch

refer also to the Owner's

Manual for the Onboard

Computer

Tire 136

damage 136t

pressure monitoring 98

renewal 137

tread 136

Tire inflation

pressures 26, 136

monitoring 98

table 27

Tire Pressure Monitor

(RDC) 98

warning lamp 18, 20

Tire Quality Grading 138

Tools 152t

Torque 170

Tow fittings 166t

Towing the vehicle 166t

Tow-starting 166t

Track width 171

Traction Control System,

refer to DSC 92

Transmission 65, 66

Transporting children

safely 58

Tread depth, tires 136

Trip odometer 74

Turn signal indicator 69

bulb replacement 154t

Turning circle 171

Uniform Tire Quality Grading

(UTQR) 138

Universal Transmitter 113

Used batteries,

disposal 162

Used oil, disposal 144t

Everything from A to Z

Vacuum cleaner

power outlet 125t

socket 119t

Valve caps 162

Variable Ride

Height 95, 133

inactive 95

Variable Ride Height on both

axles 95

display 96

lowering 97

raising 96

Vehicle battery 162

Vehicle jack 157

Vehicle keys 30

Vehicle Memory 61

Vehicle vacuum cleaner

power outlet 125t

socket 119t

Ventilation 103, 105, 110

draft-free 105, 110

in the rear 105, 110

while parked 112

Viscosity 144

Voice entry 22

Warm feet – cool head 105

Warning lamps 18

Warning messages 77t

Warning triangle 23

Warranty and Service Guide

Booklet (Canadian

models) 147

Washer fluid 143

Washer reservoir,

filling 143t

Washer/wiper system 69

Washing your vehicle, refer

to the "Caring for your

vehicle" manual

Weights 172

Wheel and tire

combinations 139

Wheelbase 171

Wheels and tires 139

Width 171

Windows 40

convenience operation 31

remote control 33

Windshield

intensive cleaning

program 69

special wash program 69

Windshield washer

filling reservoir 143t

Windshield wiper 69

blade replacement 152t

Winter tires 140

Wiper blade

replacement 152t

Wipers 69

Work in the engine

compartment 141t

Xenon lamps 154

So that you will have important specifi-

cations available when you stop to

refuel, we recommend that you supple-

ment this table with data which apply to

your vehicle.

Consult the index for individual

specifications.

Fuel

Please enter your preferred fuel here.

Engine oil

The oil volume between the two marks

on the oil dipstick corresponds to

approx. 1.1 US quarts (1 liter).

Designation

Quality

Tire inflation pressures Summer Winter

Front Rear Front Rear

4 persons

5 persons or 4 plus luggage

Refueling

The Ultimate

Driving Machine

01 41 0 156 416 ue
