BodyMedia FIT
Armband BW Manual
BodyMedia FIT Armband BW Manual
Purpose of the System .......................................................... 3
Setup Instructions ................................................................. 4
Armband Operating Instructions.......................................... 4
Proper Wear and Cleaning.............................................. 4
Removing the Armband strap from the Armband ........ 6
Armband Status Indicators ............................................ 6
Bluetooth® Wireless Technology Instructions .............. 8
Water Resistance ................................................................... 9
Care Instructions ................................................................... 10

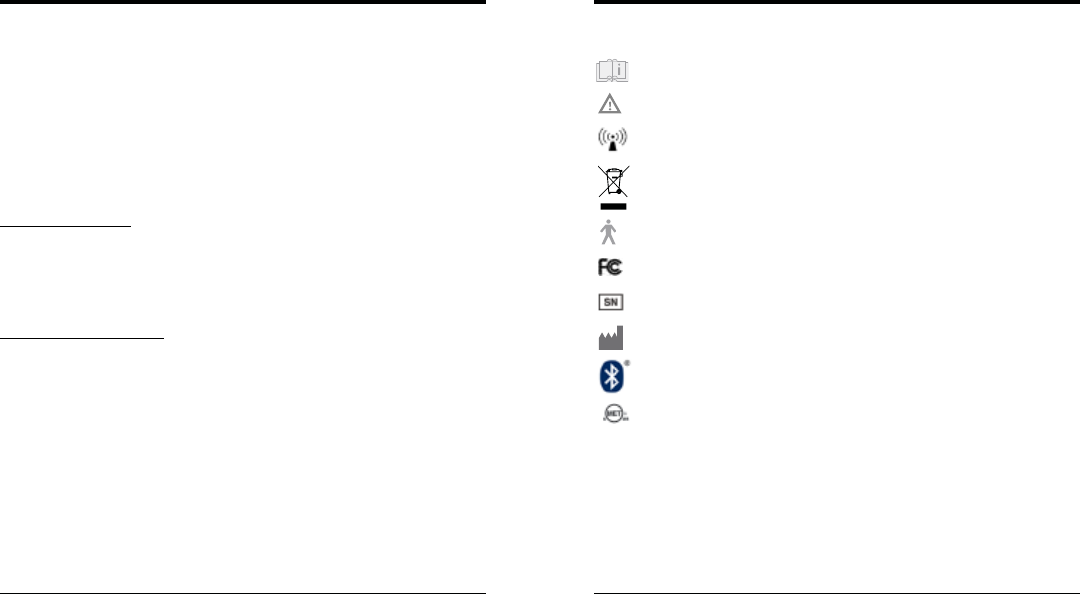

Symbol Definitions ................................................................ 11
Cautions ................................................................................. 12
Safe Disposal ......................................................................... 15
End User License Agreement ................................................ 15
Troubleshooting ..................................................................... 16
Product Specifications ........................................................... 16
Accuracy ................................................................................. 17
Warranty ................................................................................. 18
User Environment ................................................................. 20
Regulatory Statement ............................................................ 24
Copyright, Patent, and Trademark Notice ............................ 26
Table of Contents
BodyMedia FIT Armband BW Manual 3
Intended Use
The system records and analyzes physiological parameters, and uses algorithms
to report daily movement, calories burned, degree of physical activity, and steps
taken. These objective health metrics facilitate maintenance of a healthy weight and
an active lifestyle, and in conjunction with a balanced diet can result in a favorable
influence on overall health. Maintaining a healthy weight, balanced diet and active
lifestyle are routinely cited as key to combating and managing serious medical
conditions including obesity, cardiovascular disease and diabetes. The information
presented by the system can be used by a physician or healthcare practitioner and
may aid the assessment and medical management of conditions influenced by
weight and activity.
Risks and Benefits
The predominant benefit of the product is the enabling of the monitoring and
management of daily metabolic and lifestyle data in order to reach your activity and
weight goals. In addition to weight management, known benefits of increasing
activity levels include increased life expectancy, improved sleep, and enhanced
appearance and self perception.
Analysis and post market surveillance indicate that risks of using the products are
extremely low. No significant health risks have been identified. The most frequently
reported health risk, occurring in less than 1% of users, is a mild to severe skin irri-
tation resulting from wearing the Armband. The issue is often resolved by following
proper wear and cleaning guidelines. Skin irritation may still occur for individuals
with highly sensitive skin or for those with a specific allergy to materials used in the
Armband and/or strap. However, it is best to discontinue use and consult a physi-
cian regarding skin irritations.
If you have a known metal allergy, consult your physician prior to using the
Armband. Read the instructions provided and review the Cautions section of this
manual before using the Armband.
Purpose of the System
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
4. Wear the Armband no more than 23 hours a day.
Be sure to leave it off 1 hour per day.
5. Replace the strap if it has lost its elasticity.
Information on obtaining replacement parts can
be found in the Quick Start.
The Armband will turn on and begin collecting data within 10 minutes. Activation
is indicated by a series of audio tones. Please note that there is no power button on
the Armband.
If you haven’t worn your Armband in a while, press the status button to activate it
before wearing it again.
To clean the Armband:
1. Gently wipe the side of the Armband that touches the skin with a soft cloth or
towel moistened with a mild soap and water.
2. Wipe with a clean damp cloth to remove any excess soap.
3. Use a dry, soft cloth or towel to completely dry before wearing it.
To clean the Armband strap:
1. Hand wash with mild soap and warm water, rinse, then air dry.
2. Machine drying may affect the performance and lifespan of the strap.
4
Proper Wear and Cleaning

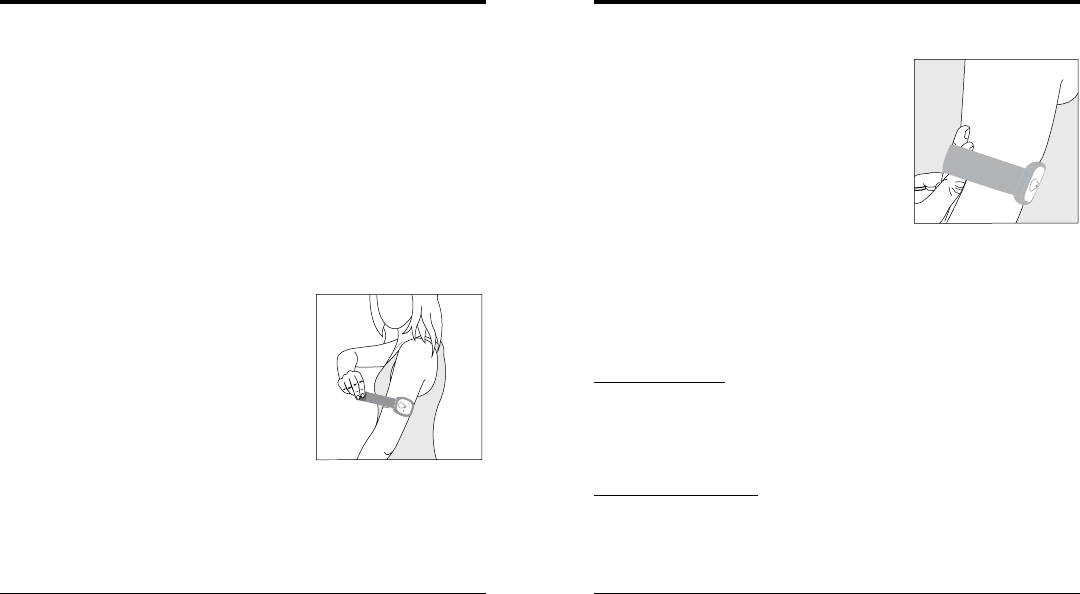

Wear your Armband on the back of the upper left arm (the tricep). To work properly,
the Armband logo must face upward towards the shoulder and the silver sensors
on the underside of the Armband will be in contact with your skin.
1. Be sure the upper left arm is clean, dry, and free
of lotion or oil then slide the Armband onto your
left arm.
2. Adjust the strap so that it fits comfortably, and
then secure the Velcro pull-tab. Ensure that the
sensors on the underside of the Armband
maintain continuous contact with your skin and
that the Armband does not slide off your arm.
3. Do not secure the strap too tightly. You should be
able to place two fingers beneath the strap. Once the strap is adjusted to a
comfortable fit, there is no need to readjust the Velcro tab. Simply slide the
Armband on and off your arm by stretching the strap.
Setup Instructions
Please refer to the Quick Start included in the package for instructions on how
to begin using the system. It only takes a few minutes to get set up and moving
toward a healthier lifestyle.
Armband Operating Instructions
5
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual 76
Removing the Armband strap from the Armband
You will need to remove the Armband from its strap to upload data or to clean the
Armband.
1. With the Armband logo facing upward, apply
continuous downward pressure to the right side
of the Armband until it separates from the
Armband strap.
2. To reattach to the strap, locate the USB port on the Armband, then align port
with the indentations on the left side of the strap. Apply upward pressure to the
right side of the Armband until it snaps into place.
Armband Status Indicators
Power
When the Armband makes contact with your body, it will automatically power on.
This may take up to 10 minutes. Activation is indicated by a series of audio tones.
Please note that there is no power button on the Armband.
Battery
Before first use, fully charge your Armband battery by removing the Armband strap
and connecting the Armband to your computer with the included USB cable. Charg-
ing will take approximately three hours. The battery light will flash green when the
Armband is fully charged.
• Model AB185 will function 2-4 days before recharging is needed
To check the battery power level, remove the Armband from your arm and press the
Armband’s Status Button. The battery light will indicate the power level as:
• Green (solid) = More than 24 hours of battery life remain.
• Amber (flashing) = Less than 24 hours of battery life remain.
• Red (flashing) = Battery needs to be charged immediately and the
Armband cannot collect data. Charge the battery before continuing use.
Memory
The Model AB185 Armband can store 14 days worth of data before needing to be
uploaded. To check the memory status, remove the Armband and press the Arm-
band’s Status Button. The memory light will indicate memory level as:
• Green (solid) = More than 24 hours of memory life remain.
• Amber (flashing) = Less than 24 hours of memory life remain.
• Red (flashing) = Memory is full and the Armband cannot collect
additional data. Connect the Armband to your computer via the USB
cable and upload data before continuing use.

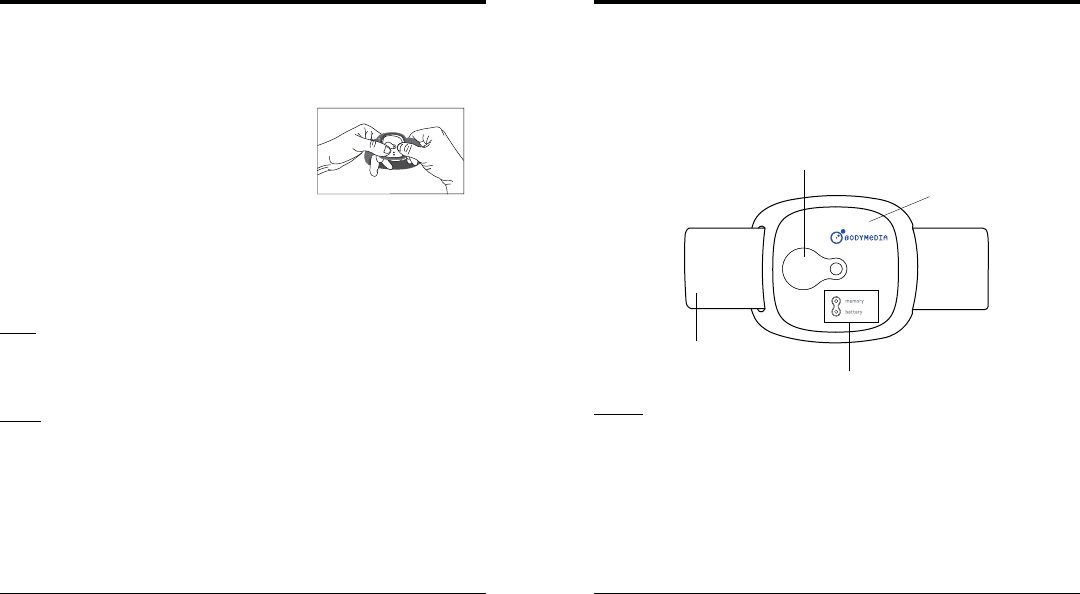

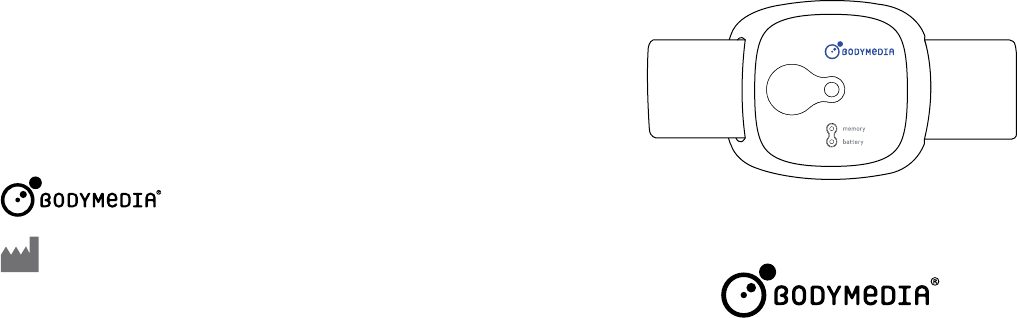

Status Button
Monitor
Status Lights
Armband strap
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
8 9
Bluetooth® Wireless Technology Instructions
Pairing the Armband with a Smartphone
The Armband is connected to a Smartphone with Bluetooth wireless technology
using a procedure called ‘pairing.’ By following a few simple steps, your Armband
can be paired with a Smartphone in a matter of minutes.
1. Put the Armband in pairing mode
Once you have set up the Armband according to the Quick Start, you can pair it
with a Smartphone. Hold the button on the Armband down for 5 seconds (This
applies for initial pairing, to clear an existing pairing, or to pair with a new Smart-
phone). To show pairing mode is active on the Armband, the memory and battery
status indicator lights will alternate in an amber color. The Armband will remain
in pairing mode for 2 minutes so that you can complete the next step with your
Smartphone.
2. Set your Smartphone to ‘discover’ the Armband
Follow your Smartphone’s instruction guide. First make sure that Bluetooth wire-
less technology is activated on your Smartphone. Then set your phone to discover
a device with Bluetooth wireless technology. This usually involves going to a ‘setup,’
‘connect’ or ‘Bluetooth’ menu on your phone and selecting the option to ‘discover’
or ‘add’ a Bluetooth device.
3. Your Smartphone will find the Armband
Your Smartphone will find the Armband under the name “XY’s Armband” where X
is the initial of the first name registered to the Armband and Y is the initial of the
last name. Your Smartphone then asks if you want to pair the Armband. Accept by
pressing ‘Yes’ or ‘Ok’ on the phone and confirm with the passkey or PIN=0000 (4
zeros). Your Smartphone will confirm when pairing is complete.
In case of unsuccessful pairing, go back to Step 1 and try again.
Initial Connection and Application Installation
Once your Armband is paired with your Smartphone, press the button on the Arm-
band to initiate the connection. The memory and battery status indicator lights will
alternate in a green color while the Armband is looking for the Application to sync
with your Smartphone. Your Smartphone may automatically find the corresponding
Application or you may need to search for the Application.
For the latest information on Bluetooth wireless technology applications for
Smartphones, please reference the Quick Start.
Made for
• iPod touch (2nd and 3rd generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iOS 4 required
The Armband is not designed to be used underwater or to come into continuous
contact with water. Do not immerse the Armband in water.
Water Resistance
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
10
To ensure the Armband is working correctly, they should be cleaned regularly.
Clean the Armband daily after sweating or when it becomes noticeably moist or
dirty. Failure to keep the Armband clean, or improper cleaning, may irritate the skin
and affect the sensor performance. Do not use solvents, cleaners or other chemi-
cals to clean the Armband and do not sterilize any part. Avoid the use of chemicals
and lotions on the skin where the Armband is worn.
Cleaning
To clean the Armband:
1. Gently wipe the side of the Armband that touches the skin with a soft cloth or
towel moistened with a mild soap and water.
2. Wipe with a clean damp cloth to remove any excess soap.
3. Use a dry, soft cloth or towel to completely dry before wearing it.
To clean the Armband strap:
1. Hand wash with mild soap and warm water, rinse, then air dry.
2. Machine drying may affect the performance and lifespan of the strap.
Disinfecting
The Armband may be disinfected occasionally by wiping with soft cloth dampened
with 70% isopropyl alcohol. Allow 5-10 minutes for drying before wearing. Always
disinfect the Armband and replace the Armband strap prior to use by others.
Care Instructions
11
Follow operating instructions
CAUTION
Non-Ionized radiation
The Waste Electrical and Electrical Equipment Regulations indicates
separate collection for electrical and electronic equipment
Type B Applied Part
FCC Logo
Serial Number
Manufacturer
Bluetooth® Wireless Techology
Electrical Safety
Transmit Power Class 8 – Less than 10mW output power
Duty Cycle Class 4 – permitted to operate at 100% duty cycle
Receiver Class 3 – Standard reliable SRD communication media
Symbol Definitions
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
CAUTION: Always consult a physician before starting any new diet or exercise
program. This system is not to be used for diagnostic purposes and is not
intended to be a substitute for the medical advice or supervision of your
personal physician.
CAUTION: Materials in the Armband have been evaluated for skin contact.
Because everyone’s skin is different you may experience irritation or redness
after wearing the Armband. If this occurs, discontinue use and consult your
physician.
• If you have known metal allergies, consult your physician prior to
wearing.
• Do not wear on an open wound, sore, or burn.
• To reduce potential for skin irritation, wear for a maximum of 23
hours per day.
• To reduce the potential risk of skin irritation, be sure to dry your arm
thoroughly before wearing.
• The tab at the end of the Armband strap should be aligned to avoid
unintended contact with the skin which may cause scratching.
• To avoid skin burns, do not wear when it has been exposed to
excessively hot temperatures including direct sun exposure.
CAUTION: Be careful not to over-tighten the strap while on your arm. If you
feel constriction or loss of circulation at any time, loosen the adjustable strap
and re-fasten it to a more comfortable setting.
CAUTION: This product is not defibrillation proof.
CAUTION: Do not place this equipment in close proximity to other devices
that can cause electromagnetic interferences of any nature.
Cautions
12
CAUTION: The equipment is not suitable for use in the presence of a FLAM-
MABLE ANESTHETIC MIXTURE WITH AIR OR WITH OXYGEN OR NITROUS
OXIDE.
CAUTION: Medical electrical equipment requires special precautions regard-
ing electromagnetic environments (EMC) and must be installed and put
into service according to the EMC information provided in the User Guide.
Portable and mobile radio frequency (RF) communications equipment can
effect medical electrical equipment.
CAUTION: The equipment of the system should not be used adjacent to or
stacked with other equipment. If such a setup is necessary, all equipment
should be checked to verify correct operation.
CAUTION: Keep this equipment out of reach of children. The products con-
tain small, removable parts that may become choking hazards.
CAUTION: The equipment and wireless accessories should not be used
in airplanes, hospitals, or any location that prohibits cellular telephones or
electronic devices.
CAUTION: Do not use unapproved accessories.
CAUTION: Do not use the “reminders” feature of the Armband as a notifica-
tion for any vital, life-critical events (including taking medication).
CAUTION: To prevent possible damage to the USB cable, grasp the plug end
when disconnecting the USB cable. Replace the cable if it becomes frayed.
CAUTION: Check the equipment for sharp edges or damage before each use.
13
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
CAUTION: DO NOT IMMERSE THE ARMBAND IN WATER. The Armband
is not designed to be used underwater or to come in continuous contact with
water.
CAUTION: Though the Armband was designed for wearability and long-term
use, it is a sensitive monitoring device. Rough handling can break internal
components. Never drop or shock the Armband and always store it in a safe
place when not in use.
CAUTION: Avoid exposing the equipment to extreme temperatures, direct
sunlight, moisture, sand, dust, or mechanical shock.
CAUTION: Do not incinerate.
CAUTION: Do not attempt to open the Armband yourself. It contains no user-
serviceable parts. Refer all servicing to qualified Service Personnel. Opening
the Armband yourself will void the warranty.
CAUTION: Changes or modifications to the equipment not expressly ap-
proved by the party responsible for compliance could void the user’s authority
to operate the equipment.
14
The firmware included in and certain software provided and associated with the
product is subject to a BodyMedia Software License Agreement as set forth here:
www.bodymedia.com/Support-Help/Policies/EULA.
End User License Agreement
15
If you want to dispose of the Armband, please do not use the ordinary trash. These
products must not be disposed of with your other household waste. Dispose of the
Armband equipment by taking it to a designated collection point for the recycling
of waste electrical and electronic equipment. This will help to conserve natural re-
sources and ensure that the Armband is recycled in a manner that protects human
health and the environment. For more information on where you can drop off your
waste equipment for recycling, please contact your local township, municipality, or
city; your household waste disposal service; or the store where you purchased the
Armband.
Safe Disposal
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
For troubleshooting information and additional resources, please refer to the Help
section on www.bodymedia.com.
Troubleshooting
Product Specifications
Armband
• Sensors:
• Accelerometer (3-axis)
• Heat Flux
• Skin Temperature
• Galvanic Skin Response (GSR)
• Materials:
• Armband: ABS, polycarbonate, thermoplastic polyurethane, 304 grade stainless steel
• Adjustable strap/wing assembly: Nylon, polyester, Lycra (no latex content) or
polyisoprene, polycarbonate, thermoplastic polyurethane, silicone
• Battery power: Model AB185: about 2-4 days under steady use
• Battery type: Internal lithium polymer cell battery
• Radio Frequency: 2.4GHz
• Model AB185 contains a class 2 Bluetooth® wireless technology transceiver
• Transmitter output power: Model AB185: <2.5mW
• Memory capacity: about 14 days under steady use for Model AB185
• Armband size: (l) 55mm x (w) 62mm x (h) 13mm [2.2” x 2.4” x 0.5”]
• Armband weight (with adjustable strap): 45.4g (1.6oz)
• Water resistance: IP64 classified (only when Armband is properly inserted into the Armband
strap)
• Operating temperature/humidity: 5°C - +40°C (40°F to 104°F)/ 5 - 95% RH non-condensing
• Storage temperature/humidity: -20°C - +60°C (-4°F to 140°F) / 5 - 95% RH non-condensing.
16 17
Accuracy
Accelerometer (3-axis)
Calibrated range is +/- 1.0g
Minimum resolution is 0.01g
Two-standard-deviation error of
+/-0.08g on all axes
Heat Flux
Calibrated Range is 0.0 W/m2 to
300.0 W/m2
A minimum resolution of 1.0 W/m2
Two-standard-deviation error of
+/-10.0 W/m2, 0 to 30 W/m2
Two-standard-deviation error of
+/-35.0% otherwise
Galvanic Skin Response
Calibrated Range is 56 kOhms to
20 MOhms (50.0 nSiemens – 17.0
µSiemens)
Two-standard-deviation error of +/- 9.0
nSiemen. 50 to 225 nSiemens
Two-standard-deviation error of +/-
4.0% otherwise
Skin Temperature
Calibrated Range is 20.0ºC to 40.0ºC
A minimum resolution of 0.05ºC
Two standard deviation error of +/-
0.8°C
System (Per day, adults)
Total calories/METs for free living
activities: mean error < 10%
Total minutes of physical activity:
mean error < 5%
Total step count: mean error < 9%
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
Warranty
Unless otherwise set forth in a separate limited warranty description included with the BodyMe-
dia Hardware (including Armband, Display with Clip and Watch strap), BodyMedia warrants that
BodyMedia Hardware is free of defects in materials and workmanship under normal use and
service (“Limited Warranty”) for 1 year from the date the product is purchased by the original
retail purchaser (the “Limited Warranty Period”). This warranty is only valid for the original retail
purchaser and only from the date of initial retail purchase, and the purchaser must provide proof
of purchase. The purchaser will be responsible for, and pre-pay, all return shipping charges and
shall assume all risk of loss or damage to product while in transit to BodyMedia. We recommend
that you use a traceable method of shipping for your protection.
If a defect covered by this Limited Warranty occurs during the Limited Warranty Period, Body-
Media will, at its option, repair or replace the entire unit or refund the original purchase price.
The foregoing remedies are purchaser’s sole and exclusive remedy and BodyMedia’s sole and
exclusive liability for breach of the Limited Warranty.
This Limited Warranty is subject to compliance with the applicable user guides for the BodyMedia
Hardware and does not apply to normal wear and tear or damage caused by improper or incor-
rectly performed maintenance, negligence, accident, misuse or unreasonable use, modification,
tampering, or any other causes not related to design, materials or workmanship. This Limited
Warranty excludes replaceable batteries.
EXCEPT AS SPECIFIED IN THIS LIMITED WARRANTY SECTION, ALL EXPRESS OR IMPLIED
WARRANTIES, CONDITIONS AND REPRESENTATIONS, INCLUDING, WITHOUT LIMITATION,
ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PAR-
TICULAR PURPOSE, NON-INFRINGEMENT, QUALITY, NON-INTERFERENCE, ACCURACY OR
ARISING FROM A COURSE OF DEALING, PERFORMANCE, USAGE, OR TRADE PRACTICE, ARE
HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW AND ARE EXPRESSLY
DISCLAIMED BY BODYMEDIA. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE
EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO THE LIMITED WARRANTY PE-
RIOD. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY. THESE
18
WARRANTIES GIVE CUSTOMER SPECIFIC LEGAL RIGHTS, AND CUSTOMER MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION.
SUBJECT TO APPLICABLE LAW, IN NO EVENT SHALL BODYMEDIA’S LIABILITY EXCEED THE
PURCHASE PRICE OF THE BODYMEDIA HARDWARE. This disclaimer and exclusion shall apply
even if the Limited Warranty set forth above fails of its essential purpose.
This limited warranty does not apply to any firmware included in or software provided and as-
sociated with the product. All such firmware and software is licenses under a seperate end user
license agreement a www.bodymedia.com/Support-Help/Policies/EULA and/or in the EULA
provided with the download of any such software.
19
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
Flicker
IEC 6100-3-3
N/A
Harmonics
IEC 6100-3-2
N/A The Armband is suitable for use in all establishments,
including domestic, and those directly connected to the
public low-voltage power supply network that supplies
buildings used for domestic purposes.
RF Emissions
CISPR 11
Class B, Group 1 The Armband uses RF energy only for its internal func-
tion. Therefore, its RF emissions are very low and are
not likely to cause any interference in nearby electronic
equipment.
The Armband is intended for use in the electromagnetic environment specified
below. The customer or user of the Armband should ensure that it is used in such
an environment.
Guidance and Manufacturer’s Declaration - Emissions
Emissions Test Compliance Electromagnetic Environment - Guidance

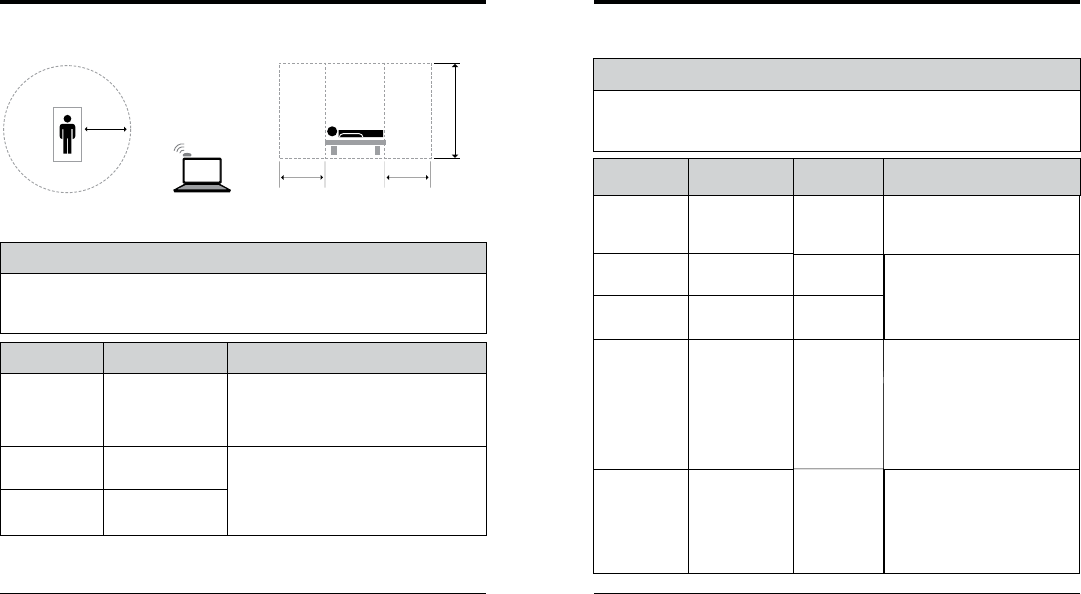

Computer and Wireless Communicator
1.5m
Diagram not to scale.
1.5m 1.5m
2.5m
User Environment
20
Power frequency magnetic fields should
be that of a typical commercial or hospital
environment.
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the Armband
requires continued operation during power
mains interruptions, it is recommended that
Armband be powered from an uninterrupt-
ible power supply or battery.
Mains power quality should be that of a typi-
cal commercial or hospital environment.
Floors should be wood, concrete, or ceramic
tile. If floors are synthetic, the r/h should be
at least 30%.
Electromagnetic
Environment - Guidance
3A/mPower
Frequency
50/60Hz
Magnetic Field
IEC 61000-4-8
3A/m
N/A
Voltage Dips/
Dropout
IEC 61000-4-11
>95% Dip for
0.5 Cycles
60% Dip for 5 Cycles
30% Dip for 25
Cycles
>95% Dip for 5
Seconds
N/A
s
±1kV Differential
±2kV Common
N/AEFT
IEC 61000-4-4
±2kV Mains
±1kV I/Os
The Armband is intended for use in the electromagnetic environment specified
below. The customer or user of the Armband should ensure that it is used in such an
environment.
Guidance and Manufacturer’s Declaration - Immunity
±6kV Contact
±8kV Air
ESD
IEC 61000-4-2
±6kV Contact
±8kV Air
Immunity Test IEC 60601
Test Level
Compliance
Level
21
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
3 Vrms
150 kHz to
80 MHz
3 V/m
80 MHz to
2.5 GHz
3 Vrms
150 kHz to
80 MHz
3 V/m
80MHz to
2.5 GHz
Portable and mobile communications equip-
ment should be separated from Armband by no
less than the distances calculated/listed below:
D=(3.5/V1)(Sqrt P)
D=(3.5/E1)(Sqrt P)
80 to 800 MHz
D=(7/EI)(Sqrt P)
800 MHz to 2.5 GHz
Where P is the max power in watts and D is the
recommended separation distance in meters.
Field strengths from fixed transmitters, as
determined by an electromagnetic site survey,
should be less than the compliance levels
(V1 and E1).
Interference may occur in the vicinity of equip-
ment containing a transmitter.
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
The Armband is intended for use in the electromagnetic environment specified
below. The customer or user of the Armband should ensure that it is used in such an
environment.
Guidance and Manufacturer’s Declaration - Emissions
IEC 60601
Test Level
Compliance
Level
Electromagnetic
Environment - Guidance
Immunity Test
22
0.1 0.3689 0.3689 0.7378
The
Armband
is intended for use in the electromagnetic environment specified below.
The customer or user of the
Armband
can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF Communications
Equipment and the
Armband
as recommended below, according to the maximum output
power of the communications equipment.
Recommended Separation Distances for the Product
0.01 0.1166 0.1166 0.2333
Separation (m)
150kHz to 80MHz
D=(3.5/V1)(Sqrt P)
Separation (m)
80 to 800MHz
D=(3.5/V1)(Sqrt P)
Separation (m)
800MHz to 2.5GHz
D=(7/E1)(Sqrt P)
Max Output
Power (Watts)
1 1.1666 1.1666 2.3333
10 3.6893 3.6893 7.3786
100 11.6666 11.6666 23.3333
23
BodyMedia FIT Armband BW Manual BodyMedia FIT Armband BW Manual
Regulatory Statement
FCC Declaration of Conformity – We, BodyMedia, Inc., One Gateway Center, 420 Fort Duquesne
Boulevard, Suite 1900, Pittsburgh, PA 15222, declare under our sole responsibility that the
products, BodyMedia, Inc. and BodyMedia® Armband (Model AB185) comply with part 15 of
the FCC rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit separate from the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
• CAUTION: Changes or modifications to this equipment not expressly approved by
the party responsible for compliance could void the user’s authority to operate the
equipment.
RF Exposure information: See 2.1093 of the FCC Rules
This product is a Type B Applied Part complying with the specified requirements of the Standard
to provide protection against electric shock, particularly regarding allowable Leakage Current.
This Class B digital apparatus complies with Canadian ICES-003.
Cet apareil numèrique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Frequency: 2.4 GHz
Transmitter output power: Model AB185 <2.5mW
24
Models AB185:
EN 60601-1-2- Medical electrical equipment – Part 1-2: General requirements for safety – Collat-
eral standard: Electromagnetic compatibility – Requirements and tests
EN 60601-1- Medical Electrical Equipment; Part 1 General Requirements for Safety
IEC 60601-1-2 – Medical electrical equipment – Part 1-2: General requirements for safety – Collat-
eral standard: Electromagnetic compatibility – Requirements and tests
IEC 60601-1- Medical Electrical Equipment; Part 1 General Requirements for Safety
ETSI EN 300 328 - Article 3.2 of R&TTE Directive) – 2.4GHz.
ETSI EN 301 489-1
ETSI EN 301 489-17 (Article 3.1(b) of R&TTE Directive) 2.4GHz.
UL 60601-1– Medical Electrical Equipment; Part 1 General Requirements for Safety
CANCSA-C22.2 NO. 601.1M90– Medical Electrical Equipment; Part 1 General Requirements for
Safety
FCC-47CFR-Part15– FCC radiated emissions requirements
FCC 15.247
ICES-003 Tests
RSS210 FHSS – Industry Canada emissions requirements
RoHS requirements
25
BodyMedia FIT Armband BW Manual
26
Copyright, Patent and Trademark Notice
The products and services which include the software, firmware, algorithms, processes, and
methods of BodyMedia FIT™, SenseWear® applications as well, all devices and components
used therewith including the Armband, Display, and Wireless Communicator, are covered by one
or more of the following patents: United States Patent Nos.: D439,981, 6,527,711, 6,595,929,
6,605,038, 7,020,508, 7,153,262, 7,261,690, 7,285,090 and 7,502,643; European Patent Nos.:
1,292,217 and 1,292,218; Canadian Patent Nos. 2,413,220 and 2,501,899; S. Korean Patent Nos.
KR 10-0831036, 10-0821945 10-0885030, and 10-0956791; Israeli Patent Nos. 153516 and 160079;
Japanese Patent Nos. JP4,125,132 and 4,283,672; Mexican Patent Nos. MX 242292, 236870,
250153, 245862 and 250156; and various worldwide patents pending. This notice is accurate as of
June 17, 2010. For the latest information please contact BodyMedia.
BodyMedia, the “Four Circle” Design, GoWear, InnerView and SenseWear are registered trade-
marks and BodyMedia FIT is a trademark of BodyMedia, Inc.
User Guide, Interface, software and firmware © Copyright 2000-2010 BodyMedia. Any copying,
use, distribution or reverse engineering without a specific license from BodyMedia, or as permit-
ted by applicable law, is strictly prohibited.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed
to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance. iPhone, iPod, and iPod touch are trade-
marks of Apple Inc., registered in the U.S. and other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by BodyMedia, Inc. is under license. Other trademarks and trade
names are those of their respective owners.
