BodyMedia 908903PROD1 Sensewear Watchhead User Manual SW D M Rev2 indd
BodyMedia, Inc. Sensewear Watchhead SW D M Rev2 indd
users manual
© Copyright 2007 BodyMedia, Inc.SW-D-M Rev2
®
4 Smithfi eld Street
11th Floor
Pittsburgh, PA 15222
USA
P.412.288.9901
F.412.288.9902
www.bodymedia.com
BodyMedia International Srl
Via G. Balzaretti, 15
20133 Milan, Italy
P.+39-02-2774121
F.+39-02-27741250
www.bodymedia.eu
display
Instructions For Use

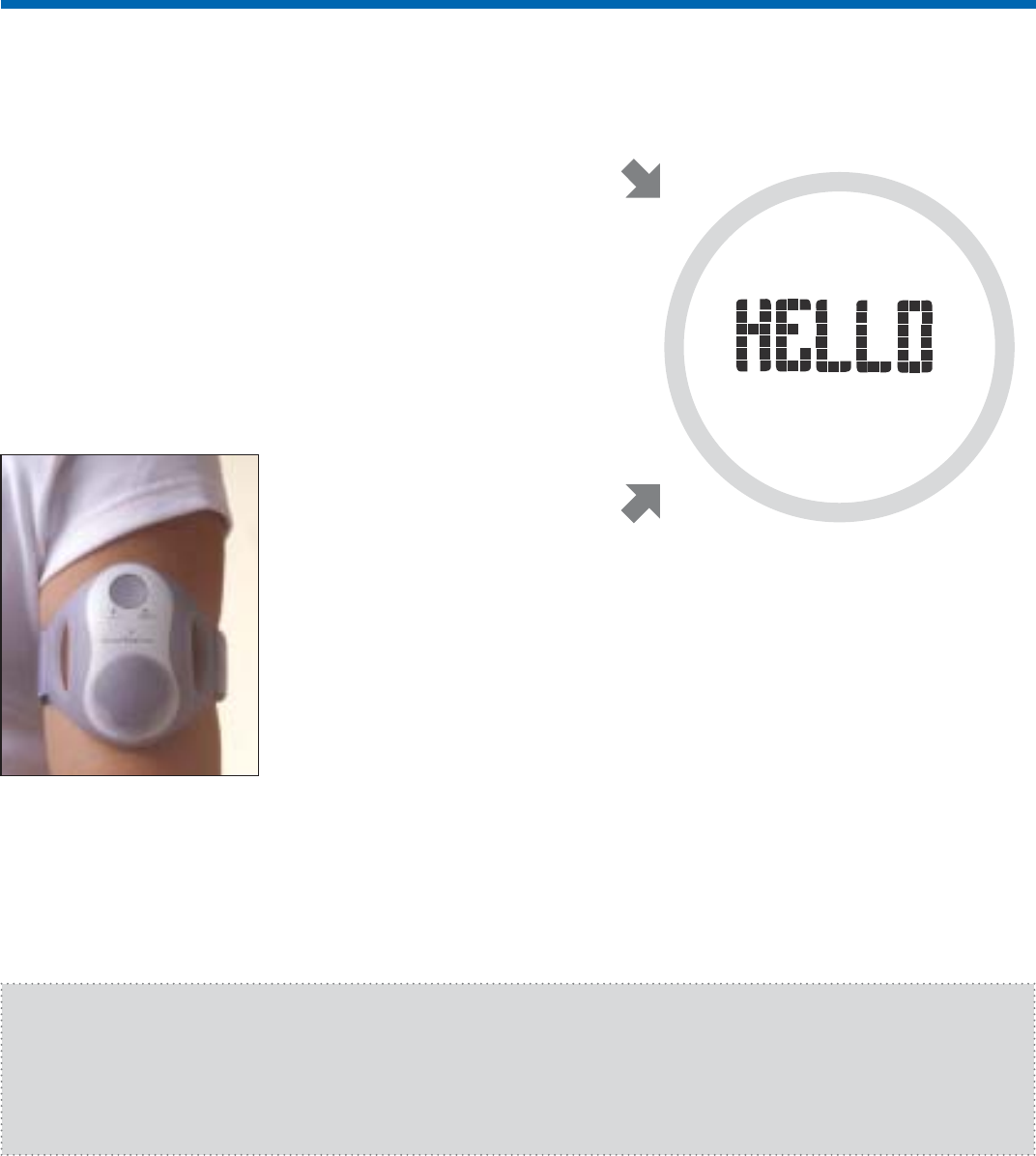

Quick Start:
1. Set up your armband
using the SenseWear Soft-
ware. Use Display Settings
tab to set options.
2. While wearing the
armband, hold the mode
and view button on the
display.
3. Press armband
button to sync.
1
General Information 02
1.1 Care And Maintenance 03
1.2 Water Resistance 03
1.3 Using the Display Clip 03
1.4 Using the Display Watch Band 04
1.5 Battery Replacement 05
1.6 Warranty 06
1.7 Warnings and Cautions 07
1.8 Disposal 09
1.9 Manufacturer’s Declarations 10
How to Use Your SenseWear® Display 14

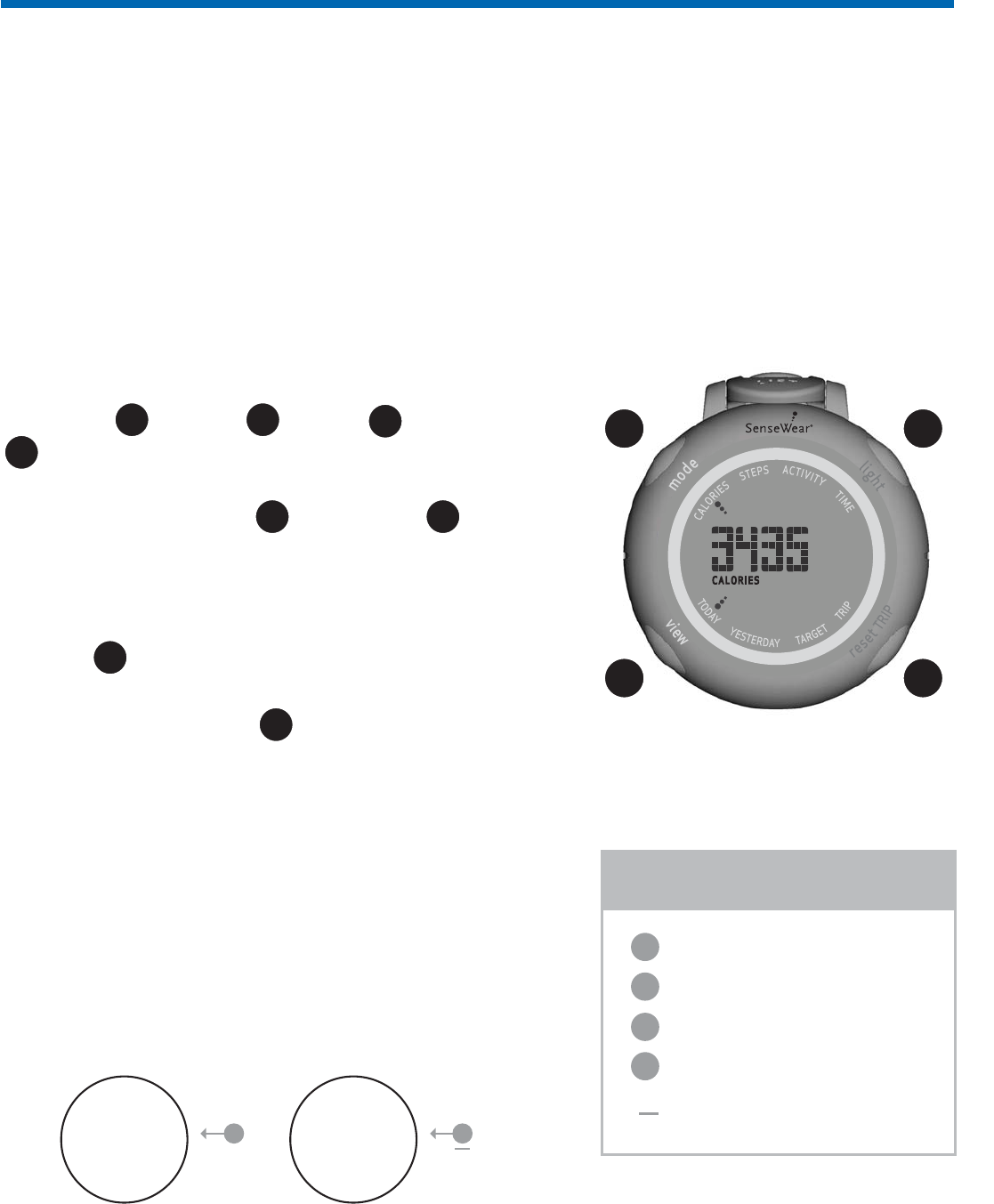

2.1 Display Overview 14
2.2 Initializing 16
2.3 Mode Functions 17

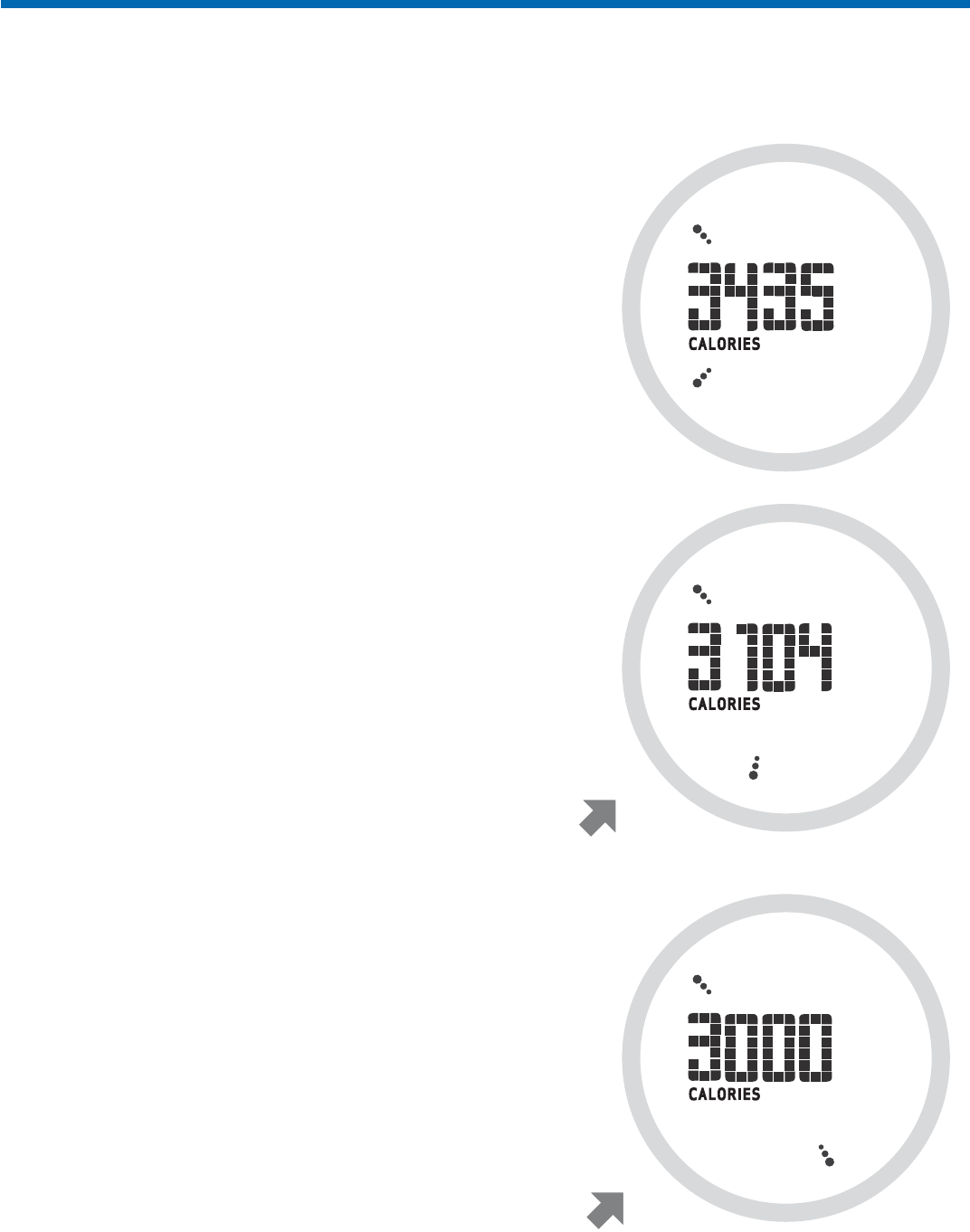

2.4 View Functions 19
2.5 Backlight 21
2.6 Reset Trip 21

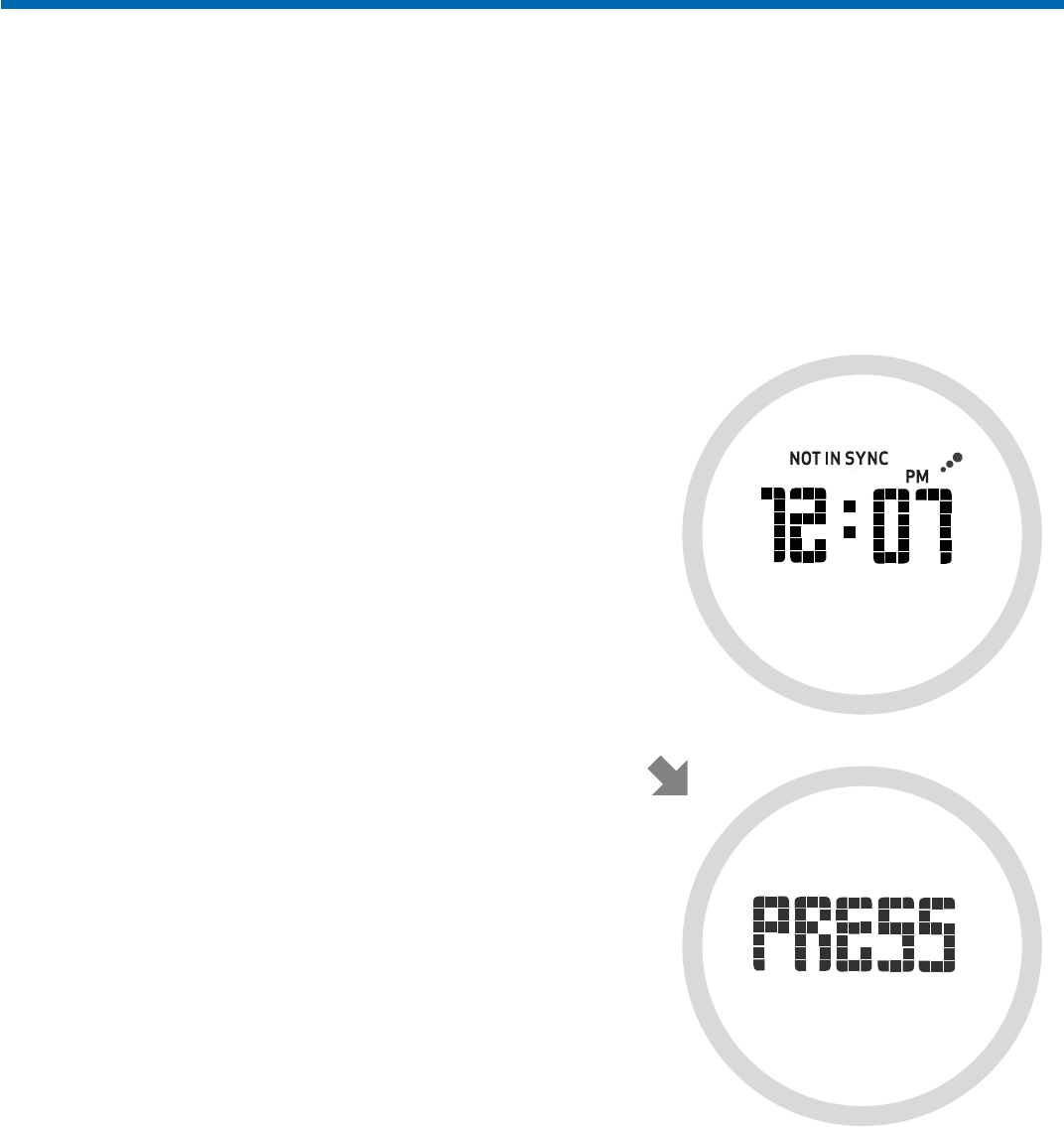

2.7 Out of Sync Mode 23

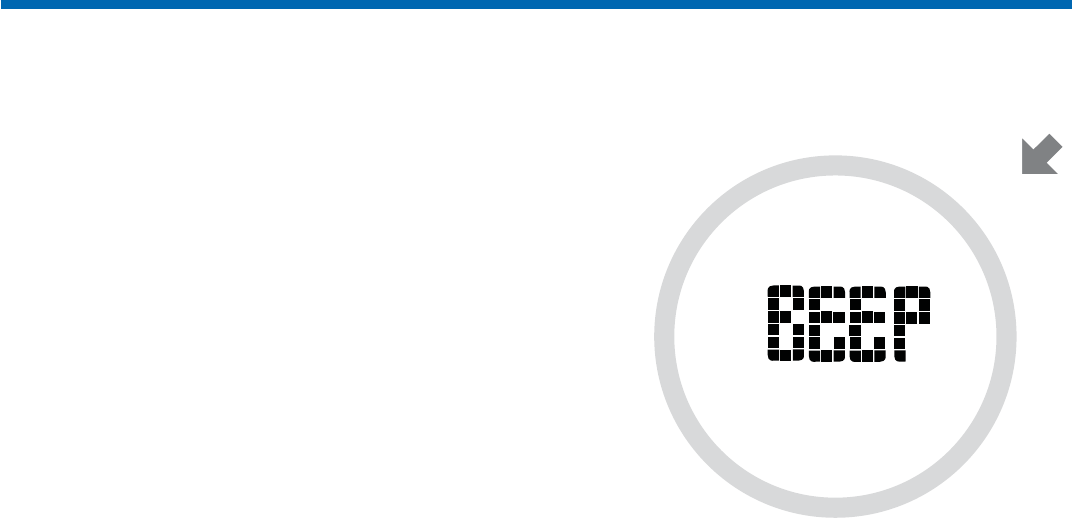

2.8 Turning the Sound On/Off 23
2.9 Syncing Your Display with Another Armband 24
Technical Specifi cations 25
Copyright, Patent and Trademark Notices 25
Compatibility 26
Certifi cations 26
1.
2.
3.
4.
5.
6.
TABLE OF CONTENTS
2

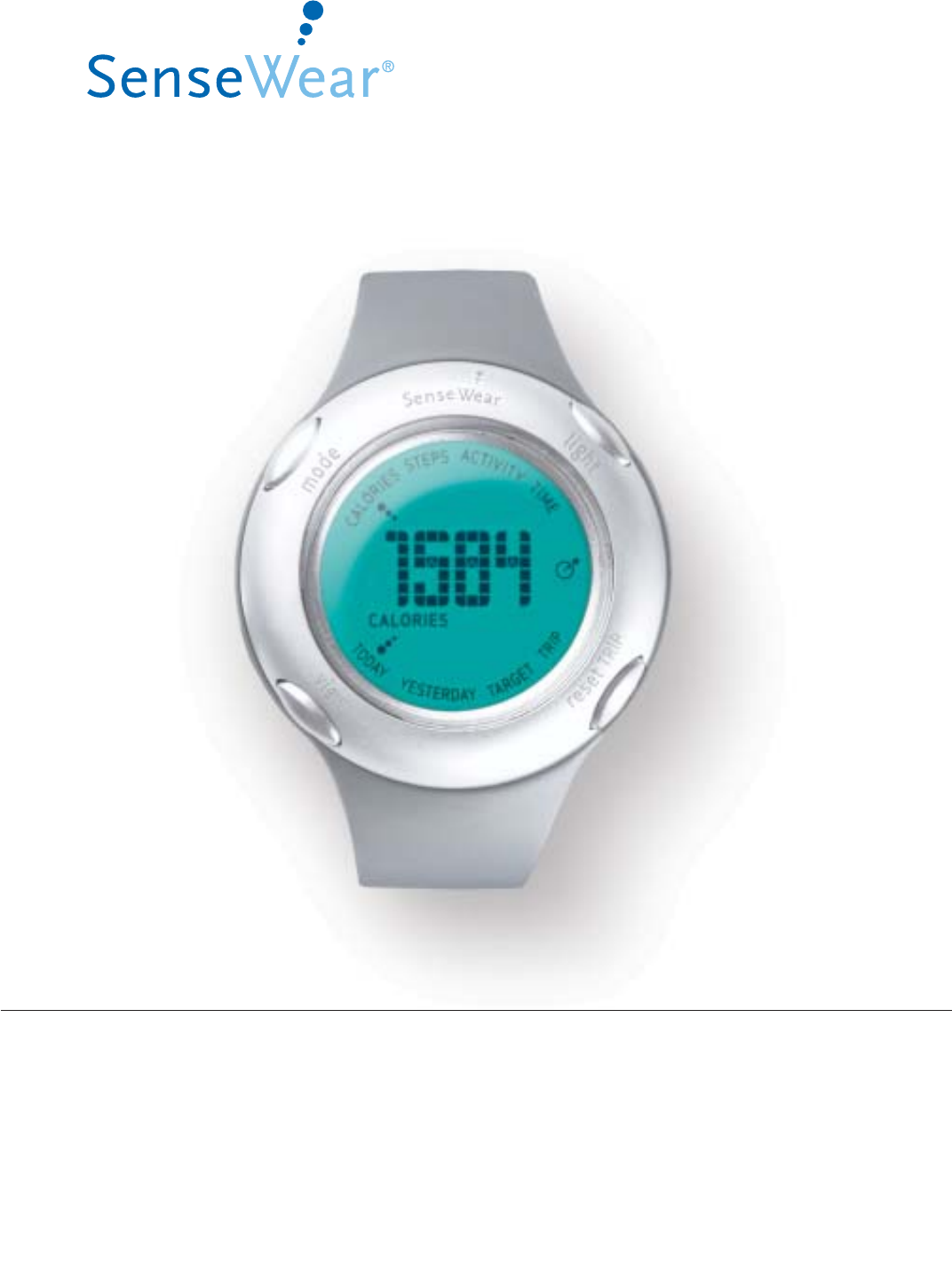

1. General Information
SenseWear®
display
SenseWear® clip
SenseWear®
watchband
The SenseWear® display is a powerful, easy-to-use and versatile accessory to
the SenseWear® armband. This operating manual applies to the SenseWear®
display and its features and functions. It is intended to instruct you on the use
of the device and covers all operations and features of the product.
The SenseWear® display is an electronic input/output device intended for use
ONLY with the SenseWear® Pro3 armband and SenseWear® Professional software
6.0. You’ll need these versions of each product in order to set up and use the
display. The display can be used as an “up-to-the-minute” feedback device in
conjunction with applications for: nutritional diagnostics, metabolic diseases,
pediatrics, pulmonary and cardiology studies, obesity, diabetes management,
rehabilitation, weight loss and, in general, anywhere it is necessary to monitor
energy expenditure, METs, physical activity, and steps.

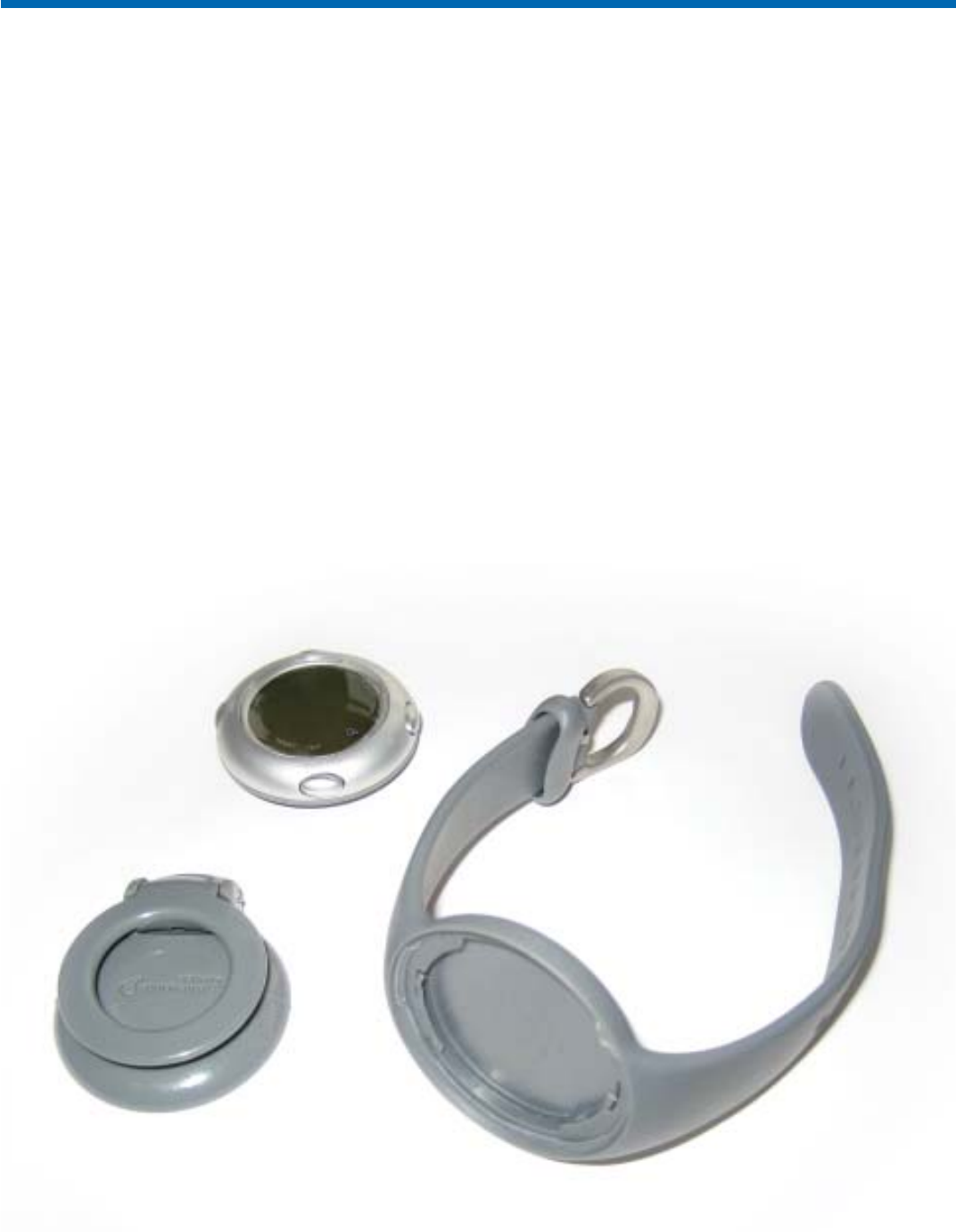

Overview of components
3
1. General Information
1.1 Care and Maintenance
Always clean and dry the display, clip and watchband if they become noticeably
moist or dirty. Failure to keep the display clean or improper cleaning may cause
irritation to the skin and deterioration to the outer casing of the display or
watchband.
To clean, moisten a soft cloth or towel with mild disinfectant soap and water.
Wipe and dry the skin-touching side of the display clip and watchband. Never
use solvents to clean the display.
1.2 Water Resistance
The display is water resistant up to 30 meters.

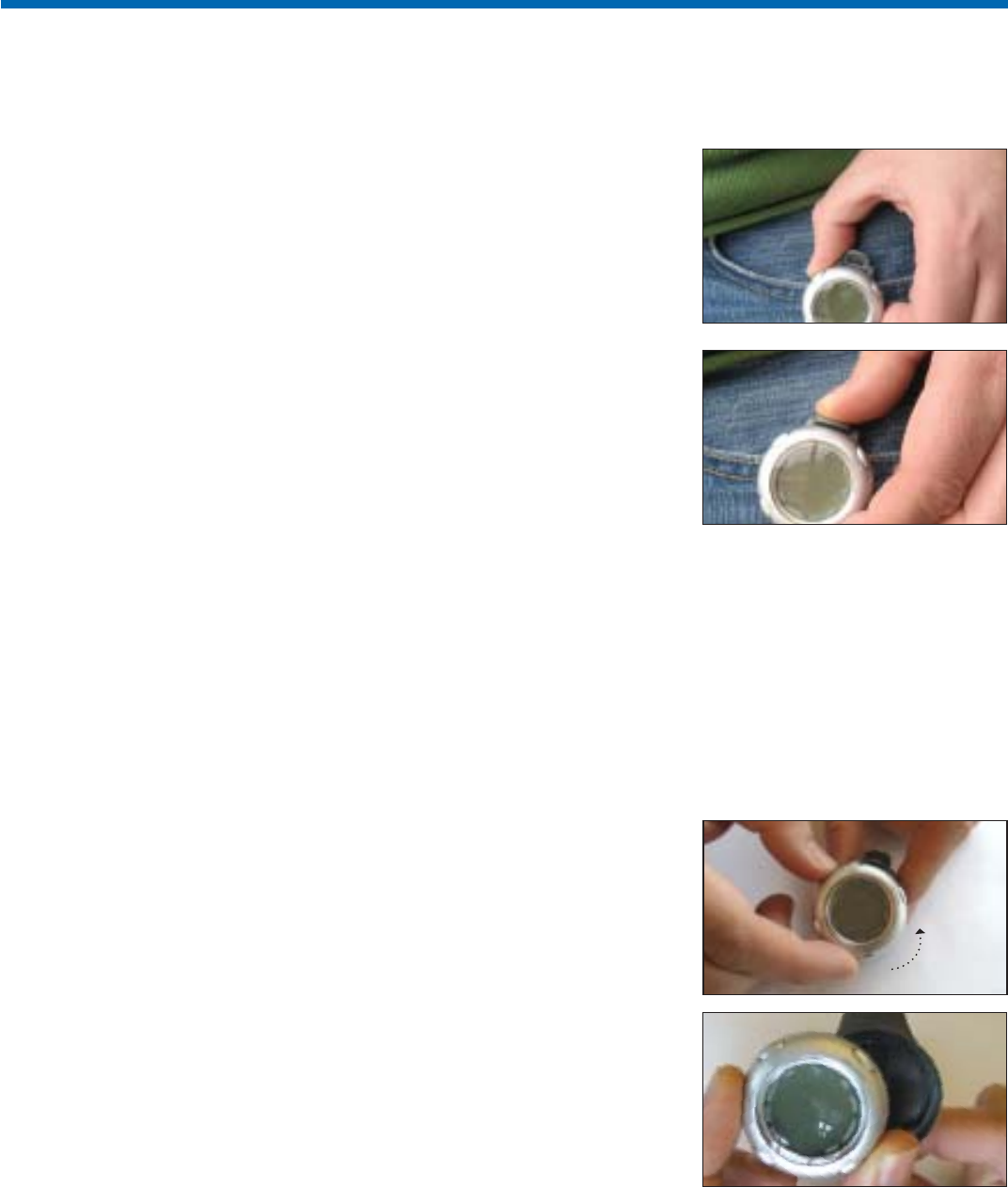

1.3 Using the display clip
The display comes pre-attached to the SenseWear® clip. The clip functions
much like a paper clip in that it allows you to attach the display fi rmly to thin
material or clothing such as a shirt sleeve or belt.
To attach the clip to a desired area, gently lift
the clip lever located between the mode and
light buttons of the display. This will open the
clip mouth.
1.
Note: The clip is designed to fasten to most soft materials. Fastening to
delicate fabrics can leave an imprint. Fastening to hard materials may
not hold the display securely. Never slide thick materials into the clip
opening as it may strain and damage the clip.
4
Slide the material you wish to attach the clip
to between the upper and lower portions of the
clip mouth.
2.
1. General Information
1.4 Using the display watchband
The display comes with a watchband that allows you to wear the display on your
wrist.
To detach, lift the clip lever. This will loosen the grip of the clip mouth so you
can remove the clip.
Then push the clip lever back down to close
the clip. This will tighten the mouth around the
material, attaching the display securely to the
material.
3.
You must fi rst remove the display from the clip.
To do this, simply twist the display counter
clockwise and lift.
1.
To attach the display to the watchband, place
the display in the band cradle, with the logo
facing the nine’o’clock position. Make sure the
display is fi rmly seated into the cradle evenly.
2.
5

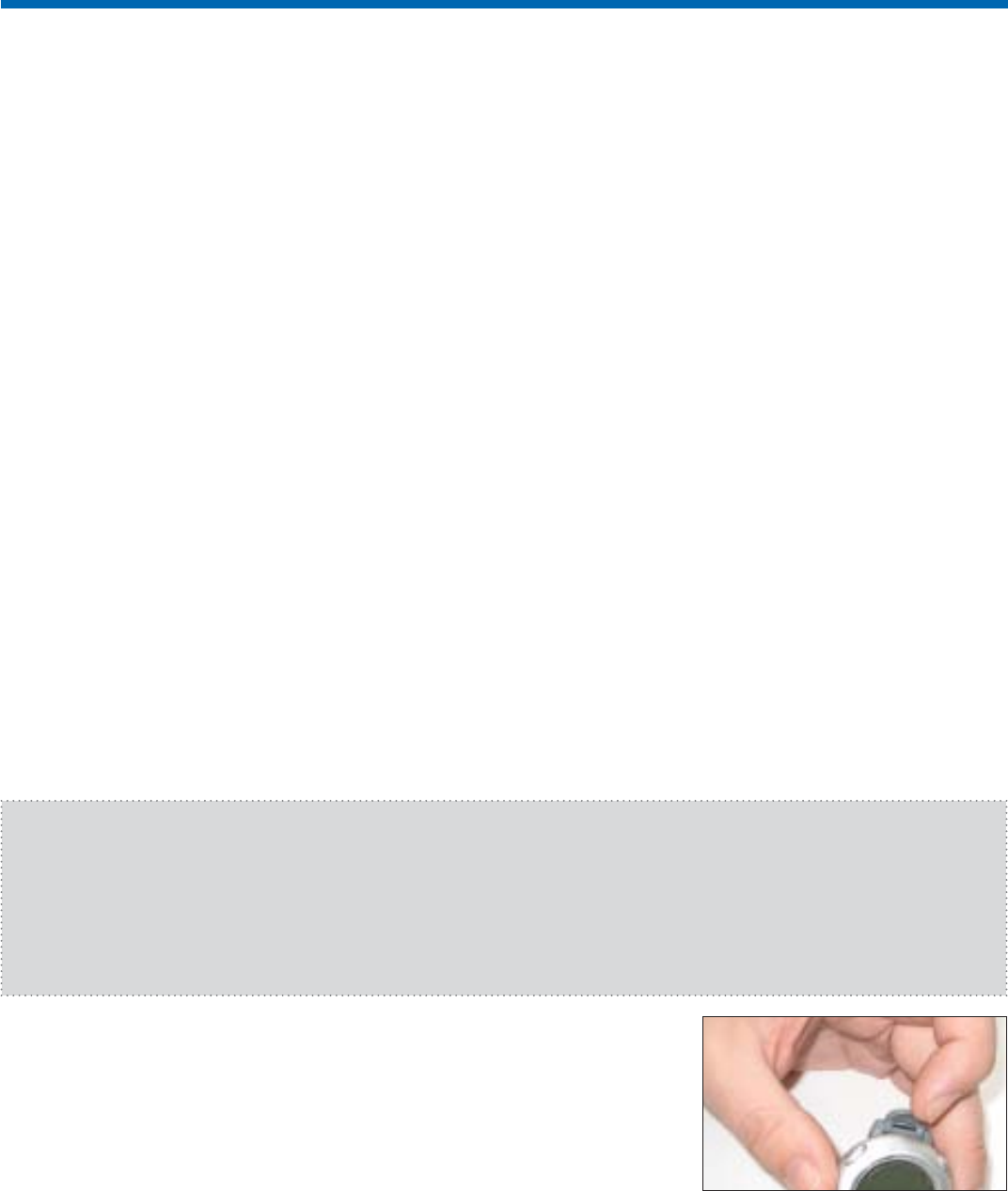

To remove it from the watchband, twist the display counter clockwise and lift.
1. General Information

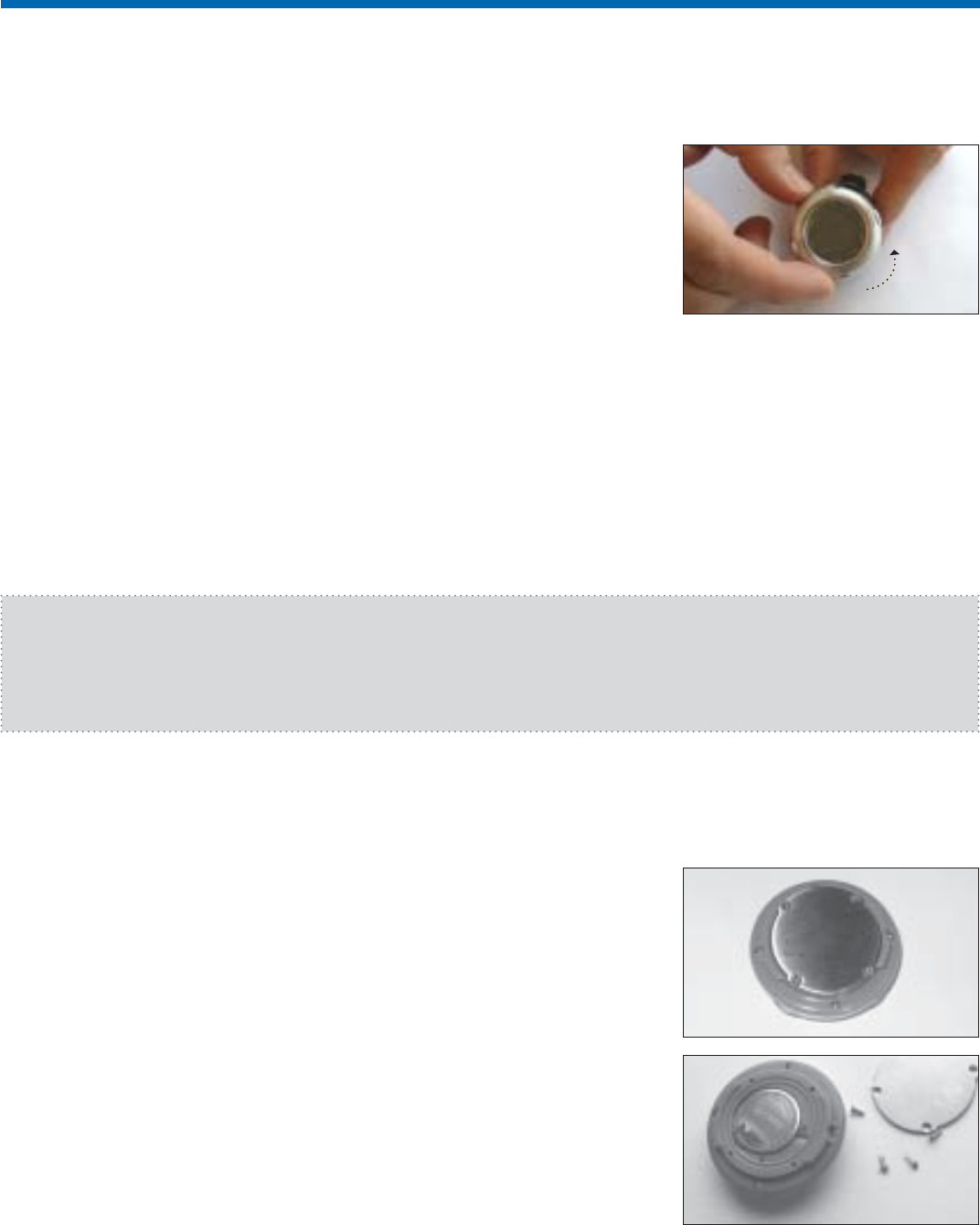

1.5 Battery replacement
The display comes equipped with a replaceable CR-2032 coin cell battery. When
the battery needs to be replaced, we recommends that you bring the display to
a jeweler or watch vendor. To replace the battery yourself, follow these steps.
Make sure you have a fresh CR-2032 coin cell battery and a #0 size Phillips
head screwdriver.
1.
Remove the display unit from the watchband or
clip. See section 1.4 for details.
2.
Turn the unit over, revealing the underside,
and remove the four small screws attaching the
back plate to the display.
Remove the old battery and replace it with the
new one with the (+) side facing up.
Reattach the back plate, text facing up.
Once attached, turn the unit over and press any
button to wake the display.
3.
4.
5.
Note: Expected life of this battery under normal use is 6-12 months. Coin
cell batteries can be readily purchased from a variety of online vendors,
electronic stores and drug stores.
Then twist the display into the watchband
cradle clockwise. The display is secure when the
two lines along the side of the display line up.
This is the “locked” position.
3.
6
1. General Information
1.6 Warranty
BodyMedia® warrants that the BodyMedia Hardware (SenseWear® display with
clip and watch strap) is free of defects in materials and workmanship under
normal use and service, for 12 months from date the product is shipped to the
customer. (“Limited Warranty Period”). If a defect covered by this Limited
Warranty occurs during the Limited Warranty Period, BodyMedia will, at its op-
tion, repair, replace the entire unit or refund the original purchase price. THE
FOREGOING REMEDIES ARE THE SOLE AND EXCLUSIVE REMEDY AND BODYMEDIA’S
SOLE AND EXCLUSIVE LIABILITY FOR BREACH OF THE LIMITED WARRANTY.
This Limited Warranty is subject to compliance with the Safety Consider-
ations or Care & Maintenance sections of this User Guide and does not apply
to defects that have been caused by improper or incorrectly performed
maintenance, negligence, accident, misuse or unreasonable use, modifi cation,
tampering, normal wear and tear, or any other causes not related to defective
materials or workmanship. This Limited Warranty excludes batteries.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES AND NO OTHER
REPRESENTATIONS OR CLAIMS OF ANY NATURE SHALL BE BINDING OR OBLIGATE
BODYMEDIA. ANY IMPLIED WARRANTIES APPLICABLE TO THE BODYMEDIA HARD-
WARE, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MER-
CHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTIES OF TITLE
OR NONINFRINGEMENT, ARE LIMITED TO THE LIMITED WARRANTY PERIOD ABOVE.
Subject to applicable law, in no event shall BodyMedia’s liability exceed the
purchase price of the BodyMedia Hardware.
Important: Make sure the text on the back plate is facing up. If the back
plate is reattached upside down, the display may not operate correctly.
7
1. General Information
IN NO EVENT SHALL BODYMEDIA OR ANY AUTHORIZED BODYMEDIA SERVICE
PROVIDER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, PUNITIVE, OR INCIDENTAL
DAMAGES RELATED TO THE BODYMEDIA HARDWARE EVEN IF BODYMEDIA WAS
AWARE OF THE POSSIBILITY OF SUCH DAMAGES.
1.7 Warnings and Cautions
1.7.1 Warnings
This product complies with the general requirements for a safe medical device
under applicable directives. However, this product alone is not meant to sub-
stitute for proper medical diagnosis, care, or treatment. Users should not make
drastic changes to their lifestyle based solely on data displayed on this device.
Any health assessment decisions based on the data from this device should be
made only by medical personnel and should consider the condition and lifestyle
of the subject tested. The SenseWear® display should not be used for life
critical applications; improper usage may result in harm or even death to the
wearer.
The Body Monitoring System has been clinically validated for subjects between
7 and 65 years of age who are engaged in resting, ambulatory, stationary
biking, motoring and weight-lifting activities, etc. Due to metabolic varia-
tions, subjects who are 1) outside this age range or 2) engaged in alternate or
obscure activities may see decreased accuracy in the data..
This product is non-defi brillation proof.
Do not get the device close to other devices that can cause electromagnetic
interferences of any nature.
EQUIPMENT not suitable for use in the presence of a FLAMMABLE ANAESTHETIC
MIXTURE WITH AIR or WITH OXYGEN OR NITROUS OXIDE.
8

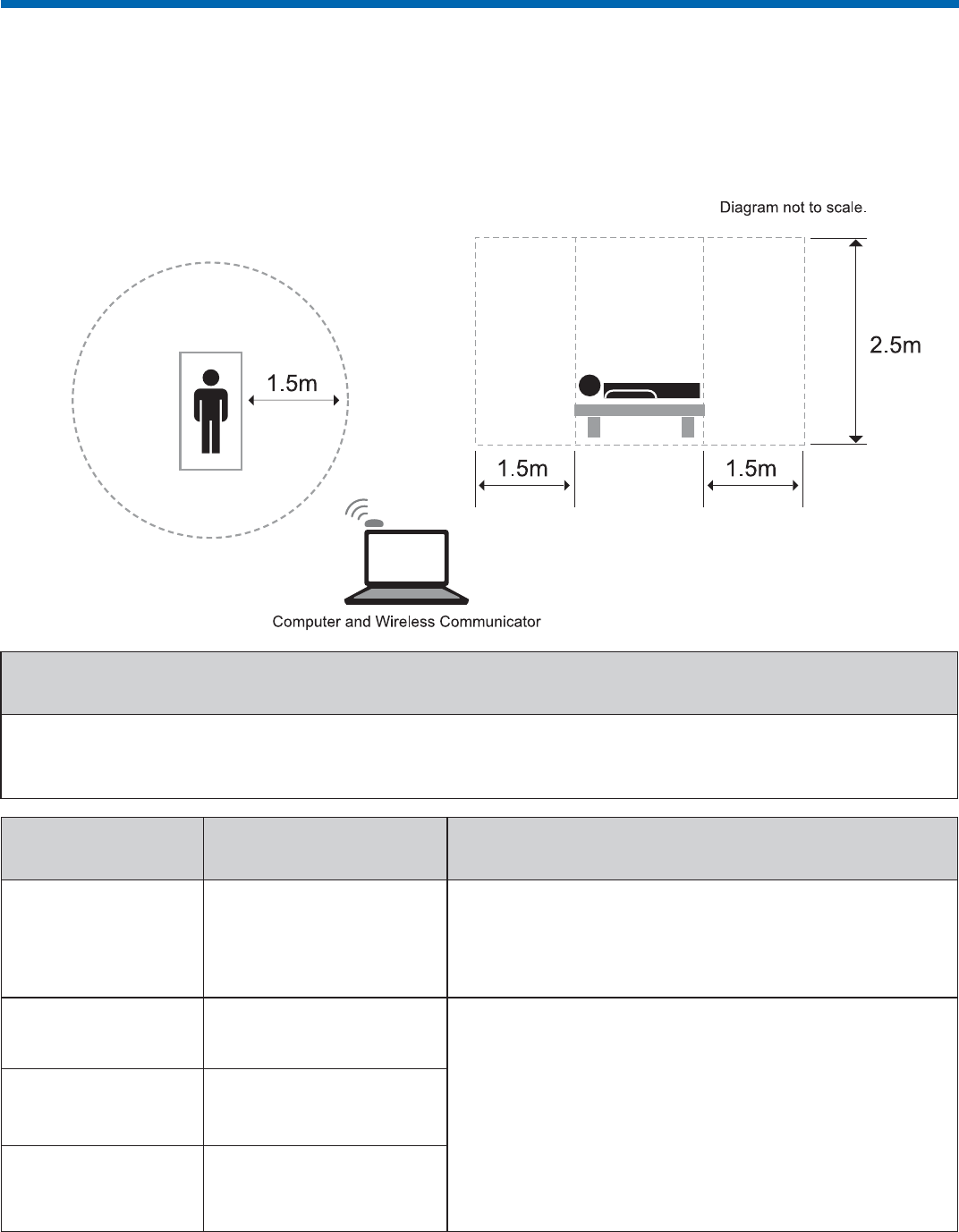

Medical electrical equipment needs special precautions regarding EMC and
needs to be installed and put into service according to the EMC information
provided on pages 10 - 13. Portable and mobile RF communications equipment
can affect medical electrical equipment.
The SenseWear® display should not be used in airplanes, hospitals or locations
where cellular telephones and other electronic devices are prohibited.
Keep the SenseWear® display out of reach of children as the product contains
removable parts which can become choking hazards.
Users with sensitive skin should avoid wearing the watchband excessively.
1.7.2 Cautions
Replace your system’s battery only with CR-2032 (or equivalent) 3V Lithium
coin cell battery to avoid risk of personal injury or physical damage to your
equipment. Expected life of the battery under normal use is 6 – 12 months.
The battery may present a choking hazard for small children. Please keep the
batteries out of reach of children.
Never drop or shock the display and always store in a safe place when not
in use.
Avoid exposing the display to extreme temperatures, direct sunlight, sand, or
mechanical shock.
Changes or modifi cations to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
1. General Information
9
If the display is dropped, ensure that it is working properly and not physically
damaged before relying on readings.
1.8 Disposal
1.8.1 Disposal
Dispose of the display in accordance with local, state, federal, or country
specifi c regulations.
Always dispose of used batteries according to local ordinance, where
applicable.
1. General Information
10
1. General Information
Flicker
IEC 6100-3-3
Complies
Harmonics
IEC 6100-3-2
Class A
RF Emissions
CISPR 11
Class B The 908903PROD1 is suitable for use in all establish-
ments, including domestic, and those directly connected
to the public low-voltage power supply network that
supplies buildings used for domestic purposes.
RF Emissions
CISPR 11
Group 1 The 908903PROD1 uses RF energy only for its inernal
function. Therefore, its RF emissions are very low and are
not likely to cause any interference in nearby electronic
equipment.
The 908903PROD1 (SenseWear® display) is intended for use in the electromagnetic environment specifi ed
below. The customer or user of the BT-2.4-BG should ensure that it is used in such an environment.
Guidance and Manufacturer’s Declaration - Emissions
Emissions Test Compliance Electromagnetic Environment - Guidance
1.9 Manufacturer’s Declarations
Patient Environment
11
3A/m
Power
Frequency 50/60Hz
Magnetic Field
IEC 61000-4-8
3A/m Power frequency magnetic fi elds
should be that of a typical com-
mercial or hospital environment.
Voltage Dips/Dropout
IEC 61000-4-11
>95% Dip for
0.5 Cycles
60% Dip for 5 Cycles
30% Dip for 25 Cycles
>95% Dip for 5 Seconds
N/A N/A
1. General Information
The 908903PROD1 (SenseWear® display) is intended for use in the electromagnetic environment specifi ed
below. The customer or user of the 908903PROD1 should ensure that it is used in such an environment.
Guidance and Manufacturer’s Declaration - Immunity
N/A
Surge
IEC 61000-4-5
±1kV Differential
±2kV Common
N/A
EFT
IEC 61000-4-4
N/A N/A
±2kV Mains
±1kV I/Os
ESD
IEC 61000-4-2
±6kV Contact
±8kV Air
±6kV Contact
±8kV Air
Floors should be wood, concrete,
or ceramic tile. If fl oors are
synthetic, the r/h should be at
least 30%.
Immunity Test IEC 60601
Test Level
Compliance
Level
Electromagnetic
Environment - Guidance
12
1. General Information
The 908903PROD1 (SenseWear® display) is intended for use in the electromagnetic environment specifi ed
below. The customer or user of the 908903PROD1 should ensure that it is used in such an environment.
Guidance and Manufacturer’s Declaration - Emissions
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
IEC 60601
Test Level
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
Immunity Test
N/A
3 V/m
Compliance
Level
Portable and mobile communications equipment
should be separated from 908903PROD1 by no
less than the distances calculated/listed below:
D=(3.5/V1)(Sqrt P)
D=(3.5/E1)(Sqrt P) 80 to 800 MHz
D=(7/EI)(Sqrt P) 800 MHz to 2.5 GHz
where P is the max power in watts and D is the
recommended separation distance in meters.
FIeld strengths from fi xed transmitters, as
determined by an electromagnetic site survey,
should be less than the compliance level in each
frequency rangeb.
Interference may occur in the vicinity of equip-
ment containing a transmitter symbol:
•
•
•
Electromagnetic
Environment - Guidance
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and refl ection from structures, objects and people
13
1. General Information
The 908903PROD1 (SenseWear® display) is intended for use in the electromagnetic environment in which radi-
ated disturbances are controlled. The customer or user of the 908903PROD1 can help prevent electromagnetic
interference by maintaining a minimum distance between portable and mobile RF Communications Equipment
and the 908903PROD1 as recommended below, according to the maximum output power of the communications
equipment.
Recommended Separations Distances for the 908903PROD1
100 11.6666 11.6666 23.3333
10 3.6893 3.6893 7.3786
1 1.1666 1.1666 2.3333
0.1 0.3689 0.3689 0.7378
0.01 0.1166 0.1166 0.2333
Separation (m)
150kHz to 80MHz
D=(3.5/V1)(Sqrt P)
Separation (m)
80 to 800MHz
D=(3.5/V1)(Sqrt P)
Separation (m)
800MHz to 2.5GHz
D=(7/E1)(Sqrt P)
Max Output Power
(Watts)
Field strenghts from fi xed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy. To assess the electromagnetic environment due to fi xed RF transmitters, and electromagnetic site survey
should be considered. If the measured fi eld strength in the location in which the 908903PROD1 is used exceeds
the applicable RF compliance level above, the 908903PROD1 should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocationg the
908903PROD1.
Over the frequency range 150 kHz to 80 MHz, fi eld strengths should be less than 3 V/m.
For transmitters rated at a maximum output power not listed above, the recommended seperation distance d in
meters (m) can be determined using the equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the seperation distance for the higher frequency range applies.
NOTE 2 These guideleines may not apply in all situations. Electromagnetic propogation is affected by absorption
and refl ection from structures, objects and people.
14

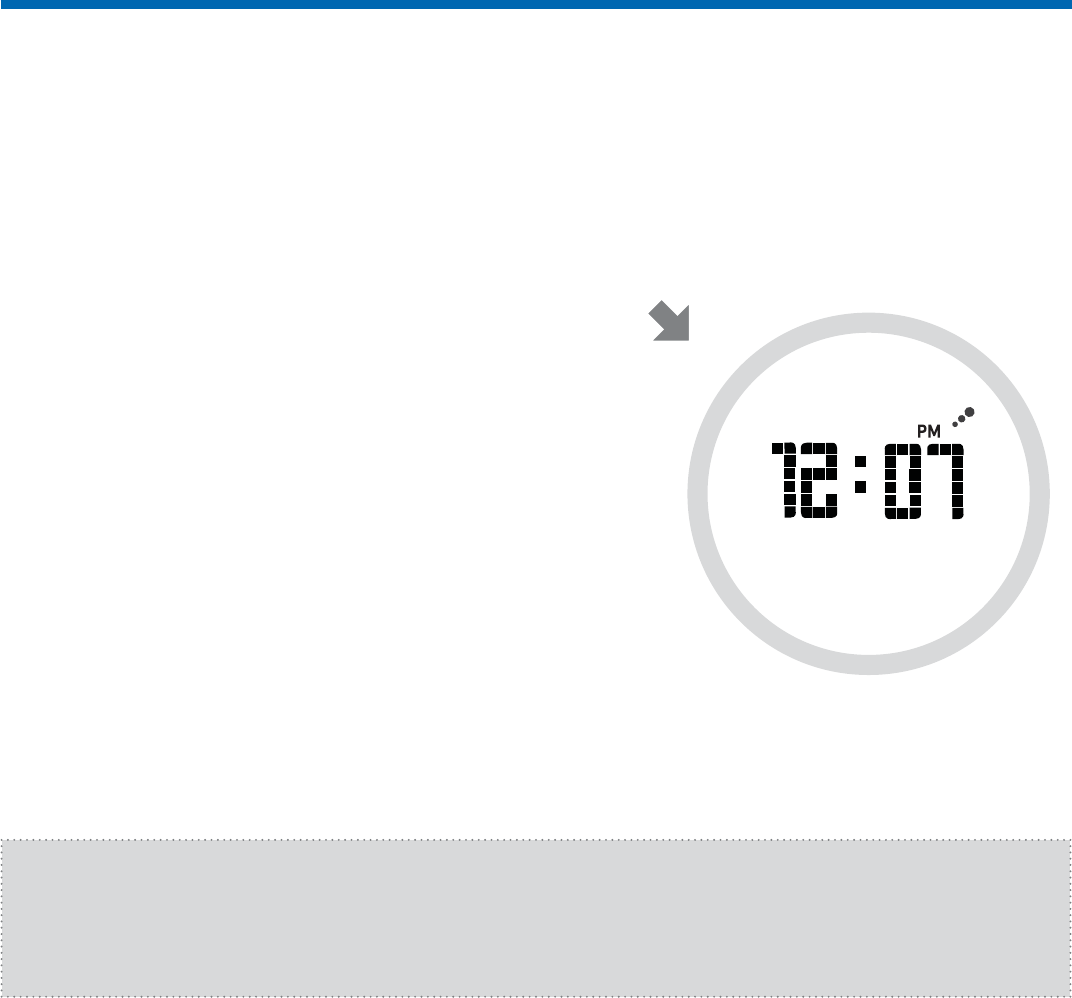

2. How to use your SenseWear® display

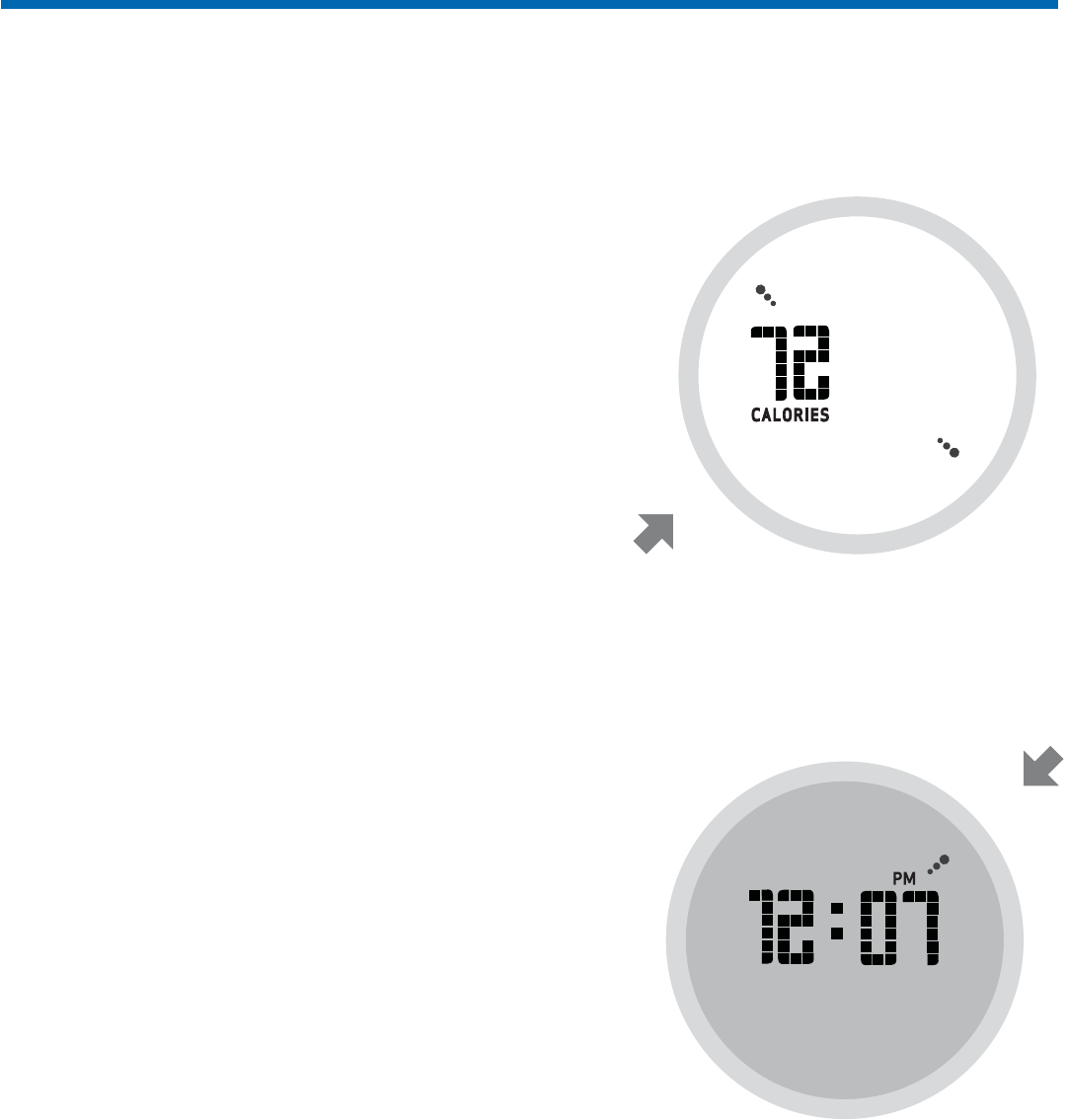

2.1 Display Overview
The SenseWear® display is a convenient way for wearers of the SenseWear®
armband to see up-to-the-minute information about their calories burned,
METs, steps, and physical activity duration. Information is transmitted every
60 seconds to the display from the armband for you to view as long as the two
units are in sync.
Press mode button
Press view button
Press resetTrip button
Press light button
Hold down button
Key
l
r
v
m
1
2
The display has an LCD display and four
buttons, mode, view, light and
reset TRIP.
Combinations of the mode and view
buttons determine what value is displayed
on the LCD. For example, from the default
state, (Calories burned so far today) pressing
on the view button once, will display how
many calories you burned yesterday. From
here, pressing on the mode button
once will display how many steps you took

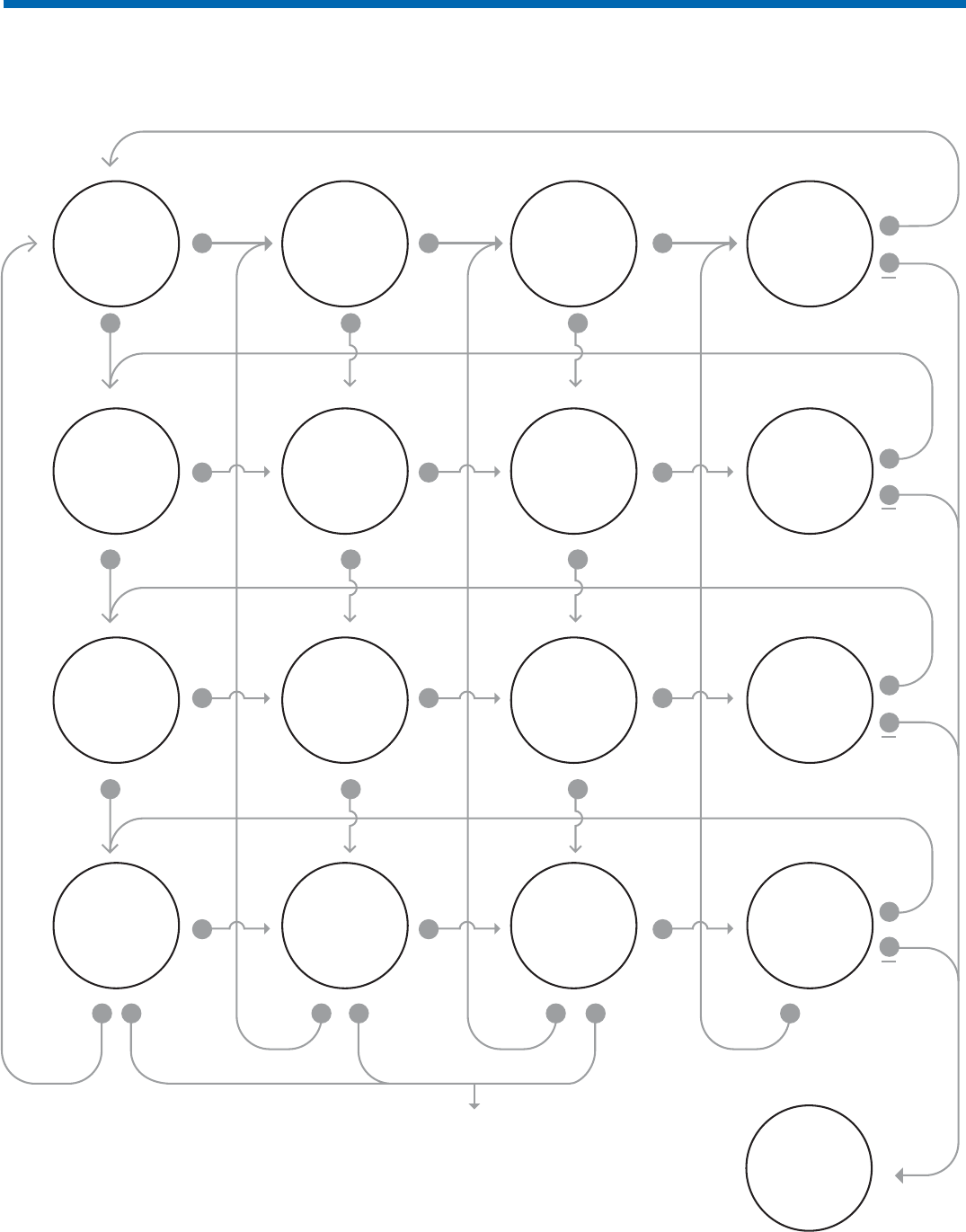

yesterday, and so on. The system map out-
lines the entire information architecture and
navigation.
The following will describe the complete
set of interactions for the proper use of
your display.
1 2 3
43
4
Backlight
On
Turn on/off
Sound 5 sec
ll
1 2
2
1
15
2. How to use your SenseWear® display
Number
of steps
Today
Activity
Duration
and METs
Today
Clock
Clock
Clock
Clock
Set Clock
Calories
burned
Target
Number
of steps
Target
Activity
Duration
Target
Calories
burned
Trip
Number
of steps
Trip
Activity
Duration
Trip
Number
of steps
Yesterday
Activity
Duration
and METs
Yesterday
Calories
burned
Today
(default)
Calories
burned
Yesterday
m
m
m
m
mmm
mmm
mmm
mmm
v v v v
v
v
v
v
v
v
v
v
v
Reset ALL Modes to Zero
rrr
r
3 sec
3 sec
r
3 sec
3 sec
r
r
16
2. How to use your SenseWear® display

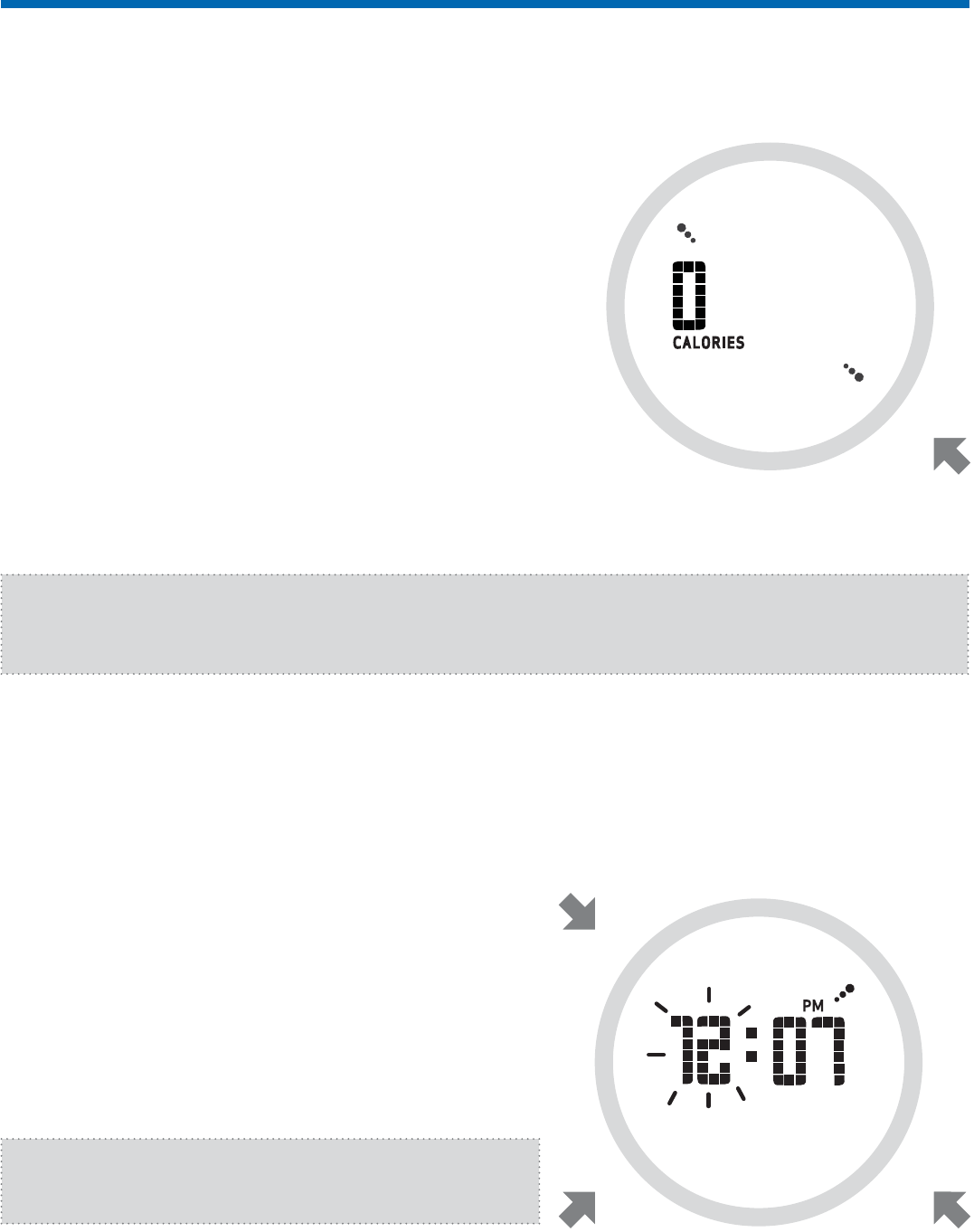

2.2 Initializing
To initialize the display, make sure your
armband is on your arm and within 3 feet
(1 meter) of the display and then press
and hold down the mode and view buttons
simultaneously. The display will turn on and
greet you, with “HELLO.”
Then it will prompt
you to “PRESS ARM
BAND BUTTN TO
SYNC”. Press the
button on the face of
the armband.
This will initiate a syncing process whereby the armband
establishes continuous communication with the display.
When the armband and display fi rst sync up, the armband’s Initial Message
will scroll across the screen and then transition into its “display data” state
(defaulting to the CALORIES mode and TODAY view).
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
IMPORTANT: The Initial Message is set in SenseWear Professional software
and is a unique and recognizable message for you to verify your display
has synced with the correct armband. Each time the display syncs with a
different armband, the Initial Message will appear again.
If an armband is not within range of the display, it will display “ARM BAND
NOT FOUND”.
17
2. How to use your SenseWear® display
Note: Make sure the armband has been confi gured for the wearer using
the SenseWear® software or SenseWear® Professional software. The
display is a passive device and will only display data transmitted from an
armband. Therefore the display will not work or may display inaccurate
values if the SenseWear® armband is not correctly confi gured to the user.
To set this up please refer to the Getting Started Guide that came with
your armband.
2.3 Mode functions
The mode button, located on the top left, allows you to toggle between the
different data modes being transmitted from the armband. The default selec-
tion when the device is fi rst initialized, and every time the display establishes a
connection with an armband will be in the CALORIES mode. Pressing the mode
button advances the mode selection from (1) CALORIES, (2) STEPS, (3) ACTIV-
ITY, (4) TIME, and then back to (1) CALORIES again.

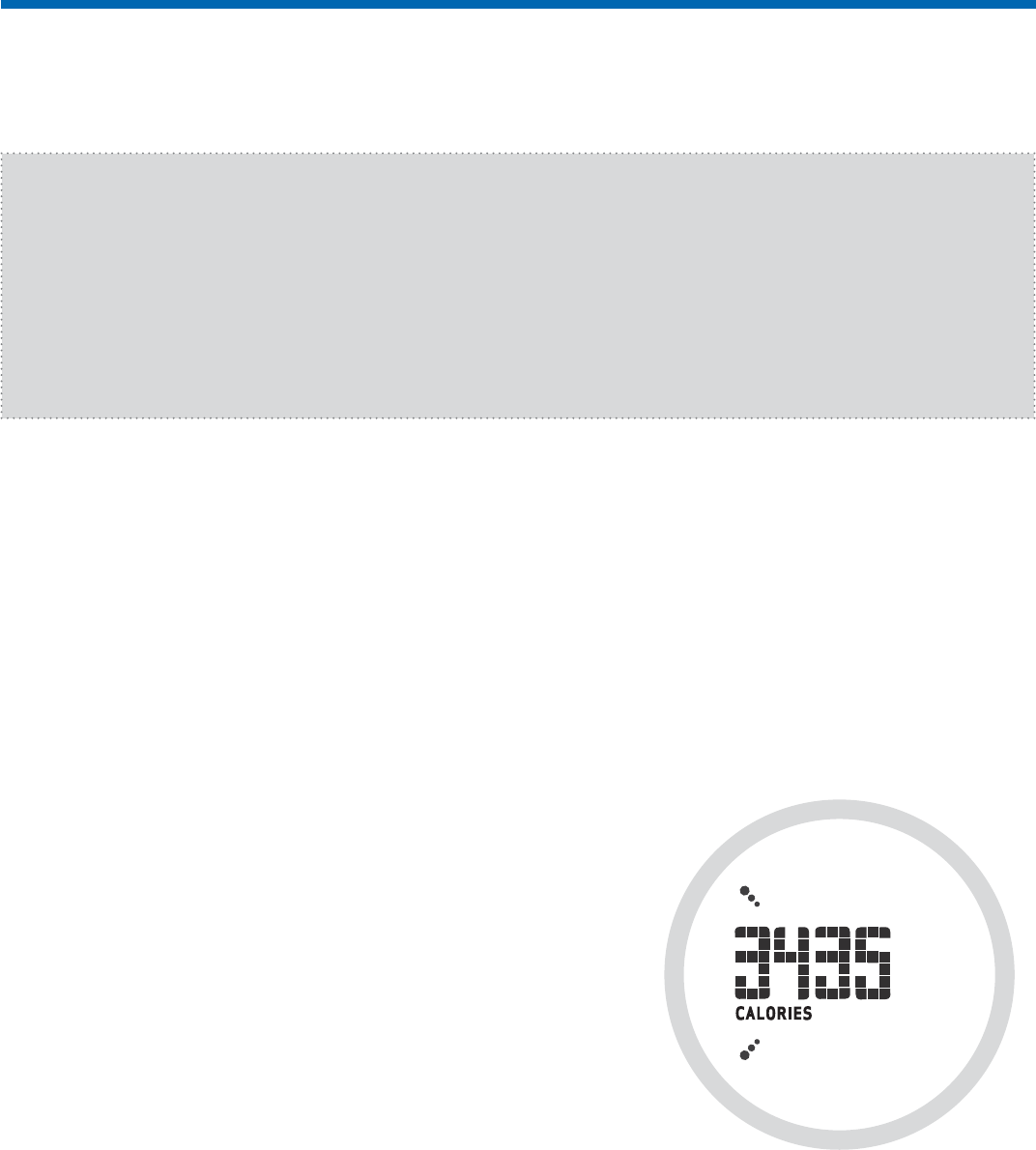

2.3.1 Calories Mode
The CALORIES mode is the default mode and
displays up-to-the-minute energy expenditure
values of the wearer depending on what view
(TODAY, YESTERDAY, TARGET and TRIP) is
selected. The display includes off-body esti-
mates using a simple calculation of your BMR or
Basal Metabolic Rate. Your BMR is the minimum
number of calories your body needs to support
its basic physiological functions. For example,
if you wake up in the morning and put on your
armband and sync the display, you will see that
calories burned so far today is not “0”. The number that appears here is an
estimate using a RMR (resting metabolic rate) calculation for the time you were
not wearing your armband.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
18
2. How to use your SenseWear® display

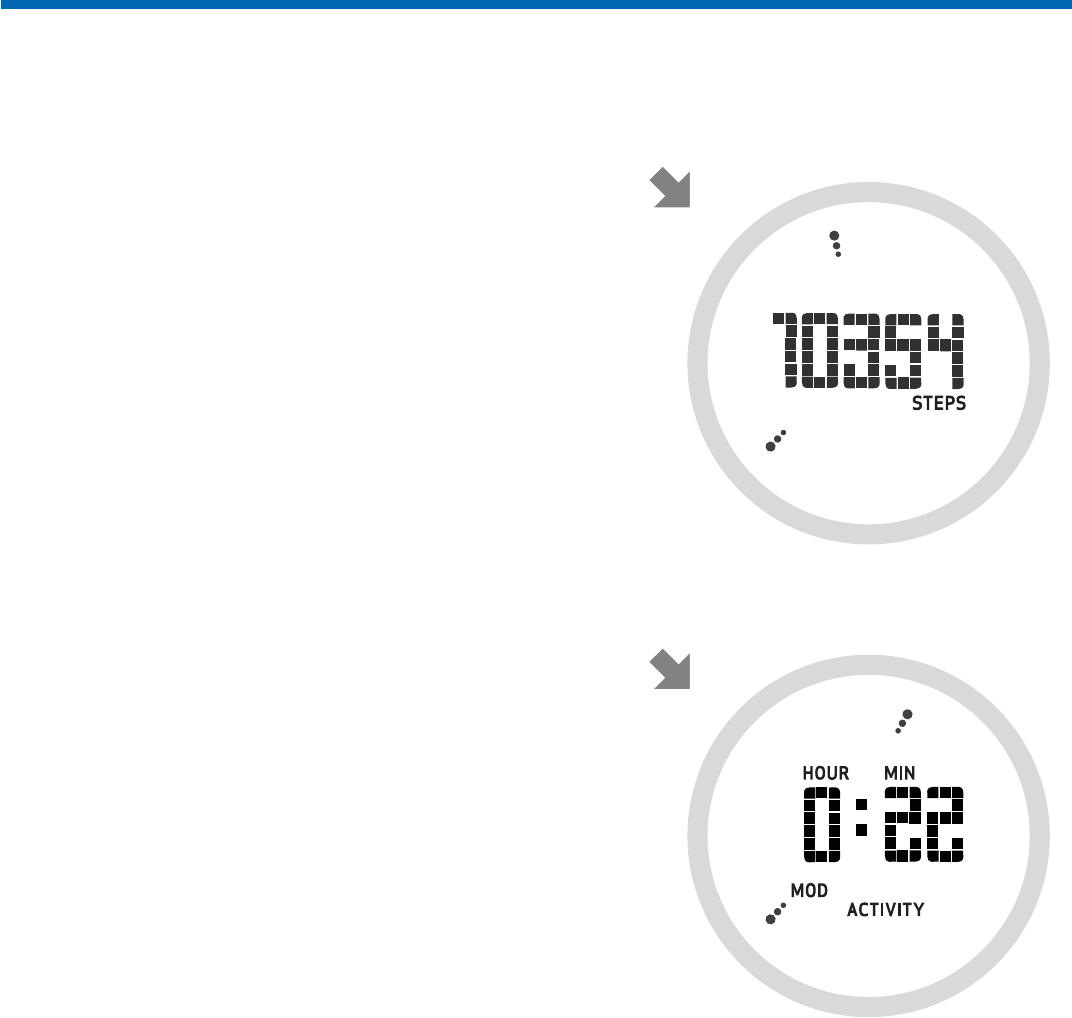

2.3.2 Steps Mode
From the CALORIE mode, press the mode
button once to navigate to the STEPS mode,
This mode displays how many steps you have
taken depending on what view (TODAY, YES-
TERDAY, TARGET and TRIP) is selected. A step is
defi ned as one footfall detected of the wearer
while wearing the armband. There is no off-
body calculation of steps, so values presented
are based only on steps counted while wearing
the armband.
2.3.3 Activity Mode
From the STEPS mode, press the mode button
once to navigate to the ACTIVITY mode. This
mode displays moderate physical activity dura-
tion (PAD) of the wearer depending on what
view (TODAY, YESTERDAY, TARGET and TRIP)
is selected. PAD is measured in minutes of
sustained moderate activity. Unlike the other
modes, what constitutes physical activity can be
customized using the SenseWear® Professional
software. The default setting is any activity
level above 3.0 METs sustained for 3 consecutive minutes. To change this de-
fault, please refer to the Body Monitoring System operating manual that came
with the SenseWear® armband.
What can be seen in this mode is also customizable. In addition to viewing the
duration of moderate physical activity, the display can automatically toggle to
one other activity measurement of your choice. The choices are (1) Vigorous
activity or (2) METs. To turn on these additional activity views, please refer to
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
19
the SenseWear® Professional software. Once turned on, this view will automati-
cally toggle between the two values every few seconds.
2.3.4 Time
From the ACTIVITY mode, pressing the mode
button once to navigate to the TIME mode. In
TIME mode, the view button is disabled. This
mode displays the current time as it is set on
the armband in either 12 or 24 hour format. To
set time preferences, please refer to the
SenseWear® Professional software.
Pressing on the mode button again will return
you to the CALORIES mode.
To change the time on your display, you must change the time on your arm-
band. To do this please refer to Body Monitoring System operating manual.
How to use your SenseWear® display
2.4 View Functions
The view button, located on the lower left, allows you to toggle between the
different data views of each mode being transmitted from the armband. (See
section 2.2) The default selection when the display is fi rst initialized, and
every time the display establishes a connection with an armband will be the
TODAY view. Pressing the mode button advances the mode selection from (1)
TODAY, (2) YESTERDAY, (3) TARGET, (4) TRIP and then back to (1) TODAY again.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
Important: For the display to accurately report daily totals, the Sense-
Wear armband’s clock must be confi gured to the local time zone of where
the display will be worn.
20
How to use your SenseWear® display
2.4.1 Today
The TODAY view is the default view when the
display is initialized and every time the display
syncs with the armband. The TODAY view shows
the current values for calories burned, steps and
physical activity so far today when the display
is in sync with the armband. When in sync,
these values will update every 60 seconds. A
day begins at 12:00 midnight, so this value will
automatically reset to “0” at midnight.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.4.2 Yesterday
Pressing the view button once will advance
the view from TODAY to YESTERDAY. The
YESTERDAY view shows the total number of
calories burned, steps and duration of physical
activity from the previous day. This value is
updated everyday at midnight.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.4.3 Target
From the TARGET view, pressing the view but-
ton once will advance the view from YESTERDAY
to TARGET. The TARGET view shows the total
daily targets for calories burned, steps and
physical activity duration. These targets cannot
be set on the display, they are set using the
SenseWear® Professional software. For more
information on how to set or change these
targets, please refer to your Body Monitoring
System operating manual.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
21
2. How to use your SenseWear® display
2.4.4 Trip
From the TARGET view, pressing the view but-
ton once will advance the view from TARGET to
TRIP. The TRIP view functions much like a trip-
odometer in a car. It enables you to measure
values, in this case calories burned, steps or
physical activity duration, per activity time
period. For example, if you want to know how
many calories you burn while raking leaves in
the yard, or how many steps you take at
work, simply toggle to the TRIP view, and
hold the reset Trip button 3 seconds. This will
return all values to 0 and the display will begin incrementing again. When you
are fi nished with your activity, simply look at your display for your answer.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.5 Backlight
The backlight button is located on the upper
right of the display and is labeled “light”.
Pressing this button will turn on the
backlight for a few seconds so you can see
the information on the LCD in low-light or
no-light conditions.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.6 Reset Trip
The reset TRIP allows you to reset your trip-odometer to 0 and if you are using
your display as a watch only, to reset the time in the clock (TIME) mode.
22
How to use your SenseWear® display
2.6.1 Resetting a trip
To reset your trip-odometer to 0, navigate to
the trip view using the view button. Press and
hold the reset TRIP button for 3 seconds. This
will reset ALL the current trip values to 0.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
We recommend that you reset your clock using the display device only if you
are using the display as a watch. The time on the display is automatically up-
dated with the time on your armband every time the two units are synced. So
if you change it using the device, it will revert back to the time stored on the
armband the next time the units are re-synced.
To reset your clock, navigate to the TIME
mode view using the mode button. Press
and hold the reset TRIP button for 3 seconds.
This will cause the hour to blink. Press the
mode button to shift the hour forward, and
the view button to shift the hour backward.
Caution: If you are using the display with an armband and want to
change the time see section 2.3.4.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.6.2 Resetting the clock using the display device
Tip: Holding the view or mode button
down will “fast-scroll” the number.
23
2. How to use your SenseWear® display
2.8 Turning the Sound On/Off
With the exception of the light button, the display will play a brief sound/beep
every time a button is pushed.
Once you have changed the hour, hit the reset Trip button once. This will cause
minutes to blink. Press the mode button to shift the minute forward, and the
view button to shift the minute backward. Hit reset Trip once the desired
hours and minutes have been selected to save.
2.7 Not in sync mode
If no data is received from the armband for
5 minutes, the display will go into a “NOT IN
SYNC” mode and revert to TIME mode.
To re-sync the display and armband, press
the mode button on the display. You will be
prompted to “PRESS ARM BAND BUTTON TO
SYNC”. Doing so will re-sync the two devices.
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
24
To turn this sound off, hold down the light
button until you see a confi rmation message
“BEEF OFF”. The sound should no longer play
when you press any button.
To turn this sound on, hold down the light
until you hear a beep and see a confi rmation
message “BEEP ON”. The sound should play
when you press any button except the light
button.
2. How to use your SenseWear® display
t
l
i
g
h
r
e
s
e
t
T
RIP
w
v
i
e
m
o
d
e
C
A
L
O
R
I
E
S
S
T
E
P
S
A
C
T
I
V
I
T
Y
T
I
M
E
T
O
D
A
Y
Y
E
S
T
E
R
D
A
Y
T
A
R
G
E
T
T
R
I
P
2.9 Syncing Your Display with Another Armband
The SenseWear® display is a passive device which takes information transmitted
from any SenseWear® armband and displays it. Therefore, you can enable your
display to show information from multiple armbands, but not at the same time.
To do this, locate the armband you want to sync. Make sure it is the only arm-
band within a 3 meter range of the display.
Hold down the view and mode buttons simultaneously for 3 seconds. This will
reset the display and re-initiate the syncronization process.
The display will then prompt you to “PRESS ARM BAND BUTTN TO SYNC”.
While wearing the armband, press the button located on the face of the arm-
band. This will initiate a syncing process between the two units.
Once they are synced, you will be able to view the data stored on that arm-
band, and that armband will update the values while the two units are
in sync.
25
3. Technical Specifi cations
4. Copyright, Patent and Trademark Notices
User-replaceable coin cell battery (CR-2032)
RF Frequency: 2.4 GHz wireless communication interface
Transmittal output power: <1mW
Size: 40 mm diameter, height: 19 mm with clip
Weight: 1.2 oz with the clip
Materials: Nylon, polycarbonate, ABS, polyurethane, stainless steel, no latex
Operating temperature/humidity: 0 C to +45 C (32 F to 113 F)/100%RH non
condensing
Storage temperature/humidity: 0 C to +45 C (32 F to 113 F)/100%RH non
condensing
Patents and patents pending. The BodyMedia® display device is covered by one
or more of the following patents when used with a BodyMedia® armband (e.g.,
SenseWear® armbands and bodybugg™ armbands): United States Pat. Nos.:
6,527,711, 6,595,929, 6,605,038, 7,020,508, 7,153,262; European Patent Nos.:
1,292,217, 1,292,218; and various worldwide patents pending. This notice is ac-
curate as of 1/1/2007. For latest information please see www.bodymedia.com.
SenseWear® and BodyMedia® are registered trademarks of BodyMedia, Inc.
26
5. Compatibility
The SenseWear® display is an electronic input/output device intended for use
ONLY with the SenseWear® Pro3 armband and SenseWear® Professional Software
6.0 or later. You’ll need these versions of each product in order to set up and
use the display
6. Certifi cations
Classifi cation of the device, as per 93/42 directives: IIa (rule 10)
Certifi cation procedure: 93/42/EEC, Annex VI, VII.
Identifi cation code of Notifi ed Body involved: 0051
Transmit Power Class 8 – Less than 10mW output power
Duty Cycle Class 4 – permitted to operate at 100% duty cycle
Receiver Class 3 – Standard reliable SRD communication media.

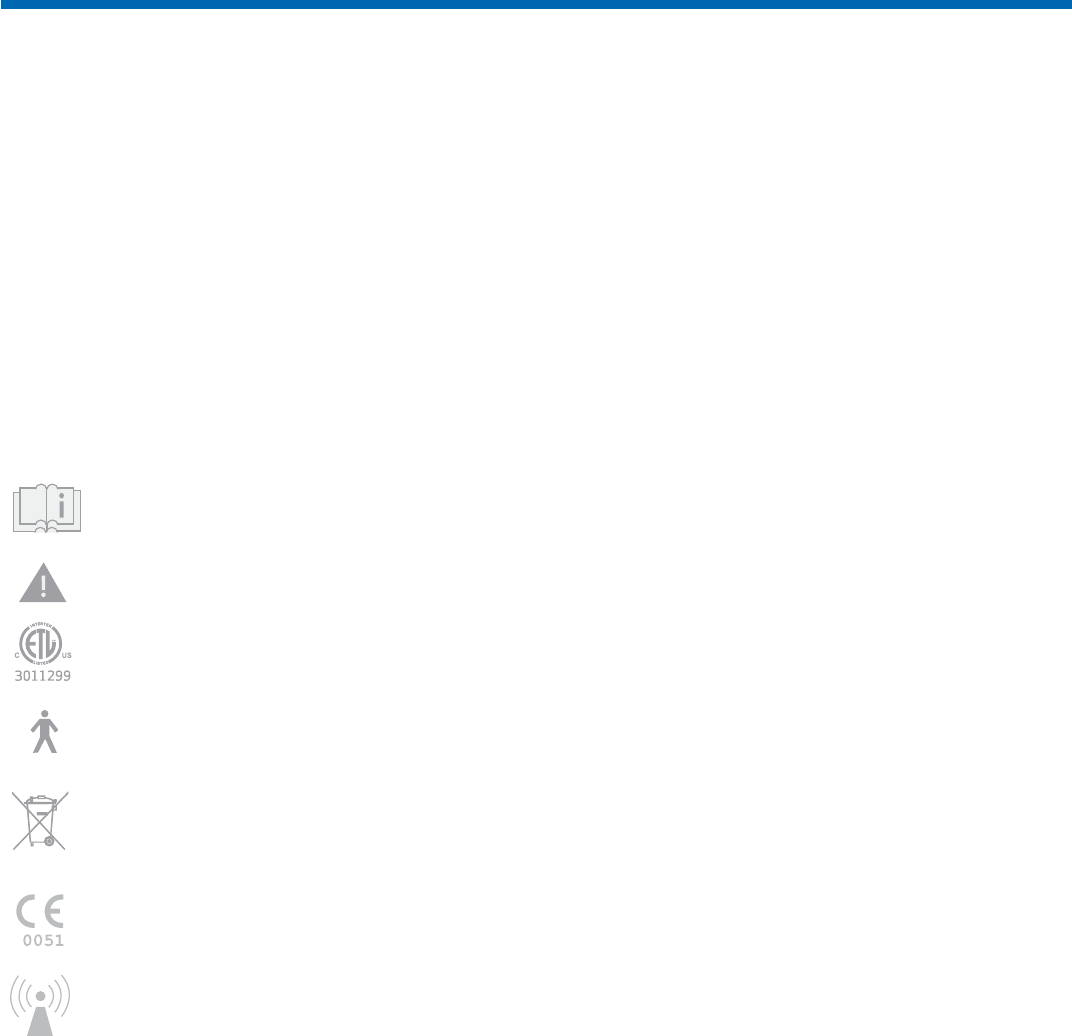

Follow operating instructions.
Caution
TYPE B APPLIED PART
The Waste Electrical and Electronic Equipment Regulations indicates
separate collection for electrical and electronic equipment.
Tested to applicable safety standards.
Identifi cation code of Notifi ed Body involved: 0051.
EMC Alert Mark for non-ionizing radiation
27
6. Certifi cations
FCC statement
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) This device must accept any interference received, including
interference that may cause undesired operation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit separate from
the receiver.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifi cations to this equipment not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC 47CFR 15C TCB - 47 CFR Part 15 Subpart C Intentional Radiator
Certifi cation Test
FCC 47CFR 15B clA - 47 CFR Part 15 Subpart B Unintentional Radiators Class A
Verifi cation
•
•
•
•
•
28
UL 60601-1 - UL Standard for Safety Medical Electrical Equipment, Part 1:
General Requirements for Safety First Edition
CENELEC EN 60601-1-2 - 2001 - Medical Electrical Equipment Part 1-2: General
Requirements for Safety - Collateral Standard: Electromagnetic Compatibility
- Requirements and Tests IEC 60601-1-2: 2001
CENELEC EN 60601-1-1 - Medical Electrical Equipment - Part 1: General Re-
quirements for Safety - Collateral Standard: Safety Requirements for Medical
Electrical Systems.
CAN/CSA-C22.2 No.606.1-M90
ETSI EN 301 489-1 - Electromagnetic Compatibility and Radio Spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) Standard for Radio Equipment and
Services; Part 1: Common Technical Requirements V1.3.1
ETSI EN 301 489-3 - (Draft) Electromagnetic Compat. and Radio Spectrum
Matters (ERM); Harmonized EN for ElectroMag. Compatibility (EMC) of Radio
Comms. Equip. & Srvs.; Pt. 3: Specifi c Conditions for Short-Range Devices (SRD)
Operating on Freqs Between 9 KHz and 40 GHz V1.3.1
ETSI EN 300 440-1 V1.3.1 (2001-07) Electromagnetic compatibility and Radio
spectrum Matters (ERM);Short range devices; Radio equipment to be used in
the 1 GHz to 40 GHz frequency range
6. Certifi cations
