BUILDERS HARDWARE
June 3rd, 2019
Bommer Industries, Inc.
P.O. Box 187
19810 Asheville Highway
Landrum, South Carolina 29356
www.bommer.com
Phone :
Phone :
Fax :
customerservice@bommer.com
864 - 457 - 3301
800 - 334 - 1654
877 - 426 - 1039
NET PRICE BOOK
01
Bommer’s Sales Terms and Conditions
Net Price Book
06/03/2019
Acceptance of Order
We reserve the right to decline an order, in whole or in part, when the price, quantity, or assortment of goods is not satisfactory to us. We
shall not be responsible for any loss or damage resulting from delay in filling orders, caused by fire, flood, strikes, and differences with
workman, government regulations, accidents, transportation delays, shortages of materials, or other causes beyond our control. Orders are
processed in order of receipt, but lead times may vary.
Quick Ship Program
Items marked Quick Ship (QS) should ship same day if the order is received by 12:00 Noon Eastern Time.
Shipments
All shipments are F.O.B. point of origin. All shipments having a net value of
$1,250.00
or more and shipping complete will ship freight
prepaid in the continental United States only, and via a routing of our choice (this excludes Alaska, Hawaii and US possessions). A fuel
surcharge on freight prepaid may apply. Less than $1,250.00 will ship prepay and add. Shipments by Express, Air Freight, Bus, or Parcel
Post are F.O.B. Point of origin, without any freight allowance.
When delivered to the transportation company, shipments become the property of the purchaser who assumes the risks of loss or damage
in transit. If proof of delivery is requested, a $25.00 “proof of delivery receipt charge” will apply (unless delivery cannot be verified). Any
additional delivery related charges not considered at the time of order are the responsibility of the buyer.
Prices All Pricing is EACH or SET
Prices and terms are subject to change without notice. No prices are guaranteed. All shipments will be made at prices prevailing at the time
of shipment. Orders requesting shipment beyond delivery schedules are subject to increase in prices. Should raw material prices rise
substantially, it may become necessary to add a surcharge by material type at the time of shipment.
Terms
Our payment terms are Net 30 days, or 1% discount for payment within 15 days of date of invoice. Accounts unpaid after 90 days will be
placed for collections. All collection charges, attorney fees, and court costs will be added to the amount due.
Minimum Order Charges
Orders with a net value of less than
$50.00
will be invoiced at
$50.00
.
Cancellation or Changes
A cancellation or change order will be subject to a $25.00 service charge for administration costs incurred by us prior to notification by the
customer. Orders for non-stock goods, accepted by us, are non-cancelable except with prior written consent, and then subject to a service
charge based on the manufacturing expenses incurred.
Packaging Charges
The following packaging charges will be assessed and added to the invoice where applicable:
$50.00 net when requested to itemize and special package in accordance with such schedules.
$25.00 net when requested to make changes on itemized jobs after orders have been processed.
Delivery
Specific shipping dates cannot be guaranteed, due to possible material shortages, accidents, strikes, governmental regulations, and other
factors and conditions beyond our control. We reserve the right to hold shipments of all open orders to customers whose account is 60
days past due, and to assess warehousing charges up to $10.00 per day for orders we are instructed to hold beyond scheduled shipping
dates.
Returned Goods
No goods will be taken back or exchanged without written permission. All returns must be shipped freight prepaid, and are subject to a
minimum 35% restocking charge. Returned goods must be in saleable condition or no credit will be issued. Under no circumstances will
non-stock, make-to-order or discontinued product be accepted for return unless it is due to a Bommer error.
Debits, Credits, Adjustments
No Debits will be accepted, credits issued, or adjustments without prior written permission.
Freight Claims
Goods in transit are at purchaser’s risk. Please inspect before you sign for delivery making sure any discrepancies are documented on the
delivering carrier’s delivery receipt or bill of lading. Damaged or lost merchandise claims must be filed with the delivering carrier within
10 days of receipt. Claims for shortage must be made in writing with documentation and subject to factory verification.
02
Bommer Industries, Inc. (“Bommer”) warrants to purchaser that, for a period of one year from date of delivery, the
Builders Hardware and Postal Specialties products manufactured by Bommer under the “Bommer” trademark or
trade name are free from defect in workmanship and materials under normal use and regular service and
maintenance. This warranty does not cover defects or damage arising from improper installation, lack of or
improper maintenance, improper storage, shipping and handling, ordinary wear and tear, misuse, abuse, accident,
unauthorized service, or use with unauthorized products or parts. This warranty is subject to the limitations of
liability set forth below.
THIS IS THE SOLE AND EXCLUSIVE WARRANTY GIVEN BY BOMMER WITH RESPECT TO THE PRODUCTS
SOLD AND IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ARISING BY
OPERATION OF LAW OR OTHERWISE. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY
EXCLUDED.
Written notice of a product covered by this warranty, and believed to be defective, must be sent to Bommer
Industries, Inc, PO Box 187, Landrum, South Carolina 29356, within 30 days from the discovery of the alleged
defects. The notice should include the purchaser’s name and address, identification of the product, and a brief
description of the claimed defect. Upon receipt of such notice, Bommer will issue a Return Material Authorization
(RMA) and Call Tag for the product in question for examination. In the event examination reveals a defect covered
by this warranty, Bommer will, at its option, repair or replace the product, and return it or the replacement to the
purchaser.
The sole and exclusive remedy of the purchaser, under this warranty or otherwise, shall be limited to repair or
replacement of any products or component parts which are defective. Bommer will not pay for the costs of repair
performed other than in accordance with this warranty. In no event will Bommer’s liability to the purchaser and/or
its customers include incidental, consequential or punitive damages resulting from the use of these products,
regardless of the form of the cause of action, whether based in contract, or tort.
The foregoing limitations and exclusions are intended to be effective to the maximum extent permitted by law. This
warranty is governed by the laws of the State of South Carolina without regard to the conflicts of law principals.
Bommer and purchaser agree that the United Nations Convention on Contracts for the International Sale of Goods
does not apply to the sales of the products covered by this warranty.
Bommer’s Limited Warranty
Net Price Book
06/03/2019
03

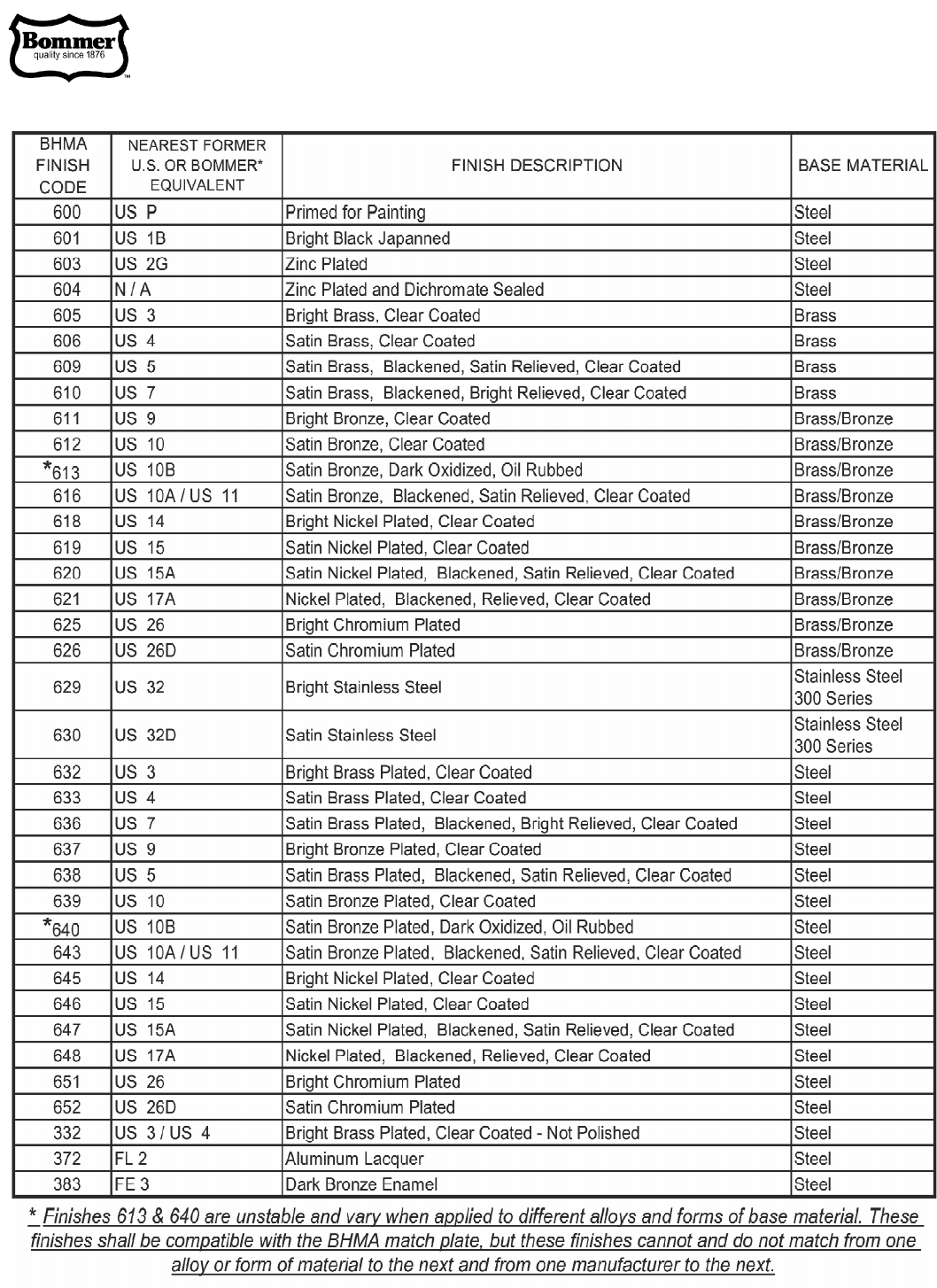

Bommer’s Classification of Finishes
Net Price Book
06/03/2019
04

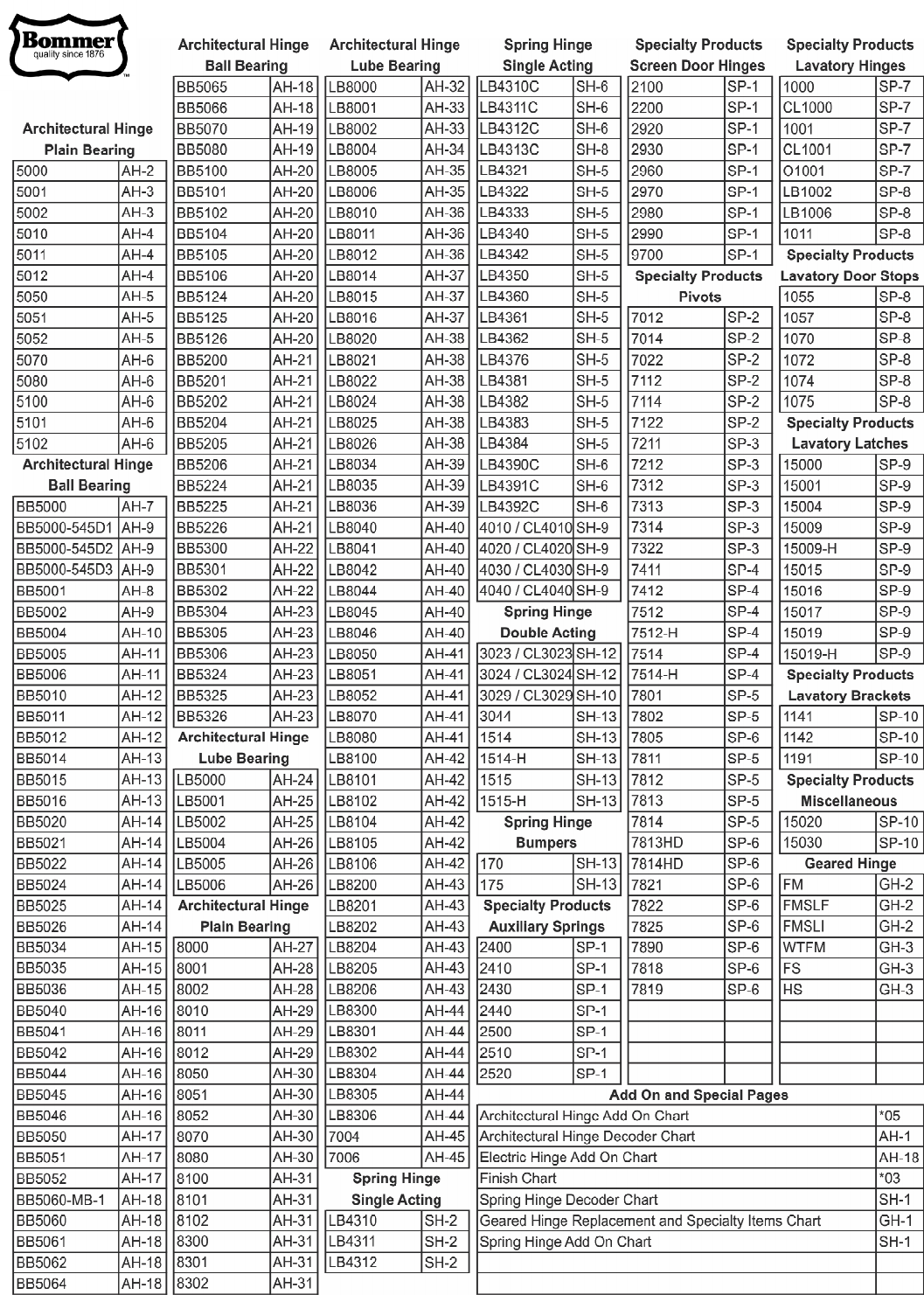

Bommer’s Part Number Index
Net Price Book
06/03/2019

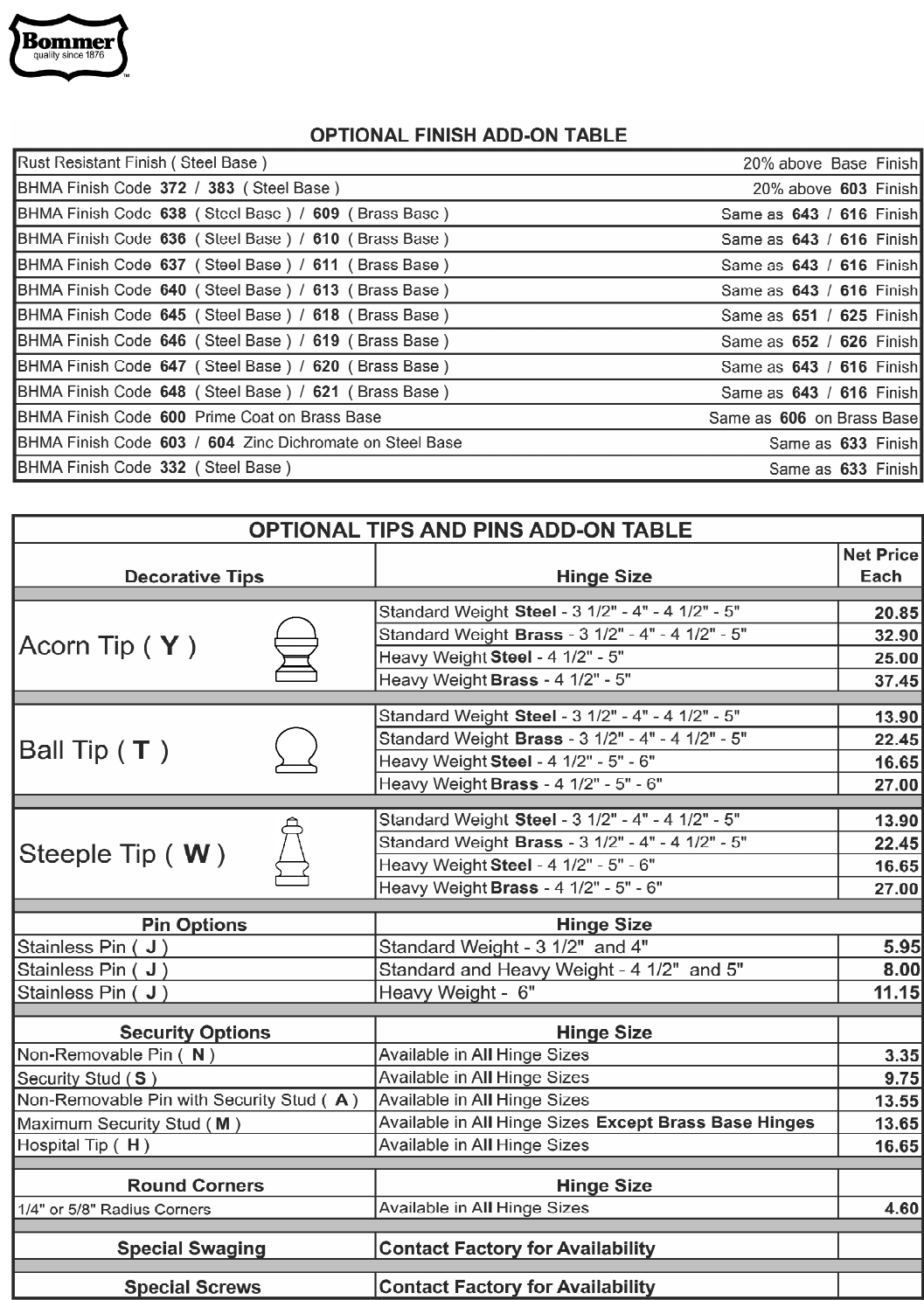

These Options and/or Additions apply to the
BASE HINGE PRICE
as listed in this
NET PRICE BOOK.
START
with the
NET PRICE
of the
BASE HINGE, THEN ADD THE PRICE LISTED BELOW FOR THE
ADD-ON or OPTION REQUIRED.
05
Bommer’s Architectural Grade Butt Hinge Options and Add-Ons
Net Price Book
06/03/2019
AH-1
BOMMER’S Architectual Grade Butt Hinge numbering system is easy to understand.
Product numbers are built from LEFT to RIGHT with each character relating to a specific hinge feature.
All hinge numbers begin with the TYPE OF BEARING and follow through, ending with the BHMA or
BOMMER FINISH CODE.
M652
H
0504
205
BB
BEARING SERIES TYPE STYLE WEIGHT
& BASE
MATERIAL
SIZE TIP & PIN
OPTIONS SECURITY
OPTIONS BHMA/BOMMER
FINISH CODE
No Designation = Plain Bearing
BB = Ball Bearing
LB = Lubricated Bearing
5 = Five Knuckle
8 = Three Knuckle
0 = Full Mortise
1 = Half Mortise
2 = Full Surface
3 = Half Surface
0 = Standard
1 = Wide Throw
2 = Swing Clear
3 = Anchor
4 = Raised Barrel
5 = Slip In
6 = Electric
7 = 1/4” Radius Corner
8 = 5/8” Radius Corner
9 = Specia
l
0 = Standard Weight, Steel
1 = Standard Weight, Brass
2 = Standard Weight, Stainless Steel
3 = Standard Weight, Rust Resistant
Finish on Stee
l
4 = Heavy Weight, Steel
5 = Heavy Weight, Brass
6 = Heavy Weight, Stainless Steel
7 = Heavy Weight, Rust Resistant
Finish on Steel
Tips
H = Hospital Tip
T = Ball Tip
U = Special
W = Steeple Tip
Y = Acorn
Pins:
J = Stainless Steel
N = Non-removable Pin
S = Security Stud
A = Non-removable Pin &
Security Stud
M = Maximum Security
Stud
600 = Prime Coat on Steel ( USP )
605 = Bright Brass on Brass ( US3 )
626 = Satin Chromium on Brass ( US26D )
630 = Satin Stainless Steel ( US32D )
632 = Bright Brass on Steel ( US3 )
652 = Satin Chromium on Steel ( US26D )
EXAMPLES
V
DOOR
OPTIONS
R = Square Door
V = Beveled Door
D = Short Leaf
Z03
ANCHOR
&
SLIP-IN
OPTIONS
ANCHOR HINGE
Z01 = Right Hand Square Door
7 1/2” Door Arm
Z02 = Right Hand Square Door
4” Door Arm
Z03 = Right Hand Square Door
No Door Arm
Z04 = Left Hand Square Door
7 1/2” Door Arm
Z05 = Left Hand Square Door
4” Door Arm
Z06 = Left Hand Square Door
No Door Arm
Z07 = Right Hand Beveled Door
7 1/2” Door Arm
Z08 = Right Hand Beveled Door
4” Door Arm
Z09 = Left Hand Beveled Door
7 1/2” Door Arm
Z10 = Left Hand Beveled Door
4” Door Arm
SLIP-IN HINGES
G1= One Leaf Tapped
w/.1875 Swage
G2= Both Leafs Tapped
w/.3125 swage

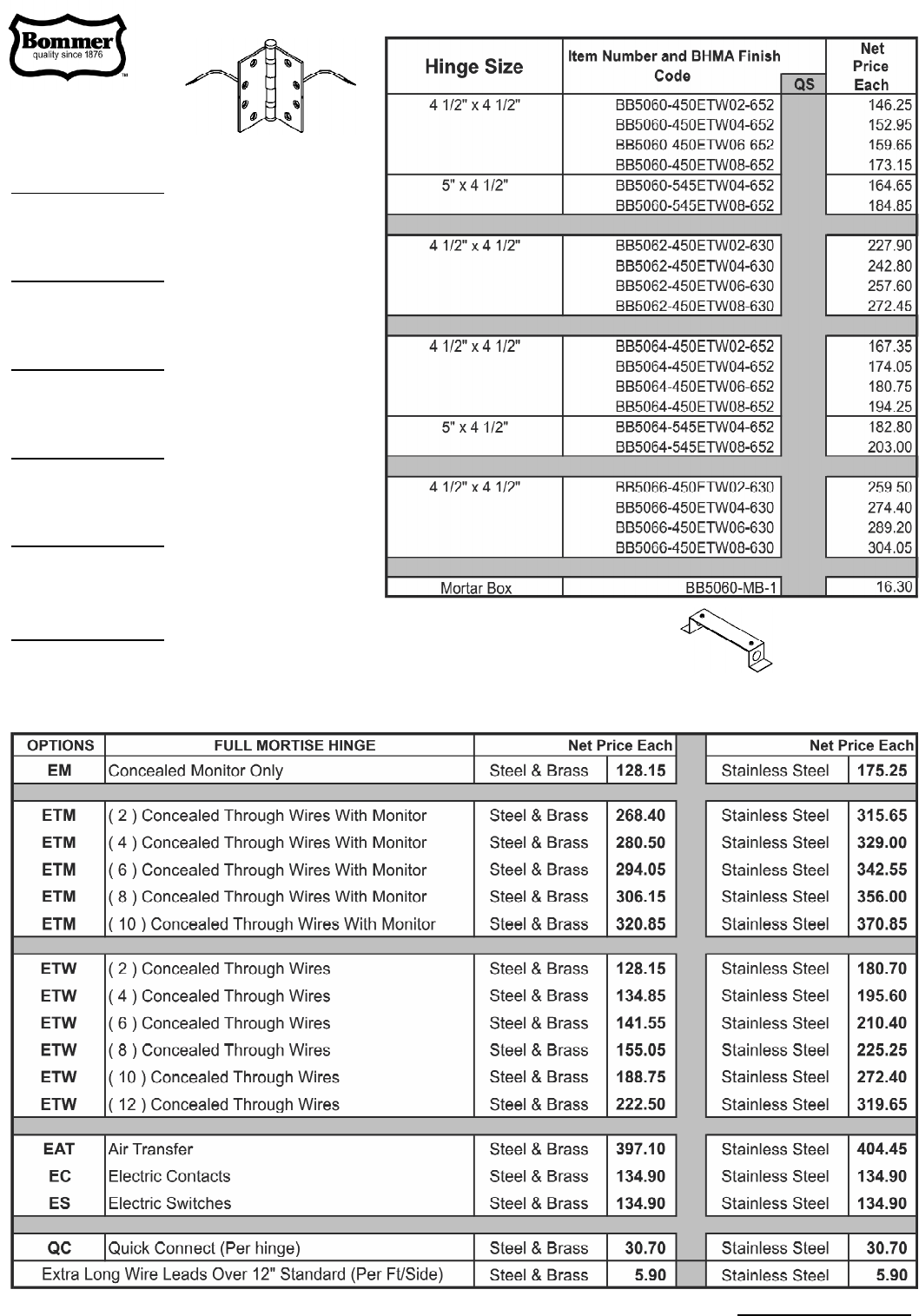

ETW04
ELECTRIC
OPTIONS
ETW02 = Electric Thru W ire Using 2 W ires
ETW04 = Electric Thru W ire Using 4 W ires
ETW06 = Electric Thru W ire Using 6 W ires
ETW08 = Electric Thru W ire Using 8 W ires
ETW 10 = Electric Thru Wire Using 10 W ires
ETW 12 = Electric Thru Wire Using 12 W ires
ETM02 = Electric Thru Wire w/ Monitor 2 Wires
ETM04 = Electric Thru Wire w/ Monitor 4 Wires
ETM06 = Electric Thru Wire w/ Monitor 6 Wires
ETM08 = Electric Thru Wire w/ Monitor 8 Wires
ETM10 = Electric Thru Wire w/ Monitor 10 Wires
EM = Electric Monitor Only ( no thru wires )
Full Mortise 4” x 4” =400
Full Mortise 4.5” x 4” =454
Full Mortise 4.5” x 4.5” =450
Full Mortise 5” x 5” =500
Anchor 5” x 4.5” =545
Full Mortise Hinges are sized height x width.
Swing Clear 5” =050
Half Mortise 5” =050
Full Surface 6” =060
Half Surface 4.5” =045
Swing Clear, Half Mortise, Full Surface &
Half Surface Hinges are sized by height
only.
Bommer’s Architectural Grade Butt Hinge Numbering System
Net Price Book
06/03/2019
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-2

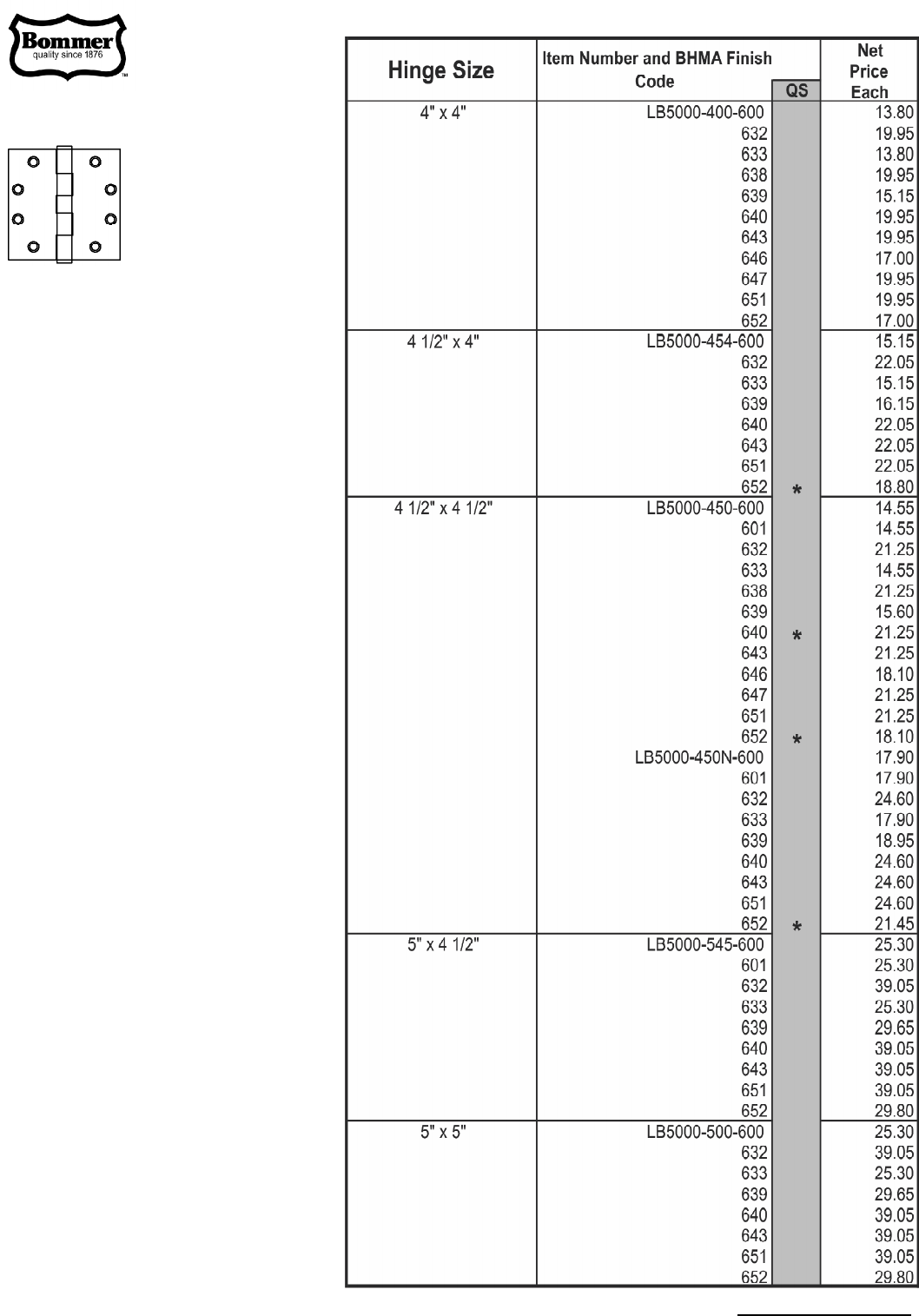

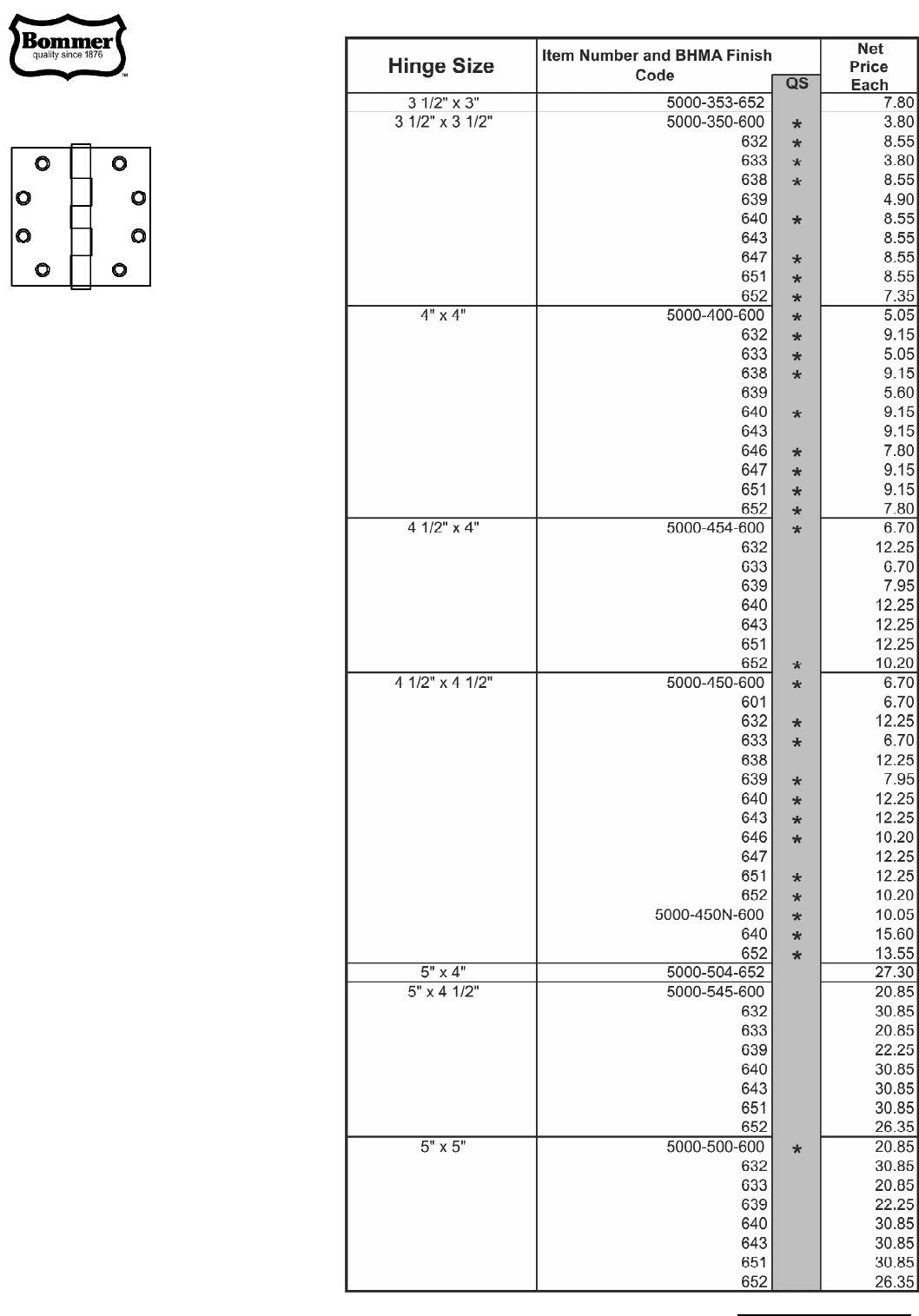

5000 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
with Steel Pin
ANSI A8133
Plain Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-3

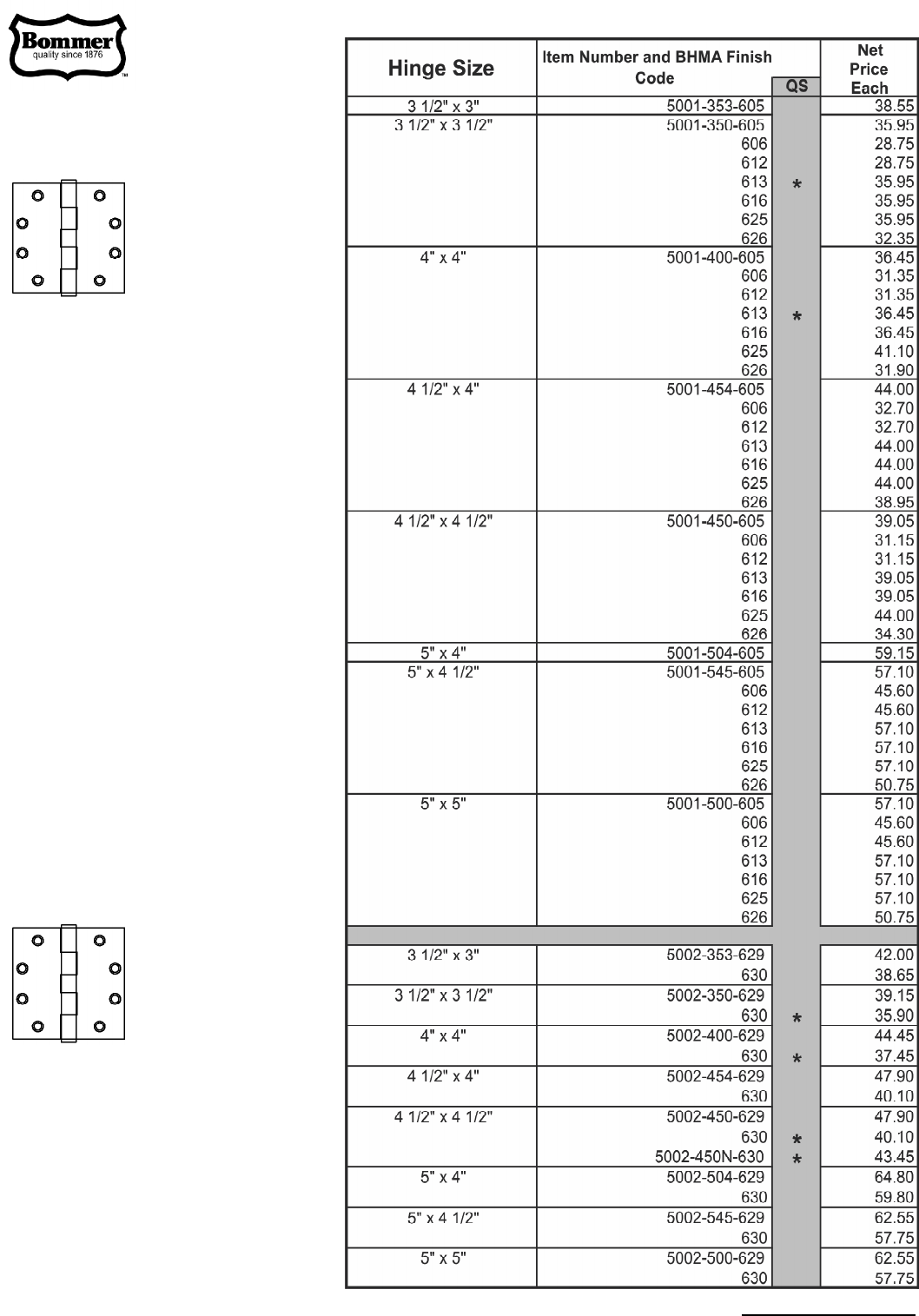

5001 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A2133
5002 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A5133
Plain Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-4

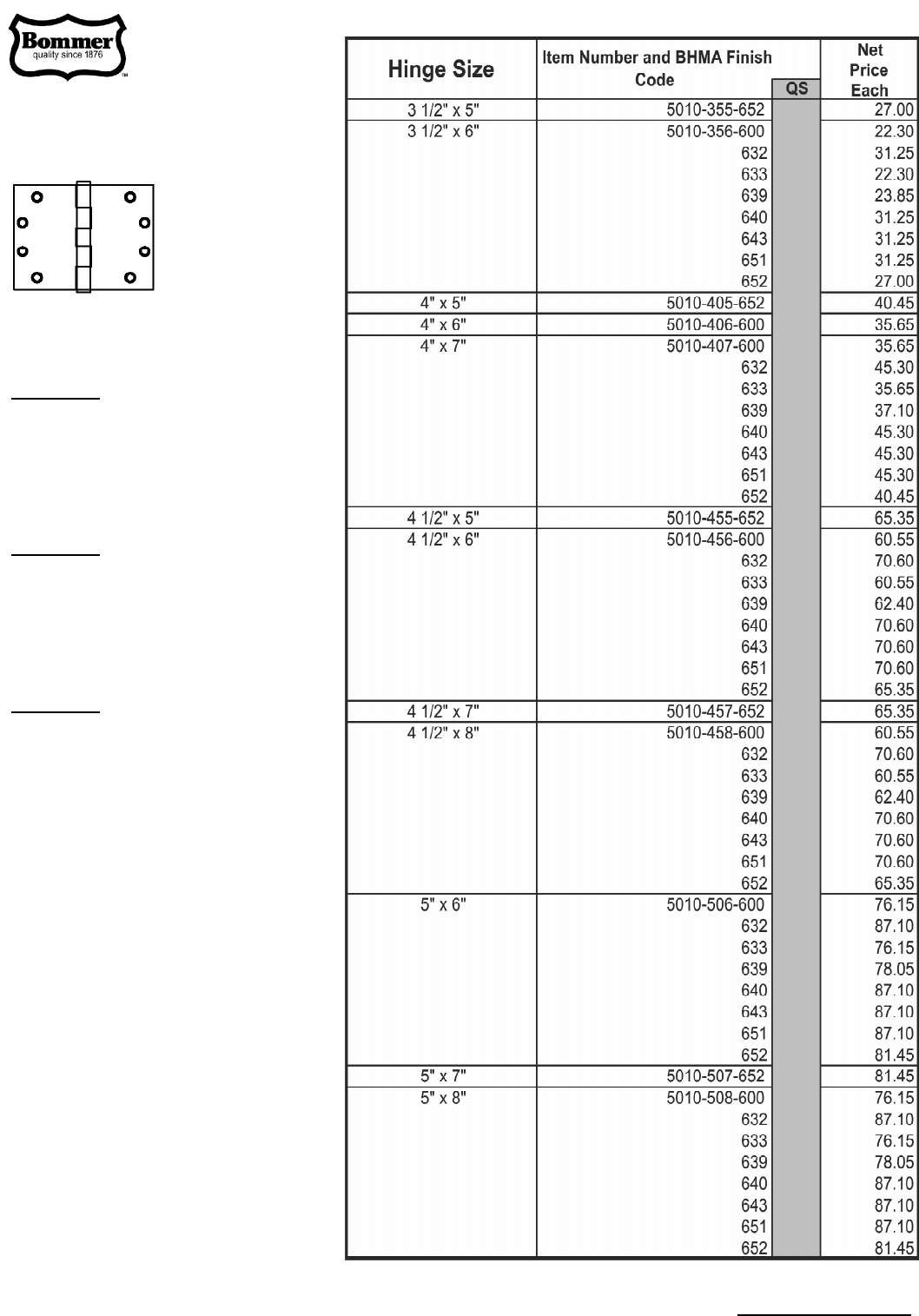

5010 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Steel Pin
ANSI A8133
5011 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2133
5012 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5133
Plain Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-5

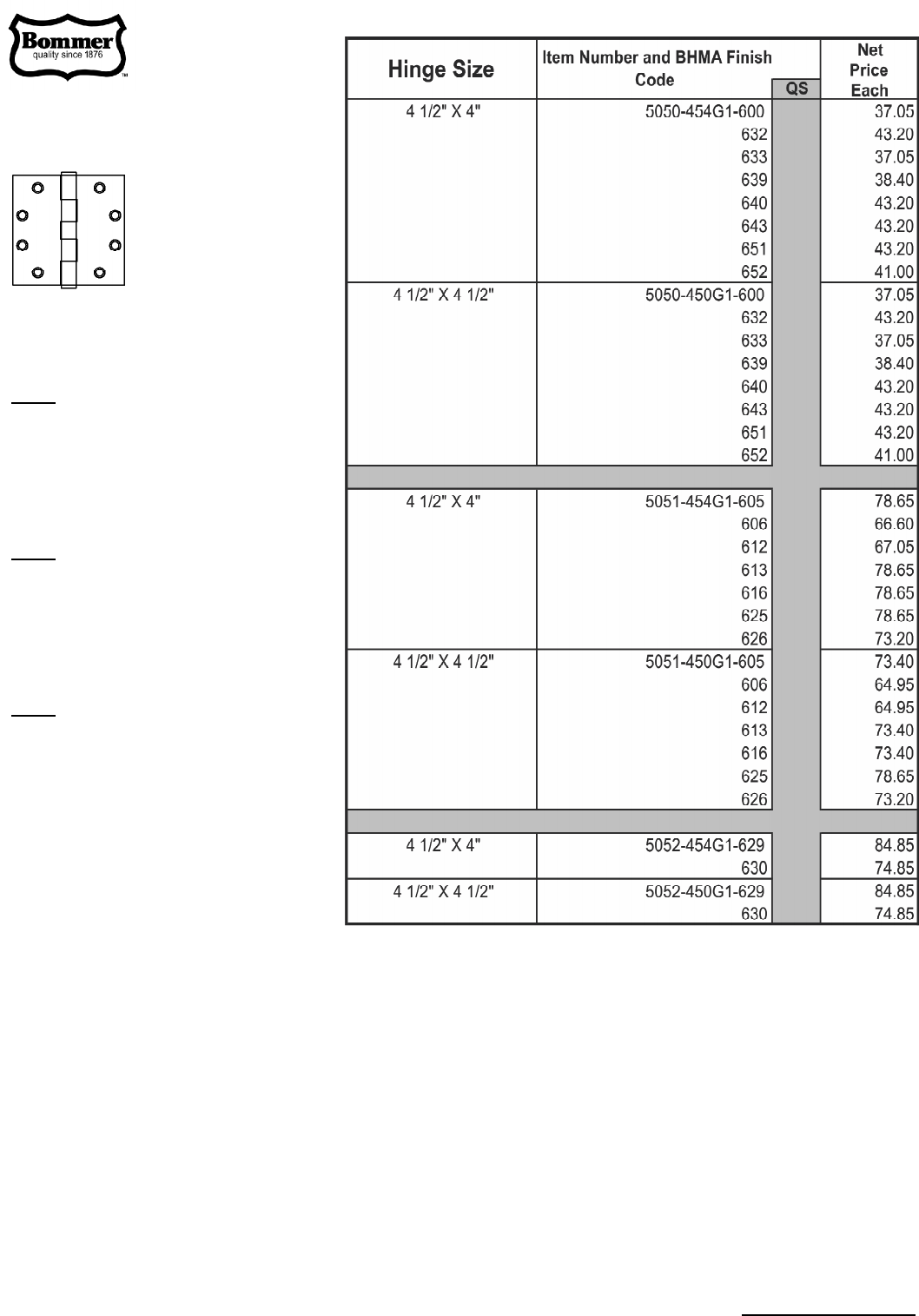

5050 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Steel Pin
ANSI A8133
5051 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Stainless Steel Pin
ANSI A2133
5052 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Stainless Steel Pin
ANSI A5133
Plain Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug

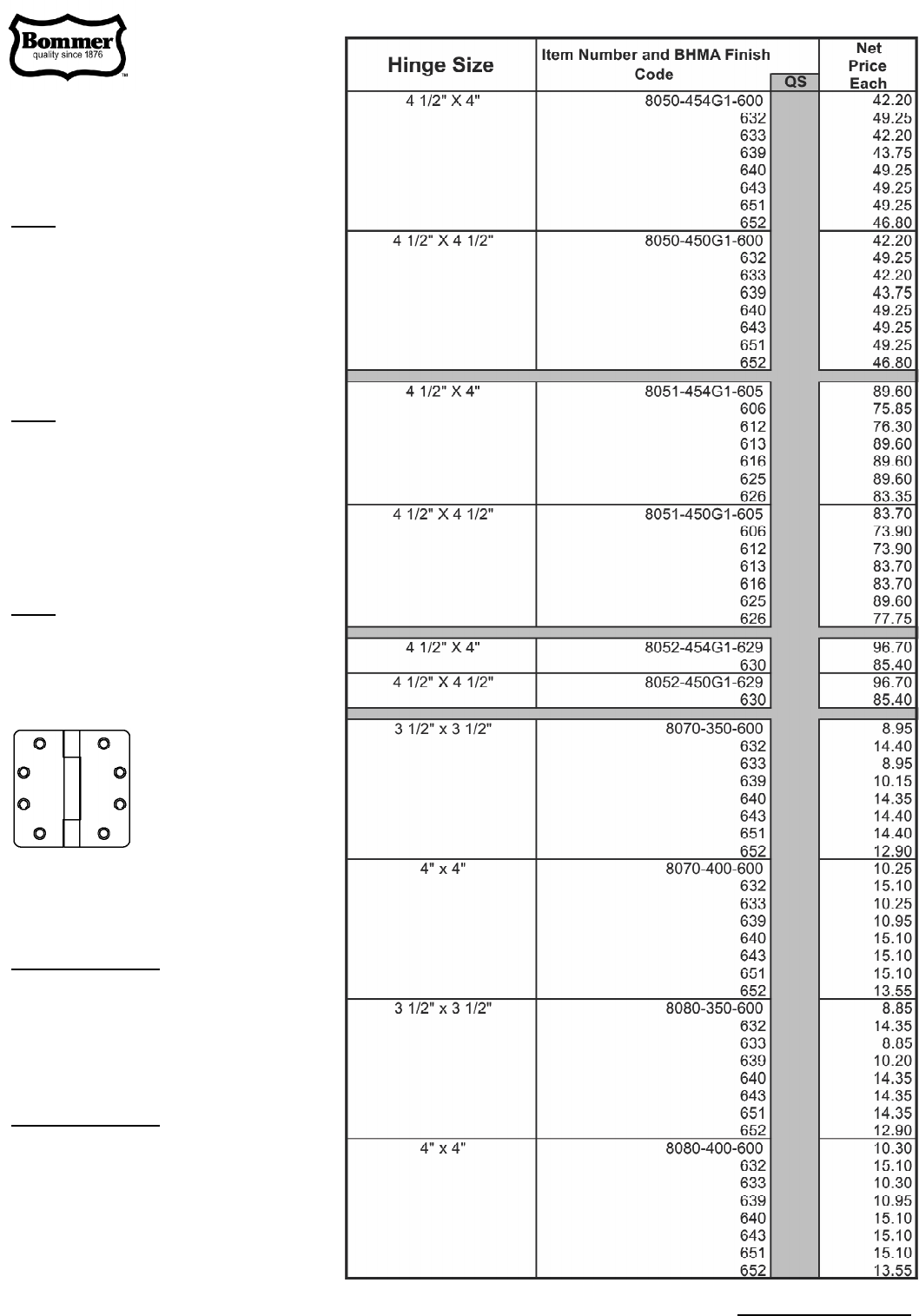

Slip-In hinges used for Aluminum Doors and Frames.
Hinge Leaf Slips Into a Slot in the Door and / or Frame.
Options for SLIP-IN Hinges are:
G1 = One Hinge Leaf Tapped with a .1875 Hinge Swage
G2 = Both Hinge Leaves Tapped with a .3125 Hinge
Swage
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-6

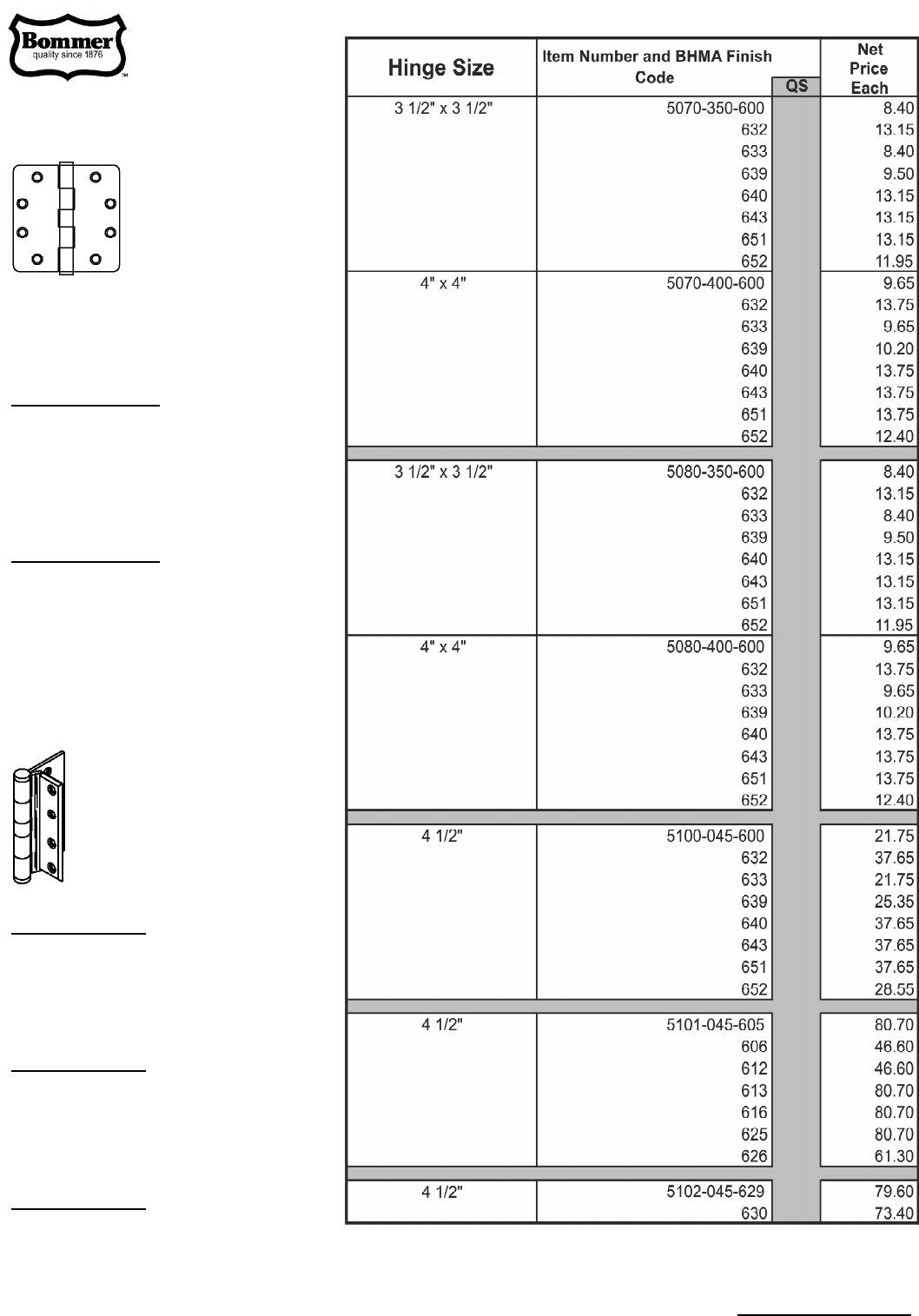

5070 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
1/4” Radius Corners
with Steel Pin
ANSI A8133
5080 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
5/8” Radius Corners
with Steel Pin
ANSI A8133
5100 SERIES STEEL
Half Mortise Hinge
Standard Weight
Plain Bearing
with Steel Pin
ANSI A8133
5101 SERIES BRASS
Half Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A2133
5102 SERIES STAINLESS STEEL
Half Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A5133
Plain Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-7

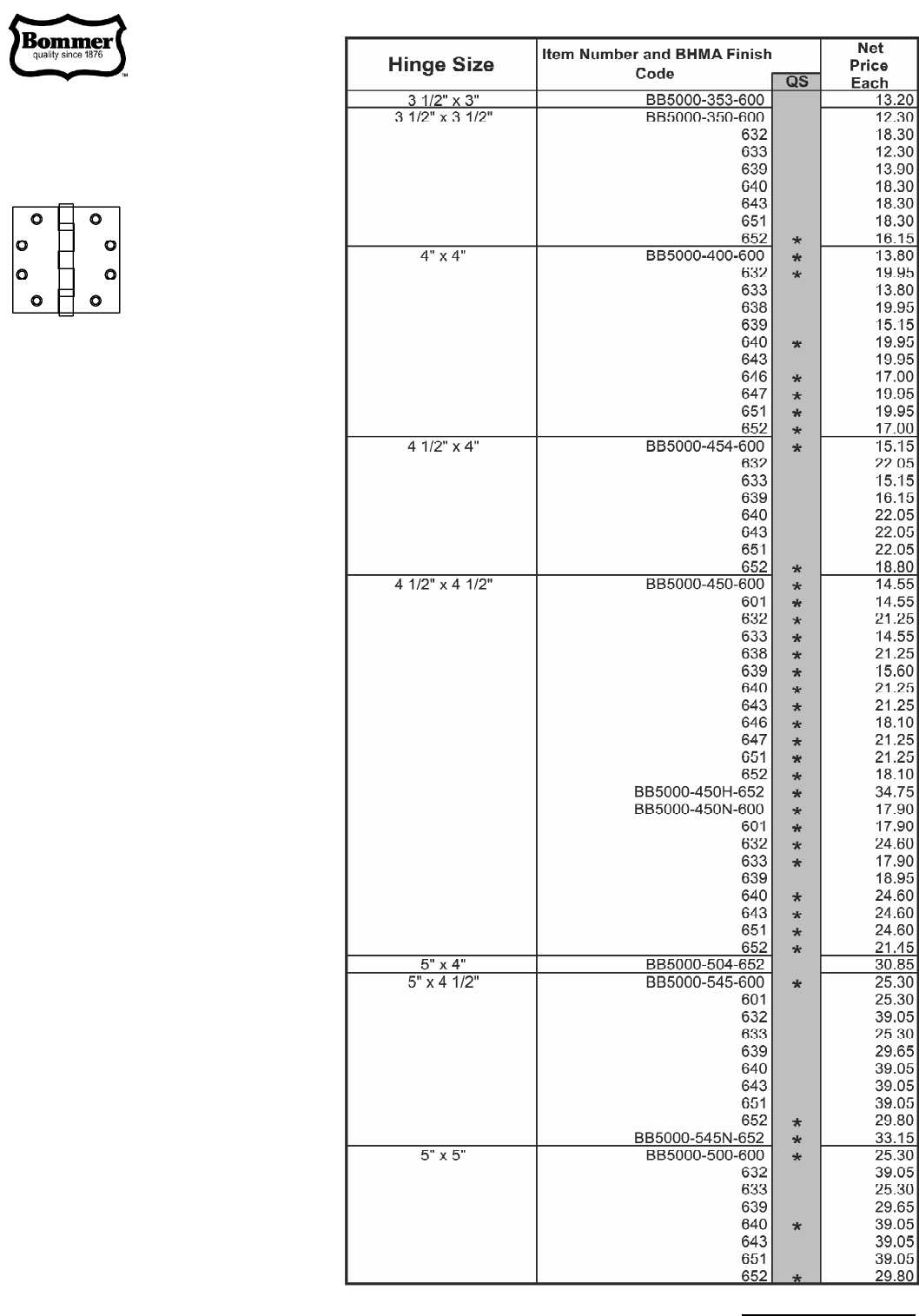

BB5000 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
with Steel Pin
ANSI A8112
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-8
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug

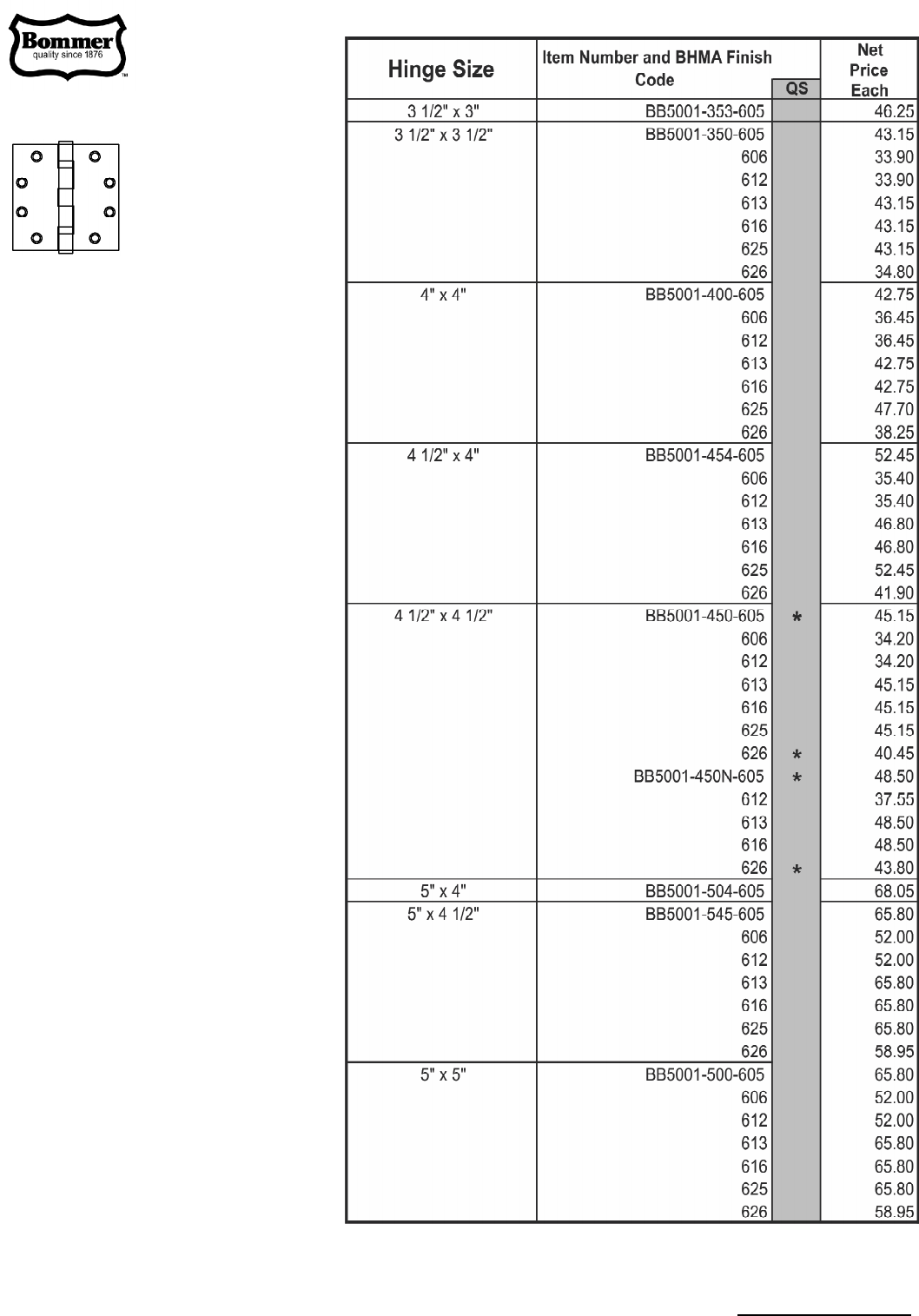

BB5001 SERIES BRASS
Full Mortise Hinge
Standard Weight
Ball Bearing
with Stainless Steel Pin
ANSI A2112
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-9
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug

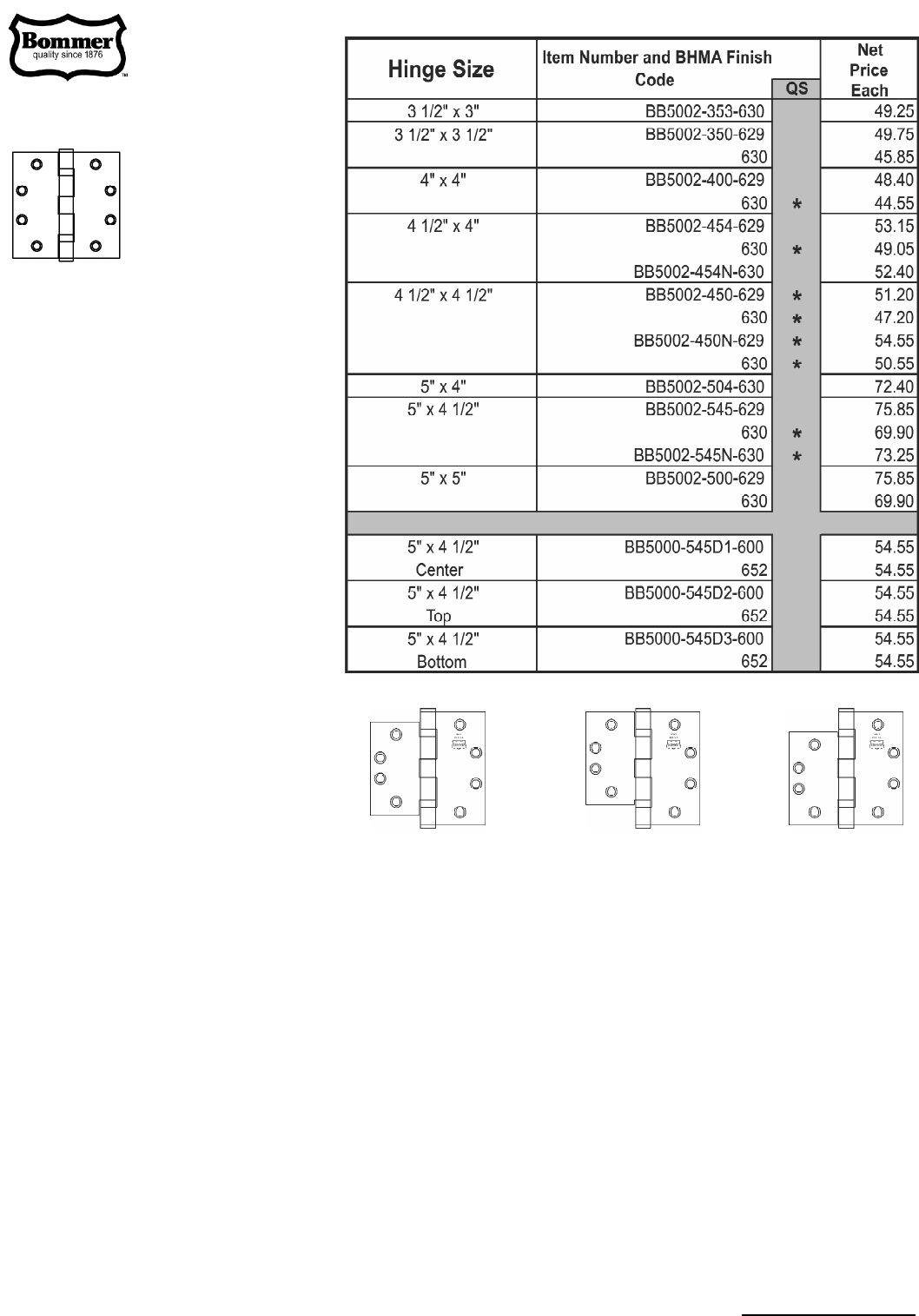

BB5002 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
with Stainless Steel Pin
ANSI A5112
BB5000 SERIES STEEL
SPECIALTY OFFSET LEAF HINGE
Full Mortise Hinge
Standard Weight
Ball Bearing
with Steel Pin
ANSI A8112
BB5000-545D1
Center BB5000-545D2
Top BB5000-545D3
Bottom
Offset leaf hinges are used when Doors / Frames have
different height mortises.
HINGE OPTIONS
D1 = Use when door and frame mortises are centered.
D2 = Use when door and frame mortises are even at the top.
D3 = Use when door and frame mortises are even at the bottom.
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-10
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug

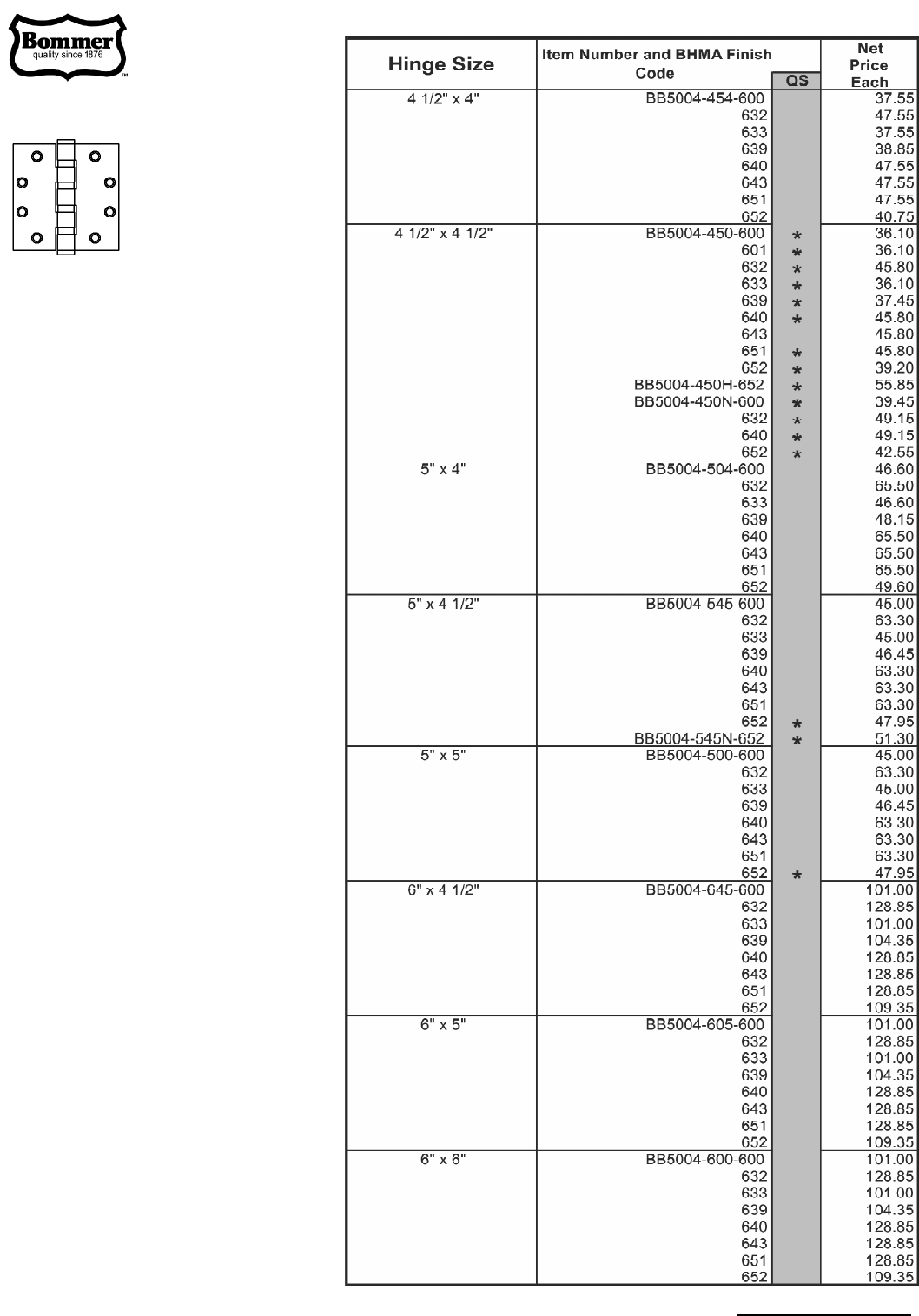

BB5004 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
with Steel Pin
ANSI A8131
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-11
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug

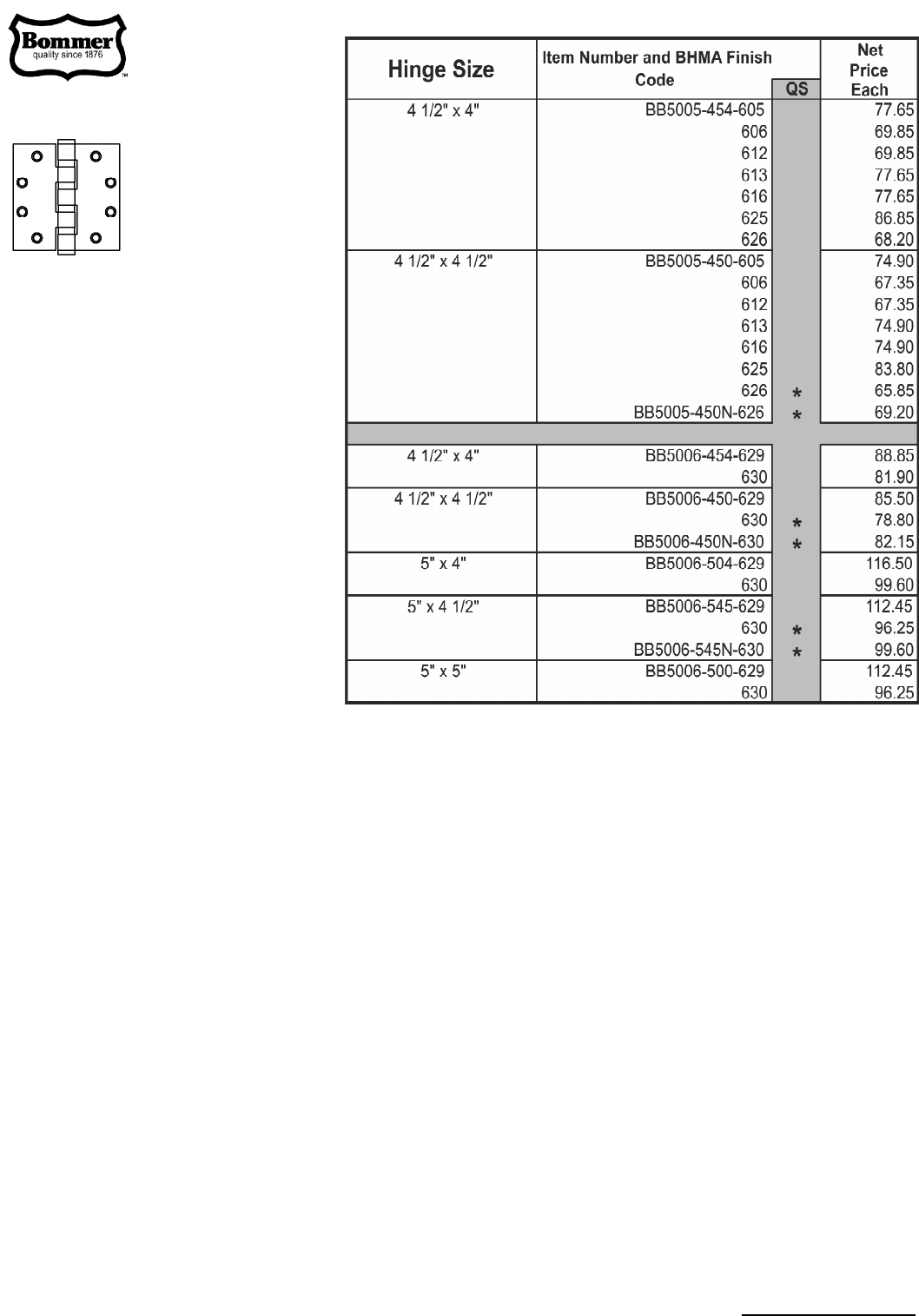

BB5005 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A2131
BB5006 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A5131
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-12
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5012 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5112
BB5011 SERIES BRASS
Full Mortise Hinge
Standard Weight
Ball Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2112
BB5010 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Wide Throw
with Steel Pin
ANSI A8112
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-13
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5016 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5111
BB5015 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Ball Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2111

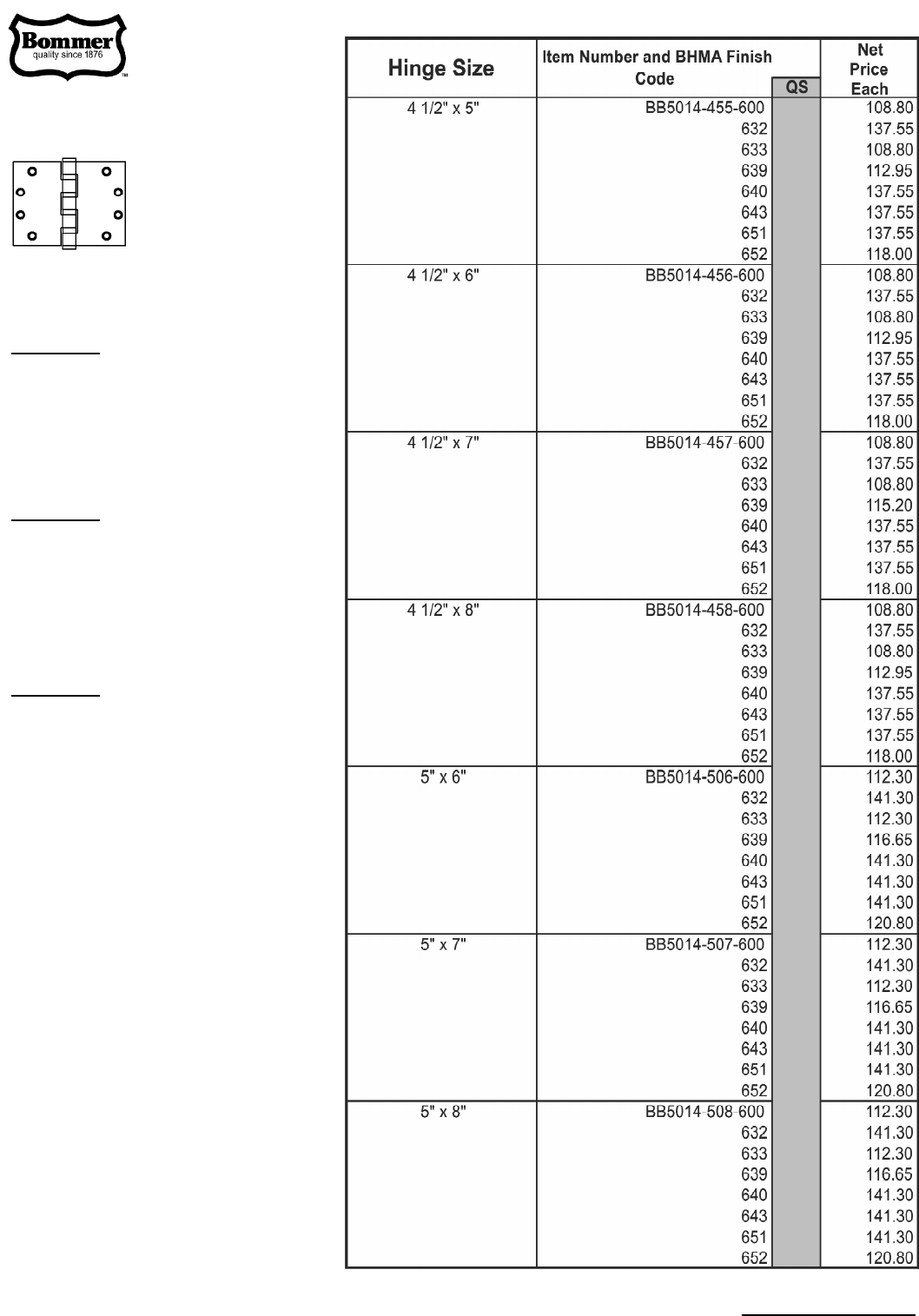

BB5014 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Wide Throw
with Steel Pin
ANSI A8111
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
BB5026 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Swing Clear
with Stainless Steel Pin
ANSI A5121
BB5025 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Ball Bearing
Swing Clear
with Stainless Steel Pin
ANSI A2121
BB5024 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Swing Clear
with Steel Pin
ANSI A8121
BB5022 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Swing Clear
with Stainless Steel Pin
ANSI A5122
BB5021 SERIES BRASS
Full Mortise Hinge
Standard Weight
Ball Bearing
Swing Clear
with Stainless Steel Pin
ANSI A2122

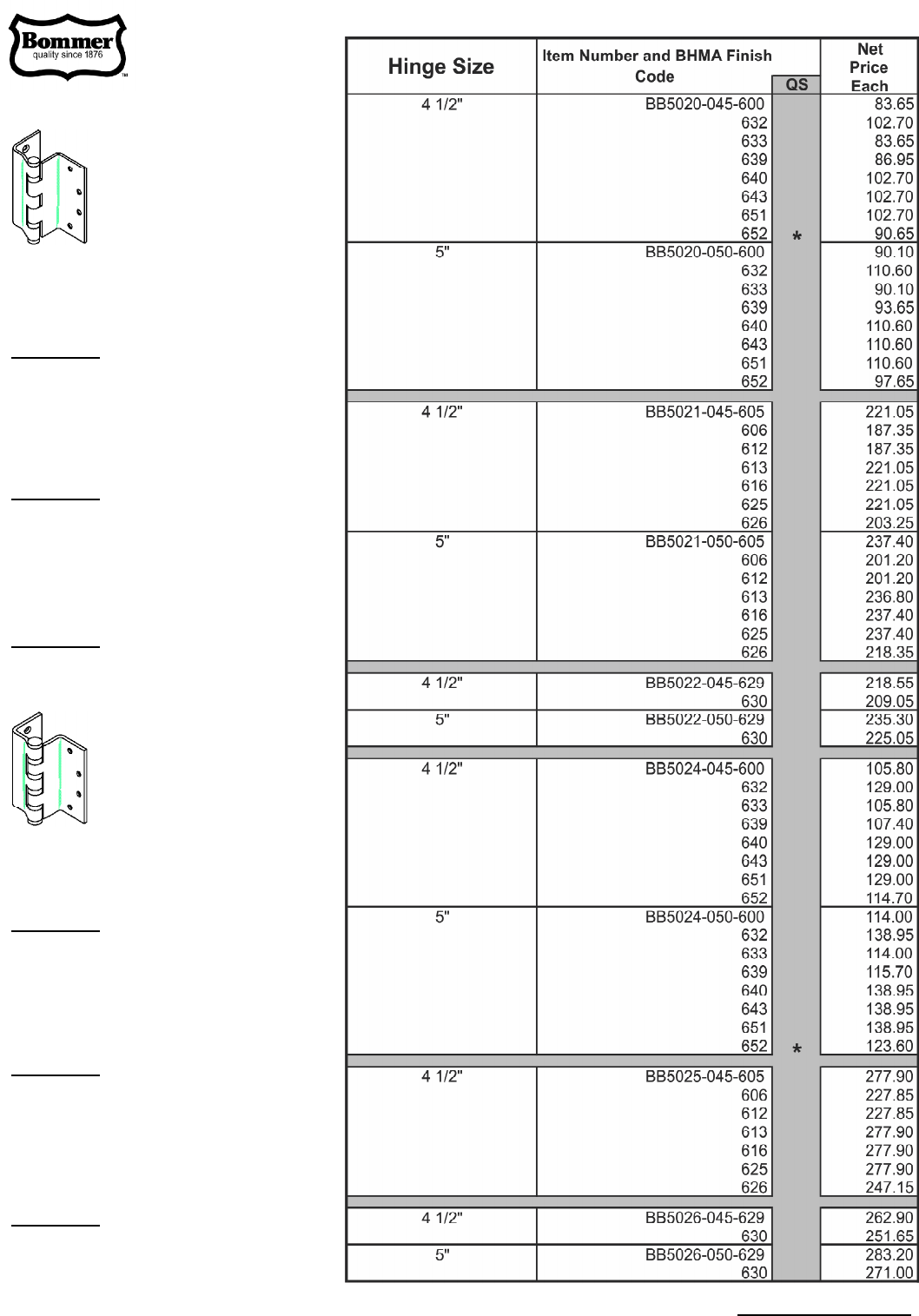

BB5020 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Swing Clear
with Steel Pin
ANSI A8122
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
AH-14
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5036 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Anchor Hinge
with Stainless Steel Pin
ANSI A5551
AH-15
Z01 = Right Hand Square Door 7 1/2” Door Arm
Z02 = Right Hand Square Door 4” Door Arm
Z03 = Right Hand Square Door No Door Arm
Z04 = Left Hand Square Door 7 1/2” Door Arm
Z05 = Left Hand Square Door 4” Door Arm
Z06 = Left Hand Square Door No Door Arm
Z07 = Right Hand Beveled Door 7 1/2” Door Arm
Z08 = Right Hand Beveled Door 4” Door Arm
Z09 = Left Hand Beveled Door 7 1/2” Door Arm
Z10 = Left Hand Beveled Door 4” Door Arm
ANCHOR HINGE OPTIONS
BB5034 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Anchor Hinge
with Steel Pin
ANSI A5551
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-16
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5046 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A5111
BB5045 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Ball Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A2111
BB5044 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Ball Bearing
Raised Barrel
with Steel Pin
ANSI A8111
BB5042 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A5112
BB5041 SERIES BRASS
Full Mortise Hinge
Standard Weight
Ball Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A2112
BB5040 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Raised Barrel
with Steel Pin
ANSI A8112
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-17
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5052 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Slip-In
with Stainless Steel Pin
ANSI A5112
BB5051 SERIES BRASS
Full Mortise Hinge
Standard Weight
Ball Bearing
Slip-In
with Stainless Steel Pin
ANSI A2112
BB5050 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
Slip-In
with Steel Pin
ANSI A8112
Slip-In hinges used for Aluminum Doors and Frames.
Hinge Leaf Slips Into a Slot in the Door and / or Frame.
Options for SLIP-IN Hinges are:
G1 = One Hinge Leaf Tapped with a .1875 Hinge Swage
G2 = Both Hinge Leaves Tapped with a .3125 Hinge
Swage
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
MORTAR BOX
BB5060-MB - 1
Galvanized Steel
BB5060 SERIES STEEL
Full Mortise Hinge Standard Weight Ball Bearing
with Electric Options
ANSI A8112
BB5061 SERIES BRASS
Full Mortise Hinge Standard Weight Ball Bearing
with Electric Options
ANSI A2112
BB5062 SERIES STAINLESS STEEL
Full Mortise Hinge Standard Weight Ball Bearing
with Electric Options
ANSI A5112
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5064 SERIES STEEL
Full Mortise Hinge Heavy Weight Ball Bearing
with Electric Options
ANSI A8111
BB5065 SERIES BRASS
Full Mortise Hinge Heavy Weight Ball Bearing
with Electric Options
ANSI A2111
BB5066 SERIES STAINLESS STEEL
Full Mortise Hinge Heavy Weight Ball Bearing
with Electric Options
ANSI A5111
AH-18
ELECTRIC HINGE OPTIONS
apply to the
BASE HINGE PRICE
as listed in this
NET PRICE BOOK. START
with the
NET PRICE
of the
BASE HINGE, THEN ADD THE PRICE LISTED BELOW FOR THE OPTION REQUIRED.
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
AH-19
BB5070 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
1/4” Radius Corners
with Steel Pin
ANSI A8112
BB5080 SERIES STEEL
Full Mortise Hinge
Standard Weight
Ball Bearing
5/8” Radius Corners
with Steel Pin
ANSI A8112
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-20
BB5100 SERIES STEEL
Half Mortise Hinge
Standard Weight
Ball Bearing with Steel Pin
ANSI A8212
BB5101 SERIES BRASS
Half Mortise Hinge
Standard Weight
Ball Bearing with Stainless Steel Pin
ANSI A2212
BB5102 SERIES STAINLESS STEEL
Half Mortise Hinge
Standard Weight
Ball Bearing with Stainless Steel Pin
ANSI A5212
BB5104 SERIES STEEL
Half Mortise Hinge
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8211
BB5105 SERIES BRASS
Half Mortise Hinge
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A2211
BB5106 SERIES STAINLESS STEEL
Half Mortise Hinge
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A5211
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5124 SERIES STEEL
Half Mortise Swing Clear
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8221
BB5125 SERIES BRASS
Half Mortise Swing Clear
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A2221
BB5126 SERIES STAINLESS STEEL
Half Mortise Swing Clear
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A5221
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-21
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5200 SERIES STEEL
Full Surface Hinge
Standard Weight
Ball Bearing with Steel Pin
ANSI A8312
BB5201 SERIES BRASS
Full Surface Hinge
Standard Weight
Ball Bearing with Stainless Steel Pin
ANSI A2312
BB5202 SERIES STAINLESS STEEL
Full Surface Hinge
Standard Weight
Ball Bearing with Stainless Steel Pin
ANSI A5312
BB5204 SERIES STEEL
Full Surface Hinge
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8311
BB5205 SERIES BRASS
Full Surface Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A2311
BB5206 SERIES STAINLESS STEEL
Full Surface Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A5311
BB5224 SERIES STEEL
Full Surface Swing Clear
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8321
BB5225 SERIES BRASS
Full Surface Swing Clear
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A2321
BB5226 SERIES STAINLESS STEEL
Full Surface Swing Clear
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A5321
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-22
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
BB5300 SERIES STEEL
Half Surface Hinge
Standard Weight
Ball Bearing
with Steel Pin
ANSI A8412
BB5301 SERIES BRASS
Half Surface Hinge
Standard Weight
Ball Bearing
with Stainless Steel Pin
ANSI A2412
BB5302 SERIES STAINLESS STEEL
Half Surface Hinge
Standard Weight
Ball Bearing
with Stainless Steel Pin
ANSI A5412
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-23
BB5304 SERIES STEEL
Half Surface Hinge
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8411
BB5305 SERIES BRASS
Half Surface Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A2411
BB5306 SERIES STAINLESS STEEL
Half Surface Hinge
Heavy Weight
Ball Bearing
with Stainless Steel Pin
ANSI A5411
BB5324 SERIES STEEL
Half Surface Swing Clear
Heavy Weight
Ball Bearing with Steel Pin
ANSI A8421
BB5326 SERIES STAINLESS STEEL
Half Surface Swing Clear
Heavy Weight
Ball Bearing with Stainless Steel Pin
ANSI A5421
Ball Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
LB5000 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
with Steel Pin
ANSI A8112
AH-24
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-25
Lube Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
LB5001 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2112
LB5002 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5112
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-26
Lube Bearing Five Knuckle Template Hole Pattern Button Tip Pin & Plug
LB5004 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Steel Pin
ANSI A8131
LB5005 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2131
LB5006 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5131
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-27
Plain Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
8000 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
with Steel Pin
ANSI A8133
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-28
Plain Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
8001 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A2133
8002 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A5133
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-29
Plain Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
8010 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Steel Pin
ANSI A8133
8011 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2133
8012 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5133
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
AH-30
Plain Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
8070 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
1/4” Radius Corners
with Steel Pin
ANSI A8133
8080 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
5/8” Radius Corners
with Steel Pin
ANSI A8133
8050 SERIES STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Steel Pin
ANSI A8133
8051 SERIES BRASS
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Stainless Steel Pin
ANSI A2133
8052 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Plain Bearing
Slip In
with Stainless Steel Pin
ANSI A5133
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Plain Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
8100 SERIES STEEL
Half Mortise Hinge
Standard Weight
Plain Bearing
with Steel Pin
ANSI A8133
8101 SERIES BRASS
Half Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A2133
8102 SERIES STAINLESS STEEL
Half Mortise Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A5133
8301 SERIES BRASS
Half Surface Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A2413
8300 SERIES STEEL
Half Surface Hinge
Standard Weight
Plain Bearing
with Steel Pin
ANSI A8413
8302 SERIES STAINLESS STEEL
Half Surface Hinge
Standard Weight
Plain Bearing
with Stainless Steel Pin
ANSI A5413
AH-31
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

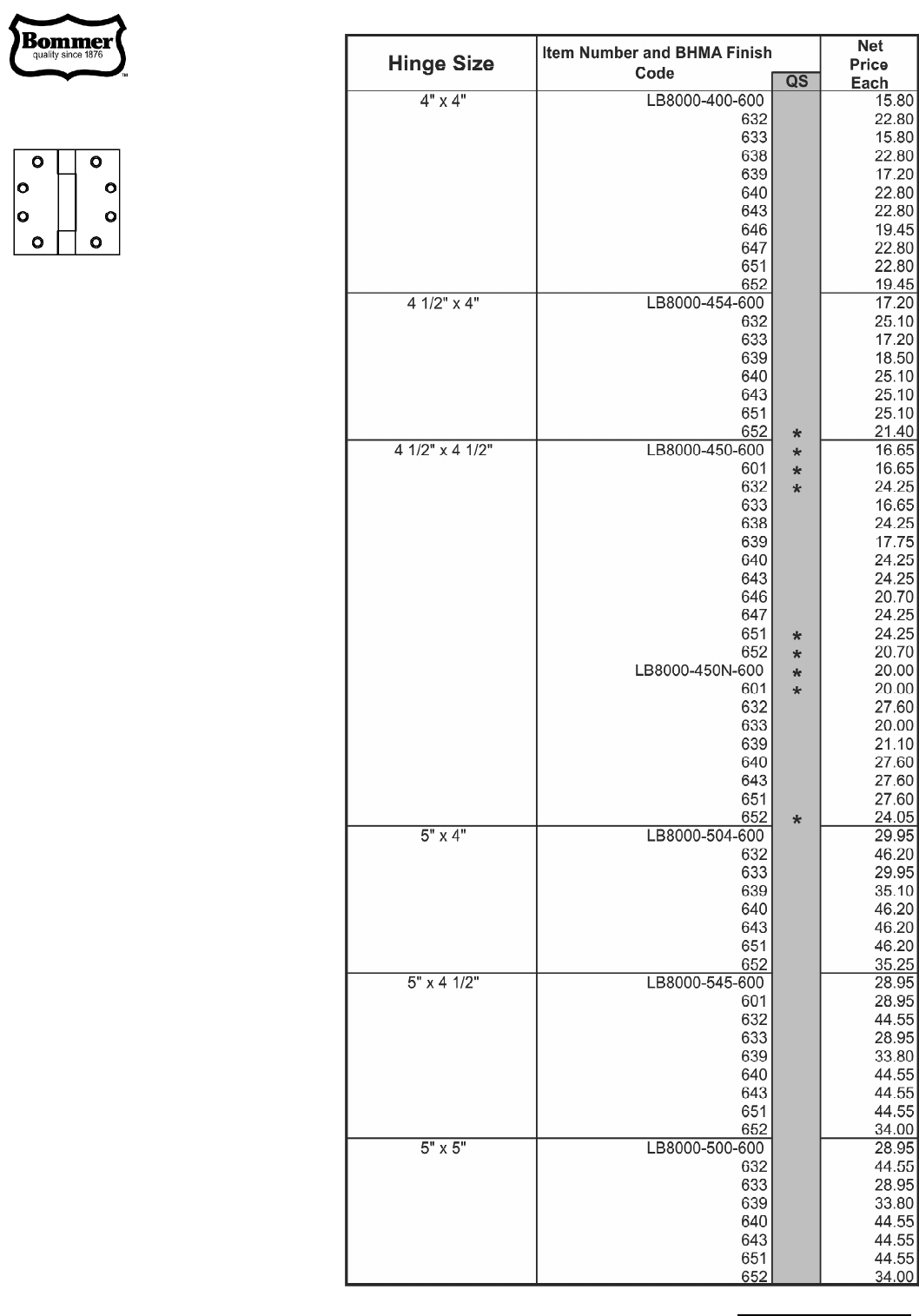

Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8000 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
with Steel Pin
ANSI A8112
AH-32
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

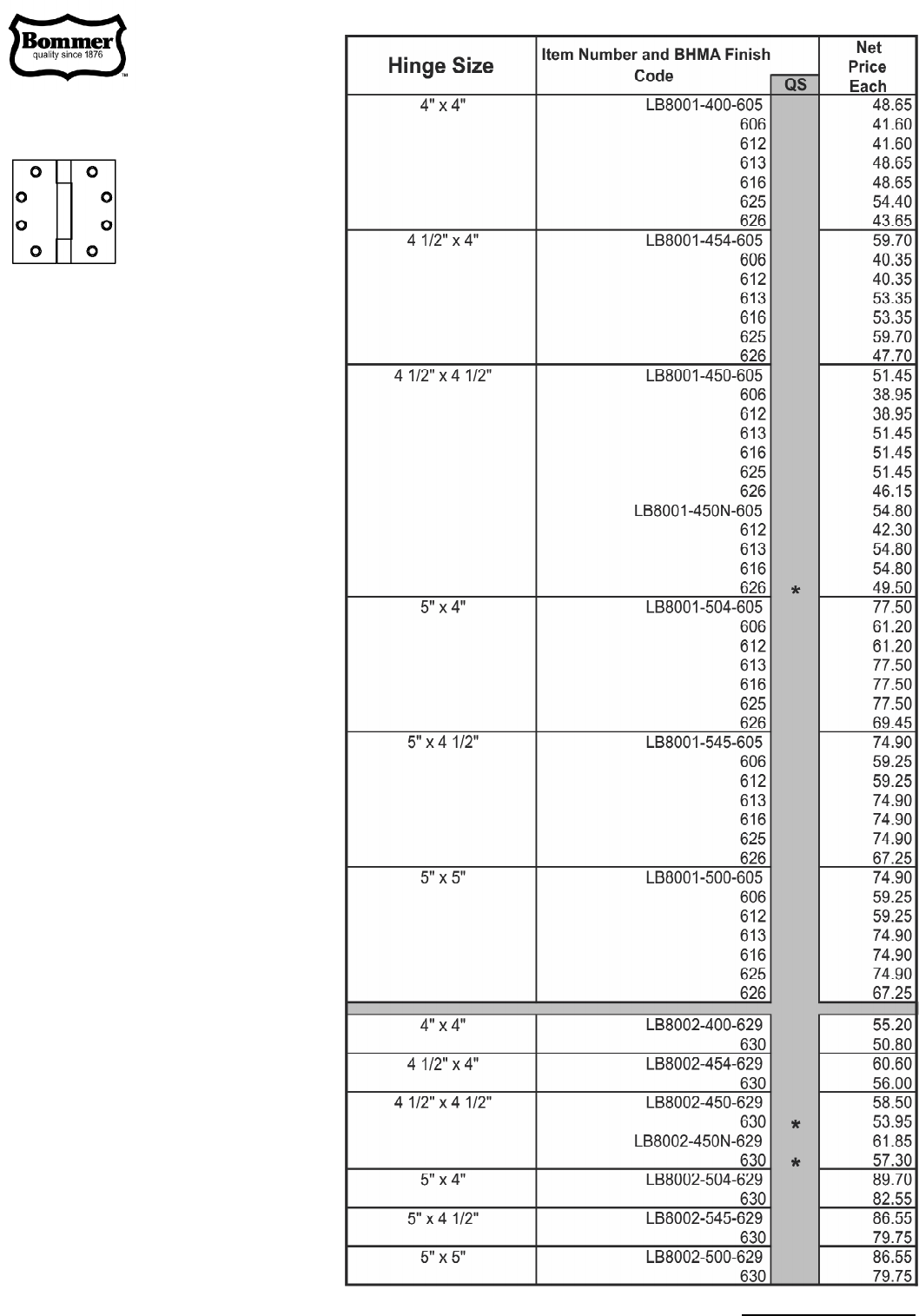

LB8001 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2112
LB8002 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5112
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
AH-33
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug

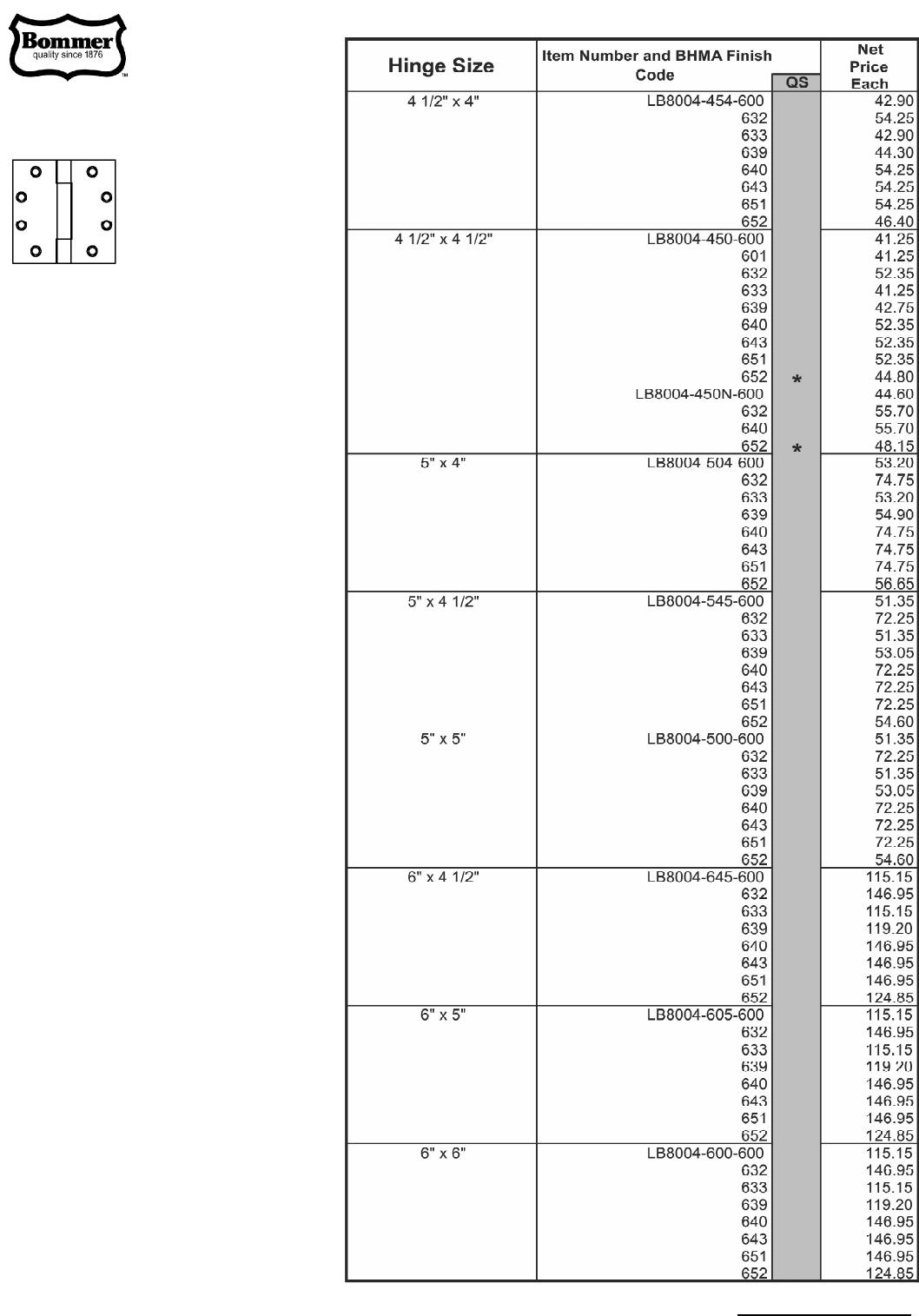

LB8004 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Steel Pin
ANSI A8131
AH-34
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8005 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2131
LB8006 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5131
AH-35
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8012 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5112
LB8011 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2112

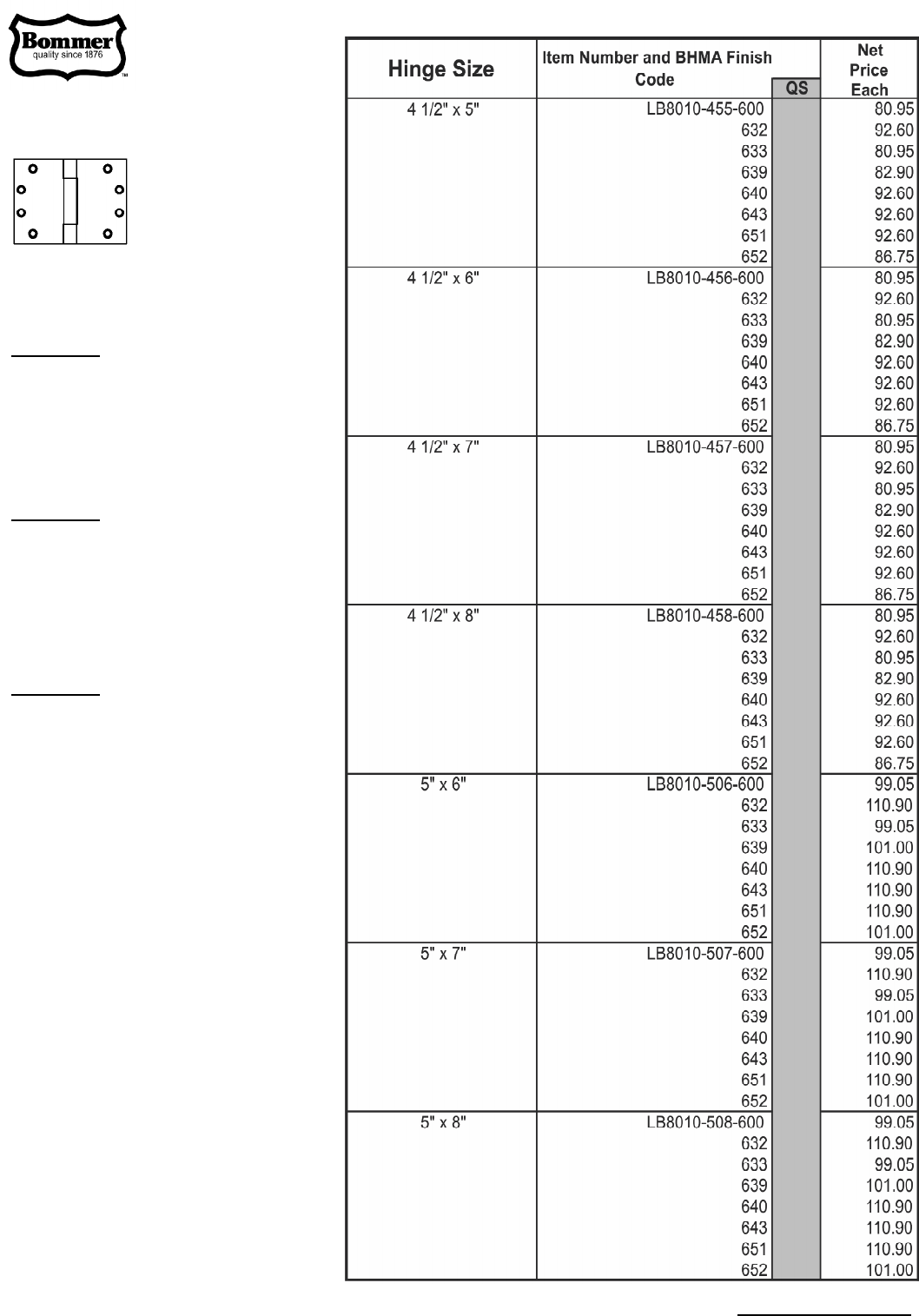

LB8010 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A8112
AH-36
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8016 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A5111
LB8015 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A2111

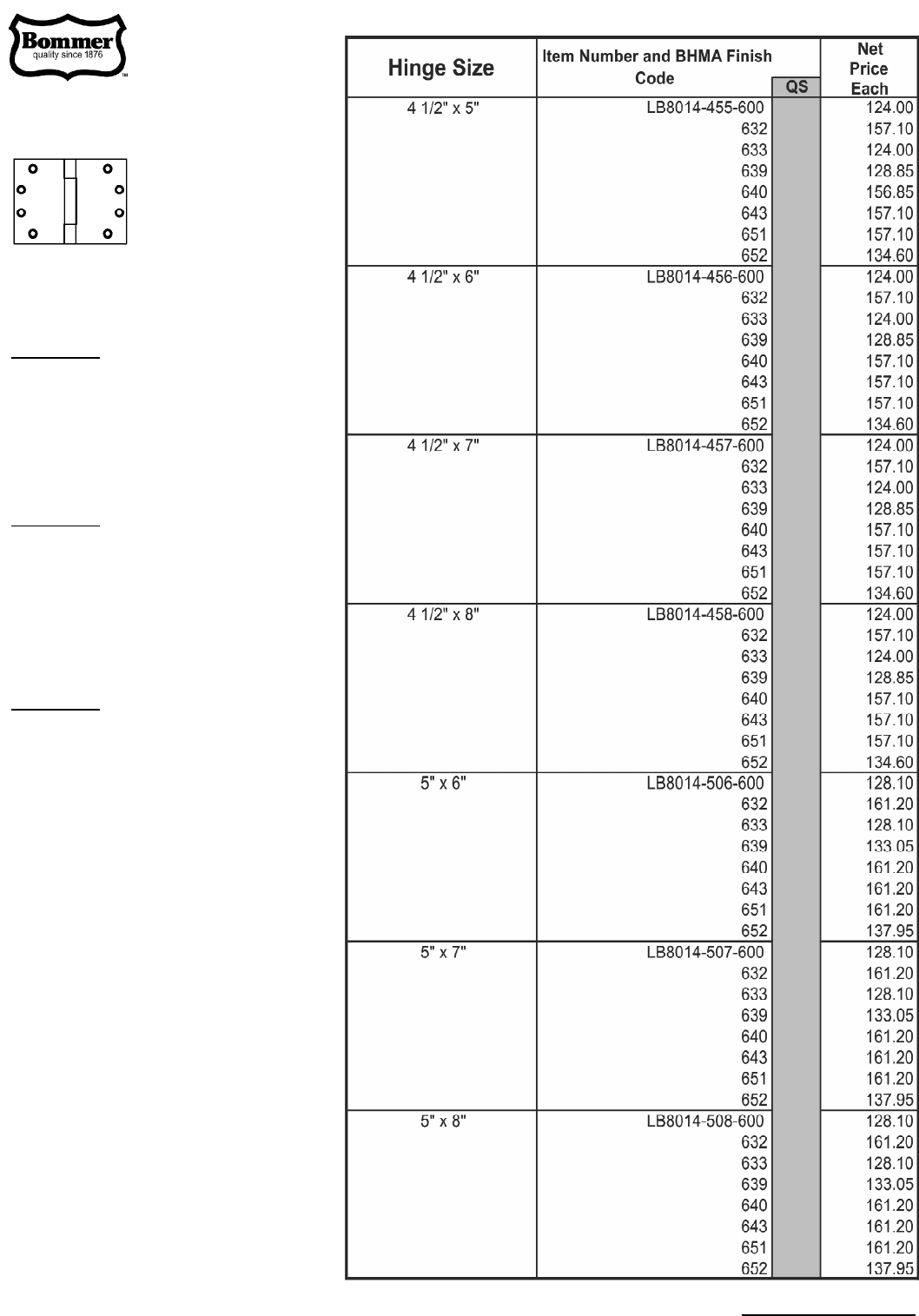

LB8014 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Wide Throw
with Stainless Steel Pin
ANSI A8111
AH-37
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

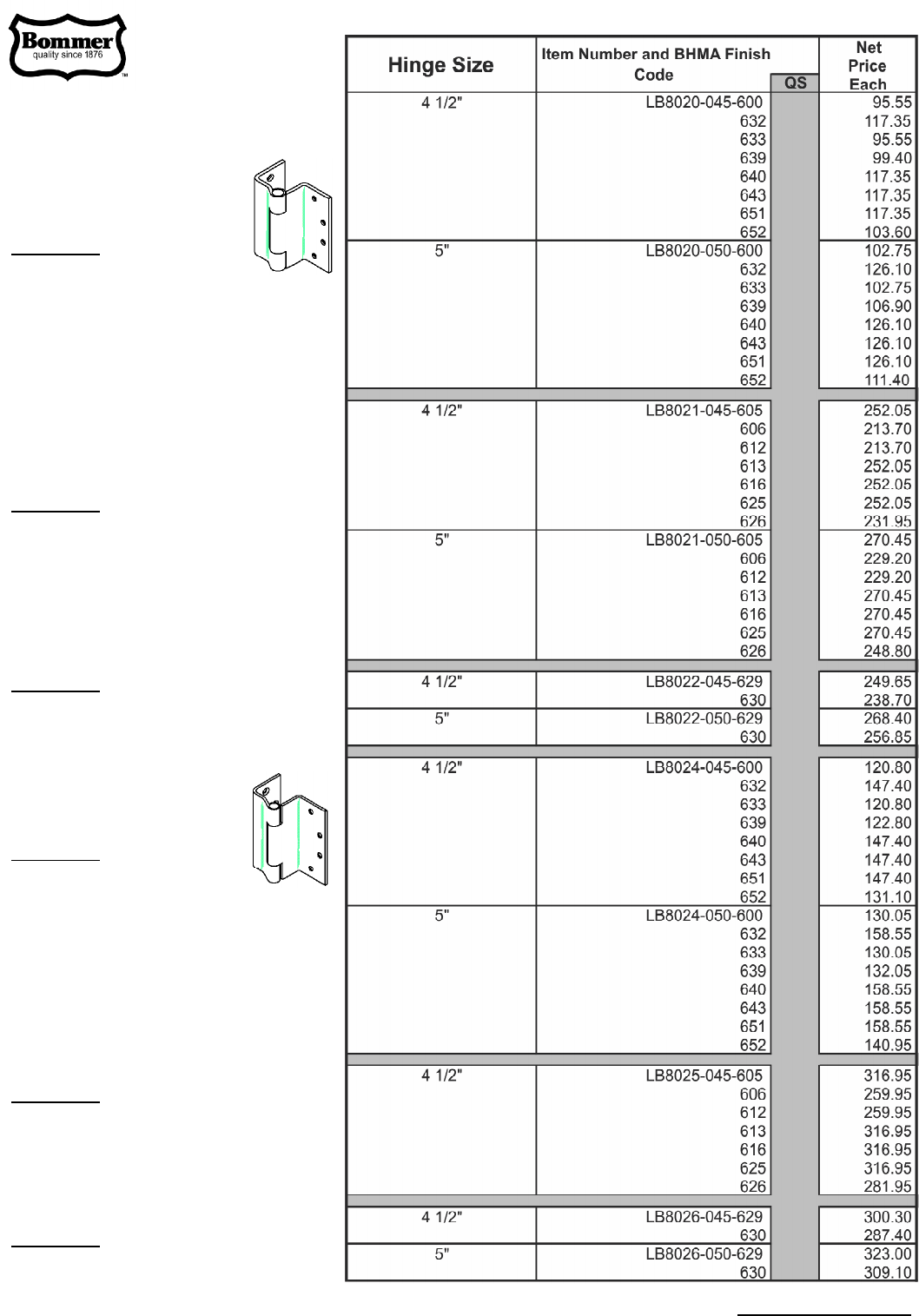

Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8026 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A5121
LB8025 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A2121
LB8024 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A8121
LB8022 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A5122
LB8021 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A2122
LB8020 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Swing Clear
with Stainless Steel Pin
ANSI A8122
AH-38
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8036 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Anchor Hinge
with Stainless Steel Pin
ANSI A5551
LB8034 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Anchor Hinge
with Stainless Steel Pin
ANSI A8551
AH-39
ANCHOR HINGE OPTIONS
Z01 = Right Hand Square Door 7 1/2” Door Arm
Z02 = Right Hand Square Door 4” Door Arm
Z03 = Right Hand Square Door No Door Arm
Z04 = Left Hand Square Door 7 1/2” Door Arm
Z05 = Left Hand Square Door 4” Door Arm
Z06 = Left Hand Square Door No Door Arm
Z07 = Right Hand Beveled Door 7 1/2” Door Arm
Z08 = Right Hand Beveled Door 4” Door Arm
Z09 = Left Hand Beveled Door 7 1/2” Door Arm
Z10 = Left Hand Beveled Door 4” Door Arm
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug

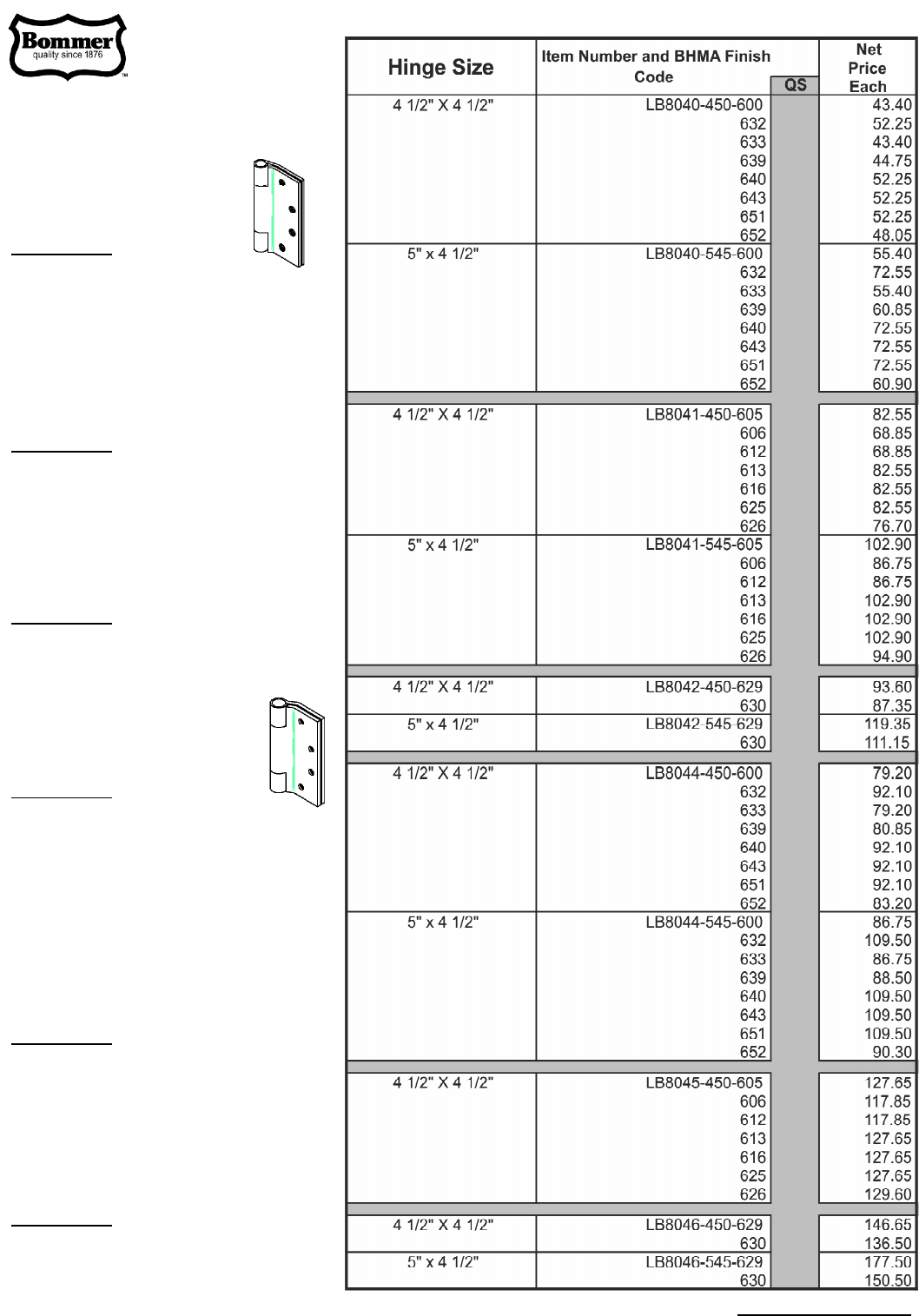

LB8046 SERIES STAINLESS STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A5111
LB8045 SERIES BRASS
Full Mortise Hinge
Heavy Weight
Lube Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A2111
LB8044 SERIES STEEL
Full Mortise Hinge
Heavy Weight
Lube Bearing
Raised Barrel
with Steel Pin
ANSI A8111
LB8042 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A5112
LB8041 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
Raised Barrel
with Stainless Steel Pin
ANSI A2112
LB8040 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Raised Barrel
with Steel Pin
ANSI A8112
AH-40
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8052 SERIES STAINLESS STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Slip-In
with Stainless Steel Pin
ANSI A5112
LB8051 SERIES BRASS
Full Mortise Hinge
Standard Weight
Lube Bearing
Slip-In
with Stainless Steel Pin
ANSI A2112
LB8050 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
Slip-In
with Steel Pin
ANSI A8112
LB8080 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
5/8” Radius Corners
with Steel Pin
ANSI A8112
LB8070 SERIES STEEL
Full Mortise Hinge
Standard Weight
Lube Bearing
1/4” Radius Corners
with Steel Pin
ANSI A8112
AH-41
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

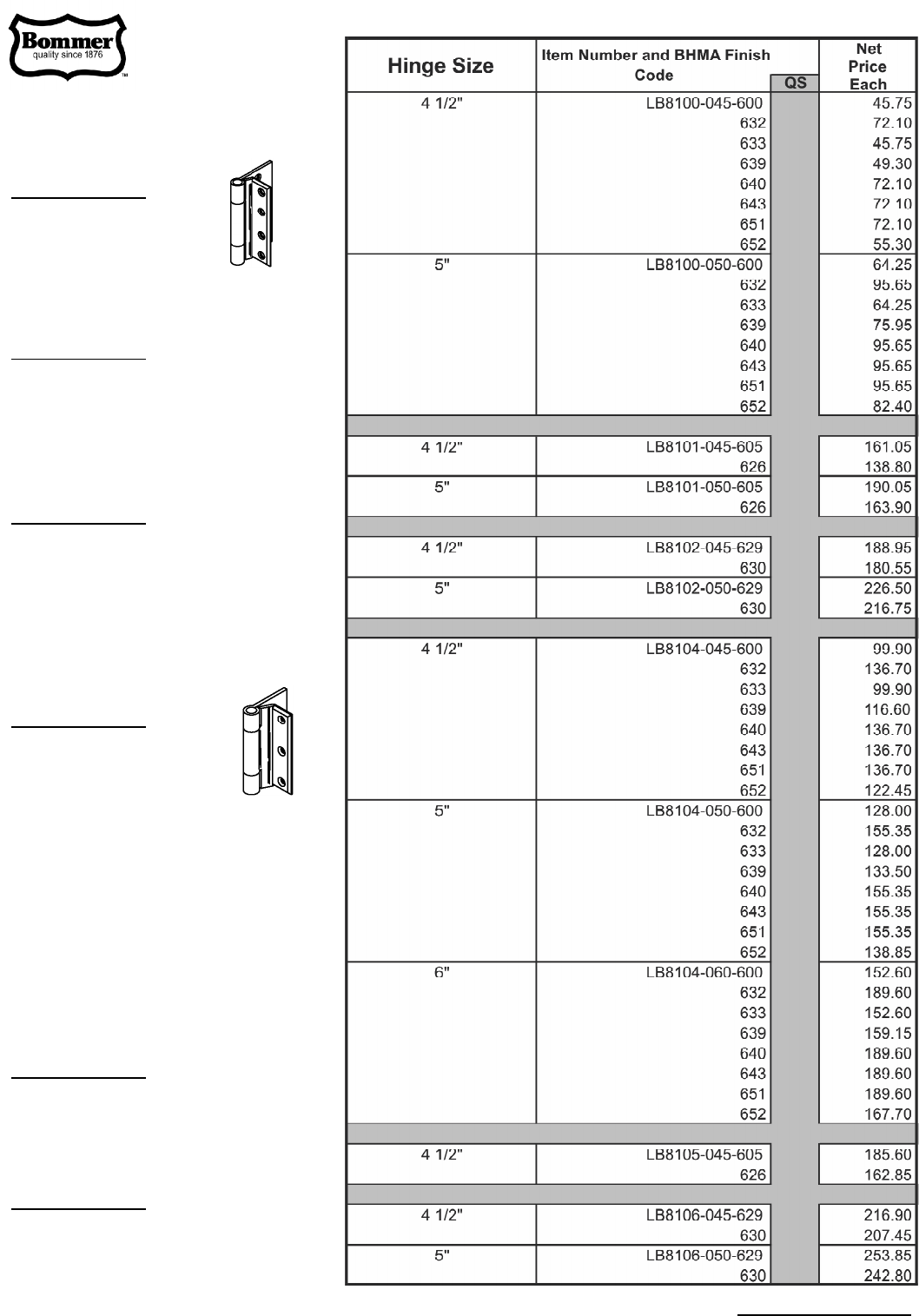

Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug
LB8100 SERIES STEEL
Half Mortise Hinge
Standard Weight
Lube Bearing
with Steel Pin
ANSI A8212
LB8101 SERIES BRASS
Half Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2212
LB8102 SERIES STAINLESS STEEL
Half Mortise Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5212
LB8104 SERIES STEEL
Half Mortise Hinge
Heavy Weight
Lube Bearing
with Steel Pin
ANSI A8211
LB8105 SERIES BRASS
Half Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2211
LB8106 SERIES STAINLESS STEEL
Half Mortise Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5211
AH-42
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug

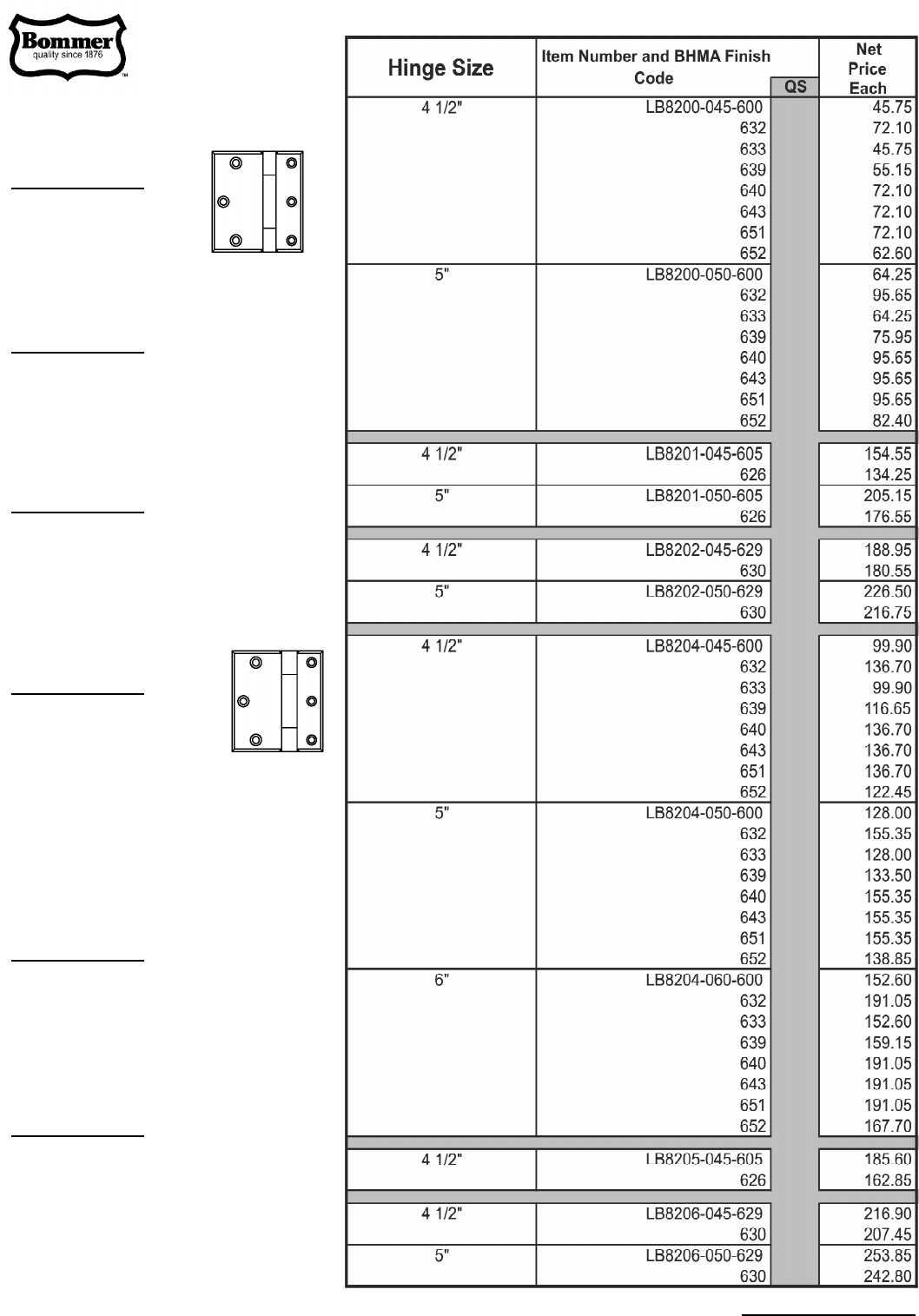

LB8200 SERIES STEEL
Full Surface Hinge
Standard Weight
Lube Bearing
with Steel Pin
ANSI A8312
LB8201 SERIES BRASS
Full Surface Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2312
LB8202 SERIES STAINLESS STEEL
Full Surface Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5312
LB8204 SERIES STEEL
Full Surface Hinge
Heavy Weight
Lube Bearing
with Steel Pin
ANSI A8311
LB8205 SERIES BRASS
Full Surface Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2311
LB8206 SERIES STAINLESS STEEL
Full Surface Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5311
AH-43
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Lube Bearing Three Knuckle Template Hole Pattern Flush Tip Pin & Plug

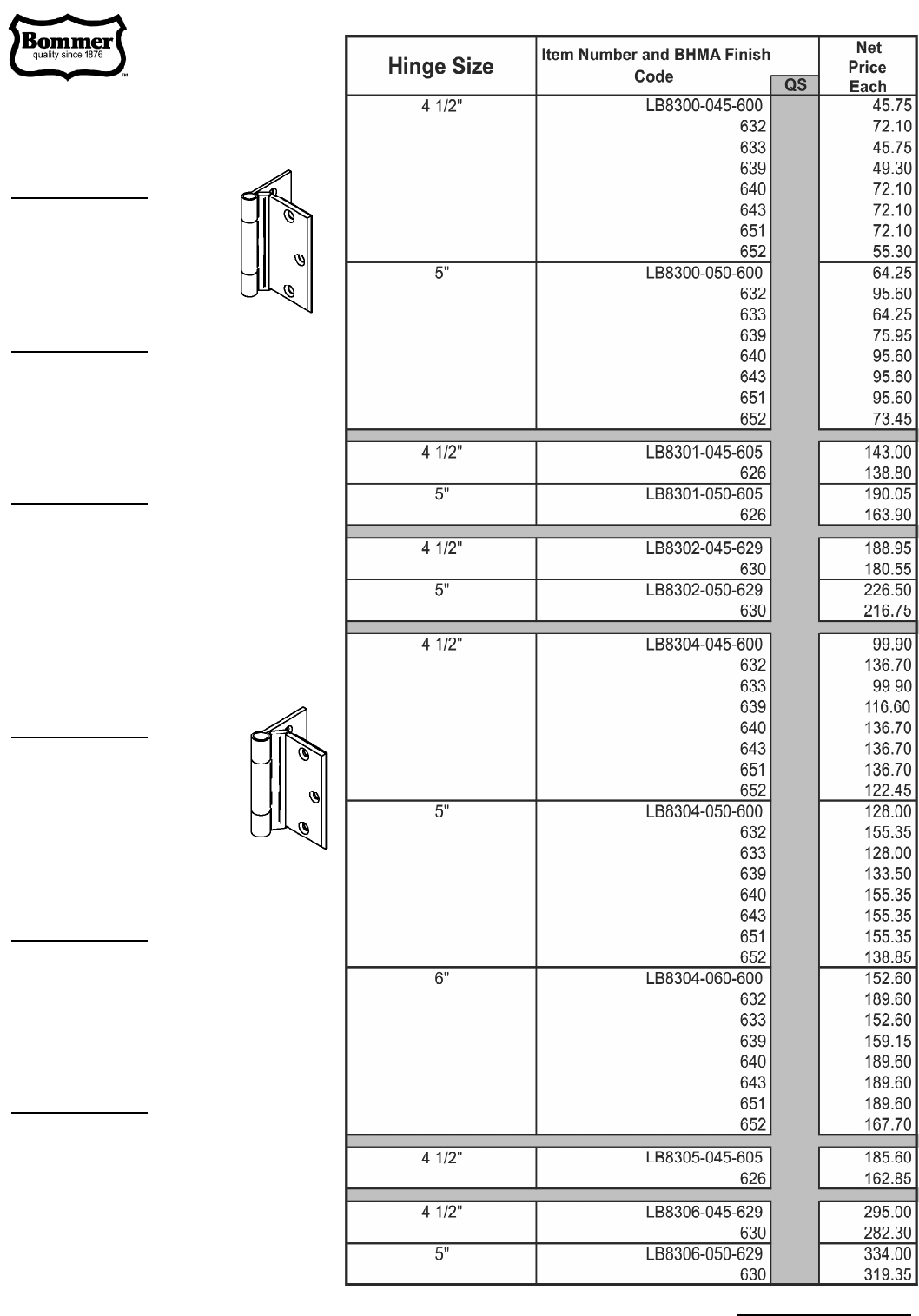

LB8300 SERIES STEEL
Half Surface Hinge
Standard Weight
Lube Bearing
with Steel Pin
ANSI A8412
LB8301 SERIES BRASS
Half Surface Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2412
LB8302 SERIES STAINLESS STEEL
Half Surface Hinge
Standard Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5412
LB8304 SERIES STEEL
Half Surface Hinge
Heavy Weight
Lube Bearing
with Steel Pin
ANSI A8411
LB8305 SERIES BRASS
Half Surface Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A2411
LB8306 SERIES STAINLESS STEEL
Half Surface Hinge
Heavy Weight
Lube Bearing
with Stainless Steel Pin
ANSI A5411
AH-44
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

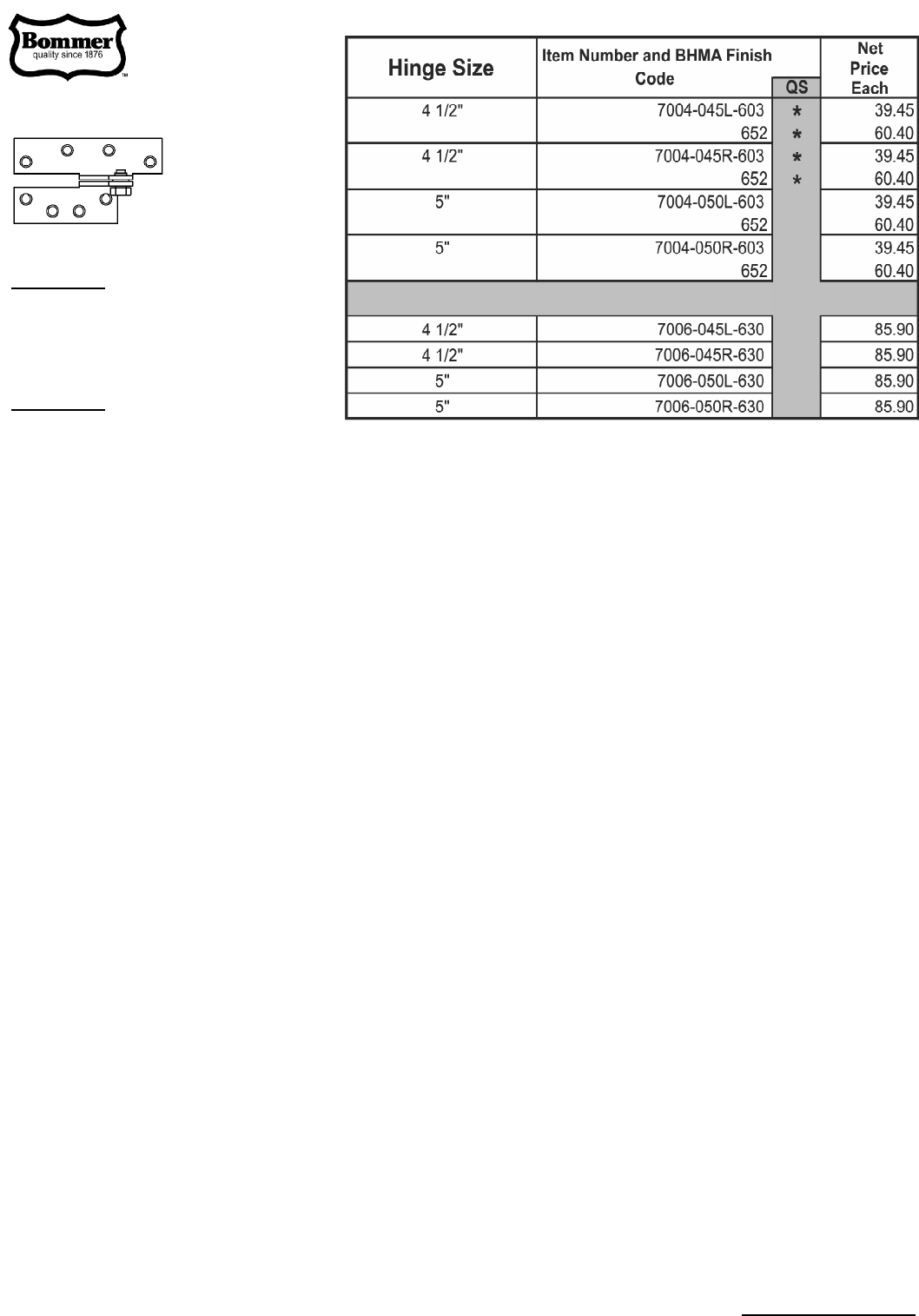

AH-45
7004 SERIES STEEL
Anchor Pivot
Heavy Weight
Lube Bearing
7006 SERIES STAINLESS STEEL
Anchor Pivot
Heavy Weight
Lube Bearing
Full Surface Anchor Pivot Lube Bearing
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SH-1
BOMMER’S Small Barrel Single Acting Spring Hinge
numbering system is easy to understand. Product numbers are built from
LEFT to RIGHT with each character relating to a specific hinge feature.
400
C1243
SERIES TYPE STYLE SIZE BHMA/BOMMER
FINISH CODE
LB = LUBRICATED BEARING
43 = Single Acting Spring Hinge
10 = Template Hole Pattern Square Corner
11 = Template Hole Pattern 1/4” Radius
12 = Template Hole Pattern 5/8” Radius
13 = Half Surface Template Hole Pattern on Jamb Leaf - Special Hole Pattern Door Leaf
21 = 1/4” Radius - Perma - Door
22 = 5/8” Radius - Perma - Door
33 = 5/8” Radius & Square - Johnson
40 = 5/8” Radius - Pease
42 = 5/8” Radius - Pease
50 = Square - Peachtree
60 = 5/8” Radius - Acorn
61 = 5/8” Radius & Square - Castlgate
62 = Square - Castlgate
76 = 5/8” Radius & Square - Johnson / Integrity
81 = 5/8” Radius & Square - Stanley Door Systems
82 = 5/8” Radius - General Products
90 = Stainless Steel Template Hole Pattern Square Corner
91 = Stainless Steel Template Hole Pattern 1/4” Radius
92 = Stainless Steel Template Hole Pattern 5/8” Radius
350 = 3 1/2” x 3 1/2”
400 = 4” x 4”
454 = 4 1/2” x 4”
450 = 4 1/2” x 4 1/2” 600 = Prime Coat on Steel ( USP )
632 = Bright Brass Plated Clear Coated ( US3 )
633 = Satin Brass Plated Clear Coated ( US4 )
630 = Satin Stainless Steel ( US32D )
652 = Satin Chrome on Steel ( US26D )
EXAMPLES
BP
PACKAGING
No Designation = Standard Packing
BP = Builders Pack ( Bulk Pack with Screws )
B = Bulk Pack ( Less Screws )
CP = Custom Pack
S = Single Pack
No Designation = .096” Residential Grade
C = .130 / .134” Commercial Grade
652LB
BEARING
T
OPTIONS
T = Ball Tips
R = Reverse Spring
( Non UL Listed )
Bommer’s Small Barrel Single Acting Spring Hinge Numbering System
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

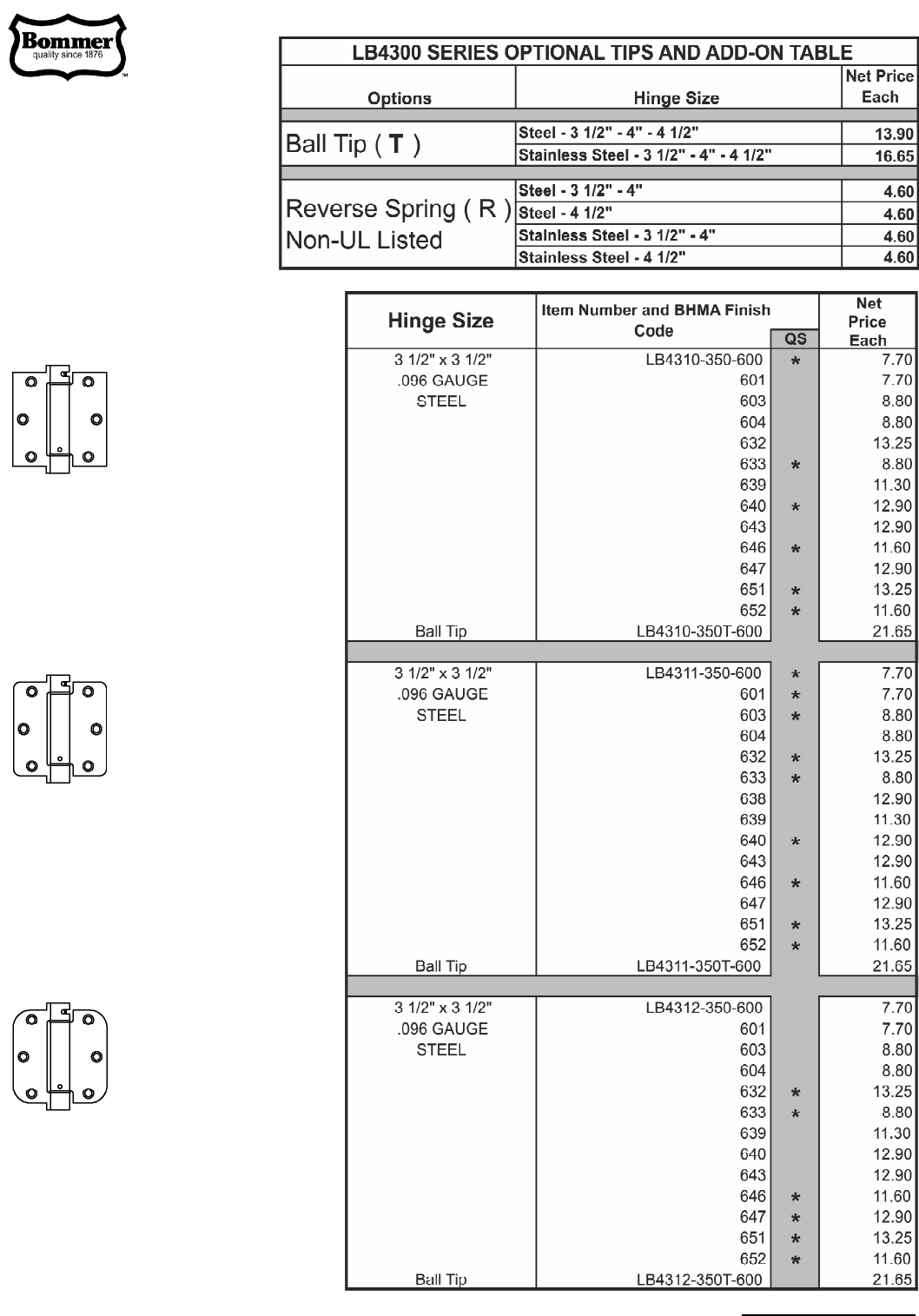

LB4310-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Lube Bearing
Square Corners
ANSI K81071F
SH-2
LB4311-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Lube Bearing
1/4” Radius Corners
ANSI K81071F
LB4312-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Lube Bearing
5/8” Radius Corners
ANSI K81071F
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SH-3
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1

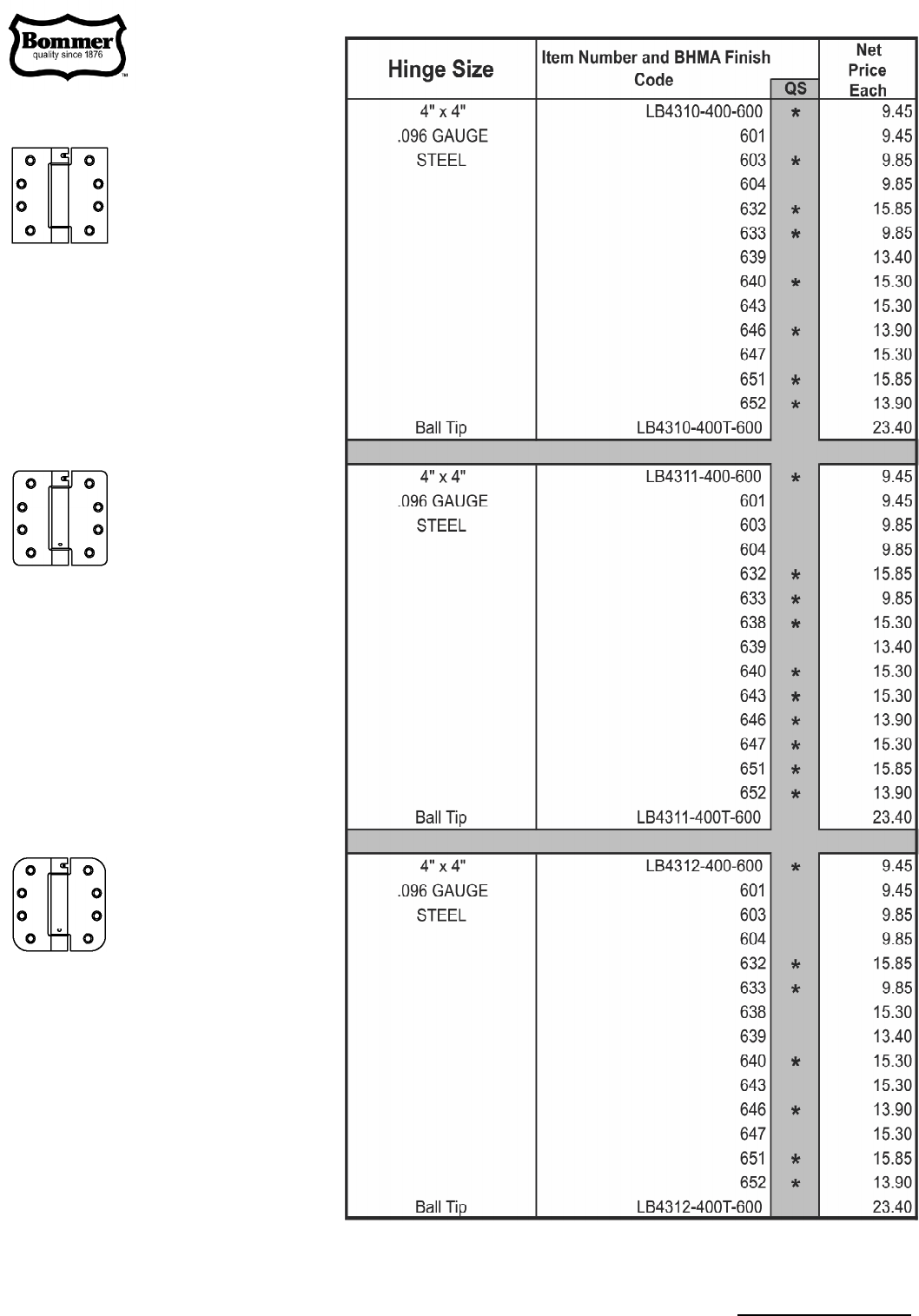

LB4310-400 STEEL
Full Mortise 4” X 4”
Lube Bearing
Square Corners
ANSI K81071F
LB4311-400 STEEL
Full Mortise 4” X 4”
Lube Bearing
1/4” Radius Corners
ANSI K81071F
LB4312-400 STEEL
Full Mortise 4” X 4”
Lube Bearing
5/8” Radius Corners
ANSI K81071F
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

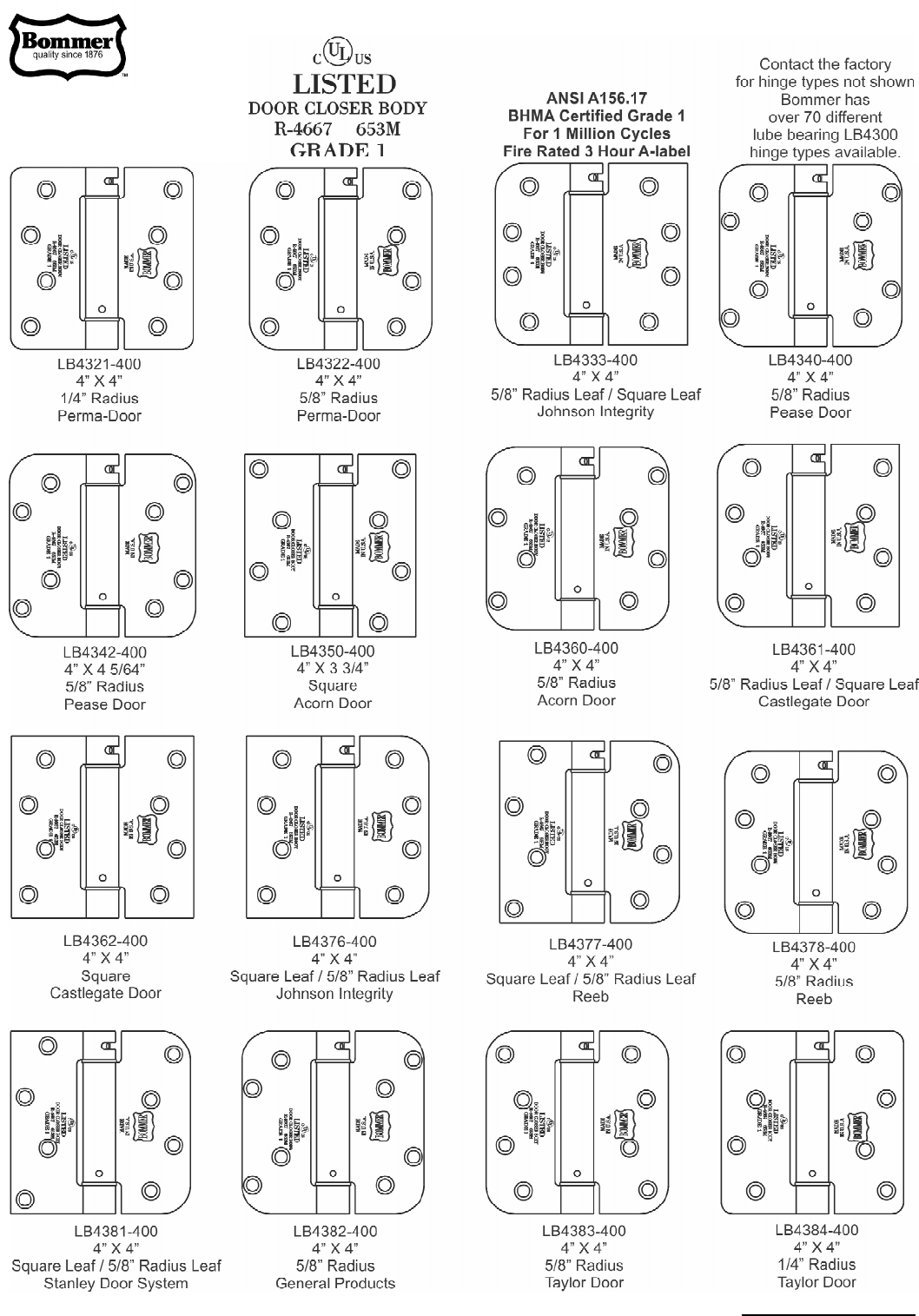

Single Acting Spring Hinges Special Hinge Types UL Listed Grade 1
SH-4
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

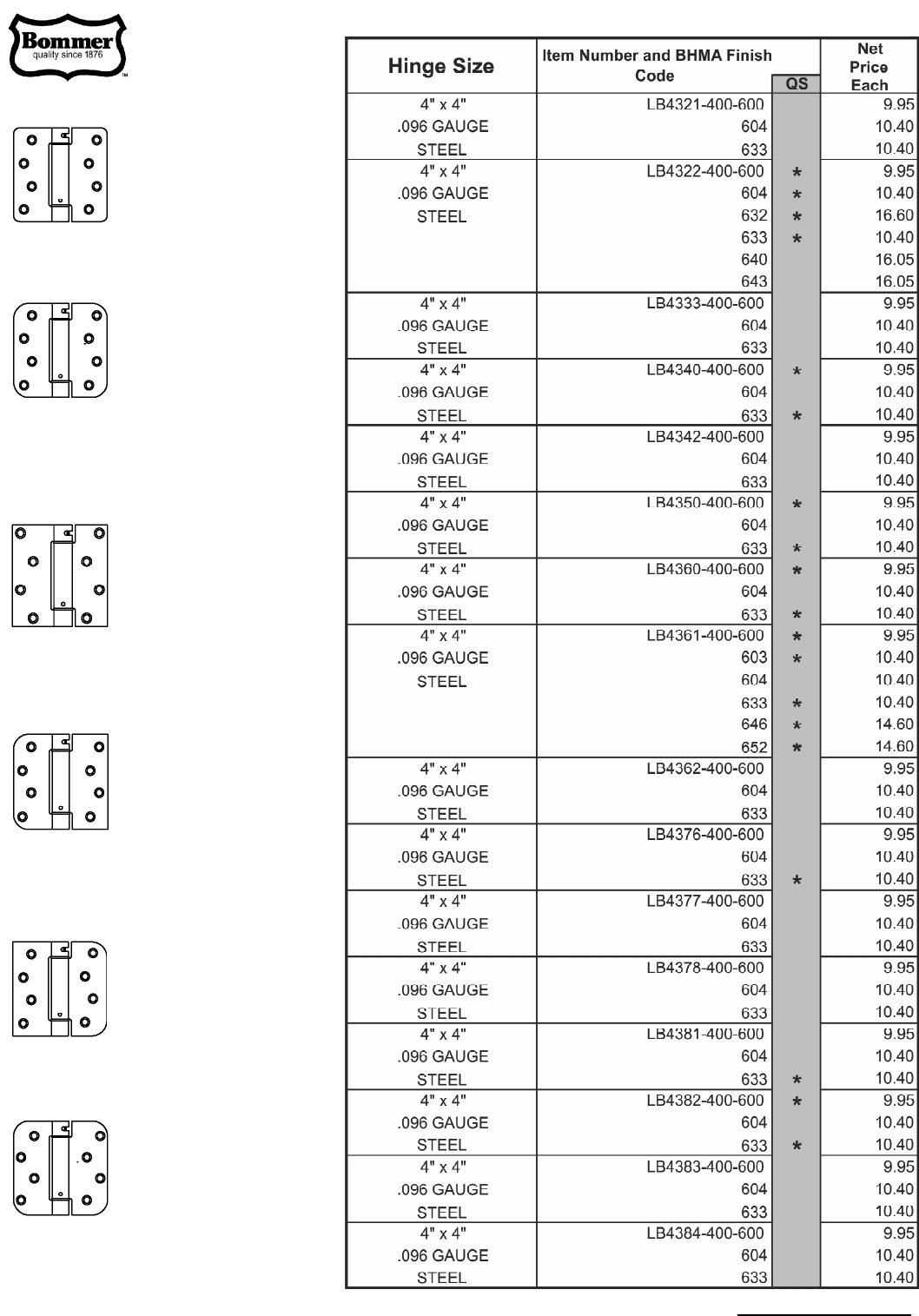

SH-5
Single Acting Spring Hinges Special Hinge Types UL Listed Grade 1
LB4350-400 STEEL
Fits: Peachtree
ANSI K81071F
LB4361-400 STEEL
Fits: Castlegate
ANSI K81071F
LB4381-400 STEEL
Fits: Stanley
ANSI K81071F
LB4382-400 STEEL
Fits: General Products
ANSI K81071F
LB4321-400 STEEL
Fits: Perma-Door
ANSI K81071F
LB4322-400 STEEL
Fits: Perma-Door
ANSI K81071F
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

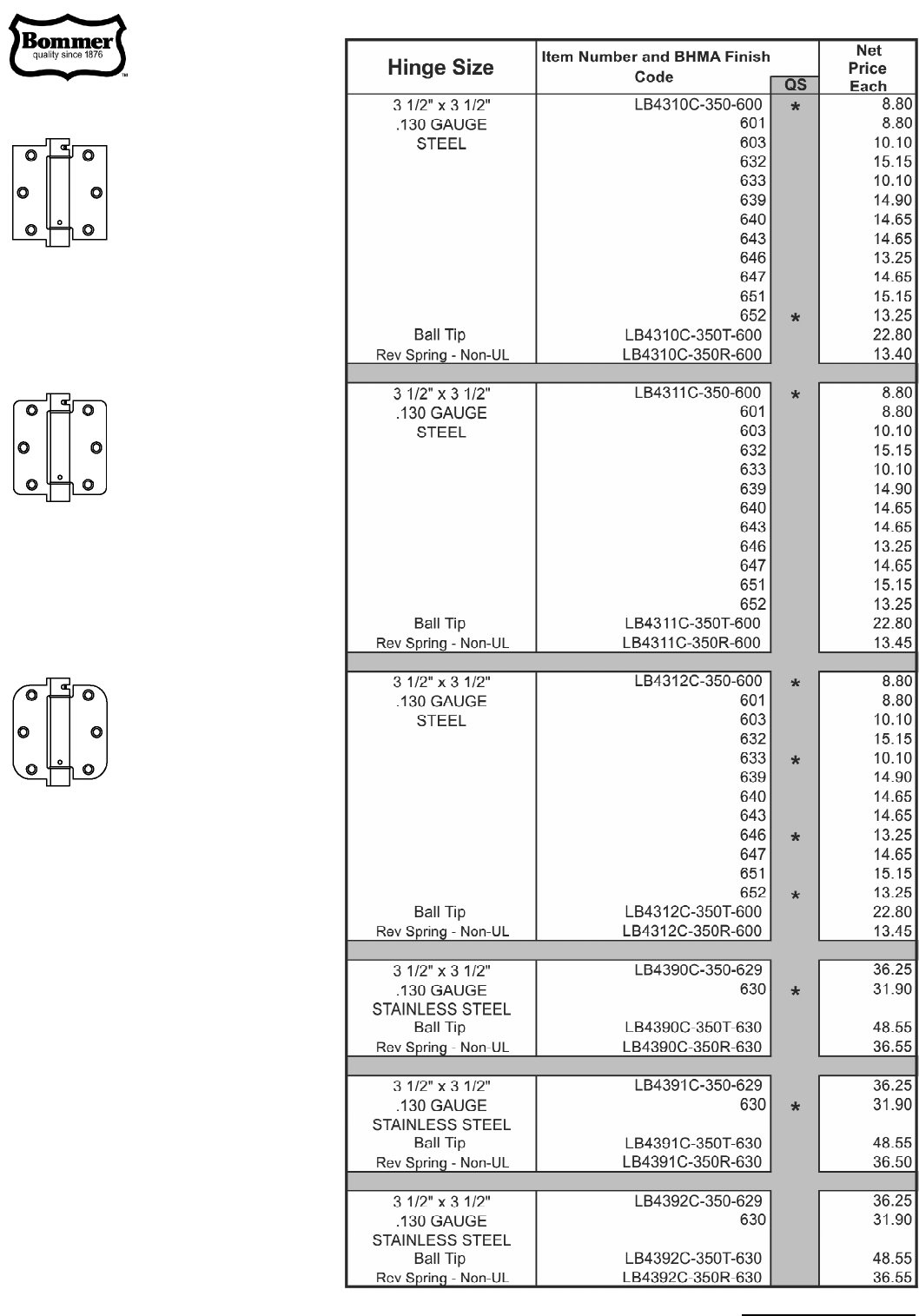

SH-6
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1
LB4310C-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
Square Corners
ANSI K81071F
LB4311C-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
1/4” Radius Corners
ANSI K81071F
LB4312C-350 STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
5/8” Radius Corners
ANSI K81071F
LB4390C-350 STAINLESS STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
Square Corners
ANSI K51071F
LB4391C-350 STAINLESS STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
1/4” Radius Corners
ANSI K51071F
LB4392C-350 STAINLESS STEEL
Full Mortise 3 1/2” X 3 1/2”
Contract Grade Lube Bearing
5/8” Radius Corners
ANSI K51071F
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SH-7
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1
LB4310C-400 STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
Square Corners
ANSI K81071F
LB4311C-400 STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
1/4” Radius Corners
ANSI K81071F
LB4312C-400 STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
5/8” Radius Corners
ANSI K81071F
LB4390C-400 STAINLESS STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
Square Corners
ANSI K51071F
LB4391C-400 STAINLESS STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
1/4” Radius Corners
ANSI K51071F
LB4392C-400 STAINLESS STEEL
Full Mortise 4” X 4”
Contract Grade Lube Bearing
5/8” Radius Corners
ANSI K51071F
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Single Acting Spring Hinges Template Hole Pattern UL Listed Grade 1
LB4310C-454 STEEL
Full Mortise 4 1/2” X 4”
Contract Grade Lube Bearing
Square Corners
ANSI K81071F
LB4390C-454 STAINLESS STEEL
Full Mortise 4 1/2” X 4”
Contract Grade Lube Bearing
Square Corners
ANSI K51071F
LB4310C-450 STEEL
Full Mortise 4 1/2” X 4 1/2”
Contract Grade Lube Bearing
Square Corners
ANSI K81071F
LB4390C-450 STAINLESS STEEL
Full Mortise 4 1/2” X 4 1/2”
Contract Grade Lube Bearing
Square Corners
ANSI K51071F
LB4313C-450 STEEL
Half Surface 4 1/2”
Contract Grade Lube Bearing
Square Corners
ANSI K81081F
SH-8
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019

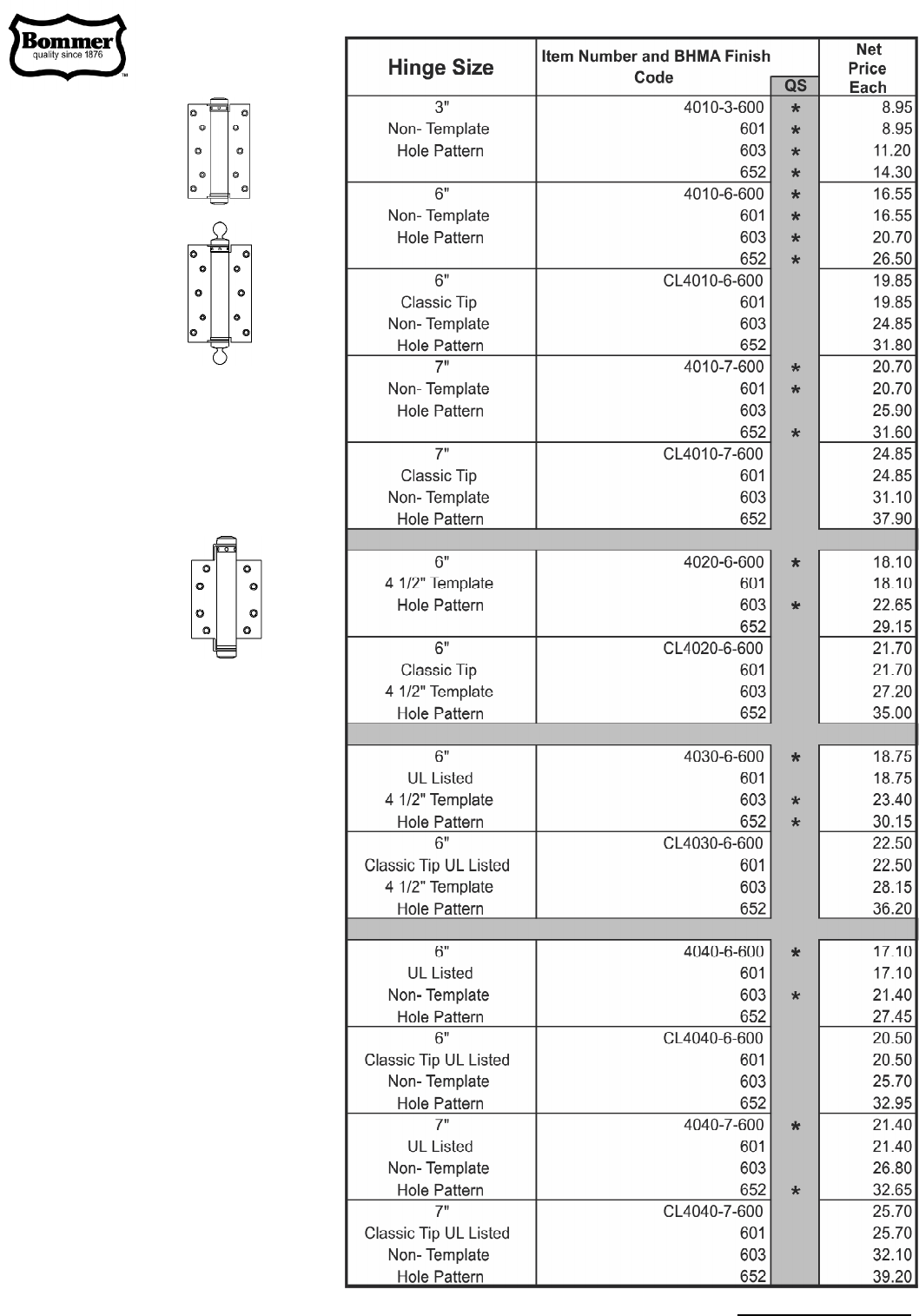

Single Acting Spring Hinges Original Large Barrel Grade 1
4010 STEEL
Full Mortise
Lube Bearing
Square Corners
ANSI K81011
CL4010 STEEL
Full Mortise
Classic Ball Tip
Lube Bearing
Square Corners
ANSI K81011
4020 STEEL
Full Mortise
4 1/2” X 4 1/2”
Lube Bearing
Square Corners
ANSI K81071
4040 STEEL UL LISTED
Full Mortise
Lube Bearing
Square Corners
ANSI K81011F
4030 STEEL UL LISTED
Full Mortise
4 1/2” X 4 1/2”
Lube Bearing
Square Corners
ANSI K81071F
CL4040 STEEL UL LISTED
Full Mortise
Classic Ball Tip
Lube Bearing
Square Corners
ANSI K81011F
CL4030 STEEL UL LISTED
Full Mortise
4 1/2” X 4 1/2”
Classic Ball Tip
Lube Bearing
Square Corners
ANSI K81071F
SH-9
CL4020 STEEL
Full Mortise
4 1/2” X 4 1/2”
Classic Ball Tip
Lube Bearing
Square Corners
ANSI K81071
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Double Acting Spring Hinges Original Large Barrel Mortise Type
3029 STEEL Mortise
Lube Bearing
Double Acting
Spring Hinge
ANSI K81041
CL3029 STEEL Mortise
Classic Ball Tip
Lube Bearing
Double Acting
Spring Hinge
ANSI K81041
SH-10
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Double Acting Spring Hinges Original Large Barrel Mortise Type
3029 STEEL Mortise
Lube Bearing
Double Acting
Spring Hinge
ANSI K81041
CL3029 STEEL Mortise
Classic Ball Tip
Lube Bearing
Double Acting
Spring Hinge
ANSI K81041
SH-11
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SH-12
3023 STEEL Half Surface
Lube Bearing
Double Acting
Spring Hinge
ANSI K81131
CL3023 STEEL Half Surface
Classic Ball Tip
Lube Bearing
Double Acting
Spring Hinge
ANSI K81131
3024 STEEL Clamp Flange
Specify Door Thickness
Lube Bearing
Double Acting
Spring Hinge
ANSI K81111
CL3024 STEEL Clamp Flange
Classic Ball Tip
Specify Door Thickness
Lube Bearing
Double Acting
Spring Hinge
ANSI K81111
Double Acting Spring Hinges Original Large Barrel Type
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SH-13
Double Acting Spring Hinges Original Large Barrel Clamp Flange Type
3024 STEEL Clamp Flange
Specify Door Thickness
Lube Bearing
Double Acting
Spring Hinge
ANSI K81111
CL3024 STEEL Clamp Flange
Classic Ball Tip
Specify Door Thickness
Lube Bearing
Double Acting
Spring Hinge
ANSI K81111
1514 STEEL Mortise
Fits Door Thickness 7/8” to 1”
Double Acting
Light Duty
Spring Hinge
ANSI K81243
1515 STEEL Mortise
Fits Door Thickness 1 1/8” to 1 1/2”
Double Acting
Light Duty
Spring Hinge
ANSI K81243
Heavy Duty Bumpers
Steel and Stainless Steel
3044 STEEL Industrial Clamp Flange
Fits Door Thickness 1 3/4” to 2 1/2”
Specify Door Thickness
Lube Bearing
Double Acting
Spring Hinge
ANSI K81111
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-1
Auxiliary Springs and Screen Door Single Acting Spring Hinges
2400/10/30/40 STEEL
Auxiliary Spring
ANSI K87444
2500/2510/2520 STEEL
Auxiliary Spring
ANSI K87454
2100 STEEL
Full Surface
Spring Hinge
3” X 3”
ANSI K84223
2200 STEEL
Half Surface
Spring Hinge
3”
ANSI K84233
2920 STEEL
Full Surface
Spring Hinge
2 3/4” X 2 3/4”
2930 STEEL
Half Surface
Spring Hinge
2 3/4”
2960 STEEL
Full Surface
Spring Hinge
2 3/4” X 2 3/4”
2970 STEEL
Half Surface
Spring Hinge
2 3/4”
2980 STEEL
Full Surface
Spring Hinge
2 3/4” X 2 3/4”
2990 STEEL
Half Surface
Spring Hinge
2 3/4”
9700 Gate Hinge
Double Acting Spring Hinge
Steel
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-2
Gate and Lavatory Spring Pivots Center Hung and Non-Handed
7012 CAST STEEL
Surface Mount
Double Acting
Non-Adjustable Spring Tension
ANSI K63211
7014 CAST STEEL
Surface Mount
Box Clamp Door Bracket
fits 1 1/8” Thick Door
Double Acting
Non-Adjustable Spring Tension
ANSI K63211
7022 CAST STEEL
Mortise Mount
Double Acting
Non-Adjustable Spring Tension
ANSI K63321
7112 CAST STEEL
Surface Mount
Double Acting
Adjustable Spring Tension
ANSI K63201
7114 CAST STEEL
Surface Mount
Box Clamp Door Bracket
fits 1 1/8” Thick Door
Double Acting
Adjustable Spring Tension
ANSI K63201
7122 CAST STEEL
Mortise Mount
Double Acting
Adjustable Spring Tension
ANSI K63311
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-3
7312 CAST BRASS
Surface Mount
Double Acting
Adjustable Spring Tension
ANSI K13201
7314 CAST BRASS
Surface Mount
Box Clamp Door Bracket
fits 1 1/8” Thick Door
Double Acting
Adjustable Spring Tension
ANSI K13201
7322 CAST BRASS
Mortise Mount
Double Acting
Adjustable Spring Tension
ANSI K13311
7313 CAST BRASS
Surface Mount
Box Clamp Door Bracket fits 1 1/8”
and Jamb Bracket fits 1 1/8” or 1 1/4”
Specify Door and Jamb Size when
Ordering
Double Acting
Adjustable Spring Tension
ANSI K13201
7212 CAST BRASS
Surface Mount
Double Acting
Non-Adjustable Spring Tension
ANSI K63213
7211 CAST BRASS
Surface Mount
Box Clamp Jamb Bracket
Double Acting
Non-Adjustable Spring Tension
ANSI K63211
Gate and Lavatory Spring Pivots Center Hung and Non-Handed
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-4
Gate and Lavatory Gravity Pivots Center Hung and Non-Handed
7411 CAST BRASS
Surface Mount
Box Clamp Jamb Bracket
fits 1 1/8” and 1 1/4” Jamb
Double Acting
Gravity Pivot
ANSI K22011
7412 CAST BRASS
Surface Mount
Double Acting
Gravity Pivot
ANSI K22011
7512 STEEL
Surface Mount
Double Acting
Gravity Pivot
ANSI K82013
7512-H STEEL
Surface Mount
Double Acting
Gravity Pivot with Hold-Open
ANSI K82013
7514 STEEL
Box Clamp Door Bracket
to fit 3/4” Thick Door
Double Acting
Gravity Pivot
ANSI K82013
7514-H STEEL
Box Clamp Door Bracket
to fit 3/4” Thick Door
Double Acting
Gravity Pivot with Hold-Open
ANSI K82013
7510 STEEL
Surface Mount
Double Acting
Gravity Pivot
ANSI K82013
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
Spring Pivots Horizontal Type Light and Medium Duty
SP-5
7801 STEEL TRIM WITH FLOOR PLATE
Double Acting Cast Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Light Duty 35 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82193
7802 STEEL TRIM WITH JAMB BRACKET
Double Acting Cast Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Light Duty 35 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82193
7811 STEEL TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82192
7812 STEEL TRIM WITH JAMB BRACKET
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82192
7813 STEEL TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Non-Hold Open
ANSI K82192
7814 STEEL TRIM WITH JAMB BRACKET
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Non-Hold Open
ANSI K82192
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-6
Spring Pivots Horizontal Type Heavy and Medium Duty
7813HD STEEL TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Heavy Duty 150 LBS. Max. Door
Anti Friction Lube Bearing
Non-Hold Open
ANSI K82191
7814HD STEEL TRIM WITH JAMB
BRACKET
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Heavy Duty 150 LBS. Max. Door
Anti Friction Lube Bearing
Non-Hold Open
ANSI K82191
7821 BRASS TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82192
7822 BRASS TRIM WITH JAMB BRACKET
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Medium Duty 90 LBS. Max. Door
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82192
7805 STEEL JAMB BRACKET
Fits All 7800 Series Pivots
Used when Drilling into the Floor is not an
Option
7825 BRASS JAMB BRACKET
Fits All 7800 Series Pivots
Used when Drilling into the Floor is not an
Option
7890 TOP PIVOT ASSEMBLY
Fits All 7800 Series Pivots
Used to replace worn or damaged Pivot
Tops
7818 STEEL TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Used on Gates
Anti Friction Lube Bearing
Hold Open Both Directions
ANSI K82192
7819 STEEL TRIM WITH FLOOR PLATE
Double Acting Steel Mechanism
Fits 1 3/8” to 1 3/4” Thick Doors
Used on Gates
Anti Friction Lube Bearing
Non-Hold Open
ANSI K82192
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-7
Lavatory and Gate Single Acting Spring Hinges Non-Handed
1000 BRASS
CL1000 BRASS BALL TIPS
1000-H HOLD OPEN
CL1000-H HOLD OPEN BALL TIPS
Single Acting
2 Hinges 60 LBS. Max. Door Weight
Anti Friction Lube Bearing
1001 BRASS
CL1001 BRASS BALL TIPS
1001-H HOLD OPEN
CL1001-H HOLD OPEN BALL TIPS
Single Acting
2 Hinges 60 LBS. Max. Door Weight
Anti Friction Lube Bearing
01001 BRASS SPRINGLESS
2” High ( No Spring )
Anti Friction Lube Bearing
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
SP-8
Lavatory and Gate Mounting Hardware and Miscellaneous Items
1055 DOOR STOP and KEEPER
1055-P ( PIVOT HUNG STYLE )
Brass Clamp Type In Swinging Door
Fits Door Thickness 3/4” to 1 1/4”
Specify Both Door and Jamb
Thickness when Ordering
1057 DOOR STOP and KEEPER
1057-P ( PIVOT HUNG STYLE )
Brass Clamp Type Out Swinging Door
Fits Door Thickness 3/4” to 1 1/4”
Specify Both Door and Jamb
Thickness when Ordering
1070 BRASS DOOR STOP
Mount on Door Face
Rubber Bumper on Stop
1072 BRASS DOOR STOP
Mount on Jamb Edge
Rubber Bumper on Stop
1074 DOOR STOP and KEEPER
Brass In Swinging Door
Fits Door Thickness 3/4” to 1 1/4”
Specify Door Thickness when Ordering
1075 DOOR STOP and KEEPER
Brass Out Swinging Door
Fits Door Thickness 3/4” to 1 1/4”
Specify Door Thickness when Ordering
LB1002-400 BRASS
LB1002-400-H HOLD OPEN
Single Acting
2 Hinges 80 LBS. Max. Door Weight
Anti Friction Lube Bearing
LB1006-400 STAINLESS STEEL
LB1006-400-H HOLD OPEN
Single Acting
2 Hinges 80 LBS. Max. Door Weight
Anti Friction Lube Bearing
1011 BRASS
1011-H HOLD OPEN
Single Acting
Heavy Duty Brass Casting
2 Hinges 80 LBS. Max. Door Weight
Anti Friction Lube Bearing
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
15015 INDICATOR in ENGLISH
15015F INDICATOR in SPANISH
Brass Surface Mount
2 13/16” Diameter
Use with 15019 or 15019H Only
15016 INDICATOR in ENGLISH
15016F INDICATOR in SPANISH
Brass Surface Mount
2 13/16” Diameter
Emergency Key Hole on Outside
Use with 15019 or 15019H Only
15017 EMERGENCY KEY
Brass Casting
Fits the Emergency Key Hole on the
15016 and 15016F
SP-9
Lavatory and Gate Mounting Hardware and Miscellaneous Items
15000 THROW LATCH and KEEPER
Brass Surface Mount
Latch Bar 3 1/4” Long
15001 THROW LATCH and KEEPER
Brass Surface Mount
Latch Bar 5” Long
15004 SLIDE LATCH and KEEPER
Brass Surface Mount
3/4” Throw
15009 RIM BOLT and KEEPER
Brass Casting Surface Mount
7/16” Throw
15009H RIM BOLT and KEEPER
HANDICAP TYPE HANDLE
Brass Casting Surface Mount
7/16” Throw
15019 RIM BOLT and KEEPER
HANDICAP TYPE HANDLE
Brass Casting Surface Mount
Specify Door Thickness when Ordering
15019H RIM BOLT and KEEPER
HANDICAP TYPE HANDLE
Brass Casting Surface Mount
Specify Door Thickness when Ordering
Lavatory and Gate Door Stop and Keepers with Latches and Rim Bolts
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
1141-2 MOUNTING BRACKET
SINGLE FLANGE BRASS CASTING
Fits 3/4” Partition Only
1141-3 MOUNTING “L” BRACKET
BRASS CASTING
1141-4 MOUNTING “U” BRACKET
BRASS CASTING
Fits 3/4” Partition Only
1142-3 PILASTER COVER and SHOE
3” Wide Pilaster
1142-6 PILASTER COVER and SHOE
6” Wide Pilaster
1142-8 PILASTER COVER and SHOE
8” Wide Pilaster
1142-12 PILASTER COVER and SHOE
12” Wide Pilaster
Fits 3/4” Partition Only
1191 MOUNTING BRACKET
DOUBLE FLANGE STAINLESS STEEL
Adjustable Clamp Type
1141-1 MOUNTING BRACKET
DOUBLE FLANGE BRASS CASTING
Fits 3/4” Partition Only
SP-10
Lavatory and Gate Mounting Hardware and Miscellaneous Items
15020 DOOR PULL
Brass Casting
4” Center to Center
15030 HAT and COAT HOOK
Brass Casting
Rubber Bumper
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
FM95SLI - HD - 628
HINGE TYPES
FM full mortise
FS full surface
HS half surface
WTFM wide throw
full mortise
LENGTHS
83
85
95
120
FULL MORTISE HINGE OPTIONS
SLF short leaf flush
SLI short leaf inset
( none ) standard
STRENGTH
( none ) standard duty
HD heavy duty grade 1
FINISHES
628 clear anodized
393 dark bronze
anodized
GH-1
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
GH-2
CONTINUOUS GEARED
ALUMINUM HINGES
Full Mortise
Full Mortise Short
Leaf Flush
Full Mortise Short
Leaf Inset
Full Mortise Continuous Geared Aluminum Hinges
QS ( QUICK SHIP ITEM )
*
For Sizes and Finishes Not Shown Contact Factory
Net Price Book
06/03/2019
CONTINUOUS GEARED
ALUMINUM HINGES
Full Surface
Half Surface
Wide Throw Full
Mortise
GH-3
Wide Throw Full & Half Surface Continuous Geared Aluminum Hinges
BUILDERS HARDWARE
NET PRICE BOOK
Effective June 3rd, 2019
“MADE in USA”
Bommer Builders Hardware Products
Bommer Industries, Inc. Builders Hardware Products
are produced in the Unites States of America.
Both the Bommer logo and our country of origin “Made in USA”
are proudly and clearly displayed on our Builders Hardware
packaging and also directly on our products.
Bommer’s complete line of Architectural Grade Butt Hinges and
Grade 1 Single Acting Spring Hinges are “BHMA CERTIFIED”
to ANSI STANDARDS A156.1 and A156.17, respectively.

Navigation menu
