Bonpie Audio WS-702K Bluetooth Speaker User Manual 702 160621

Bonpie Audio LTD. Bluetooth Speaker 702 160621

Contents

User manual

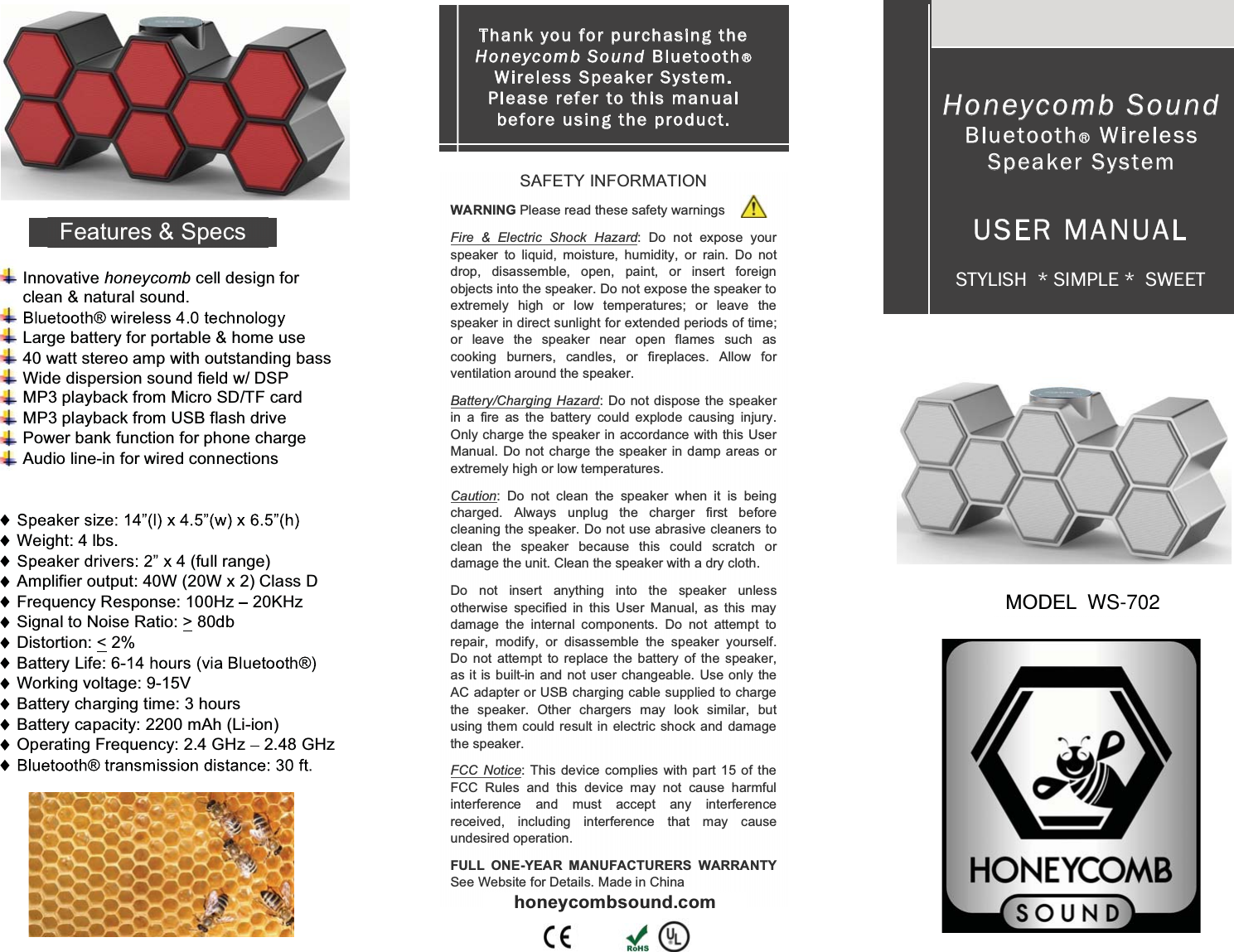

Innovative honeycomb cell design for clean & natural sound. Large battery for portable & home use 40 watt stereo amp with outstanding bass Wide dispersion sound field w/ DSP MP3 playback from Micro SD/TF card MP3 playback from USB flash drive Power bank function for phone charge Audio line-in for wired connections Weight: 4 lbs. (full range) Amplifier output: 40W (20W x 2) Class D Frequency Response: 100Hz 20KHz Signal to Noise Ratio: > 80db Distortion: < 2% Battery Life: 6- Working voltage: 9-15V Battery charging time: 3 hours Battery capacity: 2200 mAh (Li-ion) Operating Frequency: 2.4 GHz 2.48 GHz SAFETY INFORMATION WARNING Please read these safety warnings Fire & Electric Shock Hazard: Do not expose your speaker to liquid, moisture, humidity, or rain. Do not drop, disassemble, open, paint, or insert foreign objects into the speaker. Do not expose the speaker to extremely high or low temperatures; or leave the speaker in direct sunlight for extended periods of time; or leave the speaker near open flames such as cooking burners, candles, or fireplaces. Allow for ventilation around the speaker. Battery/Charging Hazard: Do not dispose the speaker in a fire as the battery could explode causing injury. Only charge the speaker in accordance with this User Manual. Do not charge the speaker in damp areas or extremely high or low temperatures. Caution: Do not clean the speaker when it is being charged. Always unplug the charger first before cleaning the speaker. Do not use abrasive cleaners to clean the speaker because this could scratch or damage the unit. Clean the speaker with a dry cloth. Do not insert anything into the speaker unless otherwise specified in this User Manual, as this may damage the internal components. Do not attempt to repair, modify, or disassemble the speaker yourself. Do not attempt to replace the battery of the speaker, as it is built-in and not user changeable. Use only the AC adapter or USB charging cable supplied to charge the speaker. Other chargers may look similar, but using them could result in electric shock and damage the speaker. FCC Notice: This device complies with part 15 of the FCC Rules and this device may not cause harmful interference and must accept any interference received, including interference that may cause undesired operation. FULL ONE-YEAR MANUFACTURERS WARRANTY See Website for Details. Made in China honeycombsound.com Thank you for purch asin g the Ho ney co m b Sound Bluetooth Wireless Speaker System. Please refer to this manual before usin g the produ ct. Honeycomb Sound Bluetooth Wireless Speaker System USER MANUAL STYLISH * SIMPLE * SWEET MODEL Features & Specs WS-702

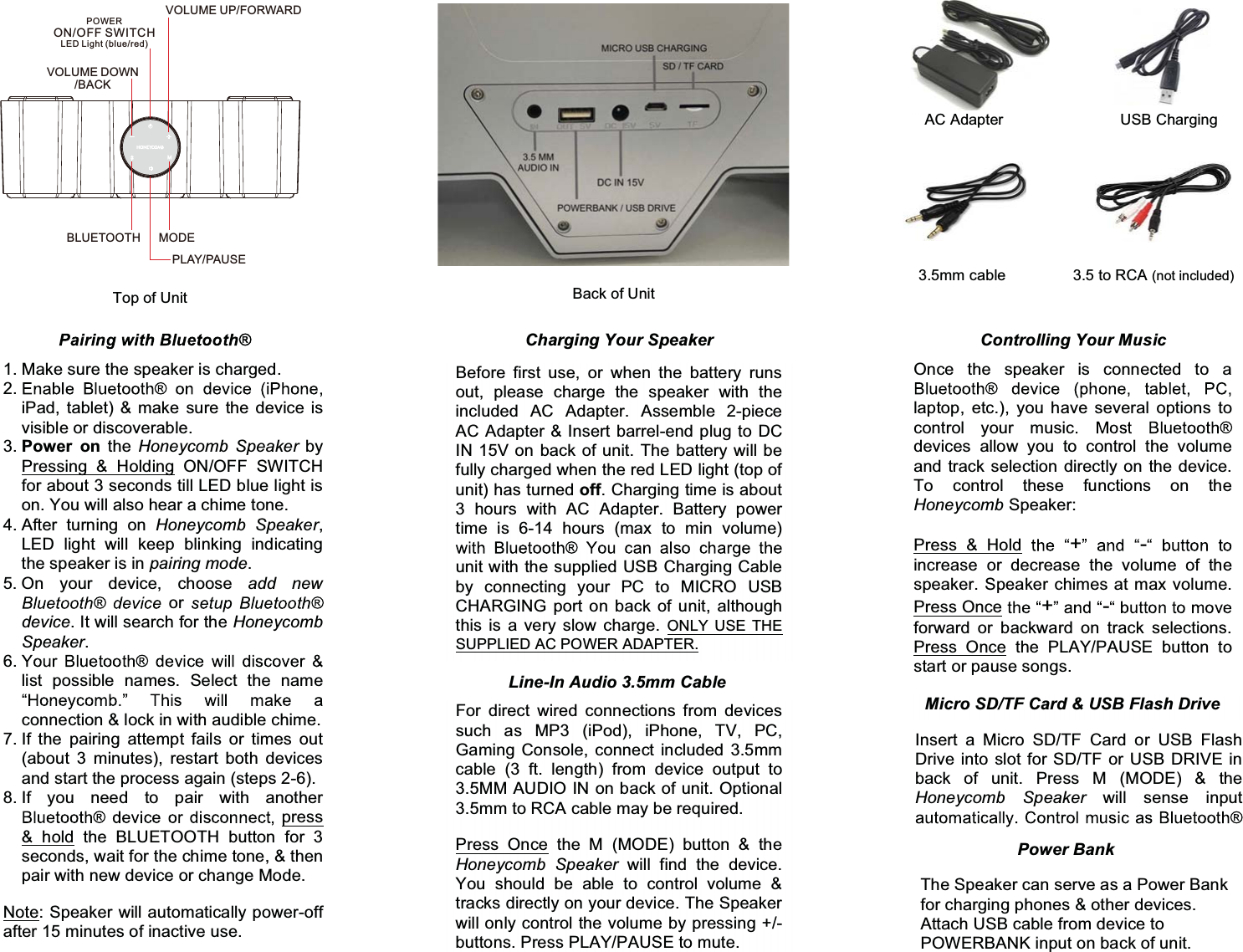

Back of Unit Top of Unit Charging Your Speaker AC Adapter 3.5mm cable USB Charging Before first use, or when the battery runs out, please charge the speaker with the included AC Adapter. Assemble 2-piece AC Adapter & Insert barrel-end plug to DC IN 15V on back of unit. The battery will be fully charged when the red LED light (top of unit) has turned off. Charging time is about 3 hours with AC Adapter. Battery power time is 6-14 hours (max to min volume) unit with the supplied USB Charging Cable by connecting your PC to MICRO USB CHARGING port on back of unit, although this is a very slow charge. ONLY USE THE SUPPLIED AC POWER ADAPTER. 1. Make sure the speaker is charged. 2.iPad, tablet) & make sure the device is visible or discoverable. 3. Power on the Honeycomb Speaker by Pressing & Holding ON/OFF SWITCH for about 3 seconds till LED blue light is on. You will also hear a chime tone. 4. After turning on Honeycomb Speaker, LED light will keep blinking indicating the speaker is in pairing mode. 5. On your device, choose add new or device. It will search for the Honeycomb Speaker. 6.list possible names. Select the name connection & lock in with audible chime. 7. If the pairing attempt fails or times out (about 3 minutes), restart both devices and start the process again (steps 2-6). 8. If you need to pair with another press & hold the BLUETOOTH button for 3 seconds, wait for the chime tone, & then pair with new device or change Mode. Note: Speaker will automatically power-off after 15 minutes of inactive use. Controlling Your Music Once the speaker is connected to a laptop, etc.), you have several options to control your musicdevices allow you to control the volume and track selection directly on the device. To control these functions on the Honeycomb Speaker: Press & Hold + -increase or decrease the volume of the speaker. Speaker chimes at max volume. Press Once +-forward or backward on track selections. Press Once the PLAY/PAUSE button to start or pause songs. Line-In Audio 3.5mm Cable For direct wired connections from devices such as MP3 (iPod), iPhone, TV, PC, Gaming Console, connect included 3.5mm cable (3 ft. length) from device output to 3.5MM AUDIO IN on back of unit. Optional 3.5mm to RCA cable may be required. Press Once the M (MODE) button & the Honeycomb Speaker will find the device. You should be able to control volume & tracks directly on your device. The Speaker will only control the volume by pressing +/- buttons. Press PLAY/PAUSE to mute. Micro SD/TF Card & USB Flash Drive Insert a Micro SD/TF Card or USB Flash Drive into slot for SD/TF or USB DRIVE in back of unit. Press M (MODE) & the Honeycomb Speaker will sense input 3.5 to RCA (not included) Power Bank The Speaker can serve as a Power Bank for charging phones & other devices. Attach USB cable from device to POWERBANK input on back of unit. PLAY/PAUSEMODEBLUETOOTHVOLUME DOWN/BACKPOWERON/OFF SWITCHLED Light (blue/red)VOLUME UP/FORWARD

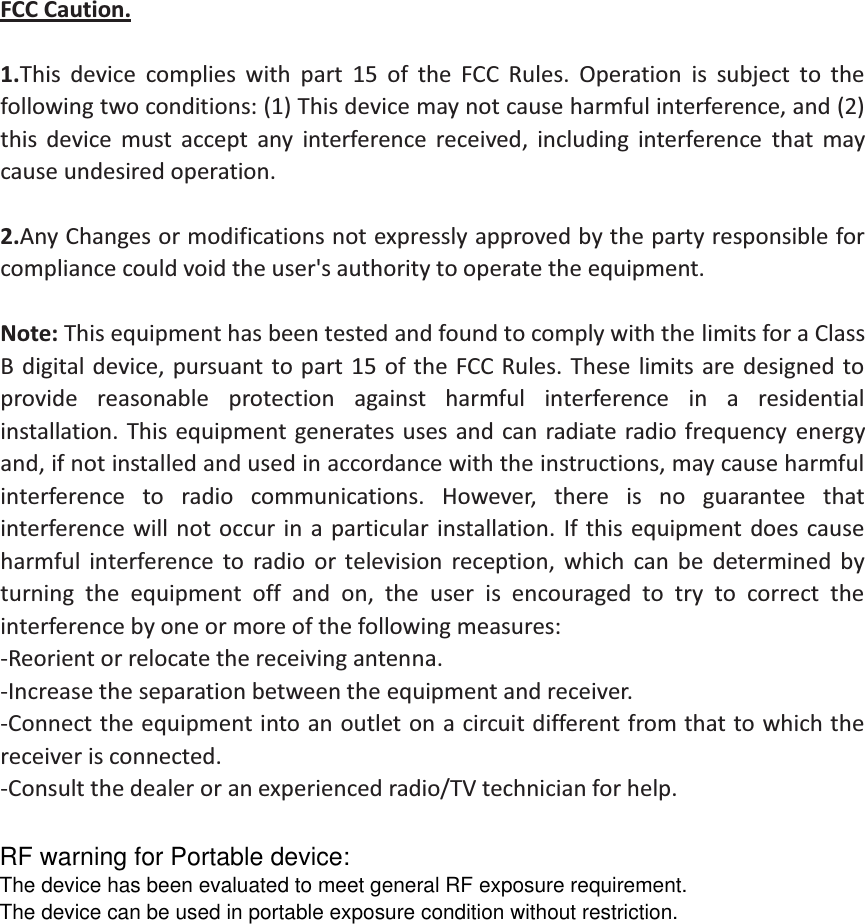

FCC Caution. 1.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF warning for Portable device:The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
