Bontec >
Users Manual
MOBIS Co., Ltd.
#80-9,MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI,449-910,KOREA
Remote Keyless Entry
(HM-T012)
- INDEX -
- Description of Transmitter
- Regulatory Information
- An outline
1. How to use HM-T012
- HM-T012 is Remote Keyless System.
- This unit controll door lock, unlock, tail gate unlock/glass open with wireless.
- This unit consist of Transmitter(HM-T012)
- Lock button push , then door lock.
- Unlock button push, then door unlock.
- Tail Gate Unlock/Glass Open button push, then tail gate or tail gate glass unlock.
2. Introduction of Transmitter(HM-T012)
- Transmitter has three button
- Button marking are LOCK, UNLOCK, TAIL GATE UNLOCK/GLASS OPEN
- Transmitter use thee voltage battery
- Freqency is 315Mhz
- Modulation item is SAW Resonator
- Transmitter use Rolling code algorithm

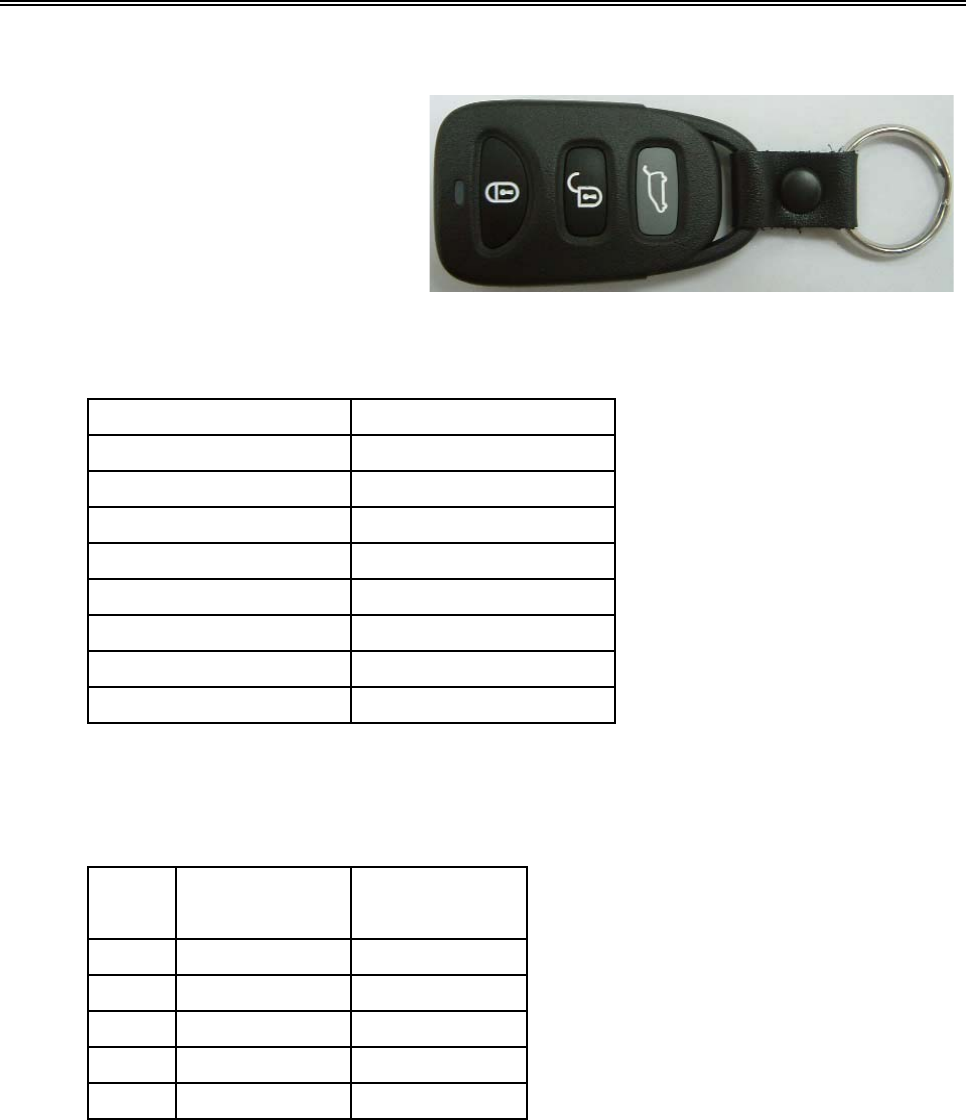

An outline of Transmitter
1. PRIMARY FUNTION
- Remote door lock/unlock
- Remote tail gate unlock/glass open
- LED turn on ( When button is pushed )
- Operating distance :10 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
3. DESCRIPTION MODE
1) Mode
B+
KEYLESS
ACC
IG
SETTING
2) Id input(Setting Mode)
When Setting Mode, lock button push,
ON
OFF
OFF
Mode
- OFF
use equipment
ID INPUT
(Setting Mode)
ON
-
-
OFF
Normal Mode
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
model name
ETC FM modulation
Operating temperature -20 ~ +60℃
-
315㎒
Operating frequency
Power 10mW under
Consumption current Max 15mA
Sensitivity
4. OPERATING DIAGRAM
1) TRANSMITTER

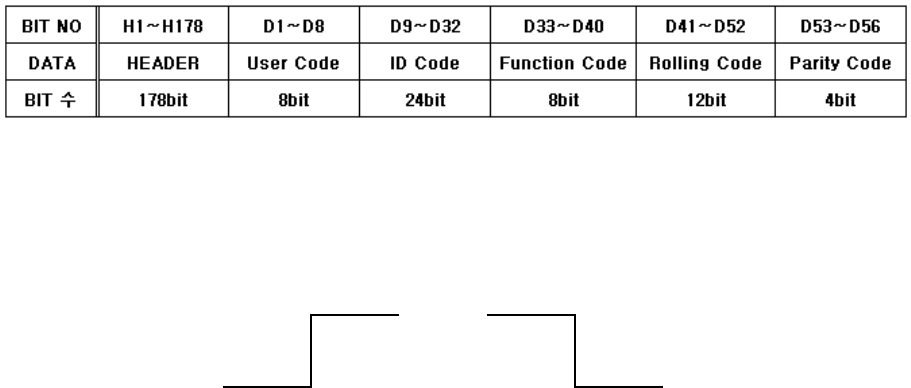

A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 625bps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 1 FRAME = 234BIT
- TRANSMISSION TIME : 377.4msec
LOGIC "0" LOGIC "1"
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
Operation is subject to the following two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Regulatory Information
