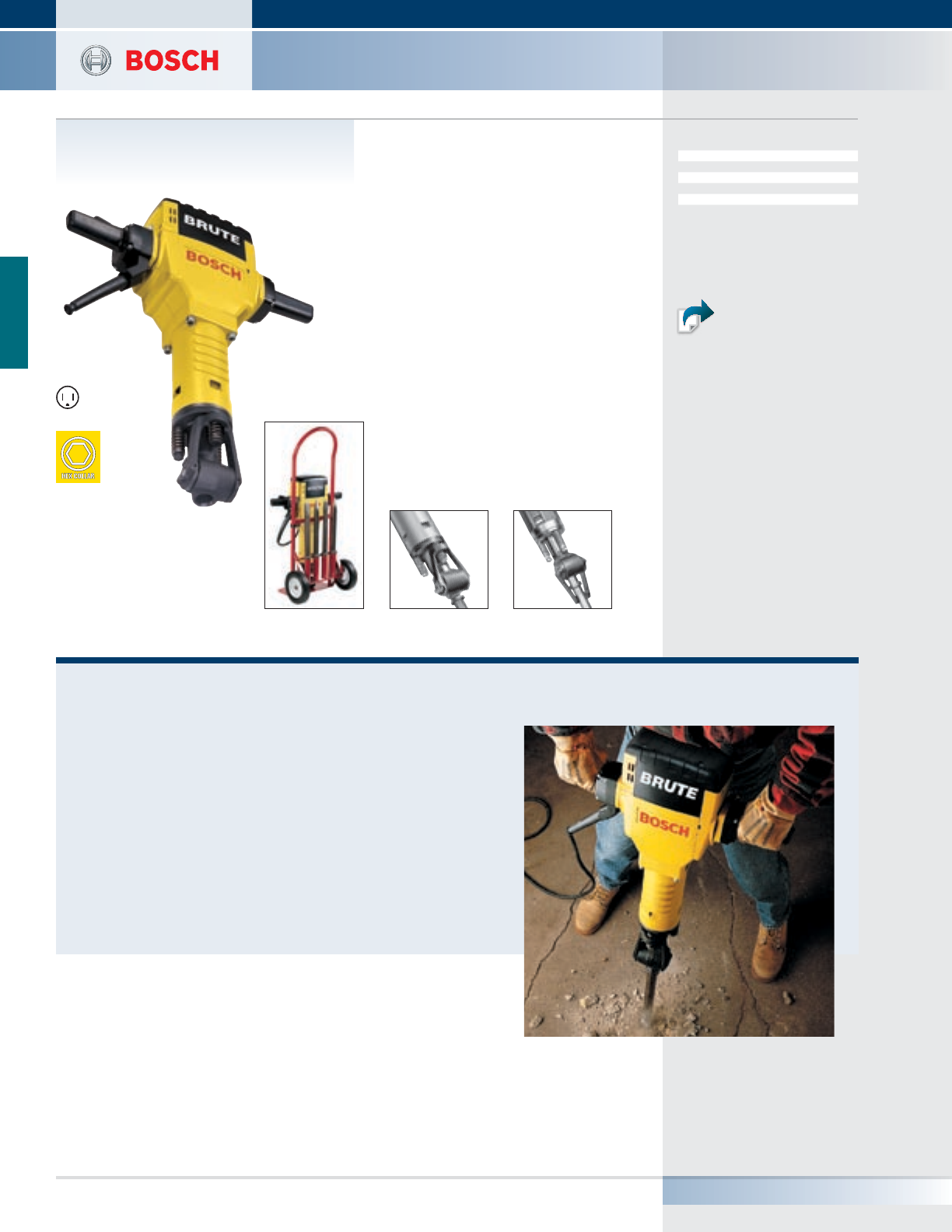

Jack 35 lb. Breaker Hammer
Introducing the
Bosch 35 lb.
“Best in Class”
Breaker Hammer
Section Guide
Tools
Hammer Drills ...............................................32-33
Rotary Hammers ............................................33-37
Combination Hammers ..................................37-38
Demolition/Breaker Hammers .......................39-42
Accessories
Hammer Attachments ......................................... 43
Hammer Drill Bits ............................................... 44
SDS-plus® Accessories ..................................44-47
SDS-max® Accessories .................................. 47-52
Hammer
& Hammer Drill
Tools & Accessories
Hammers Intro v2.0.indd 1 8/31/07 3:48:05 PM
30 Boschtools.com Toll Free: 877-BOSCH-99

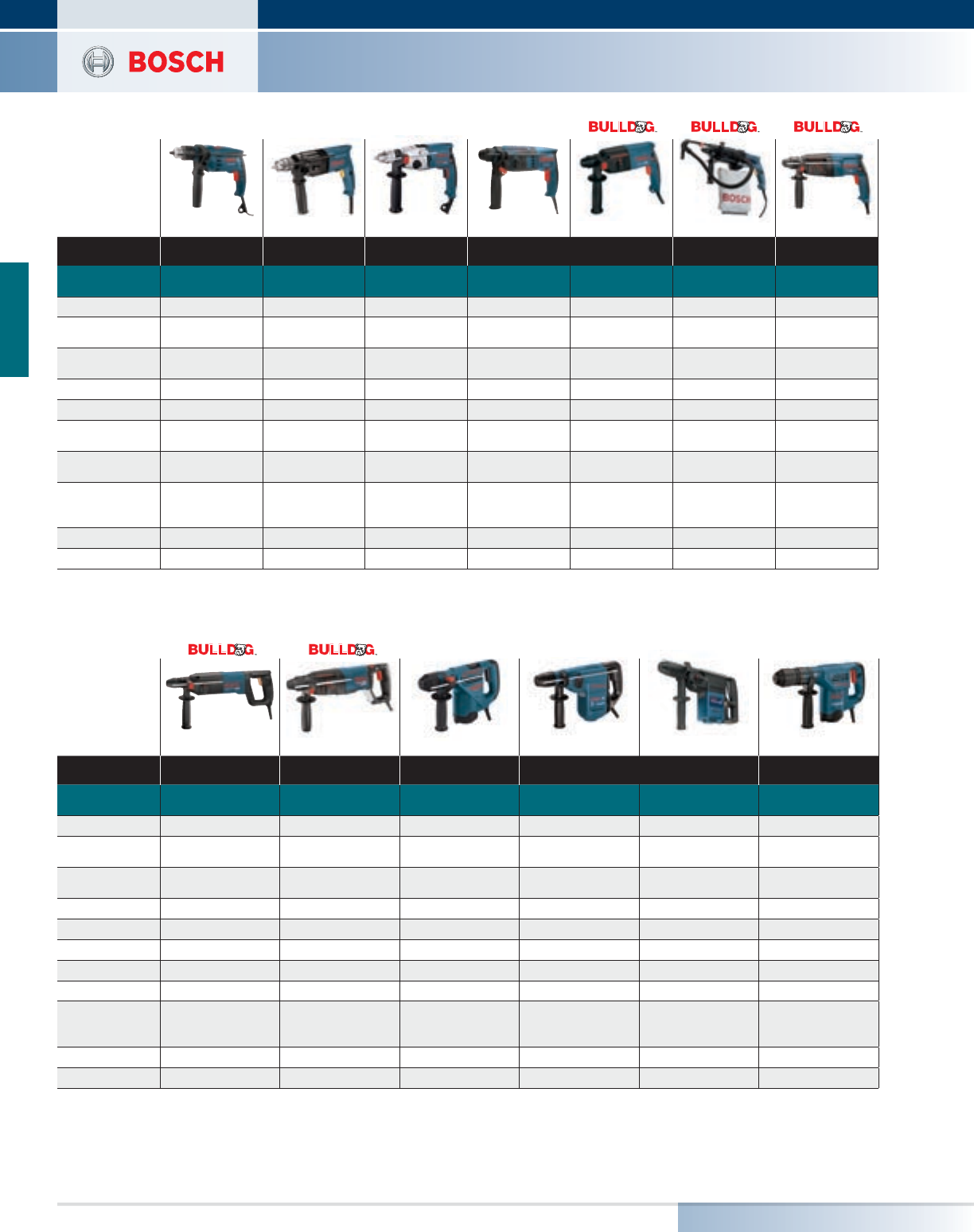

Hammer Quick Reference Guide

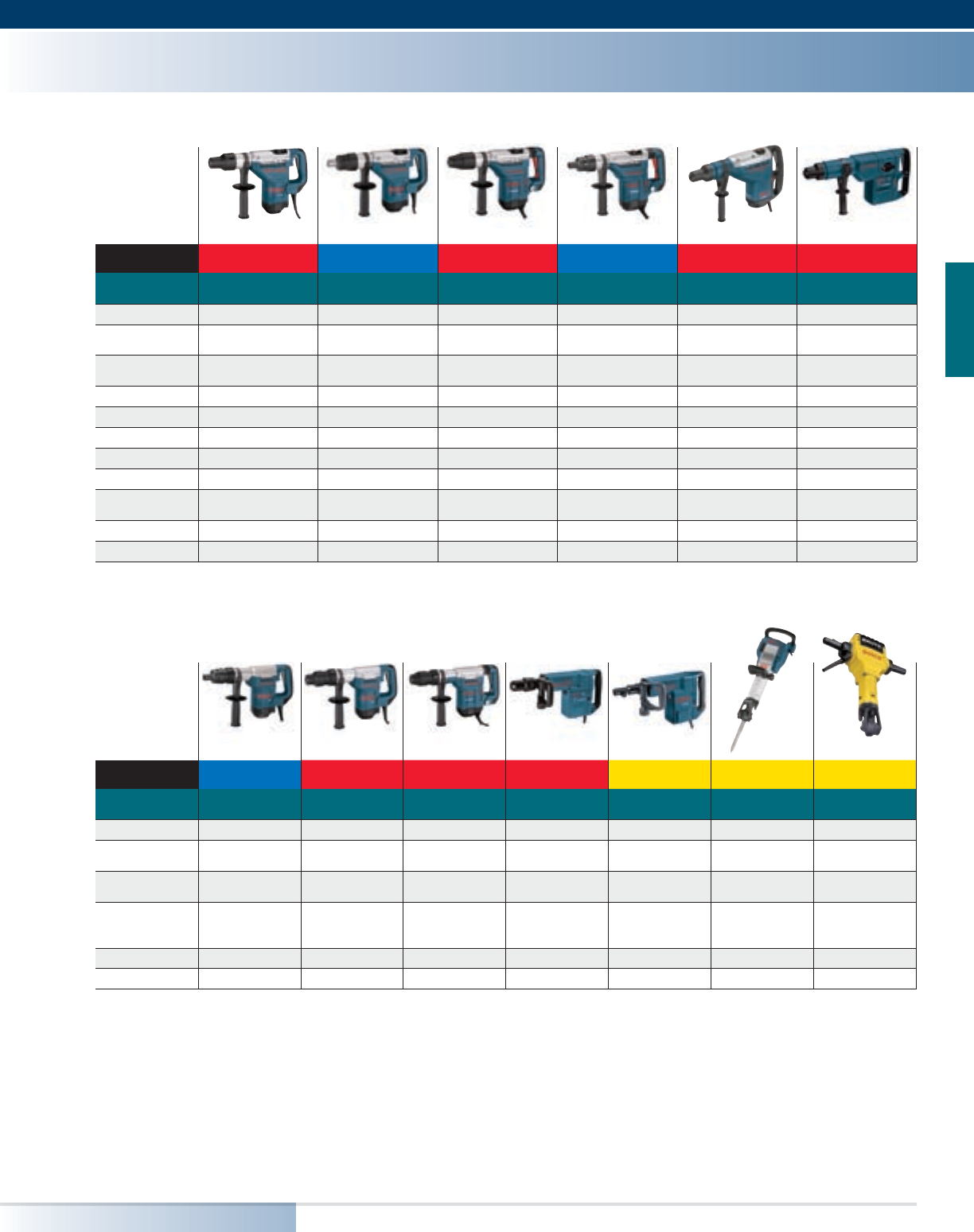

Item # 1191VSR(K) 1194VSR(K) 1199VSR(K) 11258VSR 11250VSR 11221DVS 11253VSR
Drive System Round Round Round SDS-plus® SDS-plus® SDS-plus® SDS-plus®
Hammer
Classification Hammer Drill Hammer Drill Hammer Drill Rotary Rotary
Combination Combination
Amperage 7 8 8.5 4.8
6 6.9 7.2
Impact Energy
(ft.-lbs.) N/A N/A N/A 1.6 1.6 1.6 2.2
Max. Concrete
Capacity 5/8" 3/4" 3/4" 5/8" 3/4" 7/8" 1"
Optimal Range 1/8" - 5/16" 1/8" - 3/8" 1/8" - 3/8" 1/8" - 5/16" 5/32" - 5/8" 3/16" - 5/8" 3/16" - 5/8"
Core Bits N/A N/A N/A N/A 1-1/2" 2-1/2" 2-1/2"
No Load RPM 0-3,000 0-1,000 /
0-2,600
0-1,100 /
0-3,000 0-1,700 0-1,100 0-1,040 0-1,300
No Load BPM 0-48,000 0-16,000 /
0-41,600
0-18,000 /
0-48,000 0-4,400 0-4,400 0-5,750 0-5,800
Modes of
Operation
Rotation Only
Hammer Drill
Rotation Only
Hammer Drill
Rotation Only
Hammer Drill
Rotation Only
Rotary Hammer
Rotation Only
Rotary Hammer
Rotation Only
Rotary Hammer
Hammer Only
Rotation Only
Rotary Hammer
Hammer Only
Length 11" 16" 13.25" 11.9" 13.25" 16.5" 14.8"
Weight 4.1 lbs. 5.3 lbs. 6 lbs. 4.6 lbs. 5.4 lbs. 8.5 lbs. 6.4 lbs.
Item # 11224VSR(C)* 11255VSR 11239VS 11236VS 11222EVS(G) 11320VS
Drive System SDS-plus® SDS-plus® SDS-plus® SDS-plus® SDS-plus® SDS-plus®
Hammer
Classification
Combination Combination Combination Combination Combination Chipping
Amperage 6.9 7.2 7.2 7.5
7.8 6.5
Impact Energy
(ft.-lbs.) 1.6 2.2 2.4 2.6 2.6 3.2
Max. Concrete
Capacity 7/8" 1" 1" 1-1/8" 1-1/8" N/A
Optimal Range 3/16" - 5/8" 3/16" - 5/8" 3/16" - 3/4" 1/4" - 7/8" 1/4" - 7/8" N/A
Core Bits 2-1/2" 2-1/2" 3" 3" 3" N/A
No Load RPM 0-1,100 0-1,300 0-1,050 0-850 300-700 N/A
No Load BPM 0-6,150 0-5,800 0-4,000 0-3,900 1,650-3,900 N/A
BPM N/A N/A N/A N/A N/A 3,500
Modes of
Operation
Rotation Only
Rotary Hammer
Hammer Only
Rotation Only
Rotary Hammer
Hammer Only
Rotation Only
Rotary Hammer
Rotation Only
Rotary Hammer
Hammer Only
Rotation Only
Rotary Hammer
Hammer Only
Hammer Only
Length 17.5" 17.3" 12.9" 15.25" 15.25" 14.75"
Weight 6.5 lbs. 6.7 lbs. 7.8 lbs. 9.3 lbs. 10.1 lbs. 7.9 lbs.
*11224VSRC Includes 3 Jaw Chuck
31
Toll Free: 877-BOSCH-99 Boschtools.com
Hammer Quick Reference Guide
Item # 11240 11247 11241EVS 11248EVS 11263EVS 11245EVS
Drive System SDS-max® Spline/Round Hex SDS-max® Spline/Round Hex SDS-max® SDS-max®
Hammer
Classification
Combination Combination Combination Combination Combination Combination
Amperage 10 10 11 11
13.5 14
Impact Energy
(ft.-lbs.) 5.2 5.2 6.2 / 7.4 6.2 / 7.4 9.6 / 11.1 13.3
Max. Concrete
Capacity 1-9/16" 1-9/16" 1-9/16" 1-9/16" 1-3/4" 2"
Optimal Range 1/2" - 1-3/8" 1/2" - 1-3/8" 1/2" - 1-3/8" 1/2" - 1-3/8" 5/8" - 1-9/16" 3/4" - 1-3/4"
Through Hole Bits 2-1/2" 2-1/2" 2-1/2" 2-1/2" 3-1/8" 3-1/8"
Core Bits 4" 4" 4" 4" 6" 6"
No Load RPM 400 400 170-340 170-340 145-280 120-250
No Load BPM 3,000 3,000 1,700-3,300 1,700-3,300 1,350-2,800 1,100-2,500
Modes of
Operation
Rotary Hammer
Hammer Only
Rotary Hammer
Hammer Only
Rotation Only
Rotary Hammer
Rotary Hammer
Hammer Only
Rotary Hammer
Hammer Only
Rotary Hammer
Hammer Only
Length 17.25" 17.25" 18" 18" 21" 23.5"
Weight 13.2 lbs. 13.6 lbs. 14 lbs. 14.4 lbs. 17.9 lbs. 24.5 lbs.
Item # 11387 11388 11318EVS 11316EVS 11317EVS 11335K 11304(K)
Drive System Round Hex SDS-max® SDS-max® SDS-max® 3/4" Hex 1-1/8" Hex Collar 1-1/8" Hex Collar
Hammer
Classification Demolition Demolition Demolition Demolition Demolition
Breaker Breaker
Amperage 10 10 11 14
12.8 15 15
Impact Energy
(ft.-lbs.) 5.9 5.9 8.8 4.4 - 18.4 4 - 16.5 34 43
BPM 2,800 2,800 1,300-3,000 900-1,890 850-1,800 1,300 1,400
Modes of
Operation Hammer Only Hammer Only Hammer Only Hammer Only Hammer Only Hammer Only Hammer Only
Length 17.5" 17.5" 17.75" 22.5" 22" 30.4" 29.75"
Weight 12 lbs. 11.6 lbs. 12.5 lbs. 22.5 lbs. 22 lbs. 38 lbs. 64 lbs.
BRUTE™
32 Boschtools.com Toll Free: 877-BOSCH-99
See page 44 for
hammer drill accessories.
BOSCH
Specifications
Rating 120V AC
Amperage 8.0
No Load RPM 0-1,000 / 0-2,600
No Load BPM 0-16,000 / 0-41,600
Spindle Size 1/2"-20"
Maximum Capacities (in.)
Concrete 3/4" /3/8" in 2nd
Steel 1/2" /1/4" in 2nd
Wood 1-1/2"
Aluminum 5/8" /3/8" in 2nd
Length (in.) 16"
Weight (lbs.) 5.3
Includes
360° Auxiliary Handle ........... 1 612 025 024
Depth Gauge .......................... 1 613 001 010
Chuck Key .......................................... CRK005

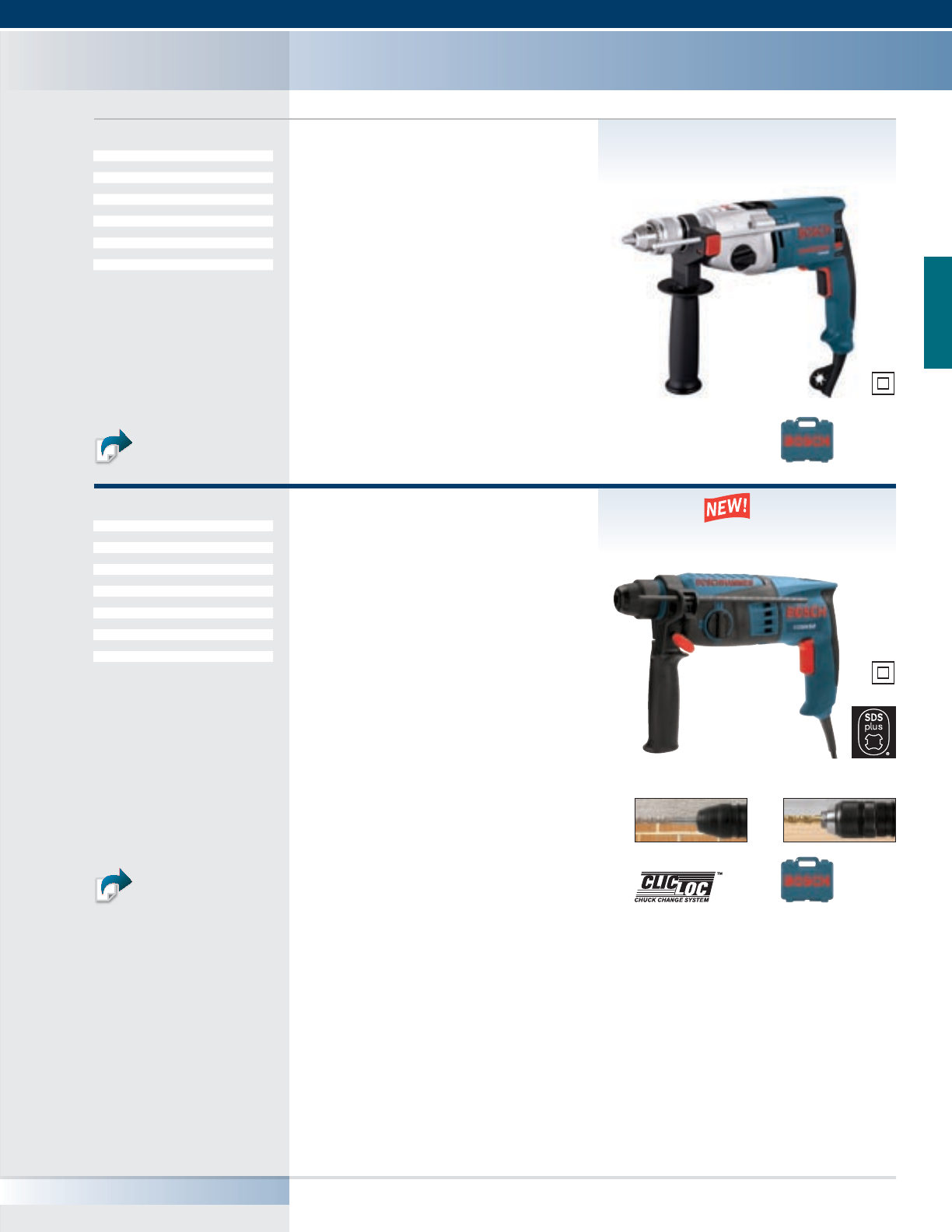

1194AVSRK
Carrying Case ........................ 2 605 438 284
Features
• 8.0 Amps, 0-1000/2600 RPM,
0-16,000/0-41,600 BPM
• 2 Speed gear box - Matches speed and torque
to the job
• Dual function control - Quickly converts from
rotation-only to hammer with rotation
• Variable Speed Reversing Switch - Complete
control for drilling, driving and removing bits
or screws
• All ball and roller bearing construction - Smooth
Power transmission and extended tool life
• Ergonomic handle - Multiple gripping positions
for increased comfort and control
• 360° Side-handle with depth gauge - Wide range
of movement along with consistent drilling depth
• Lock-on Button
1194AVSR(K)

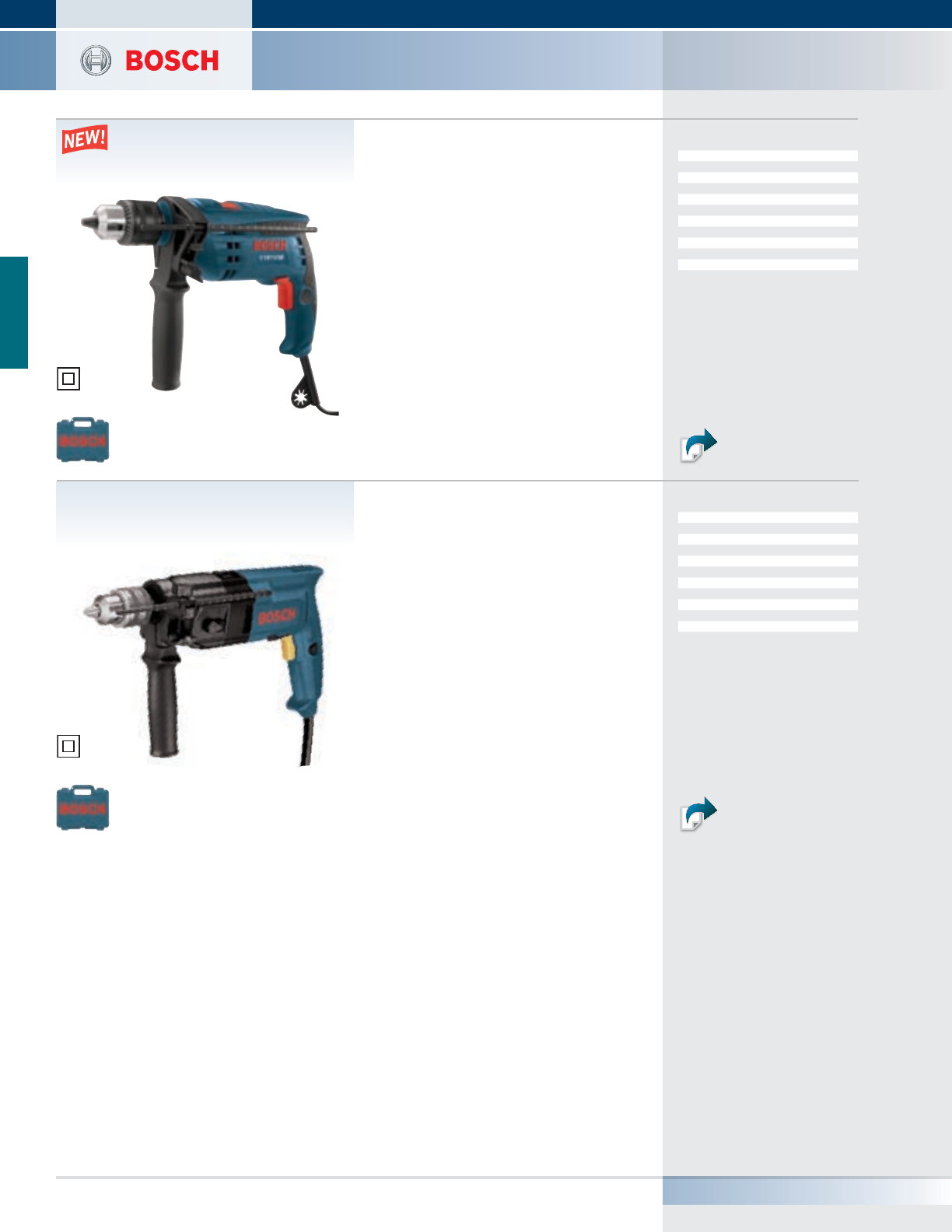

1/2" Dual Torque Hammer Drill
Carrying Case
Included
Carrying Case
Included
Specifications
Rating 120V AC
Amperage 7
No Load RPM 0-3,000
No Load BPM 0-48,000
Spindle Size 1/2"-20
Maximum Capacities (in.)
Concrete 5/8"
Steel 1/2"
Wood 1-1/2"
Aluminum 5/8" /3/8" in 2nd
Length (in.) 11.0"
Weight (lbs.) 4.2
Includes
360° Auxiliary Handle ........... 2 602 025 094
Depth Gauge .......................... 2 603 001 009
Chuck Key ............................... 3 608 571 511
1191VSRK
Carrying Case ..................................Included
Features
• Light Weight Design - Perfect for small diameter
drilling applications
• 7 AMP Motor - Provides the highest performance
to weight ratio in its class
• 2-Mode Selector - Easily coverts from rotation only
to hammer drill
• Compact Design - Aggressive impact mechanism
in combination with a more powerful motor
outperforms the competition
• 360° Auxiliary Handle with Built-in Quick Release
Depth Gauge
• Variable Speed Trigger
• 1/2" 3-Jaw Chuck - For rugged hammer
drilling applications
1191VSR(K)
Hammer Drill
See page 44 for
hammer drill accessories.
BOSCH
Hammer Drills
33
Toll Free: 877-BOSCH-99 Boschtools.com
See page 44 for
hammer drill accessories.
BOSCH
Specifications
Rating 120V AC
Amperage 8.5
No Load RPM 0-1,100 / 0-3,000
No Load BPM 0-18,000 / 0-48,000
Spindle Size 1/2" -20"
Maximum Capacities (In.)
Concrete 3/4" (3/8" in 2nd)
Steel 1/2" (1/4" in 2nd)
Wood 1-1/2"
Length (in.) 13-1/4"
Weight (lbs.) 6.0
Includes
360° Auxiliary Handle ........... 2 602 025 118
Depth Gauge .......................... 1 613 001 010
1199VSRK
Carrying Case ........................ 2 605 438 074
Features
• Bosch-built High-output - 8.5 Amp Motor
• 1/2" 3 jaw chuck - For rugged hammer
drilling applications
• Dual-Mode Selector - Easily converts from rotation
only to hammer drill mode
• Patented Rotating Brush Plate - Provides equal
power in reverse to easily back out bound-up bits
and doubles brush life
• Pistol-Grip Handle - Compact ergonomic design
with soft grip
• Variable-speed Reversing Trigger - For accurate bit
starting, as well as removing fasteners or bound bits
• 2-Speed Gear Box - Select high-speed or high-
torque applications
• Ambidextrous Lock-on Button - Helps reduce fatigue
• 360° auxiliary handle with built-in depth gauge - Wide
range of movement along with consistent drilling depth
• Integral slip clutch - Helps minimize torque reaction
• 12 foot power cord - For added user reach
and convenience
• Metal Gear Housing - For long life and rugged job
site durability
• Patented cord turret - Allows cord to pivot 35° on
a ball joint for added flexibility and longer cord life
1199VSR(K)
1/2" Dual Torque Hammer Drill
Hammer Drills/Rotary Hammers

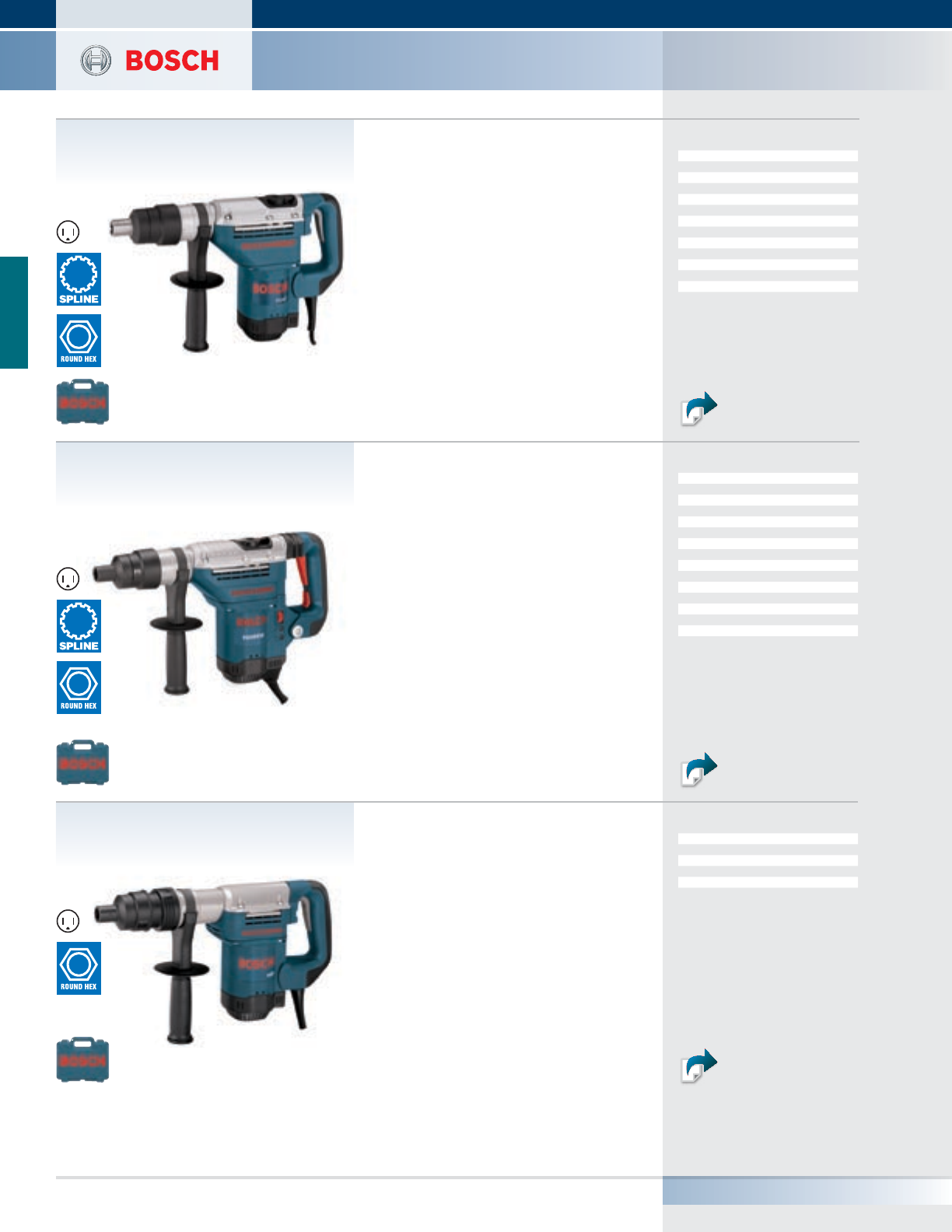

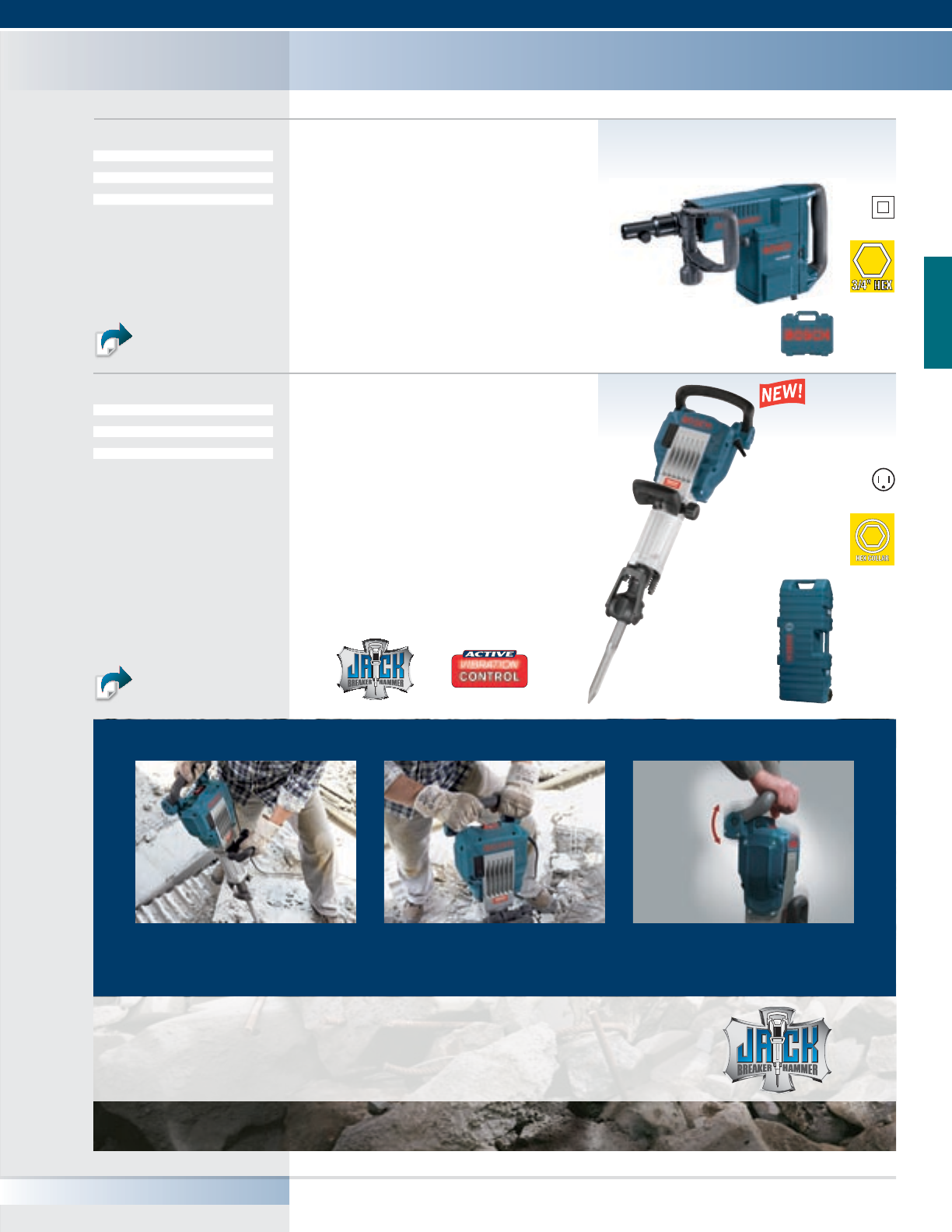

Specifications
Rating 120V
Amperage 4.8
No Load RPM 0-1,700
No Load BPM 0-4,400
Impact Energy (ft./lbs.) 1.6
Maximum Capacities (in.)
Concrete 5/8"
Steel 1/2"
Wood 1-1/2"
Optimal Concrete Capacity Range (in.)
3/16" - 5/16"
Length (in.) 11.9"
Weight (lbs.) 4.8
Includes
Side Handle ............................ 2 602 025 149
Depth Gauge .......................... 2 603 001 009
3/16" SDS-plus® Bit ........................HC2011
1/4" SDS-plus® Bit ...........................HC2041
3/8" SDS-plus® Bit ..........................HC2061
Carrying Case ..................................Included
11258VSRC
3-Jaw ClicLoc™ Chuck ...................Included
SDS-plus® ClicLoc™ Chuck ...........Included
Carrying Case ..................................Included
Features
• Light Weight Design – At 4.8 amps and 4.8 pounds,
the tool is perfect for small diameter drilling
applications, especially overhead
• SDS-plus® Tool Holder – Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Variable-Speed Trigger – For accurate bit starting,
as well as removing fasteners or bound bits
• 2-Mode Selector – Easily converts from rotation
only to rotary hammer
• Cushion Grip Handle –Optimized design provides
increased comfort
• 360° Auxiliary Handle with built-in Quick Release
Depth Gauge – Provides wide range of movement
along with consistent drilling depth
• Integral Clutch – Helps minimize torque reaction
11258VSRC also features
• ClicLoc™ Chuck Change System – Choose
between the SDS-plus® tool holder for drilling
in concrete and masonry or the three-jaw carbide
tipped chuck for drilling wood and metal

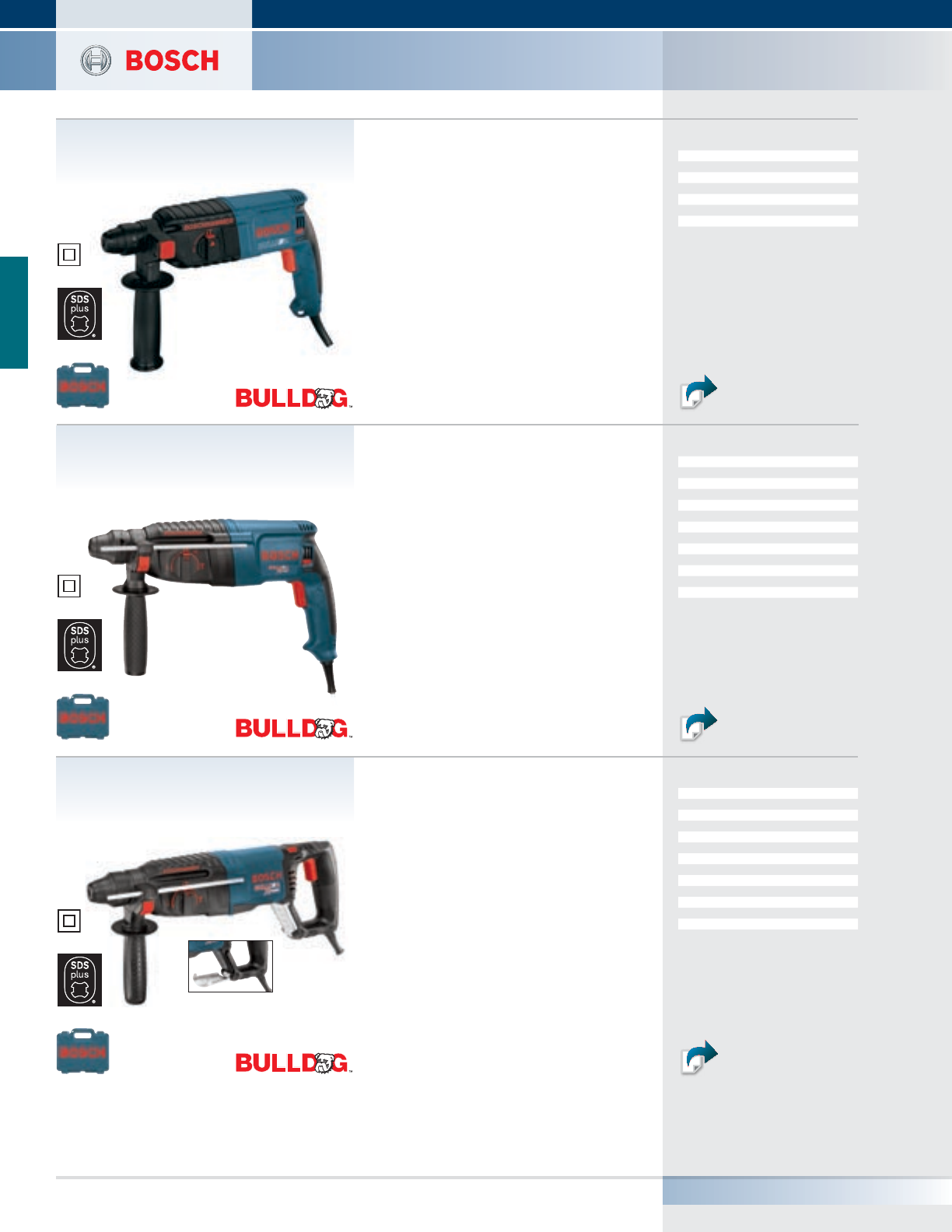

11258VSR(C)
5/8" SDS-plus® Concrete Drill
Flexibility to work in a variety of materials
Concrete
Masonry
Metal
Wood
3-jaw chuck
SDS-plus®
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Carrying Case
Included
Carrying Case
Included
34 Boschtools.com Toll Free: 877-BOSCH-99
Specifications
Rating 120V
Amperage 6.1
No Load RPM 0-1,100
No Load BPM 0-4,400
Impact Energy (ft./lbs.) 1.6
Thin Wall Core Bit 1-1/2"
Length (in.) 13-1/4"
Weight (lbs.) 5.4
Includes
360° Auxiliary Handle ........... 2 602 025 118
Depth Gauge .......................... 1 613 001 010
Carrying case ......................... 2 605 438 524
Features
• Powerful 6.1 amp motor
• SDS-plus® tool holder - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Dual mode selector - Easily converts from rotation
only to rotary hammer mode
• Patented rotating brush plate - Provides equal
power in reverse and extends brush life
• Pistol grip handle - Compact ergonomic design
with soft grip
• Integral clutch - Helps minimize torque reaction
• Variable-speed reversing trigger - For accurate
bit starting, as well as removing fasteners or
bound bits
• 13-foot power cord - For added user reach
and convenience
11250VSR
3/4" SDS-plus® Rotary Hammer
Carrying Case
Included
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Carrying Case
Included
Specifications
Rating 120V
Amperage 7.2
No Load RPM 0 - 1,300
No Load BPM 0 - 5,800
Impact Energy (ft./lbs.) 2.2
Maximum Capacities (in.)
Concrete 1"
Concrete-Thin Wall Core Bit 2-5/8"
Steel 1/2"
Wood 3/4"-1"
Optimal Concrete Capacity Range (in.)
3/16" - 5/8"
Length (in.) 14-3/4”
Weight (lbs.) 6.4
Includes
Auxiliary Handle ..................... 2 602 025 141
Depth Gauge .......................... 1 613 001 010
Carrying Case ..................................Included
Features
• 7.2 Amp; 0-1,300 RPM; 0-5,800 BPM
• Multi-function Selector - 3 modes of operation,
rotation only, rotary hammer and hammer-
only mode
• Vario-Lock™ Positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• Patented Rotating Brush Plate - Provides equal
power in forward and reverse
• Patented Cord Turret - 35° pivot for added
flexibility and longer cord life
• SDS-plus® Bit System - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Variable-speed Reversing Trigger - For accurate
bit starting as well as removing fasteners or
bound bits
• Integral Clutch - Helps minimize torque reaction
• Pistol-Grip design

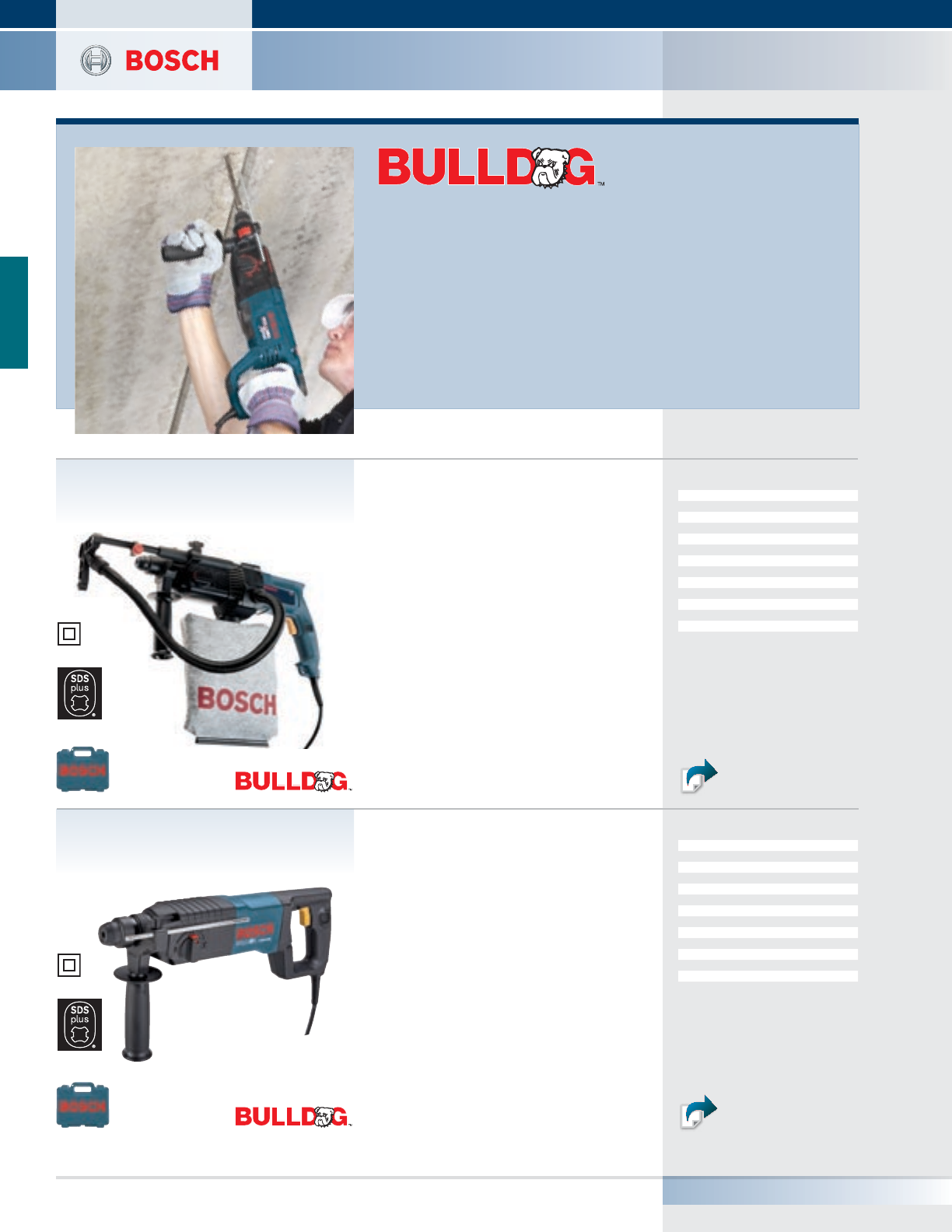

11253VSR
1" SDS-plus® Bulldog™ Xtreme
Rotary Hammer
Rotary Hammers
Specifications
Rating 120V
Amperage 7.2
No Load RPM 0 - 1,300
No Load BPM 0 - 5,800
Impact Energy (ft./lbs.) 2.2
Maximum Capacities (in.)
Concrete 1"
Concrete-Thin Wall Core Bit 2-5/8"
Steel 1/2"
Wood 3/4"-1"
Optimal Concrete Capacity Range (in.)
3/16" - 5/8"
Length (in.) 17-1/4"
Weight (lbs.) 6.7
Includes
Auxiliary Handle ..................... 2 602 025 141
Depth Gauge .......................... 1 613 001 010
Carrying Case ..................................Included
Features
• 7.2 Amp; 0-1,300 RPM; 0-5,800 BPM
• HammerHook™ allows quick tool storage
during the job.
• Multi-function Selector - 3 modes of operation,
rotation only, rotary hammer and hammer-
only mode
• Vario-Lock™ Positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• Patented Rotating Brush Plate - Provides equal
power in forward and reverse
• Patented Cord Turret - 35° pivot for added
flexibility and longer cord life
• SDS-plus® Bit System - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Variable-speed Reversing Trigger - For accurate
bit starting as well as removing fasteners or
bound bits
• D-Handle design - Ideal for overhead and
downward drilling applications
• Integral Clutch - Helps minimize torque reaction
11255VSR
1" SDS-plus® Bulldog™ Xtreme
Rotary Hammer
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Carrying Case
Included
HammerHook™
35
Toll Free: 877-BOSCH-99 Boschtools.com
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Specifications
Rating 120V
Amperage 7.5
No Load RPM 0-850
No Load BPM 0-3,900
Impact Energy (ft./lbs.) 2.6
Maximum Capacities (in.)
Concrete 1-1/8"
Concrete-Thin Wall Core Bit 3"
Steel 1"
Wood 1-1/4"
Optimal Concrete Capacity Range (in.)
1/4"-7/8"
Length (in.) 15-1/4"
Weight (lbs.) 9.3
Includes
Auxiliary Handle ..................... 2 602 025 077
Depth Gauge .......................... 1 613 001 003
Carrying Case ........................ 2 605 438 389
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Multi-function selector - 3 modes of operation,
rotation only, rotary hammer and hammer
only mode
• Variable speed 3 finger trigger - Better operator
control and accurate bit starting
• Vario-Lock™ positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• Padded rear handle - Absorbs shock for
operator comfort
• 360° Auxiliary handle with built-in depth
gauge - Wide range of movement along with
consistent drilling depth
• Integral clutch - Helps minimize torque reaction

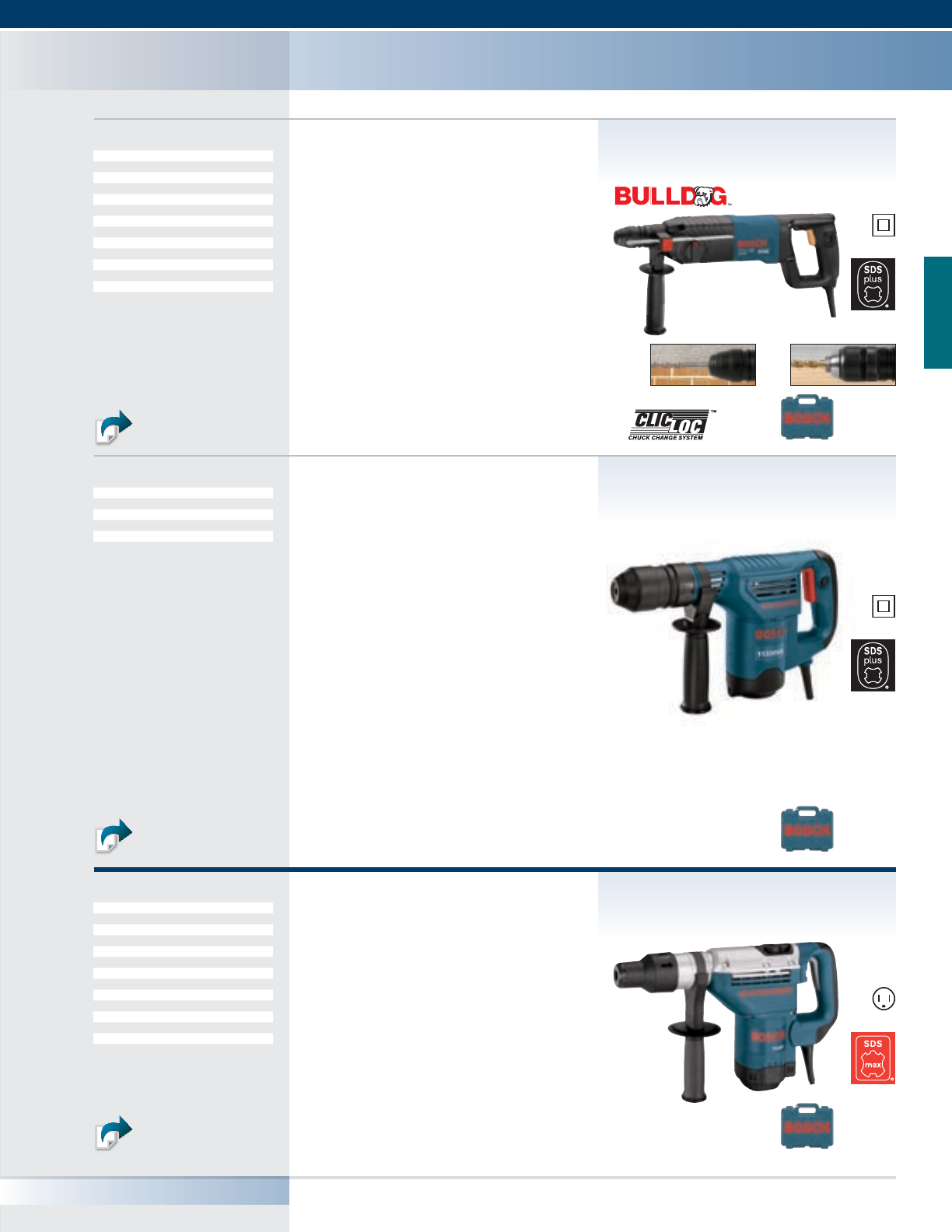

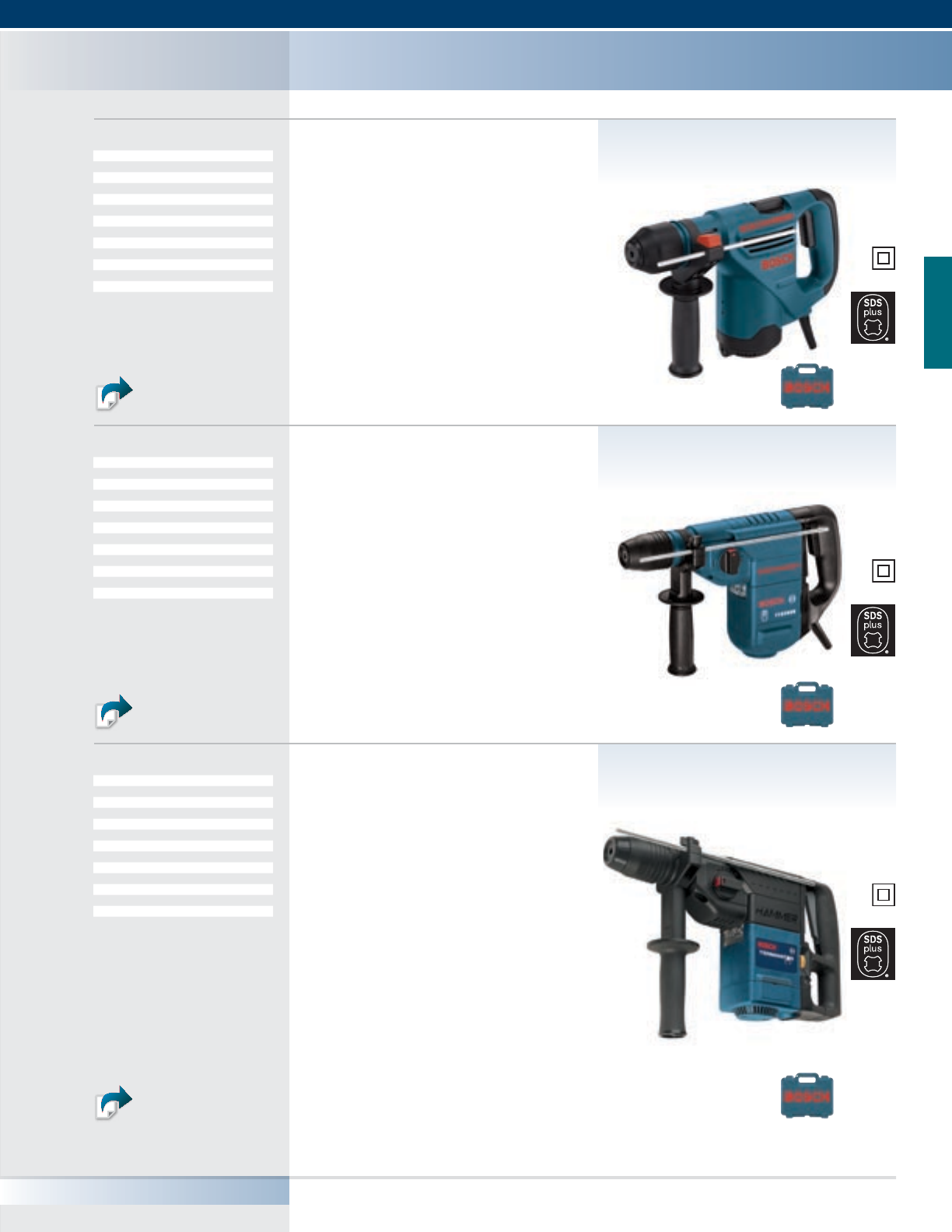

11236VS
1-1/8" SDS-plus® Rotary Hammer
Carrying Case
Included
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Specifications
Rating 120V
Amperage 7.8
No Load RPM 300-700
No Load BPM 1,650-3,900
Impact Energy (ft./lbs.) 2.6
Maximum Capacities (in.)
Concrete 1-1/8"
Concrete-Thin Wall Core Bit 3"
Steel 1/2"
Wood 1-1/4"
Optimal Concrete Capacity Range (in.)
1/4"-7/8"
Length (in.) 15-1/4"
Weight (lbs.) 10.1
Includes
Auxiliary Handle ..................... 2 602 025 077
Depth Gauge .......................... 1 613 001 003
Carrying Case ........................ 2 605 438 376
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Multi-function selector - 3 modes of operation,
rotation only, rotary hammer and hammer
only mode
• Variable-speed dial - For accurate bit starting
and controlled chipping applications
• Constant-Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Service Minder™ light - Indicates when
preventative maintenance is required
• Vario-Lock™ positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• Padded rear handle - Absorbs shock for comfort
• 360° Auxiliary handle - Provides a wide range of
movement along with operator comfort
• Integral clutch - Helps minimize torque reaction
11222EVSG also features
• Grounded feature designed for the pest
control industry
• The best speed for the diameter of bits used by
the pest control industry
11222EVS(G)
1-1/8" SDS-plus® Rotary Hammer
Carrying Case
Included
Rotary Hammers
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Specifications
Rating 120V
Amperage 7.2
No Load RPM 0-1,050
No Load BPM 0-4,000
Impact Energy (ft./lbs.) 2.4
Maximum Capacities (in.)
Concrete 1"
Concrete-Thin Wall Core Bit 3"
Steel 7/8"
Wood 1"
Optimal Concrete Capacity Range (in.)
3/16"-3/4"
Length (in.) 12.9"
Weight (lbs.) 7.8
Includes
Auxiliary Handle ..................... 2 602 025 112
Depth Gauge .......................... 1 613 001 003
Carrying Case ........................ 2 605 438 482
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Variable speed 3 finger trigger - Better operator
control and accurate bit starting
• Dual mode selector - 2 modes of operation,
rotation only and rotary hammer mode
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
• Padded rear handle - Absorbs shock for
operator comfort
• 360° Auxiliary handle with built-in depth
gauge - Wide range of movement along with
consistent drilling depth
• Integral clutch - Helps minimize torque reaction
11239VS
1" SDS-plus® Rotary Hammer
Carrying Case
Included
36 Boschtools.com Toll Free: 877-BOSCH-99
The World’s Best Selling
Rotary Hammers
The Bulldog™ series of hammers are well recognized by professionals
worldwide. Their aggressive performance in concrete combined
with versatile features such as stop rotation (models 11221DVS,
11224VSR, 11224VSRC, 11253VSR and 11255VSR) for light
chipping has set the Bulldog™ apart from other hammers over the
past 20 years.
Rotary Hammers
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Specifications
Rating 120V
Amperage 6.9
No Load RPM 0-1,040
No Load BPM 0-5,750
Impact Energy (ft./lbs.) 1.6
Maximum Capacities (in.)
Concrete 7/8"
Concrete-Thin Wall Core Bit 2-1/2"
Steel 1/2"
Wood 1"
Optimal Concrete Capacity Range (in.)
3/16"-5/8"
Length (in.) 16-1/2"
Weight (lbs.) 8.5
Includes
Auxiliary Handle ..................... 2 602 025 118
Depth Gauge ................................. Integrated
Dust Extraction Fixture ........ 1 618 190 006
Hose (23" length) ................... 2 600 712 002
Adapter for Paper Dust Bags ... 2 607 000 178
Cloth Bag Assembly .............. 2 605 411 044
Carrying Case ........................ 2 605 438 126
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Multi-function selector - 3 modes of operation,
rotation only, rotary hammer and hammer
only mode
• Variable-speed reversing trigger - For accurate
bit starting, as well as removing fasteners or
bound bits
• Constant-Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Vario-Lock™ positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• 360° Auxiliary handle with built-in depth gauge
• Integral clutch - Helps minimize torque reaction
11221DVS
7/8" SDS-plus® Rotary Hammer
Carrying Case
Included
See pages 44–47, 203–208 for
SDS-plus® accessories..
BOSCH
Specifications
Rating 120V
Amperage 6.9
No Load RPM 0-1100
No Load BPM 0-6,150
Impact Energy (ft./lbs.) 1.6
Maximum Capacities (in.)
Concrete 7/8"
Concrete-Thin Wall Core Bit 2-1/2"
Steel 1/2"
Wood 1"
Optimal Concrete Capacity Range (in.)
3/16" - 5/8"
Length (in.) 17-1/2"
Weight (lbs.) 6.5
Includes
Auxiliary Handle ..................... 2 602 025 118
Depth Gauge .......................... 1 613 001 010
Carrying Case ........................ 2 610 994 810
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Multi-function selector - 3 modes of operation,
rotation only, rotary hammer and hammer
only mode
• Variable-speed reversing trigger - For accurate
bit starting, as well as removing fasteners or
bound bits
• Vario-Lock™ positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• D-handle design - For extra control, ideal for
overhead and downward drilling applications
• 360° Auxiliary handle with built-in depth
gauge - Wide range of movement along with
consistent drilling depth
• Integral clutch - Helps minimize torque reaction
11224VSR
7/8" SDS-plus® Bulldog™ Rotary Hammer
Carrying Case
Included
37
Toll Free: 877-BOSCH-99 Boschtools.com
Rotary/Chipping/Combination Hammers
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Carrying Case
Included
Specifications
Rating 120V
Amperage 6.9
No Load RPM 0-1,100
No Load BPM 0-6,150
Impact Energy (ft./lbs.) 1.6
Maximum Capacities (in.)
Concrete 7/8"
Concrete-Thin Wall Core Bit 2-1/2"
Steel 1/2"
Wood 1"
Optimal Concrete Capacity Range (in.)
3/16" - 5/8"
Length (in.) 17-1/2"
Weight (lbs.) 6.5
Includes
Auxiliary Handle ..................... 2 602 025 070
Depth Gauge .......................... 1 613 001 010
3-Jaw ClicLoc™ Chuck ......... 1 618 572 000
SDS-plus® ClicLoc™ Chuck ... 1 618 573 000
Carrying Case ........................ 2 610 994 810
Features
• SDS-plus® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• ClicLoc™ Chuck Change System - Easily remove
the SDS-plus® bit holder and snap on the included
keyless carbide-tipped 3-jaw chuck
• Multi-function selector - 3 modes of operation,
rotation only, rotary hammer and hammer
only mode
• Variable-speed reversing trigger - For accurate
bit starting, as well as removing fasteners or
bound bits
• Vario-Lock™ positioning - Rotates and locks
chisel into 36 different positions to optimize
working angle
• D-handle design - For extra control, ideal for
overhead and downward drilling applications
• 360° Auxiliary handle with built-in depth
gauge - Wide range of movement along with
consistent drilling depth
• Integral clutch - Helps minimize torque reaction
11224VSRC
7/8" SDS-plus® Bulldog™ Rotary Hammer
with ClicLoc™
See pages 44–47, 203–208 for
SDS-plus® accessories.
BOSCH
Specifications
Rating 120V
Amperage 6.5
No Load BPM 0 - 3,500
Impact Energy (ft./lbs.) 3.2
Length (in.) 15"
Weight (lbs.) 7.9
Includes
Auxiliary Handle ..................... 1 612 025 059
Viper Flat Chisel .................... 2 608 692 928
Tile Chisel ............................... 2 608 682 973
Carrying Case ........................ 2 605 438 294
Features
• Powerful 6.5 Amp Motor - For highest removal
rate in its class
• Specially-designed Impact Mechanism - Smooth
change between no-load and hammering modes.
Superior tool control for easier positioning and
precision chiseling.
• SDS-plus® Bit System - Tool-free bit changes with
auto bit locking, dust protection and maximum
impact energy transfer. Eliminates problems
associated with proprietary types of steel.
• Next-Generation SDS-plus® Bit Holder - For
extended lifetime
• Variable-speed Trigger Switch with Recessed
Lock-On Button - For exact adjustment of impact
force, comfort and less fatigue.
• Soft Start - Smooth change from no-load into
hammering mode.
• Soft-Grip Handle - Absorbs shock and vibration for
operator comfort and less fatigue.
• Light Weight - Highest power-to-weight ratio in
its class
• Vario-Lock™ positioning - Bit can be angled in any
of 12 positions
• Oil Lubrication - For good cold-start and excellent
lubrication in all working positions
• Innovative Service Modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
11320VS
SDS-plus® Chipping Hammer
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Specifications
Rating 120V
Amperage 10
No Load RPM 400
No Load BPM 3,000
Impact Energy (ft./lbs.) 5.2
Maximum Capacities (in.)
Concrete 1-9/16"
Concrete-Thru Hole Bit 2-1/2"
Concrete-Core Bit 4"
Optimal Concrete Capacity Range (in.)
1/2" - 1-3/8"
Length (in.) 17.25"
Weight (lbs.) 13.2
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 438 536
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
• Integral clutch - Helps minimize torque reaction
11240
1-9/16" SDS-max® Combination Hammer
Carrying Case
Included
Flexibility to work in a variety of materials
Concrete
Masonry
Metal
Wood
3-jaw chuck
SDS-plus®
Carrying Case
Included
38 Boschtools.com Toll Free: 877-BOSCH-99
Combination/Rotary Hammers
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Carrying Case
Included
Specifications

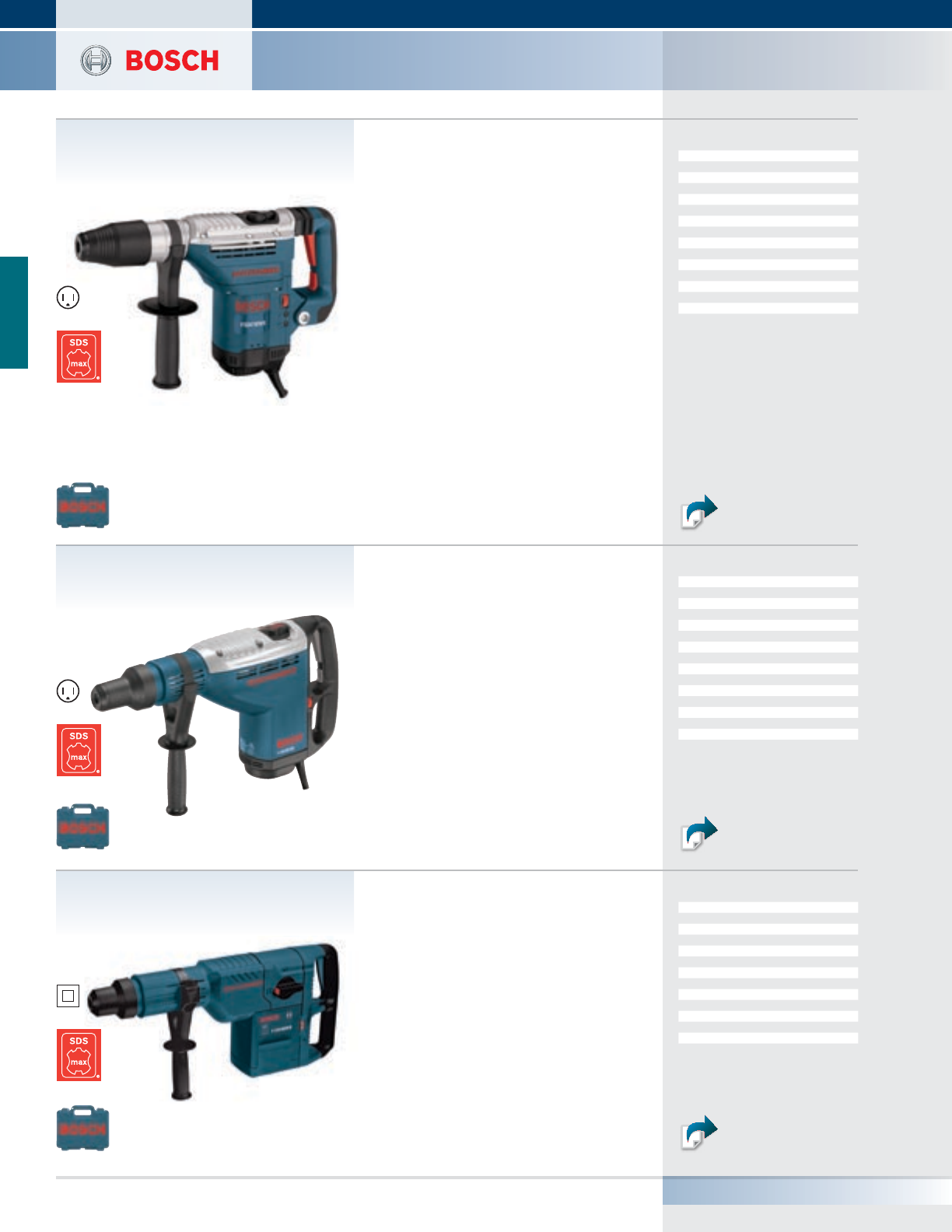

Rating 120V
Amperage 11
No Load RPM 170-340
No Load BPM 1,700-3,300
Impact Energy (ft./lbs.)
Rotary Hammer Mode 6.2
Turbo™ 7.4
Maximum Capacities (in.)
Concrete 1-9/16"
Concrete-Thru Hole Bit 2-1/2"
Concrete-Core Bit 4"
Optimal Concrete Capacity Range (in.)
1/2" - 1-3/8"
Length (in.) 17.25"
Weight (lbs.) 14
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 438 536
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Auto-Max® dial - Variable speed dial designed to
automatically insure the maximum speed and
power every time the tool is plugged in
• Constant-Response™ Circuitry - Provides soft-start,
maintains constant speed under load, provides
overload protection
• Turbo™ Power - Delivers 20% more power
in hammer only mode
• Service Minder™ light - Indicates when
preventative maintenance is required
• Power light - Ensures operator that power feed is live
• Vario-Lock™ positioning - Service modules
or brushes and cord
• Innovative service modules - Designed so a qualified
service technician can quickly replace the brushes
and cord
• Vibration dampening handle - Reduces vibration
up to 40%, providing uncompromising user comfort
for extended periods of work
• Patented cord turret - Provides added flexibility and
reduces cord wear
• 360° Auxiliary handle - Provides a wide range of
movement along with operator comfort
• Integral clutch - Helps minimize torque reaction
11241EVS
1-9/16" SDS-max® Combination Hammer
Carrying Case
Included
Specifications
Rating 120V
Amperage 13.5
No Load RPM 145-280
No Load BPM 1,350-2,800
Impact Energy (ft./lbs.)
Rotary Hammer Mode 9.6
Turbo™ 11.1
Maximum Capacities (in.)
Concrete 1-3/4"
Concrete-Thru Hole Bit 3-1/8"
Concrete-Core Bit 6"
Optimal Concrete Capacity Range (in.)
5/8" - 1-9/16"
Length (in.) 21.0"
Weight (lbs.) 17.9
Includes
Auxiliary Handle ..................... 2 602 025 103
Carrying Case ........................ 3 605 438 396
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Variable speed dial - For accurate bit starting and
controlled chipping applications
• Constant Response™ circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Turbo™ Power Feature - Delivers 20% more
power in hammer only mode
• Service Minder™ light - Indicates when
preventative maintenance is required
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• Soft grip rear handle - Absorbs shock and vibration
for operator comfort and less fatigue
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
11263EVS
1-3/4" SDS-max® Rotary Hammer
Specifications
Rating 120V
Amperage 14.0
No Load RPM 120-250
No Load BPM 1,100-2,500
Impact Energy (ft./lbs.) 13.3 ft. lbs.
Maximum Capacities (in.)
Concrete 2"
Concrete-Thru Hole Bit 3-1/8"
Concrete-Core Bit 6"
Optimal Concrete Capacity Range (in.)
3/4"-1-3/4"
Length (in.) 23.5"
Weight (lbs.) 24.5
Includes
Auxiliary Handle ..................... 2 602 025 086
Carrying Case ........................ 2 605 438 322
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Variable-speed dial - For accurate bit starting and
controlled chipping applications
• Constant-Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Service Minder™ light - Indicates when
preventative maintenance is required
• Vario-Lock™ positioning - Rotates and locks chisel
into 12 different positions to optimize working angle
• Padded rear handle - Absorbs shock for
operator comfort
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
• Integral clutch - Helps minimize torque reaction
11245EVS
2" SDS-max® Combination Hammer
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Carrying Case
Included
39
Toll Free: 877-BOSCH-99 Boschtools.com

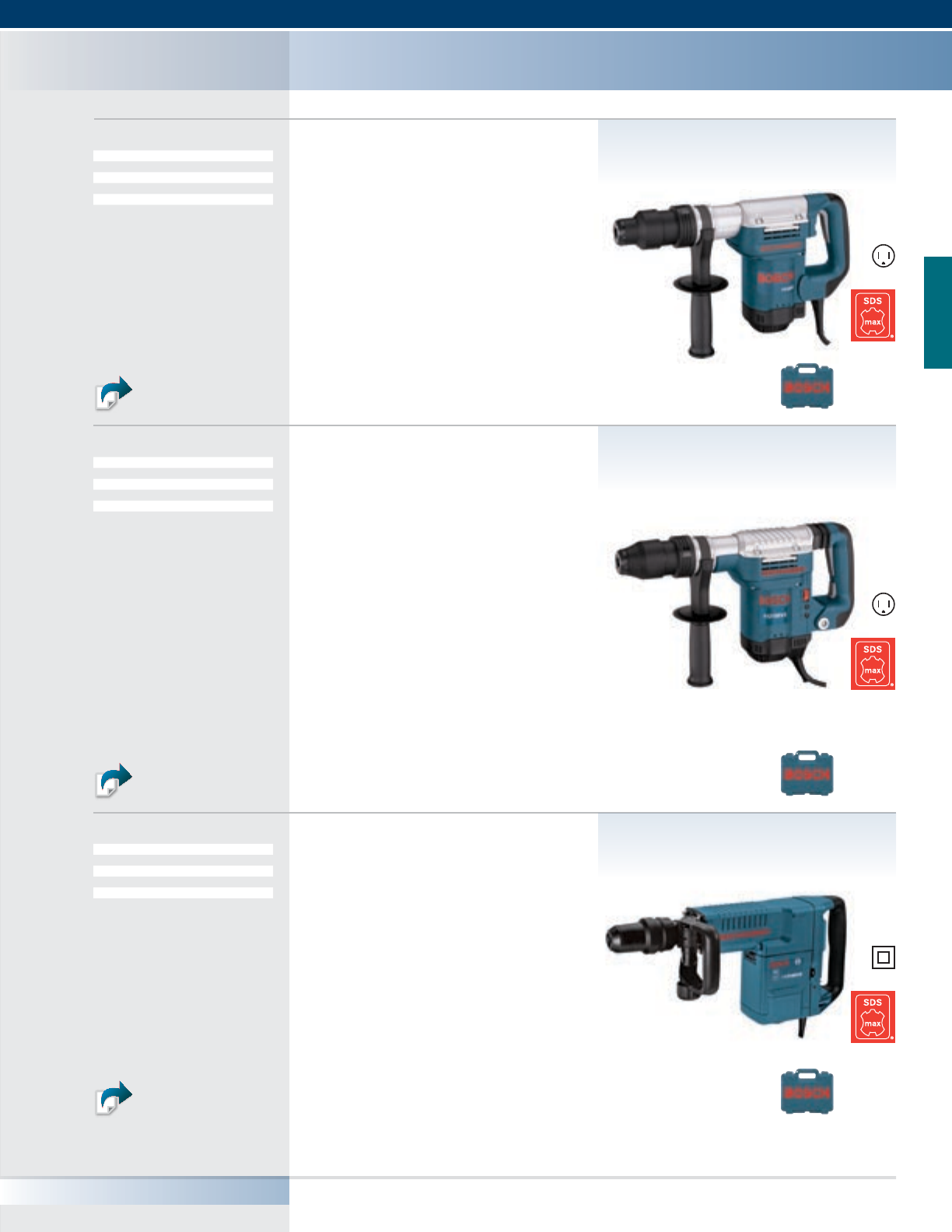

Demolition Hammers
Specifications
Rating 120V
Amperage 10
No Load BPM 2,800
Impact Energy (ft./lbs.) 5.9
Length (in.) 17.5"
Weight (lbs.) 11.6
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 438 534
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
11388
SDS-max® Demolition Hammer
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Carrying Case
Included
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Auto-Max® dial - Variable speed dial designed
to automatically insure the maximum speed and
power every time the tool is plugged in
• Constant Response™ circuitry - Provides soft-
start, maintains constant speed under load,
provides overload protection
• Service Minder™ light - Indicates when
preventative maintenance is required
• Power light - ensures operator that power feed
is live
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
• Vibration dampening handle - Reduces vibration
up to 40%, providing uncompromising user
comfort for extended periods of work
• Patented cord turret - Provides added flexibility
and reduces cord wear
• 360° Auxiliary handle - Provides a wide range of
movement along with operator comfort
11318EVS
SDS-max® Demolition Hammer
Specifications
Rating 120V
Amperage 11
No Load BPM 1,300-3,300
Impact Energy (ft./lbs.) 8.8
Length (in.) 17.75"
Weight (lbs.) 12.5
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 938 534
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Carrying Case
Included
Specifications
Rating 120V
Amperage 14.0
No Load BPM 900-1,890
Impact Energy (ft./lbs.) 4.4-18.4
Length (in.) 22.5"
Weight (lbs.) 22.5
Includes
Auxiliary Handle ..................... 2 602 025 076
Carrying Case ........................ 2 605 438 297
Features
• SDS-max® bit system - Tool-free bit changes
with automatic bit locking, dust protection and
maximum impact energy transfer rate
• Variable-speed dial - For controlled
chipping applications
• Constant Response™ circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Service Minder™ light - Indicates when
preventative maintenance is required
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• Padded rear handle - Absorbs shock for
operator comfort
• 360° Auxiliary handle - provides a wide range
of movement along with operator comfort
11316EVS
SDS-max® Demolition Hammer
See pages 47–50, 52 for
SDS-max® accessories.
BOSCH
Carrying Case
Included
40 Boschtools.com Toll Free: 877-BOSCH-99
Combination/Demolition Hammers
Specifications
Rating 120V
Amperage 10
No Load RPM 400
No Load BPM 3000
Impact Energy (ft./lbs.) 5.2
Maximum Capacities (in.)
Concrete 1-9/16"
Concrete-Thru Hole Bit 2-1/2"
Concrete-Core Bit 4"
Optimal Concrete Capacity Range (in.)
1/2" - 1-3/8"
Length (in.) 17.25"
Weight (lbs.) 13.6
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 438 536
Features
• Spline/round hex bit system - Tool-free bit changes,
with automatic bit locking
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
• Integral clutch - Helps minimize torque reaction
11247
1-9/16" Spline Combination Hammer
See pages 50–52 for
Spline accessories.
BOSCH
Carrying Case
Included
Specifications
Rating 120V
Amperage 11
No Load RPM 170-340
No Load BPM 1,700-3,300
Impact Energy (ft./lbs.)
Rotary Hammer Mode 6.2
Turbo™ 7.4
Maximum Capacities (in.)
Concrete 1-9/16"
Concrete-Thru Hole Bit 2-1/2"
Concrete-Core Bit 4"
Optimal Concrete Capacity Range (in.)
1/2" - 1-3/8"
Length (in.) 18"
Weight (lbs.) 14.4
Includes
Auxiliary Handle ..................... 1 612 025 055
Plastic Case............................ 3 605 438 536
Features
• Spline/round hex bit system - Tool-free bit changes,
with automatic bit locking
• Auto-Max® dial - Variable speed dial designed to
automatically insure the maximum speed and
power every time the tool is plugged in
• Constant Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• “Combination” dual mode selector - 2 modes of
operation, rotary hammer and hammer only mode
• Turbo™ Power - Delivers 20% more power in
hammer only mode
• Service Minder™ light - Indicates when
preventative maintenance is required
• Power light - Ensures operator that power
feed is on
• Vario-Lock™ positioning rotates and locks chisel
into 12 different positions to optimize working
- Designed so a qualified service technician can
quickly replace the brushes and cord - Provides
added flexibility and reduces cord wear.
• Vibration dampening handle - Reduces vibration
up to 40%, providing uncompromising user
comfort for extended periods of work
11248EVS
1-9/16" Spline Combination Hammer
Carrying Case
Included
See pages 50–52 for
Spline accessories.
BOSCH
Specifications
Rating 120V
Amperage 10
No Load BPM 2,800
Impact Energy (ft./lbs.) 5.9
Length (in.) 17.5"
Weight (lbs.) 12
Includes
Auxiliary Handle ..................... 1 612 025 055
Carrying Case ........................ 3 605 438 534
Features
• Round hex tool holder - Tool-free demolition steel
changes, with automatic locking
• Vario-Lock™ positioning - Rotates and locks
chisel into 12 different positions to optimize
working angle
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
• Innovative service modules - Designed so a
qualified service technician can quickly replace
the brushes and cord
11387
Round Hex Demolition Hammer
Carrying Case
Included
See page 51 for
round hex accessories.
BOSCH
41
Toll Free: 877-BOSCH-99 Boschtools.com
Demolition/Breaker Hammers
Specifications
Rating 120V
Amperage 12.8
No Load BPM 850 - 1,800
Impact Energy (ft./lbs.) 4.0-16.5
Length (in.) 22.0"
Weight (lbs.) 22.0
Includes
Auxiliary Handle ..................... 2 602 025 076
Carrying Case ........................ 2 605 438 297
Features
• 3/4" hex tool holder
• Variable speed dial - For controlled
chipping applications
• Constant Response™ circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Service Minder™ light - Indicates when
preventative maintenance is required
• Padded rear handle - Absorbs shock for
operator comfort
• 360° Auxiliary handle - Provides a wide range
of movement along with operator comfort
11317EVS
3/4" Hex Demolition Hammer
Carrying Case
Included
See page 51 for
3/4" hex accessories.
BOSCH
Specifications
Rating 120V
Amperage 15
No Load BPM 1,300
Impact Energy (ft./lbs.) 34
Length (in.) 30"
Weight (lbs.) 38
Includes
Pointed Chisel (400 mm) ................ HS2861
Articulating Auxiliary Handle .........Included
Carrying Case with Wheels ...2 605 438 628
Features
• 15.0 Amps; 1300 BPM
• Impact force of 34 ft-lbs and powerful 1750 W
motor - Fastest removal rate in its class
• Vibration Reducing Handle - Shock absorbing
top handle reduces vibration by up to 40% vs.
the competition
• In-Line Design – Ultimate tool balance with
multiple grip positions for maximum performance
in angled, horizontal, and vertical applications
• Large Main handle – Increased control and handling
• Well Positioned lock on switch – Eliminates
unintentional shut off.
• 360° Articulating Auxiliary Handle – Provides a wide
range of movement along with operator comfort
• 2-Way Tool Retainer – Accepts standard 1-1/8"
(28mm) hex, air tool steel with retaining collar
or Bosch internal locking combo steel.
11335K
Jack 35 lb.
Breaker Hammer
See page 52 for
1-1/8" hammer steel accessories.
BOSCH
Highest Removal Rate
in its Class
Lasts 2 Times Longer than
the Closest Competitor
Active Vibration Control™
Reduces Vibration by 40%
MEET JACK
The Newest Member of the
Legendary Bosch Wrecking Crew
Carrying Case
Included
42 Boschtools.com Toll Free: 877-BOSCH-99
Features
• The plug-in anywhere hammer - Does not need
a compressor
• Total portability - Operates on 115/120V AC/DC,
15 amp outlet or 2500 watt portable generator
• Service Minder™ brush system - Shuts the Brute™
off when brush replacement, lubrication or
preventive maintenance is needed
• Grease packed gear box and hammer mechanism
- Eliminates uncertainty of job site lubrication
• Shock mounted handles - Absorb vibration to
reduce operator fatigue
113304K
Hammer Hauler Cart
• 8" Diameter semi-pneumatic, ball bearing wheels
- Easy rolling over rough job sites
• Rugged 1" diameter all welded steel frame, plus
heavy-duty rubber tie-down - For convenient
storage and easy transportation
• 4 Sockets - Holds any 1-1/8" hex collar insert tools
11304(K)
Brute™ Breaker Hammer
Hammer Hauler Up for combo steel. Down for air tool steel.
2-Way Tool Retainer
Two-way insert tool retainer accepts standard
1-1/8" hex, air tool steel with retaining collar
or Bosch internal locking combo steel.
A legend for more than 20 years, the Brute™ continues to
perform through any working condition. A favorite among
the rental industry for its long-term sustained durability
and minimal down time, the Brute™ breaker is always at
home on the jobsite.
The Plug-In-Anywhere Brute™
Breaker Hammer
See page 52 for
1-1/8" hammer steel accessories.
BOSCH
Specifications
Rating 115/120V AC/DC
Amperage 15.0
No Load BPM 1400
Impact Energy (ft./lbs.) 43
Length (in.) 29-3/4"
Weight (lbs.) 64
11304K Includes
Breaker Hammer ................................. 11304
Moil Points (2)................................... HS2161
Narrow Chisels (2) ........................... HS2163
Hammer Hauler Cart ........................... T1657
Breaker Hammers
43
Toll Free: 877-BOSCH-99 Boschtools.com
SDS-plus® is a registered trademark of Robert Bosch GmbH.

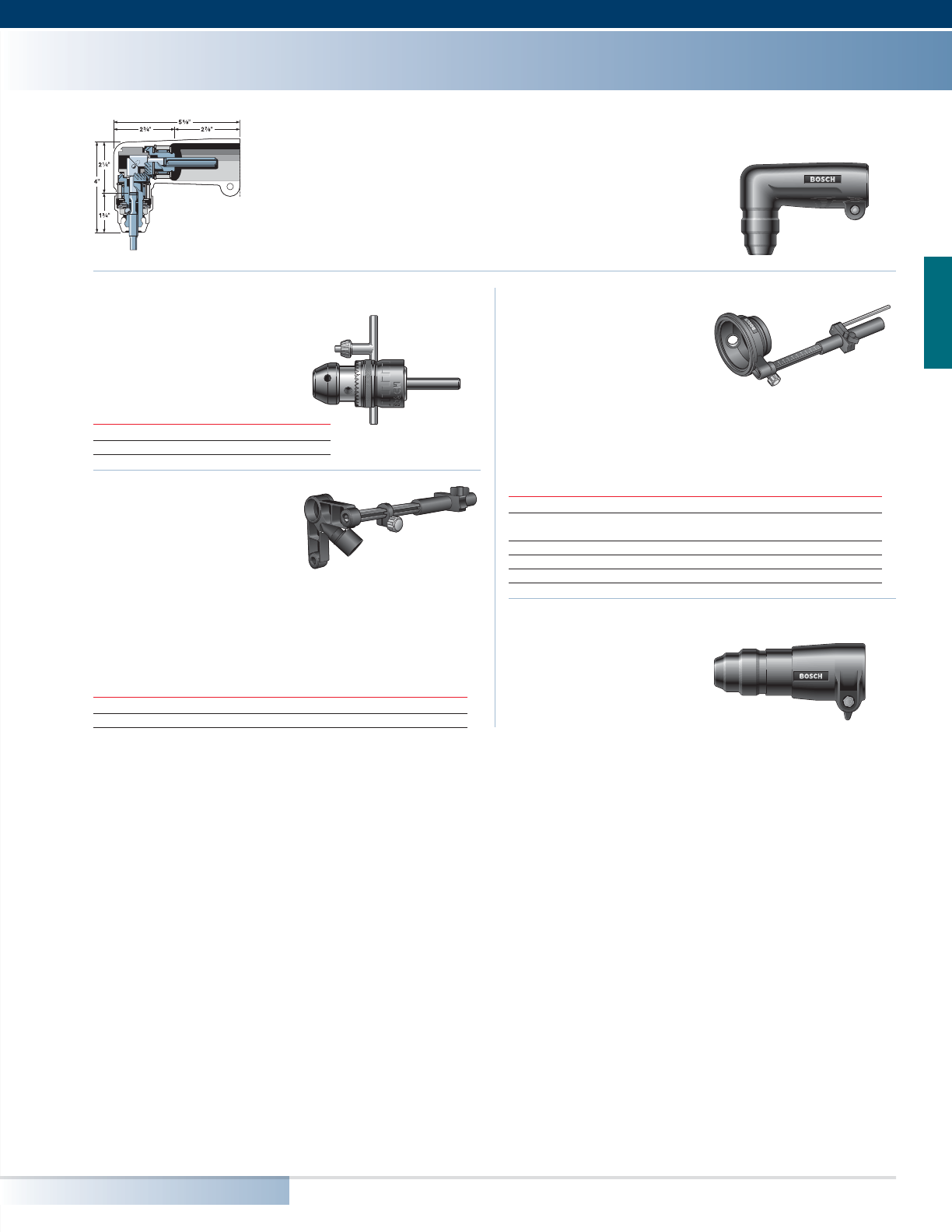

1 618 580 000 SDS-plus® Right Angle Attachment
Angle drill head for effortlessly drilling concrete in hard
to reach spots. Pivots through 360° ensuring correct
positioning for any application.
• For SDS-plus® Rotary Hammer Item #s
11224VSR/VSRC, 11250VSR
• Remove side handle to attach
• Tool length increases by 2-3/4"
• Tool length is offset by less
than the shank insertion
depth into the bit holder
• Impact strength is reduced
by approximately 40%
Hammer Attachments
2 607 018 296 SDS-plus® Chipping Adapter
• For SDS-plus® Rotary Hammer
Item #s
11225VSR,
11225VSRH and
11250VSR.
1 618 190 006 Dust
Extraction Fixture
• Attaches to tool and vacuum cleaner
hose to provide excellent dust
collection when drilling in dust-sensitive
areas, such as computer rooms and
medical facilities
• For use with bits up to 3/4" in diameter (depending on tool's bit capacity)
for extracting fine dust
• Built-in depth gauge and adjustable depth limiter
• Easy attachment to compatible tools and auxiliary handles
(see Dust Extraction Compatibility Charts)
• Includes Dust Cover 1 610 591 006
• Does not fit Item # 11239VS
1 618 190 009 Dust Extraction Fixture
• Attaches to tool and vacuum cleaner
hose to provide excellent dust
collection when drilling in dust-sensitive
areas, such as computer rooms and
medical facilities
• For use with bits up to 1-9/16" in
diameter (depending on tool's bit capacity)
for extracting fine dust, wood or metal drilling debris
• Built-in depth gauge and adjustable depth limiter
• Easy attachment to compatible tools and auxiliary handles
(see Dust Extraction Compatibility Charts)
• Includes Dust Cover 1 615 502 004
• Does not fit Item # 11239VS
1 618 571 014 Chuck With Integral SDS-plus® Shank
• 1/2" capacity chuck with integral SDS-plus® shank.
• Use for straight shank drill bits.
• For wood, metal and fastening.
• Can be used in the drill only mode.
• For all Bosch SDS-plus®
Rotary Hammers.
Item # Description
VAC001 15' Vacuum Hose (Fixture to Vacuum)
1 610 591 006 Replacement Dust Cover
Item # Description
VAC001 15' Vacuum Hose (Fixture to Vacuum)
VAC002 Connects 1-1/4" or 1" hoses to tools that have
ports for 35mm hoses
VAC009 Anti-static 19mm 3-meter (9.85-ft. locking hose)
VAC010 Anti-static 19mm 5-meter (16.4-ft. locking hose)
1 610 502 004 Replacement Dust Cover
Item # Description
1 610 508 015 Replacement Dust Boot
CRK005 Replacement Chuck Key
44 Boschtools.com Toll Free: 877-BOSCH-99
Item # Diameter
Usable
Length
Overall
Length Quantity
HCBG01 1/8" 2" 3" 1
HCBG0105 1/8" 2" 3" 5
HCBG01B25 1/8" 2" 3" 25
HCBG02 5/32" 4" 6" 1
HCBG0205 5/32" 4" 6" 5
HCBG02B25 5/32" 4" 6" 25
HCBG03 3/16" 2" 3" 1
HCBG0305 3/16" 2" 3" 5
HCBG03B25 3/16" 2" 3" 25
HCBG04 3/16" 4" 6" 1
HCBG0405 3/16" 4" 6" 5
HCBG04B25 3/16" 4" 6" 25
HCBG05 7/32" 4" 6" 1
HCBG0505 7/32" 4" 6" 5
HCBG05B25 7/32" 4" 6" 25
HCBG06 1/4" 4" 6" 1
HCBG0605 1/4" 4" 6" 5
HCBG06B25 1/4" 4" 6" 25
HCBG07 1/4" 6" 8" 1
HCBG08 1/4" 10" 12" 1
HCBG09 5/16" 4" 6" 1
HCBG0905 5/16" 4" 6" 5
HCBG09B25 5/16" 4" 6" 25
HCBG10 5/16" 7-1/2" 10" 1
HCBG11 5/16" 10" 12" 1
HCBG12 3/8" 4" 6" 1
HCBG1205 3/8" 4" 6" 5
HCBG12B25 3/8" 4" 6" 25
HCBG13 3/8" 8" 10" 1
HCBG14 3/8" 10" 12" 1
HCBG15 7/16" 4" 6" 1
HCBG1505 7/16" 4" 6" 5
HCBG15B25 7/16" 4" 6" 25
HCBG16 1/2" 4" 6" 1
HCBG1605 1/2" 4" 6" 5
HCBG16B25 1/2" 4" 6" 25
HCBG17 1/2" 8" 10" 1
HCBG18 1/2" 10" 12" 1
HCBG19 9/16" 7-1/2" 10" 1
HCBG20 5/8" 4" 6" 1
HCBG2005 5/8" 4" 6" 5
HCBG20B25 5/8" 4" 6" 25
HCBG21 5/8" 10" 12" 1
HCBG22 3/4" 4" 6" 1
HCBG23 3/4" 10" 12" 1
HCBG24 7/8" 4" 6" 1
HCBG25 7/8" 10" 12" 1
HCBG26 1" 4" 6" 1
HCBG27 1" 10" 12" 1
Tapcon® is a registered trademark of Illinois Tool Works.
SDS-plus® is a registered trademark of Robert Bosch GmbH.
Allen® is a registered trademark of Industrial Fasteners Inc.
Phillips® is a registered trademark of Phillips Screw Co.
Hammer Drill Bits
SDS-plus®
Hammer Carbide
Blue Granite™ Carbide Hammer Drill Bits
Anchor Drive Installation Kit
SDS-plus® shank bits for use with Tapcon® / Condrive systems. Hex drive on bit
fits into driver sleeve.
• 1/4" hex shoulder for drive sleeve used to set masonry screws
Blue Granite™ Carbide Hammer Drill Bit Sets
Fast impact drilling in concrete, stone and masonry. Low voltage, high
temperature brazing prevents carbide cutting edge from breaking out even
when heat builds up during deep drilling. Various usable lengths up to 10".
• Milled u-flute and deep-cut spiral single-flute designs combined with
a diamond ground carbide tip to provide fast removal of drilling dust
• Perfect "on-center" diamond tip grinding for fast starts and drilling
• Inductive hardening process provides a softer shank for better
gripping power
Item # Description Sizes
HCBG500 5 pc. Industrial Hammer
Drill Bit Starter Set
1/8" x 2" x 3"; 3/16" x 4" x 6";
1/4" x 4" x 6"; 5/16" x 4" x 6";
and 3/8" x 4" x 6"
HCBG600T 6 pc. Industrial Hammer
Drill Bit Tapcon® Set
3 ea. of 5/32" x 4" x 6"
and 3/16" x 4" x 6"
HCBG700 7 pc. Industrial Hammer
Drill Bit Set
One 1/8" x 2" x 3", Two 5/32" x 3" x 6",
Two 3/16" x 4" x 6", One 1/4" x 4" x 6",
One 3/8 x 4" x 6"
HCBG800 8 pc. Industrial Hammer
Drill Bit Master Set
One 3/16" x 4" x 6", Two 1/4" x 4" x 6",
One 5/16" x 4" x 6", Two 3/8" x 4" x 6",
One 1/2" x 4" x 6", and One 5/8" x 4" x 6"
Item # Description
HC2309
9 pc. anchor drive installation kit—5/32" x 7" and 3/16" x 7"
Tapcon® hex bits, #2 & #3 Phillips® insert bits, bit holder, 5-3/4"
sleeve, 1/4" & 5/16" sockets and Allen® wrench
HCBG800
Masonry/Concrete Drilling
45
Toll Free: 877-BOSCH-99 Boschtools.com

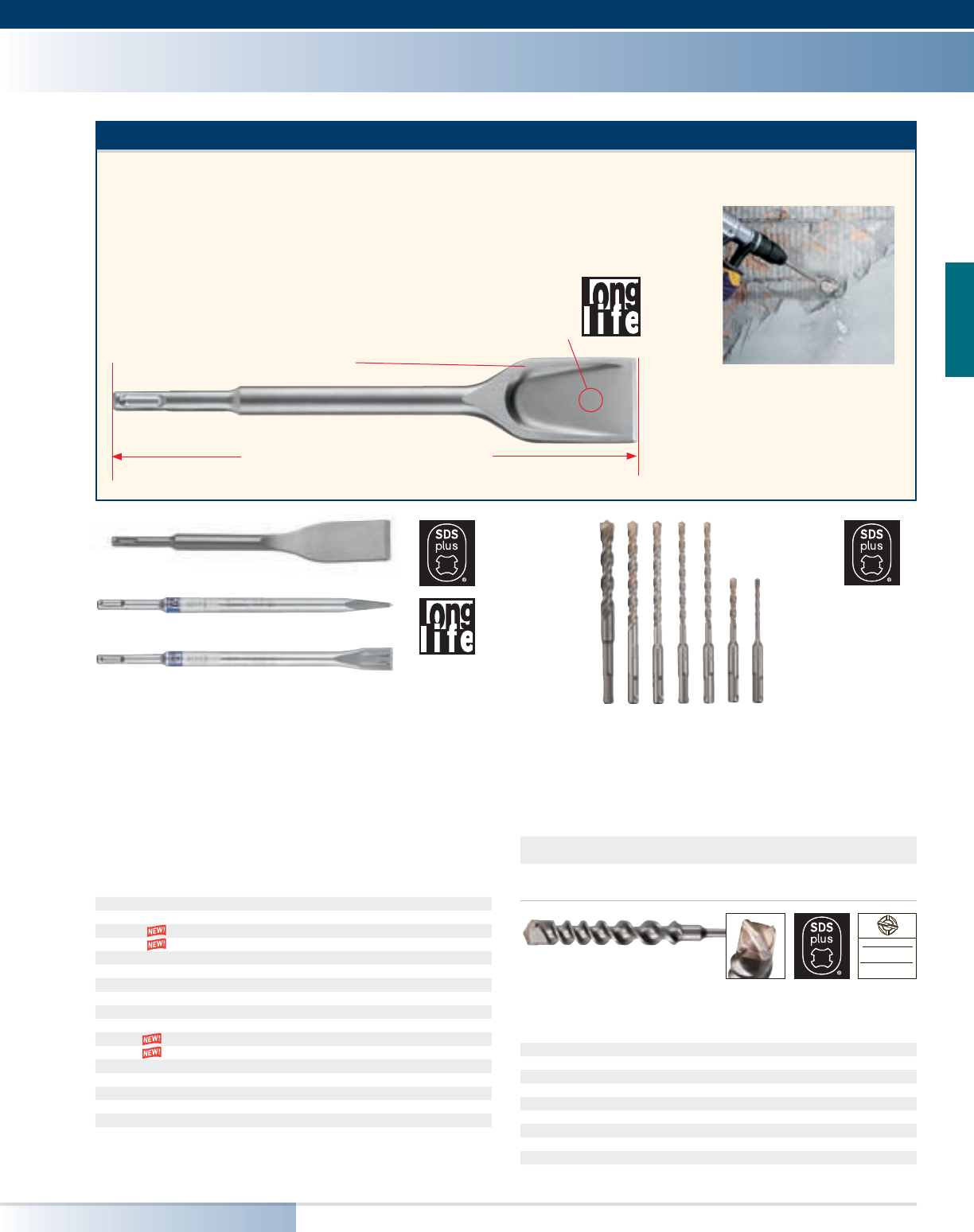

Masonry/Concrete Drilling
SDS-plus® Rotary Hammer Bit Sets
Bosch SDS-plus® rotary hammer bits feature a patent-pending
4-flute design which provides fast dust removal. The carbide-tipped drill bit
heads are harder, tougher and more resistant to extreme loads.
• HCK001 and HCK005 are 7-piece and 5-piece kits, respectively, featuring
popular SDS-plus® bits in a rugged index case
SDS-plus® Hammer Steel
Bosch offers a full assortment of SDS-plus® hammer steel points and chisels.
• HS1470 is the new long life SDS-plus® Viper flat chisel featuring an innovative
cutting chisel that further disperses the energy of each impact. 30% longer
service life and 15% higher material removal
• HS1472 is the new long life SDS-plus® pointed chisel. 30% longer service life
and 15% higher material removal
• HS1465 is the new SDS-plus® tile chisel which allows removal of tiles at a
faster rate and with much less effort. Bosch’s new tile chisel removes material
up to 40% quicker than conventional tile chisels. Ideal for smaller grout joints
and specially shaped for prying and removing tiles in one piece
SDS-plus® Wild-Bore™
With Quadro-X™ Rotary Hammer Bits
SDS-plus® is a registered trademark of Robert Bosch GmbH.
NOTE: Drill bits (or extension + drill bit) in excess of 8" should never exceed 600 RPM.
HS1465
HS1472
HS1470
Item # Description
HS1415 10" point
HS1420 3/4" x 10" chisel
HS1425* 1-1/2" x 10" wide chisel self-sharpening
HS1427* 2-1/2" x 10" wide chisel self-sharpening
HS1430 1/4" x 7" wood chisel
HS1435 1/2" x 7" wood chisel
HS1440 3/4" x 7" wood chisel
HS1445 1" x 7" wood chisel
HS1450 1-1/4" x 7" wood chisel
HS1465 1-1/2" x 10" Tile chisel
HS1470 3/4" x 10" Viper flat chisel (long life)
HS1472 10" point (long life)
HS1475 10" Gouging chisel
HS1480 8" Carbide tipped point
HS1485 1-1/2" x 5-3/4" Stubby scaling chisel
HS1490 5-3/4" Stubby point
HS1495 3/4" x 5-3/4" Stubby flat chisel
*Available 4Q 2007
Item # Includes
HCK001 One 3/16" x 2" x 4", One 1/4" x 2" x 4", Two 1/4" x 4" x 6",
One 5/16" x 4" x 6", One 3/8" x 4" x 6", and One 1/2" x 4" x 6"
HCK005 One 3/16" x 4" x 6", One 1/4" x 2" x 4", One 1/4" x 4" x 6",
One 3/8" x 4" x 6", and One 1/2" x 4" x 6"
Item # Diameter
Usable
Length
Overall
Length Quantity
HC2222 3/4" 6" 8" 1
HC2224 3/4" 10" 12" 1
HC2227 3/4" 16" 18" 1
HC2242 7/8" 6" 8" 1
HC2244 7/8" 10" 12" 1
HC2247 7/8" 16" 18" 1
HC2263 1" 8" 10" 1
HC2267 1" 16" 18" 1
HC2283 1-1/8" 8" 10" 1
HC2287 1-1/8" 16" 18" 1
HCK001
InZ]kh8P8¦8;nmm^kl
8\hkmZ]hk^l8
InZ]kh8P
=f[hnml8_hk^ml8
InZ]kh8P8jnZ]knie^l8
Self-sharpening
Bracing Ribs
Stability for demolition work•
Optimized Total Length
Considerably improved handling •
in narrow spaces
Flat shape of the spade•
Higher Removal Rate
30%
SDS-plus® Spade Chisel Works Longer, Faster And Sharper:
The New SDS-plus® Spade Chisels.
With a Double-Length spade, Bosch has considerably extended the
service life of the spade chisel. The material removal rate has also been
signicantly increased. The chisel is self-sharpening due to the at
shape of its spade, meaning no downtime from time-consuming and
tedious resharpening of the chisel.
46 Boschtools.com Toll Free: 877-BOSCH-99

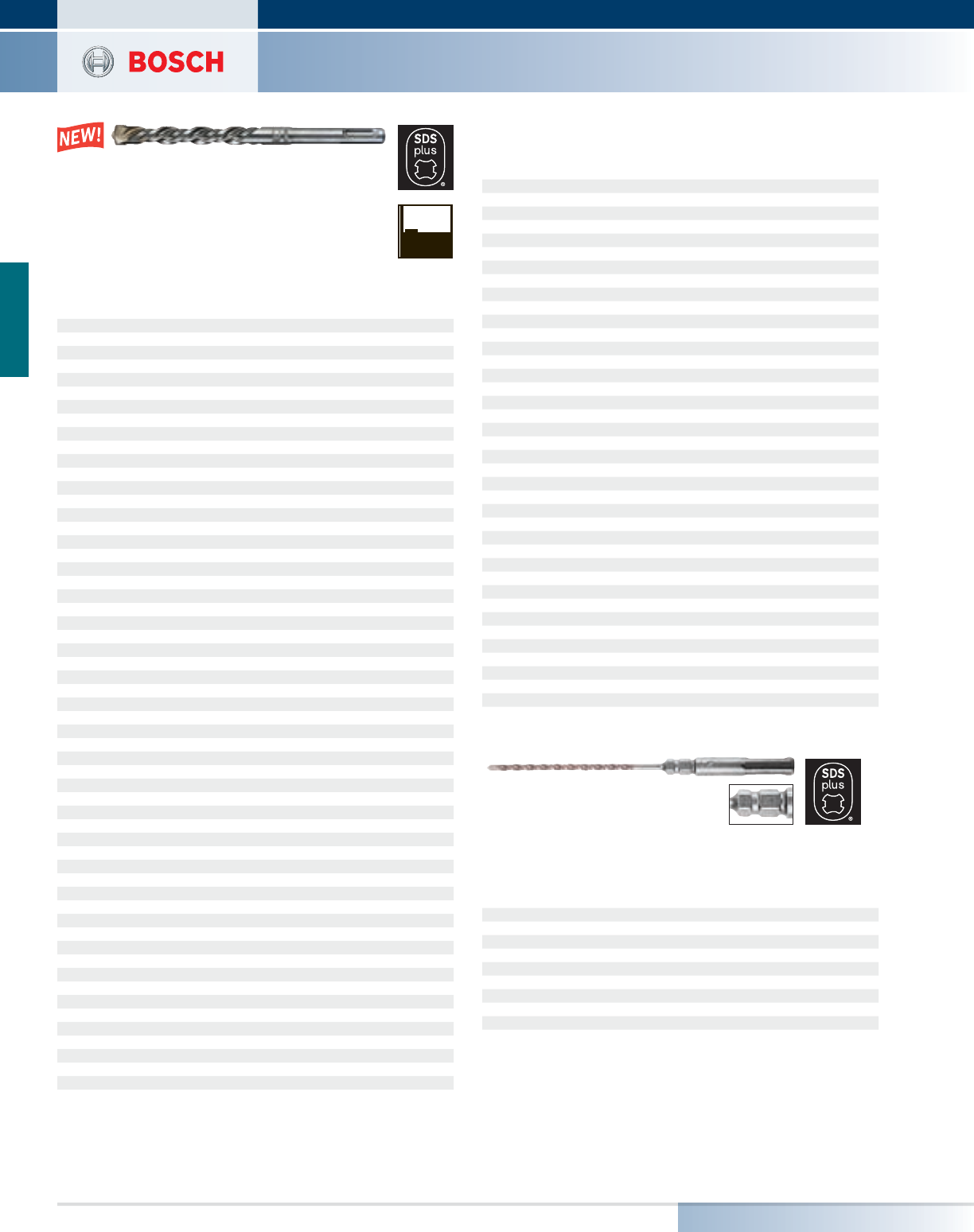

Item # Diameter
Usable
Length
Overall
Length Quantity
HC2000 5/32" 2" 4" 1
HC2001 5/32" 4" 6" 1
HC2001B5 5/32" 4" 6" 5
HC2001B25 5/32" 4" 6" 25
HC2010 3/16" 2" 4" 1
HC2010B5 3/16" 2" 4" 5
HC2010B25 3/16" 2" 4" 25
HC2011 3/16" 4" 6" 1
HC2011B5 3/16" 4" 6" 5
HC2011B25 3/16" 4" 6" 25
HC2012 3/16" 6" 8" 1
HC2012B5 3/16" 6" 8" 5
HC2012B25 3/16" 6" 8" 25
HC2013 3/16" 8" 10" 1
HC2013B5 3/16" 8" 10" 5
HC2013B25 3/16" 8" 10" 25
HC2014 3/16" 10" 12" 1
HC2014B5 3/16" 10" 12" 5
HC2014B25 3/16" 10" 12" 25
HC2015 3/16" 12" 14" 1
HC2015B5 3/16" 12" 14" 5
HC2015B25 3/16" 12" 14" 25
HC2020 .202" 2-3/4" 4-3/4" 1
HC2020B5 .202" 2-3/4" 4-3/4" 5
HC2020B25 .202" 2-3/4" 4-3/4" 25
HC2021 .202" 4-1/2" 6-1/2" 1
HC2021B5 .202" 4-1/2" 6-1/2" 5
HC2021B25 .202" 4-1/2" 6-1/2" 25
HC2022 .202" 6-1/2" 8-1/2" 1
HC2022B5 .202" 6-1/2" 8-1/2" 5
HC2022B25 .202" 6-1/2" 8-1/2" 25
HC2023 .202" 7-1/2" 9-1/2" 1
HC2023B5 .202" 7-1/2" 9-1/2" 5
HC2023B25 .202" 7-1/2" 9-1/2" 25
HC2031 7/32" 4" 6" 1
HC2031B5 7/32" 4" 6" 5
HC2031B25 7/32" 4" 6" 25
HC2032 7/32" 6" 8" 1
HC2032B5 7/32" 6" 8" 5
HC2032B25 7/32" 6" 8" 25
HC2034 7/32" 10" 12" 1
HC2034B5 7/32" 10" 12" 5
HC2034B25 7/32" 10" 12" 25
HC2040 1/4" 2" 4" 1
HC2040B5 1/4" 2" 4" 5
HC2040B25 1/4" 2" 4" 25
HC2041 1/4" 4" 6" 1
HC2041B5 1/4" 4" 6" 5
HC2041B25 1/4" 4" 6" 25
HC2042 1/4" 6" 8" 1
HC2042B5 1/4" 6" 8" 5
HC2042B25 1/4" 6" 8" 25
HC2043 1/4" 8" 10" 1
HC2045 1/4" 12" 14" 1
HC2051 5/16" 4" 6" 1
HC2051B5 5/16" 4" 6" 5
HC2051B25 5/16" 4" 6" 25
HC2054 5/16" 10" 12" 1
SDS-plus® S4® Tapcon® Hex Rotary Hammer Bits
For use with Tapcon® / Condrive systems. Hex drive on bit fits into driver sleeve.
SDS-plus® S4® Rotary Hammer Bits continued
Tapcon® is a registered trademark of Illinois Tool Works.
SDS-plus® is a registered trademark of Robert Bosch GmbH.
NOTE: Drill bits (or extension + drill bit) in excess of 8" should never exceed 600 RPM.
Item # Diameter
Usable
Length
Overall
Length Quantity
HC2301 5/32" 3" 6" 1
HC2301B25 5/32" 3" 6" 25
HC2302 5/32" 4" 7" 1
HC2302B25 5/32" 4" 7" 25
HC2310 3/16" 2" 5" 1
HC2310B25 3/16" 2" 5" 25
HC2311 3/16" 3" 6" 1
HC2311B25 3/16" 3" 6" 25
HC2312 3/16" 4" 7" 1
HC2312B25 3/16" 4" 7" 25
Item # Diameter
Usable
Length
Overall
Length Quantity
HC2061 3/8" 4" 6" 1
HC2061B5 3/8" 4" 6" 5
HC2061B25 3/8" 4" 6" 25
HC2064 3/8" 10" 12" 1
HC2064B5 3/8" 10" 12" 5
HC2064B25 3/8" 10" 12" 25
HC2067 3/8" 16" 18" 1
HC2068 3/8" 22" 24" 1
HC2071 7/16" 4" 6" 1
HC2074 7/16" 10" 12" 1
HC2081 1/2" 4" 6" 1
HC2081B5 1/2" 4" 6" 5
HC2081B25 1/2" 4" 6" 25
HC2084 1/2" 10" 12" 1
HC2084B5 1/2" 10" 12" 5
HC2084B25 1/2" 10" 12" 25
HC2087 1/2" 16" 18" 1
HC2088 1/2" 22" 24" 1
HC2091 9/16" 4" 6" 1
HC2094 9/16" 10" 12" 1
HC2097 9/16" 16" 18" 1
HC2098 9/16" 23" 28" 1
HC2099 9/16" 31" 36" 1
HC2102 5/8" 6" 8" 1
HC2102B5 5/8" 6" 8" 5
HC2102B25 5/8" 6" 8" 25
HC2104 5/8" 10" 12" 1
HC2107 5/8" 16" 18" 1
HC2108 5/8" 22" 24" 1
HC2112 11/16" 6" 8" 1
HC2122 3/4" 6" 8" 1
HC2124 3/4" 10" 12" 1
HC2127 3/4" 16" 18" 1
HC2128 3/4" 22" 24" 1
HC2137 27/32" 6" 8" 1
HC2142 7/8" 6" 8" 1
HC2144 7/8" 10" 12" 1
HC2147 7/8" 16" 18" 1
HC2163 1" 8" 10" 1
HC2167 1" 16" 18" 1
SDS-plus® Rotary Hammer Bits
15% more life time in concrete (compared to the last version of S4)
• Optimized brazing and hardening process for top resistance
in reinforced concrete
• Optimized flute design to reduce stress and make the
bit run cooler
• 4-flute design for fast dust removal
• Centric tip for optimal hole geometry
KD
long
l i fe
Masonry/Concrete Drilling
47
Toll Free: 877-BOSCH-99 Boschtools.com

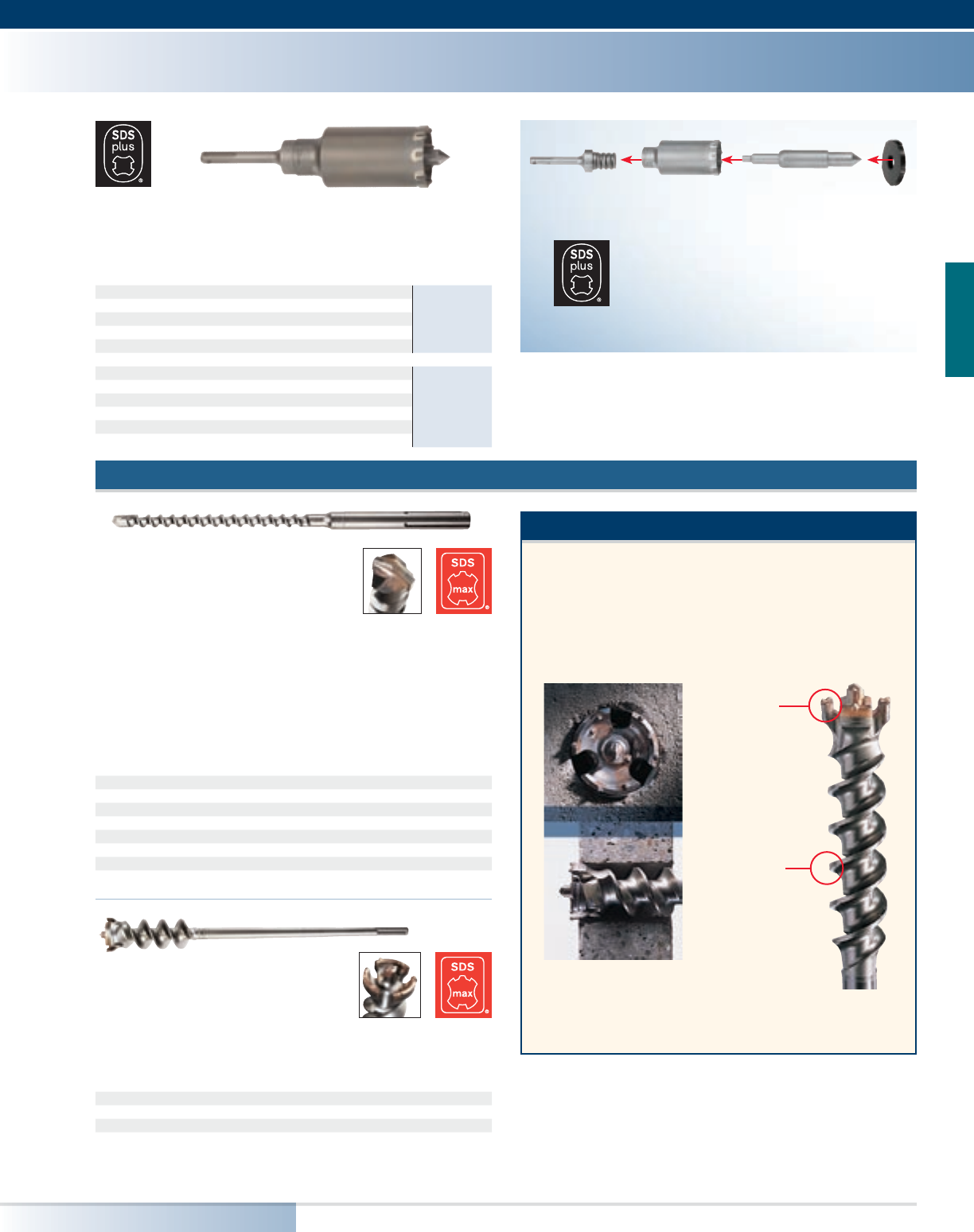

SDS-plus® Rotary Hammer Core Bits
Bosch SDS-plus® rotary hammer core bits are designed for core drilling with smaller
hammers with a core body length of 4-1/8" and a usable cutting depth of 3"
Centering
Pin
Thin Wall
Core Bit
SDS-plus® Core
Shank
Guide
Plate
Speed-Core™ Thin Core Bits
Core Bit Assembly
(1) Screw core bit onto shank
(2) Centering pin in hole
(3) Attach guide plate
SDS-max®
Hammer Carbide
SDS-plus® and SDS-max® are registered trademarks of Robert Bosch GmbH.
NOTE: Drill bits (or extension + drill bit) in excess of 8" should never exceed 600 RPM.
SDS-max® Rotary Hammer Bits
Bosch carbide rotary hammer bits feature tips that
stay sharper longer and deliver more holes within
their ANSI specification than competitors’ bits. Also,
Bosch shafts wear at a much slower rate than most
others and can take more abuse because of Bosch’s
technologically advanced conditioning process.
• Manufactured to ANSI standards, Bosch bits also meet and exceed ISO
(International Standards Organization) standards. 98% of the carbide tips
are molded to the specific ANSI size. Only 2% (specials) of all bit diameters
are ground to size
• SDS-max® rotary hammer bits not only fit Bosch SDS-max® hammers, but
also competitive SDS-max® drive hammers and Hilti hammers using TE-Y
and TE-FY shanks
Thru-Hole Bits
Item # Diameter
Usable
Length
Overall
Length
HC5005 3/8" 8" 13"
HC5010 1/2" 8" 13"
HC5011 1/2" 16" 21"
HC5012 1/2" 11" 16"
HC5013 1/2" 21" 28"
HC5015 9/16" 8" 13"
HC5016 9/16" 16" 21"
HC5017 9/16" 21" 28"
Item # Diameter
Usable
Length
Overall
Length
HC6501 1-3/4" 18" 24"
HC6511 2-1/8" 18" 24"
HC6521 2-1/2" 18" 24"
HC6531 3-1/8" 18" 24"
Thru-Hole Bit Features
• Ideal for horizontal drilling applications
• Drill all the way through material without stopping
Bosch thru-hole bits are one-piece bits designed
for fast working without the need to change shanks.
The all-in-one core with SDS-max® or Spline shank
transmits power directly to the end of the bit. In
addition, thru-hole bits are economical due to their
long life (dimensions are nominal).
Aggressive
Wild-BoreTM Tip
Designed for fast
break-through and
large chip removal
Special Flute
Designed for
faster chip removal
SDS-max® Thru-hole Rotary
Hammer Bits
One-piece thru-hole bits are designed for fast
working without the need to change shanks. The
all-in-one core with SDS-max® shank transmits power directly to the end of the
bit. Additionally, thru-hole bits are economical due to their long life.
Core Bit
Item #
Bit
Diameter
Center Pin
Item #
Guide Plate
Item #
Shank
Item #
T3900 1" N/A N/A 4-1/8" shank
length T3917
or
11-7/8" shank
length T3918
T3901 1-1/8" N/A N/A
T3902 1-1/4" T3925 T3930
T3903 1-3/8" T3925 T3931
T3904 1-1/2" T3925 T3932
T3905 1-3/4" T3926 T3933
4-1/8" shank
length T3919
or
11-7/8" shank
length T3920
T3906 2" T3926 T3934
T3907 2-1/2" T3926 T3935
T3908 3" T3926 T3936
T3909 3-1/2" T3926 T3937
T3910 4" T3926 T3938
Masonry/Concrete Drilling
48 Boschtools.com Toll Free: 877-BOSCH-99

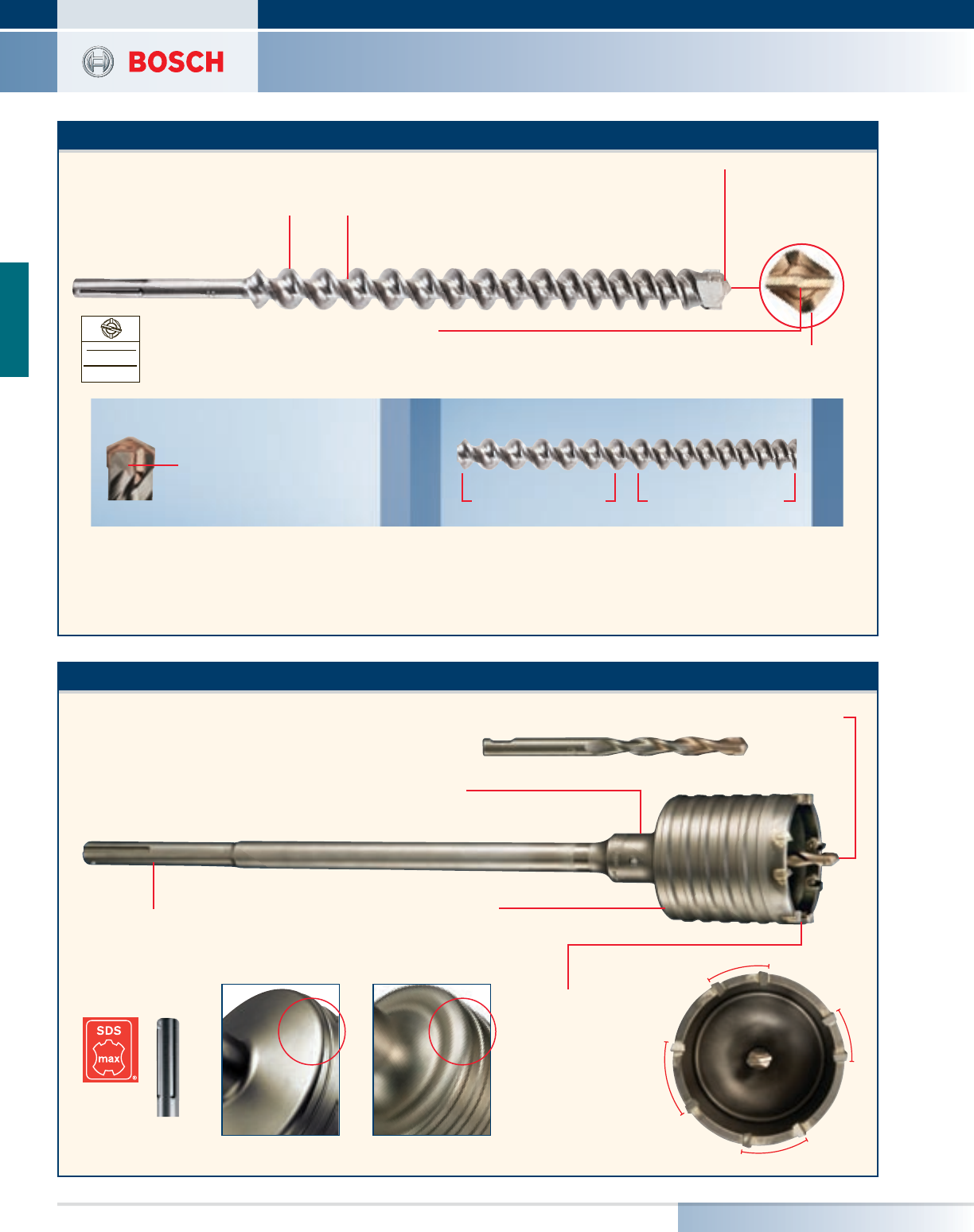

SDS-max® Hammer Carbide
SDS-max® Core Bits
Main cutter is fully embedded in the drill bit
body for top power and impact transmission
Wild-Bore™ with Quadro-X™ Technology Rotary Hammer Bits
Wild-Bore™ is a specially formulated Tungsten Carbide which provides superior wear resistance in tough applications.
Quadro-X™ is a patented Four-Cutter tip design that provides optimal performance when drilling larger diameter holes in
masonry materials. This aggressive tip design is more effective when hitting rebar.
Wild-Bore™ with Quadro-X™ Technology Rotary Hammer Bits are available in SDS-plus®, SDS-max® and Spline shanks.
Large flute volume for fast drilling
dust transport and less clogging
Narrow flute back for reduced
friction between bit and material
Updated tip and head
design provides 15%
faster removal rate
and 30% longer life
Secondary cutters are not connected to the main cutters,
eliminating tensioning in carbide, for a longer life
Larger Incline for fast
drilling dust transport
1" and Larger
Shorter head with extended flutes
for fast, straight dust transport
Quadro-X™ Enhancements: Under 1"
Smaller Incline for less
wear and clean drilling
dust removal
Wave Design
Unique design transfers energy
thru the bit more effectively for up
to 40% better drilling performance
Asymmetrical Tooth
Design for Fast
Cutting Speed
Tungsten carbide
teeth for longer
life in tough
drilling applications
No Wave Wave
Carbide-Tipped Active Centering Bit (Item# HC88)
All-In-One Core
Transmits power directly
to the end of the bits
Bosch Core Bits with Wave Design
• Larger, cleaner holes up to 6" in diameter
• Used for vertical drilling applications
Available in
SDS-max®shank
InZ]kh8P8¦8;nmm^kl
8\hkmZ]hk^l8
InZ]kh8P
=f[hnml8_hk^ml8
InZ]kh8P8jnZ]knie^l8
Masonry/Concrete Drilling
49
Toll Free: 877-BOSCH-99 Boschtools.com

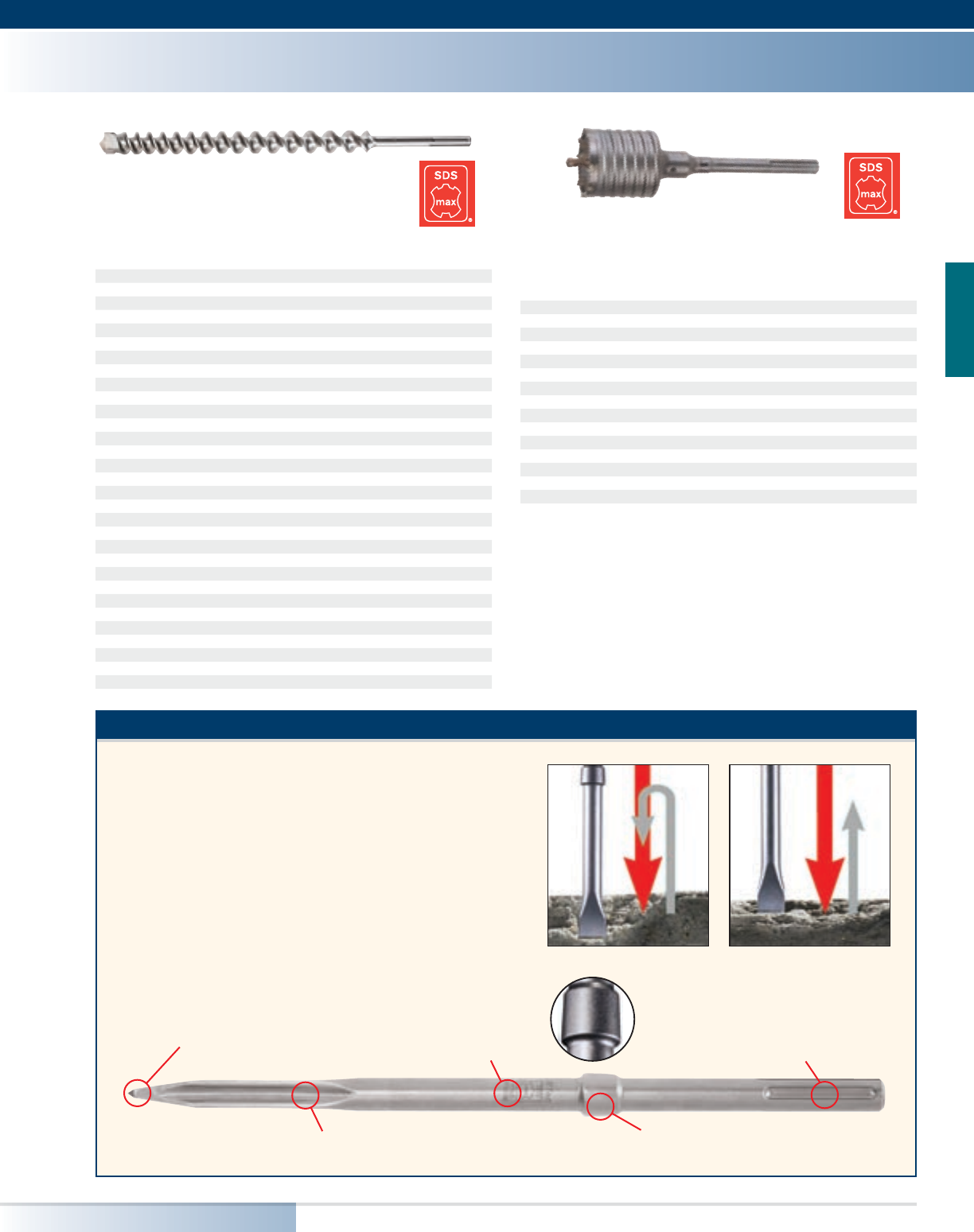

SDS-max® Wild-Bore™ Rotary Hammer Bits
with Quadro-X™ Design SDS-max® Rotary Hammer Core Bits
Bosch SDS-max® rotary hammer core bits are carbide tipped with an integral
shank for better power transmission. Maximum core size is 4" deep.
Item # Diameter
Usable
Length
Overall
Length
HC5020 5/8" 8" 13"
HC5021 5/8" 16" 21"
HC5022 5/8" 11" 16"
HC5023 5/8" 31" 36"
HC5026 11/16" 16" 21"
HC5030 3/4" 8" 13"
HC5031 3/4" 16" 21"
HC5032 3/4" 11" 16"
HC5033 3/4" 31" 36"
HC5036 13/16" 16" 21"
HC5039 27/32" 16" 21"
HC5040 7/8" 8" 13"
HC5041 7/8" 16" 21"
HC5042 7/8" 11" 16"
HC5050 1" 8" 13"
HC5051 1" 16" 21"
HC5052 1" 11" 16"
HC5053 1" 31" 36"
HC5056 1-1/16" 18" 23"
HC5060 1-1/8" 10" 15"
HC5061 1-1/8" 18" 23"
HC5070 1-1/4" 10" 15"
HC5071 1-1/4" 18" 23"
HC5073 1-1/4" 31" 36"
HC5076 1-5/16" 18" 23"
HC5081 1-3/8" 18" 23"
HC5086 1-7/16" 18" 23"
HC5091 1-1/2" 18" 23"
HC5096 1-9/16" 18" 23"
HC5098 1-3/4" 18" 23"
HC5099 2" 18" 23"
Item #
Bit
Diameter
Usable
Length
Overall
Length
HC8501 1-3/4" 7" 12"
HC8506 1-3/4" 17" 22"
HC8510 2" 7" 12"
HC8515 2" 17" 22"
HC8521 2-5/8" 7" 12"
HC8526 2-5/8" 17" 22"
HC8530 3" 7" 12"
HC8531 3-1/4" 7" 12"
HC8536 3-1/4" 17" 22"
HC8540 3-9/16" 7" 12"
HC8545 3-9/16" 17" 22"
HC8550 4" 7" 12"
HC8555 4" 12" 17"
HC8575 5' 17" 22"
HC8595 6" 17" 22"
HC88 Centering
Bit & Drif Pin — — 5-5/16"
The next generation of SDS-max® chisels and points features the
innovation you’ve come to expect from Bosch, the professional’s
choice in concrete drilling and demolition. Reflection technology
is the latest innovation in demolition steel, so Bosch has
incorporated its new R-Tec reflection point into each chisel
or point. With each beat of the hammer, energy is dispersed.
Our new R-Tec reflection element reflects the hammer’s energy
back into the work material, increasing the rate of removal by
15%. And the R-Tec chisel features a unique cutting head with
extra wedges for increased breakout. Bosch SDS-max® R-Tec
chisels and points produce faster results in less time and help
increase overall jobsite productivity and profitability.
The reflection element reflects the
energy of the return shock and
converts it into new impact energy.
Conventional ChiselR-Tec Chisel
SDS-max® R-Tec
How Does R-Tec Work?
Innovative Reflection Element
Increases material removal
rate by up to 15%.
Bosch Marking
Patented
SDS-max® Shank
High-quality Hardened Steel
Can be re-sharpened, re-forged and
provides long service life.
Star Point Tip
Self Sharpening, less binding
Masonry/Concrete Drilling
50 Boschtools.com Toll Free: 877-BOSCH-99

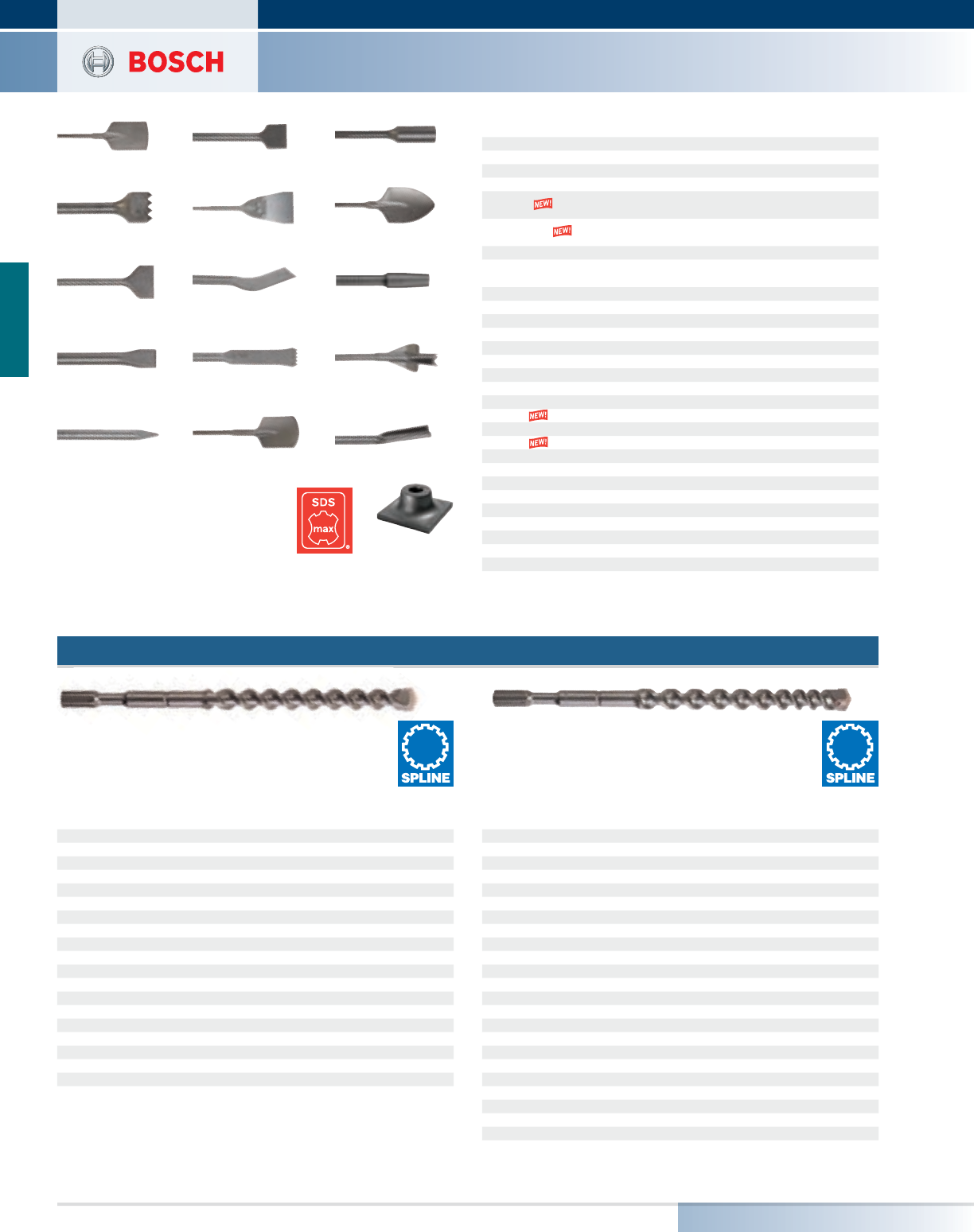

Masonry/Concrete Drilling
SDS-max® Hammer Steel
Bosch offers a full assortment of SDS-max®
hammer steel points and chisels.
Asphalt Cutter
Bushing Tool
One Piece
Scaling Chisel
Flat Chisel
Bull Point
SDS-max® is a registered trademark of Robert Bosch GmbH.
Scraping Chisel Ground Rod Driver
Round SpadeFloor Scraper
Seam Tool Tamper Plate Shank
Slotting Tool
Clay Spade
Winged Channel
Chisel
Gouge
Item # Description Size Quantity
HS1903 R-Tec flat chisel 1" x 16" 1
HS1903B10 R-Tec flat chisel 1" x 16" 10
HS1904 R-Tec bull point 16" 1
HS1904B10 R-Tec bull point 16" 10
HS1934* R-Tec Star Point
chisel self-sharpening 16" 1
HS1934B10* R-Tec Star Point
chisel self-sharpening 16" 10
HS1906 Asphalt cutter 5" x 15" 1
HS1909 Bushing tool, one piece 16 tooth head,
1-3/4" square x 9-1/4" 1
HS1910 Scaling chisel 3" x 12" 1
HS1911 Flat chisel 1" x 12" 1
HS1911B20 Flat chisel 1" x 12" 20
HS1912 Flat chisel 1" x 18" 1
HS1912B10 Flat chisel 1" x 18" 10
HS1913 Bull point 12" 1
HS1913B20 Bull point 12" 20
HS1914 Bull point 18" 1
HS1914B10 Bull point 18" 10
HS1915 Tile chisel 2" x 12" 1
HS1916 Scaling chisel 1-1/2" x 12" 1
HS1917 Scaling chisel self-sharpening 2" x 14" 1
HS1918 Floor scraper 6" x 25" 1
HS1920 Seam tool 1-1/8" x 15" 1
HS1921 Slotting tool 1-1/8" x 15" 1
HS1922 Clay spade 4-1/2" x 17" 1
HS1924 Ground rod driver 5/8" & 3/4" rods 1
HS1926 Round spade 4-1/2" x 16" 1
HS1927 Tamper plate shank 12" 1
HS1928 Winged channel chisel 1" x 15" 1
HS1929 Gouge 1" x 12" 1
HS1828 Tamper plate 5" x 5" 1
*Available 4Q 2007
Spline
Hammer Carbide
Spline Rotary Hammer Bits
Bosch spline rotary hammer bits are carbide tipped and fit Bosch
as well as other spline hammers.
Spline Wild-Bore™ Rotary Hammer Bits with
Quadro-X™ Design
Item #
Bit
Diameter
Usable
Length
Overall
Length
HC4501 3/8" 6" 11"
HC4510 1/2" 6" 11"
HC4511 1/2" 11" 16"
HC4512 1/2" 18" 23"
HC4513 1/2" 22" 27"
HC4514 1/2" 31" 36"
HC4516 9/16" 11" 16"
HC4520 5/8" 6" 11"
HC4521 5/8" 11" 16"
HC4522 5/8" 18" 23"
HC4530 3/4" 6" 11"
HC4531 3/4" 11" 16"
HC4532 3/4" 18" 23"
HC4540 7/8" 11" 16"
HC4541 7/8" 18" 23"
HC4550 1" 11" 16"
HC4551 1" 18" 23"
HC4561 1-1/8" 18" 23"
HC4571 1-1/4" 18" 23"
HC4591 1-1/2" 18" 23"
Item #
Bit
Diameter
Usable
Length
Overall
Length
HC4020 5/8" 6" 11"
HC4021 5/8" 11" 16"
HC4022 5/8" 18" 23"
HC4023 5/8" 22" 27"
HC4024 5/8" 31" 36"
HC4026 11/16" 11" 16"
HC4030 3/4" 6" 11"
HC4031 3/4" 11" 16"
HC4032 3/4" 18" 23"
HC4033 3/4" 22" 27"
HC4034 3/4" 31" 36"
HC4039 27/32" 11" 16"
HC4040 7/8" 11" 16"
HC4041 7/8" 18" 23"
HC4050 1" 11" 16"
HC4051 1" 18" 23"
HC4053 1" 31" 36"
HC4060 1-1/8" 11" 16"
HC4061 1-1/8" 18" 23"
HC4070 1-1/4" 11" 16"
HC4071 1-1/4" 18" 23"
HC4073 1-1/4" 31" 36"
HC4081 1-3/8" 18" 23"
HC4091 1-1/2" 18" 23"
Tamper Plate
51
Toll Free: 877-BOSCH-99 Boschtools.com

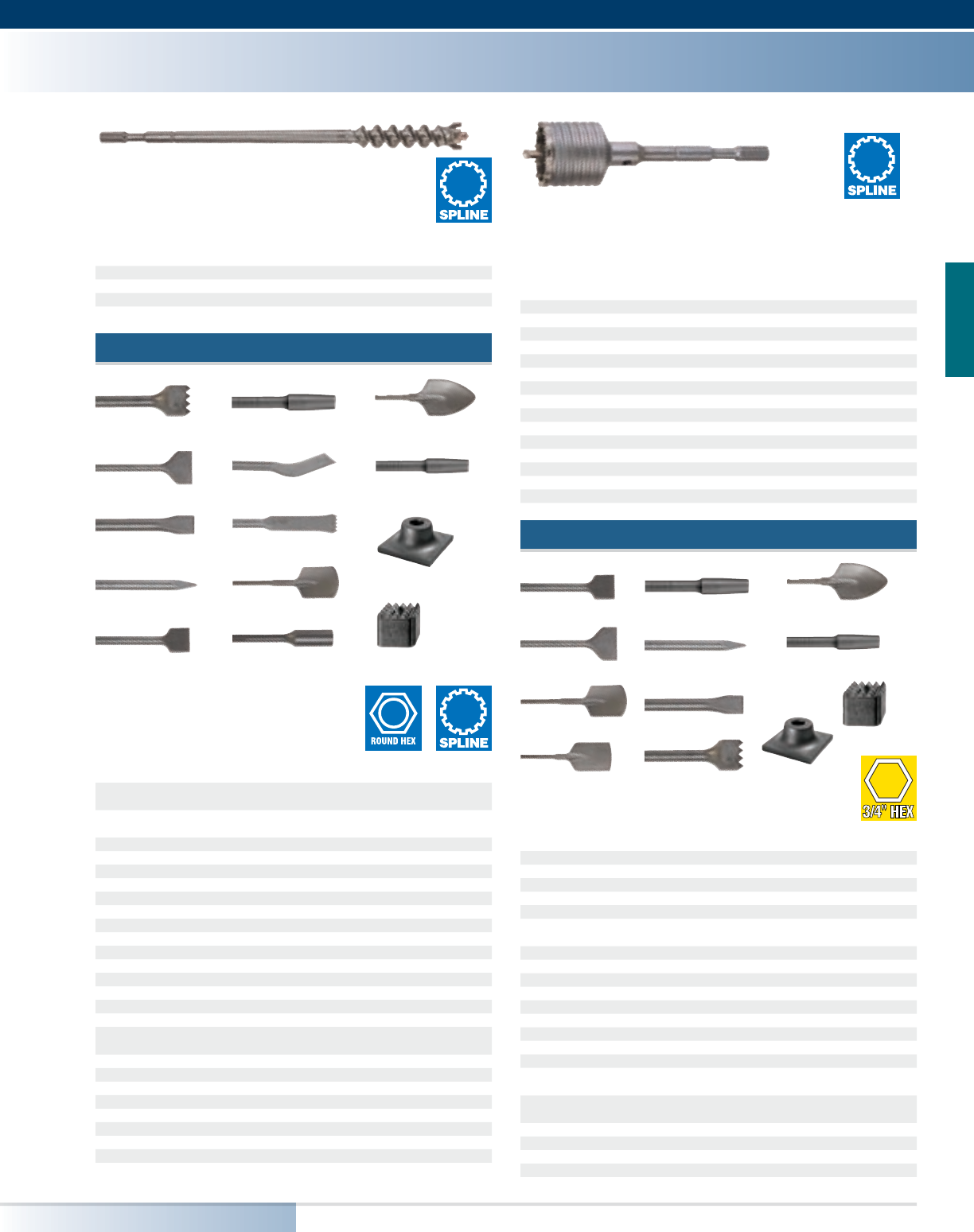

Masonry/Concrete Drilling
Spline Thru-hole Rotary Hammer Bits
Thru-hole bits offer less vibration and quieter operation thanks
to an efficient design which maximizes the power of the hammer Spline Rotary Hammer Core Bits
Bosch spline rotary hammer core bits feature an integral shank for better power
transmission.
• Maximum core size of 2-5/8" deep (dimensions are nominal
Item #
Bit
Diameter
Usable
Length
Overall
Length
HC8000 1-1/2" 7" 12"
HC8005 1-1/2" 17" 22"
HC8010 2" 7" 12"
HC8015 2" 17" 22"
HC8020 2-1/2" 7" 12"
HC8025 2-1/2" 17" 22"
HC8030 3-1/8" 7" 12"
HC8035 3-1/8" 17" 22"
HC8040 3-9/16" 7" 12"
HC8045 3-9/16" 17" 22"
HC8050 4" 7" 12"
HC8055 4" 17" 22"
HC8070 5" 7" 12"
HC8075 5" 17" 22"
HC89 Centering Tip — — 4-3/4"
Item #
Bit
Diameter
Usable
Length
Overall
Length
HC6001 1-3/4" 18" 24"
HC6011 2-1/8" 18" 24"
HC6021 2-1/2" 18" 24"
HC6031 3-1/8" 18" 24"
Bosch offers a full assortment of round
hex/spline hammer steel points and chisels.
Round Hex / Spline
Hammer Steel
Bushing Tool
Scraping Chisel
Flat Chisel
Bull Point
Scaling Chisel Seam Tool
Slotting Tool
Clay Spade
Ground Rod Driver
Tamper Plate Shank
Bushing Head
Shank
Tamper Plate
Pointed Spade
Item # Description Size Quantity
HS1809 Bushing tool one piece 16 tooth head, 1-3/4"
square x 9-1/4" 1
HS1809B10 Bushing tool one piece 16 tooth head, 1-3/4"
square x 9-1/4" 10
HS1810 Scaling chisel 3" x 12" 1
HS1810B10 Scaling chisel 3" x 12" 10
HS1811 Flat chisel 1" x 12" 1
HS1811B20 Flat chisel 1" x 12" 20
HS1812 Flat chisel 1" x 18" 1
HS1812B10 Flat chisel 1" x 18" 10
HS1813 Bull point 12" 1
HS1813B20 Bull point 12" 20
HS1814 Bull point 18" 1
HS1814B10 Bull point 18" 10
HS1815 Scraping chisel 2" x 12" 1
HS1816 Scaling chisel 1-1/2" 12" 1
HS1817 Scaling chisel 2" x 12" 1
HS1817B10 Scaling chisel 2" x 12" 10
HS1521 Bushing head 16 tooth head,
1-3/4" square 1
HS1818 Bushing head shank 12" 1
HS1820 Seam tool 1-1/8" x 15" 1
HS1821 Slotting tool 1-1/8" x 15" 1
HS1822 Clay spade 4-1/2" x 16" 1
HS1822B3 Clay spade 4-1/2" x 16" 3
HS1824 Ground rod driver 5/8" & 3/4" rods 1
HS1826 Pointed spade 4-1/2" x 16" 1
HS1827 Tamper plate shank 12" 1
HS1828 Tamper plate 5" x 5" 1
3/4" Hex
Hammer Steel
Scraping Chisel
Scaling Chisel
Clay Spade
Asphalt Cutter
Bull Point
Flat Chisel
Tamper Plate Shank
Pointed Spade
Tamper Plate
Bushing Tool
Bosch offers a full assortment of 3/4" hex hammer steel points
and chisels.
Item # Description Size Quantity
HS1502 Scraping chisel 2" x 12" 1
HS1503 Scaling chisel 3" x 12" 1
HS1503B10 Scaling chisel 3" x 12" 10
HS1504 Clay spade 4-1/2" x 17" 1
HS1506 Asphalt cutter 5" x 15" 1
HS1521 Bushing head 16 tooth head,
1-3/4" square 1
HS1508 Bushing head shank 12" 1
HS1515 Bull point 12" 1
HS1515B20 Bull point 12" 20
HS1516 Bull point 18" 1
HS1516B10 Bull point 18" 10
HS1517 Flat chisel 1" x 12" 1
HS1517B20 Flat chisel 1" x 12" 20
HS1518 Flat chisel 1" x 18" 1
HS1518B10 Flat chisel 1" x 18" 10
HS1520 Bushing tool one piece 16 tooth head,
1-3/4" square x 9-1/4" 1
HS1520B10 Bushing tool one piece 16 tooth head,
1-3/4" square x 9-1/4" 10
HS1524 Ground rod driver 5/8" & 3/4" rods 1
HS1526 Pointed spade 4-1/2" x 16" 1
HS1527 Tamper plate shank 12" 1
HS1828 Tamper plate 5" x 5" 1
Bushing Head
Bushing Head Shank
Bushing Head
52 Boschtools.com Toll Free: 877-BOSCH-99

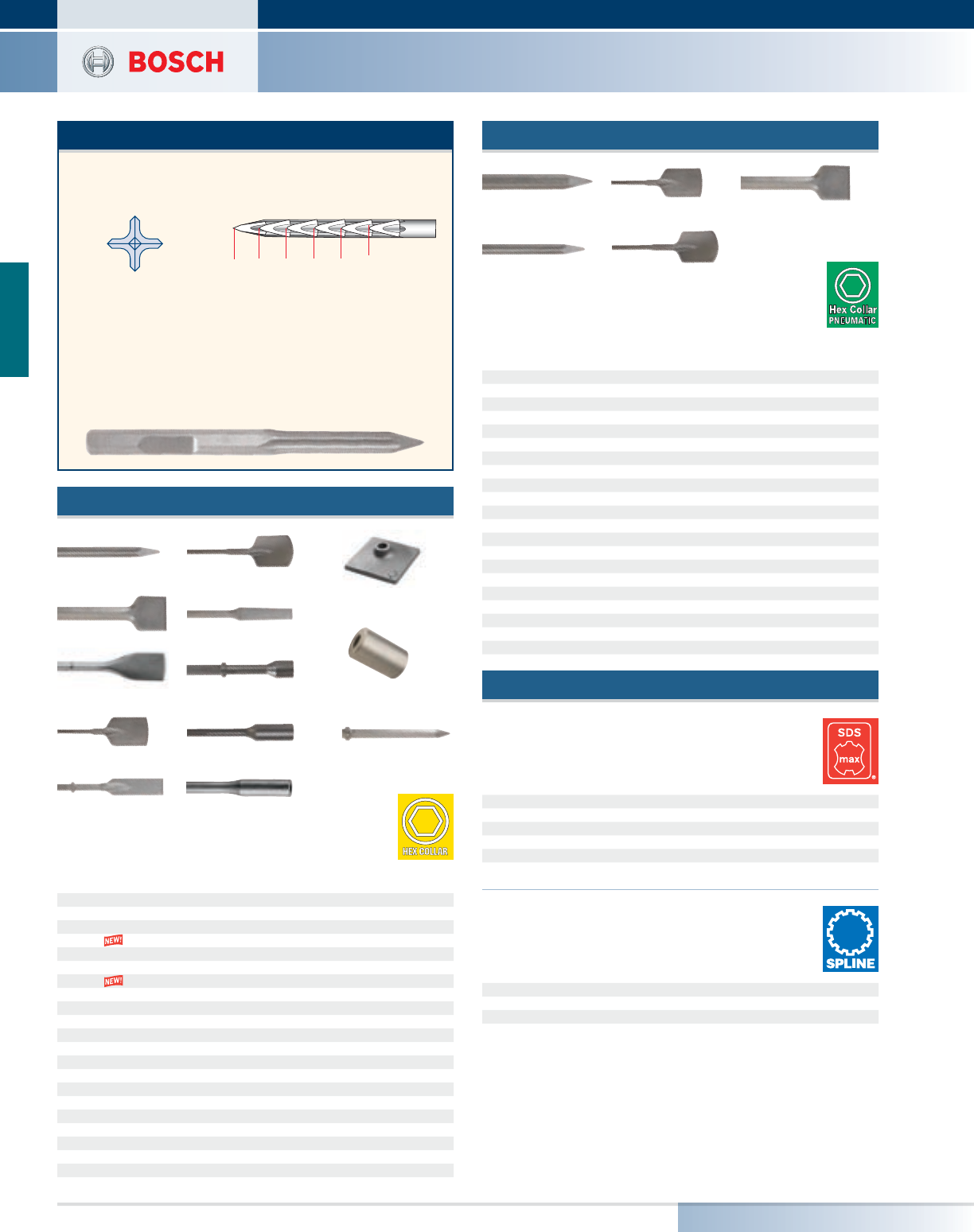

Masonry/Concrete Drilling
Bosch offers a full assortment of Brute™ / 1-1/8" hex hammer
steel points and chisels.
Tamper ShankDigging Chisel
Tamper Plate
Tent Stake Driver
Frost Wedge
Superkut Chisel
Moil Point
Spike / Pin Driver
Brute™ 1-1/8" Hex
Hammer Steel
Item # Description Overall Length Quantity
HS2124 Tamper plate 6" x 6" 1
HS2125 Tamper plate 8" x 8" 1
HS2126 Tent stake driver 5-1/2" 1
HS2861 Star Point self-sharpening 16" 1
HS2161 Moil point 20" 1
HS2161B5 Moil point 20" 5
HS2863 Flat chisel 16" 1
HS2163 Narrow chisel 20" 1
HS2163B5 Narrow chisel 20" 5
HS2164 3" chisel 20" 1
HS2164B5 3" chisel 20" 5
HS2166 Superkut chisel 20-1/2" 1
HS2167 5" asphalt cutter 19" 1
HS2167B3 5" asphalt cutter 19" 3
HS2168 3" digging chisel 22-1/2" 1
HS2169 5-3/8" clay spade 21" 1
HS2169B3 5-3/8" clay spade 21" 3
HS2170 Frost wedge 24-1/2" 1
HS2171 Spike / pin driver 14-1/2" 1
HS2172 Ground rod driver 15-1/2" 1
HS2173 Tamper shank 15-1/2" 1
Clay Spade
Ground Rod Driver
Asphalt Cutter
Narrow Chisel
3" Chisel
Adapters & Other Accessories
Air Tool
Steel
Moil Point
Bosch offers a full assortment of air tool steel points and chisels.
For use with pneumatic hammers only.
Clay Spade
Asphalt Cutter
Narrow Chisel
3" Chisel
Item # Description
Overall
Length Shank Quantity
HS2260 Moil point 18" 7/8" hex 1
HS2261 Moil point 14" 7/8" hex 1
HS2262 Narrow chisel 18" 7/8" hex 1
HS2263 Narrow chisel 14" 7/8" hex 1
HS2264 3" chisel 20-1/2" 7/8" hex 1
HS2267 5" asphalt cutter 17-1/2" 7/8" hex 1
HS2269 5-1/2" clay spade 20" 7/8" hex 1
HS2360 Moil point 18" 1" hex 1
HS2361 Moil point 14" 1" hex 1
HS2362 Narrow chisel 18" 1" hex 1
HS2363 Narrow chisel 14" 1" hex 1
HS2364 3" chisel 20-1/2" 1" hex 1
HS2367 5" asphalt cutter 17-1/2" 1" hex 1
HS2369 5-1/2" clay spade 20" 1" hex 1
HS2460 Moil point 18" 1-1/4" hex 1
HS2461 Moil point 14" 1-1/4" hex 1
HS2462 Narrow chisel 18" 1-1/4" hex 1
HS2463 Narrow chisel 14" 1-1/4" hex 1
HS2464 3" chisel 20-1/2" 1-1/4" hex 1
HS2467 5" asphalt cutter 17-1/2" 1-1/4" hex 1
HS2469 5-1/2" clay spade 20" 1-1/4" hex 1
SDS-max® Rotary Hammer Adapters
Bosch offers adapters to make it easy to move up to SDS-max®
while still utilizing your current SDS-plus® and spline accessories.
Item # Description
HA1030 SDS-max® to SDS-plus® adapter
HA1031 SDS-max® to spline adapter
HA1032 SDS-max® 3 jaw chuck adapter 1/2"-20 thread
HA1033 SDS-max® to 3/4" hex adapter
T4000 SDS-max® 9" core bit adapter shank
T4001 SDS-max® 16" core bit adapter shank
Spline Rotary Hammer Adapters
Use these Bosch adapters with a spline hammer to utilize B taper
and SDS-plus® accessories.
SDS-plus® and SDS-max® are registered trademarks of Robert Bosch GmbH.
NOTE: Drill bits (or extension + drill bit) in excess of 8" should never exceed 600 RPM.
Item # Description
HA1020 Spline drive to SDS-plus® adapter
T1831 Spline drive to “B”-taper adapter
1 601 030 009 Drift pin (for T1831)
Hexagonal & SDS-max® Star-pointed Chisel
More Power: New Star-pointed Chisel
Tip Shape Over Worklife
0100
(hours)
20 40 60 80
Cross section of
Star-pointed Chisel
Star-shaped and self-sharpening cutting edge: this means more
material removal with each impact. Removal rate of star-pointed chisels
remains constantly high over entire service life. This saves downtime
and eliminates service costs caused by time-consuming resharpening.
30% Higher Removal Rate

Navigation menu
