Bosch Power Tools Gsh 16 28 Users Manual
GSH 16-28 to the manual 8418c607-900c-4509-800c-ea1ffc30e3e6
2015-02-02
: Bosch-Power-Tools Bosch-Power-Tools-Gsh-16-28-Users-Manual-484288 bosch-power-tools-gsh-16-28-users-manual-484288 bosch-power-tools pdf
Open the PDF directly: View PDF
.
Page Count: 6
Page 1
3 611 C35 010
DEMOLITION HAMMER GSH 16-28
04.06.2007
15:34:06
Pa
g
e 1 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1
Item Quantity Order No. Designation Price group Page
2 1 1 614 220 188 FIELD \ 120V 47 1
3 1 1 614 011 118 ARMATURE \ 120V 51 1
4 1 1 617 200 112 ON-OFF SWITCH 34 1
5 1 1 614 461 033 POWER SUPPLY CORD \ USA/CDN 3,1m 3 x 2,08mm SJ0W 32 1
6 1 1 610 703 053 GROMMET \ Ø9,7-Ø12x90 MM 12 1
7 1 1 601 302 018 FASTENING CLAMP 11 1
9 1 1 611 110 D43 STICKER 13 1
15 11 616 610 102 FAN 27 1
21 11 613 103 004 LOCKING BOLT 40 1
22 11 618 045 024 RETAINING BRACKET 48 1
23 22 917 760 187 CLAMPING SLEEVE \ 8x55 DIN 1481 11 1
28 41 614 614 006 COMPRESSION SPRING 19 1
29 11 614 614 007 COMPRESSION SPRING 19 1
33 11 611 006 008 HOLDING PLATE 23 1
34 11 610 102 635 SUPPORTING DISC 26 1
37 11 615 500 380 FAN COVER 36 1
42 11 614 336 078 BRUSH HOLDER 38 1
42/2 21 614 336 017 BRUSH GUIDE 21 1
42/3 21 614 652 007 SPIRAL SPRING 15 1
42/6 21 611 390 005 CONNECTOR 11 1
42/8 42 912 401 412 SELF-TAPPING SCREW 11 1
43 11 610 508 054 SPACER 13 1
46 11 615 106 053 MOTOR HOUSING 33 1
47 11 618 000 029 BASE PLATE 27 1
48 11 615 500 383 HOUSING COVER 33 1
53 11 610 190 058 STOP DISC 24 1
54 11 610 312 003 SPACER TUBE 32 1
55 11 610 506 019 CONTROL BUSHING 34 1
56/58 11 610 500 023 RETAINING RING 19 1
56/70 11 612 001 042 CONNECTING ROD 30 1
56/71 11 613 101 012 PISTON PIN 17 1
60 11 616 317 079 CYLINDRICAL GEAR 45 1
61 11 616 317 080 CYLINDRICAL GEAR 47 1
72 11 616 110 037 ECCENTRIC SHAFT 48 1
75/74 21 613 060 049 SPLINED COUPLING 23 1
75/76 11 618 045 022 STRAP-SHAPED HANDLE 40 1
75/77 11 615 805 069 BEARING PEDESTAL 32 1
75/79 21 613 060 050 TOOTHED SHAFT 24 1
75/80 11 615 500 376 BEARING END PLATE 22 1
75/81 11 615 500 377 BEARING END PLATE 22 1
75/173 41 613 490 008 TORX OVAL-HEAD SCREW 10 1
75/174 21 613 490 009 TORX OVAL-HEAD SCREW 11 1
75/183 22 916 280 013 SUPPORTING DISC 10 1
75/184 21 613 349 021 HEXAGON NUT 12 1

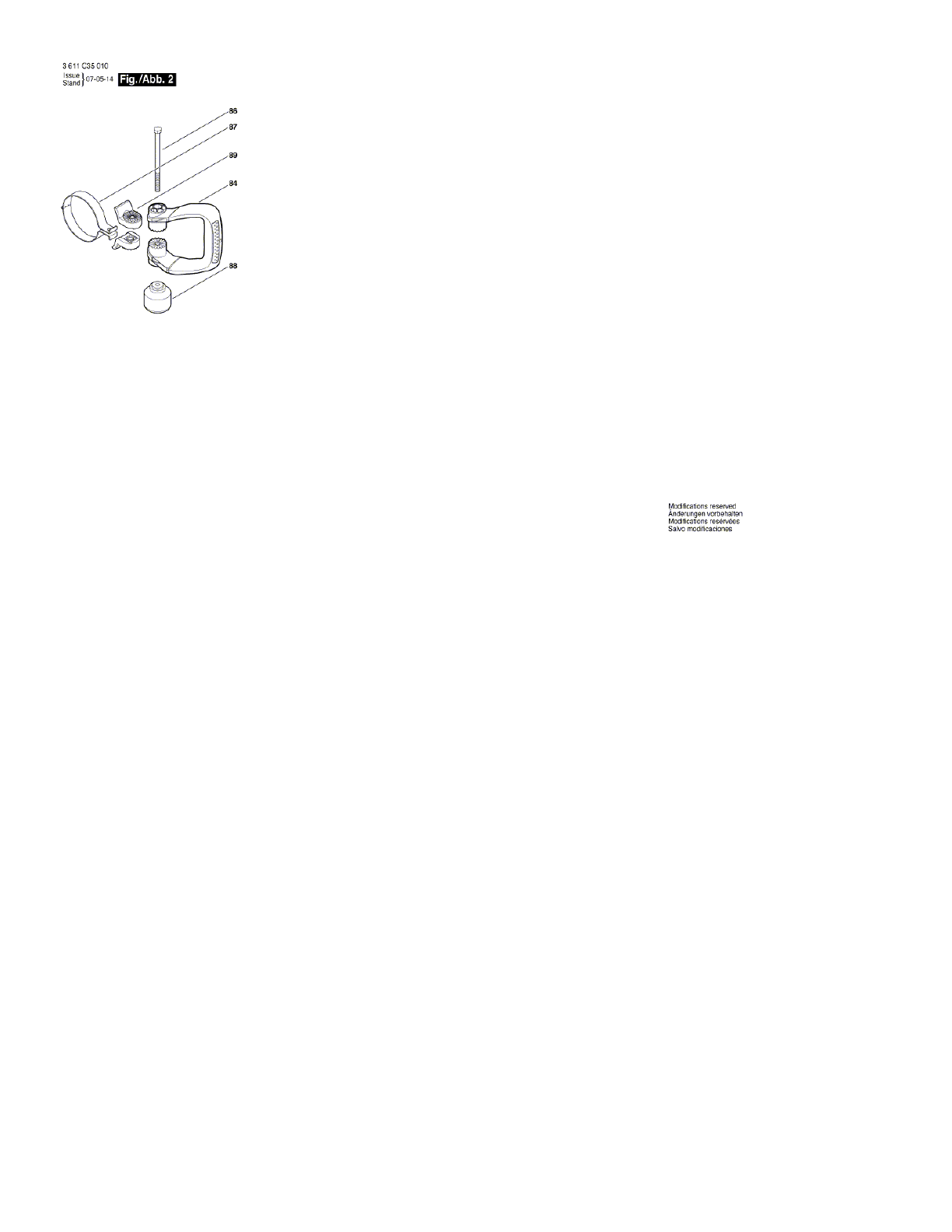

84 11 612 025 070 CARRYING HANDLE 35 2
86 12 911 011 270 HEXAGON SCREW \ DIN 931-M8x130-8.8 13 2
87 11 611 316 024 CLAMPING BAND 28 2
88 11 613 349 017 STAR KNOB \ M8 \ BLACK 19 2
89 21 615 132 116 CLAMPING PIECE 17 2
95 11 614 448 038 CONNECTING CABLE 21 1
118 11 610 520 003 SPACER TUBE 14 1
119 21 610 913 020 NEEDLE-ROLLER ASSEMBLY 13 1
120 11 610 910 092 NEEDLE-ROLLER BEARING \ D25xD37x17 33 1
123 11 610 900 030 DEEP-GROOVE BALL BEARING 29 1
126 42 603 490 023 TORX OVAL-HEAD SCREW \ BLACK 10 1
128 12 916 660 021 RETAINING RING \ 47x1,75MM, DIN 472 16 1
Pa
g
e 2 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1
131 42 916 160 007 DISC SPRING 13 1
138 11 611 015 059 SEALING FRAME 15 1
157 11 610 210 191 O-RING 14 1
158 11 610 210 192 O-RING 14 1
159 11 600 210 005 O-RING \ 66x3 MM 12 1
160 21 610 210 008 O-RING \ 17,3x17,7 MM 18 1
161 11 610 210 193 O-RING 15 1
164 21 610 210 194 O-RING 13 1
165 21 610 210 195 O-RING 22 1
169 41 613 414 022 HEX-SOCKET-HEAD CAP SCREW 14 1
170 41 613 414 023 HEX-SOCKET-HEAD CAP SCREW 11 1
171 18 1 613 490 010 TORX OVAL-HEAD SCREW 11 1
172 21 613 490 011 TORX OVAL-HEAD SCREW 11 1
176 21 603 435 036 SELF-TAPPING SCREW \ 4,8x78 MM, TORX T-20 11 1
180 21 613 490 007 CLAMP SCREW 11 1
181 22 912 401 420 SELF-TAPPING SCREW \ DIN7981-ST3,9x19-F-Z 10 1
183 11 613 349 020 HEXAGON NUT 12 1
191 11 611 110 D15 WARNING PLATE 15 0
192 11 601 110 618 REFERENCE PLATE 12 0
661 11 615 430 010 GREASE TUBE \ 30 ML, RENOLIT DEP 2 18 0
808 11 601 106 999 NAMEPLATE \ 26x52 MM 15 1
810 11 617 014 143 CARBON-BRUSH SET 30 1
813 11 617 000 480 BEARING 27 1
814 11 617 000 481 BEARING 33 1
818 11 617 000 482 BRUSH-COVER 16 1
819 11 617 000 483 BRUSH-COVER 16 1
820 11 617 000 499 TOOLHOLDER 53 1
835 11 617 000 488 GUIDE TUBE 50 1
839 11 617 000 489 GEAR COVER 45 1
840 11 617 000 490 GEAR HOUSING 60 1
841 11 617 000 491 STRIKER PIN 44 1
844 11 617 000 492 HAMMER PIPE 52 1
845 11 617 000 493 SEALING CAP 27 1
856 11 617 000 494 HAMMER PISTON 32 1
857 11 617 000 495 STRIKER 41 1
875 11 617 000 496 RUBBER TORSION-BAR 38 1
896 11 617 000 497 SERVICE PACK 28 1
897 11 615 430 007 BOX \ 1000 ML, FT1 V27 42 0
898 11 615 430 001 GREASE TUBE \ 225 ML, FT1 V27 30 0
Pa
g
e 3 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1

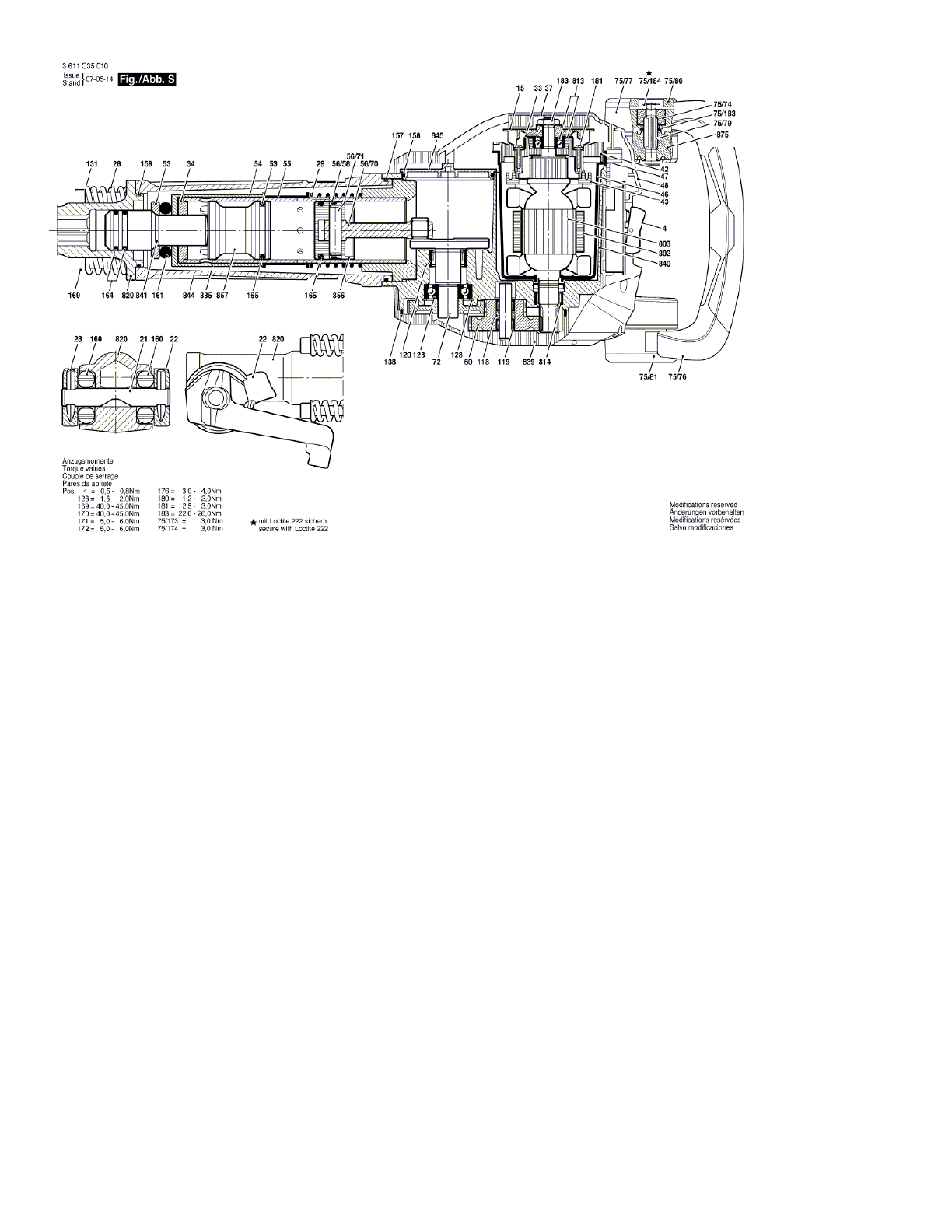

Page 2
Pa
g
e 4 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1
Pa
g
e 5 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1
Pa
g
e 6 of 6
6/4/2007htt
p
://le11288/sid/
p
rintdirect.as
p
?ID
_
PRODUCT=3611C35010&ID
_
VERSION=1
