Bosch Security Systems BLG2 TriTech Motion Detectors User Manual F01U140810 02 ISC BDL2 WP12 WP6 ING indd
Bosch Security Systems, Inc. TriTech Motion Detectors F01U140810 02 ISC BDL2 WP12 WP6 ING indd
Users Manual
![](/img.php?id=1301428&img=bg1.png)
© 2010 Bosch Security Systems, Inc. F.01U.140.810 | 02 | 2010.03 | 1
Ligue todas as cablagens apenas a um circuito de
segurança de tensão extra baixa (SELV).
Changes or modifi cations not expressly approved
by Bosch Security Systems, Inc. can void the user’s
authority to operate the equipment.
UL
Use only a Listed limited-power source.
SELV
Connect all wiring to a safety extra-low voltage (SELV)
circuit only.
Sluit alle bedrading uitsluitend aan op een circuit
met een extra lage veiligheidsspanning.
Prenez soin de connecter tous les câbles à un circuit à
très basse tension de sécurité (TBTS).
Alle Drähte sind ohne Ausnahme an Niederspannung
anzuschließen.
Collegare tutti i cavi esclusivamente a un circuito SELV
(circuito di sicurezza a bassissima tensione).
Solo il modello ISC-BDL2-WP12, ISC-BDL2-
WP6 è certifi cato IMQ – Sistemi di sicurezza al
primo livello di prestazione. La certifi cazione
IMQ – Sistemi di sicurezza del MODELLO ISC-
BDL2-WP12, ISC-BDL2-WP6 decade nel
caso di installazione del rilevatore con gli snodi
EN 50131-2-4 Grade 2
EN 50130-5 Environmental Class II
IP30 IK04 (EN 60529, EN 50102)
0 - 95% Relative Humidity
(0 - 85% UL installations)
-30°C to +55°C
(-20°F to +130°F )
UL Listed installations,
the temperature
range is 0°C to +49°C
(+32°F to +120°F)
Pour les installations
certifi ées NFA2P,
Température de
fonctionnement
-10°C à +55°C
Conecte el cableado únicamente a un circuito
de seguridad para voltajes muy bajos (SELV).
1
2
123
2,2 m - 2,75 m
(7.5 ft - 9 ft)
Pet Friendly
≤ 45 kg (100 lb)
Blue Line Pet Friendly TriTech
Motion Detector
This product is intended for use in
the following countries within the
European Union and in other
countries outside of the
European Union:
ISC-BDL2-WP12G (10.525 GHz):
Austria, Belgium, Denmark, Finland, Greece, Italy,
Luxembourg, Netherlands, Norway, Portugal,
Spain, Sweden
ISC-BDL2-WP12H (10.588 GHz):
France, United Kingdom
US Patent No.
5,670,943
7,009,106
5,450,062
ISC-BDL2-WP12, ISC-BDL2-WP6
Indicate Reason for Warranty Return
Ordered Wrong Product
False Alarm
Catch Performance
Does Not Power Up
LED Does Not Turn Off
LED Does Not Turn On
Alarm Relay
Tamper Alarm
Mechanical (Please Describe):
Terminal Strip
Other (Please Describe):
![](/img.php?id=1301428&img=bg2.png)

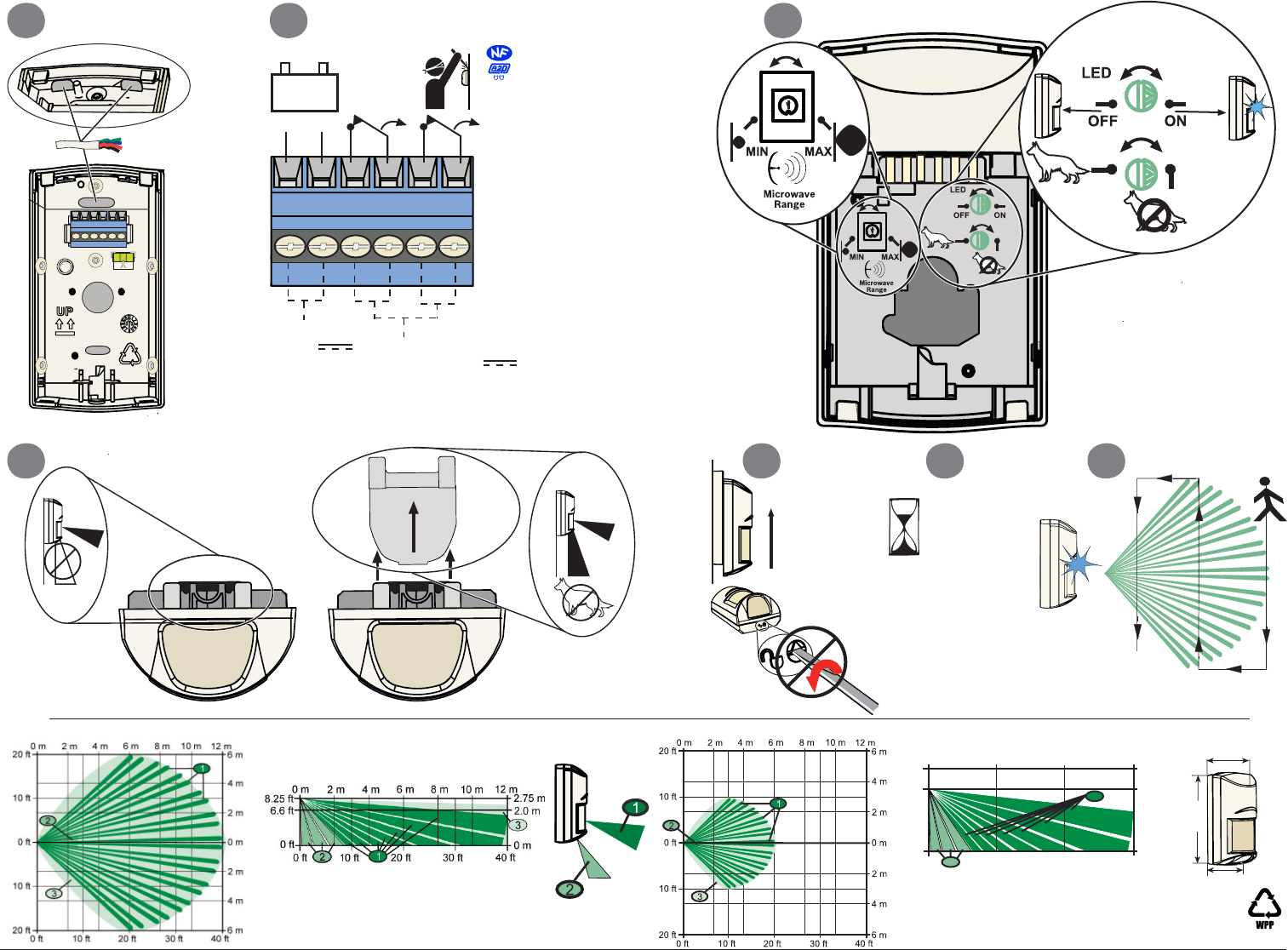

© 2010 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 F.01U.140.810 | 02 | 2010.03 | 2
4
+
-
TTNC NC-+
+
-
10-15 Vcc
10 mA @ 12 Vcc en veille/
en alarme, source limitée en
puissance, ondulation
résiduelle 1 V.
UL Listed product installations,
provide 4 h (40 mAh) standby
power from the control unit or
by a UL Listed burglary power supply.
10 mA @ 12 VDC
9 - 15 VDC
≤ 100 mA, 25 VDC, 3W
5 6
7 8
2 min
9 10
ISC-BDL2-WP12
0 ft
0 ft 0 m
8.25 ft 2.75 m
0 m
2.0 m
6.6 ft
6 m
4 m2 m
20 ft
10 ft
2
1
ISC-BDL2-WP6 44 mm
(1.7 in)
61 mm
(2.4 in)
105 mm
(4.2 in)
www.boschsecurity.com
?→
