Bosch Security Systems EVOLVE50 Self-powered column speaker system User Manual EVOLVE 50 Installation Manual
Bosch Security Systems Inc Self-powered column speaker system EVOLVE 50 Installation Manual
Users Manual
![](/img.php?id=3548290&img=bg1.png)
EVOLVE 50 Portable Column System
en | Installation manual
![](/img.php?id=3548290&img=bg3.png)
Table of contents
1Safety 4
1.1 Important safety instructions 4
1.2 FCC information 5
1.3 Precautions 7
1.4 Notices 7
2Short information 8
2.1 Shipping contents 8
3Description 9
3.1 System features 9

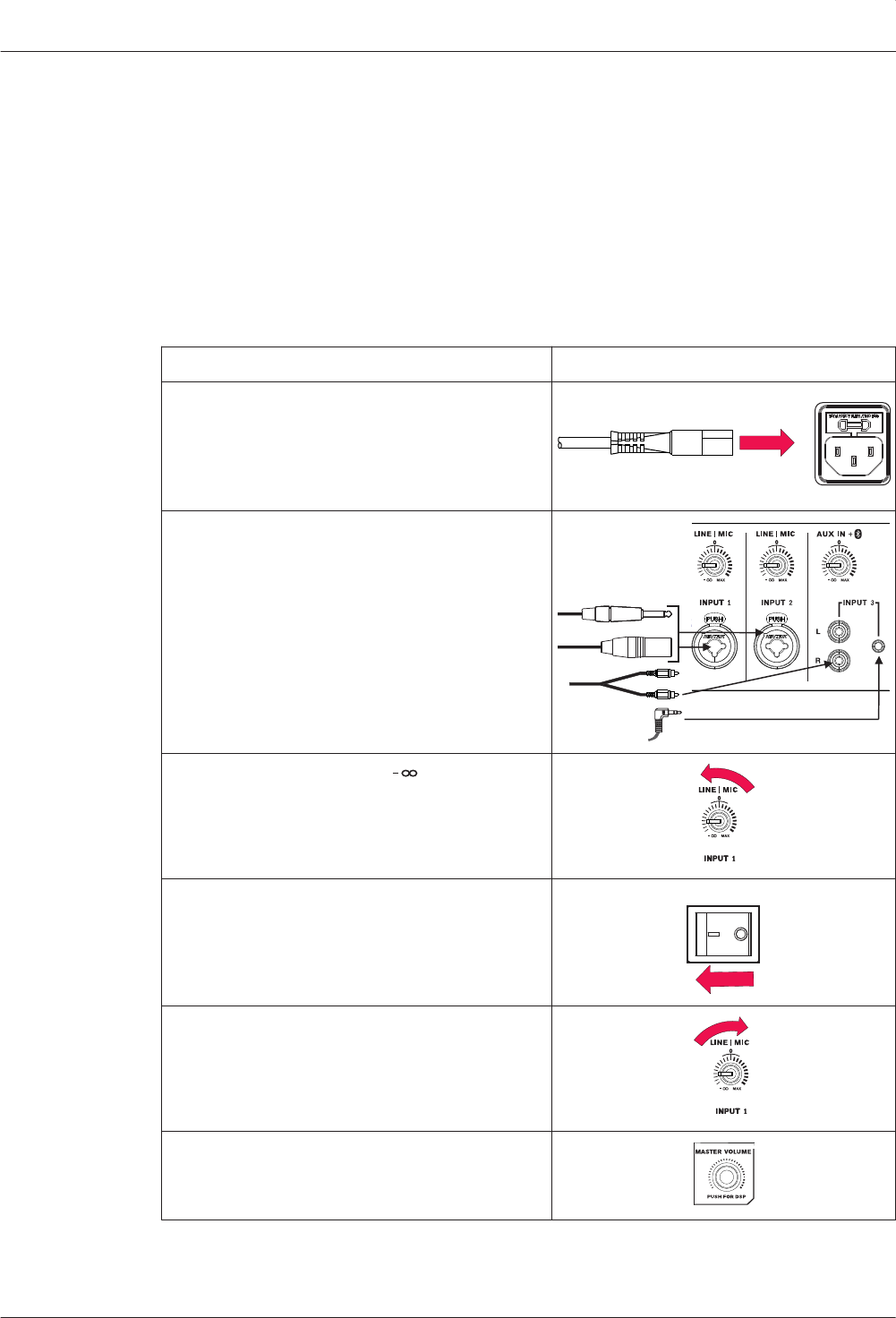

3.2 Quick setup 10
4Installation 11
5Amplifier DSP 12

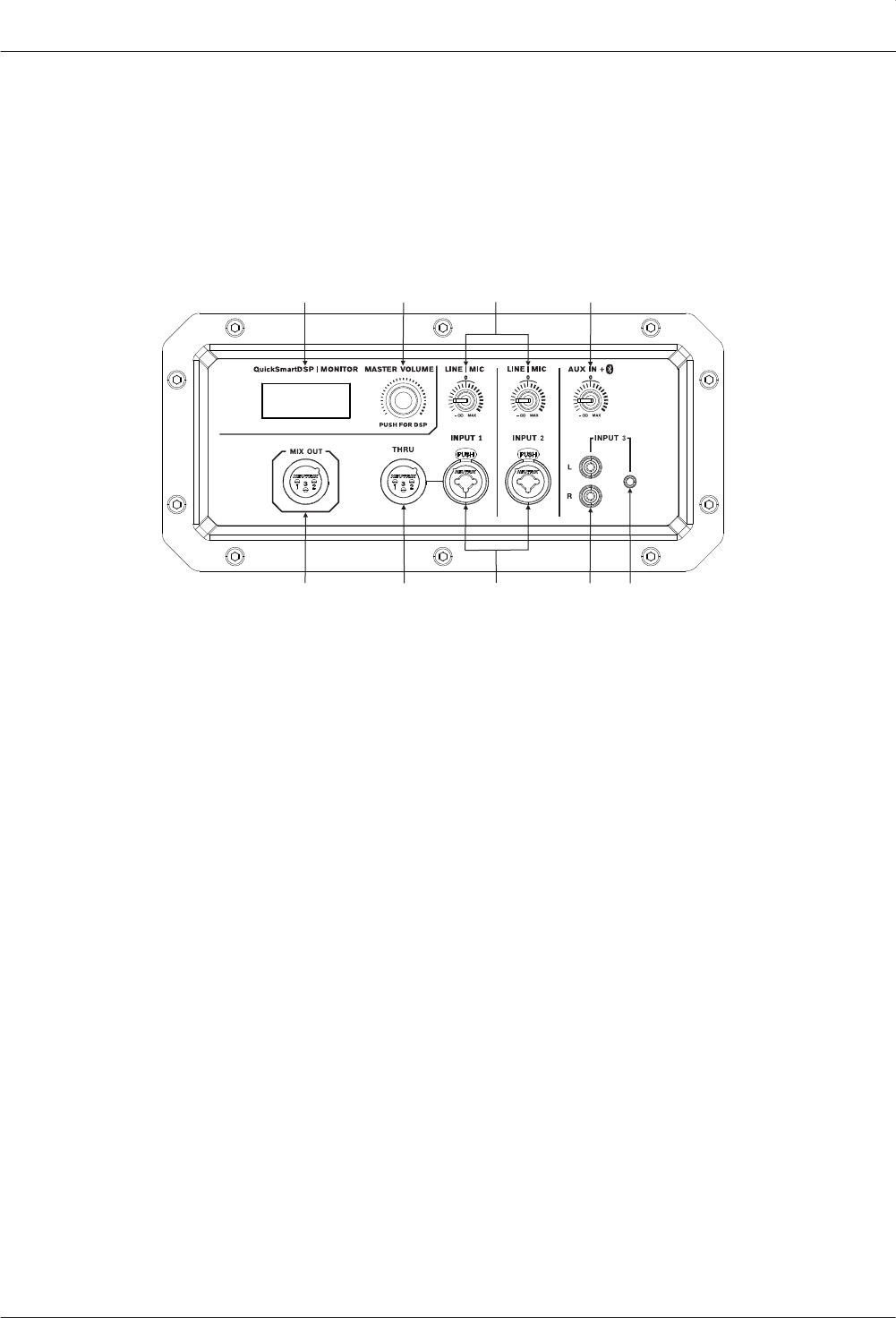

5.1 Amplifier DSP controls 12
5.2 System status 13
5.3 DSP control menu 14
6Pairing the QuickSmart Mobile application 20
7Recommended configurations 21

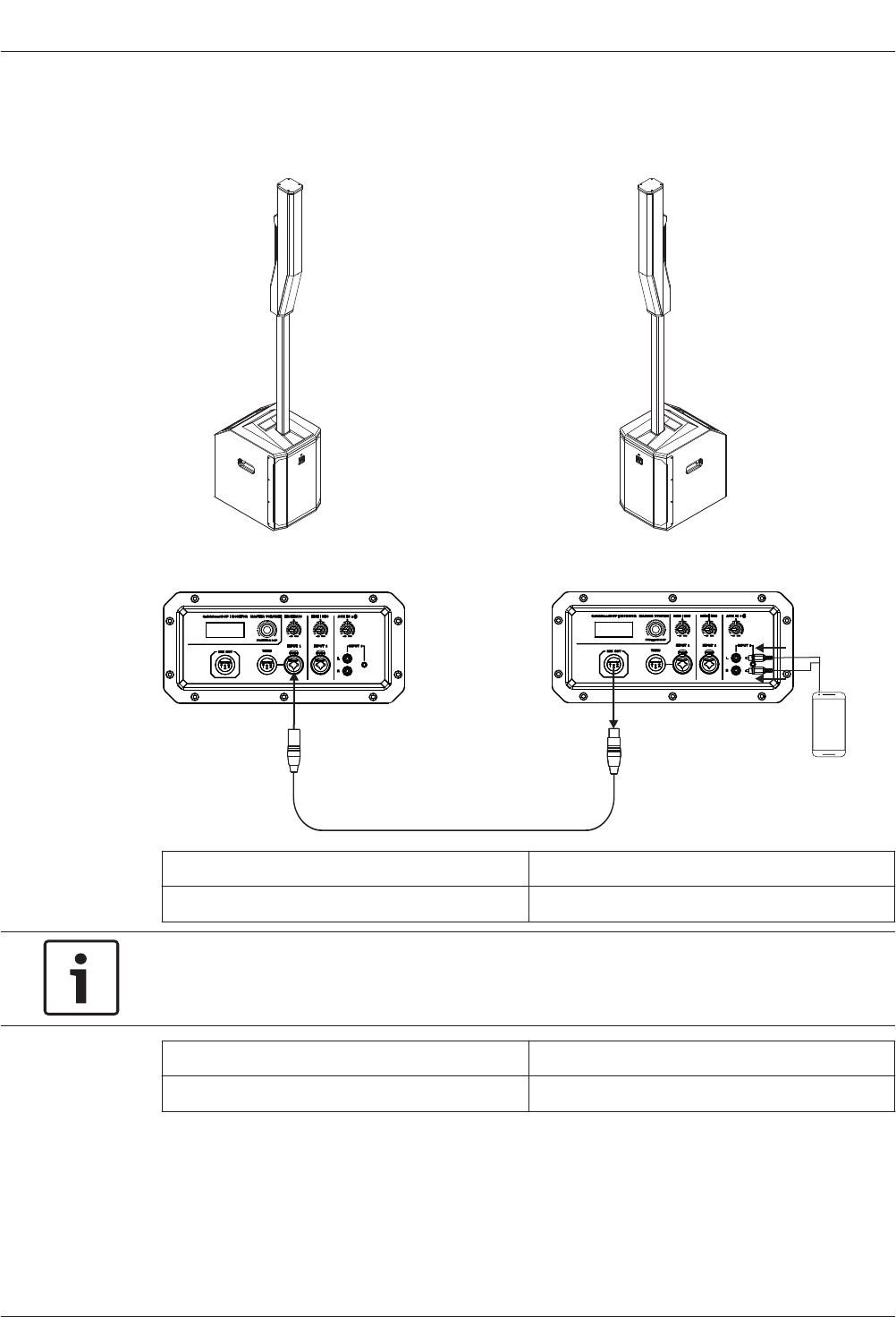

7.1 Stereo pair of EVOLVE 50 systems 21
7.2 Solo musician performance 22
8Troubleshooting 23
9Technical data 25

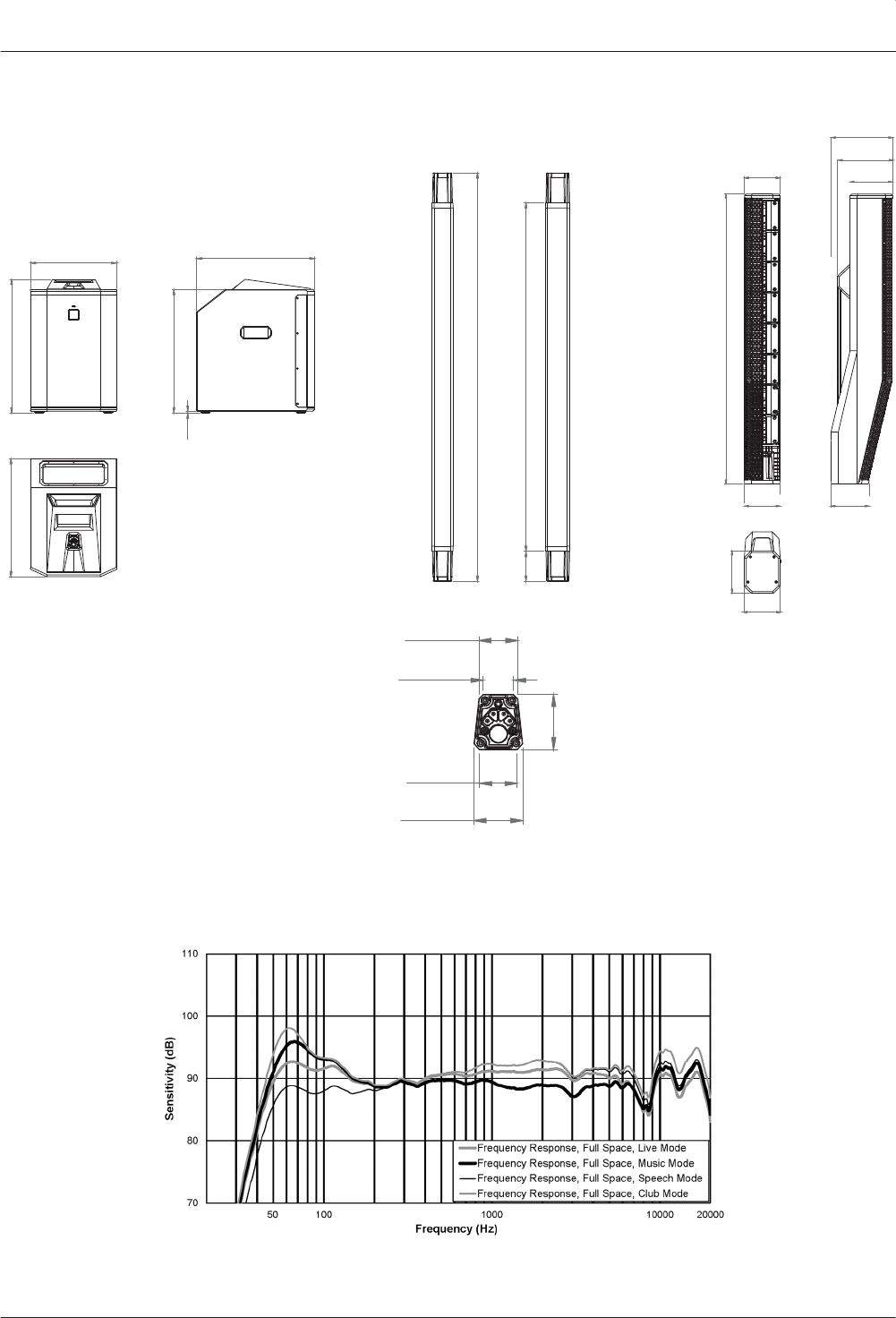

9.1 Dimensions 26
9.2 Frequency response 26
en 3
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg4.png)
Safety
Important safety instructions
WARNING: TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, DO NOT
OVEREXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE
AVIS: RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR.
WARNING: THE MAINS PLUG OR AC
INLET IS USED AS A DISCONNECT
DEVICE. THE DISCONNECT DEVICE
SHALL REMAIN READILY OPERABLE.
WARNING: CONNECT ONLY TO MAINS
SOCKET WITH PROTECTIVE EARTHING
CONNECTION.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) AS THERE ARE NO
USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.

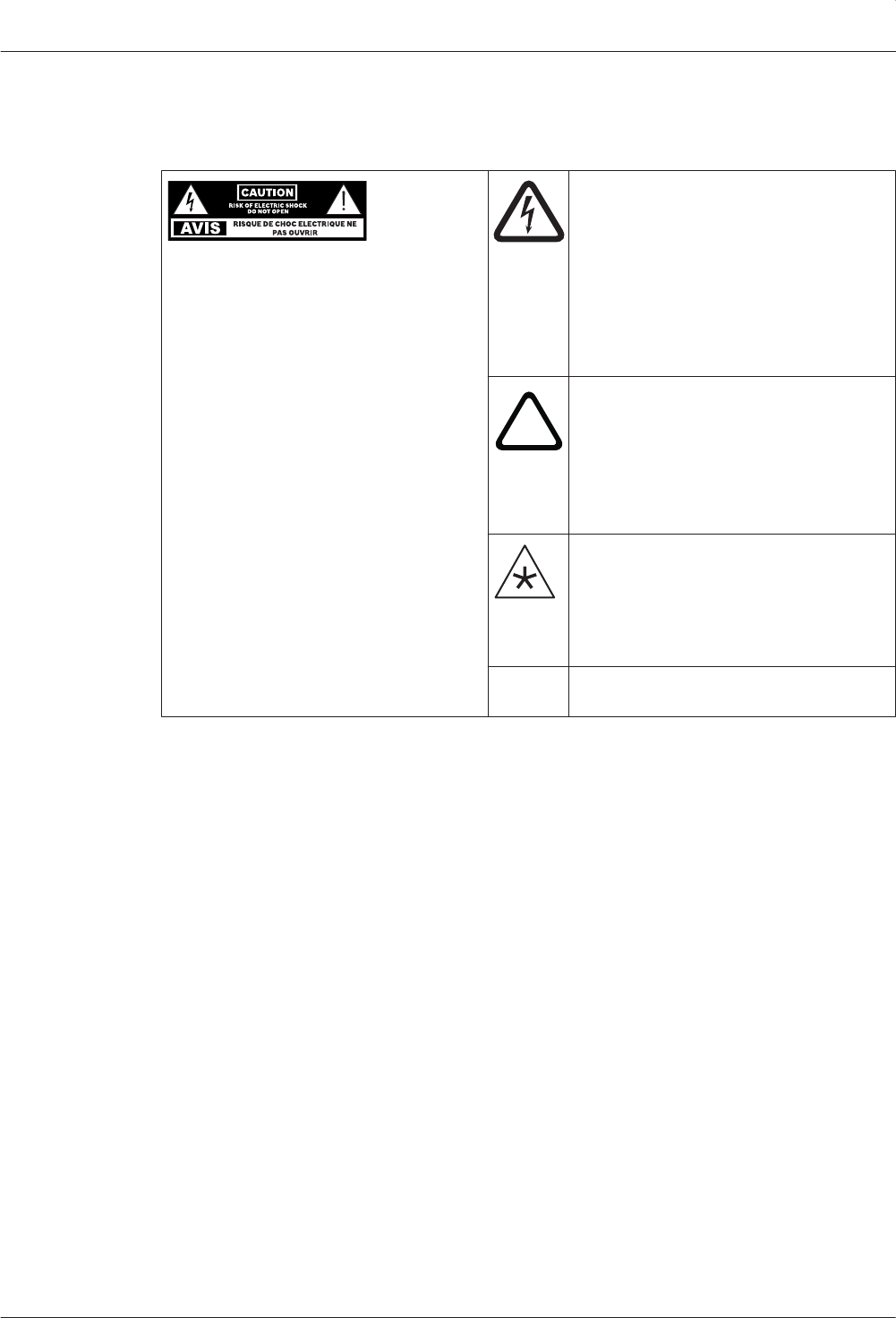

The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be sufficient magnitude to
constitute a risk of electric shock to
persons.
!
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
The asterisk within an equilateral
triangle is intended to inform the user to
necessary installation or removal
instructions regarding equipment or
hardware use relating to the system.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
1
1.1
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg5.png)
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. No naked flame sources, such as lighted candles, should be placed on the apparatus.
16. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to dripping or splashing. Objects filled
with liquids, such as vases should not be placed on apparatus.
17. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
18. Minimum 60 cm (2 ft) distances around the apparatus for sufficient ventilation.
19. The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
20. To completely disconnect AC power from this apparatus, the power supply cord must be
unplugged.
!
Warning!
This product is not designed to be suspended. Do NOT use handles or any other method to
suspend the loudspeaker. Handles on Electro-Voice loudspeakers are intended to only be
used for temporary transport by people.
Items, such as fiber rope, wire rope, cables, or other types of materials cannot be used to
suspend loudspeaker from the handles.
!
Caution!
Do not attempt to move this loudspeaker system when it is fully assembled.
You may damage the system or cause personal injury.
FCC information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
1.2
en 5
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg6.png)
Notice!
This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
The device contains a BT module CYBLE-022001-00 which has been granted by FCC and IC,
the FCC ID:WAP2001 and IC:7922A-2001. And module is assembled on the PRE PCB
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain
de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg7.png)
Precautions
!
If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the
loudspeaker in a shaded or covered area. The loudspeaker amplifiers have
protection circuits that temporarily shut the loudspeaker off when extremely
high temperatures are reached. This can happen on hot days when the
loudspeaker is in direct sunlight.
!
Do not use Electro-Voice loudspeakers in an environment where temperatures
are below 0°C (32°F) or exceed +35°C (95°F).
!
Never expose an Electro-Voice loudspeaker to rain, water, or high moisture.
!
Electro-Voice loudspeakers are easily capable of generating sound pressure
levels sufficient to cause permanent hearing damage to anyone within normal
coverage distance. Caution should be taken to avoid prolonged exposure to
sound pressure levels exceeding 90 dB.
Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.
Notice!
Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks
and trade names are those of their respective owners.
1.3
1.4
en 7
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg8.png)
Short information
The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.
CTN Description
EVOLVE50-TB Column speaker array, pole, black
EVOLVE50-SB-US Column speaker sub US, black
EVOLVE50-SB-EU Column speaker sub EU, black
EVOLVE50-SB-AP Column speaker sub AP, black
EVOLVE50-SB-GL Column speaker sub, black, global, no BT
Shipping contents
Quantity Component
1 Subwoofer
1 Power cord
1 EVOLVE 50 installation manual
1 Warranty card
1 Safety manual
Table 2.1: Subwoofer box
Quantity Component
1 Column array
1 Sub pole
1 Carry bag
Table 2.2: Column array box
2
2.1
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg9.png)
Description
Thank you for choosing an Electro-Voice portable column system. Please take time to consult
the manual to understand all the features built into your EV system and fully utilize its
performance capabilities.
The EVOLVE 50 portable column system is a new entry and form factor in the Electro-Voice
portable sound portfolio. Designed to deliver an uncompromising combination of low-profile
aesthetics and superior audio performance, the EVOLVE 50 sets a new standard for portable
columnar systems.
EVOLVE 50 is designed to quickly and easily be transported and assembled. The three handle
design on the subwoofer and convenient included carry case for the sub pole and column
array provide minimal resistance to getting excellent, professional sound anywhere you need
it. Installation is made easier via the symmetrical aluminum subwoofer pole with an integrated
wire assembly. The connection is secured by the magnetic assisted latching system, which
magnetically locks the sub pole in place.
The full-range column array and its eight 3.5-inch neodymium drivers are directed using
custom-designed waveguides for consistent 120° coverage. The ported subwoofer enclosure
houses a 12-inch woofer that is supported by 18 mm wood for enhanced stiffness and
acoustical performance. The Class-D amplifier provides up to 1000 watts of output power: 500
watts to the subwoofer and 500 watts to the column array. The input panel features EV's
industry-leading QuickSmartDSP interface—allowing intuitive navigation of system parameters
via an LCD with single-knob control—as well as multiple options for signal routing and inputs.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE)
technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50
systems simultaneously. High-resolution Bluetooth® audio streaming adds convenience for
wireless music playback in breakout rooms, intermission, and musical accompaniment.
Bluetooth® is available in select countries.
Electro-Voice quality and testing procedures far exceed the industry norm to yield efficient
and effective electro-acoustic performance; this creates components that deliver an accurate,
linear response at the system’s highest output levels. When applied to EVOLVE 50, this
engineering philosophy results in a system that brings a new sonic benchmark to the column
speaker segment, all packaged in a sleek and portable enclosure that blends into the
background in any application from a lounge to a wedding reception.
System features
▪EV QuickSmart Mobile application: quickly and wirelessly configure, control, and monitor
up to six EVOLVE 50 systems simultaneously, and receive immediate notification during
critical performance conditions. Bluetooth® connectivity is available in select countries.
▪High-quality Bluetooth® audio streaming for background music or musical
accompaniment. Bluetooth® connectivity is available in select countries.
▪Ultra-wide 120° horizontal coverage via custom-designed waveguides and array-formed
40° asymmetrical vertical coverage means all acoustical energy is directed towards both
sitting and standing audiences.
3
3.1
en 9
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bga.png)
▪QuickSmartDSP provides best-in-class processing via EV's signature single-knob user
interface with LCD. Easy setup via four presets (Music, Live, Speech, Club), three-band
EQ (low, mid, high), five user-programmable presets (Store and Recall settings), output
delay, phantom power, visual monitoring of limiter status, input level control and meters,
and master volume control to optimize gain structure.
▪Ideal for portable applications. Light weight and intuitive assembly via the magnet
assisted sub pole make a quality performance easier than ever.
Quick setup
Subwoofer
To set up a subwoofer, do the following:
Step Illustration
1. Connect the AC power cord from a
grounded line receptacle to the MAINS IN.
FUS E T5AL/25 0V
REPLACE AS MARKED
OPE RATING V OLTAGE / TEGAN GAN:
100-240V AC / 50-60 Hz
MAINS IN
2. Connect the XLR or TRS cables from an
audio source to INPUT 1 or INPUT 2 or
connect the RCA cable or 3.5 mm mini jack
from an audio source to INPUT 3.
3. Adjust the input gain to (infinity).
4. Switch POWER to ON.
POWER
ON OF F
5. From the DSP home screen, increase the
input gain to the desired sound output.
6. Adjust the MASTER VOL knob to the
desired volume.
See also
•Amplifier DSP, page 12
3.2
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bgb.png)
Installation
!
Caution!
Do not attempt to move this loudspeaker system when it is fully assembled.
You may damage the system or cause personal injury.
Assembling the loudspeaker system
To assemble the loudspeaker system, do the following:
1. Place the subwoofer on a level and stable surface.
2. Insert the symmetrical pole into the top of the subwoofer.
The pole has magnets (A) at each end. The pole can be inserted on either end.
A
A
3. Place the column array loudspeaker on top of the subwoofer pole.
4. The column array loudspeaker system set up is complete.
4
en 11
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bgc.png)
Amplifier DSP
Amplifier DSP controls
The amplifier has a combination of controls and connectors to ensure the most versatile
loudspeaker system.
Portable column system control and monitoring interface
The portable column system DSP control menu selections are available for the EVOLVE 50 .
1 2 43
5 9876
1. LCD – DSP control and monitoring interface.
2. MASTER VOL – Adjusts the sound level.
DSP – Scroll through the menu and select the available choices. Push the MASTER VOL
knob to enter the DSP menu.
3. LINE | MIC – Electronically balanced INPUT 1 and INPUT 2 MIC/LINE for the connection of
a line level signal source (such as mixer etc.) or a microphone. Phantom power (+15 V)
can be enabled Phantom 1 or 2 if a condenser microphone is being used. Establishing a
connection is possible via TRS or XLR-type plugs. Whenever possible, balanced signal
feed is always preferable to guard against potential noise or HF-interference. This control
lets you optimally adjust the incoming signals to match the sensitivity of the system.
4. AUX IN – Control to adjust the input trim of the stereo RCA type, 3.5mm, or Bluetooth®
streaming inputs. This control lets you optimally adjust the incoming signals to match the
sensitivity of the system. Bluetooth®connectivity is available in select countries.
5. MIX OUT – The post-fader audio signals of INPUT 1, INPUT 2 and INPUT 3 are mixed and
passed to MIX OUT. The ratio of the input signals changes when the level controls INPUT
1, 2 or 3 are adjusted. This feature allows the loudspeaker to act as a basic three-channel
mixer that can send the mix to another loudspeaker via the MIX OUT socket. This output
is laid out in GND-SENSING technology, a special pin assignment of the output socket,
offering all advantages of the balanced signal transmission, but lets you also connect
monaural plugs without a problem.
6. THRU – The THRU output socket is connected in parallel to INPUT 1, it is used for carrying
through the pre-fader input signal to additional powered loudspeaker or subwoofer.
7. INPUT – Electronically balanced INPUT 1/2 MIC/LINE for the connection of a line level
signal source (such as mixer etc.) or a microphone. Establishing a connection is possible
via TRS or XLR-type plugs. Whenever possible, balanced signal feed is always preferable
to guard against potential noise or HF-interference.
8. INPUT 3 RCA Connector – Stereo unbalanced RCA type INPUT 3 AUX IN for connecting
sources such as CD players or MP3 players.
5
5.1
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bgd.png)
9. INPUT 3 3.5mm connector – Balanced mono or unbalanced stereo input for mobile
phones, laptops, etc.
EVOLVE 50
FUSE T5AL/250V
REPLACE AS M ARKED
OPERATING VO LTAGE / TEGANGAN:
100-240V AC / 50-60 Hz
MAINS I N
POWER
ON OFF
BOSCH SICHERHEITSSYSTEME G MBH
85626 GRASBRUNN, GE RMANY
BOSCH SECURITY SYSTEMS, INC
14450 FAIRPORT, NY, USA FOR INDONESIA ONLY:
IMPORTED BY / DIIMPOR OLEH
PT ROBERT BOSCH
JAKARTA, INDONESIA
www.electrovoice.com | MADE IN CHINA
10 11
Notice!
Markings and statements on amplifier panel may vary.
10. MAINS IN – The device receives its power supply via the MAINS IN socket. Only the
provided power cord may be used. Connect the device only to a mains network, which
corresponds to the requirements indicated on the type plate.
11. POWER – AC switch for switching the power ON or OFF. The LCD screen lights up when
the power is turned ON, after approximately 3 seconds.
System status
Normal
IN1
IN2
LEVEL 0dB C1
IN3
1
2
3
4
567
8
S
E
Figure 5.1: Normal system status home screen with Bluetooth® status
1. LEVEL – Indicates the master gain of the system in dB. The range is from mute to +10 dB,
in 1 dB increments.
2. IN1 – VU meter displays the signal level of INPUT 1 into the amplifier INPUT 1 XLR
connector. IN1 and IN2 are independent of each other.
3. IN2 – VU meter displays the signal level of INPUT 2 into the amplifier INPUT 2 XLR
connector. IN1 and IN2 are independent of each other.
4. IN3 – VU meter displays the signal level of INPUT 3.
5. C - Control app; the available options are:
OFF - DISABLED
FLASHING - PAIRING MODE
SOLID - CONNECTED
6. 1 - Indicates the selected store function number. There are five user defined store
function numbers available.
7. E - Indicates the preset is not saved. When the preset is saved the E is not displayed.
8. S - Audio streaming; the available options are:
5.2
en 13
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bge.png)
OFF - DISABLED
FLASHING - PAIRING MODE (120s)
SOLID - CONNECTED
Notice!
Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.
System protection
System protection limiters indicate when a system is exceeding recommended usage by
indicating CLIP or LIMIT on the LCD display.
CLIP
CLIP indicates the signal to the loudspeaker is too high, resulting in a clipped signal into the
loudspeaker. If CLIP is shown, reduce the input gain knob and/or the signal on the mixer or
source equipment.
LIMIT
LIMIT protects the loudspeaker from short-term peaks which can cause distortion. When
LIMIT is shown small on the screen, the limiter is active but keeps distortion under control.
The large LIMIT indicates the sound is negatively affected. Reducing the output volume
(MASTER VOL) is strongly recommended when the large limit indication is shown.
See also
•Pairing the QuickSmart Mobile application, page 20
DSP control menu
EXIT
MODE MUSIC (Default)
LIVE
SPEECH
CLUB
SUB LEVEL 0 dB (Default)
Mute, +1 dB to +10 dB
TREBLE 0 dB (Default)
-12 dB to +6 dB
MID 0 dB (Default)
-12 dB to +6 dB
MID FREQ 1200 Hz (Default)
200 to 12000 Hz
BASS 0 dB (Default)
-12 dB to +6 dB
PHANTOM 1 ON
OFF (Default)
5.3
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bgf.png)
PHANTOM 2 ON
OFF (Default)
MIX OUT L+R (Default)
R
DELAY FEET OFF (Default)
OFF, 0.1 to 100.0 m (and ft.)
METER
LED OFF
ON (Default)
LIMIT
CONTROL APP
DISPLAY BACK
LCD DIM ON (Default)
OFF
BRIGHT 5 (Default)
1 to 10
CONTRAST 5 (Default)
1 to 10
BACK
STORE EXIT, 1, 2, 3, 4, 5, EXIT
RECALL EXIT, 1, 2, 3, 4, 5, EXIT
BLUETOOTH CONTROL
APP
ON
OFF (Default)
STREAMING PAIRING
ON
OFF (Default)
RESET RESET ARE YOU SURE?
NO (Default)
YES
INFO [PRODUCT NAME]
[FIRMWARE VERSION]
©2017 Electro-Voice
EXIT
Table 5.1: Portable column system DSP Control Menu
en 15
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg10.png)
EXIT Menu
The Exit menu is used to return to the home screen.
Notice!
The display returns to the home screen after two minutes of inactivity.
MODE Menu
The Mode menu is used to configure the type of sound the subwoofer delivers.
▪MUSIC – is used for recorded music playback and electronic dance music applications.
(Default)
▪LIVE – is used for live sound applications.
▪SPEECH – is used for spoken word applications.
▪CLUB – is used for recorded electronic music playback.
SUB LEVEL Menu
The Sub Level menu allows independent gain control of the subwoofer output. Changes to
this parameter effectively change the crossover of the EVOLVE 50 system. The default setting
of 0 dB is recommended for best audio performance.
The range is MUTE, +1 dB to +10 dB.
The default is 0 dB.
TREBLE Menu
The Treble menu is used to adjust the high frequency performance of the loudspeaker for
different applications or personal preference. The parameter controls a high shelving filter
that is centered on 6 kHz.
The range is -12 dB to +6 dB.
The default is 0 dB.
MID Menu
The MID menu is used to set the gain of the MID peak filter.
The range is -12 dB to +6 dB.
The default is 0 dB.
MID FREQ Menu
The MID Freq menu is used to set the center frequency of the MID peak filter.
The range is 200 -12000 Hz.
The default is 1200 Hz.
BASS Menu
The Bass menu item is used to configure the low frequencies of sound.
The range is -12 dB to +6 dB.
The default is 0 dB.
PHANTOM 1 or PHANTOM 2 Menu
The Phantom 1 or Phantom 2 menu is for activating phantom power (+15 V) of audio INPUT 1
or 2 whenever a suitable condenser microphone is being used. Available options for this
selection are: ON or OFF.
The default is OFF.
MIX OUT Menu
The Mix Out menu is used to select which signal of INPUT 3 AUX IN should be output at MIX
OUT and which signal should be delivered by the loudspeaker.
▪L+R: The left and right signals of INPUT 3 are summed. The sum is output at MIX OUT and
is delivered by the loudspeaker. (Default)
▪R: Only the right signal of INPUT 3 is output at MIX OUT. The loudspeaker will deliver only
the left signal.
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg11.png)
DELAY Menu
The Delay menu is used to delay the output signal, e.g. to compensate for differences in
distance among individual loudspeakers. The delay can be set in meters or feet. Available
options for this selection are: OFF or a delay up to 100.0 m or 328 ft. The delay can be
changed in 0.25 meter increments or one foot increments.
The default is OFF.
DISPLAY Menu
The Display menu options are BACK, LCD DIM, BRIGHT, and CONTRAST.
LED Menu
The LED menu shows power on and indicates limit. Available options for this selection are:
ON, OFF, LIMIT or CONTROL APP.
▪ON – turns the LED on when the power to the loudspeaker is ON. (Default)
▪OFF – turns the LED off.
▪LIMIT – turns the LED off under normal operation. The LED brief blinking indicates the
limiter is activating. Short-term blinking is not critical because the integrated limiter
keeps distortion under control. Constant lighting of the LED indicates the sound is
negatively affected. If the LED is constantly lit, check the rear LCD for more information.
Reducing the output volume is strongly recommended.
▪CONTROL APP – indicates if Bluetooth® on the portable column system is trying to pair
or is connected to a Bluetooth® enabled mobile device. In pairing mode the LED will flash
blue indicating it is ready to pair. The LED is solid blue when it is connected.
The default is ON.
LCD DIM Menu
The LCD Dim menu is used to dim the display when the display is idle for two minutes.
Available options for this selection are: ON or OFF.
The default is ON.
BRIGHT Menu
The Bright menu is used to determine the brightness of the LCD.
The range is 1 to 10.
The default is five (5).
CONTRAST Menu
The Contrast menu is used to increase or decrease the visibility of the LCD screen.
The range is 1 to 10.
The default is five (5).
STORE Menu
The Store menu allows you create up to five customized user settings. Available options for
this selection are: EXIT, 1, 2, 3, 4, and 5.
Notice!
The customized user setting name can contain a combination of alphanumeric characters
including spaces. The alphanumeric character range is A to Z and 0-9.
The name field length is 12 characters.
Storing customized user settings
To store customized user settings, do the following:
1. From the DSP menu, scroll to STORE.
2. Push the MASTER VOL knob to select STORE.
The store screen appears.
3. Push the MASTER VOL knob to select 1.
The Enter name for 1 screen appears.
en 17
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg12.png)
4. Use the MASTER VOL knob to scroll through the characters.
The characters appear.
5. Push the MASTER VOL knob to select the desired character.
6. Turn the MASTER VOL knob to move to the next character entry.
Continue selecting characters until the desired name is entered.
7. Use the MASTER VOL knob to scroll to SAVE.
8. Push the MASTER VOL knob to select SAVE.
9. Repeat steps 3 through 8 to store additional customized user settings.
10. Select EXIT to return to the home screen.
RECALL Menu
The Recall menu allows you retrieve up to five customized user settings. Available options for
this selection are: EXIT, 1, 2, 3, 4, and 5.
Recalling customized user settings
To recall customized user settings, do the following:
1. From the DSP menu, scroll to RECALL.
2. Push the MASTER VOL knob to select RECALL.
The recall screen appears.
3. Push the MASTER VOL knob to select 1.
The selected item is loaded.
4. Select EXIT to return to the home screen.
BLUETOOTH
The Bluetooth menu options are CONTROL APP and STREAMING.
CONTROL APP Menu
The Control App menu is used to enable the QuickSmart Mobile wireless control and
monitoring application. Available options for this selection are: ON or OFF.
The default is OFF.
Notice!
Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks
and trade names are those of their respective owners.
Turning Bluetooth® ON or OFF
To turn Bluetooth® ON or OFF, do the following:
1. From the DSP menu, scroll to CONTROL APP.
2. Select ON.
OR
Select OFF.
STREAMING
The Streaming menu is used to stream audio from your Bluetooth® enabled device via the
loudspeaker system. Available options for this selection are: PAIRING, ON or OFF.
The default is OFF.
Pairing the portable column system with your Bluetooth® enabled device
To pair the portable column system with your Bluetooth® enabled device, do the following:
1. From the DSP menu, scroll to STREAMING.
2. Select PAIRING.
PAIRING mode enables 120 seconds of visibility to Bluetooth® enabled devices.
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg13.png)
3. On your mobile device, select EV EVOLVE to initiate the pairing process.
Once the device is paired, all device audio will be output through the EVOLVE 50 system.
Notice!
If connected with a mobile device, notification alerts and ring tones will also be played
through the system.
Disable these notifications or enable Airplane mode on your mobile device to prevent
unwanted interruptions during audio playback.
Turning streaming ON or OFF
To turn streaming ON or OFF, do the following:
1. From the DSP menu, scroll to STREAMING.
2. Select ON.
OR
Select OFF.
RESET Menu
The Reset menu is used to reset the loudspeaker to original factory settings. Available options
for this selection are: NO or YES.
The default is NO.
Resetting the system
To reset the system to original factory settings, do the following:
1. From the DSP menu, select RESET.
The reset "Are you sure?" message appears.
2. Select YES.
The system is reset to the original factory settings.
Notice!
The reset menu item is used to revert the loudspeaker to the original factory default settings.
All user settings will be deleted. The user customized settings in the STORE and RECALL
menus return to <EMPTY>.
INFO Menu
The Information menu is used to display the product name and firmware version.
See also
•Pairing the QuickSmart Mobile application, page 20
en 19
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg14.png)
Pairing the QuickSmart Mobile application
The EV QuickSmart Mobile app is available for download for the iOS 10 and higher tablets and
smart phones from the iTunes App Store or Android Marshmallow and higher tablets and
smart phones from the Google Play Store.
Notice!
The EV QuickSmart Mobile app is designed to only find speakers from Electro-Voice with
Bluetooth® enabled.
The EV QuickSmart Mobile app will not display other types of Bluetooth® devices, e.g.
phones, laptops, tablets, or headsets.
Notice!
Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.
Prior to pairing the EV QuickSmart Mobile app with loudspeakers by Electro-Voice ensure
Bluetooth® is enabled on the smart phone or tablet, and the loudspeaker.
First time pairing:
To pair the loudspeaker with the EV QuickSmart Mobile app, do the following:
1. Open the EV QuickSmart Mobile app.
2. Finding nearby speakers is displayed on the screen
The EV QuickSmart Mobile app is looking for available Bluetooth® enabled Electro-Voice
loudspeakers.
3. The available loudspeakers are displayed on the screen.
The app will display up to eight available loudspeakers.
4. Tap the loudspeaker you want to pair with the app.
The selected loudspeaker will have a red line under it acknowledging it is selected.
5. Repeat the previous step until all of the desired loudspeakers are selected.
6. Tap the red CONNECT button.
7. The app pairs with the desired loudspeaker.
The app can connect to up to six loudspeakers.
Subsequent pairing:
To pair the loudspeaker with the EV QuickSmart Mobile app, do the following:
1. Tap the EV QuickSmart Mobile app icon.
2. Finding nearby speakers is displayed on the screen
The EV QuickSmart Mobile app is looking for available Bluetooth® enabled Electro-Voice
loudspeakers.
3. The available loudspeakers are displayed on the screen.
The app will display up to eight available loudspeakers.
4. Tap the loudspeaker you want to pair with the app.
The selected loudspeaker will have a red line under it acknowledging it is selected.
5. Repeat the previous step until all of the desired loudspeakers are selected.
6. Tap the red CONNECT button.
7. The app pairs with the desired loudspeaker.
The app can connect to up to six loudspeakers.
6
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg15.png)
Recommended configurations
Stereo pair of EVOLVE 50 systems
LR
R Right
L Left
Notice!
The direction of the arrow indicates the signal path.
Mode: Music
MIX-OUT: R
Table 7.1: DSP settings for the portable column system
See also
•DSP control menu, page 14
7
7.1
en 21
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg16.png)

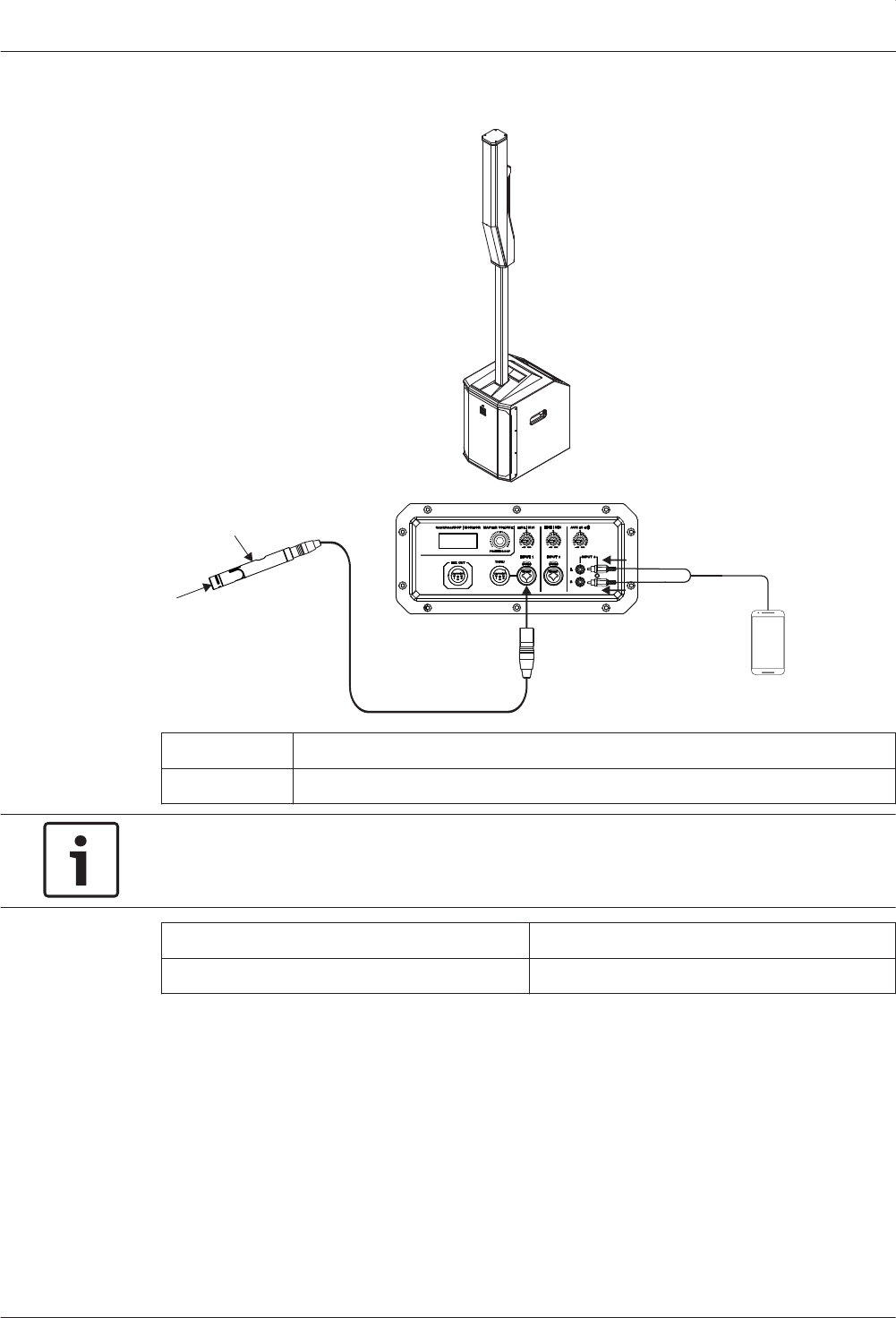

Solo musician performance
B
A
A Guitar, conga drum, etc.
B Condenser microphone
Notice!
The direction of the arrow indicates the signal path.
Mode: Live
Phantom 1: On
Table 7.2: DSP settings for the portable column system
See also
•DSP control menu, page 14
7.2
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg17.png)
Troubleshooting
Problem Possible cause Action
1. No sound Amplifier Verify all the electronics are on, the signal
routing is correct, the source is active; the
volume is turned up, etc.
Correct/repair/replace as necessary. If there is
still no sound, the problem may be wiring.
Wiring Verify you have connected the correct cables to
the amplifier. Play something at a low level
through the amplifier. Connect a test
loudspeaker in parallel with the malfunctioning
line. If the sound level is gone or is very weak,
the line has a short in it (possibly a severe
scrape, pinch, or a missed connection). Using
the test loudspeaker, move down the line and
test each connection/junction until you find the
problem and correct it. Observe proper
polarity.
2. Intermittent
output such as
crackling or
distortion
Faulty connection Check all connections at amplifier and
loudspeakers to ensure they are all clean and
tight. If the problem persists, check the wiring.
See problem 1.
3. Constant noise
such as
buzzing hissing
or humming
Defective source or
other electronic
device
If noise is present, but no program material is
playing, evaluate each component as necessary
to isolate the problem. Most likely there is a
break in the signal path.
Poor system
grounding or ground
loop
Check and correct the system grounding, as
required.
Input gain knob is not
in the MIC position
Slowly increase the input gain knob level to
engage the microphone pre-amp.
4. No sound
produced with
microphone
connected to
INPUT 1 or
INPUT 2
Microphone requires
phantom power.
Use a dynamic microphone that does not
require phantom power (+15 V). If using a
microphone requiring phantom power, enable
PHANTOM POWER is the DSP menu, or use an
external phantom power source.
Input gain knob is not
in the MIC position
Slowly increase the input gain knob level to
engage the microphone pre-amp.
5. Sound is
distorted front
LED is OFF,
LCD screen
LIMIT is ON
Excessive input level Reduce the input level or loudspeaker level
knobs to prevent limit.
8
en 23
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg18.png)
Problem Possible cause Action
Incorrect gain
structure or source
input (mixing console/
preamp) is overdriven
Verify level controls of the source are properly
structured by using the VU meter indicator on
the LCD screen. If the VU meter bar is solid or
the system indicates LIMIT, the input or source
level is too high.
6. Microphone
produces
acoustic
feedback when
input level is
amplified
Incorrect gain
structure
Reduce the microphone levels at the mixing
console or input source. If the microphone is
connected directly to the speaker, reduce the
input level on the speaker. Positioning the
microphone close to the sound source
increases gain-before-feedback. See problem 6.
MODE is set to MUSIC Change the MODE to LIVE or SPEECH.
Microphone position
is too close to the
front of the
loudspeaker
Whenever possible setup the loudspeakers so
the microphone is behind them. If using the
loudspeaker in a monitor position, aim the
loudspeaker to the back of the microphone.
7. DSP menu is
locked
The Menu Lock
function has been
turned on.
Press and hold the MASTER VOL knob for 5
seconds.
8. QuickSmart
Mobile app
does not
detect the
loudspeaker
Enable Bluetooth® Ensure Bluetooth® is enabled on the
loudspeaker.
If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or
Electro-Voice distributor.
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg19.png)
Technical data
Frequency Response (-3 dB): 43 Hz – 20 KHz1
Frequency Range (-10 dB): 37 Hz – 20 KHz1
Maximum SPL: 127 dB2
Coverage (H x V): 120° x 40°
Amplifier Rating: 1000 W
LF Channel Rating: 500 W
HF Channel Rating: 500 W
Crossover Frequency: 200 Hz
Connectors: 2x XLR/TRS Combo Jack Input
1x 3.5 mm Input
1x Stereo RCA Input
1x Wireless Bluetooth® Audio Input
1x XLR THRU Output
1x XLR MIX OUT Output
Enclosure: Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille: Steel with black powder coat
Color: Black
Dimensions (HxWxD):
mm (in)
Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
Net Weight: Sub: 44.66 lb (20.3 kg)
Column: 10.34 lb (4.7 kg)
Pole: 2.75 lb (1.25 kg)
Sub cover: 0.9 lb (0.4 kg)
Bag for column and pole:1.87 (0.85 kg)
Shipping Weight: Sub box: 50.71 lb (23 kg)
Column box: 18.30 lb (8.3 kg)
Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6 A3
1Full space measurement using music DSP preset.
2Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3Current rating is 1/8 power.
9
en 25
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
![](/img.php?id=3548290&img=bg1a.png)
Dimensions
345 mm
530.0 mm
470 mm
492 mm
7 mm
930 mm
55 mm
48.5 mm
38.5 mm
789 mm
68 mm
37.9 mm
29.7 mm
102 mm
825 mm
121.2 mm
102.4 mm
102 mm
157.2 mm
121.2 mm
172.0 mm
108.7 mm
[13.6 in]
[6.8 in]
[6.2 in]
[4.8 in]
[4.0 in]
[32.5 in]
[4.0 in] [4.3 in]
[4.0 in]
[4.8 in]
[31.1 in]
[36.6 in]
[2.7 in]
[1.5 in]
[1.2 in]
[2.2 in]
[1.9 in]
[1.5 in]
[0.3 in]
[19.4 in]
[20.9 in]
[18.5 in]
471 mm
[18.5 in]
Figure 9.1: Dimensions EVOLVE 50 (subwoofer left, spacer center, and column right)
Frequency response
Figure 9.2: Frequency response EVOLVE 50 (Live Mode, Music Mode, Speech mode, and Club Mode)
9.1
9.2
EVOLVE 50 Portable Column System
2017.07 | 02 | F.01U.341.640 Installation manual Electro-Voice
![](/img.php?id=3548290&img=bg1b.png)
en 27
Electro-Voice Installation manual 2017.07 | 02 | F.01U.341.640
