USERS MANUAL
Page 1 of 3
Telex Model XO-1 Beltpack
General Description:
The Telex model XO-1 beltpack transceiver
is intended for use as a belt worn wireless
full duplex intercom radio. Multiple XO-1
beltpacks can be used with a XO-AP access
point to communicate with each other over-
the-air.
The XO-1 uses 802.11 technology to receive
/ transmit within one channel of the 1 – 11
(2.412 to 2.462 GHz) channels of the 2.4
GHz ISM band. Its operation is license free.
The transmit and receive antenna are
internal to the beltpack so the unit has a
smaller profile and the antennas are
protected from possible damage.
The XO-1 is powered via an internal Li-Ion
battery that will provide up to 8 hours of run
time at room temperature.
The top panel provides on/off/volume
control, channel select buttons and lights,
talk button and battery status light.
1. On/Off & Volume Control – Turns the beltpack
power on/off and controls headset volume.
2. Battery Light –
a. GREEN - Battery OK
b. RED - Battery Low (needs charged)
3. Offense Button and Light – Selects the
“Offense” intercom channel. The light next to
the button will light when selected.
4. Talk Button – When pressed the microphone
path is enabled.
a. Momentary – Pressed and hold for
over ½ second.
b. Latch on/off – Tap button and the
microphone path is enabled. Tap again
to turn off.
5. Defense Button and Light – Selects the
“Defense” intercom channel. The light next to
the button will light when selected.

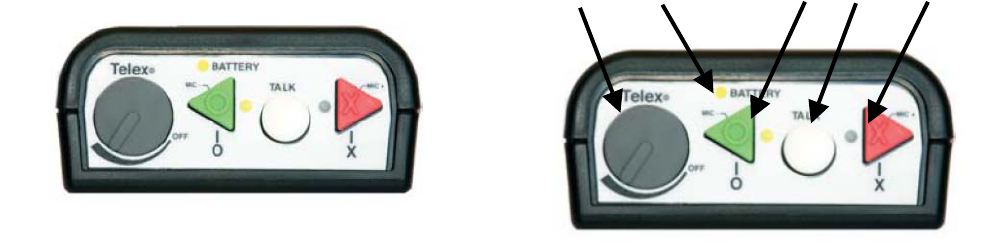

123 4 5
Top View
Page 2 of 3
6. Charge Jack – Used to charge the internal
battery. Accepts a 5.5mm x 2.5mm plug with
the center positive. Must be supplied with a
12VDC regulated power supply with at least a
400mA current capacity.
7. Charge Light.
a. RED =Beltpack battery is charging.
b. GREEN = Beltpack battery is charged.
8. Headset Connector – Standard 4-pin XLR
connector.
a. Pin 1 = Microphone GND
b. Pin 2 = Microphone HOT
c. Pin 3 = Headphone +
d. Pin 4 = Headphone –
9. Programming Jack – This RJ-45 jack is used to
update programming in the unit if ever needed.
Operation
Once the XO-AP is running the XO-1 may
be switch on at anytime.
Normal Start
1. Turn on the unit. The battery light
will turn green immediately
indicating power.
2. After 20 seconds, the “O” button
light will activate indicating the unit
has finished booting.
3. Use as normal.
Wired Only Start (Programming
Only)
1. Press and hold the “X” button.
2. Turn on the unit as holding the “X”
button. The battery light will turn
green immediately indicating power.
3. When the unit finishes booting the
radiocard will be inactive, but the
RJ-45 jack will be active.
4. Connect a standard or crossover
Ethernet cable to the beltpack.
5. Update flash if needed.
Wireless Master Start
1. Press and hold the “O” button.
2. Turn on the unit as holding the “O”
button. The battery light will turn
green immediately indicating power.
3. When the unit finishes booting the
beltpack will be in AP master mode.
4. Use as a normal beltpack, however,
the beltpack will be acting as an AP
for any other beltpacks in the system.
Microphone Gain Adjust
Once the unit has booted-up, press and hold
the talk button. Then press the “O” button
for less gain, the “X” for more gain. Each
audible “click” is a microphone gain step.
There are 16 levels. Release talk and hit the
“O” button to exit microphone adjust mode.

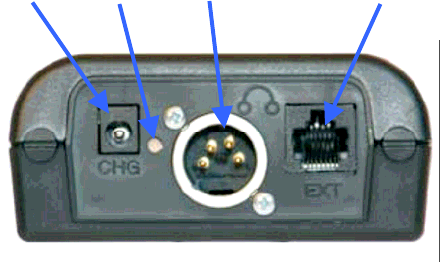

6 7 8 9
Bottom View
Page 3 of 3
Specifications
Technology……………………………………… 2.4 GHz, IEEE 802.11b
Power……………………………………………. Internal Li-Ion 7.2V, 2000mAhr, Battery.
Typical battery life of 8 hours.
Current Draw……………………………………. 250mA typical with radio card active
RF Frequency Range……………………………. 802.11 Channels 1 – 11 (2.412 to 2.462GHz)
Modulation Technology………………………… DBPSK, DQPSK, CCK
Antennas………………………………………… Internal dipoles
RF Output Power (Terminated)………………… 70mW
Data rates……………………………………….. 2 and 5.5 Mbps
Sensitivity (Worst case)………………………… 5.5Mbps 10-5 BER @ -83dBm
Frequency Response…………………………….. 500 Hz to 3900 Hz
Audio Output (headset)…………………………. 40mW, 600 Ohms (1% Distortion)
Beltpack Size……………………………………. 5.25L x 3.75W x 1.68H inches
Beltpack Weight………………………………… 14 oz
FCC License…………………………………….. No License Required
Regulatory Information
This device complies with Part 15 of FCC rules
and Canada RSS-210. Operation is subject to the
following conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
3. This device must not be co-located or
operated in conjunction with any other
antenna or transmitter.
To assure continued compliance with FCC
regulations, any changes or modification not
expressly approved by the party responsible
for compliance could void the user’s
authority to operate this equipment.
To assure continued compliance with
FCC regulations, any changes or
modification not expressly approved by
the party responsible for compliance
could void the user’s authority to operate
this equipment.
