Bosch Security Systems RF3402 Recessed Wireless Window or Door Magnetic Contact User Manual F01U000844B RF3402 Inguide indd

Bosch Security Systems Inc Recessed Wireless Window or Door Magnetic Contact F01U000844B RF3402 Inguide indd

users manual

Mounting Locations
Recessed Wireless Window or
Door Magnetic Contact
Installation Instructions
www.boschsecuritysystems.com
© 2004 Bosch Security Systems
F01U000844B
RF3402
Compliance

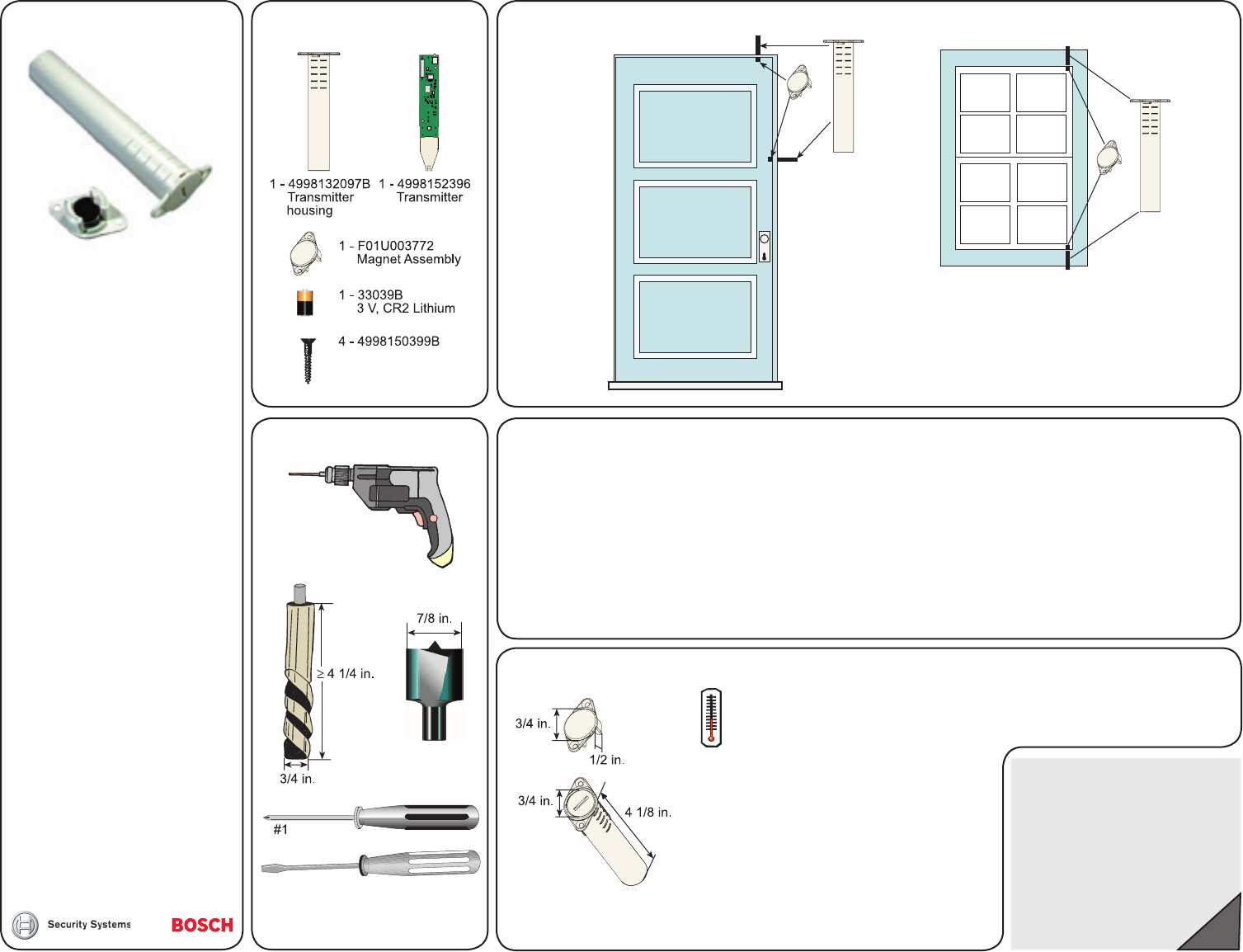

Parts List
1
Tools Needed
UL
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable operation.
Changes or modifi cations not expressly approved by Bosch Security Systems can void the user’s authority to operate the
equipment.
Specifi cations
-20 °C to +65°C (-4°F to +149°F)
For UL Listed installations, the temperature
range is 0 °C to +40°C (+32°F to +104°F)
Battery Life: 5 years
Frequency: 304.00 MHz
Compatible Receiver: RF3224
Humidity: 95° non-condensing
© 2004 Bosch Security Systems
F01U000844B
2
1
Control Panel Programming
Use the number
on your RF3402 to
program the point
transmitter into the
control panel.
Battery Installation
1
2
3
4
5
6

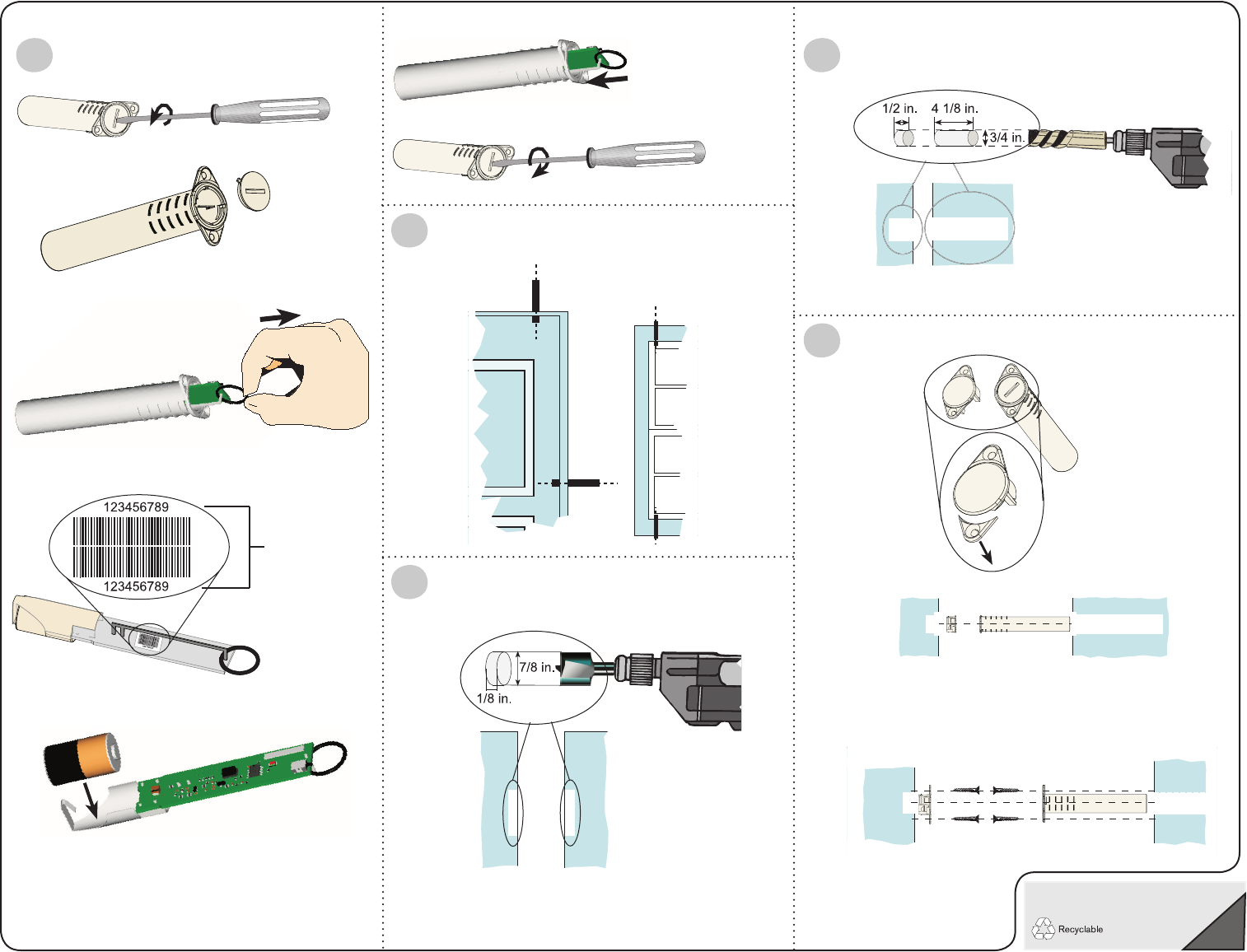

Installation
5Flush Mount
Surface Mount
4
3
2
Flush Mount Only - Countersink
Recommended batteries:
Duracell DLCR2
Eveready EL1CR2
Sanyo CR2
Surface and Flush Mount
7
Note: Install the magnet assembly on the the moving part
of the door or window and the transmitter housing on the
xed part.
