System Overview
Access Professional Edition System (hereunder referred to as
Access PE) consists of four modules
– LAC Service: a process which is in constant communication
with the LACs (Local Access Controllers – hereafter
referred to as Controllers). AMCs (Access Modular
Controllers) are used as Controllers.
– Configurator
– Personnel Management
– Logviewer
These four can be divided into server and client modules.
The LAC service needs to remain in constant contact with the
controllers because firstly it constantly receives messages from
them regarding movements, presence and absence of
cardholders, secondly because it transmits data modifications,
e.g. assignment of new cards, to the controllers, but mainly
because it carries out meta-level checks (access sequence
checks, anti-passback checks, random screening).
The Configurator should also run on the server; however it can
be installed on client workstations and operated from there.
The modules Personnel Management and Logviewer belong to
the Client component and can be run on the Server in addition,
or on a different PC with a network connection to the server.
The following Controllers can be used.
– AMC2 4W (with four Wiegand reader interfaces) - can be
extended with an AMC2 4W-EXT
– AMC2 4R4 (with four RS485 reader interfaces)
1
Access Professional
Edition System Overview | en 5
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Restrictions and options
You can use Access PE for systems that do not exceed the
following thresholds for connectable components and
manageable data volume.
– Max. 10,000 cards
– Up to three cards per person
– PIN length: 4 to 8 characters (configurable)
– PIN types:
– Verification PIN
– Identification PIN
– Arming PIN
– Door PIN
– Access variants:
– Only with card
– Only with PIN
– PIN or card
– Max. 255 time models
– Max. 255 access authorizations
– Max. 255 area-time authorizations
– Max. 255 authorization groups
– Max. 16 workstations
– Max. 128 readers
– Max. one I/O extension board (AMC2 8I-8O-EXT, AMC2
16I-16O-EXT or AMC2 16I-EXT) per Controller
– The following restrictions apply to each controller type:
1.1
6en | System Overview Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Controller AMC2 4W AMC2 4W
with AMC2
4W-EXT
AMC2 4R4
Readers/entrances
Max. readers per
AMC
4 8 8
Max. readers per
interface/bus
1 1 8
Table 1.1: System limits — readers and entrances
Video system — restrictions and options
– Max. 128 cameras
– Up to 5 cameras per entrance
– 1 identification camera
– 2 back surveillance cameras
– 2 front surveillance cameras
– You can configure one of these cameras as an alarm
and log book camera.
Offline Locking System (OLS) — restrictions and options
– Max. 256 doors
– The number of entrances and authorization groups in the
authorizations depends on the dataset length that can be
written to the cards.
– Max. 15 time models
– Up to 4 periods per time model
– Max. 10 special days/holidays (from the online system)
– The OLS functionality is only given with card No.1.
Notice!
USB devices which are connected at a remote desktop as e.g.
enrollment readers are not supported.
Access Professional
Edition System Overview | en 7
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Installation on one computer
The following figure shows a complete Access PE system
installed on a single computer. Controllers can be connected via
a serial interface. If a dialog reader is used then this is also
connected via a serial interface.
Figure 1.1: System Overview – Single Computer Configuration
1.2
8en | System Overview Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Installation on multiple computers

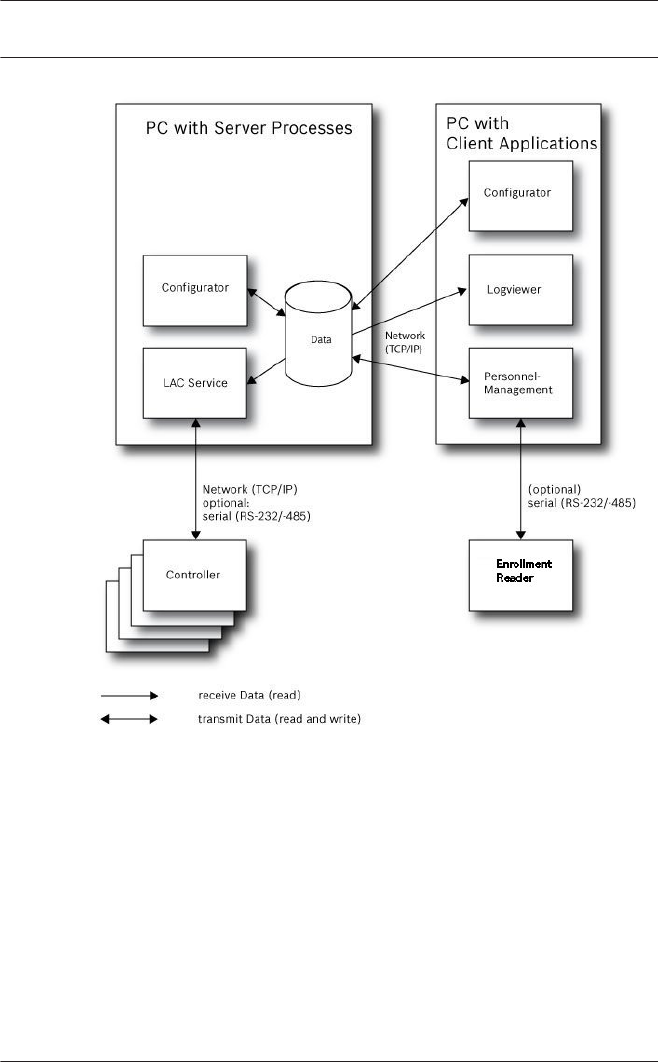

The following figure shows an Access PE system distributed
across 2 computers. This is particularly beneficial in cases
where the Server to which the Controllers are connected is in a
locked computer room, but the personnel data is maintained,
for example, by the personnel department elsewhere.
The Access PE Client can be installed on up to 16 computers,
which access common data on the Server via the network.
Client workstations can be configured to use two monitors.
Window positions maintained by the operating system, ensure a
familiar operators’ environment across login sessions.
Notice!
After an Unistall for Update check if all files have been
removed from the folder .. :\BOSCH\Access Professional
Edition with the exception of the folder SaveData.
1.3
Access Professional
Edition System Overview | en 9
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Figure 1.2: System overview – Distributed System
System Prerequisites
The installation of Access PE requires:
Operating Systems (one of):
– Windows 10 X64 professional
– Windows 2008 R2
– Windows 2008 Server
– Windows 7
1.4
10 en | System Overview Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Notice!
Microsoft Windows XP of all versions is not supported by the
Access Professional Edition 3.1
Other software:
– To run the AmcIpConfig application supplied (and the
Bosch Video SDK), you need the .NET Framework 4.0
platform.
– To create and display lists and reports, you must install
Crystal Reports applications.
Separate setups are available on the installation CD.
Hardware Requirements
Both Server an Client require a Standard Windows PC with:
– 4 GHz CPU
– 4 GB RAM at least
– 20 GB free disk space (Server)
– 1 GB free disk space (Client)
– 100 Mbit Ethernet Network Card (PCI)
– Graphical adapter with 1024x768 resolution and 32k colors
– Resolution support:
– 1024 by 768
– 1280 by 1024
– 2048 by 768
– 2560 by 1024
– CD/DVD-ROM Drive
– I/O Expansion Option
– USB Keyboard and Mouse
Access Professional
Edition System Overview | en 11
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
General - Configurator
Introduction
Access PE is an Access Control System which has been
designed to offer the highest standards of security and flexibility
to small and medium sized installations.
Access PE owes its stability and upgradeability to a 3-tier
design: The top tier is the administration level with its
controlling services. All administrative tasks are carried out
here, e.g. the registration of new cards and the assignment of
access rights.
The second tier is formed by the Local Access Controllers
(LACs) which govern each group of doors or entrances. Even
when the system is offline a LAC is able independently to make
access control decisions. LACs are responsible for controlling
the entrances, governing door opening times or requesting PIN-
codes at critical access points.
The third tier consists of card readers which, like the
Controllers, are identical across all BOSCH access controls.
They provide not only a consistently high degree of security, but
also a simple upgrade and expansion path for the system,
protecting previous investments.
Access PE multi-user version allows multiple workstations to
control the system. Customizable user rights levels regulate
access and guarantee security. In this way it is possible, for
example, to maintain card data from one workstation whilst
using another to verify whether an employee is present in the
building.
Access PE offers exceptionally flexible configuration of access
rights, time models and entrance parameters. The following list
gives an overview of the most important features:
Quick & Easy card Assignment
2
2.1
12 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Cards (up to three) can be assigned to persons either manually
or using a dialog reader connected to a PC via a serial
connection. All assigned cards are active. When upgrading cards
the old card is automatically overwritten and becomes invalid,
thus preventing old cards from gaining access even if those
responsible forgot or were unable to cancel them.
Access Rights (including Group Privileges)
Each person can inherit group privileges as well as having
individual rights assigned to him. Privileges can be restricted by
area and time to an accuracy of one minute. Group privileges
can be used to grant and limit access rights for any or all
cardholders simultaneously. Group privileges can be made
dependent on time models which restrict their access to certain
times of day.
Access tracking
By defining Areas it is possible to track and enforce a correct
sequence of accesses. Even without monitoring, this
configuration makes it possible to display a cardholder's
location.
Anti-Passback
When a card has been read it can be blocked for a defined
period from entering at the same access point. Hence it is
possible to prevent "passback", where a user hands his card
back across a barrier to provide access for an unauthorized
person.
Automatic Cancelation of cards upon Expiration
Visitors and temporary staff frequently require access for a
limited period only.
cards can be registered for a specific time period, so that they
automatically lose their validity when that period expires.
Time Models and Day Models
Access Professional
Edition General - Configurator | en 13
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
A cardholder can be assigned to specific time models which
regulate the hours in which that person has access. Time
models can be defined flexibly using day models which
determine how specific weekdays, weekends, holidays and
special days deviate from normal working days.
Identification via PIN-Code
Instead of a card a person can use a special PIN-Code to enter.
Verification via PIN-Code
Particularly sensitive areas can be programmed to require
additional PIN-Codes. This protection can in turn be made
dependent on time models, so that, for instance, a PIN-Code is
only required for access during holiday times or outside of
defined working hours.
Flexible Door Management
Flexible parameterization of individual door models allows an
optimum balance between security and comfort. The "shunt" or
alarm suppression period can be individually specified to
regulate for how long a door may remain open. In cooperation
with an alarm system the access point can then optionally be
locked.
Periodic Door Release
In order to facilitate access, door alarms can be shunted to
release doors for specific periods. Door release periods can be
defined manually or automatically via a time model.
Time and Attendance
Access points can be parameterized to record ingress and
egress for time & attendance purposes.
Card Design
The graphical add-in module Card Personalization (CP) is fully
integrated into the Access Control system to allow the operator
to create cards without switching applications.
Assignment of Photos
If the add-in module Card Personalization (CP) is not activated
photographic identification can nevertheless be imported and
associated with cardholders.
14 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Offline locking system
Areas which are not covered, for whatever reason, by the high-
availability online access control system can nevertheless be
locked offline.
Administration of video devices
Entrances can be equipped additionally with cameras to identify
and track the movements of persons using them.
User Login
– Start the user applications using the desctop icons:
Personnel Management
Configurator
Logviewer
Map and Alarm Management
Video Verification
or choose the tools via : Start > Programs > Access
Professional Edition
– Start the : Map & Alarm Management application using the
desctop icon or via : Start > Programs > Access
Professional Edition > Map & Alarm Management.
– Start the : Video Verification application using the desctop
icon or via : Start > Programs > Access Professional
Edition > Video Verification.
– Start the : Configurator application using the desctop icon
or via : Start > Programs > Access Professional Edition >
Configurator.
2.2
Access Professional
Edition General - Configurator | en 15
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
– Start the : Logviewer application using the desctop icon
or via : Start > Programs > Access Professional Edition >
Logviewer.
– Start the : Personnel Management application using the
desctop icon or via : Start > Programs > Access
Professional Edition > Personnel Management.

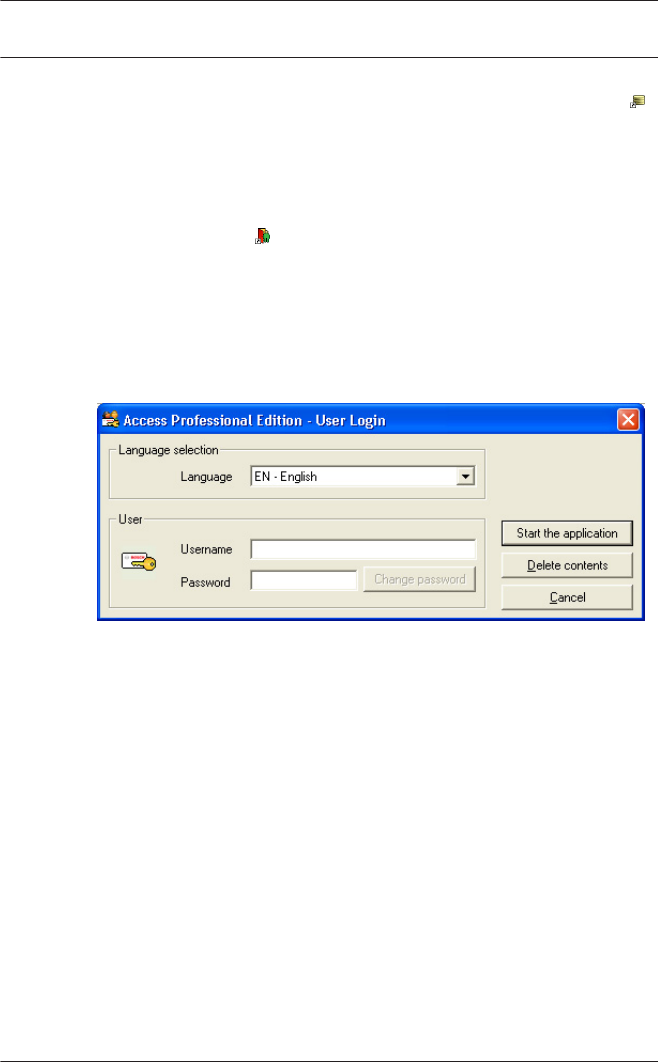

The system's applications are protected from unauthorized use.
A login with a valid username and password is required in order
to invoke the dialog-based subsystems.
The upper drop-down list can be used to select the desired
interaction language. The default is that language which was
used to install the application. If there is a change of user
without restarting the application then the previous language is
retained. For this reason it is possible for a dialog box to appear
in an undesired language. In order to avoid this, please log in to
Access PE again.
Access PE applications can be run in the following languages:
– English
– German
– Russian
– Polish
– Chinese (PRC)
– Dutch
– Spanish
16 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
– Portuguese (Brazil)
Notice!
All facilities such as device names, labels, models and user-
rights schemes are displayed in the language in which they
were entered.Similarly buttons and labels controlled by the
operating system may appear in the language of the operating
system.
If a valid username/password pair are entered then the button :
Change Password appears. This can be used to start a new
dialog to change the password.
The button Start the application checks the user's privileges
and, based on these, starts the application. If the system is
unable to authenticate the login then the following error
message appears: : Wrong username or password!
Login via Personnel Management
If the user is already logged into the Access PE Personnel
Management application, and if the user's rights include the
other tools, he can start the : LogViewer, : Configurator, : Alarm
Management and : Video Verification using the toolbar buttons.
If the user is already logged into the Access PE Personnel
Management application, and if the user's rights include :
LogViewer, then : LogViewer may be invoked directly using the
button in the tools list, without requiring a separate login to
the LogViewer application.
Access Professional
Edition General - Configurator | en 17
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
If the user is already logged into the Access PE Personnel
Management application, and if the user's rights include :
Configurator, then : Configurator may be invoked directly using
the button in the tools list, without requiring a separate
login to the Configurator application.
If the user is already logged into the Access PE Personnel
Management application, and if the user's rights include : Video
Verification, then : Video Verification may be invoked directly
using the button in the tools list, without requiring a separate
login to the Configurator application.
If the user is already logged into the Access PE Personnel
Management application, and if the user's rights include : Alarm
Management, then : Alarm Management may be invoked
directly using the button in the tools list, without requiring a
separate login to the Configurator application.
Menu and Tool bar
The following functions can be invoked via the menus, the icons
in the toolbar or specific keyed shortcuts.
Function Icon/
Shortcut
Description
Menu File
New
Crtl + N
Clears all configuration dialog
boxes (except for default
settings) in order to define a
new configuration.
2.3
18 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Function Icon/
Shortcut
Description
Open...
Crtl + O
Opens a dialog box to select a
different configuration for
loading.
Save
Crtl + S
Saves changes into the current
configuration file.
Save as... Saves the current configuration
into a new file.
Activate
Configuration
Activates a loaded configuration
and saves the hitherto active
configuration.
Send
Configuration to
LAC
Propagates saved configuration
changes to the LAC-Service.
List recently
active
configurations
Opens configurations directly,
circumventing the Open
function's selection dialog.
Exit Shuts down Access PE
Configurator.
Function Icon/
Shortcut
Description
Menu View
Tool bar Toggles display of the tool bar
(default = on).
Status bar Toggles display of the status bar
at the bottom edge of the
window (default = on).
Access Professional
Edition General - Configurator | en 19
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Function Icon/
Shortcut
Description
Menu Configuration
General Opens the General Settings
dialog for setting up Controllers
and general system parameters.
Input signals Opens the dialog box for
parametrizing input signals.
Output signals Opens the dialog box for
parametrizing output signals.
Entrances Opens the Entrances dialog for
parametrizing doors and card
readers.
Areas Opens the Area Configuration
dialog for dividing the protected
installation into virtual areas.
Holidays Opens the Holidays dialog box
for defining holidays and special
days.
Day Models Opens the Day Models dialog
box for defining time periods
within a day for the activation of
access functions.
Time Models Opens the dialog Time Models
for defining timezones
dependent on days of the week
or calendar.
20 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Function Icon/
Shortcut
Description
Personnel
Groups
Opens the dialog box Personnel
Groups for dividing personnel
into logical groups.
Access
Authorization
Groups
Opens the dialog box Access
Authorization Groups for
defining groupings of
authorizations to entrances.
Offline locking
system
Opens the Offline locking
system dialog for configuring
special elements of the
installation (Entrances, Time
models, Authorization groups).
Display Texts Opens the dialog box Display
texts for editing the texts to be
displayed at the card readers.
Log Messages Opens the dialog box Log
Messages for editing and
categorizing log messages.
Additional
personnel fields
Opens the dialog box
Additional personnel fields for
defining data fields for
personnel.

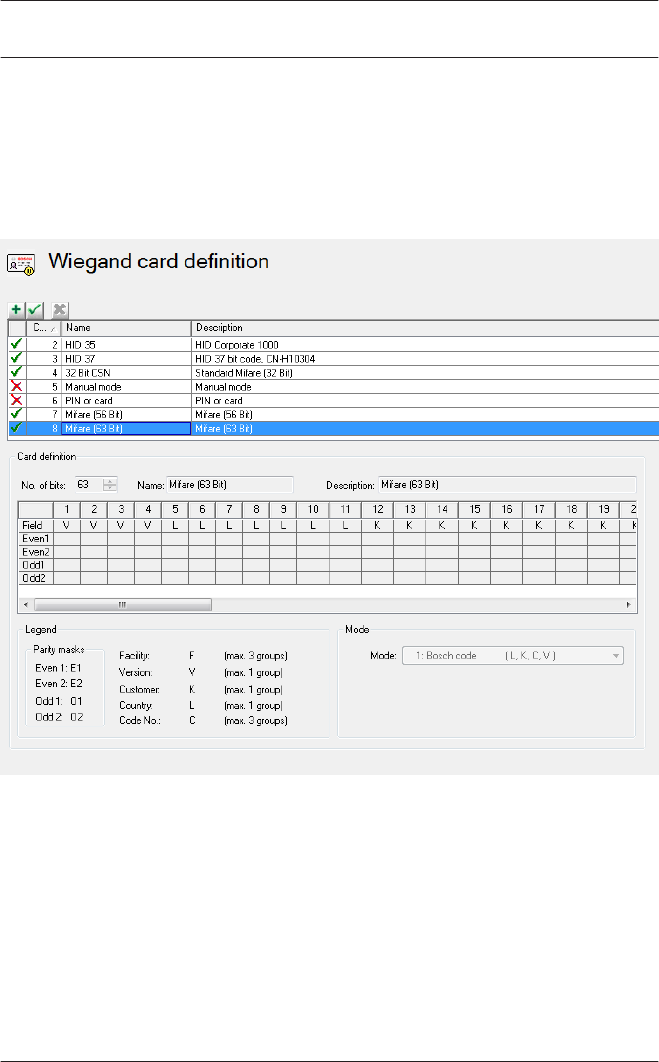

Wiegand - cards Opens the dialog box Wiegand-
cards for defining the structures
of card data.
Administering
video devices
Opens the Video devices dialog
for configuring cameras to be
used in video verification.
Access Professional
Edition General - Configurator | en 21
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Function Icon/
Shortcut
Description
Map Viewer and
Alarm
management
Opens the Map Viewer for an
areal view of maps and control
devices and the alarm list for
alarm handling.
Menu ? (Help)
Help topics Opens this help text.
About Access
Professional
Edition -
Configurator
Displays general information
about Access Professional
Edition - Configurator
General system settings
General system settings are displayed below the list of
controller settings. These are valid for all installations.
Parameter Default
value
Description
Country Code 00 Some card data are appended
to the manually entered card
number.
Customer Code 056720
2.4
22 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Parameter Default
value
Description
Poll interval on
serial
connected LAC
in ms
200 The time interval in milliseconds
between pollings by the LAC-
Service to verify intact
connections to a controller.
Range of values for poll interval:
1 to 500
Possible values for read-
timeout: 1 to 3000
Read-Timeout
on serial
connected LAC
in ms
500
Create TA data
at
00:01 Specification of the time at
which the Time & Attendance
data file should be created.
Export
personnel and
TA data
deactivated When activated this option
causes time & attendance data
to written continuously to the
export file.
When not activated the data file
is created at the time specified
by the parameter Create TA
data at.
The file containing attendance time-stamps is created in the
following directory:
C:\Program Files\Bosch\Access Professional Edition\PE\Data
\Export
Under the name TA_<Current date YYYYMMDD>.dat
Access Professional
Edition General - Configurator | en 23
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Parameter Default
value
Description
Show welcome/
leaving
message
activated Given appropriate reader type
and settings (Arriving, Leaving
or Check ok in the Entrances
dialog) the reader will display
those welcome and leaving
texts which are stored for the
cardholder in the Personnel
Data dialog of the Personnel
Management application.
Does not apply to Wiegand
readers.
Show
cardholder
name in display
aktiviert Readers with display will show
the Display Name as stored in
the cardholder's Personnel
Data.
Does not apply to Wiegand
readers.
Number of
digits
4 Determines the number of
digits a verification or arming
PIN requires.
This setting applies also to the
door PIN which can be set
during the configuration of
entrances.
Possible values: 4 to 8
24 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Parameter Default
value
Description
use separate
IDS PIN
If no separate IDS PIN is set,
then a verification PIN can be
used to arm the IDS.
Only if the check box is
selected do the input fields for
the arming-PIN become active
in the Personnel dialog screen.
In this case the verification PIN
can no longer be used to arm
the IDS.
Access Professional
Edition General - Configurator | en 25
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Parameter Default
value
Description
Count of retries
before blocking
3 Number of failed attempts to
enter the PIN. If the cardholder
mistypes the PIN this many
times then s/he will incur a
system-wide block which can
only be removed by an
authorized system user
(Personnel Management).
Possible values: 1 to 9
Directory paths
to:
Database
Log file
Import files
Export files
DLL files
Image data
Test-Logging
C:\Program
Files
\BOSCH
\Access
Professiona
l Edition\PE
\Data...
\Db
\MsgLog
\Import
\Export
\Dll
\Pictures
\Log
These are the default paths. The
directories for import, export
and image files can be changed.
Notice!
When using Wiegand controllers and readers, in order to use
Identification-, arming- or door-PINs the Wiegand card definition
PIN or Card (Nr. 6) needs to be activated.
26 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH

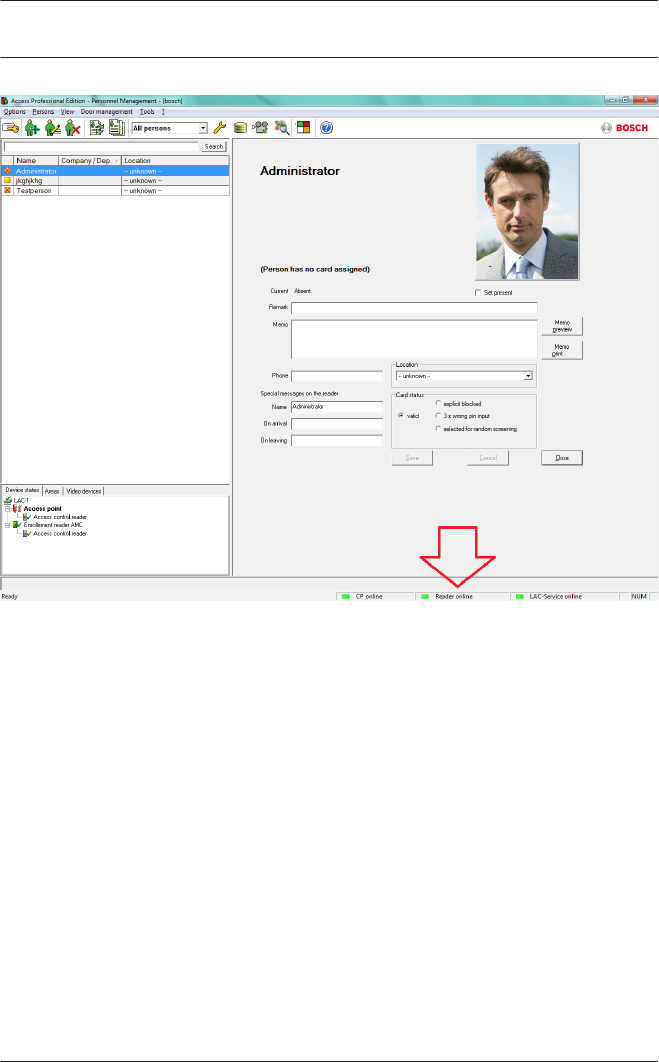

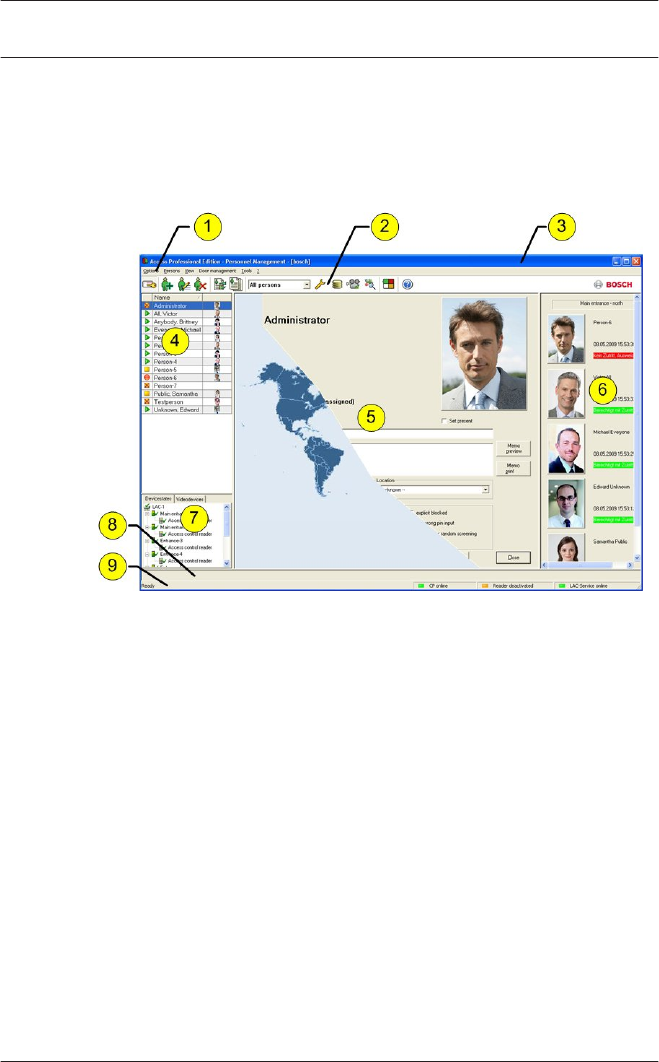

Layout of the main dialog
The dialog consists of the following parts:
1 = Menu bar — contains dialog functions displayed
according to the menu order.
2 = Toolbar — contains shortcut keys for the most
important dialog functions.
3 = Title bar — conforms to Windows standard and
contains buttons for minimizing or closing the dialog
window. The name of the registered user appears in
square brackets.
4 = Personnel table — lists all people known in the system
along with their attendance status (authorization and
location).
2.5
Access Professional
Edition General - Configurator | en 27
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
5 = Dialog field — the first time this field is opened or
when no user is logged in, it shows a neutral image
(map of the world). When an entry is selected from the
Personnel list, this person's data is displayed.
6 = Online swipe — lists the last five people (with
database image) that have swiped their cards at the
entrance selected.
7 = Device status — lists the configured devices and
entrances along with their connection status. Enables
door control functions.
8 = Event display — faults are indicated by a flashing red
bar (flashes three times) with details on the cause.
9 = Status bar — displays information on buttons and
menu entries that are controlled with the cursor.
Status display on card personalization program (CP),
dialog readers and LAC service.
When you enable the Video Verification component, additional
facilities will be added to this dialog; see Personnel
Management.
When you enable the Video Verification component, additional
facilities will be added to this dialog.
Menu and tool bar
The following functions are available via the menus or the icon
buttons.
Function Icon Description
Menu Options
Refresh Refreshes the Personnel list
2.6
28 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Function Icon Description
Exit Exits the Access PE Personnel
Management application
Menu Persons
New person Opens a blank personnel and
card data dialog
Modify person Opens the personnel and card
data dialog with the data of the
selected person.
Delete person Deletes the selected person
(after confirming a safety check
dialog).
Transmit selected
person to the LAC
service
Transmits the selected person's
data to the LAC service and
reports success.
Transmit all
persons to the
LAC service
Transmits all persons' data to
the LAC service and reports
success.
Set all persons
absent
Sets all persons absent (after
confirming a safety check
dialog).
Set location of all
persons present
to unknown
Sets the location of all persons
to unknown and deactivates
access tracing for the next
booking of each person.
View/print reports Calls the dialog for creating
report lists.
Access Professional
Edition General - Configurator | en 29
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Function Icon Description
List
control
Restricts the persons shown to
those of the selected group.
Menu View
Symbol bar Toggles display of the tool bar.
Default = on.
Status bar Toggles display of the status
bar. Default = on.
Personnel data:
State
Card No.
Personnel-No.
Company
Personnel Group
Phone
Location
Choice of columns displayed in
the personnel overview in
addition to symbol and name
columns.
Default = State - Company -
Location
Menu Door management
open door These
functio
ns are
also
availabl
e via
The entrance selected in the
device list is displayed and can
be opened (one-off).
30 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Function Icon Description
Long-term open the
context
menu
(right
click on
the
desired
door/
entranc
e)
The entrance selected in the
device list is displayed and can
be opened (long-term).
lock door The entrance selected in the
device list is displayed and can
be locked.
Menu Tools
User logon Log in/off Personnel
management.
Execute the
Configurator
Executes Configurator and
transfers data from personnel
management.
Execute log
viewer
Executes Log viewer and
transfers data from personnel
management.
Execute Video
verification
Starts the application for
executing video verification.
Execute Alarm and
Map management
Starts the Map viewer and
Alarm management processing
application.
Video panel Shows four displays in the
dialog field for individual video
camera feeds.
Properties Opens a dialog box for general
system settings.
Menu ? (Help)
Access Professional
Edition General - Configurator | en 31
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Function Icon Description
Help topics Opens this help file.
About Access
Professional
Edition -
Personnel
Management
Displays information about
Personnel Management.

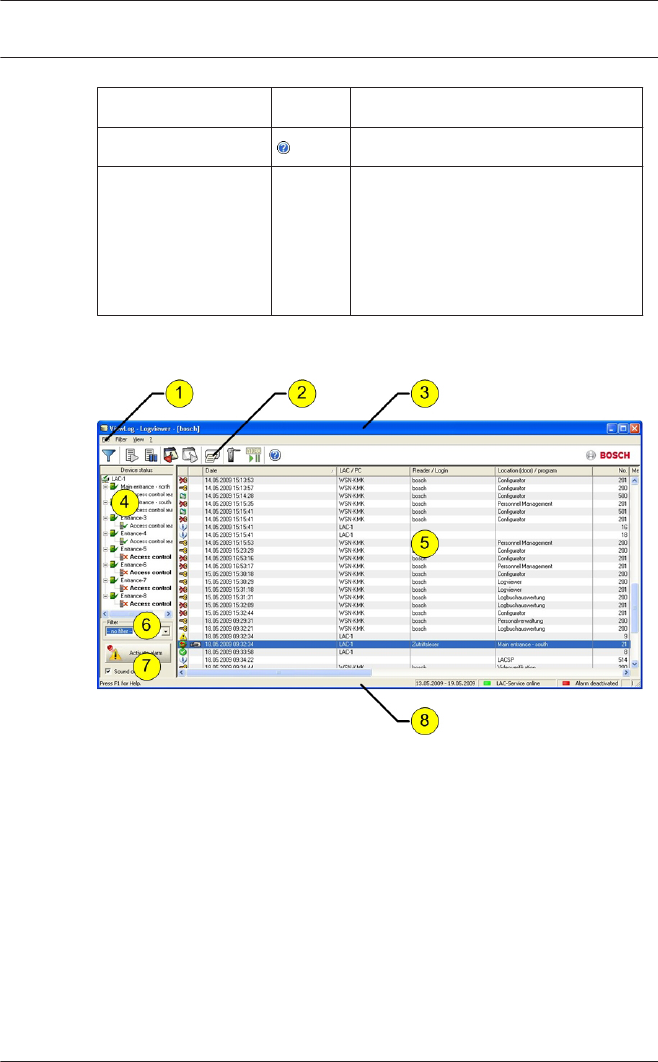

Layout of the main dialog
1 = Menu bar - Contains all dialog functions arranged in
menus.
2 = Tool bar - Contains the most important dialog
functions as icon buttons
3 = Title bar - Conforms to Windows standard and
contains buttons to minimize and close the main
dialog window. The name of the current user is
displayed in square brackets.
2.7
32 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
4 = Device status - List of the configured devices and
entrances along with their connection status.
5 = Message list - List of messages arrived hitherto. The
display can be modified by specific filter settings.
6 = Filter selection - Predefined and customized filters
can be selected from the combo-box.
7 = Alarm activation - Triggers the activation/
deactivation of alarms for messages. An incoming
message can be accompanied by an acoustic signal.
8 = Status bar - Dates of the log files opened. Status of
the LAC Service. Alarm settings.
Menu and Tool bars
The following functions are available for log evaluation via
menus and icon buttons.
Menu Function Icon
button
Description
File Print... Print the log messages
displayed
Exit Closes the LogViewer
application.
Filter Filter
definition
Opens the message
filtering dialog.
2.8
Access Professional
Edition General - Configurator | en 33
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Menu Function Icon
button
Description
Continuous
mode on
Starts continuous
message display. This
icon is only active
when the function is
not already running
and the message filter
is set to the current
day.
Continuous message
display is the default
setting.
Continuous
mode off
Pauses the continuous
message display. This
icon is only active
when continuous
message display is
running.
Events
previous
day
Switch to previous
day's messages.
Events next
day
Switch to next day's
messages.
View Symbol bar Hides/Displays the
tool bar.
Default = on.
Status bar Hides/Displays the
status bar.
Default = on.
without a menuitem
34 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Menu Function Icon
button
Description
? (Help) Help topics Opens this help file.
About
LogViewer
Opens Help About
Access PE LogViewer.
Enrollment Configuration
Enrollment Readers (RS 232) > Tools > Settings calls a dialog
in which it is possible to perform basic configuration tasks
(activate, modify) from any workstation.
– Administrative workplaces, where persons are assigned
cards, can be fitted with an enrollment reader. This must be
parameterized and configured according to the
manufacturer's specifications, or those delivered with the
device. If an enrollment reader is set up then manual card
checking is deactivated.
The required settings for supported readers are:
Reader name BAUD D P S
DELTA 1200 Prox RS232 9600 8 N 1
DELTA 1200 iClass RS232 57600 8 E 1
DELTA 1200 USB Hitag, Legic, Mifare 9600 8 N 1
DELTA 1200 RS232 Hitag, Legic, Mifare 19200 8 N 1
Rosslare ARD-1200EM USB 9600 8 N 1
LECTUS secure 5000 MD 9600 8 N 1
2.9
Access Professional
Edition General - Configurator | en 35
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
D = Data bits N = none
P = Parity E = even
S = Stop bits O = odd
–Chip card system
Displays the card technology — MIFARE classic and Hitag1
can be used for Access PE.
36 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
– If the system has been installed with the optional Card
Personalization (CP) module then the corresponding check
box is selected in settings. Unchecking this box blocks all
functions for card design/creation.
– In addition the automatic transfer of personnel data via
Connection to the LAC Server is also checked. This box
should always remain checked.
– The display of card information during card assignment can
be disabled here. This display is only necessary when,
contrary to default settings (see General Settings in Access
PE Configurator) card data are required which do not
conform to the company standard settings.
Enrollment via AMC connected readers
Make sure that at least one reader is configured with a Door
Model 06c, which is the door model for enrollment.
Start the Configuration Browser and select a Local Access
Controller (LAC) (e.g. AMC2…)
2.9.1
Access Professional
Edition General - Configurator | en 37
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Click the Entrances symbol an add a new Entrance reader:
38 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
The dialog window Define Entrance opens:
Access Professional
Edition General - Configurator | en 39
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
In this dialog:
– Enter a Description (e.g. Enrollment Reader AMC)
– Select a LAC and a group ID (GID)
– Select a reader type (e.g. Wiegand)
– Select a number between 1 and 8 as Access Reader
Address
Click OK to conform the enrollment configuration.
40 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
To assign the configured enrollment reader to a specific
workstation, you have to change tot he APE client.
– Select Tool > Properties.
Select an available enrollment reader to activate the enrollment
process.
Confirm that your enrollment reader is online.
If you don’t get an immediate response, restart the Personnel
Management dialog.
Access Professional
Edition General - Configurator | en 41
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
42 en | General - Configurator Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Configurations
The composition of a system (what entrances there are where,
how many readers and of what type, how access authorizations
are set up etc.) is saved in special files. Any number of these
configuration files can exist — however, only one can apply to
the current system. This makes it possible to test new
scenarios, carry out test runs and carry out quick system
changes.
Creating new configurations
All Access PE configurations are stored in the folder C:\BOSCH
\Access Professional Edition\PE\Data\Cfg (unless non-default
paths and folder names are chosen during installation). Two
configuration files are created by the installation, namely
Active.acf and Default.acf. Whereas Active.acf contains example
data, which may be helpful to the user, Default.acf contains only
predefined system data.
System data include:
– The area --outside--.
– Example holidays and special days
– The personnel groups Employees and Visitors
– Display texts for readers.
– Logbook texts
Upon startup Access PE always uses the configuration
Active.acf.
A configuration may find itself in different states, and it is
important to distinguish between them
– An Active configuration is one whose definitions, settings
etc. are currently being used by the running system.
– An Open (aka loaded) configuration is one which is
currently being edited by system users. It may later be
stored in a separate .acf file and/or later activated, but until
it is activated it has no influence on the running system.
3
3.1
Access Professional
Edition Configurations | en 43
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Any number of configurations can be defined and stored in
Access PE. Because new configurations can be created and
modified independently of the running system, it is possible, for
example, to define new areas which will be included in the
monitored installation at a later date.
Using the button in the toolbar the default configuration
Default.acf, with its basic settings, can be opened (loaded). If
modified to create a new configuration it should be saved under
a different and appropriate name.
The button starts a file-saving dialog in the Cfg directory.
The default filename untitled.acf should be replaced by a more
explanatory filename.
!
Warning!
The default configurations active.acf and default.acf should
never be renamed or overwritten. Always store modifications of
default.acf under a new name.
44 en | Configurations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Opening configurations
Configurator is always started with the configuration Active.acf.
If a different configuration is to be used, then the button can
load an existing configuration from the folder C:\BOSCH\Access
Professional Edition\PE\Data\Cfg (by default).
If the user wishes to make changes to or expand an existing
configuration to be activated at a later date, then s/he can open
a basic configuration, modify it and then save it under a
different name. In this way it is possible to re-use and expand
upon previous configurations, and one does not have to start
every time from the very basic settings in default.acf.
Notice!
The active configuration too can be saved as a working copy
under a new name, and this loaded and worked on at a later
date.
3.2
Access Professional
Edition Configurations | en 45
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Activating a new configuration
Configurator offers the possibility of maintaining multiple
configurations in multiple .acf files. The active configuration is
always stored in the file Active.acf .
!
Caution!
As active.acf is overwritten when a new configuration is
activated, it is urgently recommended that the user make a
backup copy of the active configuration under a new filename.
Configuration files must be opened before they can be
activated. Therefore a previously modified and saved
configuration should be opened.
In order then to activate the opened configuration please
proceed as follows, either:
– Menu: File > Activate configuration or
– Use the button in the toolbar.
The activation then proceeds in stages:
– First confirm the safety check.
: Do you really want to replace the current configuration
with the new configuration?
– The hitherto active configuration is backed up as a file with
the name format: $yyyyMMddhhmmss -Active.acf (y =
year; M = month; d = day; h = hour; m = minute; s =
seconds).
– The currently open configuration is then stored under the
filename Active.acf i.e. the old active configuration will be
overwritten!
A information box shows the name of the saved file: : New
configuration was saved as <filename>!
3.3
46 en | Configurations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Propagating configurations to the
controllers
After making changes in the active configuration Active.acf it is
necessary to propagate these changes down to the controllers.
This can be started in two ways:
– Menu File > Send configuration to LAC service
– Using the button in the toolbar
The following dialog appears, in which you can choose which
configuration data will be propagated to the controllers.
Modified and saved data are preselected. You may select further
items or deselect already selected items.
When you have selected which data should be propagated to
the controllers then click OK.
Configuration data Propagation to the LACs becomes
necessary if...
General refresh ... log messages, additional fields or
card definitions have been modified.
System parameters ... LAC-Hardware has been modified.
Time models ... Holidays, Day or time models have
been modified
Reader texts ... Display texts have been modified.
3.4
Access Professional
Edition Configurations | en 47
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Configuration data Propagation to the LACs becomes
necessary if...
Door parameters ... at Entrances, one or more of the
following have been modified
– the opening time (in 1/10 sec.)
– the door contact
– data relating to door control
(opening times, contacts, time
profiles etc.)
Reader parameters ... at Entrances, one or more of the
following have been modified
– data for the entry or departure
readers
– alarm suppression time (in 1/10
sec.).
– anti-passback behavior of the
entrance
– buttons to open the door
Door configuration ... at Entrances, the door model has
been modified.
Notice: Reinput and modification of the
address (serial number, reader-type)
can only be carried out in the input
mask Define Entrance.
Signal definitions ... parametrization of input or output
signals has been modified
Authorization
groups
... authorization groups without time
models have been modified, or a new
time model added or deleted.
48 en | Configurations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Configuration data Propagation to the LACs becomes
necessary if...
Personnel data ... personnel data has been added or
modified, or access authorization
groups or time models have been
modified.
Complete
configuration
including LAC
service restart
.. the initial configuration of Access PE
has been concluded. A reset of the
controller can also cause the complete
configuration to be downloaded to the
controllers.
LAC service restart ... in general settings the polling interval
or the time for saving the TA data file
has been modified.
LAC service stop This option should only be used in
exceptional circumstances, e.g during
deinstallation in order to avoid a restart
of the computer.
Configurator sends a command to the : LAC Service to
propagate the configuration data to the controllers. The LAC
Service is responsible for the communication to and from the
controllers. This program is set up at installation time, as a
Windows Service which is automatically started upon booting.
Successful propagation to the LAC Service is reported as
follows:
Access Professional
Edition Configurations | en 49
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Controllers
The Local Access Controllers (LACs) are the points in Access PE
at which most access control decisions are made. Except for
system-wide control functions, such as the access sequence
check, the controllers can take independent decisions regarding
who is granted access. For this reason, they have all access-
related data in their own memory so that limited and restricted
offline operation is also possible.
In Access PE it is predominantly AMC2 (Access Modular
Controller) controllers that are used. For replacements within
legacy systems, LACi (Local Access Controller integral)
controllers can also be configured.
Defining and modifying new controllers
The buttons (add) and (modify a selected list element)
invoke a dialog box for configuring the interfaces between
Access PE Server and the controllers.
Every controller must have a protocol assigned to it. The
following are settings are available:
4
4.1
50 en | Controllers Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
COM Connection via a serial (COM) interface requiring
the COM interface number (COMx)
CIP Connection via TCP/IP over COM requiring the
virtual COM interface number (COMx); only
available for LACi with IP/Serial transducer.
UDP Connection via UDP requiring the local UDP port
and the IP-Address (or the network name under
DHCP).
Notice!
Please ensure that when using CIP or UDP interfaces the DIL
address switch on the controller at position 5 is set to ON.
Depending on which protocol is chosen different additional
settings will be required, as shown in the following table:
Access Professional
Edition Controllers | en 51
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Paramet
er
COM CIP UDP Note
Address 1 to 8 1 to 8 always 1 When using
COM or CIP the
DIL-switch on
the Controllers
must have the
same address
setting.
Local
UDP-Port
Deacti-
vated
Deacti-
vated
consecutiv
e
The port via
which the
Access PE
server is to
receive data
from the
controller. A
new controller
will receive the
next free port,
depending on
its position, but
this entry can
be overwritten.
Remote-
IP-
Address
Deacti-
vated
Deacti-
vated
IP address
or network
name
In networks
using DHCP the
newtwork
name should
be used,
otherwise the
IP address of
the controller.
52 en | Controllers Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Paramet
er
COM CIP UDP Note
Remote-
IP-Port
Deacti-
vated
Deacti-
vated
unmodifia
ble value
10001
The port on the
controller to
receive data
from the
server.
COM-
Port
Pull-down
list of
COM-
Ports
Pull-down
list of
COM-
Ports
<none> The number of
the COM port
on the Access
PE server to
which the
controller is
connected.
LAC-Type Pull-down
list of
Controller
s
Pull-down
list of
Controller
s
Pull-down
list of
Controller
s
The following
controller types
are available:
AMC-Wiegand with Wiegand
reader
interface
AMC-RS485-BG900 with RS485
reader
interface
AMC-RS485-L-BUS with RS485
reader
interface for I-
BPR reader
LACi-BG900 with RS485
reader
interface
Access Professional
Edition Controllers | en 53
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Paramet
er
COM CIP UDP Note
LACi-L-Bus with RS485
reader
interface for I-
BPR reader
Program
version
(Project)
none none none may be used to
specify the
software
version
Time
offset
Combo box for specifying the time offset from the
server in cases where the AMC is in a different time
zone.
Possible values are -12:00 to +12:00 in 30 minute
intervals.
All times transmitted from the server to the AMC
(or vice versa) are adjusted by this offset. Local
AMC times are used in event messages and can be
viewed in the Event Log.
Controller (LAC) Test
Having made the settings the reachability of each controller can
be tested before saving. Thus any incorrect settings can quickly
be found and corrected or completed.
The Test LAC button at the lower edge of the dialog box
attempts to connect to the controller using the current settings.
This test can also be performed, after defining the controller, by
selecting it in the list box and clicking the button.
The test displays one of three results using the icons below,
which are also shown in the first column of the list.
54 en | Controllers Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
The controller has not yet been tested.
Test was successful. A connection was made.
Test was unsuccessful.
Notice!
These icons indicate only the result of the last test performed.
They are not a continuously updated indicator of the
reachability of each controller.
A controller test consists of various phases, some of which may
be skipped:
– Startup the LAC-Services.
– Download the LAC-Program
– Wait states:
– Read configuration data from the controller.
– Receive a status message from the controller
– Display the result of the connection attempt.
Depending on the result, the LAC-Service Status dialog is
displayed. After clicking OK the test result is displayed in the
list.
Controller Settings
The dialog box General Settings, invoked by the button is
where Local Access Controllers (LACs) are defined and
configured.
4.2
Access Professional
Edition Controllers | en 55
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Buttons for the following functions are displayed across the top
of the list:
Add a new controller.
Modify the selected controller.
Test the selected controller.
Delete the selected controller.
The list field includes all created controller and shows the
following informations:
Column Contents Description
, , or Result of the LAC Test:
negative, not yet
tested or successful
No. 1 to 128 Number of the
controller.
Address 1 to 8 The configured
address of the
controller as set by its
DIL switch. In the case
of UDP protocol this is
always 1.
Type AMC-Wiegand,
AMC-4R4 BG900
AMC-4R4 L-Bus
LACi BG900
LACi L-Bus
Selected controller
type.
56 en | Controllers Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Column Contents Description
Projectversion Example: 37.02 Special project
program version
loaded by the
Controller.
Connection Example:
UDP.: 54545>AMC-
DEMO: 10001>NONE
Interface parameters:
Protocol: local UDP-
Port>Nework name or
IP-Address: Remote IP-
Port>COM-Port
Serial-No. Example: 9999 9999 Serial-No. of the
controller.
Version Example: 37.02 Program version
loaded by the
Controller.
The lower part of the dialog box contains general settings for all
devices and applications in the Access PE installation.
Access Professional
Edition Controllers | en 57
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Signals
The controllers' input and output signals can be used, for
example, to determine door states and control doors.
Furthermore, these signals can also be used to associate
additional control functions with access requests. This allows
you to control and activate cameras, optical or acoustic
signaling devices, and alarm systems.
Input signals
Whereas door control and other control signals, along with
status messages, are configured under Entrances, the Input
Signals dialog is concerned with the detailed definition of signal
types and their monitoring.
5
5.1
58 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
When this dialog is invoked the first controller is always
displayed. Please use the como-box LAC and the consecutive
numbering scheme to select the desired controller. The
standard controller definition process creates 8 input and 8
output signals. If the controller is able to handle more than
these, then the button : I/O boards +/- can be used to create
further signals.
All defined signals appear in the list. The settings for each signal
are shown in the various columns of the list as well as in the
parameter controls for the selected signal which appear below
the list. All settings can be carried out both in the list and in the
parameter controls below the list, as described in the following
table.
Column Parameter Description
1 (no
label)
- Describes the state of the signal:
= Signal activated
= Signal deactivated
By double-clicking on the icon the
status can be toggled back and
forth
Board Board Number of the board where the
signal is located.
0 = Base board
1 = Extension board
This parameter is not modifiable
Signal Signal Number of the signal on the
board (1 to 16).
This parameter is not modifiable
Access Professional
Edition Signals | en 59
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Column Parameter Description
Signal
name
Name Name of the signal. In the
standard settings each signal
receives the name:
Signal <Board-No.>-<Signal-No.>
A double click in this column
allows the user to edit the name.
Message Message on...
State change
(open / close):
Alarm:
Graphic display of the parameter
setting in the List:
(only possible for Signal type
Analog)
A double click in this column
cycles through the message
icons.
Camera A camera from the selection list
can be assigned to certain input
signals. When the relevant signal
is activated, a log book message
is created; you can also use this
message to retrieve camera
images.
- only on
time
model...
during time
model
Shows the selected time model.
A double click in this column
allows the user to select from a
list of time models
<none> Signal type
Digital
Analog
The option Analog activates the
radio buttons to select the
resistance values.
60 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Column Parameter Description
R serial Serial
resistance
A double click in this column
opens a list of resistance values.
Selecting a serial or parallel
resistance value automatically
resets the signal type to Analog.
R par. Parallel
resistance
Notice!
Not all of the listed values can be combined with each other - a
statement regarding the use of suitable resistance pairs can be
found in the installation manual for the AMC2 device.

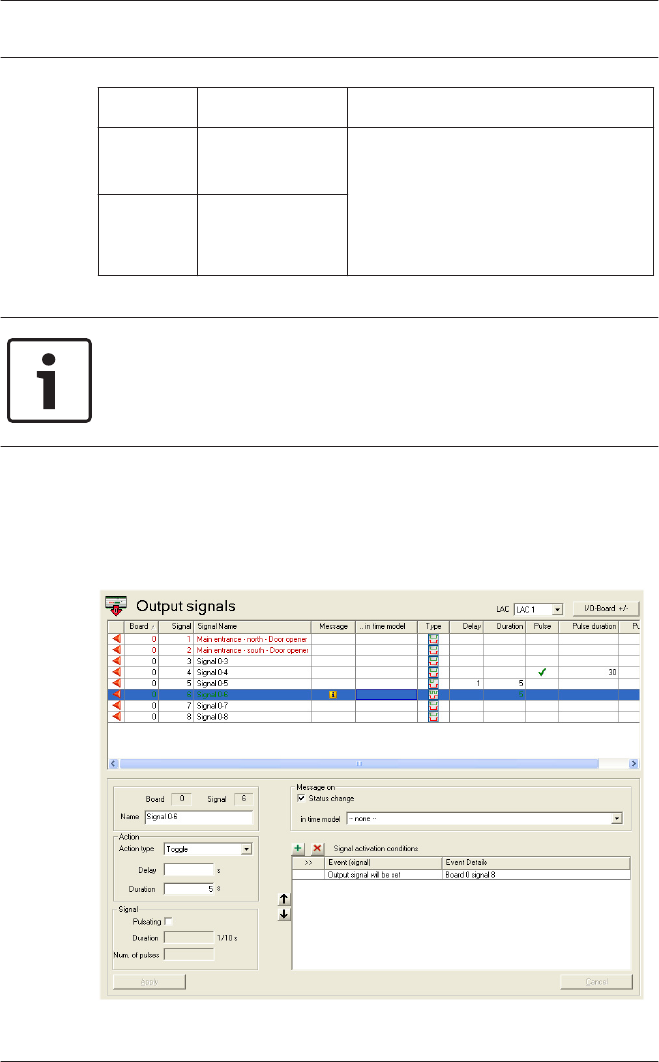

Output signals
This dialog box is used to parameterize the output signals and, if
necessary, to define further signal boards.
5.2
Access Professional
Edition Signals | en 61
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
When this dialog is invoked the first controller is always
displayed. Please use the combo-box LAC and the consecutive
numbering scheme to select the desired controller. The
standard controller definition process creates 8 input and 8
output signals. If the controller is able to handle more than
these, then the button : I/O boards +/- can be used to create
further signals.
All defined signals appear in the list. The settings for each signal
are shown in the various columns of the list as well as in the
parameter controls for the selected signal which appear below
the list. All settings can be carried out both in the list and in the
parameter controls below the list, as described in the following
table.
Along with the settings described here it is possible to define
additional conditions which must be fulfilled in order to activate
the output signal.
Column Parameter Description
1 (no name) - Describes the state of the
signal:
= Signal activated
= Signal deactivated
By double-clicking on the icon
the status can be toggled back
and forth.
Board Connection Number of the board where the
signal is located.
0 = Base board
1 = Extension board
This parameter is not
modifiable.
62 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Column Parameter Description
Signal Number of the signal on the
board (1 to 16).
This parameter is not
modifiable.
Signal
Name
Name Name of the signal. In the
standard settings each signal
receives the name:
Signal <Board-No.>-<Signal-No.>
Signals which have been defined
and activated in the Define
entrance dialog are displayed
here with their entrance names
and their signal descriptions.
A double click in this column
allows the user to edit the
name.
Message Message on...
State change
Graphic display of the
parameter setting in the List:
A double click in this column
toggles the setting on and off.
- only in
time
model...
during time
model
Display and selection of the time
model.
Access Professional
Edition Signals | en 63
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Column Parameter Description
Type Action type:
Momentary
Follow state
Toggle
Three action types are available:
A double click in this column
cycles through the action types
in the order shown here.
Delay Delay Delay in seconds before the
signal is transmitted [0 - 9999].
Duration Duration Delay in seconds before the
signal is transmitted [0 - 9999 ;
0 = always or until halted by a
cancellation message.
Pulse Pulsating Activates pulse transmission,
otherwise the signal is
transmitted at a constant rate.
A double click activates this
option but marks it as undefined
with a icon until duration and
number of pulses have been
defined. Thereafter it is marked
with a .
Pulse
duration
Duration Duration of the pulse.
Pulse count Num. of
pulses
Number of pulses per second.
64 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Actiontype: Momentary
Access Professional
Edition Signals | en 65
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Actiontype: Toggle
66 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH

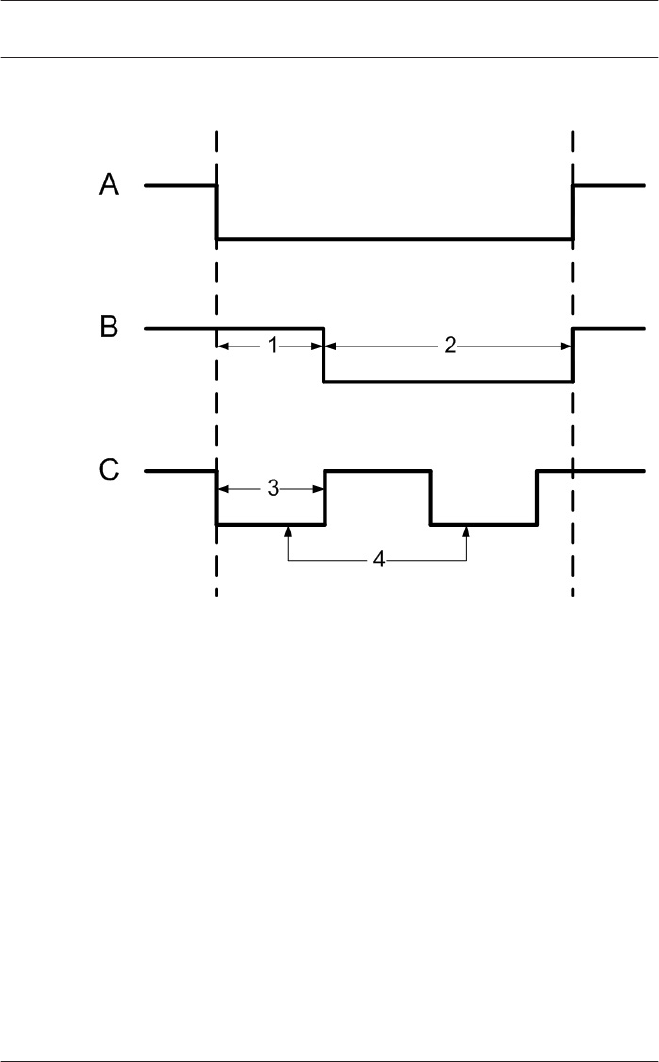

Actiontype: Follow state
A = polled state
B = steady
C = pulsed
1 = delay time
2 = action period
3 = pulse width
4 = pulse count (= 2)
Access Professional
Edition Signals | en 67
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
5 = max. activation time
Defining conditions for output signals
The dialog box Output signals offers, apart from settings, a way
of defining additional conditions which allow the transmission of
output signals only under specific circumstances.
These special conditions are defined in the lower-right dialog
area for those signals selected in the main list.
Press the button to open the dialog below. You can use this
dialog to configure the relevant conditions.
5.3
68 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Depending on which activation condition is chosen it may be
necessary to enter further information, e.g. the name of the door
reader, before the dialog can be confirmed by clicking OK.
You can apply any number of conditions to each signal. You
must reopen the dialog for each new condition by pressing the
button.
Notice!
It is only possible to select those signals and installations
(entrances, readers, doors) which are connected to the
controller whose output signal you are parameterizing.
When defining the condition you can choose between the modes
normal (if the condition needs to be fulfilled) and not (if the
condition must not be fulfilled).
Further conditions are made dependent on the first by choosing
one of the operators and, and not, or or or not.
Access Professional
Edition Signals | en 69
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
The conditions are processed in the order they are listed. If this
order does not reflect the procedure required, conditions can
be repositioned. Select the relevant condition from the list and
then reposition it by pressing the or button.
70 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH

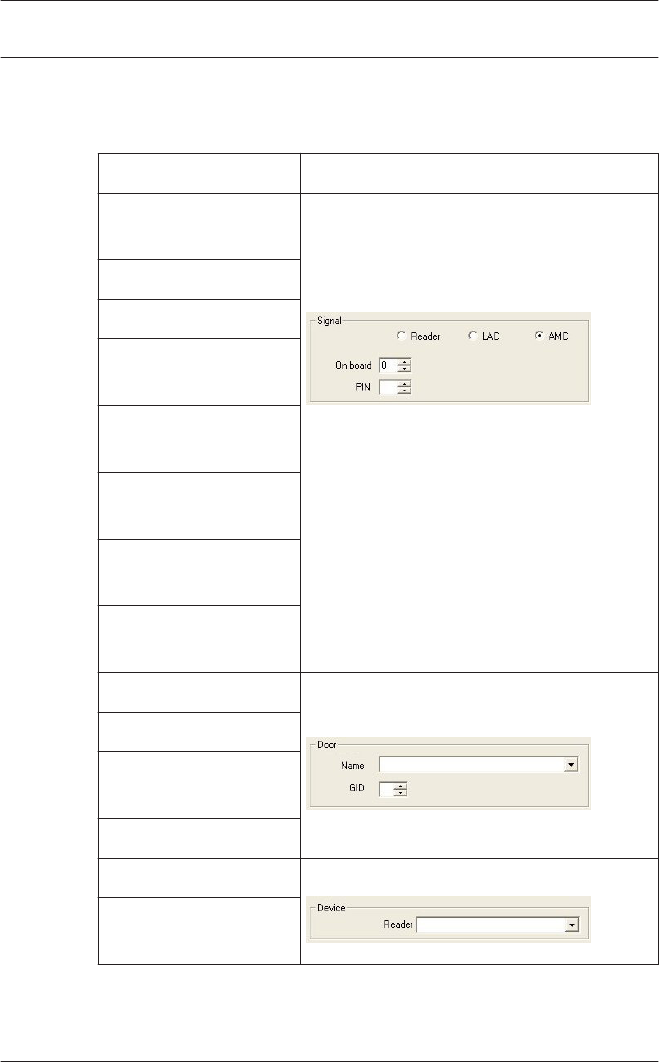

What supplementary information is required for which
condition can be found in the following table:
Condition Further information required
Input signal will be
set
Information about the device type
where the signal is located.
Selection of the board.
Selection of the connection.
Input signal is set
Alert: Short circuit
Alert: Connection
broken
Signal deactivated by
time model
Signal activated by
time model
Output signal will be
set
Output signal will be
reset
Door will be opened Selection of the entrance.
GID (Group ID) is set automatically.
Door will be closed
Door opening
unauthorized
Door open too long
Access Selection of the reader.
Unauthorized, no
access
Access Professional
Edition Signals | en 71
Bosch Access Systems GmbH 2015-11 | | Configuration Manual

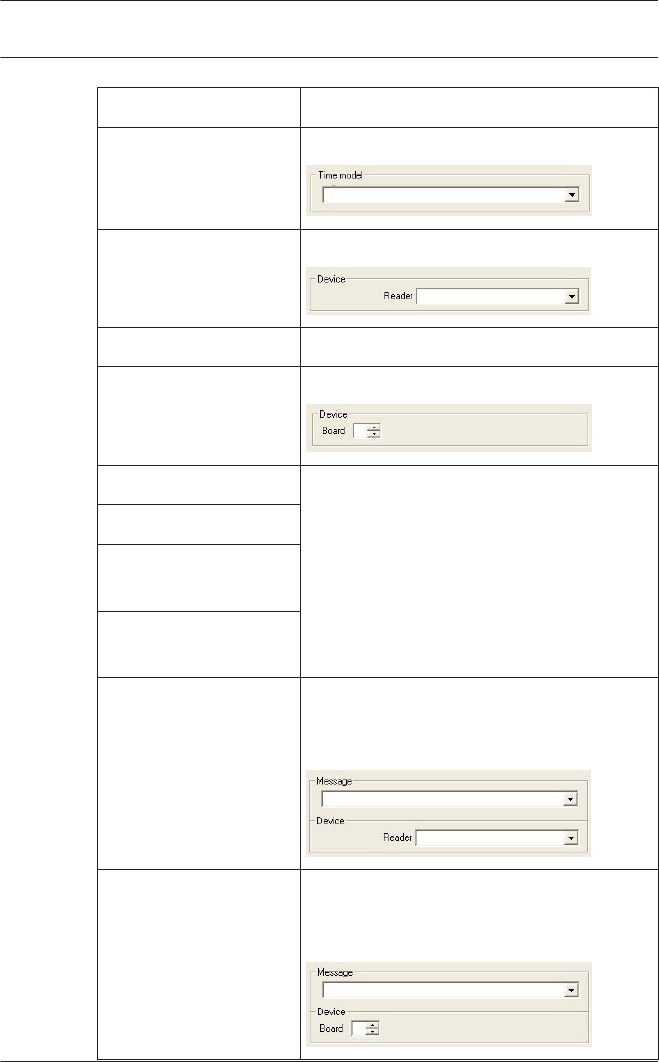

Condition Further information required
time model active Selection of the time model.
Sabotage at reader Selection of the reader.
Sabotage at LAC No further information necessary.
Sabotage at signal
extension board
Selection of the board.
Power failure No further information necessary.
Power ok
Connection LAC ->
APE established
Connection LAC ->
APE broken
Message from reader Selection of the message from the
predefined list.
Selection of the reader.
Message from device Selection of the message from the
predefined list.
Selection of the board.
72 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Access Professional
Edition Signals | en 73
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Creating Extension boards
You can configure extension boards in the dialogs for both input
signals and output signals. The settings configured in one
dialog will be activated in the other.
You can use and configure three types of extension board in the
Access PE access control system — all three types are processed
via one of the signal dialogs.
–AMC2 4W-EXT - to extend the interfaces of a Wiegand AMC
(AMC2 4W)
–AMC2 8I-8O-EXT — 8 further signals each
–AMC2 16I-16O-EXT — 16 further signals each
Above the list window please select the desired Controller from
the LAC combo-box. These controllers are created with 8 signals
on the main board (=0).
To create the extension board click the button marked I/O
Board +/- , which will bring up the following dialog:
5.4
74 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
By checking one or two of the boxes the following settings can
be made:
–AMC Main Board (Signals 9 - 16)
Creates a Wiegand Extension board AMC2 4W-EXT.
This board has the same interfaces as an AMC2-4W
controller (4 Wiegand reader interfaces, 8 input and 8
output signals). However it can not function independently
and must be connected to an AMC2-4W.
This extension can only be used with an AMC2-4W.
An AMC2 4W-EXT can be configured with one additional IO-
Board.
In the list field for the input and output signals the
extension board, like the controller itself, is given the board
number 0, and the signals numbered 9 through 16.
Access Professional
Edition Signals | en 75
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
–AMC Extension Board IO8
Board with 8 input and 8 output signals as an extension to
the controller's interfaces.
This board can be connected to any AMC2 controller and,
when used with an AMC2-4W controller, can even be
combined with a Wiegand extension board AMC2 4W-EXT
In the list field of the input/output signals the extension
board is created with the board number 1 and signals
numbered 1 through 8.
–AMC Extension Board IO16
Board with 16 input and 16 output signals as an extension
to a controller's own interfaces.
This board can be connected to any AMC2 controller and,
when used with an AMC2-4W controller, can even be
combined with a Wiegand extension board AMC2 4W-EXT
In the list field of the input/output signals the extension
board is created with the board number 1 and signals
numbered 1 through 16.
Notice!
The settings made here for I/O boards apply equally to input
and output signals, and can be made in either of the two
dialogs.
76 en | Signals Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Entrances
When we talk about entrances, we always mean a whole made
up of several components that belong to an access control
system. Along with the door (which can also be a turnstile, a
mantrap, a barrier or an elevator), the system also includes one
or more readers and potentially buttons and control units (bolts,
motorlocks etc.). The system can also contain optical or
acoustic signaling devices or cameras as additional control
functions.
Creating and modifying door models
A new entrance can be defined using the button or via the
context menu within the list (right-click and select New
Entrance). The entrance name, the door model or device
addresses of the selected door can be edited using the button,
via double click or again via the context menu (right-click and
select Change Entrance).
6
6.1
Access Professional
Edition Entrances | en 77
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
When defing an new entrance a name must be given, which
should be unique and as descriptive as possible, because it will
be used to define authorization groups and individual access
rights in Personnel Management.
78 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
It is also necessary to select the number of the controller to
which this entrance is connected, and the Group ID (GID). In
general only the number of the controller requires attention,
because Access PE automatically assigns the next free GID. A
suitable door model must be chosen from the combo-box Door
model. Please consult the Appendix for a table of predefined
door models and their functionalities.
Depending on the door model combo-boxes are displayed for
entry and exit readers, where reader types must be selected.
Each reader must receive a unique address within its controller.
For readers with Wiegand interface only the number of its own
controller's interface is required. For readers with RS485
interface the assigned DIP-address is essential.
The button : Search device data can be used to collect and
display a list of the readers on the current controller. When
collected these data are stored in cache, and can be retrieved
by the : Device data from cache button. If the configuration is
changed the cache will no longer be current and the list will
need to be re-collected.
Notice!
Please ensure that the reader addresses concur with the
devices actually installed.
You can connect a maximum of four readers of type AMC-
Wiegand, and eight of type AMC-RS485 and LACi.
Access Professional
Edition Entrances | en 79
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Use of reader address 9:
Reader address 9 has been set up as an aid to configuration,
and serves as a buffer when rearranging parameters. If you have
assigned all the reader addresses of a controller but still need to
rearrange the parameters, then you can temporarily move a
reader to address 9 in order to free another address.
Example: You wish to swap readers 4 and 7. As you can not use
the same address twice proceed by assigning reader 4 to
address 9, move reader 7 to address 4, and finally move reader
9 (originally reader 4) to address 7.
Signal definition
Having selected the door model, all possible input and output
signals are displayed in the list box. By selecting one of the
elements and clicking the + button to the left of the list, or by
double clicking on the list element, you will invoke a dialog box
for the definition of signals.
The signal selected from the list box is displayed for orientation.
The effect of the signal is defined in the default settings of the
parametrized controllers, but can be modified here if required.
Additionally displayed are the board from which the signal
emanates, and the number of the signal interface. For the
enumeration of signals on the controller or an extension board
please consult the relevant installation handbook for that
device.
80 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Notice!
You should ask the installing technician for a wiring plan/listing
for the signals, which will enable you to parametrize the signals
in Access PE accordingly.
False correspondences to physical wiring can cause
considerable problems with the control of entrances and the
correct processing of their signals.
The dialog box requires you to choose between DCU (Door
Controler Unit), reader, LAC or AMC. If you choose DCU or
reader it will be necessary to enter the GID and DID of the
device. The following rules apply here:
–Reader
– GID = GID of the reader at the entrance
– DID = 1 for the first entrance reader, = 2 for the
second entrance reader, = 3 for the first exit reader, =
4 for the second exit reader
– Signal No. = Signal at the reader 1 ... 4
–LAC
– Signal No. = Signal at the LAC 1 ... 16
–AMC
– On board = Board No.. 0 or 1
– Signal No. = Signal at the AMC 1 ... 8 or, in the case of
extension boards, 1 ... 16
In the list box the parametrized connections are shown in their
respective columns. The first colums contains icons
representing the status of the signals:
Input signal not set
Input signal set
Output signal not set
Output signal set
Access Professional
Edition Entrances | en 81
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
A previously defined signal can be deleted using the - button.
82 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Display and parameterization
All those entrances known to the system are shown in a list on
the left hand side. By clicking one of the listed entrances the
data for that entrance will be shown in the parameter fields on
the right.
The following buttons are situated along the top of the list box:
Add an entrance
Modify an entrance.
Delete an entrance
The following connections are shown at the top of the
parameter fields.
6.2
Access Professional
Edition Entrances | en 83
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
LAC Sequential number of the controller assigned to
this entrance.
GID Group Number of this entrance with its door(s)
and reader(s)
Model The door model and description.
These entries can be modified by clicking the button or double
clicking on an entrance in the list.
The following door parameters can be set:
Door Parameter Description
Activation time
in 1/10 s
If no door frame contact has been
configured then the door opener will be
activated for the duration set here.
Otherwise the activation of the door
opener will cease as soon as the frame
contact sense that the door is open.
Default value = 40
Open time in
1/10 s
Maximum time for which the door may
remain open before sending the signal
"Door open too long" .
Default value = 300
Camera
activation time
in 1/10 s
If the entrance is equipped with a CCTV
camera then it will be activated for the
duration set here.
Default value = 100
Alarm
suppression
time for control
mechanism in
1/10 s
Duration of alarm supression (shunt)
before the door opener is activated. The
alarm suppression time is only effective if
the time set is greater than 0.
Default value = 0
84 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Door Parameter Description
Door contact If the door has a frame contact then this
can be parametrized to facilitate
monitoring the entry of a person. At the
same time, the signal to activate the door
opener is turned off if the door contact
shows that the door is open. This signal is
also used to control the alarm
suppression time.
Bolt contact If the door has a bolt contact sensor then
this can be parameterized to show
whether the door is really closed.

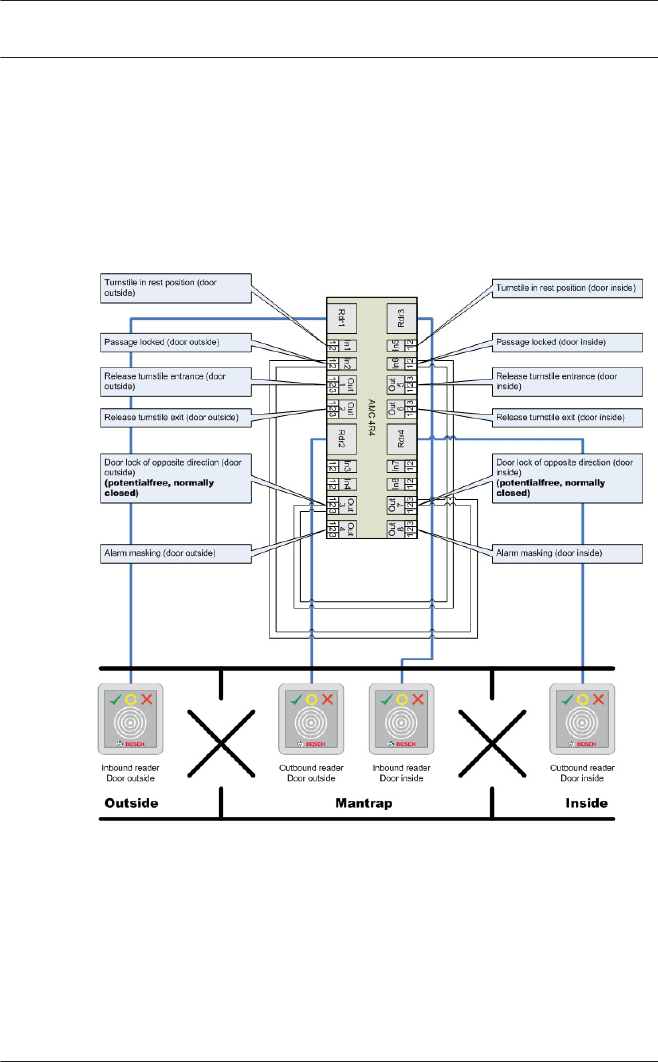

Part of a door-
complex
This parameter indicates whether the door
is part of a door-complex, e.g. a "mantrap"
or airlock. In this case the signals for the
door-complex can ensure that both doors
are never open simultaneously. If only one
door is defined as part of a door-complex
then the synchronisation is not active.
Intrusion events Here you can parameterize whether a
signal should be sent in the event of
unauthorized door opening. A prerequisite
for this is the existence of a door contact.
Door status
events
Provided the entrace has a door contact
the system can be parameterized to signal
every open/close event.
The following reader settings can be parameterized for an
entrance:
Access Professional
Edition Entrances | en 85
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Reader Settings
Entry and exit readers
Description
Access only Only general access events are
created by the reader.
Arriving When accessing through this card
reader a time and attendance (TA)
booking is made and the person is
booked as being present.
Leaving When passing through this card
reader a time and attendance (TA)
booking is made and the person is
booked as being absent.
Bookings created by readers which are configured for time
and attendance are recorded daily in a file in the directory C:
\Bosch\Access Professional Edition\PE\Data\Export (default
path).
A file named TA_<Current date YYYYMMDD>.dat is created,
which can be edited. Fields are separated by a semicolon and
can thus be edited by 3rd party spreadsheet applications, for
example.
Each booking record contains the following data:
Last name; First Name; Company; Personnelno.; Card no.;
Additional fields 1-10 (if parametrized); Name of the
entrance; Date (yyyymmdd); Time (hhmmss plus the letter "s"
to indicate daylight-saving time); Direction of passage
expressed numerically (1 = Arriving, 2 = Leaving); Direction as
a text string (ENTER, LEAVE)
86 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Reader Settings
Entry and exit readers
Description
Check OK Only for entry readers.
This parameter enables a reader to
be set up as release reader to
unblock the cards of personnel who
have been selected for random
screening.
It is important to ensure that a
release reader is not simultaneously
configured to be a screening reader
which randomly selects personnel
for screening.
Random personnel
screening - Rate-%
This parameter enables a reader to
be set up as a screening reader to
select cards randomly for personnel
screening.
As well as checking the box it is
necessary to enter a percentage rate
(1 to 99) for random screening. If no
entry is made then all cards will be
selected (100% screening).
It is important to ensure that a
screening reader is not
simultaneously configured to be a
release reader which unblocks cards
blocked by screening readers.
Access Professional
Edition Entrances | en 87
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Reader Settings
Entry and exit readers
Description
Anti-passback -
Timeout - Group id
This option blocks a card for the
specified timeout period from
reentering where it has just entered,
unless an exit has been recorded in
the meantime. This is to prevent
misuse of cards by passing them
back across a turnstile.
Timeout in minutes between 1 and
999.
Several readers can be combined in
a group. An anti-passback is valid for
each reader with the same group id.
Possible values: two characters 0 - 9
and/or A - Z
Entry as group -
required number of
persons
Only for entry readers.
This option grants entry only after a
group consisting of at least this
number of persons has presented
their cards.
Possible values 2-6.
With keypad Check this box if the door reader
possesses a keypad
No time model check By default accesses are checked
against time models. This behaviour
can be circumvented by setting this
parameter.
88 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Reader Settings
Entry and exit readers
Description
Motor move-in This option should be activated
when the reader has a card feeder.
Push button - always
enabled
This parameter enables the
recognition of a signal to open the
door. This signal can come from a
push button or from a telephone e.g.
if no reader is available.
always enabled: If normal settings
are configured, the push button does
not work when the security system is
activated. This means that it is not
possible to exit the monitored area.
With this option the push button
remains operational, even with an
armed alarm system.
If the push button is activated, this
function includes an exit reader, too.
Notice!
Checks which go beyond the basic verification of authorizations
and time models (e.g. access sequence checks, anti-passback
checks, random screening) are carried out by the LAC
subsystem process. To deliver this functionality the Access PE
server must be running round-the-clock (24 x 7).
The unlocking of the entrance can be configured with the
following parameters:
Access Professional
Edition Entrances | en 89
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Door unlock type Description
Normal The door is locked and will be opened
only if its reader is presented with a valid
card.
Long-term The door is open for a prolonged period,
e.g. during daylight hours, or as long as
the reception is continuously manned.
Per time model The long-term unlocking of the door is
linked to a time model in various ways:
–Always per time model: The door is
unlocked during defined duty
periods.
–After first use: After the first use
within a duty period the door remains
unlocked until the end of that period.
–Activation via dialog: Long-term
opening during a duty period is
regulated by a special dialog-capable
reader.
Activation of
motor lock
This parameter specifies a time model to
govern the activation of a motor lock at
the entrance. (usually outside normal
business hours).
PIN-Code entry at the reader can be parameterized as follows:
PIN-Code Description
None No PIN-Code necessary.
Always PIN-Code always necessary.
90 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
PIN-Code Description
Per time model PIN-Code entry is dependent on the time
model, as per one of the following variants:
–Outside regular hours: Outside of time
model periods PIN entry is necessary.
–Outside regular hours and at first use:
Outside of time model periods and the
first time a person crosses the
entrance PIN entry is necessary.
PIN or card If the function is active, access can be
obtained either by entering the door PIN or
with a card.
Door-PIN option to enter a door PIN — 4 to 8 figures
(parameter setting — general system
settings)
Verification re-enter the door PIN
per time model The option of alternative PIN entry can be
restricted to certain days or times of day via
a time model.
Notice!
The Identification- and Door-PIN variants cannot be used for
door models with security system arming (DM 10 and 14).
Access Professional
Edition Entrances | en 91
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Door models with special settings
Door models with special settings
Some door models require special information for setup or
special modes of use.
Door model 07: Elevator
If this door model is selected then the dialog is expanded by
several fields to include the set up of floors.
A maximum of 16 floors can be defined. These floors can be
assigned as Access Authorizations.

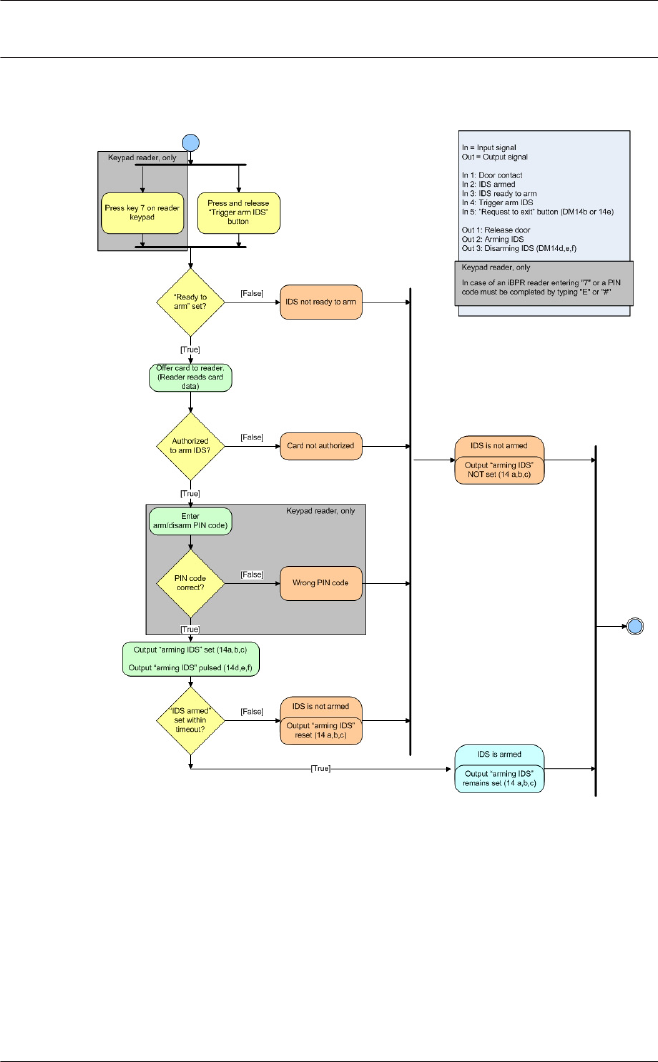

Door model 14: Door with IDS rearming
The configuration of this door model corresponds to that of all
others, except that, along with access authorization for this
entrance, authorization to arm and disarm the security system
(IDS) itself is also assigned. These authorizations are typically
assigned separately.
6.3
92 en | Entrances Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Areas
The configuration of areas enables the system to locate persons
and also to enforce a correct access sequence. In this way
persons can be prevented from entering particular area by an
unauthorized route. In general this function is used only for high
security installations.
On the left hand side a list of already defined areas is displayed.
The following buttons are situated along the top of the list
box:
Add an area
Modify an area
Delete an area
7
Access Professional
Edition Areas | en 93
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
By default the installation process creates the area --outside--.
No entrances can be defined for this area, because it denotes
unmonitored territory.
From this pre-installed area you can now define further areas.
These are purely virtual constructs and need not correspond to
real-world areas. The areas can consist of one or multiple
buildings (e.g. Area Company ACME Inc.), or individual floors or
even single rooms.
Notice!
The definition of a new area is always based on an existing
area. The existing area selected in the list box automatically
becomes the area source for the new area. This default can not
be overridden, therefore it is important to select the correct
area source in the list box when creating a new area.
The name of the new area can be selected from the combo-box
or a new name entered manually.
Areas must be configured so that it is in fact possible to move
from real source to real destination without gaps or missing
entrances between.
Example:
From the predefined area --outside-- a person passes through
the main entrance to the area Reception; from there to
builidings A, B or C. Hence the areas in Access PE must be
configured so that Reception is the area source for buildings A,
B and C.
94 en | Areas Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
After creating a new area at least one entrance must be
assigned to it, so that it is possible to enter the area. Two list
boxes are provided on the right hand side of the dialog window
for this purpose.

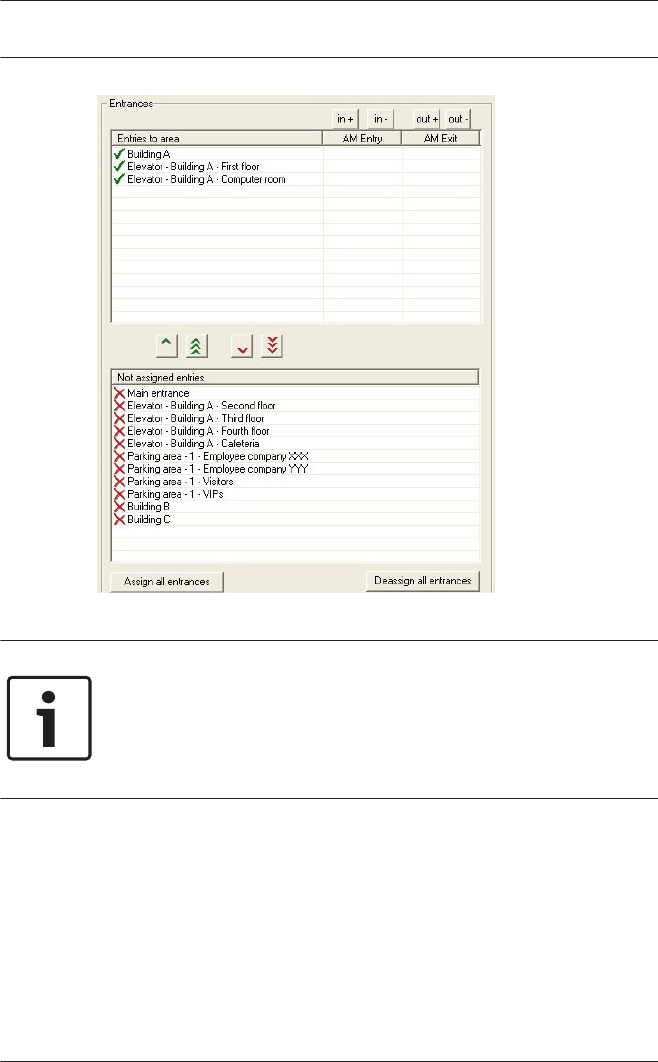

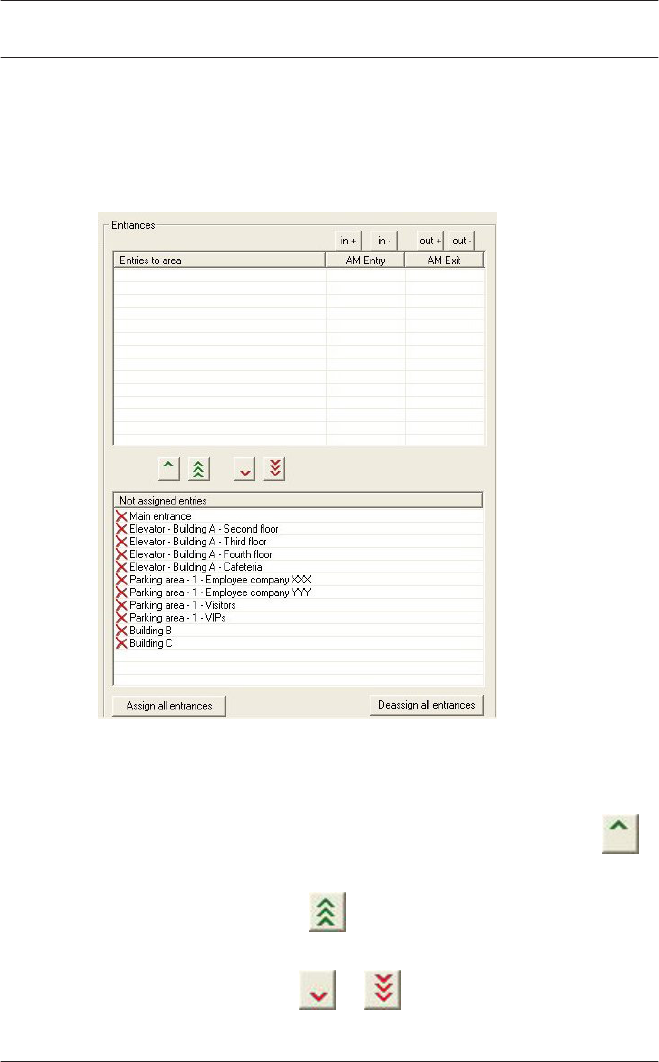

The entrances in the not assigned entrances list are those
available, i.e. those which have not yet been assigned to any
area. By double clicking on the desired entance, or on the
button, that entrance is assigned to the area currently selected
in the left hand list. The button moves all the entrances in
the lower list to the upper. Conversely, double clicking in the
upper list, or using the or buttons, undoes the
assignment.
Access Professional
Edition Areas | en 95
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Notice!
An entrance can only be assigned to one area.
If you have already assigned certain entrances to an area then
they will no longer be available in the not assigned entrances
list.
The columns AM Entry and AM Exit refer to the Access
Monitoring. If you wish to use your system for Access Monitoring
then the entry and exit readers must be parameterized
accordingly.
96 en | Areas Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
– Select the entrance you wish to parametrize in the Entries
to area list, and configure it as an entrance by clicking
, or as an exit by clicking , to activate the Access
Monitoring. The buttons and can be used to
undo these configurations.
The same functions are available through context menus (right
click on an entrance in the list).
Notice!
Checks which go beyond the basic verification of authorizations
and time models (z.B. access sequence checks, anti-passback
checks, random screening) are carried out by the LAC
subsystem process. To deliver this functionality the Access PE
server must be running round-the-clock (24 x 7).
Access Professional
Edition Areas | en 97
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Personnel Groups
Personnel groups allow a logical structuring of your company's
staff. For example newly created persons in the system can
inherit standard bundles of user rights from predefined
personnel groups.
The list of all previously defined personnel groups appears on
the left hand side.
The following buttons are situated along the top of the list box:
Add a new personnel group
Modify the selected personnel group
Delete the selected personnel group
Two personnel groups are predefined by default: Employees
and Visitors. These groups correspond to the default filters in
the Personnel Management application of Access PE.
8
98 en | Personnel Groups Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Thus it is possible to differentiate between different types of
employee (e.g. white-collar, blue-collar, cleaning staff), and
assign to such personnel groups standard bundles of user-rights
in the Authorization groups dialog. Whenever a new employee
is assigned to a particular personnel group s/he then
automatically receives the corresponding group rights.
The following parameters, on the right hand side of the dialog
box, can be defined for the selected personnel group:
Access Professional
Edition Personnel Groups | en 99
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Settings Description
Deactivated Deactivation is a preparatory phase for
deletion. No new persons can be added
to the group, but the group continues
to exist.
A personnel group should not be
deleted until all members have been
removed from it.
Description A detailed description can be stored for
each personnel group.
Visitor A group can be classified as being of
type Visitor.
The Personnel Management application
is able to filter lists of persons based on
the categories All persons, Employees
and Visitors. Personnel groups of type
Visitor can thus be viewed in isolation
from groups of type Employee.
Employee
screening:
always
at random
never
Applies only to readers which have been
configured as screening readers for
random personnel screening.
The three options are defined as
follows.
= the percentage rate of screening is
100%
= this group is screened randomly at the
defined percentage rate.
= this group is never screened
100 en | Personnel Groups Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Settings Description
Badge Layout
Front
Back
In order to create cards it is necessary
to define at least one layout.
Layouts can be defined per personnel
group.
A layout for the reverse side of the card
is optional.
Acknowledgement
Form
cards can, if so desired, be handed out
conditionally upon receipt of a
signature on a form. These forms can be
designed to be personnel-group
specific.
Access Professional
Edition Personnel Groups | en 101
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Access Authorizations
Access authorization groups simplify the administrative tasks of
the system administrator and operator by grouping together any
number of individual entrances that have similar access
requirements (group of people, time restrictions etc.) or are
close/next to each other in geographical terms. These groups
can then be assigned to people in one step.
Create and assign
Authorization groups are logical groupings of entrances. The
access rights of a person in the Personnel Management
application can consist of one or more such authorization
groups.

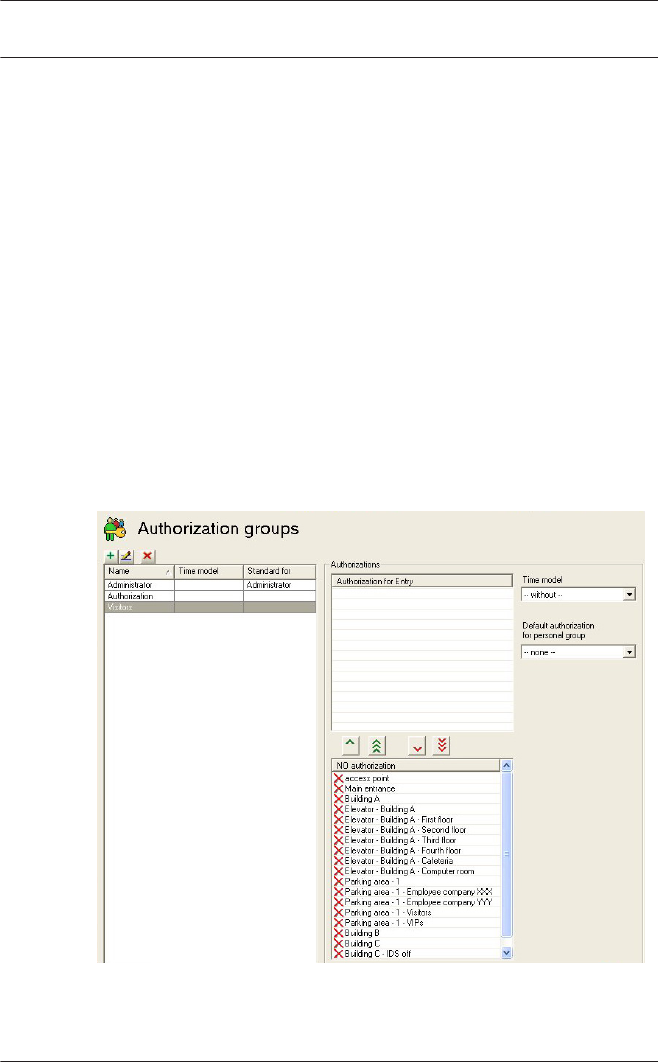

The list box on the left shows all hitherto defined authorization
groups.
9
9.1
102 en | Access Authorizations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
The following buttons are situated along the top of the list box:
Add an authorization group
Modify the selected authorization group.
Delete the selected authorization group.
The button opens a dialog for naming a new authorization
group

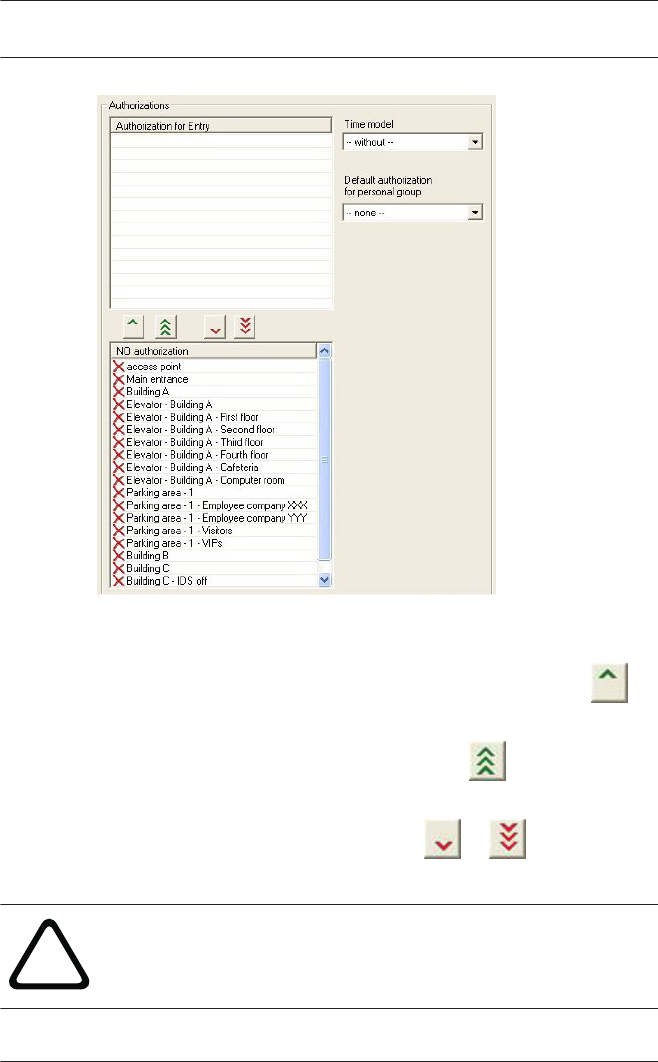

The right hand list boxes can be used to assign entrances to the
selected authorization group.
Access Professional
Edition Access Authorizations | en 103
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
The entrances in the NO authorization list are those available,
i.e. those which have not yet been assigned to any authorization
group. By double clicking on the desired entry, or on the
button, the entrance is assigned to the authorization group
currently selected in the left hand list. The button moves all
the entrances in the lower list to the upper. Conversely, double
clicking in the upper list, or using the or buttons,
undoes the assignment.
!
Caution!
Subsequent modifications in the assignments of entrances and
time models affect the rights already assigned to persons.
104 en | Access Authorizations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Any authorization group can have a time model assigned to it
which limits the user rights; see Use of time models
(Timemodels, page 116) in Access PE.
Notice!
Mark the names of authorization groups which are dependent
on time models e.g. with the prefix or suffix DM. This will help
when assigning these groups in Personnel Management to
distinguish them from unrestricted rights packages.
Additionally it is possible to assign the authorization group as
the default authorization for a personnel group (e.g. employees
or visitors). Thus when creating a new person in Personnel
Management the correct authorizations will be assigned
according to the person's personnel group.
Access Professional
Edition Access Authorizations | en 105
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Special rights
Door models 07 and 14 require additional information for their
configuration (Door models with special settings, page 92).
However they differ from other door models also in their
assignment and usage.
Door model 07: Elevator
The list of available rights contains a separate element for the
elevator, as well as for each floor.
When creating authorization groups, one reader for the elevator
plus at least one floor must be assigned.
9.2
106 en | Access Authorizations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Door model 14: IDS-Rearming
The list of available rights contains a separate element for the
entrance and also one each for the arming and disarming of the
system.
Access Professional
Edition Access Authorizations | en 107
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
These two kinds of rights are assigned separately from one
another. If a cardholder has only access rights to a particular
entrance then s/he cannot arm or disarm the IDS (intrusion
detection system) from there.
Conversely, if a cardholder has only arm/disarm rights at a
particular entrance, then s/he cannot pass through the entrance.
108 en | Access Authorizations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Access Professional
Edition Access Authorizations | en 109
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
110 en | Access Authorizations Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Special days
The special days defined in this dialog have different restrictions
from the day of the week upon which they fall. The time models
for the holidays and special days override those of the same day
of the week in ordinary time.
The predefined list of special days can be changed, reduced or
enlarged as desired. Holidays which are not required can be
deactivated or deleted, in which case the time model for the
normal day of the week takes precedence again. Non-existent or
customer-specific days can be defined and added at will.
In this way it is possible to keep calendars small: Recurring
special days are carried over from year to year, and only
exceptions and irregular events need be defined specific to an
individual year.
Create and modify

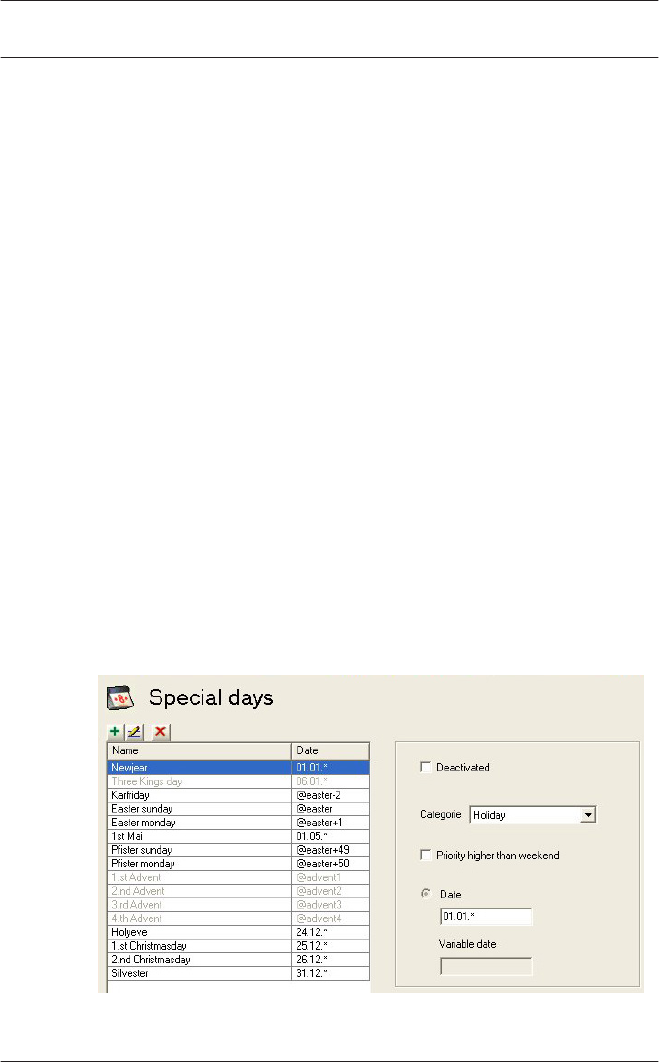

In Access PE a number of typical holidays are defined. These
need to be altered, added to or deactivated depending on your
location.
The following buttons are situated along the top of the list box:
10
10.1
Access Professional
Edition Special days | en 111
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Create a holiday/special day
Modify a holiday/special day
Delete a holiday/special day
Notice!
It is recommended that the predefined holidays and special
days with variable dates (e.g. Easter) not be deleted but
deactivated, if they are not to be used. Holidays and special
days with variable dates can not be re-added later via the
dialog.
If you use the or the button to add or modify holidays, you
will be prompted by as follows for a new name:

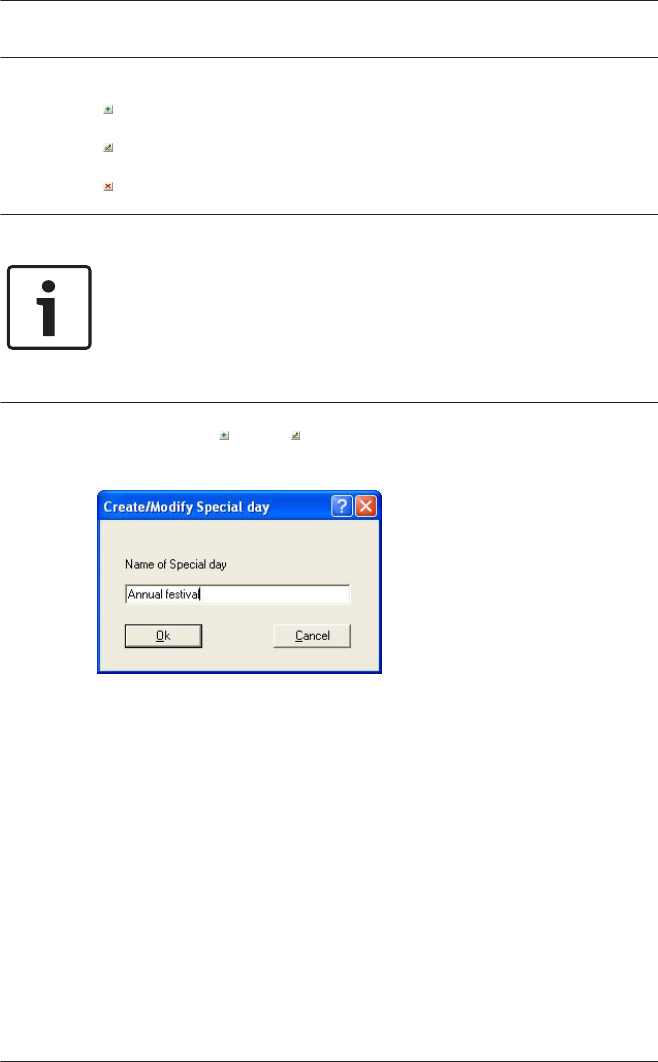

By confirming with the OK button you will enter the new or
modified name in the list. To the right of the list box the
parameters for the selected list element can be defined.
Deactivated Determines whether the holiday/special day
is in use or not.
Category You can divide active holidays/special days
into 11 categories (holiday plus special day
types 1..10), and can assign specific day
models to each category when defining time
models.
112 en | Special days Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Priority higher
than weekend
Specifies which option takes priority if an
annually recurring holiday falls on a Saturday
or Sunday. If the check-box is ticked then
the duty model for the holiday takes
precedence, otherwise the time model for
the weekend.
Date If the special day recurs annually on the
same date then an asterisk (*) should be
used instead of entering an explicit year.
Some holidays (e,g, Christmas) always have
the same date.
Access Professional
Edition Special days | en 113
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Daymodels
Day models describe an abstract daily schedule. Irrespective of
the day of the week a day model defines at which times of the
day access should be granted or denied.
A separate day model is required for every different daily
schedule.
A day model can consist of up to three periods with start and
end times.
By using day models in time models the day models become
associated with specific calendar days.
Create and modify
This dialog box is used for the creating and modifying day
models which in turn are used in time models.
This list box on the left shows the day models defined hitherto.
The following buttons are situated along the top of the list box:
11
11.1
114 en | Daymodels Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Create a day model
Modify the selected day model
Delete the selected day model
Use the button to add, or the button to modify day models:
By confirming with the OK button you will enter the new or
modified name in the list. To the right of the list box the periods
which make up the selected day model can now be defined. A
day model can consist of up to 3 periods.
The start of each subsequent period must be less than its end
time. Hence if you wish to define a day model which spans
midnight, then you need to define two periods:
1. The period from: ... to 24:00
2. The period from 00:00 to ...
Access Professional
Edition Daymodels | en 115
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Timemodels
Time models restrict access at the assigned entrances to
specific times of day. This enables the system to deny access,
for example, during the night, or to impose additional
restrictions on access at weekends.
Access PE uses time models in several ways, for example in
combination with:
–Authorization groups:
Time models can be associated with access rights so that these
access rights apply only at particular times on particular days. It
is equally and simultaneously possible to use access rights with
no time limitations.
–Persons:
Time models assigned to persons restrict the general use of
their cards to the defined dates and time periods.
–Controllers and extension boards:
The generation of entry and exit signals by controllers and
extension boards can also be restricted by time models.
–Doors:
Door opening times can be governed by time models.
–PIN codes:
PIN code entry is an example of an additional security measure
which can be imposed outside of the times defined by a time
model.
–Activation of a motor lock:
A motor lock can be parameterized to be active only within a
particular time model.
Depending on how they are to be used time models are created
in different ways.
Example:
Supposing time models are to be used to restrict access of
persons to weekdays 07:00 to 19:00 and weekends 09:00 to
15:00. Two day models are required:
12
116 en | Timemodels Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
1. with a period of 07:00 to 19:00
2. with a period of 09:00 to 15:00
If at the same time a motor lock is to be activated only outside
of these times, then two day models for use by the lock's time
model must be defined as follows:
1. with two periods of 00:00 to 07:00 and 19:00 to 24:00.
2. with two periods of 00:00 to 09:00 and 15:00 to 24:00.
The application of time models
Time models which are associated with personnel data will only
be active if the reader's default settings have not been changed,
and the option No time model check (Display and
parameterization, page 83) thus remains unchecked.
Time models can be used in many ways, so in order to
understand how the system handles multiple assignments
please note the following conflict-resolution rules:
– If a person has access to certain entrances via a time
model, and if that person is given access to the same
entrances without a time model, then the looser restriction
prevails. I.e. in this case the time model will not be applied.
Example:
A person is given the following access rights :
– Access to entrances A, B, C and D within a time model
of 09:00 to 17:00 every day.
– Individual access rights to entrances B and D without
time model.
This person now has access to entrances A and C between
09:00 and 17:00 every day, and unrestricted access to entrances
B and D.
– If a person is given different access rights covering the
same entrances, but governed by different time models,
then the union of the time models is applied.
Example:
A person is given the following access rights:
– Access to entrances A, B, C and D within a time model
of 07:00 to 13:00 every day.
Access Professional
Edition Timemodels | en 117
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
– Access to entrances B, D, E and F within a time model
of 09:00 to 17:00 every day.
The person now has access to entrances A and C from 07:00 to
13:00, to entrances B and D from 07:00 to 17:00 and to
entrances E and F from 09:00 to 17:00
– If a person is assigned to an authorization group with time
models, and if the same person is given a time model for
the use of his card, then the intersection of the defined
periods is applied.
Example:
A person is given the following access rights:
– An authorization group with access to entrances A, B,
C and D, and a time model of 07:00 to 13:00 every day.
– An authorization group with access to entrances B, D,
E and F and a time model of 09:00 to 17:00 every day.
– And additionally a duty model of 11:00 to 19:00 every
day
The person now has access to entrances A and C from 11:00 to
13:00, and to entrances B, D, E, and F from 11:00 to 17:00.
118 en | Timemodels Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Create and modify
This dialog box is used for the creating and modifying time
models which, according to their usage activate certain system
elements.
This list box on the left shows the time models defined hitherto.
The following buttons are situated along the top of the list box:
Create a time model
Modify the selected time model
Delete the selected time model
If you use the or the button to add or modify a time model,
you will be prompted as follows for a new name:
12.1
Access Professional
Edition Timemodels | en 119
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
By confirming with the OK button you will enter the new or
modified name in the list. To the right of the list box day models
for the days of the week and for Holidays and Special Days
(1..10) can now be assigned to the selected time model.
Time models are defined as repeating periods of one week. The
course of each weekday is defined by assigning day models to
them. Additionally the day models of these normal weekdays
may be overridden by the day models of holidays or special days
which happen to fall on those weekdays.
Notice!
If, when defining a time model, a particular weekday or special
day is left without a day mode (i.e. left with the default setting
<none>) then these days will be treated as if they had a day
model without periods; i.e. on that day no access would be
granted by the time model.
120 en | Timemodels Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Texts
Each application language you selected during installation has
its own list with display texts for display readers and log book
messages. The texts in the relevant language list are used in the
Logviewer, for example in the log book messages created when
the application language is selected.
13
Access Professional
Edition Texts | en 121
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Displaytexts
Some of those texts which are displayed at card readers can be
modified in this dialog. The reader's display contains of two
lines of 20 characters each.
13.1
122 en | Texts Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
!
Caution!
In the text for Enter PIN code the underscore "_”r; character
should not be removed, as it triggers the reading of the PIN
code.
The texts here are user-defined and not automatically translated
by the application when switching languages. However by
selecting a different language from the Language combo-box
(above the list box) and re-entering the texts it is possible to
define equivalents in every language variant installed in Access
PE. Thus even these data can be viewed by a different user in
his own language.
Event Log messages
In this dialog you can change not only texts of log messages, but
also their categories.
13.2
Access Professional
Edition Texts | en 123
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
The desired category can be chosen from a pull-down list which
is invoked by double clicking in Category column in the line you
wish to change.
Each category is represented by a unique symbol in the first
column. These symbols are also used to categorize incoming
messages in the event log. The following symbols and categories
can be used:
Event log unavailable
Information
Message
Error
Alarm
Arriving
Leaving
No access
No authorization
Malfunction
124 en | Texts Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
OK
IDS armed
IDS not armed
Program startup
Program shutdown
Operator action
In the second column (headed by a !) select those messages
which are to serve as special alarm messages in the Alarm
Management dialog. Double-click in the corresponding cell to
set or remove the alarm symbol . The installation procedure
defines messages of categories Alarm and Error as alarm
messages by default.
The desired text can be modified by double clicking Log text
column in the line you wish to change.
The texts here are user-defined and not automatically translated
by the application when switching languages. However by
selecting a different language from the Language combo-box
(above the list box) and re-entering the texts it is possible to
define equivalents in every language variant installed in Access
PE. Thus even these data can be viewed by a different user in
his own language.
Access Professional
Edition Texts | en 125
Bosch Access Systems GmbH 2015-11 | | Configuration Manual

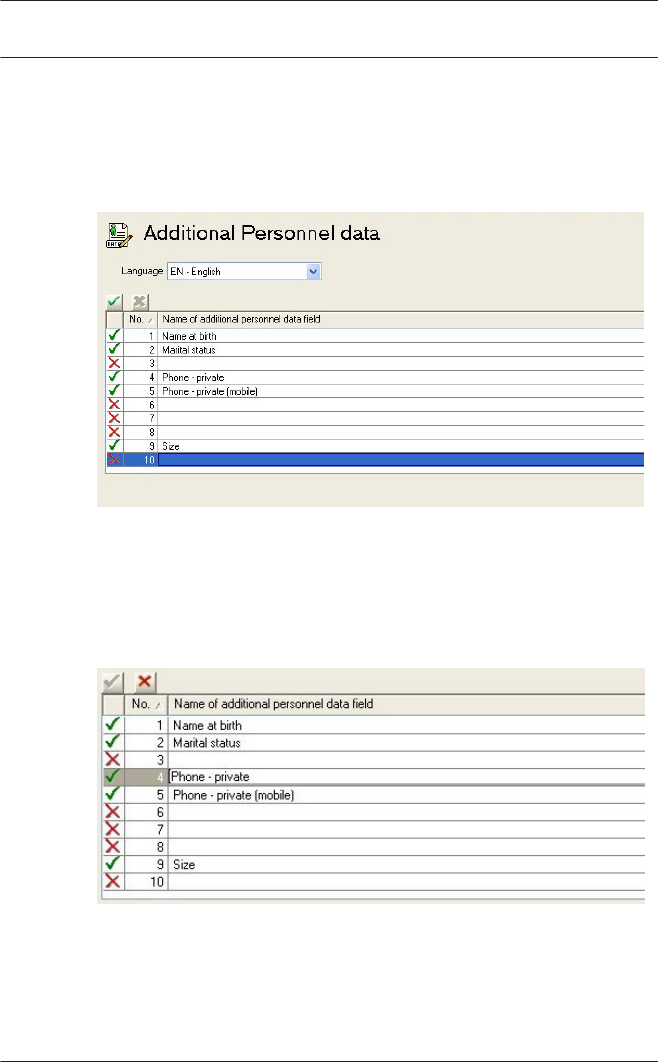

Additional Personnel data
Ten freely definable extra fields are provided in addition to the
default personnel data fields.
The list box already contains 10 lines for your use. By double
clicking on a field in the column Name of additional personnel
data field you render the field editable and can enter a name for
it.
14
126 en | Additional Personnel data Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH

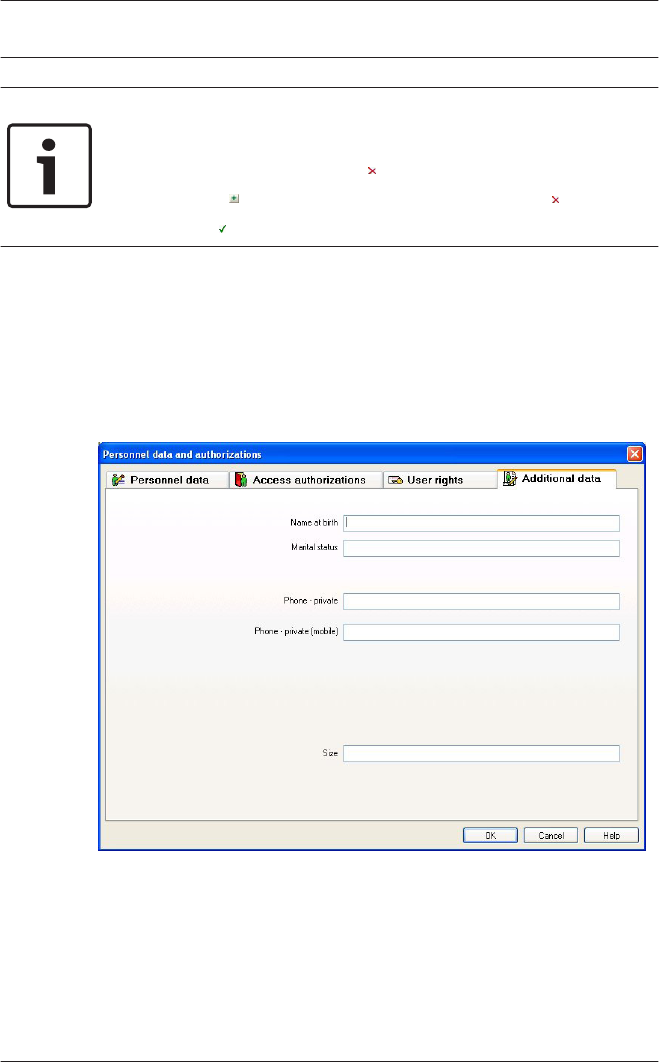

Notice!
Entering a name does not activate the field for use. Activation is
done by double clicking on the in the leftmost column, or
clicking on the button. When the field is active the is
replaced by a .
When at least one additional data field has been defined then a
new tab called Additional data appears in the Personnel
Management application (personal data and authorizations
dialog). The order of fields need not be maintained as gaps will
be left for inactive fields.
Each field can contain up to 40 arbitrary characters.
Access Professional
Edition Additional Personnel data | en 127
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Notice!
Each text entry field is assigned a field in the database so that
the data can be stored, selected and included in reports. This
means however that changes to additional data fields which are
in use will lead to the loss from the database of the data they
contain .
The names of additional data fields are user-defined and not
automatically translated by the application when switching
languages. By selecting a different language from the Language
combo-box (above the list box) it is possible to define
equivalents in every language variant installed in Access PE.
Thus even these data can be viewed by a different user in his
own language.
Activation/Deactivation of additional fields
As well as receiving a name additional data need to be activated.
To do this double click the symbol in the leftmost column or
click the button. The symbol is changed from to .
The Additional data tab in the Personnel Management
application will not appear until at least one additional data field
has been activated.
Notice!
Fields without names can also be activated.
Activated fields can be deactivated by double clicking or by
clicking . A security pop-up message is then displayed offering
two variants of deactivation:
Notice!
Deactivation of fields deletes corresponding personnel data
only if the field description is also deleted. Do you wish to
delete the field description and thus the personnel data also?
128 en | Additional Personnel data Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
No = Deactivate the field but keep its name and
contents.
Yes = Deactivate the field and delete its name and
contents.
Access Professional
Edition Additional Personnel data | en 129
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Map Viewer and Alarm Management
The Access PE Map Viewer enables to control devices as
entrances, readers, cameras directly from a map.
The Access PE alarm list shows all incoming alarms to the
operator. Alarms can be accepted by the operator. In case of an
alarm, the location map will be displayed. The icon of the device
that triggered the alarm is highlighted by animation. Related
video live views are shown to verify the alarm.
1. Map tree
2. Active location map
3. Device control from the map; controls are shown in the
map
4. Alarm list with event information (incl. video)
5. Device tree with status overview and control elements
Mapviewer features:
– Home map for easy navigation
– Navigation between photo views and floor plans via
hyperlink
– Navigation via device tree structure up to three levels
15
130 en | Map Viewer and Alarm Management Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
– Interactive Graphical Maps for alarms with integrated alarm
list
– Live view and door control from the map and device tree
– 128 maps per system
– 64 devices per map
– 64 hyperlinks per map
– Max 2 MB per map
– Map viewer use a standard image format .bmp, .jpg, .png
Configuring a map
Start the Map Editor
Klick the button to add a map.
15.1
Access Professional
Edition Map Viewer and Alarm Management | en 131
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
The map is shown on the dialog.
– Optionally configure this map as Home Map
Add a detail view, e.g. the canteen, to the map tree.
132 en | Map Viewer and Alarm Management Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH

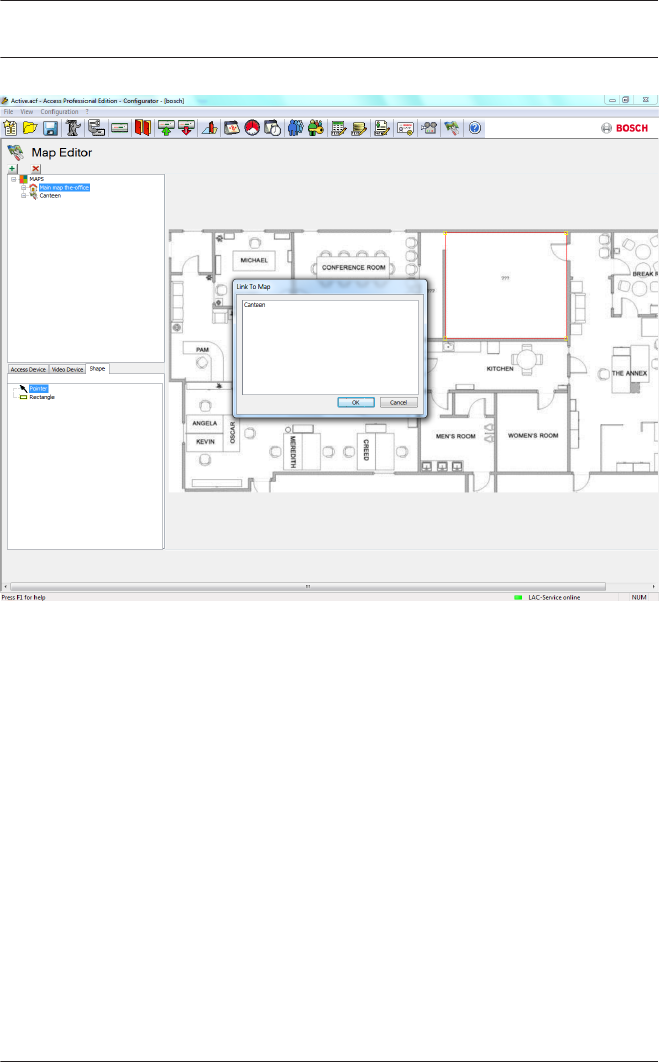

– To connect the new Canteen map with the main map, go to
the Shape Tab and select a Rectangle.
– Place the rectangle over the area of the main map that
should be shown as a detail view (shown as a red rectangle
in the example below).
– In the Link to Map Display select the respective detail view,
which is “Canteen” in this example.
Access Professional
Edition Map Viewer and Alarm Management | en 133
Bosch Access Systems GmbH 2015-11 | | Configuration Manual

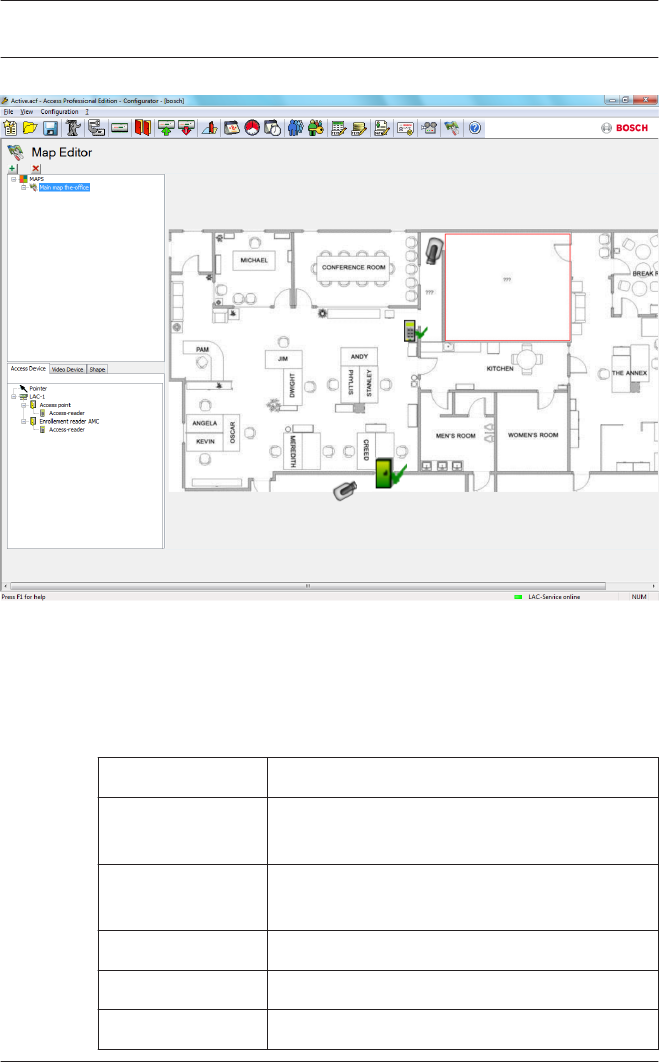

Adding a device to a map
Select the Device Tab and add Devices to the map by pulling
them with the mouse into the map. In the example below the
following devices have been added:
– One Access point
– One Reader
– Two Cameras
15.2
134 en | Map Viewer and Alarm Management Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
– Click a device in the map and resize by holding the mouse
button pressed,
– Click a device and rotate as required using the scroll wheel
of your mouse.
Device Types Control elements
Access Point
(Entrance)
Open door
Open door long-term / Reset door long-
term
Lock door / Unlock door
Front Identification Camera
Back Identification Camera
Access Professional
Edition Map Viewer and Alarm Management | en 135
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Device Types Control elements
Back camera
Front camera
Reader All Entrance Controls
Camera Live Video
Device Types Alarms
Access Point
(Entrance)
Door opened without authorization
Door opened too long
(* All Reader alarm also reflect as Entrance
Alarm)
Reader Reader error
Camera N.A.
*) These alarm events can be customized by the user. That
means, a user can configure any event as an alarm event using
AcConfig -> Event Log message (Double click on second column
will cause an alarm).
136 en | Map Viewer and Alarm Management Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Card Definition
This dialog defines the data which the reader transmits, so that
new card definitions can be entered into the system at a later
date.
The list control contains existing card definitions. Default
system settings include six standard entries, of which the first
four are active (have a green tick in the first column). Apart from
the setting Input Mode all others are write-protected and can
neither be modified or deleted.
16
Access Professional
Edition Card Definition | en 137
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Notice!
When using Wiegand controllers and readers, in order to use
Identification-, arming- or door-PINs the Wiegand card definition
PIN or Card (Nr. 6) needs to be activated.
A new entry is initiated by clicking . Depending on the
manufacturer's information the number of bits and their
encoding are selected and displayed.
Notice!
The maximum number of bits is limited to 64 for all definitions.
The maximum number for any coding part (facility, version,
customer, country and code number) is 32 bits.
A unique name and a description should be entered to
distinguish the new card definition from others.
Entering a value in the No. of bits field changes the number of
columns in the list box underneath accordingly. Five rows are
displayed and the resulting matrix enables you to activate/
deactivate individual bits as desired.
The interpretation of the code can now be specified by entering
the following possible values in the cells of the Field row.
F Facility: earmarks those bits for
encoding the facility.
V Version: earmarks those bits for
encoding the version variant.
K Earmarks those bits for encoding
the customer.
L Land: earmarks those bits for
encoding the country code.
C Code No.: earmarks those bits
for encoding the card number.
138 en | Card Definition Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
E1 Even 1: Cancelling bit for the
first Even Parity Mask
Entering a value in
one of these fields
activates the check
box for the
corresponding row.
E2 Even 2: Cancelling bit for the
second Even Parity Mask
O1 Odd 1: Cancelling bit for the first
Odd Parity Mask
O2 Odd 2: Cancelling bit for the
second Odd Parity Mask
1 Bit values which make up the
code itself
0
When defining Manual Mode or creating any new example, you
can specify the Mode that will determine how the code is to be
read; e.g. if you select PIN or card mode, only the code number
will be read i.e. only those parts marked C. You can choose from
the following mode variants:
Serial
number
Mode Code parts checked
0 Facility + Code no. F,C
1 Bosch Code L,K,C,V
100 Manual C
200 PIN or card C
Explanation:
The "telegram" sent by a reader when presented with a card is a
series of zeros and ones. For each card/reader type the length
of the telegram (the number of bits) is precisely defined. A
telegram of this kind contains, in addition to user data, control
data to identify the telegram type and to verify correct data
transfer. Correct data transfer is verified by parity bits which
represent a checksum over selected bits in the mask, either a
zero (even parity) or a one (odd parity). Controllers can be
Access Professional
Edition Card Definition | en 139
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
configured to calculate one or 2 checksums for even parities,
and one or two checksums for odd parities. In the list box you
can mark, in those lines reserved for parity check sums (Even1,
Even2, Odd1 and Odd2), which bits should be included in the
checksum.
In the topmost line (Field) one bit is designated for each
checksum used to balance out the checksum depending on its
parity type. If a parity type (Even1, Even2, Odd1, Odd2) is not
used then its row is simply left blank.
Activation/Deactivation of card definitions
The symbol in the first column of the list box reflects the
activation status of each card definition.
activated
deactivated
The activation status can be toggled by double clicking on the
symbol.
Safety checks warn about the consequences of deleting a card
definition that is in use.
Notice!
Incorrect card encoding or a bad combination may lead to all
cards become unreadable! Do you really wish to activate the
selected card encoding?.
Notice!
All current cards using this encoding will become unreadable!
Do you really wish to deactivate the selected card encoding?.
140 en | Card Definition Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Appendix
The section that follows collates interesting and often important
(additional) information that does not belong to any particular
topic in the preceding documentation, but may be applicable at
several places.
Signals
A list of the available signals for inputs and outputs.
Input signals Description
Door sensor
Request to exit
button
Button to open the door.
Bolt sensor Is used for messages, only. There is no
control function.
Entrance locked Is used to lock the opposite door in
sluices temporarily. But can also be used
forpermanently locking.
Sabotage Sabotage signal of an external controller.
Turnstile in normal
position
Turnstile is closed.
Passage
completed
A passage was completed successfully.
This is a pulse of an external controller.
IDS: ready to arm Will be set by the IDS, if all detectors are
in rest and the IDS can be armed.
IDS: is armed The IDS is armed.
17
17.1
Access Professional
Edition Appendix | en 141
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Input signals Description
IDS: request to
arm button
Button to arm the IDS.
Local open enable Will be used if a doorway arrangement
opens the door without involving the
AMC. The AMC sends no intrusion
message but "door local open".
Output signals Description
Door opener
Sluice: lock
opposite direction
Locks the other side of the sluice. Is set
when the door opens.
Alarm suppression ... to the IDS. Is set as long as the door
is open, to avoid that the IDS createsan
intrusion message.
Indicator green Indicator lamp - will be controlled as
long as the door is open.
Door open too
long
Pulse of three seconds. If the door is
open too long.
Camera activation Camera will be activated at the
beginning of a passage.
Open turnstile
inbound
Open turnstile
outbound
Door is permanent
open
Display that the door is permanent open.
142 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Output signals Description
IDS: arm Pulse or permanent contact to arm the
IDS.
IDS: disarm Pulse to disarm the IDS.
Default Doormodels
Standard door models
The following door models are available by default:
01a Normal door with entry and exit reader
01b Normal door with entry reader and push button
01c Normal door with entry reader
03a Reversible turnstile with entry and exit reader
03b Reversible turnstile with entry reader and push
button
03c Turnstile with entry reader
06c Enrollment via AMC – no entrance control!
07a Elevator with max. 16 floors
07b Elevator with max. 16 floors
10a Normal door with entry and exit reader and IDS
rearming
10b Normal door with entry reader, push button and IDS
rearming
10c Normal door with entry reader and IDS rearming
10d Normal door with entry and exit reader and decentral
IDS rearming
10e Normal door with entry reader, push button and
decentral IDS rearming
17.2
Access Professional
Edition Appendix | en 143
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
10f Normal door with entry reader and decentral IDS
rearming
14a Normal door with entry and exit reader and IDS
rearming (arming authorization)
14b Normal door with entry reader, push button and IDS
rearming (arming authorization)
14c Normal door with entry reader and IDS rearming
14d Normal door with entry and exit reader and decentral
IDS rearming
14e Normal door with entry reader, push button and
decentral IDS rearming
14f Normal door with entry reader and decentral IDS
rearming

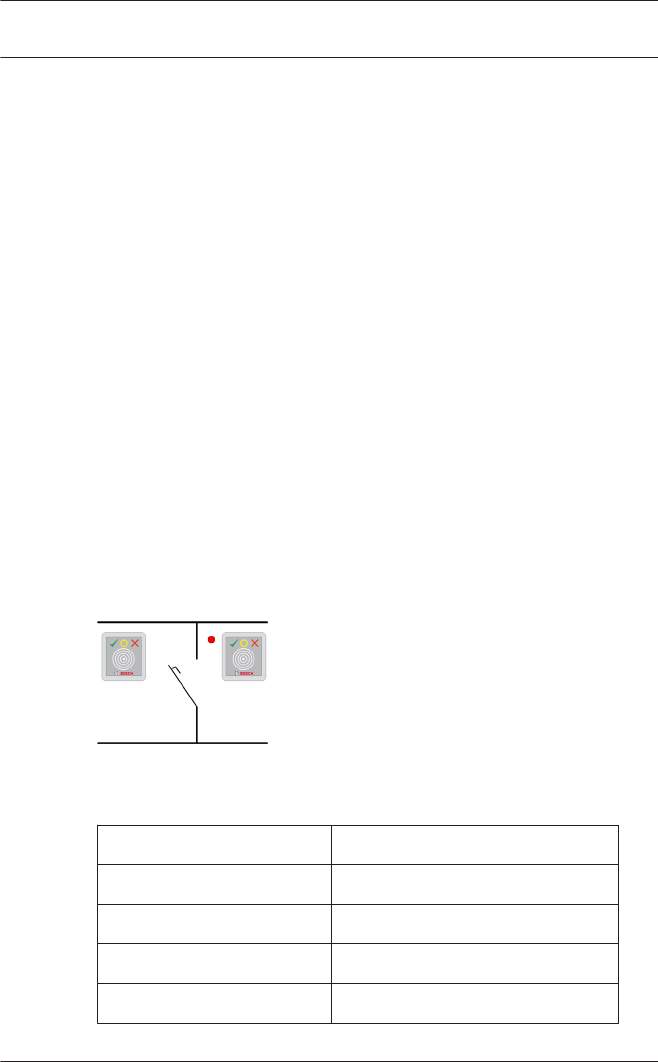

Doormodel 01
Normal door
Signals:
Input signals Output signals
Door sensor Door opener
Pushbutton: door open Sluice: lock opposite direction
Bolt sensor Alarm suppression
Entrance locked Indicator green
17.3
144 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Input signals Output signals
Sabotage signal Camera activation
Door open too long
Model variants:
01a Normal door with entry and exit reader
01b Normal door with entry reader and push button
01c Normal door with entry reader
Note:
Man-trap locking is only active if the door is parameterized as
part of a man-trap.
If the door is not configured as part of a man-trap then input
signal 03 is interpreted as a reader lock. In such a case if input
signal 03 is set the reader will be locked.
Alarm suppression is only activated when the alarm
suppression time before door opening is greater than 0.
Optional secondary readers can be connected. In combination
with a second door and man-trap locking it is possible to control
both doors together as a man trap. This usage can also be
advantageous for vehicle entrances, in which case a secondary
reader for trucks and cars is also recommended.
Notice!
Singling function can be parametrized with DM 03, only.
Access Professional
Edition Appendix | en 145
Bosch Access Systems GmbH 2015-11 | | Configuration Manual

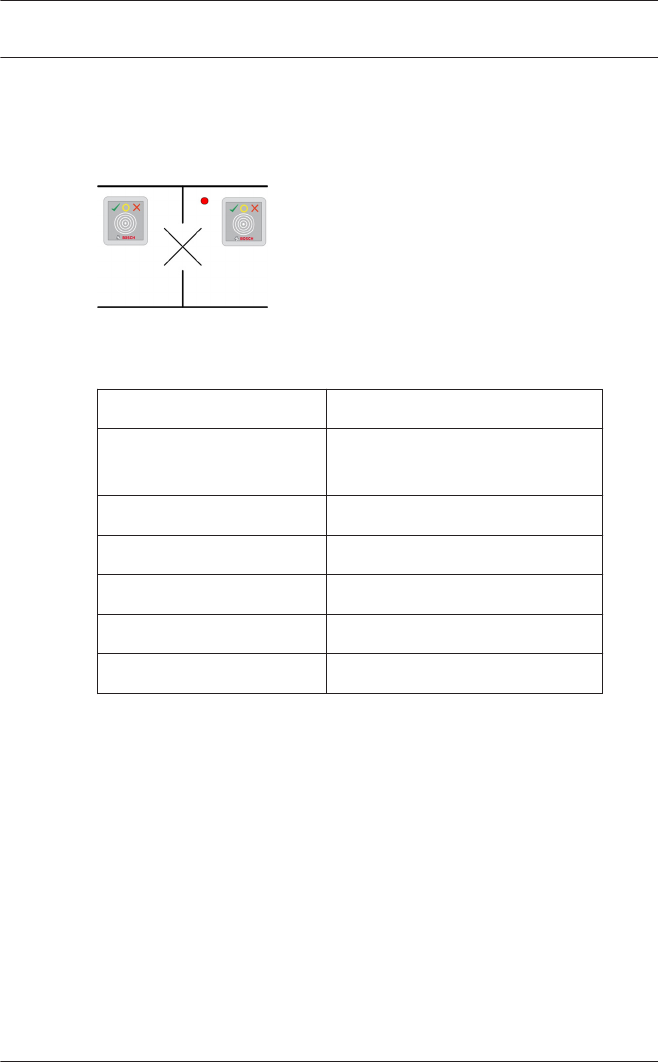

Doormodel 03
Reversible turnstile
Signals:
Input signal Output signals
Turnstile in normal
position
Open turnstile inbound
Pushbutton: door open Open turnstile outbound
Entrance locked Sluice: lock opposite direction
Sabotage signal Alarm suppression
Camera activation
Door open too long
Model variants:
03a Reversible turnstile with entry and exit reader
03b Reversible turnstile with entry reader and push
button
03c Turnstile with entry reader
Note:
Man-trap locking is only active if the door is parameterized as
part of a man-trap. If the door is not configured as part of a
man-trap then input signal 03 is interpreted as a reader lock. In
such a case if input signal 03 is set the reader will be locked.
17.4
146 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
In combination with a second door and man-trap locking it is
possible to control both doors together as a man trap.
Depending on the construction the entrance can perform a
singling function.
Doormodel 06c
The doormodel 06c configures a reader connected to the AMC
as enrollment device. It does not control an entrance.
Doormodel 07
Model variants:
07a Elevator
07b Elevator with reader input
17.5
17.6
Access Professional
Edition Appendix | en 147
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Notice!
As standard, one AMC2 can be used for 8 floors. It is possible
to connect more entrances under the following preconditions:
32 floors when using Wiegand (AMC2 W + AMC2 WE + AMC2
16ION)
24 floors when using RS 485 (AMC2 4R4 + AMC2 16ION)
Signals of entrance model 07a:
Input signal Output signals
Free Floor 01
Free Floor 02
Free Floor 03
Free Floor 04
... ...
Free Floor 16
Procedure:
First, the cardholder summons the elevator. This can be done
either via the elevator's own hardware button, or via a card
reader (e.g. Door model 01c).
Next, inside the elevator is another card reader (Door model
07a). This reader grants access to those floors for which the
user's card contains authorizations. The authorized floors can be
indicated to the user, for example, by illuminating only the
buttons for those floors. The user can then select only one of
the authorized floors.
148 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Signals of entrance model 07b:
Input signal Output signals
Input key - floor 01 Floor 01
Input key - floor 02 Floor 02
Input key - floor 03 Floor 03
Input key - floor 04 Floor 04
... ...
Input key - floor 16 Floor 16
Procedure:
First, the cardholder summons the elevator. This can be done
either via the elevator's own hardware button, or via a card
reader (e.g. Door model 01c).
Next, inside the elevator the user presents his/her card to
another card reader (Door model 07b), and then presses the
button for the desired floor. The AMC checks whether the user
is authorized for the selected floor and, if so, the lift takes the
user there.
In addition this door model possesses the parameter Public
Access, which can be set for each floor individually. If this
parameter is set then authorizations for this floor are not
checked, i.e. any user may proceed to this floor. Moreover
Public Access can be made dependent on a particular time
model, so that authorizations are only checked by the AMC
outside of that time model's designated hours.
Access Professional
Edition Appendix | en 149
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Doormodel 10
Normal door with IDS (intrusion detection system) arming/
rearming
Signals:
Input signals Output signals
Door sensor Door opener
Pushbutton: door open IDS: Disarm
[only for models d and f with
a pulse of 1 sec.]
IDS: Ready to arm Camera / motorlock
IDS: Arrmed IDS: Arm
[only for models d and f with
a pulse of 1 sec.]
Sabotage signal Door open too long
(intrusion)
IDS: Arming
Model variants:
10a Normal door with entry and exit reader and IDS
rearming
10b Normal door with entry reader, push button and
IDS rearming
10c Normal door with entry reader and IDS rearming
17.7
150 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
10d Normal door with entry and exit reader and
decentral IDS rearming
10e Normal door with entry reader, push button and
decentral IDS rearming
10f Normal door with entry reader and decentral IDS
rearming
Notes:
The E button at the entry reader can arm the IDS (intrusion
detection system). An authorized card and the entry of a PIN
code are required. The IDS will be disarmed upon the first
authorized entry, whereby PIN-code identification will also be
required. In the case of models a to c this is controlled by the
output signal arm/disarm IDS.
In the case of models d to f the arming or disarming is triggered
by a separate pulse of 1 second. A connected bistable relay can
control the IDS for several doors (DCUs / Door control units),
whereby the signals require a logical OR connection to the relay.
The signals IDS is armed and IDS is disarmed must be double
connected at all the relevant DCUs.
Access Professional
Edition Appendix | en 151
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Doormodel 14
Door with IDS control
Signals:
Input signals Output signals
Door sensor Door opener
Pushbutton: door open IDS: Disarm
[only for models d and f with
a pulse of 1 sec.]
IDS: Ready to arm Camera / motorlock
IDS: Arrmed IDS: Arm
[only for models d and f with
a pulse of 1 sec.]
Sabotage signal Door open too long (intrusion)
IDS: Arming
Model variants:
14a Normal door with entry and exit reader and IDS
arming / disarming
14b Normal door with entry reader, push button and
IDS arming / disarming
14c Normal door with entry reader and IDS arming /
disarming
17.8
152 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
14d Normal door with entry and exit reader and
decentral IDS arming / disarming
14e Normal door with entry reader, push button and
decentral IDS arming / disarming
14f Normal door with entry reader and decentral IDS
arming / disarming
Notes:
In contrast to door model 10, door model 14 can use readers
with or without a keypad. A further difference exists in the
assignment of IDS arming rights: only cardholders with sufficient
rights are able to arm or disarm the IDS.
The arming/disarming process is not governed here by use of a
PIN code, but by a button close to the reader which has the
same function as key 7 on the readers with keypads. After
pressing this button the status of the IDS is displayed by the
colored LEDs of the reader.
– Disarmed = alternating green/red blinking light
– Armed = continuous red light
The IDS is armed when presented with a valid card.
Disarming is carried out by pressing the button and presenting a
valid card.
The door does not unlock immediately. To unlock, present the
card once more after disarming.
Access Professional
Edition Appendix | en 153
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Examples of mantrap configurations
Turnstiles are the most common means of singling cardholders'
access. In the following examples we have therefore used door
model 3a (turnstile with entry and exit reader).
Mantrap configuration with two turnstiles (DM 03a)
Connections to the door locks for the opposite direction ensure
that only one of the turnstiles can be opened at any one time.
17.9
154 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Notice!
The output signal (Out 3) is to be set potential free (dry mode).
The signal "door lock of opposite direction" must be closed
(resistance=0) when de-energized. Use the "normally closed"
(NC) contact of outputs 3 and 7.
Mantrap configuration with two turnstiles (DM 03a) which are
distributed across two controllers.
Connections to the door locks for the opposite direction ensure
that only one of the turnstiles can be opened at any one time.
Access Professional
Edition Appendix | en 155
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Notice!
The output signal (Out 3) is to be set potential free (dry mode).
The signal "door lock of opposite direction" must be closed
(resistance=0) when de-energized. Use the "normally closed"
(NC) contact of outputs 3 and 7.
156 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Configuring Entrance Model 07
The following illustrates the wiring of an elevator using Door
Model 07a
Legend:
A = Floor buttons inside elevator
B = (solid line) AMC-output signals
C = (dashed line) Connection to elevator control
D = An I/O extension board (AMC2 8I-8O-EXT, AMC2 16I-EXT or
AMC2 16I-16O-EXT) can be connected
E = Data- and power supply from the AMC to the I/O boards
F = Elevator control
G = Reader (Door model 07a)
The following illustrates the wiring of an elevator using Door
Model 07b
17.10
Access Professional
Edition Appendix | en 157
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Legend:
A = Floor buttons inside elevator
B = (solid line) AMC input signals
C = (dashed line) AMC output signals
D = An I/O extension board (AMC2 8I-8O-EXT, AMC2 16I-EXT or
AMC2 16I-16O-EXT) can be connected
E = Data and power supply from the AMC to the I/O boards
F = Elevator control
G = Reader (Door model 07b)
Notice!
When wiring individual floors (up to 16) to the AMC's outputs,
connect first the controller's own signals and then, if present,
the first eight outputs of any I/O extension boards in ascending
order. [Where Wiegand extension boards(AMC2 4W-EXT) are in
operation, use their outputs in ascending order after those of
the AMC2 controller, and before the outputs of any I/O
extension board.] For this reason it is not possible to configure
any other kinds of door, or any further elevators, to an AMC
that is used for elevator control.
158 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Display Arming/Disarming
Comparison between arming an alarm system in Entrance
(Door) models 10 and 14.
Comparison between disarming an alarm system in Entrance
(Door) models 10 and 14.
17.11
Access Professional
Edition Appendix | en 159
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
160 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Procedures in Access Control
Flow charts of procedures in Access Control

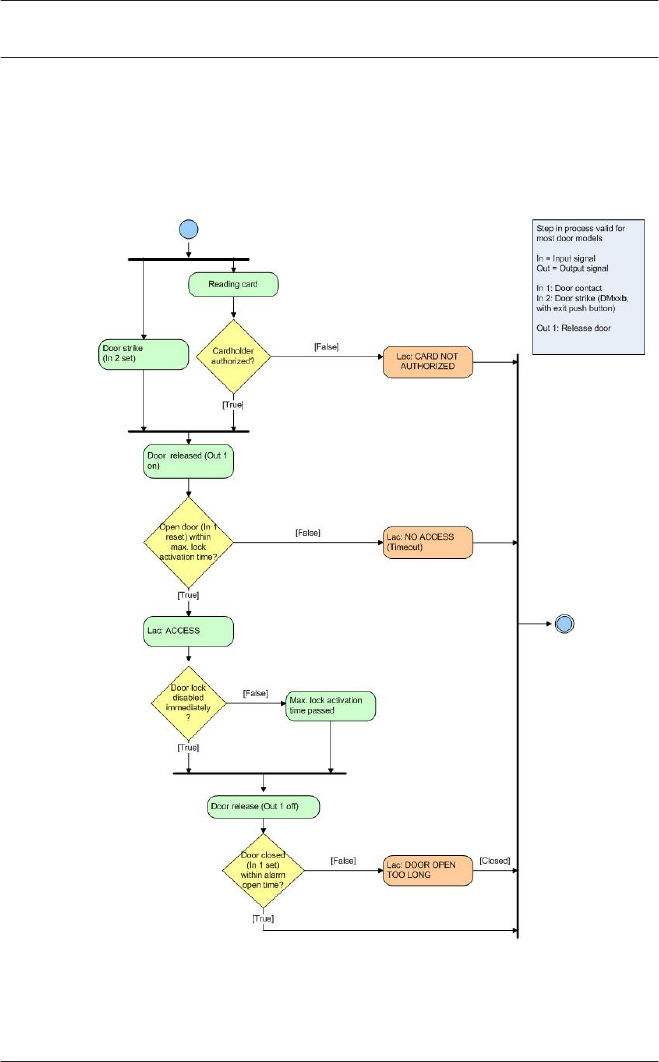

Door model DM01
17.12
Access Professional
Edition Appendix | en 161
Bosch Access Systems GmbH 2015-11 | | Configuration Manual

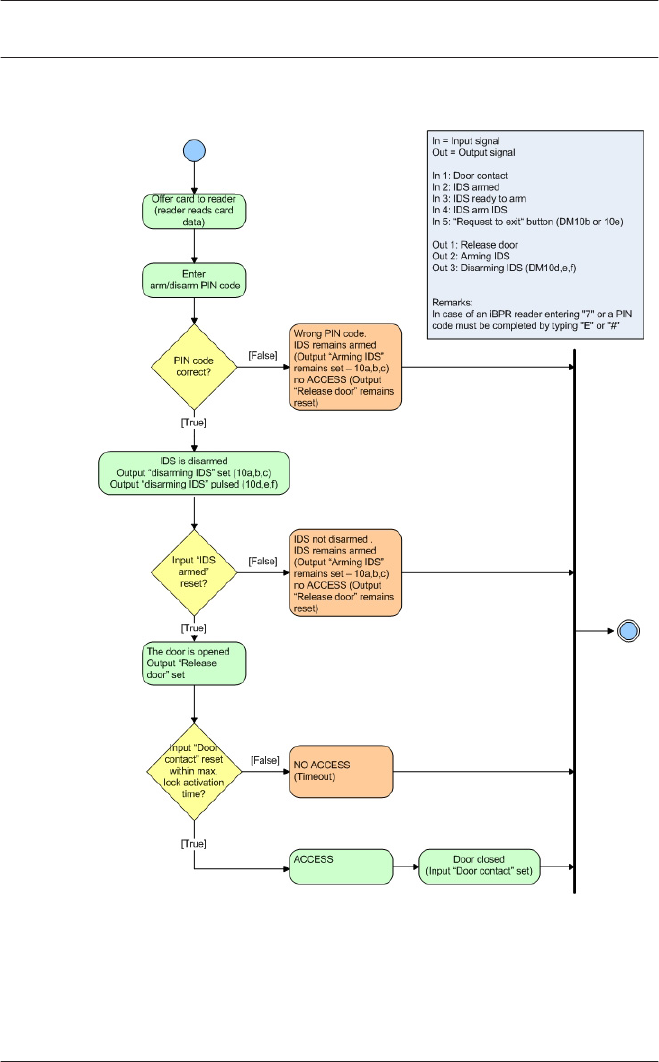

Door model DM10 - arming
162 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Door model DM10 - disarming
Access Professional
Edition Appendix | en 163
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Door model DM14 - arming
164 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
Door model DM14 - disarming
Access PE ports
The individual processes and applications in Access PE use the
following ports.
17.13
Access Professional
Edition Appendix | en 165
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Connection
between...
Client/AMC Server
Client - LacSp Undefined 43434/tcp
AcPers - CP Undefined 20005/tcp
LacSp - AMC 10001/udp 54545/udp and above
166 en | Appendix Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
PIN types
Access Professional Edition provides each cardholder with up to
three Personal Identification Numbers (PINs) which can be used
for different purposes:
–Verification-PIN
This PIN can be requested from cardholders as an extra
security feature at special entrances. The verification PIN is
compared with stored data for the cardholder to ensure
that s/he is the real owner of the card presented.
Each person can choose his/her own 4-8 digit PIN in
accordance with certain general rules (e.g. no numerical
sequences and no palindromes). [The parameter for the
length of the PIN applies equally to verification-, arming-
and door-PINs]. A verification-PIN does not have to be
unique in the system.
If no separate arming-PIN has been defined [i.e. as long as
the check box use separate IDS-PIN is not selected in the
dialog Configurator > Settings] then the verification PIN
may also be used to arm/disarm the IDS.
–Arming-PIN / IDS-PIN
This special PIN is used exclusively to arm and disarm the
alarm system. With door models 10 and 14 first press the 7
key or the door’s push-button.
Each person can choose his/her own 4-8 digit PIN in
accordance with certain general rules (e.g. no numerical
sequences and no palindromes). [The parameter for the
length of the PIN applies equally to verification-, arming-
and door-PINs]. An arming-PIN does not have to be unique
in the system.
If the cardholder wishes simply to pass through the door,
and is required to enter a PIN, then the verification-PIN
must be used. If the the check box use separate IDS-PIN is
selected (Configurator > General settings) then the
18
Access Professional
Edition PIN types | en 167
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
verification-PIN can no longer be used to arm/disarm the
IDS. It is only then that the relevant input fields become
visible in the Personnel dialog.
Notice!
In order to ensure compatibility with previous Access PE
versions the check box for use of separate IDS-PIN is cleared by
default.
–Identification-PIN/ ID-PIN
This PIN identifies a person’s card and must therefore be
unique within the system. Once input this PIN grants
access to the person in accordance with all his/her defined
authorizations. To ensure uniqueness the PIN is generated
by the system and assigned to the person, whereby the
system adheres to the general rules (no numerical
sequences and no palindromes).
Like a physical credential the Identification-PIN enforces
the restrictions assigned to its owner (blocks, time models,
authorizations etc.).
Depending on the reader protocol, you must enter the
Identification PIN on the reader, along with the additional
characters required. In the case of readers enter the pin as
follows: 4 # (Enter) PIN # (Enter). For all other protocols,
the PIN is entered immediately and followed by # (Enter).
The length of this PIN is configurable to between 4 and 8
digits.
[Note: The length of ID-PINs should bear relation to the size
of the installation, in order to render active PINs harder to
guess. For instance, if the installation has 1000 cardholders
then the PINs should be at least 6 digits long in order to
make the guessing of a valid PIN sufficiently improbable,
and random guesses more likely to generate alarms.]
168 en | PIN types Access Professional
Edition
2015-11 | | Configuration Manual Bosch Access Systems GmbH
The PIN types described above are all person-related and
therefore defined and maintained along with other personnel
data. A fourth type is the so-called door-PIN.
–Door-PIN
The PIN belongs to an entrance (Configurator > Entrances).
It must be known by all persons authorized to use it.
instead of the PIN a card may also be used at such
entrances (see = Function PIN or card).
This PIN too can be 4 to 8 digits long. If the use of the door-
PIN is deactivated (e.g. by a time model) then access is
only by card. An identification-PIN will not work either in
this case.
Notice!
The Identification- and door-PIN-types can not be used with
IDS-arming door models 10 and 14.
Access Professional
Edition PIN types | en 169
Bosch Access Systems GmbH 2015-11 | | Configuration Manual
Bosch Access Systems GmbH
Charlottenburger Allee 50
52068 Aachen
Germany
www.boschsecurity.com
© Bosch Access Systems GmbH, 2015
