Video | DSA E-Series 4TB (E2700)

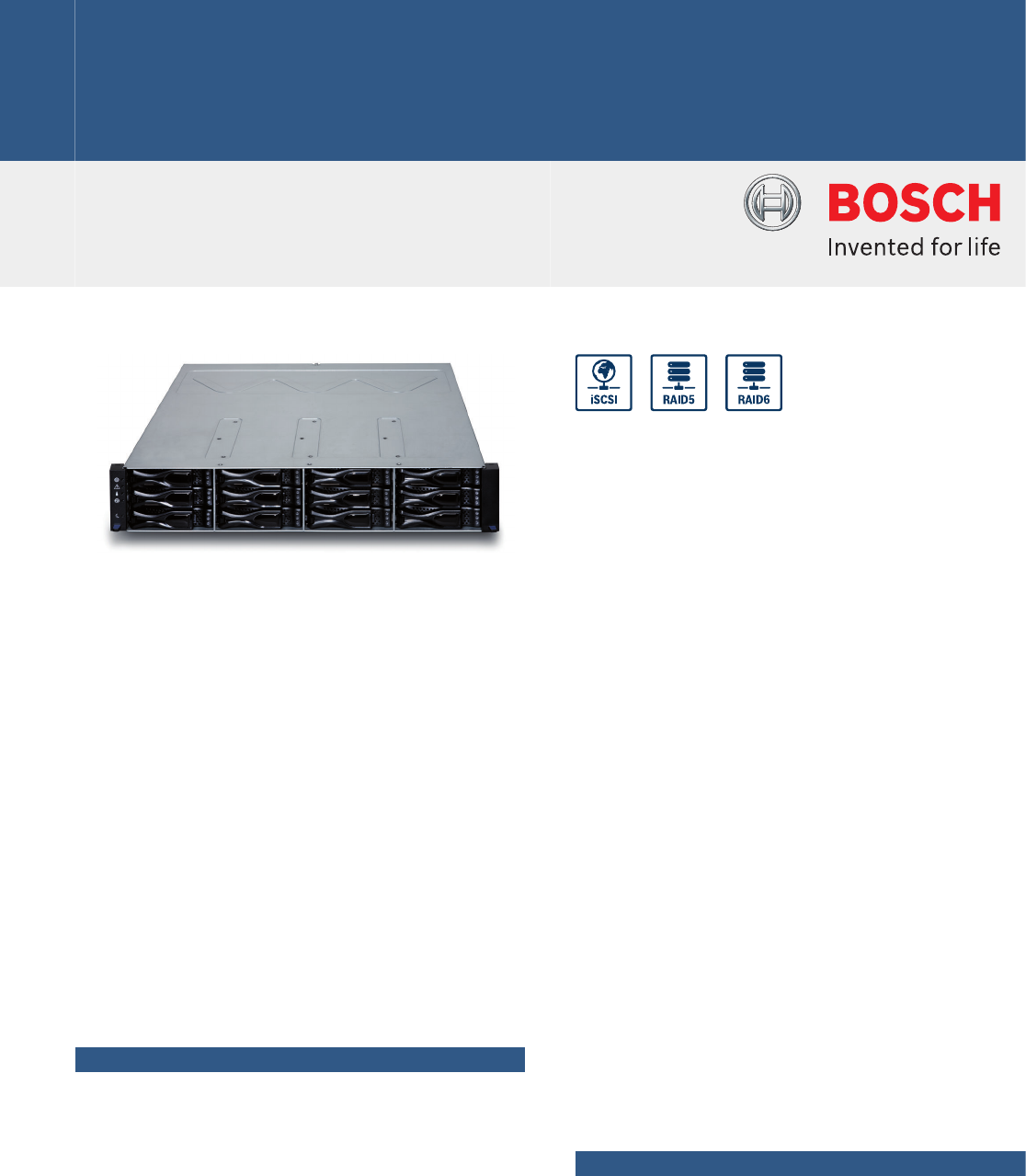

DSA E-Series 4TB (E2700)
www.boschsecurity.com
uScale-up network storage solution: controller unit
with 12 internal HDDs expandable via state-of-the-
art SAS interface-connected expansion units
uConfigurable hardware-based RAID protection
(RAID‑5 or RAID‑6) for highest system performance
uRedundant hot-swappable power supplies and
cooling fans
uTwo 10 Gigabit Ethernet ports for highest speed
iSCSI connectivity
uFully modular design for ease of service and
protected by NetApp services, including a 3 years
next business day on-site support
DSA E2700 represents the next generation of
DSA E‑Series, the iSCSI-based digital video disk arrays
by Bosch. They are state-of-the-art platforms designed
for the security industries most demanding digital
video storage applications to manage relentlessly
growing digital video data. Since HD and recently UHD
(4K) IP cameras and encoders have entered the
surveillance market, the ever growing need for high
bandwidth and low complexity of the storage
infrastructure are the main challenges. The next
generation DSA E2700 is the answer to it.
System overview
DSA E2700 is based on one 2U controller unit with 12
internal 3.5”, 7.2 K, NL-SAS (Serial Attached SCSI),
enterprise HDDs (Nearline SAS).
The controller unit is available as a standard Simplex
Controller configuration and as a Dual Simplex
Controller configuration for high-capacity and extreme
performance requirements.
This storage system is a high-performance solution
designed with robust flexibility that makes it a great fit
for wide-ranging video surveillance requirements. Its
balanced performance is designed for supporting high
bandwidth and I/O intensive workloads.
The DSA E2700 disk shelf option with a standard 12-
bay expansion unit with 12 x 3.5”, 7.2 K, NL-SAS,
enterprise HDD (2U) and a high-density 60-bay
expansion unit with 60 x 3.5”, 7.2 K, NL-SAS,
enterprise HDD (4U) enable custom configurations
that can be optimized for any standard mid- to
enterprise-environments.
And the DSA E2700 fully redundant I/O paths,
advanced protection features, and extensive
diagnostic capabilities deliver high levels of
availability, integrity, and security.
Functions
DSA E2700 is the co-branded E2700 series from
NetApp. It is a scale-up network storage solution that
provides security, highest “in-the-box” scalability,
peace-of-mind data protection, and simplified
management of all your video data. NetApp pioneered
the iSCSI protocol years ago and offers with the new
E2700 product line a high-end product for the video
surveillance market.
DSA E2700 in Simplex/Dual Simplex Controller
configuration allows connecting up to seven 12-bay
expansion units (12 x HDDs per expansion shelf) to
one single/dual controller base unit.
Note: This is only valid for 12-bay expansion units with
two ESM modules.
The Dual Simplex Controller configuration allows up to
two 60-bay expansion units (60 x HDDs per expansion
shelf) connected to one dual controller base unit.
Connecting the 60-bay expansion unit to a single
controller unit is not supported.
It is a fully featured RAID protected disk array which
provides RAID‑5 protection for capacity-oriented
environments and RAID‑6 protection for availability-
oriented environments. The RAID protection is based
on a hardware RAID implementation for highest
system performance. RAID‑6 is highly recommended if
the system will be used with a larger number of disk
shelf expansion units.
High reliability and availability
DSA E2700 keeps your data safe and available with
redundant hot-swappable power supplies and fans,
and protection from double-disk failure and single bit
errors during RAID rebuilds with high performance
RAID‑6.
With over 20 years of storage development experience,
DSA E2700 is based on a field-proven design
architected to provide high reliability and availability.
Its redundant components, automated path failover,
and online administration keep organizations
productive 24 x 7 x 365.
Further high-availability features include:
• Automatic drive failover and detection and rebuild if
using global hot spare drives
• Data cache with battery backup and de-stage to flash
•SANtricity proactive drive health monitoring identifies
problem drives before they create issues
Monitoring
Full SNMP support with MIB‑II and NetApp custom
MIBs supported. In case of component failures SNMP,
e-mail alert notifications will be generated.
Additionally, an event monitor for sending alert
notifications to a central major event log is available.
If DSA E2700 is connected to the Internet/Intranet
automatically generated AutoSupport messages can be
sent. AutoSupport enhances customer service, speeds
problem resolution, and helps prevent issues. It
automatically sends alerts based on either event-based
or time-based (weekly, daily, other) criteria to provide
faster and better customer service, keeping your
systems up and running longer.
Management
NetApp SANtricity storage management software
combines robustness and ease of use. Full-time
storage administrators appreciate the extensive
configuration flexibility which allows optimal
performance tuning and complete control over data
placement. Part-time system administrators love the
intuitive interface and wizards designed to simplify
their tasks. With its dynamic capabilities, SANtricity
software supports on-the-fly expansion,
reconfiguration, and maintenance without interrupting
storage system I/O. The software is available as 32‑bit
and 64‑bit Microsoft OS installation package (available
on the Bosch product catalogue).
Certifications and approvals
Region Regulatory compliance/quality marks
Europe CE DSA E-Series (E2700)
CE DSA E-Series expansions(E2700)
USA UL DSA E-Series (E2700)
Installation/configuration notes
Installable on 32-bit and 64-bit Windows Clients,
SANtricity storage management software provides
easy central management of all DSA E‑Series arrays
available within one network. There is no additional
software necessary to be installed on peripheral
devices. In addition, the system provides a powerful
Command Line Interface (CLI) which is fully remote
accessible by SSH (Secure Shell).
DSA E‑Series offers per controller a serial console
connector and two dedicated Ethernet management
ports for management access and 2 x 10 Gigabit
Ethernet iSCSI host ports. Each port must be
configured with a separate IP address; the two iSCSI
host ports are separated access paths to the storage
system and represent an individual iSCSI target each.
The net capacity available is shown in the following
table:
Configuration Information
(RAID-5)
Net Capacity (GB)
Simplex Controller unit
(12 x 4 TB)
40964
Dual Simplex Controller unit
(12 x 4 TB)
40964
12-bay expansion unit
(12 x 4 TB)
40964
60-bay expansion unit
(60 x 4 TB)
204820
Configuration Information
(RAID-6)
Net Capacity (GB)
Simplex Controller unit
(12 x 4 TB)
37240
Dual Simplex Controller unit
(12 x 4 TB)
37240
2 | DSA E-Series 4TB (E2700)
Configuration Information
(RAID-6)
Net Capacity (GB)
12-bay expansion unit
(12 x 4 TB)
37240
60-bay expansion unit
(60 x 4 TB)
186200
Performance data per controller unit in a 10 Gbit/s
network (in a 1 Gbit/s network the available network
bandwidth is the limiting factor):
Network Uplink 10 GbE (RAID-5 / RAID-6)
IP cameras Bandwidth
Mbps
(Base Unit
12 x HDD)
Bandwidth Mbps
(min. 1 x Base Unit + 1 x
Expansion Unit:
24 x HDD)
Single
port
400 650 / 150 1050 / 200
Dual
port
800 (400
per port)
650 / 150 1050 / 200
Note: The overall bandwidth is per controller and does
not depend on the number of used ports. The number
of cameras will double by using two ports instead of
one port.
Notice
Number of IP cameras refers to default software
configuration (no direct replay mode). Bandwidth
data refers to <Recording> / <Replay>.
The maximum overall bandwidth of a Dual Simplex
Controller system is 2500 Mbps read/write
throughput in a 10 GbE uplink network.
Notice
DSA E2700 units are only supported by Bosch
Firmware 5.60 and later, VRM 3.0 and later, and
Configuration Manager 5.32 and later.
If total net capacity of the system exceeds 500 TB,
Video Recording Manager and Bosch Firmware
with large LUN support is required (min. VRM 3.60
and Firmware 6.30).
Notice
The next business day on-site service level can
only be provided if the respective system has
been registered immediately after receipt and
installation. Otherwise, service will be provided
based on best effort basis.
Information about registration details is available
in every shipment (registration form) or from the
Bosch online product catalog.
Next business day services cannot be provided in
every country everywhere. For limitations and
exceptions see the registration details in the
registration form.

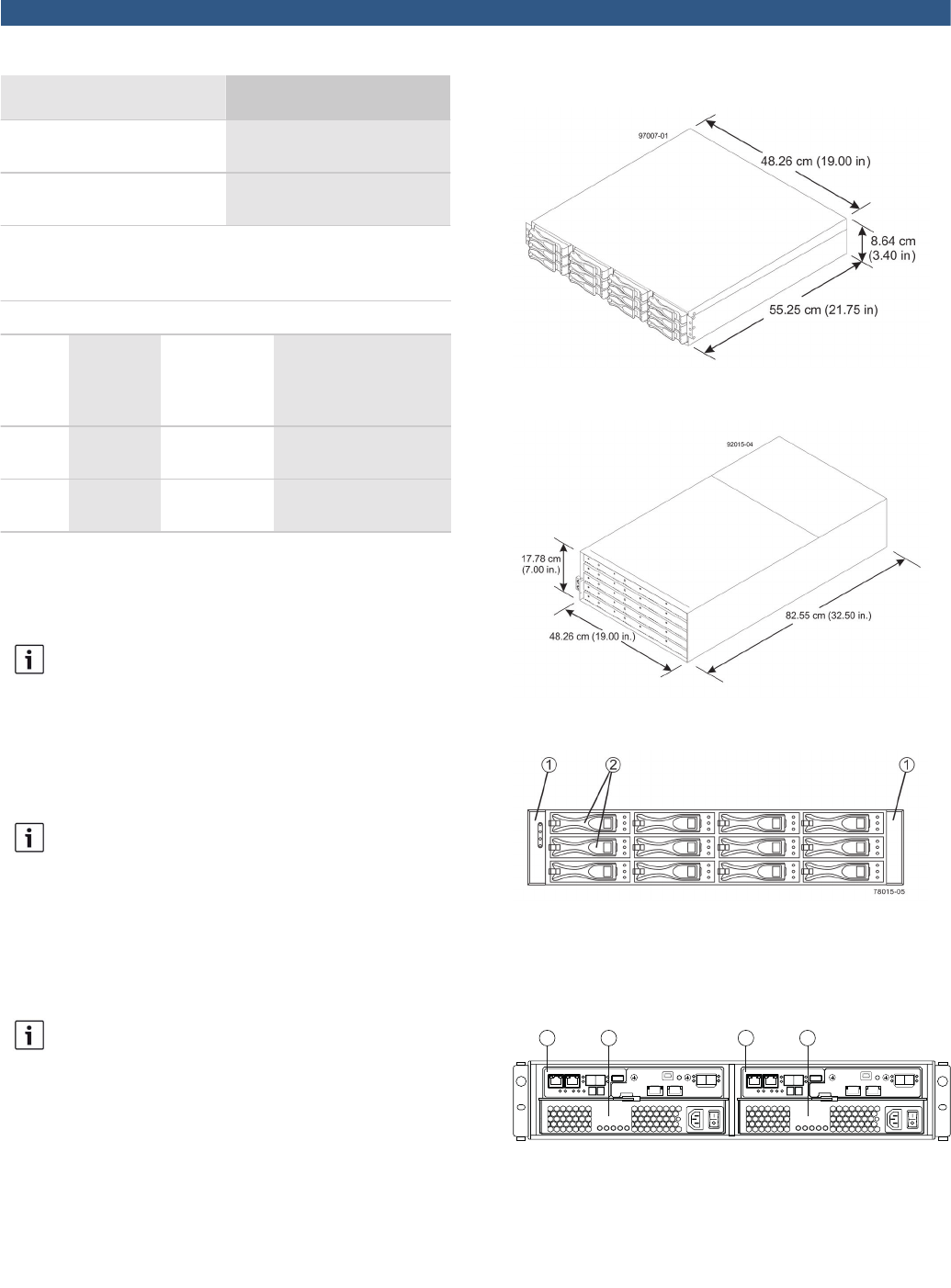

Dimensions controller unit and 12-bay expansion unit
Dimensions 60-bay expansion unit

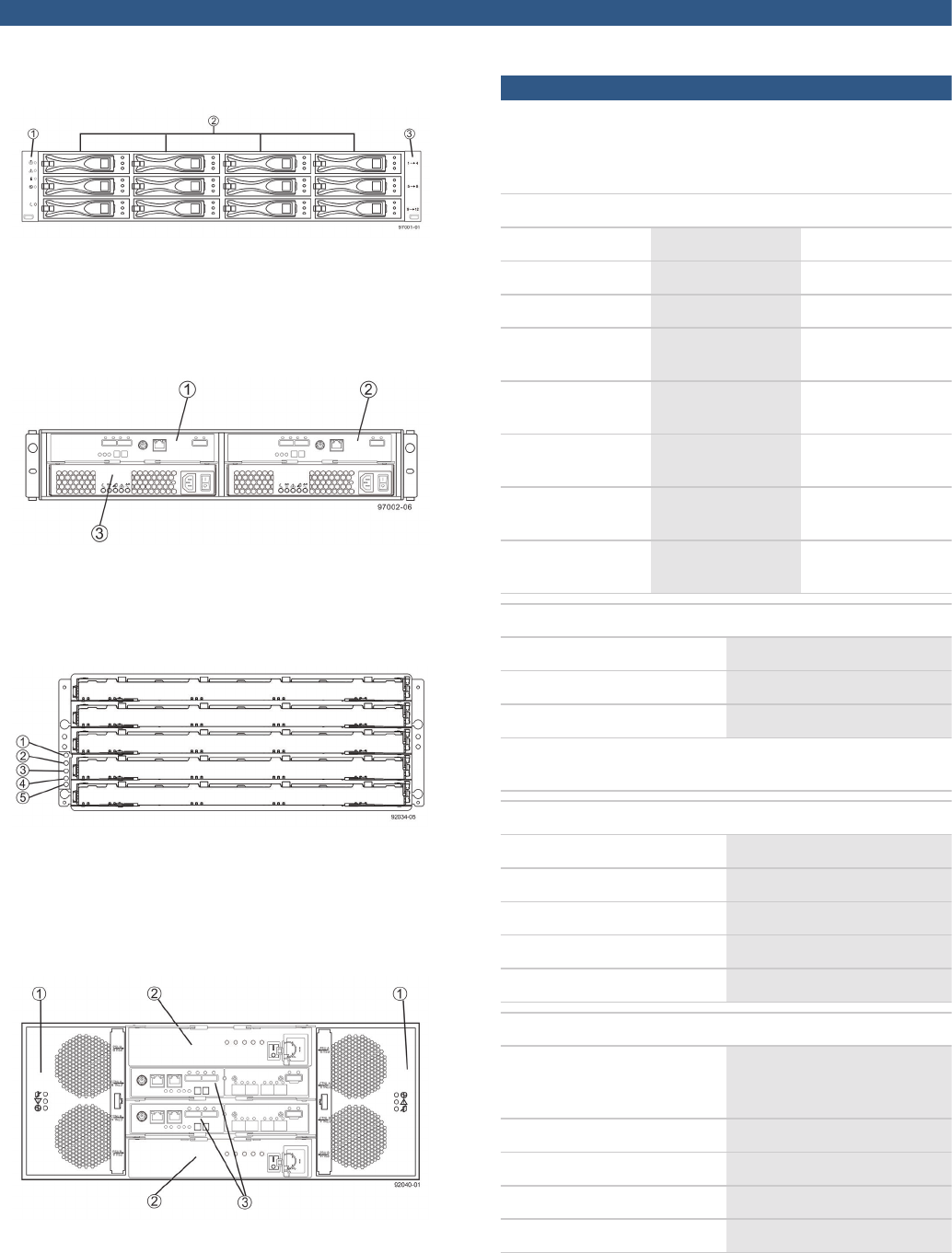

Front view controller unit
1 End Caps (the Left End Cap
has the Controller-Drive Tray
Summary LEDs)
2 Drive Canisters
Rear view Dual Simplex Controller unit
12
12
1 Controller Canister 2 Power-Fan Canister
3 | DSA E-Series 4TB (E2700)
Front view 12-bay expansion unit
1 End Caps (the Left End Cap
has the Drive Tray LEDs)
3 Right End Cap
2 Drives
Rear view 12-bay expansion unit
1 ESM A Canister 3 Power-Fan A Canister
2 ESM B Canister
Front view 60-bay expansion unit
1 Drive Drawer 1 4 Drive Drawer 4
2 Drive Drawer 2 5 Drive Drawer 5
3 Drive Drawer 3
Rear view 60-bay expansion unit
1 Fan Canisters 3 ESM Canisters
2 Power Canisters
Technical specifications
Simplex Controller 12 x 4 TB (DSA‑N2E7X4‑12AT) /
Dual Simplex Controller 12 x 4 TB
(DSA‑N2C7X4‑12AT)
All parameters are per controller unit:
Electrical requirements
Parameter Low range High range
Nominal voltage 100 VAC 240 VAC
Frequency 50 to 60 Hz 50 to 60 Hz
Typical operating
current
3.61 A 1.50 A
Maximum operating
current
5.16 A 2.15 A
Sequential drive
group spin up
4.27 A 1.76 A
Simultaneous drive
spin up
6.81 A 2.71 A
System rating plate
label
9.0 A 3.6 A
Power ratings (typical operating power)
KVA 0.361
AC Watts 358
BTU/h 1220
Note: for detailed information please see the latest NetApp E‑Series
Storage Systems Site Preparation Guide
Battery data
Number of batteries 2
Battery type Li-ion
Weight of battery 0.157 kg (0.346 lb)
Battery casing Pack
Battery group Accumulator
System hardware specifications
Chassis DSA E2700 controller-drive tray
conforms to the 483 mm
(19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 12 x 4 TB, 3.5”, Nearline SAS
Maximum net capacity 40964 GB (RAID‑5 configured)
DDR2 memory (system RAM) 4 GB
4 | DSA E-Series 4TB (E2700)
Integrated I/O 2 x 100 Mbps management port;
2 x 1/10 Gigabit Ethernet, copper
Remote management (via LAN) Yes (plus serial console on
dedicated port)
Mechanical
Dimensions (H x W x D)
• Controller-drive tray 86.4 x 482.6 x 552.5 mm
(3.4 x 19 x 21.75 in)
• Shipping carton 241.3 x 584.2 x 685.8 mm
(9.5 x 23 x 27 in)
Weight
• Maximum weight 24.9 kg (54.9 lb) Simplex
Controller
27 kg (59.52 lb) Dual Simplex
Controller
• Maximum shipping weight 29.65 kg (65.37 lb) Simplex
Controller
31.75 kg (70.0 lb) Dual Simplex
Controller
Space requirements
Front—cooling 760 mm (30 in) clearance in front
of the cabinet
Rear—cooling 610 mm (24 in) clearance behind
the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front
of the cabinet
Rear of chassis—maintenance 610 mm (24 in) clearance behind
the cabinet
Environmental
Temperature
• Operating range (both
cabinet and subsystem)
+10 °C to +40 °C (+50 °F to
+104 °F)
• Maximum rate of change 10 °C (50 °F) per hour
• Storage range -10 °C to +50 °C (+14 °F to
+122 °F)
Relative humidity (non-condensing)
• Operating range (both
cabinet and subsystem)
20 to 80%
• Storage range 10 to 90%
Acoustic noise
• Sound power (standby
operation)
65 dB max
• Sound pressure (normal
operation)
65 dBA max
12-bay expansion unit 12 x 4 TB (DSX‑N1D6X4‑12AT)
Electrical requirements—expansion unit
Parameter Low range High range
Nominal voltage 100 VAC 240 VAC
Frequency 50 to 60 Hz 50 to 60 Hz
Idle current 2.96 A 1.23 A
Maximum operating
current
3.03 A 1.26 A
Sequential drive
group spin up
4.23 A 1.76 A
Simultaneous drive
spin up
4.43 A 1.83 A
System rating plate
label
7.0 A 2.9 A
Power ratings—expansion unit
KVA 0.276
AC Watts 276
BTU/h 954
Note: for detailed information please see the latest NetApp E‑Series
Storage Systems Site Preparation Guide
System hardware specifications—expansion unit
Chassis DE1600 controller-drive tray
conforms to the 483 mm
(19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 12 x 4 TB, 3.5”, Nearline SAS
Maximum net capacity 40964 GB (RAID‑5 configured)
Integrated I/O 6 Gb SAS
Mechanical—expansion unit
Dimensions (H x W x D)
• Drive tray 86.4 x 482.6 x 552.5 mm
(3.4 x 19 x 21.75 in)
• Shipping carton 241.3 x 584.2 x 685.8 mm
(9.5 x 23 x 27 in)
Weight
5 | DSA E-Series 4TB (E2700)
• Maximum weight 27 kg (59.52 lb)
• Maximum shipping weight 31.75 kg (70.0 lb)
Space requirements
Front—cooling 760 mm (30 in) clearance in front
of the cabinet
Rear—cooling 610 mm (24 in) clearance behind
the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front
of the cabinet
Rear of chassis—maintenance 610 mm (24 in) clearance behind
the cabinet
Environmental—expansion unit
Temperature
• Operating range (both
cabinet and subsystem)
+10 °C to +40 °C (+50 °F to
+104 °F)
• Maximum rate of change 10 °C (50 °F) per hour
• Storage range -10 °C to +50 °C (+14 °F to
+122 °F)
Relative humidity (non-condensing)
• Operating range (both
cabinet and subsystem)
20 to 80%
• Storage range 10 to 90%
Acoustic noise
• Sound power (standby
operation)
65 dB max
• Sound pressure (normal
operation)
68 dB max
60-bay expansion unit 60 x 4 TB (DSX‑N6D6X4‑60AT)
Electrical requirements—expansion unit
Parameter Low range High range
Nominal voltage 220 VAC 240 VAC
Frequency 50 to 60 Hz 50 to 60 Hz
Idle current 6.0 A 6.0 A
Maximum operating
current
7.56 A 7.56 A
Note: cables included with the 60-bay expansion systems are designed
to be used with 220 - 240 VAC power distribution units
Power ratings—expansion unit
KVA 1.268
AC Watts 1222
BTU/h 4180
Note: for detailed information please see the latest NetApp E‑Series
Storage Systems Site Preparation Guide
System hardware specifications—expansion unit
Chassis DE6600 controller-drive tray
conforms to the 483 mm
(19.0 in) rack standard
Power supplies Dual redundant, hot pluggable
Maximum disk drives 60 x 4 TB, 3.5”, Nearline SAS
Maximum net capacity 204820 GB (RAID‑5 configured)
Integrated I/O 6 Gb SAS
Mechanical—expansion unit
Dimensions (H x W x D)
• Drive tray 177.8 x 482.6 x 825.5 mm
(7.0 x 19 x 32.5 in)
• Shipping carton 482.6 x 609.6 x 1009.7 mm
(19 x 24 x 39.75 in)
Weight
• Maximum weight 105.2 kg (232 lb)
• Maximum shipping weight 193.2 kg (426 lb)
Space requirements
Front—cooling 760 mm (30 in) clearance in front
of the cabinet
Rear—cooling 610 mm (24 in) clearance behind
the cabinet
Front of chassis—maintenance 760 mm (30 in) clearance in front
of the cabinet
Rear of chassis—maintenance 610 mm (24 in) clearance behind
the cabinet
Environmental—expansion unit
Temperature
• Operating range 0 °C to +35 °C (+32 °F to +95 °F)
• Maximum rate of change 10 °C (50 °F) per hour
• Storage range -10 °C to +50 °C (+14 °F to
+122 °F)
Relative humidity (non-condensing)
• Operating range 20 to 80%
• Storage range 10 to 90%
Acoustic noise
6 | DSA E-Series 4TB (E2700)
• Sound power (standby
operation)
65 dB max
• Sound pressure (normal
operation)
68 dB max
Notes:
General technical information for the RAID systems are
provided in the NetApp E‑Series Storage Systems Site
Preparation Guide (available at https://
library.netapp.com/ecm/ecm_download_file/
ECMP12366559)
NetApp, AutoSupport, and SANtricity are registered trademarks of NetApp, all rights
reserved. All data and dimensions are referenced from the NetApp Site Preparation Guide
and from the NetApp Website and are subject to change without notice.
Ordering information
DSA-N2E7X4-12AT Base unit 12x4TB
High-performance and high-capacity storage system
base unit with iSCSI disk arrays.
12 x 4 TB HDD
Order number DSA-N2E7X4-12AT
DSA-N2C7X4-12AT Storage system 12x4TB dual control-
ler
High-performance and high-capacity storage system
base unit with iSCSI disk arrays, dual controller.
12 x 4 TB HDD
Order number DSA-N2C7X4-12AT
DSX-N1D6X4-12AT DSA E-Series Expansion Unit 12x
4TB
High-performance and high-capacity storage expansion
unit with iSCSI disk arrays.
12 x 4 TB HDD
Order number DSX-N1D6X4-12AT
DSX-N6D6X4-60AT DSA E-Series Expansion Unit 60x
4TB
High-performance and high-capacity storage expansion
unit with iSCSI disk arrays.
60 x 4 TB HDD
Order number DSX-N6D6X4-60AT
Accessories
DSA-EDTK-400A DSA E-Series 4000GB HDD
Hard disk storage expansion with a capacity of 4 TB.
Order number DSA-EDTK-400A
DSX-WDTK-400A DSA E-Series 4000GB HDD, DE6600
Shelf
Hard disk storage expansion with a capacity of 4 TB.
For 60-bay expansion units.
Order number DSX-WDTK-400A
DSX-NRCK40-INT DSA E-Series Rack Empty, 40U
Empty rack with 40U.
Order number DSX-NRCK40-INT
Services
SupportEdge Standard extension, 12-bay 4/6/8 TB
12-month extension of SupportEdge Standard next
business day for DSA E2700 4 TB, 6 TB, or 8 TB based
12-bay controller or expansion units, available for a 4th
and a 4th/5th year as a standard.
Order number DSA-S2E7X46-SLE
SupportEdge Standard extension, 60-bay 4/6/8 TB
12-month extension of SupportEdge Standard next
business day for DSA E2700 4 TB, 6 TB, or 8 TB based
60-bay expansion units, available for a 4th and a 4th/5th
year as a standard.
Order number DSA-S6D6X46-SLE
Parts replacement, 12-bay 4/6/8 TB
12-month service uplift to SupportEdge Standard:
parts replacement within 4 hours for DSA E2700 4 TB,
6 TB, or 8 TB based 12-bay controller or expansion
units, available for in-warranty systems only.
Order number DSA-S2E7X46-4PR
Parts replacement, 60-bay 4/6/8 TB
12-month service uplift to SupportEdge Standard:
parts replacement within 4 hours for DSA E2700 4 TB,
6 TB, or 8 TB based 60-bay expansion units, available
for in-warranty systems only.
Order number DSA-S6D6X46-4PR
Non-returnable disk, 12-bay 4/6/8 TB
12-month non-returnable disk option for DSA E2700
4 TB, 6 TB, or 8 TB based 12-bay controller or
expansion units, available for in-warranty systems only.
Order number DSA-S2E7X46-NRD
Non-returnable disk, 60-bay 4/6/8 TB
12-month non-returnable disk option for DSA E2700
4 TB, 6 TB, or 8 TB based 60-bay expansion units,
available for in-warranty systems only.
Order number DSA-S6D6X46-NRD
7 | DSA E-Series 4TB (E2700)
8 | DSA E-Series 4TB (E2700)
Represented by:
Europe, Middle East, Africa: Germany: North America: Asia-Pacific:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
emea.securitysystems@bosch.com
emea.boschsecurity.com
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
onlinehelp@us.bosch.com
www.boschsecurity.us
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
© Bosch Security Systems 2017 | Data subject to change without notice
19720045323 | en, V9, 17. Aug 2017

Navigation menu
