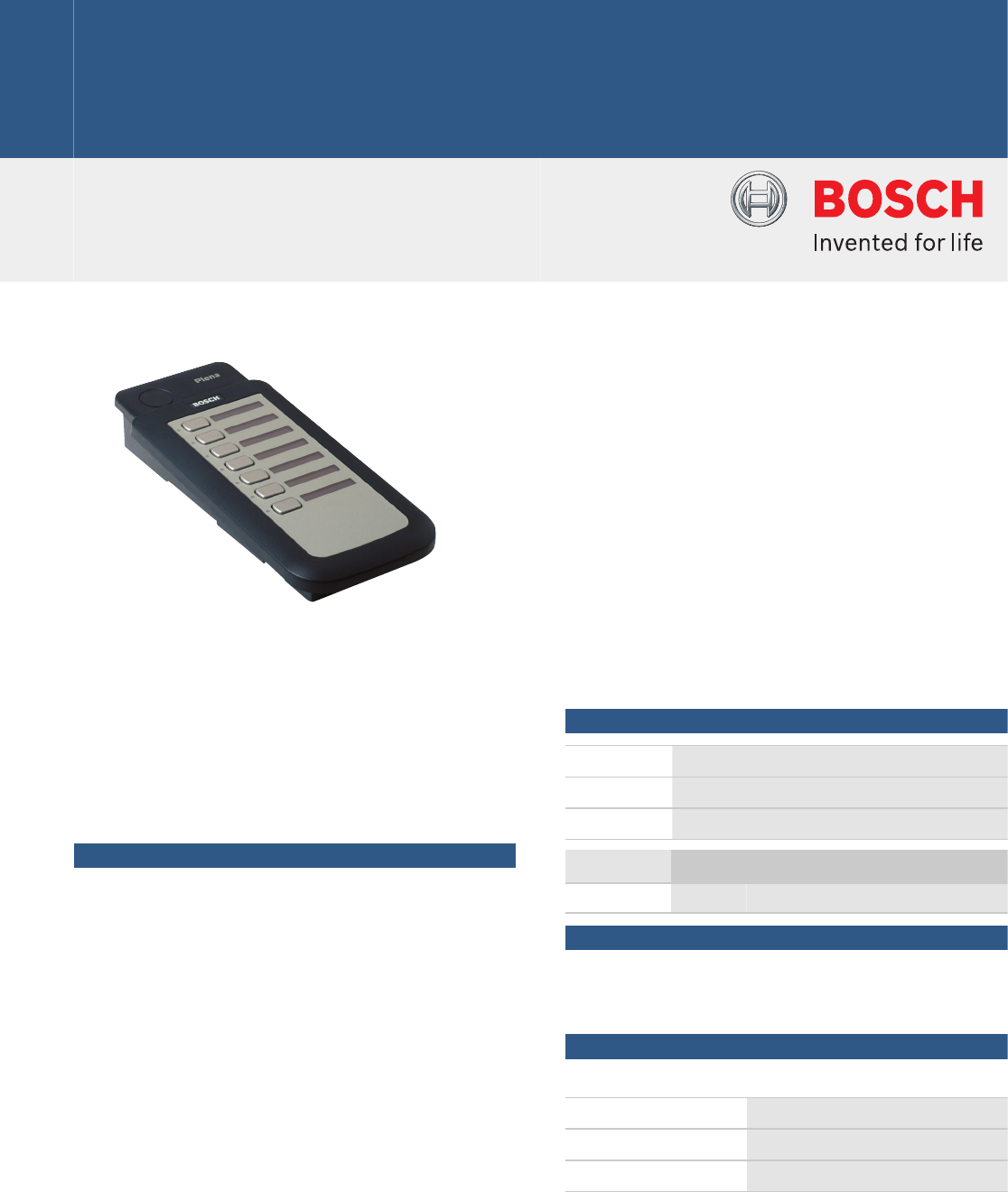

LBB 1957/00 Plena Voice Alarm Keypad
www.boschsecurity.com
uSeven zone selection keys
uLED indications for zone selection
uUp to eight keypads can be connected together
The LBB 1957/00 Call Station Keypad is an extension
to the LBB 1956/00 Plena Voice Alarm System Call
Station that adds seven additional zone-select keys. It
has the same stable metal base as the call station. In
addition to tabletop use, the special design allows it to
be neatly flush-mounted in desktops.
Functions
Each call station supports six zone selections.
Connecting one of these keypads, adds seven zones or
zone groups that can be selected. Up to eight keypads
can be added to an LBB 1956/00 call station. LEDs on
the keypad indicate the active zones.
Controls and indicators
• Seven zone selection keys
• Seven zone selection LEDs
• Eight DIP switches
Interconnections
• Two RJ45 jacks
• 24 VDC input
• Keypad connector
Certifications and approvals
Safety acc. to EN 60065
Immunity acc. to EN 55103-2
Emission acc. to EN 55103-1
Region Certification
Europe CE Declaration of Conformity
Parts included
Quantity Components
1LBB 1957/00 Call Station Keypad
Technical specifications
Electrical
Power Supply
Voltage range 24 VDC supplied by LBB 1956/00
Current consumption <15 mA
Mechanical
Base dimensions 40 x 100 x 235 mm
(1.57 x 3.97 x 9.25 in)
Weight Approx. 1 kg
Mounting Bracket coupled with LBB 1956/00 or
other LBB 1957/00
Color Charcoal with silver
Environmental
Operating temperature -10 ºC to +45 ºC (14 ºF to +113 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%
Ordering information
LBB 1957/00 Plena Voice Alarm Keypad
An extension to the LBB 1956/00 Plena Voice Alarm
System Call Station that adds seven additional zone-
select keys.
Order number LBB1957/00
2 | LBB 1957/00 Plena Voice Alarm Keypad
