Communications Systems | Plena All-in-One Unit
Plena All-in-One Unit
www.boschsecurity.com
uAll‑in‑One solution for background music and paging
uSix‑zone paging system
uBuilt‑in AM/FM tuner with presets
uMP3 player for USB device and SD card
uOptional Call Station and Wall Panel with local audio
source and remote control

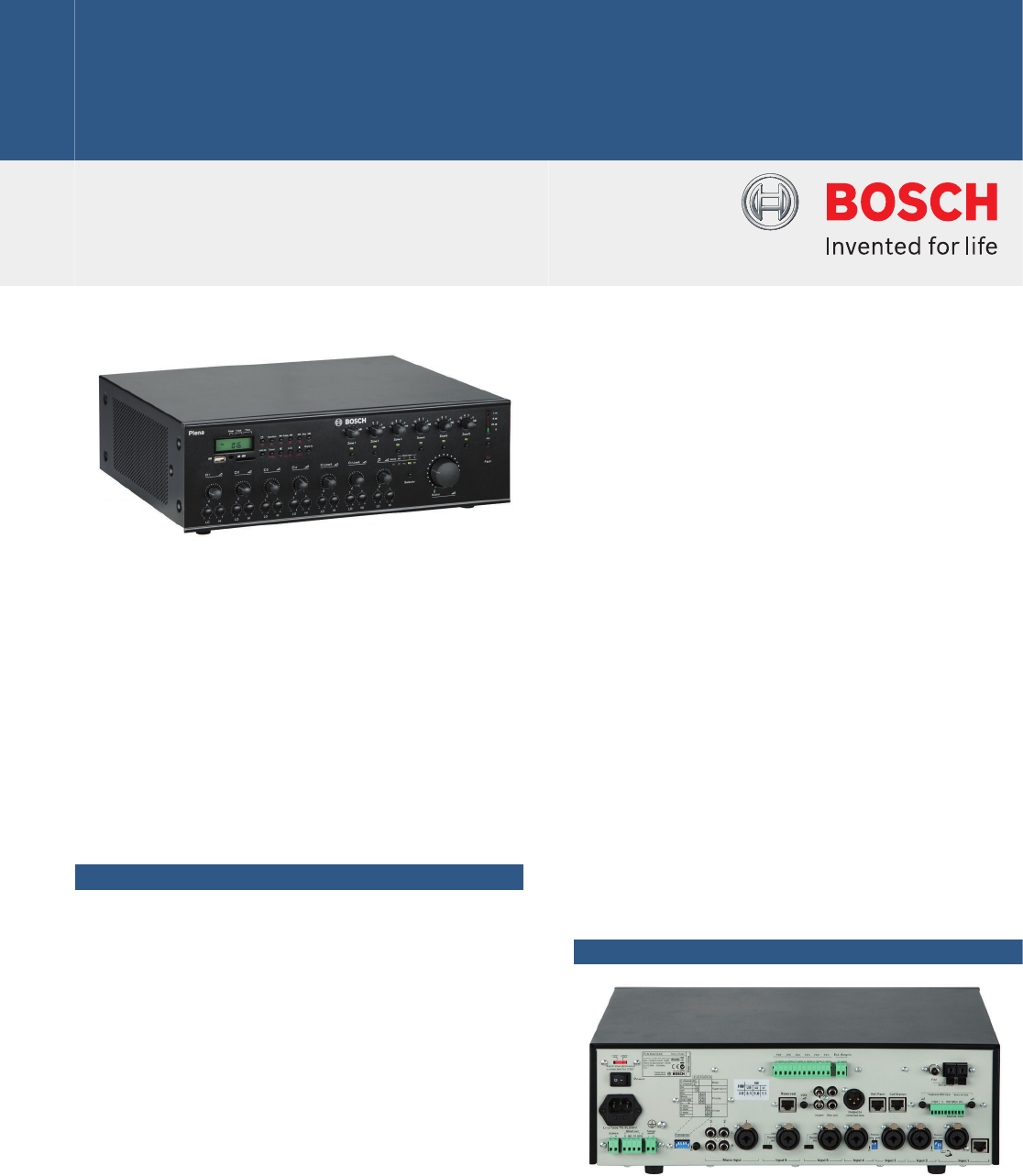

The Plena All‑in‑One System is a six‑zone 240 W
background music and paging system, which consists
of the Plena All‑in‑One Unit, an optional remote
Wall Panel, and one or more Call Stations. It is a cost-
effective public address system for small to medium-
sized venues that require an easy‑to‑use out‑of‑the‑box
solution.
System overview
The Plena All‑in‑One Unit can provide hours of
uninterrupted music from USB or SD flash memory.
The unit also has a built in AM/FM tuner with presets.
To ensure for optimum performance, the
All‑in‑One Unit has no moving parts, such as hard
drives that can fail or wear out. It is compatible with
SD, SDHC and MMC cards, and USB memory sticks.
The unit is supplied with an IR remote control for
controlling the music source. To enhance the
performance of the public address system, the
following optional products can be connected to the
All‑in‑One Unit:
• One or more Call Stations for six‑zones and all‑call, so
that calls can be made to any combination of zones or
all zones. A maximum of six Call Stations can be
connected in a loop‑through arrangement to the same
All‑in‑One Unit.
• A Wall Panel for enabling control of the background
music from a remote location; the Wall Panel even
allows a microphone or portable music player to be
connected to the system.
• An additional power amplifier, so that music can be
heard in one set of zones while calls can be made to
another set of zones.
The All‑in‑One Unit is a 3 U high 19” wide rack‑mount
unit. The unit is supplied with detachable rack‑mount
brackets so that it can be used on a tabletop or
installed in a rack.
Functions
Microphone and line inputs
The All‑in‑One Unit has six inputs that can be switched
between microphone and line level sensitivity. Input 1
also accepts an optional all‑call Call Station (PLE-1CS
or PLE-1SCS). The inputs are balanced but can also be
used unbalanced.
Phantom power can be switched on to provide power
to condenser microphones. The inputs can either be
mixed or can be configured with different priority
arrangements (serial/blocking/overriding), based on a
signal detection at each input.
Call station input
A maximum of six optional Call Stations can be
connected in a loop‑through arrangement to the same
All‑in‑One Unit. The PLN-6CS Call Station has a limiter
and configurable sensitivity, a speech filter, and an
attention chime.
Music inputs
The unit has three music inputs and an internal music
source. The internal music source plays MP3 files from
an SD/MMC card or USB device with a capacity of up
to 32 GB. The player will automatically search and play
all playable MP3 files and has repeat and random play
modes. The following formats are supported: MP3 files
with bit‑rates from 32 kbit/s to 320 kbit/s, mono/
stereo/joint‑stereo, and continuous bit‑rates (CBR) as
well as variable bit‑rate (VBR). If a microphone signal
receives priority, the music is either muted or
attenuated to an adjustable level (music ducking).
FM/AM Tuner
The digitally controlled tuner uses a frequency
synthesizer and has presets to store favorite radio
stations.
Output power
The built‑in 240 W power amplifier of the
All‑in‑One Unit makes this a complete single-channel
audio system for music distribution and paging. To
enable two‑channel operation, an external power
amplifier can be connected to the All‑in‑One Unit.
Zone outputs
The unit has six zone outputs for connection to
different zones. The volume level of each zone can be
adjusted separately.
Remote control Wall Panel input
An optional Wall Panel can be connected to the
All‑in‑One Unit by use of a standard Cat‑5 cable and
RJ45 connectors. The Wall Panel provides remote
control of the system, as well as an input for a remote
music player or microphone. The Enable button on the
remote Wall Panel can be pressed to gain control over
the music selection and master volume. This makes it
the perfect accessory for a small system that requires
operation from a second location with local audio
inputs.
Controls and indicators
Front panel:
• Power on LED
• LED VU meter for master output
• Master volume control
• Six volume‑level controls for microphone inputs
• Separate bass and treble control per input
• Music source controls
Rear side panel
• On/off mains switch
• Priority mode and chime selector switches
• Chime level control
• Ducking level control
• Telephone/100 V input volume control
Certifications and approvals
Safety IEC/EN 60065
EMC EN 55103-1
EN 55103-2
EN 61000-3-2
EN 61000-3-3
Environment EN 50581
US UL 60065
FCC Part 15B
CA CSA C22.2.60065
CN CCC
AU/NZ C-Tick
Region Certification
Europe CE
Parts included
Quantity Component
1All‑in‑One Unit
1 m Cat‑5 cable with RJ45 termination for adaptor
1 Adaptor to connect a PLE‑1CS or PLE‑1SCS desktop
microphone via shielded Cat‑5 wiring
1 AC power cord (for European mains sockets)
1 Safety Instructions
1 AM indoor antenna
1 Coax connector for FM antenna
1 Pair of brackets for 19“ rack installation
1 Remote control unit (without batteries)
1 Installation and Operating Manual
Technical specifications
Electrical
Mains power supply
Voltage 115/230 Vac +/- 15%, 50/60 Hz
Fuse rating 6.3 A (230 Vac)
10 A (115 Vac)
Power consumption 720 W max
2 | Plena All-in-One Unit
Performance
Frequency response Microphone inputs: 100 Hz –
15 kHz +1/-3dB
Line inputs: 50 Hz – 20 kHz
+1/-3dB
(+1/‑3 dB @ ‑10 dB ref. rated
output)
Distortion <1% @ rated output power, 1 kHz
Bass control +/- 8 dB @ 100 Hz
Treble control +/- 8 dB @ 10 kHz
Remote devices 2 x
Call station input RJ45 for PLN‑6CS
Wall panel input RJ45 for PLN‑4S6Z
Microphone/Line input 6 x
Input 1 (Push-to-talk contact
for priority/ducking)
RJ45 for PLE‑1CS or PLE‑1SCS
3‑pin XLR, balanced, phantom
Input 2-6 (with signal detector
for priority/ducking)
3‑pin XLR, balanced, phantom
Sensitivity 1.5 mV (mic); 200 mV (line)
Impedance >600 ohm (mic); >10 kohm (line)
S/N (flat at max volume) >65 dBA (mic); >70 dBA (line)
CMRR (mic) >40 dB (50 Hz to 20 kHz)
Headroom >25 dB
Phantom power supply 18 V – No load
Level detector (VOX) on Inputs
1-6
Attack time 150 ms; release time
3 s
Battery power supply
Voltage 24 Vdc (22 Vdc – 28 Vdc)
Current 12 A
Music inputs 3x
Connector Cinch, stereo converted to mono
Sensitivity 500 mV (inputs1/2) and 300 mV
(input 3)
Impedance 10 kohm
S/N (flat at max volume) >65 dBA
S/N (flat at min volume/muted) >75 dBA
Headroom >20 dB
Emergency / telephone 1 x
Connector 7‑pin, Euro style pluggable screw
terminal
Sensitivity line input 100 mV
Sensitivity 100V input 100 V
Impedance line input 600 ohm
S/N (flat at max volume) >70 dBA
Level detector (VOX) Threshold 50 mV; attack time
150 ms; release time 3 s
Insert 1 x
Connector Cinch
Nominal level 1 V
Impedance >10 kohm
FM tuner
Distortion <1 %
Total harmonic distortion
(1 kHz)
< 0.8 %
FM range 87.5 - 108 MHz
Frequency response 60 Hz - 12 kHz
Intermediate rejection ≥ 70 dB
Image rejection ≥ 50 dB
S/N ratio ≥ 50 dB
Intermediate frequency 10.7 MHz
Input sensitivity 8 μV
Automatic tuning sensitivity ≤ 50 μV
Antenna input 75 ohms (coaxial)
AM tuner
AM range 530 - 1602 kHz
Input sensitivity 30 μV
Digital audio player 1 x
Frequency response 20 Hz to 20 kHz
S/N ratio >70 dBA
Total harmonic distortion
(1 kHz)
<1 %
Supported formats MP3, 32 - 320 kbps
Master/music output 1 x
Connector 3‑pin XLR, balanced
Nominal level 1 V
Impedance <600 ohm
Loudspeaker outputs 100 V
Connector Screw, floating
Total power 240 W
3 | Plena All-in-One Unit
Direct outputs 100/70 V, 8 ohm
Zone outputs 1-6 100/70/50/35/25/17 V
Mechanical
Dimensions (H x W x D) 133 x 430 x 365 mm with feet
(19" wide, 3 U high)
Weight Approx. 18 kg
Mounting Standalone, 19” rack
Color Charcoal
Environmental
Operating temperature -10 ºC to +45 ºC (14 ºF to
+113 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to
+158 ºF)
Relative humidity <95% (non‑condensing)
Generic performance specifications
Acoustic noise < 45 dB SPL, measured at 1 meter
above the unit
MTBF 1200000 hours at 25°C
Ordering information
Plena All-in-One Unit
All‑in‑One solution for background music (BGM),
announcements, and paging people.
Order number PLN-6AIO240
Accessories
Plena All-in-One Call Station
Call station for six zones with unidirectional
microphone and attention chimes.
Order number PLN-6CS
Plena All-in-One Wall Panel
Wired remote control for the Plena All-in-One Unit with
local audio inputs.
Order number PLN-4S6Z
4 | Plena All-in-One Unit
