LSN Surface-Mount Magnetic Contact
www.boschsecurity.com
uLSN surface-mount magnetic contact for release
monitoring of doors and windows
uParallel mounting
uInstallation in ferromagnetic materials is permissible
by using the EG1 flush mounting housing
uFor connecting to LSN security systems

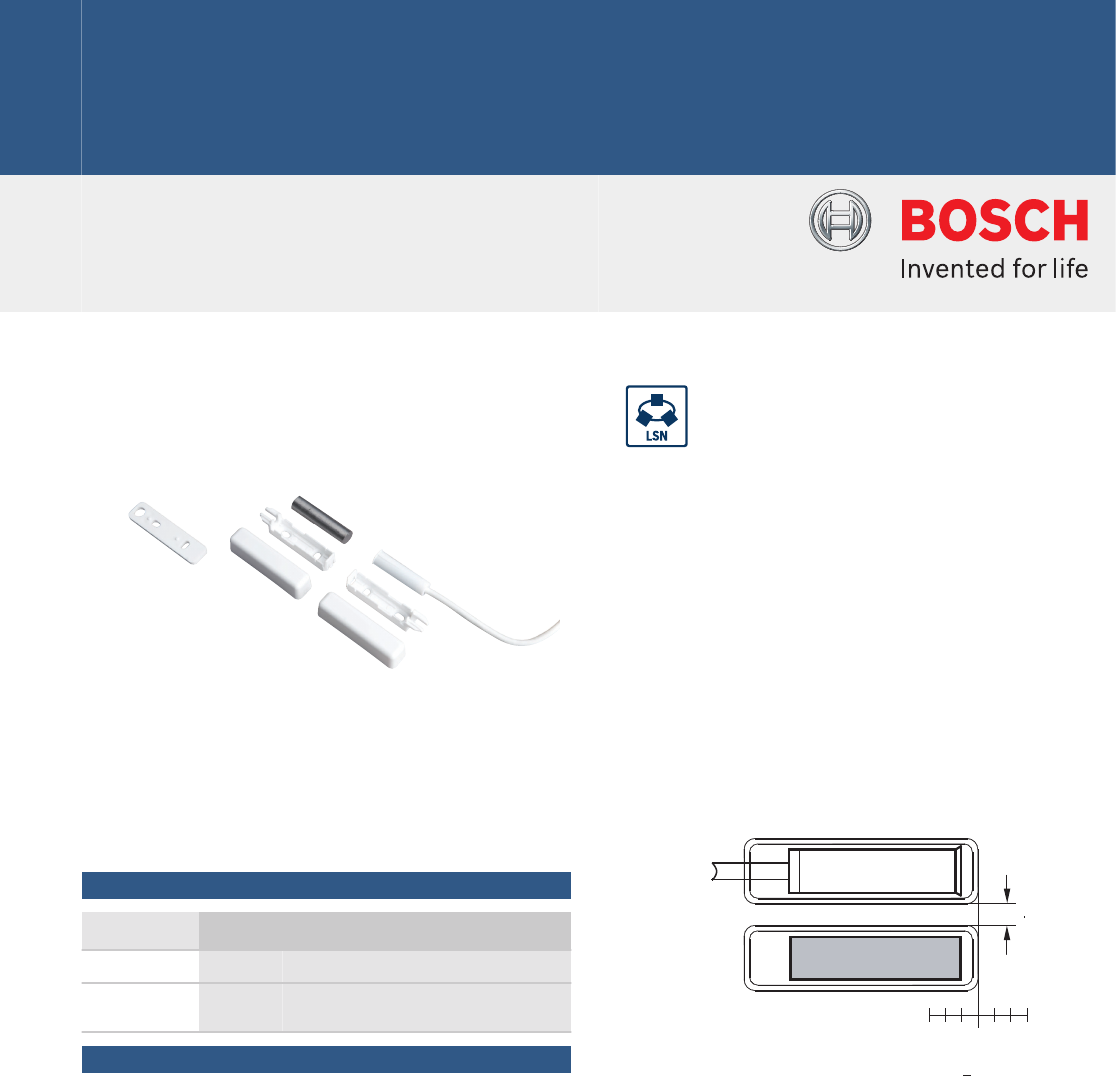

The LSN surface-mount magnetic contact is used for
release monitoring of doors and windows.
Parallel mounting.
Certifications and approvals
Region Certification
Germany VdS G111502 ISP-MCB2-FP110
Europe CE ISP-MCB2-FP110, ISP-MCB3-FP110,
ISP-MCS2-FP110, ISP-MCS3-FP110
Installation/configuration notes
Installation information
• The magnetic contact and magnet are installed
parallel to each other on window or door frames and
window or door jambs.
• The magnet should be fixed in a bore.
• Installation in ferromagnetic materials (metal flush
mounting) is only permissible with the optional EG1
flush mounting housing.
Installation distance
+3mm
0
-3 +3
5...20mm

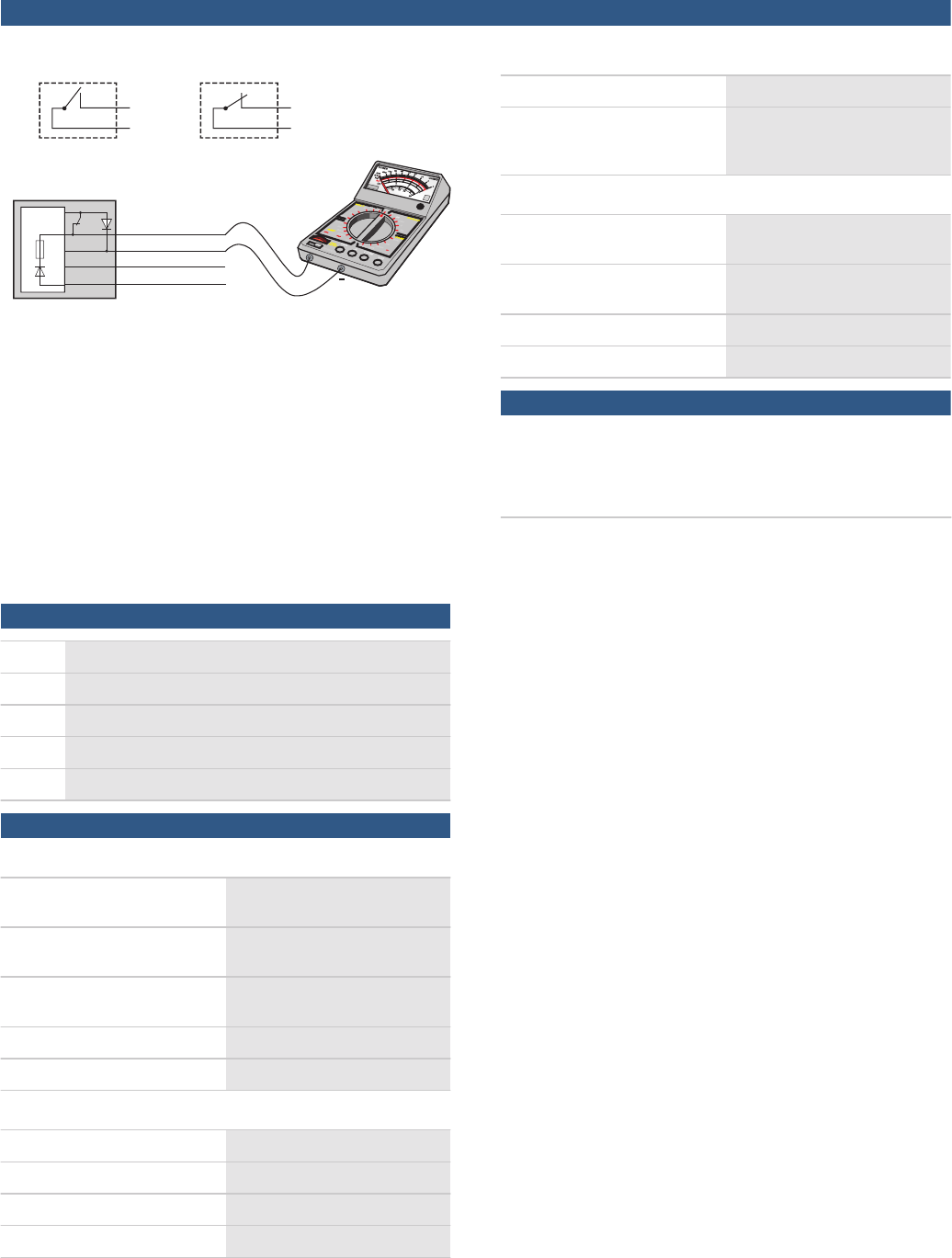

Checking the switch function of the contact
a) Use a high-ohm multimeter or continuity checker
(for diode paths) to check the function of the LSN
contact:
• contact open: approximately 3 megaohm
• contact closed: approximately 1 megaohm
The resistance values are approximate. A large change
in resistance is significant.
+
bLSN2
aLSN2
aLSN1
bLSN1
~3MΩ~1MΩ
Connecting LSN contacts
• Each LSN contact is a physical LSN element (1 out of
127 possible per loop).
• Include the length of LSN contact connection cables
when planning the total line length of the LSN loop,
as the LSN technology is integrated in these contacts.
• Position passive elements for connecting the
connection cables to the installation cable as close as
possible to the LSN contacts, as a 1m connection
cable with 2m LSN cable length is included in the
calculation of the LSN cable length (LSN is fed into
the contacts and back out again).
• Connector boxes (optional) are classified as
installation material.
Parts included
Qty. Components
14 m connection cable
1 Magnet
1 Enclosure
1 Installation note
Technical specifications
Electrical
Minimum operating voltage in
VDC
15
Maximum operating voltage in
VDC
33
Maximum current consumption in
mA
0.25
Reed contact NO
Switch tolerance ≥ 107
Mechanical
Dimension in cm (H x W x D) 1.2 x 1.18 x 4.28
Dimension in cm (Ø x D) 0.8 x 3.0
Material AlNiCo 500
Housing material ABS
Color white
Connection cable LiY(St)Y 4 x 0,22 mm2 with
shield, exterior Ø 3,2 mm, length
4 m
Environmental
Minimum operating temperature
in °C
-25
Maximum operating temperature
in °C
70
Protection class IP 68
Environmental class III
Ordering information
LSN Surface-Mount Magnetic Contact
For monitoring the opening of doors and windows,
parallel mounting
Order number ISP-MCS2-FP110
