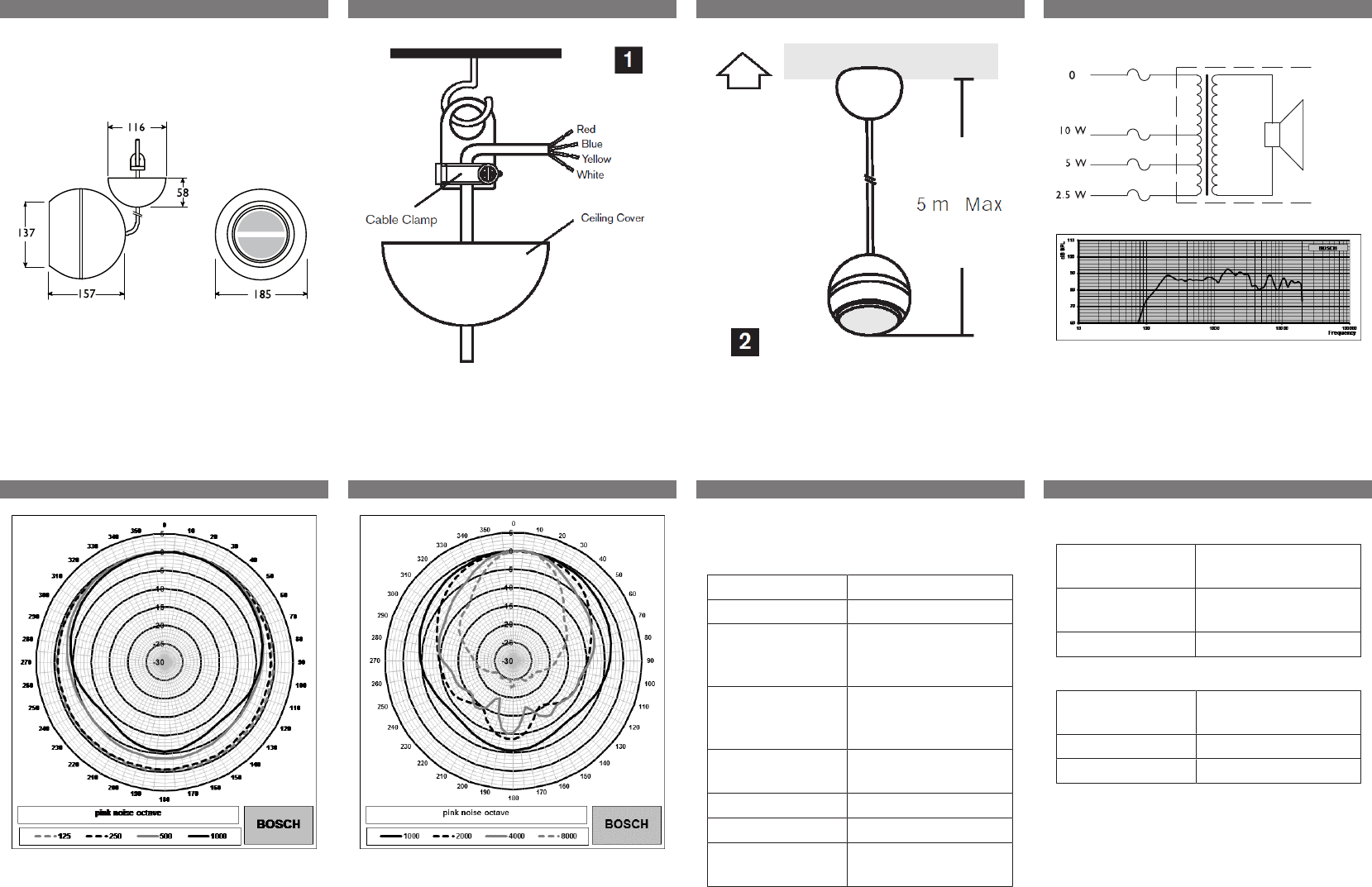

Installation

LBC 3095/15

Fig.1: Dimensions (in mm)

Circuit diagrams

Fig.2: Circuit diagram

Fig.3: Frequency response

Polar diagram (low frequency part)

Normalized at the 00-axis.

Polar diagram (high frequency part)

Normalized at the 00-axis.

Technical data

Electrical*

Maximum power 15 W

Rated power 10 / 5 / 2.5 W

Sound pressure level

at 10 W / 1 W (1 kHz,

1 m)

98dB / 88dB (SPL)

Opening angle

at 1 kHz / 4 kHz (-6

dB)

216° / 103°

Effective frequency

range (-10 dB)

120Hz to 20kHz

Rated voltage 100 V

Rated impedance 1000 ohm

Connection 5 m 4-core cable

(4x0.5mm2 /20AWG)

Environmental

Operating temperat-

ure

-25ºC to +55ºC (-13ºF

to +131ºF)

Storage and trans-

port temperature

-40ºC to +70ºC (-40ºF

to +158ºF)

Relative humidity <95%

Mechanical

Dimensions (D x L) 185 x 157 mm (7.3 x 6.2

in)

Weight 1.64kg (3.61lb)

Color White (RAL9010)

1 | 2 | 3 | 4 |

5 | 6 | 7 | 8 |

Intentionally left blank

9 | 10 | 11 |

12 | 13 | 14 |

LBC3095/15 Pendant sphere loudspeaker,

10W

en Installation note

| V1.0 | 2017.12
