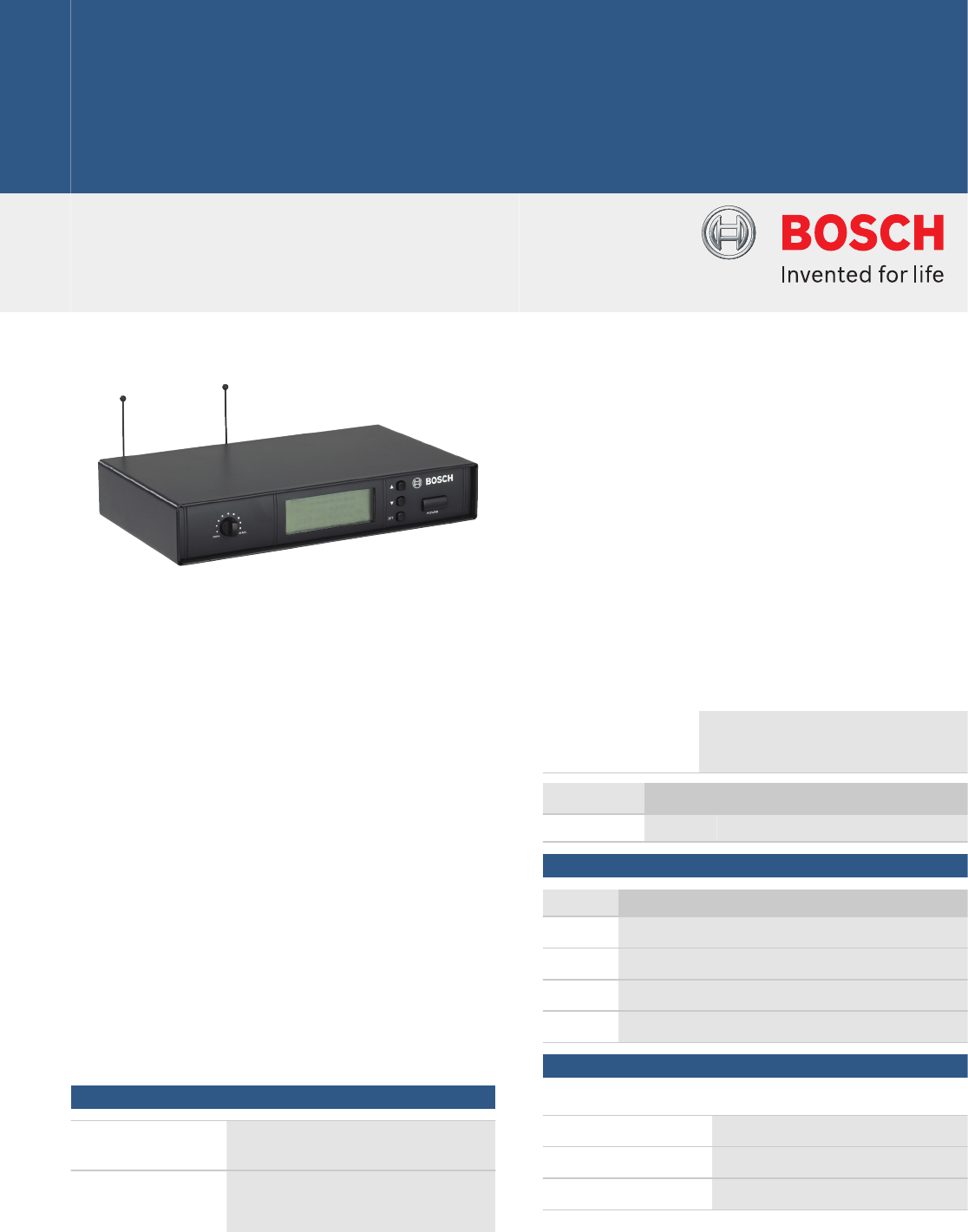

Communications Systems | MW1-RX-F4 Microphone receiver, 606-630 MHz
MW1-RX-F4 Microphone receiver, 606-630
MHz
www.boschsecurity.com
u193 selectable UHF channels
uPLL synthesized technology
uPilot tone and noise squelch
uTrue diversity for stable reception
uTable top and 19” rack mountable
The wireless microphone receiver is part of the Bosch
wireless microphone system. This system is designed
for public address in churches, restaurants,
conference centers, hotels, shops and many other
applications.
The complete system consists of:
• a microphone receiver, supplied with AC/DC power
supply and 1.5 m 3-pin male/female XLR cable,
• a wireless belt-pack transmitter with clip-on Lavalier
microphone, supplied with clip, protective case, 2
LR5/AA batteries and windscreen,
• or a wireless handheld microphone, supplied with
microphone holder, protective case, 2 LR5/AA
batteries and 7 color caps.
The products are sold separately to offer optimal
flexibility in the composition of a system.
A dual rack mount kit (MW1-RMB) including, a front
panel, and an antenna adapter kit for mounting up to
two receivers in a 19” rack is also available.
Certifications and approvals
CE Marking 2014/53EU (RED)
2011/65/EU (RoHS)
EMC EN 60065:2002 + A1:2006 + A11:2008 +
A2:2010 + A12:2011
EN 301 489-1:V2.2.0:2017
EN 301 489-9:V2.1.1:2017
EN 301 422-1:V2.1.2:2017
EN 50581:2012
Region Regulatory compliance/quality marks
Europe CE DECL EC MW1-RX-F4
Parts included
Quantity Component
1 MW1-RX-F4 Wireless Microphone Receiver
1 User manual
1 1.5 m 3-pin XLR male/female cable
1 AC/DC adapter with power cord
Technical specifications
Electrical
Power source 12 V to 18 V, 500 mA
Performance
Modulation FM
Frequency selection PLL synthesized control
Frequency range 606 to 630 MHz
Channels 193 channels (in steps of 125 kHz)
Frequency stability ±0.005%
Technology True diversity system
S/N ratio >105 dB
T.H.D <0.6% at 1 kHz
Antenna 2 x
Connector BNC
HF impedance 50 ohm
Output 2 x
Connector XLR 3‑pin male, balanced
Output level ‑12 dBV (max)
Output impedance 600 ohm
Connector 6.3 mm jack, unbalanced
Output level 0 dBV (max)
Output impedance 2.2 kohm
Squelch Pilot tone and noise mute
Mechanical
Dimensions (H x W x D) 40 x 211 x 152 mm
(1.57 x 8.30 x 5.98 in)
Color Charcoal
Weight Approx. 1 kg (2.20 lb)
Antenna length 50 mm (½ λ)
Environmental
Operating temperature -25 °C to +55 °C
(-13 F to +131 F)
Storage and transport
temperature
-40 °C to +70 °C
(-40 F to +1581 F)
Relative humidity <95%
2 | MW1-RX-F4 Microphone receiver, 606-630 MHz
Ordering information
MW1-RX-F4 Microphone receiver, 606-630 MHz
UHF wireless microphone receiver, true diversity for
stable reception, PLL synthesized technology, table
top and 19" rack mountable, supplied with AC/DC
adapter with power cord and 1.5 m 3 pin XLR male/
female audio cable.
Frequency range: 606-630 MHz, 193 selectable UHF
channels.
Order number MW1-RX-F4
Accessories
MW1-HTX-F4 Microphone with transmitter, 606-630
MHz
UHF wireless handheld microphone transmitter, LCD
with battery status and frequency indication, supplied
with microphone holder, batteries and storage case.
Frequency range: 606-630 MHz, 193 selectable UHF
channels.
Order number MW1-HTX-F4
MW1-LTX-F4 Belt-pack transmitter, 606-630 MHz
UHF belt-pack transmitter, LCD with battery status
and frequency indication, supplied with clip-on lavalier
microphone, batteries and storage case.
Frequency range: 606-630 MHz, 193 selectable UHF
channels.
Order number MW1-LTX-F4
MW1-RMB Rack mounting bracket, 19"
Dual-rack mounting kit for mounting two receivers
side-by-side in a one-unit high rack space. Supplied
with two BNC/BNC cables (600 mm) and a front panel
with mounting holes for 2 BNC connectors for
mounting two antennas.
Order number MW1-RMB
