BOSCH
Dishwasher
Use & Care Manual
for SHU (6800, 5300)
and SHI 6800 Series
READ THIS MANUAL
for important safety and operating
instructions
Quick Reference Index
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
ABOUT YOUR DISHWASHER
GETTING TO KNOW YOUR DISHWASHER
BEFORE USING FOR THE FIRST TIME
GETTING STARTED
SPECIAL INSTRUCTION, TABLE 1
PREPARATIONS FOR WASHING
2
2
3
3
4
4
5
6
LOADING
SINGLE RACK WASHING 6
LOADING THE TOP RACK 6

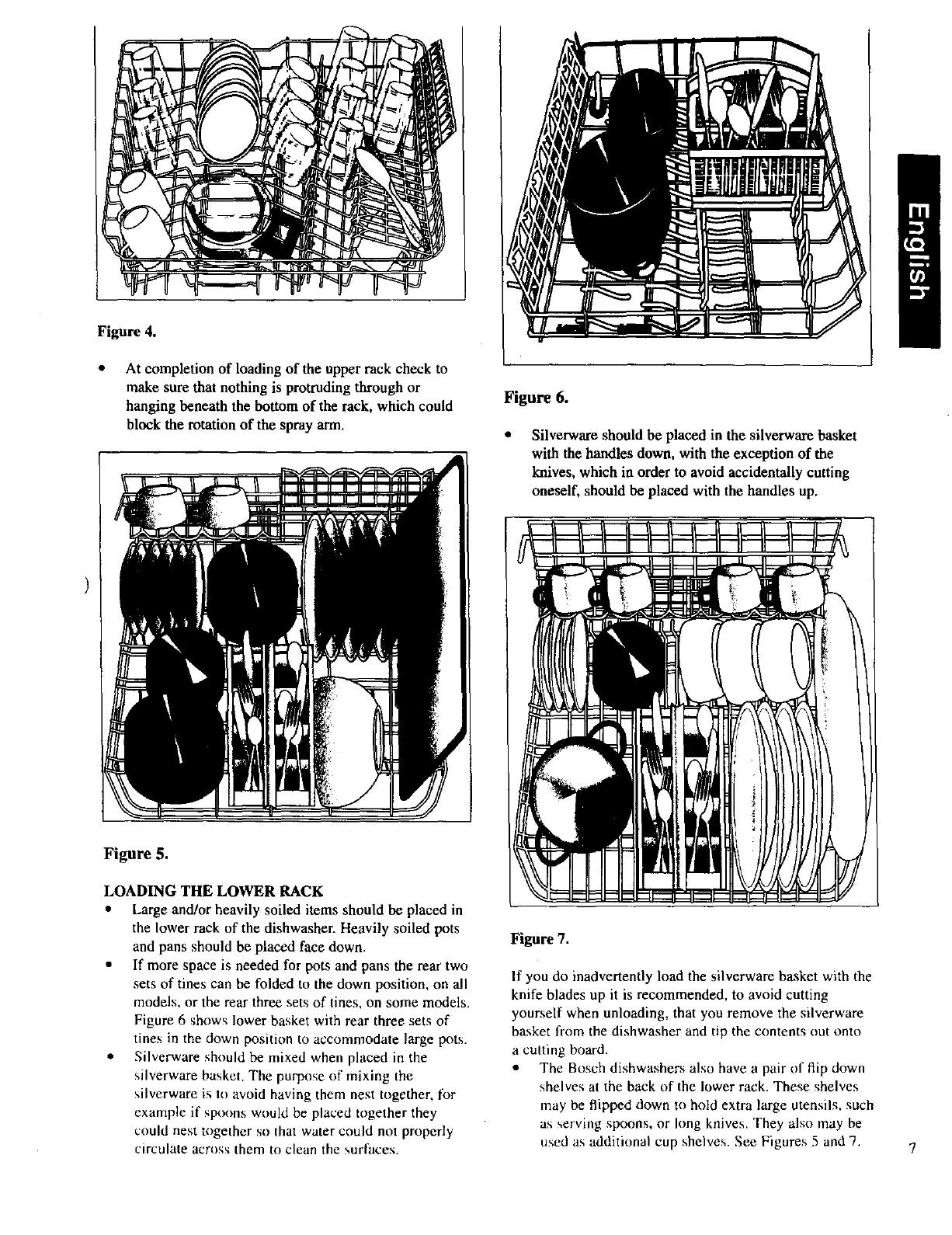

LOADING THE LOWER RACK 7

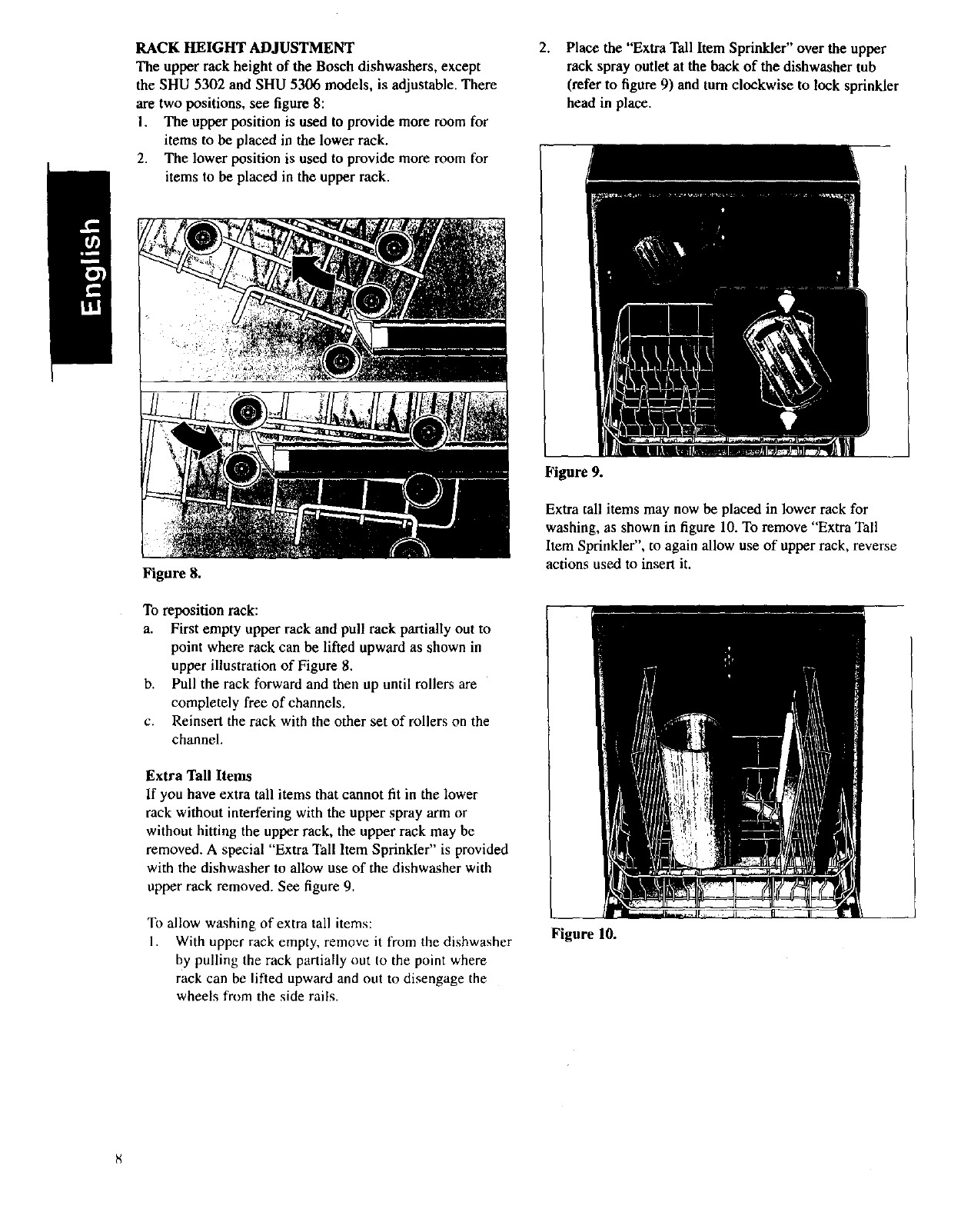

RACK HEIGHT ADJUSTMENT
EXTRA TALLITEMS 8

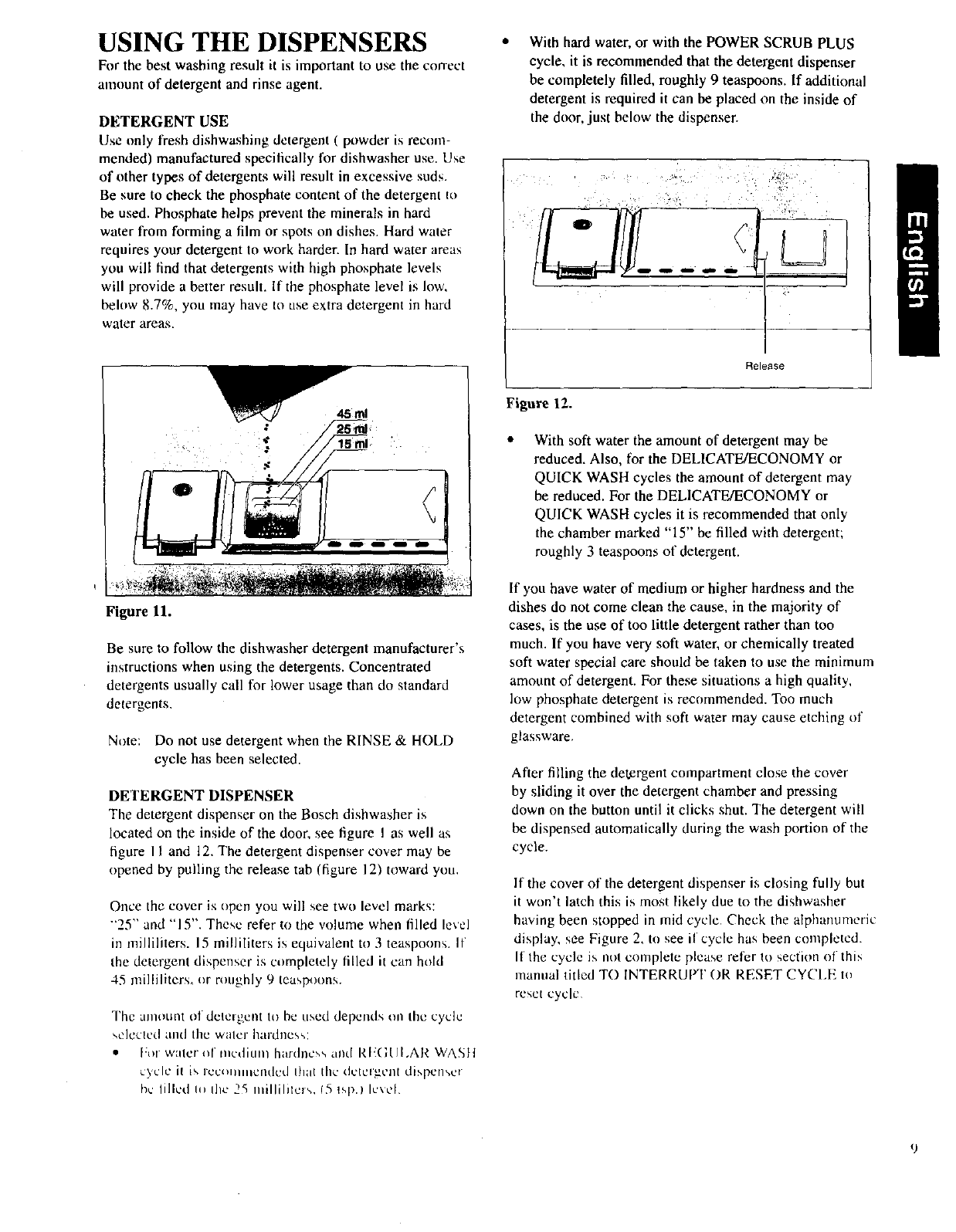

USING THE DISPENSERS
DETERGENT USE 9
DETERGENT DISPENSER 9

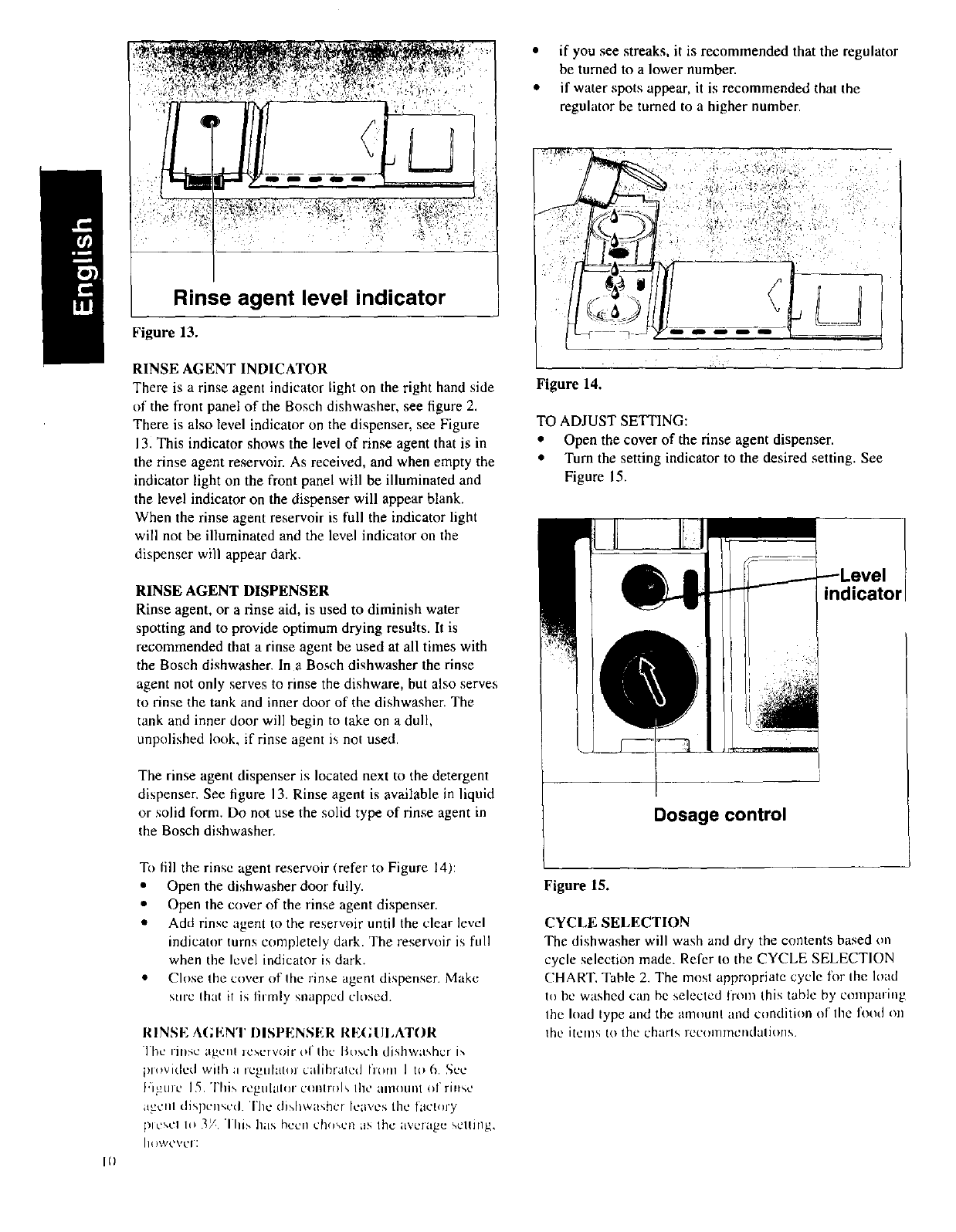

RINSE AGENT INDICATOR 10
RINSE AGENT DISPENSER 10
RINSE AGENT REGULATOR 10
CYCLE SELECTION 10

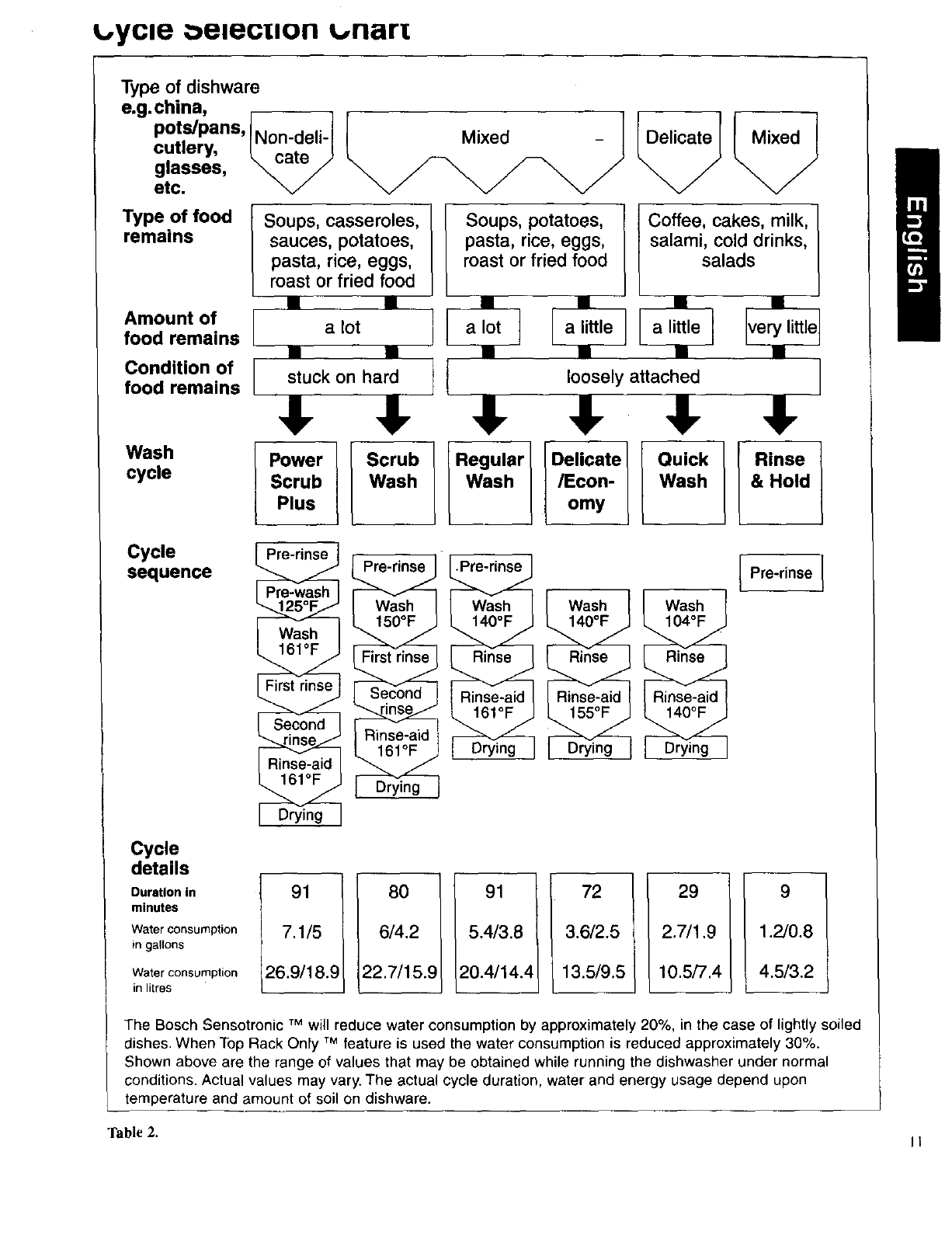

CYCLE SELECTION CHART I 1

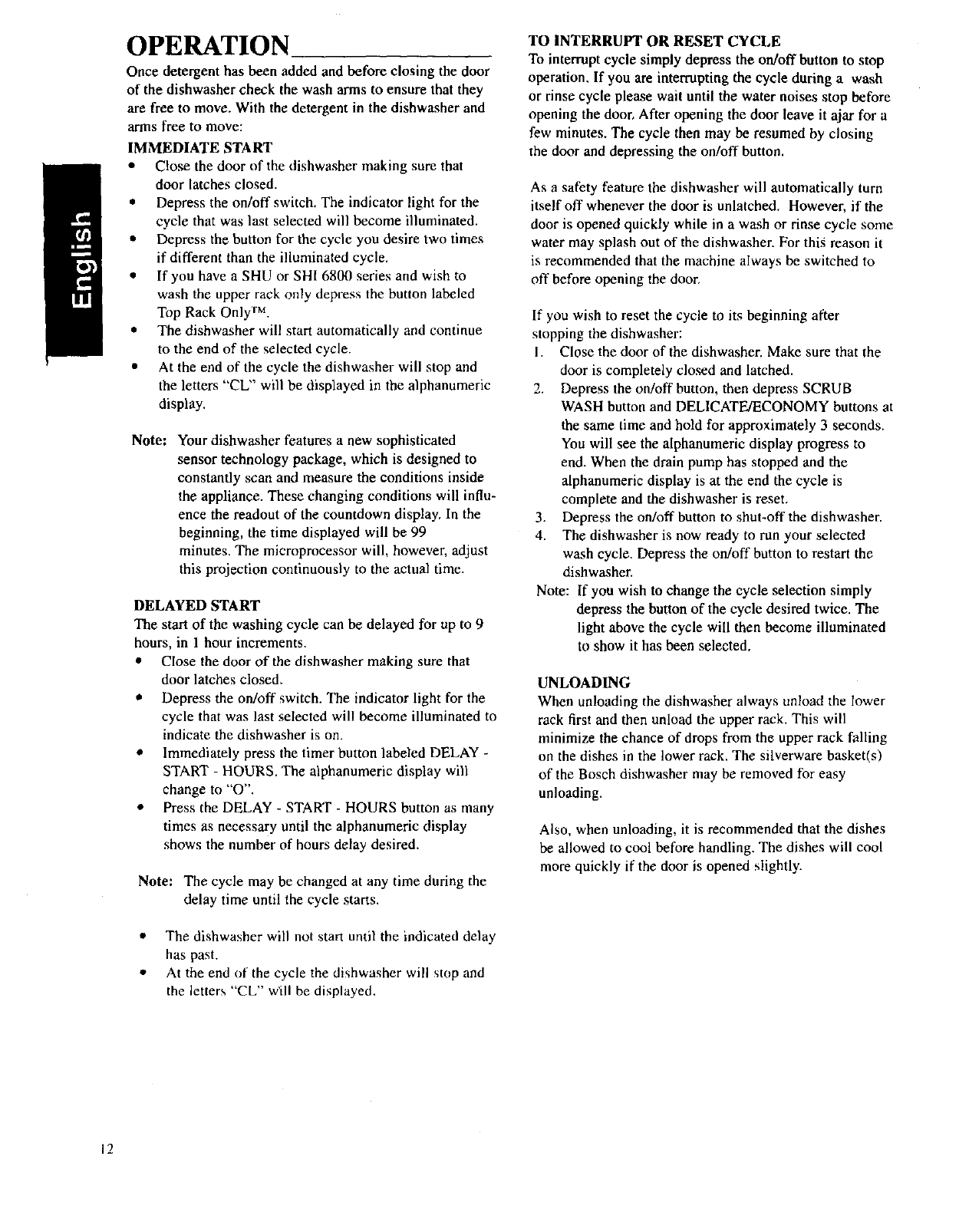

OPERATION 12
IMMEDIATE START 12
DELAYED START 12
TO INTERRUPT OR RESET CYCLE 12
UNLOADING 12

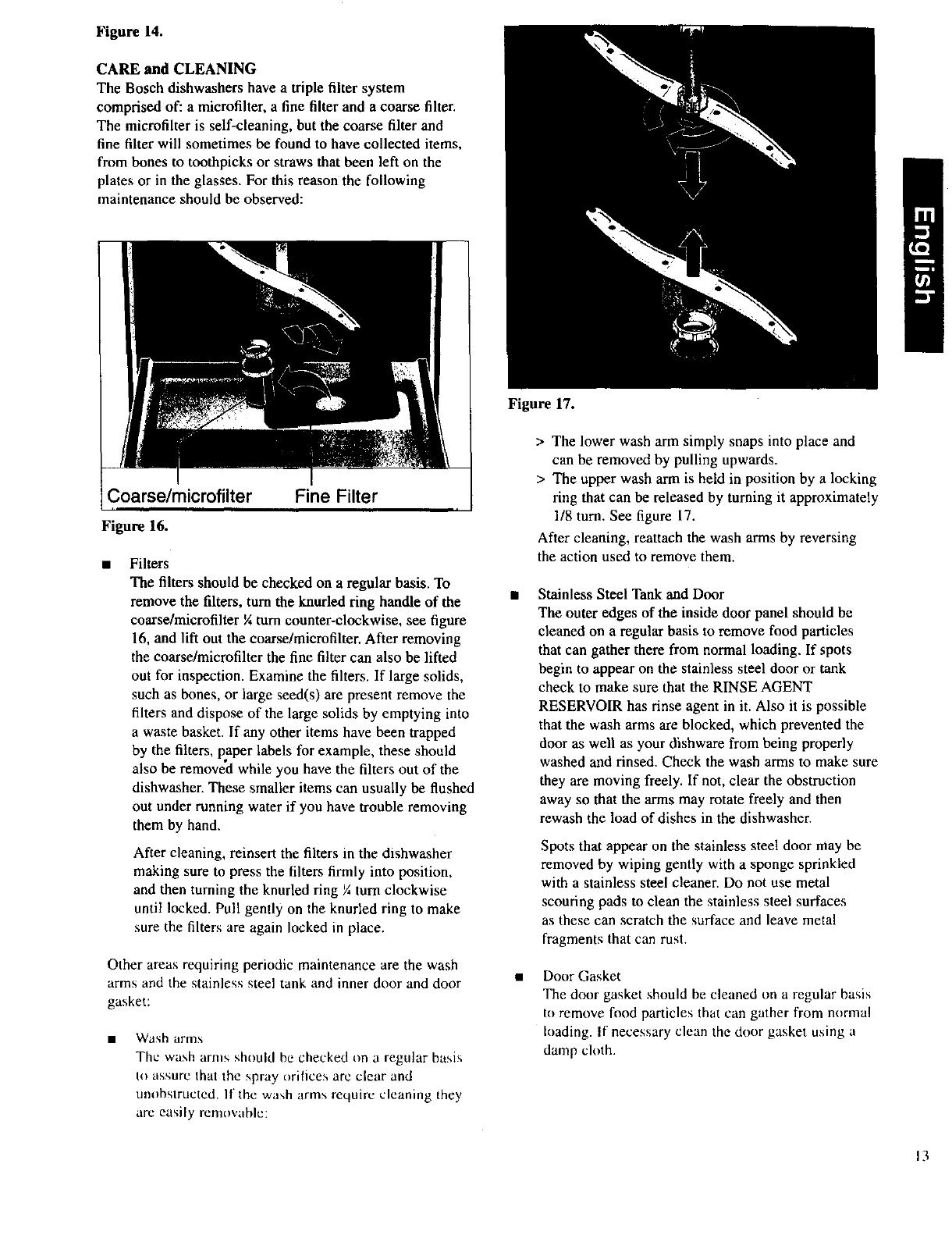

CARE & CLEANING

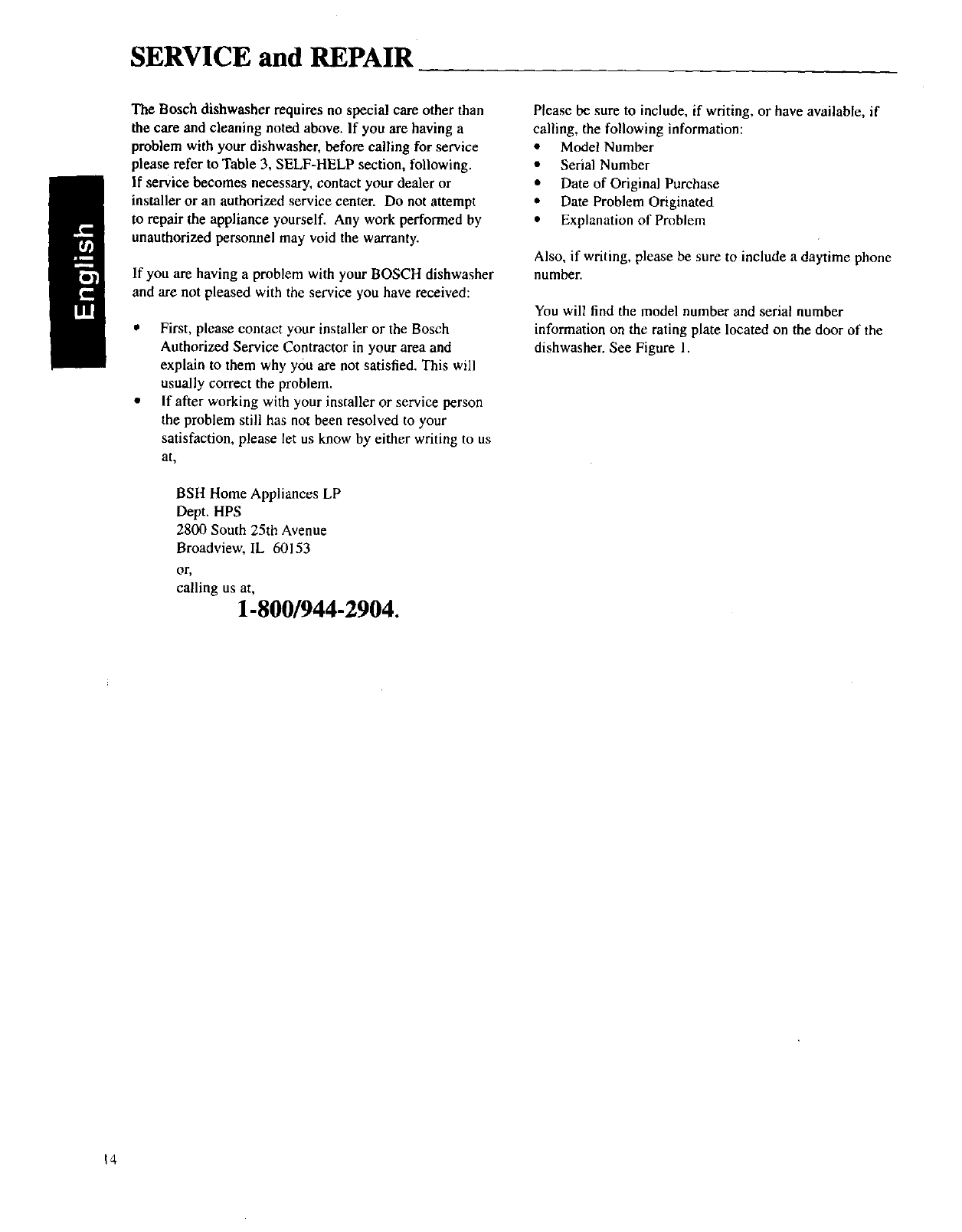

SERVICE and REPAIR
13
14

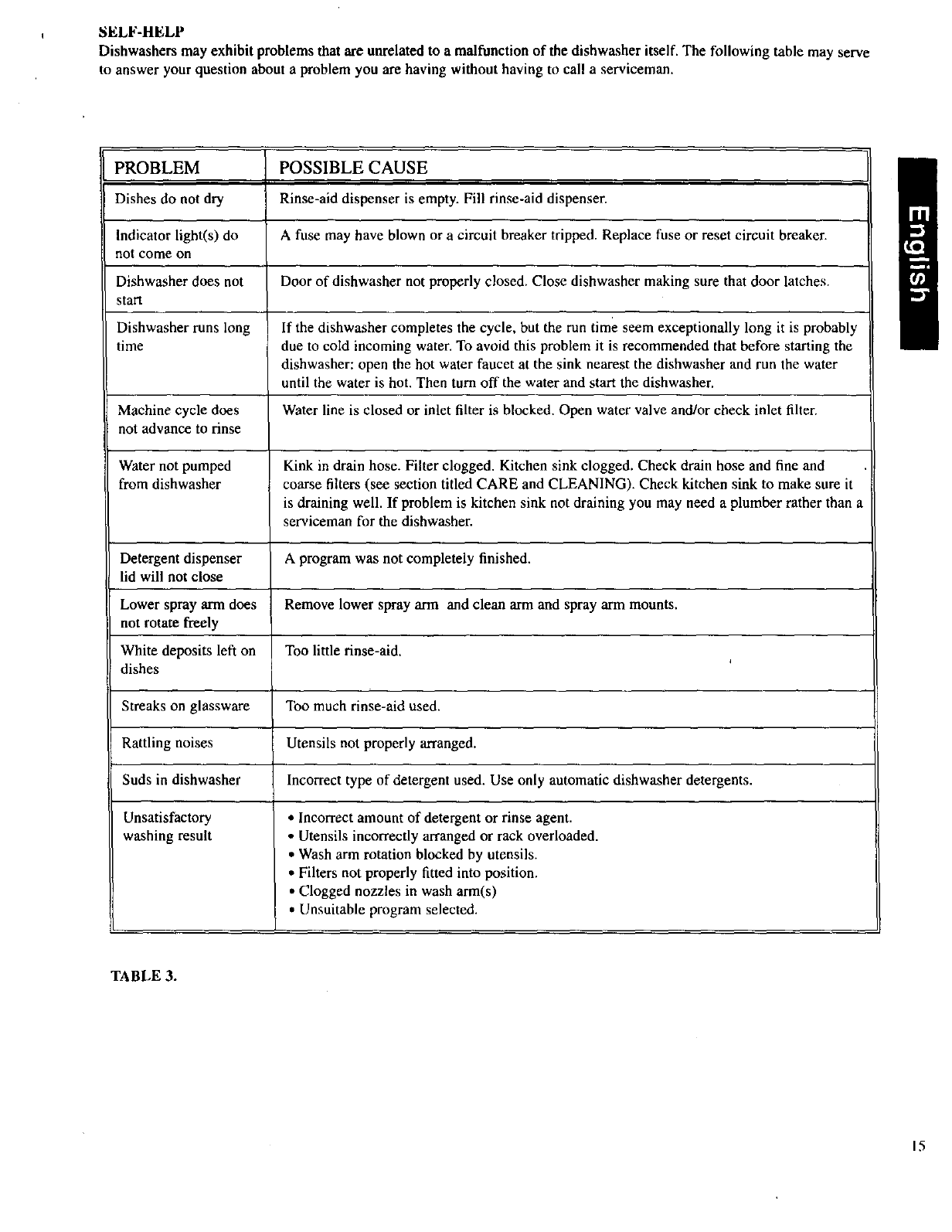

SELF-HELP 15

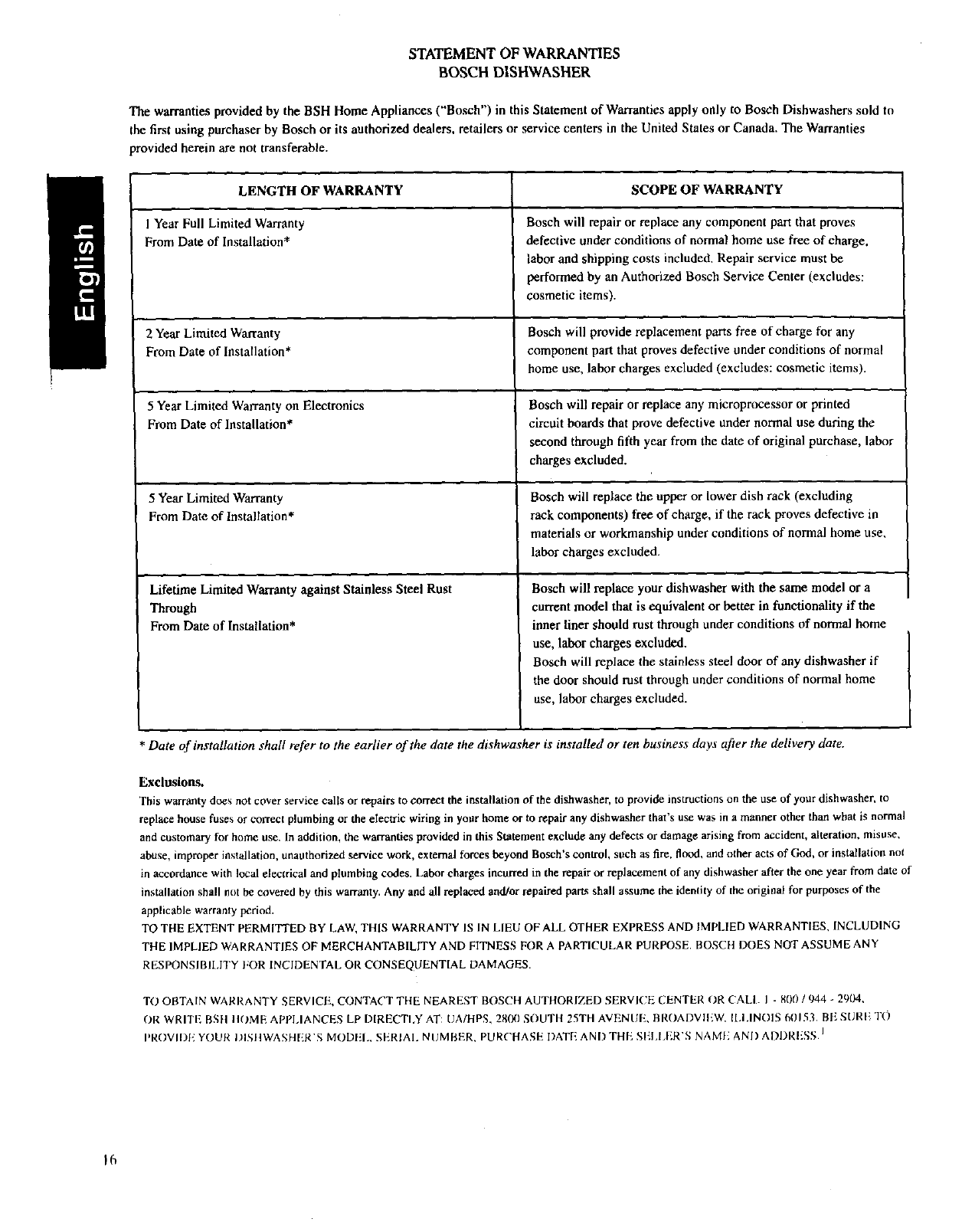

WARRANTY 16
/
I

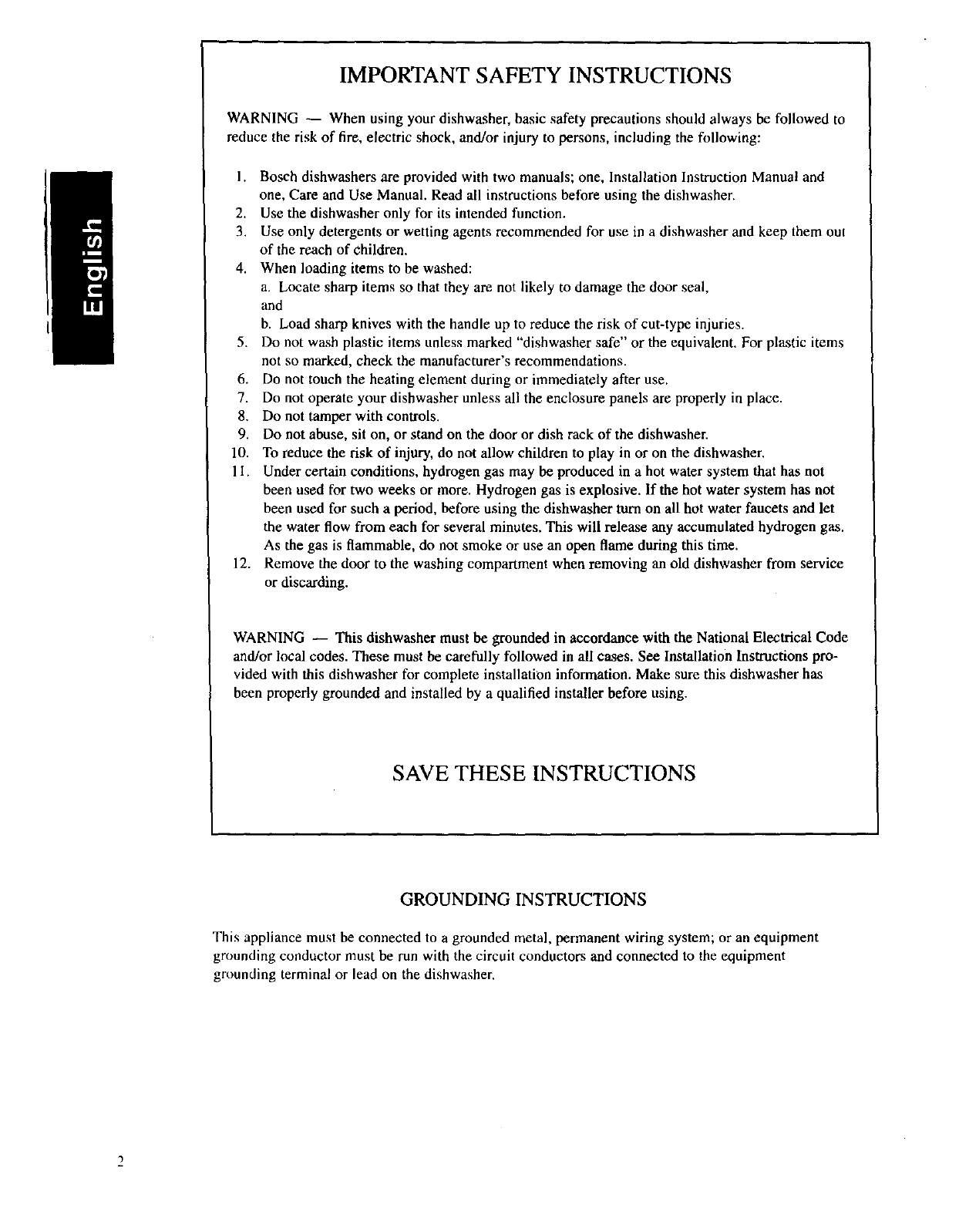

IMPORTANT SAFETY INSTRUCTIONS
WARNING -- When using your dishwasher, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and/or injury to persons, including the following:
I. Bosch dishwashers are provided with two manuals; one, Installation Instruction Manual and
one, Care and Use Manual. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them out
of the reach of children.
4. When loading items to be washed:
a. Locate sharp items so that they are not likely to damage the door seal,
and
b. Load sharp knives with the handle up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless marked "dishwasher safe" or the equivalent. For plastic items
not so marked, check the manufacturer's recommendations.
6. Do not touch the heating element during or immediately after use.
7. Do not operate your dishwasher unless all the enclosure panels are properly in place.
8. Do not tamper with controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.
1I. Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for two weeks or more. Hydrogen gas is explosive. If the hot water system has not
been used for such a period, before using the dishwasher turn on all hot water faucets and let
the water flow from each for several minutes. This will release any accumulated hydrogen gas.
As the gas is flammable, do not smoke or use an open flame during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from service
or discarding.
WARNING -- This dishwasher must be grounded in accordance with the National Electrical Code
and/or local codes. These must be carefully followed in all cases. See Installation Instructions pro-
vided with this dishwasher for complete installation information. Make sure this dishwasher has
been properly grounded and installed by a qualified installer before using.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded metal, permanent wiring system; or an equipment
grounding conductor must be run with the circuit conductors and connected to the equipment
grounding terminal or lead on the dishwasher.
LLUtlkJJL_JULUL._ILJ LJk2tJl._ V_lJl_lt
ABOUT YOUR DISHWASHER
Congratulations on having selected a BOSCH
dishwasher, the choice of those that demand quiet and
exceptional cleaning performance from their dishwasher.
The Bosch SHU (6800, 5300) and SHI 6800 series
electronic dishwashers offer the following standard
features:
Stainless steel inner liner and inner door
Exceptionally low water consurnption
Sensotronic TM
Top Rack Only TM (6800 series only)
Four spraying levels
Height adjustable upper rack
(except SHU 5302 & SHU 5306)
Multi-functional upper and lower rack
Flow-Through Heater TM for temperature boosting
Triple filter system
"Refill rinse agent" indicator lamp
GETTING TO KNOW YOUR DISHWASHER

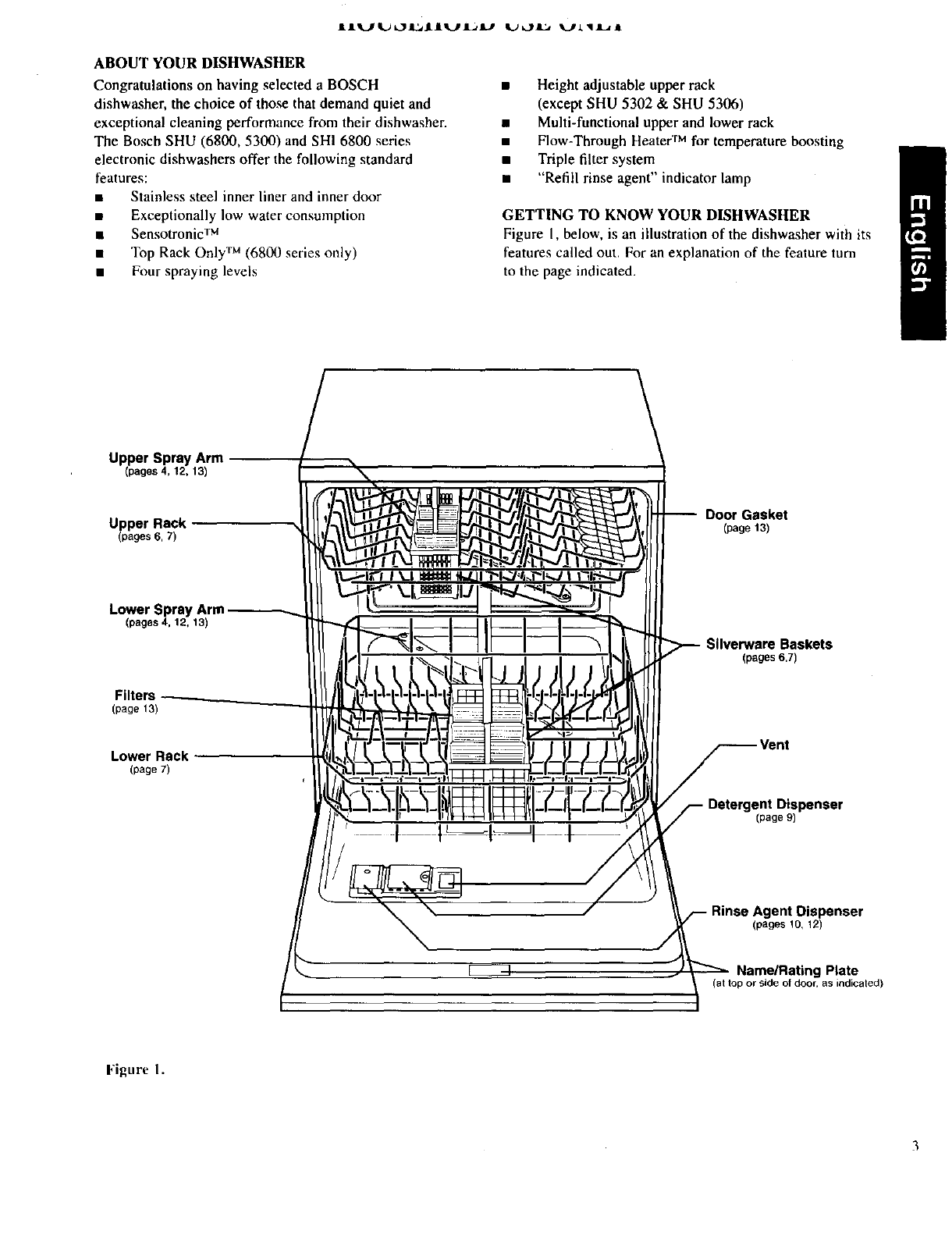

Figure I, below, is an illustration of the dishwasher with its
features called out. For an explanation of the feature turn
to the page indicated.
Upper Spray Arm
(pages4, 12, 13/
Upper Rack
(pages 6, 71
Lower Spray Arn
(pages4, 12, 13)
(page 13)
Lower Rack
(page7)
Door Gasket
(page13)
Silverware Baskets
(pages6,7)
Dispenser
(page9)
(pages 10, 12)
Name/Rating Plate
(attop or sideof door, as indicated)
Figure I.

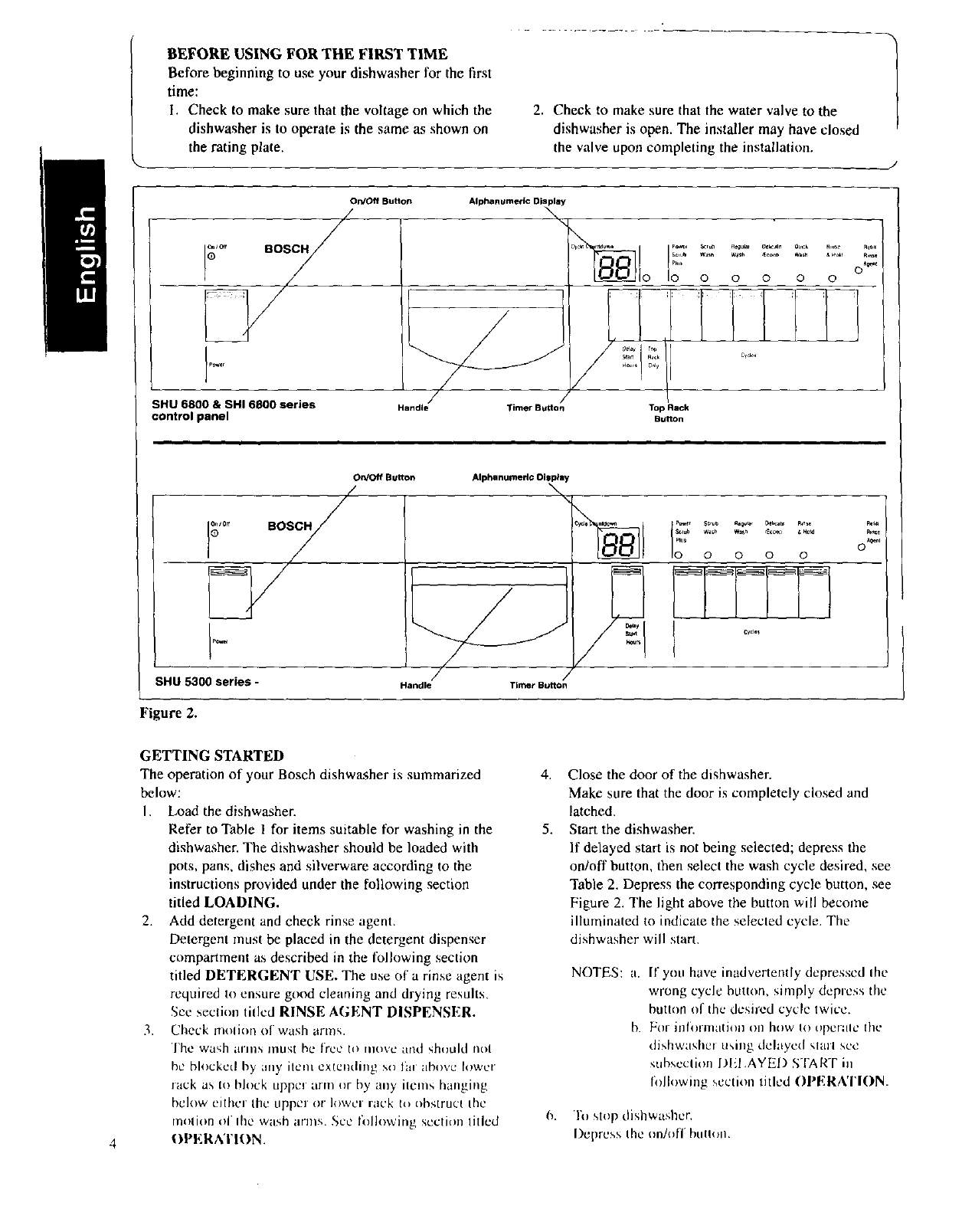

BEFORE USING FOR TIlE FIRST TIME
Before beginning to use your dishwasher for the first
time:
1. Check to make sure that the voltage on which the
dishwasher is to operate is the same as shown on
the rating plate.
2. Check to make sure that the water valve to the
dishwasher is open. The installer may have closed
the valve upon completing the installation.
O_On Button
/
/
/
/
SHU 6800 & SH16800 series
control panel
Alphanumeric Dia_a y
p_, _ru_ ae_u_ar Oekeale O_ck
000 0 0
.o11 R,.se
0
/2
Handle Timer Button Top Rack
Button
On/Off Button
/
_'°" BO<
-/
Z_
SHU 5300 series -
AlphanumeHc Display
\\
/
/
Handle Timer Button
_us
0 0 0 0
CyCle_
Figure 2.
4
GETTING STARTED
The operation of your Bosch dishwasher is summarized
below:
I. Load the dishwasher.
Refer to Table 1 for items suitable for washing in the
dishwasher. The dishwasher should be loaded with
pots, pans, dishes and silverware according to the
instructions provided under the following section
titled LOADING.
2. Add detergent and check rinse agent.
Detergent must be placed in the detergent dispenser
compartment as described in the following section
titled DETERGENT USE. The use of a rinse agent is
required to ensure good cleaning and drying results.
Sce section tilled RINSE AGENT DISPENSER.
3. ('heck molion of wash arrns.
The wa_h allUS lnust he lrcL _ IO Ill(IVC and _;hotlld [Iol
he blocked hy any itc,n cx(cnding so l:u above lower
)ack as to hh)ck upper :.nm ()r by any itclns hanging
bch)w edhcr Ihc upper or lower rack to obstruct Ihe
molion ol Ihe wash [nlnS. See lbllowing section titled
{IPERA'rI(IN.
4.
5.
Close the door of the dishwasher.
Make sure that the door is completely closed and
latched.
Start the dishwasher.
If delayed start is not being selected; depress the
on/off button, then select the wash cycle desired, see
Table 2. Depress the corresponding cycle button, see
Figure 2. The light above the button will become
illuminated to indicate the selected cycle. The
dishwasher will start.
NOTES: a. If yon have inadvertently depressed ihe
wrong cycle butlon, simply depress the
butt(m of the desired cycle twice.
b. For infi)rmation on Imw to ()peralc the
dishwashcl using delayed Marl scc
subsection DEI+AYEI) srI'ART ill
folh)wmg section titled (IPERATION.
To stop dishwasher.
I)epress Ihe on/(d'f huHoll
MATERIAL DISHWASHER
USE
ADHESIVE
JOINED ITEMS
ALUMINUM
BONE
HANDLED
UTENSILS
CHINA &
STONEWARE
CRYSTAL
GLASS
NON-STICK
COATINGS
IRON
PEWTER
PLASTIC
STAINLESS
STEEL
STERLING
SILVER &
SILVERPLATE
TIN
WOOD
NON-
DISHWARE
ITEMS
NOT
RECOMMENDED
USUALLY SAFE
NOT
RECOMMENDED
USUALLY SAFE
USUALLY SAFE
USUALLY SAFE
USUALLY SAFE
NOT
RECOMMENDED
NOT
RECOMMENDED
USUALLY SAFE
USUALLY SAFE
USUALLY SAFE
NOT
RECOMMENDED
NOT
RECOMMENDED
NOT
RECOMMENDED
COMMENTS AND/OR SPECIAL INSTRUCTIONS
Items joined by adhesives, whether plastic, wood, bone, steel, copper or
tin, etc. may be loosened.
Colored anodized aluminum may fade over time. Minerals in the water may
cause spotting or darkening of aluminum. This can usually be removed by
scouring with a soap filled steel wool pad.
Handles may separate.
It is highly recommended however that "on-glaze" decorated china,
handpainted and gold or platinum trimmed, or antique china or stoneware
be hand washed. If there is any doubt, please check with the manufacturer
of your set or test by washing one piece with each load for a month and
comparing this piece with the rest of the set to determine if there has been
any fading or discoloration.
Decorated crystal, those handpainted, "on-glaze", or metal trimmed, may
discolor, fade, or spot. It is recommended that these be hand washed. Also,
fragile glassware is highly breakable, be sure to set the pieces so that they
do not topple during washing and so that they do not knock against other
pieces.
Milk glass may yellow.
After drying the non-stick coating should be covered with a light coating of
vegetable oil.
Iron will rust. Wash by hand and dry immediately.
Pewter will tarnish. Wash by hand and dry immediately.
Only wash "dishwasher safe" plastic items.
Do not let stainless steel items contact copper or sterling silver or
silverplate items.
Do not allow to come in contact with stainless steel or copper items.
Tin will rust. Wash by hand and dry immediately.
Wooden bowls, wooden utensils and wood handled utensils can warp, crack
or lose their finish.
The Bosch dishwasher is only intended for use in cleaning standard
household dishware items.

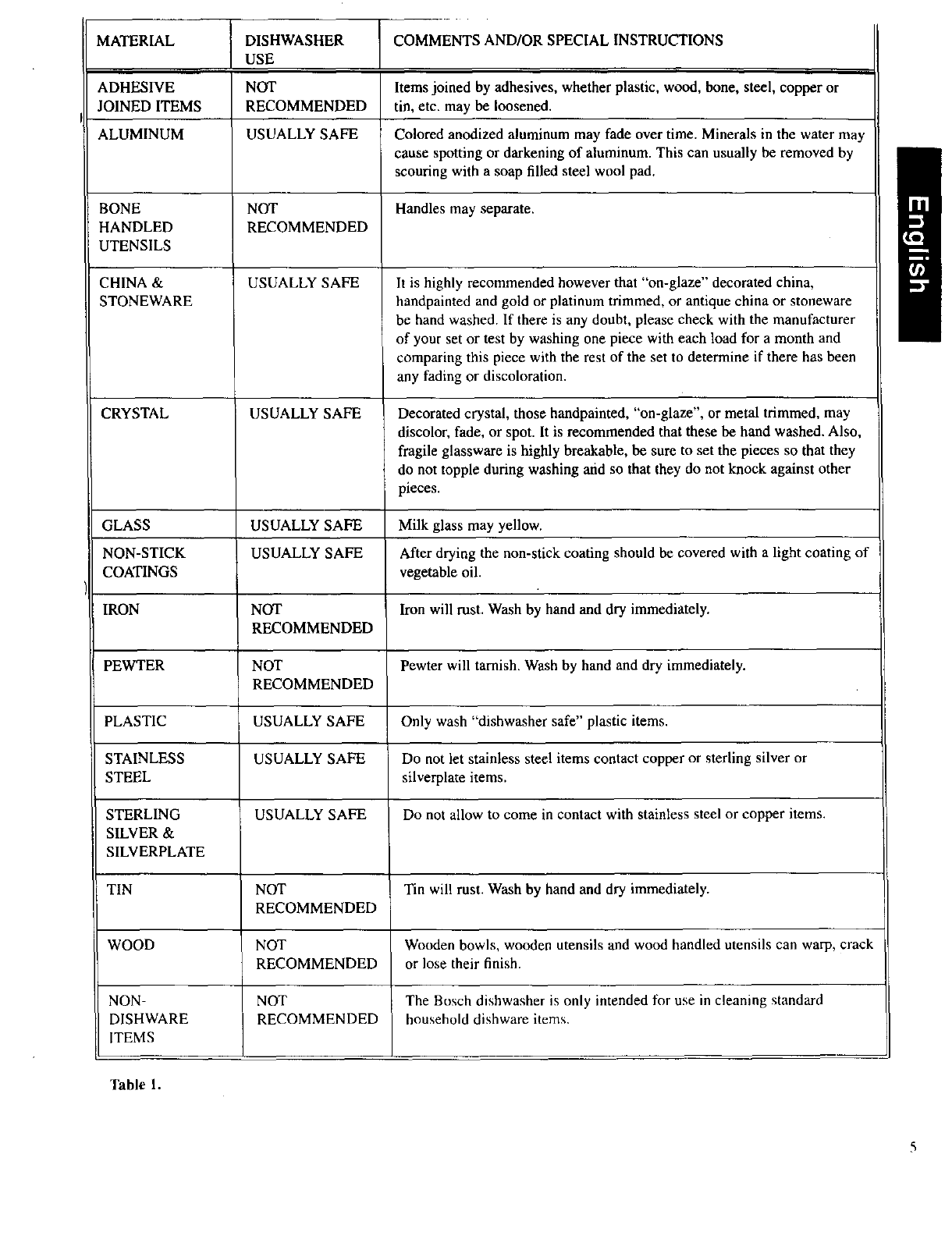

Table 1.

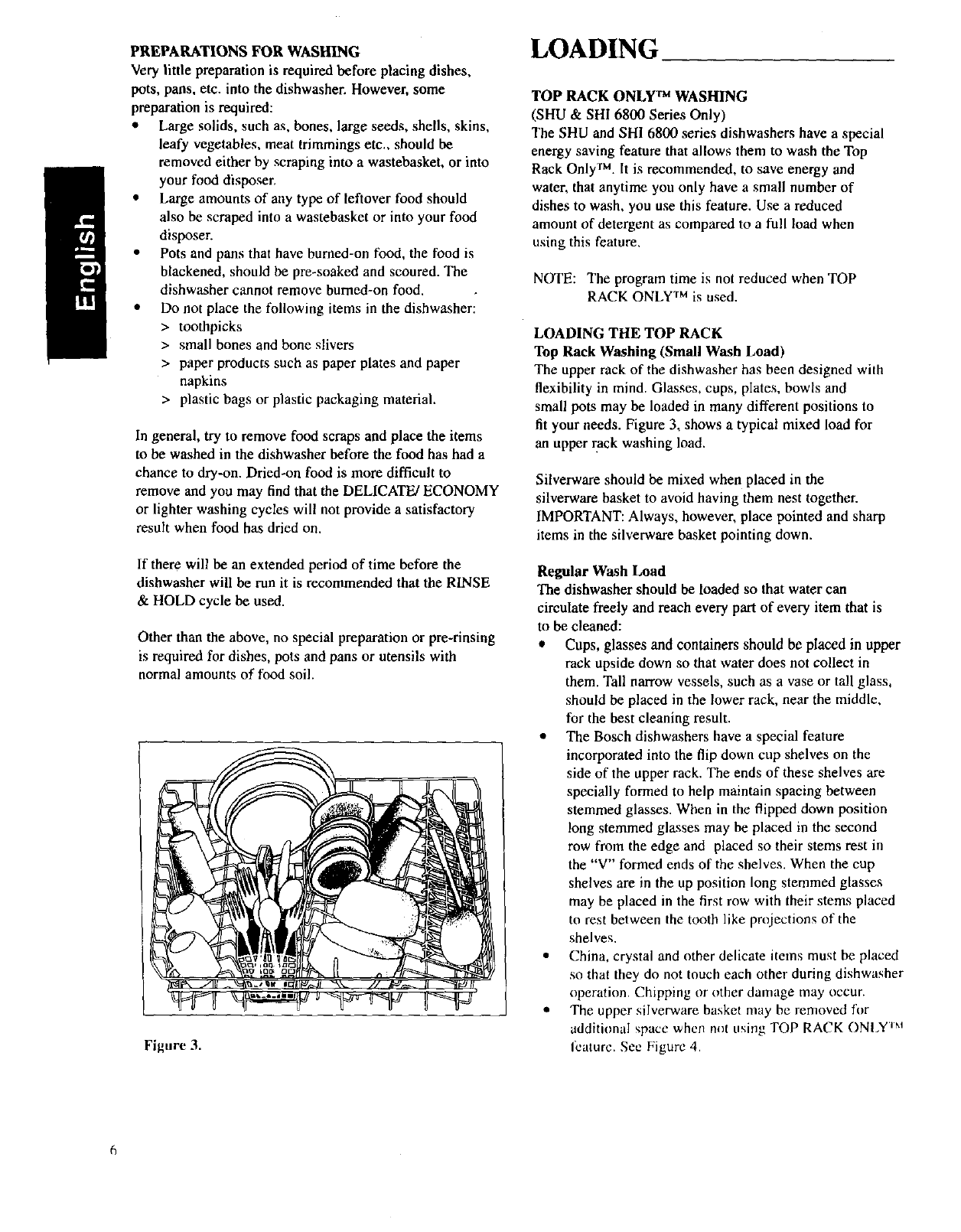

PREPARATIONS FOR WASHING
Very little preparation is requiredbefore placing dishes,
pots, pans, etc. into the dishwasher, However, some
preparation is required:
Large solids, such as, bones, large seeds, shells, skins,
leafy vegetables, meat trimmings etc., should be
removed either by scraping into a wastebasket, or into
your food disposer.
Large amounts of any type of leftover food should
also be scraped into awastebasket or into your food
disposer.
Pots and pans that have burned-on food, the food is
blackened, should be pre-soaked and scoured. The
dishwasher cannot remove burned-on food.
Do not place the following items in the dishwasher:
>toothpicks
> small bones and bone slivers
> paper products such as paper plates and paper
napkins
> plastic bags or plastic packaging material.
In general, try to remove food scraps and place the items
to be washed in the dishwasher before the food has had a
chance to dry-on. Dried-on food is more difficult to
remove and you may find that the DELICATE/ECONOMY
or lighter washing cycles will not provide a satisfactory
result when food has dried on.
If there will be an extended period of time before the
dishwasher will be run it is recommended that the RINSE
& HOLD cycle be used.
Other than the above, no special preparation or pre-rinsing
is required for dishes, pots and pans or utensils with
normal amounts of food soil.
Figure 3.
LOADING
TOP RACK ONLY TM WASHING
(SHU & SHI 6800 Series Only)
The SHU and SH1 6800 series dishwashers have a special
energy saving feature that allows them to wash the Top
Rack OnlyTM. It is recommended, to save energy and
water, that anytime you only have asmall number of
dishes to wash, you use this feature. Use a reduced
amount of detergent as compared to a full load when
using this feature.
NOTE: The program time is not reduced when TOP
RACK ONLY TM is used.
LOADING THE TOP RACK
Top Rack Washing (Small Wash Load)
The upper rack of the dishwasher has been designed with
flexibility in mind. Glasses, cups, plates, bowls and
small pots may be loaded in many different positions to
fit your needs. Figure 3, shows a typical mixed load for
an upper rack washing load.
Silverware should be mixed when placed in the
silverware basket to avoid having them nest together.
IMPORTANT: Always, however, place pointed and sharp
items in the silverware basket pointing down.
Regular Wash Load
The dishwasher should be loaded so that water can
circulate freely and reach every part of every item that is
to be cleaned:
Cups, glasses and containers should be placed in upper
rack upside down so that water does not collect in
them. Tall narrow vessels, such as a vase or tall glass,
should be placed in the lower rack, near the middle,
for the best cleaning result.
The Bosch dishwashers have aspecial feature
incorporated into the flip down cup shelves on the
side of the upper rack. The ends of these shelves are
specially formed to help maintain spacing between
stemmed glasses. When in the flipped down position
long stemmed glasses may be placed in the second
row from the edge and placed so their stems rest in
the "V" formed ends of the shelves. When the cup
shelves are in the up position long stemmed glasses
may be placed in the first row with their stems placed
to rest between the tooth like projections of the
shelves.
China, crystal and other delicate items must be placed
so that they do not touch each other during dishwasher
operation. Chipping or other damage may occur.
The upper silverware basket may be removed for
additional space whcn not using TOP RACK ONLYIM
Icaturc. Sec Figure 4.
Figure 4.
At completion of loading of the upper rack check to
make sure that nothing is protruding through or
hanging beneath the bottom of the rack, which could
block the rotation of the spray arm.
Figure 6.
Silverware should be placed in the silverware basket
with the handles down, with the exception of the
knives, which in order to avoid accidentally cutting
oneself, should be placed with the handles up.
Figure 5.
LOADING THE LOWER RACK
Large and/or heavily soiled items should be placed in
the lower rack of the dishwasher. Heavily soiled pots
and pans should be placed face down.
If more space is needed for pots and pans the rear two
sets of tines can be folded to the down position, on all
models, or the rear three sets of tines, on some models.
Figure 6shows lower basket with rear three sets of
tines in the down position to accommodate large pots.
Silverware should be mixed when placed in the
silverware basket. The purpose of mixing the
silverware is to avoid having them nest together, tor
example if spoons would be placed together they
could nest together so that water could not properly
circulate across them to clean the surt_tces.
Figure 7.
If you do inadvertently load the silverware basket with the
knife blades up it is recommended, to avoid cutting
yourself when unloading, that you remove the silverware
basket from the dishwasher and tip the contents out onto
a cutting board.
The Bosch dishwashers also have a pair of flip down
shelves at the back of the lower rack. These shelves
may be flipped down to hold extra large utensils, such
as serving spoons, or long knives. They also may be
used as additional cup shelves. See Figures 5 and 7.
RACK HEIGHT ADJUSTMENT
The upper rack height of the Bosch dishwashers, except
the SHU 5302 and SHU 5306 models, is adjustable. There
are two positions, see figure 8:
I. The upper position is used to provide more room for
items to be placed in the lower rack.
2. The lower position is used to provide more room for
items to be placed in the upper rack.
Figure 8.
2. Place the "Extra Tall Item Spdnlder" over the upper
rack spray outlet at the back of the dishwasher tub
(refer to figure 9) and turn clockwise to lock sprinkler
head in place.
Figure 9.
Extra tall items may now be placed in lower rack for
washing, as shown in figure 10. To remove "Extra Tall
Item Sprinkler", to again allow use of upper rack, reverse
actions used to insert it.
To reposition rack:
a. First empty upper rack and pull rack partially out to
point where rack can be lifted upward as shown in
upper illustration of Figure 8.
b. Pull the rack forward and then up until rollers are
completely free of channels.
c. Reinsert the rack with the other set of rollers on the
channel.
Extra Tall Items
If you have extra tall items that cannot fit in the lower
rack without interfering with the upper spray arm or
without hitting the upper rack, the upper rack may be
removed. A special "Extra Tall Item Sprinkler" is provided
with the dishwasher to allow use of the dishwasher with
upper rack removed. See figure 9.
To allow washing of extra tall items:
1. With upper rack empty, remove it from the dishwasher
by pulling the rack partially out to the point where
rack can be lifted upward and out to disengage the
wheels ti'om the side rails.
Figure 10.
USING THE DISPENSERS
For the best washing result it is important to use the correct
amount of detergent and rinse agent•
DETERGENT USE
Use only fresh dishwashing detergent ( powder is recom-
mended) manufactured specifically for dishwasher use. Use
of other types of detergents will result in excessive suds.
Be sure to check the phosphate content of the detergent m
be used. Phosphate helps prevent the minerals in hard
water from forming a film or spots on dishes. Hard water
requires your detergent to work harder• In hard water areas
you will find that detergents with high phosphate levels
will provide a better result• If the phosphate level is low,
below 8.7%, you may have to use extra detergent in hard
water areas.
With hard water, or with the POWER SCRUB PLUS
cycle, it is recommended that the detergent dispenser
be completely filled, roughly 9 teaspoons. If additional
detergent is required it can be placed on the inside of
the door, just below the dispenser.
Release
!
Figure 11.
Be sure to follow the dishwasher detergent manufacturer's
instructions when using the detergents. Concentrated
detergents usually call for lower usage than do standard
detergents.
Note: Do not use detergent when the RINSE & HOLD
cycle has been selected.
DETERGENT DISPENSER
The detergent dispenser on the Bosch dishwasher is
located on the inside of the door, see figure I as well as
figure I I and 12. The detergent dispenser cover may be
opened by pulling the release tab (figure 12) toward you.
Once the cover is open you will see two level marks:
-25" and "15". These refer to the w)lume when filled level
in millilders. 15 milliliters is equivalent to 3 teaspoons. It
the detergent dispenser is completely filled it can hold
45 milliliters, or roughly 9 teaspoons.
The alnount of dcteJgcnt to hc used depends on the cycle
selected and the w_llCl hardness:
[:t_f water ill mcdiunl hardncs', and RI'I(il/I.AR WASIt
_5¢1c it is recommended Ihat the dctcrgent dispef]sct
bc lillcd I_) Ihc 25 nlillililcr'_. 15 Isp.) It\el
Figure 12.
With soft water the amount of detergent may be
reduced. Also, for the DELICATE/ECONOMY or
QUICK WASH cycles the amount of detergent may
be reduced. For the DELICATE/ECONOMY or
QUICK WASH cycles it is recommended that only
the chamber marked "15" be filled with detergent;
roughly 3 teaspoons of detergent.
If you have water of medium or higher hardness and the
dishes do not come clean the cause, in the majority of
cases, is the use of too little detergent rather than too
much. If you have very soft water, or chemically treated
soft water special care should be taken to use the minimum
amount of detergent. For these situations ahigh quality,
low phosphate detergent is recommended. Too much
detergent combined with soft water may cause etching of
glassware.
After filling the detergent compartment close the cover
by sliding it over the detergent chamber and pressing
down on the button until it clicks shut. The detergent will
be dispensed automatically during the wash portion of the
cycle.
If the cover of the detergent dispenser is closing fully but
it won't latch this is most likely due to the dishwasher
having been stopped in mid cycle, Check the alphanumeric
display, see Figure 2, m see d cycle has been complctcd.
If the cycle is not complete please refer to section of this
manual titled TO INTERRUPT OR RESET CYCLE to
reset cycle
9
if you see streaks, it is recommended that the regulator
be turned to a lower number.
if water spots appear, it is recommended that the
regulator be turned to a higher number.
It)
Rinse agent level indicator
Figure 13.
RINSE AGENT INDICATOR
There is a rinse agent indicator light on the right hand side
of the front panel of the Bosch dishwasher, see figure 2.
There is also level indicator on the dispenser, see Figure
13. This indicator shows the level of rinse agent that is in
the rinse agent reservoir. As received, and when empty the
indicator light on the front panel will be illuminated and
the level indicator on the dispenser will appear blank.
When the rinse agent reservoir is full the indicator light
will not be illuminated and the level indicator on the
dispenser will appear dark.
RINSE AGENT DISPENSER
Rinse agent, or arinse aid, is used to diminish water
spotting and to provide optimum drying results. It is
recommended that arinse agent be used at all times with
the Bosch dishwasher. In aBosch dishwasher the rinse
agent not only serves to rinse the dishware, but also serves
to rinse the tank and inner door of the dishwasher. The
tank and inner door will begin to take on a dull,
unpolished look, if rinse agent is not used.
The rinse agent dispenser is located next to the detergent
dispenser, See figure 13. Rinse agent is available in liquid
or solid form. Do not use the solid type of rinse agent in
the Bosch dishwasher.
To fill the rinse agent reservoir (refer to Figure 14):
Open the dishwasher door fully.
Open the cover of the rinse agent dispenser.
Add rinse agen! to the reservoir until the clear level
indicator turns completely dark. The reservoir is full
when the level indicator is dark.
Close the cover of Ihe rinse agent dispenser. Make
sure Ihal JI is firmly snapped closed.
RINSE A(;ENT DISPENSER RE(;III,ATOR
lbc l it_sc agenl icsctvoir of Ihc Bl_sch dishwasher is
plovidcd with arcgt]lat(_] calihratcd Irluu I to 6. Sue
Fi_tuc 15. Thi,, rcgn[al(ir controlh Ihe aln(Innl ol rinse
_cnl dispensed The dishwasher leaves tile lacl_)Jy
plC<,Cl h) 3/ 'lids has hccrl ch(l<,cn as Ihc avclagc sctlirlg,
h()wcvcl:
Figure 14.
TO ADJUST SETTING:
Open the cover of the rinse agent dispenser.
Turn the setting indicator to the desired setting. See
Figure 15.
indicator
Dosage control
Figure 15.
CYCLE SELECTION
The dishwasher will wash and dry the contents based on
cycle selection made. Rel;er to the CYCLE SELECTION
CHART, Table 2. The most appropriate cycle lor the load
to be washed can be seleclcd fronl Ihis table by comparing
the load lype and the amounl and condition of tile food on
Ihe items to the charts rccoulmcndalions.
t.,ycle elec[ion q.,nar[
Type of dishware
e.g. china,
"11 r nw I'_1 I"_'ua" F
CUZle y, cat /
glasses, K..cage/!
etc.
Type of food
remains
Amount of l
food remains
Condition of
food remains
Wash
cycle
Soups, casseroles,
sauces, potatoes,
pasta, rice, eggs,
roast or fried food
Soups, potatoes,
pasta, rice, eggs,
roast or fried food I Coffee, cakes, milk, I
salami, cold drinks,
salads
!
• L • !
alot j [alot [alittle] [alittle 1
!I • • ![
stuck on hard loosely attached
4!, 4!, 4, 4, 4, 4!-
IIIPowerScrubPlus ScrubWash I IRegularl Delicatel IQuick I I Rinse 1Wash ,[I/Econ-omy Wash & Hold
Cycle
sequence
Wash I
Second IRinse-aid I
Drying J
Pre-rinse
Cycle
details
Duration in
minutes
Water consumption
in gallons
Water consumption
in litres
91
7.1/5
26.9/18.9
8O
6/4.2
22.7/15.9
91
5.4/3.6
72
3.6/2.5
13.5/9.5
29
2,7/1.9
10.5/7.4
9
1.2/0.8
4.5/3.2
The Bosch Sensotronic TM will reduce water consumption by approximately 20%, in the case of lightly soiled
dishes. When Top Rack Only TMfeature is used the water consumption is reduced approximately 30%.
Shown above are the range of values that may be obtained while running the dishwasher under normal
conditions. Actual values may vary. The actual cycle duration, water and energy usage depend upon
temperature and amount of soil on dishware.
Table 2. I I
OPERATION
Once detergent has been added and before closing the door
of the dishwasher check the wash arms to ensure that they
are free to move. With the detergent in the dishwasher and
arms free to move:
IMMEDIATE START
Close the door of the dishwasher making sure that
door latches closed.
Depress the on/off switch. The indicator light for the
cycle that was last selected will become illuminated.
Depress the button for the cycle you desire two times
if different than the illuminated cycle.
If you have a SHU or SHI 6800 series and wish to
wash the upper rack only depress the button labeled
Top Rack Only rM.
The dishwasher will start automatically and continue
to the end of the selected cycle.
At the end of the cycle the dishwasher will stop and
the letters "CL" will be displayed in the alphanumeric
display.
Note: Your dishwasher features a new sophisticated
sensor technology package, which is designed to
constantly scan and measure the conditions inside
the appliance. These changing conditions will influ-
ence the readout of the countdown display, In the
beginning, the time displayed will be 99
minutes. The microprocessor will, however, adjust
this projection continuously to the actual time.
DELAYED START
The start of the washing cycle can be delayed for up to 9
hours, in 1hour increments.
Close the door of the dishwasher making sure that
door latches closed.
Depress the on/off switch. The indicator light for the
cycle that was last selected will become illuminated to
indicate the dishwasher is on.
Immediately press the timer button labeled DELAY -
START - HOURS. The alphanumeric display will
change to "O".
Press the DELAY -START - HOURS button as many
times as necessary until the alphanumeric display
shows the number of hours delay desired.
Note: The cycle may be changed at any time during the
delay time until the cycle starts.
The dishwasher will not start until the indicated delay
has past.
At the end of the cycle the dishwasher will stop and
the letters "CL" w'ill be displayed.
TO INTERRUPT OR RESET CYCLE
To interrupt cycle simply depress the on/off button to stop
operation. If you are interrupting the cycle during a wash
or rinse cycle please wait until the water noises stop before
opening the door, After opening the door leave it ajar for a
few minutes. The cycle then may be resumed by closing
the door and depressing the on/off button.
As a safety feature the dishwasher will automatically turn
itself off whenever the door is unlatched. However, if the
door is opened quickly while in a wash or rinse cycle some
water may splash out of the dishwasher. For this reason it
is recommended that the machine always be switched to
off before opening the door,
If you wish to reset the cycle to its beginning after
stopping the dishwasher:
I. Close the door of the dishwasher. Make sure that the
door is completely closed and latched.
2. Depress the on/off button, then depress SCRUB
WASH button and DELICATE/ECONOMY buttons at
the same time and hold for approximately 3 seconds.
You will see the alphanumeric display progress to
end. When the drain pump has stopped and the
alphanumeric display is at the end the cycle is
complete and the dishwasher is reset.
3. Depress the on/off button to shut-off the dishwasher.
4. The dishwasher is now ready to run your selected
wash cycle. Depress the on/off button to restart the
dishwasher.
Note: If you wish to change the cycle selection simply
depress the button of the cycle desired twice. The
light above the cycle will then become illuminated
to show it has been selected.
UNLOADING
When unloading the dishwasher always unload the lower
rack first and then unload the upper rack. This will
minimize the chance of drops from the upper rack falling
on the dishes in the lower rack. The silverware basket(s)
of the Bosch dishwasher may be removed for easy
unloading.
Also, when unloading, it is recommended that the dishes
be allowed to cool before handling. The dishes will cool
more quickly if the door is opened slightly.
12
Figure 14.
CARE and CLEANING
The Bosch dishwashers have a triple filter system
comprised of: a microfilter, a fine filter and a coarse filter.
The microfilter is self-cleaning, but the coarse filter and
fine filter will sometimes be found to have collected items,
from bones to toothpicks or straws that been left on the
plates or in the glasses. For this reason the following
maintenance should be observed:
Figure 16.
Filters
The filters should be checked on a regular basis. To
remove the filters, turn the knurled ring handle of the
coarse/microfilter ¼ turn counter-clockwise, see figure
16, and lift out the coarse/microfilter. After removing
the coarse/microfilter the fine filter can also be lifted
out for inspection. Examine the filters. If large solids,
such as bones, or large seed(s) are present remove the
filters and dispose of the large solids by emptying into
a waste basket. If any other items have been trapped
by the filters, paper labels for example, these should
also be removed while you have the filters out of the
dishwasher. These smaller items can usually be flushed
out under running water if you have trouble removing
them by hand.
After cleaning, reinsert the filters in the dishwasher
making sure to press the filters firmly into position,
and then turning the knurled ring ¼ turn clockwise
until locked. Pull gently on the knurled ring to make
sure the filters are again locked in place.
Figure 17.
Other areas requiring periodic maintenance are the wash
arms and the stainless steel tank and inner door and door
gasket:
Wash arms
The wash arms shcmld be checked on a regular basis
to assure that the spray orifices arc clear and
unobstructed. If the wash arms require cleaning they
arc easily removable:
> The lower wash arm simply snaps into place and
can be removed by pulling upwards.
> The upper wash arm is held in position by a locking
ring that can be released by turning it approximately
1/8 turn. See figure 17.
After cleaning, reattach the wash arms by reversing
the action used to remove them.
Stainless Steel Tank and Door
The outer edges of the inside door panel should be
cleaned on a regular basis to remove food particles
that can gather there from normal loading. If spots
begin to appear on the stainless steel door or tank
check to make sure that the RINSE AGENT
RESERVOIR has rinse agent in it. Also it is possible
that the wash arms are blocked, which prevented the
door as well as your dishware from being properly
washed and rinsed. Check the wash arms to make sure
they are moving freely. If not, clear the obstruction
away so that the arms may rotate freely and then
rewash the load of dishes in the dishwasher.
Spots that appear on the stainless steel door may be
removed by wiping gently with a sponge sprinkled
with a stainless steel cleaner. Do not use metal
scouring pads to clean the stainless steel surfaces
as these can scratch the surface and leave metal
fragments that can rust.
Door Gasket
The door gasket should be cleaned on a regular basis
to remove food particles that can gather from normal
loading. If necessary clean the door gasket using a
damp cloth.
13
SERVICE and REPAIR
The Bosch dishwasher requires no special care other than
the care and cleaning noted above. If you are having a
problem with your dishwasher, before calling for service
please refer to Table 3, SELF-HELP section, following.
If service becomes necessary, contact your dealer or
installer or an authorized service center. Do not attempt
to repair the appliance yourself. Any work performed by
unauthorized personnel may void the warranty.
If you are having a problem with your BOSCH dishwasher
and are not pleased with the service you have received:
First, please contact your installer or the Bosch
Authorized Service Contractor in your area and
explain to them why you are not satisfied. This will
usually correct the problem.
If after working with your installer or service person
the problem still has not been resolved to your
satisfaction, please let us know by either writing to us
at,
BSH Home Appliances LP
Dept. HPS
2800 South 25th Avenue
Broadview, IL 60153
or,
calling us at,
1-800/944-2904.
Please be sure to include, if writing, or have available, if
calling, the following information:
Model Number
Serial Number
Date of Original Purchase
Date Problem Originated
Explanation of Problem
Also, if writing, please be sure to include a daytime phone
number.
You will find the model number and serial number
information on the rating plate located on the door of the
dishwasher. See Figure 1.
_4
SELF-HELP
Dishwashers may exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following table may serve
to answer your question about aproblem you are having without having to call a serviceman.
PROBLEM POSSIBLE CAUSE
Dishes do not dry Rinse-aid dispenser is empty. Fill rinse-aid dispenser.
Indicator light(s) do A fuse may have blown or a circuit breaker tripped. Replace fuse or reset circuit breaker.
not come on
Dishwasher does not Door of dishwasher not properly closed. Close dishwasher making sure that door latches.
start
Dishwasher runs long If the dishwasher completes the cycle, but the run time seem exceptionally long it is probably
time due to cold incoming water. To avoid this problem it is recommended that before starting the
dishwasher: open the hot water faucet at the sink nearest the dishwasher and run the water
until the water is hot. Then turn off the water and start the dishwasher.
Machine cycle does Water line is closed or inlet filter is blocked. Open water valve and/or check inlet filter.
not advance to rinse
Water not pumped Kink in drain hose. Filter clogged. Kitchen sink clogged. Check drain hose and fine and
from dishwasher coarse filters (see section titled CARE and CLEANING). Check kitchen sink to make sure it
is draining well. If problem is kitchen sink not draining you may need a plumber rather than a
serviceman for the dishwasher.
Detergent dispenser A program was not completely finished.
lid will not close
Lower spray arm does Remove lower spray ann and clean arm and spray arm mounts.
not rotate freely
White deposits left on Too little rinse-aid.
dishes
Streaks on glassware Too much rinse-aid used.
Rattling noises Utensils not properly arranged.
Suds in dishwasher Incorrect type of detergent used. Use only automatic dishwasher detergents.
Unsatisfactory
washing result
• Incorrect amount of detergent or rinse agent.
Utensils incorrectly arranged or rack overloaded.
• Wash arm rotation blocked by utensils.
• Filters not properly fitted into position.
• Clogged nozzles in wash arm(s)
• Unsuitable program selected.
TABLE 3.
15
STATEMENTOFWARRANTIES
BOSCHDISHWASHER
The warranties provided by the BSH Home Appliances ("Bosch") in this Statement of Warranties apply only to Bosch Dishwashers sold to
the first using purchaser by Bosch or its authorized dealers, retailers or service centers in the United States or Canada. The Warranties
provided herein are not transferable.
LENGTH OF WARRANTY SCOPE OF WARRANTY
IYear Full Limited Warranty Bosch will repair or replace any component part that proves
From Date of Installation* defective under conditions of normal home use free of charge,
labor and shipping costs included. Repair service must be
performed by an Authorized Bosch Service Center (excludes:
cosmetic items).
2 Year Limited Warranty Bosch will provide replacement parts free of charge for any
From Date of Installation* component part that proves defective under conditions of normal
home use, labor charges excluded (excludes: cosmetic items).
5 Year Limited Warranty on Electronics Bosch will repair or replace any microprocessor or printed
From Date of Installation* circuit boards that prove defective under normal use during the
second through fifth year from the date of original purchase, labor
charges excluded.
5 Year Limited Warranty Bosch will replace the upper or lower dish rack (excluding
From Date of Installation* rack components) free of charge, if the rack proves defective in
materials or workmanship under conditions of normal home use,
labor charges excluded.
Lifetime Limited Warranty against Stainless Steel Rust
Through
From Date of Installation*
Bosch will replace your dishwasher with the same model or a
current model that is equivalent or better in functionality if the
inner liner should rust through under conditions of normal home
use, labor charges excluded.
Bosch will replace the stainless steel door of any dishwasher if
the door should rust through under conditions of normal home
use, labor charges excluded.
*Date of installation shall refer to the earlier of the date the dishwasher is installed or ten business days after the delivery date.
Exclusions.
This wattanty does not cover service calls or repairs to cortect the installation of the dishwasher, to provide instructions on the use of your dishwasher, to
replace house fuses or correct plumbing or the electric wiring in your home or to n_pair any dishwasher that's use was in a manner other than what is normal
and customary for borne use. In addition, the warranties provided in this Statement exclude any defects or damage arising from accident, alteration, misuse,
abuse, improper installation, unauthorized service work, external forces beyond Bosch's control, such as fire, flood, and other acts of God, or installation not
in accordance with local electrical and plumbing codes. Labor charges incurred in the repair or replacement of any dishwasher after the one year from date of
installation shall not be covered by this warranty. Any and all replaced and/or repaired parts shall assume the identity of the original for purposes of the
applicable warranty period.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BOSCH DOES NOT ASSUME ANY
RESPONSIBII.ITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
TO OBTAIN WARRANTY SERVICE, CONTACT THE NEAREST BOSCH AUTHORIZED SERVICE CENTER OR CAt3. I - 800 /944 - 2904,
OR WRITE BSII IlttME APPLIANCES LP DIRECTI.Y AT: UA/HPS, 28(g} SOUTH 25TH AVENUE, BR{}ADVIEW. B3.1NOIS 60153, BE SURF, TG
PROVII)E YOUR I}ISIIWASHER'S MODEL, SERIAl. NUMBER, PURCHASE DATE AND THE SELI.ER'S NAME AND ADDRESS I
_6

Navigation menu
