Manual
WAVE®
SOUNDLINK™ ADAPTER
FOR THE BOSE® WAVE® MUSIC SYSTEM AND THE BOSE WAVE® RADIO II
Owner’s Guide | Bedienungsanleitung | Guía de usuario | Notice d’utilisation | Manuale di istruzioni
Gebruiksaanwijzing |
| | |
ii
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Safety Information
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help you set up and operate your
system properly and enjoy all of its advanced features. Please save this owner’s guide for future reference.
WARNING: To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
WARNING: Do not expose this apparatus to dripping or splashing, and do not place objects filled with
liquids, such as vases, on or near the apparatus. As with any electronic products, use care not to spill
liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.
The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of
uninsulated dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk
of electrical shock.
The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user to the
presence of important operating and maintenance instructions in this owner’s guide.
iii
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
CAUTION: Make no modifications to the system or accessories. Unauthorized alterations may compromise safety,
regulatory compliance, and system performance and will void the product warranty.
CAUTION: Do not use any liquid cleaning solutions, solvents, chemicals, alcohol, ammonia, or abrasives.
CAUTION: Do not allow liquids to spill into any openings in the enclosure. If liquids get into the unit, turn it off immediately.
Call Bose® Customer Support as soon as possible to arrange for service. See the address list included in the carton.
WARNING:
K
eep the remote control battery away from children. It may cause a fire or chemical burn if mishandled. Do not recharge,
disassemble, heat above 100ºC (212ºF), or incinerate. Dispose of used batteries promptly. Replace only with a battery of the correct
type and model number.
WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with Duracell, Eveready, Energizer, Maxell,
Toshiba, or Shun Wo CR2032 or DL2032 3-volt lithium battery.
Please dispose of used batteries properly, following any local regulations. Do not incinerate.
WARNING: Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
WARNING: Contains small parts that may be a choking hazard. Not suitable for children under age 3.
Note: The product label is located on the bottom of the product.
Note: Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily
operable.
Note: Operating temperature range: 0 to 35°C. This product is intended for indoor use only.
Note: This product is intended for use only with the power supply provided.
iv
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
This product conforms to all EU Directive requirements as applicable by law. The complete Declaration of Conformity
can be found at: www.Bose.com/static/compliance.
For the SoundLinkTM USB key:
This device complies with FCC and Industry Canada RF radiation exposure limits set forth for general population. It must not be
co-located in conjunction with any other antenna or transmitter within a host device.
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
In Canada, operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must
accept any intervenes, including interference that may cause undesired operation of the device.
For the SoundLinkTM adapter:
To comply with FCC and Industry Canada RF radiation exposure requirements, this device must be installed to produce a
separation distance of 20 cm from all persons. It must not be co-located or operating in conjunction with any other antenna
or transmitter.
This product complies with the Canadian ICES-003 Class B and RSS-210 specifications.
In the U.S. only, this product complies with CFR 47 Part 15 specifications.
Additional safety information: See the additional instructions on the Important Safety Instructions sheet (North America only)
enclosed in the shipping carton.
v
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
Contents
Product parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
A. Using a kit with basic contents only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Using a kit with both basic and upgrade contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Upgrading your Wave® music system, as needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparing your Wave® music system or Wave® radio II for wireless . . . . . . . . . . . . . . . . . . . . . 4
If your kit includes an adapter power pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparing your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
To disconnect your Wave® music system from the computer . . . . . . . . . . . . . . . . . . . . . . . 8
To reconnect to your Wave® system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Listening to music on your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manually linking the SoundLinkTM adapter and USB key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Product parts
There are two versions of the SoundLinkTM kit. Which version you chose for your specific Wave®
system determines which steps you follow in making the connections.
Identify your kit as A. or B. and follow the instructions that apply.
A. Using a kit with basic contents only
If you have only the basic contents kit directly
below:
Skip ahead to “Preparing your Wave® music
system or Wave® radio II for wireless” on
page 4.
B. Using a kit with both basic and upgrade
contents
If you have all of the contents shown below:
1. Begin with “Upgrading your Wave® music
system, as needed” on page 3.
2. Proceed with “Preparing your Wave® music
system or Wave® radio II for wireless” on
page 4.

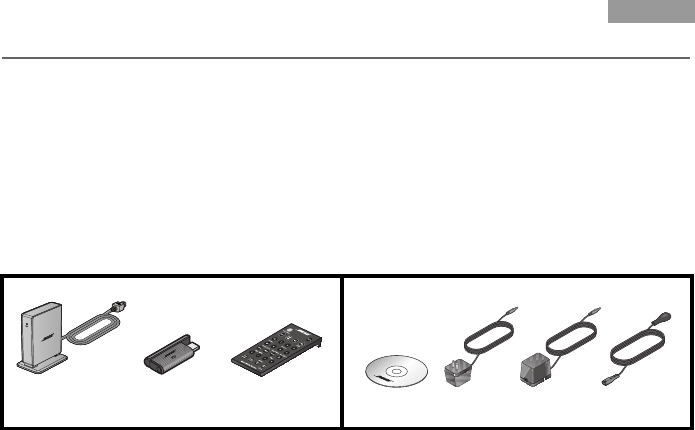

SoundLinkTM
USB key SoundLinkTM
remote control
(battery installed)
SoundLinkTM
adapter
Basic contents
Adapter power pack
Upgrade contents
Upgrade CD
OR
100-120V 220-240V
3
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

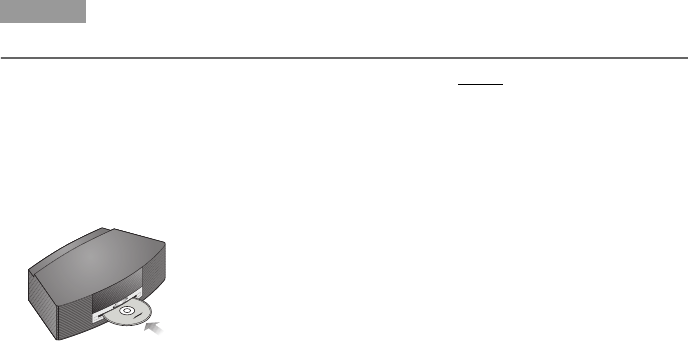

Upgrading your Wave® music system, as needed
If your kit includes an upgrade CD, it is important to use the CD before making any SoundLinkTM
kit connections.
Follow this procedure:
1. Make sure your Wave® music system is plugged in and ready to use.
For detailed instructions, refer to the Bose® owner’s guide that came with the system.
2. Insert the update CD, label side up, into the disc drive on the system.
The update process begins automatically and UPDATING appears on the Wave® system
display.
When the update is complete, the system ejects the disc. Your system is now compatible with
the SoundLinkTM adapter.
4
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10

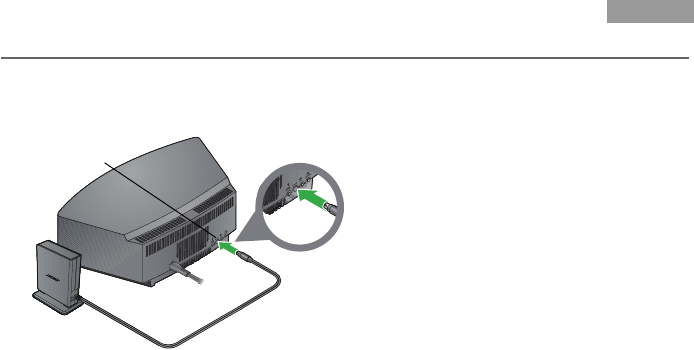

Preparing your Wave® music system or Wave® radio II for wireless
The SoundLinkTM adapter connects directly to your Wave® system.
1. Plug the SoundLinkTM adapter cable (with the words Bose link facing up) into the Bose link
connector on the rear of the system.
2. Place the adapter in a convenient location. It does not need to be within view.
If the adapter is to the left of the system (as you face it), be sure the two are at least
2 in. (5 cm) apart to eliminate any interference with AM reception.
Bose link
cable
Bose link
connector
5
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

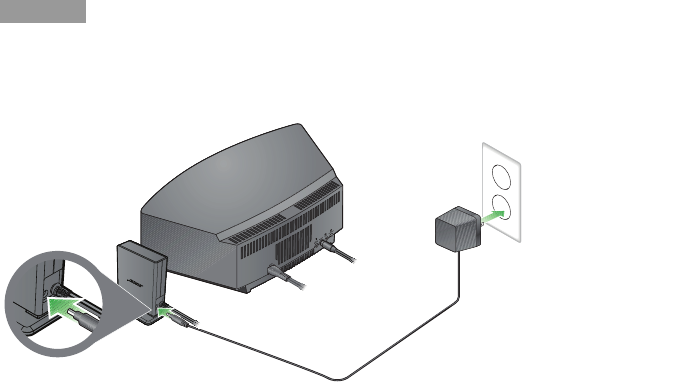

If your kit includes an adapter power pack
1. On the rear of the SoundLinkTM adapter, insert the small end of the adapter power cable into
the DC power connector.
2. Plug the other end of the power cable into an AC power outlet that is close to your system.
Adapter*
power pack
*In some regions, the kit includes a
separate power cable that connects to
the power supply.
SOUNDLINK
POWER CABLE
UNPLUGGED
scrolls across the
Wave® system
display if the
required power
pack is not
connected
when you press
the SoundLink/CD
button.
6
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Preparing your computer
1. Using the provided SoundLinkTM remote control, press the SoundLink/AUX button to select
the computer as the music source.
Your Wave® system turns on and SOUNDLINK, CONNECTING, DISCOVERABLE appear in
sequence on the front panel display.
If no text appears, see “Troubleshooting” on page 11.

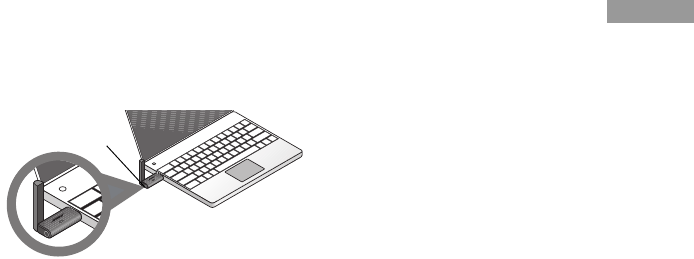

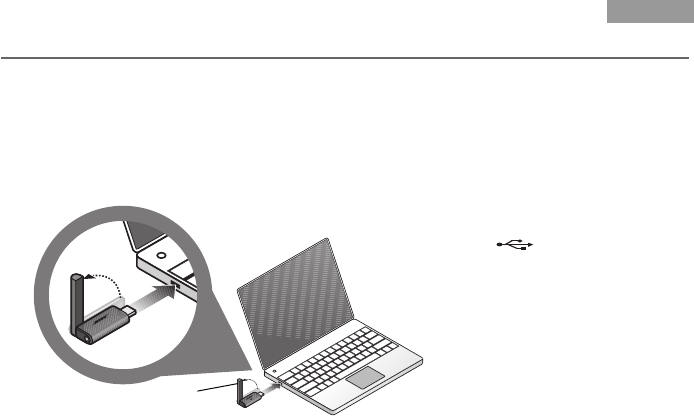

2. With your computer turned on, lift the antenna on the SoundLinkTM USB key to the vertical
position and plug the key into a USB port on your computer.
USB key
antenna
To locate a USB port on your
computer, look for the identifying
symbol .
If you are using a USB hub with
your computer, make sure it is a
powered hub.
7
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
3. Check to be sure the SoundLinkTM USB key power light turns on and begins to flash.
4. Wait for your computer to recognize the SoundLinkTM USB key. It may take up to 20
seconds the first time this occurs.
CONNECTING appears on the Wave® system display and lights on the USB key and
SoundLinkTM adapter flash rapidly. The lights stop blinking and the Wave® system emits a
brief beep when the SoundLinkTM connection is ready for use.
5. For best performance, set your computer volume control to the maximum level you use.
Then open a music application or locate an Internet radio station and set the music to play.
Important for Mac computer users: On first using the USB key, you may need to open your
computer Sounds settings in System Preferences and select “Bose SoundLink Audio.”
Note: While listening to music from your computer, no sound plays through the computer’s internal
speakers or sound card. On some computers, you can choose a separate audio output for your
music and still hear computer alerts on its internal speakers.
Flashing
power light
8
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10

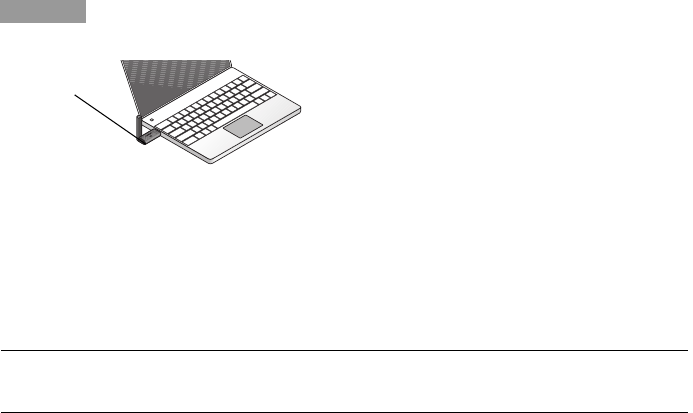

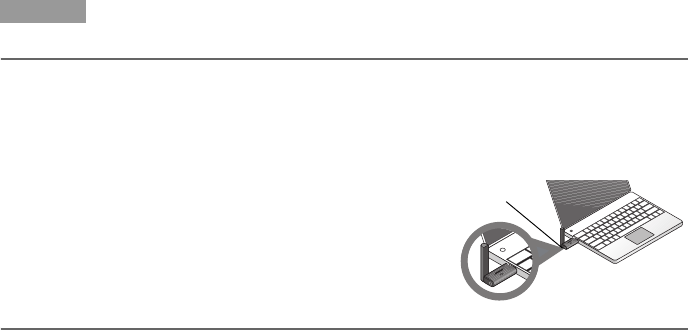

To disconnect your Wave® music system from the computer
Press the button on the end of the SoundLinkTM USB key. Then remove the USB key from the
computer USB port.
To reconnect to your Wave® system
When you plug the SoundLinkTM USB key into the USB port on your computer, it should
automatically reconnect to your Wave® system. Make sure your system is turned on and
COMPUTER appears on the system display.
If you have problems connecting, see “Troubleshooting” on page 11.
Button
9
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

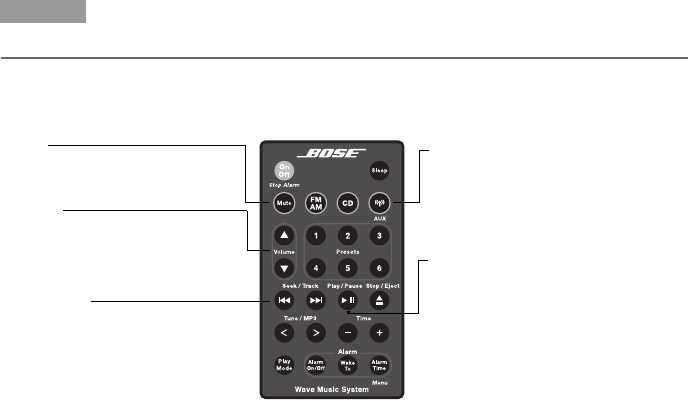

Listening to music on your computer
Your SoundLinkTM kit remote control gives you access to the music on your computer. It works
much like the original Wave® music system remote and controls all of the system features.
The buttons that operate with your computer include:
SoundLink/AUX
• Press: Selects the audio from your
computer or an AUX device
(if one is connected to the system).
•Press again: Switches between
your computer and the AUX device.
Play/Pause*
• Begins music track play.
• Pauses a playing track.
Seek/Track*
• Press: Skips to the previous or next
CD track or music track on your
computer.
•Press and hold: Scans back or ahead
through the current track.
Mute
• Press to silence audio.
• Press again to restore audio.
Volume
• Press: Turns the volume up or down.
•Press and hold: Adjusts the volume
faster.
*May not work with Internet radio and some music applications.
Note for Wave® radio II owners:
The new remote provides all of the
buttons needed to operate the Wave®
radio II, plus some that work solely
with the Wave® music system.
10
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Battery replacement
WARNING: Keep the remote control battery away from children. It may cause a fire or chemical
burn if mishandled. Do not recharge, disassemble, heat above 212ºF (100ºC), or incinerate. Dispose
of a used battery promptly. Replace only with a battery of the correct type and model number.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with Duracell,
Eveready, Energizer, Maxell, Toshiba, or Shun Wo CR2032 or DL2032 3-volt lithium battery.
Troubleshooting
Problem What to do
Computer does not
recognize the SoundLinkTM
USB key (in its list of
connected devices).
• Remove the SoundLinkTM USB key from your computer, wait 30 seconds,
and insert it again.
• If you are using a USB hub, make sure the hub is powered.
• Try a different USB port. If you are using a powered USB hub, try moving
the SoundLinkTM USB key to a USB port on the computer.
• Remove the SoundLinkTM USB key, restart your computer, and insert the
USB key again.
• Refer to the owner’s guide, help system, or technical support for your
computer to learn how to detect and install new hardware.
11
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
Problem What to do
Computer and Wave®
system do not connect.
Symptom A:
SOUNDLINK or
COMPUTER never
appear on the Wave® system
display and no lights blink.
Or see Symptom B on the
next page.
• Press the SoundLink/AUX button to turn on the system and select the
computer.
• Make sure the SoundLinkTM adapter is connected to the Wave® system.
• Unplug the Wave® music system for 30 seconds and plug it back in.
• If you received an upgrade CD with your kit and have not used it, be sure
to run it now.
• If this does not resolve the problem, contact Bose Customer Service.
Refer to the address list included in the carton.
12
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Problem What to do
Computer and Wave®
system do not connect.
Symptom B:
CONNECTING remains
on the Wave® system
display and the adapter
light blinks continuously.)
– NO SIGNAL – appears
eventually on the system
display.
Or, see Symptom A on the
previous page.
• Make sure the USB key is plugged in and your computer is turned on.
• Decrease the distance between the Acoustic Wave® system and your
computer. See “Connection range” on page 17.
• Try moving the Wave® system away from possible sources of interference
such as another wireless device, a microwave oven, or wireless computer
network router.
• If you are using a desktop computer, try moving the USB key to a port that
provides a more direct path to the adapter. Or use a USB extension cable,
available for purchase at computer stores.
• Remove the USB key from your computer, wait 30 seconds and insert it
again.
• Disconnect the power supply from the Wave® system and reconnect it.
• Try restoring the wireless link between the speaker and the USB key. See
“Manually linking the SoundLinkTM adapter and USB key” on page 15.
13
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
Problem What to do
No sound when the
computer music plays. • Press the SoundLink/AUX button on the SoundLinkTM remote to select
your computer as the source. COMPUTER should be displayed.
• Make sure your Wave® system volume is turned up and the sound is not
muted.
• Make sure the volume on your computer is turned up and is not muted.
• Make sure your music application is running and the volume is turned up
and not muted.
• Check your computer Sound settings to make sure “Bose SoundLink
Audio” is selected as the audio output device.
• Close or quit the music application on your computer and restart it.
• Restart your computer.
14
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Problem What to do
Reception of sound from the
computer is poor or the
sound is dropping out.
• Move the SoundLinkTM adapter farther from the Wave® system.
• Change the angle of the antenna on the SoundLinkTM USB key.
• Decrease the distance between the Acoustic Wave® system and your
computer. See “Connection range” on page 17.
• Try moving the Acoustic Wave® system away from possible sources of
interference such as another wireless device, a microwave oven, or
wireless computer network router.
• Use a USB extension cable, available for purchase at computer stores.
Plug the USB key into the appropriate end of the cable and the computer
into the other end.
• Close other applications that can tax your computer memory.
• If you continue to experience reception problems, contact Bose Customer
Service. Refer to the address list included in the carton.
Play/Pause and Seek
buttons do not control music
on the computer.
• Make sure your computer media player or Internet radio application is
selected as the active window.
Note: Not all players and Internet radio services support this form of
playback control.
15
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
Manually linking the SoundLinkTM adapter and USB key
You may be using a replacement SoundLinkTM USB key or SoundLinkTM adapter or troubleshoot-
ing the wireless connection. In either case you should link the USB key and adapter manually.
1. Using the provided SoundLinkTM remote control, press the SoundLink/AUX button to select
the computer as the music source.
2. Press and hold the Presets 5 button on the remote control until DISCOVERABLE is
displayed and flashing on the Wave® system display.
3. With your computer turned on, lift the antenna on the
SoundLinkTM USB key to the vertical position and plug the
key into a USB port on your computer.
4. Press and hold the button on the USB key for more than 3
seconds until the light begins to flash. When the USB
power light changes from flashing to solid and the Wave®
system emits a beep, linking is complete.
Customer service
For additional help in solving problems, see notes about the product at: Owners.Bose.com.
To contact Bose Customer Service for help, or to replace a lost remote control, see the phone
numbers on the inside the back cover of your Wave® music system guide.
Button
16
Tab 3, 11Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 EnglishTab2, 10
Limited warranty
Your Bose® SoundLinkTM kit is covered by a limited transferable warranty. Details of the limited
warranty are provided on the product registration card that is included in the carton. Please
complete the information section on the card and mail it to Bose. Failure to do so will not affect
your limited warranty rights.
What you must do to obtain Limited Warranty Service:
Return product, with proof of purchase from an authorized Bose® dealer, using the following
procedures:
1. Contact the Bose organization in your country/region (visit Global.Bose.com for Bose
contact information in your country/region) for specific return and shipping instructions;
2. Label and ship the product, freight prepaid, to the address provided by the Bose
organization in your country; and
3. Place any necessary return authorization number prominently on the outside of the carton.
Cartons not bearing a return authorization number, where required, will be refused.
17
Tab 6, 14English Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15
Technical information
Adapter power rating
100V 50/60Hz with 5V output at 500mA
120V 60Hz with 5V output at 500mA
220-240V 50 or 60Hz with 5V output at
500mA
Connection range
Wireless capability covers a range of up to
60 ft (18.5 m), which can vary according to
the type of home construction and signal
obstructions (multiple walls, metal appliance,
etc.). It can also be affected by the presence
of other wireless devices (such as network
routers or microwave ovens.)
Dimensions
SoundLinkTM adapter: 3.6" H x 2.6" D x 1" W
(9.1 cm H x 7.6 cm D x 2.3 cm W)
Weight
SoundLinkTM adapter: 0.33 lb.
(150 grams +/-10 grams)
Computer requirements
Compatible with computers running Windows
XP or Vista systems or MAC OSX (10.4 or
later).
Requires use of a USB port on a computer or
a powered USB hub connected to the com-
puter.
Bose® system requirement
Exclusive use of the Bose link connector on
the rear of the Wave® system.
Bluetooth® QD ID
SoundLinkTM USB key: B015403
SoundLinkTM Adapter: B015665
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Bose
Corporation is under license.
Important Safety Instructions
1. Read these instructions – for all components
before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the
owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water – Do
not use this product near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, near
a swimming pool, or anywhere else that water or
moisture are present.
6. Clean only with dry cloth – and as directed by
Bose® Corporation. Unplug this product from the
wall outlet before cleaning.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions – To ensure reliable operation of the
product and to protect it from overheating, put
the product in a position and location that will not
interfere with its proper ventilation. For example,
do not place the product on a bed, sofa, or similar
surface that may block the ventilation openings.
Do not put it in a built-in system, such as a book-
case or a cabinet that may keep air from flowing
through its ventilation openings.
8. Do not install near any heat sources,
such as radiators, heat registers, stoves
or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polar-
ized plug has two blades with one wider
than the other. A grounding-type plug has
two blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs, con-
venience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the
manufacturer or sold with the
apparatus. When a cart is used,
use caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time – to prevent damage to this product.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way:
such as power-supply cord or plug is damaged;
liquid has been spilled or objects have fallen
into the apparatus; the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped – Do not attempt
to service this product yourself. Opening or removing
covers may expose you to dangerous voltages or
other hazards. Please call Bose to be referred to an
authorized service center near you.
15. To prevent risk of fire or electric shock, avoid
overloading wall outlets, extension cords, or
integral convenience receptacles.
16. Do not let objects or liquids enter the product –
as they may touch dangerous voltage points or
short-out parts that could result in a fire or
electric shock.
17. See product enclosure for safety related
markings.
Information about products that
generate electrical noise
If applicable, this equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, this
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, you are encouraged to try to correct the
interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipment
and receiver.
• Connecttheequipmenttoanoutletonadifferentcircuit
than the one to which the receiver is connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.
Note: Unauthorized modification of the receiver or radio
remote control could void the user’s authority to operate
this equipment.
This product complies with the Canadian ICES-003 Class
B specifications.
English
Important Safety Instructions

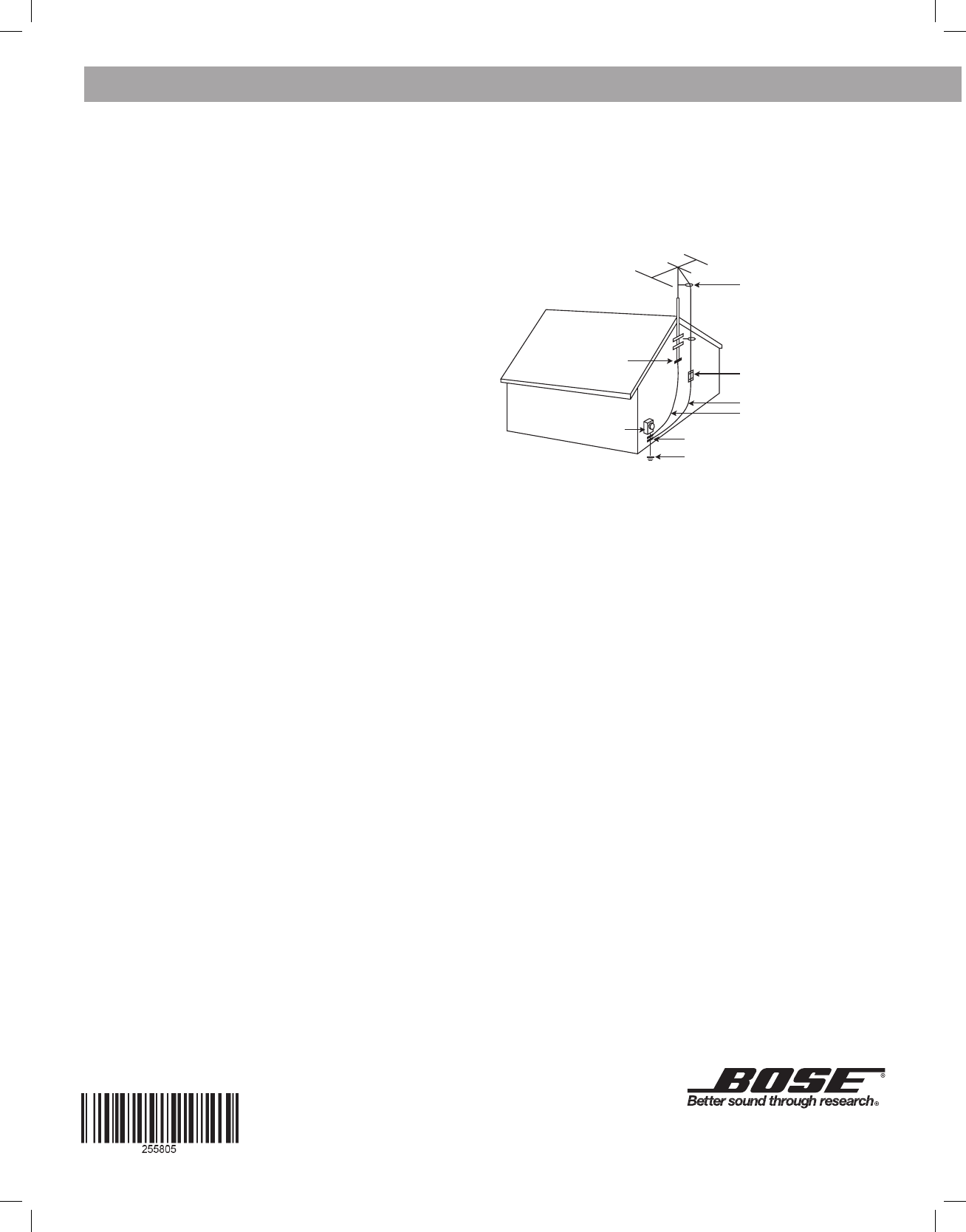

Antenna grounding
Example of antenna grounding as per National Electrical
Code,ANSI/NFPA70.
Note to CATV system installer
ThisreminderisprovidedtocalltheCATVsystem
installer’s attention to Article 820-40 of the NEC (of USA)
that provides guidelines for proper grounding. In particu-
lar, it specifies that the cable ground shall be connected
to the grounding system of the building, as close to the
point of cable entry as is practical.
18. Use proper power sources – Plug the product into
a proper power source, as described in the operating
instructions or as marked on the product.
19. Avoid power lines – Use extreme care when
installing an outside antenna system to keep from
touching power lines or circuits, as contact with
them may be fatal. Do not install external antennas
near overhead power lines or other electric light or
power circuits, nor where an antenna can fall into
such circuits or power lines.
20. Ground all outdoor antennas – If an external
antenna or cable system is connected to this
product, be sure the antenna or cable system is
grounded. This will provide some protection against
voltage surges and built-up static charges.
Section810oftheNationalElectricalCodeANSI/
NFPANo.70providesinformationwithrespectto
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the
groundelectrode.Refertotheantennagrounding
illustration on this page.
Antenna lead in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Power service grounding
electrode system
(NEC ART 250, Part H)
Ground clamps
Ground clamp
Electric service
equipment
©2007BoseCorporation,TheMountain,
Framingham,MA01701-9168USA
255805AMRev.03
