Bose® S1 Pro
Multi-Position PA System
Owner’s Guide
Guía del propietario
Guide d'utilisation
2 - Important Safety Instructions
Important Safety Instructions
This device complies with part 15 of the FCC Rules and with Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
Bose Corporation hereby declares that this product is in compliance with
the essential requirements and other relevant provisions of Directive
2014/53/EU and all other applicable EU directive requirements. The
complete declaration of conformity can be found at:
www.Bose.com/compliance.
Frequency band of operation 2402 to 2480 MHz.
Bluetooth: Maximum transmit power less than 20 dBm EIRP.
Bluetooth Low Energy: Maximum power spectral density less than 10 dBm/MHz EIRP.
This product meets all EN55103-2 immunity requirements for E2 electromagnetic
environment.
This equipment should be installed and operated with a minimum distance of
Shielded cables are required to maintain regulatory compliance
Information About Products That Generate Electrical Noise (FCC Compliance
Notice for US)
Note: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at one’s own expense.
Management Regulation for Low-power Radio-frequency Devices
Article XII
According to “Management Regulation for Low-power Radio-frequency Devices”,
without permission by the NCC, any company, enterprise, or user is not allowed to
change frequency, enhance transmitting power, or alter original characteristics, as
well as performance, to an approved low power radio-frequency device.
Article XIV
The low power radio-frequency devices shall not influence aircraft security and
interfere with legal communications; If found, the user shall cease operating
immediately until no interference is achieved. The said legal communications
means radio communications in compliance with the Telecommunications Act.
The low power radio-frequency devices must be susceptible with the
interference from legal communications or ISM radio wave radiated devices.
• All Bose products must be used in accordance with local, state, federal and
industry regulations. It is the installer’s responsibility to ensure installation of the
product is performed in accordance with all applicable codes, including local
building codes and regulations. Consult the local authority having jurisdiction
before installing this product.
• To reduce the risk of fire or electrical shock, do NOT expose the product to rain,
liquids, or moisture. Not applicable for products rated IPX4-9.
• Do NOT expose this product to dripping or splashing and do not place objects
filled with liquids, such as vases, on or near the product. Not applicable to
products rated IPX4-9.
• Keep the product away from fire and heat sources. Do NOT place naked flame
sources, such as lighted candles, on or near the product.
• Do NOT use a power inverter with this product.
• Do NOT use in vehicles or boats.
• Do NOT make unauthorized alterations to this product.
• Do NOT expose products containing batteries to excessive heat (e.g. from storage
in direct sunlight, fire, or the like).
• The battery accessory provided with this product may present a risk of fire or
chemical burn if mishandled.
• Where the mains plug or appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
• Only use genuine Bose batteries with this product. Contact Bose customer service
for replacement batteries.
• Do NOT use the Bose S1 Pro system with a tripod/stand that is unstable. The
loudspeaker is only designed for use on a 35 mm post, and the tripod/stand must
overall size of 241 x 279 x 330 mm (9.5 x 11 x 13 inches). Using a tripod/stand that
is not designed to support the size and mass of the S1 Pro system may lead to an
unstable and hazardous condition that could result in injury.
Charging temperature range: 0°C - 42°C (32°F - 108°F)
Discharging temperature range: –20°C - 57°C (–4°F - 137°F)
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produces heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-
type plug has two blades and a third grounding prong. The wider blade or
third prong is provided for your safety. If the provided plug does not fit in
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where it exits from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
For Denmark, Finland, Norway, and Sweden:
English: Provide an earth connection or ensure the socket outlet incorporates a
protective earthing connection before connecting the plug to the mains socket outlet.
Danish: Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver
forbindelse til stikproppens jord.
Finnish: Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.
Norwegian: Apparatet må tilkoples jordet stikkontakt.
Swedish: Apparaten skall anslutas till jordat uttag.
Please read and keep all safety and use instructions.
This symbol means the product must not be discarded as household
waste, and should be delivered to an appropriate collection facility for
recycling. Proper disposal and recycling helps protect natural resources,
human health, and the environment. For more information on disposal
and recycling of this product, contact your local municipality, disposal
service, or the shop where you bought this product.
Part Name
Toxic or Hazar dous Substances and Elements
Names and Contents of Toxic or Hazardous Substances and Elements
PCBs
Metal parts
Plastic parts
Speakers
Cables
This table is pr epared in a ccordance with the pr ovisions of SJ/T 11364.
0: Indicat es that this toxic or hazar dous substance contained in all of the homog-
enous materials for this part is belo w the limit r equir ement of GB/T 265 72.
X: Indicat es that this toxic or hazar dous substance contained in at least one of
the homogenous mat erials used for this part is ab ove the limit r equirement of
GB/T 265 72.
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
(CR(VI))
Polybrominated
Biphenyl (PBB)
Polybrominated
diphenylether
(PBDE)
X
X
0 0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
X
X
Please dispose of used batteries properly, following local regulations. Do
not incinerate.
Provided by DCE Safety
WARNINGS/CAUTIONS:
This symbol on the product means there is uninsulated, dangerous voltage
within the product enclosure that may present a risk of electrical shock.
This symbol on the product means there are important operating and
maintenance instructions in this guide.
Contains small parts which may be a choking hazard. Not suitable for
children under age 3.
This product contains magnetic material. Consult your physician on
Regulatory Information
Changes or modifications not expressly approved by Bose Corporation could
void the user’s authority to operate the equipment.
Contents
Owner’s Guide - 3
Introduction
Quick Setup Guide .........................................................................................................................................................................4
Welcome ............................................................................................................................................................................................5
Product Overview ..........................................................................................................................................................................5
Features and Benefits ...................................................................................................................................................................5
Accessories .......................................................................................................................................................................................5

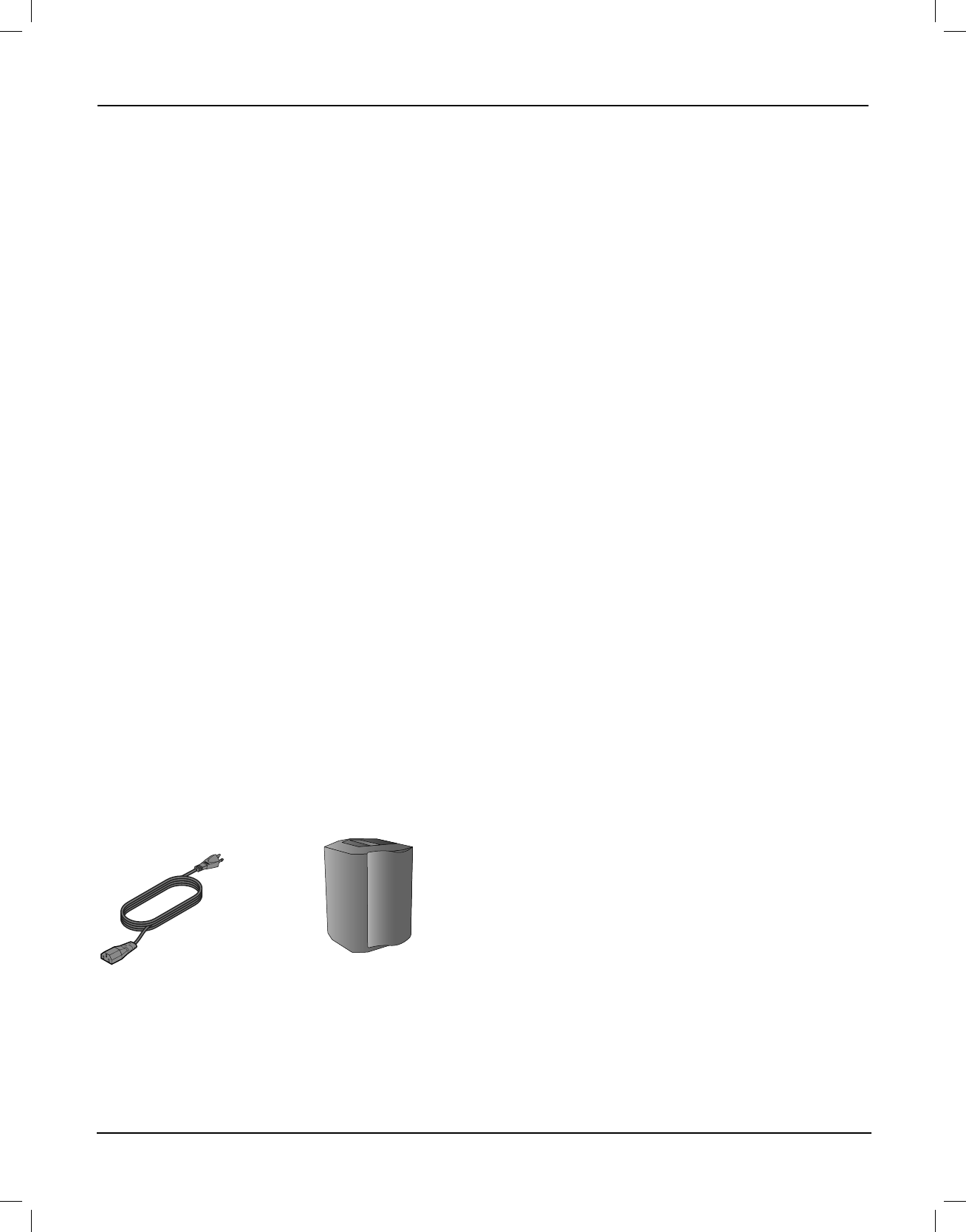

In-Box Accessories .................................................................................................................................................................5
Optional Accessories .............................................................................................................................................................5

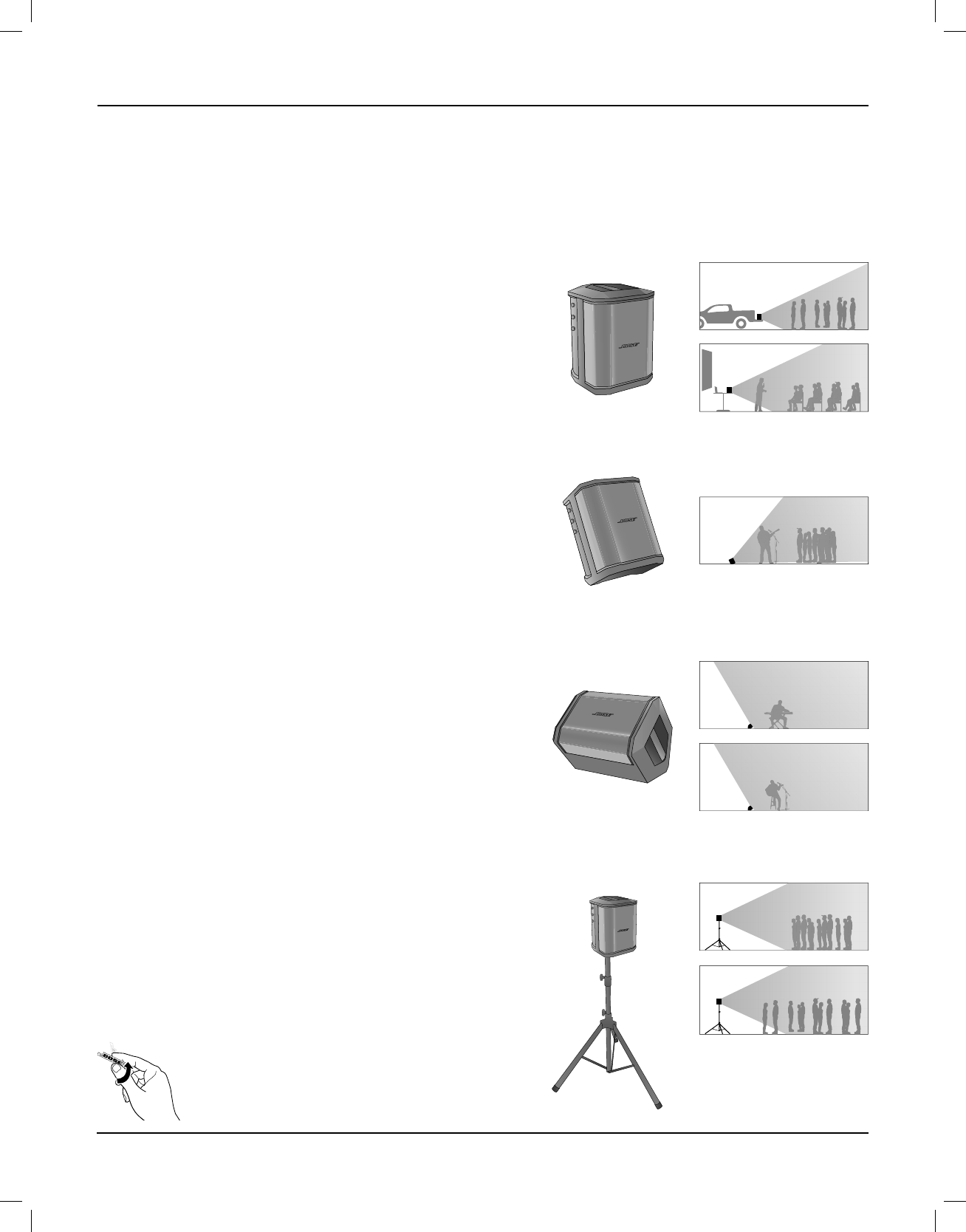

System Configurations .................................................................................................................................................................6
Elevated Surface......................................................................................................................................................................6
Tilt-Back ...................................................................................................................................................................................... 6
Monitor ........................................................................................................................................................................................6
Speaker Stand ..........................................................................................................................................................................6
Operating Information

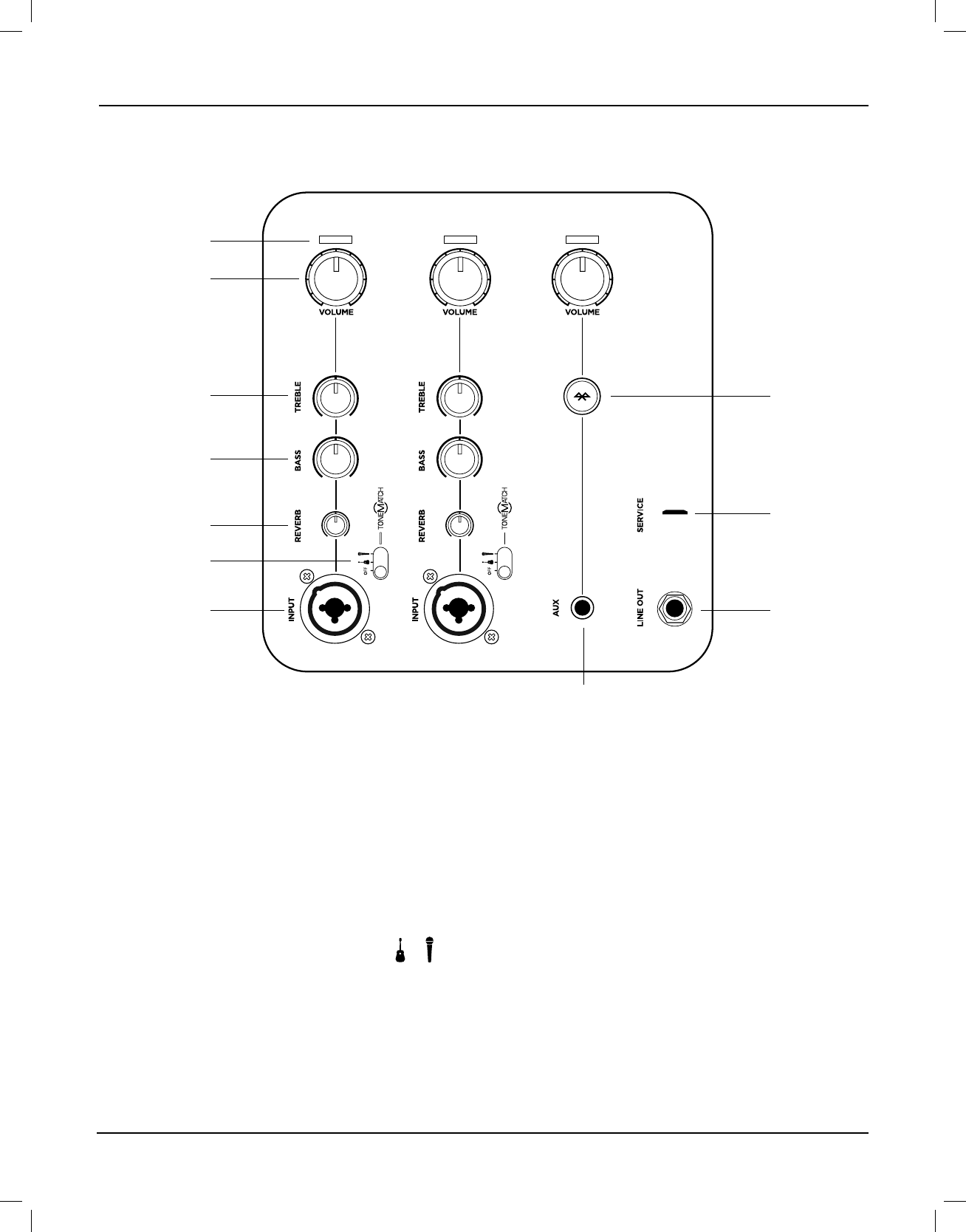

Connections and Controls ..........................................................................................................................................................7
System Setup

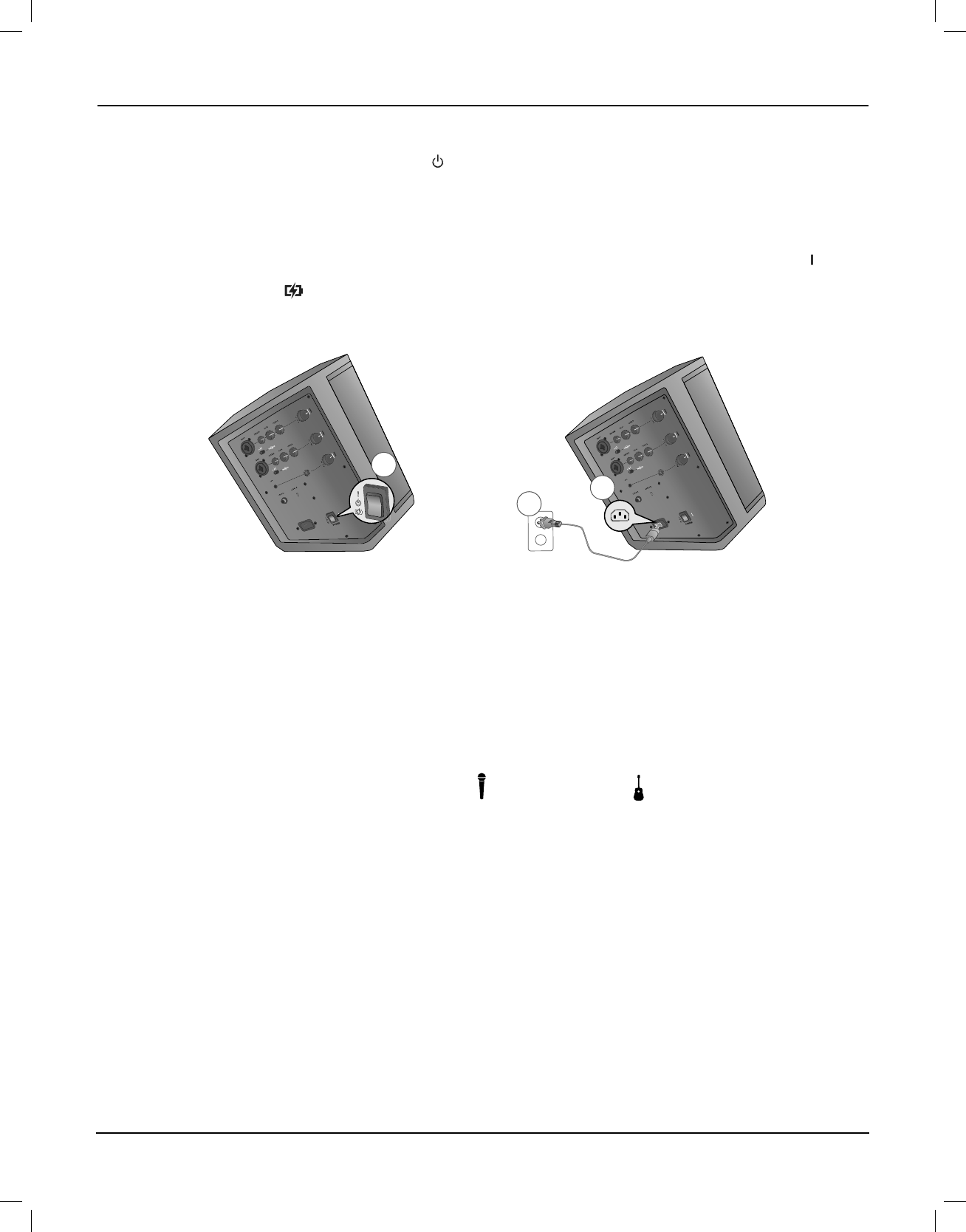

Connect Power ................................................................................................................................................................................8
Connect Sources ............................................................................................................................................................................. 8
Set Channel 1 & 2 Controls ..................................................................................................................................................8
Set Channel 3 Controls .........................................................................................................................................................9

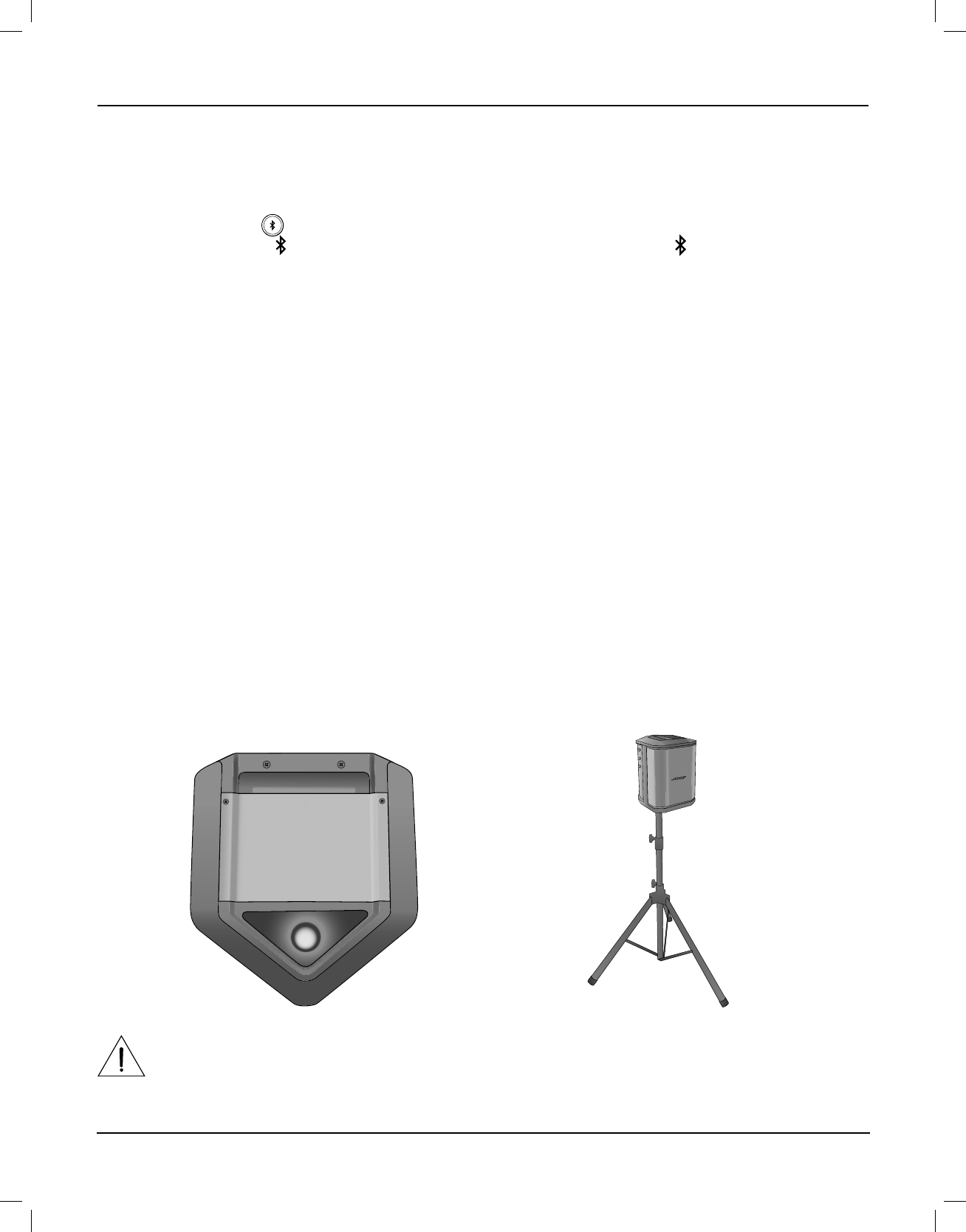

Use a Speaker Stand .....................................................................................................................................................................9

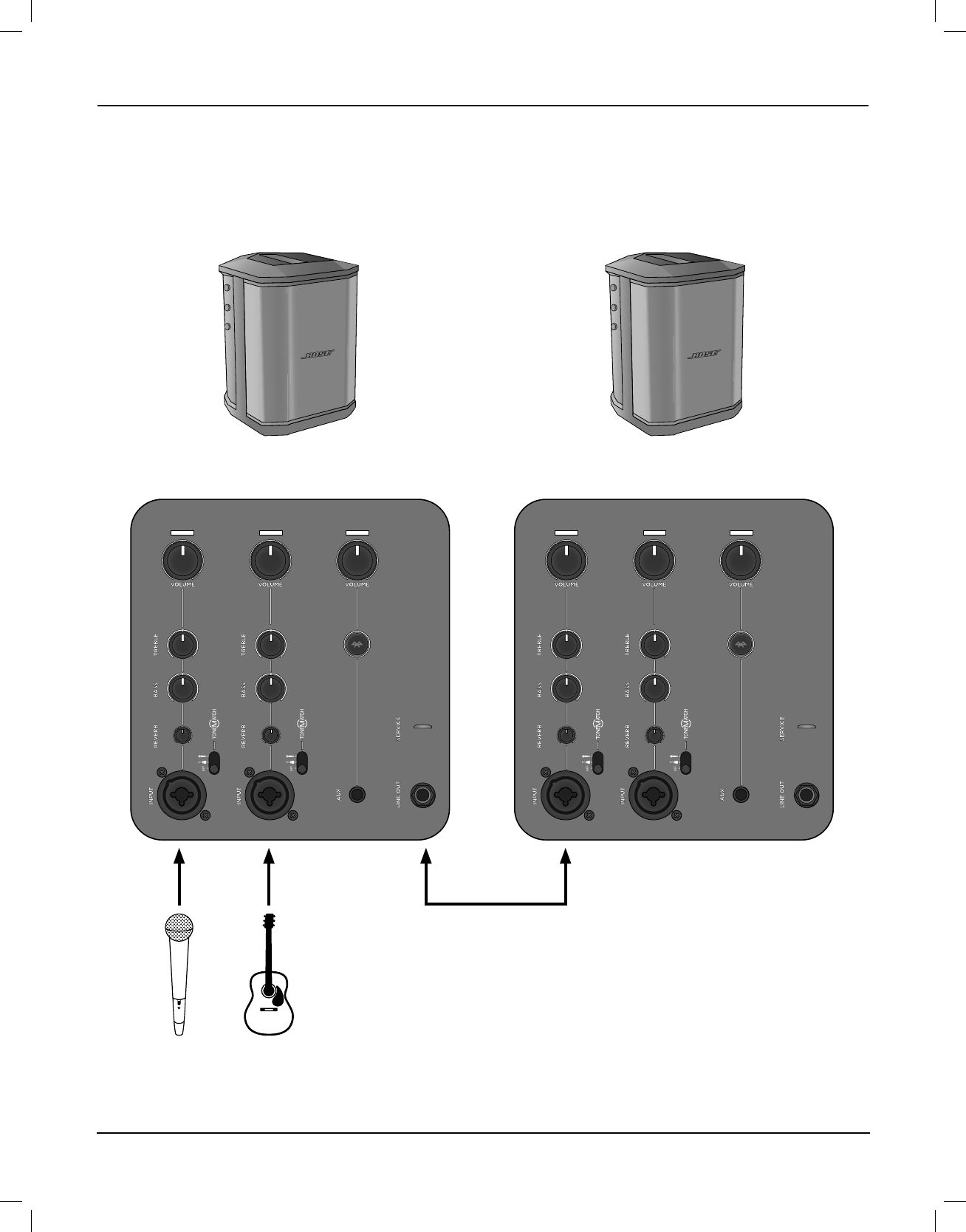

Connection Scenarios .................................................................................................................................................................10

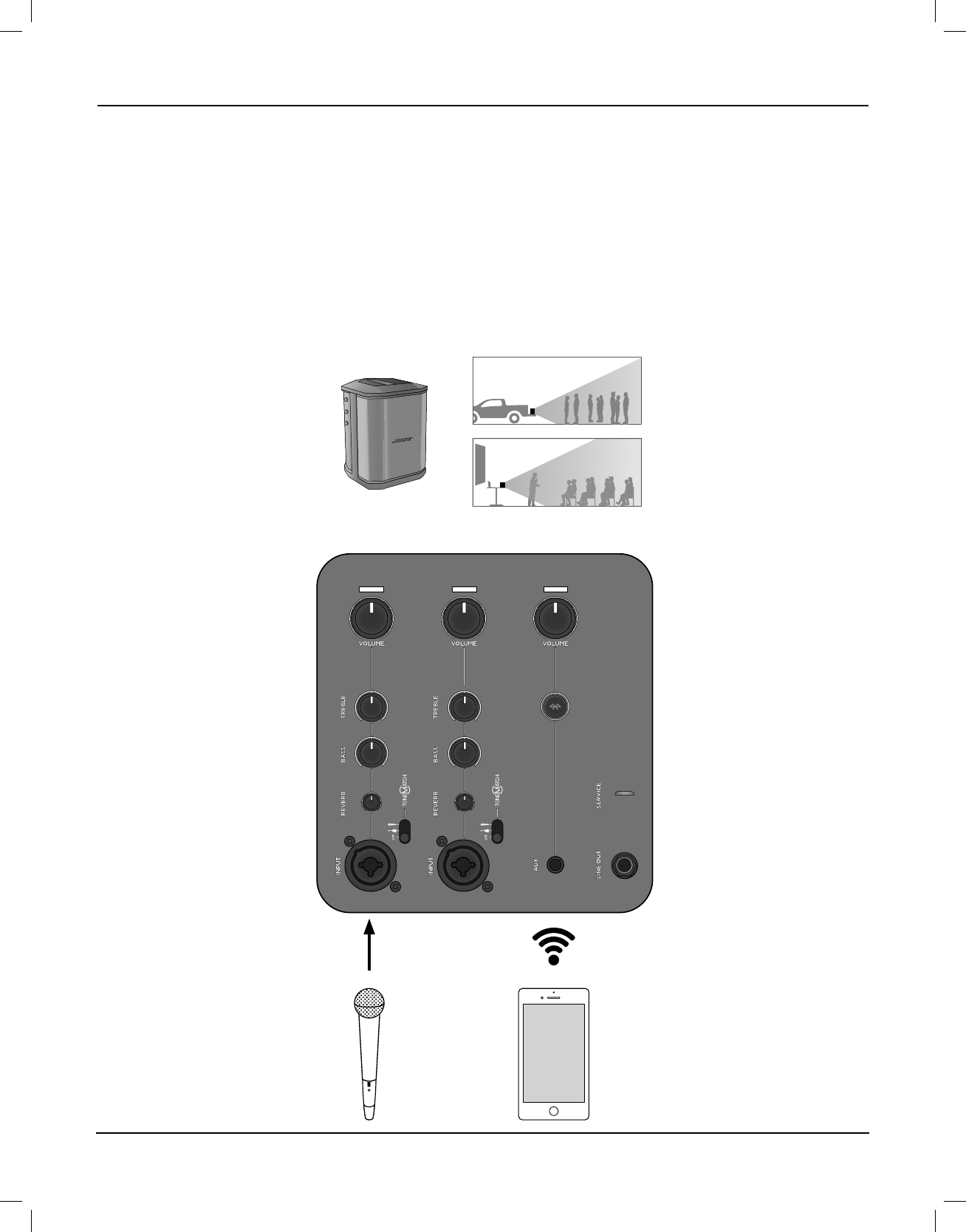

Elevated Surface....................................................................................................................................................................10
Tilt-Back ..................................................................................................................................................................................... 11

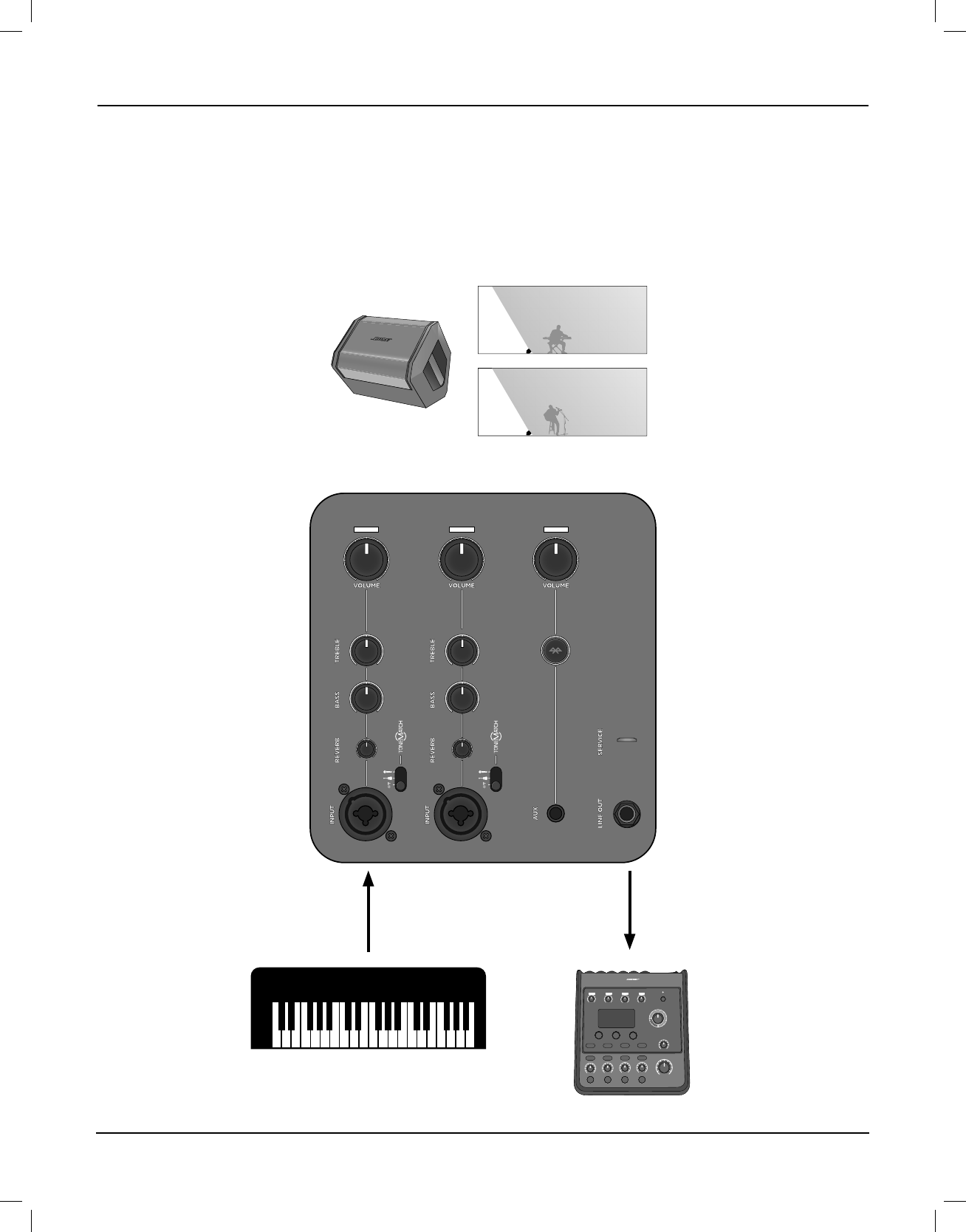

Monitor ...................................................................................................................................................................................... 12

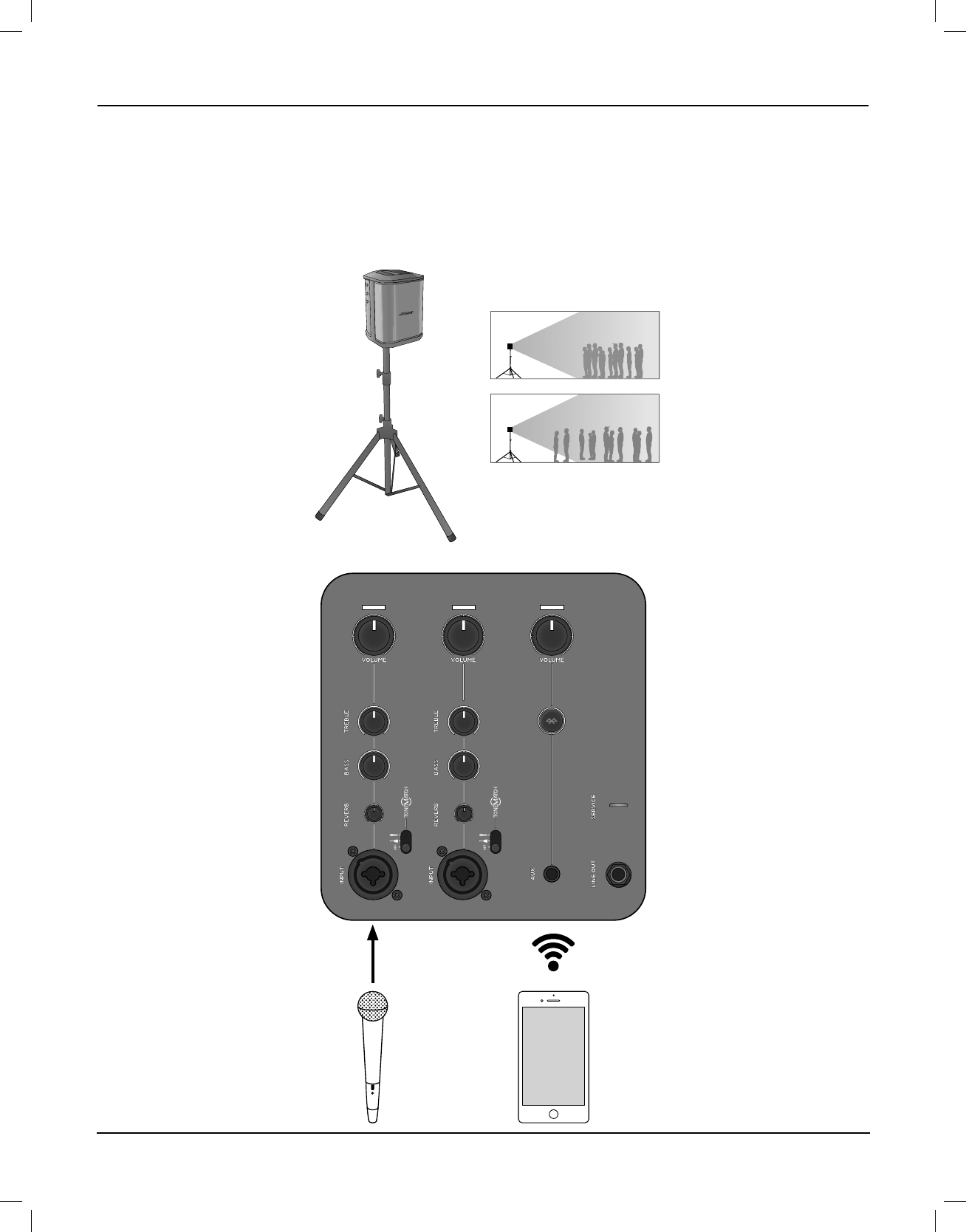

Speaker Stand ........................................................................................................................................................................ 13

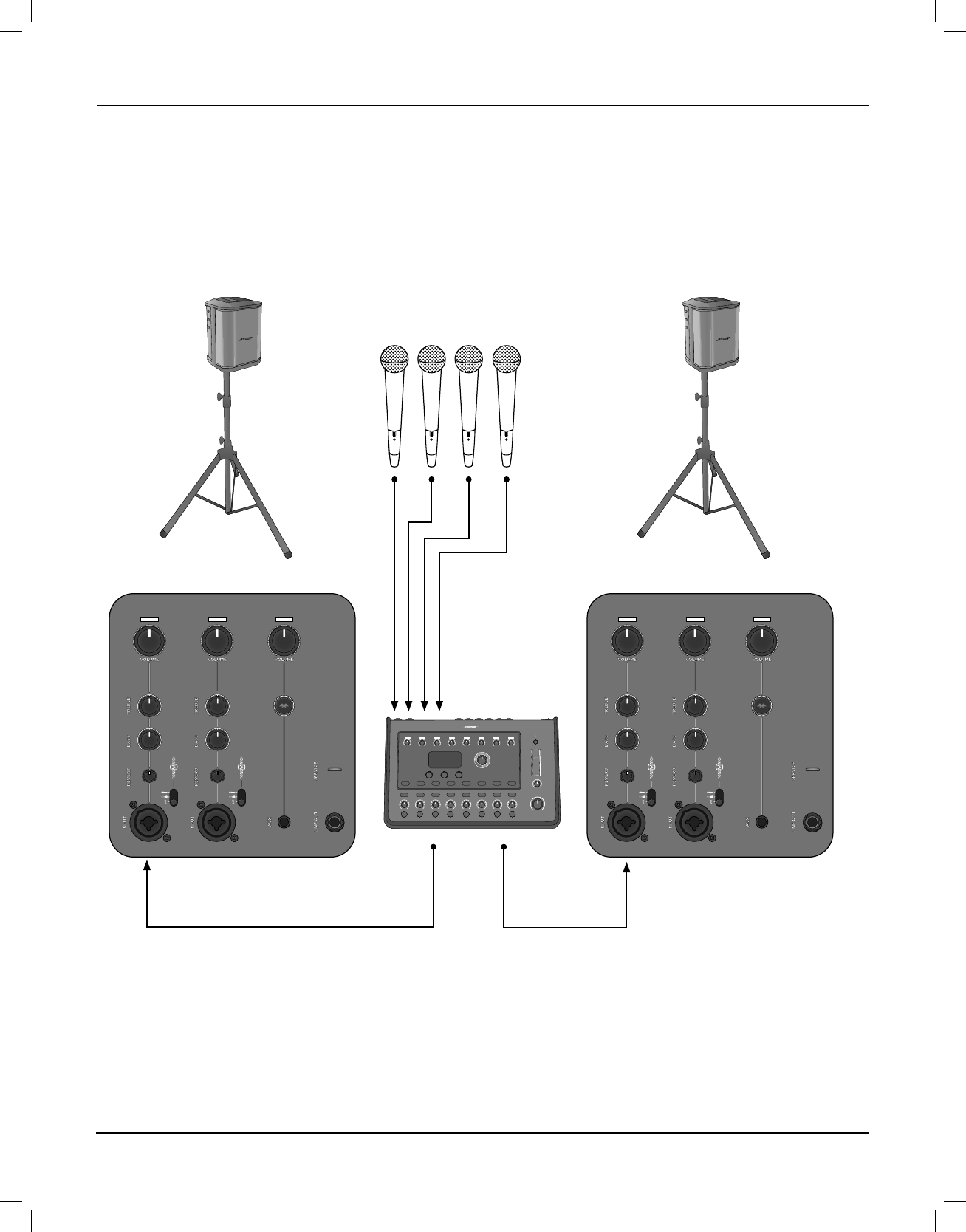

General Purpose PA ............................................................................................................................................................. 14
Care and Maintenance
Troubleshooting ............................................................................................................................................................................ 16
Caring for Your Product ............................................................................................................................................................. 17
Cleaning .................................................................................................................................................................................... 17
Bose® S1 Pro Specifications ...................................................................................................................................................... 17
Additional Information
Contact Information .................................................................................................................................................................... 18
Importer Information .................................................................................................................................................................. 18
Limited Warranty and Registration ....................................................................................................................................... 18
Additional Information ............................................................................................................................................................... 18
Date of Manufacture ............................................................................................................................................................ 18
Introduction
4 - Owner's Guide
Please complete and retain for your
records.
Serial number: _________________
Model number: _________________

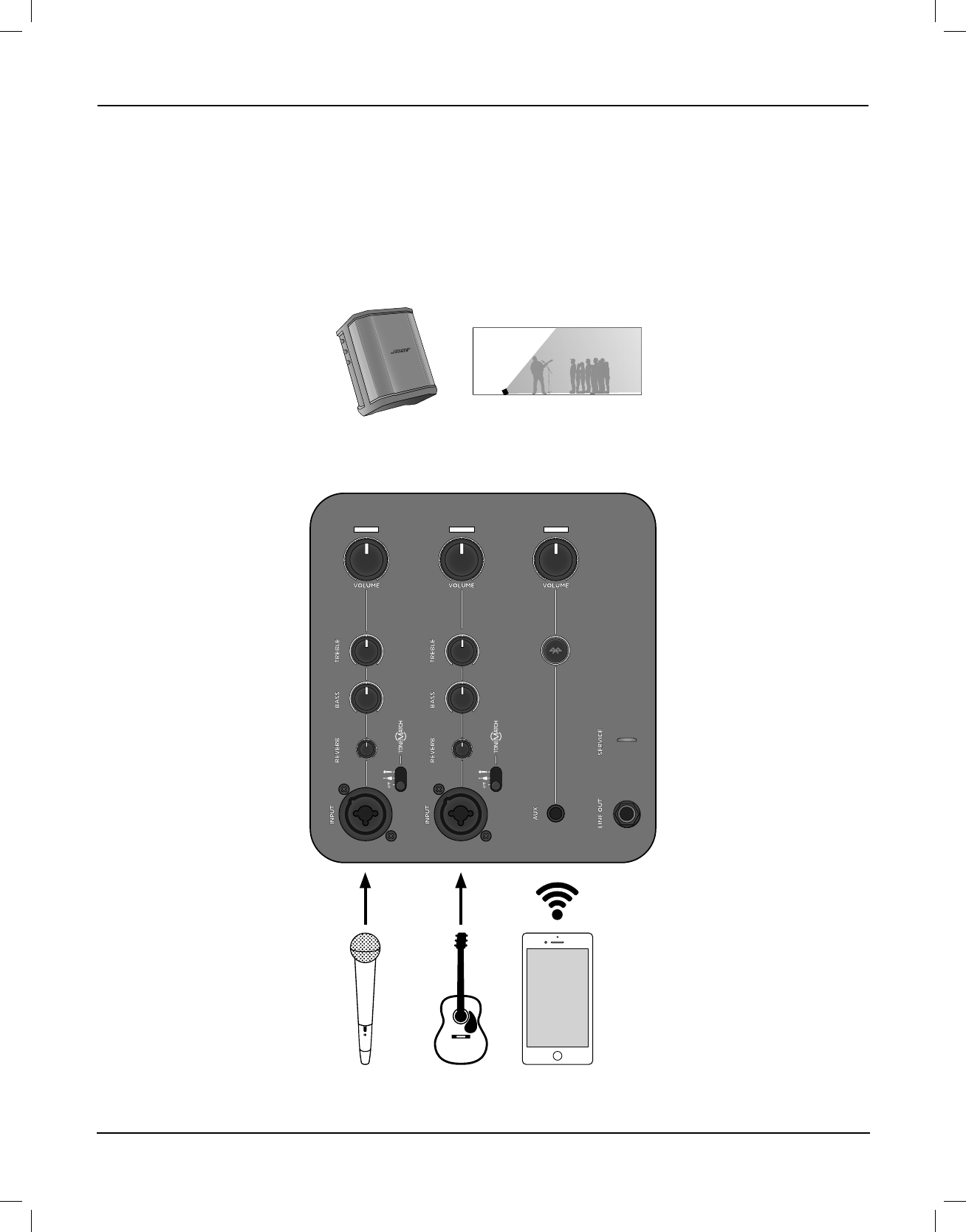

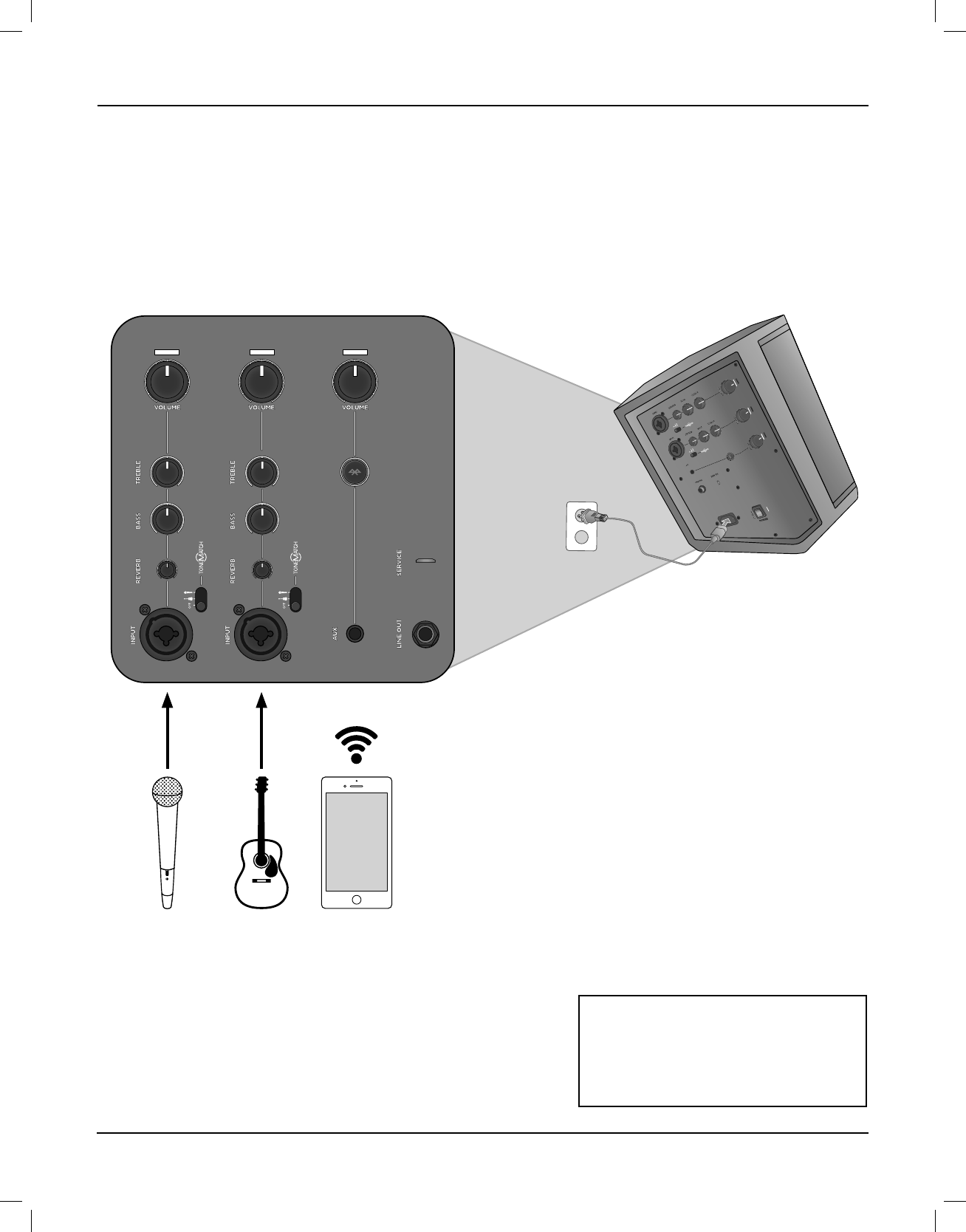

Quick Setup Guide
SIGNAL SIGNAL SIGNAL
123
SIGNAL
1
2
3
SIGNAL
SIGNAL
POWER
Note: For use of the Bose® S1 Pro Multi-Position PA system with
an optional rechargeable battery (not included), see the battery
accessory owner's guide on www.Bose.com.
Owner's Guide - 5
Introduction
Accessories
In-Box Accessories
The S1 Pro carton contains an S1 Pro system and
one each of the following accessories:
Optional Accessories
• Battery
• Backpack
• Colored Slip Cover
For a complete list of optional equipment and
accessories, please visit www.Bose.com.
Welcome
Thank you for purchasing the Bose® S1 Pro Multi-Position PA system. Whether you are performing for a
small audience, hosting your own special event or entertaining at home, now you’ll always be ready to
sound great.
This guide provides detailed setup and operating instructions for your S1 Pro system and explains how
to connect to a variety of audio sources. For additional information on using the system, including tips,
techniques and frequently asked questions, please visit www.Bose.com/livesound.
Product Overview
Sound great anywhere with the ultra-portable Bose S1 Pro Multi-Position PA system. Designed for
musicians, DJs and general PA use, the S1 Pro is the ultimate all-in-one PA, floor monitor, practice amplifier
and primary music system.
Multiple positions with Auto EQ allow the S1 Pro to be set down on the floor, up on a table or even
mounted on a tripod stand, ensuring that you always sound your best. And with a 3-channel mixer, reverb,
Bluetooth® streaming and ToneMatch® processing onboard, it’s always ready to become your go-anywhere
music system for nearly any occasion.
Features and Benefits
• Lightweight & Portable – Weighing about 15 lbs (6.8 kg), the rugged S1 Pro is designed to transport
eortlessly from the car to the event.
• Versatility meets Simplicity – The S1 Pro comes with a full-featured, 3-channel mixer with reverb and
Bluetooth streaming. Sound great quickly with ToneMatch® processing for microphones and acoustic
guitars, while playing music wirelessly using your mobile device. Perform nearly anywhere with the
optional rechargeable Li-ion battery for the ultimate portability.
• Adaptable – Multiple positions give you the best coverage options for your application, while Auto
EQ maintains optimum sound in any orientation.
• Impressive size-to-performance ratio – The S1 Pro delivers high-output in a small package, ready to
serve as your ultimate all-in-one PA, floor monitor, practice amplifier or primary music system.
AC power cord Cover
Introduction
6 - Owner's Guide
System Configurations
The versatile Bose® S1 Pro Multi-Position PA system operates in four unique modes. With Auto EQ, the
system automatically updates to maintain optimum tonal balance for each coverage pattern. Use the
examples below to quickly identify the best mode for your application.
Elevated Surface
Position the S1 Pro on a surface. This projects sound clearly
and evenly throughout the audience, and ensures that
audience members enjoy the full frequency range of the
system.
Speaker Stand
Place one or two S1 Pro systems on speaker stands (sold
separately) for general-purpose sound reinforcement.
Monitor
To use the S1 Pro as a personal floor monitor, place it on
the ground horizontally, in front of and pointing toward the
performer. Tilt the loudspeaker onto its side edge.
Tilt-Back
For performances where your audience is close to you,
tilt the S1 Pro onto its back edge. For best results, the
performer should stand or sit to one side of the loudspeaker
to avoid blocking sound from the audience.
Note: Rotate the Bose logo counterclockwise
to match your chosen mode.
Owner’s Guide - 7
Operating Information
Connections and Controls
The Bose® S1 Pro control panel provides the necessary connectors, controls and indicators for operation.
Use Channel 1 and 2 inputs for microphones and musical instruments. Integrated ToneMatch® signal processing allows microphones
and instruments to sound their best. Use Channel 3 for Bluetooth® connectivity and line-level inputs.
q SIGNAL/CLIP INDICATOR – Displays the input signal status in color.
• Green: Signal present
• Red: Signal clipping
Note: Reduce the corresponding volume control to prevent steady red operation.
w VOLUME CONTROL – Adjust the volume of your microphone, instrument or audio source.
e TREBLE CONTROL – Adjust the high-frequency balance of your microphone or instrument.
r BASS CONTROL – Adjust the low-frequency balance of your microphone or instrument.
t REVERB CONTROL – Adjust the amount of reverb applied to your microphone or instrument.
y TONEMATCH SWITCH – Move the switch to the or position to enable the ToneMatch preset.
u SIGNAL INPUT – Analog input for connecting microphone (XLR) and instrument (TS unbalanced) cables.
i AUX INPUT – Use a 3.5 mm TRS cable to connect a line-level audio source. Note: This input is muted when Bluetooth connectivity
is active.
o LINE OUTPUT – Use a ¼" TRS cable to connect the line-level output to the Aux Input of a second S1 Pro, to create a mono two-
loudspeaker setup. Note: Line Out is post mix.
a SERVICE PORT – Micro-USB connector for Bose service use only.
s BLUETOOTH PAIR BUTTON – Used to set up pairing with Bluetooth-capable devices, such as mobile phones, tablets, and laptops
(see “Bluetooth Pairing” on page 9).
SIGNAL SIGNAL SIGNAL
123
q
i
s
a
o
w
e
r
t
y
u
8 - Owner’s Guide
System Setup
Connect Sources
Before plugging in a sound source, adjust all channel Volume controls fully counterclockwise.
Set Channel 1 & 2 Controls
Channel 1 and 2 are for use with dynamic microphones, guitars, keyboards or other instruments.
1. Before connecting your microphone or instrument, adjust the Volume control for the appropriate
channel fully counterclockwise.
2. Channels 1 and 2 are equipped with an integrated ToneMatch® preset to automatically optimize the
sound of your microphone or instrument. If desired, apply the ToneMatch preset by moving the
ToneMatch switch for the appropriate channel to for microphones or for other instruments.
3. While speaking into the microphone or playing your instrument, adjust the volume to the desired level
by slowly turning the Volume control clockwise.
4. Adjust the Treble, Bass, and Reverb controls to make further refinements based on your personal
preference. While speaking into the microphone or playing your instrument, slowly adjust the control
until desired eect is achieved.
Connect Power
1. Make sure the power switch is in Standby ( ).
2. Plug one end of the power cord into the connector on the S1 Pro.
3. Plug the other end of the power cord into a live electrical outlet.
4. Connect sound sources before turning the system on. See “Connect Sources” below.
5. Once the sound sources are connected, turn the system on by moving the power switch to On ( ).
Note: The Quick Charge ( ) power setting is for use with the battery accessory only. For more
information, see the battery accessory owner’s guide, available at www.Bose.com.
SIGNAL
1
2
3
SIGNAL
SIGNAL
POWER
1
SIGNAL
1
2
3
SIGNAL
SIGNAL
POWER
2
3
System Setup
Owner’s Guide - 9
Using a Speaker Stand
The bottom of the S1 Pro system includes a pole cup for mounting the loudspeaker on a speaker
stand. The pole cup fits a standard 35 mm post. When the S1 Pro is placed on a speaker stand, the EQ
automatically updates to maintain optimum tonal balance.
Set Channel 3 Controls
Channel 3 is for use with Bluetooth®-capable devices and line-level audio inputs.
Bluetooth Pairing
1. On your device, turn on the Bluetooth feature. Note: The Bluetooth feature is usually in the Settings menu.
2. Press and hold the button for two seconds. Select your Bose® S1 Pro from the device list. While the
device is pairing, the flashes white. When the device pairs successfully, the will turn solid white.
Note: If pairing is unsuccessful, repeat steps 1 and 2 until the devices are synced.
3. Press play and turn up the Volume on the S1 Pro until indicator light is green, or the desired volume
level is reached. If the volume indicator steadily glows red, decrease the volume.
Bluetooth Behaviors
• The most recently paired Bluetooth device will automatically sync when the S1 Pro is turned on.
• The S1 Pro can only be paired with one device at a time; to pair to a new device, repeat "Bluetooth Pairing".
• If your paired phone receives a call, any music playing will be paused and the ring will come through
the phone; no calls or notifications will come through the S1 Pro.
AUX Input
1. Connect a 3.5 mm (⅛") cable to a line-level sound source. Make sure that the volume is turned up on
the sound source.
Note: Anything connected via the AUX input will automatically override any device paired via Bluetooth
connectivity.
2. Turn up the Volume on the S1 Pro until the indicator light is green, or the desired volume level is
reached. If the volume indicator steadily glows red, decrease the volume.
WARNING: Do not use the Bose S1 Pro system with a tripod/stand that is unstable. The
loudspeaker is only designed for use on a 35 mm post, and the tripod/stand must be capable
of supporting a speaker with a minimum weight of 35 kg (77 lbs). Using a tripod/stand that is
not designed to support the size and mass of the S1 Pro system may lead to an unstable and
hazardous condition that could result in injury.
10 - Owner’s Guide
System Setup
Connection Scenarios
There are four primary ways to use the S1 Pro. The following pages show examples of typical setup
scenarios.
Elevated Surface
Place the S1 Pro on a tabletop in the front of a room to give a business presentation or place it in the bed
of your pickup truck for a tailgate party. Plug in a microphone and narrate over a multimedia presentation
or get your friends pumped up before the game while listening to music wirelessly via your Bluetooth®-
capable mobile device.
SIGNAL SIGNAL SIGNAL
123
System Setup
Owner’s Guide - 11
Tilt-Back
Place the S1 Pro in Tilt-Back position on the ground behind you for live musical performances. Tilting the
loudspeaker onto it’s back edge creates a higher vertical coverage pattern, perfect for small audiences
and passersby. Cue your backing tracks via Bluetooth® streaming and play along with a microphone and
guitar.
SIGNAL SIGNAL SIGNAL
123
12 - Owner’s Guide
System Setup
SIGNAL SIGNAL SIGNAL
123
Monitor
Place the S1 Pro on its horizontal side edge to use as a floor monitor. Face it toward the performer to
be used as a personal monitor or send your mix to a main PA system, then dial in your equalization and
reverb preferences for your performance.
System Setup
Owner’s Guide - 13
Speaker Stand
Using a conventional speaker stand, you can use your S1 Pro as a PA system. Connect a microphone and
give a toast or sing a song while cuing the music wirelessly via Bluetooth® streaming. Use the line out to
daisy-chain your S1 Pro into multiple units for more output and coverage.
SIGNAL SIGNAL SIGNAL
123
14 - Owner’s Guide
System Setup
General Purpose PA
Use a mixer with two S1 Pro systems as a conventional PA system. The wide and consistent coverage of
the system ensures that the entire audience can easily hear the performance throughout the room.
Stereo
SIGNAL SIGNAL SIGNAL
123
SIGNAL SIGNAL SIGNAL
123
Channel 1-4
L Out R Out
Note: When used as a conventional PA, reverb and ToneMatch® should be turned o.
System Setup
Owner’s Guide - 15
Mono / Daisy-Chain
Link two S1 Pro systems together in mono by using a TRS ¼" cable. Take the line out of the primary unit
and plug it into the secondary S1 Pro system. Turn the channel volume up until both units are at desired
volume.
SIGNAL SIGNAL SIGNAL
123
SIGNAL SIGNAL SIGNAL
123
Note: On secondary units, set ToneMatch® and reverb to o and leave tone controls at center detent
position.
