Bose® 802® Series II
Loudspeaker
The Bose 802 Series II sound components
provide a fully modular system designed
for high quality reinforcement of voice
and music.
Bose 802 Series II loudspeakers work with
the 802C Series II systems con
troller for
active equalization of the system.
The 802
Series II loudspeaker is preferred for
applications requiring a rugged, portable
enclosure, but can be used in permanent
indoor sound system installations.
The 802C Series II systems controller assures
smooth, accurate spectral response across
the entire operating range of the 802
Series II
loudspeaker. Sharp subsonic and
ultrasonic
band-limiting filters reduce
power waste,
stage noise, high-frequency
instability, and
interference. The systems
controller also
provides two independent
signal channels.
General Description
• Modular components for system design flexibility
• High linear excursion and power output
• Electronic systems controller
Technical Information Component Description
Vertical beamwidth
100°
Enclosure construction
Mica-reinforced polyethylene copolymer
structural foam
Fusing
Built-in 4-ampere quick-acting fuse
(replaceable)
Insert locations
Four M8 (8 mm)
Connectors
Two (2) parallel-wired 1⁄4" (6.3 mm) phone
jacks and two (2) parallel-wired male XLR
connectors
Dimensions
13" (H) x 201⁄2" (W) x 121⁄2" (D)
(33 x 52 x 32 cm)
Weight
31 lb (14 kg)
Frequency range
55Hz – 16kHz
Active equalization
(with 802C Series II systems controller)
Required
Nominal impedance
8Ω
Maximum acoustic output
114dB-SPL average, 123dB-SPL peak
Power handling capacity
240W continuous pink noise, 55Hz – 16kHz
Recommended amplifier power
240W minimum, 480W maximum
Sensitivity
Full-range, 91dB-SPL (1W, 1m)
Horizontal beamwidth
120°
Each 802 Series II loudspeaker
uses
eight 4
1
⁄
2
" full-range drivers mounted
in
symmetric vertical pairs on a faceted
Articulated Array® baffle assembly. The
drivers feature low-impedance,
edge-wound aluminum voice coils,
12-ounce Ferrite V ceramic magnets, and
molded polyester frames. Their advanced
cone and motor system give them high
linear excursion capability and power
output.
Tuned reactive air columns reduce
distor
tion by controlling the cone
excursion
re
quired to reproduce deep bass
frequencies.
A built-in directivity control
circuit maintains
the vertical dispersion
pattern through the high-frequency range.
It also protects the drivers from
high-frequency overload.
The 802C Series II systems controller is a
single-rack sized device. It is capable of
providing crossover functions, active
elec
tronic equalization, and dual channel
signal
processing for both the 802 Series
II loudspeak
ers and the 502
®
B or 502BP
Acoustimass
®
enclosure. It features
-10/+4dB-V in
put sensitivity switches,
all-balanced inputs
and outputs, -18/+3dB
bass level control,
and a bass mono sum
switch. It also provides
automatic output
muting on turn-off, and a
secure
rear-panel operating mode switch.
Audio channels
Two
Operating modes
Full-range, bi-amp, option (w/option card)
Rear panel connectors
Balanced in-out x 2 (XLR)
Balanced high-frequency output x 2 (XLR)
Balanced low-frequency output x 2 (XLR)
Crossover
140Hz with 502B bass enclosure
125Hz with OC-1 option card
Rear panel controls
Mode switch
Input sensitivity switch x 2 (-10dB-V, +4dB-V)
Bass level control (range -18dB, +3dB)
Bass mono switch (norm/sum)
Electrical specifications
Channel separation: >60dB @ 1kHz
Input impedance: 2.4kΩ nominal
Output impedance: 600Ω nominal
Output level: 8.0V RMS max. into 600Ω
Mechanical specifications
Dimensions: 1
3
⁄
4
" (H) x 19.0" (W) x 8.0" (D)
(4 x 48 x 20 cm)
Weight: 5.5 lb (2.5 kg)
the loudspeaker
shall be 240 Watts
continuous pink noise,
band limited from
50Hz to 16kHz.
The loudspeaker shall be provided with a
ducted vent system, tuned at 55Hz. The
input connectors of the 802 Series II
loudspeaker
shall consist of two (2)
parallel-wired
1
⁄
4
inch
(6.3 mm) phone
jacks and two parallel-
wired male XLR
connectors.
The loudspeaker enclosure of the 802
Series II loudspeaker shall be composed
of mica-
reinforced polyethylene copolymer
structural
foam.
Outer dimensions of the
802 Series II loudspeaker
shall be 13" (H) x
20
1
⁄
2
" (W) x 12
1
⁄
2
" (D) (33 x
52 x 32 cm); its
weight shall be 31 lb (14 kg).
The loudspeaker shall be the Bose 802
Series II loudspeaker system.
The loudspeaker system shall be supplied
with a separate systems controller, to be
connected before the input(s) of the system
power amplifier(s).
The fixed, 2-channel systems controller
shall provide active electronic equalization
and crossover functions. It shall include an
operating mode switch, input sensitivity
switch, low-frequency output level control,
and mono sum switch.
The systems controller shall use screw-
type terminal strips for balanced input and
output wiring connections. Outer dimen-
sions of the systems controller shall be
1
3
⁄
4
" (H) x 19.0" (W) x 8.0" (D) (4 x 48 x
20
cm). It shall fit in the single space of a
standard 19" equipment rack for mounting.
Its weight shall be 5.5 lb (2.5 kg).
The electronic controller shall be the Bose
802C Series II systems controller.
Beamwidth vs Frequency (Bose 802-II)
Figure 1
For information on the 502®B and 502BP
Acoustimass® enclosure, refer to the
technical data sheet for those products.
An optional plug-in card is available for the
802®C Series II systems controller. This
allows the 802 Series II sound system to
include the Bose
®
Acoustic Wave
®
Cannon
TM
System Series II loudspeaker.
For information on the Acoustic Wave®
Cannon System II loudspeaker, refer to
the technical data sheet for that product.
The Bose 802 Series II system provides a
flexible,
building-block approach to meet
the sound
reinforcement requirements in
many appli
cations.

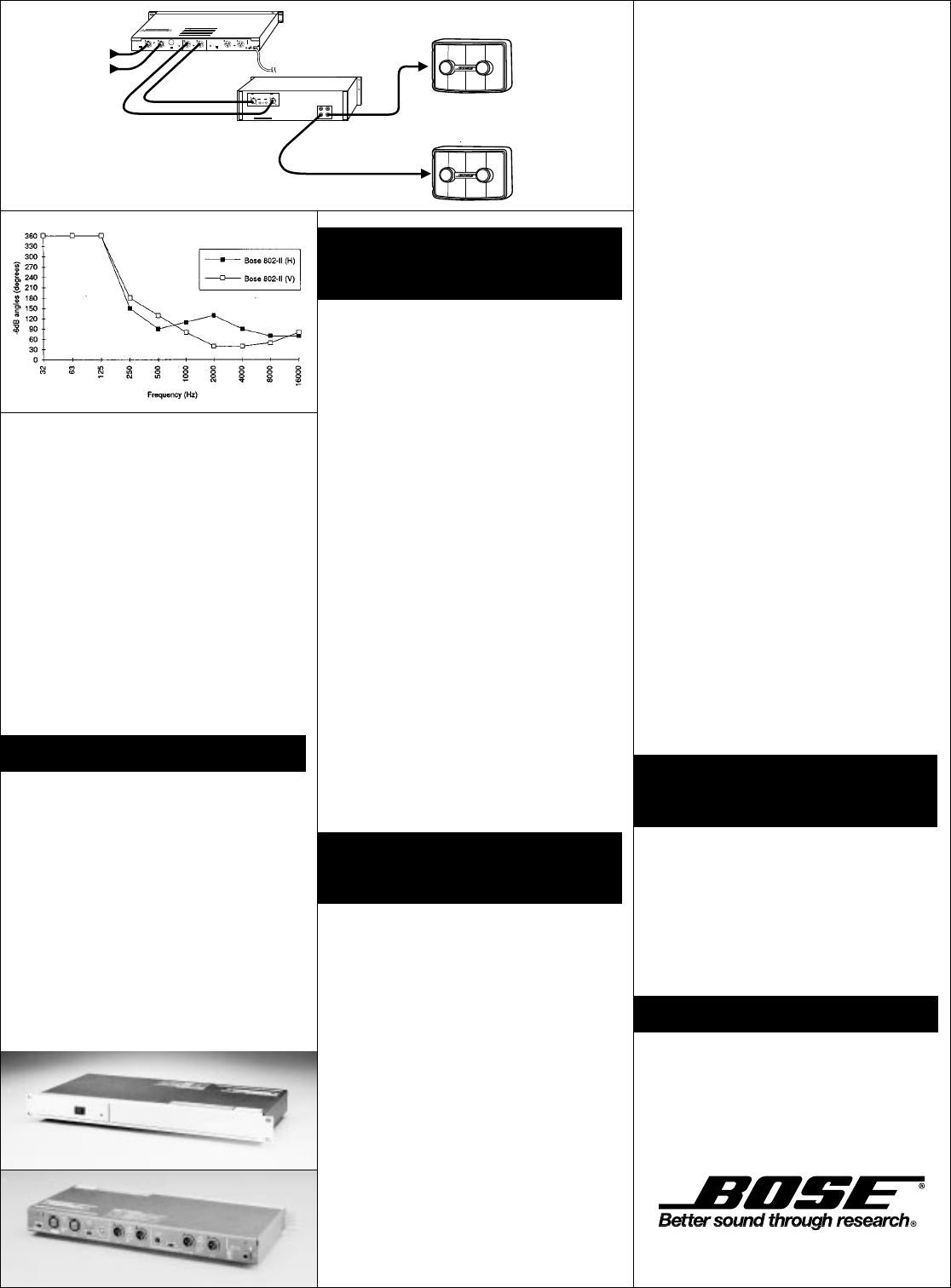

Figure 1 shows a basic 802 system config-
uration. It consists of two 802 Series II
loudspeakers and one 802C Series II
systems controller. This system provides
117dB-SPL @ 1 m average acoustic output.
Figure 2 provides a graph of the basic
system’s vertical and horizontal beamwidth.
Figure 3a and b show the front and back
of the 802C Series II systems controller.
Figure 2
Figure 3b
Figure 3a
Systems Controller
Technical Information
The loudspeaker shall be a multiple
driver, full-range system with matched
active equalization as follows:
The transducer complement shall consist
of eight (8) full-range drivers of 11.4 cm
diameter, mounted symmetrically in
vertical
pairs on a faceted, removable
baffle assembly. Each driver shall have a
rated impedance of 1Ω and shall be
wired in series, resulting in a composite
nominal impedance of 8Ω.
The loudspeaker system sensitivity shall
be
99dB-SPL in the 300Hz – 3kHz range
and 92dB-SPL in the 50Hz – 16kHz
range with
both measurements refer-
enced to a 1 Watt
(2.83V) pink noise
input at 1 meter. The nominal horizontal
beamwidth shall be 120 degrees, and the
nominal vertical beamwidth shall be 100
degrees. The
power handling capacity of
Engineers’ and Architects’
Specifications
System Configurations
0
.
.
.
.
.
.
.
+3
-18
INPUT LEVEL
–10 +4
INPUT
INPUT LEVEL
–10 +4
MODE
OPT 4
1
2
NC 3
HIGH
FREQ
OUTPUT
LOW FREQ
LEVEL
OUTPUT MODE
NORMSUM
LOW
FREQ
OUTPUT
CH 1/SUM CH 2
230V
~
AC
50/60Hz 12W
PIN 1 GRN
PIN 2 +
PIN 3 –
PROTECTED BY U.S. PATENT 3,038,964
CH 2CH 1
PIN 1 GRN
PIN 2 +
PIN 3 –
BA FR
CH 2
PIN 1 GRN
PIN 2 +
PIN 3 –
CH 1
REFER TO YOUR INSTRUCTION MANUAL FOR PROPER INSTALLATION
AND OPERATING PROCEDURES. INCORRECT WIRING MAY RESULT IN 
DAMAGE AND/OR POOR PERFORMANCE.
CAUTION AVIS
RISK OF ELECTRICAL SHOCK
DO NOT OPEN RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
MODE SWITCH GUIDE
POSITION OPERATING MODE
4
2-WAY WITH LOW FREQUENCY OPTION
(NOT USED)
3
STANDARD 2-WAY (WITH 502B)
2
VOICE ONLY/FULL RANGE (WITH 502A)
1
INPUT B
INPUT B INPUT A
BRIDGE
INPUT A
220 V
~
MADE IN USA
CAUTION
In order to grant a secure operation do not mount the amplifier in
a fully closed housing. To preven electric shock, do not remove 
cover. Disconnect power line in case of servicing.
ACHTUNG:
Um sichere Funktion zu gewährielsten, Gerät nicht in vollständig
geshlossenes Gehäuse einbauen. Abdeckung während des
Betriebes nicht entfernen. Bor Offnen des Gerätes Netzstecker
ziehen.
Bose Corporation, Framingham 01701, Mass, U.S.A.
Serial No.:
Made in Germany
geprüdfte
Sicherheit
TÜV Rheinland
®
®
Safety and EMC
Compliance
Safety: UL 813
CSA C22.1 #1
IEC65/EN60065
EMC: EN55013
EN55020
Product CE is compliant for EMC and
Safety.
The Bose 802 Series II loudspeaker is
covered by a 5-year, transferable limited
warranty. The Bose 802C Series II
systems controller is covered by a
2-year, transferable limited warranty.
Warranty Information
© 1996 Bose Corporation, The Mountain, Framingham, MA
01701-9168 USA
JN94532 PN177918 Rev.05 AM177918 Rev.05 PC010248
