2015 Owner’s Manual
![](asset-2.png)
California Proposition 65 Warning
This product contains or emits chemicals known
to the state of California to cause cancer and
birth defects or other reproductive harm.
Batteries, battery posts, terminals and
related accessories contain lead and lead
compounds, and other chemicals known to
the State of California to cause cancer and
birth defects or other reproductive harm.
WASH HANDS AFTER HANDLING.
For videos and more information about
a safe riding experience with your
POLARIS SLINGSHOT vehicle, scan this
QR code with your smartphone.
![](asset-3.png)
1
2015 Owner’s Manual
SLINGSHOT®
SLINGSHOT® SL
2
Copyright 2014 Polaris Industries Inc.
All information contained within this publication is based on the latest product information available at the time
of publication. Product improvements or other changes may result in differences between this manual and the
vehicle. Depictions and/or procedures in this publication are intended for reference use only.
No liability can be accepted for omissions or inaccuracies. Polaris Industries reserves the right to make changes at
any time, without notice and without incurring obligation to make the same or similar changes to vehicles
previously built. Any reprinting or reuse of the depictions and/or procedures contained within, whether whole or
in part, is expressly prohibited.
POLARIS® and SLINGSHOT® are trademarks of Polaris Industries Inc.
dexos® and dexos1® are registered trademarks owned by General Motors, LLC
DEX-COOL® is a registered trademark of General Motors Corporation
iPhone®, iPod®, iPod nano®, and iPod touch® are trademarks of Apple Inc., registered in the U.S. and other
countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by POLARIS is under license. Other trademarks and trade names are those of their respective owners.
Pandora®, the Pandora logo and the Pandora trade dress are trademarks or registered trademarks of Pandora
Media, Inc. Used with permission.
Printed in U.S.A.
P/N 9923991
The SLINGSHOT vehicle is NOT a car.
The SLINGSHOT vehicle complies with Federal
Motor Vehicle Safety Standards (FMVSS) and
regulations of the United States Department of
Transportation (DOT) applicable to
motorcycles in the USA.
The SLINGSHOT vehicle does NOT comply
with Federal Motor Vehicle Safety Standards
(FMVSS) and regulations of the United States
Department of Transportation (DOT) applicable
to passenger cars in the USA.
![](asset-5.png)
3
WARNING
Improper vehicle use can result in SEVERE INJURY or DEATH.
NEVER Operate:
• If you are under the age of 16 and without a driver’s license with motorcycle endorsement.
• Under the influence of drugs or alcohol.
• Unless all occupants are able to sit with back against the seat and feet firmly on the floorboard.
• With a child safety seat installed in this vehicle.
• While using a mobile phone or other handheld device.
• Off-road.
• With more than one passenger. Allow a passenger to ride only in the passenger seat.
• With weight (riders and cargo) that exceeds the maximum weight rating of the vehicle. See the
Manufacturing Information Label (page 15).
ALWAYS:
• Wear a full-face helmet (DOT-certified in USA) and eye protection that meets or exceeds established
safety standards. This vehicle is not equipped with airbags.
• Wear the seat belt at all times.
• Reduce speed on wet or slippery surfaces.
• Keep both hands on the steering wheel when driving.
• Make sure passenger reads and understands all safety labels.
• Keep hands, arms and feet inside the vehicle at all times.
• Be aware of your surroundings and driving conditions.
• Be prepared for changing weather conditions and dress accordingly.
• Use only genuine SLINGSHOT accessories designed for your SLINGSHOT vehicle.
READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.
Safety Training
Safety training is a top priority for POLARIS. POLARIS strongly encourages you to take a rider
education course from the Motorcycle Safety Foundation or another qualified instructor. The course
will help you develop or refresh your expertise in safe driving habits through instruction and practice.
For information on Motorcycle Safety Foundation rider education courses in your area, call 1-800-
446-9227 or visit their home page at www.msf-usa.org.
See page 9 for more information about a 3-wheel rider course.
ALWAYS WEAR
EYE
PROTECTION
AND SEAT BELT.
NEVER USE
WITH
DRUGS OR
ALCOHOL.
ALWAYS WEAR
AN APPROVED
FULL-FACE
HELMET
4
5
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reporting Safety Defects . . . . . . . . . . . . . . . . . . . . . . . 14
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pre-Ride Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning and Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Transporting and Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Recommended Service Products. . . . . . . . . . . . . . . . . . . . . . . . 86
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
![](asset-8.png)
6
INTRODUCTION
Welcome to our world-wide family of riding enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions, upcoming events, career
opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
• Low emission vehicles (LEVs)
•RANGER® utility vehicles
•RZR® sport vehicles
• VICTORY® motorcycles
• GEM® vehicles
• SLINGSHOT® vehicles
For the safe and enjoyable operation of your SLINGSHOT vehicle, be sure to follow the
instructions and recommendations in this manual. Keep this manual with the vehicle,
especially when ownership changes. If your owner’s manual is misplaced or damaged,
please purchase a replacement from your authorized SLINGSHOT dealer (referred to as
“dealer” in the remainder of this manual).
All references in this manual to RIGHT, LEFT, FRONT or REAR are from the operator’s
perspective when seated in a normal driving position. If you have questions about the
operation or maintenance of your SLINGSHOT vehicle after you’ve read this manual, please
see your authorized SLINGSHOT dealer. To locate your nearest authorized dealer, call 1-
800-POLARIS (765-2747) or visit www.polaris.com.
This vehicle complies with all federal, state and local safety and emission regulations for the
area of intended sale.
Identification Number Record
Record important identification numbers below:
Vehicle Identification Number (VIN)
(see page 15)

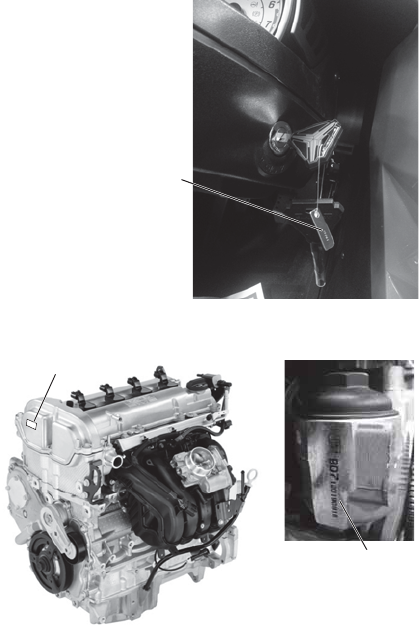

Engine Identification Number
(see page 16)
Ignition Key Number
(see page 16)
![](asset-9.png)
7
SAFETY
Failure to follow recommended precautions and procedures could result in severe injury or death.
Always heed all safety precautions and follow all operation, inspection and maintenance procedures
outlined in this manual.
This owner’s manual contains information that is essential to the safe use and proper
maintenance of your SLINGSHOT vehicle. Anyone who operates the SLINGSHOT vehicle
must read the owner’s manual and all safety labels on the vehicle before operating.
• Anyone who operates the SLINGSHOT vehicle must have a valid driver’s license with a
motorcycle endorsement. Never allow anyone without a valid driver’s license and
motorcycle endorsement to operate this vehicle.
• Never allow anyone under the age of 16 to operate this vehicle.
• Never install a child safety seat in this vehicle. All riders must be tall enough to sit with
backs against the seat, both feet flat on the floor and seat belts properly secured.
• The driver and passenger must wear a full-face DOT-approved helmet, eye protection and
seat belt at all times.
• Always keep hands, arms and feet inside the vehicle at all times.
• Avoid wearing long scarves and clothing that may trail outside the rider compartment.
• Always make sure all cargo and other items in the rider compartment are properly secured
before operating.
• The SLINGSHOT vehicle handles differently than 2-wheel motorcycles and other on-road
vehicles. Read the section in this manual entitled SLINGSHOT Vehicles vs. Other On-
Road Vehicles. See page 39.
• This manual was written in North America, where vehicle operation is in the right driving
lane. You may need to adapt some of the instructions to the driving conditions (such as
left-lane operation) and regulations in your area of operation.
• Carefully read and understand the information found in this Safety section of the owner’s
manual.
• Understand and follow the procedures outlined in the Maintenance section to keep your
vehicle in peak condition on the road or in storage. See page 48.
• Bring this manual with you when you ride. Following the precautions and procedures in
the manual will add to your enjoyment and help keep you riding safely.
• If you lose or damage this manual, you can purchase a new one through any authorized
dealer. The owner’s manual should be considered part of the vehicle and remain with it if
the vehicle is sold. This manual is also available online under the Rider Community link at
www.polaris.com.
WARNING
![](asset-a.png)
8
SAFETY
About the Owner’s Manual
Safety Symbols and Signal Words
The following signal words and symbols appear throughout this manual. Your safety and the
safety of others is involved when these words and symbols are used. Become familiar with
their meanings before reading the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.
![](asset-b.png)
9
SAFETY
Safe Driving Practices
Improper use of this vehicle can result in serious injury or death to you, your passenger and others. To
minimize the risk of injury, read and understand the information contained in this section before
operating the vehicle. This section contains safety information specific to the SLINGSHOT vehicle, as
well as information about general vehicle safety. Anyone who operates this vehicle must follow these
safety precautions.
Operating a SLINGSHOT vehicle has inherent risks.
You can minimize those risks, but you can’t eliminate them completely. Even if you’re an
experienced 3-wheel vehicle operator or passenger, read all of the safety information in this
manual before operating this SLINGSHOT vehicle.
• Take a 3-wheel vehicle rider course from the Motorcycle Safety Foundation or another
qualified instructor. The course will help you learn effective turning and braking
techniques, traffic strategies and evasive maneuvers, in addition to general safe riding
habits. To locate a rider course in your area, contact the Motorcycle Safety Foundation at
1-800-446-9227 or visit their web page at www.msf-usa.org. You may also contact your
dealer or the motorcycle regulatory agency in your area of operation.
• Observe all maintenance requirements specified in this manual. For assistance, see the
SLINGSHOT Service Manual or your authorized SLINGSHOT dealer.
Design characteristics affect how you should operate the SLINGSHOT vehicle:
• The SLINGSHOT is a lightweight 3-wheel vehicle. As such, it will respond differently
than other on-road vehicles in various road and weather conditions. Thoroughly read your
owner’s manual and take safety training before operating the SLINGSHOT.
• The SLINGSHOT vehicle is designed for on-road use by one operator with one passenger.
The Manufacturing Information label placed on the vehicle contains the Vehicle
Identification Number (VIN), Gross Vehicle Weight Rating (GVWR) and Gross Axle
Weight Rating (GAWR) information. See page 15. Never exceed the GVWR or the GAWR.
• Driving off-road, driving at excessive speeds, driving with more than one passenger or
carrying weight exceeding the maximum weight rating can make handling difficult, which
could cause loss of control resulting in injury or death.
• Since the SLINGSHOT has a single, centered rear wheel, “straddling” obstacles with the
front tires increases the likelihood that you will encounter the obstacles with the rear tire.
• Read the section in this manual entitled SLINGSHOT Vehicles vs. Other On-Road
Vehicles. See page 39.
• During the first 500 miles (800 km) of operation, follow all break-in procedures as
outlined in the break-in section beginning on page 40. Failure to do so can result in serious
engine damage.
WARNING
10
SAFETY
Safe Driving Practices
Wear protective apparel to decrease the risk of injury and increase riding comfort.
• Always wear a full-face helmet that meets or exceeds established safety standards.
Approved helmets in the USA and Canada bear a U.S. Department of Transportation
(DOT) label. Laws in some areas require that riders wear an approved helmet. Head
injuries are the leading cause of fatalities in accidents involving vehicles such as the
SLINGSHOT vehicle. Statistics prove that an approved helmet is the most effective
protection in preventing or reducing head injuries.
• Wear eye protection to protect eyes from wind or airborne particles and objects. Laws in
some areas require that you wear eye protection. POLARIS recommends that you wear
approved Personal Protective Equipment (PPE) bearing markings such as VESC 8, V-8,
Z87.1, or CE. Make sure protective eyewear is kept clean.
• Be prepared for changing weather conditions and dress accordingly.
Follow these general safe driving practices:
• Always inspect the vehicle before each use to make sure it’s in safe operating condition.
See page 36. Failure to do so may result in vehicle damage or an accident.
• Until you’re thoroughly familiar with the SLINGSHOT and all of its controls, practice
driving where there is little or no traffic. Practice driving at a moderate speed on various
road surfaces and in different weather conditions. Practice braking in a safe area to
become familiar with the feel of the SLINGSHOT brakes before driving in traffic.
• Know your skills and limits, and ride within them.
• Allow only licensed, experienced operators to operate your SLINGSHOT, and then only
after they have become familiar with its controls and operation. Make sure all riders read
and understand this owner’s manual before riding.
• Do not ride when you’re fatigued or under the influence of alcohol, prescription drugs,
over-the-counter drugs or any other drugs. Fatigue, alcohol and drugs can cause
drowsiness, loss of coordination and loss of balance. They can also affect your awareness
and judgment.
• If your vehicle operates abnormally, cease operation and correct the problem immediately.
See the SLINGSHOT Service Manual or an authorized SLINGSHOT dealer.
• Ride defensively, as if you are invisible to other motorists, even in broad daylight. Smaller
profile vehicles, such as 2-wheel motorcycles and 3-wheel vehicles such as the
SLINGSHOT vehicle may not be immediately seen and recognized by some motorists,
which can lead to accidents. Ride where you’re clearly visible to other motorists, and
observe their behavior carefully. Always be prepared to take evasive action.
• Be especially cautious at intersections, where accidents often occur.
11
SAFETY
Safe Driving Practices
Follow these general safe driving practices:
• To prevent loss of control, keep both hands on the steering wheel unless you’re shifting
gears.
• Obey the speed limit and adjust your speed and driving technique based on road, weather
and traffic conditions. As you travel faster, the influence of all other conditions increases,
which can increase the possibility of losing control.
• Driving while distracted can result in loss of vehicle control, accident and injury. Do not
use a mobile phone or other handheld device while operating the vehicle.
• Improper braking may cause loss of control. Apply the brakes gradually when the road is
wet, rough or slippery. Allow for a greater braking distance in these conditions. If
possible, avoid applying the brakes while making a turn.
• Reduce speed in wet conditions. Pay particular attention if water is beginning to pool on
the road. Three-wheeled vehicles behave differently than other vehicles when driving over
deep water. Your SLINGSHOT vehicle may hydroplane, which could result in loss of
control, if operating speed is too high for the depth of water on the road.
Use of Accessories
• Never modify this vehicle through improper installation or use of accessories that are not
SLINGSHOT-approved. Use only genuine SLINGSHOT accessories designed for your
SLINGSHOT vehicle.
• Do not install electrical accessories that exceed the capacity of the vehicle’s electrical
system. Never install higher wattage light bulbs than those supplied as original equipment.
An electrical failure could result and cause hazardous loss of engine power or lights, or
damage to the electrical system.
Modifications
Modifying this vehicle by removing any equipment or by adding equipment not approved by
SLINGSHOT may void your warranty. Such modifications could also make the vehicle
unsafe and could result in severe injury to operator or passenger, as well as damage to the
vehicle. Some modifications may not be legal in your area of operation. If in doubt, contact
your authorized dealer.
Parking the SLINGSHOT Vehicle

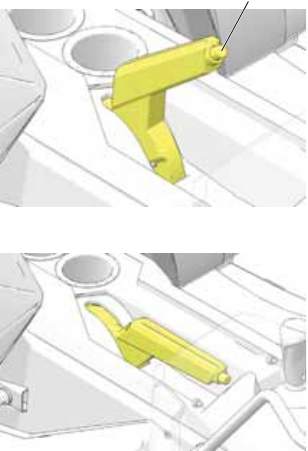

To help prevent rolling, engage the park brake when the vehicle is parked. See page 29.
When leaving the vehicle unattended, turn the engine off and engage the park brake. Remove
the ignition key to prevent unauthorized use.
![](asset-e.png)
12
SAFETY
Fuel and Exhaust Safety
Always heed these fuel safety warnings when refueling or servicing the fuel system. For fuel
recommendations and fueling procedures, see page 41.
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always turn off the engine before refueling.
• Always refuel outdoors or in a well-ventilated area.
• Open the fuel cap slowly. Do not overfill the tank. Do not fill the tank neck.
• Do not smoke or allow open flames or sparks in or near the area where refueling is performed or
where gasoline is stored.
Gasoline and gasoline vapors are poisonous and can cause severe injury.
• Do not swallow gasoline, inhale gasoline vapors, or spill gasoline. If you swallow gasoline, inhale
more than a few breaths of gasoline vapor, or get gasoline in your eyes, see a physician
immediately.
• If gasoline spills on your skin or clothing, immediately wash it off with soap and water and change
clothing.
Exhaust gases contain carbon monoxide, a colorless, odorless gas that can cause loss of
consciousness or death in a short time.
• Never start the engine or let it run in an enclosed area.
• Never inhale exhaust gases.
WARNING
13
SAFETY
Safety Maintenance
Careful periodic maintenance will help keep your vehicle in the safest, most reliable
condition. Perform all periodic maintenance at the recommended intervals outlined in the
Periodic Maintenance section beginning on page 51. Record maintenance and service in the
Maintenance Log beginning on page 97.
Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the
need for replacement parts, use genuine SLINGSHOT parts available from your
SLINGSHOT dealer.
NOTE: Service and adjustments are important for proper vehicle operation. If you're not familiar with
safe service and adjustment procedures, have your authorized dealer perform these
operations.
• Before each ride, perform the Pre-Ride Inspections. See page 36.

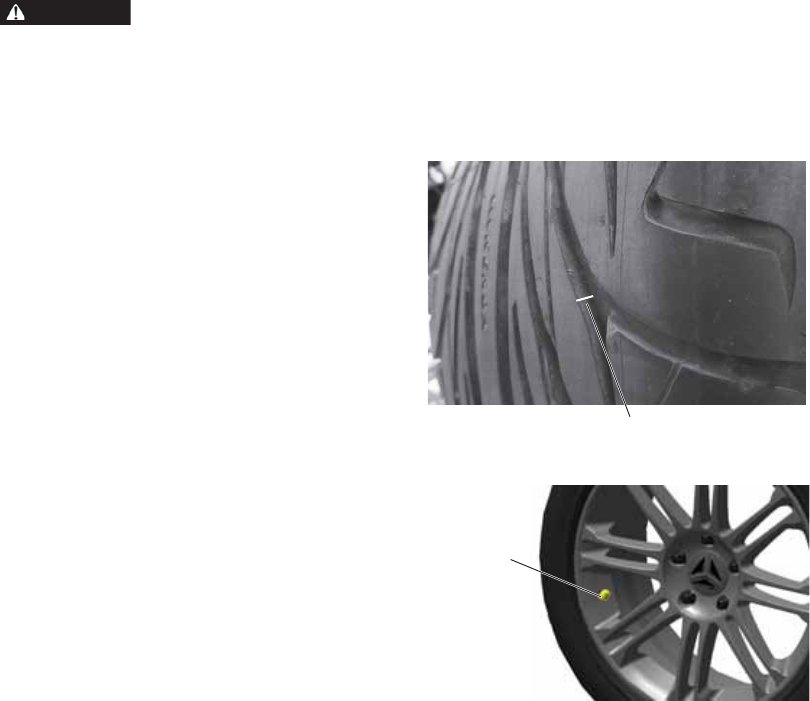

• Always maintain proper tire pressure, tread condition and wheel and tire balance. Inspect
tires regularly and replace worn or damaged tires promptly. Use only SLINGSHOT-
approved replacement tires.
• Fasteners must meet original specifications for quality, finish and type to ensure safety.
Use only genuine SLINGSHOT replacement parts, and ensure that all fasteners are
tightened to the proper torque.
Electromagnetic Interference
This vehicle complies with European directive 97/24/EC Chapter 8 requirements, which is
equivalent to Canadian ICES-002.
Industry Canada ICES-002
(Interference-Causing Equipment Standard)
The spark ignition system complies with the Canadian standard ICES-002.
Le système d'allumage par étincelle de véhicule est conforme à la norme NMB-002 du
Canada.
14
SAFETY
Gross Vehicle Weight Rating (GVWR)
WARNING! Exceeding the gross vehicle weight rating of your vehicle can reduce stability and handling
and could cause loss of control. NEVER exceed the GVWR of your vehicle.
The maximum load capacity of your vehicle is the maximum weight you may add to your
vehicle without exceeding the GVWR. This capacity is determined by calculating the
difference between your vehicle’s GVWR and wet weight. Refer to the specifications section
beginning on page 84.
Refer to the specification section of this manual or the Manufacturing Information/VIN label
on the vehicle frame for model-specific information. See page 15.
When determining the weight you will be adding to your vehicle, and to ensure you do not
exceed the maximum load capacity, include the following:
• operator body weight
• passenger body weight
• weight of all riders’ apparel and items in or on apparel
• weight of any non-factory-installed accessories
• weight of any additional cargo on the vehicle
Reporting Safety Defects
If you believe that your vehicle has a defect that could result in a crash or cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying POLARIS Industries in writing.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your dealer
or POLARIS Industries.
To contact NHTSA, or obtain other information about motor vehicle safety, you may either
call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153), visit the
NHTSA website at www.safercar.gov, or write to:
ADMINISTRATOR, NHTSA
1200 New Jersey Avenue, SE
West Building
Washington, DC 20590
![](asset-11.png)
15
SAFETY

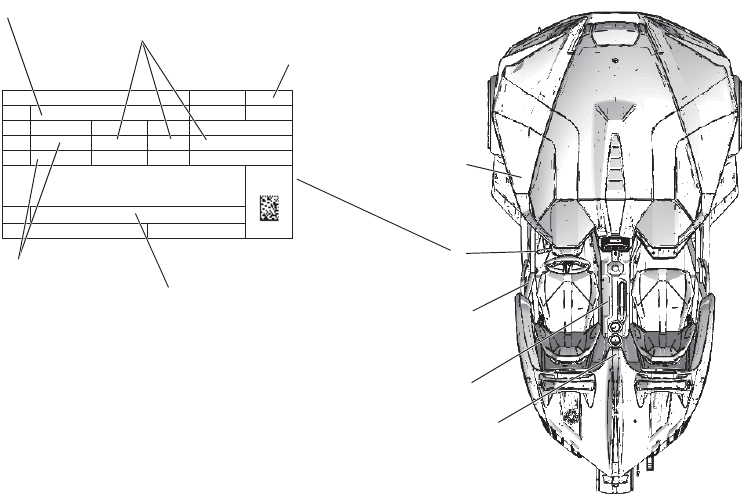

Safety and Information Labels
Labels are model-specific and market-specific. Your vehicle may not contain all of the labels
shown.
1. Manufacturing Information/Vehicle Identification Number (VIN) Label
(on frame near driver’s left knee area), including ICES-002 (Interference-Causing Equipment
Standard) Label (Canada only)
2. Vehicle Emission Control Information (VECI) Label (under hood)
3. Evaporative Hose Routing Label (California) (under hood)
4. Service Information Label (under hood)
5. Tire Information Label (Canada only) (on inside body panel near driver’s left hip area)
6. Frontal Crash (CMVSS 208) Waiver Label (next to park brake lever)
7. Operation Warning Label
CMVSS 208 Waiver
This vehicle does not conform to the requirements of the dynamic or static tests set out in
Canada CMVSS 208.
Ce véhicule n’est pas conforme aux exigences des essais dynamiques ou statiques prévues
par la NSVAC 208 du Canada.
MANUFACTURED BY: POLARIS INDUSTRIES INC. DATE MFD: 02/2014
GVWR: 2199 LBS (997 KG) MODEL: T15AASFAAC
GAWR TIRE RIM COLD INFLATION PRESSURE
F: 1321 LBS (599 KG) 205/50 R17 93W 17 X 7.0 32 PSI (221 KPA)
R: 878 LBS (398 KG) 265/35 R18 93W 18 X 9.5 32 PSI (221 KPA)
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE
7176966
VIN:
*57XAASFA5F5000107*
TYPE: MOTORCYCLE ASSEMBLED IN THE U.S.A.
GVWR Information
VIN Number
Tire & Wheel Information
Date of Manufacture
2, 3, 4
5
1
6
GAWR Information
7
![](asset-12.png)
16
FEATURES AND CONTROLS
Ignition Key Number
The ignition key number is stamped on the small metal
tag attached to the key ring. Remove the tag and record
the number on page 6. Store the tag in a safe place.
Additional keys can be copied from one of the original
keys. A key blank from your dealer is required. If you
lose both original keys, you will need the following:
• Key number (recorded on page 6)
• A new key blank from your dealer
• Proof of ownership
• A locksmith or dealer with the equipment necessary to
cut a new key
Engine Identification Number
The engine identification number is
stamped on a pad on the oil filter bowl.
The number is also provided on labels
located on the front and rear of the cam
cover. Record the number in the space
provided on page 6.
Key
Number
Engine
Number
Engine Number
(front)
![](asset-13.png)
17
FEATURES AND CONTROLS

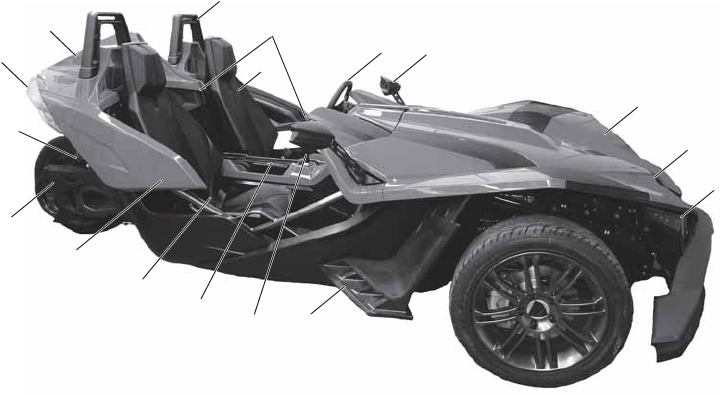

Component Locations
1. Roll Hoop
2. Auxiliary 12V Outlets (between seats and in glove box)
3. Seat
4. Steering Wheel
5. Side-View Mirror
6. Hood
7. Center Main Headlight (USA)
8. Headlight/Front Turn Signal Light
9. Splash Guard
10. Gear Shifter
11. Park Brake Lever
12. Seat Belts
13. Rear Side Panel
14. Rear Swing Arm
15. Rear Shock
16. Taillight/Brake Lights/Rear Turn Signal Lights
17. Rear Fin/Center High Mounted Stop Light
2
34
1
8
6
9
10
11
12
5
13
15
16
14
17
7
![](asset-14.png)
18
FEATURES AND CONTROLS

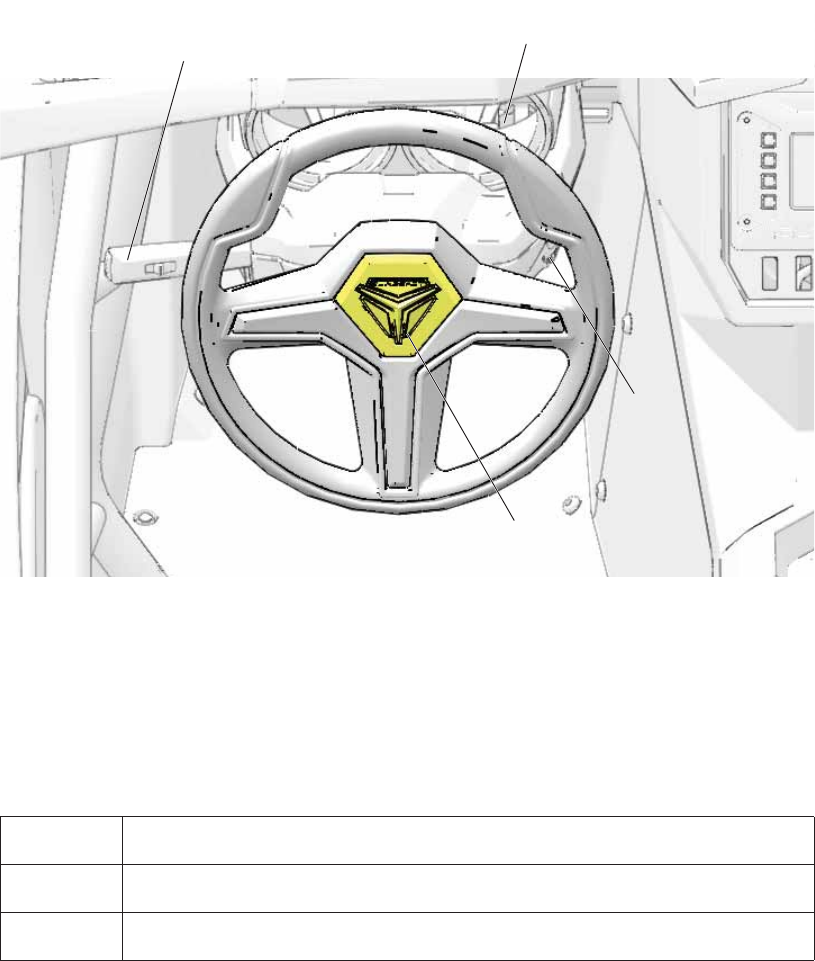

Console and Switches
Horn
Press the horn button to sound the horn. The ignition switch must be in the ON position.
Ignition Switch
The ignition key operates the ignition switch, glove box lock and storage compartment locks
(behind seats). Read the engine starting procedures beginning on page 42 before starting the
engine. Store the spare key in a safe place separate from the main key.
Place the ignition key in the ignition switch to operate the following functions of the switch.
OFF All electrical circuits are off. Hazard signals can be activated. The key can be
removed.
ON All electrical circuits are on. The ignition key cannot be removed. Headlight, taillight,
running lights, turn signals, horn, radio and instrument lights are powered.
ACC Power is supplied to accessory circuits, radio, instruments and hazard signals. The
key can be removed.
Turn Signal Lever
Cruise Control Switches
Headlight High/Low Beam Switch
Ignition Switch
Instrument Cluster
Horn Button
![](asset-15.png)
19
FEATURES AND CONTROLS
Console and Switches
Turn Signal Lever
Before turning, activate a turn signal to alert others of your intentions. Check turn signal
lamps before each ride.
NOTE: The key must be in the ON position to activate the turn signals.
1. Move the turn signal lever downward to signal a left turn. The left turn signal lamps at
the front and rear of the vehicle will flash. The indicator arrows on the console will flash
when a turn signal or hazard signal is activated.
2. Move the lever upward to signal a right turn. The right signal lamps and indicator will
flash.
3. The turn signal automatically cancels and the lever returns to the center position when
the turn is completed.
Headlight High/Low Beam Switch
The headlights are always on when the ignition switch is in the ON position. To switch the
headlights between low beam and high beam, tap the turn signal lever forward, toward the
steering wheel. The master lighting switch (Canada) must be in the ON position to allow
operation of the high beam and low beam headlights. See page 20.

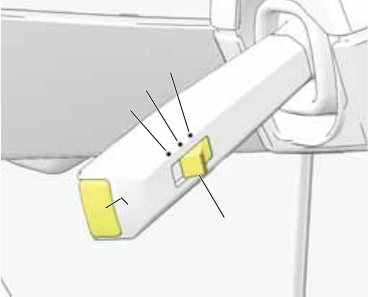

Cruise Control Switches
The cruise control switches are located on the
turn signal lever. Before using the cruise
control, read the safety and operation
procedures beginning on page 46.
Instrument Cluster
The instrument cluster includes the
speedometer, tachometer, indicator lamps and
multi-function display. See page 22. Cruise Control
ON/OFF/RES
Switch
RES (+)ONOFF
SET (-)
![](asset-16.png)
20
FEATURES AND CONTROLS
Console and Switches
Hazard Switch/Emergency Flashers
All turn signals flash when the emergency flashers are activated. Press the
top of the hazard switch to turn the flashers on. Press the bottom of the
switch to turn the flashers off. The ignition switch does not have to be on
to activate the flashers.
Master Lighting Switch (Canada)
The master lighting switch must be in the ON position to allow operation of the high beam
and low beam headlights.
One-Touch Starter Switch
Use the one-touch starter switch to start the engine. Read the engine starting procedures
beginning on page 42 before starting the engine.
Audio Switches
Refer to the Audio System section of this manual (beginning on page 98) for radio and
accessory audio system operation.
Electronic Stability
Program (ESP)
Switch
Hazard Switch
MODE
Button
Accessory Switches
(if equipped)
One-Touch
Starter
Switch
Audio
Switches
Master Lighting Switch
(Canada)
On
Off
![](asset-17.png)
21
FEATURES AND CONTROLS
Console and Switches
Mode Button
Use the mode button to toggle through the modes of the multi-function display. See page 24.
Use the mode button to set the display units to either standard or metric units of
measurement. See page 25.
Electronic Stability Program (ESP) Switch
The ESP is active by default. This feature helps reduce the risk of accident by providing
traction control and stability control. If ESP senses a loss of stability due to loss of traction
(skidding) the ESP intervenes by automatically applying brakes to one or more wheels and
reducing power to the rear wheel.
WARNING! No stability control, traction control or anti-lock braking system can fully protect you from
every situation. Always be mindful of road conditions. Always drive safely and within the limits of the
driver, vehicle and road conditions.
WARNING! Stability control, traction control and anti-lock braking systems rely on grip between the
tires and the road to function properly. In a hydroplane situation, tires lose contact with the road and the
effectiveness of these features may be diminished.
The electronic stability control system does not compensate for or reduce the risks associated
with:
• excessive speed
• reduced traction on rough, uneven or loose surfaces
• poor judgment
• improper operation
• hydroplaning
Under certain circumstances, such as when the vehicle is stuck in a low traction situation, it
may be necessary to disable the ESP temporarily. Always enable the ESP for normal
operation.
WARNING! Operating the vehicle under normal riding conditions with the ESP disabled could result in
an increased risk of loss of vehicle control, rollover, personal injury and death.
ESP Switch Operation
Objective Action Comments
Disable Traction Control Press and release switch Traction Control indicator
illuminates in tachometer
Disable ESP (Traction Control
and Stability Control) Press and hold switch for 5
seconds Traction Control indicator and ESP
OFF indicator illuminate in
tachometer
Enable ESP (if disabled) Press and release switch Traction Control indicator and ESP
OFF indicator extinguish
![](asset-18.png)
22
FEATURES AND CONTROLS

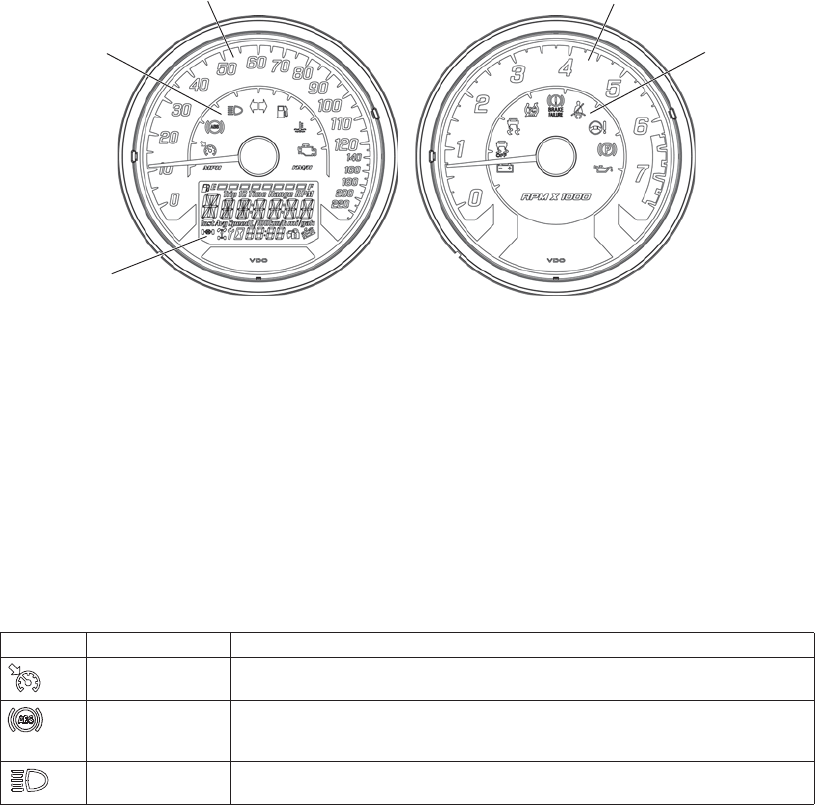

Instrument Cluster
The instrument cluster includes the speedometer, tachometer, indicator lamps and multi-
function display.
Speedometer
The speedometer displays vehicle speed in either miles per hour or kilometers per hour. See
page 25.
Tachometer
The tachometer displays engine speed in revolutions per minute (RPM). A red line on the
face of the gauge indicates the maximum safe engine speed.
WARNING! Excessive engine speed can cause engine damage or failure, which could result in
serious injury or death. Do not allow engine speed to exceed the red line.

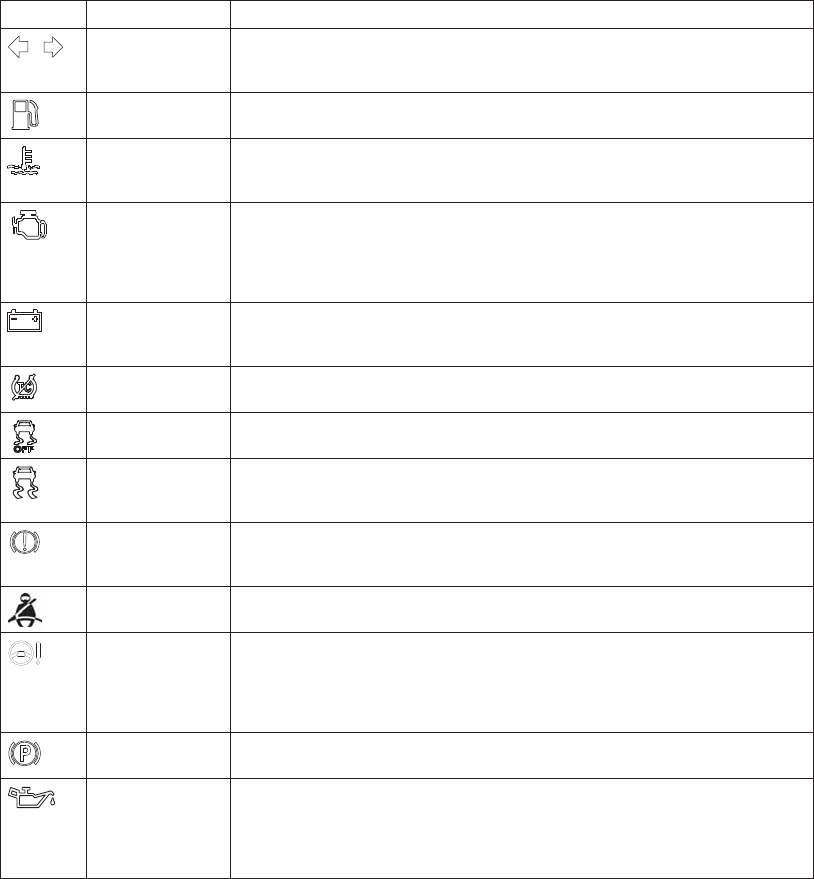

Indicator Lamps
Lamp Indicates Condition
Cruise Control
Engaged Before using the cruise control, read the safety and operation
procedures beginning on page 46.
Anti-Lock Brake
System See your dealer if this lamp remains on. When the lamp is illuminated,
the anti-lock brakes will not activate, but the conventional brake system
will continue to operate normally.
High Beam This lamp illuminates when the headlamp switch is set to high beam.
Speedometer Tachometer
Indicator
Lamps
Multi-Function
Display
Indicator
Lamps
![](asset-19.png)
23
FEATURES AND CONTROLS
Indicator Lamps
Lamp Indicates Condition
Turn Signal
Hazard Signals Both arrows flash when either a turn signal or the hazard signal is
activated. If a lamp fails, or if there is a short circuit in the signal system,
the lamp flashes at more than twice the normal rate.
Low Fuel This lamp illuminates when approximately one gallon (3.8 liters) of fuel
remains in the fuel tank.
Hot Engine This lamp illuminates to indicate an overheated engine. If the indicator
flashes, the overheating condition remains, and the system will
automatically reduce engine power.
Check Engine If this lamp illuminates while the engine is running, contact an authorized
dealer promptly for diagnosis. If abnormal engine operation is detected
the light will remain on as long as the fault condition exists. Retrieve the
error codes for diagnosis. See page 26. This lamp is also known as a
malfunction indicator lamp (MIL).
Low Battery
Voltage This lamp illuminates when battery voltage is low (or when voltage is
above the normal range). Turn non-essential accessories off to conserve
power. Make sure the charging system is operating properly.
Traction Control This lamp illuminates if the user disables traction control with the ESP
Switch. See page 21.
ESP Disabled This lamp illuminates if the user disables the ESP with the ESP Switch.
Always enable the ESP for normal operation. See page 21.
ESP
Intervention The ESP Intervention lamp flashes when the ESP is actively assisting.
The lamp illuminates solid to indicate a system failure. See your dealer
for service.
Brake Failure This lamp illuminates if a brake component is not operating properly. Do
not operate the vehicle. Inspect brake fluid levels and/or see your dealer
for service.
Seat Belt The seat belt lamp illuminates whenever the key is in the ON position
and the driver’s seat belt is not fastened.
EPAS Warning This lamp illuminates briefly when the key is turned to the ON position. If
the ignition is left on for 5 minutes without starting the engine, the lamp
illuminates to indicate that the EPAS has shut down to conserve battery
power. If the lamp illuminates after starting the engine, the power
steering system is inoperative. See your dealer for service.
Park Brake
Engaged This lamp illuminates when the park brake is engaged. If it illuminates
when the park brake is NOT engaged, see your dealer for service.
Low Oil
Pressure This lamp illuminates if engine oil pressure drops below safe operating
pressure. If this lamp illuminates while the engine is running, turn the
engine off as soon as safely possible and check the oil level. If the oil
level is correct and the lamp remains on after the engine is restarted,
turn the engine off immediately.
BRAKE FAILURE
![](asset-1a.png)
24
FEATURES AND CONTROLS

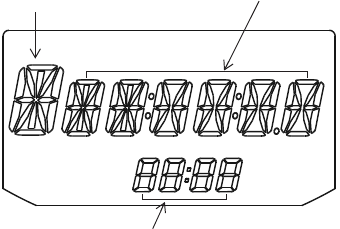

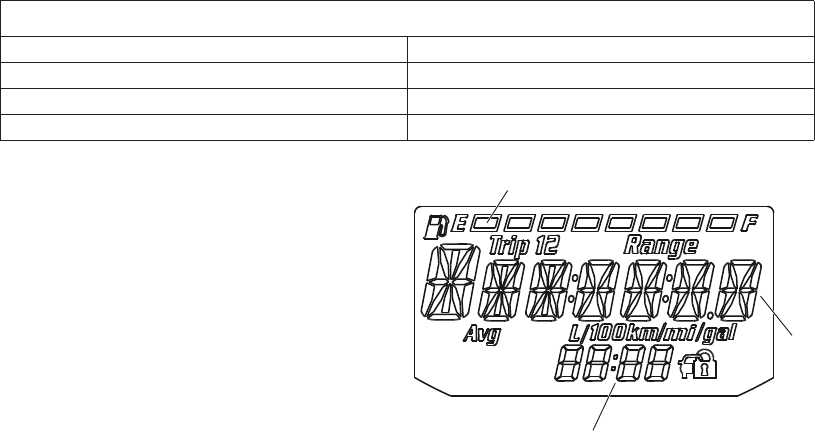

Multi-Function Display
WARNING! Driving while distracted can result in loss of vehicle control, crash and serious injury or
death. Use extreme caution when using any device that may take your focus off the road.
Use the mode button to toggle through the modes of the multi-function display. See page 21.
Press and hold the mode button to reset the trip odometers and average fuel economy.
1. Fuel Gauge Display - The segments
of the fuel gauge show the level of fuel
in the fuel tank. When the last segment
clears, a low fuel warning is activated.
All segments including the fuel icon
will flash. Refuel immediately.
Tip: If the fuel icon fails to display, an open or
short circuit has occurred in the fuel sensor
circuit. See your dealer.
2. Information Display - This area
displays odometer, trip meters (2), air
temperature and fuel economy.
3. Clock Display - The clock displays
time in a 12-hour or 24-hour format.
See page 25 for resetting instructions.
Modes Available
Fuel Level Gauge Fuel Range
Trip Odometer 1 Average Fuel Economy
Trip Odometer 2 Clock
Ambient Air Temperature
1
3
2
![](asset-1b.png)
25
FEATURES AND CONTROLS
Multi-Function Display
Display Units (Standard/Metric)
The display can be changed to display either standard or metric units of measurement.
NOTE: To exit the set-up mode at any time, wait 10 seconds. The display automatically exits and
returns to the odometer display.
1. Turn the key to the OFF position.
2. Press and hold the mode button while turning the key to the ON or ACC position.
3. When the display flashes the distance setting, tap the mode button to advance to the
desired setting.
4. Press and hold the mode button to save the setting and advance to the next display
option.
5. Repeat the procedure to change remaining display settings.
Clock Mode
Tip: The clock must be reset any time the battery has been disconnected or discharged.
1. Turn the key to the ON position. Use the MODE button to toggle to the odometer
display.
2. Press and hold the MODE button until the hour segment flashes. Release the button.
3. With the segment flashing, tap the MODE button to advance to the desired setting.
4. Press and hold the MODE button until the next segment flashes. Release the button.
5. Repeat steps 3-4 twice to set the 10-minute and 1-minute segments. After completing the
1-minute segment, step 4 will save the new settings and exit the clock mode.
6. Turn the key to the OFF position.
Odometer/Trip Meter Mode
The odometer displays the total distance traveled by the vehicle. Each trip odometer displays
distance traveled since the trip odometer was reset. To view the trip odometer, turn the key to
the ON position. Use the mode button to toggle to the trip odometer.
To reset the trip odometer, toggle to the trip odometer, then press and hold the mode button
until the trip odometer resets.
Standard Display Metric Display
Distance Miles Kilometers
Fuel U.S. Gallons I = Imperial Gallons Liter = Liters
Temperature Fahrenheit Celsius
Time 12-Hour Clock 24-Hour Clock
![](asset-1c.png)
26
FEATURES AND CONTROLS
Multi-Function Display
Engine Error Codes
The error screen displays only when the
CHECK ENGINE light is on or when it goes
on and off during one ignition cycle. Error
codes are not stored. When the key is turned
OFF, the code and message is lost, but will
reappear if the fault reoccurs after restarting
the engine.
If the CHECK ENGINE indicator lamp
illuminates, retrieve the error codes from the
display.
1. If the error codes are not displayed, use the
MODE button to toggle until “Ck ENG”
displays on the main line of the display.
2. Press and hold the MODE button to enter the diagnostics code menu.
3. Record the numbers displayed in the gear position (if any), clock and odometer displays.
4. Press the MODE button to advance to the next error code.
5. Press and hold the MODE button to exit the diagnostics code menu.
6. See your authorized dealer for code details and diagnosis.
Suspect Parameter
Number (SPN)
Error Code
Number (0-9)
Failure Mode Indicator (FMI)
![](asset-1d.png)
27
FEATURES AND CONTROLS
Starter Interlock Switch
The starter interlock switch prevents the electric starter from operating when the clutch is
engaged (pedal released). Read the engine starting procedures beginning on page 42 before
starting the engine.
WARNING! Never start the engine with the transmission in gear and the clutch disengaged unless you
are properly seated with helmet on, seat belt secured and brakes applied.
Electronic Power-Assisted Steering (EPAS)
Electronic power-assisted steering engages when the ignition key is turned to the ON
position. EPAS remains engaged whether the vehicle is moving or idle.
To conserve battery power, the EPAS will shut down 5 minutes after the engine is stopped if
the key remains in the ON position. The EPAS warning indicator will illuminate to indicate
the EPAS has shut down. Turn the key off and on to reset the unit.
See page 23 for EPAS warning indicator information.

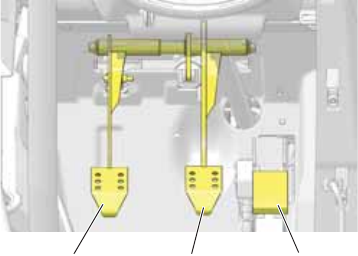

Foot Controls (Foot Pedals)
Throttle Pedal
Depress the throttle pedal to increase engine
speed and (when the transmission is in gear)
vehicle speed. Spring pressure returns the pedal
to the rest position when released. Always check
that the throttle pedal returns normally before
starting the engine.
Brake Pedal
Depress the brake pedal to slow or stop the
vehicle. Apply the brakes while starting the
engine.
NOTE: The SLINGSHOT brakes are not power-
assisted. Braking the SLINGSHOT may feel
different than braking other types of vehicles.
Practice braking in a safe area to become
familiar with the feel of the SLINGSHOT
brakes before driving in traffic.
Clutch Pedal
Depress the clutch pedal (disengage the clutch) before shifting gears. For smooth clutch
operation, depress the pedal quickly and release it gradually.
• To disengage the clutch, press the pedal toward the floor.
• To engage the clutch, gradually release the clutch pedal.
Clutch
Pedal Brake
Pedal Throttle
Pedal
28
FEATURES AND CONTROLS
Brakes
Anti-Lock Brake System (ABS)
The anti-lock brake system automatically reduces or increases brake pressure as needed to
provide optimum braking control, reducing the chance of wheel lock-up during hard braking
events or when braking on rough, uneven, slippery or loose surfaces.
WARNING! No stability control, traction control or anti-lock braking system can fully protect you from
every situation. Always be mindful of road conditions. Always drive safely and within the limits of the
driver, vehicle and road conditions.
WARNING! Stability control, traction control and anti-lock braking systems rely on grip between the
tires and the road to function properly. In a hydroplane situation, tires lose contact with the road and the
effectiveness of these features may be diminished.
• The anti-lock brake system cannot be turned off.
• When the lamp is illuminated, the anti-lock brakes will not activate, but the conventional
brake system will continue to operate normally. See your dealer promptly for service.
• Operating with non-recommended tires or improper tire pressure may reduce the
effectiveness of the anti-lock brake system. Always use the recommended size and type of
tires specified for your vehicle. Always maintain the recommended tire pressure.
• The anti-lock brake system will not prevent wheel lockup, loss of traction or loss of
control under all conditions. Always adhere to all safe operating practices as
recommended.
• It is not unusual to leave tire marks on the road surface during a hard braking event.
• The anti-lock brake system does not compensate for or reduce the risks associated with:
• excessive speed
• reduced traction on rough, uneven or loose surfaces
• poor judgment
• improper operation
• hydroplaning
![](asset-1f.png)
29
FEATURES AND CONTROLS

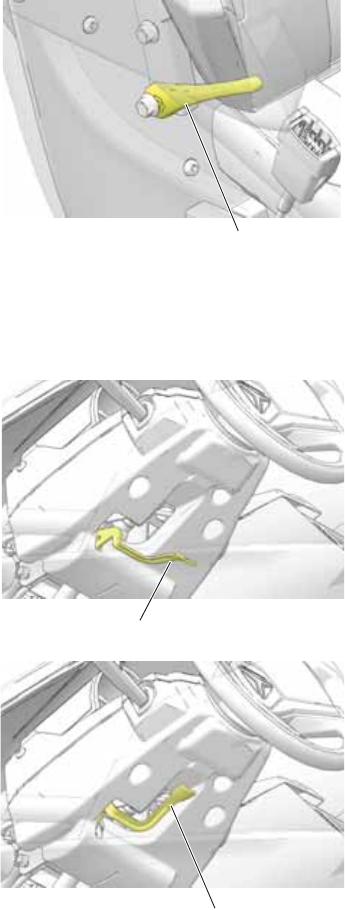

Park Brake Lever
The park brake lever is located between the
seats. To help prevent the vehicle from rolling,
engage the park brake when the vehicle is
parked. When the park brake is engaged and the
park brake indicator is illuminated, the vehicle
will not move. Always apply the brakes before
engaging or releasing the park brake.
1. To engage the park brake, apply the brakes.
Pull the park brake lever upward as far as
possible.
2. To release the park brake, apply the brakes.
Press the park brake release inward and
move the lever downward as far as possible.
NOTICE: Always make sure parking brake is fully
released before attempting to move the
vehicle. Failure to do so can cause
damage to the rear brakes.
Engaged
Released
Park Brake Release
![](asset-20.png)
30
FEATURES AND CONTROLS

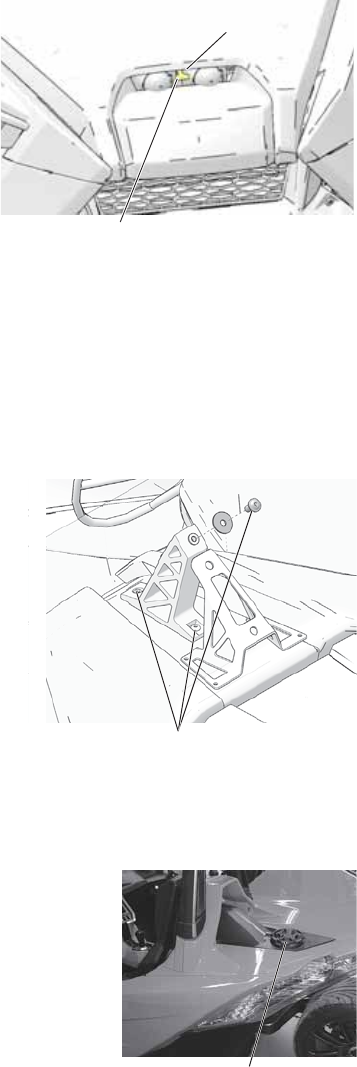

Adjustable Seats
Seatback Adjustments
Lift and hold the seat adjustment lever to release
the seatback latch. Adjust seatback angle or tilt the
seatback forward to access the storage
compartment. Release the lever. After adjusting,
make sure the seatback latches securely in place.
Driver’s Seat Adjustments
To adjust the driver’s seat forward or rearward,
pull upward on the bar under the front edge of the
seat. Slide the seat to the desired position and
release the lever. Make sure the seat latches
securely in place.
WARNING! Making adjustments while driving could
result in loss of control. Never make adjustments while
driving.
Adjustable Steering Wheel
The steering wheel can be tilted upward or
downward for rider preference.
WARNING! Making adjustments while driving could
result in loss of control. Never make adjustments
while driving.
1. Pull the adjustment lever downward to
unlock the steering column.
2. Move the steering wheel upward or
downward to the desired position.
3. Push the adjustment lever upward to lock
the steering column in position. Make sure
the lever is fully seated.
WARNING! Make sure the wheel is positioned so that
it rotates freely and allows enough room between your
legs and the rim of the wheel for your hands to pass
without obstruction. Failure to do this could cause
difficulty steering and result in loss of control.
Seat Adjustment Lever
Steering Column Locked
Steering Column Unlocked
![](asset-21.png)
31
FEATURES AND CONTROLS
Hood
Open the hood to access the engine compartment.
The hood release lever is located between the
headlights.
1. Push the hood release lever downward to
disengage the four hood latches.
CAUTION! Always use only the hood handle when
opening the hood. Do not grasp the hood edges.
2. The metal hood handle is a plate located above
the release lever and on the underside of the
hood plastic. Firmly grasp the hood handle and
pull the hood upward and forward, rotating the
hood to a vertical position at the front of the
vehicle.
3. To close the hood, grasp the hood handle. Pull the handle upward and toward the vehicle
until the hood is fully seated. Apply firm downward pressure on the hood at all four latch
points to ensure the hood is securely latched at all four points.
Windshield (if equipped)
NOTICE: Brake fluid and alcohol will permanently damage the windshield. Do not use glass cleaners,
water or soil repellents, and petroleum or alcohol based cleaners on the windshield, as
these products can damage the windshield.
The windshield provides wind protection and increased
riding comfort but will not protect riders in a collision
with another vehicle, the road, birds or any other
object. Do not ride with a loose or damaged windshield
or mounting hardware. Regularly check all fasteners
for tightness.
Tighten all center windshield mount screws (if
equipped) to 6-8 ft-lbs (8-11 Nm). Tighten all other
screws only until the wellnut begins to turn.
Windshield Care
Clean the windshield with a soft cloth and plenty of
warm water. Dry with a soft clean cloth. Remove minor
scratches with a high-quality polishing compound
designed for use on polycarbonate surfaces.
WARNING! Always replace the windshield if scratches obstruct clear vision and cannot be removed.
Fuel Cap
The fuel tank filler cap is located on the left side of the vehicle,
behind the driver’s seat.
Hood Release Lever
Hood Handle
Center Windshield Mount Screws
(if equipped)
6-8 ft-lbs (8-11 Nm)
Fuel Cap
![](asset-22.png)
32
FEATURES AND CONTROLS

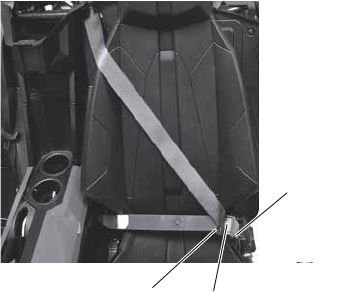

Seat Belts
This vehicle is equipped with three-point lap and diagonal seat belts on all seats. Always
make sure the seat belts are secured for the driver and passenger before operating.
WARNING! The SLINGSHOT is a motorcycle (not a car) and does not meet automotive frontal crash
and impact standards. In the event of a rollover or crash, an unbelted person is significantly more likely
to be thrown from a vehicle and die than a person wearing a safety belt.
To wear the seat belt properly, follow this
procedure:
1. For 3-point belts, pull the seat belt latch
downward and across your chest toward the
latch housing at the outer edge of the seat.
The belt should fit snugly across your hips
and diagonally across your chest. Make sure
the belt is not twisted.
2. Push the latch plate into the latch housing
until it clicks.
3. Release the strap, it will self-tighten.
WARNING! Failure to wear the seat belt properly
could result in serious injury or death. Wear the
shoulder belt on the inside shoulder only. Never wear
the shoulder belt under your arm or behind your body.
4. To release the seat belt, press the square red
button at the center of the latch housing.
Seat Belt Inspection
Inspect all seat belts for proper operation before each use of the vehicle.
1. Push the latch plate into the latch housing until it clicks. The latch plate must slide
smoothly into the housing. A click indicates that it’s securely latched.
2. Push the red release latch at the center of the latch housing to make sure it releases
freely.
3. Pull each seat belt completely out and inspect the full length for any damage, including
cuts, wear, fraying or stiffness. If any damage is found, or if the seat belt does not
operate properly, have the seat belt system checked and/or replaced by your authorized
dealer.
4. To clean dirt or debris from the seat belts, sponge the straps with mild soap and water.
Do not use bleach, dye or household detergents.
Latch
Housing
Latch
Plate Latch
Release
![](asset-23.png)
33
FEATURES AND CONTROLS
Mirrors
Use the mirrors to assist in traffic maneuvers. Always check and adjust the mirrors before
driving the vehicle.
Radio/Audio System
Refer to the Audio System section of this manual

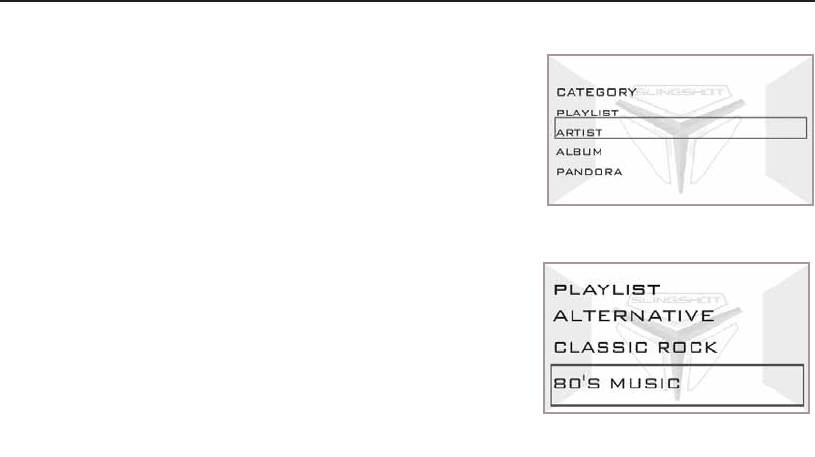

(beginning on page 98) for radio and accessory
audio system operation.
Back-Up Camera (if equipped)
Some SLINGSHOT vehicles are equipped with an
accessory back-up camera. The back-up camera is
not intended to replace standard driving practices
of checking your surroundings before operating in
reverse. Always check for pedestrians, vehicles
and other obstacles before operating in reverse.
If your vehicle is equipped with a back-up camera,
view the image on the display screen as needed while operating in reverse. See page 45. The
camera and display screen automatically activate when the transmission is shifted to reverse
gear.
Storage Compartments
Use the ignition key to lock or unlock a storage compartment door.
The glove box compartment is located on the console in front of the passenger seat. Press
and release the latch button to open the door. Do not open the glove box door while
operating. Stowed items could be ejected due to air movement in the vehicle.
A larger storage compartment is located behind each seat. Tilt the seatback forward to access
the storage compartment. When unlocked, pull abruptly on the tab located above the lock to
open the door. Close the door and tap each corner abruptly to engage the rubber compression
plugs.

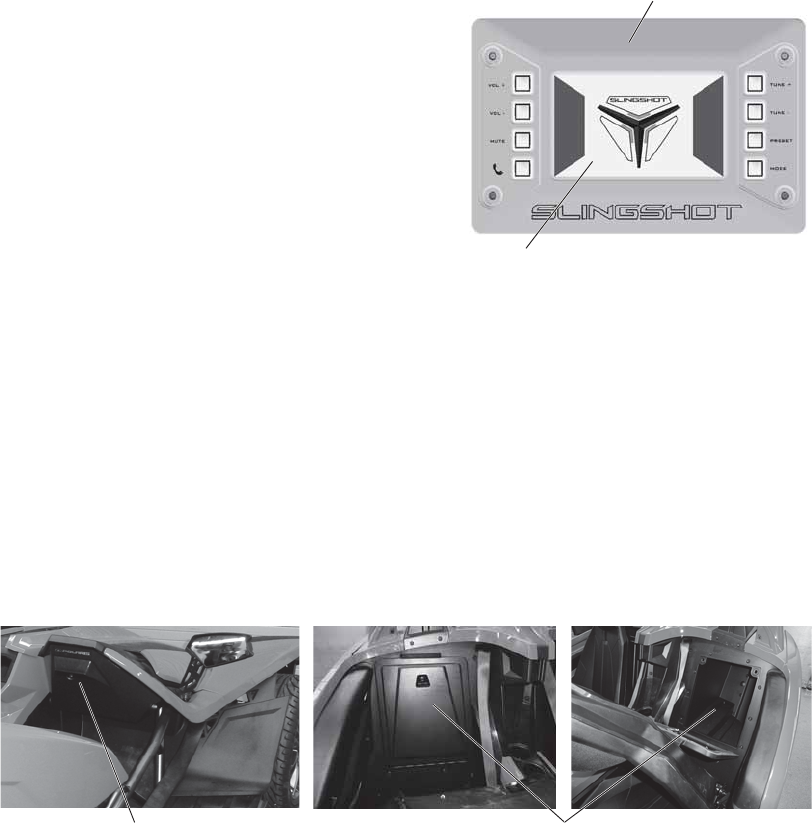

Audio Panel
Back-Up Camera Display Area
Glove Box Storage Compartments (behind seats)
34
FEATURES AND CONTROLS
Security System (Canada)
Your SLINGSHOT vehicle is equipped with a security system for theft and roll-away
protection. The security system automatically immobilizes the engine when the ignition is
switched off, and enables the engine when the ignition is switched on and a passcode is
entered. After the passcode is entered, a slight delay before the starter engages is normal.
Change the factory-set passcode to a new passcode of your own choosing and select the
desired security setting as soon as possible after receiving delivery of your new
SLINGSHOT vehicle. Record your new passcode and keep it in a safe location. Do not place
your 4-digit passcode anywhere in the vehicle.
NOTE: The park brake must be engaged for the SECURITY menu to be accessible in the gauge.
Changing the Passcode
The factory-set passcode is 0000. Enter this passcode at step 5 the first time you change the
passcode.
1. Unlock the security system. See page 35.
2. With the engine off and the park brake engaged, press and release the MODE button
repeatedly until “SECURE” displays in the gauge.
3. Press and hold the MODE button until “SETCODE” displays.
4. Press and hold the MODE button until “OldCodE” displays.
5. Enter your existing passcode using the same process used to unlock the system.
6. If the passcode is not correct, “bAd COdE” displays. Re-enter the correct passcode. If
the passcode entered is correct, “NEWCodE” displays.
7. Enter your new passcode using the same process used to unlock the system.
8. When “CONFIRM” displays, re-enter the new passcode to confirm.
9. If the two entries do not match, “bAd COdE” displays and you’ll be returned to step 7. If
the two entries match, “SUCCESS” displays. The passcode has been changed.
10. Record your new passcode and keep it in a safe location. Do not place your 4-digit
passcode anywhere in the vehicle.
![](asset-25.png)
35
FEATURES AND CONTROLS
Security System (Canada)
Security Levels
The security system offers three security levels as outlined below:
Changing the Security Level
The security level can be changed at any time by using the following procedure.
1. Unlock the security system.
2. With the engine off and the park brake engaged, press and release the MODE button
repeatedly until “SECURE” displays in the gauge.
3. Press and hold the MODE button until “SETCODE” displays.
4. Press and release the MODE button once to display the current security level.
5. Press and hold the MODE button to cycle through the three security level options.
Release the button when the desired security level displays.
6. To save the displayed setting, press and release the MODE button once. “EXIT” will
display.
7. Press and hold the MODE button to exit the security menu.
Unlocking the Security System
1. Turn the ignition switch to the ON position. The gauge will display “ENtCOdE”.
2. Press and release the MODE button once to advance the digit by one increment. Repeat
until the desired digit displays.
3. Press and hold the MODE button to save the digit and advance to the next digit.
4. Repeat this process for the remaining 3 digits.
5. When the fourth digit is saved, the system unlocks and “SUCCESS” displays in the
gauge. If the passcode entered was not correct, the system remains locked and
“BAdCOdE” displays in the gauge. Re-enter the correct passcode.
Security Level Engine Starting Requirements
PASSIVE (default setting) When set to PASSIVE, use of the ignition key is required. Manual entry
of your passcode is not required.
ACTIVE When set to ACTIVE, you will be prompted to press the MODE button
within 10 seconds of turning the ignition switch off. The system will
then require manual entry of your passcode the next time the ignition
switch is turned on. See Unlocking the Security System.
If you fail to press the MODE button within the allotted time, the system
will not require manual entry of your passcode the next time the
ignition switch is turned on.
AUTO When set to AUTO, the system requires manual entry of your
passcode every time the ignition switch is turned on.
36
PRE-RIDE INSPECTIONS
To keep your vehicle in safe operating condition, always perform the recommended pre-ride
inspections before each use of the vehicle. This is especially important before making a long
trip and when removing the vehicle from storage.
WARNING! Failure to perform the recommended pre-ride inspections could result in component failure
while riding, which could result in serious injury or death. Always perform the pre-ride inspections
before each ride. When inspection reveals the need for adjustment, replacement or repair, perform the
service promptly.
You must be familiar with all instruments and controls to perform the pre-ride inspections.
NOTE: During the pre-ride inspections you may use products that are potentially hazardous, such as
oil or brake fluid. When using any of these products, always follow the instructions and
warnings on the product packaging.
When inspections reveal the need for adjustment, replacement or repair:
• refer to the maintenance section of this manual
• refer to the service manual or
• see your authorized dealer
![](asset-27.png)
37
PRE-RIDE INSPECTIONS
Turn the ignition key to the ON position before performing the electrical pre-ride
inspections. Return the ignition key to the OFF position after completing these inspections.
If inspection of any electrical item reveals component failure, repair or replace the
component before operating the vehicle.
Item Inspection Procedure See
Page
Electrical

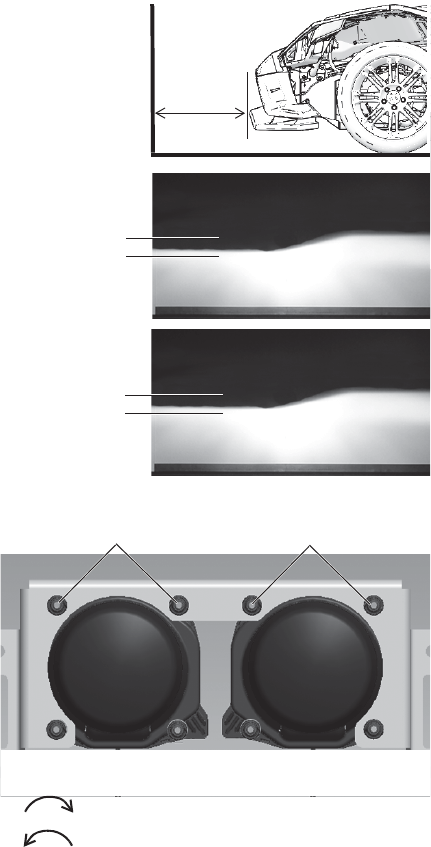

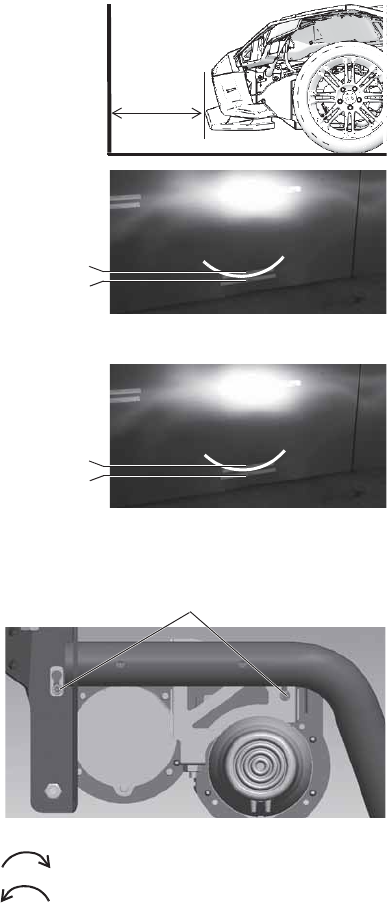

Front Lights Turn the ignition key on. Verify that the headlights, auxiliary lights (if
equipped) and park lamps illuminate. Switch to high beam. Verify that
the high beam indicator comes on and that headlamp brightness
increases. Adjust headlight aim as needed.
74
Rear Lights Verify that the taillights and license plate light illuminate. Apply the
brakes and verify that the taillight lamps increase in brightness. -
Turn Signals Verify that the left and right turn signals flash at the front and rear of the
vehicle, and that the corresponding indicator lamp flashes in the gauge. -
Emergency
Flashers Press the top of the hazard switch to turn the flashers on. Verify that all
four turn signals flash, as well as the lamps in the gauge. Press the
bottom of the switch to turn the flashers off. Verify that all signals and
indicator lamps stop flashing.
-
Horn Press the horn button. Verify that the horn sounds loudly. -
Low Oil Pressure
Indicator Start the engine and verify that the low oil pressure lamp does not
illuminate. -
Steering Check power steering for smooth operation. 38
General
Engine Oil Level Check the oil level. 52
Fuel Level View the fuel gauge to check the fuel level. 38

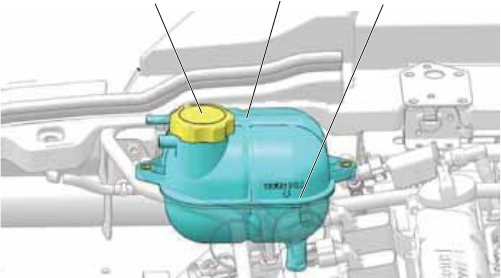

Coolant Level Check the recovery bottle coolant level. 56
Tires Inspect tire condition, pressure and tread depth. 65
Wheels Inspect for loose, damaged or missing wheel nuts. 66

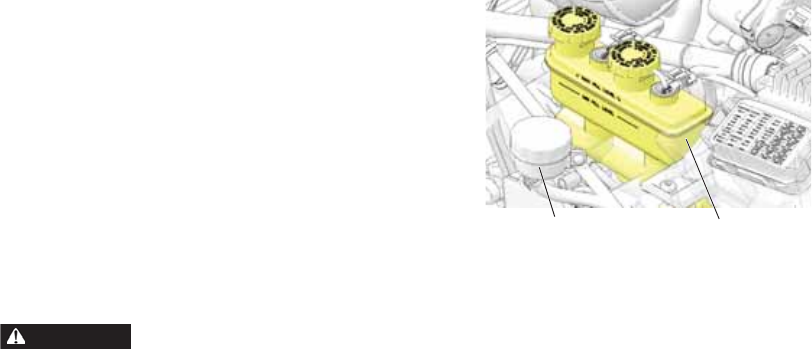

Brake Fluid Level Check the master cylinder brake fluid level. 63
Park Brake Verify that the vehicle does not roll when the park brake is set. 29
Brake System Inspect brake system hoses, connections and brake pads. Check brake
pedal for excessive travel or a spongy feel. 64
Throttle Pedal Check throttle pedal travel, ensure smooth operation and full return. 27
Clutch System Check fluid level and pedal travel. 60-61
Front Suspension Check for suspension wear or damage. 38
Rear Suspension Check for suspension wear or damage. 38
Drive Belt Check for wear or damage. 38,58
Fasteners Inspect entire vehicle for loose, damaged or missing fasteners. 38
Mirrors Adjust for proper side and rear view. -
![](asset-28.png)
38
PRE-RIDE INSPECTIONS
Fuel Level
1. Position the vehicle on a level surface.
2. Turn the ignition switch to the ON position.
3. Observe the fuel level in the fuel gauge. See
page 24.
4. Refuel as needed. See page 41 for fuel
specifications.
Steering
1. Position the vehicle on a level surface.
2. Turn the steering wheel full left, then full
right. The action should be smooth, but not
loose.
Front Suspension
Inspect the front suspension for oil leaks or damage. Verify smooth suspension operation.
Rear Suspension
1. Check rear shock absorber movement to ensure the correct amount of suspension travel
and ground clearance. Refer to the specifications section beginning on page 84.
WARNING! Inadequate ground clearance could result in components contacting the ground, causing
loss of control and serious injury or death. Always ensure ground clearance is at specification.

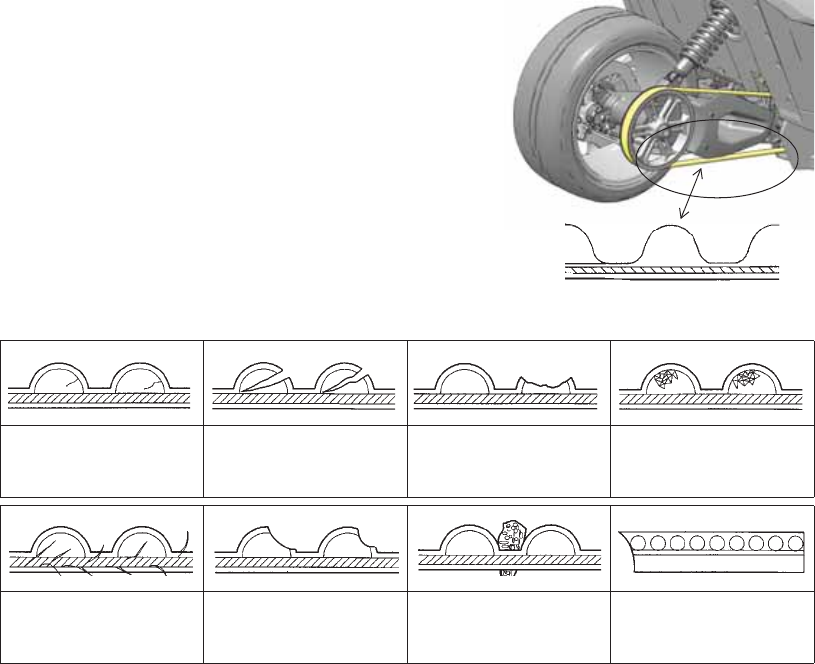

Drive Belt
1. Check the drive belt teeth for stones or
other debris.
2. Inspect drive belt condition. If you
discover cracks, broken teeth or frayed
edges, replace the drive belt before
riding. See the SLINGSHOT Service
Manual or an authorized dealer.
Fasteners
1. Inspect the entire vehicle chassis and engine for loose, damaged or missing fasteners.
Tighten loose fasteners to the proper torque.
NOTE: Refer to the specifications section of this manual or the service manual for fastener torque
values, or see your dealer.
2. Always replace stripped, damaged or broken fasteners before riding. Use genuine
SLINGSHOT fasteners of equal size and strength.
Fuel Level
Drive Belt
39
OPERATION
SLINGSHOT Vehicles vs. Other On-Road Vehicles
In the United States, the 3-wheel SLINGSHOT vehicle is an on-road vehicle in the
motorcycle class.
The SLINGSHOT vehicle handles differently than 2-wheel motorcycles, other 3-wheel
vehicles and 4-wheel vehicles. The following information will help you understand the
features and characteristics that make operation and handling of the SLINGSHOT vehicle
different from the operation and handling of other on-road vehicles.
How does a SLINGSHOT differ from a 2-wheel motorcycle?
• Low center of gravity
• Steering wheel
• Foot controls (brake, clutch, accelerator)
• Front suspension and steering
• Side-by-side operator and passenger seats
• Seat belts for both riders
•Lighting
• One rear drive wheel and two front wheels
The unique handling characteristics of the SLINGSHOT include:
• More stability in turns
• Vehicle stability at rest
• Flat cornering
• Turns in direction of wheel
• Quick response to steering changes
• Like all on-road vehicles, the SLINGSHOT can hydroplane (lose traction) when
encountering a layer of water on the driving surface. Every vehicle has a unique
hydroplane speed and response, driven by vehicle weight, tire configuration and tire
condition. The SLINGSHOT may hydroplane at lower speeds and react differently to
hydroplaning than most motorcycles and cars.
![](asset-2a.png)
40
OPERATION
NOTICE: Failure to operate the vehicle properly can result in a collision, loss of control, accident or
rollover, which may result in serious injury or death. Read and understand all safety
warnings outlined in the safety section of this owner’s manual. See pages 7-15.
Break-In Period
The break-in period for your vehicle is the first 500 miles (800 km) of operation. During this
break-in period, critical engine parts require special wear-in procedures so they seat and
mate properly. Read, understand and follow all break-in procedures to ensure the long-term
performance and durability of your engine.
Engine and Drivetrain Break-in
NOTICE: Failure to properly follow the engine break-in procedures outlined in this manual can result
in serious damage to the engine. Follow all break-in procedures carefully. Avoid full-throttle
operation and other conditions that may place an excessive load on the engine during the
break-in period.
1. Fill the fuel tank with gasoline. Heed the fuel warnings on page 12.

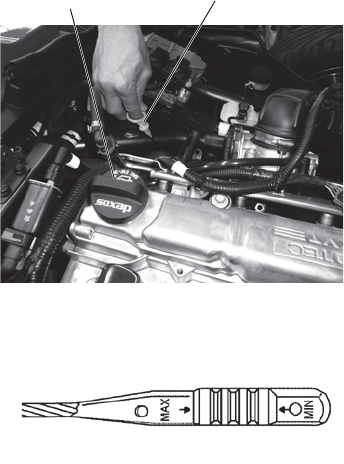

2. Check the oil level. See page 52. Add the recommended oil as needed to maintain the oil
level between the safe and add marks.
3. Vary speed. Do not drive at a constant speed, whether fast or slow. Do not drive at
sustained idle.
4. Avoid full-throttle starts and do not drive at full throttle.
5. Do not exceed 70 MPH (113 km/h).
6. Avoid the use of downshifting to brake or slow the vehicle.
7. Avoid making hard stops for the first 200 miles (322 km).
8. Perform regular checks on fluid levels, controls and areas outlined on the daily pre-ride
inspection checklist. See page 36.
9. Change both the engine oil and filter at 500 miles (800 km).
WARNING
41
OPERATION
Fuel Recommendation
Use only unleaded gasoline with a 91 pump octane minimum and a maximum ethanol
content of 10%. DO NOT USE E-85 GASOLINE OR GASOLINE CONTAINING
METHANOL. Using E85 or gasoline/methanol blends can result in poor starting and
driveability, and may damage critical fuel system components.
NOTICE: Use of fuel other than the recommended fuel could result in voiding of your warranty.
Review the fuel warnings. See page 12. Use only the recommended fuel.
1. Insert the fuel nozzle into the fuel tank filler neck. Do not leave the nozzle unattended
while fueling.
2. Fill the fuel tank until the pump stops. Do not overfill.
WARNING! Fuel expands in the fuel tank. To prevent leaks, make sure the fuel filler cap is properly
seated. Do not overfill.
NOTICE: Fuel can damage painted surfaces and plastic parts. If gasoline spills on the any part of the
vehicle, immediately rinse it off with water or wipe it dry with a clean cloth.

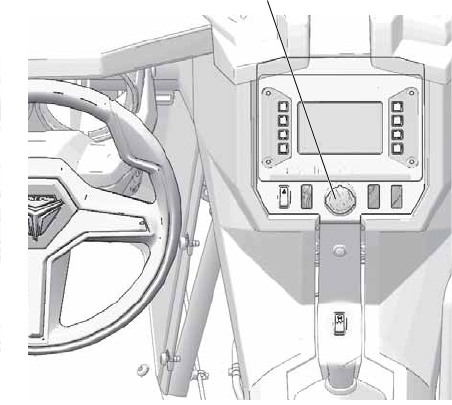

Priming the Fuel System
If the vehicle runs out of fuel, prime the fuel system before attempting to restart the engine.
1. Fill the fuel tank.
2. Turn the ignition key to the ON position.
3. Allow the fuel pump to run until it stops (about 5 seconds).
4. Turn the key to the OFF position and wait 10 seconds.
5. Repeat steps 2-4 three more times, then start the engine. See page 42.
![](asset-2c.png)
42
OPERATION
Starting the Engine
The starter interlock system allows the engine to be started only when the clutch is
disengaged (clutch pedal fully depressed).
NOTE: If the vehicle runs out of fuel, prime the system before attempting to restart the engine. See
page 41.
1. If this is your first time operating the SLINGSHOT, read and understand the following
sections of this manual before starting the engine:
2. Perform the Pre-Ride Inspections. See page 36.
3. Insert the key into the ignition switch. Turn the key to the ON position. You should hear
the fuel pump run momentarily as it pressurizes the fuel system.
4. Release the park brake.
5. Depress the clutch pedal fully to
disengage the clutch.
6. Press and release the one-touch
starter switch to start the engine.
7. If either the check engine indicator
or the low oil pressure indicator
illuminates after the engine starts,
stop the engine immediately. Refer
to either the check engine indicator
information on page 23 or the low
oil pressure indicator information on
page 23.
8. With the brake applied, allow the
engine to idle. Idle speed will
gradually slow to normal as the
engine warms to operating
temperature.
• Safety (pages 7-15)
• Starting the Engine (page 42)
• Shifting Gears (pages 43-44)
• Accelerating (page 44)
• Braking (page 44)
Starter Switch
![](asset-2d.png)
43
OPERATION
Shifting Gears
WARNING! Forced shifting (without depressing the clutch pedal) could cause damage to the engine,
transmission and drive train. Such damage could cause loss of control, which could result in serious
injury or death. Always depress the clutch pedal fully to disengage the clutch before shifting gears.
The SLINGSHOT vehicle is equipped with a 5-speed
transmission. Neutral is located between gears. When the shift
lever is in neutral, it should move freely from left to right.
1. Start the engine. See page 42.
2. With the engine at idle speed and the clutch disengaged
(pedal depressed), apply the brakes.
3. Move the shift lever into first gear.
4. Release the brake pedal.
5. In one smooth motion, simultaneously release the clutch
pedal while slowly depressing the throttle pedal. As the
clutch begins to engage, the vehicle will move forward.
6. To shift to a higher gear, accelerate smoothly to the recommended shift point. See page
44. Perform the following actions quickly and precisely:
a) Simultaneously release the throttle pedal completely while disengaging the clutch
(depressing the clutch pedal).
b) Move the shift lever to the next gear.
c) Simultaneously release the clutch pedal while depressing the throttle pedal.
NOTE: Within the recommended speed ranges (page 44), you can downshift to slow the vehicle or to
increase power. You may want to downshift when climbing a hill or passing. Downshifting also
helps to decrease speed when combined with releasing the throttle pedal.
4. To shift to a lower gear (downshift), reduce speed to the recommended shift point. See
page 44. Perform the following actions quickly and precisely:
a) Simultaneously release the throttle pedal completely while disengaging the clutch
(depressing the clutch pedal).
b) Move the shift lever to the next lower gear.
c) Simultaneously release the clutch pedal while depressing the throttle pedal.
WARNING! Downshifting improperly could cause transmission damage, loss of traction and loss of
control, which could result in serious injury or death.
• Reduce speed before downshifting. Always downshift within the recommended shift points.
• Use extreme caution when downshifting on wet, slippery or other low traction surfaces. Release
the clutch pedal very gradually in these conditions.
• Avoid downshifting in a curve. Downshift before entering the curve. Avoid coasting (clutch
disengaged) through curves and corners.
Shift Pattern
![](asset-2e.png)
44
OPERATION
Shifting Gears
Recommended Shift Points
Accelerating
Accelerate by depressing the throttle pedal. For even acceleration, depress the throttle pedal
smoothly. When you reach the recommended speed for upshifting, shift up one gear.
WARNING! Accelerating abruptly could cause loss of control on low traction surfaces. Loss of control
could result in serious injury or death. Always accelerate gradually, especially on wet, slippery or other
low traction surfaces.
Braking
Always allow a sufficient stopping distance so that brakes can be applied gradually. Practice
braking in a safe area to become familiar with the feel of the SLINGSHOT brakes before
driving in traffic.
1. To slow the vehicle, release the throttle pedal and depress the brake pedal evenly and
gradually.
NOTE: If the anti-lock brake system activates while braking you may feel pulsing at the brake pedal.
Continue applying equal pressure to the brakes to slow or stop the vehicle.
2. As the vehicle slows, disengage the clutch, or downshift each time vehicle speed reaches
a downshift point. If braking to a complete stop, disengage the clutch when the vehicle is
nearly stopped.
3. After braking to a complete stop, shift to neutral and release the clutch pedal to reduce
clutch bearing wear. If stopping in traffic, keep your foot on the brake pedal so other
drivers can see your vehicle’s brake lights.
WARNING! Braking improperly could result in loss of control, which could result in serious injury or
death. Always apply the brakes gradually, especially on wet, slippery or other low traction surfaces.
Avoid braking in a curve or turn.
Upshifting (Accelerating) Downshifting (Decelerating)
Gear Change Recommended Speed Gear Change Recommended Speed
1 to 2 15 MPH (24 km/h) 5 to 4 40 MPH (64 km/h)
2 to 3 25 MPH (40 km/h) 4 to 3 35 MPH (56 km/h)
3 to 4 40 MPH (64 km/h) 3 to 2 20 MPH (32 km/h)
4 to 5 45 MPH (72 km/h) De-clutch 15 MPH (24 km/h)
45
OPERATION
Stopping the Engine
Bring the vehicle to a complete stop before stopping the engine.
WARNING! Stopping the engine with the transmission in gear while the vehicle is moving could cause
loss of rear wheel traction or engine and transmission damage, which could cause loss of control and
serious injury or death. Always stop the engine after the vehicle is fully stopped and the transmission is
in neutral (or clutch is disengaged). If the engine stops unexpectedly while the vehicle is moving, guide
the vehicle to a safe location off the road and away from traffic.
1. Brake to a complete stop. When nearly stopped, disengage the clutch.
NOTE: As the vehicle slows, disengage the clutch, or downshift each time vehicle speed reaches a
downshift point.
2. When fully stopped, move the ignition switch to the OFF position.
3. Remove the ignition key.
4. Engage the park brake.

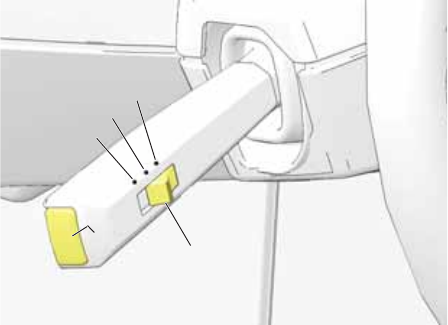

Reverse Operation
NOTICE: Do not attempt to shift into reverse gear when the vehicle is moving.
Follow these precautions when operating in reverse:
1. Brake to a complete stop. When nearly stopped, disengage the clutch.
2. When fully stopped, shift to neutral.
3. Always check for obstacles or people behind the vehicle, and always inspect left and
right fields of vision before operating in reverse. If your vehicle is equipped with a back-
up camera, view the display screen for additional assistance as needed while operating in
reverse. See page 33.
4. When it’s safe to proceed, shift into reverse gear.
5. Release the brake pedal.
6. In one smooth motion, simultaneously release the clutch pedal while slowly depressing
the throttle pedal. As the clutch begins to engage, the vehicle will move rearward.
CAUTION! The reverse speed limit feature limits reverse operation to 10 MPH (16 km/h). Do not
attempt to exceed this speed. If the engine seems to “cut out”, vehicle speed is exceeding the limit.
Reduce throttle and slow down. Exceeding the limit could result in vehicle instability.
7. Never apply hard throttle while operating in reverse.
8. Always observe your path of travel and be alert to traffic, pedestrians and obstacles at all
sides of the vehicle while operating in reverse.
![](asset-30.png)
46
OPERATION
Using Cruise Control
The cruise control switches are located on the turn signal lever. Make sure you read this
section and understand how to safely operate this feature before using the cruise control.
WARNING! Improper operation of cruise control could cause loss of control and result in serious injury
or death. Follow all cruise operation procedures carefully. Never use cruise control when roads are wet
or slippery. Do not use cruise control when driving in heavy or congested traffic.
Cruise Control Tips
• Cruise control can be set in any gear.
• Vehicle speed must be above 25 MPH (40 km/h).
• Set speed will vary slightly in hilly terrain.
• The cruise control will not resume a pre-set speed if the resulting acceleration or deceleration rate is
too high or too low. For example, resuming a set speed from 30 MPH (48 km/h) while in 5th gear
may cause cruise to disengage.
• Cruise control will not engage if brake lights are not operating properly.
• Cruise control will be disabled if there is an active stability or traction control event.
• Cruise control will be disabled if there are multiple wheel speed sensor faults or a communication
error with the electronic stability module.
Set Speed
1. Move the cruise control ON/OFF/
RES switch to ON to activate the
cruise control.
2. Accelerate to the desired speed.
Press and release the SET switch at
the tip of the lever.
Cancel Cruise Control
To temporarily cancel the cruise control
and allow use of the resume feature,
perform one of the following:
• depress the brake pedal or
• depress the clutch pedal
To cancel the cruise control and erase
the set speed from memory, move the
ON/OFF/RES switch to OFF.
Cruise Control
ON/OFF/RES
Switch
RES (+)ONOFF
SET (-)
47
OPERATION
Using Cruise Control
Resume Speed
1. Disengage the cruise control by depressing the brake pedal or clutch pedal.
NOTE: If you depress the throttle pedal to accelerate, the cruise control will resume the previously set
speed when the pedal is released.
2. Move the ON/OFF/RES switch to RES to resume operation at the previously set speed.
NOTE: Moving the ON/OFF/RES switch to OFF will erase the set speed from memory and disengage
the cruise control.
Increase Speed Setting
Move and release the ON/OFF/RES switch to RES to increase the set speed in
approximately one MPH (1-2 km/h) increments. Move and hold the ON/OFF/RES switch in
the RES position to accelerate to a new SET speed. The speed will reset when the switch is
released or after a maximum acceleration of approximately 10 MPH (16 km/h), whichever
comes first.
Reduce Speed Setting
Press and release the SET switch to decrease speed in approximately one MPH (1-2 km/h)
increments. Press and hold the SET switch to decelerate to a new SET speed (resets when
switch is released), or to the minimum cruise speed of 25 MPH (40 km/h).
48
MAINTENANCE
Proper maintenance assures the highest level of safety, durability and dependability for your
SLINGSHOT vehicle.
• Have your authorized SLINGSHOT dealer perform the break-in maintenance procedures
when the vehicle’s odometer registers 500 miles (800 km).
• See your dealer or perform the recommended periodic maintenance at the intervals
specified in the Periodic Maintenance Chart beginning on page 51.
Break-In Maintenance
Have your dealer perform the break-in maintenance procedures when the vehicle’s odometer
registers 500 miles (800 km). Performing the break-in maintenance will help ensure
optimum engine performance for the entire service life of the engine. Your dealer will
change engine oil, inspect all fluids and serviceable components, ensure that all fasteners are
tightened and make other adjustments as needed.
Major Maintenance
For major repair information, refer to the SLINGSHOT Service Manual. Major repairs
typically require technical skills and specially designed tools. Emission system service
requires special tools and training and should be performed by your dealer.
![](asset-33.png)
49
MAINTENANCE
Safety During Service Procedures
Failure to follow recommended precautions and procedures could result in severe injury or death.
Always heed all safety precautions and follow all operation, inspection and maintenance procedures
outlined in this manual.
• Improperly installed or adjusted components can result in a system failure. If you do not have the
time, tools and expertise necessary to complete a procedure properly, please see your dealer for
service.
• Review the safety-related maintenance information on page 13.
• Before beginning any maintenance procedure, read the instructions for the entire procedure.
• Always position the vehicle on a firm level surface before performing service.
• Wear eye and face protection when using pressurized air.
• Never start the engine or let it run in an enclosed area. Engine exhaust fumes are poisonous and
can cause loss of consciousness or death in a short time.
• During some procedures you may use potentially hazardous products such as oil or brake fluid.
Always follow the instructions and warnings on the product packaging.
Elevating the Vehicle for Service
WARNING! Serious injury or death can occur if the vehicle moves or falls while elevated. When
elevating is necessary, make sure the vehicle is properly elevated and stable before performing
service.
Some procedures require elevating
the vehicle. DO NOT attempt to
elevate your vehicle without proper
equipment. If you’re not familiar with
using floor jacks or lift mechanisms,
see your dealer for service.
To elevate the SLINGSHOT vehicle,
use automotive-quality floor jacks.
Use the floor jacks on a firm, flat
surface.
Make sure the floor jacks are
positioned under the frame rails in the
front where the lower control arm
mounts to the frame, or in the rear
where the frame rails meet.
For fluid changes, always make sure
the elevated vehicle is level.
WARNING

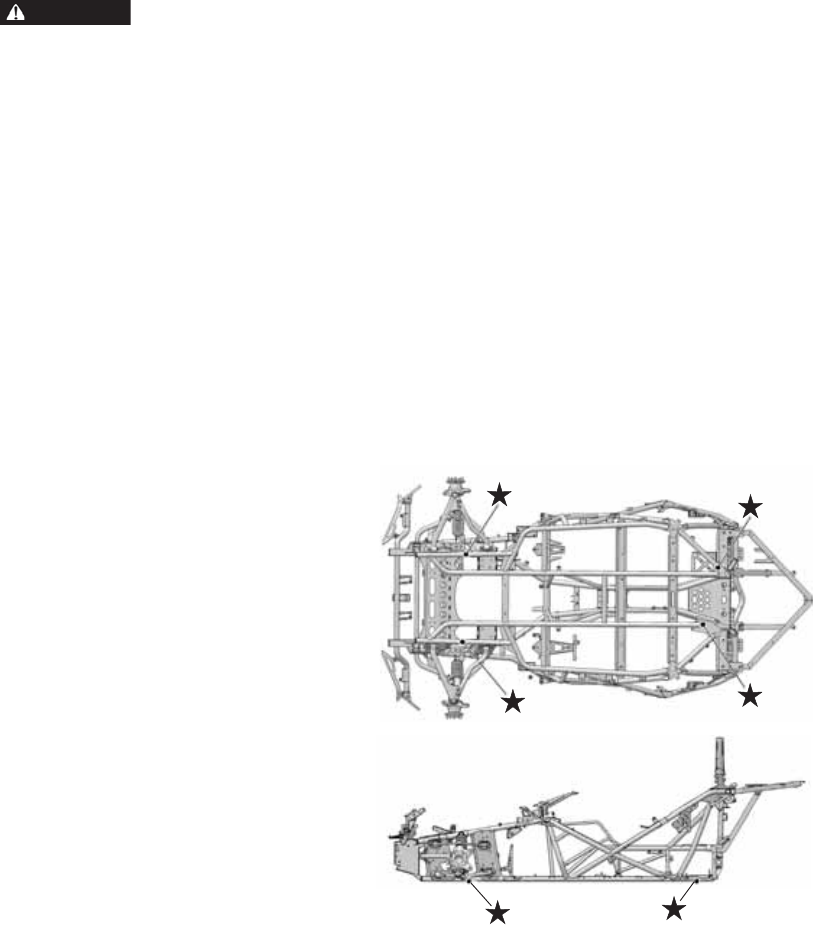

Bottom View of Lift Points
Side View of Lift Points
![](asset-34.png)
50
MAINTENANCE
Periodic Maintenance
Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the
need for replacement parts, use genuine SLINGSHOT parts available from your dealer.
Record service and maintenance information in the Maintenance Log beginning on page 97.
Perform maintenance at the intervals specified in the Periodic Maintenance Chart beginning
on page 51. Perform the procedures more frequently if the vehicle is subjected to severe use.
Severe Use Definition
• Idling for extended periods
• High speed operation for extended periods
• Low speed operation for extended periods
• Frequent operation in dusty or otherwise adverse conditions
• Frequent operation in extremely hot or cold climates
• Frequent short trip cold weather operation
Maintenance Chart Key
WARNING! Improperly performing the procedures marked with a “D” could result in component failure
and lead to serious injury or death. Have an authorized SLINGSHOT dealer perform these services.
Symbol Description
ŹPerform these operations more often for vehicles subjected to severe use.
EEmission-related service (failure to conduct this maintenance will not void the emissions
warranty but may affect emissions)
DHave an authorized SLINGSHOT dealer perform these services.
Symbol Procedure Description
IInspect, tighten, clean, adjust, repair and/or replace as needed.
RReplace
LLubricate as directed
PPerform the service as directed
![](asset-35.png)
51
MAINTENANCE
Periodic Maintenance Chart
See Maintenance Chart Key
on preceding page
Odometer Reading in Miles (Kilometers)
500 (800)
5000 (8000)
10000 (16000)
15000 (24000)
20000 (32000)
25000 (40000)
30000 (48000)
35000 (56000)
40000 (64000)
45000 (72000)
50000 (80000)
100000 (160000)
150000 (240000)
Component Page
ŹEAir Filter 57 I I I R I I R I I R I I I
Battery 69 I I I I I I I I I I I I I
ŹEBelt, Accessory - - - - - - - - - - - - - I
ŹBrake Fluid 63 I I R I R I R I R I R R R
ŹBrake Pads 64 I I I I I I I I I I I I I
Brake Pedal 64 I I I I I I I I I I I I I
Clutch Fluid 60 I I I I I I R I I I I
Clutch Pedal - I I I I I I I I I I I
Control Cables - I I L I L I L I L I L
ŹDCoolant - - - - - - - - - - - - R -
ŹECoolant Hoses 57 I I I I I I I I I I I I I
Crankcase Vent 59 I I I I I I I I I I I
Drive Belt 58 I I I I I I I I I I I I I
Driveshaft Yoke - L L L L L L L L L L L L L
ŹEEngine Oil & Filter 53 R R R R R R R R R R R R R
Engine Compression - - I - - - I - - - - I I I
D E Evaporative Emission
Control System (if
equipped)
-II I I I I I I I I I I I
Exhaust System 68 I I I I I I I I I I I I I
Fasteners 38 I I I I I I I I I I I
Fuel System 59 I I I I I I I I I I I
Headlamps 74 I I I I I I
ŹRadiator 57 - - - - - - - - - - - - I
Radio/Radio Software 98 Update annually. Please see your dealer.
ABS Components 28 I I I I I I I I I I I
Rear Shock 38 I I I I I I I I I I I R -
ŹAngle Drive Fluid 55 - - - - - - - - - - R R R
D E Spark Plugs - - - - - - I - - - - I R -
Steering - I I I I I I I I I I I I I
Swingarm - I I I I I I I I I I I
Tires (Condition) 65 I I I I I I I I I I I I I
ŹTransmission Fluid 54 - - - - - - - - - - R R R
![](asset-36.png)
52
MAINTENANCE
Engine Oil
Always check and change the engine oil at the intervals outlined in the Periodic Maintenance
Chart beginning on page 51. Always use POLARIS SLINGSHOT Premium 5W-30 engine
oil or another 5W-30 dexos1®-approved engine oil for the SLINGSHOT vehicle. See page
86 for the part numbers of recommended service products.
Engine Oil Level
The oil fill cap and dipstick are located under the
hood, on the engine. Always use the recommended
oil.
NOTE: The engine must be at normal operating
temperature when checking or changing the oil.
Do not check or change the oil when the engine is
cold.
1. Position the vehicle on a level surface. Place the
transmission in neutral. Engage the park brake.
2. Start the engine and allow it to idle for 2-3
minutes. Stop the engine.
3. Wait three (3) minutes before checking the oil
level. This allows the oil to settle to the bottom
of the crankcase. Do not check the oil level
immediately after stopping the engine.
4. Open the hood. See page 31.
5. Remove the dipstick. Wipe it dry with a clean
cloth.
6. Reinstall the dipstick. Make sure it’s fully
seated.
7. Remove the dipstick and view the oil level.
Maintain the oil level between the MIN and
MAX marks on the dipstick. Add oil if
necessary. Do not overfill.
NOTICE: A rising oil level between checks in cool weather driving can indicate contaminants such as
fuel or moisture collecting in the crankcase. If the oil level is over the full mark, change the
oil immediately.

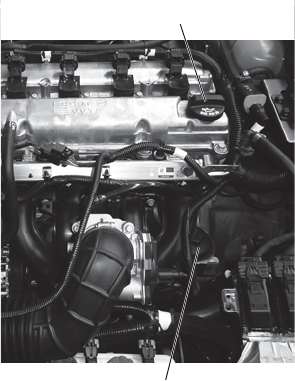

Oil Fill Cap Oil Dipstick
Safe Range
{
![](asset-37.png)
53
MAINTENANCE
Engine Oil
Engine Oil / Filter Change
Always check and change the engine oil at the intervals outlined in the Periodic Maintenance
Chart beginning on page 51. Always change the oil filter whenever changing oil.
1. Position the vehicle on a level surface. Place the transmission in neutral. Engage the park
brake.
NOTE: The engine must be at normal operating temperature when checking or changing the oil. Do
not check or change the oil when the engine is cold.
2. Start the engine and allow it to idle for 2-3 minutes. Stop the engine.
CAUTION! Hot oil can cause burns to skin. Do not allow hot oil to contact skin.
3. Clean the area around the drain plug at the bottom of the crankcase.
4. Place a drain pan under the drain plug. Remove the drain plug. Allow the oil to drain
completely.
5. Clean the sealing surfaces of the drain plug and oil pan. The sealing surfaces should be
clean and free of burrs, nicks or scratches.
6. Reinstall the drain plug. DO NOT overtighten.
Torque: 18 ft-lbs (25 Nm)
7. Using an appropriate oil filter wrench, rotate the oil
filter cap counter-clockwise to remove the cap and
filter unit.
8. Remove the filter from the cap.
9. Using a clean, dry cloth, clean the filter sealing
surface on the crankcase.
10. Lubricate the gasket area on the new oil filter with a
thin film of clean engine oil.
11. Install the new filter onto the oil filter cap.
12. Lubricate the o-ring on the oil filter cap with a thin
film of clean engine oil.
13. Use the oil filter wrench to reinstall the cap/filter unit.
Tighten to specification.
Torque: 16 ft-lbs (22 Nm)
14. Remove the oil fill cap. Add the recommended oil.
Do not overfill.
Capacity: 5 qts (4.7 liters)
15. Reinstall the oil fill cap.
16. Shift to neutral.
17. Start the engine and allow it to idle for 1-2 minutes. Stop the engine.
18. Check for leaks around the drain plug and oil filter.
19. Remove the dipstick and view the oil level. Maintain the oil level between the MIN and
MAX marks on the dipstick. Add oil if necessary. Do not overfill.
20. Recycle the used oil and filter properly.
Oil Filter Cap
Oil Fill Cap
![](asset-38.png)
54
MAINTENANCE

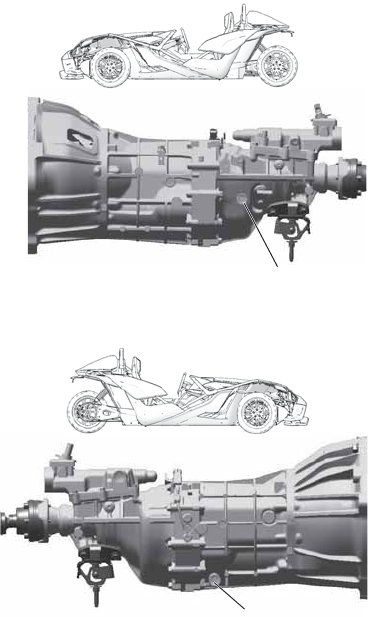

Transmission Fluid
This fluid level does not require routine inspection. If gear shifting seems irregular or if you
suspect a fluid leak, inspect the fluid level.
Always change the transmission fluid at the intervals outlined in the Periodic Maintenance
Chart beginning on page 51. Always use SLINGSHOT Transmission Fluid or another GL-3
rated transmission fluid. See page 86 for the part numbers of recommended service products.
The fill plug is located on the left side of the gearcase. The drain plug is located on the right
side of the gearcase.
Fluid Level Check
1. Elevate the vehicle using appropriate jack
stands. Make sure the elevated vehicle is
level.
2. Remove the fill plug. If the fluid level is not
within 5 mm of the bottom edge of the fill
hole, add the recommended fluid to bring the
level to the bottom edge of the fill hole.
3. Reinstall the fill plug.
Torque: 19-35 ft-lbs (26-48 Nm)
4. See your dealer for service. A low fluid level
indicates a fluid leak.
Fluid Change
1. Elevate the vehicle using appropriate jack
stands. Make sure the elevated vehicle is
level.
2. Remove the fill plug.
3. Place a drain pan under the drain plug.
4. Remove the drain plug. Allow the fluid to
drain completely.
5. Clean and reinstall the drain plug with a new
o-ring. Torque to specification.
Torque: 19-35 ft-lbs (26-48 Nm)
6. Add the recommended fluid. Do not overfill.
Maintain the fluid level at the bottom edge
of the fill hole.
Capacity: 2.75 qts (2.6 liters)
7. Reinstall the fill plug with a new o-ring. Torque to specification.
Torque: 19-35 ft-lbs (26-48 Nm)
8. Check for leaks. Dispose of used fluid properly.
Drain Plug
Fill Plug
![](asset-39.png)
55
MAINTENANCE

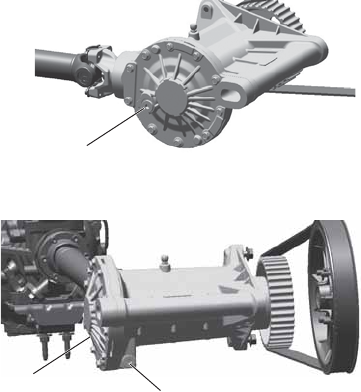

Angle Drive Fluid
This fluid level does not require routine inspection. If you suspect a fluid leak, inspect the
fluid level.
Always change the angle drive fluid at the intervals outlined in the Periodic Maintenance
Chart beginning on page 51. Always use SLINGSHOT Angle Drive Fluid or another SAE
80W-90 fluid for the angle drive. See page 86 for the part numbers of recommended service
products.
The fill plug is located on the left side of the angle drive housing. The drain plug is located
on the right side of the housing.
Fluid Level Check
1. Elevate the vehicle using appropriate jack
stands. Make sure the elevated vehicle is
level.
2. Remove the fill plug. If the fluid level is
not at the bottom edge of the fill hole, add
the recommended fluid to bring the level
to the bottom edge of the fill hole.
NOTE: Use a syringe to add the fluid. If a syringe is
not available, remove the battery and use a
funnel and tube to add the fluid.
3. Reinstall the fill plug.
Torque: 10-14 ft-lbs (14-19 Nm)
4. See your dealer for service. A low fluid
level indicates a fluid leak.
Fluid Change
1. Elevate the vehicle using appropriate jack
stands. Make sure the elevated vehicle is
level.
2. Remove the fill plug.
3. Place a drain pan under the drain plug.
4. Remove the drain plug. Allow the fluid to drain completely.
5. Clean and reinstall the drain plug. Torque to specification.
Torque: 10-14 ft-lbs (14-19 Nm)
NOTE: Use a syringe to add the fluid. If a syringe is not available, remove the battery and use a funnel
and tube to add the fluid.
6. Add the recommended fluid. Do not overfill. Maintain the fluid level at the bottom edge
of the fill hole.
Capacity: 23.7 oz (700 ml)
7. Reinstall the fill plug. Torque to specification.
Torque: 10-14 ft-lbs (14-19 Nm)
8. Check for leaks. Dispose of used fluid properly.
Drain Plug
Fill Plug
Fill Plug
![](asset-3a.png)
56
MAINTENANCE
Cooling System
The engine coolant level is maintained by the recovery system. The recovery system
components are the recovery bottle, recovery bottle pressure cap and connecting hose.
As coolant operating temperature increases, the expanding (heated) excess coolant is forced
out of the radiator and into the recovery bottle. As engine coolant temperature decreases, the
contracting (cooled) coolant is drawn back from the tank and into the radiator.
NOTE: Some coolant level drop on new vehicles is normal as the system is purging itself of trapped
air. Observe coolant levels and maintain as recommended by adding coolant to the recovery
bottle.
Coolant
Always use POLARIS SLINGSHOT 50/50 Antifreeze or another DEX-COOL®-approved
50/50 premixed antifreeze for your vehicle. DO NOT use POLARIS Antifreeze 50/50
Premix.
To ensure that the coolant maintains its ability to protect the engine, we recommend that the
system be completely drained every five (5) years and fresh antifreeze added. See your
authorized dealer for this service.
Always check and change the coolant at the intervals outlined in the Periodic Maintenance
Chart beginning on page 51.
Coolant Level
Always check the coolant level when the engine is cold. Maintain the coolant level at the
“cold” fill level mark on the recovery bottle (when the fluid is cool).
1. Position the vehicle on a
level surface.
2. Open the hood.
3. View the coolant level in the
recovery bottle.
CAUTION! Escaping steam can
cause burns. Never remove the
pressure cap while the engine is
warm or hot. Always allow the
engine to cool before removing the
pressure cap.
4. If the level is low, slowly
remove the pressure cap.
Use a funnel to add coolant
to the fill level mark.
5. Reinstall the pressure cap.
NOTE: If coolant must be added often, or if the recovery bottle runs completely dry, there may be a
leak in the system. Have the cooling system inspected by your dealer.
Pressure
Cap Recovery
Bottle “Cold” Fill
Level Mark
![](asset-3b.png)
57
MAINTENANCE
Cooling System
Radiator and Cooling Fan
Always check and clean the radiator and fan at the intervals outlined in the Periodic
Maintenance Chart beginning on page 51.
NOTICE: Washing the vehicle with a high-pressure hose could damage the radiator fins and impair
the radiator's effectiveness. Using a high-pressure system is not recommended.
1. Check radiator air passages for restrictions or damage.
2. Carefully straighten any bent radiator fins.
3. Inspect the cooling fan for smooth rotation.
4. Remove any obstructions with low pressure compressed air or low pressure water.
Coolant Hoses Inspection
Periodically inspect coolant hoses for leaks, wear or damage. Replace worn or damaged
hoses.
Air Filter
Always inspect the air filter at the intervals
outlined in the Periodic Maintenance Chart
beginning on page 51. Replace the air filter every
15,000 miles (2400 km).
1. Open the hood.
2. Clean all dirt and debris from the air box
area.
3. Unlatch the air box cover clips and carefully
remove the air box cover.
4. Remove the air filter from the air box.
5. Inspect the air filter. Shake the filter to
remove excess dirt. If the filter remains
caked with dirt, replace the filter with a new
filter.
6. Clean the inside of the air box using a
vacuum.
NOTICE: Avoid using compressed air for cleaning as
dirt could enter the engine.
7. Reinstall the air filter or install a new air
filter.
CAUTION! Operating the vehicle without the air filter
installed can result in serious engine damage, which
could result in an accident and injury to the operator
and others. Always make sure the air filter is installed.
8. Reinstall the air box cover and secure the clips.
9. Close the hood.
Cover Clips
Air Filter
![](asset-3c.png)
58
MAINTENANCE
Drive Belt Condition
Adjust drive belt tension after the first 2,500 miles
(4,000 km) of operation. Replace the drive belt and both
sprockets as a set if the drive belt has over 30,000 miles
(48,000 km) of service at the time of damage or failure.
Replace the drive belt if any inspection reveals cracks,
broken teeth or frayed edges. See the SLINGSHOT
Service Manual or an authorized dealer.
DO NOT attempt to check belt tension if the belt has
been exposed to rain or washing within a 24 hour period
or if the belt is hot from being in use. Allow the belt to
cool down to ambient temperature before measuring
belt tension.
Drive Belt Wear Analysis
Drive Belt Cleaning
Cleaning the drive belt will maximize belt and sprocket life and minimize drive line noise.
Clean the belt at every tire change. Clean the belt more often if operating in dirty, dusty or
high debris environments.
1. Mix a few drops of mild dish soap with a cup of warm water.
2. Use a soft nylon brush to clean the belt and sprocket teeth with the soapy water. Clean
well in corner areas where road debris and belt dust can collect.
3. Rinse the belt with clear water, then dry thoroughly.
NOTE: Do not inspect or adjust drive belt tension when the belt is wet. Improper adjustment will result.
Internal tooth cracks
(hairline):
OK to run, but
monitor condition
External tooth cracks:
Replace belt Missing teeth:
Replace belt Chipping (not serious):
OK to run, but monitor
condition
Fuzzy edge cord:
OK to run,
but monitor condition
Hook wear:
Replace belt Stone damage:
Replace belt if damage is
on edge
Bevel wear
(outboard edge only):
OK to run,
but monitor condition
![](asset-3d.png)
59
MAINTENANCE

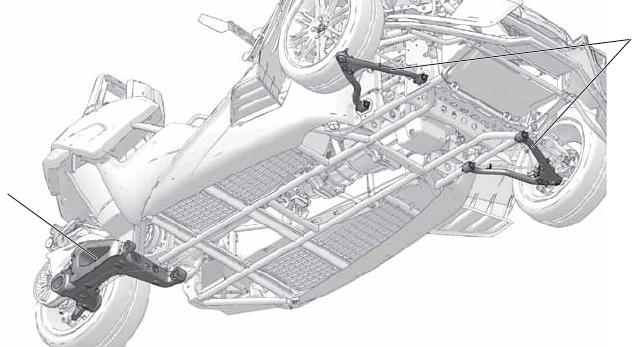

Suspension Inspections
Always inspect the suspensions at the intervals outlined in the Periodic Maintenance Chart
beginning on page 51. See the SLINGSHOT Service Manual or your authorized dealer.
Fuel System Components
1. Inspect fuel lines and connections for wear, deterioration, kinks, damage or leaks.
Promptly see your dealer for service if any of these conditions exist.
2. See your dealer for fuel line replacement every two years.
Evaporative Emission Control System (California Models)
The “check engine” indicator illuminates if a purge valve fault is present. See your
authorized dealer for service.

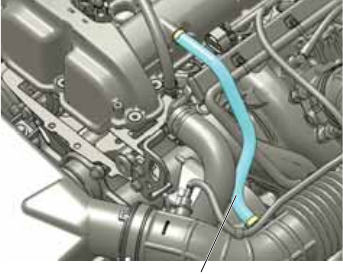

Crankcase Breather Hose
Inspect the entire length of the crankcase
breather hose for cracks, kinks, wear or other
damage. Make sure clamps are in place and
secure.
Breather Hose
![](asset-3e.png)
60
MAINTENANCE

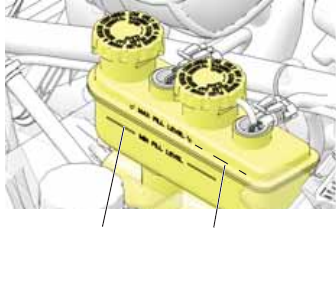

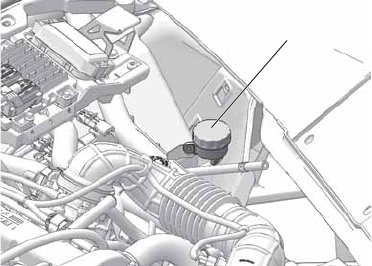

Hydraulic Clutch Fluid
The clutch fluid reservoir is located under the
hood on the driver’s side of the vehicle. Check
the hydraulic clutch fluid level before each use
of the vehicle. Maintain the fluid level between
the MIN and MAX lines on the reservoir.
Use DOT 4 brake fluid in the hydraulic clutch
fluid reservoir. Use fluid only from a sealed,
clean container. Review the brake fluid
precautions on page 62.
NOTICE: Brake fluid will damage painted surfaces
and plastic parts. Always clean spilled
brake fluid immediately with water and a
mild detergent.
Clutch Fluid Level
1. Position the vehicle on a level surface.
2. Place the transmission in gear.
3. Open the hood.
4. Wipe the fluid container and the area around the reservoir cover with a clean cloth.
WARNING! Using the wrong fluid or allowing air or contaminants into the fluid system can damage the
system seals or result in a malfunction that could lead to serious injury or death. Do not operate the
clutch while the reservoir cover is removed. Fluid could overflow from the reservoir and cause air to
enter the fluid system.
5. View the fluid level in the reservoir. If the fluid level is below the MIN line on the
reservoir, remove the cap and add the recommended fluid to the MAX line. Do not
overfill.
6. Reinstall the reservoir cap.
7. Depress the clutch pedal forcefully for a few seconds. Check for fluid leakage around the
clutch reservoir fittings.
Clutch Fluid
Reservoir
61
MAINTENANCE
Hydraulic Clutch Fluid
Clutch Fluid Change
Always change fluid if the fluid becomes contaminated, if the fluid condition is
questionable, or if the type and brand of the fluid in the reservoir are unknown.
1. Position the vehicle on a level surface.
2. Place the transmission in gear.
3. Open the hood.
4. Wipe the fluid container and the area around the reservoir cover with a clean cloth.
WARNING! Using the wrong fluid or allowing air or contaminants into the fluid system can damage the
system seals or result in a malfunction that could lead to serious injury or death. Do not operate the
clutch while the reservoir cover is removed. Fluid could overflow from the reservoir and cause air to
enter the fluid system.
5. Using a syringe or vacuum-type tool, remove the old fluid from the fluid reservoir.
6. Refill the reservoir to the MAX line with the recommended fluid. Do not overfill.
7. Reinstall the reservoir cap.
8. Depress the clutch pedal forcefully for a few seconds. Check for fluid leakage around the
clutch reservoir fittings.
![](asset-40.png)
62
MAINTENANCE
Brake Fluid
The brake fluid master cylinder reservoir is
located under the hood on the driver’s side of
the vehicle. Check the brake fluid level before
each use of the vehicle. Maintain the fluid level
between the MIN and MAX lines on the
reservoir.
If the BRAKE FAILURE indicator illuminates,
brake fluid may be low. Check the brake fluid
level.
Use DOT 4 brake fluid in the brake fluid
reservoir. Use fluid only from a sealed, clean
container.
Brake Fluid Precautions
Using the wrong fluid or allowing air or contaminants into the fluid system can damage the system
seals or result in a malfunction that could lead to serious injury or death. Use only DOT 4 brake fluid
from a sealed container.
Do not operate the front brake with the reservoir cover removed. Fluid could overflow from the reservoir
and allow air to enter the system. Air in the brake system could cause the brakes to malfunction.
An over-full reservoir may cause brake drag or brake lock-up, which could result in serious injury or
death. Maintain brake fluid at the recommended level. Do not overfill.
After opening a bottle of brake fluid, always discard any unused portion. Never store or use a partial
bottle. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air. The moisture
causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the
possibility of accident or severe injury.
NOTICE: Brake fluid will damage painted surfaces and plastic parts. Always clean spilled brake fluid
immediately with water and a mild detergent.
Brake Fluid Change
Change the brake fluid every two years. Always change fluid if the fluid becomes
contaminated, if the fluid condition is questionable, or if the type and brand of the fluid in the
reservoir are unknown. See your authorized dealer for this service.
Brake Fluid
Reservoir
Clutch Fluid
Reservoir
WARNING
![](asset-41.png)
63
MAINTENANCE
Brake Fluid
Brake Fluid Level
Check the brake fluid level before each use of the vehicle.
1. Position the vehicle on a level surface.
2. Place the transmission in gear.
3. Open the hood.
4. Wipe the fluid container and the area
around the reservoir cover with a clean
cloth.
5. View the fluid level in the reservoir. If the
fluid level is below the MIN line on the
reservoir, remove the cap and add the
recommended fluid to the MAX line. Do
not overfill.
6. Reinstall the reservoir cap.
7. Depress the brake pedal forcefully for a few
seconds. Check for fluid leakage around the
master cylinder fittings and the brake caliper fittings.
Maximum
Minimum
![](asset-42.png)
64
MAINTENANCE
Brake System Inspection
1. Inspect all brake hoses and connections for
dampness or stains from leaking or dried
fluid. Tighten any leaking connections and
replace components as necessary. See the
SLINGSHOT Service Manual or your
authorized dealer.
2. Check the brake pedal for excessive travel or
a spongy feel.
3. Check the brake pads for wear, damage and
looseness.
4. Inspect brake discs for nicks, scratches, cracks
or other damage. Clean any grease using an
approved brake cleaner or alcohol.
WARNING! Do not apply WD-40 or any petroleum
product to brake discs. These types of products are
flammable and may also reduce the friction between the
brake pad and caliper.
5. Inspect the brake disc spline and pad wear
surface for excessive wear. Change pads when
worn to 3/64” (1 mm).
6. Inspect the thickness of each brake disc at
four or more locations around the disc. If any
disc is worn to the minimum thickness at the
thinnest point, or if a disc is damaged, see
your dealer for replacement.
3/64" (1mm)
Minimum Thickness
Front: 4.5 mm
Rear: 6.5 mm
![](asset-43.png)
65
MAINTENANCE
Wheels and Tires
Operating the vehicle with worn tires, improper tires or tires with improper or uneven tire pressure could
cause loss of control or accident. Always use the correct size and type of tires specified for your
vehicle. Always maintain proper tire pressure as recommended in the owner's manual and on safety
labels. Always replace tires when tread depth has worn to the minimum requirement.
Tire Condition
Inspect the tire sidewalls, road contact surface
and tread base. If inspection reveals cuts,
punctures, cracks or other wear or damage,
replace the tire before driving the vehicle. See
the SLINGSHOT Service Manual or an
authorized dealer.
Tire Tread Depth
Measure the tread depth near the center of the
tread on both tires.
• Replace a front tire when tread depth wears
to the minimum of 1.6 mm.
• Replace the rear tire when tread depth wears
to the minimum of 4 mm.
Tire Pressure
For an accurate reading, check tire pressure
when tires are cold. Driving warms the tires
and increases tire air pressure.
1. Remove the valve stem cap.
2. Check tire pressure using the tire pressure
gauge provided in the tool kit.
3. Adjust tire pressure to the recommended
specification. Refer to safety labels on the
vehicle or to the specifications section
beginning on page 84.
WARNING! Do not exceed the maximum recommended inflation pressure to seat the bead. Tire or rim
failure may result.
WARNING
Front Tread Minimum: 1.6 mm
Rear Tread Minimum: 4 mm
Valve
Stem
66
MAINTENANCE
Wheels and Tires
Wheel Inspection
Inspect all wheels for cracks or other damage. Replace damaged wheels promptly. Do not
operate the vehicle if wheels are damaged or cracked.
Wheel Removal
1. Position the vehicle on a firm, level surface.
2. Place the transmission in gear.
3. Engage the park brake.
4. Position an appropriate floor jack under the frame at the side or rear of the vehicle, near
the wheel to be removed.
5. If removing the rear wheel, place wheel chocks at the front of both front wheels to
prevent rolling.
6. Elevate the vehicle until the wheel is slightly off the ground.
7. Remove the wheel nuts and remove the wheel.
Wheel Installation
1. With the transmission in gear and the park brake set, place the wheel on the wheel hub.
Be sure the valve stem is toward the outside and rotation arrows on the tire point toward
forward rotation.
2. Install the wheel nuts and finger-tighten them.
NOTE: On vehicles with tapered rear wheel nuts, make sure the tapered end of the nut goes into the
taper on the wheel.
3. Tighten all wheel nuts to specification.
Torque: 75 ft-lbs (102 Nm)
4. Lower the vehicle and remove the floor jack.
![](asset-45.png)
67
MAINTENANCE
Spark Plugs
Spark Plug Recommendations
Refer to the specifications section beginning on page 84 for the recommended spark plug
type and gap for your vehicle. Torque spark plugs to specification after installing.
NOTICE: Using non-recommended spark plugs can result in serious engine damage. Always use the
recommended spark plugs.
Inspect and replace spark plugs at the intervals recommended in the Periodic Maintenance
Chart beginning on page 51. Inspect spark plugs when the engine is warm. Always replace
spark plugs in sets of four.

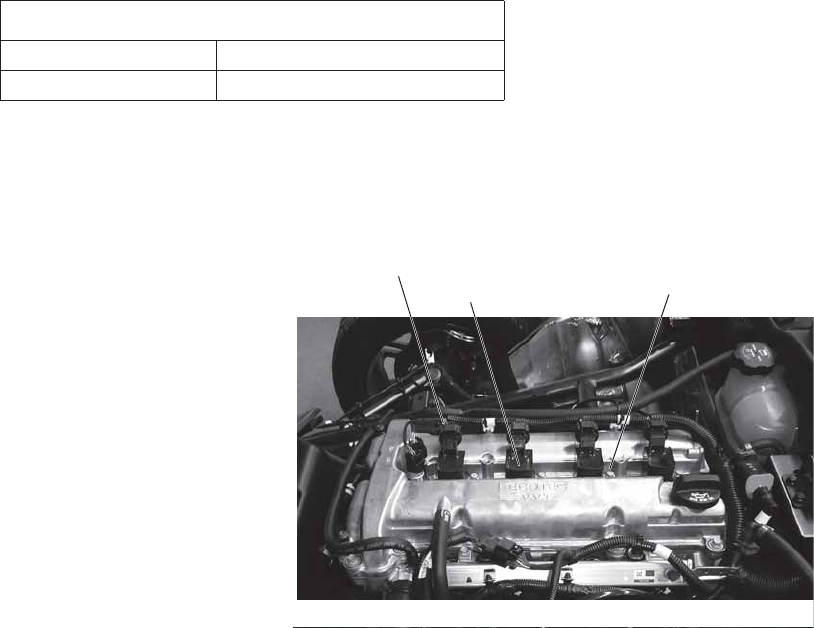

Spark Plug Service
1. Open the hood.
CAUTION! A hot exhaust system
and engine can cause burns. Allow
a hot engine to cool or wear
protective gloves when removing a
spark plug for inspection.
2. Unplug the spark plug wire
connectors from the
ignition coils.
3. Remove the ignition coil
bolts.
4. Remove the ignition coils.
CAUTION! Wear eye and face
protection when using pressurized
air.
5. Before removing the spark
plugs, use compressed air
to remove any loose dirt or
debris from the spark plug wells.
NOTICE: The spark plugs must be installed before using compressed air in this area.
6. Rinse the plug wells with water and dry with compressed air.
NOTE: Spark plug wells have drain holes built into the cylinder head to allow water to drain out.
7. Remove the spark plugs.
Tool: 5/8” spark plug socket with extension
Spark Plug Specifications
Spark Plug Type AC Delco 41-103 or equivalent
Spark Plug Torque 15 ft-lbs (20 Nm)
Spark Plug Wire Connectors (4) Ignition
Coil Bolts (4)
Ignition Coils (4)
68
MAINTENANCE
Spark Plugs
Spark Plug Service
8. Inspect electrodes for wear and carbon buildup. A good plug will have a sharp outer
edge with no rounding or erosion of the electrodes.
9. Do not attempt to adjust spark plug gap.
10. Reinstall the spark plugs or install new plugs.
11. Tighten spark plugs to specification.
12. Reinstall the ignition coils.
13. Reinstall the ignition coil bolts. Tighten to specification.
Torque: 7.5 ft-lbs (10 Nm)
14. Connect the spark plug wires to the ignition coils.
Engine Compression Test
An engine compression test can be performed to monitor general engine condition. See the
SLINGSHOT Service Manual or your authorized dealer.
Exhaust System Inspection
Check the exhaust system for stains from leaking exhaust gasses. Replace damaged or
leaking exhaust gaskets. Tighten loose clamps and fasteners. See the SLINGSHOT Service
Manual or your authorized dealer.
![](asset-47.png)
69
MAINTENANCE
Battery
Improperly connecting or disconnecting battery cables can result in an explosion and cause serious
injury or death. When removing the battery, always disconnect the negative (black) cable first. When
reinstalling the battery, always connect the negative (black) cable last.
Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with
skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable
oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away. Ventilate when charging
or using in an enclosed space. Always shield eyes when working near batteries. KEEP OUT OF
REACH OF CHILDREN.
Battery Maintenance
Always keep battery terminals and connections free of corrosion. If cleaning is necessary,
remove corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda
and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the
terminals with dielectric grease or petroleum jelly. Be careful not to allow cleaning solution
or tap water into a conventional battery.
Make sure battery connections are tight. See page 71 for cable torque specifications.
WARNING
WARNING
![](asset-48.png)
70
MAINTENANCE
Battery

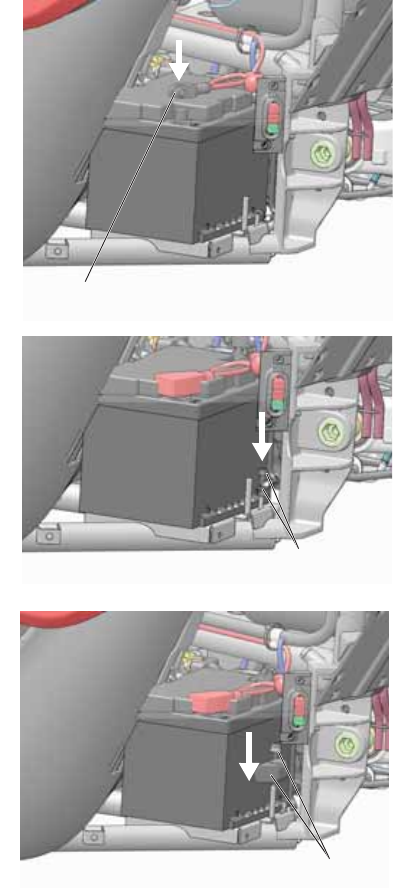

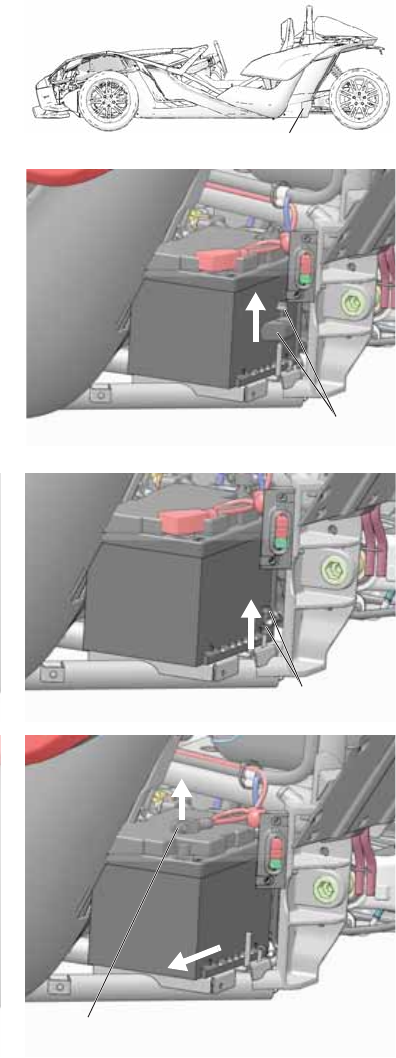

Battery Access and Removal
The battery compartment is located on the
lower left side of the vehicle, behind the rider
compartment.
1. Remove the access panel fasteners and
remove the access panel.
2. Remove the battery retainer nut. Remove
the retainer wedge from the stud.
3. Slide the battery out of the compartment.
4. Remove the nut securing the negative (-)
battery cable to the chassis ground.
Remove the cable eyelet from the stud.
Move the cable to prevent it from
contacting any metal components.
5. Loosen the positive (+) battery terminal
bolt and disconnect the cable from the
terminal. Move the cable to prevent it
from contacting any metal components.
Battery Compartment
Step 2
Step 4
Step 5
![](asset-49.png)
71
MAINTENANCE
Battery
Battery Installation
Using a new battery that has not been fully
charged can damage the battery and result in a
shorter life. It can also hinder vehicle
performance.
1. Make sure the battery is fully charged.
2. Make sure cable ends and battery
terminals are clean. Apply a light film of
dielectric grease to terminals.
3. Before installing the battery into the
battery compartment, make sure the
negative (-) battery cable is connected to
the negative (-) terminal.
Torque: 60 in-lbs (6.8 Nm)
4. Connect the positive (+) cable to the
positive (+) terminal.
Torque: 60 in-lbs (6.8 Nm)
5. Reinstall the negative (-) battery ground
cable eyelet to the chassis ground stud.
Tighten the nut.
Torque: 60 in-lbs (6.8 Nm)
6. Carefully reinstall the battery with the
negative terminal toward the inside of the
vehicle.
7. Reinstall the battery retainer wedge and
nut to the stud.
Torque: 48 in-lbs (5.4 Nm)
8. Apply dielectric grease over the terminal
connections.
9. Reinstall the battery access panel
Battery Storage
Whenever the vehicle is not used for a period
of one month or more, remove the battery
from the vehicle, ensure that it’s fully charged,
and store it out of the sun in a cool, dry place.
Check battery voltage each month during
storage and recharge as needed to maintain a full charge.
Step 7
Step 5
Step 4
![](asset-4a.png)
72
MAINTENANCE
Battery
Battery Charging
The following battery charging instructions apply only to the installation of a sealed battery.
Read all instructions before proceeding with the installation of this battery.
The sealed battery is already filled with electrolyte and has been sealed and fully charged at
the factory. Never pry the sealing strip off or add any other fluid to this battery.
The single most important thing about maintaining a sealed battery is to keep it fully
charged. Since the battery is sealed and the sealing strip cannot be removed, you must use a
voltmeter or multimeter to measure DC voltage.
WARNING! An overheated battery may explode, causing severe injury or death. Always watch
charging times carefully. Stop charging if the battery becomes very warm to the touch. Allow it to cool
before resuming charging.
For a refresh charge, follow all instructions carefully.
1. Check the battery voltage with a voltmeter or multimeter. A fully charged battery will
register 12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery at 1.8 amps until battery voltage
is 12.8 or greater.
3. When using an automatic charger, refer to the charger manufacturer's instructions for
recharging.
4. When using a constant current charger, use the guidelines below. Always verify battery
condition before and 1-2 hours after the end of charging.
State of
Charge Voltage
(DC) Action Charge Time
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check again
in 3 months None required
75%-100% 12.6-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.3-12.6 volts Needs charge 5-11 hours
25%-50% 12.0-12.3 volts Needs charge At least 13 hours
0%-25% 12.0 volts or less Needs charge At least 20 hours
![](asset-4b.png)
73
MAINTENANCE
Headlamp Bulb Replacement
When servicing a halogen lamp (bulb), avoid touching the lamp with bare fingers. Oil from
your skin leaves a residue, causing a hot spot that will shorten the life of the lamp. If fingers
do touch a lamp, clean it with denatured alcohol.
Outer Headlamps
1. Pull the sealing boot away from the back of the bulbs and housing.
2. Press the looped end of the wire bulb retainer clip and swing the end toward the center of
the bulb to release it from the latch tab.
3. With the wire connector attached, pull the bulb out.
4. Disconnect the wire harness. Install the new bulb and secure the retainer.
5. Reinstall the sealing boot. Make sure it seals tightly around the bulb base and lens to
prevent condensation.
Center Headlamps (if equipped)
1. Disconnect the headlight wiring harness at the rear of the headlights.
2. From the rear of the headlight, grasp the bulb housing and rotate it counter-clockwise to
remove it.
3. Install the new bulb and rotate it clockwise to secure it.
4. Reconnect the wiring harness.
LED Light Assemblies
LED lights are not serviceable. If one of the
LED lamps fails to illuminate, the entire light
assembly must be replaced.

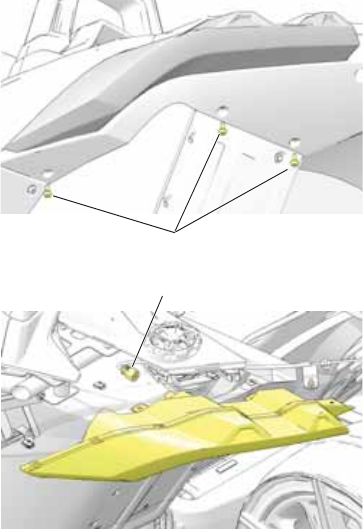

1. Remove the rear body panel to access the
light assembly.
2. Remove the screws securing the light
assembly to the vehicle (taillight assembly
shown).
3. Unplug the electrical connector from the
light assembly.
4. Remove the light assembly.
5. Install the electrical connector to the
replacement light assembly.
6. Reinstall the light assembly. Tighten the
screws.
Torque: 36 in-lbs (4 Nm)
7. Reinstall the rear body panel. Tighten the
screws.
Torque: 65 in-lbs (7 Nm)
Screws
Electrical Connector
![](asset-4c.png)
74
MAINTENANCE
Headlamp Aim Inspection Conditions
The following headlamp aim inspections and adjustments will be accurate only when tire
pressures and suspensions are at factory-recommended settings. Refer to safety labels on the
vehicle or to the specifications section beginning on page 84. The vehicle must also be
unladen (without fuel, rider weight or cargo weight).
Center Headlamp Aim Adjustment (USA)
1. Verify that headlamp aim inspection
conditions are met.
2. Position the vehicle on a level surface
with the nose approximately 25 ft.
(7.6 m) from a wall.
3. Move the ignition switch to the ON
position to turn the lights on. Place the
headlamps on low beam.
4. Observe the headlight beam display
on the wall. The beam displays at two
levels, higher at the right side and
lower at the left side.
5. Measure from the floor to the lower
beam display at the left side as
illustrated. When the beam is properly
adjusted, this measurement should be
in the following range:
• 19-20.75” (48-53 cm) for base model
• 20-21.75” (51-55 cm) for SL model
6. To adjust a headlight beam, open the
hood and turn the two upper headlamp
adjustment screws simultaneously and
equally. Adjust both headlights
equally.
•Clockwise adjustment lowers the beam
•Counter-clockwise adjustment raises
the beam
Adjust Simultaneously
and Equally Adjust Simultaneously
and Equally
Clockwise (Lower the Beam)
Counter-Clockwise (Raise the Beam)
20.75” (53 cm)
19” (48 cm)
21.75” (55 cm)
20” (51cm)
SLINGSHOT SL
Acceptable Range
SLINGSHOT
Acceptable Range
25 ft.
(7.6 m)
Measure
Left Lower
Beam
Measure
Left Lower
Beam
![](asset-4d.png)
75
MAINTENANCE

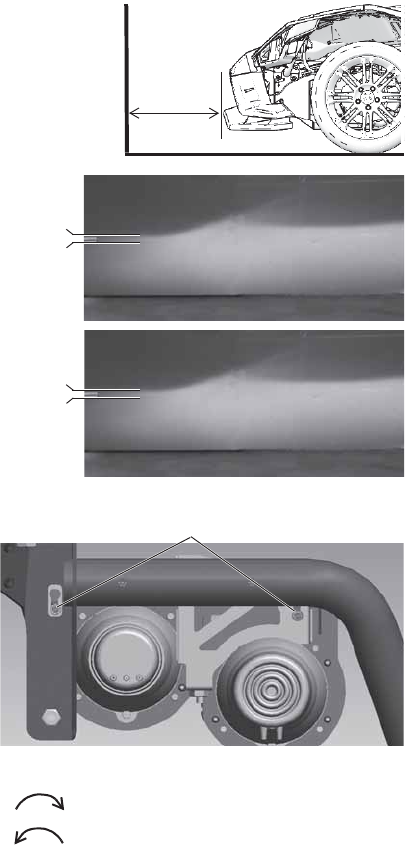

Auxiliary Headlamp Aim Adjustment (USA)
1. Verify that headlamp aim inspection
conditions are met. See page 74.
2. Position the vehicle on a level surface
with the nose 5 ft. (1.5 m) from a wall.
3. Move the ignition switch to the ON
position to turn the lights on.
4. Observe the auxiliary headlight beam
display on the wall. The lower edge of
the beam displays with a multi-colored
halo.
5. Measure from the floor to the bottom
edge of the halo’s green band as
illustrated. When the beam is properly
adjusted, this measurement should be in
the following range:
• 3.75-5.75” (9.5-14.6 cm) for base model
• 4.75-6.75” (12-17.1 cm) for SL model
6. To adjust a headlight beam, open the
hood and turn the two headlamp
adjustment screws simultaneously and
equally.
•Clockwise adjustment raises the beam
•Counter-clockwise adjustment lowers the
beam
5 ft.
(1.5 m)
5.75” (14.6 cm)
3.75” (9.5 cm)
6.75” (17.1 cm)
4.75” (12 cm)
SLINGSHOT
Acceptable Range
SLINGSHOT SL
Acceptable Range
Adjust Simultaneously
and Equally
Clockwise (Raise the Beam)
Counter-Clockwise (Lower the Beam)
![](asset-4e.png)
76
MAINTENANCE
Headlamp Aim Adjustment (Canada)
1. Verify that headlamp aim
inspection conditions are met. See
page 74.
2. Position the vehicle on a level
surface with the nose
approximately 25 ft. (7.6 m) from a
wall.
3. Move the ignition switch to the ON
position to turn the lights on. Place
the headlamps on low beam.
4. Observe the headlight beam display
on the wall. The beam displays at
two levels, higher at the right side
and lower at the left side.
5. Measure from the floor to the lower
beam display at the left side as
illustrated. When the beam is
properly adjusted, this
measurement should be in the
following range:
• 20-21.75” (51-55 cm) for base model
• 21-22.75” (53.3-57.8 cm) for SL
model
6. To adjust a headlight beam, open
the hood and turn the two upper
headlamp screws simultaneously
and equally.
•Clockwise adjustment raises the
beam
•Counter-clockwise adjustment lowers
the beam
Adjust Simultaneously
and Equally
Clockwise (Raise the Beam)
Counter-Clockwise (Lower the Beam)
21.75” (55 cm)
20” (51cm)
22.75” (57.8 cm)
21” (53.3 cm)
SLINGSHOT SL
Acceptable Range
SLINGSHOT
Acceptable Range
25 ft.
(7.6 m)
Measure
Left Lower
Beam
Measure
Left Lower
Beam
![](asset-4f.png)
77
MAINTENANCE

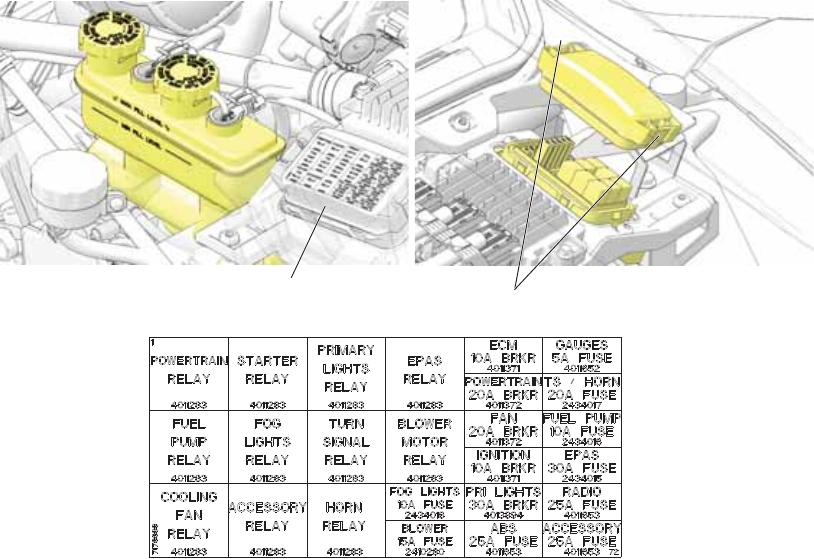

Fuse Replacement
The fuse box is located under the hood near the brake fluid reservoir. The three main system
fuses are located in the battery compartment.
1. Open the hood.
2. Squeeze the fuse box cover tabs inward and remove the cover.
3. Use the fuse puller provided in the tool kit to remove the spent fuse.
NOTICE: Always use the recommended fuse to prevent electrical system damage. Refer to the label
on the fuse box cover.
4. Install the new fuse.
5. Reinstall the fuse box cover.
Fuse Box
Fuse Box Label
Tabs
78
CLEANING AND STORAGE
Cleaning Products
This section provides tips on the very best way to clean, polish and preserve every surface of
your beautiful new SLINGSHOT vehicle. We recommend the use of Polaris Engineered
Vehicle Care cleaning and polishing products to offer the best care for your vehicle. After
cleaning the vehicle, inspect for damage to the painted surfaces. Repair chips or scratches
promptly by applying touch-up paint to prevent corrosion.
For more information, or for answers to your cleaning and detailing questions, please see
your SLINGSHOT dealer.
Washing the Vehicle
NOTICE: Do not use pressurized water to wash the SLINGSHOT vehicle. Water may seep in and
deteriorate wheel bearings, brake caliper assemblies, electrical connectors and
transmission seals. Do not direct any water stream at air intakes, exhaust outlets, the
radiator, the rider compartment or electrical components.
1. Do not use abrasive cleaners.
2. Rinse off as much dirt and debris as possible with water running at low pressure. Use as
little water as possible when washing near the air intake or the exhaust pipe openings.
Dry these components thoroughly before using the vehicle.
3. Make sure the brakes are functioning properly before riding.
79
CLEANING AND STORAGE
Seasonal Storage
If you will not operate the vehicle for 60 days or longer, such as during the winter, storing it
properly will help prevent damage to the fuel system, electrical system, engine, suspensions,
tires and body. During extended storage periods, maintain tire pressure and battery voltage at
the recommended levels.
1. Choose a dry, well-ventilated storage location away from direct sunlight, preferably a
garage or similar structure. The structure should have a firm, flat, clean surface free of
oil and gasoline. The structure should have a relatively constant and moderate
temperature.
2. Proper storage starts with cleaning, washing and waxing the hood, chassis, upholstery
and plastic parts. Be sure that corrosive salt and acids are removed from surfaces before
beginning preservation with waxes and rust inhibitors (grease, oil or paint). Clean and
touch up with paint any rusted or previously painted surfaces.
3. Apply a light coat of oil or grease to all bushings, spindle shafts and tie rod ends.
4. Change the engine oil. See page 53. Start the engine and allow it to idle just long enough
to circulate the new oil throughout the engine.
5. Fog the engine using the recommended aerosol fogging oil available from your dealer.
Follow the instructions on the container.
6. Treat the fuel system with a fuel stabilizer. If a fuel stabilizer is not used, the fuel tank,
fuel lines and fuel rail should be completely drained of gasoline.
7. Remove the spark plugs. Spray a light amount of engine fogging oil into each cylinder to
prevent rust. Reinstall the plugs.
8. Make sure the coolant quality and level in the system is adequate for freeze protection
during storage.
9. Apply a metal protectant to shock absorber shafts or any exposed metal to prevent
corrosion.
10. Separate electrical connector blocks and clean corrosive build-up from connectors.
Lubricate or pack connector blocks with Nyogel grease and reconnect. Replace worn or
frayed electrical wire and connectors.
11. Prepare the battery for storage. See page 80.
12. Verify that tire pressure is at specification. See page 65.
13. Cover intake and exhaust openings to prevent small animals from entering.
14. Elevate the vehicle using appropriate jack stands. Remove the wheels to prevent flat
spots on the tires.
15. Do not engage the park brake. If engaged, the brake pads may stick to the discs.
16. Cover the vehicle with a fabric cover. Do not use plastic or vinyl covers, which trap
moisture and encourage rust and corrosion.
80
CLEANING AND STORAGE
Battery Storage
1. Remove the battery. See page 70.
2. Clean the battery terminals first with a wire brush to remove any loose deposits.
3. Wash the posts and the ends of the battery cables with a solution of one part baking soda
to 16 parts water. Rinse with clean water and wipe dry.
4. Apply a thin film of dielectric grease to the posts and cable connectors.
5. Clean the outside of the battery with a solution of mild detergent and warm water.
6. Store the battery in a dry area with a temperature of 32° to 90° F (0° to 32° C).
7. While in storage, fully charge the battery once a month. See page 72.
Removal From Storage
1. Remove the fabric cover.
2. Remove intake and exhaust opening covers (if covered for storage).
3. Install the tires. Lower the vehicle and remove the jack stands.
4. Verify that tire pressure is at specification. Refer to safety labels on the vehicle or to the
specifications section beginning on page 84.
5. Install the battery and perform an electrical inspection.
6. Inspect the spark plugs. Install new spark plugs if necessary.
7. If the vehicle was stored in an area subject to wide swings in temperature and humidity
(such as outdoors), change the engine oil before starting the engine.
NOTICE: During storage, temperature and humidity changes can cause condensation to form in the
crankcase and mix with engine oil. Running the engine with oil that contains condensation
can cause engine damage.
8. Inspect the storage area for signs of fluid leaks. Identify and perform service to any
leaking components.
9. Wash and polish the vehicle. Wax, polish or apply protectant to appropriate components.
10. Perform the pre-ride inspections. See page 36.
11. Check any fluid levels not included in the pre-ride inspection.
![](asset-53.png)
81
TRANSPORTING AND TOWING
Transporting the SLINGSHOT
Because of the single rear wheel on the SLINGSHOT vehicle, it cannot be towed by a
conventional tow truck. Never tow the SLINGSHOT vehicle on its wheels behind another
vehicle.
To transport the SLINGSHOT vehicle, always use a trailer or flatbed truck. A trailer must
have an approved load rating greater than the actual weight of the SLINGSHOT vehicle,
including any installed accessories or cargo.
Follow these guidelines after loading the SLINGSHOT vehicle on a trailer or flatbed truck.
1. Place the transmission in gear.
2. Engage the park brake.
3. Turn the key off. Remove the key to prevent loss.
4. Secure all cargo and other items or remove them from the vehicle.
5. Secure all storage compartment doors.
6. Block all wheels at the front and rear of each tire.
7. Always secure the frame of the SLINGSHOT vehicle to the transporting unit securely
with suitable tie-down straps. Do not attach straps to the lower front trim. Secure the tie-
down straps to the lower front A-arms and rear swing-arm. See illustration.
8. Never allow passengers on a trailer or in a trailered vehicle.
9. Reduce speed and drive with caution while transporting.
Attach Rear
Tie-Down
Strap
Attach Front
Tie-Down
Straps
![](asset-54.png)
82
TROUBLESHOOTING
For your personal safety, do not attempt inspection or repairs not fully described in this
owner’s manual. Contact an authorized dealer for service if you cannot determine the cause
of a problem or if the inspection / repair exceeds your mechanical ability or tool resources.
Do not perform any inspection or repair with the engine running.
Engine Cranks But Will Not Start
Starter Motor Does Not Turn or Turns Slowly
Engine Starts But Misses or Runs Poorly
NOTE: Turn engine OFF before inspecting any of these items.
Possible Cause Possible Remedy/Action
Low Fuel Verify fuel level
Fuel pump inoperative Turn the key ON. The fuel pump should run
momentarily and then stop. If you do not hear the
fuel pump run, check the fuel pump / ignition
circuit breaker. See page 77.
Battery Discharged Fully charge the battery. See page 72.
Spark Plug(s) Fouled Inspect spark plugs. See page 67.
Spark Plug Wire(s) Disconnected or Loose Be sure spark plug wires are securely fastened.
Possible Cause Possible Remedy/Action
Battery Discharged Fully charge the battery. See page 72.
Battery Cables Loose or Corroded Inspect battery cables.
Transmission In Gear Disengage the clutch. See starting procedures on
page 42.
Possible Cause Possible Remedy/Action
Battery Discharged Fully charge the battery. See page 72.
Battery Cables Loose or Corroded Inspect battery cables and connections.
Spark Plug(s) Fouled Inspect spark plugs. See page 67.
Spark Plug Wire(s) Loose or Wet Inspect spark plug wires, ensure dry/secure.
Contaminated Fuel Inspect fuel for water / contamination. See dealer.
Engine Oil Level Incorrect Or Wrong Type Inspect level and quality of oil. See page 52.
Loose, Broken, Shorted Ignition Coil Wires Inspect coil primary wires. See dealer.
Air Intake Restricted Inspect air filter. See page 57.
![](asset-55.png)
83
TROUBLESHOOTING
Shifting Difficulties
Battery Charging Rate Low or Battery Discharges
Brake Noise / Poor Brake Performance
NOTE: Contact your dealer if brake performance does not return after these inspections.
Anti-Lock Brake Light Remains Illuminated or Illuminates Intermittently
Possible Cause Possible Remedy/Action
Hydraulic Clutch Fluid Contaminated Flush hydraulic clutch fluid (see dealer).
Air In Hydraulic Clutch System Bleed system (see dealer).
Clutch Slave Cylinder Bracket Loose Inspect / tighten loose parts.
Hydraulic Clutch Fluid Leak Inspect system for leaks (see dealer).
Clutch Damage Replace clutch.
Possible Cause Possible Remedy/Action
Loose/Corroded Charging Circuit
Connection Check/clean battery cable connections. Check/clean
charging circuit connections. See dealer.
Accessory Load Exceeds Charge Rate Use ACC position and limit accessory operation when
engine is off.
Improperly Wired Accessory (Current Draw) See dealer to check charging system output and
current draw.
Battery discharges when vehicle not in use. See dealer to check key OFF current draw.
Possible Cause Possible Remedy/Action
Dust / Dirt On Brake Disc(s) Clean disc.
Worn Pads Or Disc / Brake Disc Damage Inspect pads.
Brake Fluid Level Low Or Fluid Contaminated Inspect fluid level / fluid. See page 63.
Possible Cause Possible Remedy/Action
Blown fuse Check the fuses. See page 77.
Loose or damaged pulse ring Inspect pulse ring for looseness or chipped teeth.
Debris lodged in components Inspect wheel speed sensor and pulse ring for debris.
Damage caused by debris Inspect wheel speed sensor for cracked housing.
Damaged components See service manual or authorized dealer.
![](asset-56.png)
84
SPECIFICATIONS
SLINGSHOT SLINGSHOT SL
Dimensions (Dimensions and specifications may vary with features, options and accessories)
Overall Length 149.6 in. (3800 mm) 149.6 in. (3800 mm)
Overall Width 77.6 in. (1960 mm) 77.6 in. (1960 mm)
Overall Height 51.9 in. (1318 mm) 51.9 in. (1318 mm)
Track Width 69.1 in. (1755 mm) 69.1 in. (1755 mm)
Wheel Base 105 in. (2667 mm) 105 in. (2667 mm)
Ground Clearance 5 in. (127 mm) 5 in. (127 mm)
Weight
Wet Weight 1749 lbs. (793 kg)
Maximum Load Capacity (riders, cargo,
accessories, options) 457 lbs. (207 kg)
Gross Vehicle Weight Rating-GVWR
(see page 14) 2199 lbs. (997 kg) 2199 lbs. (997 kg)
Gross Axle Weight Rating (GAWR) Front Axle: 1321 lbs. (599 kg) Front Axle: 1321 lbs. (599 kg)
Rear Axle: 878 lbs. (398 kg) Rear Axle: 878 lbs. (398 kg)
Capacities
Seating Two (2) Occupants
Engine Oil 5 qts. (4.75 l) with approximately 4.5 qts. (4.25 l) at oil change
Fuel 9.8 gallons (37.1 l)
Fuel Remaining at “Empty” on Gauge Approximately 1.0 gallon (3.8 l)
Engine
Engine Type GM Ecotec LE9 4-stroke
Configuration Inline 4-cylinder
Displacement 146 cubic inch (2384 cc)
Compression Ratio 10.4:1
Valve Train DOHC, VVT
Bore & Stroke 88 x 98 mm
Throttle Body Bore 65.6 mm
Electronic Fuel Injection System GM MEFI6
Spark Plug Type / Gap AC Delco 41-103 or equivalent / .043 in. (1.1 mm)
Exhaust Control System Closed-Loop, Single O2 Sensor
Exhaust System 3-Chamber Muffler
Cooling System Water
Lubrication System Wet Sump
Chassis
Front Suspension Type / Travel Dual A-Arm / 4.43 in. (112.6 mm)
Rear Suspension Type / Travel Swingarm / 5.23 in. (132.8 mm)
Front Brakes Disc / Floating Rotor / 2 Piston Calipers
Rear Brakes Disc / Floating Rotor / 2 Piston Calipers
Wheels And Tires
Front Tire Type KENDA KR20X KENDA KR20X
Front Tire Size 205/50 R17 225/45 R18
Front Tire Pressure 28 PSI (193 kPa) 28 PSI (193 kPa)
Front Tire Rims 17” x 7.0” 18” x 7.5”
Rear Tire Type KENDA KR20X KENDA KR20X
Rear Tire Size 265/35 R18 255/35 R20
Rear Tire Pressure 32 PSI (221 kPa) 32 PSI (221 kPa)
Rear Tire Rims 18” x 9.5” 20” x 9.0”
![](asset-57.png)
85
SPECIFICATIONS
SLINGSHOT / SLINGSHOT SL
Drive System
Final Drive Type Right Angle Drive (37/16)
Carbon Fiber Reinforced Belt (62:39)
Transmission Type 5 Speed with Overdrive
Gear Shift Pattern 5-Speed H-Gate Pattern with Reverse Down-Right
Internal Gear Ratios
1st 3.753:1
2nd 2.258:1
3rd 1.512:1
4th 1.000:1
5th 0.729:1
Right Angle Drive Ratio 2.313:1
Final Drive Ratio 1.590:1
Clutch Type Single Plate, Diaphragm Spring, Dry
Electrical
Alternator 140 Amp Maximum Output
Battery 12 Volt / 30 Amp Hour / 575 CCA
Lights
Center Headlights (USA) High/Low H9 65W
Auxiliary Outer Lights (USA) H3 55W
Headlights (Canada) High/Low H3 55W
Turn Signals / Taillight / Brake Light Non-Serviceable LED
License Plate Light Non-Serviceable LED
Speedometer / Indicator Lights Non-Serviceable LED
Fuses / Circuit Breakers
Ignition 10A Breaker
Headlight 30A Breaker
Gauges 5A
Radio 25A
Turn Signal / Horn 20A
Fuel Pump 10A
ECM 10A Breaker
Powertrain 20A Breaker
Fan 20A Breaker
Accessory 25A
ABS 25A
EPAS 30A
Chassis Main Fuse 50A
Engine Main Fuse 40A
ABS Motor Fuse 40A
![](asset-58.png)
86
RECOMMENDED SERVICE PRODUCTS
Service Manual Availability
Some procedures are beyond the scope of this manual. See your dealer to purchase the
Service Manual for your vehicle.
Some procedures provided in the Service Manual require specialized knowledge, equipment,
and training. Be sure you have the required technical skills and tools that are needed before
you attempt ANY service on your vehicle. Please contact your dealer before attempting any
service work that is beyond your level of technical knowledge or experience, or if the work
requires specialized equipment.
Part
Number Description
Engine Lubricant
2879409 SLINGSHOT Premium 5W-30 Engine Oil (qt./.95 l)
2879410 SLINGSHOT Premium 5W-30 Engine Oil (gal./3.8 l)
Gearcase / Transmission Lubricants
2879440 SLINGSHOT Transmission Fluid (qt./.95 l)
2879412 SLINGSHOT Angle Drive Fluid (qt./.95 l)
Coolant
2879411 SLINGSHOT 50/50 Antifreeze Premix (gal./3.8 l)
87
WARRANTY
Limited Warranty
POLARIS Industries Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a TWO YEAR LIMITED
WARRANTY on all components of your POLARIS vehicle against defects in material or workmanship. This
warranty covers parts and labor charges for repair or replacement of defective parts and begins on the date of
purchase by the original retail purchaser. This warranty is transferable to another owner during the warranty
period through an authorized POLARIS dealer, but any such transfer will not extend the original term of the
warranty. The duration of this warranty may vary by international region based upon local laws and regulations.
Registration
At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to
POLARIS within ten days of purchase. Upon receipt of this registration, POLARIS will record the registration for
warranty. No verification of registration will be sent to the purchaser as the copy of the Warranty Registration
Form will be your proof of warranty coverage. If you have not signed the original registration and received the
customer copy, please contact your dealer immediately. NO WARRANTY COVERAGE WILL BE ALLOWED
UNLESS YOUR VEHICLE IS REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your
vehicle is very important in ensuring trouble-free operation. Purchasing a vehicle in the crate or without proper
dealer set-up will void your warranty coverage.
Warranty Coverage And Exclusions:
Limitations Of Warranties And Remedies
This POLARIS limited warranty excludes any failures that are not caused by a defect in material or
workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty
also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling. This
warranty also does not cover any vehicle, component, or part that has been altered structurally, modified,
neglected, improperly maintained or used for racing, competition or purposes other than for which it was
designed.
This warranty excludes damages or failures resulting from: improper lubrication; improper engine timing;
improper fuel; surface imperfections caused by external stress, heat, cold or contamination; operator error or
abuse; improper component alignment, tension, adjustment or altitude compensation; snow, water, dirt or other
foreign substance ingestion/contamination; improper maintenance; modified components; use of aftermarket or
unapproved components, accessories, or attachments; unauthorized repairs; or repairs made after the warranty
period expires or by an unauthorized repair center.
This warranty excludes damages or failures caused by abuse, accident, fire, or any other cause other than a defect
in materials or workmanship and provides no coverage for consumable components, general wear items, or any
parts exposed to friction surfaces, stresses, environmental conditions and/or contamination for which they were
not designed or not intended, including but not limited to the following items:
• Wheels and tires • Finished and unfinished surfaces
• Suspension components • Fuel Injectors/Throttle body components
• Brake components • Engine components
• Seat components • Drive belts
• Clutches and components • Hydraulic components and fluids
• Steering components • Circuit breakers/Fuses
• Batteries • Electronic components
• Light bulbs/Sealed beam lamps • Spark plugs
•Filters •Sealants
• Lubricants • Coolants
• Bushings • Bearings
88
WARRANTY
Warranty Coverage And Exclusions:
Limitations Of Warranties And Remedies
Lubricants and Fluids
1. Mixing oil brands or using non-recommended oil may cause engine damage. We recommend the use of
POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or fluids is not covered by this
warranty.
This warranty provides no coverage for personal loss or expense, including mileage, transportation costs, hotels,
meals, shipping or handling fees, vehicle pick-up or delivery, replacement rentals, loss of vehicle use, loss of
profits or loss of vacation or personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT POLARIS'
OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE MATERIALS, COMPONENTS, OR
PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES
AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO
LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF
ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY
OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF
CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND
SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL
PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS EXCLUDED FROM
THIS LIMITED WARRANTY. ALL OTHER IMPLIED WARRANTIES (INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY) ARE LIMITED IN
DURATION TO THE ABOVE 12 MONTH WARRANTY PERIOD. POLARIS DISCLAIMS ALL
EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO NOT PERMIT
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
ALLOW LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.
89
WARRANTY
How To Obtain Warranty Service
If your vehicle requires warranty service, you must take it to a POLARIS Servicing Dealer. When requesting
warranty service you must present your copy of the Warranty Registration Form to the dealer. (THE COST OF
TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY.) POLARIS suggests that
you use your original selling dealer; however, you may use any POLARIS Servicing Dealer to perform warranty
service.
In the country where your product was purchased:
Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer. If you move or are
traveling within the country where your product was purchased, Warranty and Service Bulletin repairs may be
requested from any authorized POLARIS dealer that sells the same line as your product.
Outside the country where your product was purchased:
If you are traveling temporarily outside the country where your product was purchased, you should take your
product to an authorized POLARIS dealer. You must show the dealer photo identification from the country of the
selling dealer’s authorized location as proof of residence. Upon residence verification, the servicing dealer will be
authorized to perform the warranty repair.
If you move:
If you move to another country, be sure to contact POLARIS Customer Assistance and the customs department of
the destination country before you move. Product importation rules vary considerably from country to country.
You may be required to present documentation of your move to POLARIS in order to continue your warranty
coverage. You may also be required to obtain documentation from POLARIS in order to register your product in
your new country. You should warranty register your product at a local POLARIS dealer in your new country
immediately after you move to continue your warranty coverage and to ensure that you receive information and
notices regarding your vehicle.
If you purchase from a private party:
If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the
product was originally purchased, all warranty coverage will be denied. You must nonetheless register your
product under your name and address with a local POLARIS dealer in your country to ensure that you receive
safety information and notices regarding your product.
Exported Products
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE
BULLETIN COVERAGE ON THIS VEHICLE IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING
DEALER’S AUTHORIZED LOCATION. This policy does not apply to vehicles that have received authorization
for export from POLARIS. Dealers may not give authorization for export. You should consult an authorized
dealer to determine this vehicle’s warranty or service coverage if you have any questions. This policy does not
apply to vehicles registered to government officials or military personnel on assignment outside the country of the
selling dealer’s authorized location. This policy does not apply to Safety Bulletins.
Notice
If your vehicle is registered outside of the country where it was purchased and you have not followed the
procedure set above, your vehicle will no longer be eligible for warranty or service bulletin coverage of any kind,
other than safety bulletins. Vehicles registered to government officials or military personnel on assignment
outside of the country where the vehicle was purchased will continue to be covered by the Limited Warranty.
Please work with your dealer to resolve any warranty issues. Should your dealer require any additional assistance,
they will contact the appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
in different countries. If any of the above terms are void because of federal, state or local law, all other warranty
terms will remain in effect.
For questions call POLARIS Customer Assistance:
United States & Canada: 1-800-POLARIS (1-800-765-2747)
French: 1-800-268-6334
90
WARRANTY
Vehicle Noise Regulation
Tampering with noise control systems is prohibited. Federal law prohibits the following acts or causing thereof:
• The removal or rendering inoperative by any person, other than for the purposes of maintenance, repair or
replacement of any device or element of design incorporated into any new vehicle for the purpose of noise
control prior to its sale or delivery to the ultimate purchaser or while it is in use, or
• The use of the vehicle after such device or element of design has been removed or rendered inoperative by any
person.
Among those acts presumed to constitute tampering are:
• Removal or puncturing of the muffler, baffles, header pipes or any other component which conducts exhaust
gasses.
• Removal or puncturing of any part of the intake system.
• Lack of proper maintenance.
• Replacing any moving part of the vehicle, or parts of the exhaust system or intake system, with parts other than
those specified by the manufacturer.
This product should be checked for repair or replacement if the vehicle noise has increased significantly through
use. Otherwise, the owner may become subject to penalties under state and local ordinances.
Noise Emission Warranty
POLARIS warrants that this exhaust system, at the time of sale, meets all applicable U.S. EPA Federal noise
standards. This warranty extends to the first person who buys this exhaust system for purposes other than resale,
and to all subsequent buyers.
Warranty claims should be directed to:
• An authorized POLARIS dealer, or
• POLARIS Industries Inc., 2100 Highway 55, Medina, MN 55340
91
WARRANTY
Federal Emissions Control System Warranty
This Federal Emissions Control System Warranty Statement applies to your SLINGSHOT vehicle, which is
certified to meet U.S. EPA emission standards. This same emissions warranty coverage applies to SLINGSHOT
vehicles sold in Canada.
Your Warranty Rights and Obligations
In the United States, new motor vehicles must be designed, built and equipped to meet applicable emission
standards set forth in the Clean Air Act and in U.S. EPA regulations. POLARIS Industries Inc. (hereinafter
POLARIS) must warrant the emission control system on your vehicle for the periods of time listed below
provided there has been no abuse, neglect or improper maintenance of your vehicle.
Your emission control system may include parts such as the fuel-injection system, ignition system, catalytic
converter and engine computer. Also included may be hoses, belts, connectors and other emission-related
assemblies. Where a warrantable condition exists, POLARIS will repair your vehicle at no cost to you, including
diagnosis, parts and labor.
Manufacturer’s Warranty Coverage
The emissions warranty coverage for this vehicle is for a period of use of five (5) years or 30,000 kilometers
(18,641 miles), whichever first occurs first. If an emission-related part on your vehicle is defective, the part will
be repaired or replaced by POLARIS. This is your emission control system DEFECTS WARRANTY.
Owner’s Warranty Responsibilities
As the vehicle owner, you are responsible for the performance of the required maintenance listed in your owner’s
manual. POLARIS recommends that you retain all receipts covering maintenance on your vehicle, but POLARIS
cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled
maintenance. You are responsible for presenting your vehicle to a POLARIS dealer as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. As the vehicle
owner, you should be aware that POLARIS may deny your warranty coverage if your vehicle or part has failed
due to abuse, neglect, improper maintenance or unapproved modifications.
If you have any questions regarding your federal emissions warranty rights and responsibilities, you should
contact:
• An authorized POLARIS dealer, or
• POLARIS Industries Inc., 2100 Highway 55, Medina, MN 55340
or call 1-800-POLARIS (1-800-765-2747)
92
WARRANTY
Federal Emissions Control System Warranty Provisions
POLARIS Industries Inc. (hereinafter POLARIS) warrants this vehicle includes as standard equipment a
headlight, taillight and stoplight, and is street legal:
A. It is designed, built and equipped so as to conform at the time of initial retail purchases with all applicable
regulations of the United States Environmental Protection Agency; and
B. It is free from defects in material and workmanship which cause such vehicle to fail to conform with
applicable regulations of the United States Environmental Protection Agency for a period of use of 30,000
kilometers (18,641 miles) or five (5) years from the date of initial retail delivery, whichever occurs first.
l. Coverage
Warranty defects shall be remedied during customary business hours at any authorized POLARIS dealer located
within the United States of America in compliance with the Clean Air Act and applicable regulations of the
United States Environmental Protection Agency. Any part or parts replaced under this warranty shall become the
property of POLARIS.
ll. Limitations
The Emission Control System Warranty shall not cover any of the following:
A. Repair or replacement required as a result of:
• Accident
• Misuse
• Repairs improperly performed or replacements improperly installed
• Use of replacement parts or accessories not conforming to POLARIS’ specifications which adversely affect
performance and/or
• Use in competitive racing or related events.
B. Inspections, replacement of parts and other services and adjustments necessary for required maintenance.
C. Any vehicle on which the odometer mileage has been changed so that actual mileage cannot be readily
determined.
lll. Limited Liability
A. The liability of POLARIS under this Emission Control System Warranty is limited solely to the remedying of
defects in material or workmanship by an authorized POLARIS dealer at its place of business during customary
business hours. This warranty does not cover inconvenience or loss of use of the vehicle or transportation of the
vehicle to or from the POLARIS dealer. POLARIS SHALL NOT BE LIABLE FOR ANY OTHER EXPENSES,
LOSS OR DAMAGE, WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY,
ARISING IN CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE POLARIS
VEHICLE FOR ANY PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT
APPLY TO YOU.
B. NO EXPRESS EMISSION CONTROL SYSTEM WARRANTY IS GIVEN BY POLARIS EXCEPT AS
SPECIFICALLY SET FORTH HEREIN. ANY EMISSION CONTROL SYSTEM WARRANTY IMPLIED BY
LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS LIMITED TO THE EXPRESS EMISSION CONTROL SYSTEM WARRANTY TERMS
STATED IN THIS WARRANTY. THE FOREGOING STATEMENTS OF WARRANTY ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER REMEDIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
C. No dealer is authorized to modify this POLARIS Limited Emission Control System Warranty.
93
WARRANTY
lV. Legal Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
V. This warranty is in addition to the POLARIS Limited Vehicle Warranty
Vl. Additional Information
Any replacement part that is equivalent in performance and durability may be used in the performance of any
maintenance or repairs. However, POLARIS is not liable for these parts. The owner is responsible for the
performance of all required maintenance. Such maintenance may be performed at a service establishment or by
any individual. The warranty period begins on the date the vehicle is delivered to an ultimate purchaser.
POLARIS Industries Inc.
2100 Highway 55
Medina, MN 55340
1-800-POLARIS (1-800-765-2747)
94
WARRANTY
California Emissions Control System Warranty
This California Emissions Control System Warranty Statement applies to your SLINGSHOT vehicle, if it is
certified to meet California Air Resources Board and US EPA emission control standards.
Your Warranty Rights and Obligations
The California Air Resources Board and POLARIS Industries Inc. (hereinafter POLARIS) are pleased to explain
the emission control system warranty on your SLINGSHOT vehicle. In California, new motor vehicles must be
designed, built and equipped to meet the state’s stringent anti-smog standards. POLARIS must warrant the
emission control system on your vehicle for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your vehicle. Your emission control system may include parts such as the
fuel-injection system, ignition system, catalytic converter and engine computer. Also included may be hoses,
belts, connectors and other emission-related assemblies. Where a warrantable condition exists, POLARIS will
repair your vehicle at no cost to you, including diagnosis, parts and labor.
Manufacturer’s Warranty Coverage
The emissions warranty coverage for this vehicle is for a period of use of five (5) years or 30,000 kilometers
(18,641 miles), whichever first occurs first. If an emission-related part on your vehicle is defective, the part will
be repaired or replaced by POLARIS. This is your emission control system DEFECTS WARRANTY.
Owner’s Warranty Responsibilities
As the vehicle owner, you are responsible for the performance of the required maintenance listed in your owner’s
manual. POLARIS recommends that you retain all receipts covering maintenance on your vehicle, but POLARIS
cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled
maintenance. You are responsible for presenting your vehicle to a POLARIS dealer as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. As the vehicle
owner, you should be aware that POLARIS may deny your warranty coverage if your vehicle or part has failed
due to abuse, neglect, improper maintenance or unapproved modifications.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
• An authorized POLARIS dealer, or
• POLARIS Industries Inc., 2100 Highway 55, Medina, MN 55340
or call 1-800-POLARIS (1-800-765-2747), or
• California Air Resources Board, P.O. Box 8001, 9528 Telstar Avenue, El Monte, CA 91731
95
WARRANTY
California Emission Control System Warranty Provisions
POLARIS Industries Inc. (hereinafter POLARIS) warrants this vehicle includes as standard equipment a
headlight, taillight and stoplight, and is street legal:
A. It is designed, built and equipped so as to conform at the time of initial retail purchases with all applicable
regulations of the United States Environmental Protection Agency and the California Air Resources Board; and
B. It is free from defects in material and workmanship which cause such vehicle to fail to conform with
applicable regulations of the United States Environmental Protection Agency or the California Air Resources
Board for a period of use of 30,000 kilometers (18,641 miles) or five (5) years from the date of initial retail
delivery, whichever occurs first.
l. Coverage
Warranty defects shall be remedied during customary business hours at any authorized POLARIS dealer located
within the United States of America in compliance with the Clean Air Act and applicable regulations of the
United States Environmental Protection Agency and the California Air Resources Board. Any part or parts
replaced under this warranty shall become the property of POLARIS.
In the state of California only, emission-related warranted parts are specifically defined by the state’s Emission
Warranty Parts List. These warranted parts are: carburetor and internal parts; intake manifold; fuel tank; fuel
injection system; spark advance mechanism; crankcase breather; air cutoff valves; fuel tank cap for evaporative
emission controlled vehicles; oil filler cap; pressure control valve; fuel/vapor separator; canister; igniters; breaker
governors; ignition coils; ignition wires; ignition points; condensers and spark plugs if failure occurs prior to the
first scheduled replacement; and hoses, clamps, fittings and tubing used directly in these parts. Since emission-
related parts may vary from model to model, certain models may not contain all of these parts and certain models
may contain functionally equivalent parts.
In the state of California only, Emission Control System emergency repairs, as provided for in the California
Administrative Code, may be performed by other than an authorized a POLARIS dealer. An emergency situation
occurs when an authorized POLARIS dealer is not reasonably available, a part is not available within 30 days or
a repair is not complete within 30 days. Any replacement part can be used in an emergency repair. POLARIS will
reimburse the owner for expenses, including diagnosis, not to exceed POLARIS’ suggested retail price for all
warranted parts replaced, and labor charges based on POLARIS’ recommended time allowance for the warranty
repair and the geographically appropriate hourly labor rate. The owner may be required to keep receipts and
failed parts in order to receive compensation.
ll. Limitations
The Emission Control System Warranty shall not cover any of the following:
A. Repair or replacement required as a result of:
• Accident
• Misuse
• Repairs improperly performed or replacements improperly installed
• Use of replacement parts or accessories not conforming to POLARIS’ specifications which adversely affect
performance and/or
• Use in competitive racing or related events.
B. Inspections, replacement of parts and other services and adjustments necessary for required maintenance.
C. Any vehicle on which the odometer mileage has been changed so that actual mileage cannot be readily
determined.
96
WARRANTY
lll. Limited Liability
A. The liability of POLARIS under this Emission Control System Warranty is limited solely to the remedying of
defects in material or workmanship by an authorized POLARIS dealer at its place of business during customary
business hours. This warranty does not cover inconvenience or loss of use of the vehicle or transportation of the
vehicle to or from the POLARIS dealer. POLARIS SHALL NOT BE LIABLE FOR ANY OTHER EXPENSES,
LOSS OR DAMAGE, WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY,
ARISING IN CONNECTION WITH THE SALE OR USE OF OR INABILITY TO USE THE POLARIS
VEHICLE FOR ANY PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT
APPLY TO YOU.
B. NO EXPRESS EMISSION CONTROL SYSTEM WARRANTY IS GIVEN BY POLARIS EXCEPT AS
SPECIFICALLY SET FORTH HEREIN. ANY EMISSION CONTROL SYSTEM WARRANTY IMPLIED BY
LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS LIMITED TO THE EXPRESS EMISSION CONTROL SYSTEM WARRANTY TERMS
STATED IN THIS WARRANTY. THE FOREGOING STATEMENTS OF WARRANTY ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER REMEDIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
C. No dealer is authorized to modify this POLARIS Limited Emission Control System Warranty.
lV. Legal Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
V. This warranty is in addition to the POLARIS Limited Vehicle Warranty
Vl. Additional Information
Any replacement part that is equivalent in performance and durability may be used in the performance of any
maintenance or repairs. However, POLARIS is not liable for these parts. The owner is responsible for the
performance of all required maintenance. Such maintenance may be performed at a service establishment or by
any individual. The warranty period begins on the date the vehicle is delivered to an ultimate purchaser.
POLARIS Industries Inc.
2100 Highway 55
Medina, MN 55340
1-800-POLARIS (1-800-765-2747)
![](asset-63.png)
97
MAINTENANCE LOG
Maintenance Performed Miles / Km Notes Performed
by
![](asset-64.png)
98
AUDIO SYSTEM
Audio System Introduction
Not all SLINGSHOT vehicles are equipped with an
audio system. Models equipped with an audio
system may not be equipped with all components
discussed in the audio section of this manual.
Components not installed at the factory can be
purchased from and installed by your authorized
SLINGSHOT dealer.
WARNING! Distracted driving can result in loss of
control, collision or accident, which may result in serious
injury or death. Avoid using any features and devices while
driving that may take your attention away from the road
and safe driving habits, even for a moment. When device
operation is necessary, please use voice-activated
devices.
iPod / iPhone Device Compatibility
Your radio will connect with the following iPod and
iPhone models. Update your iPod and iPhone
devices to the latest software before use.
Made for:
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been
designed to connect specifically to iPod or iPhone, respectively, and has been certified by the
developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards. Please note that the use
of this accessory with iPod or iPhone may affect wireless performance.
• iPhone 5s • iPod touch (5th generation)
• iPhone 5c • iPod touch (4th generation)
• iPhone 5 • iPod touch (3rd generation)
• iPhone 4s • iPod nano (7th generation)
• iPhone 4 • iPod nano (6th generation)
• iPod nano (5th generation)
99
AUDIO SYSTEM
Audio System Introduction
Radio Frequencies
North America
• AM 520 to 1720 kHz
• FM 87.9 to 107.9 MHz
• WX 7 NOAA Channels
(162.400 to 162.550 MHz)
Europe
• FM 87.5 to 108.00 MHz
(100 kHz steps)
• MW 531 to 1602 kHz
• LW 153 to 279 kHz
Europe 50
• FM 87.5 to 108.00 MHz
(50 kHz steps)
• MW 531 to 1602 kHz
• LW 153 to 279 kHz
Australia
• FM 87.5 to 108.0 MHz
• AM 531 to 1701 kHz
Japan
• FM 76.1 to 89.9 MHz
• AM 522 to 1629 kHz
Taiwan
• FM 87.5 to 108.0 MHz
• AM 531 to 1701 kHz
Radio Sources
North America Sources
•FM
•AM
•WX
•USB
•NAV
•Bluetooth
Europe/Europe 50 Sources
•FM
•MW
•LW
•USB
•NAV
•Bluetooth
Japan/Taiwan Sources
•FM
•AM
•USB
•NAV
•Bluetooth
Australia Sources
•FM
•AM
•USB
•NAV
•Bluetooth
Audio Menu Options
• Audio Output
• Helmet Equalizer
•Bass
•Mid
• Treble
• Fader
• Automatic Volume Control (AVC)
• Bluetooth Setup
• Driver Device ON/OFF
• NAV Audio ON/OFF
• iPod Music Settings
• AM/FM Clear Preset
• Radio Broadcast Data System (RBDS)
![](asset-66.png)
100
AUDIO SYSTEM
Audio System Introduction
Audio Controls
The audio controls are located on the audio panel.
Radio On/Off
Volume +/-
Mute
Phone
Voice Recognition
Tuner
Music Track Select
Menu Scroll
Preset Button (Select/Enter Menus)
Mode Button
Radio Settings
Tip: Some mode menu options have sub-menus. Sources and menu options will be displayed only for
installed components.
USB Connector
A USB connector cord is located in the glove box.
Tip: Device-to USB adapters are not supplied with vehicle and must be purchased separately.
Reference device owner’s manual for USB accessory adapter information.
VOL+
VOL-
MUTE
(PHONE)
TUNE+
TUNE-
PRESET
MODE
![](asset-67.png)
101
AUDIO SYSTEM
Power and Volume Controls

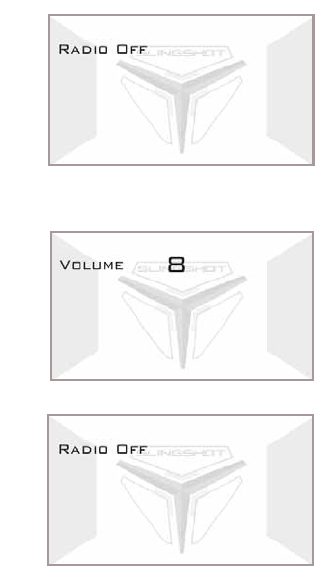

Audio System Power
To turn the audio system on, press and release VOL+
or VOL- or MODE.
The screen will display the last active entertainment
source. The volume level when power is turned on will
default to the level in use when power was last turned
off (limited to level 15).
Audio System Volume
Press VOL+ or VOL- to adjust volume.
Audio is active in either the speakers or the headsets.
The volume controls will adjust the volume in the
speakers or in the driver’s Bluetooth headset.
Tip: On some headsets, the user must press (+) or (-) or
rotate the volume dial on the headset controls to raise or
lower volume.
Turn the Radio Off
Press and hold VOL- until the radio turns off.
When the radio is turned off, the display shows
“RADIO OFF”.
![](asset-68.png)
102
AUDIO SYSTEM
Mute
Press and release MUTE to mute the audio system.
Press and release MUTE again to un-mute the audio system.
Phone
Press PHONE to activate the voice recognition feature on a paired phone.

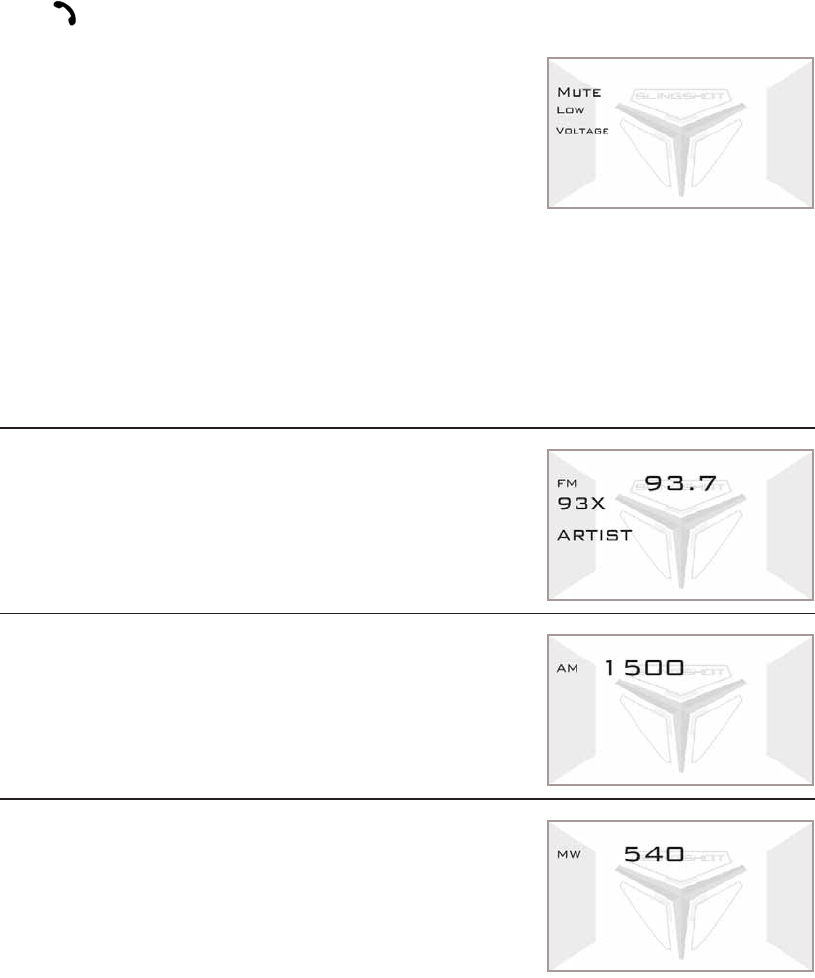

Low Voltage Mute
If battery voltage drops to 10.5 +/- 0.5 volts, the radio
will mute to reduce drain on the battery. Full volume will
be restored when battery voltage returns to 11.5-12.5
volts. If battery voltage drops below 8.5 volts, the radio
will turn off. Radio function will not be available until
the battery is charged.
Selecting Audio Sources
Press MODE repeatedly to choose the desired audio source. Each press changes the audio
source as follows:
1. FM
2. AM
3. MW (Europe only)
4. LW (Europe only)
5. WX (Weather) (North America only)
6. USB
7. NAV (If enabled)
8. Bluetooth Driver (if enabled)
FM source:
All models (shown with RBDS FULL)
AM source:
All models excluding Europe
MW (Medium Wave) source:
Europe models only
![](asset-69.png)
103
AUDIO SYSTEM
Selecting Audio Sources

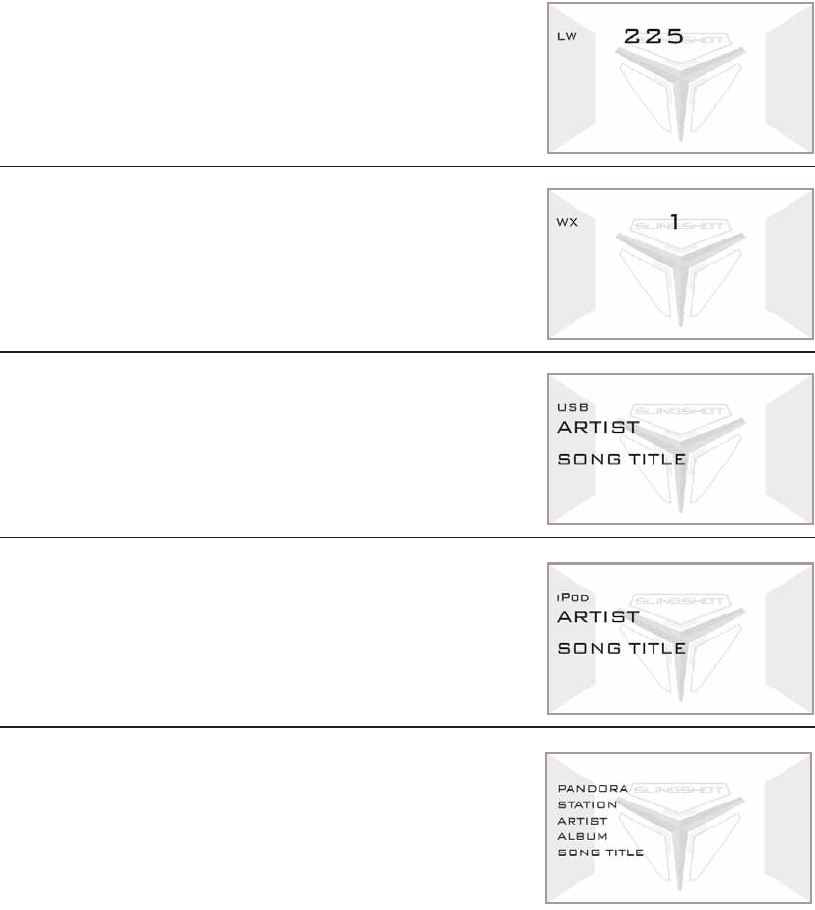

LW (Long Wave) source:
Europe models only
WX (Weather) source:
North America models only
USB sources:
All models
Flash memory connected
iPhone / iPod connected
Pandora® via USB for iPhone and iPod (Pandora is currently
available only in the United States, Australia and New
Zealand.)
![](asset-6a.png)
104
AUDIO SYSTEM
Selecting Audio Sources

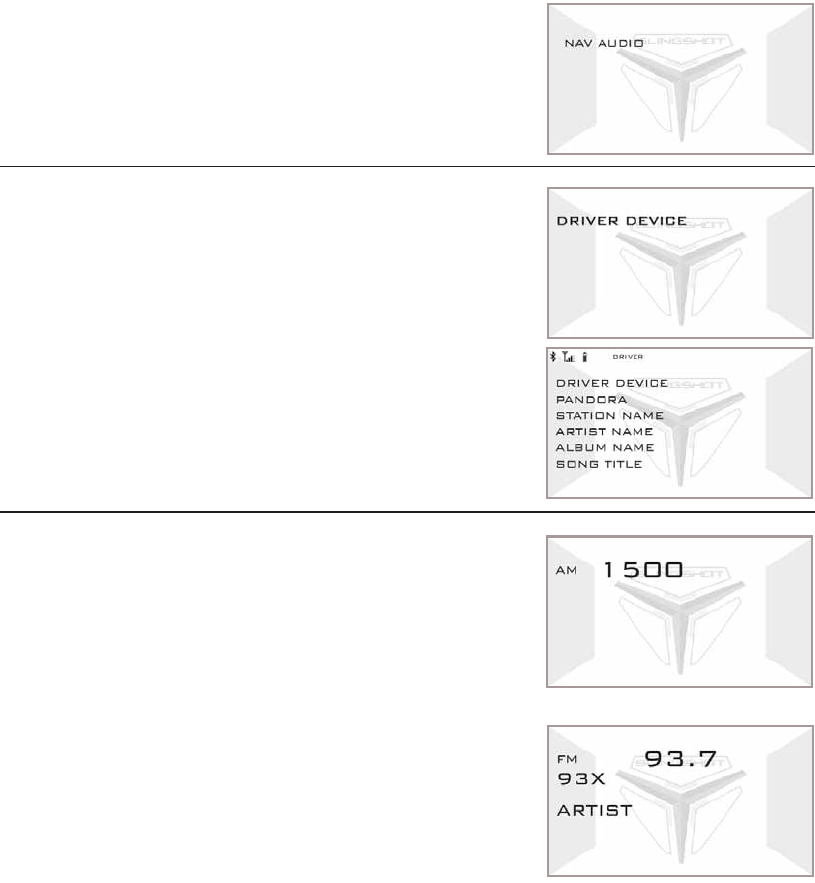

NAV:
All models (skipped if not enabled)
Bluetooth Driver Source:
All models (skipped if not enabled)
Pandora® on Android/Blackberry via Bluetooth
FM/AM/MW/LW Tuning
MW and LW radio sources are in Europe only. RDBS is
in USA only.
1. Press MODE repeatedly to choose the desired audio
source.
2. Press and release TUNE+ or TUNE- to locate
stations in single-step increments.
3. Press and hold TUNE+ or TUNE- to seek radio
stations. The radio will slew until the tune button is
released. At that time, the radio will seek to the next
strong radio station signal.
![](asset-6b.png)
105
AUDIO SYSTEM
Selecting Audio Sources
FM/AM/MW/LW Tuning

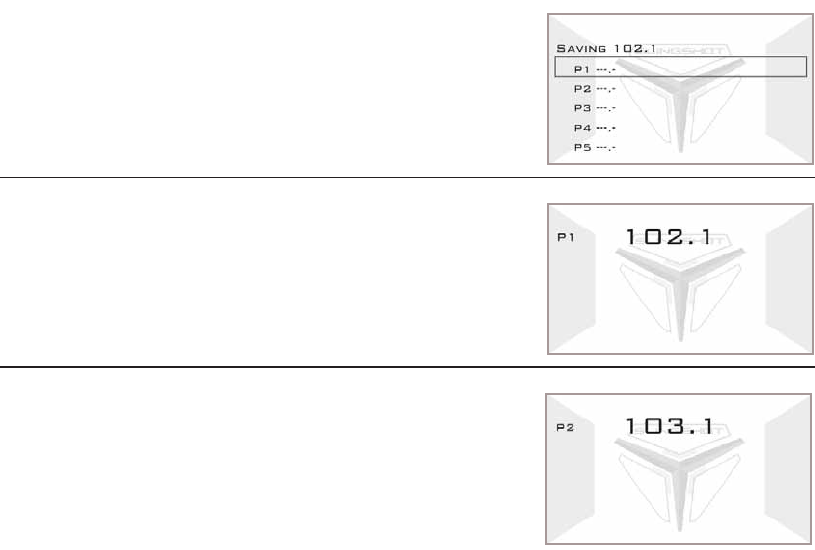

Memory Presets
The audio system features 15 user-defined presets for each tuner source for storing favorite
stations.
1. To set a preset, press MODE repeatedly until the desired source is active (FM, AM, MW,
LW).
2. Use TUNE+ or TUNE- to locate a radio station.
3. Press and hold PRESET.
4. Press TUNE+ or TUNE- to select an available
preset location (P1, P2, P3, etc.). The preset
location displays on the screen.
Tip: Saving a radio station without picking a location will
save the station in the next available location. The initial
position is the first unassigned preset location.
5. When the desired location is displayed, press
PRESET. The station will be stored.
Tip: If the desired preset location already contains a stored
radio station, it will be overwritten by the new selection.
6. Press PRESET repeatedly to scroll through the list
of stored radio presets.
![](asset-6c.png)
106
AUDIO SYSTEM
Selecting Audio Sources
Weather Band (WX)
Weather band channels are broadcast by the National Oceanic and Atmospheric
Administration (NOAA). NOAA operates more than 940 transmitters covering the United
States, Puerto Rico, the U.S. Virgin Islands, the U.S. Pacific Territories and adjacent coastal
waterways.
1. Press MODE repeatedly until WX source is selected.
Tip: Typically, only one weather band channel will be available for a given location. When traveling, if
a channel becomes unavailable, search for another active channel.
2. Press TUNE+ or TUNE- to select a channel.

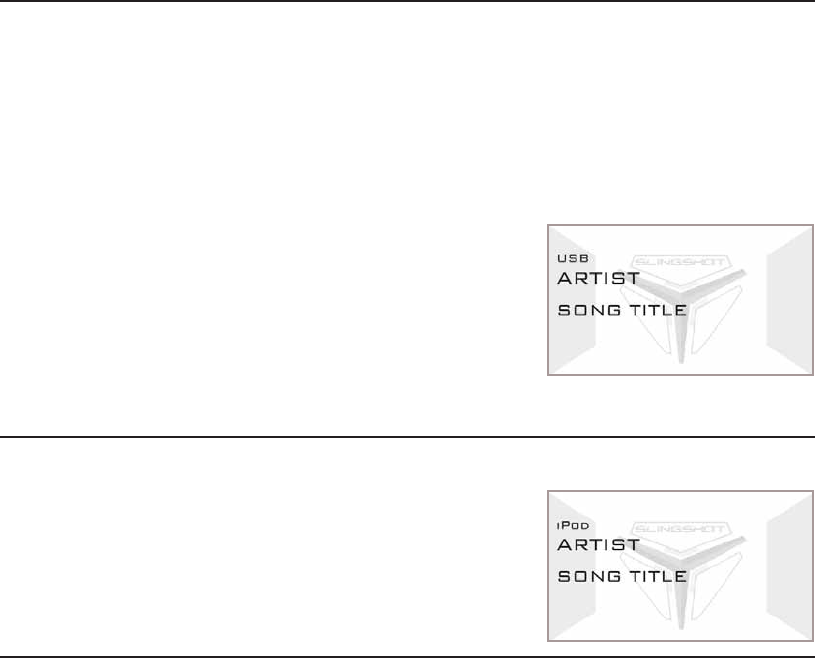

USB Audio Source
Connect the USB memory stick to the USB connector cable. The following music files are
recognized by the radio:
The drive must be FAT32 formatted. Music files not recognized by the radio will be ignored.
If a drive is not recognized, the screen will display “No Device”.
1. Press and release MODE until USB is active.
When USB is active, the console screen will
display “USB” as the active source.
2. Press and hold TUNE+ or TUNE- to select the next
or the previous music folder. The folders are
arranged (and play) in alphabetical order.
3. Press and release TUNE+ or TUNE- to select the
next or previous song.
USB Audio Source - iPod / iPhone Connected
1. Connect a compatible iPod or iPhone device to the
USB connector cable.
2. Press and release MODE until iPod is the active
source.
3. When iPod is active, the console screen will display
“iPod” as the active source.
Tuning/FF - RW
iPod/iPhone only
1. Press and release TUNE+ or TUNE- to select the next or previous song.
2. Press and hold TUNE+ or TUNE- to fast forward or rewind.
•WAV •MP3
•OGG •FLAC
![](asset-6d.png)
107
AUDIO SYSTEM
Selecting Audio Sources
Direct Song Selection
1. Press and release PRESET to display currently playing track list.
2. Press and release TUNE+ or TUNE- to scroll track list.
3. Press and release PRESET to select the new song choice and exit to the active source
display.
4. Press MODE to exit without selecting a new song track.
Category Select
1. Press and hold PRESET until the category list
appears.
Tip: Pandora® will appear only if the iPod or iPhone is
connected via USB and is capable of running Pandora.
2. To navigate the categories, press and release
TUNE+ or TUNE-. Press and hold to continuously
scroll through the list.
3. Press and release PRESET to select new category.
Tip: Press and release MODE to exit to the active source
display.
4. Press and release TUNE+ or TUNE- to scroll.
5. Press and release PRESET to select and play the
first song from highlighted item (album, artist and
playlist).
6. Press and hold PRESET to enter the track selection
for the highlighted item. Press TUNE+ or TUNE-
to browse the list of songs available.
7. Press and release PRESET to play the track.
![](asset-6e.png)
108
AUDIO SYSTEM
Selecting Audio Sources

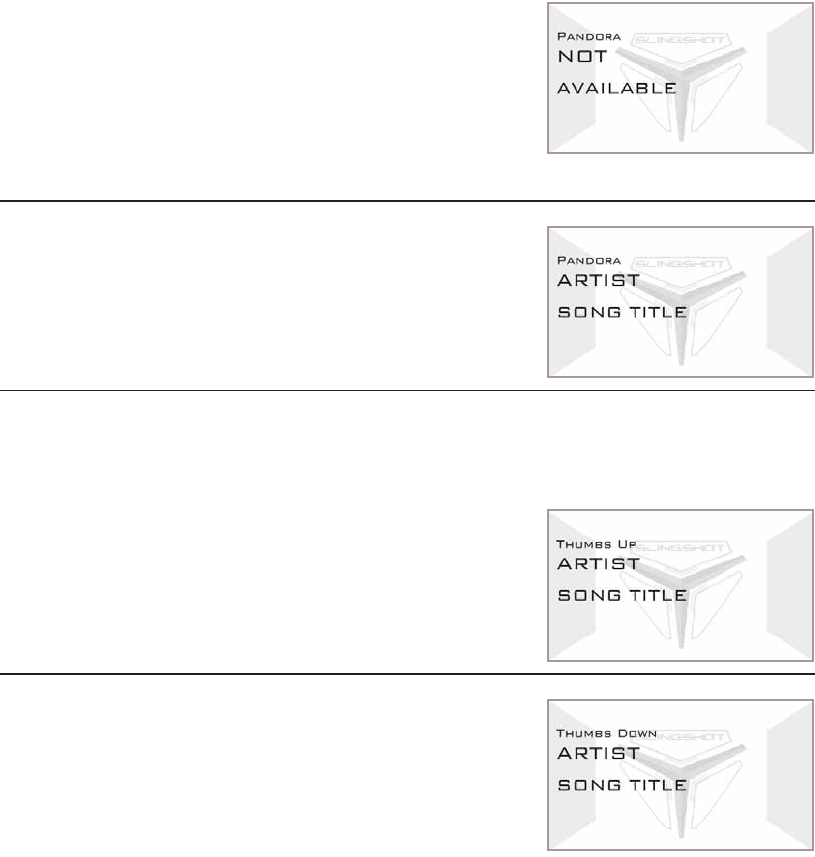

USB Audio Source - Pandora®
Pandora is available only when the user connects a
compatible iPhone or iPod device to the radio using the
USB connector or a compatible Android device to the
radio using the Bluetooth function.
Pandora is intended for use only in the United States,
Australia and New Zealand. If licensing restrictions
prevent Pandora from playing, “NOT AVAILABLE”
displays.
1. Turn on the Pandora app. Connect a compatible
iPhone or iPod device to the USB connector.
2. Press and release MODE until “Pandora” displays on the screen.
Tip: If Pandora is the currently playing app on the device, the USB source displays information and
enables features specific to the app. If it is not, you must select Pandora from the category menu.
Press and hold PRESET.
3. To give a “THUMBS UP” for the current song,
press and hold TUNE+.
4. To give a “THUMBS DOWN” for the current song,
Press and hold TUNE-.
![](asset-6f.png)
109
AUDIO SYSTEM
Selecting Audio Sources
USB Audio Source - Pandora®

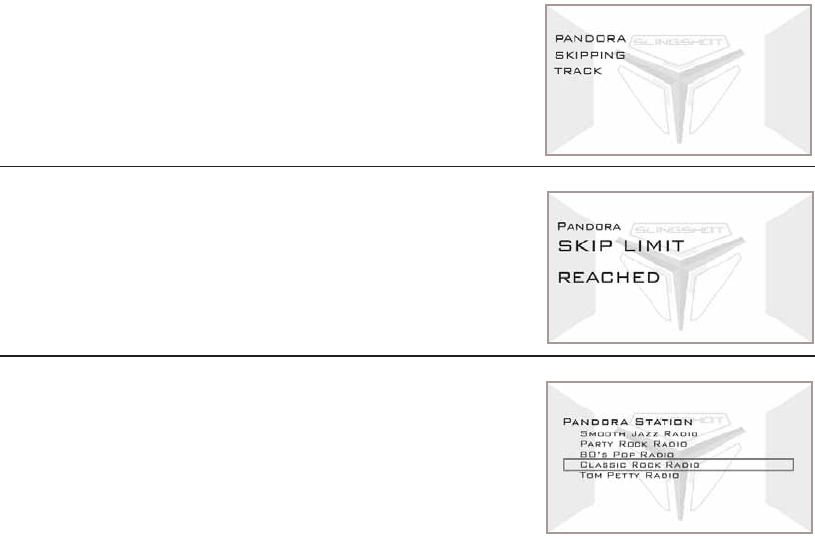

5. To skip forward to the next song, press and release
TUNE+.
6. When the skip limit is reached, “SKIP LIMIT
REACHED” displays.
7. Press and release PRESET to bring up the station
list.
8. Use TUNE+ or TUNE- to scroll through the list.
9. Press PRESET to select a new station.
OR
Press MODE to exit.
![](asset-70.png)
110
AUDIO SYSTEM
Selecting Audio Sources

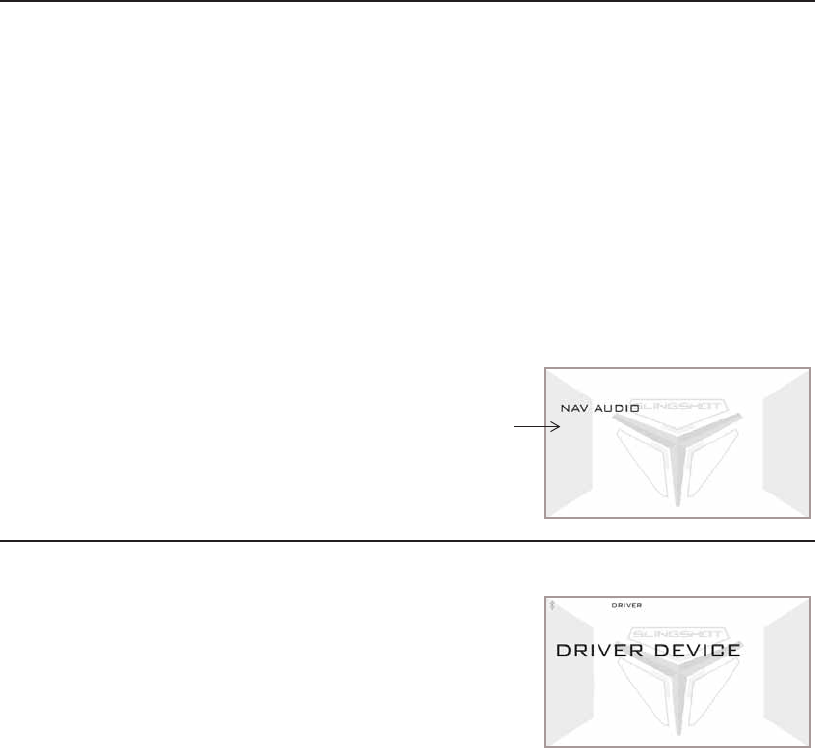

NAV Source
Please read this manual and the GARMIN ZUMO 660 NAV MP3 information provided with
your player to become familiar with all unit features and operation.
The audio integration kit must be installed to enable outputs from the NAV MP3 (such as
navigation instructions or user-loaded MP3 media files) to play through the headsets or
speakers. The unit is fully functional without the kit installed, but there will be no interface
with the vehicle’s audio system.
Navigation MP3 Operation Tips
• Signals coming from the NAV MP3 unit will override any source of the vehicle’s audio system to
ensure navigation instructions are communicated when needed. The signals will also override the
MP3 player.
• You must set volume levels within the NAV MP3 unit. Volume settings in the vehicle’s audio system
control NAV MP3 volume, but navigation instructions may be difficult to hear if volume levels in the
unit are set too low. See the GARMIN information for setting procedures. The recommended initial
settings are 100/80/80: MASTER 100%, NAVIGATION 80%, MEDIA 80%.
• Pause or stop the MP3 player to switch to playing audio from a radio source.
• If playing MP3 files from the GARMIN ZUMO 660 unit, you may need to turn down the “media
volume” on the GARMIN unit to avoid distortion.
• NAV audio must be turned on in the mode menu in order to play MP3 music files from the GARMIN
ZUMO 660 NAV unit.
• While in NAV source, only MP3 music stored on the GARMIN ZUMO 660 will play on the radio.
The power switch must be ON to use
the audio system. Press and release
MODE until NAV is the active source.
When navigation instructions are
given, the music volume will be muted
and “NAV” will be displayed on the
line below the active source.
Bluetooth Sources
Press and release MODE until “DRIVER DEVICE” is
displayed on the screen.
Tip: Make sure the Bluetooth volume on your device is turned
all the way up.
NAV interrupting
other sources
shows NAV on
second line
![](asset-71.png)
111
AUDIO SYSTEM
Selecting Audio Sources

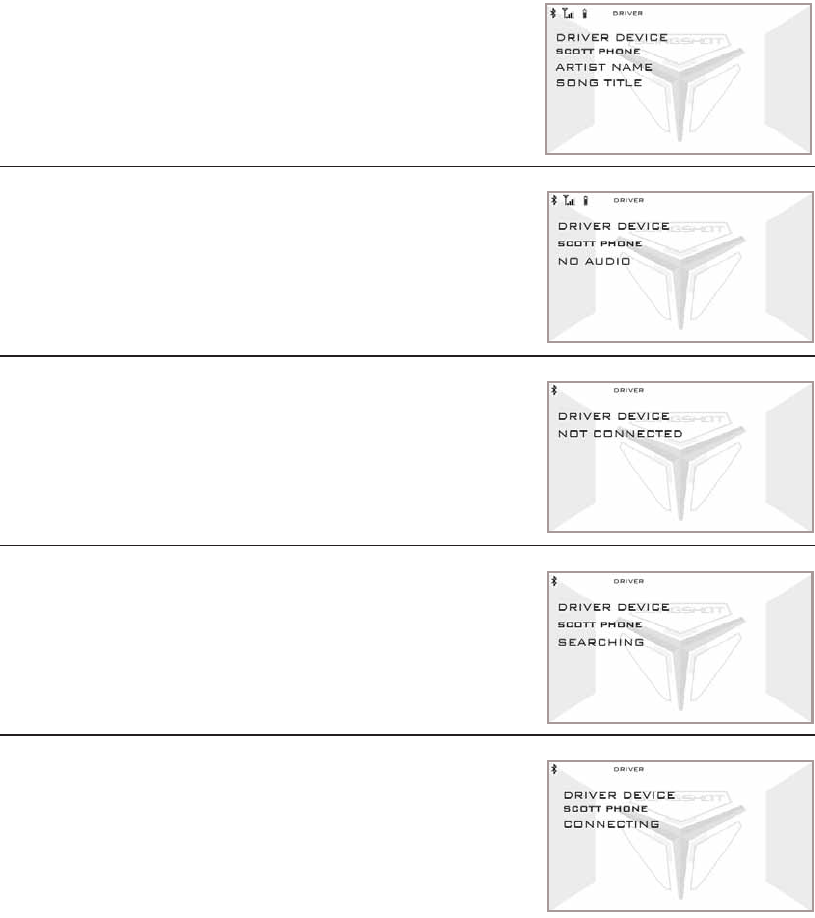

Bluetooth Source - Driver
When a device is paired and connected to the Driver
Device location, selecting this mode will stream music
to the radio.
When Driver Device is turned on, “NO AUDIO” will be
displayed as the radio resumes connection with the
device.
When a device is paired but not connected to a
Bluetooth source location, “NOT CONNECTED” will
be displayed.
“SEARCHING” will be displayed when the radio is
looking for a currently paired device.
When a device is paired to a Bluetooth source and is in
the process of connecting to the radio,
“CONNECTING” will be displayed.
![](asset-72.png)
112
AUDIO SYSTEM
Selecting Audio Sources
Bluetooth Device Music Mode Settings
The DRIVER DEVICE source will play the music source that is active on the connected
device. Some Bluetooth devices allow the radio to access additional features and controls
when using the Pandora® app.
The MUSIC MODE menu offers two settings:
• DEFAULT - The radio streams the active music source from the device (even if Pandora is
the active music source on the device).
• PANDORA - The radio always commands the device to use Pandora when DRIVER
DEVICE is on.

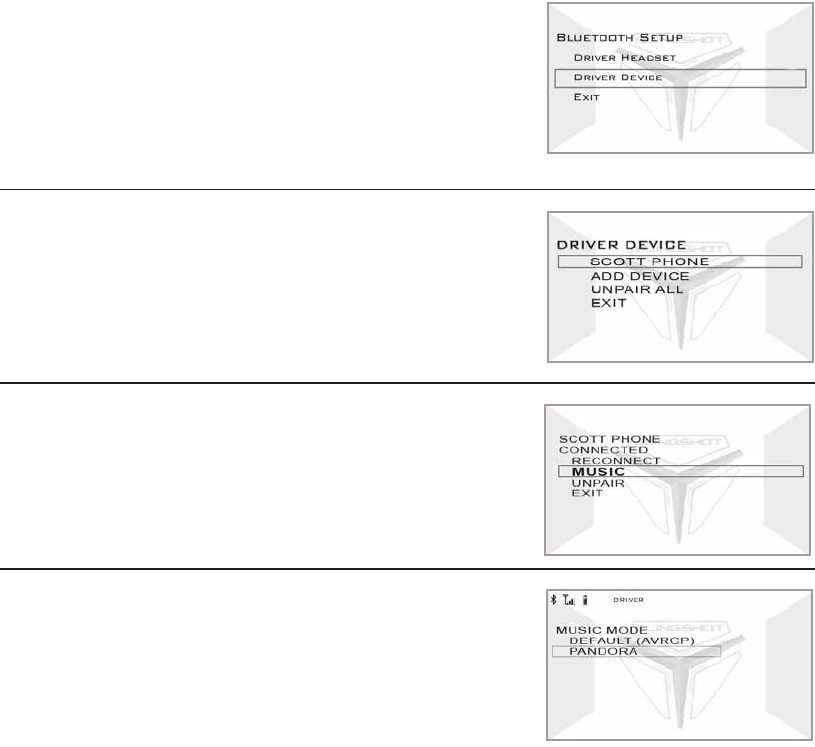

Music Mode Setting - Bluetooth Setup Menu
1. Press and hold MODE to access the audio menu.
2. Press and release MODE until “BLUETOOTH
SETUP” is displayed.
3. Press and release PRESET to access the Bluetooth
Setup Menu options.
4. In the Bluetooth Setup Menu, press TUNE+ or
TUNE- to scroll.
5. Press PRESET to select DRIVER DEVICE.
6. Press TUNE+ or TUNE- to navigate through
selections until the device you want to configure is
highlighted. Press and release PRESET to select
the device.
7. Press TUNE+ or TUNE- to navigate to MUSIC.
Press and release PRESET to display the music
mode menu.
8. Press TUNE+ or TUNE- to navigate to either
DEFAULT or PANDORA. Press and release
PRESET to make the selection.
![](asset-73.png)
113
AUDIO SYSTEM
Selecting Audio Sources
Bluetooth Device Music Mode Settings
Music Mode Setting - Bluetooth Setup Menu

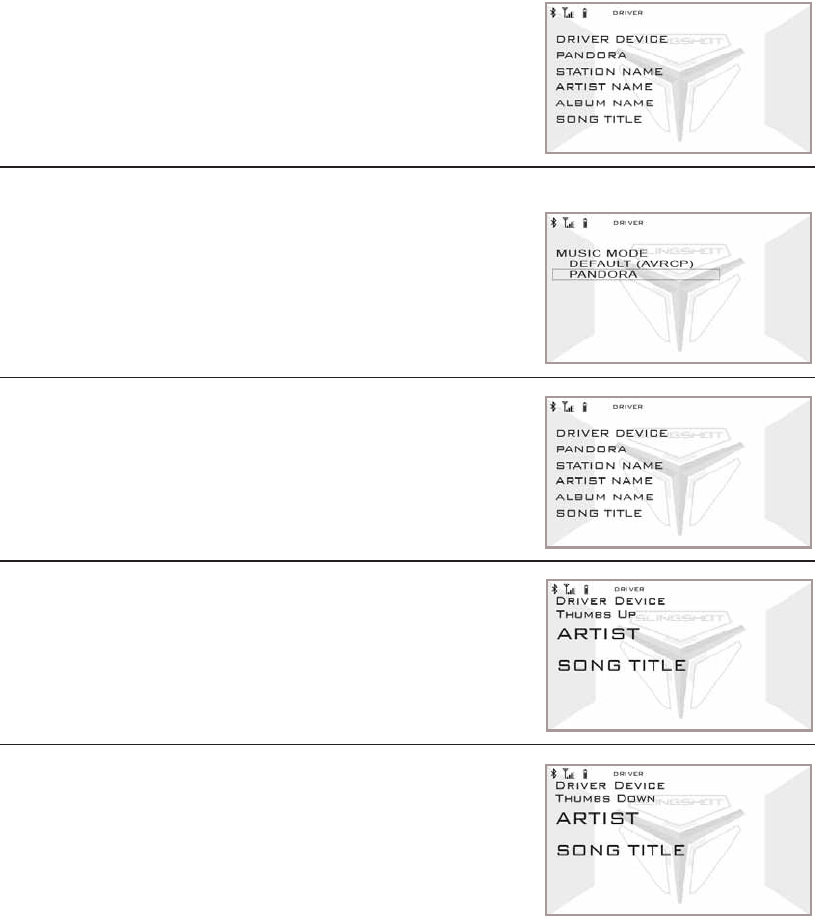

9. If Pandora® is selected, the screen will display
station name, artist name and song title after
connecting.
Bluetooth Driver Source - Pandora®
1. When the Bluetooth device audio source is active
and playing, press and hold PRESET until the
system enters the MUSIC MODE menu.
2. Press TUNE+ or TUNE- to navigate to either
DEFAULT or PANDORA. Press and release
PRESET to make the selection.
3. If Pandora® is selected, the screen will display
station name, artist name and song title after
connecting.
4. To give a “THUMBS UP” for the current song,
press and hold TUNE+.
5. To give a “THUMBS DOWN” for the current song,
Press and hold TUNE-.
![](asset-74.png)
114
AUDIO SYSTEM
Selecting Audio Sources
Bluetooth Device Music Mode Settings
Bluetooth Driver Source - Pandora®

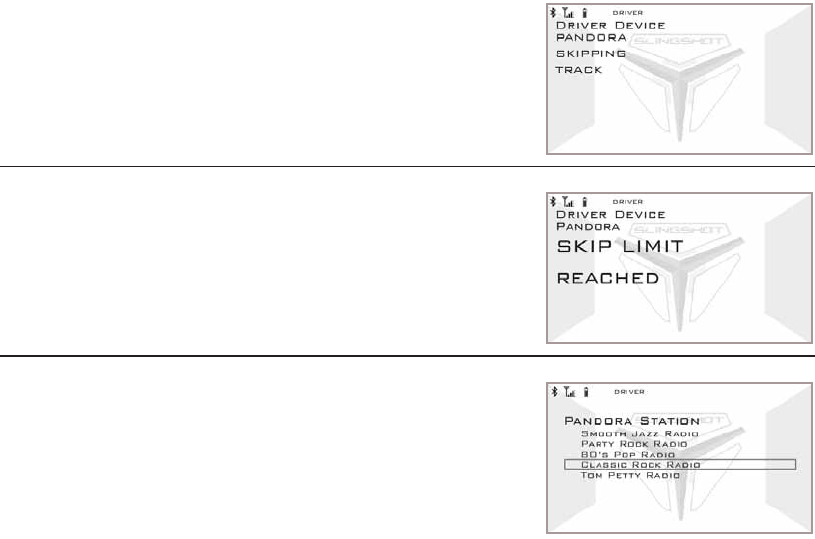

6. To skip forward to the next song, press and release
TUNE+.
7. When the skip limit is reached, “SKIP LIMIT
REACHED” displays.
8. Press and release PRESET to bring up the station
list.
9. Use TUNE+ or TUNE- to scroll through the list.
10. Press PRESET to select a new station.
OR
Press MODE to exit.
![](asset-75.png)
115
AUDIO SYSTEM
Voice Recognition Mode
The radio features voice recognition when a driver headset is connected and turned on. Radio
Bluetooth functionality is dependent on the capabilities of the device. Please see your
device’s user manual.
Tip: Make sure the Bluetooth volume on your device is turned all the way up.
The device’s connectivity, battery and signal strength are shown on the top of the display.

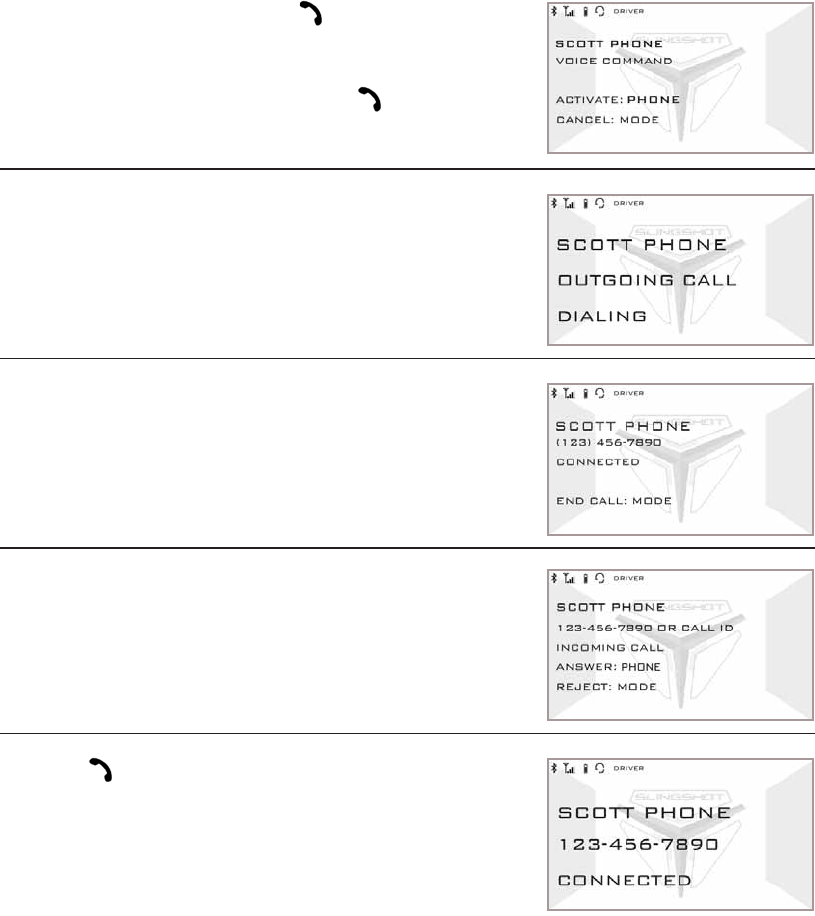

Initiating a Phone Call
1. To initiate a phone call, press PHONE to request
voice recognition mode.
2. Speak phone commands into microphone.
3. Press and release PRESET or press PHONE
while in voice recognition mode to re-send or resume
voice recognition request.
4. When the phone call is initiated, “DIALING” and
either the caller ID or “OUTGOING CALL” will be
displayed.
5. Press MODE to cancel outgoing call if desired.
6. When the call is answered, the screen will display
“CONNECTED”.
7. Press and release MODE to end the phone call.
Receiving/Answering Phone Calls
When a phone is paired to DRIVER DEVICE, the audio
system will allow the driver to either answer or reject an
incoming phone call.
When an incoming phone call is received, the screen
will display the information of the caller.
1. Press PHONE to answer the call.
2. Press MODE to reject the call.
3. To end the phone call, press MODE.
![](asset-76.png)
116
AUDIO SYSTEM
Voice Recognition Mode

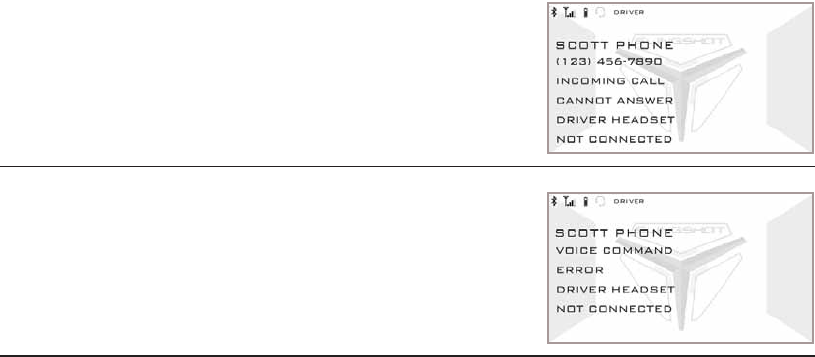

Error Messages
If your phone receives an incoming call, but you do not
have your headsets connected, the incoming call
information and “CANNOT ANSWER” displays.
Press MODE to send the incoming call to voice mail.
If you attempt to initiate a phone call, but you do not
have your headsets connected, “HEADSET NOT
CONNECTED” displays.
Siri Eyes Free
Your radio’s voice command mode supports the Siri Eyes Free feature on select iPhone
models so you can use Siri without having to look at the screen. For example:
“Play songs by...”
“Get directions to...”
“Read my notifications”
“Send a message to...”
For additional commands, consult your device’s owner’s manual.
Siri is available on iPhone 4s or later, iPad with Retina display, iPad mini and iPod touch (5th
generation) and requires Internet access. Siri may not be available in all languages or in all
areas, and features may vary by area. Cellular data charges may apply.
For more information about Siri Eyes Free, visit: www.apple.com/ios/siri/.
![](asset-77.png)
117
AUDIO SYSTEM
Audio Mode Menus
Entering Mode Menu
1. Press and hold MODE until the system enters the audio system mode menus.
2. Press and release MODE to cycle through the following menu items, shown in order of
display:
• Audio Output Select
• Helmet Equalizer
•Bass
•Mid
• Treble
• Fader
• Automatic Volume Control (AVC)
• Bluetooth Setup
• Bluetooth Driver Device
•NAV Audio
• iPod Music Settings
• FM/AM Tuner Clear Presets
• Radio Broadcast Data System (RBDS)

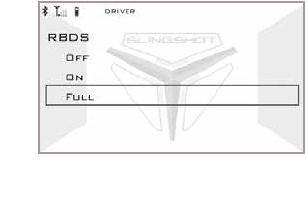

3. At the RBDS screen, press and release MODE to return to the beginning of the mode
menu list.
Exiting Mode Menu
Exit the screen and return to the default display in one of two ways:
1. Wait 10 seconds. The system will automatically exit.
2. Press PRESET to exit if not in Bluetooth Setup Mode.

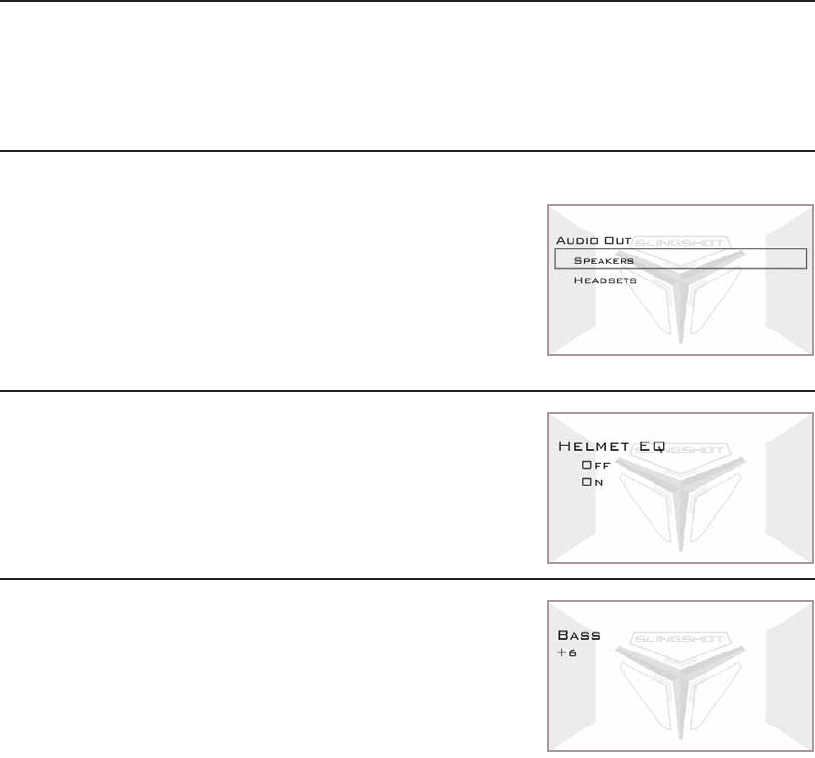

Audio Output Select
Use the audio output select menu to direct the audio
output to either the external speakers or headsets.
• Speakers
• Headsets
1. Press TUNE+ or TUNE- to adjust.
2. Press and release MODE to move to the next
selection.
Helmet Equalizer
Press TUNE+ or TUNE- to select ON or OFF.
Press and release MODE to move to next selection.
Bass Setting
Press TUNE+ or TUNE- to adjust.
Press and release MODE to move to next selection.
ON: Audio is optimized for full-face helmet
OFF: Audio is optimized for half-helmet
![](asset-78.png)
118
AUDIO SYSTEM
Audio Mode Menus

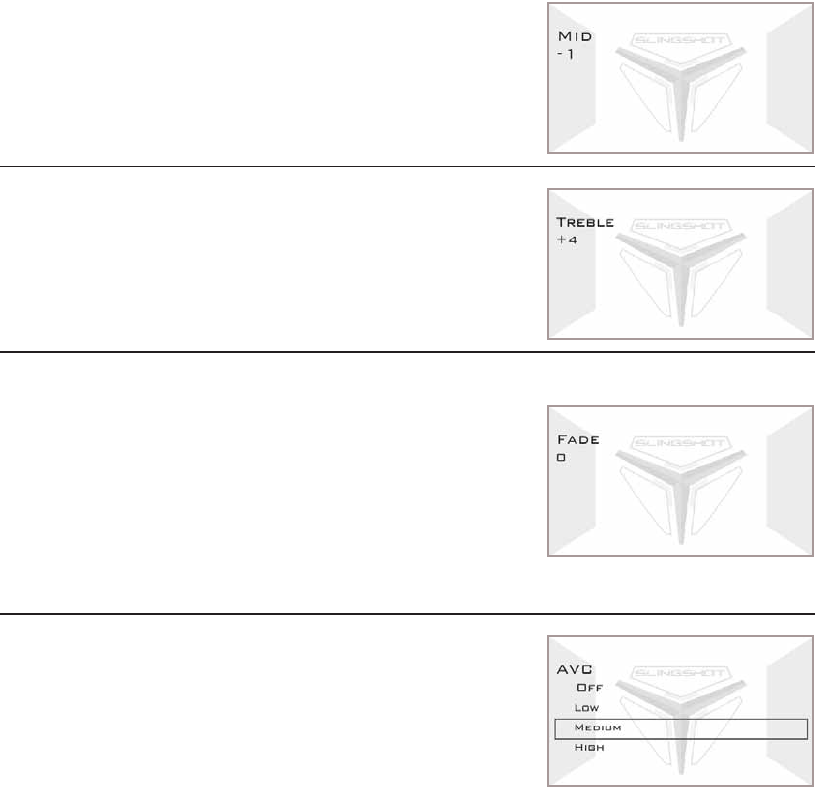

Mid Setting
Press TUNE+ or TUNE- to adjust.
Press and release MODE to move to next selection.
Treble Setting
Press TUNE+ or TUNE- to adjust.
Press and release MODE to move to next selection.
Fader Setting
1. Press TUNE+ or TUNE- to adjust speaker fader
balance.
2. Use the fader adjustment menu to control audio
balance between front and rear speakers.
Tip: Fader setting menu is not shown if headsets are
selected as the output.
3. Press and release MODE to move to next
selection.
Automatic Volume Control (AVC)
When set, this feature will lower or raise the speaker
volume automatically, based on vehicle speed.
1. Press TUNE+ or TUNE- to adjust the automatic volume settings.
2. Press and release MODE to move to next selection.
OFF: No Adjustment
LOW: Least aggressive setting
MEDIUM: Moderate setting
HIGH: Most aggressive setting
![](asset-79.png)
119
AUDIO SYSTEM
Audio Mode Menus

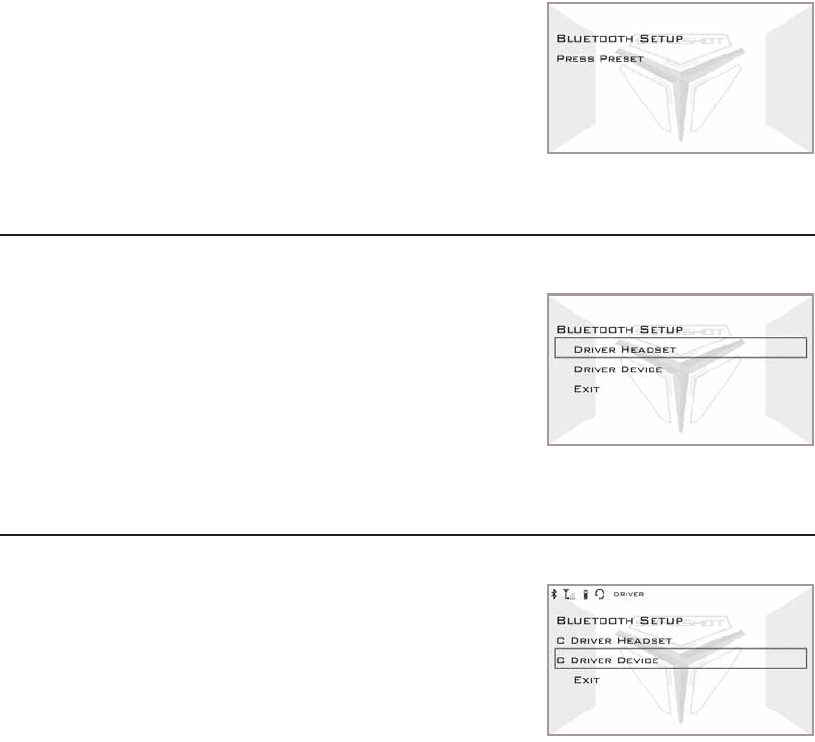

Bluetooth Setup
Tip: The Bluetooth setup menu is not available when the
vehicle is moving or when the screen is set to display
Diagnostic Trouble Codes (DTCs).
Bluetooth Setup allows the user to pair and unpair the
headset and devices.
1. Press and hold MODE to access the audio menu.
2. Press and release MODE until “BLUETOOTH
SETUP” is displayed.
3. Press and release PRESET to access the Bluetooth Setup Menu options.
Bluetooth Setup Menu
The Bluetooth Setup Menu provides the following
selections:
1. Press and release TUNE+ or TUNE- to scroll
through the list.
2. Press and release PRESET to select an item.
Bluetooth Setup Notes
• The Bluetooth Setup Menu will display “C” next to each
position when there is either a headset or device
connected.
• Each Bluetooth position can have a maximum of three
devices paired to that location. To add another device, you
must remove one or all of the paired devices.
• Only one device can be connected at any given time.
• During audio system power-up, the radio will search
through the list of paired devices and make connections to
one of each pairing position.
Tip: Turning the source off in the MODE MENU will not prevent the device from connecting; it only
prevents it from appearing on the audio source loop. This allows a device to be paired and
connected only for the purpose of receiving phone calls.
• Audio controls are limited to basic functions when devices are connected via Bluetooth.
• To maintain full audio controls, connect the device to the USB cable.
DRIVER HEADSET: Pair/unpair driver headset(s)
DRIVER DEVICE: Pair/unpair driver device(s)
EXIT: Exit Bluetooth Setup Menu
![](asset-7a.png)
120
AUDIO SYSTEM
Audio Mode Menus

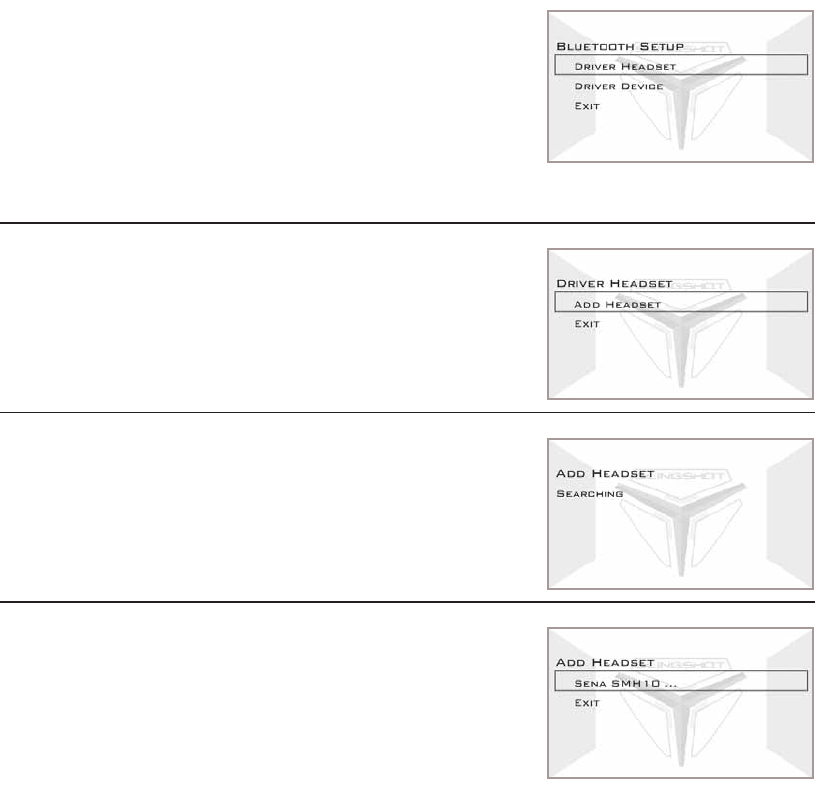

Bluetooth Setup Menu

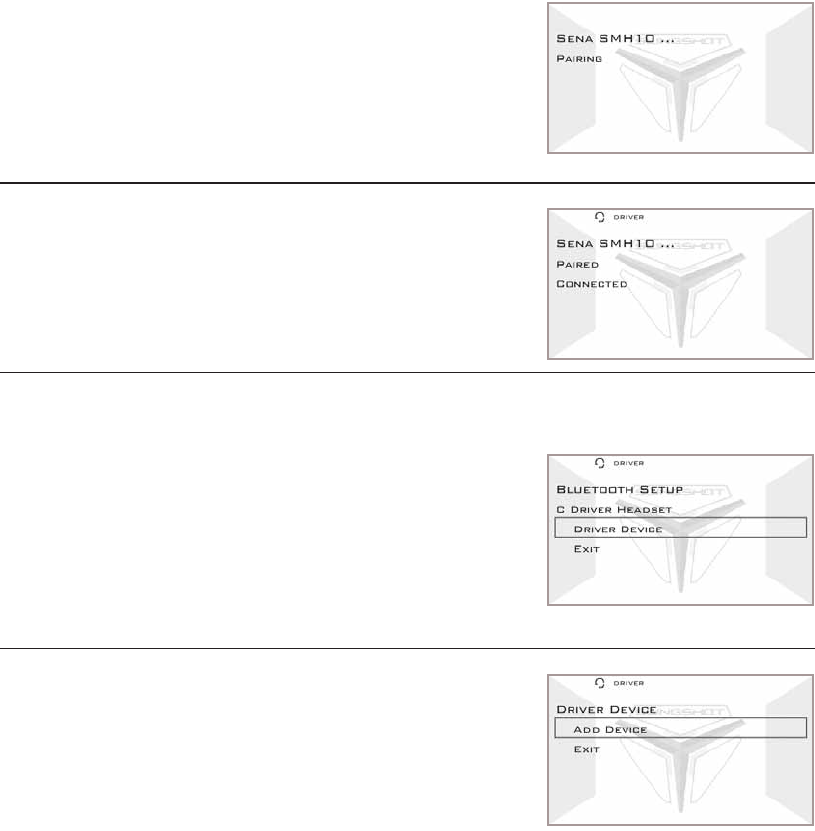

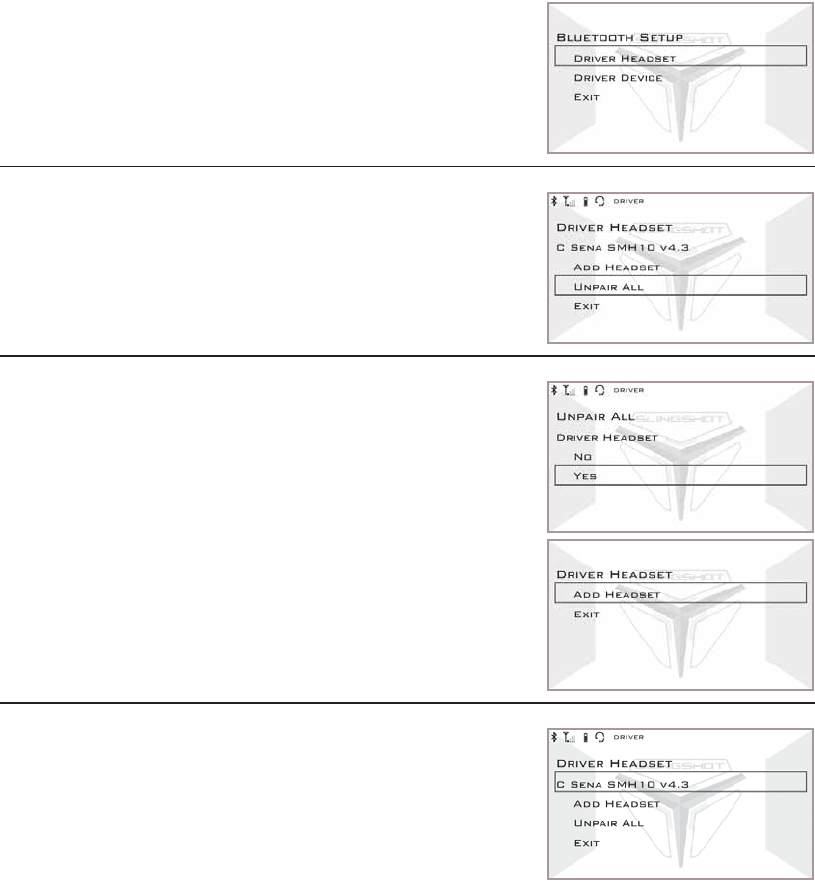

Driver Headset Pairing
Incoming phone calls cannot be answered if driver headset is not connected. Press and
release MODE to send the calls to voice mail.
1. Press and hold MODE to access the audio menu.
2. Press and release MODE until “BLUETOOTH
SETUP” is displayed.
3. Press and release PRESET to access the Bluetooth
Setup Menu options.
4. In the Bluetooth Setup Menu, press TUNE+ or
TUNE- to scroll.
5. Select DRIVER HEADSET.
6. Press and release PRESET.
7. Press PRESET to select ADD HEADSET.
Tip: Sena SMH10 Bluetooth headsets are recommended.
Reference the headset user manual to enable Bluetooth
pairing. The headset must be in the pairing mode.
8. The radio will search for the headset.
9. When the headset is found, its name will be
displayed.
![](asset-7b.png)
121
AUDIO SYSTEM
Audio Mode Menus
Bluetooth Setup Menu
Driver Headset Pairing
10. Press and release PRESET to pair the headset with
the radio. The radio will display “PAIRING” during
the pairing process.
Tip: If prompted to enter a pairing code, find the code in the
headset user’s manual. Use TUNE+ or TUNE- to enter
the digits 0-9. Press and release PRESET to enter the
number and move to the next digit. Default codes are
typically: “0000” or “1234”.
11. “PAIRED” is displayed on the screen when the
radio has successfully paired the headset.
Driver Device Pairing
The radio can be paired with Bluetooth devices such as smart phones.
1. In the Bluetooth Setup Menu, press TUNE+ or
TUNE- to scroll between options.
2. Set the device to “Discoverable Mode” before
starting the pairing procedure. See the user manual
for your device.
3. Select “DRIVER DEVICE.”
4. Press and release PRESET.
5. Use TUNE+ or TUNE- to scroll to “ADD
DEVICE”.
6. Press and release PRESET to select “ADD
DEVICE.”
![](asset-7c.png)
122
AUDIO SYSTEM
Audio Mode Menus
Bluetooth Setup Menu
Driver Device Pairing

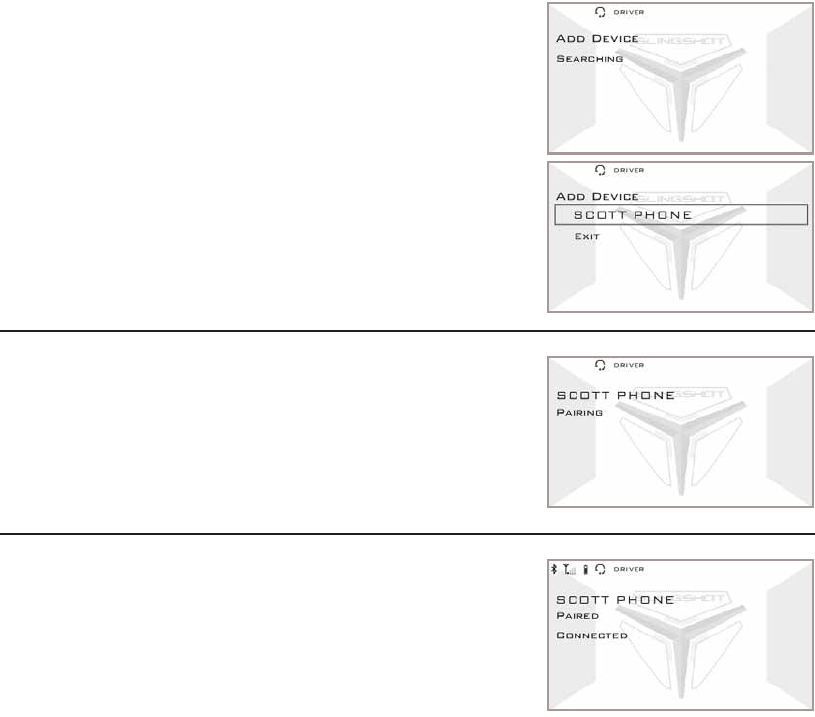

7. The radio will search for the device. When the
device is found, its name will display.
8. Press and release PRESET to pair the device with
the radio.
Tip: The device and the radio may display a 6-digit key
confirmation screen. To confirm, press CONFIRM on
the device and press PRESET on the radio.
9. “PAIRED” is displayed on the screen when the
radio has successfully paired the device.
![](asset-7d.png)
123
AUDIO SYSTEM
Audio Mode Menus
Bluetooth Setup Menu
Unpairing/Reconnecting Devices
Tip: The following steps reference the DRIVER HEADSET as an example. Unpairing other devices
follows the same procedures.
1. In the Bluetooth Setup Menu, use TUNE+ or
TUNE- to make a selection. Select “DRIVER
HEADSET”.
2. Press and release PRESET.
3. To unpair ALL of the devices in the “DRIVER
HEADSET” location, press TUNE+ or TUNE- to
select “UNPAIR ALL”, and then press PRESET.
4. Press TUNE+ or TUNE- to select NO or YES.
Select YES, and then press and release PRESET to
unpair all devices.
The radio will unpair all of the devices from this
location and return to the Bluetooth setup menu
screen.
5. To unpair individual devices in the “DRIVER
HEADSET” location, press and release TUNE+ or
TUNE- to select the device you want to unpair.
![](asset-7e.png)
124
AUDIO SYSTEM
Audio Mode Menus
Bluetooth Setup Menu
Unpairing/Reconnecting Devices

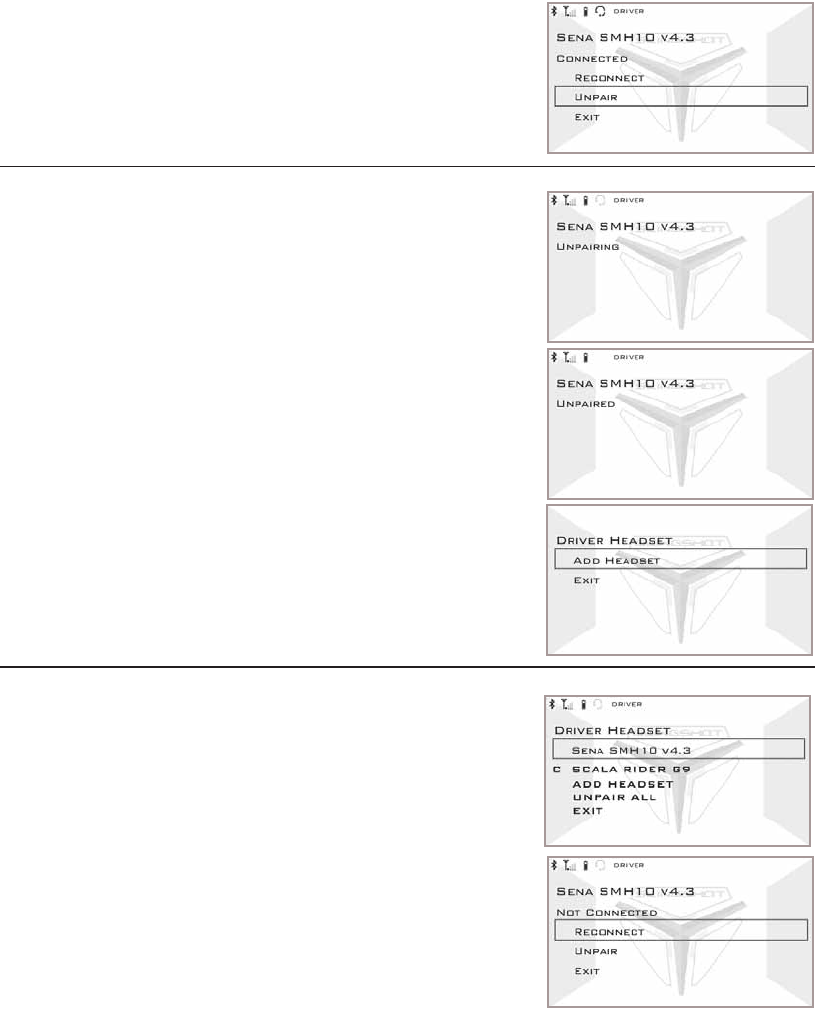

6. Press and release PRESET to select the device.
7. Press and release TUNE+ or TUNE- to select
“UNPAIR.”
8. Press and release PRESET to unpair the device.
“UNPAIRED” will be displayed after the device is
removed from the list.
The radio will return to the “DRIVER HEADSET”
device location.
9. Or to connect a different paired
device at a location, select that device
and press PRESET to select it.
10. Select “RECONNECT.”
11. Press PRESET.
![](asset-7f.png)
125
AUDIO SYSTEM
Audio Mode Menus

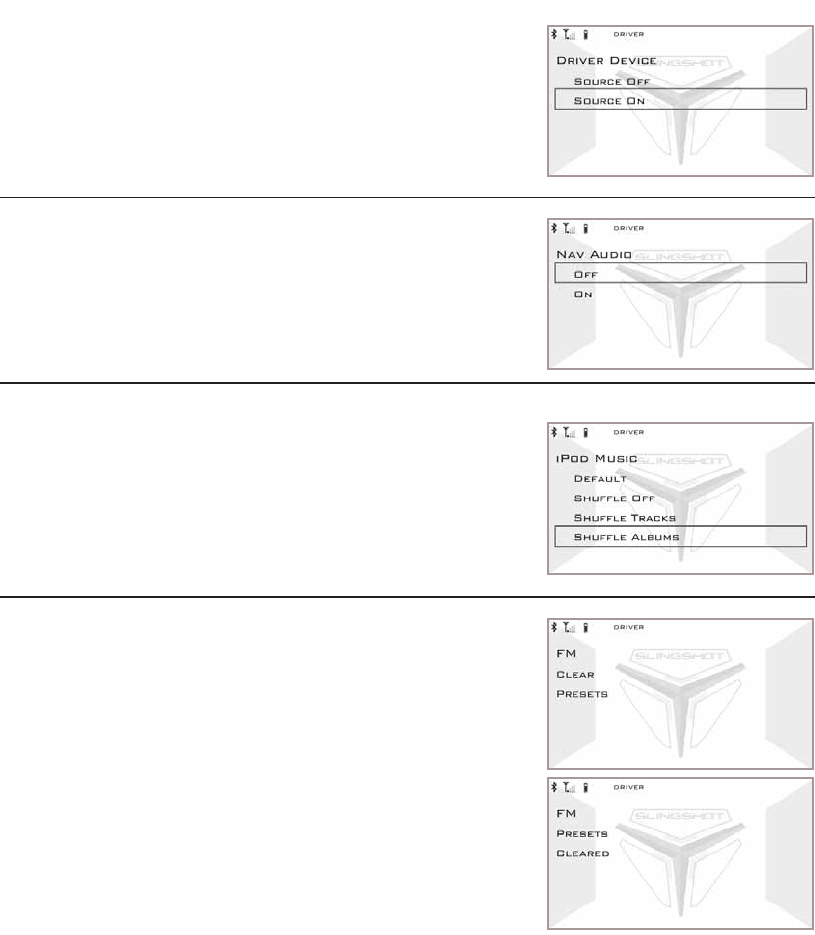

Bluetooth Driver Device
1. Press TUNE+ or TUNE- to turn the DRIVER
BLUETOOTH device source ON or OFF.
•SOURCE ON
•SOURCE OFF
2. Press and release MODE to move to the next
selection.
NAV Audio
1. Press TUNE+ or TUNE- to turn the NAV AUDIO
source ON or OFF.
2. Press and release MODE to move to the next
selection.
iPod Settings Menu
1. Press TUNE+ or TUNE- to change between
Default, Shuffle Off, Shuffle Tracks, Shuffle
Albums settings. The Default setting uses the
shuffle setting of the iPod when it was connected.
2. Press and release MODE to move to the next
selection.
Tuner Clear Presets
1. To clear all FM or AM radio station presets, press
TUNE+ or TUNE- to select FM or AM clear
presets.
2. Press PRESET to clear the presets for the desired
tuner band.
3. Press and release MODE to move to the next
selection.
![](asset-80.png)
126
AUDIO SYSTEM
Audio Mode Menus
Radio Broadcast Data System (RBDS)
1. Press TUNE+ or TUNE- to turn the Radio
Broadcast Data System (RBDS). When on, the
screen will display artist, song title, etc. (if available
in the radio signal).
•OFF
• ON (Station name only)
• FULL (Station name + radio text)
2. Press and release MODE to move to the top of the
MODE menu list.
![](asset-81.png)
127
AUDIO SYSTEM
Audio System Diagnostics
The audio system diagnostic menu allows the following actions for you or your Slingshot
dealer:
• View radio software version
• Set radio tuner location
• View vehicle speed

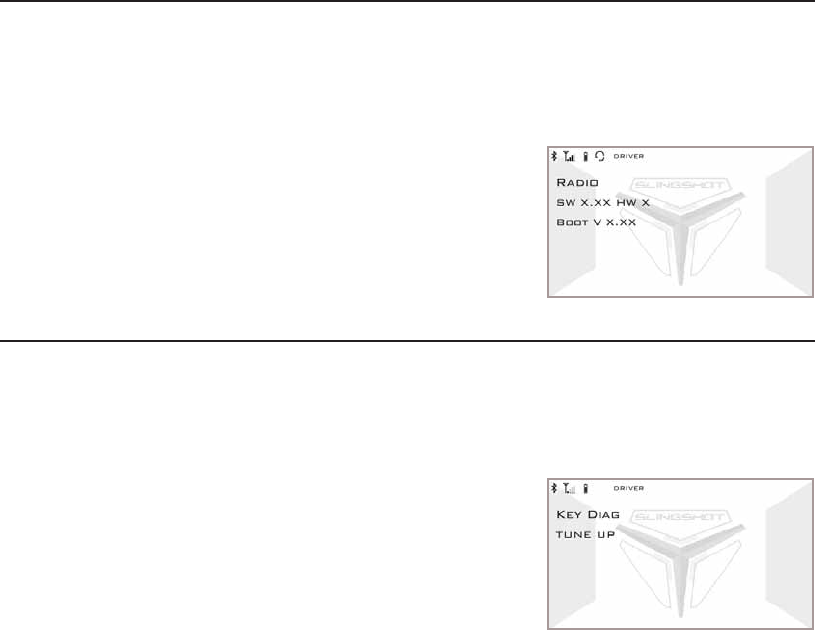

Diagnostic Menu
To access the diagnostic menu:
1. Press and hold VOL- to turn the radio off.
2. Turn the power switch OFF.
3. Turn the power switch ON.
4. Press and hold PRESET for several seconds.
5. This screen will appear if steps 1-4 were performed
correctly.
Tip: If you do not see this screen, perform steps 1-4 again.
6. Press and release MODE to move to Key Pad
Diagnostics.
Key Pad Diagnostics
Audio system button diagnostics allows the user to the test the function of each audio control
button.
1. Press and release each of the audio control buttons to test the function of each button.
2. Observe the display after each button is pressed.
The screen will display the button name by its
function. If nothing displays, the button is not
working. See your authorized dealer for service.
3. Press and release MODE to move to Tuner
Location Settings.
![](asset-82.png)
128
AUDIO SYSTEM
Audio System Diagnostics

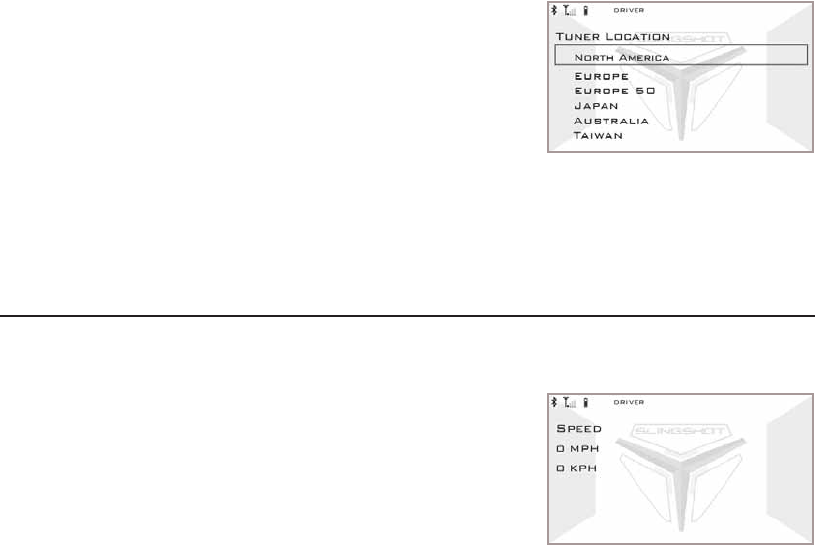

Tuner Location Settings
The radio tuner can be set to the geographical location
where the vehicle will be driven.
The following settings can be chosen under the Tuner
Location Settings menu:
• NORTH AMERICA (USA/CANADA/MEXICO)
• EUROPE
• EUROPE 50
• JAPAN
•AUSTRALIA
•TAIWAN
1. Press and release TUNE+ or TUNE- to make a new selection.
2. Turn the power switch OFF, then ON to save the new tuner location.
Speed Diagnostic
The Speed Diagnostic menu displays vehicle speed. Use
this menu to verify the radio system is receiving a speed
signal from the vehicle control module.
1. Press and release MODE to return to the radio
hardware/version display screen.
2. To exit the audio system diagnostics menu and
return to the RADIO OFF screen, press and release
TUNE+ or TUNE-.
![](asset-83.png)
129
AUDIO SYSTEM

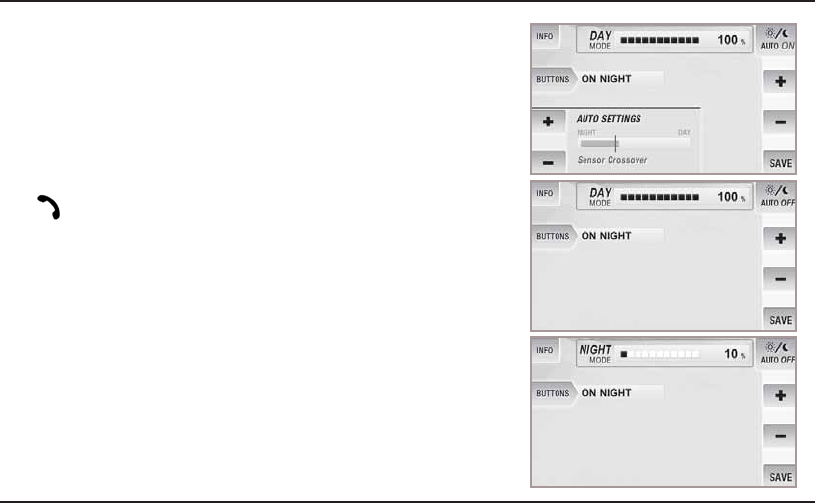

Screen Display Settings
The screen display diagnostic menu allows the following actions for you or your
SLINGSHOT dealer:
• Adjust backlighting
• Set DAY/NIGHT/AUTO mode
• Adjust button display modes
1. To access the display settings, press and hold MUTE.
2. Press VOL+ to display software information.
3. Press VOL+ to return to the display settings screen.
4. Press MODE to save any changes and exit.
Backlighting Display Settings
1. Press and release TUNE+ to cycle
through DAY/NIGHT/AUTO modes.
2. Press and release TUNE- or PRESET
to adjust the screen brightness in each
mode.
3. With Auto mode on, press MUTE or
PHONE to adjust the DAY/NIGHT
light transition point.
Button Display Settings
Press VOL- to scroll through button display modes:
OFF: Button text does not display on screen
ON: Button text displays on screen at all times
ON NIGHT: Button text displays at all times in NIGHT MODE only
SLIDE: Button text slides out to display when any button is pressed
SLIDE NIGHT: Button text slides out to display in NIGHT MODE only
130
AUDIO SYSTEM
Audio Compliance Information
FCC and Industry Canada Compliance Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20
cm between the radiator and your body.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
131
INDEX
A
About the Owner’s Manual. . . . . . . . . . . . . . . . . . . 8
ABS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accelerating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Accessories, How to Choose . . . . . . . . . . . . . . . . 11
Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Angle Drive Fluid. . . . . . . . . . . . . . . . . . . . . . . . . 55
Anti-Lock Brake System . . . . . . . . . . . . . . . . . . . 28
Audio Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Audio System. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Audio Mode Menus . . . . . . . . . . . . . . 117-126
Audio Source Selection . . . . . . . . . . . 102-114
Compliance Information . . . . . . . . . . . . . . 130
Diagnostics. . . . . . . . . . . . . . . . . . . . . 127-128
Introduction . . . . . . . . . . . . . . . . . . . . . 98-100
Low Voltage Mute . . . . . . . . . . . . . . . . . . . 102
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Power and Volume Controls . . . . . . . . . . . 101
Screen Display Settings . . . . . . . . . . . . . . . 129
Voice Recognition Mode . . . . . . . . . . 115-116
B
Back-Up Camera (if equipped). . . . . . . . . . . . . . . 33
Battery
Access Panel . . . . . . . . . . . . . . . . . . . . . . . . 70
Battery Safety. . . . . . . . . . . . . . . . . . . . . 69-70
Charging. . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 69
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 71, 80
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 62-63
Brake Fluid Change . . . . . . . . . . . . . . . . . . . . . . . 62
Brake Fluid Precautions . . . . . . . . . . . . . . . . . . . . 62
Brake Lever, Park . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brake Pedal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Brake System Inspections. . . . . . . . . . . . . . . . . . . 64
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Break-In Maintenance. . . . . . . . . . . . . . . . . . . . . . 48
Break-In Period. . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Breather Hose Inspection . . . . . . . . . . . . . . . . . . . 59
C
Check Engine Indicator . . . . . . . . . . . . . . . . . . . . 26
Cleaning Products. . . . . . . . . . . . . . . . . . . . . . . . . 78
Clutch Fluid, Hydraulic . . . . . . . . . . . . . . . . . 60-61
Clutch Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Compliance, Vehicle. . . . . . . . . . . . . . . . . . . . . . . 13
Component Locations. . . . . . . . . . . . . . . . . . . . . . 17
Console Components . . . . . . . . . . . . . . . . . . . 18-21
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Coolant Hoses Inspection . . . . . . . . . . . . . . . . . . . 57
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cooling Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cooling System Operation . . . . . . . . . . . . . . . 56-57
Cruise Control Operation . . . . . . . . . . . . . . . . 46-47
Cruise Control Switches . . . . . . . . . . . . . . . . . . . . 19
D
Display Units, Standard/Metric . . . . . . . . . . . . . . 25
Drive Belt
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Wear Analysis . . . . . . . . . . . . . . . . . . . . . . . 58
Drive Belt Inspection . . . . . . . . . . . . . . . . . . . . . . 38
Drivetrain Break-In. . . . . . . . . . . . . . . . . . . . . . . . 40
Driving Safety. . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
E
Electronic Power-Assisted Steering . . . . . . . . . . . 27
Electronic Stability Program (ESP) Switch . . . . . 21
Elevating the Vehicle for Service. . . . . . . . . . . . . 49
Engine Break-In . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Engine Compression Test. . . . . . . . . . . . . . . . . . . 68
Engine Identification Number . . . . . . . . . . . . . . . 16
Engine Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . 52-53
Engine, Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Engine, Stopping. . . . . . . . . . . . . . . . . . . . . . . . . . 45
EPAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Equipment Modifications . . . . . . . . . . . . . . . . . . . 11
Error Codes, Engine . . . . . . . . . . . . . . . . . . . . . . . 26
Evaporative Emission Control System (California
Models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Exhaust Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Exhaust System Inspection. . . . . . . . . . . . . . . . . . 68
F
Fan, Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Fastener Inspection. . . . . . . . . . . . . . . . . . . . . . . . 38
Fluid Change
Angle Drive . . . . . . . . . . . . . . . . . . . . . . . . . 55
Brake Fluid. . . . . . . . . . . . . . . . . . . . . . . . . . 62
Hydraulic Clutch Fluid . . . . . . . . . . . . . . . . 61
Transmission . . . . . . . . . . . . . . . . . . . . . . . . 54
Fluid Change, Engine Oil . . . . . . . . . . . . . . . . . . . 53
Fluid Level
Angle Drive . . . . . . . . . . . . . . . . . . . . . . . . . 55
Brake Fluid. . . . . . . . . . . . . . . . . . . . . . . . . . 63
Hydraulic Clutch Fluid . . . . . . . . . . . . . . . . 60
Transmission . . . . . . . . . . . . . . . . . . . . . . . . 54
Fluid Level, Engine Oil . . . . . . . . . . . . . . . . . . . . 52
Fluid, Engine Oil . . . . . . . . . . . . . . . . . . . . . . 52-53
Foot Controls (Foot Pedals) . . . . . . . . . . . . . . . . . 27
Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fuel Handling Safety . . . . . . . . . . . . . . . . . . . . . . 12
Fuel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Fuel Recommendation . . . . . . . . . . . . . . . . . . . . . 41
Fuel System Inspection. . . . . . . . . . . . . . . . . . . . . 59
Fuel System, Priming . . . . . . . . . . . . . . . . . . . . . . 41
Fuel Tank Filler Cap. . . . . . . . . . . . . . . . . . . . . . . 31
Fuse Replacement. . . . . . . . . . . . . . . . . . . . . . . . . 77
132
INDEX
G
Gasoline Handling Safety . . . . . . . . . . . . . . . . . . 12
Gear Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . 43-44
Glove Box Storage. . . . . . . . . . . . . . . . . . . . . . . . 33
Gross Vehicle Weight Rating . . . . . . . . . . . . . . . 14
GVWR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
H
Hazard Switch/Emergency Flashers . . . . . . . . . . 20
Headlamp Aim Adjustment (Canada) . . . . . . . . . 76
Headlamp Aim Adjustment (USA) . . . . . . . . . 74-75
Headlamp Aim Inspection Conditions. . . . . . . . . 74
Headlamp Bulb Replacement . . . . . . . . . . . . . . . 73
Headlight High/Low Beam Switch . . . . . . . . . . . 19
Hood, Opening/Closing. . . . . . . . . . . . . . . . . . . . 31
Horn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
I
Identification Number Record . . . . . . . . . . . . . . . . 6
Ignition Key Number. . . . . . . . . . . . . . . . . . . . . . 16
Ignition Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Indicator Lamps. . . . . . . . . . . . . . . . . . . . . . . . 22-23
Information Labels. . . . . . . . . . . . . . . . . . . . . . . . 15
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . 19, 22
K
Key Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
L
Labels, Information . . . . . . . . . . . . . . . . . . . . . . . 15
Labels, Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LED Light Assemblies . . . . . . . . . . . . . . . . . . . . 73
Lights
Headlamp Aim Adjustment (Canada). . . . . 76
Headlamp Aim Adjustment (USA). . . . 74-75
Headlamp Bulb Replacement . . . . . . . . . . . 73
LED Light Assemblies . . . . . . . . . . . . . . . . 73
M
Maintenance
Break-In Maintenance. . . . . . . . . . . . . . . . . 48
Major Maintenance. . . . . . . . . . . . . . . . . . . 48
Periodic Maintenance . . . . . . . . . . . . . . 50-51
Maintenance for Safety . . . . . . . . . . . . . . . . . . . . 13
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . . 97
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . 49
Maintenance, Required . . . . . . . . . . . . . . . . . . . . 13
Major Maintenance . . . . . . . . . . . . . . . . . . . . . . . 48
Master Lighting Switch (Canada) . . . . . . . . . . . . 20
Metric Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MFD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-26
Mirror Adjustment. . . . . . . . . . . . . . . . . . . . . . . . 33
Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Modifications, Vehicle . . . . . . . . . . . . . . . . . . . . 11
Multi-Function Display . . . . . . . . . . . . . . . . . . 24-26
O
Oil Change, Engine Oil/Filter . . . . . . . . . . . . . . . . 53
Oil Level, Engine Oil . . . . . . . . . . . . . . . . . . . . . . 52
Oil, Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . 52-53
Operation, Cooling System . . . . . . . . . . . . . . . 56-57
P
Park Brake Lever. . . . . . . . . . . . . . . . . . . . . . . . . . 29
Parking the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 11
Periodic Maintenance . . . . . . . . . . . . . . . . . . . 50-51
Power-Assisted Steering . . . . . . . . . . . . . . . . . . . . 27
R
Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Refueling Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Registration, Warranty . . . . . . . . . . . . . . . . . . . . . 87
Reverse Operation . . . . . . . . . . . . . . . . . . . . . . . . . 45
S
Safety Defects, Reporting to NHTSA . . . . . . . . . . 14
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety While Servicing . . . . . . . . . . . . . . . . . . . . . 49
Seat Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . 30
Seat Belt Inspection. . . . . . . . . . . . . . . . . . . . . . . . 32
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Security System (Canada) . . . . . . . . . . . . . . . . 34-35
Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Service Procedure Safety. . . . . . . . . . . . . . . . . . . . 49
Severe Use Definition . . . . . . . . . . . . . . . . . . . . . . 50
Shift Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Shifting Gears . . . . . . . . . . . . . . . . . . . . . . . . . 43-44
Signal Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SLINGSHOT Operating Characteristics . . . . . . . . 39
Spark Plug Recommendations. . . . . . . . . . . . . . . . 67
Spark Plug Service . . . . . . . . . . . . . . . . . . . . . 67-68
Spark Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . 67-68
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Starter Interlock Switch. . . . . . . . . . . . . . . . . . . . . 27
Starter Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Steering Inspection . . . . . . . . . . . . . . . . . . . . . . . . 38
Steering Wheel Adjustments . . . . . . . . . . . . . . . . . 30
Storage
Battery Care . . . . . . . . . . . . . . . . . . . . . . . . 80
Removal From . . . . . . . . . . . . . . . . . . . . . . 80
Seasonal . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Storage Compartments . . . . . . . . . . . . . . . . . . . . . 33
Suspension Inspection, Front. . . . . . . . . . . . . . . . . 38
Suspension Inspection, Rear . . . . . . . . . . . . . . . . . 38
Suspension Inspections . . . . . . . . . . . . . . . . . . . . . 59
133
INDEX
S
Switches
Audio Switches . . . . . . . . . . . . . . . . . . . . . . 20
Cruise Control Switches. . . . . . . . . . . . . . . . 19
Electronic Stability Program (ESP) Switch . 21
Emergency Flashers . . . . . . . . . . . . . . . . . . . 20
Hazard Switch . . . . . . . . . . . . . . . . . . . . . . . 20
Headlight High/Low Beam Switch . . . . . . . 19
Ignition Switch. . . . . . . . . . . . . . . . . . . . . . . 18
Master Lighting Switch (Canada) . . . . . . . . 20
Mode Button . . . . . . . . . . . . . . . . . . . . . . . . 21
Starter Interlock Switch . . . . . . . . . . . . . . . . 27
Starter Switch. . . . . . . . . . . . . . . . . . . . . . . . 20
Turn Signal Lever . . . . . . . . . . . . . . . . . . . . 19
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Throttle Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tilt Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-66
Tire Condition . . . . . . . . . . . . . . . . . . . . . . . 65
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . 65
Tread Depth . . . . . . . . . . . . . . . . . . . . . . . . . 65
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 54
Transporting the SLINGSHOT. . . . . . . . . . . . . . . 81
Turn Signal Lever . . . . . . . . . . . . . . . . . . . . . . . . . 19
W
Washing the Vehicle. . . . . . . . . . . . . . . . . . . . . . . 78
Weight Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wheels
Wheel Inspection . . . . . . . . . . . . . . . . . . . . . 66
Wheel Installation . . . . . . . . . . . . . . . . . . . . 66
Wheel Removal . . . . . . . . . . . . . . . . . . . . . . 66
Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . 65-66
Windshield (if equipped) . . . . . . . . . . . . . . . . . . . 31
Windshield Care (if equipped) . . . . . . . . . . . . . . . 31
