2
English
Safety information
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help you
set up and operate your system properly and enjoy its advanced features. Please save this
owner’s guide for future reference.
WARNINGS:
• To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do not place objects filled with
liquids, such as vases, on or near the apparatus. As with any electronic products, use care
not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire
hazard.
• Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
• Contains small parts that may be a choking hazard. Not suitable for children under age 3.
Notes:
• This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations (Canada only).
• The product must be used indoors. It is neither designed nor tested for use outdoors, in
recreation vehicles, or on boats.
Bose Corporation hereby declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 1995/5/CE
(R&TTE directive) and other applicable Directives. The detailed Declaration of
Conformity can be found on www.Bose.com/compliance.
Temperature range for use: 0°-45°C (32°-113°F)
BMX_BT_DockOG.fm Page 2 Thursday, July 16, 2009 11:01 AM
3
English
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, this is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, you
are encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a different circuit than the one to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC and Industry Canada RF radiation exposure limits set forth
for general population. It must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
BMX_BT_DockOG.fm Page 3 Friday, August 7, 2009 2:07 PM
4
English
Overview
The Bose® SoundDock® 10 Bluetooth® dock adds Bluetooth wireless
technology capability to your SoundDock 10 digital music system. After
installing this accessory, you can listen to your stereo Bluetooth music
phone with high-quality, room-filling sound. To experience the intended
performance, your stereo Bluetooth music phone must support the
Bluetooth Advanced Audio Distribution Profile (A2DP).
Installing the Bluetooth dock
1. Disconnect the SoundDock 10 system power cord from the AC outlet.
2. Lift up the back edge of the universal dock adapter (A) and remove it
from the dock. You may need to insert a thin non-metallic utensil into
the slot to provide the required leverage to lift the back edge.
3. Press the dock release button (B) on the right and lift up (C) the right
side of the dock to remove it. There is a small indent on the button if
you need to use a pen to press the button in far enough to fully release
the dock.

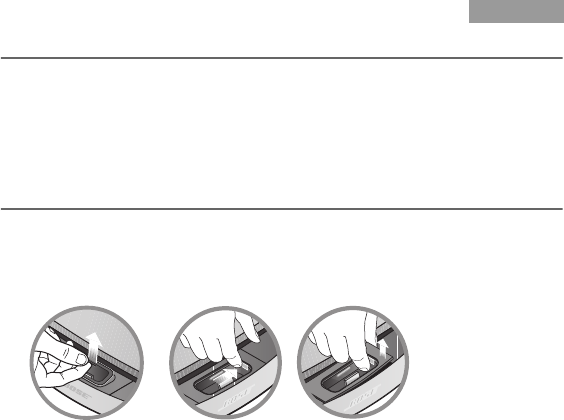

ABC
BMX_BT_DockOG.fm Page 4 Friday, June 5, 2009 10:19 AM
5
English
4. Slide the left end of the Bluetooth® dock into the dock opening (A).
5. Press down on the right side of the dock until it locks in place (B).
Making the first connection
1. Plug the power cord of the SoundDock® 10 digital music system into
an AC outlet.
2. Wait until the Bluetooth light starts slowly flashing, meaning that the
Bluetooth dock is in discoverable mode.
NOTE: The dock stays in discoverable mode (up to 30 minutes with first-time use) until you
connect your stereo Bluetooth music phone to it.

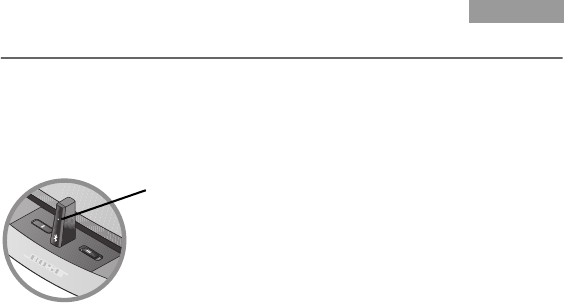

AB
Bluetooth light
(flashing = discoverable mode)
BMX_BT_DockOG.fm Page 5 Friday, June 5, 2009 10:19 AM
6
English
3. Bring your Bluetooth® music phone close to the SoundDock® 10
system.
4. Turn on the Bluetooth feature in your music phone. For details on
using this feature, refer to the owner’s guide for your phone.
5. In the list of found Bluetooth devices, find “Bose SoundDock 10” and
select it.
6. If prompted, enter the Bose® SoundDock 10 system passkey: 0000.
7. When your music phone confirms it is connected, check that the
Bluetooth light stops flashing and remains on.
NOTE: You can use the SoundDock 10 remote to control the connected music phone.
If your stereo Bluetooth music phone becomes disconnected
because it is out of range, the dock automatically tries to reconnect with it
(the Bluetooth light flashes during reconnection). If the SoundDock 10
system cannot restore a connection within five minutes, it turns off.
To disconnect, press Off on the Bose SoundDock 10 remote, or use the
disconnect command in your phone.
To reconnect when your system is off, press any remote key except
Off or AUX to turn on the system. The SoundDock 10 system then auto-
matically tries to connect with the most recently connected phone.
BMX_BT_DockOG.fm Page 6 Friday, June 5, 2009 10:19 AM
7
English
Connecting with other stereo Bluetooth® music phones
After making an initial connection, you can change the connection to
another phone by activating the discoverable mode again. However, you
can connect to only one phone at a time.
1. Press and hold the Bluetooth button on the dock or the dock button
on the remote control until the Bluetooth light starts flashing.
2. Follow Steps 3-7 on the previous page.
For the purpose of automatic reconnection, the SoundDock® 10 system
remembers the six most recently connected music phones.
Controlling the volume
Increase the volume of your stereo Bluetooth music phone to near
maximum. Then use the Bose® SoundDock 10 remote to control the
system volume.

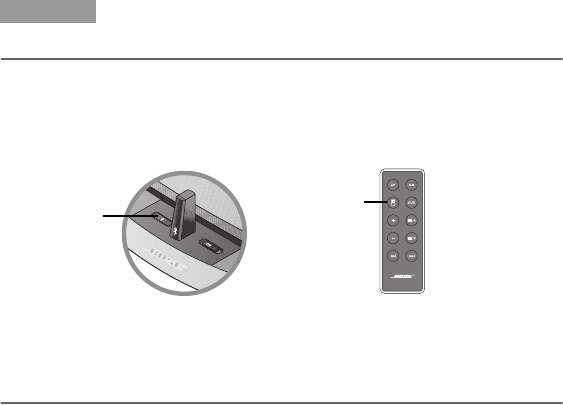

Bluetooth
button
Dock
button
BMX_BT_DockOG.fm Page 7 Friday, June 5, 2009 10:19 AM
8
English

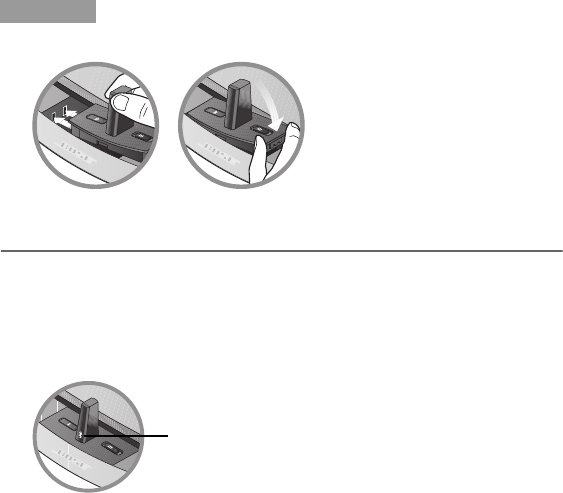

Data transfer light
Certain conditions may affect the capability of your phone to adequately
transfer data to the Bluetooth® dock. This may affect the quality of the
audio heard from your SoundDock® 10 system.
The data transfer light on the dock tells you how well the Bluetooth dock is
receiving data from your phone.
NOTE: Some phones cannot transmit data fast enough to prevent the light from blinking.
If the audio quality is affected:
•Move your phone closer to the system or to a different location.
•Move your phone away from any household device that generates
electromagnetic radiation, such as a microwave oven, another Bluetooth
device, or a wireless computer network router.
•Reduce the number of applications running on your phone.
•Disconnect your phone and connect again.
Data transfer light:
• On............................. Audio quality not affected
• Slow blink.................
(On longer than off) Audio quality may be affected
• Fast blink ..................
(Equal on-off) Audio quality is likely to be
affected
BMX_BT_DockOG.fm Page 8 Friday, June 5, 2009 10:19 AM
9
English
Troubleshooting
If you experience difficulty with your Bluetooth® dock, use the following
table to try to solve the problem. If the problem persists, see “Contacting
customer service” on page 11.
Problem What to do
Cannot
connect
my phone
to the
dock
• Make sure your SoundDock® 10 system is connected to AC power.
• Make sure the Bluetooth dock is in discoverable mode (Bluetooth
light is flashing). If not, press and hold the Bluetooth button on the
dock until the Bluetooth light starts flashing.
• Make sure the Bluetooth feature is turned on in your phone. For
details, refer to the owner’s guide for your phone.
• Move your phone closer to the SoundDock 10 system.
• Go to http://owners.Bose.com on the Internet and find information on
updating your SoundDock 10 system.
No sound • Make sure the SoundDock 10 system and your phone are turned on.
• Make sure you have a Bluetooth connection (Bluetooth light is on).
• Move your phone closer to the SoundDock 10 system.
• Turn up the phone volume as high as possible.
• Turn up the SoundDock 10 system volume.
Sound is
dropping
out or
breaking
up
• Move your phone or SoundDock 10 system away from any device
that generates electromagnetic radiation, such another Bluetooth
device, a microwave oven, or a wireless computer network router.
• Remove any physical obstruction lying between your phone and the
SoundDock 10 system.
• Change the location of your phone and/or the SoundDock 10 system.
BMX_BT_DockOG.fm Page 9 Friday, June 5, 2009 10:19 AM
10
English
Removing the Bluetooth dock
To remove the Bluetooth dock so you can put the universal dock back in
your system:
1. Slide the release latch (A) to the right.
2. Lift up the right side (B) of the Bluetooth dock to remove it.
Poor
sound
quality
• Move your phone closer to the system or to a different location.
• Move your phone away from any household device that generates
electromagnetic radiation, such as a microwave oven, another
Bluetooth® device, or a wireless computer network router.
• Reduce the number of applications running on your phone.
• Increase the volume on your phone.
Problem What to do

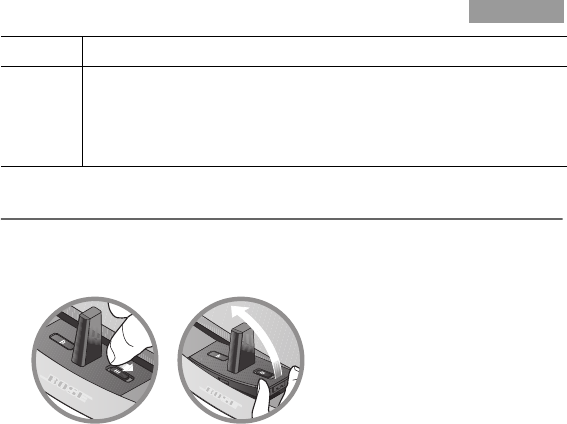

AB
BMX_BT_DockOG.fm Page 10 Friday, June 5, 2009 10:19 AM
11
English
Contacting customer service
For questions about the SoundDock® 10 Bluetooth® dock, contact your
local Bose dealer. To contact Bose directly, see the address list included
with your SoundDock 10 system or visit http://owners.Bose.com on the
Internet.
Limited warranty
Your SoundDock 10 Bluetooth dock is covered by a limited transferable
warranty. Details of the limited warranty are provided on the product
registration card that is included in the carton. Please refer to the card for
instructions on how to register. Failure to register will not affect your
limited warranty rights.
BMX_BT_DockOG.fm Page 11 Friday, June 5, 2009 10:19 AM
12
English
What you must do to obtain limited warranty service
Return product, with proof of purchase from an authorized Bose dealer,
using the following procedures:
1. Visit http://global.Bose.com or contact your local authorized Bose
dealer to identify the location of the nearest authorized Bose® service
facility.
2. Contact the authorized service facility for specific return and shipping
instructions.
3. Label and ship the product, freight prepaid, to the address provided by
the authorized service facility.
4. Place any necessary return authorization number prominently on the
outside of the carton.
Cartons not bearing a return authorization number, where required, will
be refused.
BMX_BT_DockOG.fm Page 12 Friday, June 5, 2009 10:19 AM
13
English
SoundDock and the distinctive design of the SoundDock 10 system are registered trade-
marks of Bose Corporation in the U.S. and other countries. All other marks are registered
trademarks and trademarks of Bose Corporation.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc., and any use of such marks by Bose Corporation is under license. Other trademarks
and trade names are those of their respective owners.
QD ID: B015404
BMX_BT_DockOG.fm Page 13 Friday, June 5, 2009 10:19 AM
